Automatic Transcription Systems: A Game Changer for Court

Hearings

Alan Lyra

, Carlos Eduardo Barbosa

1,2

, Herbert Salazar

, Matheus Argôlo

, Yuri Lima

Rebeca Motta

and Jano Moreira de Souza

Universidade Federal do Rio de Janeiro (UFRJ), Rio de Janeiro, Brazil

Centro de Análises de Sistemas Navais (CASNAV), Marinha do Brasil, Rio de Janeiro, Brazil

Keywords: Automated Transcription, Court Hearings, Computing, Legal Documentation, Decision-Making Support.

Abstract: Lawsuits typically require a long time for resolution, and many court hearings may occur during the trial

process. Legally, both parties must transcribe them and be open to the public if desired by the court. In court

proceedings, a transcript is a record of all judges’ decisions, the spoken arguments by the lawyers, and the

depositions of the defense and witnesses. The scenario in Brazil is that for a long time, this process was

manual, with a person responsible for the typing transcription. Today, with the electronic process, the court

does not provide typed transcriptions anymore, but instead, the audio or video recordings of the hearings. In

our work, we developed an automatic transcription solution for court hearings to obtain the best possible

transcription considering current technologies’ limitations, recording quality, participants’ diction, and

commonly used jargon in the legal sphere. With this work, we expect to ease this burdensome task with

technical support and have a direct contribution to the legal environment.

1 INTRODUCTION

In the legal sphere, several testimonies and hearings

resolve lawsuits. Historically, specialized individuals

manually transcribed, making the process expensive

and time-consuming. Technology can have many

applications in court proceedings and facilitate a

comprehensive end-to-end process, whether

generating audiovisual media records or even

processing information – transcribing (Nadaraj &

Odayappan, 2020).

Organizing and managing these digital records

can potentially contribute to court proceedings since

this type of media can deliver better results, with the

possibility of capturing subtle insights that cannot be

written on paper, such people reactions.

We believe that transcribing hearing content

allows easier assimilation of all procedural content by

those who come to work with the proceeding. This

approach does not exclude audiovisual recording but

can highlight significant sections in procedural

documents, including citations that can be easily

referenced and classified (Gomes & Furtado, 2017).

Courts have applied new technologies and

services to manage information and records of vast

legal content. Services such as e-Litigation

(“Integrated Electronic Litigation System,” 2020) and

e-Discovery (“Electronic Discovery,” 2020) are

examples that contribute to this approach. With the

COVID-19 pandemic, the digital court is being

experimented with and evolving daily to a more

digital style (Nadaraj & Odayappan, 2020).

This work aims to organize the data generated

from court hearings through a knowledge

management process and transcribe the media using

an automatic transcription system. We also try to

refine this automated process to reach the highest

level of accuracy through collaboration mechanisms.

This transcript, associated with the trial process

and the corresponding media, will help significantly

unfold a court lawsuit. In the current scenario – in

Brazil’s legal sphere – reports are generated after

court hearings for decision-making and motions.

However, reports and minutes – the common

strategies to keep the memory of a court hearing – are

formal and often limited, mostly when the institution

handles extensive multi-stakeholder legal processes.

According to Chiu et al. (2001), the minutes of a

trial process are summaries of it, constituting a part of

the procedural memory. Soon after a hearing, looking

at the minutes to review and act based on that

Lyra, A., Barbosa, C., Salazar, H., Argôlo, M., Lima, Y., Motta, R. and Moreira de Souza, J.

Automatic Transcription Systems: A Game Changer for Court Hearings.

DOI: 10.5220/0012891400003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 3: KMIS, pages 163-174

ISBN: 978-989-758-716-0; ISSN: 2184-3228

163

information is often helpful. Even during a hearing, it

may be useful to refer to something from an earlier

point, for example, by asking a question about a

previous event in the legal process. For this reason,

we argue that proposing a system that presents

information from the legal process with mechanisms

that add value to the decision-making can contribute

to advancements in the legal system.

One of the challenges faced in the solution is

adapting the existing Portuguese language

technologies in a world where English has more

significant scientific potential and technology

options. The second challenge is regarding

transcription correctness. Regardless of the

efficiency, errors will appear due to the recording

quality, participants’ diction, and even jargon

commonly used in the legal field. Another crucial

challenge for developing the transcription system is

voice identification through participants’ voice

biometry, which enables the automatic creation of a

dialog in text format from the hearing inputs.

2 LITERATURE

This section overviews the Brazilian legal process and

how the resulting media are processed. We also discuss

the essential elements of knowledge management.

2.1 Legal Process in Brazil

Understanding how the trial process and hearings

work, with motions, judges, and different courts, is

not simple for those not from the legal field. The step

by step of the legal process can vary according to the

matter involved (civil law, criminal law, tax, etc.).

Generally, a legal process consists of a request from

the author to resolve a conflict. From this, the judge

will determine the presentation of reasons and the

production of evidence and will decide to recognize

the right of one of the parties.

In the Brazilian legal process, the court commu-

nicates all steps to the parties through publications in

the Diário Oficial (the official journal of the Brazilian

Government). Nowadays, lawyers and stakeholders

can monitor these proceedings online, facilitating

quicker and more efficient processing. Additionally,

legal software like ProJuris (2024), available on the

market, can optimize the court’s progress.

The court hearing is a unique and significant event

that defines the fate of a lawsuit. It is a complex, agile,

and dynamic event and usually results in the lawyer’s

only chance to demonstrate the Constitution (Brasil,

1988), the impediment, modification, or extinction of a

right.

Figures 1, 2, and 3 present a simplified business

process model (BPM) (OMG, 2011) of the Brazilian

Legal Process, showing the generic steps from

beginning to end.

Court hearings are the primary audio/video media

producer during the legal process steps. The proposed

system aims to use that media to automatically

transcribe its contents to support the law worker,

enabling them to perform faster and more efficient

work. Analyzing the BPM, we highlight that court

hearings often occur more than once in a lawsuit.

According to Rio de Janeiro’s General Public

Defender, Dr. André Luis Machado de Castro, and the

General Public Subdefender, Dr. Denis de Oliveira

Praça (personal communication, Ago 07, 2018),

analyzing the transcription of court hearings offers a

straightforward and fast way to make their decisions,

presenting a significant improvement in the working

dynamics in the legal environment.

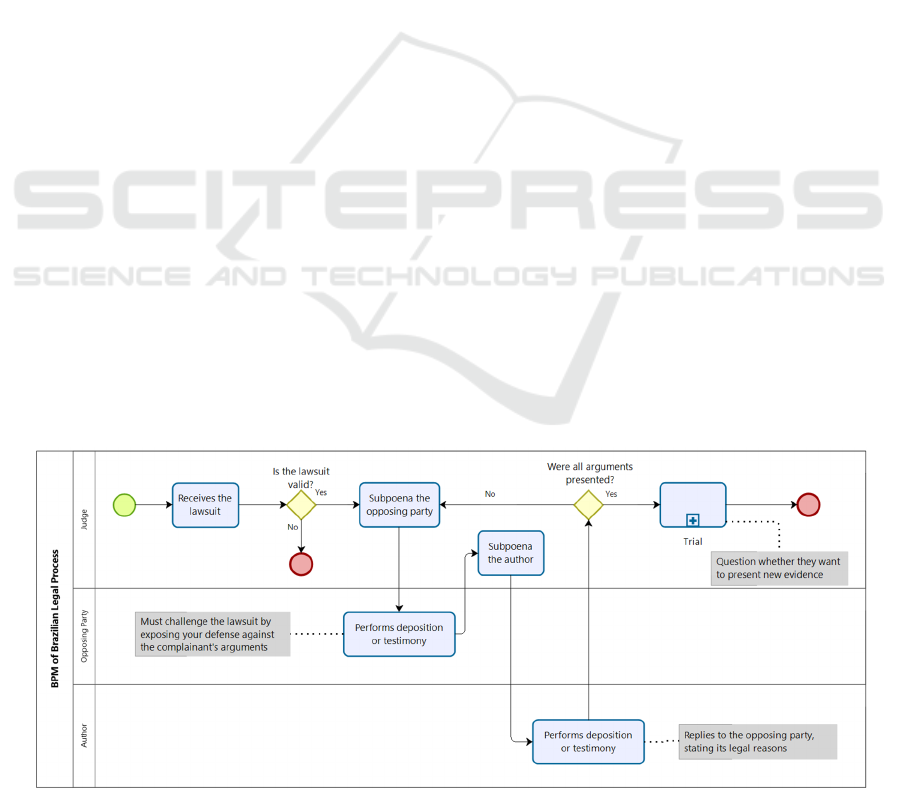

Figure 1: BPM of Brazilian Legal Process.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

164

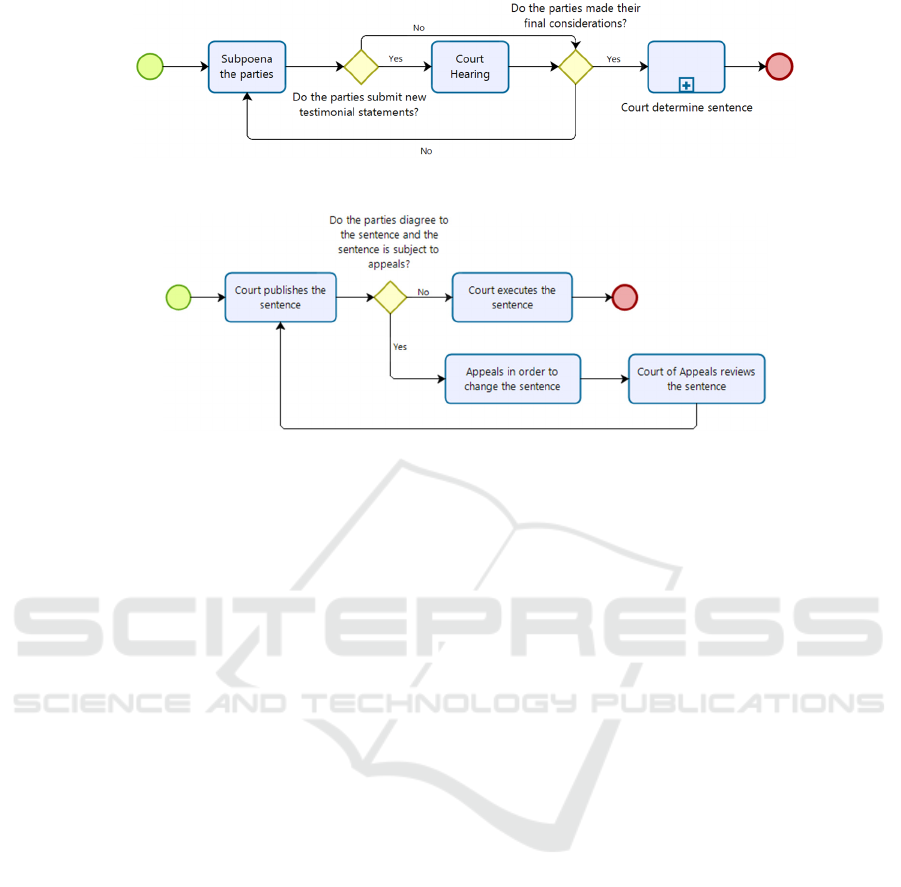

Figure 2: BPM of Brazilian Generic Subpoena Subprocess.

Figure 3: BPM of Brazilian Generic Verdict Subprocess.

Courts typically store media files from hearings

in a digital lawsuit process. However, many legacy

lawsuits still run on paper, with court hearing data

stored in CD/DVD media. The most common type of

lawsuit in Brazil that records court hearings is

criminal. Civil cases rarely have their court hearings

recorded.

2.2 Knowledge Management

Knowledge Management (KM) is a broad research

topic, and as a discipline, it has several definitions,

perceptions, and approaches. We understand KM as

retrieving and organizing an organization’s data and

information to make it accessible to support decision-

making and achieve strategic objectives through the

discovered knowledge. The interest in and use of KM

are increasingly expanding as more and more data are

being produced. The KM is an area that permeates the

companies’ administration, information systems,

management, and data science, with many research

and practical and actual case initiatives for KM

solutions (Patel, 2012).

Knowledge is a justified belief that enhances an

entity’s ability for effective action (Huber, 1991;

Nonaka, 1994). Alavi and Leidner (2001) propose six

different perspectives for observing knowledge: 1)

Data and Information, 2) A state of mind, 3) An

object, 4) A process, 5) A condition to have access to

information, and 6) A capacity.

The first perspective of Data and Information

shows only facts, raw numbers, processed

information, and interpreted data. The second

perspective of knowledge as a state of mind focuses

on enabling individuals to expand their knowledge

and apply it to the organization’s needs. The third

view defines knowledge as an object and postulates

that knowledge can be seen as something to be stored

and manipulated. Alternatively, knowledge can be

seen as a simultaneous process of knowing and acting

(Carlsson et al., 1996; McQueen, 1998; Zack, 1998),

focusing on applying knowledge (Zack, 1998). The

fifth view of knowledge is a condition of access to

information (McQueen, 1998). According to this

view, organizations must organize knowledge to

facilitate access and retrieval of content, extending

the knowledge base. Finally, in the latter perspective,

knowledge can be viewed as a capacity that can

influence future actions (Carlsson et al., 1996).

Along with understanding how we can observe

knowledge, it is also paramount to have alternatives

for managing it. Regardless of the definition, KM

presents some core activities and central factors that

structure any KM model (Stollenwerk, 2001). The

generic KM process has the following activities

(Alegbeleye, 2010; Dhamdhere, 2015; Mutula &

Mooko, 2008):

 Identification: this activity focuses on

strategic issues, such as identifying which

competencies are relevant to the organizational

context.

 Capture: in this activity, the objective is to

acquire knowledge, skills, and experiences

necessary to create and maintain the core

competencies and areas of knowledge selected

and mapped.

Automatic Transcription Systems: A Game Changer for Court Hearings

165

 Selection and Validation: this activity aims to

filter knowledge, evaluate its quality, and

synthesize it for future application.

 Organization and Storage: the goal is to

ensure fast, easy, and correct knowledge

recovery through effective storage systems.

 Sharing: this activity aims to ensure

information and knowledge access to a more

significant number of people that otherwise

would remain restricted to a small group of

individuals. Also, knowledge distribution

refers to implementing a mechanism capable of

automatically disseminating knowledge to

various stakeholders to share new knowledge

with those who need it quickly.

 Application: here, the objective is to put into

practice the knowledge disseminated by the

previous process, recording lessons learned

from the use of knowledge, the benefits, and

the challenges to be overcome.

 Creation: creating new knowledge involves

learning, externalization, lessons learned,

creative thinking, research, experimentation,

discovery, and innovation. Many

organizational activities can contribute to the

creation of new knowledge. According to

Nonaka (1994), knowledge creation is related

to continuously transforming and adapting

different types of expertise, such as practice

and interactions.

Based on the objectives of this research area, the

understanding and use of KM can support knowledge

treatment in several places. In this work, we used

these principles to guide this research related to the

hearings of legal processes.

2.3 Related Work

Similar work was proposed by Huet (2006) when he

created the Transcript Coding Scheme (TCS), which

was a tool used to encode transcripts of corporate

meetings – meetings – through the analysis of audio

recordings, which remains the same.

Huet (2006) states that the data collected and

explained in the transcription scheme offer the reader

a vast amount of information, some of which may be

considered critical and not captured using traditional

reading techniques. However, processing and

interpreting these highly detailed records require

significant time and effort. Experiments have shown

that accurately transcribing and encoding 30 minutes

of recording takes approximately 10 hours.

The scheme proposed by Huet, to be better

understood, can be divided into two parts:

 Transcriber: This step explicitly shows the

transcription basics, stating the user

identification, the speech transcription, and the

timestamp when the speech occurred.

 Coding Scheme: This step provides

information that aims to complement the

transcript to offer more details to facilitate the

decision-making process: type of speech; the

purpose of speech; type of information

provided; the argument; type of argument;

participant’s knowledge area; description; and

origin of speech.

Another work concerning transcriptions is by

Williams et al. (2011), which proposes

crowdsourcing techniques in complex transcriptions

that allow explicit exchanges between precision,

recall, and cost. These techniques include automatic

transcription, incremental collaboration redundancy,

and a regression model to predict the transcription’s

reliability. The main idea is to use the crowd to assist

in the final result of a transcription performed by an

automatic transcription system (Parent & Eskenazi,

2010) based on requests for Amazon’s MTurk

(Crowston, 2012). The techniques of redundancy and

regression are defined by refining the process to

validate a collaboration through the redundancy of

correct answers through algorithms.

3 THE PROPOSED KM PROCESS

The developed KM model manages the information

associated with the court hearing and produces a

faster and better understanding for law workers.

Analyzing the KM activities related to lawsuit trials,

we understand that knowledge creation occurs during

court hearings (opening statements, witness

examination, closing arguments, and jury verdicts).

We propose a Knowledge Management Model for

Court Hearings, inspired by the study of Motta et al.

(2022), which is focused on identifying, acquiring,

and storing knowledge, as presented in Figure 4.

We detail each step in the proposed process:

 Hearing Preparation: The court hearing

occurs when there is a need to collect

information about the lawsuit from the parties

or witnesses. The judge decides when and who

will attend the court hearing.

 Hearing Conduction: This is a hearing

instance. In a lawsuit, several hearings are

made and recorded. This work relies on hearing

the recording.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

166

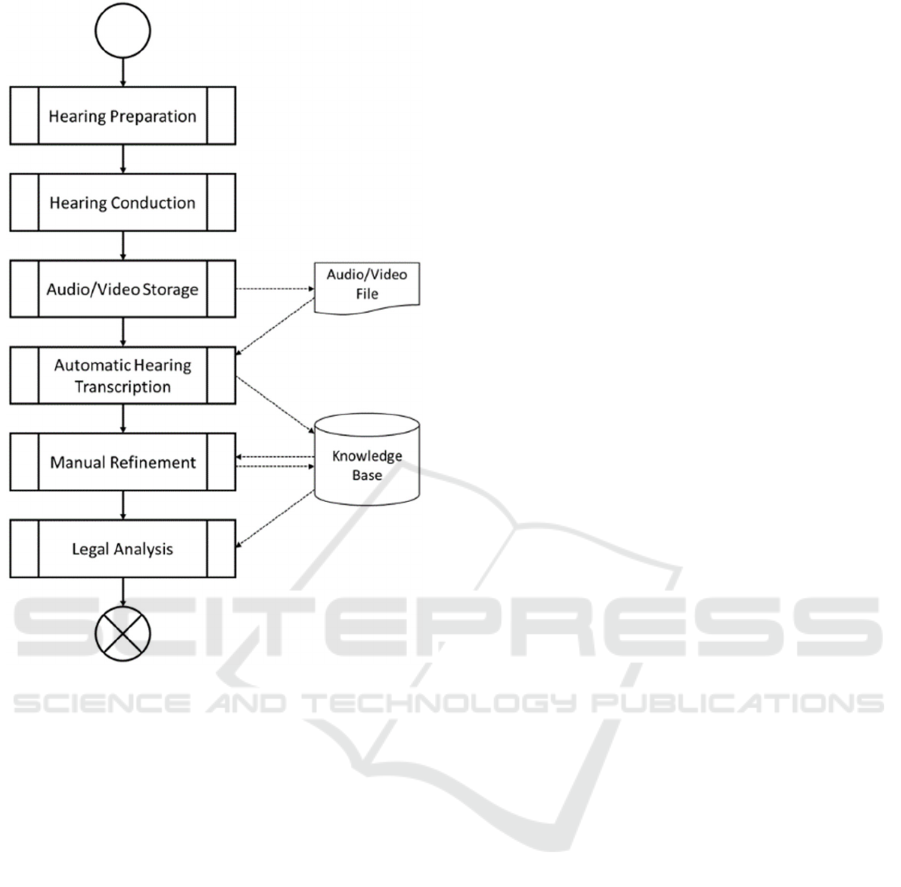

Figure 4: Knowledge Management Process for Court

Hearings. Adapted from Motta et al. (2022).

 Audio/Video Storage: the default way to

capture the hearing is to record audio or video

media. Such an approach is simple to

implement and frees the members of the

accuracy of the stored hearing data –

audio/video media is precise to solve any doubt

about a hearing.

 Automatic Hearing Transcription: In this

step, the system provides an automatized

transcription of the hearing and determines the

speaker of each sentence from the hearing

audio/video. All knowledge will be stored in a

shared database, allowing legal memory

(processes, hearings, transcripts, and the source

of the significant decisions).

 Manual Refinement: after the transcript

generation, the result becomes available to be

evaluated and fixed by any member of the

judicial apparatus or the population in general

through collaborative tools. This step fixes

errors due to poor audio quality, poor diction,

or legal jargon.

 Legal Analysis: based on the transcription,

independent of the manual refinement, the law

worker (judge, prosecutor, or lawyer, for

example) may proceed in the hearing analysis

using the text instead of the audio/video. Using

specific keywords, they can find particular

moments from the hearing without watching

the whole media, in many cases, more than

once. Such ability enables faster analysis of the

court hearings. Besides, since the transcription

is temporally associated with the media, it may

be seen as a proxy to the media, allowing

searching a video for the keyword spoken, for

example. Although the transcription may have

errors, the source (audio/video) is accurate.

4 THE PROPOSED

TRANSCRIPTION SYSTEM

The developed system aims to contribute to the

knowledge management of hearings by their

automatic transcription. This solution enables a party

to visualize the legal process and its transcription,

locate other related audiences, and conduct a textual

search of the available hearings. The system seeks to

facilitate the work of the legal professional who will

analyze the process, providing features like:

 Display of the media corresponding to the

audience or hearing;

 Automatic transcription of this media along

with the participant identification;

 Caption inserted in the media for direct

accompaniment in the video;

 Search for words associated with the legal

process; and

 Edit the transcript manually.

The system automatically generates the

transcription scheme at the end of a hearing,

providing the transcription and identifying the

participants. The system also associates the data with

the legal process, participant role (i.e., defense), and

trial results to enrich the hearing. The hearing process

is recorded in a media file (audio or video) during its

execution and saved in a database. The system

automatically generates and indexes a transcript for

each individually submitted hearing.

In investigating which transcription method to

use, we considered the following factors: accuracy,

cost, and support for the Portuguese language. We

initially evaluated two open-source transcription

software – Kaldi (Povey et al., 2011) and

Automatic Transcription Systems: A Game Changer for Court Hearings

167

Pocketsphinx (Huggins-Daines et al., 2006) – but

they only support English. Next, we assessed the

Google Cloud Speech-to-Text API (Google, 2020a),

which supports many languages – including

Portuguese. The Google API presented a lower error

rate in our tests, and we selected it for our solution.

We use Java (Arnold et al., 2005) and FFmpeg

(Tomar, 2006) technologies to complement the

Google API to implement the full solution.

4.1 Diarization

We implemented the speaker identification

algorithm. Firstly, we developed a speaker diarization

system based on a convolutional neural network

capable of identifying speech in a speaker’s frontal

video without using the associated audio wave for use

cases in which the latter is either low quality, noisy,

or outright missing. For this purpose, we extracted

facial landmarks from each video frame using a facial

identifier present in the Dlib (King, 2009) library

based on the Histogram of Oriented Gradients

(HOG). We fed them into the neural network using

Tensorflow (Abadi et al., 2016), as presented in

Figure 5.

With the onset of the COVID-19 pandemic and

societal restrictions such as the mandatory use of face

masks, the technique developed to detect facial

landmarks became unfeasible, rendering diarization

impractical. Considering this, we shifted our

approach by creating an audio-based diarization

model.

Speaker diarization involves identifying different

speakers in multimedia content to temporally separate

them, defining who spoke when, and producing a

script. Traditionally, audio analysis has tackled this

problem by extracting features as I-vectors (Dehak et

al., 2011) and subsequently clustering them.

Typically, these audio processing algorithms rely on

prior knowledge of the number of speakers involved

in the audio.

Google researchers proposed the utilization of a

Long Short-Term Memory (LSTM) for creating

feature vectors, termed D-vectors (Wang et al., 2017).

They applied a clustering technique called Spectral

Clustering, which involves constructing an affinity

matrix among the examples and applying specific

refinement operations to consider the temporal

locality of the data, aiming to smooth, normalize, and

remove noise from the data. It enabled a dynamic

identification of the number of speakers in the audio.

We trained the model using video datasets from

public hearings. We extracted and converted the

audio signals into 25-millisecond frames with a 10-

millisecond step. During the testing phase, we used

the Voice Activity Detection (VAD) algorithm to

identify spoken segments in the audio. Extracting

audio signals is the first step in preparing them for the

I-vector learning algorithm due to the complexity of

raw signals. Initially, filter banks of the signals are

computed to isolate different frequency components.

We chose to extract Log Mel Frequency Energy filter

banks, which involve performing a Fourier

Transform, mapping the spectrum to the Mel scale,

and other post-processing steps, as shown in Figure 6.

We implemented two models for feature

extraction: Gaussian Mixture Model (GMM) and

LSTM. Traditional models for I-vector extraction

typically use dimensionality reduction of the GMM

super-vector.

The final step of our implemented model involves

clustering the feature vectors (I-vectors or D-vectors)

extracted in the previous step. The chosen clustering

models were: Spectral Clustering (Wang et al., 2017),

Density-based Spatial Clustering of Applications

with Noise (DBSCAN) (Ester et al., 1996),

Agglomerative Clustering (Hastie et al., 2009), and

Self Organizing Maps (SOM) (Kohonen, 1990)

followed by K-Means (MacQueen, 1967). We used

different libraries for each clustering model. Figure 7

illustrates the performed activities. We fine-tuned

each clustering algorithm.

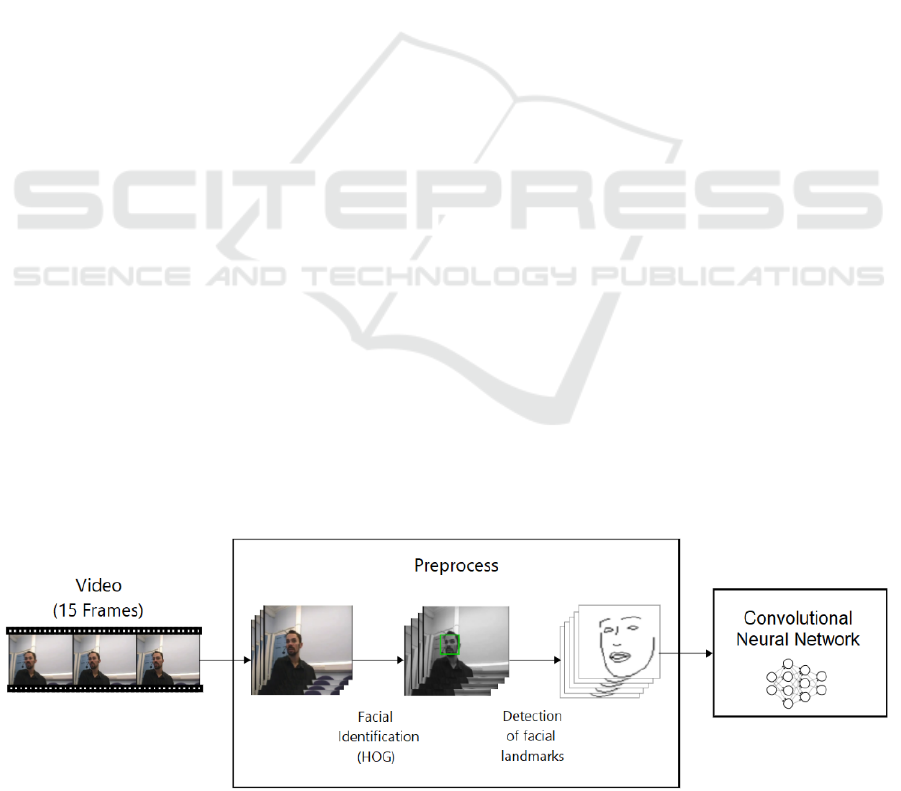

Figure 5: The sequence of data loading and model training.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

168

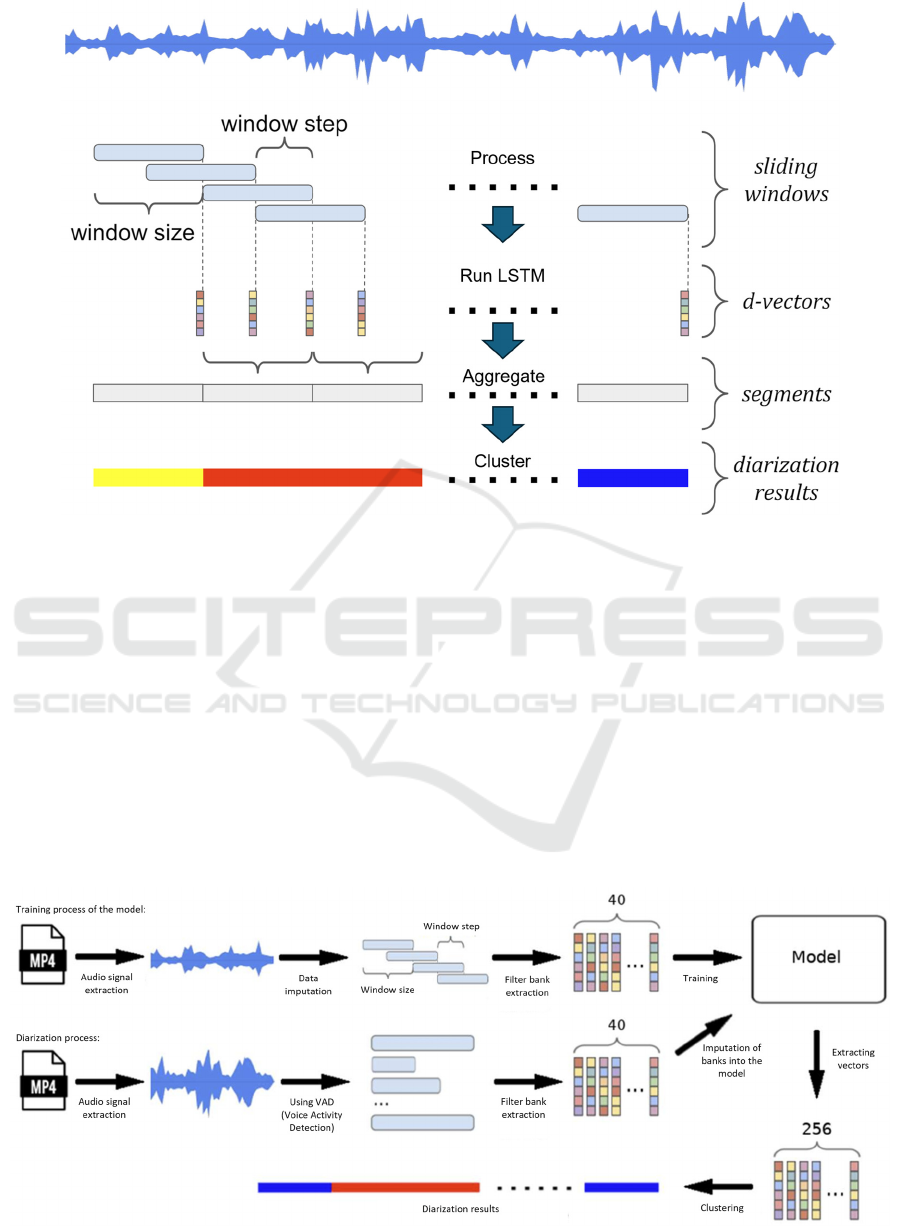

Figure 6: Flowchart of d-vector based diarization system, adapted from Wang et al. (2017).

The fine-tune process included:

 Spectral clustering: The percentile p for the

Row-wise Thresholding and the sigma value

for the Gaussian Blur refinement operation.

 DBSCAN: The epsilon represents the

maximum distance between two samples for

one to be considered in the other’s

neighborhood and the minimum number of

samples in a sample to be considered a core

point.

 Agglomerative Clustering: The criteria for

cluster union and the metric used to compute

this union.



SOM + K-Means: Parameters such as

algorithm initialization, training type,

neighborhood type, and grid map format.

4.2 The Transcriptor Architecture

The architecture of the transcription system is shown

in Figure 8, presenting the technologies used,

interacting with the Database Management System

(DBMS), and the system interface. The proposed

transcription system continuously monitors the

transcription, besides being responsible for collecting

the metadata generated.

Figure 7: Flowchart of all steps of diarization system development.

Automatic Transcription Systems: A Game Changer for Court Hearings

169

The transcription begins when a user uploads new

hearing audio/video to the system. The Transcriptor

System detects the new file, extracts the audio, and

uploads it to Google Cloud Storage. It then uses the

Google Speech-to-Text API to transcribe the file and

process the transcription results, storing them in the

Transcriptor Data database.

Next, the Transcriptor System applies the Speaker

Diarization Algorithm to identify the speaker for each

transcribed word, storing the resulting metadata in the

Transcriptor Data database. This database indexes the

text and includes metadata such as the hearing

identifier, the timestamp of each word, and the

confidence level of the transcription.

The Transcriptor Interface provides user-friendly

access to the transcriptions. Users can view the media

(audio or video) with the transcription as subtitles,

read the full transcription of the hearing, and perform

searches within the text.

We highlight that Google’s cloud for transcription

through Google Speech API requires uploading audio

files that are longer than one minute, which differs

from the other two transcription methods, which are

processed locally.

5 THE TRANSCRIPTOR IN USE

Developed as a legal system module in Brazil, the

system stores digital lawsuit processes, stakeholders,

and resolutions. Users can upload hearings in video

format to obtain transcriptions. Users manually insert

the description, date, participants, and media files on

the upload screen. If users upload multiple media files

for the same hearing, they can combine them into a

single video. Users can submit videos from their

computer or the Brazilian Judicial Court system.

After the file is uploaded, the transcription

processes start automatically, running in the

background, and take a few minutes. Depending on

the video’s size, the user can monitor the transcription

status (in progress, error, or complete). The user can

view the transcription after the processing step

completion, as seen in Figure 9 (left).

The Visualize Hearing screen has the transcript of

the selected hearing and the corresponding media

side-by-side. The system presents the transcription as

a caption attached to the video. The user can click on

the word and be directed to the exact moment of the

video when it was said. Also, by selecting editing

mode, the alternative words defined in the transcript

are displayed next to the option to correct the word

when clicking on a word. The user can improve the

transcription by selecting a present alternative or

editing it as flowing text. The system also interpolates

the metadata associated with each new word to

compose a new transcription.

The user can improve speaker identification and

add bookmarks to the transcript. Both features are

accessible by selecting a word or sentence and the

corresponding checkbox, as shown in Figure 9 (right).

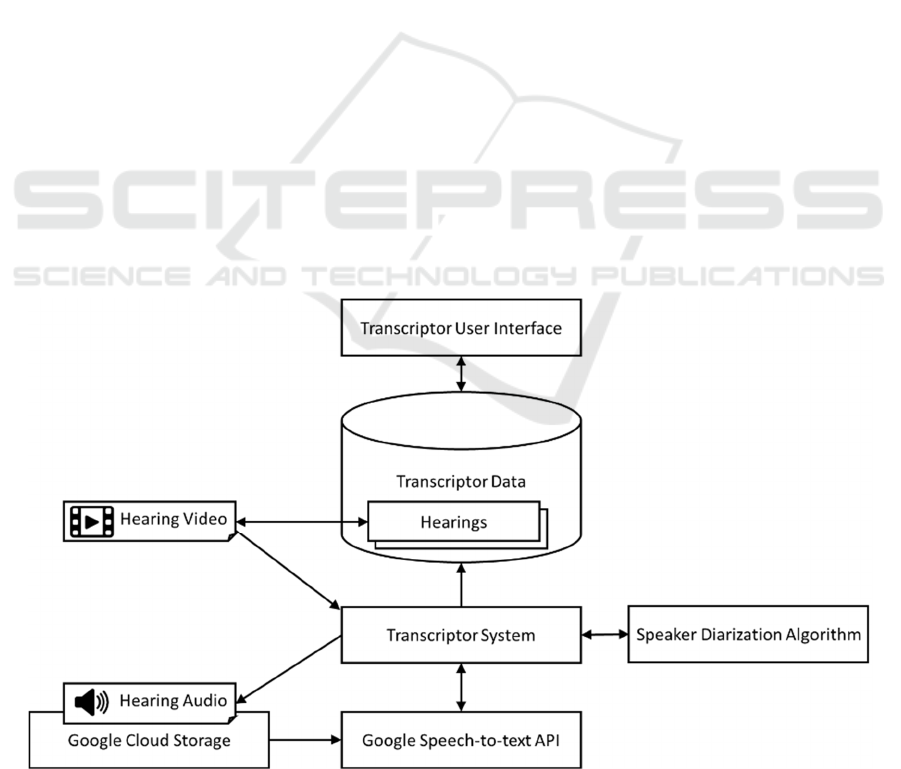

Figure 8: Transcription system of court hearings architecture.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

170

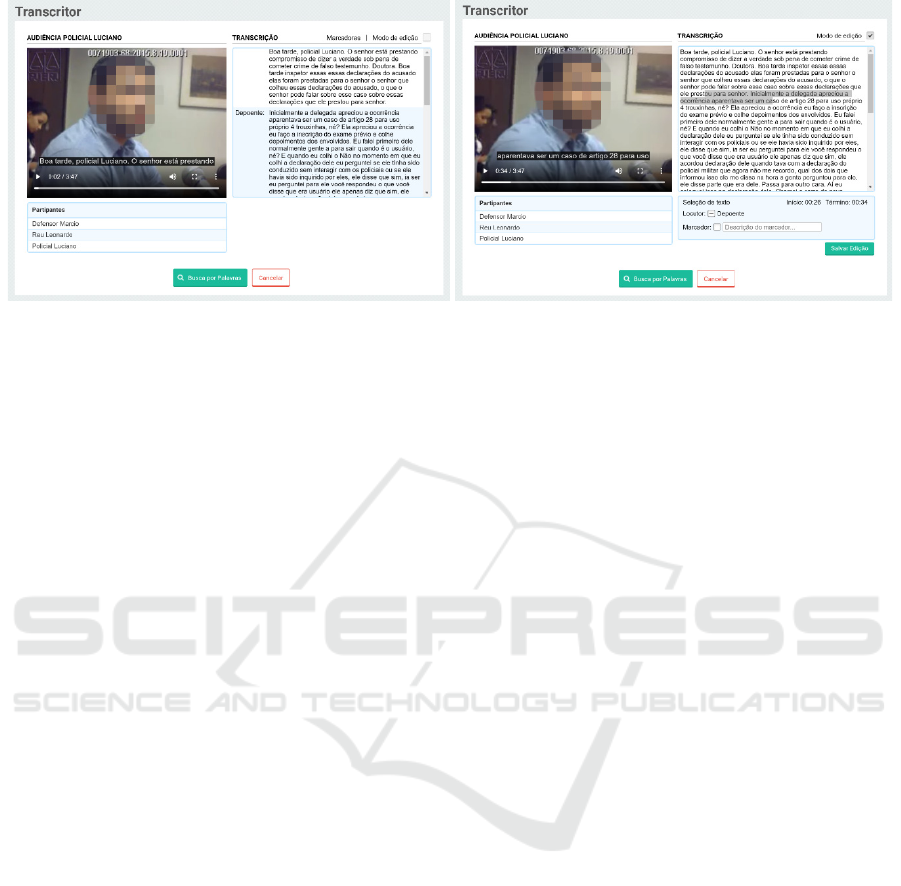

Figure 9: The visualization (left) and the editing mode (right) of a public Hearing transcribed.

Another feature available in the system is the

word search. With it, the user can perform a textual

search for any word present in the hearings

transcribed by the system. The search can be general

or filtered by a trial process.

The result lists the hearings in order, including the

context in which they appear—predecessor and

successor words—and the minute when the word was

said in the media. The user can click on the “View full

transcript” link to return to the main screen, and the

system will present the complete transcript of the

audience in question from the beginning. The user can

also click the “View transcript at the specified time of

the word” link to return to the main screen. The

system will present the media and the complete

transcript of the audience, starting a few seconds

before the word searched is spoken. If the user

searches for an alternative word, the result will

display the description of an alternative word and the

word transcribed by the transcription system. This

functionality can facilitate the search and

understanding of a hearing, for example, enabling a

user to return quickly in the specific minute a

sentence was given.

6 EXPERIMENTS AND RESULTS

Although the evaluation included three transcription

methods, the implementation used the Google Cloud

Speech-to-Text API (Google, 2020a) to provide a

lower error rate and meet the Portuguese language

without needing modifications. Moreover, the speech

recognition technology provided by Google is

continuously improving. The word recognition error

rate in the company’s last disclosure was 4.9%

(Pichai, 2017).

Word recognition supported by Google machine

learning achieved 95% accuracy in May 2017 for

English. This rate also limits human accuracy

(Meeker, 2017).

In tests performed using Google’s API, the

average confidence rate observed was ~ 0.92 for

audios extracted from real audiences with good

recording quality. The API itself provides this

confidence rate for each transcription excerpt

performed and assigned to each word corresponding

to the excerpt.

The API provides more than one transcription

alternative for certain words. Thus, corrections can be

made based on the user’s feedback through the

system interface, using the alternatives provided or

manual insertions. A list of other options must be

stored in the DBMS with the corresponding section’s

indexation to return in a search for words or when

requested in the system interface. Thus, the analysis

of all knowledge obtained in the hearings can return

the desired term, even if the transcription mechanism

has not effectively transcribed that term. The beta

version of the API also offers automatic scoring

features (Google, 2020b) to improve the transcription

result.

In the data transcription, the first issue was the

language: Portuguese. Most algorithms are fine-tuned

for English usage, and Portuguese models have

demonstrated lower precision. We solved that issue

by changing our transcription method to the Google

Cloud Speech-to-Text API. Even so, Google’s API

presents issues: besides being a paid product, it

demands uploading files in more than one minute to

Google Cloud Storage – which brings the discussion

about data security and privacy. We experimented

with dividing the files into one-minute chunks to keep

files locally. However, the splitting algorithm cut the

audio abruptly, often cutting words, which impacted

Automatic Transcription Systems: A Game Changer for Court Hearings

171

the transcription quality. Developing a smarter audio

splitter was out of the question due to its complexity.

In speaker identification, before we develop our

diarization model, we test the beta functionality of

diarization of Google’s Speak-to-Text API (Google,

2020a), which labels different voices identified in the

audios by IDs. Voice training or prior registration is

unnecessary since it does not recognize the person but

changes the speaker or returns to the same. However,

this functionality of Google’s API needs to estimate

how many people speak in a hearing to process the

audio correctly. Using the incorrect value leads to

errors in speaker identification. We do not have such

data to provide to the algorithm.

We research other frameworks for speaker

identification, such as MARF (Mokhov, 2008) and

Microsoft Azure’s Speaker Identification API

(Microsoft Azure, 2020), which are based on neural

networks to identify voice patterns. For this reason,

these frameworks require a pre-trained set of possible

speakers, and such algorithms associate the identified

voice with the closest registered one. These

algorithms cannot handle unknown voices; thus,

every speaker must register in the system, and their

voice must be trained previously.

In diarization, we focused our analysis on the

vectors created by the extraction techniques and the

performance of the implemented approaches using

the diarization metric.

Initially, a dimensionality reduction was

performed on the vectors generated by both chosen

approaches to only two principal components,

enabling their visualization in two dimensions to

show the distance between each vector visually.

Figure 10 (left) shows a close cluster in the D-vectors

generated, making efficient clustering unfeasible.

Conversely, the I-vectors – Figure 10 (right) – are

more evenly distributed and farther apart. We

highlight that the graphs shown in Figure 10 have

different scales.

The Diarization Error Rate (DER) represents the

fraction of total diarization time incorrectly

attributed, whether due to False Alarms, Misses,

Speaker Overlaps, or Confusion (Ryant et al., 2019).

DER=False Alarm + Miss + Overlap + Confusio

Time

(1)

Table 1 illustrates the performance of each

implemented approach on the provided dataset. We

also compare it with the previously obtained result

using only speaker video images.

Table 1: Performance of each approach on the dataset.

Model GMM LSTM

Speaker video 32.5% 32.5%

Spectral Clustering 21.79% 80.90%

DBSCAN 57.24% 72.51%

Agglomerative 28.49% 84.47%

SOM + K-Means 65.39% 67.85%

As observed in Table 1, significant results were

not obtained with the LSTM, suggesting that the

model may not be learning the D-vectors correctly.

As a neural network, LSTM is a complex model and

more challenging to train, which may explain the

difficulty in achieving significant results. On the

other hand, the GMM generated I-vectors with

substantial differences from each other, enabling

efficient clustering and achieving a DER of 21.79%

using Spectral Clustering. This result represents a

32.95% improvement over the previously designed

model using only video images.

Figure 10: Dimensionality reduction of the D-vectors (LSTM) (left) and I-vectors (GMM) (right).

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

172

7 CONCLUSIONS

Legal proceedings involve conducting several

testimonies and hearings. When performed, the

transcriptions of these media are part of an expensive

and slow process done manually by specialized

people. Thus, few processes have their media records

transcribed. In this work, an automatic transcription

system was proposed, capable of organizing the

media content generated in legal depositions/hearings

based on a knowledge management model. The

system allows collaboration to refine the automated

process to achieve higher accuracy.

The system underwent an evaluation by legal

members and proved to be quite helpful for its

proposed use. It is currently in use in the Defense

Office of Rio de Janeiro, with almost one hundred

hours of court hearings transcribed. It can

significantly contribute to the progress of legal

processes and their decision-making. From a

technical point of view, the transcripts had an average

hit rate of 92% for audio extracted from real

audiences with good sound quality. An automatic

transcription system significantly contributes to the

legal scope, streamlines the decision-making process,

and maintains a legal memory that can be analyzed

more quickly and efficiently later.

The limitations of this work are due to the existing

technology for automatic transcriptions, which, for

Portuguese, is still limited, in addition to features in

Beta versions, such as automatic punctuation and

announcer diarization. The latter contributes

significantly to distinguishing interleaved speeches

but still does not solve the problem of complete

identification of the user, which implies voice

training previously registered in the system to work

for any user present in the hearings. This question is

not viable for the type and quantity of users who

participate in Brazilian legal processes. The quality of

the generated media files also significantly impacts

the result of the transcription.

In conclusion, the advancement of technology,

such as better recording media quality and the Google

API improvements for Portuguese, will enable a

higher success rate in the future and the

implementation of features still in beta. We highlight

that this system must stay consistent and integrated

into the legal system to effectively use and provide

the desired legal memory easily accessible to law

workers.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., Ghemawat, S., Goodfellow, I., Harp, A., Irving, G.,

Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kudlur,

M., … Zheng, X. (2016). TensorFlow: Large-Scale

Machine Learning on Heterogeneous Distributed

Systems. arXiv:1603.04467 [Cs]. http://arxiv.org/abs/

1603.04467

Alavi, M., & Leidner, D. E. (2001). Review: Knowledge

Management and Knowledge Management Systems:

Conceptual Foundations and Research Issues. MIS

Quarterly, 25(1), 107–136. https://doi.org/10.2307/

3250961

Alegbeleye, B. (2010). Old wine in new bottle: A critical

analysis of the relationship between knowledge and

library and information science. Nigeria Library

Association National Conference and AGM, 18–23.

Arnold, K., Gosling, J., & Holmes, D. (2005). The Java

programming language. Addison Wesley Professional.

Brasil, S. F. do. (1988). Constituição da República

Federativa do Brasil. Senado Federal, Centro Gráfico.

Carlsson, S., Sawy, O. E., Eriksson, I., & Raven, A. (1996).

Gaining Competitive Advantage Through Shared

Knowledge Creation: In Search of a New Design

Theory for Strategic Information Systems. 1067–1076.

Chiu, P., Boreczky, J., Girgensohn, A., & Kimber, D.

(2001). LiteMinutes: An Internet-based system for

multimedia meeting minutes. 140–149. https://doi.org/

10.1145/371920.371971

Crowston, K. (2012). Amazon Mechanical Turk: A

Research Tool for Organizations and Information

Systems Scholars. In A. Bhattacherjee & B. Fitzgerald

(Eds.), Shaping the Future of ICT Research. Methods

and Approaches (Vol. 389, pp. 210–221). Springer

Berlin Heidelberg. https://doi.org/10.1007/978-3-642-

35142-6_14

Dehak, N., Kenny, P. J., Dehak, R., Dumouchel, P., &

Ouellet, P. (2011). Front-End Factor Analysis for

Speaker Verification. IEEE Transactions on Audio,

Speech, and Language Processing, 19(4), 788–798.

https://doi.org/10.1109/TASL.2010.2064307

Dhamdhere, S. N. (2015). Knowledge Management

Strategies and Process in Traditional Colleges: A

Study. International Journal of Information Library

and Society, 4(1), Article 1.

Electronic discovery. (2020). In Wikipedia. https://en.wiki

pedia.org/w/index.php?title=Electronic_discovery&ol

did=969855680

Ester, M., Kriegel, H.-P., Sander, J., & Xu, X. (1996). A

Density-Based Algorithm for Discovering Clusters in

Large Spatial Databases with Noise. Knowledge

Discovery and Data Mining. https://api.semantic

scholar.org/CorpusID:355163

Gomes, T. C., & Furtado, B. S. (2017, July 22). A Justiça

deve transcrever audiência de caso complexo.

Consultor Jurídico. http://www.conjur.com.br/2017-

jul-22/opiniao-justica-transcrever-audiencia-complexo

Automatic Transcription Systems: A Game Changer for Court Hearings

173

Google. (2020a). Cloud Speech-to-Text Documentation.

Cloud Speech-to-Text API. https://cloud.google.com/

speech-to-text/docs/

Google. (2020b). Getting automatic punctuation. Cloud

Speech-to-Text API. https://cloud.google.com/speech-

to-text/docs/automatic-punctuation

Hastie, T., Tibshirani, R., & Friedman, J. H. (2009). The

elements of statistical learning: Data mining, inference,

and prediction. In The elements of statistical learning:

Data mining, inference, and prediction (2nd ed, pp.

520–528). Springer.

Huber, G. P. (1991). Organizational Learning: The

Contributing Processes and the Literatures.

Organization Science, 2(1), 88–115. https://doi.org/

10.1287/orsc.2.1.88

Huet, G. (2006). Design transaction monitoring:

Understanding design reviews for extended knowledge

capture [PhD Thesis]. University of Bath.

Huggins-Daines, D., Kumar, M., Chan, A., Black, A. W.,

Ravishankar, M., & Rudnicky, A. I. (2006).

Pocketsphinx: A Free, Real-Time Continuous Speech

Recognition System for Hand-Held Devices. 2006

IEEE International Conference on Acoustics Speed and

Signal Processing Proceedings, 1, I-185-I–188.

https://doi.org/10.1109/ICASSP.2006.1659988

Integrated Electronic Litigation System. (2020). In

Wikipedia.

https://en.wikipedia.org/w/index.php?title=Integrated_

Electronic_Litigation_System&oldid=935231346

King, D. E. (2009). Dlib-ml: A Machine Learning Toolkit.

Journal of Machine Learning Research, 10, 1755–

1758.

Kohonen, T. (1990). The self-organizing map. Proceedings

of the IEEE, 78(9), 1464–1480. https://doi.org/

10.1109/5.58325

MacQueen, J. (1967). Some methods for classification and

analysis of multivariate observations. https://api.seman

ticscholar.org/CorpusID:6278891

McQueen, R. (1998). Four views of knowledge and

knowledge management. 609-11.76.

Meeker, M. (2017, May 31). Internet Trends 2017 Report.

22nd edition of the Internet Trends Report at the Code

Conference, Rancho Palos Verdes, California.

https://www.slideshare.net/kleinerperkins/internet-

trends-2017-report

Microsoft Azure. (2020). Speaker Recognition | Microsoft

Azure. https://azure.microsoft.com/en-us/services/cog

nitive-services/speaker-recognition/

Mokhov, S. A. (2008). Introducing MARF: A Modular

Audio Recognition Framework and its Applications for

Scientific and Software Engineering Research. In T.

Sobh (Ed.), Advances in Computer and Information

Sciences and Engineering (pp. 473–478). Springer

Netherlands. https://doi.org/10.1007/978-1-4020-8741-

7_84

Motta, R., Barbosa, C. E., Lyra, A., Oliveira, J., Zimbrão,

G., & De Souza, J. M. (2022). Extracting Knowledge

from and for Meetings. 2022 12th International

Conference on Software Technology and Engineering

(ICSTE), 82–90. https://doi.org/10.1109/ICSTE574

15.2022.00019

Mutula, S., & Mooko, N. (2008). Knowldge Management

IN Information and Knowldge Management in the

digital age:concepts, Technologies and African

Perspectives.

Nadaraj, P., & Odayappan, S. (2020). Digital Courts: Are

We Really Availing Infinite Possibilities Of

Technology? https://www.outlookindia.com/website/st

ory/opinion-digital-courts-are-we-really-availing-infini

te-possibilities-of-technology/351800

Nonaka, I. (1994). A Dynamic Theory of Organizational

Knowledge Creation. Organization Science, 5(1), 14–

37.

OMG. (2011). Business Process Model and Notation

(BPMN), Version 2.0 (p. 538) [Technical report].

Object Management Group.

Parent, G., & Eskenazi, M. (2010). Toward better

crowdsourced transcription: Transcription of a year of

the Let’s Go Bus Information System data. 2010 IEEE

Spoken Language Technology Workshop, 312–317.

https://doi.org/10.1109/SLT.2010.5700870

Patel, D. S. (2012). Management Discovery Of Knowledge

Management In.

Pichai, S. (2017). Google I/O. Google’s Annual Developer

Conference, Montain View, CA.

Povey, D., Ghoshal, A., Boulianne, G., Burget, L.,

Glembek, O., Goel, N., Hannemann, M., Motl´ıcek, P.,

Qian, Y., Schwarz, P., Silovsky, J., Stemmer, G., &

Vesely, K. (2011). The Kaldi Speech Recognition

Toolkit. IEEE 2011 Workshop on Automatic Speech

Recognition and Understanding. http://kaldi-

asr.org/doc/

ProJuris. (2024). ProJuris- Software para Escritórios de

Advocacia de alto desempenho. ProJuris.

https://www.projuris.com.br

Ryant, N., Church, K., Cieri, C., Cristia, A., Du, J.,

Ganapathy, S., & Liberman, M. (2019). The Second

DIHARD Diarization Challenge: Dataset, task, and

baselines. https://doi.org/10.48550/ARXIV.1906.07839

Stollenwerk, M. de F. L. (2001). Gestão do conhecimento:

Conceitos e modelos. In K. Tarapanoff, (Org.)

Inteligência organizacional e competitiva (pp. 143–

163).

Tomar, S. (2006). Converting video formats with FFmpeg.

Linux Journal, 2006(146), 10.

Wang, Q., Downey, C., Wan, L., Mansfield, P. A., &

Moreno, I. L. (2017). Speaker Diarization with LSTM.

https://doi.org/10.48550/ARXIV.1710.10468

Williams, J. D., Melamed, I. D., Alonso, T., Hollister, B.,

& Wilpon, J. (2011). Crowd-sourcing for difficult

transcription of speech. 535–540. http://ieeexplore.

ieee.org/document/6163988/

Zack, M. (1998, September). An architecture for managing

explicated knowledge.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

174
