Technological Model for Cryptocurrency Payments in E-Commerce

Luis Navarro

1 a

, Juan Mansilla-Lopez

1 b

and Christian Cipriano

2 c

Universidad Peruana de Ciencias Aplicadas (UPC), Prolongación Primavera 2390, Monterrico,

Santiago de Surco, Lima, Perú

Cranfield University, College Road Cranfield MK43 0AL, U.K.

Keywords: Blockchain, Cryptocurrencies, Payment Gateway, Bitcoin, Three-Tier Architecture.

Abstract: The number of cryptocurrency users worldwide increased by 190 % between 2018 and 2020, with Bitcoin

being the most widely used. Credit card gateways request the payment of a usage fee, a sales tax that generates

cost overruns for the businesses that use it. Likewise, virtual stores are exposed to cybersecurity threats, such

as SQL injection and man-in-the-middle, which could affect the integrity and confidentiality of their

information. This research proposes a Technological Model for Cryptocurrency payments based on a set of

guidelines to develop a virtual store that accepts Bitcoins as a payment method and offers measures that

guarantee the security of the integrity and confidentiality of its information. The structure of the model is

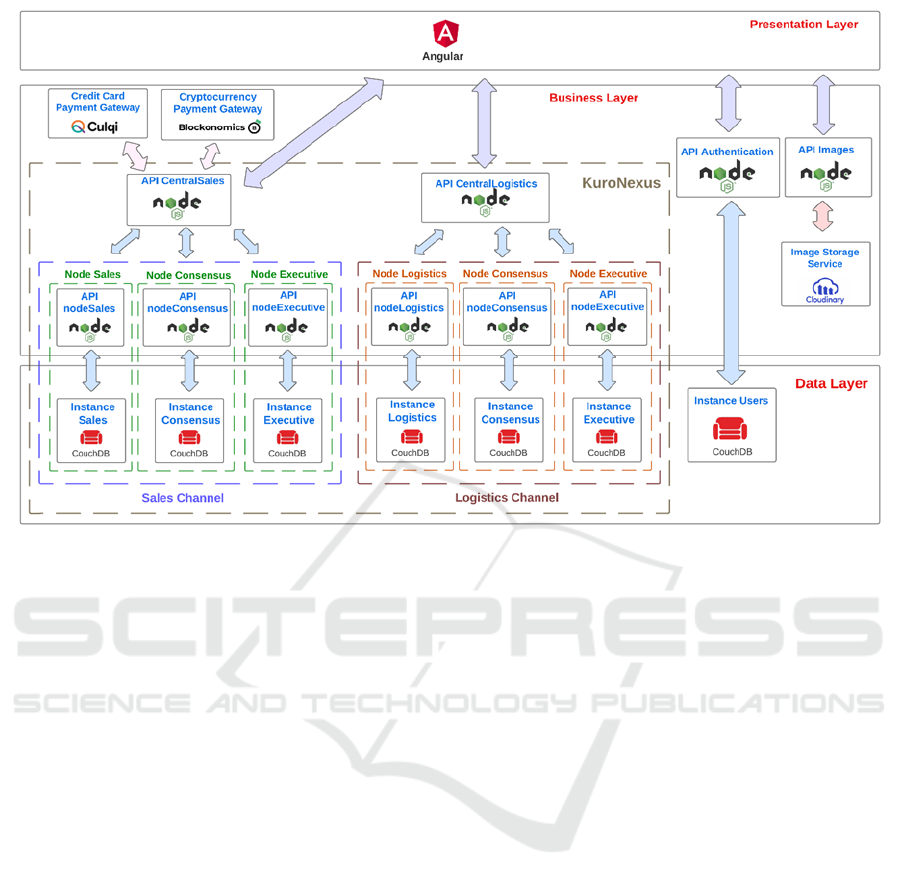

based on a three-Tier architecture pattern that includes a private Blockchain in which the information of the

sales made in the virtual store and of logistics (purchase orders, suppliers, and products) is stored. The model

was validated in an online business, evidencing a reduction in the percentage of transaction costs.

1 INTRODUCTION

The purchase of products and services through virtual

stores continues to gain popularity with an increase in

sellers adopting cryptocurrencies as a means of

payment for their sales (Sawarnkatat & Smanchat,

2022). Also, due to their integrity, confidentiality, and

transaction speed, cryptocurrencies have seen

accelerated growth since the creation of Bitcoin

(Gong & Huser, 2019). Thus, its users has grown by

190 % between 2018 and 2020 (Raynor, 2024).

Online payment methods for e-commerce have

been constantly evolving since the birth of the

Internet. Initially, this was provided by financial

services such as credit cards and fund transfers;

however, these are subject to regulations and

relatively high fees (Sawarnkatat & Smanchat, 2022).

According to (Kim & Kim, 2022), most people

who purchase in virtual stores use credit cards. In

such cases, payment gateways are used to ensure the

integrity and non-repudiation of payments. However,

nowadays, due to the increase in the number of credit

card terminals, changes in the types of tax deductions,

and the growing number of stores that process a large

https://orcid.org/0009-0007-0711-5782

https://orcid.org/0000-0003-0039-6044

https://orcid.org/0000-0002-5864-658X

volume of small payments, this has caused problems

in the e-commerce market. This has led sellers and

consumers to take into consideration the fees

associated with electronic payment systems.

According to (Cáceda et al., 2022), e-commerce in

Peru had a 55 % growth in 2021. In 2024, credit card

payment gateways, such as Culqi, Niubiz, and

Mercado Pago, charge average fees of 3.40 % per

transaction, in addition to other charges. On the other

hand, cryptocurrency payment gateway services

charge around 1 % per transaction, with no extra fees,

as is the case with Blockonomics. According to

(Sawarnkatat & Smanchat, 2022), one of the newest

payment methods for digital merchants is with

cryptocurrencies. The latter are considered an

alternative form of investment assets, as they have high

yields and are very secure. An example of this is

(Bamert et al., 2013), who designed a vending machine

that accepted bitcoins as a means of payment.

Regarding Cryptocurrency regulations in Peru,

digital asset providers are required to provide

information to the Peruvian Financial Intelligence

Unit, which is in charge of analyzing payment

transactions to be able to detect money laundering or

Navarro, L., Mansilla-Lopez, J. and Cipriano, C.

Technological Model for Cryptocurrency Payments in E-Commerce.

DOI: 10.5220/0012916800003825

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Conference on Web Information Systems and Technologies (WEBIST 2024), pages 25-34

ISBN: 978-989-758-718-4; ISSN: 2184-3252

terrorist financing (El Peruano, 2023). The

emergence of cryptocurrencies caused a change in the

world and brought benefits, such as not needing

institutions to act as intermediaries, which reduces

transaction costs. Likewise, they are immutable; for

example, if a bank is hacked, it will depend on its

backup to recover its information; however, in the

case of cryptocurrencies, if a part of its network is

altered, the rest of the network will continue to work

correctly (Fang et al., 2022).

There are studies such as those by (Kim & Kim,

2022), who, by making use of blockchain features

such as public keys, private keys, as well as digital

signatures, manage to develop a cryptocurrency

payment model that does not make use of a payment

gateway or public key certificates. However, there is

a risk that their Public Blockchain System of Record

for Distributed Transactions will compromise the

confidentiality of personally identifiable data. Also,

there is the study of (Sawarnkatat & Smanchat, 2022),

who proposed a cryptocurrency payment system

called NAGA, which was characterized in that buyers

paid with one type of cryptocurrency and sellers

received another.

On the other hand, e-commerce information is not

free from having its confidentiality and integrity

compromised. According to (Ehikioya & Olukunle,

2019), data in the different databases and those in

transit must be protected from unauthorized persons,

such as hackers, who can alter the integrity and steal

sensitive company information.

According to (Tadhani et al.,2024), the SQL

Injection (SQLi) attack type seeks to exploit the

vulnerability of databases by injecting harmful code

into queries, which compromises their confidentiality

and integrity. It does this by first attacking web

applications by inserting code into the site's input

fields to access the database. There is also the Man-

in-the-middle threat, which consists of the attacker

managing to infiltrate the network and place himself

in the communication between a client and a server

(Elakrat & Jung, 2018). Thus, the attacker can listen

to the information and modify the information

between the sender and the receiver.

This research proposes a technological model for

payment with cryptocurrencies in electronic stores

that is secure and that allows for reducing transaction

costs in virtual stores. This consists of a set of

guidelines for developing a virtual store that allows

accepting cryptocurrency payments through a

payment gateway called "Blockonomics". Likewise,

it will use KuroNexus, a private blockchain designed

by us to store sales and logistics information

(products, suppliers, purchase orders).

This article is divided into five sections. Section 2

presents the literature review. Section 3 describes the

proposed technological model. Section 4 validates

and analyzes the results. Finally, section 5 provides

the project's conclusions and recommendations.

2 RELATED WORK

Blockchain has many uses that can be applied to

different contexts, such as medicine, e-commerce,

and social networks.

2.1 Application of Blockchain in

Electronic Commerce

(Miers et al., 2013) propose ZeroCoin, an electronic

payment system that is a cryptographic extension of

Bitcoin that augments the protocol to allow fully

anonymous currency transactions.

(Sawarnkatat & Smanchat, 2022) propose a

payment architecture of a system that allows the

buyer to pay with a currency and the seller to receive

the currency of his choice.

(Eskandari et al., 2018) developed a "point-of-sale"

web system that accepted Bitcoin and implemented it

in a Cafe called Aunja, in 2014. For its part, (Hu et al.,

2019), with the aim of helping remote villages,

proposed a payment scheme based on the Ethereum

blockchain, which can maintain a record of verifiable

transactions in a distributed manner.

(Su et al., 2020) propose a p2p transaction method

based on blockchain, which in turn guarantees data

privacy and trust between entities. Likewise, a GO

programming language was used for validation.

(Kumar et al., 2020) propose "ProdChain", a

Blockchain framework with cryptographic processes

to reduce the complexity of traceability of e-

commerce products and, in turn, ensure financial

sustainability.

(Zulfiqar et al., 2021), in order to maintain the

integrity of the information regarding the Reviews of

certain products on e-commerce platforms proposes

EthReview, a resilient Product Review system based

on Ethereum that solves the integrity above problem.

(Guan et al., 2020) propose a scheme that

integrates blockchain that seeks to solve the need to

store and process sensitive data from e-commerce.

(Li et al., 2021), to solve the privacy and integrity

problems of supplier reputation systems of e-

commerce platforms, propose RepChain, a reputation

blockchain-based system that preserves privacy. In

addition, it allows access to multi-platform reputation

and the creation of private ratings.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

To solve chargeback fraud, which consists of

canceling credit card payments, and which is harming

online sellers, (Liu & Lee, 2022) propose CF-Ledger,

an exchange mechanism of Chargeback fraud data

that is based on Consortium Blockchain.

2.2 Application of Blockchain for

Privacy and Information Security

(Makhdoom et al., 2020), due to the vulnerabilities

regarding the information of IoT systems; propose

"PrivySharing", an innovative framework based on

blockchain, preserves privacy and guarantees the

security of the transfer of IoT data in a Smart City

environment.

(Hinarejos et al., 2022), to solve security problems

in the application of promotional programs, propose

a solution based on Blockchain that allows points to

be transferred between clients for multiple merchants.

Due to privacy issues in "Online Social

Networks", (Frimpong et al., 2023) propose

RecGuard, a blockchain-based network system for

privacy preservation.

In the medical context, (Szczepaniuk &

Szczepaniuk, 2023) present a framework for

implementing cryptographic proofs of smart

contracts in health systems. According to (Gan et al.,

2023), with the growth of Electronic Medical Data, it

becomes a problem to find it efficiently in a

Blockchain; due to the above, a method for searching

for encrypted medical data in a Blockchain with a

mechanism is proposed. Likewise, (Miao et al.,

2024), to protect medical data on the "Internet of

Medical Things", propose a Privacy-Preserving

Authentication Management Protocol based on

Blockchain.

(Luo et al., 2023), for its part propose RATS, a

Blockchain-based system that protects the privacy of

transactions in the Blockchain and regulates illegal

transactions. Likewise, this allows users to be tracked

without affecting the transaction when dealings that

can be called suspicious are detected.

Likewise, (Aldweesh, 2023) proposes a

framework for E-ticketing that makes use of

blockchain. This proposal eliminates the participation

of third parties and improves user privacy.

3 TECHNOLOGICAL MODEL

The technological model consists of guidelines for

developing a virtual store to reduce transaction costs

for the seller by integrating a cryptocurrency payment

method. It provides instructions for developing a

Blockchain structure, "KuroNexus," designed by us

to ensure the integrity of the sales and logistics data.

There are works like (Sawarnkatat & Smanchat,

2022) and (Miers et al., 2013) with their own

designed payment systems; in our case, we wanted to

contribute with a model that would allow the

implementation of an E-Commerce using a payment

gateway called "Blockonomics". Being an outsourced

service, this gateway reduces the risk of security and

regulatory compliance failures.

3.1 Architecture of the Technological

Model

3.1.1 Architecture Pattern

The technological model makes use of a Three-Tier

architecture pattern, which consists of decomposing

the applications into three levels or layers so that each

one presents a different level of responsibility. The

presentation layer is responsible for system

presentation, the business layer handles the business

logic and processes requests from the presentation

layer, finally, the data layer is responsible for data

storage.

3.1.2 Technologies

The technologies used in the model will be described

to justify their selection. These will be separated by

layers according to the architecture mentioned above.

For the presentation layer, we used:

• Angular. According to (Oriols & Gomez, 2018),

this framework allows web application

development in the client section using HTML

and JavaScript. It allows the development of SPA

(Single Page Application) web applications. This

is an improvement to Multi- Page Web

Applications (MPA) in that the client will no

longer request entire web pages but only the

necessary information. For the business layer, we

used:

• NodeJS. According to (Brown, 2014), NodeJS

provides a framework for building a web server.

This can be easy to implement and configure,

unlike Apache or Microsoft's Internet

Information Services, which can take several

years to master. We decided to use it to develop

our APIs.

Technological Model for Cryptocurrency Payments in E-Commerce

Figure 1: Physical Architecture of the Technological Model.

• Cloudinary. This service helps to store

images and videos thanks to an API. In addition,

it allows users to retrieve images thanks to URLs

with a static part and a variable part that would

be the name of the images.

• Culqi. This model includes a credit card payment

method, and for that, we use this payment

gateway. It was chosen because it charges a

commission rate of 3.44% plus extra charges and

delivers the sales deposit about two days later.

• Blockonomics. It allows virtual stores to accept

payments with bitcoin. We decided to use it

because it charges only 1% commission per sale

and for its security features.

For the data layer, we used:

• CouchDB. It is a NoSQL database that stores

information in JSON documents. The latter

makes it immune to SQL injection attacks. In

addition, it allows access to documents through

the web browser (Chrome, etc.). According to

(Brown, 2012), it is fault tolerant and generally

self-sufficient; likewise, its storage has a flexible

nature format that differentiates it from other

databases.

3.1.3 Architecture Description

In Figure 1, you can see the technological model

distributed by layers. In the presentation layer, the

Angular file controls the visual part. In the business

layer, you will find the API: “Authentication”,

responsible for processing information related to user

registration and login; and the API "Images",

responsible for uploading images to the image server.

There is also KuroNexus, which consists of a

decentralized structure based on Hyperledger

Fabric due to its use of channels and digital

certificates for authentication. It is made up of the

APIs: “CentralSales” and “CentralLogistics”, as well

as the "Logistics" and "Sales" channels.

The API “CentralSales” communicates with the APIs

of the Culqi and Blockonomics payment gateways to

process information related to purchases. On the other

hand, it also communicates with a channel "Sales" for

the storage and retrieval of information (related to

customer sales) in blockchain nodes. The "Sales"

channel consists of 3 nodes, each containing an API

and a database instance, such as the APIs:

“nodeSales” and the “Sales Instance”. The

"Logistics" channel works similarly, only that the

information you work with is related to products,

suppliers, and purchase orders.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

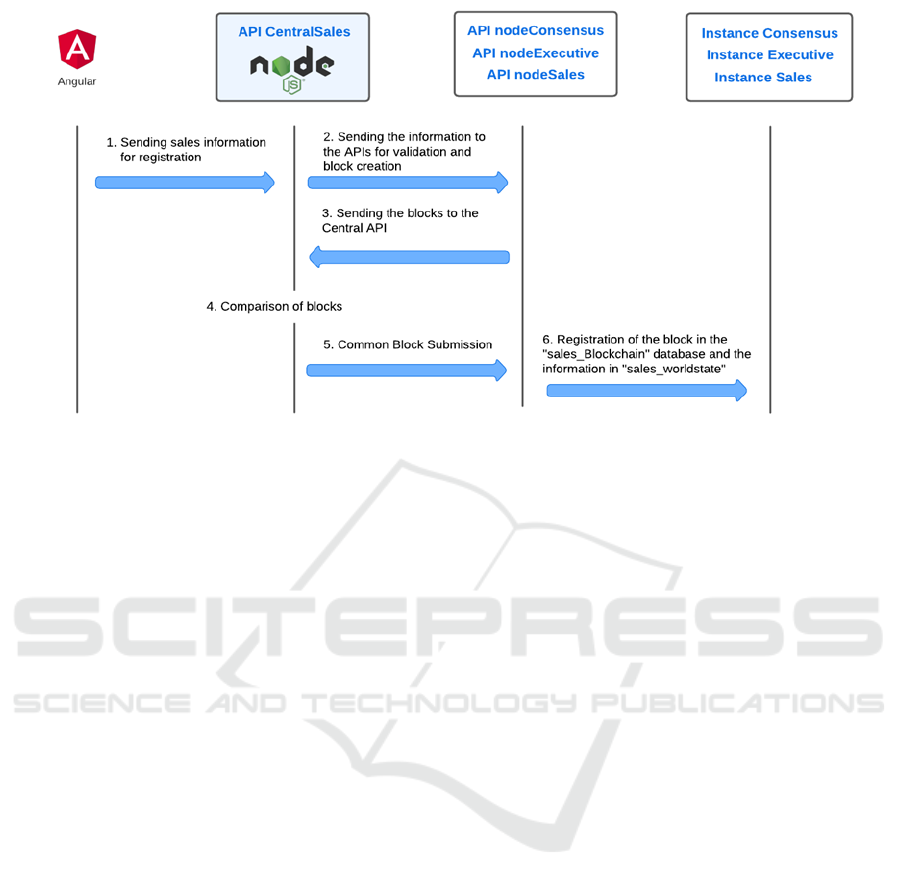

Figure 2: Central API - Information processing.

3.2 Development, Security and Hosting

Guidelines for APis and Databases

3.2.1 API

The APIs will be developed using node.js and

Express. API Keys will be implemented as a security

measure. For the APIs: “CentralSales” and

“CentralLogistics”, a digital certificate will be

implemented as an additional authentication method

so that they can be verified by the APIs of the

channels assigned to them. Finally, the servers where

the APIs are located must have a TLS certificate

configured to make secure connections with clients.

In this case, a hosting service called “Render” will

provide these certificates when deploying the APIs.

3.2.2 Databases

CouchDB database instances will be created to

prevent Inject SQL attacks. The instances will be

created and deployed using a "Railway" service. It is

recommended that restrictions be configured so as not

to be maliciously altered by unauthorized users.

3.3 Modules and Components of the

E-Commerce

This section will cover the model's modules and

components. Each module covers a set of

functionalities or features, such as the Authentication

module, which covers the registration and login

functionalities.

3.3.1 KuroNexus Blockchain Module

This Blockchain structure is based on the use of

Hyperledger Fabric channels. It has 2 Central APIs:

“CentralSales” and “CentralLogistics”. Likewise, it

will have 2 channels: “Sales Channel” and “Logistics

Channel”. Next, what the Central APIs are, and their

details will be defined, then what the channels are for

this module will be explained.

• Central APIs. This structure contains 2 APIs:

“CentralLogistics” and “CentralSales”. These

are responsible for receiving the request from the

presentation layer and then making requests to

the nodes’ APIs. When the presentation layer

requests information from the nodes, the Central

APIs will consult the Consensus Node or the

Executive Node. In the scenario that the

presentation layer sends information (Recording

a sale, for example) to be registered in the nodes'

databases, they will first send the information to

the Central API, then it will send the transaction

to the three nodes, who will validate the

transaction. Once validated, each one will create

a block and send it as a response to the Central

API which will compare the 3 blocks. If the three

blocks do not match, an email will be sent to the

“Service Manager” or a person in charge

indicating the error. If at least two blocks are

equal, the Central API will send the common

block to the three nodes for registration in their

databases. The block will be saved in the

“Blockchain” database, and the transaction will

be saved in the “Worldstate” database. All the

Technological Model for Cryptocurrency Payments in E-Commerce

above helps to identify and prevent possible

Man-in-the-Middle (MitM) attacks, as well as

possible problems with inconsistencies in

database information. An example of this is

found in Figure 2.

• Channels. The structure will have two channels:

“Sales Channel” and “Logistics Channel”. Each

one will have a minimum of 3 nodes. Each of

these will be composed of an API and a

CouchDB instance with their respective

databases, as can be seen in Figure 3.

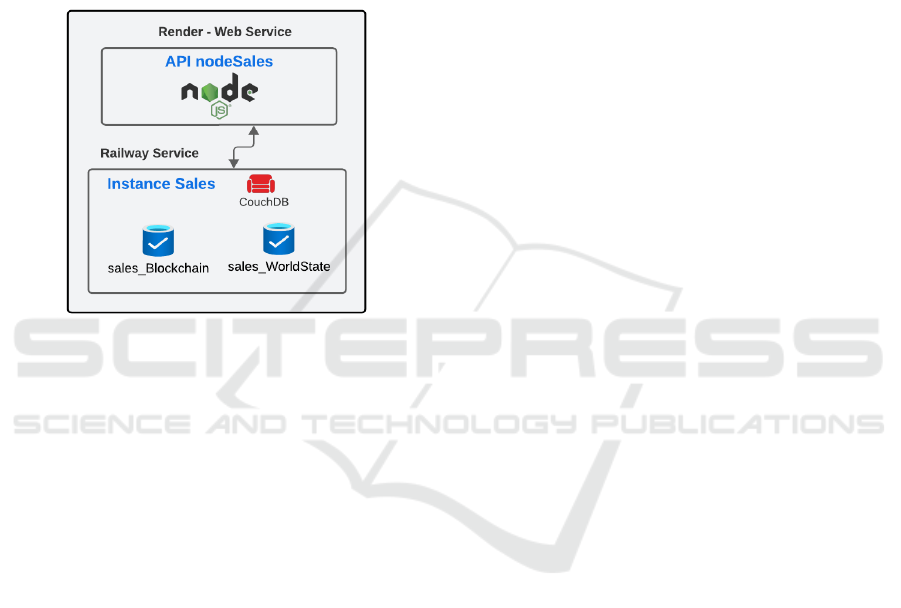

Figure 3: Node Sales.

As mentioned in the previous point, the API of

each node will oversee the validation of the

transactions it receives from the "Central API" and

create the blocks that will return them as a response.

The node instances will have “worldstate” and

“blockchain” databases, an example of this is the

sales node which will have “sales_worldstate” and

“sales_blockchain” instances. The “worldstate”

database is made up of arrangements of specific

information, in the case of “sales_worldstate” it will

store sales arrangements. Likewise, the “blockchain”

database will store blocks sequentially with

information about changes in the “Worldstate”

database. As seen in Figure 1, the “Sales Channel”

contains three nodes: “Consensus Node”, “Executive

Node” and the “Sales Node”. For its part, the

“Logistics Channel” contains three nodes:

“Consensus Node”, “Executive Node” and the

“Logistics Node”. The "Sales node" contains the

“nodeSales” API and a “Sales Instance” that stores

sales-related information. This instance has two

databases: “sales_worldstate” and

“sales_blockchain”. The “Logistics Node” consists of

the “nodeLogistics” API and a “Logistics Instance”,

this instance will store the information of suppliers,

purchase orders and products. The instance has 2

databases: “logistics_worldstate” and

“logistics_blockchain”. Finally, the "Consensus

Node" and the "Executive Node" are the same in both

channels; they have their own API and database

instances. These instances will store all the previously

mentioned databases: “sales_worldstate”,

“sales_blockchain”, “logistics_worldstate” and

“logistics_blockchain”.

3.3.2 Authentication Module

This module covers the "Login" and "User

Registration" functionalities. These require using a

"Users" database instance containing the

"Users_Commerce" database containing user

information, such as username, password, name,

email, and role. The module's functionalities will be

described in greater detail below:

• User Registration. Allows the user to register to

purchase items in the virtual store. To register

data, the following will be requested: Name,

Username, Email and Password. Then you will

receive a message with a special code in your

email. Once the code has been entered and

accepted by the system, you will be redirected to

the home page of the virtual store.

• Login. Allows users to log in to the virtual store

using their username and password. This can be

logged using a JSON Web Token (JWT)

approach, where the API will provide the user's

browser with a token to authenticate on the e-

commerce pages.

3.3.3 Payment Processing Module

The credit card payment process requires using a

Credit Card payment gateway (such as Culqi). If you

use this service, the presentation layer and the

“CentralSales” API will be programmed to

implement this payment method.

The Cryptocurrency payment process requires using

a Cryptocurrency payment gateway (such as

Blockonomics). The presentation layer (the Angular

file) and the “CentralSales” API must be programmed

to implement the following payment process:

1. The customer fills his shopping cart.

2. The customer clicks Pay, then is redirected

to a “Payment Options” page.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

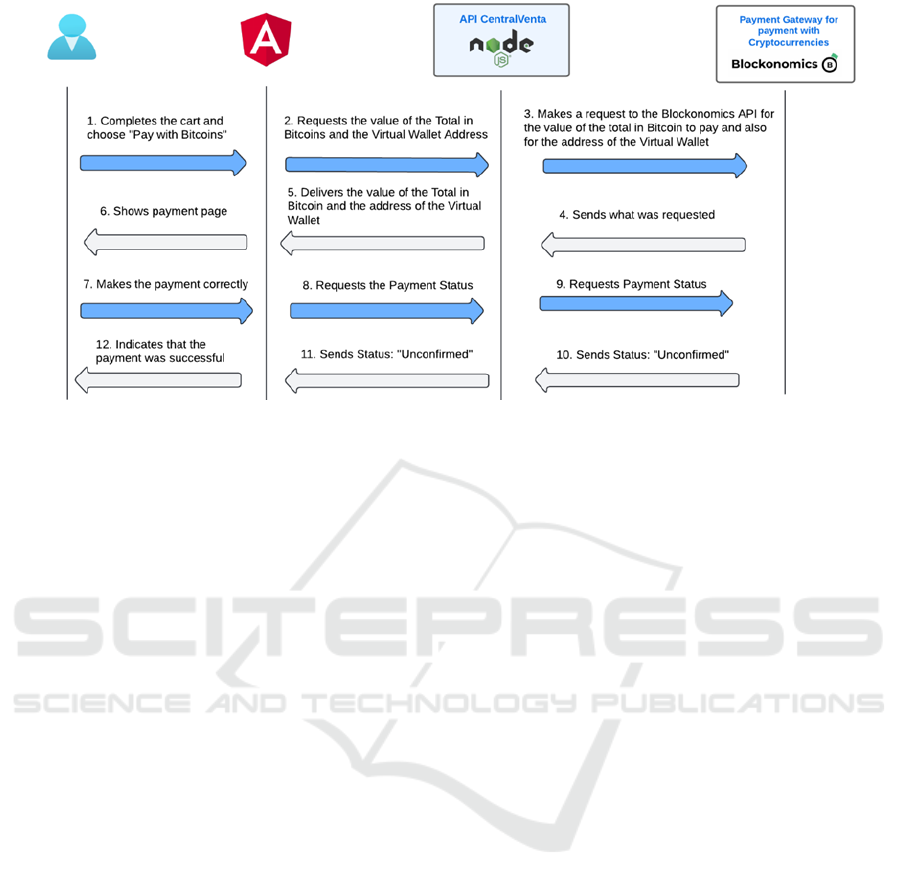

Figure 4: Central API - Information processing.

3. The customer clicks on “Pay with Bitcoin”,

so they will be redirected to a “Verify

Payment” page which contains a QR, the

amount to pay in bitcoins, and a box with a

message that says, “Processing Payment”.

Additionally, a timer will appear, so if it

reaches 0 and no payment has been made,

the transaction is canceled, and you are

redirected to the home page.

4. The customer makes the payment, then the

message in the box will change its message:

“Payment made successfully”, then they will

be redirected to the home page, likewise,

they will be able to see their purchase in “My

Orders”.

The payment process at the frontend and backend

level will follow the logic in Figure 4.

3.3.4 Sales Management Module

It consists of a section in which the seller can trace

the purchases of all users of the virtual store. This

section will obtain its information from the “Sales

Channel”. On the other hand, it is recommended to

implement a section or page in which the seller will

list all users with the “Customer” role. Likewise, you

can block or unblock your account activity to stop it

if suspicious behavior is observed.

3.3.5 Logistics Management Module

It will include sections allowing you to manage (list,

suppliers, and products.

3.3.6 Website Monitoring Module

It is important to track the components of a

Blockchain structure to guarantee its correct

functioning. Therefore, the creation of a "Website

Monitoring" page is proposed in which administrators

will be able to view the availability of the virtual store

components, such as the "Central APIs", the node

APIs, the "Authentication" API. ", the "Images" API

and the database instances. If all the components

(APIs and database instances) of the Sales channel

nodes are operational, a message will appear at the

top: “Sales Channel operational perfectly”. The same

will happen with the “Logistics Channel”. If all the

components of the website are operational, a box will

appear that mentions “Website Operating perfectly”.

3.4 Development Process

The development will follow 4 phases:

The first phase is to request business requirements,

such as Product Information, images, and videos, if

necessary.

The second phase consists of the development of

CouchDB instances and their respective databases for

the sales and logistics channels. Likewise, a “Users”

instance is created in which the credentials of the

virtual store users will be saved.

The third phase consists of the development of the

system APIs. To do this, first the generation of the

public and private key of the Certification Authority

will be carried out. Then two digital certificates are

created as a Javascript object, one for the

“CentralSales” API and another for the

Technological Model for Cryptocurrency Payments in E-Commerce

“CentralLogistics” API. This is to authenticate with

the APIs of the nodes as an extra layer of security

apart from the API Key. Next, the development of the

central APIs and the node APIs is carried out, so that

they follow the previous logic mentioned. Also, the

development of the “Authentication” API will be

carried out, in which POST routes will be created for

GET routes will be established to obtain information

from users. Finally, a PUT route will be created to

modify the user's status ("Active" or "Blocked").

Subsequently, the “Images” API will be developed, in

which a POST route will be created to receive the

image file and upload it to the Cloudinary storage

service.

Finally, phase 4 consists of developing the

components and services in Angular for the creation

of the e-commerce pages.

4 VALIDATION AND ANALYSIS

OF RESULTS

The validation was carried out in a company

dedicated to the import and sale of car accessories,

such as Covers, Steering Wheel Covers, Cool Seats,

among others. The construction of the virtual store

followed the previously mentioned guidelines.

The improvement verification was carried out in

the Context of "Transaction Costs", by comparing

commissions for using credit card and cryptocurrency

payment gateways. Additionally, we calculated the

Block Time and compared it with others blockchain

networks.

4.1 Verification of Improvement in the

Context of "Transaction Costs"

To carry out this verification, in the case study

business, a comparison of "Transaction Costs"

(Commissions) was carried out for the use of payment

gateways that allow payment methods with Credit

Card (Culqi) and Bitcoin (Blockonomics).

A product “Wheel Insurance” was chosen with a

sale price of 8.09 USD, in which, if a purchase was

made with the credit card payment method (VISA),

the “Culqi” gateway It would have taken an amount

of 0.57 USD (due to commission and VAT), which

represents 7.05% of the total sale.

Regarding the Bitcoin payment gateway

(Blockonomics), the purchase was made with the

cryptocurrency payment method following the

process stated in the subsection 3.3.3. As can be seen

in Figure 5, the gateway did not take any commission

regarding the sale price. The "Blockonomics"

payment gateway sends all income to the business's

virtual wallet. At the end of the month, the service

charges 1% of each transaction.

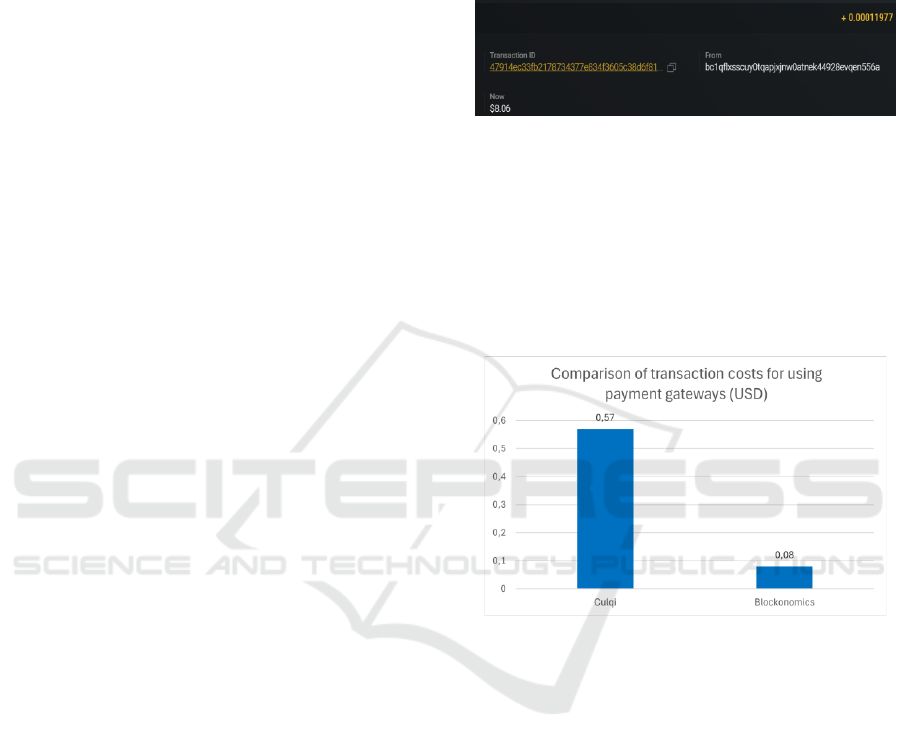

Figure 5: Receiving the deposit in the virtual wallet.

Likewise, it does not take commissions for the

first 20 transactions for new service users

(Blockonomics). On the other hand, if several

transactions were made until transaction number 21

was reached, the gateway would take a commission

of 1% concerning to the sale price, which would be

0.08 USD, as shown in Figure 6.

Figure 6: Comparison of transaction costs for payment

gateways for transactions 21 or more.

4.2 Verification of Improvement of the

Block Time

In this performance context, the block time refers to

the time required for a block to be created and added

to the blockchain. We retrieved the block time of a set

of transactions in the e-commerce to get the average

Block Time for our model:

• Registration of a supplier: 1338 milliseconds

• Registration of a product: 1321 milliseconds

• Registration of a sale: 1615 milliseconds

From the above, the average block time was 1425

milliseconds. Considering that Ethereum has a Block

Time of 12 seconds (YCHARTS, 2024), we got an

improvement of 88.1%. Also, BTC has a block time

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

of 10 minutes (BitInfoCharts, 2024), thus confirming

greater efficiency on the part of our system.

5 CONCLUSIONS AND

RECOMMENDATIONS

This research proposes a technological model for the

payment of electronic commerce with

cryptocurrencies with a set of guidelines for its

architecture and components. The model was

validated using a case study with a company

dedicated to the import and sale of car accessories.

Following the defined guidelines, a virtual store was

developed that allowed comparing the transaction

costs of using payment gateways with credit cards

and cryptocurrencies. In the storage context, we

calculated the Block Time to analyze and compare its

performance in comparison with other blockchain

network. With all the above, the following

conclusions were obtained:

• The use of payment gateways for

cryptocurrencies is economically

convenient because the commissions

charged to the business are lower compared

to those charged through credit card

payment gateways.

• Using multiple nodes for information

processing (block creation) is useful for

identifying and preventing Man-in-the-

middle attacks.

• The block time of our system was lower

compared to public blockchain networks

such as Ethereum and Bitcoin, making it a

good choice for an e-commerce context.

Likewise, there are the following recommendations:

• These guidelines serve as an initial

implementation for a Blockchain-oriented e-

commerce for both payment processing and

information storage, which can be improved

with enhancements that fit business

requirements.

• Multi-factor authentication can be

implemented to increase privacy for login.

• Consider enough cryptocurrencies to take

advantage of volume transaction fees.

• Increase the decentralization of information

by seeking to increase the Blockchain nodes

and assign them to trusted entities/roles that

are independent of each other.

6 RECOGNITIONS

The authors would like to thank the Research

Directorate of the Peruvian University of Applied

Sciences for their role in supporting this research.

Likewise, we would like to emphasize the work made

by Juan Mansilla-López for providing his guidance

and experience in the writing of this work.

REFERENCES

Aldweesh, A. (2023). BlockTicket: A framework for

electronic tickets based on smart contract. PLOS ONE.

Bamert T, Decker C, Elsen L, Wattenhofer R, Welten S, &

IEEE Communications Society. (2013). Have a snack,

pay with Bitcoins in peer-to-peer computing. IEEE.

BitInfoCharts. (2024). Bitcoin (BTC) price stats and

information. Retrieved August 12, 2024, from

https://bitinfocharts.com/bitcoin/

Brown, M. C. (2012). Getting started with CouchDB.

O’Reilly.

Brown, E. (2014). Web Development with Node and

Express. O’Reilly Media, Inc.

Cáceda Salazar, H., Bravo Tejeda, F., Cáceda Salazar, H.,

Valle Escalante, E., Galván, S., Gálvez, F., Triveño, M.,

Valle Salazar, R., & Montalván Velaochaga, B. (2022).

Reporte Oficial de la Industria E-Commerce en Perú.

CAPECE.

Ehikioya, S. A., & Olukunle, A. A. (2019). A Formal Model

of Distributed Security for Electronic Commerce

Transactions Systems. International Journal of

Networked and Distributed Computing.

El Peruano. (2023). Decreto Supremo que amplía la lista de

los sujetos obligados a proporcionar información a la

Unidad de Inteligencia Financiera UIF - PERÚ. El

Peruano.

Elakrat, M. A., & Jung, J. C. (2018). Development of field

programmable gate array–based encryption module to

mitigate man-in-the-middle attack for nuclear power

plant data communication network. Nuclear

Engineering and Technology.

Eskandari, S., Clark, J., & Hamou-Lhadj, A. (2018). Buy

your Coffee with Bitcoin: Real-World Deployment of a

Bitcoin Point of Sale Terminal. 2016 Intl IEEE

Conferences on Ubiquitous Intelligence & Computing,

Advanced and Trusted Computing, Scalable Computing

and Communications, Cloud and Big Data Computing,

Internet of People, and Smart World Congress.

Technological Model for Cryptocurrency Payments in E-Commerce

Fang, F., Ventre, C., Basios, M., Kanthan, L., Martinez-

Rego, D., Wu, F., & Li, L. (2022). Cryptocurrency

trading: a comprehensive survey. Financial Innovation.

Frimpong, S. A., Han, M., Boahen, E. K., Ayitey Sosu, R.

N., Hanson, I., Larbi-Siaw, O., & Senkyire, I. B. (2023).

RecGuard: An efficient privacy preservation

blockchain-based system for online social network

users. Blockchain: Research and Applications.

Gan, C., Yang, H., Zhu, Q., Zhang, Y., & Saini, A. (2023).

An encrypted medical blockchain data search method

with access control mechanism. Information

Processing & Management.

Gong, Y., & Huser, R. (2019). Asymmetric tail dependence

modeling, with application to cryptocurrency market

data. Annals of Applied Statistics.

Guan, Z., Wang, N., Fan, X., Liu, X., Wu, L., & Wan, S.

(2020). Achieving Secure Search over Encrypted Data

for e-Commerce. ACM Transactions on Internet

Technology.

Hinarejos, M. F., Ferrer-Gomila, J. L., & Barcelo, A. J.

(2022). A Secure Solution for a Blockchain-Based

Consortium Promotional Scheme. IEEE.

Hu, Y., Manzoor, A., Ekparinya, P., Liyanage, M.,

Thilakarathna, K., Jourjon, G., & Seneviratne, A.

(2019). A Delay-Tolerant payment scheme based on the

ethereum blockchain. IEEE.

Kim, S. I., & Kim, S. H. (2022). E-commerce payment

model using blockchain. Journal of Ambient

Intelligence and Humanized Computing.

Kumar, G., Saha, R., Buchanan, W. J., Geetha, G., Thomas,

R., Rai, M. K., Kim, T. H., & Alazab, M. (2020).

Decentralized accessibility of e-commerce products

through blockchain technology. Sustainable Cities and

Society.

Li, M., Zhu, L., Zhang, Z., Lal, C., Conti, M., & Alazab, M.

(2021). Anonymous and Verifiable Reputation System

for E-Commerce Platforms Based on Blockchain.

IEEE.

Liu, D., & Lee, J. H. (2022). CFLedger: Preventing

chargeback fraud with blockchain. ICT Express.

Luo, M., Zhou, J., & Yang, P. (2023). RATS: A regulatory

anonymous transaction system based on blockchain.

Journal of Parallel and Distributed Computing.

Makhdoom, I., Zhou, I., Abolhasan, M., Lipman, J., & Ni,

W. (2020). PrivySharing: A blockchain-based

framework for privacy-preserving and secure data

sharing in smart cities. Computers & Security.

Miao, J., Wang, Z., Wu, Z., Ning, X., & Tiwari, P. (2024).

A blockchain enabled privacy-preserving

authentication management protocol for Internet of

Medical Things. Expert Systems with Applications.

Miers, I., Garman, C., Green, M., & Rubin, A. D. (2013).

Zerocoin: Anonymous distributed e-cash from bitcoin.

IEEE.

Oriols, M. B., & Gómez Gutiérrez, J. A. (2019). El gran

libro de Angular: 100 ejercicios prácticos.

ALFAOMEGA – MARCOMBO.

Raynor de Best (2024). Number of identity-verified

cryptoasset users from 2016 to November 2023.

https://www.statista.com/statistics/1202503/global-

cryptocurrencyuser-base/.

Sawarnkatat, D., & Smanchat, S. (2022). NAGA: multi-

blockchain based decentralized platform architecture

for cryptocurrency payment. International Journal of

Electrical and Computer Engineering.

Su, X., Liu, Y., & Choi, C. (2020). A Blockchain-Based

P2P Transaction Method and Sensitive Data Encoding

for E-Commerce Transactions. IEEE.

Sun, Q., Dong, M., & Tan, A. (2022). An order allocation

methodology based on customer repurchase motivation

drivers using blockchain technology. Electronic

Commerce Research and Applications.

Szczepaniuk, H., & Szczepaniuk, E. K. (2023).

Cryptographic evidence-based cybersecurity for smart

healthcare systems. Information Sciences.

Tadhani, J. R., Vekariya, V., Sorathiya, V., Alshathri, S., &

El-Shafai, W. (2024). Securing web applications

against XSS and SQLi attacks using a novel deep

learning approach. Scientific Reports.

YCHARTS (2024). Ethereum Average Block Time.

https://ycharts.com/indicators/ethereum_average_bloc

k_time.

Zulfiqar, M., Tariq, F., Janjua, M. U., Mian, A. N.,

Qayyum, A., Qadir, J., Sher, F., & Hassan, M. (2021).

EthReview: An Ethereum-based Product Review

System for Mitigating Rating Frauds. Computers &

Security.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies
