Flower Classification and Key Parameter Analysis Based on Vit

Ruochen Deng

School of Computer Science and Engineering, Sun Yat-sen University, Guangdong, China

Keywords: Flower Classification, Vision Transformer, Multi-Head Attention Mechanism, Self-Attention Mechanisms.

Abstract: Flower classification holds significant implications for various fields, including plant resource survey and

plant taxonomy education. This paper proposes employing the Vision Transformer (ViT) model for flower

classification tasks. The study aims to investigate the impact of varying depth and head parameters in ViT

model on their performance. Through an analysis of accuracy performance and attention properties, the

research explores optimal strategies for setting depth and head parameters. Additionally, it delves into the

phenomenon of attention collapse within the multi-head attention mechanism, utilizing mean attention

distance plots for in-depth analysis. Results reveal a positive correlation between model depth, number of

heads, and classification accuracy. Moreover, insights gleaned from attention collapse observations provide

valuable guidance for optimizing depth and head parameter settings. This study offers valuable insights into

the performance of ViT models in flower classification tasks, while also contributing to the understanding of

depth and head parameters in self-attention mechanisms for future research endeavors.

1 INTRODUCTION

On the plant evolutionary stage, the number of

flowering plants grows considerably to about 250,000

living species, classified into nearly 350 families,

which makes them one of the most flourishing

creatures on the planet (Kenrick, 1999). Flower

classification is a groundwork in Botany. The most

primitive way to classify flowers is fully by man-

made observation with botanical expertise. In the

modern time, the application of flower classification

is reflected in many aspects, including management

of a query index system based on image content for

flower databases (Das, 1999), plant resource survey,

and education on plant taxonomy (Chi, 2003). In

these scenarios, manual classification can be not

practical enough. With the rapid development of

computer vision science, flower classification by

computer becomes an obvious tendency.

Classifying flower plants always appears to be

tougher than other image classification job. Even for

a real person, it can be hard to tell the differences

between two species of flowers, compared with a

‘car, bike, human’ task (Nilsback, 2006). In the field

of computer vision, the flower classification presents

an additional hurdle due to the significant similarities

https://orcid.org/0009-0004-2986-3886

between classes, and furthermore, flowers are non-

rigid entities capable of various deformations, leading

to considerable intra-class variation (Nilsback, 2008).

Traditional flower classification techniques typically

use extracted features such as color, texture, and

shape from images to enhance classification

performance. While Support Vector Machines

(SVM) can classify flowers based on these features,

the robustness of this traditional method is not

guaranteed. This is primarily because the

conventional ways highly rely on specific manually

crafted features, which may not generalize well under

varying conditions like changes in lighting, flower

poses, or surrounding objects (Nilsback,

2006)(Nilsback, 2008)(Hiary, 2018). With the

introduction of deep learning technology in the

direction of image recognition, especially the use of

convolutional neural networks (CNN), automatic

learning of invariant features of flower images

demonstrates superior accuracy compared to

traditional hand-made methods. Besides, after the

transformer architecture was proposed and achieved

significant success in the realm of natural language

processing (NLP), the seq2seq architecture has also

been applied in the field of computer vision. The

ResNet (He, 2016) and EfficientNet (Tan, 2019)

which are based on CNN are often considered to

194

Deng, R.

Flower Classiﬁcation and Key Parameter Analysis Based on ViT.

DOI: 10.5220/0012922900004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 194-199

ISBN: 978-989-758-713-9

dominate the field, but now the Vision Transformer

(ViT) shows its potential replacement (Dosovitskiy,

2020).

The main objective of this research is to assess the

effectiveness of flower classification utilizing

transformer architecture, particularly the ViT model

renowned for its unique self-attention mechanism

(Vaswani, 2017). This mechanism enables the

establishment of global relationships among image

patches, facilitating the learning of intricate feature

correlations within flower image datasets. The

research focuses on examining the impact of varying

head quantities and depth of encoder layers on the

prediction accuracy curves of the ViT model with

pre-training. Furthermore, analyzing the attention

map distribution across different heads and

transformer layers is vital for understanding the

model capability to establish relationships between

image patches and extract meaningful features from

complex flower images. The analysis also highlights

that while increasing model depth can lead to

performance improvements, there's a point of

saturation. Through simulations of the transformer's

receptive field to measure attention distribution, this

study provides insights into optimal trade-offs.

Ultimately, it suggests that while augmenting the

number of heads and depth in ViT models generally

enhances performance, the highest values may not

always be optimal, especially in intricate tasks like

flower classification. Careful consideration of these

trade-offs is essential for achieving optimal results in

flower classification tasks.

2 METHODOLOGIES

2.1 Dataset Description and

Preprocessing

The dataset used in this work is called tf_flowers,

sourced from TensorFlow Datasets (TFDS),

containing 3670 images of flowers (Luo, 2022). All

original images are sourced from Flickr. Each image

varies in size, the number of flowers, shapes,

proportions within the frame, etc. This flowers dataset

contains five categories: daisy, dandelion, roses,

sunflowers, and tulips. A sample is shown in the

Figure 1.

Figure 1: Images from tf_flowers dataset

(Photo/Picture

credit: Original).

With no predefined splits, in this work, 20% of

images are randomly sampled for validation, the rest

for training. About data preprocessing, the main task

is to resize the images to a consistent size， 224x224

pixels. Specifically, for the training set, to enhance

data diversity and complexity, images are randomly

cropped to the specified size, with a 0.5 probability of

horizontal flipping. For the validation set, to maintain

consistency and comparability in evaluation, the

image’s shorter is resized to 256 pixels and cropped

into a 224x224 pixel region from the centre. Finally,

all image data is converted into tensor and normalized.

2.2 Proposed Approach

This study primarily focuses on implementing the

classic ViT model for flower image classification

tasks, with a specific emphasis on two key

hyperparameters: depth and head. The architecture of

the ViT model comprises three main components: the

Embedding layer, the transformer encoder, and the

MLP head. The investigation employs various

parameter analysis methods, including accuracy

curves and visualization of attention maps (both self

and class token), along with mean attention distance

dot diagrams. These methodologies are employed to

examine how variations in depth and head influence

the model's performance, thus offering valuable

insights into the effectiveness of the ViT model for

flower classification tasks. The pipeline is illustrated

in Figure 2, providing a visual representation of the

process.

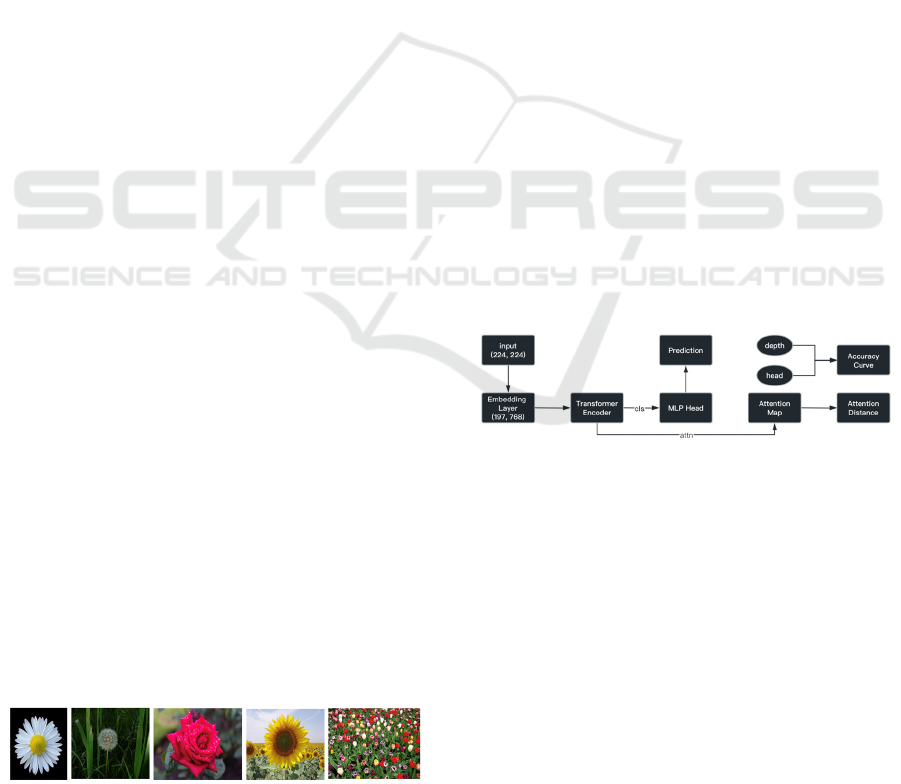

Figure 2: The pipeline of the model and analysis method

(Photo/Picture credit: Original).

2.2.1 Embedding Layer

The model converts the image, represented as a three-

dimensional matrix [H, W, C], into patches using a

simple convolutional process. With a kernel size of

16x16, a stride of 16, and 768 filters, an input image

shape of [224, 224, 3] transforms into [14, 14, 768].

After this process, the output can be a set of tokens

with a shape of [196, 768]. Furthermore, before these

tokens proceed to the next parts, a position

embedding process is applied to keep the sequential

information among the patches. Besides, a [class]

Flower Classiﬁcation and Key Parameter Analysis Based on ViT

195

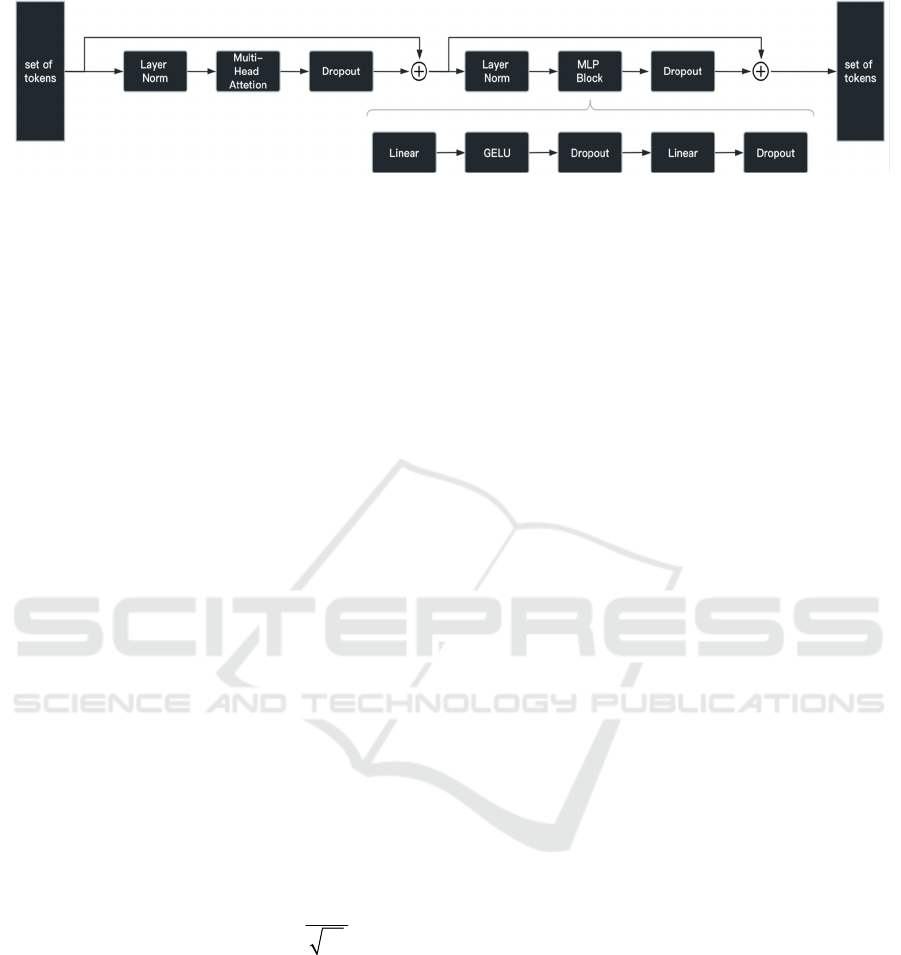

Figure 3: Encoder Block

(Photo/Picture credit: Original).

token is added as well to store classification

information, resulting in [197, 768] as output shape.

2.2.2 Transformer Encoder

This part is the core of the model, and the

hyperparameters, depth and head mainly discussed in

this work, also come from this part. Transformer

Encoder consists of stacking Encoder blocks, the

precise number of Encoder block represents the value

corresponding to the depth parameter.

Each Encoder block contains Layer

Normalization, normalizing tokens, not the batches,

and Dropout process and MLP block are also used

here, which is shown in the Figure 3.

The most critical part is multi-head attention. The

head parameter comes from the number of head here.

Compared with conventional self-attention, multi-

head self-attention performs the same process on

multiple "heads" in parallel. Each head has

independent, learnable matrices for generating key,

query, and value vectors. In this work, the division of

multi-head is by equally dividing the dimensions of

the Query vector, Key vector, and value vector to

each head. Then different heads use their own token

information to complete the self-attention mechanism.

Eventually, directly adding a fully connected layer

can aggregate the output of different heads. The

formula is as follows (Dosovitskiy, 2020):

(, ,) max( )

Attention Q K V soft V

(1)

(, ,) ( ,

,, )

MultiHead Q K V Concate head

head head W



(2)

Where:

(, ,)

QKV

iiii

head Attention QW KW VW=

(3)

2.2.3 Mlp Head

After the Transformer Encoder, the output shape

remains unchanged compared to the input. In this

work, only classification information is needed. By

completing the full connection layer of the class token

input in MLP, the probability distribution of each

corresponding classification item can be formed,

based on which the prediction can be made.

2.2.4 Attention Map Visualization and

Attention Distance

To examine the impact of the hyperparameters depth

and head on the self-attention mechanism, it is

necessary to extract specific attention information

from the model. In this work, the ‘Visualizer’ (Luo,

2022) tool helped extract the Attention Map nested

deep in the model. When the model predicts the test

image, it will store ‘depth’ pieces of tensor

information with shape of [index, head_num, 197,

197] in the cache, in which depth is the layer number

of the transformer encoder, index is the picture

number, head_num is the head number. the values in

row i and column j in the 197*197 two-dimensional

matrix represent the attention value of the i-th patch

to the j-th patch, and among 197 tokens, the one at

position 0 is [class] token. Based on this, deeper

attention information is accessible.

Attention distance (Dosovitskiy, 2020) is

proposed to explain the ‘receptive field’ of the ViT

model and is used to characterize the model capability

to perceive data. As to the ViT model, if the attention

mechanism tends to integrate global information, it

means that its ability to perceive data is stronger and

the attention distance is larger. In this work, it is

concerned that the average Attention distance of all

patches corresponding to a certain head in a certain

layer, which is the mean attention distance.

2.2.5 Loss Function

In this task, the cross-entropy loss function is utilized

as the Loss function, which has been proven to be

extremely effective in image classification tasks

many times.

Specifically in this task, flower classification is

essentially a single-label classification task. Each

sample has only one label. For such a single sample,

assume that the real distribution is y, the model output

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

196

distribution is 𝑦, and the number of categories is n.

Then there is the following counting formula:

log

Loss y

=−



(4)

The lower the loss value, the closer probability

distribution output by the model is to the real one.

After the calculation of Loss is completed, the

back propagation algorithm will be utilized to

calculate the parameters' gradients. Then the pre-

designed optimizer, with the learning rate through the

cosine annealing algorithm, will promote the process

of stochastic gradient descent, updating the

parameters. At last, the previous gradient information

needs to be cleared in time.

2.3 Implementation Details

When specifically training the ViT model, it is not

recommended to only use this flower data set for

training. In this case, this model does not work as well

as it can. No matter how to adjust the epoch, learning

rate algorithm, or other hyperparameters, the

accuracy is always tough to rise to a satisfactory level.

The ViT model is similar to other transformer models.

Only by pre-training on very large-scale data sets,

accumulating generalization capabilities, can the

model reflect its own effects and advantages. This

work mainly uses the weight file formed by the model

pre-training on ImageNet-21k as a base for further

model training on flower classification tasks.

3 RESULTS AND DISCUSSION

By utilizing the ViT model on flower classification,

this study firstly analyzes the performance of

changing depth and head hyperparameter on model

training, and then discusses the logic behind the

design of the multi-head mechanism. Based on these

analyses, this work explores the shallow and deep

trade-offs on hyperparameter settings.

As shown in the Figure 4, the accuracy curve of

the model without pre-training weights was examined

when depth is set to 1, 2, 4, 8, 12, 24, and 32. In this

part, the accuracy is generally positively correlated

with the depth. Deepening the number of layers to

achieve better and more stable training is the basic

idea in the deep learning field. More encoder blocks

extract data information more deeply. The

improvement brought by the depth from 1 to 12 is

considerable. However, it was found that the

improvement brought by the depth from 12 to 32 is

not significant enough, and the cost-effectiveness of

deepening was greatly reduced. A trade-off based on

this is necessary. In this work, images of flower often

have sufficient space for understanding, and when the

depth is 12, the ViT model can work well enough.

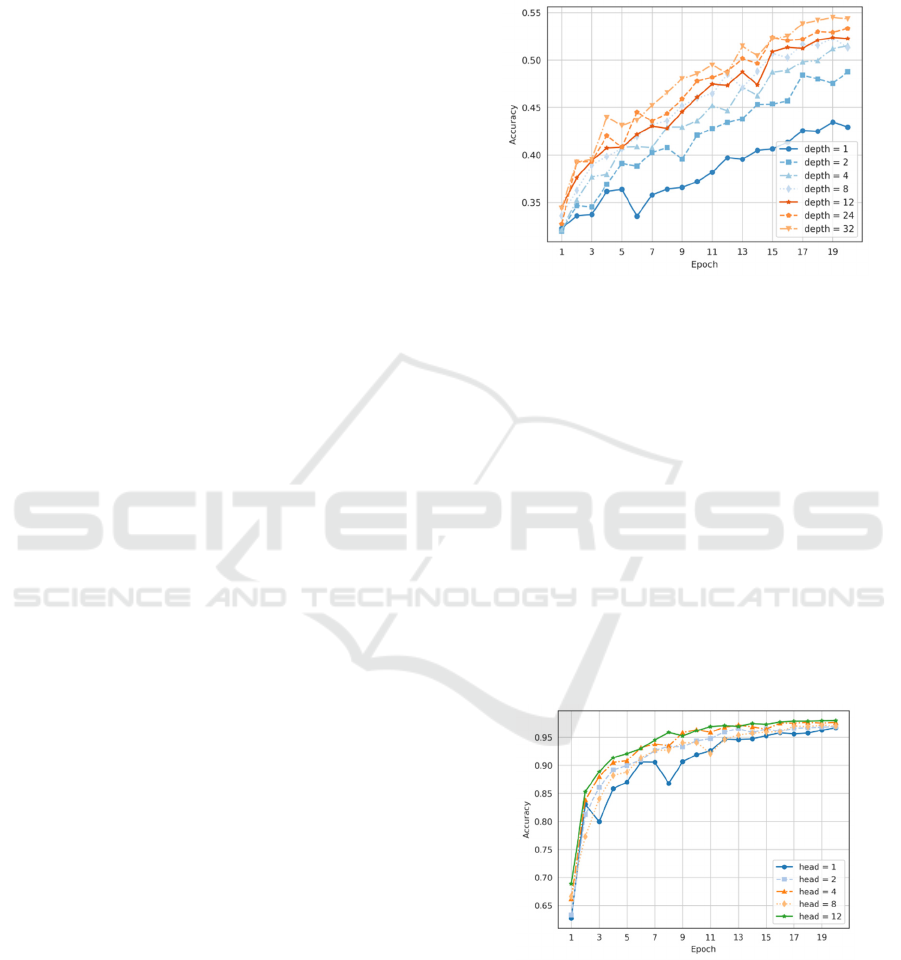

Figure 4: Accuracy curve of varying depth (without pre-

training)

(Photo/Picture credit: Original).

As shown in the Figure 5, with pre-training

weights and fixing the depth to 12, the accuracy

curves of the model are examined when head is set to

1, 2, 4, 8, and 12. With the increase in head quantity,

the model's accuracy under the same epoch improves,

and the enhancement is more stable. In this work, the

division of heads is by equally dividing the

dimensions of the token into each head. It can be

considered that different heads understand the

information from different aspect. Q and K in the

attention mechanism are essentially used to measure

the association between different patches, and this

association may be very abstract and complex. To

better understand it, different heads will describe

these associations in different vector spaces.

Figure 5: Accuracy curve of varying head (with pre-training)

(Photo/Picture credit: Original).

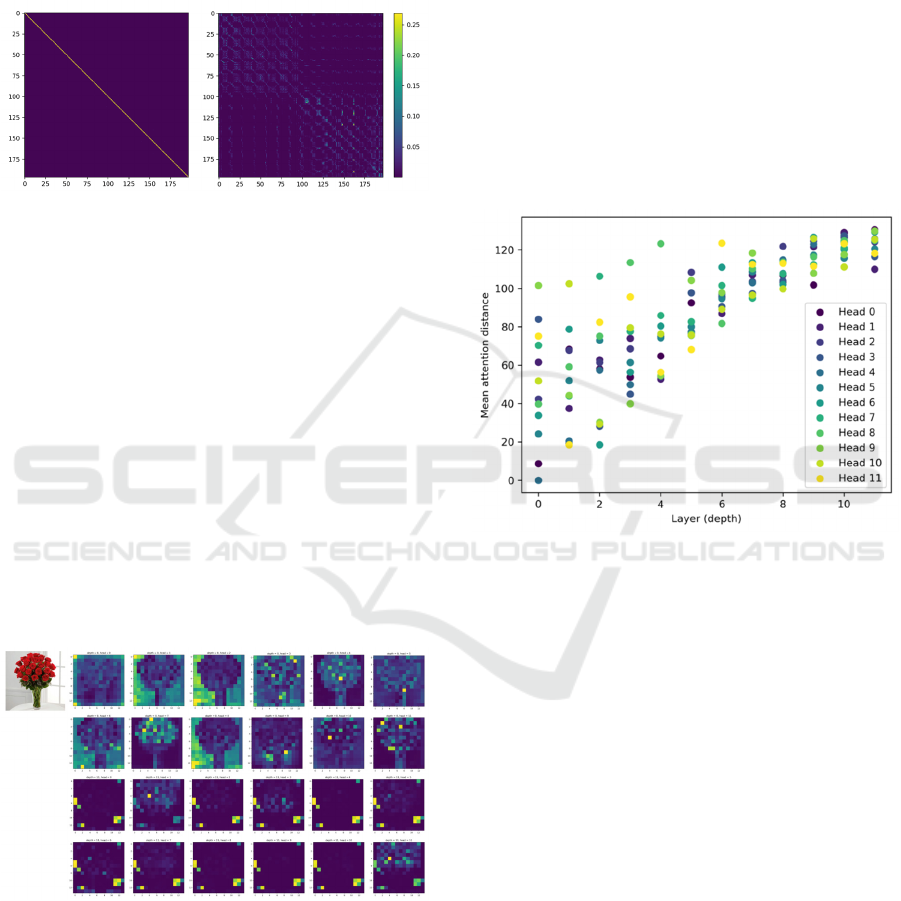

Figure 6 shows the attention map in the first layer

in the single-head and multi-head case. When the

number of heads is small, the model may excessively

focus on its own position, appearing an obvious

diagonal on the attention map. But for multiple heads,

Flower Classiﬁcation and Key Parameter Analysis Based on ViT

197

the attention maps formed by different heads in the

same layer vary a lot. Some are also obvious

diagonals, and some are not obvious at all. The multi-

head design essentially offers the model some

chances to avoid the trap of excessive self-focus, so it

can improve the model to be better and more stable.

Figure 6: Attention map of one head and multi-head

(Photo/Picture credit: Original).

As shown in Figure 7, the test image is shown on

the left. The 12 Figures in the upper two rows on the

right are the class token attention of the 12 heads in

the first layer. Some focus on the local part of the

flower, some focus on the overall flower, and some

focus on global parts of the background. From the

perspective of this diversity effect of attention, the

significance of multi-head is profound. The 12 figures

in the next two rows are from the 12th layer, the last

layer. It is found that different heads show strong

similarity in the distribution of attention, which

shows that as the model deepens, the self-attention

mechanism of each head becomes less effective in

generating different attention to capture the features

and connections between patches. In other words,

attention collapse (Dosovitskiy, 2020) occurs.

Figure 7: Attention visualization of each head on layer 0

and 11

(Photo/Picture credit: Original).

In addition to the similarity in attention

distribution, it was also found that each head seems

not to focus on the foreground information about

flowers.

Based on this, this part introduces attention

distance for further investigation. As shown in Figure

8, in the first few layers, the mean attention distance

varies a lot from head to head. As the layer goes

deeper, the mean attention distance of different heads

begins to show convergence at high values. This

result shows that at the beginning, some heads are

responsible for local information, and some are

responsible for global information. As the depth

continues to increase, all the heads will all tend to

integrate global information. After that, the benefits

of layer training begin to decrease. The inflection

point where benefits begin to decrease provides a

vital reference for deep trade-off on the settings of

depth and head hyperparameters.

Figure 8: Mean attention distance distribution of heads on

each layer

(Photo/Picture credit: Original).

4 CONCLUSIONS

This study delves into the exploration of the crucial

hyperparameters, namely head and depth, and their

profound impact on the performance of the ViT

model within the context of flower classification

tasks. Beyond mere accuracy assessments, the

investigation employs sophisticated techniques such

as attention visualization and distance values to delve

deeper into the significance of the multi-head design.

Extensive and meticulously designed experiments

were meticulously conducted to comprehensively

analyse the intricate relationships between

hyperparameters and model architecture. The

findings reveal a compelling and unmistakable

positive correlation between the depth of the model

and its accuracy, as well as between the number of

heads and the resulting accuracy. Furthermore, the

study uncovers a critical issue within the ViT model,

namely, the occurrence of performance saturation

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

198

attributed to attention collapse as the model's depth

increases. This research endeavours to thoroughly

dissect the underlying causes and consequences of

such saturation and utilizes the inflection points

derived from the mean attention distance distribution

to navigate the intricate trade-offs involved in setting

depth and head parameters. Looking ahead, future

endeavours will place a central focus on addressing

attention collapse as a primary research objective,

striving to develop innovative methodologies to

transcend its limitations and further refine the ViT

model for enhanced performance in flower

classification tasks.

REFERENCES

Chi, Z. (2003). Data management for live plant

identification. Multimedia information retrieval and

Management, pp: 432–457.

Das, M., Manmatha, R., & Riseman, E. M. (1999). Indexing

flower patent images using domain knowledge. IEEE

Intelligent Systems and their Applications, vol. 14(5),

pp: 24-33.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., ... & Houlsby, N. (2020).

An image is worth 16x16 words: Transformers for

image recognition at scale. arXiv:2010.11929.

He, K., Zhang, X., Ren, S., & Sun, J. (2016). Deep residual

learning for image recognition. In Proceedings of the

IEEE conference on computer vision and pattern

recognition, pp: 770-778.

Hiary, H., Saadeh, H., Saadeh, M., & Yaqub, M. (2018).

Flower classification using deep convolutional neural

networks. IET Computer Vision, vol. 12(6), pp: 855–

862.

Kenrick, P. (1999). The family tree flowers. Nature, vol.

402(6760), pp: 358–359.

Luo Y. (2022). Visualizer. https://github.com/lu

o3300612/Visualizer

Nilsback, M.-E., & Zisserman, A. (2006). A Visual

Vocabulary for Flower Classification. 2006 IEEE

Computer Society Conference on Computer Vision and

Pattern Recognition (CVPR’06), vol. 2, pp: 1447–1454.

Nilsback, M.-E., & Zisserman, A. (2008). Automated

Flower Classification over a Large Number of Classes.

2008 Sixth Indian Conference on Computer Vision,

Graphics & Image Processing, pp: 722–729.

Tan, M., & Le, Q. (2019). Efficientnet: Rethinking model

scaling for convolutional neural networks. In

International conference on machine learning, pp:

6105-6114.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., ... & Polosukhin, I. (2017). Attention

is all you need. Advances in neural information

processing systems, vol. 30.

Flower Classiﬁcation and Key Parameter Analysis Based on ViT

199
