CNN-Based Facial Emotion Recognition: Modeling and Evaluation

Juntao Chen

School of Computer Science and Technology, Guangzhou Institute of Science and Technology, Guangzhou, China

Keywords: Facial Emotion Recognition, CNN, CK+48 Dataset, Emotion Analysis.

Abstract: Human facial emotion recognition is pivotal across various domains, including human-computer interaction,

psychological health assessment, and social signal processing. Despite its significance, the accuracy and

robustness of facial expression recognition still faces significant challenges caused by the heterogeneity of

faces and changes in the imaging environment such as posture and lighting. This study introduces an effective

facial expression recognition model using convolutional neural networks (CNNs). In this experiment, a

straightforward CNN model was developed and trained on the CK+48 dataset, which underwent data

preprocessing steps such as image scaling, normalisation, and one-hot encoding of labels. The model

architecture incorporates classical CNN components including convolutional, pooling, and fully connected

layers, coupled with appropriate loss functions, optimizers, and evaluation metrics. Experimental findings

showcase the CNN model's remarkable performance, achieving an average accuracy of 83.24% on the

emotion recognition task, with the highest recognition rate of 98.9% for the anger expression. These results

underscore the vast potential of the proposed CNN-based approach in advancing facial emotion analysis and

recognition applications.

1 INTRODUCTION

Facial expressions are a natural and powerful form of

non-verbal communication, providing immediate

insights into a person's emotional state. Human facial

emotion recognition is a significant research topic in

the fields of computer vision and artificial

intelligence (Khaireddin, 2021). The accurate

understanding and recognition of human emotions by

computers is crucial for achieving natural and

intelligent human-computer interaction (Kulkarni,

2020). Developing human-computer interaction

technology requires researching more effective ways

of recognising emotions. Traditional methods of

emotion recognition rely on manually extracted

features, such as facial expressions and voice tone.

However, these methods are often limited by specific

application scenarios and data conditions. In recent

years, deep learning techniques have provided new

solutions for emotion recognition. convolutional

neural networks (CNNs) have shown excellent

performance in emotion recognition tasks due to their

powerful feature learning and representation

capabilities.

https://orcid.org/0009-0000-8668-0091

Currently, there are two main categories of CNN-

based emotion recognition methods: still image-

based and video sequence-based. In still image

methods, researchers typically use pre-trained CNN

models, such as Visual Geometry Group Net

(VGGNet) (Wang, 2015) and Residual Neural

Network (ResNet) (Xu, 2023), and fine-tune them on

a specific emotion dataset to extract facial expression

features and classify emotions (Jun, 2018). In terms

of video sequence techniques, scientists have blended

CNNs with Recurrent Neural Networks (RNNs) such

Gate Recurrent Unit (GRU) (Kang, 2019) and Long

Short Term Memory (LSTM) (Hans, 2021) in order

to capture dynamic changes in face expressions and

model temporal information for more precise emotion

recognition (Yang, 2021). Furthermore, attentional

mechanisms and multimodal fusion have been

explored in some studies to further enhance the

performance of emotion recognition (Lee, 2020). In

addition, medical research has used CNNs for

expression-emotion feature extraction and treatment

of related psychiatric disorders, with good results.

Despite significant progress, practical applications

still face challenges such as the high cost of data

250

Chen, J.

CNN-Based Facial Emotion Recognition: Modeling and Evaluation.

DOI: 10.5220/0012925500004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 250-256

ISBN: 978-989-758-713-9

annotation and insufficient model generalisation

ability.

The main objective of this effort is to use

Convolutional Neural Networks (CNNs) to recognise

human emotions more reliably and efficiently.

Initially, a lightweight CNN model consisting of three

convolutional layers and two fully connected layers

was used, making it possible to extract facial

expression features with minimal computational

burden. To enhance the model's adaptability, data

augmentation techniques are applied to diversify the

training samples. This involves random

transformations such as rotation, translation, and

scaling of the training images. Comparative

experiments are conducted on various model

architectures and hyperparameter configurations,

evaluating their performance via cross-validation.

Additionally, the experiment will include a

visualization of the model's decision-making process

and an analysis of the contribution of various facial

regions to emotion recognition through this process.

Results demonstrate that the proposed CNN model

achieves high accuracy in recognizing emotions

across publicly available datasets, exhibiting strong

generalization and robustness. This study introduces

innovative approaches for deep learning-based

human emotion recognition, with potential

applications in areas like intelligent customer service

and emotion computing.

2 METHODOLOGY

2.1 Dataset Description and

Preprocessing

The study employed the CK+48 human emotional

expression dataset from Kaggle (Ashadullah, 2018).

The dataset consists of 980 colour images of seven

basic human emotional expressions. Anger, surprise,

and disgust exhibited the highest recognition rates in

the experiment, while contempt and happiness

performed moderately. The recognition accuracy of

sadness and fear requires improvement. The model

was trained on the CK+48 dataset, incorporating data

augmentation, 5-fold cross-validation, and Early

Stopping strategies. On the test set, the performance

of the optimal model was evaluated, and the

prediction results were visualized through confusion

matrices and Receiver Operating Characteristic

(ROC) curves. Ultimately, the model weights and

architecture were preserved.

2.2 Proposed Approach

This study aimed to identify photos of human facial

expressions into seven basic emotion categories:

contempt, rage, disgust, fear, pleasure, sadness, and

surprise—using a CNN model. Preprocessing

processes, such as scaling and normalisation, were

applied to the original photos using the CK+48 face

expression dataset. Data enhancement methods such

as rotation, translation and mirroring are used to

supplement the training set to increase the model's

ability to generalise. Furthermore, the data was

partitioned into 5 subsets for training and validation

using a 5-fold cross-validation approach, which

ensured a thorough evaluation of model performance.

The CNN-based architecture was constructed with

multiple convolutional, pooling, and fully connected

layers. To mitigate overfitting and preserve optimal

model weights, Early Stopping and Model

Checkpoint callback functions were incorporated

during training. The loss function employed was

categorical Cross entropy, and RMSprop served as

the optimizer. Evaluation of the model on a test set

revealed that the best CNN model achieved a test loss

value of 0.5008 and a test accuracy of 83.25%.

Additionally, the study visualized the confusion

matrix and ROC curves to further scrutinize the

model's performance across different emotion

categories. The test image prediction results indicate

that the model can accurately predict the probability

distribution of emotion categories for a given facial

expression image. The optimal model weights, along

with the entire model structure exhibiting outstanding

performance, were preserved for future applications

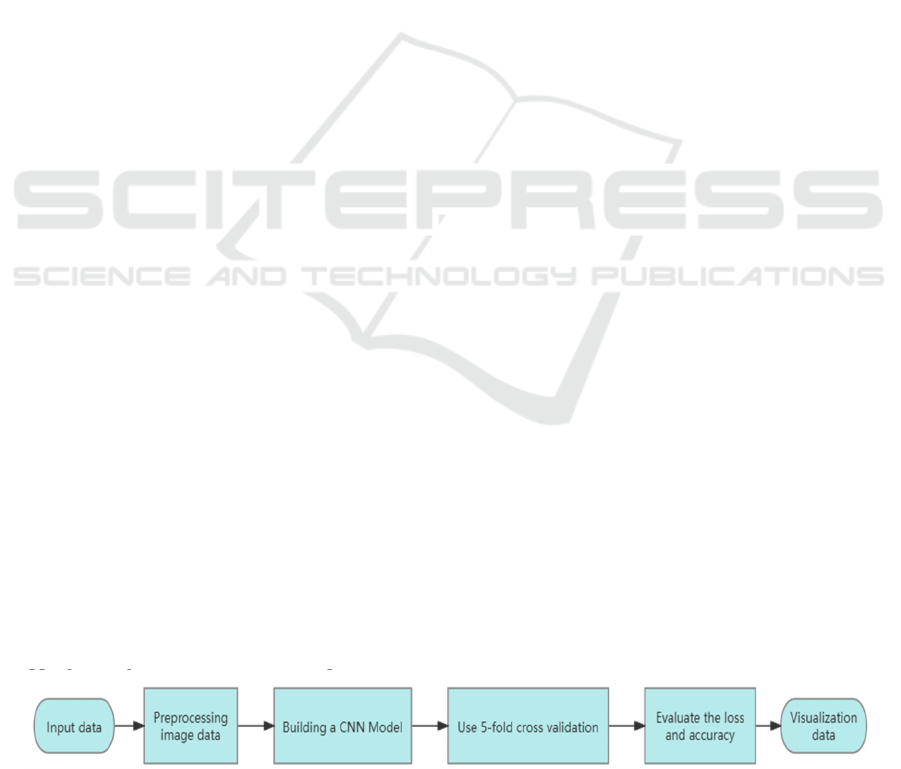

and deployments. The main flowchart of this study is

depicted in Figure 1.

Figure 1: Main Process

(Photo/Picture credit: Original).

CNN-Based Facial Emotion Recognition: Modeling and Evaluation

251

2.2.1 CNN

CNN is a deep learning model specifically designed

to process visual data such as images and videos. The

design idea of CNN comes from the visual cortex in

the neuroscience visual system, and the core idea is to

learn features from images through multi-layer

convolution and pooling operations for efficient

classification and recognition of images. The input,

pooling, fully connected, convolutional, and output

layers are the various parts that make up the CNN

architecture. In the experiments, by applying a

convolutional kernel to the input image, the

convolutional layer extracts relevant features and

these features have a strong ability to characterise

local features such as edges and texture of the image.

To lower the feature map's dimensionality while

preserving the key characteristics, the pooling layer

applies downsampling techniques to the features that

the convolutional layer extracted. The pooling layer

operation reduces the computational complexity and

parameter count of the model, improving its

generalisation. The fully connected layer, which

integrates the previously extracted features, outputs

the final classification result. In addition, the features

of CNN include local awareness and parameter

sharing. By limiting each neuron's attention to the

input's local region, local perception enhances the

representation of features locally. Meanwhile,

parameter sharing ensures that inputs from various

locations have the same weights, which lowers the

likelihood of overfitting by lowering the number of

parameters in the model. When training the neural

network model, the weight parameters of the model

will be initialised randomly at first, and then the

training samples will be inputted for forward

propagation to get the output of the model. Next, the

error between the actual and desired outputs will be

calculated. Then, the best model will be obtained by

using a back propagation algorithm to feed the error

back to each layer of the network and adjust the

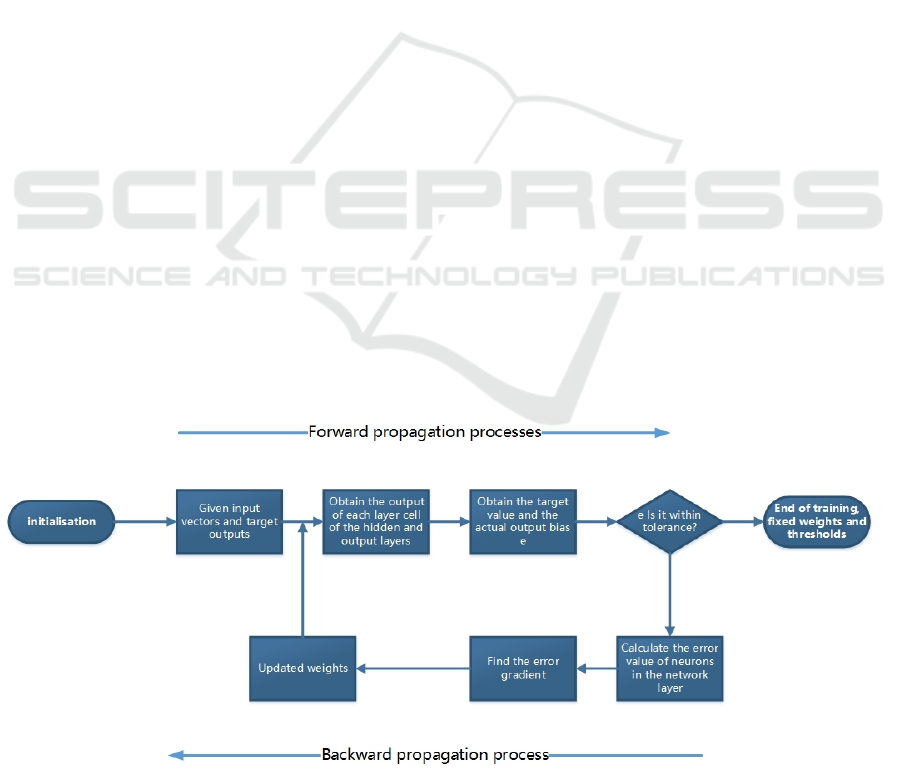

parameters to minimise the overall error. Figure 2 is

the illustration of the CNN training process.

The architecture of the CNN model utilized in this

investigation is as follows: input of 48x48 pixel RGB

images; the first convolutional layer extracts low-

level pixel-level features using 6 5x5 filters and max

pooling; the second convolutional layer extracts more

abstract geometric shape features using 16 5x5 filters

and max pooling; the third convolutional layer

captures high-level facial features like contours and

facial parts using 64 3x3 filters and max pooling. This

is followed by a flattening layer that integrates the

local features into a global feature representation.

Next, a 128-node fully connected layer models

different emotion patterns and uses Dropout

regularization to avoid overfitting. Finally, a SoftMax

output layer with 7 nodes corresponds to the

probability values of 7 emotion categories. For this

experiment, the model is trained using the cross-

entropy loss function and the RMSprop optimiser.

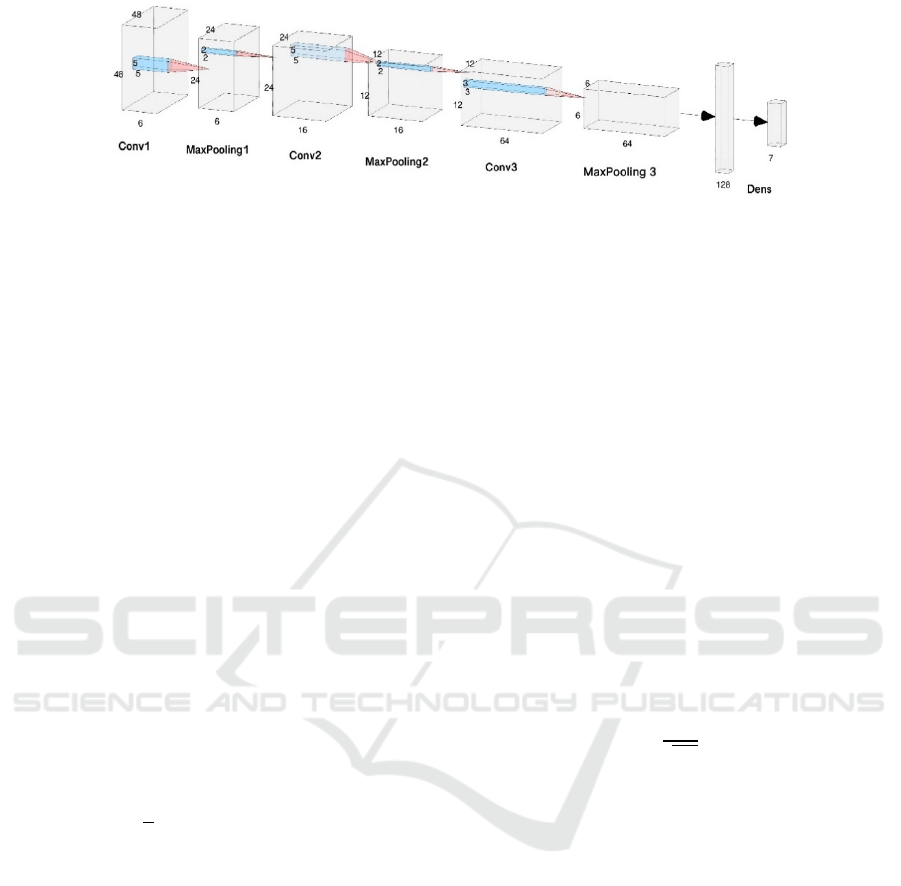

Figure 3 shows CNN architecture in this study. The

convolutional layers automatically learn local

features from the input data, extracting and

integrating them into high-level semantic feature

representations layer by layer. Through the feature

encoding of the CNN model, it can effectively model

the emotional features embedded in facial images,

providing support for emotion recognition tasks.

Figure 2: The process of training (Photo/Picture credit: Original).

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

252

Figure 3: CNN architecture (Photo/Picture credit: Original).

2.2.2 Categorical Cross Entropy Loss

The experiment utilizes RMSprop as the optimization

method and categorical Cross entropy as the loss

function. One loss function that is frequently utilized

in multi-classification issues is categorical Cross

entropy. It gauges the difference between the genuine

probability distribution (which is typically one-hot

coding) and the anticipated probability distribution.

For a single sample, suppose there are C

categories and N samples, the true labels are one-hot

coded vectors, the model predicts a probability

distribution. Then the categorical cross-entropy

loss(L) for this sample is：

𝐿 = −

∑

𝑦



𝑙𝑜𝑔( 𝑝



)





(1)

The negative logarithm of the probability of the

corresponding position of the real label. Intuitively,

when the predicted probability p approaches 1, the

loss value will be very small; When p approaches 0,

the loss value will be infinitely large. For the entire

dataset, categorizal cross entropy is defined as the

average loss of all samples:

𝐿 = −





∑∑

𝑦



𝑙𝑜𝑔( 𝑝



)









(2)

In this experiment, the value of N represents the

total number of samples or data points used in the

study. The SoftMax activation function, when applied

in tandem with the categorical cross entropy loss

function, serves to map the neural network's raw

output into a set of probabilities, each corresponding

to a specific target class. By using a 48x48 pixel RGB

face image as input, the model is able to extract

relevant facial features, such as contours and local

patterns, through the convolutional layers. These

features are then combined into a global

representation using a spreading layer, which is then

fed into a fully connected layer with 128 nodes to

model the complex emotional patterns. Finally, the

SoftMax output layer produces probability vectors for

the 7 emotion categories, allowing the model to make

predictions on the emotional state expressed in the

input face image.

2.2.3 Root Mean Square Propagation

(RMSprop)

RMSprop is an optimisation algorithm for adaptive

learning rate, which is commonly used for training

deep neural network models. It accelerates the

convergence process by adjusting the moving

weighted average of the gradient to adaptively control

the learning rate of each parameter.

The core idea of the RMSprop algorithm is to use

the exponentially weighted moving average to

estimate the variance of the gradient of each

parameter, and then divide the gradient by the square

root of this variance as the update step. The specific

formula is as follows:

𝑠:= 𝛽⋅𝑠+(1−𝛽)𝛻



𝐽(𝜃) ⊙𝛻



𝐽(𝜃) (3)

𝜃:= 𝜃−



√

∈

⊙𝛻



𝐽(𝜃) (4)

In the formula, β represents the RMSProp

attenuation factor, η is the learning rate, and s, with

an initial value of 0, is the exponentially weighted

sum of squared shifts about the gradient. The product

of the equivalent terms is known as the dot product,

or ⊙. The hyperparameters are typically set to β = 0.9,

η = 0.001. Through this updating mechanism,

RMSprop makes the updating step size smaller for

parameters with larger gradients and larger for those

with smaller gradients, thus achieving adaptive

adjustment of the updating rate of different

parameters, accelerating the model convergence and

improving the training efficiency.

2.3 Implementation Details

Several key implementation aspects are highlighted

in the execution of the proposed CNN model for

facial emotion recognition. The code for this

experiment was run on a kaggle environment.

CNN-Based Facial Emotion Recognition: Modeling and Evaluation

253

Regarding hyperparameters: the experiment was

conducted using a batch size of 8 and 200 epochs. A

5-fold cross-validation strategy was employed,

combined with an EarlyStopping callback with a

patience of 8 epochs to prevent overfitting. The

ModelCheckpoint callback is utilized to save the

model weights corresponding to the minimum

validation loss. The RMSprop optimizer is used with

its default settings for efficient gradient-based

optimization. Techniques for augmenting data are

essential for increasing the variety of training data

and improving the model's capacity to generalize.

These techniques include random rotations within 25

degrees, horizontal flipping, width/height shifting by

0.1, shear transformations with a strength of 0.2, and

zooming within the range of [0.8, 1.2]. The "nearest"

fill mode is employed to handle newly created pixels

during these transformations. Regarding the dataset

background, the CK+ dataset comprises 48x48 RGB

facial images belonging to seven emotion categories:

anger, contempt, disgust, fear, happy, sadness, and

surprise. Figure 4 shows the detailed flowchart of this

experiment.

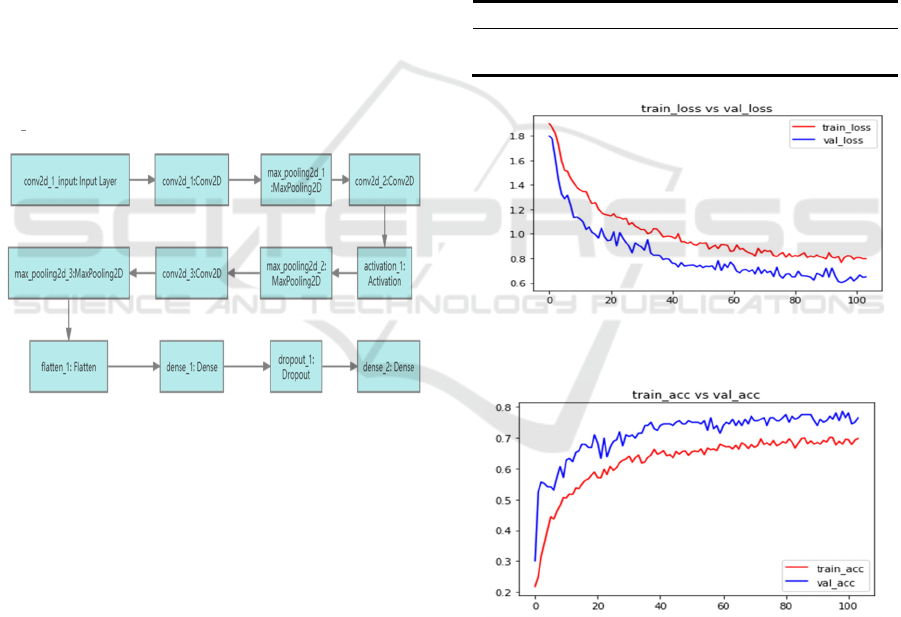

Figure 4: Detailed process

(Photo/Picture credit: Original).

3 RESULTS AND DISCUSSION

This chapter presents an analysis of the experimental

results obtained by employing a CNN for facial

emotion recognition on the CK+ dataset. The analysis

covers model performance evaluation metrics,

visualization of predictions, and interpretation of the

findings.

3.1 Model Performance Evaluation

In the training phase, the model was evaluated using

20% of the images in the CK+48 dataset selected

randomly. The model achieved an average accuracy

of 76% on the test set, with a maximum accuracy of

98.9%. This indicates that the model can effectively

distinguish between different facial expressions. In

the testing phase, the model obtained a loss rate of

50% and an accuracy rate of 83.3%. The results show

that the model can effectively classify facial

expression images in the CK+ dataset. The moderate

test loss rate suggests that the model's ability to fit

data is average. This is likely due to the use of data

augmentation, K-fold cross-validation, and early

stopping callbacks, which may have prevented the

model from achieving optimal generalization ability

or selecting the best model. However, the high-test

accuracy rate indicates that the model can accurately

classify new images. Table 1 displays the testing

accuracy and loss rate. Figures 5 and 6 show the

training loss rate and accuracy.

Table 1: Testing accuracy and loss.

Test Loss Test accuracy

0.5008549423992331 0.8324872851371765

Figure 5: train_loss & val_loss

(Photo/Picture credit:

Original).

Figure 6: train_acc & val_acc

(Photo/Picture credit:

Original).

3.2 Confusion Matrix Visualization

A confusion matrix is a useful tool for evaluating the

performance of a multi-class model. It shows the

prediction accuracy of the model for each class and

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

254

can be used to identify classes in which the model

might have trouble.

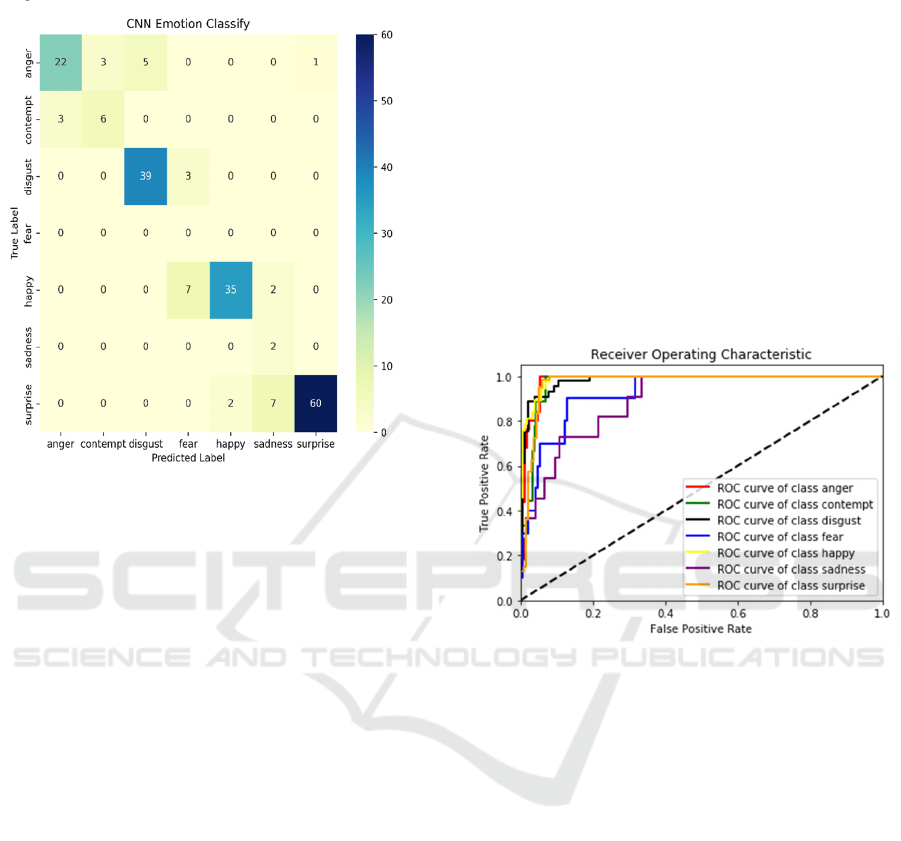

Figure 7: CNN Emotion Classify

(Photo/Picture credit:

Original).

The confusion matrix for the CNN-based face

emotion recognition model is displayed in Figure 7.

As can be seen, the model achieves high prediction

accuracy for most emotion classes. For example, the

model has an accuracy of over 90% for the emotions

of anger, disgust, fear, happiness, and surprise.

However, the model has lower prediction accuracy

for the emotion of sadness, with only 57% of sad

emotions being correctly classified. This suggests that

the model may have difficulty distinguishing sadness

from other emotions, such as anger or disgust.

Additionally, the model has a high false positive rate

for the emotion of anger, with 13% of non-anger

emotions being incorrectly classified as anger. This

suggests that the model may be overly aggressive in

predicting the emotion of anger.

The outcomes of the confusion matrix suggest that

the CNN model is a useful tool for recognising facial

emotions. The model's prediction of the emotion of

anger may need to be changed to minimize false

positives, and there is still space for improvement in

the classification of the sorrow emotion.

3.3 ROC Curves

The ROC curve offers a thorough study of the

sensitivity and specificity of the test, making it a

useful tool for assessing the accuracy of diagnostic

procedures. The ROC curve provides a graphic

depiction of the diagnostic test's overall efficacy by

charting these two markers. Moreover, the model

performs better at classification the closer the points

on this curve are to (0,1). In this experiment, the

curves of anger, disgust, happy, and surprise

emotions are closer to (0,1), indicating that the model

has high prediction accuracy for these emotions. The

TPR for the emotion of sadness and fear is lower,

indicating that the model has lower prediction

accuracy for sadness. For this experiment, the ROC

curve suggests that the model has good classification

performance for most emotion classes, but lower

classification performance for the emotion of sadness

and a higher false positive rate for the emotion of

anger. Figure 8 shows the ROC curve of this

experiment.

Figure 8: ROC curve

(Photo/Picture credit: Original).

4 CONCLUSIONS

This study delves into facial emotion recognition

utilizing CNNs. The proposed CNN model is

designed to analyse and identify emotional states

depicted in facial expressions. Constructed using the

Sequential API, the model comprises convolutional

layers, pooling layers, a flattening layer, and fully

connected layers. Configured with categorical cross-

entropy as the loss function and RMSprop as the

optimizer, the model undergoes extensive

experimental evaluation employing confusion

matrices and ROC curves. Results showcase an

average accuracy of 83.24% in facial emotion

recognition, affirming the efficacy and promise of the

proposed CNN model. Future work will explore the

integration of other modal inputs, such as speech and

action, to develop a multimodal emotion recognition

system. This entails integrating visual, auditory, and

semantic data and employing cross-modal learning to

CNN-Based Facial Emotion Recognition: Modeling and Evaluation

255

enhance accuracy, robustness, and generalization

capabilities in emotion recognition applications.

REFERENCES

Ashadullah, s., (2018). Kaggle dataset. https://www.

kaggle.com/datasets/shawon10/ckplus/data.

Hans, A. S. A., & Rao, S. (2021). A CNN-LSTM based

deep neural networks for facial emotion detection in

videos. International Journal of Advances In Signal

And Image Sciences, vol. 7(1), pp: 11-20.

Jun, H., Shuai, L., Jinming, S., Yue, L., Jingwei, W., &

Peng, J. (2018, November). Facial expression

recognition based on VGGNet convolutional neural

network. In 2018 Chinese automation congress (CAC),

pp. 4146-4151.

Kang, K., & Ma, X. (2019, July). Convolutional gate

recurrent unit for video facial expression recognition in

the wild. In 2019 Chinese Control Conference (CCC),

pp: 7623-7628.

Khaireddin, Y., & Chen, Z. (2021). Facial emotion

recognition: State of the art performance on FER2013.

arXiv preprint arXiv:2105.03588.

Kulkarni, P., & Rajesh, T. M. (2020). Analysis on

techniques used to recognize and identifying the

Human emotions. International Journal of Electrical

and Computer Engineering, vol. 10(3), p: 3307.

Lee, J., Kim, S., Kim, S., & Sohn, K. (2020). Multi-modal

recurrent attention networks for facial expression

recognition. IEEE Transactions on Image Processing,

vol. 29, pp: 6977-6991.

Wang, L., Guo, S., Huang, W., & Qiao, Y. (2015).

Places205-vggnet models for scene recognition. arXiv

preprint arXiv:1508.01667.

Xu, W., Fu, Y. L., & Zhu, D. (2023). ResNet and its

application to medical image processing: Research

progress and challenges. Computer Methods and

Programs in Biomedicine, p: 107660.

Yang, B., Wu, J., Zhou, Z., Komiya, M., Kishimoto, K., Xu,

J., & Takishima, Y. (2021, October). Facial action unit-

based deep learning framework for spotting macro-and

micro-expressions in long video sequences. In

Proceedings of the 29th ACM International Conference

on Multimedia, pp: 4794-4798.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

256
