How to Surprisingly Consider Recommendations?
A Knowledge-Graph-Based Approach Relying on Complex Network
Metrics
Oliver Baumann
1 a
, Durgesh Nandini
1 b
, Anderson Rossanez
2 c
, Mirco Schoenfeld
1 d
and Julio Cesar dos Reis
2 e
1
University of Bayreuth, Bayreuth, Germany
2
Institute of Computing, University of Campinas, Campinas, SP, Brazil
Keywords:
Recommender Systems, Knowledge Graphs, Complex Network Metrics.
Abstract:
Traditional recommendation proposals, including content-based and collaborative filtering, usually focus on
similarity between items or users. Existing approaches lack ways of introducing unexpectedness into recom-
mendations, prioritizing globally popular items over exposing users to unforeseen items. This investigation
aims to design and evaluate a novel layer on top of recommender systems suited to incorporate relational in-
formation and rerank items with a user-defined degree of surprise. Surprise in recommender systems refers
to the degree to which a recommendation deviates from the user’s expectations, providing an unexpected yet
relatable recommendation. We propose a knowledge graph-based recommender system by encoding user in-
teractions on item catalogs. Our study explores whether network-level metrics on knowledge graphs (KGs)
can influence the degree of surprise in recommendations. We hypothesize that surprisingness correlates with
specific network metrics, treating user profiles as subgraphs within a larger catalog KG. The achieved solution
reranks recommendations based on their impact on structural graph metrics. Our research contributes to op-
timizing recommendations to reflect the network-based metrics. We experimentally evaluate our approach on
two datasets of LastFM listening histories and synthetic Netflix viewing profiles. We find that reranking items
based on complex network metrics leads to a more unexpected and surprising composition of recommendation
lists.
1 INTRODUCTION
Recommender Systems aim to offer a personalized
view of large complex spaces, prioritizing items likely
to interest the user by analyzing user preferences,
historical behavior, and item characteristics (Felfer-
nig and Burke, 2008). Recommendations can ex-
pose users to relevant items and expand their under-
standing of the catalog, regardless of whether in an e-
commerce, media-streaming, or GLAM setting. The
most popular approaches for recommender systems
(RS) are collaborative filtering and content-based fil-
tering (Schafer et al., 2007; Sarwar et al., 2001).
a
https://orcid.org/0000-0003-4919-9033
b
https://orcid.org/0000-0002-9416-8554
c
https://orcid.org/0000-0001-7103-4281
d
https://orcid.org/0000-0002-2843-3137
e
https://orcid.org/0000-0002-9545-2098
All authors contributed equally.
User-item recommendations are an important part of
the discovery process of large collections. In content-
based filtering, item characteristics are used to deter-
mine the similarity between items rated (viewed, lis-
tened, bought, etc.) by a user, and “unseen” items.
Collaborative filtering, on the other hand, determines
users similar to the target user and predicts ratings on
unseen items by the target user.
Existing approaches have been shown to produce
meaningful recommendations; the items they rec-
ommend tend to be expected and located in what-
ever portion of the catalog considered “mainstream”.
These approaches do not consider the rich relations
between items beyond the realm of similarity alone.
We argue that users may profit from recommenda-
tions that include an element of surprise, as they
may come in touch with concepts they have been un-
aware of. State-of-the-art commonly operationalizes
surprise through auxiliary constructs such as novelty
and diversity (Kaminskas and Bridge, 2016; Castells
Baumann, O., Nandini, D., Rossanez, A., Schoenfeld, M. and Reis, J.
How to Surprisingly Consider Recommendations? A Knowledge-Graph-Based Approach Relying on Complex Network Metrics.
DOI: 10.5220/0012936100003838
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 2: KEOD, pages 27-38
ISBN: 978-989-758-716-0; ISSN: 2184-3228
Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.
27

et al., 2021). We provide closed-form definitions for
these terms in Section 4.3. We define “surprise” as the
degree to which a recommendation deviates from the
user’s expectations, introducing unexpectedness into
the recommended items list while maintaining rele-
vance to the user’s interests and preferences.
Knowledge Graph RS combine the capabilities of
recommender systems and Knowledge Graphs (KGs)
by incorporating and analyzing the structured repre-
sentation of information in KGs. These systems lever-
age the interconnected nature of entities and their at-
tributes within the KG to enhance the accuracy and
relevance of recommendations. Using KGs, recom-
mender systems can go beyond simple user-item in-
teractions and incorporate a broader understanding of
the relationships among items, users, and other enti-
ties. This allows for more sophisticated recommen-
dation approaches that consider not only the user’s
preferences. In this sense, contextual information en-
coded in KGs influences recommendation items. For
example, in a movie recommendation scenario, a KG-
based RS could consider not only the user’s past view-
ing history and ratings. It can consider, for instance,
the genre of the movie, the actors and directors in-
volved, and the relationships between movies based
on shared themes or motifs.
In this study, we propose a layer on top of rec-
ommender systems, extending their functionality by a
configurable degree of surprise. Our approach con-
siders relational information among items encoded
in KGs and suggests items with a user-defined de-
gree of surprise relying on results generated by a
recommender system. The main research question
guiding our investigation is whether network met-
rics computed on the KG influence the degree of sur-
prise within the recommendations. We propose lever-
aging the graph structure of KGs, employing com-
plex network measurements (Rossanez et al., 2023)
to encode entity relevance in a KG. Centrality mea-
surements denote different meanings of relevance for
graph nodes, bringing novelty aspects for analyses
over KGs. Our assumption highlights that the “sur-
prisingness” of recommendations is reflected in the
network-level metrics of the KG, which provide a
means to evaluate structural changes in KGs when
recommendations are included.
Figure 1 provides a high-level overview of our ap-
proach. We construct KGs from two distinct cata-
logs: users’ listening events on the platform LastFM
1
,
and TV shows and movies on Netflix
2
. User pro-
files for LastFM are available through the LFM-1b
dataset (Schedl, 2016); for Netflix, we generate syn-
1
https://www.last.fm/
2
https://www.netflix.com
thetic profiles. Recommendations for these profiles
are then generated through state-of-the-art recom-
mender systems. Our work supports any RS, as we
focus on reranking recommendations to surface sur-
prising results. Consequently, a specific RS optimal
for a particular use case can be selected. For each
user profile, we determine the induced subgraph on
the catalog-KG that includes all items the user inter-
acted with and further entities that enrich the model.
Then, for each user and each item in their recom-
mendation list, we assess the impact of including that
item and its KG-informed neighborhood on the user’s
subgraph through pre-determined graph metrics. The
original recommendation lists are then re-ranked ac-
cording to their relative impact.
Our contributions are summarized as follows:
• Insert a configurable level of surprise to any rec-
ommender system by adding a layer of meta-
analysis on obtained recommendations;
• Identify a network metric that correlates with dif-
ferent dimensions of surprise;
• Provide a comparative study regarding several
network-level metrics for reranking recommenda-
tion results;
The remainder of this article is organized as fol-
lows: Section 2 discusses related work. Section 3
presents our proposal. Section 4 reports our experi-
mental evaluation and its results. Section 5 discusses
our findings. Section 6 wraps up our investigation and
points out directions for future studies.
2 RELATED WORK
Joseph & Jiang (Joseph and Jiang, 2019) proposed a
graph traversal algorithm along with a novel weight-
ing scheme for cold-start content-based recommen-
dation using named entities. Their approach com-
putes the shortest distance between named entities
over large KGs. Wang et al. (Wang et al., 2019) in-
troduced the KG Attention Network (KGAT), which
enhances the effectiveness of collaborative filtering
in RS by effectively modeling the high-order con-
nectivity between users, items, and entities within a
KG. Their research investigated how different levels
of connectivity, first-order, second-order, third-order,
etc. impact the model’s effectiveness. They discussed
the findings of using attention mechanisms and KG
embeddings.
Hui et al. (Hui et al., 2022) presented ReBKC,
an RS that uses auxiliary information such as histor-
ical user behavior and KGs to provide personalized
KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development
28

suggestions. Their investigation integrates KG em-
beddings and user-item interactions to address issues
like sparse data and cold start. ReBKC suggests using
KGs as heterogeneous networks to incorporate addi-
tional information to unify embeddings of user behav-
ior and knowledge features. Their proposed algorithm
employs collaborative filtering, enhanced by the rich
semantic associations in KGs, to mine user prefer-
ences more deeply. The system learns from historical
user interactions and multiple relationships within the
KG.
Zhang et al. (Zhang et al., 2016) addressed the
limitations of collaborative filtering in recommender
systems by leveraging heterogeneous information in
a knowledge base to improve the quality of recom-
mendations. Their proposed framework – Collab-
orative Knowledge Base Embedding (CKE) – com-
prises three components to extract semantic represen-
tations from items’ structural, textual, and visual con-
tent. These components employ techniques such as
heterogeneous network embedding, stacked denois-
ing auto-encoders, and convolutional auto-encoders
to extract textual and visual representations. It then
jointly learns the latent representations in collabora-
tive filtering and items’ semantic representations from
the knowledge base. Kaminskas and Bridge (Kamin-
skas and Bridge, 2016) looked into the aspects of di-
versity, serendipity, novelty, and coverage. They ex-
plained that introducing surprise in RS can burst the
“user filter bubble” by finding interesting items that
the user might not have otherwise discovered.
Kotkov et al. (Kotkov et al., 2016) examined the
concept of serendipity in the context of recommender
systems. Their work discussed different approaches
to measure and enhance serendipity in RS, includ-
ing using algorithms that utilize uncommon similar-
ity measures or adapt based on user feedback. Their
investigation looked at the balance between accuracy
and novelty in recommendations and explored offline
and online evaluation strategies for assessing the ef-
fectiveness of RS in delivering serendipitous results.
On the other hand, De Gemmis et al. (De Gem-
mis et al., 2015) proposed to produce serendipitous
suggestions by utilizing the knowledge infusion pro-
cess. Their investigation addressed the overspecial-
ization issue in RS, proposing to enhance serendipity
by suggesting surprising items. Their approach en-
riches a graph-based recommendation algorithm with
background knowledge to uncover hidden correla-
tions among items.
Baumann and Schoenfeld (Baumann and Schoen-
feld, 2022) used a KG-based recommender system to
evaluate recommendations’ diversity and novelty on
a content- and network-level. Using subgraphs con-
structed from user profiles, they generated recommen-
dations by favoring unpopular items in the catalog
that exhibit a high distance from a user’s profile re-
garding content-based features. Apart from unexpect-
edness and diversity on a content level, they found this
approach to result in a more fair degree distribution on
the individual profile subgraphs.
There are some state-of-the-art approaches that
address the problem of reranking recommended
items, with their focus on bias mitigation or long-
tailed problems. (Abdollahpouri et al., 2019) in-
troduces a personalized diversification reranking ap-
proach to increase the representation of less popular
items in recommendations and to address the prob-
lem of popularity bias. They achieve this by introduc-
ing a likelihood parameter that controls the popularity
bias. (Liu et al., 2022) discusses reranking in multiple
facets such as awareness, diversity, and edge rerank-
ing using neural networks. (Pei et al., 2019) propose
a personalized reranking model for recommender sys-
tems by employing a self attention based transformer
model that encodes information of all items in the list
by modeling the global relationships between any pair
of items in the entire list. However, to the best of our
observation, none of the papers considered multiple
metrics for reranking the recommendation list.
To the best of our knowledge, our present study
is the first to apply complex network measurements
to rerank the order of recommendation results. Our
approach looks at the graph structure within the KG
changes to compute the metrics for obtaining surpris-
ing recommendations.
3 KG-INFORMED
RECOMMENDATION
(RE-)RANKING
We propose a recommendation process as a two-step
approach consisting of retrieval and ranking steps. In
the retrieval step, recommendation candidates are de-
termined by an existing RS. These candidates are or-
dered in the ranking step, and the top N elements are
returned to the user. Figure 1 presents an overview of
the proposed process.
This investigation treats the recommender system
as a closed system over which we can not exert any
influence. Our solution emphasizes and contributes
to the ranking stage. We determine an item’s rank
based on its impact on network metrics correlating
with surprise; Section 4.2 presents a list of metrics
investigated.
To evaluate such metrics, we construct KGs from
How to Surprisingly Consider Recommendations? A Knowledge-Graph-Based Approach Relying on Complex Network Metrics
29

Recommender
System
User profiles
 
 
Recommendations
Re-ranked
recommendations
User subgraphs
Updated subgraphs
with recommendations
= available metadata
 
Figure 1: Overview of the proposed knowledge-graph informed recommendations. KGs are constructed for the item catalog
and all user profiles. The latter serve as input to an arbitrary state-of-the-art RS, whose results are re-ranked according to the
impact the items would have were they included in the original user profile.
datasets suited for the recommendation task (cf. Sec-
tion 4.1). Two types of KGs are constructed. The first
type is a KG representing the catalog, i.e., contain-
ing the entire knowledge about the catalog. This in-
cludes the whole set of recommendable items and all
the metadata describing them. The second type are
user-profile KGs, which constitute subgraphs of the
catalog KG and represent items users have already
interacted with. These KGs are constructed based
on TBox statements representing the domain of their
datasets, i.e., a conceptual model describing classes
and properties that are aligned with the underlying do-
main. Therefore, it includes recommendable entities,
additional entities, and heterogeneous relations.
The recommendable entities are evaluated by in-
cluding them in the user-profile KGs. According to
those existing in the catalog KG, a recommendable
entity is included along with its relationships and fur-
ther entities. From the updated user-profile KG, we
compute complex network metrics (cf. Figure 2). The
process is conducted for all the recommendable items
and all available metrics. At the final stage, our solu-
tion provides a re-ranked recommendation list sorted
according to each metric.
Where network metrics do not result in scalar
values, but in distributions (e.g. betweenness),
we calculate the Herfindahl-Hirshman-Index
(HHI) (Hirschman, 1964) to obtain a single value
representing the concentration of the network (cf.
Schoenfeld and Pfeffer (Schoenfeld and Pfeffer,
2021)). Let s be the relative centrality score over all
Figure 2: Obtaining KG-informed recommendations. The
user profile is represented as a subgraph of the knowledge
graph (sub-KG). A candidate recommendation node is se-
lected from the catalog KG and integrated into the sub-KG
along with relevant edges. Network metrics are then com-
puted on the updated sub-KG.
vertices, and N the number of vertices, then the index
and its normalized form are given by
HHI =
N
∑
i=1
s
2
(1)
HHI
∗
=
HHI − 1/N
1 − 1/N
(2)
Values of HHI
∗
range in [0,1], with 0.0 corre-
sponding to a balanced network with no monopolies
and a value of 1.0 indicating a strongly centralized
network.
Formally, let KG be a domain KG, consisting
of concepts C and relations R. A user profile U =
{u
1
,u
2
,..., u
n
} is a subset U ⊂ C of concepts a user
has interacted with. Each user profile constitutes an
KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development
30

induced subgraph SG ⊂ KG containing the history
items and further concepts and relations.
For a recommender system RS, let
I = {i
1
,i
2
,. .., i
n
} be the list of recommended
concepts, ordered by a score assigned through RS.
Then, N
KG
[i
n
] denotes the closed neighborhood of
the vertex i
n
in KG that corresponds to this recom-
mendation. Let SG
′
denote the induced subgraph
produced by including N
KG
[i
n
] in SG, i.e., by adding
a recommendation to the user subgraph.
Lastly, let m denote any graph-metric, m
baseline
=
m(SG) the value of this metric on the original user
subgraph, and m
update
= m(SG
′
) its value after incor-
porating the recommendation in the subgraph. Then,
our method for re-ranking recommendations is as fol-
lows:
1. Given a dataset, construct a KG KG;
2. Given a user profile U , determine the subgraph SG
of KG that contains all items in the user’s profile
and all relations and intermediate entities;
3. Given a set of items in U, determine recommen-
dations using any RS;
4. For each recommended item i
n
, obtain the metric
m on the subgraph SG
′
including i
n
;
5. Re-rank all items according to their impact on the
given computed metric;
Algorithm 1 provides a formal formulation of this
approach.
4 EXPERIMENTAL EVALUATION
We evaluate our proposed approach on two distinct
music- and movie-domain datasets. Proceeding ac-
cording to our defined method (cf. Section 3), we
obtain reranked recommendation lists for a set of
users. As we focus our attention on “surprising-
ness” of recommendations, rather than measuring
precision/accuracy, we turn to “beyond accuracy”-
metrics commonly used in the evaluation of surprise
and serendipity in RS, such as novelty and diversity
(cf. (Castells et al., 2015; Ge et al., 2010)). The pro-
posed system aims to introduce users to entirely new
items that do not appear in their interaction history,
thus rendering metrics suchs as precision and accu-
racy less meaningful.
To back up the insights obtained in this sense, we
further measure the agreement of the re-ranked rec-
ommendation lists with those generated through the
SOTA RS, which we treat as ground truth for “ex-
pectable” recommendations. Measuring normalized
discounted cumulative gain (nDCG) on the two lists
Input: KG // Catalog KG
Input: SG // User profile subgraph
Input: RS // Recommender system
Input: m // A graph-metric
v
user nodes
← SG.get all nodes();
I ← RS(v
user nodes
);
I
′
←
/
0;
foreach i ∈ I do
SG
′
← SG.copy();
SG
′
.add node(i);
edge list ←
/
0;
foreach neigh ∈ KG.get neighbors(i) do
if neigh ∈ v
user nodes
then
edges ← KG.get edges(i,neigh);
edge list.insert(edges);
end
end
SG
′
.add edges(edge list);
metric value ← m(i,SG
′
);
I
′
.insert(metric value,i);
end
recos ← sort(I
′
,metric value);
return recos;
Algorithm 1: KG-informed recommendation.
allows us to identify whether the re-ranked variant de-
viates from the expectable recommendations.
Our study addresses the following specific re-
search questions:
RQ1. Which network-level metrics correlate with
key surprise elements such as novelty, unexpect-
edness, and novelty in recommendations?
RQ2. Can these metrics be used to introduce more
surprise into state-of-the-art recommender sys-
tems?
4.1 Datasets
We report on data collection and curation for the two
domains investigated.
4.1.1 LastFM
LFM-1b. We base our analysis of recommen-
dations for the music domain on the LFM-1b
dataset (Schedl, 2016), which we enrich with two
further datasets: acoustic features for a selection of
tracks (the CultMRS dataset) curated by Zangerle et
al. (Zangerle et al., 2020), and musical genres an-
notating a subset of tracks within LFM-1b, kindly
provided by Schedl et al. (Schedl et al., 2020). The
acoustic features contained in the dataset were re-
How to Surprisingly Consider Recommendations? A Knowledge-Graph-Based Approach Relying on Complex Network Metrics
31

Table 1: Statistics of LFM-1b after merging with other
datasets.
# listening events 379.754.730
# users 120.053
# artists 26.129
# tracks 282.011
# genres 2.137
trieved via the Spotify API
3
and serve as content-
based features describing the nature of a track. Exam-
ples for these features are a track’s tempo, or dance-
ability. After merging the three datasets, we are left
with 379 million listening events (cf. Table 1).
KG Construction. From the merged LFM-1b
dataset, we construct a KG consisting of artists,
tracks, and genres. To model the relations among
these entities, we use classes and properties pro-
vided by three different ontologies: FOAF
4
, Dublin
Core
5
and Music Ontology
6
(Raimond et al., 2007);
we define an auxiliary URI to identify entities from
LastFM, http://last.fm/lfm-resource. For in-
stance, a description of the track “Never Gonna Give
You Up” by Rick Astley in Turtle syntax
7
would be:
lfmr:disco a mo:Genre ;
dc:title "disco" .
lfmr:15160 a mo:MusicArtist ;
foaf:name "Rick Astley" .
lfmr:t_4471632 a mo:Track ;
dc:title "Never Gonna Give You Up" ;
mo:genre lfmr:disco ;
foaf:maker lfmr:15160 .
Recommendations. We sub-sample the listening
events to 1000 users with at least 100 unique tracks in
their profile. The mean number of tracks listened to is
1076 (±1194), with a median of 656 tracks. We use
the Python library Surprise (Hug, 2022), which relies
on explicit user-item ratings to determine the base rec-
ommendations. As our data contains implicit ratings
as the number of times a track was listened to by a
user, we follow the approach outlined in Kowald et
al. (Kowald et al., 2021) and scale these play-counts
into the range [1,1000] using min-max-normalization;
a user’s most-listened track will thus receive an ex-
plicit rating of 1000.
We evaluate six recommendation models pro-
vided by Surprise: BaselineOnly, which predicts a
3
https://developer.spotify.com/documentation/web-api
/reference/get-several-audio-features
4
http://xmlns.com/foaf/0.1/
5
http://purl.org/dc/elements/1.1/
6
http://purl.org/ontology/mo/
7
https://www.w3.org/TR/turtle/
Table 2: Evaluation of prediction algorithms, sorted by in-
creasing MAE.
Model MAE
NMF 54.82
BaselineOnly 62.38
KNNWithZScore 65.74
KNNBaseline 67.01
KNNWithMeans 67.47
KNNBasic 71.10
baseline rating estimate from global averages and
user/item deviations (c.f. (Koren, 2010)); KNNBa-
sic, a user-based collaborative filtering approach us-
ing kNN; KNNBaseline, KNNWithMeans, and KN-
NWithZScore, extensions of the base kNN model tak-
ing into account baselines, mean ratings, and z-score
normalized ratings, respectively; and NMF, a non-
negative matrix factorization model. We use the de-
fault parameters provided by the library and employ
cosine similarity as the distance measure for the kNN-
based approaches.
Using 5-fold cross-validation, we evaluate each
algorithm’s mean absolute error (MAE), and pick
NMF as our final model; Table 2 presents MAE for
all models.
We train NMF on the full data and retrieve rat-
ing predictions on the anti-testset, i.e., on all items
present in the training data that the user has not rated.
The recommendation lists obtained this way are trun-
cated to the top 100 items, sorted by descending pre-
dicted rating.
4.1.2 Netflix
Netflix Titles Dataset. Our evaluation includes the
domain of movies and TV shows. We considered the
“Netflix titles” dataset, available on Kaggle
8
. This
dataset provides a set of 8808 titles of movies and TV
shows available on Netflix, along with their cast, di-
rectors, countries, release dates, ratings, and brief de-
scriptions. All data is provided in a comma-separated
value (CSV) file.
KG Construction. The catalog KG was created
considering TBox statements representing properties
and classes as provided in the CSV file. More specif-
ically, the statements contain the type of each entry,
which can be either a movie or a TV show. An actor
acts on entries, and a director directs entries. Entries
have an English title, a brief description, a country of
origin, a rating, and a duration. All classes are of the
8
https://www.kaggle.com/datasets/shivamb/netflix-sho
ws
KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development
32

rdf:Class type, and properties of the rdf:Property
type.
The dataset provides no user data; therefore, we
randomly generated 88 user profiles, ranging from
a minimum of 5 to 55 entries, representing watched
movies and TV shows. From this, user-profile KGs
were generated using the same TBox as the catalog
KG.
Recommendations. The recommendations were
generated with the help of a state-of-the-art KG-based
recommender system, KGAT (Wang et al., 2019). We
used the same parameters for the configuration of
graph convolutional layers, decay factors, and learn-
ing rates as the authors of the paper used for their eval-
uations.
The data set was cleaned up to obtain meaningful
yet compact KGs. To this end, rdf:label-entities
and nodes with a degree of 1 were removed. In addi-
tion, the rdf:Class and rdf:Property nodes were
removed to prevent the knowledge graph from becom-
ing too centralized. Certain entries in the KGs were
labeled as recommendable items, i.e., only movies
and TV shows.
From user-profile KGs, the interactions on recom-
mended items were registered and divided into train-
ing and test data using a 90/10 split, i.e., 90% of the
interactions of a user profile appear in the training set.
4.2 Experimental Procedure
For both datasets, we employed the following evalua-
tion procedure:
1. Obtain base recommendations through SOTA
model.
2. Rerank base recommendations according to graph
metric (as outlined in Section 3); ranking pro-
ceeds in ascending and descending order of item
relevance.
3. (LFM-1b only) For each metric and each sort or-
der, measure Unexpectedness and Intra List Di-
versity using item features.
4. For each metric and each sort order, compare the
reranked with the base lists using nDCG@10 via
TREC EVAL
9
.
To emphasize that the proposed approach is inde-
pendent of the underlying recommender system, we
applied a different RS for each dataset: NMF for
LFM-1b, and KGAT for the Netflix titles. The net-
work metrics applied in this evaluation are the number
9
https://trec.nist.gov/trec eval/
of nodes, number of edges, density, PageRank, aver-
age degree, {in,out}-degree, betweenness, and close-
ness centrality, summarized in Table 3. These metrics
adhere to standard metrics in the field of social net-
work analysis (Wasserman et al., 1994).
Table 3: Summary of network metrics considered in the ex-
perimental procedure.
Metric Formula
# nodes N = |C|, where C is # entities
# edges E = |R|, where R is # relationships
Density ⋉ = NE(E − 1)
Degree
centrality
c
D
i
=
∑
N
j=1
φ
i j
where φ
i j
= 1, if exists an edge, 0 if not;
In-degree
centrality
c
ID
j
∼ c
D
i
, incoming edges only
Out-degree
centrality
c
OD
j
∼ c
D
i
, outgoing edges only
Average
degree
< K >=
∑
N
j=1
c
D
i
N
Betweenness
centrality
c
B
i
=
∑
N
j=1
j̸=i
∑
N
k=1
k̸=i, j
η
jk
(i)
η
jk
where η
jk
is # shortest paths from node j to k;
η
jk
(i) is # shortest paths from j to k containing i.
Closeness
centrality
c
C
i
=
1
∑
N
j=1
j̸=i
d(i, j)
where d(i, j) is shortest distance for nodes i to j;
d(i,i) = d( j, j) = 0
PageRank
p
i
=
q
N
+ (1 − q) ×
∑
M
j
p( j)
c
OD
j
where M is # nodes connected to i.
c
OD
j
is the out-degree of node j, linked to i;
q is the damping factor
To evaluate Unexpectedness and Intra List Diver-
sity, we represent each track as an 8D vector of acous-
tic features. The features we use are danceability,
energy, speechiness, acousticness, instrumentalness,
liveness, valence and tempo. In the original dataset,
these features range in [0,1], except for tempo, which
we scale into this range using min-max normaliza-
tion following prior research (Zangerle et al., 2020;
Kowald et al., 2021).
Intra List Diversity (ILD) measures the pairwise
distance of all items in a recommendation list I w.r.t.
a distance function d (c.f. (Castells et al., 2015)):
ILD(I) =
1
|I| · (|I| − 1)
∑
i∈I
∑
j∈I
d(i, j) (3)
We measure Unexpectedness on a user-profile
level to determine how different a recommendation
is from the user’s previous history. Essentially, this is
the mean distance of each new item to each item the
user has interacted with. Thus, for a user-profile H, a
recommendation list I and a distance d, Unexpected-
How to Surprisingly Consider Recommendations? A Knowledge-Graph-Based Approach Relying on Complex Network Metrics
33

ness can be expressed as (cf. (Castells et al., 2015)):
Unexpectedness(R) =
1
|I| · |H|
∑
i∈I
∑
h∈H
d(i, h) (4)
We employed cosine distance between feature
vectors as d for both ILD and Unexpectedness. In
these measures and nDCG, we limit the recommen-
dation lists to the top 10 items, in line with previous
findings on users’ searching behaviour (Jansen et al.,
2000; Silverstein et al., 1999).
To further assess the rank-based dynamics under-
lying this reordering, we measure nDCG@10 for each
re-ranking. The base recommendations serve as a
ground truth of expectable recommendations for our
purposes. Their ranking thus serves as the relevance
judgment of items. High nDCG indicates that the
same items are ranked highly in the base and re-
ordered recommendations, whereas low nDCG indi-
cates more perturbation in the second list. Our as-
sumption is that low nDCG indicates that highly ex-
pectable items are ranked lower after reordering.
4.3 Experimental Results
We present the results obtained from the experimental
procedure for both datasets.
4.3.1 LastFM
Before evaluating list perturbation, we first review the
findings from measuring surprise on the reranked list
of recommendations. Section 5 discusses obtained re-
sults and how they can be further interpreted from a
network perspective.
We evaluate Unexpectedness and Intra List Di-
versity on all re-ranked recommendation lists and the
two possible ranking orders. We include the measure-
ments obtained on the original SOTA recommenda-
tions as a baseline; the users’ mean profile diversity
serves as a reference point for diversity. Figure 3 plots
the mean measures against all metrics, split by rank-
ing order. For Unexpectedness, sorting ascendingly
by betweenness results in the largest deviations from
the user’s history, as shown in Figure 3a.
“Betweenness” in this case corresponds to the
Herfindahl-Hirshman-Index (HHI) of the distribution.
Sorting in ascending order thus places low index val-
ues at the top of the list, indicating a fairer distribution
and, therefore, an overall less centralized network.
The opposite holds for descending order, where favor-
ing higher betweenness-indexes, and therefore more
centralized networks, results in more expectable rec-
ommendations. We observe that increasing the num-
ber of nodes and edges in the users’ subgraphs has the
highest effect on Unexpectedness.

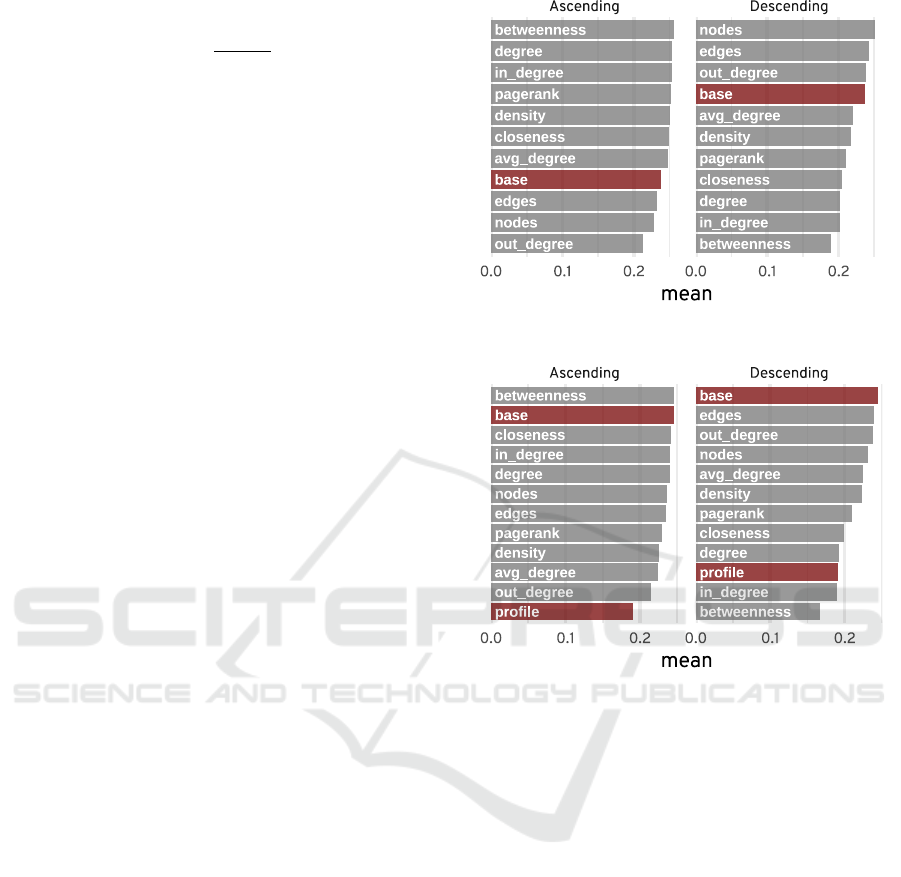

(a) Unexpectedness
(b) Diversity
Figure 3: Measuring surprise on feature-level for recom-
mendations reranked by metric. For Unexpectedness (3a),
the highlighted bars denote the comparison to the SOTA
recommendations. For Diversity (3b), the highlighted bars
denote the ILD of SOTA and original user profiles (base and
profile, resp.).
Turning to Diversity, we first observed that users’
listening behavior seems largely uniform, as indicated
by the profile bars in Figure 3b. As the measure of
ILD on the user profile is expressed as the mean pair-
wise distance between items in the list, a low distance
on average indicates the presence of tracks with simi-
lar acoustic features.
We found that preferring a low betweenness in-
dex and thus decentralized networks results in diverse
tracks being recommended for ascending sort order,
whereas for the descending case, increasing the num-
ber of nodes, edges, and out-degree produces the most
diverse lists out of our approaches but does not out-
perform the baseline recommendations. An interest-
ing observation is that the base recommendations al-
ready contain very diverse items. This is in line with
KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development
34

(a) LFM-1b
(b) Netflix titles
Figure 4: nDCG@10 for both datasets. Panels show nDCG
scores obtained on recommendation lists ranked by metric
in ascending and descending order.
previous findings of the underlying algorithm, NMF,
being able to recommend items from the long-tail of
user-item-interactions (Kowald et al., 2020).
To assess the extent to which re-ranked lists corre-
spond with the original, expectable ranking, Figure 4a
plots nDCG@10 for all metrics. We found that out-
degree and betweenness, particularly, result in a high
perturbation of ranks. We highlight that items con-
sidered relevant by an expectable RS are not ranked
highly after optimizing for one of the network met-
rics.
4.3.2 Netflix
Unlike LastFM, the Netflix titles dataset provides no
additional content-based features that would allow
measuring Unexpectedness and Diversity. The anal-
ysis of this dataset is therefore based on the nDCG
score, considering the initial 10 elements of the rec-
ommendation list. Figure 4b summarizes these results
by metrics, both in ascending and descending orders
of relevance.
Similarly to LastFM, we observe that between-
ness centrality is the metric that introduces the most
surprise into the list of recommendations obtained
from the RS. To further illustrate this finding, Table 4
presents the first three recommendations offered by
the RS, compared with those reranked by between-
ness centrality in particular user-profile KGs.
(a) Profile subgraph...
(b) ...with diverse...
(c) ...and similar items
Figure 5: Illustration of the effect of recommendations on
betweenness centrality in profile subgraphs. Diverse items
being recommended open alternative paths in the resulting
profile subgraph lowering the betweenness of all nodes (5b),
whereas similar items tend to increase the betweenness of a
few nodes (5c).
5 DISCUSSION
We observe that recommendations sorted by between-
ness in ascending order of the associated HHI exhibit
high Unexpectedness and Diversity. Ranking in this
way favors nodes that result in a lower HHI, thus, re-
vealing a more decentralized user subgraph. In such
a KG, many paths among concepts exist, and there is
low monopolization. The opposite holds for a highly
centralized KG, in which a small number of concepts
appear along many paths and carry high importance.
Figure 5 illustrates this effect, presenting an ex-
ample user subgraph 5a and two extensions arising
from incorporating more diverse (cf. Figure 5b) or
more similar (cf. Figure 5c) recommendations. In-
teractions and recommendations are shown as solid
colored circles; related concepts are light colors with
an outline. Diverse items will likely be loosely con-
nected to existing concepts the user is familiar with
and bring along further related nodes, thus expand-
ing the user’s exposure. Contrast this with the sec-
ond example, where similar items are introduced that
only exhibit relations to concepts familiar to the user.
These examples illustrate the effect on the number of
edges, nodes, and degree-related measures. In the di-
verse case, adding two recommendations results in
four nodes and seven edges added to the graph ver-
sus two nodes and two edges for the case of similar
items.
How to Surprisingly Consider Recommendations? A Knowledge-Graph-Based Approach Relying on Complex Network Metrics
35

Table 4: Comparing the top three recommended items obtained from state-of-the-art recommender, against those re-ranked
using betweenness centrality applied on a user-profile KG.
Dataset SOTA recommender Re-ranked (betweenness)
Netflix
Bakugan: Armored Alliance Creeped Out
The C Word Black Mirror
Weird Wonders of the World Arthur Christmas
LFM-1b
Iron Maiden, The Talisman Shakira, Spotlight
Iron Maiden, When the Wild Wind Blows Here We Go Magic, Make Up Your Mind
Shakira, Spotlight Here We Go Magic, Alone But Moving
Considering the results from evaluating nDCG,
we observed that ranking by betweenness, node-/edge
counts, or degree-based metrics yields lists with low-
rank correlation compared to expectable recommen-
dations.
Our study demonstrated that network-level met-
rics correlate with key surprise elements such as di-
versity and unexpectedness (RQ1). We found be-
tweenness resulting in the most diverse and unex-
pected recommendations that rank expectable items
lower than a state-of-the-art baseline. We showed
that adding a KG-informed reranking model on top
of an existing recommender system can thus intro-
duce a level of surprise into user-item recommenda-
tions (RQ2).
Results highlighted that calculating betweenness
may not be computationally feasible in constrained
environments, especially on large profile subgraphs.
Besides truncating user profiles to the most recent in-
teractions as a solution in this case, our findings sug-
gest that node-/edge counts or degree-based features
are viable alternatives to betweenness.
We identify the Netflix dataset’s lack of rich
content-based features, prohibiting a similar investi-
gation of surprise-related measures as performed for
the enriched LFM-1b dataset. Furthermore, a user
study should evaluate the degree of surprise, as lis-
tening and viewing behaviors are governed by highly
subjective user dynamics. We plan to address this
in future studies by considering different baselines to
compare our method’s results. Furthermore, although
this study focused on exploring and comparing met-
rics for reranking a state-of-the-art baseline, the de-
veloped system is capable of generating recommen-
dations without requiring a base model; this is also a
subject for future studies.
Many user-profile KGs are sparse and not dense,
especially when considering real-world user profile
information on distinct scenarios and domains. The
initial step of our approach, i.e., the generation of rec-
ommendations, is affected by data sparsity similar to
the underlying state-of-the-art baseline system. The
reranking phase, especially the centrality measures,
requires a connected graph. If the employed KG is
sparsely connected, limiting the KG to the largest
connected component, or using metrics less reliant on
connections, such as degree and node-/edge counts,
is an approach to overcome this aspect. This also re-
inforces that the metric choice can influence the final
results.
The catalog KGs employed in our study only con-
tain intra-domain concepts (artists, music genres, di-
rectors, actors, etc.). However, KGs are well suited
for linking cross-domain concepts, e.g., tracks that ap-
pear in a movie’s score, or actors who are musicians.
Not only does this result in a richer representation of
domains, it also enables cross-domain recommenda-
tions. We defer an analysis of surprising recommen-
dations in such settings to future work.
6 CONCLUSION
We still encounter open research challenges in how
systems may deal with and benefit from surprise rec-
ommendations. This investigation designed a solution
incorporating network-level metrics to introduce per-
sonalized yet unexpected recommendations to users.
We evaluated the LastFM music and Netflix movies
datasets to determine the extent to which Intra List
Diversity, Unexpectedness, and comparison to nDCG,
respectively, affect the degree of surprise in recom-
mendations. We found that network-level metrics in-
deed influence the degree of surprise in recommen-
dations. Our results demonstrated that betweenness
centrality showed a stronger influence when rerank-
ing recommendations for surprise. Future work in-
volves additional analysis of surprising recommenda-
tions and how content-based features from items can
be combined with our designed approach.
KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development
36

SUPPLEMENTAL MATERIAL
Source code and data for the experiments and evalu-
ations conducted in this work are available at https:
//github.com/baumanno/kg-recommender. The
LFM-1b dataset is available at http://www.cp.jku.a
t/datasets/LFM-1b/, the CultMRS dataset at https:
//zenodo.org/records/3477842, and the Netflix titles
dataset at https://www.kaggle.com/datasets/shivamb/
netflix-shows.
ACKNOWLEDGEMENTS
This article is the outcome of research conducted
within the Africa Multiple Cluster of Excellence at
the University of Bayreuth, funded by the Deutsche
Forschungsgemeinschaft (DFG, German Research
Foundation) under Germany’s Excellence Strategy –
EXC 2052/1 – 390713894. This work is also sup-
ported by the ’PIND/FAEPEX - “Programa de Incen-
tivo a Novos Docentes da Unicamp” (#2560/23) and
the S
˜
ao Paulo Research Foundation (FAPESP) (Grant
#2022/15816-5)
10
REFERENCES
Abdollahpouri, H., Burke, R., and Mobasher, B. (2019).
Managing popularity bias in recommender sys-
tems with personalized re-ranking. arXiv preprint
arXiv:1901.07555.
Baumann, O. and Schoenfeld, M. (2022). Support-
ing Serendipitous Recommendations with Knowledge
Graphs. In Tamine, L., Amig
´
o, E., and Mothe, J.,
editors, 2
nd
Joint Conference of the Information Re-
trieval Communities in Europe (CIRCLE 2022), num-
ber 3178 in CEUR Workshop Proceedings, Aachen.
Castells, P., Hurley, N., and Vargas, S. (2021). Novelty and
diversity in recommender systems. In Recommender
systems handbook, pages 603–646. Springer.
Castells, P., Hurley, N. J., and Vargas, S. (2015). Nov-
elty and Diversity in Recommender Systems. In
Ricci, F., Rokach, L., and Shapira, B., editors, Recom-
mender Systems Handbook, pages 881–918. Springer
US, Boston, MA.
De Gemmis, M., Lops, P., Semeraro, G., and Musto, C.
(2015). An investigation on the serendipity problem
in recommender systems. Information Processing &
Management, 51(5):695–717.
Felfernig, A. and Burke, R. (2008). Constraint-based rec-
ommender systems: technologies and research issues.
In Proceedings of the 10th international conference on
Electronic commerce, pages 1–10.
10
The opinions expressed in this work do not necessarily
reflect those of the funding agencies.
Ge, M., Delgado-Battenfeld, C., and Jannach, D. (2010).
Beyond accuracy: Evaluating recommender systems
by coverage and serendipity. In Proceedings of the
fourth ACM conference on Recommender systems,
RecSys ’10, pages 257–260, New York, NY, USA. As-
sociation for Computing Machinery.
Hirschman, A. O. (1964). The paternity of an index. The
American Economic Review, 54(5):761–762.
Hug, N. (2022). NicolasHug/Surprise.
Hui, B., Zhang, L., Zhou, X., Wen, X., and Nian, Y.
(2022). Personalized recommendation system based
on knowledge embedding and historical behavior. Ap-
plied Intelligence, pages 1–13.
Jansen, B. J., Spink, A., and Saracevic, T. (2000). Real
life, real users, and real needs: A study and analysis
of user queries on the web. Information Processing &
Management, 36(2):207–227.
Joseph, K. and Jiang, H. (2019). Content based news rec-
ommendation via shortest entity distance over knowl-
edge graphs. In Companion Proceedings of The 2019
World Wide Web Conference, pages 690–699.
Kaminskas, M. and Bridge, D. (2016). Diversity, serendip-
ity, novelty, and coverage: a survey and empiri-
cal analysis of beyond-accuracy objectives in recom-
mender systems. ACM Transactions on Interactive In-
telligent Systems (TiiS), 7(1):1–42.
Koren, Y. (2010). Factor in the neighbors: Scalable and
accurate collaborative filtering. ACM Transactions on
Knowledge Discovery from Data, 4(1):1–24.
Kotkov, D., Wang, S., and Veijalainen, J. (2016). A survey
of serendipity in recommender systems. Knowledge-
Based Systems, 111:180–192.
Kowald, D., Muellner, P., Zangerle, E., Bauer, C., Schedl,
M., and Lex, E. (2021). Support the underground:
Characteristics of beyond-mainstream music listeners.
EPJ Data Science, 10(1).
Kowald, D., Schedl, M., and Lex, E. (2020). The Unfair-
ness of Popularity Bias in Music Recommendation: A
Reproducibility Study. Advances in Information Re-
trieval, 12036:35–42.
Liu, W., Xi, Y., Qin, J., Sun, F., Chen, B., Zhang, W., Zhang,
R., and Tang, R. (2022). Neural re-ranking in multi-
stage recommender systems: A review. arXiv preprint
arXiv:2202.06602.
Pei, C., Zhang, Y., Zhang, Y., Sun, F., Lin, X., Sun, H., Wu,
J., Jiang, P., Ge, J., Ou, W., et al. (2019). Personalized
re-ranking for recommendation. In Proceedings of the
13th ACM conference on recommender systems, pages
3–11.
Raimond, Y., Abdallah, S. A., Sandler, M. B., and Gias-
son, F. (2007). The music ontology. In Dixon, S.,
Bainbridge, D., and Typke, R., editors, Proceedings
of the 8
th
International Conference on Music Informa-
tion Retrieval, ISMIR 2007, Vienna, Austria, Septem-
ber 23-27, 2007, pages 417–422. Austrian Computer
Society.
Rossanez, A., da Silva Torres, R., and dos Reis, J. C.
(2023). Characterizing complex network properties of
knowledge graphs. In Proceedings of the 15th Inter-
national Joint Conference on Knowledge Discovery,
How to Surprisingly Consider Recommendations? A Knowledge-Graph-Based Approach Relying on Complex Network Metrics
37

Knowledge Engineering and Knowledge Management
- KEOD, pages 119–128. INSTICC, SciTePress.
Sarwar, B., Karypis, G., Konstan, J., and Riedl, J. (2001).
Item-based collaborative filtering recommendation al-
gorithms. In Proceedings of the 10th international
conference on World Wide Web, pages 285–295.
Schafer, J. B., Frankowski, D., Herlocker, J., and Sen, S.
(2007). Collaborative filtering recommender systems.
In The adaptive web: methods and strategies of web
personalization, pages 291–324. Springer.
Schedl, M. (2016). The LFM-1b Dataset for Music Re-
trieval and Recommendation. In Proceedings of the
2016 ACM on International Conference on Multime-
dia Retrieval. ACM.
Schedl, M., Mayr, M., and Knees, P. (2020). Music Tower
Blocks: Multi-Faceted Exploration Interface for Web-
Scale Music Access. In Proceedings of the 2020 Inter-
national Conference on Multimedia Retrieval, pages
388–392. Association for Computing Machinery, New
York, NY, USA.
Schoenfeld, M. and Pfeffer, J. (2021). Shortest path-based
centrality metrics in attributed graphs with node-
individual context constraints. Social Networks.
Silverstein, C., Marais, H., Henzinger, M., and Moricz, M.
(1999). Analysis of a very large web search engine
query log. ACM SIGIR Forum, 33(1):6–12.
Wang, X., He, X., Cao, Y., Liu, M., and Chua, T.-S. (2019).
Kgat: Knowledge graph attention network for recom-
mendation. In Proceedings of the 25th ACM SIGKDD
international conference on knowledge discovery &
data mining, pages 950–958.
Wasserman, S., Faust, K., and Urbana-Champaign), S. U. o.
I. W. (1994). Social Network Analysis: Methods and
Applications. Cambridge University Press.
Zangerle, E., Pichl, M., and Schedl, M. (2020). User Mod-
els for Culture-Aware Music Recommendation: Fus-
ing Acoustic and Cultural Cues. Transactions of the
International Society for Music Information Retrieval,
3(1):1–16.
Zhang, F., Yuan, N. J., Lian, D., Xie, X., and Ma, W.-Y.
(2016). Collaborative knowledge base embedding for
recommender systems. In Proceedings of the 22
nd
ACM SIGKDD International Conference on Knowl-
edge Discovery and Data Mining. ACM.
KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development
38
