Enhancing Image Generation with Diffusion Transformer

Architecture

Ruiyang Wu

Software Engineering, Nankai University, Tianjin, China

Keywords: Image Generation, ImageNet, Architecture, Efficiency.

Abstract: In image generation tasks, this study aims to explore the advantages and potential of a fusion model that

integrates transformer and diffusion models. Specifically, research propose a novel diffusion Diffusion

Transformers (DiT) architecture, where the transformer model is incorporated into a diffusion probability

model for image generation. This architecture replaces the U-Net backbone in traditional diffusion models,

harnessing the transformer's robust sequence modelling and long-range dependency capture capabilities. By

employing a "patchify" layer to convert images into token sequences, followed by processing through the

transformer block and decoder, the DiT architecture transforms the input into the desired output format. The

experimentation conducted on the ISLVRC2012 dataset, a lightweight version of ImageNet, demonstrates

that DiT outperforms other generation models in key image generation quality indicators such as Frechet

Inception Distance and Inception Score. These results underscore the model's prowess in generating high-

quality images efficiently. The proposed DiT architecture amalgamates the strengths of transformer and

diffusion models, offering enhanced image generation quality and processing efficiency. Despite

encountering challenges, this framework paves the way for advancements in multimodal learning,

reinforcement learning, and the development of controllable and interpretable generative models.

1 INTRODUCTION

In recent years, diffusion models have achieved

remarkable progress in image generation tasks.

Although the concept of Diffusion Probabilistic

Models is not novel, the emergence of Denoising

Diffusion Probabilistic Models has provided a

systematic framework comprising forward denoising,

reverse denoising, and training for subsequent

research on diffusion models (Ho, 2020).Diffusion

models showed performance that surpassed the

current SOTA generative models in 2021.(Dhariwal,

2021).With the introduction of classifier guidance,

diffusion models became capable of class-conditional

generation. Transformers were initially employed in

the natural language processing domain. In the visual

domain, attention mechanisms were utilized either in

conjunction with convolutional networks or to

replace specific components while preserving the

overall convolutional structure. However, recent

studies have demonstrated that the reliance on

Convolutional Neural Networks (CNNs) is

https://orcid.org/0009-0004-5632-9371

unnecessary and came up with the Vision

Transformer architecture as pure transformers

applied directly to image patch sequences can

effectively perform image classification tasks

(Dosovitskiy, 2020). The research led to the proposal

of U-ViT, a new architecture based on U-net and ViT

that treats all inputs as markers and utilizes long jump

connections between shallow and deep layers.

Remarkable performance is achieved on the

ImageNet dataset (Bao, 2022).

The amalgamation of transformers and diffusion

models has achieved superior efficiency. By

substituting the U-Net backbone network in the

Diffusion model with Transformers, analyses reveal

that these Diffusion Transformers (DiTs) are not only

more computationally efficient but also attain

superior performance in ImageNet image generation

tasks under 512×512 and 256×256 category

conditions, with the state-of-the-art Frechet Inception

Distance index implemented on 256×256 (Peebles,

2022). The study observed that diffusion probabilistic

models typically lack contextual reasoning abilities to

Wu, R.

Enhancing Image Generation with Diffusion Transformer Architecture.

DOI: 10.5220/0012937800004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 337-342

ISBN: 978-989-758-713-9

337

learn relationships between the parts of an object in

an image, leading to a sluggish learning process.The

masking DiTs approach addresses this problem by

introducing a Masking Latent Modeling scheme to

explicitly enhance the diffusion probabilistic model's

capacity to learn contextual relationships between

semantic parts of objects in images(Gao, 2023). The

diffusion model still has certain limitations in terms

of high-resolution images and their associated high

computational complexity. The unconstrained

Transformer architecture is employed to achieve

parallel prediction of vector quantization markers,

and a novel discrete diffusion probability model prior

is proposed in this paper (Bond-Taylor, 2021). To

capture the interactions between modalities in large-

scale multimodal diffusion models, UniDiffuser

utilizes a transformer-based backbone structure. It

unambiguously fits all relevant distributions into a

single model without introducing additional training

or inference overhead. The key insight was to learn

that the diffusion model of all distributions can be

unified to predict noise in the perturbed data, where

the perturbation level (i.e., time step) can vary for

different modalities (Bao, 2023). The text generation

field suggests the use of SeqDiffuSeq as an approach

for generating sequence-to-sequence sequences as a

text diffusion model. To enhance generation quality,

SeqDiffuSeq utilizes a encoder-decoder

Transformers architecture for modeling the denoising

function.Adaptive noise scheduling is challenging to

remove noise uniformly over time steps, and the

experimental results of proprietary noise scheduling

considering markers of different position orders show

that The text quality and inference time of sequence-

to-sequence generation are both satisfactory (Yuan,

2022).

This study aims to underscore the advantages of

integrating transformers and diffusion models in

processing both images and text. Initially, it discusses

the efficacy of this fusion and underscores the

interchangeability of U-Net within conventional

CNN architectures. While a diffusion model

necessitates a graph-to-graph denoising network,

transformers excel in handling one-dimensional

sequences but necessitate flattening feature maps for

image processing. The article delves into embedding

conditions into transformer models, pinpointing

Adaptive Layer Norm-ZERO as the prevailing model,

leveraging zero initialization and residual modules

with identity functions. Following diffusion

denoising, the feature map undergoes reconstruction

via a Variational Autoencoder decoder for image

restoration, while a transformer decoder translates the

one-dimensional sequence output into a feature map.

In comparison, transformers demonstrate greater

scalability and performance enhancement with

augmented parameters and computational complexity,

surpassing traditional U-Net CNN structures. Despite

U-net's efficiency, recent breakthroughs like

OpenAI's Sora underscore the potential of

transformers in video generation, indicating a future

where the fusion of transformers and diffusion

models will become prevalent.

2 METHODOLOGIES

2.1 Dataset Description and

Preprocessing

This project uses ISLVRC2012 dataset from Kaggle.

ImageNet, a project focused on computer vision

system recognition, is at present the largest database

for image recognition in the world. ISLVRC2012 is a

lightweight version of the ImageNet dataset. The

dataset was built to simulate a human recognition

system. Be able to recognize objects from pictures.

ImageNet is a very promising research project that

could be used in robots in the future to identify objects

and people directly. More than 14 million image

URLs are annotated by ImageNet to indicate objects

in the picture, and images with at least one million

pixels also receive bounding boxes.ImageNet boasts

more than 20,000 categories; a common category,

like 'ballot' or'strawberry,' has hundreds of images per

category.

2.2 Proposed Approach

Introducing diffusion models for image generation

involves elucidating the denoising diffusion

probability model, comprising a forward diffusion

chain gradually adding noise to data to transform the

data distribution into a simpler prior such as a

Gaussian. This forward process can be manually

designed. Additionally, there's a reverse chain that

learns to map the noisy data back to the original data

distribution. Explaining how transformer models can

be integrated into diffusion models, a transformer

encoder-decoder architecture is trained to operate on

2D images/feature maps by flattening them into 1D

sequences. The advantages of transformers over

traditional convolutional U-Net architectures for this

task are discussed. Combining the diffusion

probabilistic model with the transformer architecture,

it's noted that the diffusion algorithm merely

necessitates a general graph-to-graph denoising

network, not specifically a U-Net. Transformers can

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

338

fulfill this role by mapping noisy images to denoised

versions, leveraging their prowess in modeling long-

range dependencies. The combined DiT model is then

trained on image data, optimizing the reverse

diffusion process by training the transformer to

denoise images across the reverse diffusion chain.

Finally, the model's performance on image generation

quality metrics is evaluated compared to baselines.

The pipeline is illustrated in Figure 1.

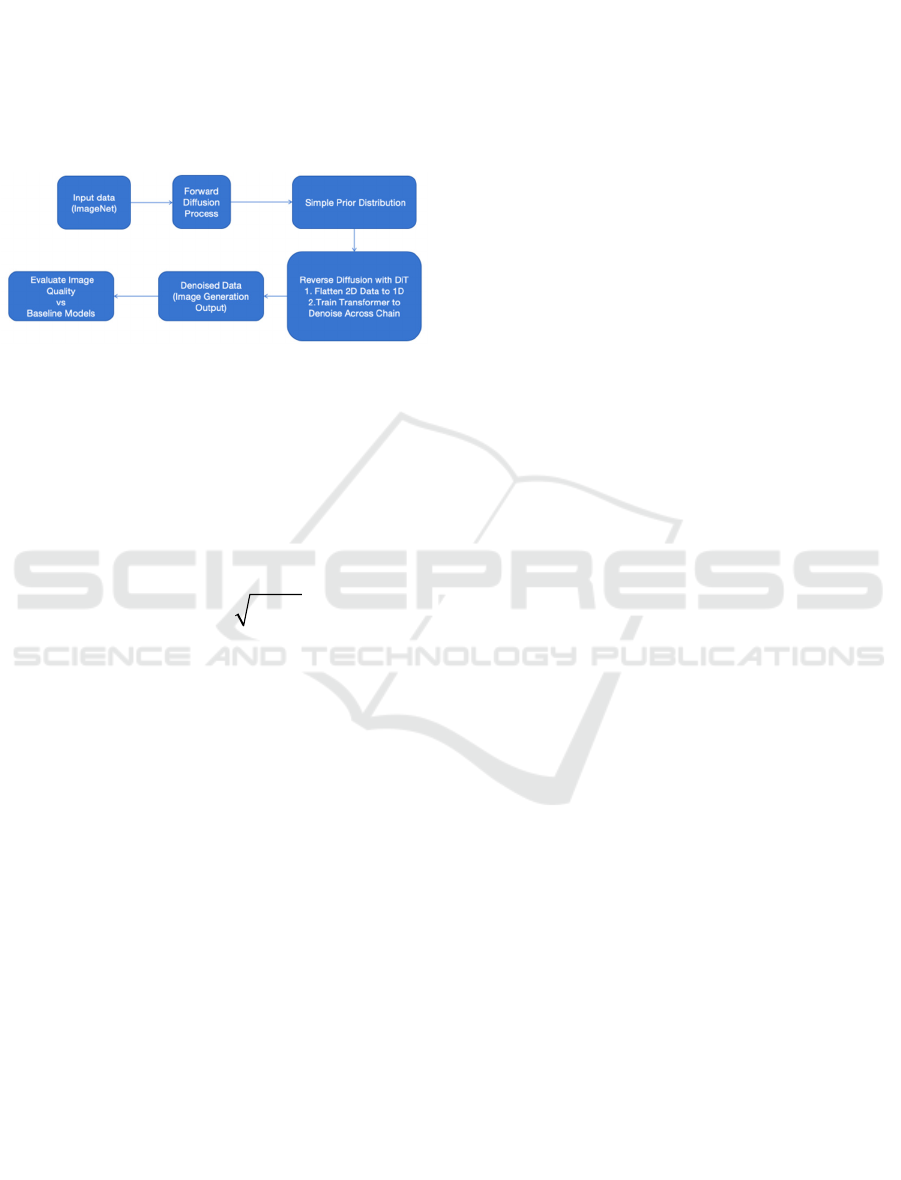

Figure 1: The pipeline of the model

(Picture credit:

Original).

2.2.1 Diffusion Model

The process of diffusion involves the gradual addition

of Gaussian noise to data until it becomes entirely

random. In the diffusion process for raw data, there

are a total of T steps. The data from the previous step

is supplemented with Gaussian noise at each step:

(| ) (;1 , )

tt t tt t

qX X NX X I

ββ

−−

=−

(1)

Each step is assigned a variance







that

ranges from 0 to 1.Variance schedules or noise

schedules are often used to set the variance of

different steps in the diffusion model.A larger

variance is expected in the subsequent steps when

things are normal.A well-designed variance schedule

can result in a resulting result



that If the number

of diffusion steps T is too large, the original data will

completely lose its original meaning and become

random noise.The diffusion process is characterized

by noise generated in each step, and as it progresses,

the entire process forms a Markov chain:

10 1

(:|) (| )

qX T X qX X

−

∏

(2)

Also, it is worth mentioning that the diffusion

process is generally fixed, which means that a pre-set

variance schedule is employed. For instance, DDPM

employs a schedule that has a linear variance.

It's crucial to bear in mind that the diffusion

process allows for direct sampling of any t-step



from the original data

. Through heavy parameter

technology (similar to VAE).

The importance of this property of the diffusion

process cannot be overstated. To begin with, it is

possible to view

as a linear combination of both

raw data



and random noise

∈

,where the sum is

the combination coefficient. The sum of their squares

is equal to 1. These two can also be called signal rate

and noise rate respectively. Further, noise scheduling

can be defined based on

𝛼



rather than

𝛽



, which is

a more straightforward process, for example, by

directly setting a value

𝛼



close to 0, The final

approximation is a random noise, which is guaranteed.

2.2.2 Transformer and U-Net

The DiT model introduces a significant architectural

difference by replacing the traditional U-Net

backbone with a transformer structure, highlighting

the distinct advantages and disadvantages of

transformers and U-Nets in diffusion models for

image generation tasks. Transformers excel at

capturing long-range dependencies within the input

data, which is highly beneficial for image generation

tasks requiring global context and coherence. Their

self-attention mechanisms allow for direct

connections between distant elements, enabling better

modeling of complex spatial relationships in images.

Additionally, transformers can process input

sequences in parallel, enabling efficient computation

on modern hardware accelerators, making them

computationally more efficient than convolutional

architectures involving sequential operations.

Transformers exhibit robust scalability, with

performance bolstering alongside model size and

computational resources. However, they lack the

innate spatial processing bias found in convolutional

architectures, necessitating additional measures to

convert images into token sequences. Moreover,

transformers suffer from quadratic computational

complexity concerning input sequence length, posing

challenges for ultra-high-resolution images or

lengthy sequences. Unlike U-Nets, which possess an

inherent bias for image data, transformers require

positional encoding mechanisms to capture data order

and spatial relationships, potentially introducing

complexity and limitations. Although U-Nets are

efficient for smaller models and lower computational

budgets, their convolutional operations have a

restricted receptive field, hindering the capture of

long-range dependencies and global context. As

model sizes grow, scalability becomes a concern for

U-Nets. The DiT model seeks to harness

transformers' strengths in long-range modeling,

parallelization, and scalability by replacing the U-Net

backbone. Nonetheless, it grapples with challenges

Enhancing Image Generation with Diffusion Transformer Architecture

339

like the absence of an image data bias and complexity

in handling high resolutions. The choice between the

two involves balancing computational efficiency,

scalability, and spatial relationship capture.

2.2.3 DiT

The DiT architecture innovatively merges

transformer and diffusion models for image

generation, aiming to overcome CNN limitations in

capturing long-range dependencies. Replacing the U-

Net backbone with transformer-based components, it

adapts images into token sequences via a "patchify"

layer. Transformer blocks process these tokens,

incorporating conditional inputs like noise time step

and class labels. Four transformer block variants are

explored: in-context conditioning, cross-attention,

Adaptive Layer Normalization (adaLN), and adaLN-

Zero. These variants effectively integrate conditional

inputs, enhancing the model's flexibility and

performance.

After processing the input sequence through the

transformer blocks, a transformer decoder is

employed to convert the one-dimensional sequence

output into the desired output format, such as noise

prediction and diagonal covariance prediction. This

decoder applies a final layer normalization (adaptive

if adaLN is used) to each token and linearly decodes

it into a tensor with the same shape as the original

spatial input. The DiT architecture offers several

advantages over traditional CNN-based approaches.

Firstly, it leverages the transformer's ability to capture

long-range dependencies, which is particularly

beneficial for image generation tasks where global

context is crucial. Secondly, the DiT model

demonstrates superior computational efficiency

compared to the U-Net backbone, achieving faster

performance in ImageNet image generation tasks

across various resolutions (512×512 and 256×256).

Furthermore, the authors explored different

conditioning mechanisms to effectively incorporate

additional information, such as class labels or noise

levels, into the transformer model. The adaLN-Zero

approach emerged as the dominant model, utilizing

zero initialization and residual modules with identity

functions, which mitigated degradation issues in

deeper transformer models.

Overall, the DiT architecture represents a

promising integration of transformer and diffusion

models, combining the strengths of both approaches

to facilitate high-quality image generation and

efficient processing. By leveraging the transformer's

ability to model long-range dependencies and the

diffusion model's noise-based generation framework,

the DiT model offers a powerful tool for image

synthesis and exploration of diverse generative tasks.

3 RESULTS AND DISCUSSION

Table 1 presents a performance evaluation of various

generative models on the Class-Conditional

ImageNet 256x256 task, using metrics such as

Frechet Inception Distance (FID), separable FID

(sFID), Inception Score (IS), Precision, utilizing

metrics like Frechet Inception distance, separate FID,

Inception score, precision, and Recall.The ADM-G

variant, along with the combination of ADM-G and

ADM-U, demonstrates significant performance,

surpassing other ADM models in terms of FID,

Precision, and Recall, showcasing their proficiency in

generating realistic and diverse samples.

Additionally, the LDM-4-G models with cfgs of 1.25

and 1.50 exhibit competitive FID and precision

scores, highlighting their potential for high-quality

image synthesis. Notably, the DiT model using the

new cfgs 2.0 shows changes in indicators. Due to the

large size of the original dataset, the ISLVRC2012

Table 1: Class-conditional image generationon ImageNet 256×256.

Model FID sFiD IS Precision Recall

BigGan-deep 6.95 7.36 171.4 0.87 0.28

StyleGan-XL 2.30 4.02 265.12 0.78 0.53

ADM 10.94 6.02 100.98 0.69 0.63

ADM-U 7.49 5.13 127.49 0.72 0.63

ADM-G 4.59 5.25 186.70 0.82 0.52

LDM-8 15.51 - 79.03 0.65 0.63

LDM-4 10.56 - 103.49 0.84 0.35

DiT-XL/2 9.62 6.85 121.50 0.67 0.67

DIT-XL/2-G(cfg=2.00) 2.46 5.13 244.15 0.77 0.60

DIT-XL/2-S 10.33 27.78 276.43 0.83 0.56

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

340

dataset was utilized in this project, with relevant

configuration files adjusted to ensure optimal training

outcomes. Following several days of training, the

final outcome was the DiT-XL/2-S model, evaluated

using ADM's TensorFlow evaluation suite.

Verification of DiT-XL/2-S yielded an IS of 276.43,

indicating its effectiveness. Furthermore, based on

the IS index, DiT demonstrates significant advantages

over other generation models, affirming its

competence for the image generation task.

The self-attention mechanism in the transformer

structure enables DiT to capture long-term spatial

dependencies between objects in the image and

produce high-quality images with global consistency.

This capability goes beyond the limits of traditional

CNN. Compared with CNN architectures such as U-

Net,DiT model has more advantages in parallel

computing power and computational efficiency,

especially in the generation of high-quality samples

in large-scale models and high-resolution image

generation tasks Through an efficient noise denoising

process, the DiT model can generate detailed,

globally consistent high-resolution images that excel

in image fidelity and diversity. After sampling the

locally trained model, Figure 2 is generated. A wide

variety of animals, including dogs, otters, red pandas

and Arctic foxes, have realistic appearance and fine

hair texture. Diverse scenery scenes, including

spectacular hot air balloons, mountains and lakes,

geysers erupting, etc., reflect the strong scene

generation ability of DiT model. Objects are detailed,

such as contrasting color stripes on hot air balloons

and bright feathers on red macaws. The composition

is reasonable, and there is a good spatial hierarchical

relationship between the various elements to avoid

imbalance or congestion. Overall, this image does a

good job of demonstrating the excellent performance

of DiT models in generating realistic and rich and

diverse images. Compared with other generation

models, it has stronger generation quality control and

diversity.

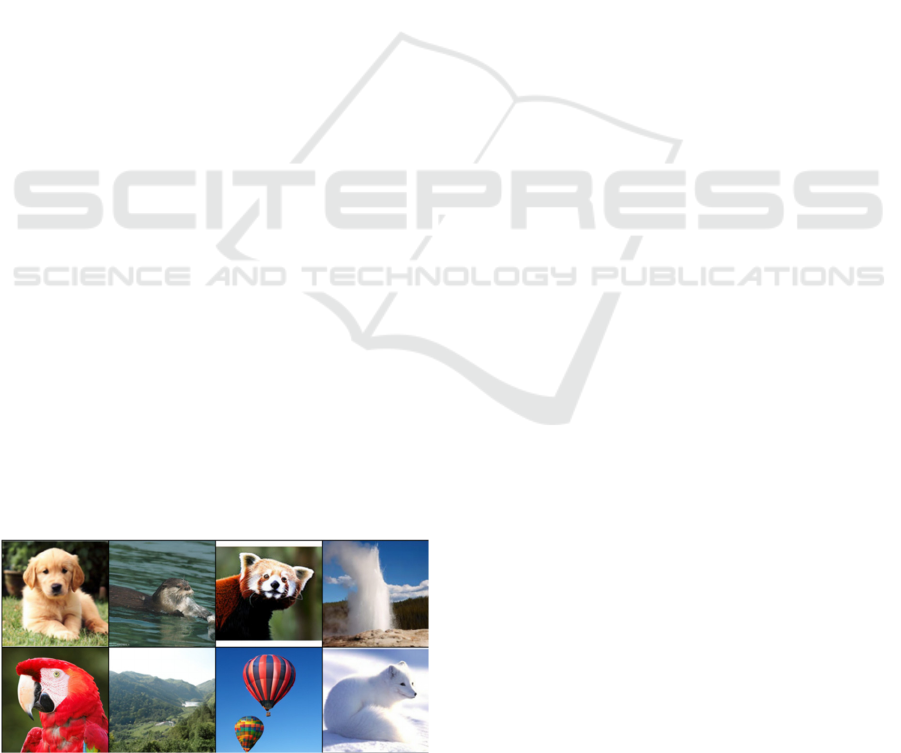

Figure 2: Sample picture

(Picture credit: Original).

4 CONCLUSIONS

In conclusion, the application and analysis of

Diffusion Transformer models have yielded

promising results and insights across various tasks

and domains. These models, which combine the

strengths of transformer architectures with diffusion

probabilistic models, have demonstrated their

capability to generate high-quality samples while

offering improved controllability and interpretability.

This study provides an in-depth examination of the

evolution of DiT from the diffusion model,

delineating the fundamentals of the diffusion model,

and subsequently delving into the U-net and

Transformer structures, respectively. Moreover, it

underscores the feasibility and efficacy of integrating

the diffusion model and Transformer, discussing their

merits and demerits compared to current generation

models. While the present study focused on specific

tasks and modalities, the Diffusion Transformer

framework harbors significant potential for broader

applications in multimodal learning, reinforcement

learning, and other domains where controlled and

interpretable generative models are desired.

However, it is crucial to acknowledge certain

limitations and challenges associated with Diffusion

Transformers, including the computational

complexity of the diffusion process, the necessity for

large-scale pretraining, and the potential for mode

collapse or lack of diversity in generated samples.

Future research directions may involve exploring

more efficient diffusion processes, devising improved

conditioning mechanisms for controlled generation,

and exploring the integration of Diffusion

Transformers with other paradigms such as energy-

based models or hierarchical latent variable models.

Overall, the utilization and analysis of Diffusion

Transformer models have demonstrated their

potential as a robust and adaptable framework for

generating high-quality samples while enhancing

controllability and interpretability, paving the way for

further advancements in generative modeling and its

applications across diverse domains.

REFERENCES

Ho, J., Jain, A., & Abbeel, P. (2020). Denoising Diffusion

Probabilistic Models. ArXiv, 2006.11239.

Dhariwal, P., & Nichol, A. (2021). Diffusion Models Beat

GANs on Image Synthesis. ArXiv, 2105.05233.

Dosovitskiy, A., Beyer, L., Kolesnikov, A., Weissenborn,

D., Zhai, X., Unterthiner, T., Dehghani, M., Minderer,

M., Heigold, G., Gelly, S., Uszkoreit, J., & Houlsby, N.

Enhancing Image Generation with Diffusion Transformer Architecture

341

(2020). An Image is Worth 16x16 Words: Transformers

for Image Recognition at Scale. ArXiv, 2010.11929.

Bao, F., Nie, S., Xue, K., Cao, Y., Li, C., Su, H., & Zhu, J.

(2022). All are Worth Words: A ViT Backbone for

Diffusion Models. 2023 IEEE/CVF Conference on

Computer Vision and Pattern Recognition (CVPR), pp:

22669-22679.

Peebles, W.S., & Xie, S. (2022). Scalable Diffusion Models

with Transformers. 2023 IEEE/CVF International

Conference on Computer Vision (ICCV), pp: 4172-

4182.

Gao, S., Zhou, P., Cheng, M., & Yan, S. (2023). Masked

Diffusion Transformer is a Strong Image Synthesizer.

2023 IEEE/CVF International Conference on Computer

Vision (ICCV), pp: 23107-23116.

Bond-Taylor, S., Hessey, P., Sasaki, H., Breckon, T., &

Willcocks, C.G. (2021). Unleashing Transformers:

Parallel Token Prediction with Discrete Absorbing

Diffusion for Fast High-Resolution Image Generation

from Vector-Quantized Codes. European Conference

on Computer Vision.

Bao, F., Nie, S., Xue, K., Li, C., Pu, S., Wang, Y., Yue, G.,

Cao, Y., Su, H., & Zhu, J. (2023). One Transformer Fits

All Distributions in Multi-Modal Diffusion at Scale.

International Conference on Machine Learning.

Yuan, H., Yuan, Z., Tan, C., Huang, F., & Huang, S. (2022).

SeqDiffuSeq: Text Diffusion with Encoder-Decoder

Transformers. ArXiv, 2212.10325.

ISLVRC Contest (2012) a lightweight version of the

ImageNet dataset.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

342
