XAIMed: A Diagnostic Support Tool for Explaining AI Decisions on

Medical Images

Mattia Daole

1 a

, Pietro Ducange

1 b

, Francesco Marcelloni

1 c

, Giustino Claudio Miglionico

1 d

Alessandro Renda

1 e

and Alessio Schiavo

1,2 f

Department of Information Engineering, University of Pisa, Largo Lucio Lazzarino 1, Pisa 56122, Italy

LogObject AG, Thurgauerstrasse 101a, Opﬁkon, 8152, Switzerland

{mattia.daole, giustino.miglionico, alessio.schiavo}@phd.unipi.it,

Keywords:

Explainable AI, Deep Learning, Medical Image Analysis, Convolutional Neural Networks, Saliency Maps,

Diagnostic Support Tool.

Abstract:

Convolutional Neural Networks have demonstrated high accuracy in medical image analysis, but the opaque

nature of such deep learning models hinders their widespread acceptance and clinical adoption. To address

this issue, we present XAIMed, a diagnostic support tool speciﬁcally designed to be easy to use for physicians.

XAIMed supports diagnostic processes involving the analysis of medical images through Convolutional Neu-

ral Networks. Besides the model prediction, XAIMed also provides visual explanations using four state-of-art

eXplainable AI methods: LIME, RISE, Grad-CAM, and Grad-CAM++. These methods produce saliency

maps which highlight image regions that are most inﬂuential for a model decision. We also introduce a simple

strategy for aggregating the different saliency maps into a uniﬁed view which reveals a coarse-grained level

of agreement among the explanations. The application features an intuitive graphical user interface and is

designed in a modular fashion thus facilitating the integration of new tasks, new models, and new explanation

methods.

1 INTRODUCTION

In recent years, Deep Learning (DL) models have

achieved remarkable success across various ﬁelds,

including Computer Vision, Natural Language Pro-

cessing, and Cybersecurity (Shinde and Shah, 2018;

Raghu and Schmidt, 2020). In healthcare, the capa-

bility of DL models to analyze and recognize patterns

can signiﬁcantly enhance the interpretation of large

volumes of medical images, such as those obtained

from Computed Tomography (CT), Magnetic Reso-

nance Imaging (MRI), Positron Emission Tomogra-

phy (PET), and X-ray scans. Applications include

the detection of anatomical structures, segmentation,

classiﬁcation, prediction, and computer-aided diagno-

sis (Shen et al., 2017). In this context, Convolutional

https://orcid.org/0009-0005-2708-2805

https://orcid.org/0000-0003-4510-1350

https://orcid.org/0000-0002-5895-876X

https://orcid.org/0009-0003-0093-4735

https://orcid.org/0000-0002-0482-5048

https://orcid.org/0009-0005-2147-2853

Neural Networks (CNNs) are particularly suited for

analyzing medical images due to their ability to learn

spatial hierarchies of features.

While advances in DL led to the development

of AI-empowered clinical diagnoses support systems

with performance comparable with that of clinicians

(Sokolovsky et al., 2018; Tschandl et al., 2019;

Hannun et al., 2019), the widespread adoption of

such systems is still hindered by several challenges,

mainly regarding the reliability of model diagnoses

(Shortliffe and Sep

ulveda, 2018), the clinical sound-

ness of model behaviors (Magrabi et al., 2019) and

the lack of trustworthiness and transparency in the

decision-making process (Shortliffe and Sep

ulveda,

2018; Solomonides et al., 2021). The concept of

trustworthy AI has recently been considered also by

government entities, as witnessed, for example, by the

adoption of the AI Act

and of the GDPR

: AI sys-

tems should be accountable and transparent, and their

decisions should be understood and trusted by human

https://artiﬁcialintelligenceact.eu/the-act/

https://gdpr-info.eu/

Daole, M., Ducange, P., Marcelloni, F., Miglionico, G., Renda, A. and Schiavo, A.

XAIMed: A Diagnostic Support Tool for Explaining AI Decisions on Medical Images.

DOI: 10.5220/0012942000003886

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Explainable AI for Neural and Symbolic Methods (EXPLAINS 2024), pages 27-37

ISBN: 978-989-758-720-7

users. According to GDPR all individuals have the

right to obtain “meaningful explanations of the logic

involved” (Guidotti et al., 2018).

The need for trustworthiness in AI systems con-

tributes to the rise of eXplainable Artiﬁcial Intelli-

gence (XAI) (Doshi-Velez and Kim, 2017): XAI aims

to explain AI algorithms and their decision-making

processes, enhancing trust and facilitating the integra-

tion of AI into critical domains such as healthcare,

(Samek et al., 2021; Arnaout et al., 2021; DeGrave

et al., 2021). In medical imaging, one of the most

common XAI approach relates to the generation of

Saliency Maps (SMs) (Borys et al., 2023). SMs are

visual representations that highlight regions of an im-

age that are most inﬂuential in a model decision, thus

enabling healthcare professionals to assess the clini-

cal relevance of these regions (Simonyan et al., 2014).

Evaluating the effectiveness of XAI methods, in-

cluding those based on SM, is inherently complex due

to the subjective nature of interpretation. Quantitative

evaluations include metrics that measure the align-

ment between areas identiﬁed through SM and those

identiﬁed by expert clinicians. A misalignment may

arise when DL models learn complex functions to

map input images to classes without necessarily cap-

turing clinically relevant features. It has been shown

that sometimes they rely on shortcuts, such as arti-

facts or speciﬁc markings in images (e.g., logos or

text labels), which ﬁctitiously improve classiﬁcation

accuracy but do not correspond to true modeling of

diagnostic features (Lapuschkin et al., 2019; Geirhos

et al., 2020). Consequently, while a model might clas-

sify an image accurately, the regions it focuses on may

not align with those clinicians consider important for

diagnosis, potentially compromising the model trust-

worthiness and hindering computer-aided diagnosis

(Cerekci et al., 2024).

In a recent study (Barda et al., 2020), authors

highlight three key components for designing expla-

nations in clinical diagnosis support systems: why

the system provided a certain diagnosis, what should

be included in the explanation, and how explanations

should be presented to users. Authors in (Hwang

et al., 2022) proposed a user-centered clinical deci-

sion support system designed to assist clinical techni-

cians in reviewing AI-predicted sleep staging results.

The aim of the authors was to address the lack of

clinical interpretability and user-friendly interfaces in

existing AI systems. Their ﬁndings suggest that in-

tegrating clinically meaningful explanations into AI

systems through a user-centered design process is an

effective strategy for developing a clinical diagnosis

support system for sleep staging. The study high-

lights the importance of providing explanations that

align with clinical knowledge and workﬂows, which

can enhance the adoption and utility of AI in clini-

cal practice. The user interface of the AI-based clin-

ical diagnoses support systems should be practical in

clinical environments, where the time and resources

of clinicians are constrained (Holzinger et al., 2017;

Shortliffe and Sep

ulveda, 2018). The development of

these tools could alleviate time-consuming and costly

clinical tasks and also enhance the performance of

clinical practitioners (Younes and Hanly, 2016).

To practically assess the usefulness of DL mod-

els for medical image classiﬁcation, a combination of

both specialized medical expertise and DL knowledge

is necessary. Medical professionals can provide in-

sights into the clinical signiﬁcance of the identiﬁed

regions, while DL experts can contribute on unfold-

ing the model’s functioning by designing and lever-

aging explainability techniques. Evidently, the devel-

opment of software and tools to facilitate this synergy

is crucial to foster trustworthiness in AI-empowered

diagnostics.

In this paper we present XAIMed, short for

eXplaining AI decisions on Medical images, a user-

friendly application designed to contribute in bridg-

ing the gap between the opaque nature of CNNs and

the need for explainability in clinical settings: our

primary goal is to provide clinicians with a practi-

cal tool to assess models behavior through intuitive

visualizations. The application allows clinicians to

choose between several classiﬁcation tasks for medi-

cal images and to add new tasks as needed, supported

by a technical operator. For each task, clinicians can

select speciﬁc images for analysis, view the conﬁ-

dence level of predicted classes, and obtain contex-

tual explanations through four SM-based explainabil-

ity methods: LIME (Ribeiro et al., 2016), RISE (Pet-

siuk et al., 2018), Grad-CAM (Selvaraju et al., 2016),

and Grad-CAM++ (Chattopadhay et al., 2018). These

methods are widely used in healthcare and extensively

studied in literature (Borys et al., 2023). Addition-

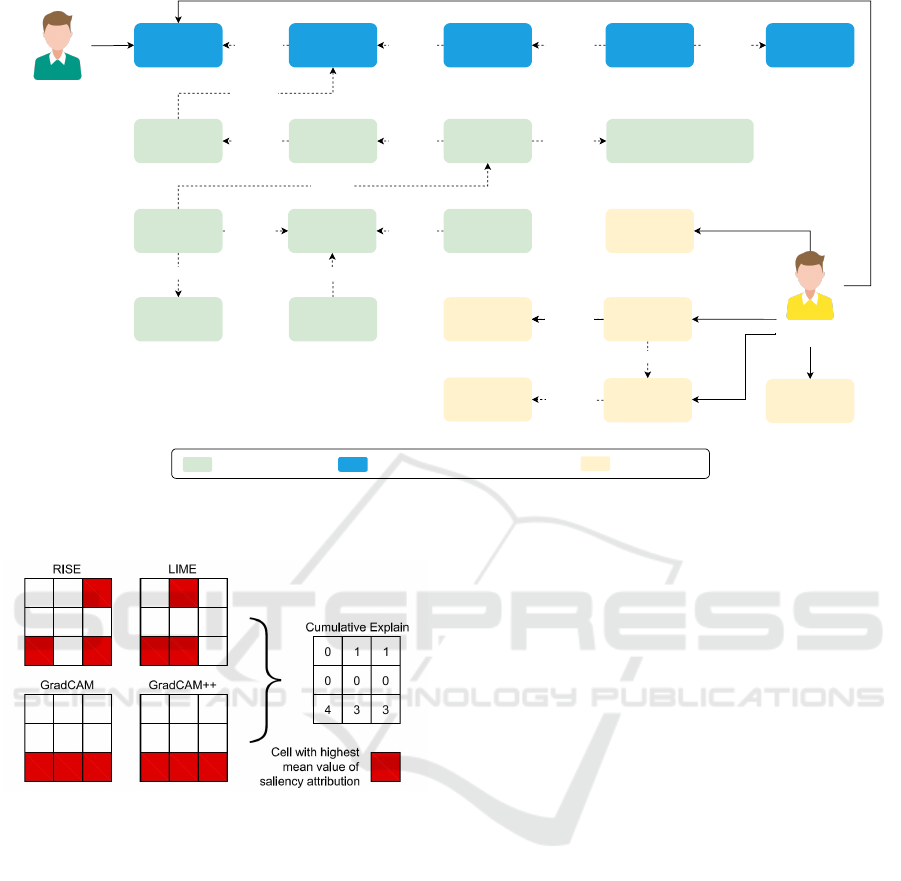

ally, the proposed application provides a visualization

that aggregates the four SMs into a comprehensive

view, by locally quantifying the level of agreement

between the explanations. This tool aims to facilitate

collaboration between DL experts and medical pro-

fessionals by providing a practical means to explain

the model behaviour on speciﬁc images of interest.

This approach allows medical professionals to assess

the model predictions based on their expertise, under-

stand how often they agree with the model decisions,

and determine whether the features identiﬁed by the

model align with their diagnostic criteria.

The rest of this paper is organized as follows. In

Section 2 we provide some preliminaries on CNNs

EXPLAINS 2024 - 1st International Conference on Explainable AI for Neural and Symbolic Methods

and SM-based explanation methods. In Section 3 we

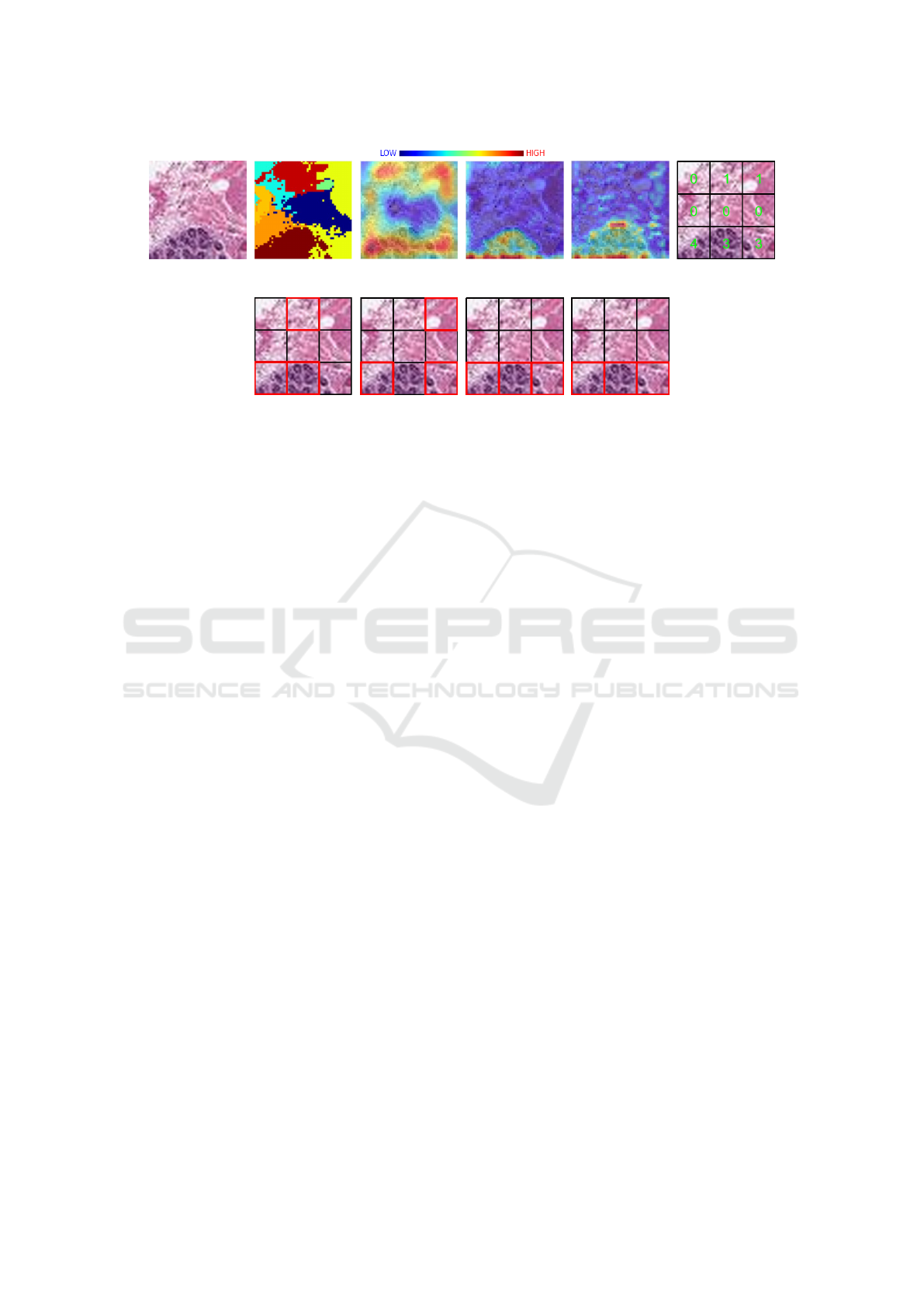

describe our application. In Section 4 we illustrate

an example of use case on Invasive Ductal Carcinoma

detection. Finally, in Section 5 we draw some con-

cluding remarks.

2 BACKGROUND

The adoption of CNNs for classiﬁcation of medical

images is revolutionizing the healthcare sector, en-

abling faster and more accurate diagnoses (Litjens

et al., 2017; Yamashita et al., 2018). These models

consist of multiple layers, typically including convo-

lutional layers, pooling layers, and fully connected

layers. Convolutional layers are designed to automat-

ically and adaptively learn spatial hierarchies of fea-

tures by applying a set of ﬁlters on the input images.

The parameters of these ﬁlters are learned during the

training process, allowing the network to extract rele-

vant features from the input data (LeCun et al., 1998).

The layers closer to the input learn low-level features

such as edges, textures, and simple shapes, while

deeper layers learn more complex, high-level features

such as parts of objects and entire objects (Krizhevsky

et al., 2012). This hierarchical learning makes CNNs

highly effective for image classiﬁcation tasks. Pool-

ing layers are used to reduce the dimensionality of the

feature maps, thus decreasing the computational load

and reducing the risk of overﬁtting. Moreover, these

layers help to make the network invariant to small

translations of the input image, improving its robust-

ness (Scherer et al., 2010). The downstream classiﬁ-

cation task is typically accomplished through a fully

connected network: the ﬁrst layer takes as input the

high-level features extracted from the convolutional

backbone, whereas the last layer returns the probabil-

ity associated with each class by exploiting appropri-

ate activation functions, namely sigmoid and softmax

in the binary and multi-class case, respectively. No-

tably, such probabilities can be considered as a proxy

for model conﬁdence in the decision making process.

Saliency maps (SMs) are a prominent technique

in XAI, providing visual explanations by highlight-

ing regions of an image that signiﬁcantly inﬂuence

a model predictions. Saliency-based approaches de-

signed for CNNs leverage the spatial information pre-

served through convolutional layers to identify parts

of an image that contribute most to the resulting deci-

sion (Van der Velden et al., 2022). SMs explain why a

trained opaque model takes a certain decision for any

single input instance: as such they are considered a

local post-hoc explanation method. The salient parts

of an image, that have the highest attribution to the

prediction, are highlighted in attribution maps. These

maps are typically represented as heatmaps where a

suitable color code indicate the contribution to the

model output (Ancona et al., 2017). Visual explana-

tions are particularly relevant in medical image analy-

sis due to their ease of understanding, which helps as-

certain whether a model decision-making aligns with

that of a clinician.

The generation of attribution maps can be cate-

gorized into perturbation-based and backpropagation-

based methods (Singh et al., 2020). Perturbation-

based methods analyze the effect of altering input fea-

tures on the model output. This is typically achieved

by removing, masking, or modifying parts of the input

image, performing the forward pass to compute the

model’s prediction, and measuring the deviation from

the initial prediction. Backpropagation-based meth-

ods use gradients and activations during the backprop-

agation stage of DL models to estimate the impact

of each input feature. Speciﬁcally, derivatives of the

model output with respect to each input dimension,

such as every pixel in an input image to the model,

are computed. If the gradient is large, it implies that

even a tiny change in that dimension may drastically

change the model’s output, testifying the importance

of that dimension.

In the following, we focus on four popular

saliency-based methods, which are integrated into

our application: LIME, RISE, Grad-CAM, and Grad-

CAM++.

LIME (Local Interpretable Model-agnostic Expla-

nations) (Ribeiro et al., 2016) is a perturbation-based

method designed to explain individual predictions of

an opaque model by approximating it locally with

a simpler, interpretable model. First, a dataset of

perturbed samples is created by slightly altering the

original input. For image data, this involves group-

ing pixels into superpixels, which are contiguous re-

gions with similar pixel intensities, and then ran-

domly switching off these superpixels by setting their

values to a baseline, such as zero or the median value.

Then, the primary, opaque, model is used to predict

the outcomes for each perturbed sample, and these

predictions, along with the perturbed samples, form

a new dataset. LIME assigns weights to the per-

turbed samples based on their proximity to the origi-

nal input, ensuring that samples more similar to the

original input have a greater inﬂuence on the sur-

rogate model. An interpretable surrogate model is

then trained on this new dataset, where the inputs are

the perturbed samples and the outputs are the predic-

tions of the primary model. Examples of commonly

used interpretable surrogate models are Linear Re-

gression, which ﬁts a linear model to the data and pro-

XAIMed: A Diagnostic Support Tool for Explaining AI Decisions on Medical Images

vides straightforward coefﬁcients indicating the im-

portance of each feature, or Decision Trees, which

create a tree-like model of decisions where the im-

portance of features can be easily visualized and un-

derstood, offering a balance between simplicity and

predictive power. Once trained, the surrogate model

is used to explain the primary model’s prediction for

the original input. As the surrogate model is inher-

ently interpretable, its parameters, such as coefﬁcients

in linear regression or splits in a decision tree, can

be used to understand which parts of the input were

most inﬂuential in the prediction. LIME strengths lie

in its model-agnostic nature, making it applicable to

any type of model, and its ability to provide local ex-

planations that are speciﬁc to individual predictions.

However, it can be computationally intensive due to

the need for multiple perturbations and it may pro-

duce coarse attribution maps due to the superpixel ap-

proach.

RISE (Randomized Input Sampling for Explana-

tion of Black-box Models) (Petsiuk et al., 2018) gen-

erates saliency maps by randomly masking parts of

the input image and observing the impact on the

model’s predictions. In a nutshell, it creates a large

number of binary masks, where each mask randomly

occludes different parts of the image. These masks are

then applied to the input image to generate perturbed

versions of the image. The model prediction scores

(class probabilities) for each perturbed image are

recorded. The importance of each region in the origi-

nal image is determined by aggregating the prediction

scores and weighting them according to the presence

of each pixel in the binary masks. Essentially, areas

that consistently affect the model’s prediction when

occluded are identiﬁed as important. This method

provides robust and comprehensive SMs, but it re-

quires numerous forward passes through the model,

thus being computationally expensive. Furthermore,

the results depend on the predeﬁned parameters used

for generating the masks (Cooper et al., 2022), e.g.,

the number of masks, their size, and the fraction of

pixels occluded in each mask.

Grad-CAM (Gradient-weighted Class Activation

Mapping) (Selvaraju et al., 2016) calculates the gra-

dients of a target class ﬂowing into the ﬁnal convolu-

tional layer of a CNN to produce a localization map

highlighting important regions. Grad-CAM is specif-

ically designed for CNNs and is computationally efﬁ-

cient. It effectively highlights regions with high-level

semantics and detailed spatial information, although

it tends to produce coarse maps that may lack ﬁne-

grained details (Chattopadhay et al., 2018). Despite

this limitation, Grad-CAM efﬁciency and ability to

highlight important regions in CNNs make it practi-

cal for real-time interpretability.

Grad-CAM++ builds upon Grad-CAM by provid-

ing localization through a weighted combination of

gradients. While Grad-CAM is simpler and faster,

making it suitable for analysis of images where a sin-

gle class is dominant, Grad-CAM++ offers greater

precision in images involving multiple objects or

classes.

The choice of LIME, RISE, Grad-CAM, and

Grad-CAM++ is based on their complementary

strengths and widespread use in the literature. Specif-

ically, Grad-CAM and Grad-CAM++ are among the

most frequently used methods in the medical ﬁeld due

to their effectiveness in highlighting relevant features

in CNNs (Borys et al., 2023). Although these meth-

ods are often applied to the feature maps of the last

convolutional layer, they can be conﬁgured to focus

on different layers depending on the desired trade-off

between high-level abstract information and detailed

spatial resolution. LIME and RISE, on the other hand,

utilize perturbation techniques that consider the en-

tire model, offering an overall perspective that con-

siders the entire neural network. It is important to

note that LIME and RISE are computationally more

intensive compared to Grad-CAM and Grad-CAM++.

The perturbation-based approach of LIME and RISE

requires generating numerous variations of the input

data and analyzing the model’s responses, which can

result in a delay, making the output available only af-

ter a few seconds. In contrast, Grad-CAM and Grad-

CAM++ are more efﬁcient as they directly utilize the

gradients ﬂowing through the network, allowing the

SMs to be produced almost instantaneously. In our

application, the SMs produced by these four meth-

ods are aggregated into a cumulative explanation view

within our application, combining the immediate, de-

tailed insights from Grad-CAM and Grad-CAM++

with the comprehensive, albeit slower, perspectives

from LIME and RISE.

3 THE PROPOSED XAIMed

APPLICATION

XAIMed, the acronym for “eXplaining AI decisions

on Medical images”, is a desktop application de-

signed to support doctors during the diagnostic pro-

cess of medical examinations based on medical im-

ages. XAIMed enables image classiﬁcation by lever-

aging CNN models and employs well-established

XAI methods to complement diagnoses with visual

saliency-based explanations. SMs highlight the re-

gions of the image that contributed most to the model

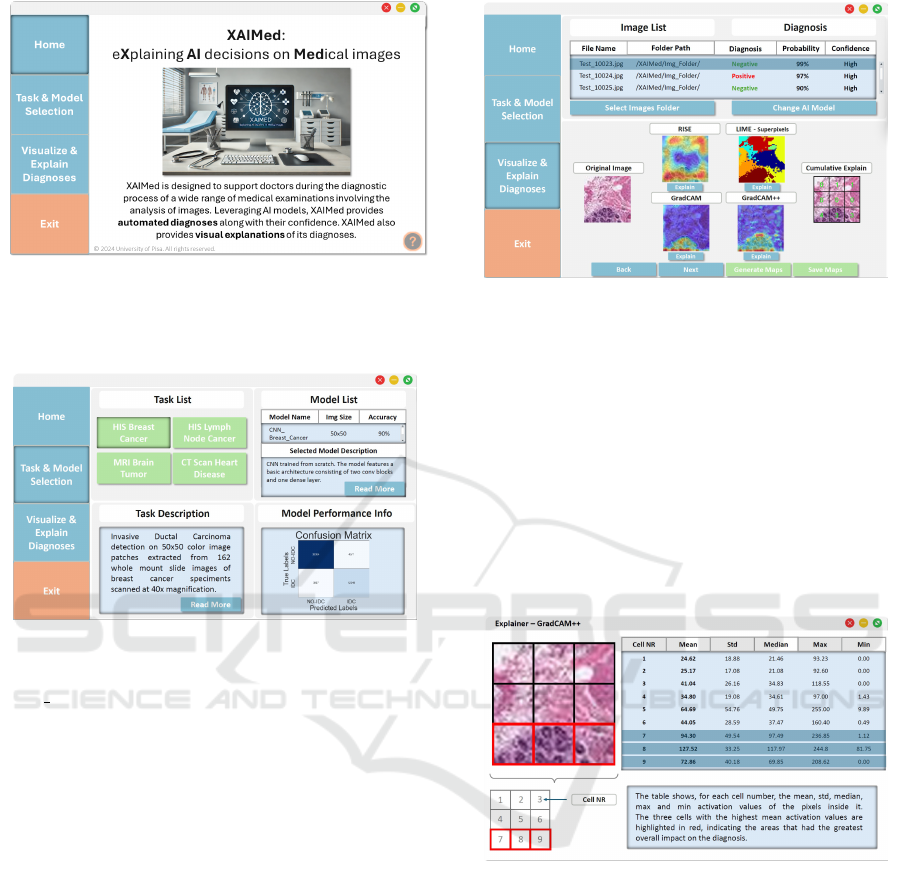

decision. Our application features a user-friendly

EXPLAINS 2024 - 1st International Conference on Explainable AI for Neural and Symbolic Methods

Graphical User Interface (GUI), which allows doc-

tors to easily navigate and utilize its diagnostic sup-

port capabilities. It is worth noticing that XAIMed is

designed in a modular fashion which makes it very

straightforward to include new tasks, new models,

and new explanation methods. In the following, we

ﬁrst discuss the use cases of XAIMed and then present

the proposed approach for obtaining saliency-based

explanations.

3.1 XAIMed Use Cases

The Use Case diagram of XAIMed is reported in Fig.

XAIMed envisions two types of users: a technical

user, whose use cases are highlighted in yellow, and

a physician user, whose activities are highlighted in

green. The use cases shared by both actors are de-

picted in blue.

The technical user conﬁgures the application so

that the physician can exploit its functionalities. For

simplicity, we will refer to a medical imaging diag-

nostic use case as a “task” throughout the rest of the

paper.

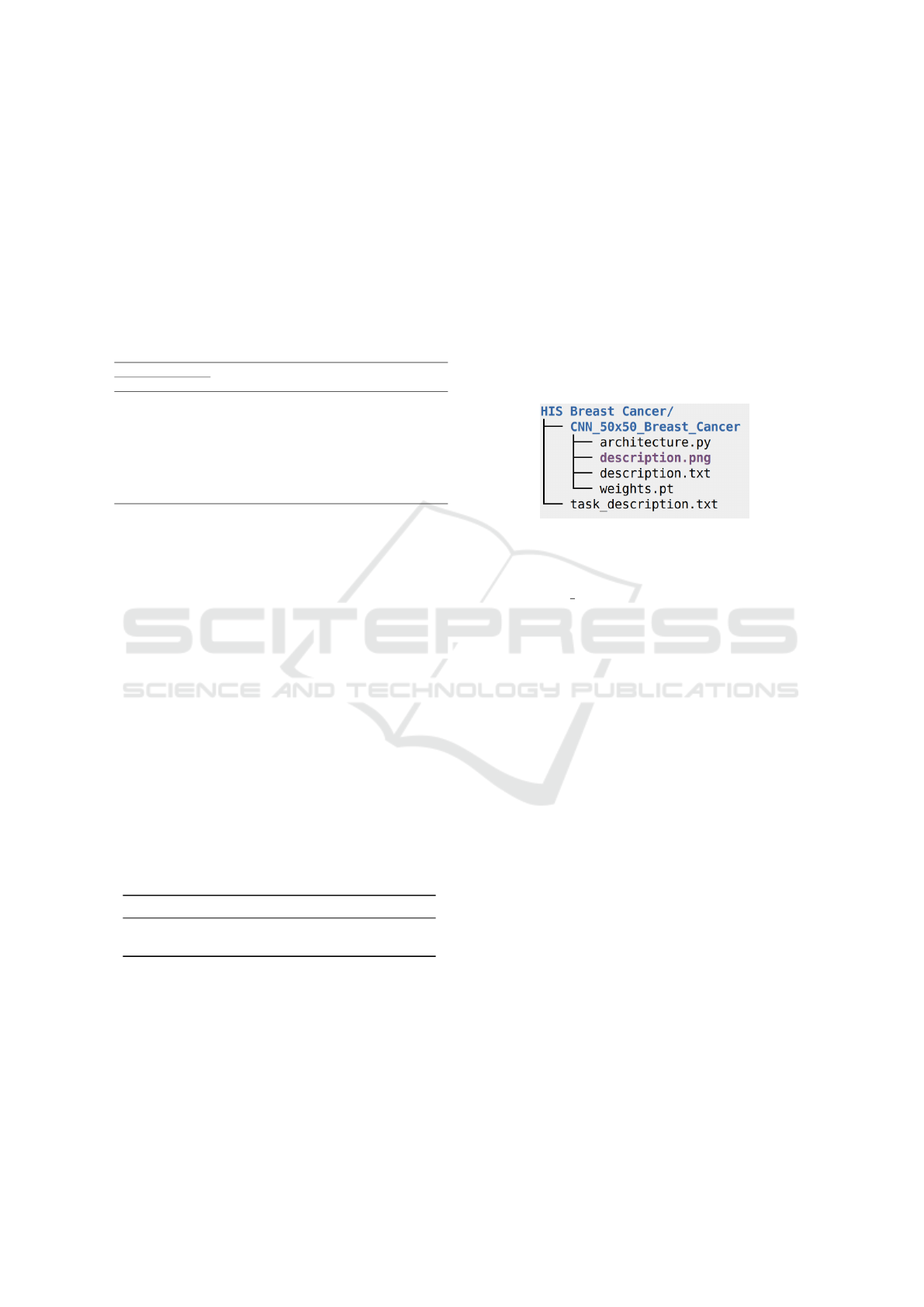

Technical users can conﬁgure tasks, add task de-

scriptions, delete existing tasks, add DL models along

with their metadata, and delete DL models. As for the

task conﬁguration, a dedicated folder must be created

and named to identify the task: such name will be

used within the application for displaying purposes.

The folder will contain a text ﬁle with a description of

the task: contextual and domain-speciﬁc information

can be included to help physician users understand

task details. A task can be associated with one or

more DL models, i.e., CNNs. For each model, a dedi-

cated subfolder must be created within the task folder.

Each model directory must contain the ﬁles needed

for its deployment, such as the ﬁles with the weights

and the speciﬁcations of the architecture. The model

directory will also include a brief textual description

of the dataset and the CNN model, detailing relevant

information including the number of images used for

training and testing, their resolution, their distribution

across target classes, and the inference time of the

CNN model. Furthermore, a descriptive image that

helps users understand the model performance can be

included. For instance, such visual aid may consist of

a confusion matrix.

Beside conﬁguring tasks, the technical user can

add new CNN models, along with the related infor-

mation, to existing tasks. The technical user can also

remove tasks and models as needed.

Once the tasks are conﬁgured according to these

speciﬁcations, the application is readily available for

use by a physician user, who interacts with the system

through the GUI.

Both physician and technical users can browse the

available tasks and explore their descriptions. For

each task, the GUI lists one or more CNN models,

along with their respective textual and visual descrip-

tions.

The physician users can select a CNN model and

the folder containing the medical images they want to

analyze within XAIMed. Notably, the physician can

switch between different tasks, models, image fold-

ers and can also add or remove images within the

speciﬁed folder at any time. The images compliant

with a selected model are displayed in a list. The

physician can browse the list of images: when an

image is selected, the diagnosis, i.e., the model out-

put, and the associated conﬁdence values are auto-

matically displayed. For interpretability purpose, we

also discretized the conﬁdence values, i.e. the class

probabilities, through equal-width discretization with

three bins. The probability range [0, 1] of each class

is divided into Low [0, 0.33], Medium (0.33, 0.66], and

High (0.66, 1] in order to provide the physician users

also with a coarse-grained information regarding the

conﬁdence level.

Furthermore, for any selected image, the physi-

cian can generate SMs using the XAI methods

described in Section 2, namely GradCAM, Grad-

CAM++, RISE and LIME. The generated maps are

displayed collectively within the same window, pro-

viding an overall perspective of the results. A detailed

view can be accessed for each SM and such explana-

tions can be saved as image ﬁles. In the following

subsection, we discuss how detailed saliency-based

explanations are obtained.

3.2 Saliency-Based Explanations

In their detailed view, an input image and the associ-

ated SMs are partitioned into a grid of nine equally

sized square cells. For each cell of the grid and for

each XAI method, the following descriptive statistics

are calculated based on the saliency value attributed

to the pixels within the cell: mean, median, mini-

mum, maximum, and standard deviation. The three

cells with the highest mean value of saliency attribu-

tion for each SM are adequately highlighted to indi-

cate the regions with the greatest overall impact on

the diagnosis provided by the CNN model according

to the associated XAI method.

The proposed application also provides a cumu-

lative visual explanation obtained by aggregating the

four SMs into a single one. The rationale for this op-

eration is depicted in Fig. 2.

XAIMed: A Diagnostic Support Tool for Explaining AI Decisions on Medical Images

PHYSICIAN

USER

BROWSE

AVAILABLE

TASKS

SELECT

TASK

BROWSE

AVAILABLE

DL MODELS

VISUALIZE

INFO

DL MODEL

SELECT

DL MODEL

<<extend>>

<<extend>> <<extend>>

SELECT


FOLDER

<<extend>>

BROWSE

IMAGES

<<extend>>

SELECT


<<extend>>

VISUALIZE DL MODEL

DIAGNOSIS

AND CONFIDENCE

<<include>>

GENERATE SMs

VISUALIZE

SMs

VISUALIZE

EXPLANATION

DETAILS

VISUALIZE

CUMULATIVE

EXPLANATION

SAVE SMs

<<extend>>

<<include>>

<<extend>>

CONFIGURE

TASK

ADD DL MODEL

INFO METADATA

DELETE

TASK

DELETE

DL MODEL

ADD TASK

DESCRIPTION

TECHNICAL

USER

<<include>>

TECHNICAL USER & PHYSICIAN USER TECHNICAL USER

PHYSICIAN USER

<<include>>

Figure 1: Use Case Diagram. The application has two types of actors, technical users, and physician users, and their use cases

are highlighted in yellow and in green, respectively; use cases common to both actors are highlighted in blue.

Figure 2: Generation of a cumulative SM as an aggregation

of the SMs obtained by the four XAI methods: GradCAM,

GradCAM++, RISE, LIME.

The cumulative explanation map quantiﬁes the

level of agreement between the four explanation

methods by using a very simple and intuitive crite-

rion: each cell of the grid is given a score ranging

from 0 to 4 based on the number of methods that iden-

tiﬁed the cell among the most inﬂuential for the di-

agnosis. The value of 0 indicates that the cell was

not among the three most inﬂuential cells for any of

the methods. Higher scores indicate cells consistently

highlighted across all methods, offering a comprehen-

sive view of signiﬁcant regions.

It is worth noticing that the granularity of the grid,

as well as the number of cells to be selected for each

SM as the most relevant, can be suitably conﬁgured

according to the task: in the illustrative example of

Fig. 2, a rather coarse granularity with nine cells

has been considered with the main objective of ob-

taining a rough and concise aggregated explanation.

In this way, physician users’ attention is catalyzed

towards macro-regions of the images rather than on

ﬁne-grained details.

4 CASE STUDY EXAMPLE

In this section, a practical case study of the XAIMed

application is described. After brieﬂy introducing the

medical task and the relevant dataset, we provide de-

tails about the CNN model adopted. Then, we outline

the conﬁguration setup required to initialize the ap-

plication. Finally, we present a detailed, step-by-step

demonstration of the application usage.

4.1 Dataset and Model Details

We consider a medical image binary classiﬁcation

task aimed at detecting Invasive Ductal Carcinoma

(IDC). For this purpose, the publicly available Breast

Histopathology Images dataset (Cruz-Roa et al.,

2014) is adopted. The dataset comprises 277,524

color image patches that have been extracted from

162 whole-mount slide images of breast cancer spec-

imens. These specimens have been scanned at a mag-

niﬁcation of 40x to facilitate the identiﬁcation of IDC,

the most prevalent subtype among all breast cancers.

The image patches, each measuring 50 × 50 pixels

EXPLAINS 2024 - 1st International Conference on Explainable AI for Neural and Symbolic Methods

and featuring 3 channels (RGB), are categorized into

two groups: 78,786 patches labeled as IDC-positive

and 198,738 patches identiﬁed as IDC-negative. Note

that the case study considers a binary classiﬁcation

task but the application also supports multi-class clas-

siﬁcation problems.

To address the IDC classiﬁcation task, a simple

CNN model is adopted: its architecture is detailed in

Table 1.

Table 1: CNN architecture adopted for the IDC classiﬁca-

tion case study.

Layer

Feature Map Size Kernel Size Stride Activation

Name Type

Input Image 1 50x50x3 - - -

1 Convolutional 16 50x50x16 3x3 1 ReLU

BatchNorm 16 50x50x16 - - -

Max Pooling 16 25x25x16 2x2 2 -

4 Convolutional 32 25x25x32 3x3 1 ReLU

BatchNorm 32 25x25x32 - - -

Max Pooling 32 12x12x32 2x2 2 -

7 Fully connected - 256 - - ReLU

Dropout - 256 - - -

9 Fully connected - 1 - - Sigmoid

The adopted CNN comprises two sets of convo-

lutional layers, each succeeded by a batch normal-

ization and a max pooling layer. A fully connected

layer of 256 neurons precedes the output layer com-

posed by a single unit with sigmoid activation func-

tion. Dropout is added after the fully connected hid-

den layer, with dropout rate of 0.5. Adam optimizer

is employed to minimize the binary cross-entropy loss

throughout the training process.

A hold-out validation strategy was considered for

assessing the generalization capability of the model.

The 20% of the dataset was exploited as test set.

The remaining 80% was divided into 80% training

and 20% validation set. Notably, patches from the

same patient were consistently assigned to the same

set throughout the process.

Results for IDC Detection are presented in Table

2, in terms of precision, recall, and f1-score for both

classes.

Table 2: Results for IDC detection on the test set.

Class Precision Recall F1-score Support

NO-IDC 0.90 0.91 0.90 42935

IDC 0.77 0.74 0.75 16216

As expected, the unbalanced dataset makes the

identiﬁcation of the IDC minority class quite chal-

lenging. However, the results can overall be con-

sidered reasonable. It must be emphasized that this

work does not aim to advance the state-of-art with

respect to speciﬁc tasks or neural architectures, but

rather to show how such elements can be integrated

within a user-friendly application to support diagno-

sis by physician users. The sole purpose of the perfor-

mance evaluation is therefore to verify that the result-

ing models are reasonably accurate and thus to ensure

that the explainability analysis is valid and meaning-

ful.

4.2 XAIMed Usage: Step-by-Step

Demonstration

Within the XAIMed application, the conﬁguration

step must be performed as discussed in Section 3. Fig-

ure 3 shows the folder structure for the task consid-

ered in this case study.

Figure 3: Overview of the task folder conﬁgured for the HIS

Breast Cancer classiﬁcation case study.

The top-level folder identiﬁes the task and con-

tains the task description.txt ﬁle with a textual

description of the task. Furthermore, it also contains

a dedicated sub-folder for the model adopted in our

case study. The following ﬁles are stored therein:

the pytorch model weights ﬁle (weights.pt), the

script with the architecture speciﬁcation for load-

ing the CNN (architecture.py), a textual descrip-

tion (description.txt) and a visual description

(description.png) to provide the user with a com-

prehensive overview of the model speciﬁcation and

performance. When a task is appropriately conﬁg-

ured, it becomes available to users of the application

through a dedicated button in the GUI.

When the application is started users are greeted

with the Home screen depicted in Fig. 4.

The interface provides a navigation bar on the left-

hand side and a brief description of the application.

Furthermore, it includes a “help” feature which offers

a guide to the main functionalities of XAIMed. In the

following we describe in detail the steps for selecting

a task, selecting a model, and analyzing the model

predictions and explanations for a given input image.

First, by navigating to the Task & Model Selection

tab, the user can select a task and and an associated

model. Figure 5 shows the Task & Model Selection

screen.

As depicted in Fig. 5, the screen is divided into

four parts. The top-left part shows the available tasks:

we select the HIS Breast Cancer as the current case

study. The bottom-left part displays the content of the

XAIMed: A Diagnostic Support Tool for Explaining AI Decisions on Medical Images

Figure 4: XAIMed Home screen. It provides a brief de-

scription of the application and access to a user guide. The

navigation bar on the left-hand side shows the functionali-

ties offered by the application.

Figure 5: The Task & Model Selection tab. It displays the

tasks and associated models available in XAIMed.

task description.txt ﬁle. The top-right part al-

lows selecting a trained model among those available

for the task under investigation. The model described

in Section 4.1 is selected: the description of the model

and its performance measured on a dedicated test set

can be found at the bottom-right of the screen. Model

performance is shown by means of an image which in

this case shows the confusion matrix on the test set.

Evidently, if a custom alternative visual representa-

tion of the model performance is required, it will be

sufﬁcient to replace the description.png ﬁle with

the desired one.

Once a model is selected, the user can access the

Visualize & Explain Diagnoses tab (Fig. 6).

The user can select the image folder and choose

among the images compliant with the selected model.

In this case study, we employed a set of images ex-

tracted from the test set of the HIS Breast Cancer

dataset. The inference process carried out on a se-

lected image provides information about the predicted

class along with the conﬁdence value and the dis-

cretized conﬁdence level. Most importantly, the SMs

can be generated for any selected image, using the

four XAI methods described in Section 2. Further-

Figure 6: The Visualize & Explain Diagnoses tab. It dis-

plays saliency-based explanations for a selected image.

more, the cumulative saliency-based explanation is

obtained as described in Section 3.2: an integer in

[0, 4] indicating the level of agreement among the four

methods is superimposed to each of the nine cells in

which the input image is partitioned. The original im-

age is displayed alongside the SMs to facilitate com-

parison.

The Visualize & Explain Diagnoses tab allows

obtaining additional information about the SMs pro-

vided by the four XAI methods. Figure 7 shows the

detailed view regarding the GradCAM++ method.

Figure 7: Detailed view of one of the saliency-based expla-

nation methods, namely GradCAM++.

Descriptive statistics are reported for each cell of

the grid partitioning and the three ones with the high-

est mean values are suitably marked on the image to

highlight the most important regions for the diagno-

sis, according to the chosen method.

For the sake of an adequate visualization, we re-

port in Fig. 8 the example original image along

with the visual saliency-based explanations provided

within XAIMed.

For each XAI method, the resulting SM is shown

in the top row (8b-8e). The bottom row (8g-8j) shows

the grid partitioning of the original image in which the

three cells with the highest mean saliency value ac-

cording to the respective XAI method are highlighted.

EXPLAINS 2024 - 1st International Conference on Explainable AI for Neural and Symbolic Methods

(a) Original (b) LIME (c) RISE (d) GradCAM (e) GradCAM++ (f) Cumulative

(g) LIME, top

three cells

(h) RISE, top

three cells

(i) GradCAM,

top three cells

(j) GradCAM++,

top three cells

Figure 8: Saliency-based explanations: (a) original image; (b-e) SMs extracted with the four XAI methods; (f) Cumulative

SM obtained by aggregating the four explanations; (g-j) grid partitioning of the original image in which the three cells with

highest mean saliency value according to the respective XAI method are highlighted.

The cumulative SM provides an aggregated view as

the count of how many times cells have been high-

lighted as the most inﬂuential for the diagnosis.

In the example, the model classiﬁes the image

as negative with high conﬁdence. We observe how

the various XAI methods give high importance to the

lower region of the image: in the aggregate view, in

fact, all lower cells have a count value of 3 or 4.

Finally, the user can opt for persistently storing the

generated maps.

The user can obviously switch between different

sets of images, different models and different tasks at

any time. This allows for a dynamic and thorough

exploration of the data according to the user’s needs.

5 CONCLUSIONS

In this paper, we introduce XAIMed as a decision

support tool designed for computer-aided diagnosis

based on medical imaging, within the framework of

Explainable AI. The proposed tool provides physi-

cian users with diagnoses from a Convolutional Neu-

ral Network (CNN) model, suitably trained for a given

medical image classiﬁcation task. Furthermore, four

local post-hoc visual explanation methods are imple-

mented within XAIMed, namely RISE, LIME, Grad-

CAM, GradCAM++. Each of the four state-of-art

methods produces a Saliency Map (SM) enabling

the identiﬁcation of the most inﬂuential regions for

the diagnosis of an input image. A cumulative ag-

gregated SM is computed as the level of agreement

among the four methods in order to catalyze physi-

cian users’ attention towards macro-regions of the im-

ages. XAIMed functionality not only provides diag-

nostic outcomes but also enhances understanding of

the model decision-making process, thereby giving

users additional insights to evaluate the accuracy and

trustworthiness of the model diagnoses. The applica-

tion has been implemented in a modular fashion: in

the future, we aim to exploit its ﬂexibility to include

further visual explanation methods and to reﬁne the

explanation aggregation strategy. Another interesting

development of the present work is the involvement

of domain experts, i.e., physicians, to evaluate the us-

ability and usefulness of XAIMed in clinical practice.

ACKNOWLEDGEMENTS

This work has been partly funded by the PNRR

- M4C2 - Investimento 1.3, Partenariato Esteso

PE00000013 - “FAIR - Future Artiﬁcial Intelligence

Research” - Spoke 1 “Human-centered AI” and the

PNRR “Tuscany Health Ecosystem” (THE) (Ecosis-

temi dell’Innovazione) - Spoke 6 - Precision Medicine

& Personalized Healthcare (CUP I53C22000780001)

under the NextGeneration EU programme, and by the

Italian Ministry of University and Research (MUR) in

the framework of the FoReLab and CrossLab projects

(Departments of Excellence).

REFERENCES

Ancona, M., Ceolini, E.,

Oztireli, C., and Gross, M. (2017).

Towards better understanding of gradient-based at-

tribution methods for deep neural networks. arXiv

preprint arXiv:1711.06104.

XAIMed: A Diagnostic Support Tool for Explaining AI Decisions on Medical Images

Arnaout, R., Curran, L., Zhao, Y., Levine, J. C., Chinn, E.,

and Moon-Grady, A. J. (2021). An ensemble of neural

networks provides expert-level prenatal detection of

complex congenital heart disease. Nature Medicine.

Barda, A., Horvat, C., and Hochheiser, H. (2020). A

qualitative research framework for the design of user-

centered displays of explanations for machine learn-

ing model predictions in healthcare. BMC medical in-

formatics and decision making, 20:257.

Borys, K., Schmitt, Y. A., Nauta, M., Seifert, C., Kr

amer,

N., Friedrich, C. M., and Nensa, F. (2023). Explain-

able AI in medical imaging: An overview for clinical

practitioners – saliency-based XAI approaches. Euro-

pean Journal of Radiology, 162:110787.

Cerekci, E., Alis, D., Denizoglu, N., Camurdan, O., Ege

Seker, M., Ozer, C., Hansu, M. Y., Tanyel, T., Ok-

suz, I., and Karaarslan, E. (2024). Quantitative eval-

uation of saliency-based explainable artiﬁcial intelli-

gence (XAI) methods in deep learning-based mam-

mogram analysis. European Journal of Radiology,

173:111356.

Chattopadhay, A., Sarkar, A., Howlader, P., and Balasub-

ramanian, V. N. (2018). Grad-cam++: Generalized

gradient-based visual explanations for deep convolu-

tional networks. In 2018 IEEE winter conference on

applications of computer vision (WACV), pages 839–

847. IEEE.

Cooper, J., Arandjelovi

c, O., and Harrison, D. J. (2022).

Believe the HiPe: Hierarchical perturbation for fast,

robust, and model-agnostic saliency mapping. Pattern

Recognition, 129:108743.

Cruz-Roa, A., Basavanhally, A., Gonz

alez, F., Gilmore, H.,

Feldman, M., Ganesan, S., Shih, N., Tomaszewski, J.,

and Madabhushi, A. (2014). Automatic detection of

invasive ductal carcinoma in whole slide images with

convolutional neural networks. Progress in Biomedi-

cal Optics and Imaging - Proceedings of SPIE, 9041.

DeGrave, A. J., Janizek, J. D., and Su-In, L. (2021). Ai

for radiographic COVID-19 detection selects short-

cuts over signal. Nature Machine Intelligence.

Doshi-Velez, F. and Kim, B. (2017). Towards a rigorous

science of interpretable machine learning.

Geirhos, R., Jacobsen, J.-H., Michaelis, C., Zemel, R. S.,

Brendel, W., Bethge, M., and Wichmann, F. (2020).

Shortcut learning in deep neural networks. Nature

Machine Intelligence, 2:665 – 673.

Guidotti, R., Monreale, A., Ruggieri, S., Turini, F., Gian-

notti, F., and Pedreschi, D. (2018). A survey of meth-

ods for explaining black box models. ACM Comput.

Surv., 51(5).

Hannun, A. Y., Rajpurkar, P., Haghpanahi, M., Tison, G. H.,

Bourn, C., Turakhia, M. P., and Ng, A. Y. (2019).

Cardiologist-level arrhythmia detection and classiﬁ-

cation in ambulatory electrocardiograms using a deep

neural network. Nature Medicine, 25(1):65–69.

Holzinger, A., Biemann, C., Pattichis, C., and Kell, D.

(2017). What do we need to build explainable ai sys-

tems for the medical domain?

Hwang, J., Lee, T., Lee, H., and Byun, S. (2022). A clin-

ical decision support system for sleep staging tasks

with explanations from artiﬁcial intelligence: User-

centered design and evaluation study. J Med Internet

Res, 24(1):e28659.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

agenet classiﬁcation with deep convolutional neural

networks. Advances in neural information processing

systems, 25.

Lapuschkin, S., W

aldchen, S., Binder, A., Montavon, G.,

Samek, W., and M

uller, K.-R. (2019). Unmasking

clever hans predictors and assessing what machines

really learn. Nature Communications, 10(1):1096.

LeCun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. Proceedings of the IEEE, 86(11):2278–2324.

Litjens, G., Kooi, T., Bejnordi, B. E., Setio, A. A. A.,

Ciompi, F., Ghafoorian, M., van der Laak, J. A., van

Ginneken, B., and S

anchez, C. I. (2017). A survey

on deep learning in medical image analysis. Medical

Image Analysis, 42:60–88.

Magrabi, F., Ammenwerth, E., McNair, J. B., Keizer, N.

F. D., Hypp

onen, H., Nyk

anen, P., Rigby, M., Scott,

P. J., Vehko, T., Wong, Z. S., and Georgiou, A.

(2019). Artiﬁcial intelligence in clinical decision sup-

port: Challenges for evaluating ai and practical impli-

cations. Yearbook of Medical Informatics, 28(1):128–

134. Epub 2019 Apr 25.

Petsiuk, V., Das, A., and Saenko, K. (2018). Rise: Ran-

domized input sampling for explanation of black-box

models. arXiv preprint arXiv:1806.07421.

Raghu, M. and Schmidt, E. (2020). A survey of deep learn-

ing for scientiﬁc discovery.

Ribeiro, M. T., Singh, S., and Guestrin, C. (2016). ”why

should i trust you?”: Explaining the predictions of any

classiﬁer.

Samek, W., Montavon, G., Lapuschkin, S., Anders, C. J.,

and M

uller, K.-R. (2021). Explaining deep neural net-

works and beyond: A review of methods and applica-

tions. Proceedings of the IEEE, 109(3):247–278.

Scherer, D., M

uller, A., and Behnke, S. (2010). Evaluation

of pooling operations in convolutional architectures

for object recognition. In International conference on

artiﬁcial neural networks, pages 92–101. Springer.

Selvaraju, R. R., Das, A., Vedantam, R., Cogswell, M.,

Parikh, D., and Batra, D. (2016). Grad-CAM: Why

did you say that? arXiv preprint arXiv:1611.07450.

Shen, D., Wu, G., and Suk, H.-I. (2017). Deep learning in

medical image analysis. Annual Review of Biomedical

Engineering, 19(1):221–248. PMID: 28301734.

Shinde, P. P. and Shah, S. (2018). A review of ma-

chine learning and deep learning applications. In

2018 Fourth International Conference on Comput-

ing Communication Control and Automation (IC-

CUBEA), pages 1–6.

Shortliffe, E. H. and Sep

ulveda, M. J. (2018). Clinical

Decision Support in the Era of Artiﬁcial Intelligence.

JAMA, 320(21):2199–2200.

Simonyan, K., Vedaldi, A., and Zisserman, A. (2014).

Deep inside convolutional networks: Visualising im-

age classiﬁcation models and saliency maps.

EXPLAINS 2024 - 1st International Conference on Explainable AI for Neural and Symbolic Methods

Singh, A., Sengupta, S., and Lakshminarayanan, V. (2020).

Explainable deep learning models in medical image

analysis. Journal of imaging, 6(6):52.

Sokolovsky, M., Guerrero, F., Paisarnsrisomsuk, S., Ruiz,

C., and Alvarez, S. (2018). Human expert-level auto-

mated sleep stage prediction and feature discovery by

deep convolutional neural networks. In Proceedings

of the 17th International Workshop on Data Mining in

Bionformatics (BIOKDD2018), in Conjunction with

the ACM SIGKDD Conference on Knowledge Discov-

ery and Data Mining KDD2018.

Solomonides, A., Koski, E., Atabaki, S., Weinberg, S., Mc-

Greevey, J., Kannry, J., Petersen, C., and Lehmann,

C. (2021). Deﬁning amia’s artiﬁcial intelligence prin-

ciples. Journal of the American Medical Informatics

Association : JAMIA, 29.

Tschandl, P., Rosendahl, C., Akay, B. N., Argenziano, G.,

Blum, A., Braun, R. P., Cabo, H., Gourhant, J.-Y.,

Kreusch, J., Lallas, A., Lapins, J., Marghoob, A.,

Menzies, S., Neuber, N. M., Paoli, J., Rabinovitz,

H. S., Rinner, C., Scope, A., Soyer, H. P., Sinz,

C., Thomas, L., Zalaudek, I., and Kittler, H. (2019).

Expert-Level Diagnosis of Nonpigmented Skin Can-

cer by Combined Convolutional Neural Networks.

JAMA Dermatology, 155(1):58–65.

Van der Velden, B. H., Kuijf, H. J., Gilhuijs, K. G., and

Viergever, M. A. (2022). Explainable artiﬁcial intel-

ligence (XAI) in deep learning-based medical image

analysis. Medical Image Analysis, 79:102470.

Yamashita, R., Nishio, M., Do, R. K. G., and Togashi, K.

(2018). Convolutional neural networks: an overview

and application in radiology. Insights into imaging,

9:611–629.

Younes, M. and Hanly, P. (2016). Minimizing inter-

rater variability in staging sleep by use of computer-

derived features. Journal of Clinical Sleep Medicine,

12:1347–1356.

XAIMed: A Diagnostic Support Tool for Explaining AI Decisions on Medical Images
