A Knowledge Map Mining-Based Personalized Learning Path

Recommendation Solution for English Learning

Duong Thien Nguyen

1,2 a

and Thu Minh Tran Nguyen

1,2,* b

Faculty of Information Technology, University of Science, Ho Chi Minh City, Vietnam

Viet Nam National University, Ho Chi Minh City, Vietnam

Keywords: Knowledge Graph, Personalized Learning Path, Recommendation, English Learning, Graph Database.

Abstract: Recommendation systems (RS) have been widely utilized across various fields, particularly in education,

where smart e-learning systems recommend personalized learning paths (PLP) based on the characteristics of

learners and learning resources. Despite efforts to provide highly personalized recommendations, challenges

such as data sparsity and cold-start issues persist. Recently, knowledge graph (KG)-based RS development

has garnered significant interest. KGs can leverage the properties of users and items within a unified graph

structure, utilizing semantic relationships among entities to address these challenges and offer more relevant

recommendations than traditional methods. In this paper, we propose a KG-based PLP recommendation

solution to support English learning by generating a sequence of lessons designed to guide learners effectively

from their current English level to their target level. We built a domain KG architecture specifically for

studying English certification exams, incorporating key concept classes and their relationships. We then

researched and applied graph data mining algorithms (GAs) to create an effective PLP recommendation

solution. Using consistent experimental conditions and a selected set of weights, along with our collected

dataset, we evaluated our solution based on criteria such as accuracy, efficiency, stability, and execution time.

1 INTRODUCTION

The amount of data has increased dramatically along

with the internet's quick development. Users find it

challenging to select what interests them from a wide

range of options due to the information overload. RS

has been developed to enhance the user experience

and aid in making decisions. Personalized

recommendations are generated by RS based on user

behaviour and preferences, which increases user

engagement and happiness on a variety of online

platforms, such as music recommendations, movie

recommendations, learning path recommendations,

online shopping recommendations, etc. (Q. Guo et al.,

2020). Despite significant progress, creating a RS

specifically suited to provide suitable content remains

a challenge. Accurately predicting user and content

characteristics and their complex interrelationships is

one of these issues. Thus, researchers' attention has

been drawn in recent years to the introduction of KG

https://orcid.org/0009-0002-2906-8423

https://orcid.org/0009-0009-6961-3976

* Corresponding author

as side information in the RS. A heterogeneous graph

with nodes signifying entities and edges denoting

relationships between entities is called a KG. To

comprehend the relationships between objects, items

and their properties can be mapped into the KG.

Additionally, users and user-side data may be

included in the KG, improving the accuracy of

capturing user preferences and relationships with

items (Q. Guo et al., 2020).

RS has also benefited academic sectors in many

ways since it has driven the creation of smart learning

systems. The aims, interests, and abilities of each

learner are the learning criteria that these techniques

adjust PLP to. Utilizing data-driven monitoring to

make sure that learners' parameters are fulfilled, they

change the content and order of learning materials,

marking the shift from a one-size-fits-all approach to

customized learning methodologies (M. Abed, 2023).

Among today's subjects of study, we give special

attention to foreign language learning since it plays a

Nguyen, D. and Nguyen, T.

A Knowledge Map Mining-Based Personalized Learning Path Recommendation Solution for English Learning.

DOI: 10.5220/0012945200003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 1: KDIR, pages 48-59

ISBN: 978-989-758-716-0; ISSN: 2184-3228

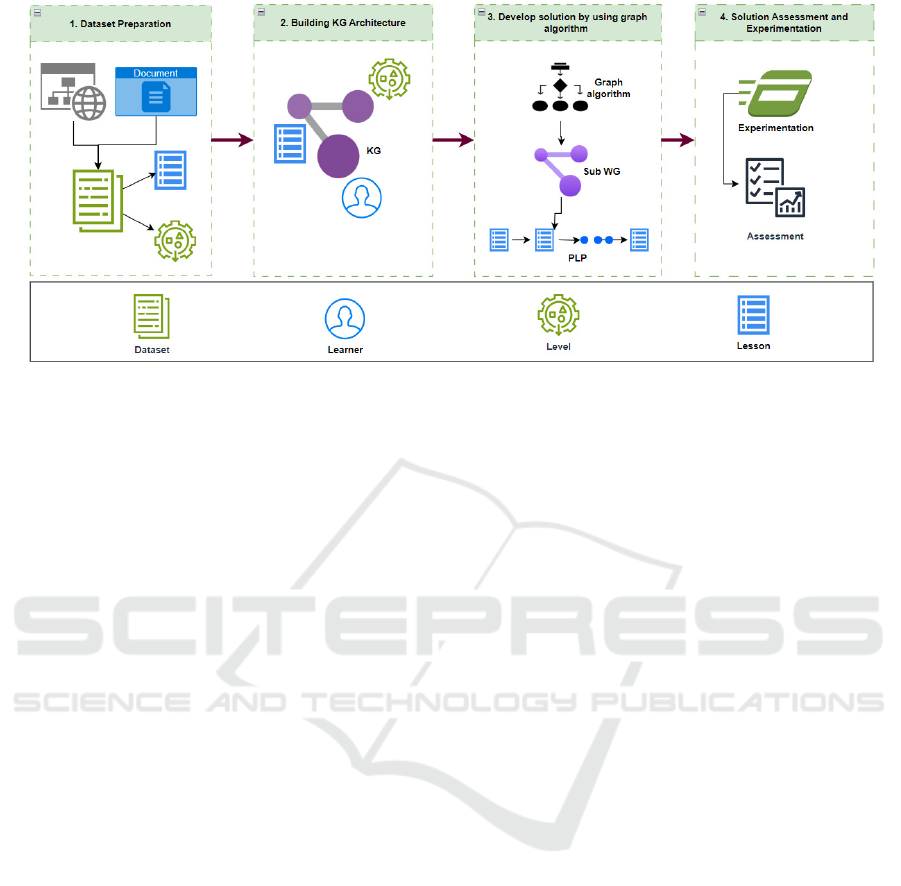

Figure 1: An overview flowchart illustrating the execution process for the proposed solution.

critical role in job application, study and research,

travel, participation in global interchange, etc.

(Ilyosovna, N. A., 2020). According to a Statista

report published in 2023, English is presently the

most common language in the world, with almost 1.5

billion users (E Dyvik, 2023), and certification of

competency in English with four primary skills—

listening, speaking, reading, and writing—is also

frequently expected in job applications and university

output standards. As a result, to demonstrate their

ability to use English fluently, many individuals must

study and prepare for tests to get international English

credentials such as TOEIC (M. Schedl, 2010), IELTS,

TOEFL (GH Sulistyo, 2009), and others. Learning

these qualifications is now much more convenient,

owing to the support of smart English learning

applications and systems such as Duolingo, Elsa, and

others, which allow learners to study more

successfully while saving money and time (X. Fan et

al., 2023). According to our survey results, these

applications generally guide learners to learn in a pre-

set sequence based on their goals and current level;

however, to guide learners along a suitable learning

path (LP) that meets their other personalized

requirements, such as time, cost, progress, and

learning outcomes, they are also being researched to

apply the PLP recommendation (PLPR) models to

advise learners on a suitable LP and fulfil the

aforementioned aims.

According to that motivation, this study proposes

a PLPR solution for English learners using GAs on

the KG architecture, which we have developed in the

English learning domain. As per the process

illustrated in Fig. 1, the proposed solution will

proceed through four primary phases of development.

Initially, a dataset pertaining to the format, content,

and assessment methods of international English

certifications and associated exams will be compiled

by referencing many websites and official

publications. In the second phase, a KG architecture

will be constructed to present key concepts about

English proficiency levels, knowledge, and skills that

are needed, as well as the lessons that correlate to

those levels based on the built dataset and the learners'

learning requirements. To optimize execution time, in

the third phase, we will next create a weighted

subgraph (WG) based on the learner's requested

learning information in the KG. This created WG will

only contain entities and weighted relationship edges

related to the target level, as well as the lessons or

competencies the learner possesses that correspond to

the current level. Next, leveraging the GAs from

Neo4j's GDS library (Hodler et al., 2022), we

recommend the most effective initial PLP for

learners. To identify the optimal set of weights for our

solution that meets all LP assessment criteria, we

conducted extensive experiments with various weight

configurations. Subsequently, employing consistent

experimental conditions and a selected set of weights,

along with our dataset, we evaluated our solution

based on criteria including accuracy, efficiency,

stability, and execution time.

This paper is organized as follows: Section 1

outlines our work and its contributions. Section 2

provides an evaluation of the current state of the art

in the research field. The KG architectural

development process is described in depth in Section

3. Section 4 describes the steps involved in creating a

PLPR solution for learners. Section 5 describes the

experiments, evaluations, and data collection

methods. Finally, Section 6 concludes with

suggestions for future research directions.

A Knowledge Map Mining-Based Personalized Learning Path Recommendation Solution for English Learning

2 RELATED WORKS

A lot of approaches have been put forth by

researchers to increase learning efficiency, and one of

the most cutting-edge areas of study these days is

developing systems to recommend LPs to e-learners

as a chain of learning materials. As a result, numerous

studies have been conducted to create RSs for LP

recommendations that use semantic dependency links

between learning objects (LOs) and learning

materials that are simultaneously stored on a variety

of data types to recommend LPs to learners, then

utilize data mining models to arrange learning

materials into learner-recommended LPs. These RS

systems do (D. Shi et al., 2020), however, still adhere

to the notion of a single learning path that is

applicable to all learners and are not actually tailored

to the unique learning characteristics of each learner,

which results in the recommendation of LPs to

learners with limited suitability.

As the research by D. Shi et al. (2020) illustrates,

KG has been employed recently for LP

recommendation as a prominent research domain since

it may eliminate ambiguities in learning content and

learner’s learning characteristics descriptions.

Motivated by this feature, a few researchers attempted

to develop learning systems for KG-based LP

recommendation and were successful in resolving the

issues raised. Huang and Xiangli (2011) used AI, data

mining, and database technology to create a PLP

recommendation system (PLP-RS). By fine-tuning

learner models with learning history data, it improves

specialized services and assesses improvement using

customized Knowledge Structural Graphs. Zhang et al.

(2023) provide a PLP-RS for e-learning that uses a KG

structure by creating a multidimensional course KG

and applying graph convolutional networks (GCN) to

properly represent learner preferences. The algorithm

recommends ideal courses based on both learner

preferences and the significance of learning resources,

decreasing the need for manual planning and

increasing learner satisfaction. Shi et al. (2020)

construct a multidimensional KG by connecting

learning elements semantically. Their algorithms

provide customized LP creation and suggestions,

meeting each learner’s unique e-learning demands.

Static code analysis is used by H. Yin et al. (2021) to

build a structural KG program for open-source

projects. Through depth-first and Dijkstra search

algorithms, their deep learning model, which integrates

this with multi-source data and an LP recommendation

mechanism, helps developers quickly learn important

functions. Using GCN on Junior High School English

exercises, Y. Sun et al. (2021) in the field of English

education generate individualized KG for pupils,

creating PLP with the aid of Prim and Kruskal

algorithms. In their work on computer-assisted

vocabulary acquisition, F. Sun et al. (2020) develop a

recommendation engine for Chinese vocabulary

learning materials utilizing a KG. Hanyu Shuiping

Kaoshi (HSK) three-level language resources and ten

types of relations are integrated into the system, which

was created using Protégé, Apache Jena, and Python.

Chen et al. (2021) use course similarity computation

and pre-knowledge annotation to automate the creation

of Massive Open Online Courses on KG. They use

rule-based and machine learning techniques to classify

courses, improve TF-IDF computation, and build a

network that integrates knowledge and course nodes.

The knowledge network and learner data are then used

to provide personalized suggestions. Z. Yan et al.

(2023) suggest a technique that makes use of a course

knowledge network to suggest customized activities.

The method entails building the graph using deep

knowledge tracing, producing individual knowledge

structure diagrams, and producing a Q-matrix from

learners’ responses. The model chooses tailored

assignments based on factors such as complexity,

individuality, and variance, which is consistent with

constructivist learning theory.

The aforementioned studies all share the same

goal of investigating LP recommendation models for

every learner utilizing KG by incorporating concepts

such as goals, learner behaviors, LOs, and learning

resources, etc., along with their interrelationships,

into the architecture of the KG. It has been

demonstrated that this method outperforms

conventional ones in personalized recommendation

outcomes. However, based on the research of M.

Abed et al. (2023), we think that other aspects of the

learner's learning characteristics, such as the learner's

current level of knowledge and skills, desired

learning time and cost, etc., must be considered to

recommend a more appropriate PLP for each learner.

Moreover, little study has been done on learning

foreign languages like English. Our study focuses on

using KG-based data modelling and processing to

develop a solution that recommends a PLP for

English language learners. This solution will account

for the learners' current knowledge and skills, target

level, and desired learning time, enabling them to

achieve their goals efficiently within the shortest

possible time while adhering to an appropriate

learning path.

Section 3 will provide a detailed presentation of

the steps involved in developing the KG architecture

as well as the proposed solution for this research.

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

3 DOMAIN KG CONSTRUCTION

We examined the vocabulary topics, grammar

themes, scoring scale, format, assessed skill, and

evaluation criteria of the TOEIC, IELTS, and TOEFL

test components to develop a KG architecture for

presenting the concept and learning material along

with their relation in preparation for the English

certification examinations, as shown in Fig. 1 for the

second phase. Furthermore, in accordance with

European norms, we investigated the Common

European Framework of Reference (CEFR) (B. North

et al., 2019) to assess the link between certificate

scores and English competencies.

As far as we know, people who want to get an

international standard English certificate have to first

complete a competence exam and receive the

certificate along with a score demonstrating their

ability. The score on these certificates does not

indicate whether the individual passed or failed, but it

does demonstrate their level of English ability. The

outcomes can be transferred to the CEFR to

standardize English proficiency levels across

European and other regional nations. As a result, to

manage learners' test information for international

English certificates, the KG architecture will include

a Level class that is focused on storing score

information from the current English certificate of the

learner and the target score of the certificate that the

learner hopes to attain in the future. Each certificate's

score information, together with qualification

information based on the associated CEFR

framework, will be saved as a benchmark to examine

the correlation of English proficiency to scores

between various certificate types.

Besides, success in international English

certificate exams necessitates skills in speaking,

listening, reading, and writing, as well as mastery of

vocabulary and grammar knowledge. Therefore, the

Competency class contained in the KG architecture

will cover all the necessary skills and knowledge.

However, we will construct specific pronunciation

and vocabulary knowledge in a separate Lesson class

since we understand that this knowledge is only tested

in certain parts of the exam. This personalized

approach guarantees that important abilities are

covered in every segment of the test.

Moreover, learners must fully comprehend the

sorts of questions, subjects, and settings that will be

posed in each part of the exam. Combine knowledge

of grammar, vocabulary, pronunciation, and English

abilities to create the ideal test-taking plan. That is,

for each level of English that a learner wishes to

achieve, the learner must be provided with knowledge

from specific lessons on clearly understanding the

structure, question type, topic context, strategies, and

test-taking experience in that skills test, as well as

knowledge from related grammar and vocabulary

lessons. As a result, in the KG architecture, an extra

Lesson class will be created to manage information

about lesson entities that must be learned to pass the

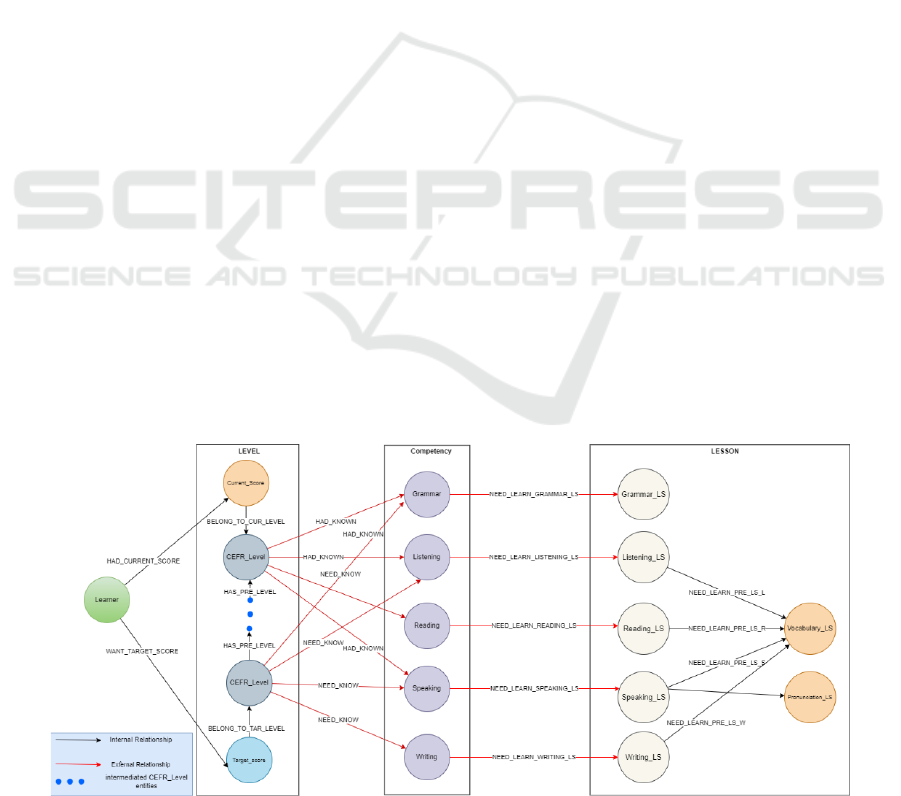

exams. Our proposed comprehensive KG, which is

represented in Fig. 2, consists of three fundamental

concept classes: Level, Competency, and Lesson

For the Level concept class, it will include entity

categories such as Current_Score and Target_Score,

which indicate the learners’ current score via the

HAS_CURRENT_SCORE relationship and target

score via the WANT_TARGET_SCORE connection

for the same certificate type with the same properties:

score, certificate. These certificate’s score entity

nodes will be referenced to the CEFR competence

framework entity nodes, which have properties such

as from_score, to_score, and certificate, via the

Figure 2: Complete KG architecture utilized in the proposed solution.

A Knowledge Map Mining-Based Personalized Learning Path Recommendation Solution for English Learning

internal relationships BELONG_TO_CUR_LEVEL

and BELONG_TO_TAR_LEVEL. Additionally, a

HAS_PRE_LEVEL relationship will connect

CEFR_Level nodes, e.g., a 'B1' level will precede 'A2'

according to CEFR.

The Lesson concept class will manage entities

comprising main lesson content related to grammar,

listening, reading, speaking, and writing skills for

each test section. Every lesson has common

properties, including title, category, and study time

(in days). Additionally, certain preparatory lessons

with assigned pronunciation or vocabulary

knowledge must be completed before advancing to

the main lessons via system linkages like

NEED_LEARN_PRE_LESSON_L, etc.

Finally, the Competency concept class will

signify the learner's current proficiency level on the

English certificate and identify acquired skills or

knowledge through the HAD_KNOWN external

relationship with entities like grammar, listening,

reading, speaking, and writing lessons.

Correspondingly, in alignment with the learner's

target level, it outlines the requisite skills and

knowledge through the NEED_KNOW relationship.

Each skill and knowledge entity within the

Competency class denotes the associated lessons

required from the Lesson class, establishing external

relationships like NEED_LEARN_GRAMMAR_LS,

NEED_LEARN_LISTENING_LS, and others.

4 A SOLUTION FOR PLPR

4.1 Description of PLPR Problem

The main goal of our proposed solution is to

recommend an appropriate PLP for each learner as

they go toward preparing for international English

certifications like the TOELF, IELTS, and TOEIC

(which include the Speaking-Writing and Listening-

Reading combinations). The scores that correspond to

the learners' current certificates, information about

their English proficiency or lessons that correspond to

their current level (which will be raised for the learner

to choose based on our developed dataset), the desired

study time, and the score that corresponds to the

desired certificate are the first inputs of the solution.

These inputs will be stored in the KG architecture (as

shown in phase 2 of Fig. 1). Our system will then

produce an initial PLP for each learner as indicated in

phase 3 of Fig. 1, which will include a list of lessons

to be learned and progress the learners from their

current English level to their target level while

accommodating their desired learning schedule.

4.2 End-to-End Solution Processing

As was indicated in Part 3, KG would house all data

pertaining to the learning characteristics of learners as

well as data on the acquisition and evaluation of

English certifications. Simultaneously, we want to

provide solutions using a novel approach that is

simple to implement while maintaining natural logic

and science. Because of this, we have examined and

assessed GAs according to several factors, including

the KG architecture, the issue that has to be addressed

along with the intended outcomes at each stage of the

solution's execution, and the fundamentals of how

each algorithm works. In particular, we select the

graph traversal algorithm BFS (section 4.2.1) for

stage 1 of the solution in order to be able to create a

subgraph with only entities connected to the learner's

target-level entity. The PageRank algorithm is then

combined with the LPA_NI algorithm in stage 2 of

the solution with the aim of determining the

importance of each lesson entity on WG and

clustering these entities into clusters corresponding to

the list of lessons to be learned from the current level

to the target level, then merging into the original LP

(section 4.2.2). Lastly, we use the Min Weighted Sum

(MWS) approach to assess and determine which LP

is the most appropriate as a recommended PLP for

learners and meet the optimization objectives in stage

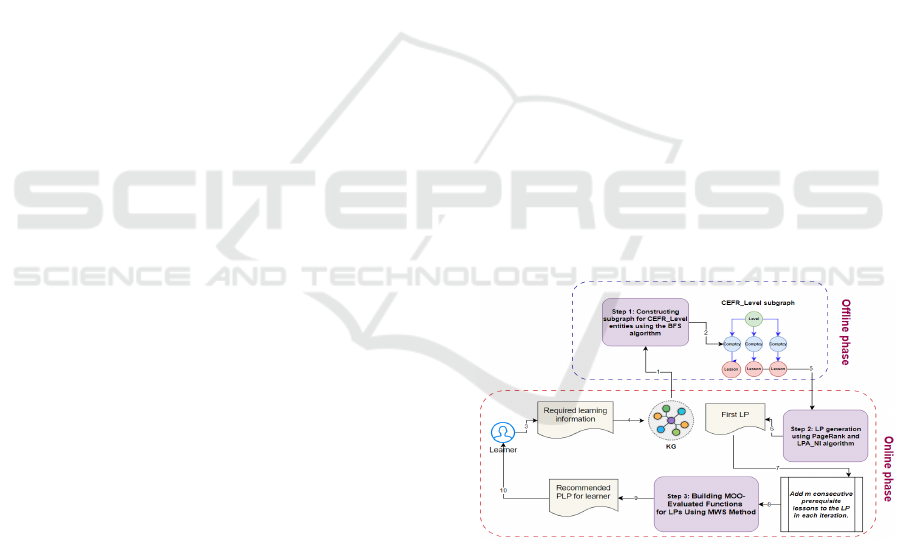

3 (section 4.2.3). Fig. 3 will provide details of the

processing flow for each stage, precisely as follows:

Figure 3: The execution flow with applied algorithms.

Step 1: Constructing a subgraph for CEFR_Level

entities using the BFS algorithm: This initial step

involves offline processing to traverse the KG using

the BFS algorithm (S. Huan, 2014). The goal is to

generate subgraphs for each CEFR_Level entity. By

doing so, we create a comprehensive list of all entity

categories that are directly or indirectly connected to

each CEFR_Level entity. This approach reduces the

number of entity interactions, thereby optimizing the

execution time for subsequent steps.

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

Step 2: LP generation using PageRank and the

LPA_NI algorithms: This step occurs during the online

processing phase. It starts by transforming the

CEFR_Level entity subgraph into a WG tailored to the

learner's target level, based on information provided by

the learner. Next, the PageRank algorithm (C. Tulu,

2020) is employed to evaluate the relevance of each

node within the WG. Following this, the LPA_NI

algorithm (Zhang, 2017) groups significant nodes into

clusters, reflecting the competencies and lessons

required for each CEFR_Level entity in the WG. By

merging these clusters and sorting them in ascending

order according to the CEFR_Level entity values

within each cluster, the initial learning path comprising

the primary lessons is obtained.

Step 3: Building Multi-Objective Optimization

(MOO)-Evaluated Functions for LPs Using the MWS

Method: This step will also be completed online. The

LP made in step 2 is to keep adding m significant

nodes in the WG as prerequisite lessons as nodes in

the Vocabulary or Pronunciation entity category and

then utilize the developed evaluation function to

gauge the LP's satisfaction at each k

iteration by

using the MWS method. Then, as the PLP to counsel

the learner, select the LP that produces the most

optimal outcome while meeting all stated

optimization objectives. In the following sections, we

will present the details of these main processing steps.

4.2.1 Constructing Subgraph for

CEFR_Level Entities

The implementation procedure for step 1 is detailed

in Algorithm 1.

Algorithm 1: Constructing subgraph for each CEFR Leve

entities in KG.

Input:

 G (V, E): The KG includes V vertices

and E relationship edges.

 LVL=

{

LVL



| i = 1,n



}

: set of the i

CEFR_Level entity denoted as LVL

contained in G (V, E).

 n: number of elements in the LVL set.

Output: LV_EN



(set of entities related to each i

CEFR_Level entity).

1: LV_EN



←∅ , i←1

2: while i≤n:

3: Apply the BFS with each LVL

as the source

vertex → Obtain a set containing k nodes {v

, …, v

}

4: LV_EN



← {v

, v

, …, v

}

5: i←i + 1

6: End while

For example, after executing this algorithm, as

shown in Fig. 4, we obtain a subgraph of the

CEFR_Level node with the value "CEFR_B2,"

representing learner X's target level. This subgraph

includes nodes related to the learner's current level,

their existing competencies, the skills they need to

acquire, and the lessons that they might have to learn.

4.2.2 LP Generation Using PageRank and

LPA_NI Algorithms

To clearly explain the implementation process in step

2, we introduce the notations outlined in Table 1 and

describe the two primary tasks. The first task involves

using the PageRank algorithm, detailed in Algorithm

2. Additionally, we use Eq. 1 (C. Tulu et al., 2020) to

calculate the PageRank score (PR_score) for each

node in the WG derived from the subgraph defined in

step 1:

𝑃𝑅

(

𝑖

)

(

1−𝑑

)

+𝑑

∑







(



)

∑





+𝑃𝑅′

(

𝑖

)

→

(1)

Algorithm 2: Determine each node's significance within th

WG.

Input: TAR, CUR, subgraph of TAR as G’ (v, e),

CPT_HAD, LS_KNOWN.

Output: IPT set.

1: 𝑊𝐺←𝐺′

2: For each edge e point to node u in WG:

3: If (u∈CPT_HAD)||(u∈LS_KNOWN)

4: e.weight←0

5: Else e.weight←1

6: For each node u in WG:

7: If (u== CEFR_Level entity)

8: PR_score(u) ←1

9: Else PR_score

(

)

←0

10: While not converged:

11: For each node u in WG:

12: PR_old ← PR_score(u)

13: Using Eq.1 to calculate PR_score(u)

14: If |PR_score(u) - PR_old| < threshold:

15: break loop

16: IPT = {u | PR_score(u) > 0 and sort by

score(u) decreasing}

Note that in Eq. 1 (E. Turan et al., 2020), PR(i)

denotes the PR_score calculated for each node i in the

LV_EN set during the current iteration, while PR'(i)

represents the existing PR_score of node i from the

previous iteration, indicating the spread of points

among related nodes. PR(j) refers to the current

PR_score of nodes j in the LV_EN set linked to node

i. The weight of the edge from node j to node i is

denoted as W

. Similarly, W

represents the weight of

nodes k in the LV_EN set, pointing away from node j.

The damping factor d, set as 1, reflects the probability

of the learner accessing node i from node j, ensuring

A Knowledge Map Mining-Based Personalized Learning Path Recommendation Solution for English Learning

Figure 4: Weighted subgraph for the learner's target level completed after executing step 1 and 2.

Table 1: The meaning of the signs used in Step 2.

Signs Meaning

LV_EN

Set of entities (competence, previous CEFR level, lesson) related to the learner's target CEFR

level.

TAR

English proficiency according to the CEFR framework on the target certificate that the learner

wants to achieve.

CUR

English level on the current certificate according to the CEFR framework that the learner

currently has.

CPT_HAD

Set of competencies that the learner already has. Equivalent to a competency number belonging

to CUR.

LS_KNOWN

Set of lessons that the learner has learned before (lessons that the learner can optionally learn)

elongs to the competencies of CUR.

EN_IPT

Set of CEFR_Level, Competency, and Lesson entities has decreasing importance to learners

according to their PR score, which is greater than 0.

INTM_LV The set contains intermediate CEFR_Level nodes between TAR and CUR.

CL_EN_

The u

cluster contains nodes with the same label after each label propagation step.

LN_LS_

The set contains only lesson entities filtered from the corresponding CL_EN_u clusters.

learning from node j to node i for pairs with W

= 1.

For instance, in Fig. 4, based on the learner's input

data, each edge pointing to a node in the subgraph is

given a weight value of either 0 or 1. The subgraph

will be transformed into the WG following this

weight assignment procedure. Once Algorithm 2 has

run on this WG and assigned a PR_score to each

node, we will add these nodes to the EN_IPT set in

decreasing order of their PR_scores. Fig. 5 presents

the EN_IPT set as an example.

Based on the WG architecture designed in Fig. 4,

when learner X wants to achieve a TAR (e.g., level

"B2") from a CUR (e.g., level "A2"), learners must

also

achieve the Competencies of the intermediate

Figure 5: Entity nodes included in the EN_IPT set.

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

levels (INTM_LV) (for example, “B1”). To

guarantee that learner X studies enough lessons for

the needed Competencies from CUR to TAR, the

second task in this step will cluster the most critical

lessons to learn (according to the PR_score of each

node in the WG) into each cluster at each level of

proficiency. LPA, a well-liked clustering algorithm

(Čížková, K. 2022), uses graph design to build a label

propagation mechanism for random nodes.

Nevertheless, we will use the method developed by

Zhang et al., which is called LPA_NI, to boost second

task efficiency. When propagated, LPA_NI has been

demonstrated to provide superior clustering results

over regular LPA based on node importance and label

influence. Eqs. 2 and 3 (Zhang et al., 2017) are used

by the LPA_NI for this step, where LI (i, lb) denotes

the label's influence (lb) on node i, d(j) denotes the

outdegree of node j, N

(i) denotes the set of labels lb

surrounding node i, c

denotes the most influential

label that will be assigned to node i, and l_max

denotes the sets of the maximum number of labels.

Algorithm 3: Building the first LP.

Input: WG of TAR, CUR, EN_IPT, MaxIter

(Maximum number of execution loops)

Output: LN_LP.

1: Initialize seedLabel for CEFR_Level nodes in

WG.

2: 𝐭←𝟏

3: For each node x∈EN_IPT:

4: Assign label of most represented connected

node.

5: If connected nodes' labels to x are all different:

6: Calculate viral influence using Eq. 2.

7: Choose label satisfying Eq. 3 to update node x.

8: If t = MaxIter or labels of node x match majority

connected nodes' labels:

9: Assign nodes x to CL_EN_1, CL_EN_2, ...,

CL_EN_k with specified labels.

10: End.

11: Else

12: t←t+1;

13: Repeat steps 3 – 10.

14: For each CL_EN_1, CL_EN_2, ..., CL_EN_k:

15: Initialize LN_LS_u (u=1,k



) containing

Lesson entities for each cluster.

16: Create set LN_LP = LN_LS_1

∪

…

∪

LN_LS_u

containing required lessons.

The following algorithm 3 describes in detail the

idea of this task. Furthermore, in accordance with the

example shown in Figure 6, the nodes on the WG will

be split into two clusters, C_LS_1 and C_LS_2,

following the completion of algorithm 3. Next,

entities of the type of Lesson will be chosen from each

cluster to create the appropriate LN_LS_1 and

LN_LS_2 additional clusters. Finally, we will

combine the entities in the aforementioned two

clusters and rearrange them in the order of rising

PR_score values to construct an initial LP, known as

the LN_LP set, which will include the key lessons to

be learned from the current level to the target level.

𝐿𝐼(𝑖,𝑙𝑏)=

∑

()

()

∈





(2)

𝑐



=𝑎𝑟𝑔𝑚𝑎𝑥 𝐿𝐼(𝑖,𝑙𝑏)











 ∈ _

(3)

Figure 6: The process of building the LN_LP set in step 2.

4.2.3 Building a MOO Function Using the

MWS Method

Not only should the PLP that is recommended to

learners be a collection of lessons that are taught in a

sequential manner and cover the competencies that

the learner needs to master, but it should also contain

a number of prerequisite lessons, or lessons that must

be studied prior to studying the main lessons that are

directly taught to achieve competencies. The current

solution will be to provide an LP so that learners only

need to learn a minimal amount of vocabulary,

covering as many required main lessons as possible,

as there is currently no specific statistical report on

the amount of vocabulary required to be learned at

each level of English certification exams.

In light of these remarks, in this step, our solution

will develop an evaluation function based on the

MWS method (N. Gunantara, 2018) to assess each

LN_LP's optimization objectives in each iteration.

A Knowledge Map Mining-Based Personalized Learning Path Recommendation Solution for English Learning

We set parameter m as a fixed number of consecutive

prerequisite lessons taken from the PRE_LS set and

then added to the existing LN_LP in each iteration.

The proposed weights for each objective to be

optimized in the evaluation functions are described in

Table 2. Finally, based on the MWS formula, utilizing

information from the weight set and value function

for each objective (refer to table 2), let x represent the

existing LN_LP in the k

iteration. The MWS formula

for the LN_LP evaluating function is expressed as in

Eq. 4., which states that the LP with the lowest overall

optimization score for all objectives will be deemed

to be the most optimum LP when each LP in each

loop has four goals that need to be optimized and each

goal has a weight indicating the attached priority. The

implementation procedure of step 3 is shown in

Algorithm 4, and the phases are illustrated in Fig. 7 to

illustrate how they are carried out. Specifically, at

every k

iteration, we will progressively add one

Table 2: The weights and value functions of objectives.

Weight Function Meaning

(x)

Maximize the number of

competency entity types present

in the LN_LP set.

(x)

Minimize the number of

prerequisite lesson entities (which

are vocabulary or pronunciation

lessons) learned enough for the

uired lessons in LN

LP.

(x)

Minimize the inverse sum of the

PageRank (PR) scores of lessons

in LN

LP.

(x)

Minimize the number of lessons

left over in LN_LP after being

evaluated.

Algorithm 4: Building the completed LP as PLP.

Input: WG, LN_LP, EN_IPT, m

Output: LN_LP.

1: Initialize PRE_LS=∅.

2: For each node u in WG:

3: If ((u == Vocabulary entity || u == Pronunciation

entity) && u ∈ EN_IPT:

4: PRE_LS ←PRE_LS ∪{u}.

5: Initialize LN_LP_L = {LN_LP}.

6: While (𝐏𝐑𝐄_𝐋𝐒 ≠∅)

7: Last_LN_LP = GetLastElement (LN_LP_L).

8: Add m Lessons entities category from

LN_PRE_LS to Last_LN_LP.

9: Calculate Evaluation Score for Last_LN_LP

using MWS with Eq.4.

10: Add Last_LN_LP to LN_LP_L.

11: |PRE_LS| = |PRE_LS| - m.

12: Select the best LN_LP from LN_LP_L based on

timal evaluation score.

required lesson to the LP that existed in the (k-1)

iteration. Concurrently, we utilize Eq. 4 to determine

the evaluated score for each LP. In the end, only the

LP found in the fifth

loop will be chosen as the PLP

to recommend to the learner since it fulfills Eq. 4.

𝑚𝑖𝑛𝐹(𝑥)=𝑓



(𝑥). 𝑤







⎩

⎪

⎨

⎪

⎧

𝑤







𝑤



0≤𝑤



≤1 𝑣ớ𝑖 𝑖=1,4



(4)

Figure 7: Development of the complete LN_LP in step 3.

5 EXPERIMENTATION AND

EVALUATION

We conducted the experimentation process by

considering the learner's aspiration to advance from

the lowest current level and all proficiency levels of

the learner's knowledge and skills, which are not yet

there, to the highest target level (aligned with the

CEFR competency framework: 'TOEIC (L-R)-C1',

'TOEIC (S-W)-C1', IELTS-C2’, 'TOEFL-C2').

Specifically, we focused on step 3 of the solution,

varying the chosen weight sets and adding a fixed

number of consecutive prerequisite lessons (m = 5) to

the LP in each k

iteration. Using Eq. 4 and the

completed dataset, we identified the optimal weight

set for this step. We then compare approaches using

the combined PageRank algorithm with the

traditional LPA algorithm (PR_LPA for short), and

the approach used in solution development applies the

PageRank algorithm combined with the LPA_NI

method (PR+LPA_NI for short) to assess the

performance, stability, accuracy, and efficiency of

our proposed solution (M. Abed et al., 2023)

(Nabizadeh et al., 2020). The identical experimental

dataset and weight set that were established following

the experiment will be used for this comparison.

5.1 Dataset Building

There is currently hardly any standardized dataset that

announces the learning content and skills required for

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

Figure 8: The process of building experimental dataset.

Figure 9: A part of the nodes and their relations in KG.

Table 3: Statistics on the number of entities and

relationships in the KG.

Entities Amount Relations Amount

NEED_KNOWN / HAD_KNOW 63

CEFR_Level 22 NEED_LEARN_GRAMMAR 98

Competency 49 NEED_LEARN_LISTEN_SKILL 102

NEED_LEAN_READING_SKIL 68

Grammar_LS 98 NEED_LEAN_SPEAKING_SKL 115

Listening_LS 79 NEED_LEARN_WRITING_SKIL 54

Pronunciation_LS 7 NEED_LEAN_PRE_LESSON_L 103

Reading_LS 54 NEED_LEARN_PRE_LESSON 59

Speaking_LS 91 NEED_LEAN_PRE_LESSON_S 66

Vocabulary_LS 124 NEED_LEAN_PRE_LESSON_W 12

Writing_LS 39 NEED_LEN_PRONUNCIATION 7

these English certificates according to each level,

according to our survey conducted on various

websites, official reference documents, and the

organizations that organize these exams. Therefore,

we followed the procedure outlined in Fig. 8 to

produce a data set appropriate for the experimental

and assessment phases.

Steps 1 and 2: Data Collection and Processing:

We gather information on English certification exam

formats, knowledge matter, and evaluation standards

from the official homepage of ETS, the British

Council, and some standard documents about these

exams. Convert this information into English lesson

units, detailing certification levels, required

competencies, and specific lessons in grammar,

vocabulary, pronunciation, listening, speaking,

reading, and writing. Transform the collected data

into entities, relationships, and properties matching

the KG architecture.

Steps 3 and 4: Saving reprocessed data as a CSV

file and importing it into Neo4j: Create CSV files

containing entity and relationship data from step 2.

Import these files into Neo4j using its import function

to generate a comprehensive graph database schema

aligned with the KG architecture. The number of

entities and relationships in the KG architecture is

presented in Table 3, and a part of the data set in the

KG architecture is shown in Fig. 9. A full

experimental dataset is now available on Kaggle.

5.2 Experimental Results and

Evaluation Findings

Following the experimentation method outlined

above, we discovered that all of the sets of weights

tested indicated that the number of lessons was

adequate to meet the necessary knowledge, skills, and

lessons. Additionally, we discovered that the number

of lessons—the number of prerequisite lessons that

are redundant in the PLP recommended—remained

unchanged in all four types of English qualification

certificates. Simultaneously, the LP's evaluating

function score tends to drop while the objectives'

weights exhibit a significant value difference. This

implies that when the objectives' weights are nearly

equal, the best LP will be guaranteed when the

optimal goals are deemed nearly equally important.

Ultimately, we concluded that the set of weights {w1

= 0.28, w2 = 0.27, w3 = 0.25, w4 = 0.2} is the most

ideal one to employ for this solution since it fits the

requirements of the evaluation function as in Eq. 4.

As previously said, we compare the accuracy,

efficiency, stability, and performance of the two

approaches to the solution PR+LPA_NI and PR+LPA

to assess our solution. Effectiveness is illustrated by

presenting a PLP with scores from the evaluating

function that conforms to the requirements in Eq. 4

and has the lowest score. Accuracy is determined by

the number of lessons in PLPs that are sufficient for

the number of Competency types required, and the

two values of this quantity must be smaller or

equivalent to the number of entities in the Lesson and

Competency classes in the original KG architecture.

The constancy of the PLP output across several runs

with the same input data is known as stability, and the

suggested PLP is used to assess the performance.

When it comes to efficiency, Fig. 10 demonstrates

that the PLP's evaluating score recommended by the

solution for implementation in the PR+LPA_NI or

PR+LPA approach consistently satisfies Eq. 4, yet the

PR+LPA_NI

approach almost produces the optimal

A Knowledge Map Mining-Based Personalized Learning Path Recommendation Solution for English Learning

Table 4: The percentage of Lesson entities that meet the Competency entities needed to learn in the recommended PLP.

Type of

Recommendation (1)

Number of

Competency

entities required

(2)

Number of

Lesson

entities to

learn (3)

Number of

Lesson

entities in

PLP (4)

Number of

Competency

entities learned

in PLP (5)

Competency entity

rate is met

(6) = (5)/ (2)

Lesson entity

rate is met

(7) = (4)/ (3)

TOEIC L-R (A1-C1) 12 198 161 11 91,67% 81,31%

TOEIC S-W (A1-C1) 12 161 124 11 91,67% 77,02%

IELTS (A1-C2) 20 309 272 19 95% 88,03%

TOEFL (A1

–

C2) 16 148 111 15 93,76% 75%

Figure 10: Evaluation scores of the recommend PLP on two

algorithms.

Figure 11: Execution time when executing on two

algorithms for making PLP in “IELTS - C2”.

PLP evaluating score when compared to PR+LPA.

Simultaneously, we examine the example with input

data for the "IELTS-C2" certificate to recommend

PLP to learners, as illustrated in Fig. 11. The solution

implemented using the PR+LPA_NI approach yields

the PLP evaluation function score nearly unchanged

through multiple executions with the same input data

in comparison to the PR+LPA approach, and the

outcomes are also comparable when applied to other

certificate types. Moreover, Fig. 12 indicates that

PLP, as recommended by the PR+LPA_NI technique,

Figure 12: Results when executed on two algorithms in

multiple executions.

Figure 13: Number of lessons and competencies in PLP of

PR+LPA_NI solution.

has an approximately faster execution time than

PR+LPA. Finally, when considering accuracy, based

on Fig. 13 and Table 4, the solution proposed when

developed in the direction of PR+LPA_NI or the

PR+LPA approach all recommends being PLP for the

proportion of Lesson entities almost learning enough

for the required Competency entities, and the number

of entities is smaller than the number of original KG.

Overall, the solution developed as a PR+LPA_NI

approach route better met assessment requirements

than the PR+LPA approach.

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

6 CONCLUSIONS

Our work developed a comprehensive solution for

recommending PLPs in the English learning domain.

First, we designed a KG architecture to represent key

concept layers and their relationships for learning

resources in international English certifications.

Next, we utilized GAs and objective optimization

techniques to generate the most suitable personalized

learning paths. Through rigorous assessment and

testing, our solution has proven to effectively

generate PLPs that meet established evaluation

standards and align with learners' consultation needs.

To assist learners in completing their learning

program as quickly and effectively as possible, future

research will concentrate on developing an adaptive

LP recommendation system (I. Katsaris, 2021) that

modifies the original PLP in real-time after a

predetermined amount of time by improving

algorithms or technical processes for processing

learners' learning progress data.

ACKNOWLEDGEMENTS

This research is partially supported by research

funding from the Faculty of Information Technology,

University of Science, VNU-HCM, Vietnam.

This research is funded by University of Science,

VNU-HCM, Vietnam under grant number CNTT

2023-15.

This research is partially funded by the Vingroup

Innovation Foundation (VINIF) under the grant

number VINIF.2021.JM01.N2.

REFERENCES

Guo et al. (2020). A survey on knowledge graph-based

recommender systems. IEEE Trans. Knowl. Data Eng.,

34(8), 3549-3568.

Mansouri, N., Soui, M., & Abed, M. (2023, Sept). Full

Personalized Learning Path Recommendation: A

Literature Review. In AISI (pp. 185-195). Springer.

Ilyosovna, N. A. (2020). The importance of English

language. International Journal on Orange

Technologies, 2(1), 22-24.

Dyvik, E. (2023). The most spoken languages worldwide

2023. Statista. Retrieved.

Fan, X., Liu, K., Wang, X., & Yu, J. (2023). Exploring

mobile apps in English learning. Journal of Education,

Humanities and Social Sciences, 8, 2367-2374.

Hodler, A. E., & Needham, M. (2022). Graph data science

using Neo4j. In Massive Graph Analytics (pp. 433-

457). Chapman and Hall/CRC.

Shi, D., Wang, T., Xing, H., & Xu, H. (2020). A learning

path recommendation model based on a

multidimensional knowledge graph. Knowledge-Based

Systems, 195, 105618.

Huang, X. (2011). Study of personalized E-learning system

based on knowledge structural graph. Procedia

Engineering, 15, 3366-3370.

Zhang, X., Liu, S., & Wang, H. (2023). Personalized

learning path recommendation based on knowledge

graph and graph convolutional network. Int. J. Software

Eng. Knowl. Eng., 33(01), 109-131.

Yin, H., Sun, Z., Sun, Y., & Huang, G. (2021). Automatic

learning path recommendation for open-source projects

using deep learning on knowledge graphs. In 2021

IEEE 45th Annual COMPSAC, pp. 824-833.

Sun, Y., Liang, J., & Niu, P. (2021). Personalized

recommendation of English learning based on

knowledge graph and graph convolutional network. In

ICAI Security (pp. 157-166). Springer.

Sun, F., Yu, M., Zhang, X., & Chang, T. W. (2020). A

vocabulary recommendation system based on

knowledge graph for Chinese learning. In 2020 IEEE

20th ICALT (pp. 210-212).

Chen, H., Yin, C., Fan, X., Qiao, L., Rong, W., & Zhang,

X. (2021). Learning path recommendation for MOOC

platforms based on a knowledge graph. In KSEM 2021

(Vol. 14, pp. 600-611). Springer.

Yan, Z., Hongle, D., Lin, Z., & Jianhua, Z. (2023).

Personalization exercise recommendation framework

based on knowledge concept graph. Computer Science

& Information Systems, 20(2).

Huang, S., Cheng, J., & Wu, H. (2014). Temporal graph

traversals: Definitions, algorithms, and

applications. arXiv preprint arXiv:1401.1919.

Turan, E., Arslan, E., Tülü, Ç., & Orhan, U. (2020). A

comparison of graph centrality algorithms for semantic

distance. Lapseki Meslek Yüksekokulu Uygulamalı

Araştırmalar Dergisi, 1(2), 61–70.

Zhang, X. K., Ren, J., Song, C., Jia, J., & Zhang, Q. (2017).

Label propagation algorithm for community detection.

Physics Letters A, 381(33), 2691-2698.

Gunantara, N. (2018). A review of multi-objective

optimization: Methods and its applications. Cogent

Engineering, 5(1), 1502242.

Čížková, K. (2022). Comparing two community detection

algorithms and their applications on human brains.

North, B., & Piccardo, E. (2019). Developing new CEFR

descriptor scales and expanding the existing ones.

Zeitschrift Fremdsprachenforschung, 30(2), 142-160.

Katsaris, I., & Vidakis, N. (2021). Adaptive e-learning

systems through learning styles: A review of the

literature. Advances in Mobile Learning Educational

Research, 1(2), 124-145.

Nabizadeh, A. H., Leal, J. P., Rafsanjani, H. N., & Shah, R.

R. (2020). Learning path personalization and

recommendation methods: A survey of the state-of-the-

art. Expert Systems with Applications, 159, 113596.

A Knowledge Map Mining-Based Personalized Learning Path Recommendation Solution for English Learning
