Knowledge Discovery in Optical Music Recognition: Enhancing
Information Retrieval with Instance Segmentation
Elona Shatri
a
and Gy
¨
orgy Fazekas
b
Queen Mary University of London, London, U.K.
Keywords:
OMR, Instance Segmentation, Dense Objects.
Abstract:
Optical Music Recognition (OMR) automates the transcription of musical notation from images into machine-
readable formats like MusicXML, MEI, or MIDI, significantly reducing the costs and time of manual tran-
scription. This study explores knowledge discovery in OMR by applying instance segmentation using Mask
R-CNN to enhance the detection and delineation of musical symbols in sheet music. Unlike Optical Char-
acter Recognition (OCR), OMR must handle the intricate semantics of Common Western Music Notation
(CWMN), where symbol meanings depend on shape, position, and context. Our approach leverages instance
segmentation to manage the density and overlap of musical symbols, facilitating more precise information
retrieval from music scores. Evaluations on the DoReMi and MUSCIMA++ datasets demonstrate substantial
improvements, with our method achieving a mean Average Precision (mAP) of up to 59.70% in dense sym-
bol environments, achieving comparable results to object detection. Furthermore, using traditional computer
vision techniques, we add a parallel step for staff detection to infer the pitch for the recognised symbols. This
study emphasises the role of pixel-wise segmentation in advancing accurate music symbol recognition, con-
tributing to knowledge discovery in OMR. Our findings indicate that instance segmentation provides more
precise representations of musical symbols, particularly in densely populated scores, advancing OMR tech-
nology. We make our implementation, pre-processing scripts, trained models, and evaluation results publicly
available to support further research and development.
1 INTRODUCTION
Optical Music Recognition (OMR) is a research sub-
field within Music Information Retrieval that auto-
mates the transcription of music notation from im-
ages into machine-readable formats such as Mu-
sicXML (Good, 2001), MEI (Roland, 2002), or
MIDI
1
. This automation addresses the significant
time and cost involved in manually transcribing music
scores, a process essential for digital music analysis,
editing, and playback. Beyond automation, OMR has
profound implications for knowledge discovery and
information retrieval within large music databases.
By converting analogue musical scores into search-
able digital formats, OMR enables researchers, edu-
cators, and musicians to efficiently explore vast col-
lections of musical works, facilitating musicological
research, comparative studies, and the discovery of
patterns and trends across different musical eras and
a
https://orcid.org/0000-0002-1651-5848
b
https://orcid.org/0000-0003-2580-0007
1
https://www.midi.org
styles. These capabilities underscore OMR’s critical
role in advancing music information retrieval and dig-
ital humanities.
While OMR is often compared to Optical Char-
acter Recognition (OCR), which transcribes printed
text into digital form, OMR faces unique complexi-
ties due to the multifaceted nature of Common West-
ern Music Notation (CWMN). In music scores, the
meaning of symbols depends not only on their shapes
but also on their precise positions on the staff and their
contextual relationships with other symbols. For ex-
ample, a note’s value and pitch are determined by its
position on the staff and its interaction with key sig-
natures, time signatures, and other musical elements.
Consequently, accurate staff detection is crucial, so
our approach incorporates a parallel step using tradi-
tional computer vision techniques to address this chal-
lenge, as detailed in Subsection 4.3. These intricacies
present challenges that standard OCR methods, pri-
marily designed for straightforward text recognition,
cannot handle. Therefore, specialised techniques are
required to interpret and digitise musical notation ac-
Shatri, E. and Fazekas, G.
Knowledge Discovery in Optical Music Recognition: Enhancing Information Retrieval with Instance Segmentation.
DOI: 10.5220/0012947500003838
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 1: KDIR, pages 311-319
ISBN: 978-989-758-716-0; ISSN: 2184-3228
Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.
311

curately.
Recent advances in deep learning, particularly in
the use of Convolutional Neural Networks (CNN)
(Pacha et al., 2018; Pacha and Calvo-Zaragoza,
2018), Recurrent Neural Networks (RNN) (Bar
´
o
et al., 2018), and more recently, transformer-based
models (Li et al., 2023; R
´
ıos-Vila et al., 2024a; R
´
ıos-
Vila et al., 2024b), have significantly enhanced the ca-
pabilities of OMR systems. CNNs excel at recognis-
ing patterns and features within images, making them
well-suited for identifying and distinguishing musical
symbols. RNNs, in contrast, are adept at handling
sequential data, enabling them to interpret the tempo-
ral and contextual relationships between musical el-
ements. Together, these technologies have improved
the accuracy of symbol detection and interpretation
in OMR. Despite these advances, significant limita-
tions remain, particularly when dealing with densely
packed and overlapping symbols, which can result in
errors in detection and interpretation (Pacha and Ei-
denberger, 2017).
Our study compares object detection with instance
segmentation using Mask R-CNN (He et al., 2017),
integrating a parallel staff detection stage for pitch in-
ference. This step addresses the challenge of recog-
nising thin, elongated staff lines, which detection
methods often struggle with. Instance segmentation
enables pixel-level classification to precisely delin-
eate musical symbols, particularly in dense and over-
lapping notation, enhancing OMR accuracy and sup-
porting reliable information extraction from music
scores.
We also emphasise the importance of signifi-
cantly improving performance by domain-specific
pre-training, such as using MUSCIMA++ weights.
Our focus on full-page music symbol recognition ad-
dresses the complexities of entire music sheets, distin-
guishing our approach from methods that only handle
isolated symbols.
By improving musical symbol recognition, our
method facilitates knowledge discovery and infor-
mation retrieval in large music databases through
enhanced metadata extraction, enabling advanced
queries and comparative musicology. We evaluate
our approach using the DoReMi and MUSCIMA++
datasets and provide our implementation details here
here
2
.
Our study shows that using models like Mask R-
CNN for instance segmentation, along with efficient
staff detection algorithms, advances OMR for full-
page images. These models are less data-hungry than
transformer-based approaches, making them more
practical for OMR, where annotated datasets are lim-
2
https://github.com/elonashatri/pitch mask rcnn
ited. This combination provides a more accurate
and efficient solution for digitising musical scores,
supporting enhanced music analysis, retrieval, and
knowledge discovery.
2 RELATED WORK
OMR has traditionally been approached through four
stages: image pre-processing, musical object detec-
tion, reconstruction, and encoding (Rebelo et al.,
2012; Shatri and Fazekas, 2020). The primary objec-
tive of musical symbol detection is to find the bound-
ing boxes and corresponding classes of musical ob-
jects. Undetected musical primitives in this stage can
introduce errors into subsequent stages, making de-
tection a critical component of OMR. This is partic-
ularly important due to the complexities introduced
by artefacts, image quality, and object density. The
classified primitive elements are then integrated using
graphical or syntactic rules, or more recently, deep
learning, to reconstruct the musical notation in the
third stage. The final encoding stage converts the re-
constructed notation into a machine-readable format
mentioned in Section 1.
Traditional object detection in OMR has seen the
application of models like Region-based CNNs (R-
CNNs) (Jiao et al., 2019), which integrate region pro-
posals with CNNs. Despite their effectiveness in cer-
tain domains, these models face limitations in OMR
due to their separate training stages and the challenges
of handling densely packed musical symbols. Fast R-
CNN and Faster R-CNN (Girshick, 2015; Ren et al.,
2015) addressed some of these issues by introducing
a Region Proposal Network (RPN) that generates re-
gion proposals more efficiently, sharing convolution
features with the detection network. However, while
effectively reducing computational costs and improv-
ing detection accuracy, these models still struggle
with full-page musical scores and densely populated
notation (Pacha and Calvo-Zaragoza, 2018).
Beyond object detection, semantic segmentation
has been explored to provide pixel-level classifica-
tion of similar entities within images (Long et al.,
2015; Zhao et al., 2019). Techniques like the Deep
Watershed Detector (Tuggener et al., 2018) and U-
Net architectures (Jr et al., 2018) have been employed
to improve the detection of smaller musical objects
and overlapping symbols. However, these methods
also have limitations. The Deep Watershed Detector
struggles with larger musical objects and rare classes
due to its size variation learning limitations. At the
same time, U-Net models are sensitive to training data
distribution and may lose translation equivalence due
KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval
312

to their down-sampling and up-sampling processes
(Johnson and Khoshgoftaar, 2019; Ronneberger et al.,
2015). Instance segmentation models, such as Mask
R-CNN (He et al., 2017), offers a more refined ap-
proach by providing pixel-level classification for each
object, allowing for the precise identification and sep-
aration of overlapping symbols. This method extends
Faster R-CNN by adding a branch that predicts seg-
mentation masks on each Region of Interest (RoI), us-
ing RoI Align to avoid the quantisation issues seen in
earlier models. By generating pixel-wise masks, in-
stance segmentation improves the detection and anal-
ysis of musical symbols and facilitates the exclusion
of noise and more accurate pitch identification rela-
tive to staff lines. Mask R-CNN has been applied to
handwritten 4-part harmonies (De Vega et al., 2022)
showing promising results in these types of scores.
Despite the advancements brought by instance
segmentation, challenges remain, particularly with
class imbalance in musical notation datasets and the
variability in handwritten music. Certain symbols,
such as noteheads and stems, are more prevalent,
skewing the training process. Additionally, detecting
thin, closely spaced objects like staff lines and bar-
lines poses significant difficulties.
Our study addresses these challenges by imple-
menting and comparing object detection and instance
segmentation techniques for OMR using the DoReMi
and MUSCIMA++ datasets. We demonstrate the ef-
fectiveness of Mask R-CNN in handling dense and
overlapping symbols and provide a comprehensive
comparative evaluation highlighting the advantages of
instance segmentation over traditional methods. By
integrating a parallel staff detection stage, our ap-
proach enhances the accuracy and detail of OMR sys-
tems and offers a more comprehensive solution for
digitising musical notation. Implementation details
and evaluation results will be publicly available.
3 DATASETS
This study utilises two prominent datasets in the do-
main of OMR: MUSCIMA++ (Haji
ˇ
c and Pecina,
2017) and DoReMi (Shatri and Fazekas, 2021). Both
datasets play crucial roles in training and evaluating
our models, offering diverse challenges and benefits.
MUSCIMA++. The MUSCIMA++ dataset con-
sists of handwritten musical scores and is specifi-
cally designed to address the challenges of handwrit-
ten OMR. It provides a substantial number of an-
notated images with detailed metadata files that in-
clude bounding boxes and pixel masks for each mu-
sical symbol. This dataset is particularly valuable for
its representation of handwritten music, which intro-
duces variability and complexity not found in typeset
scores.
DoReMi. The DoReMi dataset comprises approx-
imately 6,400 high-resolution images (300 DPI,
2475x3504 pixels) of typeset sheet music, annotated
with one of 94 category labels. This dataset is no-
tably larger than MUSCIMA++, making it a robust
resource for training deep learning models. The high
resolution and detailed annotations allow for precise
training and evaluation of models aimed at both object
detection and instance segmentation. Both datasets
exhibit class imbalance, with a significant portion
of the annotated objects being stems and noteheads.
This imbalance presents a challenge for training mod-
els that need to recognise a diverse set of musical
symbols.
The DoReMi dataset is primarily used for training
our models due to its larger size and the fact that it
consists of typeset images, which are more standard-
ised than handwritten scores. In our object detection
experiments, we train different models using varying
subsets of the DoReMi dataset: 27%, 45%, 90%, and
100% of the data. This stratified approach serves two
key purposes:
• It helps identify the most effective amount of data
required for training without overfitting.
• Explore how class balance affects the detection
rate by avoiding the predominance of infrequent
classes that could skew the training process.
The resulting datasets used for training consist
of 94, 71, 71, and 64 classes, respectively. For in-
stance segmentation, we further refine our subsets to
include 291 and 1685 images from DoReMi, focusing
on limiting computational time during training while
maintaining a sufficient number of classes to evalu-
ate model performance effectively. By iteratively re-
fining the training process and expanding the dataset,
this study aims to identify key factors that may im-
prove the accuracy and reliability of segmenting mu-
sical symbols in sheet music.
4 METHODOLOGY
This section discusses the detailed methodology, cov-
ering object detection, instance segmentation, data
pre-processing, and training configurations. Our
approach leverages full-page images, encompassing
more objects with smaller bounding boxes than staff-
cropped images. This approach enhances the gran-
Knowledge Discovery in Optical Music Recognition: Enhancing Information Retrieval with Instance Segmentation
313

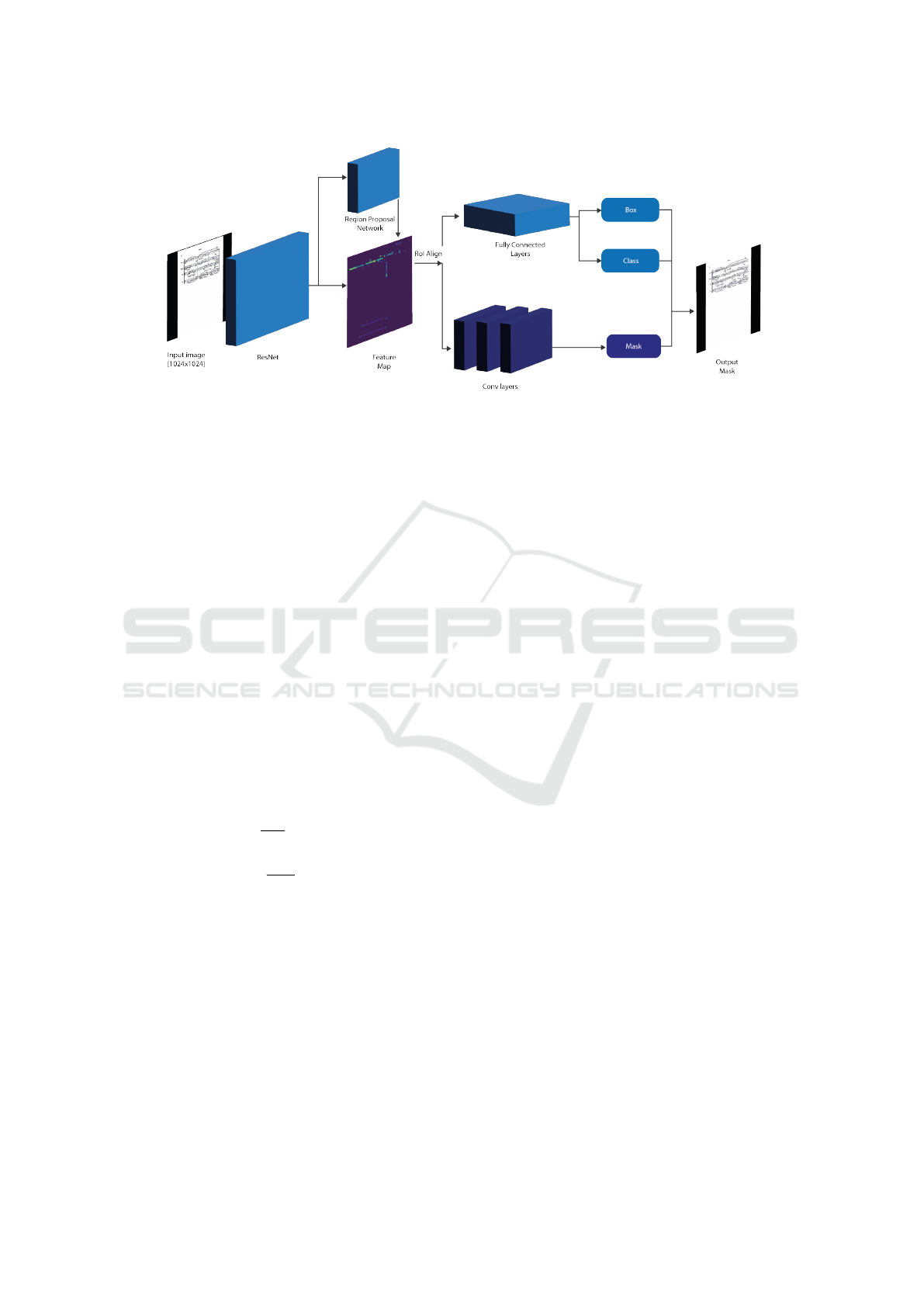

Figure 1: Mask R-CNN architectures applied to OMR.
ularity and accuracy of detection and segmentation
within the full-page images.
We conduct two experiments using the DoReMi
dataset: one on detecting music notation primitives
and another on instance segmentation. Object detec-
tion predicts a bounding box (x
1
, x
2
, y
1
, y
2
), an associ-
ated category, and a confidence score for each musical
element, such as stems, noteheads, or dynamics (e.g.,
ppp). Both pipelines include a parallel step for staff
detection using a traditional method described in Sec-
tion 4.3.
4.1 Music Symbol Object Detection
For the object detection task, we employ Faster R-
CNN, a well-established model in object detection.
Faster R-CNN integrates a Region Proposal Network
(RPN) with a Fast R-CNN detector, allowing for ef-
ficient and accurate object localisation and classifica-
tion. The loss function for Faster R-CNN is defined
as:
L (
{
p
i
}
,
{
t
i
}
) =
1
N
cls
∑
i
L
cls
(p
i
, p
∗
i
)
+ λ
1
N
reg
∑
i
p
∗
i
L
reg
(t
i
, t
∗
i
),
(1)
where i is the index of an anchor in a mini-batch
and p
i
is the predicted probability of anchor i be-
ing an object. We use two losses, classification loss
L
cls
and regression loss L
reg
. Classification loss is log
loss over two classes (object vs not object). Regres-
sion loss is activated only for positive anchors p
∗
i
L
reg
and not activated otherwise. Both terms are then nor-
malised by N
cls
and N
reg
and weighted by λ as a bal-
ancing parameter. Every bounding-box has the asso-
ciated set of cells in the feature map computed by
a CNN. Our Faster R-CNN implementation follows
prior work from (Ren et al., 2015; Pacha et al., 2018).
The Faster R-CNN model configurations employ
ResNet50 or Inception ResNet v2 (Szegedy et al.,
2017) backbones with Atrous convolutions, optimised
for the MUSCIMA++ or COCO (Lin et al., 2014)
datasets with image dimensions of 2475×3504 pix-
els. The model maintains aspect ratios, with image
dimensions between 500 and 1000 pixels. The fea-
ture extractor uses a stride of 8 in the first stage, and
anchor generation is handled by a grid anchor genera-
tor with various widths, heights, scales, and aspect ra-
tios. The first-stage Atrous rate is 2, with box predic-
tor parameters using an L2 regulariser and a truncated
normal initialiser. Non-maximum suppression (NMS)
has an IoU threshold of 0.5 with up to 500 proposals.
The initial crop size is 17, and max-pooling has a ker-
nel size and stride of 1. The model is trained with a
batch size of 1 using an RMSProp optimiser (initial
learning rate of 0.003, decaying by 0.95 every 30,000
steps), with momentum at 0.9 and gradient clipping
at 10.0. Data augmentation includes random horizon-
tal flipping, and evaluation metrics follow the COCO
standard, using 120 examples for evaluation.
4.2 Music Symbol Instance
Segmentation
For instance segmentation, we utilise Mask R-CNN
(He et al., 2017), which extends Faster R-CNN by
adding a branch for predicting segmentation masks
on each Region of Interest (RoI), as shown in Figure
1). This method allows for pixel-level classification
of objects, which is crucial for accurately delineating
overlapping musical symbols. We define the task of
instance segmentation as follows:
Definition 4.1. Music Symbol Instance Segmentation
(MSIS) is the task of assigning a music symbol class
to each pixel of a sheet music image in addition to
predicting bounding boxes with their corresponding
KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval
314

confidence scores.
The loss function in instance segmentation is
given as:
TotalLoss = r pn class loss + r pn bbox loss
+ mrcnn class loss + mrcnn bbox loss
+ mrcnn mask loss
(2)
Here, the total loss is a combination of several
components: RPN Class Loss, which measures the
error in classifying the anchors; RPN Bounding Box
Loss, which quantifies the error in bounding box
predictions by the RPN; Mask R-CNN Class Loss,
which evaluates the error in classifying objects within
the proposed regions (RoIs); Mask R-CNN Bound-
ing Box Loss, which measures the error in bounding
box predictions for the RoIs; and Mask R-CNN Mask
Loss, which evaluates the accuracy of the predicted
segmentation masks for each RoI. These components
collectively ensure accurate detection and segmenta-
tion of musical symbols in sheet music images.
We utilise two backbone networks, ResNet50 and
ResNet101 (He et al., 2016), which are pre-trained ei-
ther on the COCO dataset or a subset of the DoReMi
dataset. The training process is structured in multiple
phases to enhance model performance iteratively. Ini-
tially, the model is trained on a dataset of 291 images
with weights pre-trained on COCO, focusing only on
the head layers for 20 epochs. Subsequently, training
is extended to all layers for an additional ten epochs
using the same dataset. To further improve perfor-
mance, the model is trained on an expanded dataset
of 1,348 images for another 40 epochs, fine-tuning the
weights from the previous phase.
For the best model, the ResNet101 backbone net-
work has strides of [4, 8, 16, 32, 64] and a batch size
of 1. Detection parameters included a maximum of
100 instances, a minimum confidence of 0.9, and an
NMS threshold of 0.3. The FPN classification fully
connected layer size is 1024. The gradient clipping
norm is set to 5.0, and we used one image per GPU.
The image dimensions are resized to a square shape
of [1024, 1024, 3], and the mini mask shape is (56,
56). The learning momentum is 0.9, with a learn-
ing rate of 0.0001. The dataset comprised 72 classes.
The RoI positive ratio is 0.33, and RPN anchor ratios
were [0.5, 1, 2] with scales (32, 64, 128, 256, 512)
and stride 1. RPN bounding box standard deviation
was [0.1, 0.1, 0.2, 0.2] with an NMS threshold of 0.7
and 256 RPN train anchors per image. Training is
re-initiated from epoch 39, using pre-trained weights
from the specified path with a learning rate of 0.0001,
and the network was trained on all layers.
The experimental setup and results are detailed in
Table 2. Initially, the model training started on a rela-
tively small dataset comprising 291 images, focusing
exclusively on the network’s head layer, employing
pre-trained weights for initialisation (detailed in Ta-
ble 2, 3rd row). Two subsequent stages of fine-tuning
followed this phase:
• After the initial focus on the head layer, train-
ing was extended to all network layers for an ad-
ditional ten epochs. This stage aimed to refine
the feature extraction capabilities across the entire
network.
• To further examine the effects of dataset size
on segmentation performance, the model under-
went additional training on an expanded dataset
of 1,348 images spanning 50 epochs. This
stage evaluated how larger datasets influence the
model’s ability to generalise and improve segmen-
tation accuracy.
This iterative training approach is structured to as-
sess the effectiveness of pre-trained models and ex-
plore the potential of increasing dataset sizes to en-
hance music symbol segmentation accuracy, a notable
challenge in OMR.
4.3 Staff Detection
The proposed methodology for detecting staff lines
in musical notation involves several key steps. Ini-
tially, the input image is converted to grayscale and
enhanced using Otsu’s thresholding method to create
a binary image. Horizontal lines are then detected
through morphological operations. Contours repre-
senting potential staff lines are identified and analysed
based on their geometric properties. Specifically, con-
tours with a high aspect ratio and appropriate height
are classified as staff lines, while others are marked as
non-staff lines.
The large contours are divided into smaller seg-
ments to manage those that span multiple staff lines.
The identified staff lines are then drawn on the image

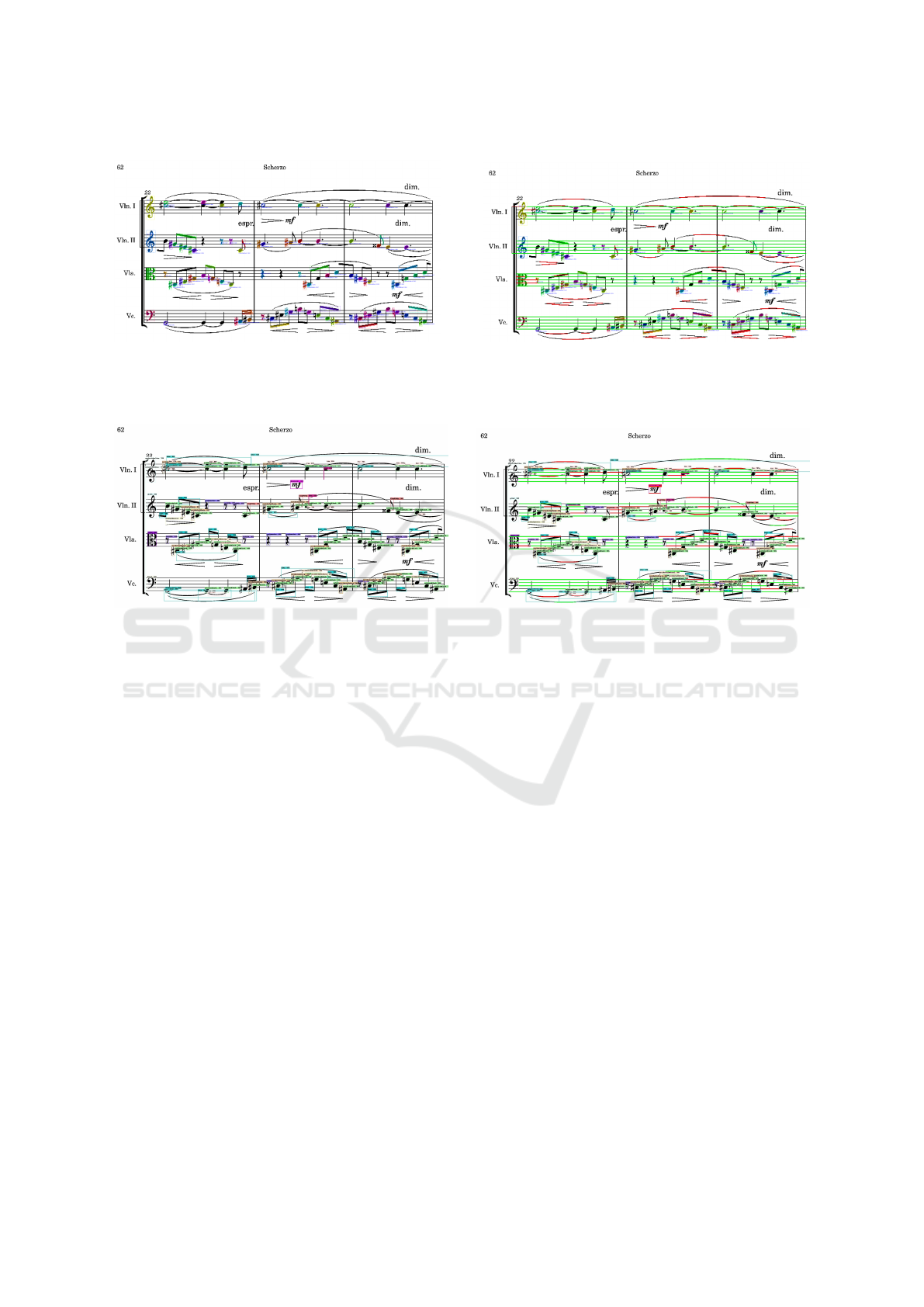

for visualisation (see Figure 2 and 3), using different
colours to differentiate between staff lines (in green)
and non-staff lines (in red). The final processed im-
age is displayed alongside the original for clear com-
parison in Figures 2 and 3. This method aims to de-
tect staff lines in musical notation, making it easier to
output a more structured result by stave and enabling
pitch or staffing position information to be captured.
However, it is important to note that this approach
may not work well with images of low quality. Still,
it is robust enough to handle small perspective shifts,
rotations, changes in contrast, and similar variations.
Knowledge Discovery in Optical Music Recognition: Enhancing Information Retrieval with Instance Segmentation
315

Table 1: Object detection results using DoReMi dataset, ’*’ denotes COCO weights used for initialisation and ’+’ denotes
MUSCIMA++ weights. Mean Average Precision (mAP) given at 0.50 IoU (%). The Large, Medium and Small columns show
the mAP for large, medium and small objects respectively. The last two rows present experimental results using InceptionRes-
NetV2 in CollabScore63, a variant of DeepScores with a reduced number of classes, utilising a training set of 1,362 images,
alongside their proposed Cascade R-CNN - FocalNet model with 136 classes (Yesilkanat et al., 2023).
Model Classes Data (%) Steps Large Medium Small mAP
InceptionResNetV2* 94 100 120K 32.53 38.24 15.46 47.37
InceptionResNetV2* 71 90 120K 36.79 47.42 25.55 63.45
InceptionResNetV2* 71 45 120K 33.89 54.08 22.38 65.42
InceptionResNetV2* 67 27 120K 40.97 46.45 27.13 63.70
InceptionResNetV2+ 71 90 120K 41.08 49.93 23.18 64.92
ResNet50* 71 90 120K 36.73 45.22 28.98 59.81
ResNet50* 71 45 120K 32.79 46.03 31.76 62.45
ResNet50* 67 27 120K 39.32 46.64 29.62 63.19
ResNet50+ 71 90 120K 35.90 44.57 29.17 63.13
ResNet50* 94 100 80K 93.63 75.82 41.71 80.99
InceptionResNetV2† 63 CS63 - - - - 64.1
CascadeRCNN† 136 DS - - - - 70.0
Table 2: Performance metrics of various configurations of the ResNet model using the Mask R-CNN architecture.
Feature Extractor Weights No. of Images Epochs Layers mAP@.50%
ResNet50 COCO 291 20 Heads 16.239
ResNet101 COCO 291 30 Heads 37.151
ResNet101 DoReMi 291 30 + 10 All 46.087
ResNet101 DoReMi 1384 80 All 59.70
Another limitation is that this method is based on the
relative distance of the objects to the detected staff
lines. The method may provide the wrong stave for
complex scores, where musical objects such as note-
heads are closer to the next stave than their own staff.
This can be addressed using CNN trained to distin-
guish staves (Pacha, 2019).
This method has been applied in parallel with both
instance segmentation and object detection models
since they struggle with detecting thin, long objects
such as staff lines.
5 EVALUATION AND RESULTS
A key contribution of this study is the compara-
tive analysis of object detection and instance seg-
mentation methods for OMR. By evaluating both ap-
proaches, we aim to determine which method is bet-
ter suited to the complexities of musical notation,
particularly in handling dense and overlapping sym-
bols. Object detection offers efficient symbol local-
isation but lacks the pixel-level precision provided
by instance segmentation. Our comparison highlights
the strengths and weaknesses of each method, giving
valuable insights into their applicability in different
OMR scenarios.
In this section, we detail the experiments con-
ducted to evaluate the performance of the instance
segmentation approach using Mask R-CNN, com-
pared to traditional object detection methods. We
used the DoReMi and MUSCIMA++ datasets, which
offer diverse challenges due to their handwritten and
typeset musical scores, respectively.
The performance of our object detection and in-
stance segmentation models was assessed using the
mAP as is standard in the field (Lin et al., 2014). The
mAP scores were computed by setting a threshold for
Intersection over Union (IoU) to evaluate the accuracy
of the predicted bounding boxes against the ground
truth.
The trade-off between precision and recall is par-
ticularly significant in the domain of OMR, where
precise localisation of overlapping musical symbols
is crucial. Precision measures the accuracy of the pre-
dictions, whereas recall assesses the model’s ability to
detect all relevant instances. These metrics form the
basis of our evaluation using the Average Precision
(AP) for each class at an IoU threshold of 0.50.
Musical Symbol Object Detection. We first ap-
plied Faster R-CNN with both InceptionResNetV2
and ResNet50 backbones for object detection tasks.
The evaluation metrics were based on the mean Av-
erage Precision (mAP) at an Intersection over Union
(IoU) threshold of 0.50. The results are summarised
KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval
316

(a) Output from the Mask R-CNN model, each class is rep-
resented by a different colour
(b) Concatenated Mask R-CNN output and staff detection,
the green lines represent the detected staff lines
Figure 2: Mask R-CNN model inference in an image.
(a) Output from the Faster R-CNN model, each class is rep-
resented by a different colour
(b) Concatenated Faster R-CNN output and staff detection,
the green lines represent the detected staff lines
Figure 3: Faster R-CNN model inference in an image.
in Table 1. Using the InceptionResNetV2 back-
bone, we found that reducing the number of classes
from 94 to 71 significantly improved mAP, with a
peak mAP of 65.42% achieved with 45% of the
data. Interestingly, using 90% of the data resulted
in a slightly lower mAP of 64.92%, suggesting that
a well-balanced and smaller dataset can sometimes
outperform a larger one. Moreover, using domain-
specific pre-trained weights from MUSCIMA++ pro-
vided nearly a 5% improvement over COCO weights,
underscoring the importance of domain adaptation.
Similarly, the ResNet50 backbone demonstrated
notable performance, achieving a peak mAP of
63.19% using only 27% of the data. This result
highlights the potential efficiency of a well-curated
dataset. MUSCIMA++ weights also improved per-
formance, although not as significantly as Inception-
ResNetV2. These results suggest that while both
models are compelling, InceptionResNetV2 outper-
forms ResNet50, particularly with smaller training
sets. However, this dynamic shifts when a larger
dataset is used, with ResNet50* achieving an mAP
of 80.99% on the full dataset. This is comparable
to similar models in OMR (Yesilkanat et al., 2023),
which, in contrast, uses high-resolution input images,
shown in the last two rows on Table 1. Finally, an
investigation into average precision per category re-
vealed that the model struggles to detect less frequent
objects, such as rarely used time signatures, dynamics
markers, and accidentals, as evident in the inference
results shown in Figure 3.
Musical Symbol Instance Segmentation. For in-
stance segmentation, we employed Mask R-CNN
with ResNet50 and ResNet101 backbones and evalu-
ated using the Pascal VOC metric (Everingham et al.,
2010). The results, detailed in Table 2, demonstrate
significant performance improvements. Initially, us-
ing the ResNet50 backbone and training on 291
images with COCO pre-trained weights, the model
achieved an mAP of 16.239%. Further fine-tuning
on the DoReMi dataset for 30 epochs increased the
mAP to 46.087%. In contrast, the ResNet101 back-
bone, when trained on the same 291 images, reached
an mAP of 37.151%. Extending the training to 1,384
images for 80 epochs with ResNet101 achieved the
highest mAP of 59.70%, demonstrating the benefits
Knowledge Discovery in Optical Music Recognition: Enhancing Information Retrieval with Instance Segmentation
317

of a more extensive and more comprehensive dataset.
These results are similar to the mAP achieved by ob-
ject detection models shown in Table 1 using a similar
training set size. Findings from this evaluation indi-
cate that:
• Switching to a more complex network architec-
ture (ResNet101) and training all layers com-
prehensively significantly improved mAP scores,
confirming the architecture’s influence on perfor-
mance.
• Extending training duration and increasing dataset
size were crucial for achieving higher mAP
scores. This is especially evident in the perfor-
mance of ResNet101 when trained for 80 epochs
on 1,384 images.
• The model faced difficulties predicting thin ob-
jects such as staff lines and stems, likely due to
downsampling issues. Adjustments in RPN an-
chor ratios or pre-segmentation strategies might
mitigate these challenges.
Beyond Detection and Segmentation As stated
in Section 1, the ultimate aim of OMR is to con-
vert music scores into a structured, machine-readable
file. While object detection and instance segmenta-
tion perform well, their output is somewhat unstruc-
tured and lacks musical significance. Therefore, a
parallel step is necessary to achieve a more organised
format. Given the challenges in accurately detecting
thin, elongated objects such as staff lines, which are
crucial for determining the pitch of a note, we have
opted for a more efficient post-processing approach
using traditional computer vision techniques that do
not require training. In Figure 2a, you can observe the
results of running the Mask R-CNN model on a score
image in the top image, and the same image with staff
detection in the bottom Figure 2b, similarly for the
object detection task shown in Figure 3.
6 CONCLUSIONS
This study uses advanced neural network architec-
tures to evaluate object detection and instance seg-
mentation for OMR. Our findings confirm that in-
stance segmentation, particularly using Mask R-
CNN, offers capabilities in delineating detailed and
accurate representations of individual musical sym-
bols compared to traditional object detection meth-
ods. Mask R-CNN’s detailed pixel-level segmen-
tation capability makes it particularly adept at han-
dling the complex visual compositions of sheet music
where objects frequently overlap.
By comparing object detection and instance seg-
mentation, we comprehensively evaluate their respec-
tive performances in OMR. This comparison is signif-
icant as it informs the selection of the most appropri-
ate method depending on the specific requirements of
a given task—whether broad localisation of symbols
is sufficient or if precise delineation is necessary. Our
findings contribute to a deeper understanding of how
these techniques can be applied to optimise OMR sys-
tems.
One limitation of our approach is handling rare
musical symbols, which are underrepresented in the
training dataset. This could affect the generalisability
of the model. Further research should focus on refin-
ing the detection of infrequent musical symbols and
enhancing mask predictions for structurally complex
objects. Prospective improvements could include op-
timising RPN anchor ratios and experimenting with
larger training datasets to improve detection accuracy.
This study highlights the potential of instance seg-
mentation to advance OMR research, offering a more
accurate and detailed method for recognising musi-
cal symbols in sheet music. These findings pave the
way for further research and practical applications
in musicology and digital archiving. Improved pre-
cision in symbol recognition directly impacts down-
stream tasks in knowledge discovery and information
retrieval, enabling richer metadata generation for in-
dexing and querying in music information retrieval
systems. This facilitates sophisticated analysis, such
as identifying patterns across compositions, discov-
ering relationships between works, and conducting
large-scale comparative studies. The detailed seg-
mentation provided by Mask R-CNN supports more
granular analysis, leading to deeper insights into mu-
sical structures and trends.
ACKNOWLEDGEMENTS
The authors acknowledge the support of the AI and
Music CDT, funded by UKRI and EPSRC under grant
agreement no. EP/S022694/1, and our industry part-
ner Steinberg Media Technologies GmbH for their
continuous support.
REFERENCES
Bar
´
o, A., Riba, P., Calvo-Zaragoza, J., and Forn
´
es, A.
(2018). Optical music recognition by long short-term
memory networks. In Graphics Recognition. Cur-
rent Trends and Evolutions: 12th IAPR International
Workshop, GREC 2017, Kyoto, Japan, November 9-
KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval
318

10, 2017, Revised Selected Papers 12, pages 81–95.
Springer.
De Vega, F. F., Alvarado, J., and Cortez, J. V. (2022). Opti-
cal music recognition and deep learning: An appli-
cation to 4-part harmony. In 2022 IEEE Congress
on Evolutionary Computation (CEC), pages 01–07.
IEEE.
Everingham, M. et al. (2010). The pascal visual ob-
ject classes (voc) challenge. International Journal of
Computer Vision.
Girshick, R. (2015). Fast r-cnn. In Proceedings of the IEEE
International Conference on Computer Vision.
Good, M. (2001). Musicxml: An internet-friendly format
for sheet music. In XML Conference and Expo.
Haji
ˇ
c, J. and Pecina, P. (2017). The muscima++ dataset for
handwritten optical music recognition. In 14th IAPR
ICDAR. IEEE.
He, K. et al. (2016). Deep residual learning for image recog-
nition. In Proceedings of the IEEE Conference on
Computer Vision and Pattern Recognition (CVPR).
He, K. et al. (2017). Mask r-cnn. In Proceedings of the
IEEE International Conference on Computer Vision.
Jiao, L., Zhang, F., Liu, F., Yang, S., Li, L., Feng, Z., and
Qu, R. (2019). A survey of deep learning-based object
detection. IEEE Access.
Johnson, J. M. and Khoshgoftaar, T. M. (2019). Survey on
deep learning with class imbalance. Journal of Big
Data.
Jr, J. H., Dorfer, M., Widmer, G., and Pecina, P. (2018).
Towards full-pipeline handwritten omr with musical
symbol detection by u-nets. In ISMIR.
Li, Y., Liu, H., Jin, Q., Cai, M., and Li, P. (2023). Tromr:
Transformer-based polyphonic optical music recogni-
tion. In ICASSP 2023-2023 IEEE International Con-
ference on Acoustics, Speech and Signal Processing
(ICASSP), pages 1–5. IEEE.
Lin, T.-Y. et al. (2014). Microsoft coco: Common objects in
context. In European Conference on Computer Vision.
Springer.
Long, J., Shelhamer, E., and Darrell, T. (2015). Fully con-
volutional networks for semantic segmentation. In
Proceedings of CVPR.
Pacha, A. (2019). Incremental supervised staff detection.
In Proceedings of the 2nd international workshop on
reading music systems, pages 16–20.
Pacha, A. and Calvo-Zaragoza, J. (2018). Optical music
recognition in mensural notation with region-based
convolutional neural networks. In ISMIR, pages 240–
247.
Pacha, A., Choi, K., Couasnon, B., Ricquebourg, Y.,
Zanibbi, R., and Eidenberger, H. (2018). Handwrit-
ten music object detection: Open issues and baseline
results. In 13th IAPR International Workshop on Doc-
ument Analysis Systems (DAS), pages 163–168. IEEE.
Pacha, A. and Eidenberger, H. (2017). Towards self-
learning optical music recognition. In 2017 16th IEEE
International Conference on Machine Learning and
Applications (ICMLA), pages 795–800. IEEE.
Rebelo, A., Fujinaga, I., Paszkiewicz, F., Marcal, A. R. S.,
Guedes, C., and Cardoso, J. S. (2012). Optical mu-
sic recognition: State-of-the-art and open issues. In-
ternational Journal of Music Information Retrieval
(IJMIR).
Ren, S., He, K., Girshick, R., and Sun, J. (2015). Faster
r-cnn: Towards real-time object detection with region
proposal networks. Advances in neural information
processing systems, 28.
R
´
ıos-Vila, A., Calvo-Zaragoza, J., and Paquet, T. (2024a).
Sheet music transformer: End-to-end optical music
recognition beyond monophonic transcription. arXiv
preprint arXiv:2402.07596.
R
´
ıos-Vila, A., Calvo-Zaragoza, J., Rizo, D., and Paquet, T.
(2024b). Sheet music transformer++: End-to-end full-
page optical music recognition for pianoform sheet
music. arXiv preprint arXiv:2405.12105.
Roland, P. (2002). The music encoding initiative (mei). In
Proceedings of the First International Conference on
Musical Applications Using XML.
Ronneberger, O., Fischer, P., and Brox, T. (2015). U-net:
Convolutional networks for biomedical image seg-
mentation. In MICCAI. Springer.
Shatri, E. and Fazekas, G. (2020). Optical music recogni-
tion: State of the art and major challenges. In Proceed-
ings of TENOR’20/21, Hamburg, Germany. Hamburg
University for Music and Theater.
Shatri, E. and Fazekas, G. (2021). Doremi: First glance
at a universal omr dataset. In Proceedings of the 3rd
WoRMS.
Szegedy, C. et al. (2017). Inception-v4, inception-resnet
and the impact of residual connections on learning.
In Proceedings of the AAAI Conference on Artificial
Intelligence (AAAI).
Tuggener, L., Elezi, I., Schmidhuber, J., and Stadelmann,
T. (2018). Deep watershed detector for music object
recognition. arXiv preprint arXiv:1805.10548.
Yesilkanat, A., Soullard, Y., Co
¨
uasnon, B., and Girard, N.
(2023). Full-page music symbols recognition: state-
of-the-art deep models comparison for handwritten
and printed music scores.
Zhao, Z. et al. (2019). Object detection with deep learning:
A review. IEEE Transactions on Neural Networks and
Learning Systems.
Knowledge Discovery in Optical Music Recognition: Enhancing Information Retrieval with Instance Segmentation
319
