Automated Mission Management of Small Unmanned Aircraft Systems

for Critical Events in Urban Air Trafﬁc

Robin M

uller

and Maximilian Bauer

Institute of Flight Systems and Automatic Control, Technical University of Darmstadt, Germany

Keywords:

Safe Autonomous Systems, Contingency Management.

Abstract:

Unmanned aerial systems (UAS) have a great potential to beneﬁt society. This has already been shown in many

use-cases. Nevertheless the true potential lies in the upscaling of operations. Therefore a high automation level

and ensured safety is needed. A common approach to adress safety in aviation is a risk analysis following by

the design of procedures to mitigate the risks - so called contingency procedures. This paper presents a

functional framework for automated mission management including contingencies for UAS. The framework

is based on behavior trees and can be integrated with popular open source ﬂight control software like PX4

and Ardupilot. Missions can be planned in a graphical interface using building blocks or in a Ground Control

Station software like QGroundControl. The planning of contingency procedures is decoupled from the mission

planning and allows for high modularity. Procedures can easily be added, modiﬁed or deleted, which is very

important for certiﬁcation of operation. The functionality of the framework is validated in various simulations,

testing a plethora of contingencies and missions. Flight tests are currently conducted. The code needed to use

the framework can be found on the website: https://robin-mueller.github.io/auto-apms-guide/.

1 INTRODUCTION

UAS already demonstrated to have great potential for

a broad spectrum of applications. While most cur-

rent applications focus on remote controlled or partly

automated operations in visual line of sight (VLOS),

the requirements of future commercial UAS applica-

tions will exceed current automatic capabilities (Fed-

eral Ministry of Transport and Digital Infrastructure,

2020, 9). To provide scalable and sustainable UAS-

services, self-sufﬁcient beyond visual line of sight

(BVLOS) operations are required. Among other au-

tomated functions, automatically executable contin-

gency and emergency procedures have to be devel-

oped and implemented to enable safe autonomous

navigation.

The presented work builds upon existing mission

management architectures as well as already deﬁned

contingency management requirements and employs

open source tools and frameworks commonly used for

developing automated systems.

To implement speciﬁc behaviors, this work adapts

the model-based software design approach, which is

https://orcid.org/0009-0000-6775-389X

https://orcid.org/0000-0001-6377-2276

gaining popularity when designing complex systems

(Pinqui

e et al., 2022). As a result, the developer

is not required to be extensively experienced in pro-

gramming, because behaviors are created using build-

ing blocks with well deﬁned interfaces instead by re-

designing low-level software code.

Within the scope of this work, the behavior tree

paradigm is applied in conjunction with recent re-

search on the topic of unmanned aerial operations and

state-of-the-art software packages for robotics. Ul-

timately, this paper designs and implements a ﬂight

management framework that enables operators to ef-

ﬁciently plan, deploy and execute highly automated

missions including contingency procedures. This is

accomplished by

• elaborating a modular system architecture for au-

tomated contingency and mission management,

• designing a high-level behavior-based automatic

control framework,

• providing a standard interface for managing the

life cycle of real-time processes and

• adopting actively maintained open-source soft-

ware packages widely used in robotics.

174

Müller, R. and Bauer, M.

Automated Mission Management of Small Unmanned Aircraft Systems for Critical Events in Urban Air Trafﬁc.

DOI: 10.5220/0012951500003822

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Informatics in Control, Automation and Robotics (ICINCO 2024) - Volume 2, pages 174-181

ISBN: 978-989-758-717-7; ISSN: 2184-2809

2 RELATED WORK

(Kl

ockner, 2013, 59) and (

Ogren, 2012) introduce

mission management for UAV using behavior trees

and extensively discussed the advantages while also

showing and providing some missing formulation.

Standardized formulations, a framework or the con-

sideration of contingency procedures is still missing

in literature.

Contingency management for UAS was discussed and

a framework for the creation of contingency proce-

dures was introduced by Eduardo et al. (Teomitzi and

Schmidt, 2021, 2). This theoretical framework is the

basis for the conceptualization of our technical and

software framework.

(Usach et al., 2017) introduced many aspects to con-

sider when building architectures for automated con-

tingency management and inﬂuenced the design of

the framework presented in this paper.

Consequently one can state, that the foundations

for automated mission and contingency management

were already laid, but a framework that integrates and

leverages them to valuable application is still missing.

The challenges that come along with it are addressed

and solutions for them are presented in this paper.

3 DESIGN

To explain the design we will introduce the relevant

aspects of contingency management and then the ar-

chitecture and its components

3.1 Contingency Management

We adapt the deﬁnition of contingency management

given by (Teomitzi and Schmidt, 2021). The authors

clearly distinguish between contingencies and emer-

gencies: Contingencies are deﬁned as obstacles to the

fulﬁllment of a system’s high-level requirements and

emergencies are considered as direct threats to the

safety of the operation. Based on literature research

and system analysis, they assemble an extensive cata-

log of mission jeopardizing events, mitigation strate-

gies and recovery actions. With such actions, a con-

tingency management system (CMS) is able to proac-

tively safeguard the UAS during the entire operation.

(Teomitzi and Schmidt, 2021)

With respect to this deﬁnition, ﬁgure 1 arranges

the approaches to enhance system safety in a single

model: The bow-tie model. Originally, this repre-

sentation has been developed to support the assess-

ment of the risks involved in the operation of an UAS

(JARUS, 2017). It focuses on a single hazard, which

may occur due to several threats, which again may

result in one or more consequences. The key to min-

imize the risk of operational safety impairment is to

put certain barriers or controls in place.(Teomitzi and

Schmidt, 2021)

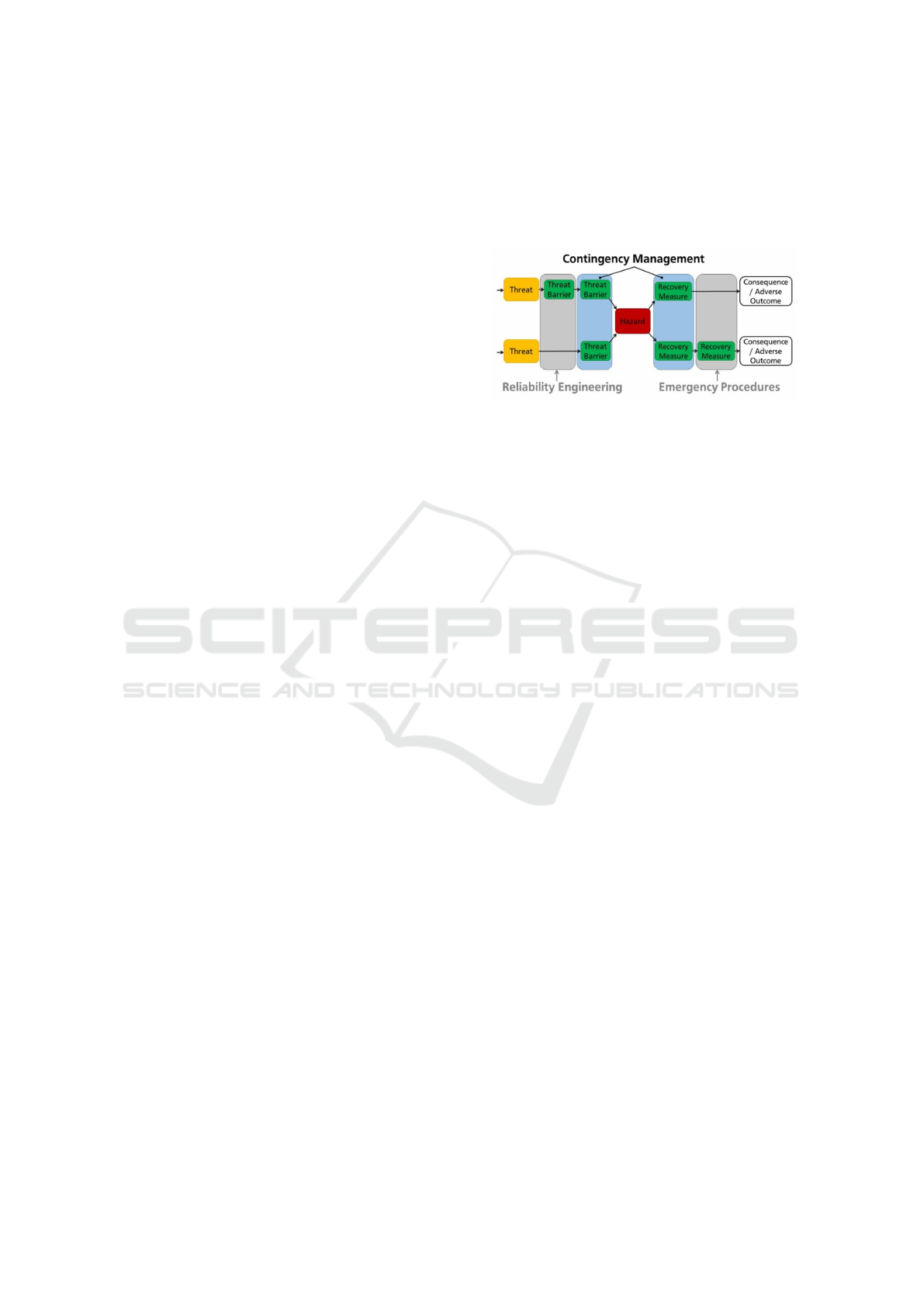

Figure 1: Contingency management within the bow-tie

model. (Teomitzi and Schmidt, 2021, 2).

Additionally to contingency and emergency man-

agement, reliability engineering has been integrated

into the model. Figure 1 shows that threat barriers are

applied before the manifestation of a hazard, while

recovery measures or controls take place afterwards.

Reliability engineering and emergency management

only introduce threat barriers respectively recovery

measures, however, contingency management is able

to do both. (Teomitzi and Schmidt, 2021)

A contingency procedure is a ﬂight procedure de-

signed to mitigate the inherent risk of a contingency

state (Usach et al., 2017, 6). In this work, the term

contingency recovery procedure (CRP) is advocated

instead to emphasize that the developed CMS needs

to detect a threat or hazard in order to trigger the

procedure. Multiple guidelines for designing contin-

gency procedures with respect to unmanned systems

have been established. (Usach et al., 2017) The proce-

dures are developed prior to operation and often need

to be reviewed by an authority that regulates the op-

eration. The structure of the procedures is very clear.

When a threat or hazard is detected by a subsystem,

a sequence of actions is triggered to prevent or mit-

igate potential negative outcomes. Detection and re-

sponse can occur at various levels — such as com-

ponents, software modules, internal, or external —

but in most cases, a part of the system must be shut

down or reconﬁgured. After or during this reaction,

an automated UAS can either continue its mission, di-

vert from the original trajectory and return after the

contingency has been solved, divert immediately to

a safe/alternative landing site and abort its mission

or request (temporary) support from a human oper-

ator. The created framework can be used to imple-

ment the automated onboard execution of these con-

tingency plans. Sub-system level reactions like shut-

ting off or re-conﬁguring components and software

Automated Mission Management of Small Unmanned Aircraft Systems for Critical Events in Urban Air Trafﬁc

175

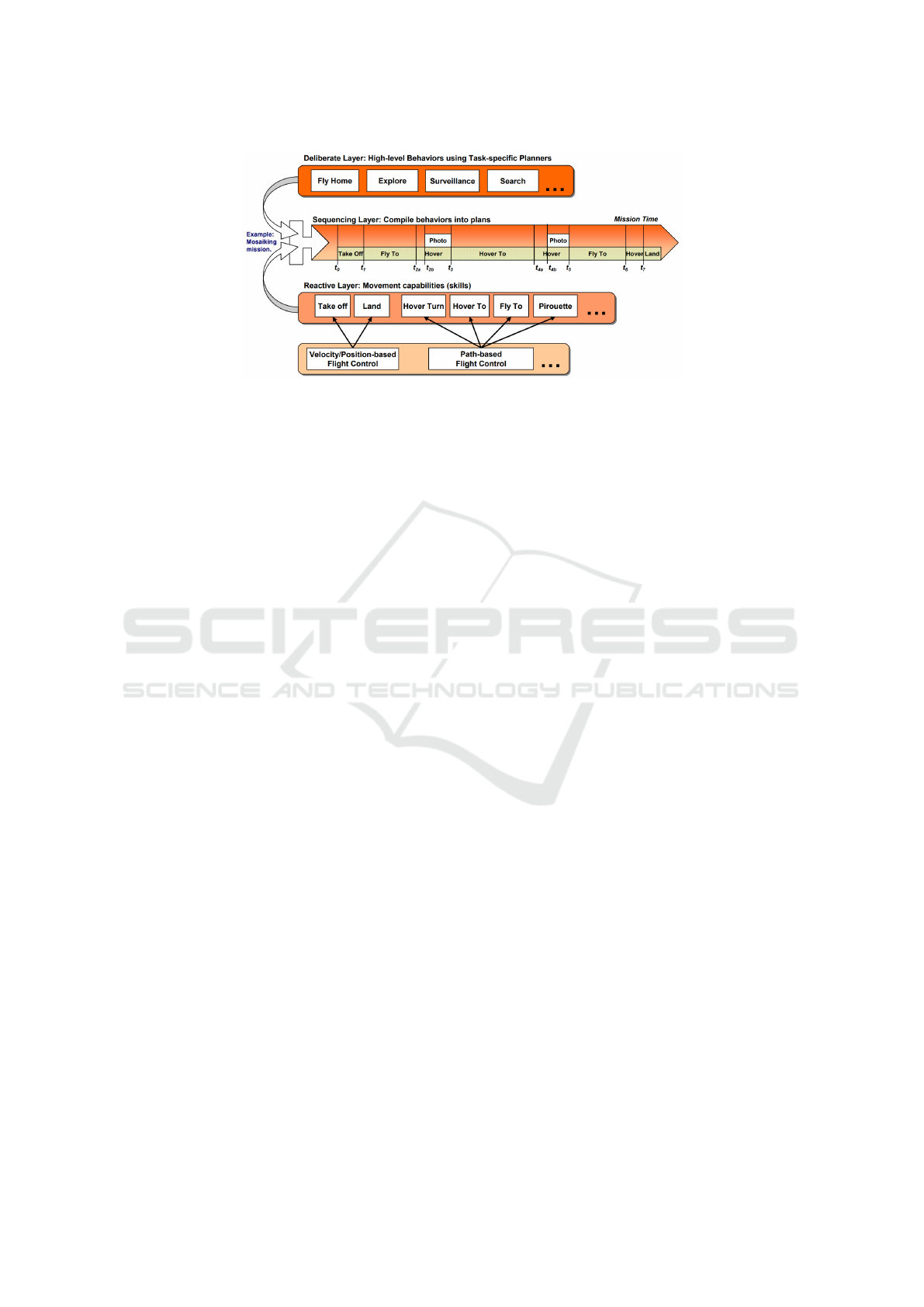

Figure 2: Three tier UAS mission planning architecture. (Adolf and Thielecke, 2007).

modules can ﬂexibly be integrated while for the guid-

ance of the UAS there are already building blocks that

can be used. The operator is responsible for the spe-

ciﬁc implementation of behaviors, such as detection

algorithms or re-planning methods.

3.2 Architecture

Since the beginning of the development of robotic

systems, there has been three capabilities to consider

when performing automated, robotic motion: Sense,

plan and act. The relationship between and the im-

plementation of each of those primitives are deﬁned

by system architectures which are developed individ-

ually for a speciﬁc ﬁeld of application. (Ankit Srivas-

tava, 2019, 1)

This work requires a high-level planning approach

for UAS missions that allows to dynamically compile

plans for contingency events during run-time. A com-

mon ﬂexible and modular architecture that provides

these capabilities is shown in ﬁgure 2. The three tier

architecture (3TA) separates intelligent control into

three layers with different abstraction levels.

The Reactive Layer comprises a set of elemen-

tary skills and controls the UAS with the lowest level

of abstraction. In this context, reactive means that

these skills are tightly coupled with the environment

through sensor readings and actuators. There is no

planning step when executing reactive skills, but only

a initially deﬁned goal that the skill aims to achieve.

Therefore, they are considered as functions reacting

to sensor readings and transferring them to actuator

outputs according to the underlying implementation

and the speciﬁed goal. (Adolf and Thielecke, 2007,

4)(Ankit Srivastava, 2019, 3)

The Deliberate Layer offers the highest level of

abstraction for deﬁning mission tasks. A compo-

nent of this layer plans prospective movements using

a task-speciﬁc planner that reasons about goals, re-

sources and timing constraints (Adolf and Thielecke,

2007, 4). As a result, individual skills deﬁned by the

reactive layer are compiled into a complex behavior

plan to accomplish the given task. These plans alter

the existing or create an entirely new mission (Adolf

and Thielecke, 2007, 6).

Finally, the centralized Sequencing Layer exposes

said plans for sequential execution and represents the

currently pursued mission. This layer assembles a

network of appropriate tasks handled by a sequencer

that activates and deactivates respective skills. In gen-

eral, concurrency between behaviors is not allowed,

but certain behaviors may execute additional skills

that are not related to movement but for example to

the vehicle’s payload (e.g. taking photos with an on-

board camera or releasing rope from a winch). (Adolf

and Thielecke, 2007, 4)

This architecture presents a solution to mission

management as a hybrid control problem and of-

fers a ﬂexible way of modularization. Thanks to

the separate behavior-based reactive layer, plans can

be generated automatically with algorithms designed

for speciﬁcally assembling the available behavioral

skills. Therefore, this approach is well suited to be

utilized in the context of automated contingency man-

agement during UAS missions. (Adolf and Thielecke,

2007, 4)

3.3 System Components

A fundamental design principle chosen for the inte-

gration of automated contingency management tasks

is to introduce modules with well deﬁned responsi-

bilities. This paper advocates the UAS architecture

outlined by ﬁgure 3.

The ﬁgure adapts the architecture of Usach et

al. (Usach et al., 2017), which introduces a CMS

comprising two modules: The Safety Monitor and

the Contingency Manager. The former evaluates the

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

176

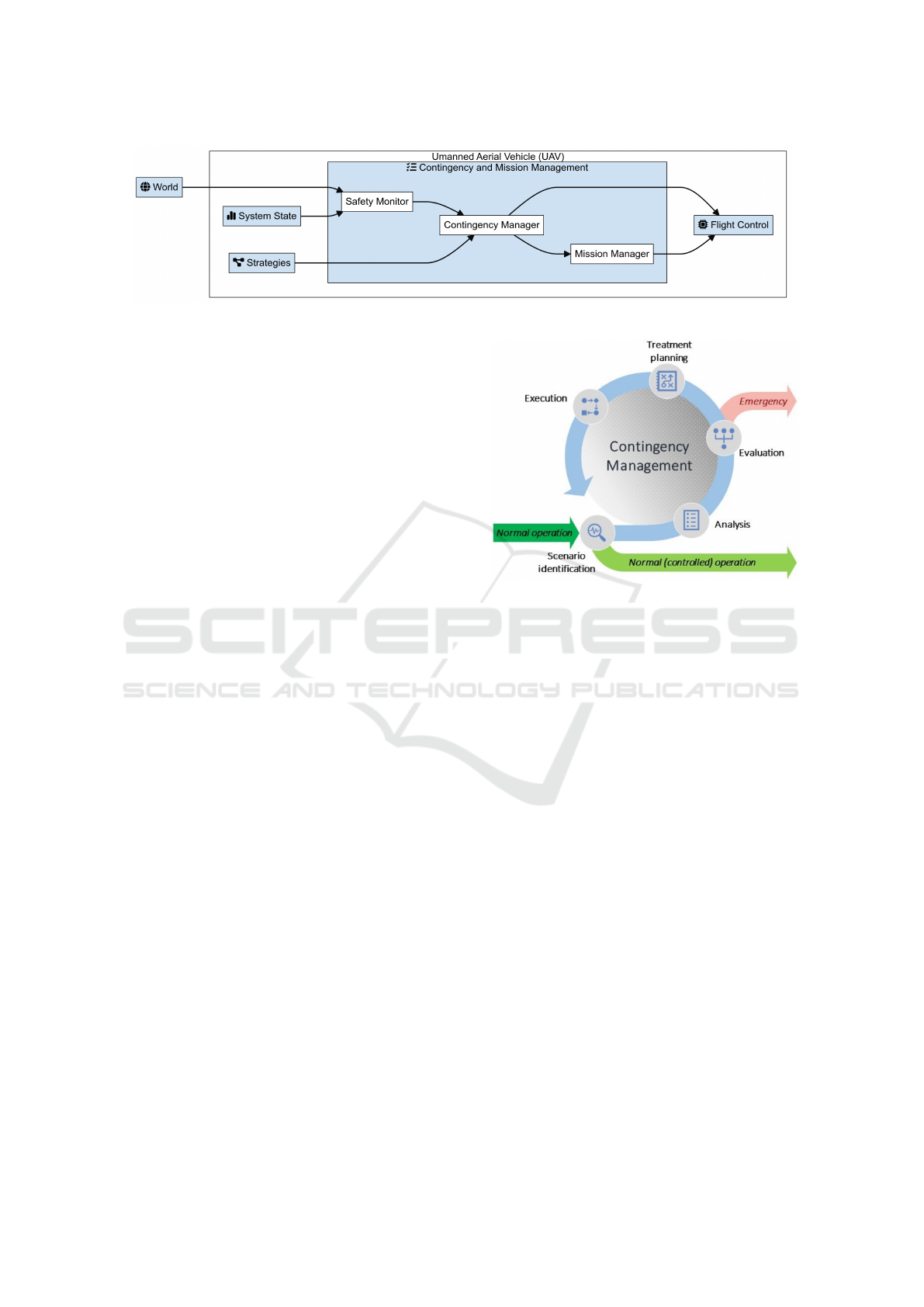

Figure 3: Functional components of an UAS with contingency managment.

ﬂight and system data that is available to the UAS and

decides, whether an abnormal situation has occurred.

In that case, it publishes this information to the con-

tingency manager, which plans and executes a CRP

according to a suitable contingency resolution strat-

egy. Therefore, the safety monitor deﬁnes the current

contingency state. Normally, the Mission Manager

is responsible for executing the actions that the cur-

rently pursued mission dictates, but on the occurrence

a critical event, the contingency manager is allowed to

take over control. The mission manager will eventu-

ally be commanded to stop executing which leaves the

contingency manager in charge of behavior execution.

Both components use the same functionality to in-

struct the vehicle’s movement. The ﬂight controllers

usually run on different, real-time capable hardware

and its implementation heavily depends on the used

ﬂight stack. Behavior planning and execution solu-

tions should be universally applicable to a wide range

of UAS, so ﬂight control is considered to be a stan-

dalone module by design.

With respect to the mission planning architec-

ture from ﬁgure 2, one may implement the safety

monitor and the contingency manager on the deliber-

ate layer. This approach would require a single be-

havior planning instance to include safety monitor-

ing and contingency handling tasks in the sequencing

machine alongside nominal mission actions. Conse-

quently, contingency and mission management con-

cerns would not be well separated. Figure 3 depicts an

alternative approach, where contingency monitoring

and decision-making functions are implemented on

top of the mission manager. Thus, procedures planned

by the contingency manager have priority over the

nominal mission. Whenever a contingency event is

raised, the mission manager works in a slave mode

and preempts the execution of the current procedure.

(Usach et al., 2017)

In the following, the functional requirements of

the components involved in behavior planning and ex-

ecution are deﬁned. Together, they achieve all contin-

gency management tasks presented in ﬁgure 4.

Figure 4: Tactical contingency management process cycle.

(Teomitzi and Schmidt, 2021).

3.3.1 Safety Monitor

The ﬁrst process in the hierarchy of contingency man-

agement monitors the system state, gathers trafﬁc data

and assesses the current situation of the automated

vehicle. It is responsible for maintaining operational

safety. Therefore, the safety monitor is the ﬁrst com-

ponent that becomes aware of an abnormal event that

affected the UAS thus it can be considered as the con-

tingency detector. It decides whether a situation must

be classiﬁed as operation critical or not. Furthermore,

it is in charge of scenario prioritization if multiple

critical events occur concurrently. (Usach et al., 2017)

The contingency manager observes the output of

the safety monitor and acts as a multiplexor that

launches the required contingency procedure. Con-

sequently, the safety monitor is superior to the contin-

gency manager. (Usach et al., 2017)

3.3.2 Contingency Manager

The contingency manager is providing the desired re-

action after a contingency scenario has been iden-

tiﬁed. A behavior plan is created according to the

current contingency state deﬁned by the safety mon-

itor. The operator has to explicitly connect a ﬁnite

number of generally feasible behaviors with certain

contingency states during design phase. If a critical

Automated Mission Management of Small Unmanned Aircraft Systems for Critical Events in Urban Air Trafﬁc

177

event occurs, the contingency manager automatically

chooses a designated counteracting behavior from the

associated, manually deﬁned catalog and launches its

execution. A behavior’s feasibility is dynamically

evaluated based on the current system capabilities and

characteristic execution requirements. (Usach et al.,

2017)

3.3.3 Mission Manager

The currently pursued mission is executed by the mis-

sion manager, which is a standalone behavior ex-

ecutor. This component also incorporates the 3TA.

The contingency manager may reuse mission man-

ager’s deliberate or reactive behaviors and access its

sequencing layer. If it has been decided that the oc-

curred contingency shall be handled by altering the

procedure executed by the mission manager, a new

mission may be loaded. Hence, the contingency man-

ager is able to override the nominal mission. Dur-

ing normal operation, the mission manager is the only

component that requests ﬂight control actions. (Usach

et al., 2017)

4 IMPLEMENTATION

The elaborated CMS assumes that fundamental ﬂight

tasks are already covered by a basic ﬂight stack and

corresponding interfaces are provided and externally

accessible. In other words, the system requires an in-

dependently acting control layer that manages essen-

tial low-level computations and introduces additional

processes that increase the vehicle’s behavioral com-

petencies. Moving forward, the widely used open-

source autopilot software stack PX4 is leveraged in

this regard (Lorenz Meier et al., 2024). For modeling

the involved decision-making processes, the behavior

tree paradigm is to be applied. Furthermore, the pop-

ular software package ROS2 (Macenski et al., 2022)

is used as a middleware for the real-time system.

4.1 Multilayered Actuation

Effectively, both mission management and contin-

gency handling are processes fully capable of dis-

playing a behavior by controlling the automated sys-

tem, so they are also referred to as “competences”

(Toal et al., 1995, 2). However, the vehicle’s actu-

ators must only be controlled by one instance at a

time. In the ﬁeld of robotics, this control problem

is solved by incorporating the so-called subsumption

architecture. Here, competences are represented by

horizontally arranged layers. Higher-level layers can

subsume the roles of lower levels by suppressing their

outputs at any given time. Lower levels therefore

implement fundamental functionality, whereas higher

levels add specialized competences to the control sys-

tem. (Brooks, 1986)

Figure 5 applies this architecture to achieve safe

automated UAS mission management. The lowest

level competence implements functionalities to se-

quentially execute ﬂight actions according to the mis-

sion plan. This level assumes an ideal operational en-

vironment and doesn’t account for critical events. Ad-

ditional competences revolving around contingency

management are added in higher levels. Specialized

tasks, each of them responsible for handling a spe-

ciﬁc contingency, are implemented above mission ex-

ecution. The higher the level of the contingency han-

dler, the higher its priority. Therefore, this architec-

ture queues the contingencies based on their priority

which was determined prior operation.

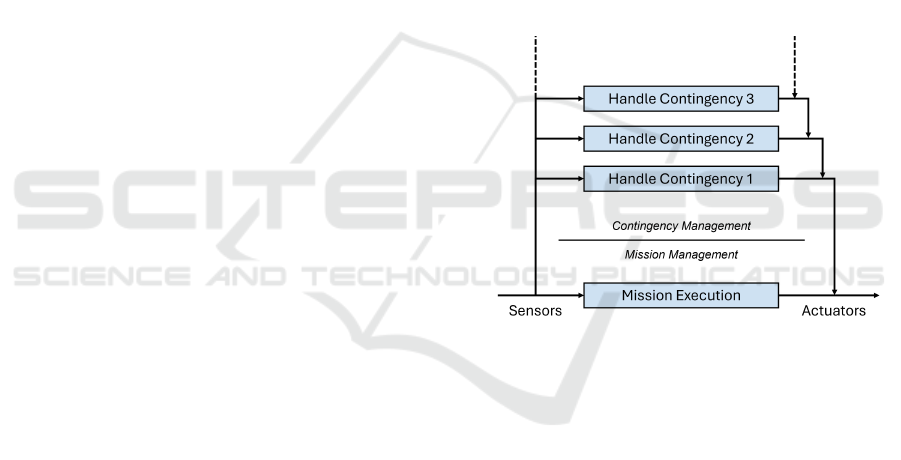

Figure 5: Control architecture for contingency handling.

Based on the subsumption architecture by Brooks et al.

(Brooks, 1986).

4.2 Behavior Modeling Using Trees

Ogren (

Ogren, 2012) and Kl

ockner (Kl

ockner, 2013)

already put behavior trees in context with UAS mis-

sion management. More speciﬁcally,

Ogren advo-

cates to employ BTs when performing ordered tasks

or applying the subsumption control architecture.

Consequently, it is sensible to adapt the tree modeling

paradigm for behavior development in this research.

Furthermore, the behavior-based approach allows

to separate behavior planning from vehicle control

concerns, since corresponding tasks are designed to

execute asynchronously according to the previously

mentioned client-server model. However, there may

also exist tasks with other purposes, which are not dis-

tributed by servers and execute synchronously. In be-

havior trees, the action node presents a model to what

is referred to as a task here: An Action performs some

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

178

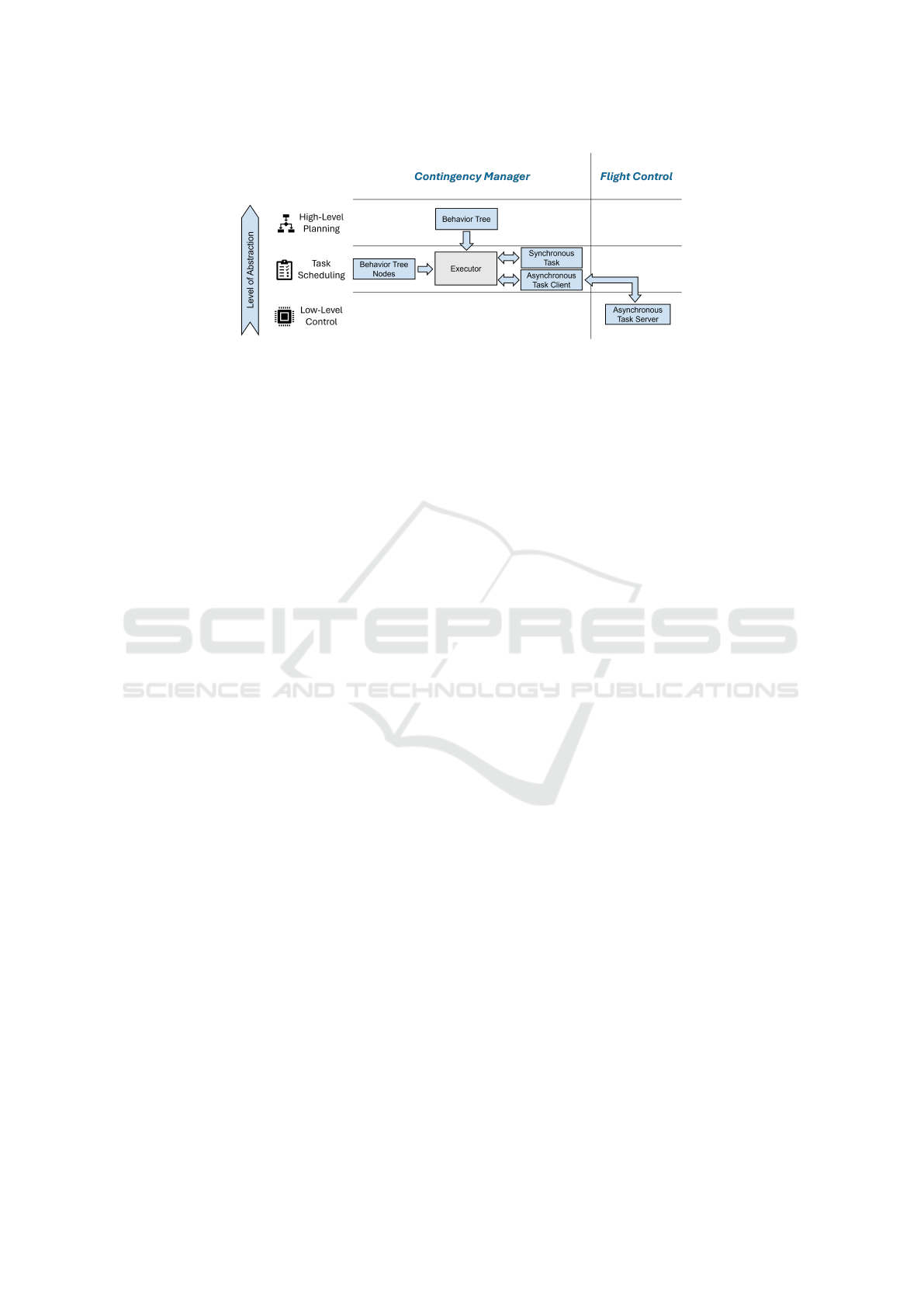

Figure 6: Levels of abstraction during behavior tree execution.

computation and returns Success if its objective has

been accomplished, Failure if a problem occurred or

Running if completion is under way (

Ogren, 2012, 4).

Therefore, a task may provide any kind of functional-

ity and is not limited to for example executing ﬂight

actions. Kl

ockner deﬁnes a task as “a self-contained

goal-directed behavior, which can be executed in or-

der to achieve a given goal” (Kl

ockner, 2013, 58).

Figure 6 divides different ﬁelds that are instru-

mental to the development of behaviors into three lev-

els of abstraction: High-level planning, task schedul-

ing and low-level control.

At the highest level of abstraction, the behavior

designer is concerned with appropriately organizing

tasks to achieve speciﬁc missions. During high-level

planning, the tasks themselves are exposed to the de-

signer by their functional interfaces. A task may be

conﬁgured by input parameters and pass information

to the client during and after execution.

Task clients are created during task scheduling.

At this level, the behavior is dictated by the imple-

mentation of the behavior tree nodes. Associated

literature discusses the following fundamental node

types: Action, Condition, Sequence and Selector. An

Action executes a computational task according to a

certain goal as described above. A Condition deter-

mines whether the current state corresponds to a cer-

tain statement. A Sequence executes all of its children

in a certain order, whereas a Selector only does so un-

til the ﬁrst one succeeds. A big variety of behaviors

can already be modeled with these four general types,

but the capabilities of the tree may be extended by em-

bedding custom logic in additional nodes. However,

domain speciﬁc programming knowledge is required

for this intend, which is why task scheduling provides

a lower level of abstraction than high-level planning.

(

Ogren, 2012)

The lowest level of abstraction in the execution of

the behavior tree is represented by low-level control

algorithms that are available to the system as services.

The algorithms read sensor data that is necessary for

accomplishing the goal of the corresponding task and

control the UAS’s actuators accordingly. Hence, the

sense and act steps during automatic control are ac-

counted for by the instances within this level. There

shall be no planning step at this level of abstraction,

effectively meaning that the reactive control architec-

ture applies for algorithms providing the control task

(Ankit Srivastava, 2019). Instead, planning is exe-

cuted at the highest level of abstraction by building a

well structured behavior tree.

5 EVALUATION

The capabilities of the created framework are demon-

strated in a simulated example mission. Execution of

the mission is displayed in Figure 7.

5.1 Scenario Description

The mission comprises two waypoints an intermedi-

ate landing and a ﬁnal landing and was implemented

as a behavior tree. It is also possible to create a mis-

sion in planning software like e.g. QGroundControl

and upload it to the mission manager. During execu-

tion of the mission, three different hazards will occur

and predeﬁned resolution strategies will be executed.

The ﬁrst threat is a loss of energy (LoE). A LoE oc-

curs when the system is running out of energy faster

than expected and successful mission completion is

in danger. To detect this hazard, the energy source

of the UAS must be monitored and associated with

the energy cost of the remaining tasks. The imple-

mented strategy “Battery critical” guides the UAS to

the nearest safe point, when the hazard is detected.

Since the nominal mission is to be resumed later, a

temporary mission to the recharge point is executed

independently from the mission manager. This mis-

sion is additionally designed to return to the position

where the contingency has been detected, as soon as

the energy level is restored. After the contingency is

Automated Mission Management of Small Unmanned Aircraft Systems for Critical Events in Urban Air Trafﬁc

179

resolved, vehicle control is given back to the mission

manager.

The second and third hazards are a loss of land-

ing location (LoLL). A LoLL occurs if a designated

landing site is not clear for landing. Various reso-

lution strategies are conceivable. If it is impossible

for the UAS to land due to malfunctioning infrastruc-

ture or a nearby incident, it probably is most effective

to skip this landing or determine an alternative land-

ing location. In that case, the landing site is consid-

ered permanently blocked. If the landing must be per-

formed at all costs or the landing site is just temporar-

ily blocked due to quick maintenance work or other

on-going processes, it’s feasible to wait for clearance.

During “Landing temporarily blocked”, a so-

called safe loiter maneuver is performed. This means

that the vehicle commands its actuators so that it holds

the current position. This character of the maneu-

ver depends on the type of the UAS. A multicopter

is able to stop and hover immediately, while a ﬁxed-

wing must circle around a given position.

If “Landing permanently blocked” applies, a new

location is to be approached for landing. Such a loca-

tion may be predeﬁned during the strategic phase of

operation or it is automatically determined just in time

when a LoLL contingency is detected. Afterwards,

a corresponding route is calculated and the nominal

mission is updated. Following the update, the cur-

rent mission segment has been expanded to include a

number of detour tasks to the now targeted alternative

landing site. In this procedure, the contingency man-

ager does not make use of ﬂight control. Instead, it

copes with LoLL by taking responsibility of planning

and setting up the mission manager, which is left in

charge of executing the diversion within a customized

nominal mission segment.

Each contingency scenario may arise at any point

in time and the original mission is not to be continued

until the abnormal situation is resolved. This poses

a complex challenge and requires the implemented

CMS to dynamically plan and safely execute the de-

sired behavior regardless the drone’s position within

the designated ﬂight zone or the progress of the mis-

sion. If multiple scenarios apply, it is required to pri-

oritize a procedure and dynamically react to changes

of the contingency state. To achieve that behavior,

speciﬁc priorities are assigned to each of the incorpo-

rated contingency states regarding scenario identiﬁ-

cation and procedure execution. The prioritization of

the considered contingencies are summarized in table

Table 1: Prioritization of the contingencies applied during

simulation.

Contingency name Priority level

Battery critical High

Landing permanently blocked Medium

Landing temporarily blocked Low

5.2 Simulation

The ﬁrst time, the drone detects that the landing site

at “Stop1” is temporarily blocked when this waypoint

is reached and holds the position. Realistically, the

battery level decreases in that period and it is simu-

lated that a critical state is reached eventually. Figure

7 shows that the UAS diverts to the recharge point

as intended. On the way back, the landing site is

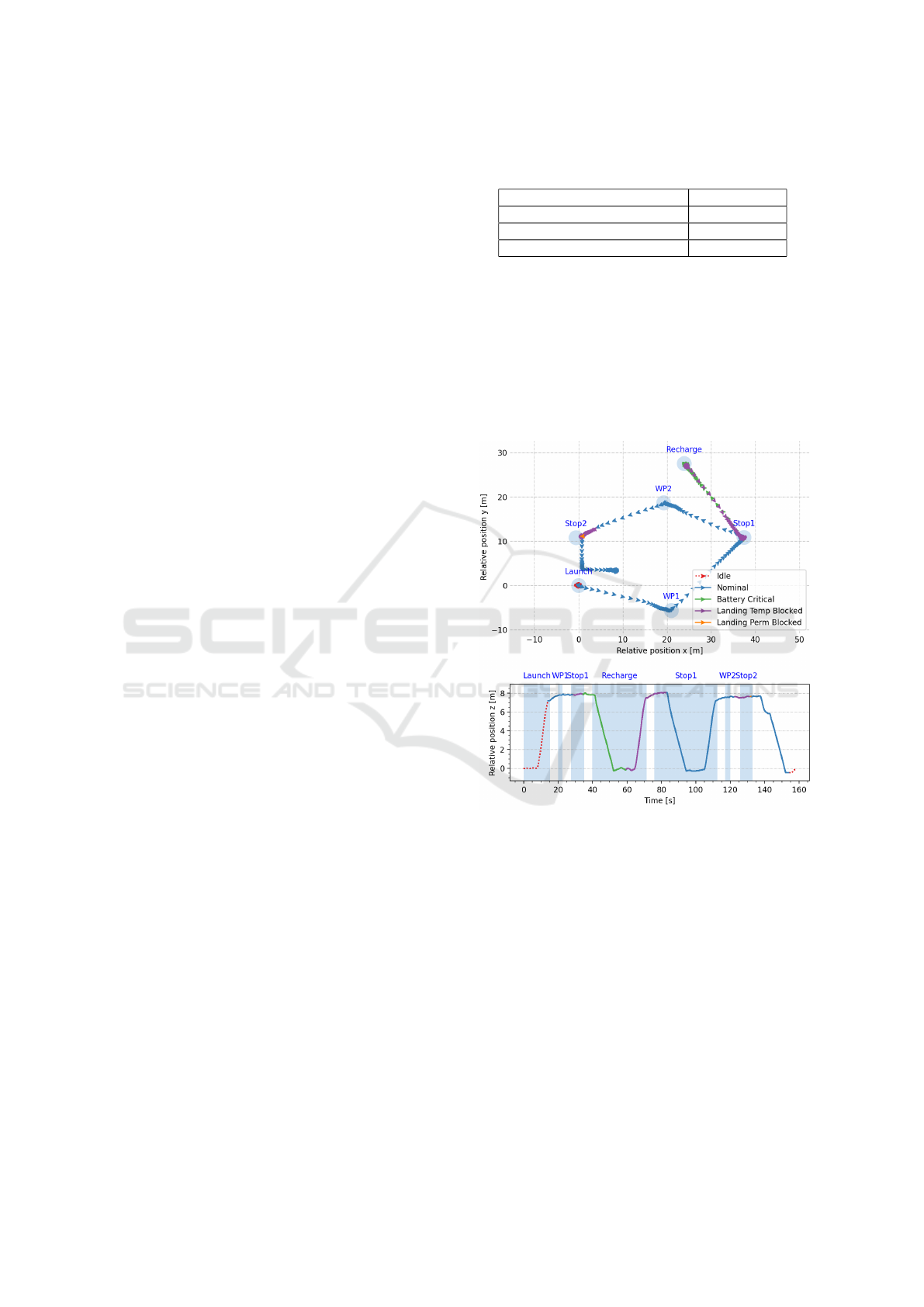

Figure 7: Flight operations involving multiple contingen-

cies.

again recognized to be temporarily blocked and the

battery contingency handler guides the vehicle back

to the original position where it will continue to wait

for clearance. The other situation occurs around way-

point “Stop2”. In the process of approaching the sec-

ond landing location, its status changes to be tem-

porarily unavailable, so the drone stops one more time

and waits for further action. However, this time the

status of the landing site changes to be permanently

blocked in the mean time which requires the system

to land at an alternate location. The mission manager

is updated accordingly and the ﬂight continues target-

ing a new destination. Finally, the vehicle lands at the

dynamically calculated coordinates and the operation

completes successfully.

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

180

6 CONCLUSION

This work contributes to enabling certiﬁable and

therefore economically viable applications for the

European drone sector. The software architecture

of the de facto autopilot standard, the open-source

PX4 ﬂight stack, is extended to incorporate contin-

gency management for UAS. Essentially, two addi-

tional abstraction levels which are based on the be-

havior tree paradigm are introduced to the existing

automatic control pipeline: High-level planning and

task scheduling. They are build on top of the default

functions for controlling the vehicle’s movement pro-

vided by PX4 and utilize them to offer a convenient

interface for designing ﬂight behaviors.

The simulation results validate the functionality of

the implemented features and prove the applica-

bility of the created framework. The software

of the framework is available online (https://robin-

mueller.github.io/auto-apms-guide/) and can be used

in simulation or on a real drone. Flight tests are cur-

rently conducted and the results will be published on

the web page.

It is envisaged that the contingency manager is

supplied with a catalog of various behaviors that are

speciﬁcally intended for the purpose deﬁned by a par-

ticular resolution strategy. Instead of selecting feasi-

ble contingency procedures deterministically, further

research could address the development of algorithms

that dynamically evaluate the success probability of

all behaviors from the catalog and optimize the safety

maneuver intelligently while still being certiﬁable by

an authority (Colledanchise et al., 2014).

ACKNOWLEDGEMENTS

This work has been funded by the LOEWE initia-

tive (Hesse, Germany) within the emergenCITY cen-

ter [LOEWE/1/12/519/03/05.001(0016)/72].

REFERENCES

Adolf, F. and Thielecke, F. (2007). A sequence control sys-

tem for onboard mission management of an unmanned

helicopter. In AIAA Infotech@Aerospace 2007 Con-

ference and Exhibit, Reston, Virginia. American Insti-

tute of Aeronautics and Astronautics.

Ankit Srivastava (2019). Sense-plan-act in robotic applica-

tions.

Brooks, R. (1986). A robust layered control system for a

mobile robot. IEEE Journal on Robotics and Automa-

tion, 2(1):14–23.

Colledanchise, M., Marzinotto, A., and Ogren, P. (2014).

Performance analysis of stochastic behavior trees. In

2014 IEEE International Conference on Robotics and

Automation (ICRA), pages 3265–3272. IEEE.

Federal Ministry of Transport and Digital Infrastructure

(2020). Unmanned aircraft systems and innovative

aviation strategies: The federal government’s action

plan. PDF ﬁle.

JARUS (2017). Jarus guidelines on speciﬁc operations risk

assessment (sora).

ockner, A. (2013). Behavior trees for uav mission

management. In Horbach, M., editor, Informatik

2013 - Informatik angepasst an Mensch, Organisation

und Umwelt, GI Edition Proceedings, pages 57–68.

Gesellschaft f

ur Informatik, Bonn.

Lorenz Meier, Daniel Agar, Beat K

ung, Julian Oes, Thomas

Gubler, Matthias Grob, Paul Riseborough, Roman

Bapst, Anton Babushkin, David Sidrane, Mathieu

Bresciani, px4dev, Silvan Fuhrer, Mark Charlebois,

James Goppert, Nuno Marques, Andreas Daniel An-

tener, Dennis Mannhart, PX4 Build Bot, kritz, Mark

Whitehorn, Kabir Mohammed, Jaeyoung Lim, Si-

mon Wilks, Mark Sauder, Peter van der Perk, Pavel

Kirienko, Sander Smeets, Martina Rivizzigno, and

Hamish Willee (2024). Px4/px4-autopilot: v1.15.0

beta 1.

Macenski, S., Foote, T., Gerkey, B., Lalancette, C., and

Woodall, W. (2022). Robot operating system 2: De-

sign, architecture, and uses in the wild. Science

robotics, 7(66):eabm6074.

Ogren, P. (2012). Increasing modularity of uav control sys-

tems using computer game behavior trees. In AIAA

Guidance, Navigation, and Control Conference, Re-

ston, Virigina. American Institute of Aeronautics and

Astronautics.

Pinqui

e, R., Romero, V., and Noel, F. (2022). Survey of

model-based design reviews: Practices & challenges?

Proceedings of the Design Society, 2:1945–1954.

Teomitzi, H. E. and Schmidt, J. R. (2021). Concept and re-

quirements for an integrated contingency management

framework in uas missions. In 2021 IEEE Aerospace

Conference (50100), pages 1–17, Big Sky, MT, USA.

IEEE.

Toal, D., Flanagan, C., Jones, C., and Strunz, B. (1995).

Subsumption architecture for the control of robots.

Proceedings Polymodel-16.

Usach, H., Torens, C., Adolf, F., and Vila, J. (2017). Ar-

chitectural considerations towards automated contin-

gency management for unmanned aircraft. In AIAA

Information Systems-AIAA Infotech @ Aerospace, Re-

ston, Virginia. American Institute of Aeronautics and

Astronautics.

Automated Mission Management of Small Unmanned Aircraft Systems for Critical Events in Urban Air Trafﬁc

181
