An Approach for Automatic Bidirectional Mapping Between Data

Models and RDF-S

Aissam Belghiat

LaRIA Laboratory, University of Jijel, 18000 Jijel, Algeria

Keywords: RDF, RDF-S, UML, MDA, Transformation.

Abstract: RDF and RDF-S are the normative language for describing web resource information in the context of the

Semantic Web. Constructing RDF-S from scratch is a painful task, and deriving them from existing data

sources became an important research problem. Furthermore, updating and evolving established RDF-S

documents is another problem which must be taken into account. UML is widely applied to data modeling in

many application domains. Building RDF-S from existing UML models is a promising technique that will

facilitate elaboration of RDF-S models. Moreover, mapping RDF-S to UML will allow their intuitive updating.

Thus, this work proposes an approach for mapping UML to RDF-S and RDF-S to UML. The translation

makes the data modeled in UML class diagrams available for the Semantic Web and vice versa. The aim is

facilitating building and evolving RDF-S documents using UML and vice versa.

1 INTRODUCTION

In the last decade, the Semantic Web has made giant

steps to become a reality. It is an extension of the

current World Wide Web by making the information

available in it treatable by the machine. The aim is to

constitute an environment in which data could be

shared and reused across application, enterprise, and

community boundaries. The W3C (World Wide Web

Consortium) (W3C, 2004), which is the organization

in charge of evolution of Semantic Web, has proposed

many recommendations to promote common data

formats and exchange protocols on the Web,

fundamentally the RDF (Resource Description

Framework) (W3C, 2014a) and the RDF-S (RDF

Schema) (W3C, 2014b). In fact, RDF and RDF-S are

the normative language recommended by the W3C to

describe the Web resource information and their

semantics.

RDF-S in a key language in Semantic Web. It is

used to annotate web resources in order to enable their

access by machines. In spite of its adoption and its

growing acceptance, RDF-S remains a new

technology that most information resources still did

not make their mapping to this new technology for

different reasons. Actually, building RDF-S from

scratch is a quite hard task. Therefore, how to build

https://orcid.org/0000-0002-5968-609X

RDF-S from existing information resources is still a

research problem. The conceptual diagrams for a

specific domain, developed in the context of software

development, constitute an important and useful

source of information for RDF-S documents.

UML (Unified Modeling Language) (OMG,

2017) should help in this direction. It is a standardized

language for visualizing, specifying, building and

documenting all the aspects and artifacts of a software

system. It could give effective solutions by allowing

already existing resources modeled in this language

to be reachables by transforming their data models

represented in Class Diagrams to RDF-S. The MDA

(Model Driven Architecture) (OMG, 2014) states

how to do such transformation.

We intentionally do such mapping due to the

observed convergence between the two formalisms,

as already discussed in sources such as (Chang,

1998). In fact, UML and RDF-S comprise some

components which are similar in several aspects, such

as: classes, associations, properties, packages, types,

and instances although their different aims.

This paper aims at providing an approach to

simplify the development of RDF-S files by

transforming UML models to RDF-S and vice versa.

Mapping UML to RDF-S allows avoiding

building from scratch and takes advantage of the

258

Belghiat, A.

An Approach for Automatic Bidirectional Mapping Between Data Models and RDF-S.

DOI: 10.5220/0012952700003825

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Conference on Web Information Systems and Technologies (WEBIST 2024), pages 258-265

ISBN: 978-989-758-718-4; ISSN: 2184-3252

flexibility and clarity of UML models to simplify the

task. The inverse operation, i.e. from RDF-S to UML,

allows getting updating and evolving existing RDF-S

models easily by making the changes on graphical

and intuitive UML models and return back to RDF-S.

The rest of the paper is organized as follows. In

Section 2, related works are presented. In Section 3,

some preliminaries are exposed. In Section 4, the

proposed approach is explained. Section 5 presents an

example to understand the approach. Section 6

finishes the paper and gives some perspectives.

2 RELATED WORK

Many approaches have been proposed to build RDF-

S from data sources.

Since the relational model for databases is

employed widely for storing, treating and retrieving

data in almost all domains, there were multiple

attempts to make a bridge to RDF-S documents. In

(Korotkiy and Top, 2004) the authors have proposed

an approach for converting and integrating of

relational-style information resources into RDF-S-

aware systems. In (Krishna, 2006), The author made

a semantic retaining mapping of relational databases

to RDF. In (Sequeda et al., 2012), relational

databases with their integrity constraints are directly

mapped to RDF and OWL with information and

query preservation. In (Mallede, 2013), the authors

have presented algorithms to map entirety relational

databases by adopting a methodology that not only

map the data but also the domain specific knowledge.

In (Michel, 2013), a detailed review of seventeen

RDB-to-RDF translations has done, considering the

projects that developed operational tools. Other less

spread databases, such as object-oriented databases,

are also used to automatically construct RDF-S as in

(Shan et al., 2023), which presented formal mapping

rules and a tool named OODB2RDF to validate the

method. Also, (Tong, 2018) did the same work by

carrying more thorough correspondences.

Other approaches tried to take advantage of the

widespread adopting of XML in representing web

documents and transform them to RDF-S in order to

allow their semantic annotation. In (Klein, 2002), a

procedure for translating XML documents into RDF

statements via an RDF-S specification is presented to

permit semantic annotation of XML documents via

external RDF schema ontologies. In (Thuy et al.,

2007), the authors present another procedure for

transforming valid XML documents into RDF by

using RDF schema vocabularies, the integrity of the

structure and meaning of the original XML

documents while transforming are ensured. In

(Kumar and Babu, 2013), the authors give a study of

RDF characteristic, then they proposed an approach

for constructing RDF models from well formatted

valid XML document. In (Riaz et al., 2019), a method

is proposed for generating RDF metadata from legacy

software models by transforming UML models into

RDF triples through XML parsing.

Other approaches could be recalled such as in

(Amato et al., 2008), where the authors made an

approach to build RDF from semi-structured legal

documents. Also, in (Han et al., 2008) where the

authors presented the rules of constructing RDF from

spreadsheets.

Regarding establish correspondences between the

UML and the Semantic Web, multiple studies have

been done trying to make the bridge between them as

in (Cranefield, 2001) (Baclawski, 2001) (Guizzardi,

2004), while the mapping between UML and RDF-S

was done in (Chang, 1998), (Cranefield, 2000), (Kim,

2005), (Belghiat and Bourahla, 2012), (Tong et al.,

2014), and (Lieber et al., 2022).

The main contribution of our approach in

comparison with the previous presented works is that

it enables the automatic mapping from UML to RDF-

S and also the inverse translation, i.e. from RDF-S to

UML.

3 PRELIMINARIES

3.1 UML Class Diagram

The class diagram models the internal structure of a

system. It allows showing the entities of a system and

their relations. A Class diagram is essentially

composed of classes and relations. A class is used to

represent the entities of a system. It uses attributes to

represent data and operations to represent treatments.

A relation is used to represent a link between two

classes. It can be: an association, a dependence, an

inheritance, or a class association.

Nowadays, Class diagrams are becoming quite

important and unavoidable in data modeling in many

application domains. Actually, they are used in an

application domain to describe the static structure of

its information.

3.2 RDF-S

RDF-S (Resource Description Framework Schema)

(W3C, 2014b) is an extension of the RDF vocabulary

(W3C, 2014a) that provides a data-modeling

vocabulary for RDF data. Both formalisms are

An Approach for Automatic Bidirectional Mapping Between Data Models and RDF-S

259

normative languages and they are used to describe the

web resource information. RDF-S is composed

essentially of classes and properties intended to

structure RDF resources which are saved in a triple

store to reach them later with the query language

SPARQL (W3C, 2013). A class denoted “rdfs:Class”

is used to represent groups of resources, and a

member of a class is known as an instance of the class.

The classes are themselves resources, and they are

described using RDF properties. There is a difference

between a class and the set of its instances, named the

class extension. In fact, two different classes may

have the same set of instances. Properties are

instances of the class “rdf:Property”, they describe a

relation between subject resources denoted by

“rdfs:domain” and object resources denoted by

“rdfs:range”.

3.3 MDA and Tree Transformation

MDA consists of using models in all phases of

development and proceeding to their refinements and

enrichments by successive transformations. This

latter can be defined by a set of rules that allows

passing from a high abstract model (meta-model) to

another, by defining for each source elements their

equivalents among the target elements. Tree

transformation is a very common used technique to

realize Model transformations.

Tree transformation is usually based on XML

documents, where the information contained in an

XML type document is structured in a tree-like

manner. Thus, the XML transformation, in other

words the transition from one XML type document to

another, is actually an operation that transforms a tree

into another tree structure. It consists of using XSLT

(W3C, 2017a) or XQuery (W3C, 2017b) to do the

transformation. The original document is called the

source document, while the document resulting from

the transformation is called the target document as

indicated in Fig. 1.

Figure 1: XML tree transformation.

3.3.1 XMI

XMI (XML Metadata Interchange) (OMG, 2015) is

an OMG standard for model representation created to

define a way to represent a model as an XML

document in order to exchange these models between

modeling tools. Since most models are graphical and

abstract entities, OMG has decided to standardize

XMI to provide a concrete representation for models.

3.3.2 XSLT

XSLT (eXtensible Stylesheet Language for

Transformations) (W3C, 2017a) is a language that

allows the transformation of XML documents. The

transformation consists of either a modification of an

XML and save the changes, or a transformation into

another type of documents (e.g. HTML and PDF).

In our case, we use XSLT for transforming a XMI

file that represents the source model, to another XML

file that represents the target model. The source

model is the Class diagram while the target model is

the RDF-S document. The Papyrus (Lanusse et al.,

2009) editor is used to edit UML Class diagrams and

derives their corresponding XMI file. Papyrus uses a

light format of XMI named “.uml”.

4 THE APPROACH

In our approach, we build rules for the transformation

of a class diagram to an RDF-S model and vice versa.

For the implementation of these rules we develop a

XSL style sheet that translates a serialized class

diagram into an RDF-S model described in XML.

This transformation is done by an automatic

generation of the RDF-S file represented in

RDF/XML format from an UML class diagram edited

in Papyrus. This solution is implemented in Eclipse

(Eclipse, 2004), it takes place in several steps (see

Fig.2):

Figure 2: Architecture of the mapping UML, RDF-S.

•

Graphical description of class diagrams in

Papyrus using a file “.umldi”.

Class

diagrams

Papyrus

XMI

XSLT

RDF-S

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

260

• Saving class diagram: it is automatically

saved in two files “.umldi” and “.uml”.

• Using an XSLT processor, we apply an

XSL style sheet (UMLtordfs.xsl) on the file

“.uml” to transform it into an RDF-S file

represented in RDF/XML.

4.1 The Transformation Rules

UML and RDF-S both are modeling languages where

UML is used for object modeling and the RDF-S is

used for knowledge representation. By quick

observation of these two languages one can note the

existence of a certain number of common notions

between Class diagram and RDF-S: classes, relations,

properties, etc. Nevertheless, there are several

significant differences between these concepts.

We present here in Table 1, in a general way, the

correspondences between UML class diagrams and

RDF-S models.

Table 1: Class diagrams and RDF-S correspondances.

Class Dia

ram RDF-S

Package Resource

Class Class

Class, Abstract class,

Interface

Class

Inheritance Sub-class

Attribute Propert

Dependenc

, Realization Propert

Association, Propert

Association,

Aggregation,

Composition

Property

Role Sub-

ropert

4.2 The Proposed XSL Style Sheet

To succeed transforming each class diagram edited in

the UML editor of Papyrus to RDF-S, we propose an

XSL style sheet composed of a number of templates.

It should be noted that a template can contain several

transformations and we present only templates related

immediately to the transformation rules (we do not

present the templates that help to realize the

transformation rules). We take extracts from them:

Template 1: Package Transformation

Name: get_package

Role: This Template (see Fig.3) allows you to

transform a package into an <rdfs: resource>

element. The name of the resource is the name

of the package, and the template takes that

name from the name of the diagram package.

Figure 3: Template for the package transformation.

Template 2 : Classes, Interfaces and Generalizations

Transformation

Name: get_class

Role: This Template (see Fig.4) is used to

transform a class from the class diagram to an

RDF-S class. This class takes its name from the

class of the source diagram. In this Template,

we check if this class is: a specialization of

another class, connected by an association,

connected by a class-association, or realizes an

interface. If so, we proceed to treatments

according to the transformation rules. The

excerpt below shows the transformation of the

class, interface and inheritance. This

transformation is carried out by browsing the

path of the source tree and generating the

appropriate RDF-S code.

Figure 4: Template for class treatment.

Template 3: Transformation of Attributs

Name: get_attribute

Role: This Template (see Fig.5) is used to

transform an attribute of a class in the class

diagram to an RDF-S property. This property

takes the name of the class concatenated with

the name of the attribute. The domain and the

image are respectively defined from the class

to the type of the attribute. The code excerpt

below shows the transformation of the attribute

An Approach for Automatic Bidirectional Mapping Between Data Models and RDF-S

261

in case the attribute type is a primitive type; the

choice of the RDF-S data type is done by

calling the template "choice_datatype" which

returns us the adequate data type.

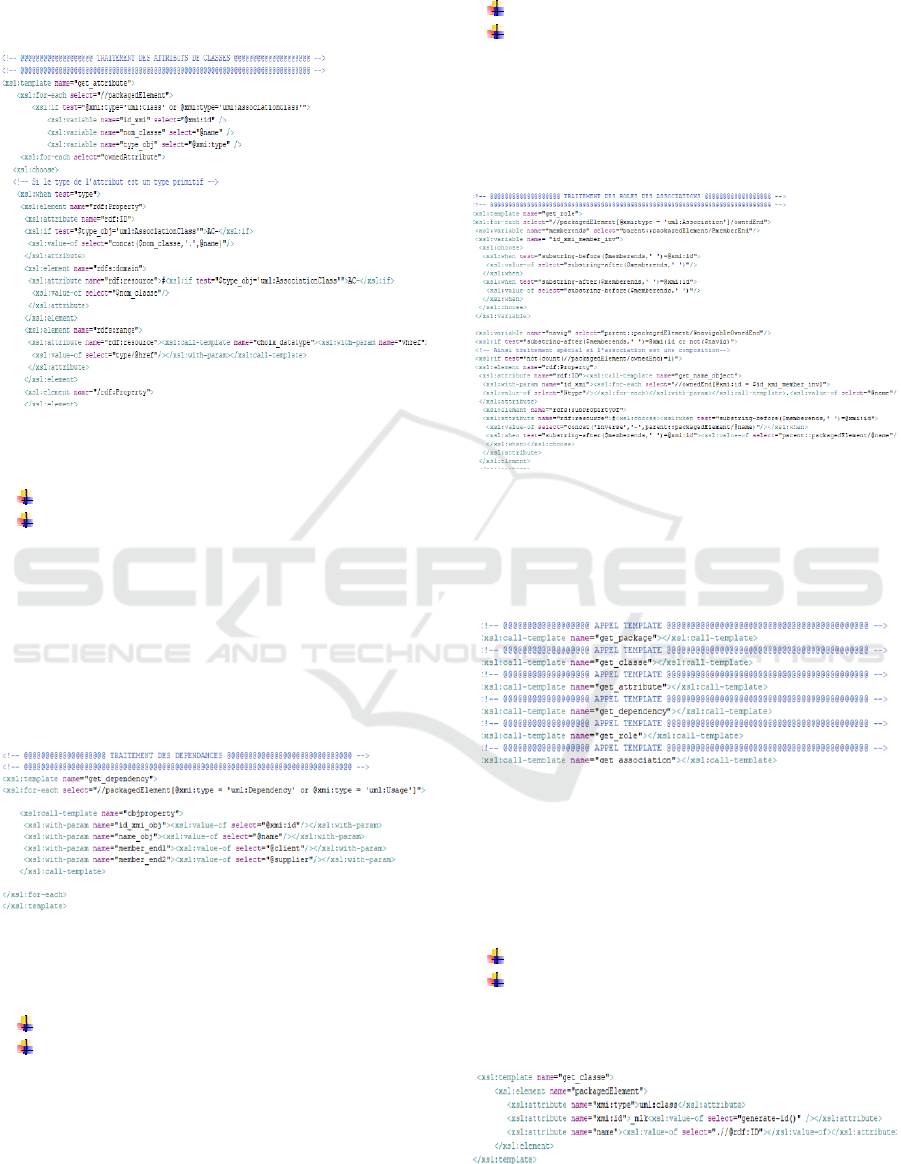

Figure 5: Template for the transformation of attributes.

Template 4: Transformation of dependances

Name: get_dependency

Role: This template (see Fig.6) transforms a

class diagram dependency relationship to an

RDF-S property. This property takes the name

'DependencyN', 'UseN', where N is the

sequential number of the dependency, the

realization, or the use relationship. The domain

and the image are defined according to the

direction of the dependency. The piece of code

below shows browsing the source diagram to

get dependences and transforming them.

Figure 6: Transformation of dependences.

Template 5: Transformation of Associations,

Aggregations, Compositions

Name: get_association

Role: This Template (see Fig.7) allows

transforming an association, an aggregation, or

a composition of the class diagram to an RDF-

S property. The transformations are performed

according to the transformation rules defined

previously. This object property takes as its

name the name of the diagram association.

Template 6: Transformation of Association’s

Roles

Name: get_role

Role: This template (see Fig.7) allows

transforming a role of an association of the

class diagram to an RDF-S property. It defines

at the same time that property as a sub-property

of the association property. Thus the code

below shows browsing the source diagram and

generating the properties when finding roles.

Figure 7: transformation of roles.

Main Template: Call to Templates

We used the templates as functions and we call them

as shown in Fig.8:

Figure 8: call to templates.

Inverse Transformation

The inverse translation, i.e. from RDF-S to UML is

done according to the same rules but in the inverse

direction.

Template 1: Transformation of the RDF-S class

Name: get_classe

Role: This template (see Fig.9) allows

transforming an RDF-S class to a UML class.

The name of the UML class is obtained from

the name of the class RDF-S.

Figure 9: Transformation of a class RDF-S to XMI.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

262

5 CASE STUDY

To demonstrate how our proposed approach is used

for automatic bidirectional mapping between UML

Class Diagrams and RDF-S models, we provide a

case study about transforming a Course Management

System of a university. The latter illustrates the

effectiveness of our approach.

An IT department of a university needs to

transform their existing UML-based course

management system into an RDF-S model to

integrate with the Semantic Web for better data

sharing and reuse. Additionally, any updates made in

the RDF-S model should be easily incorporated in the

source UML diagrams.

5.1 UML Class Diagram

The course management system of the university is

already modeled using UML Class Diagrams, as we

suppose that the conceptual design of this system is

made by UML. Fig.10 shows a simplified version of

the class diagram. It mainly includes the following

elements:

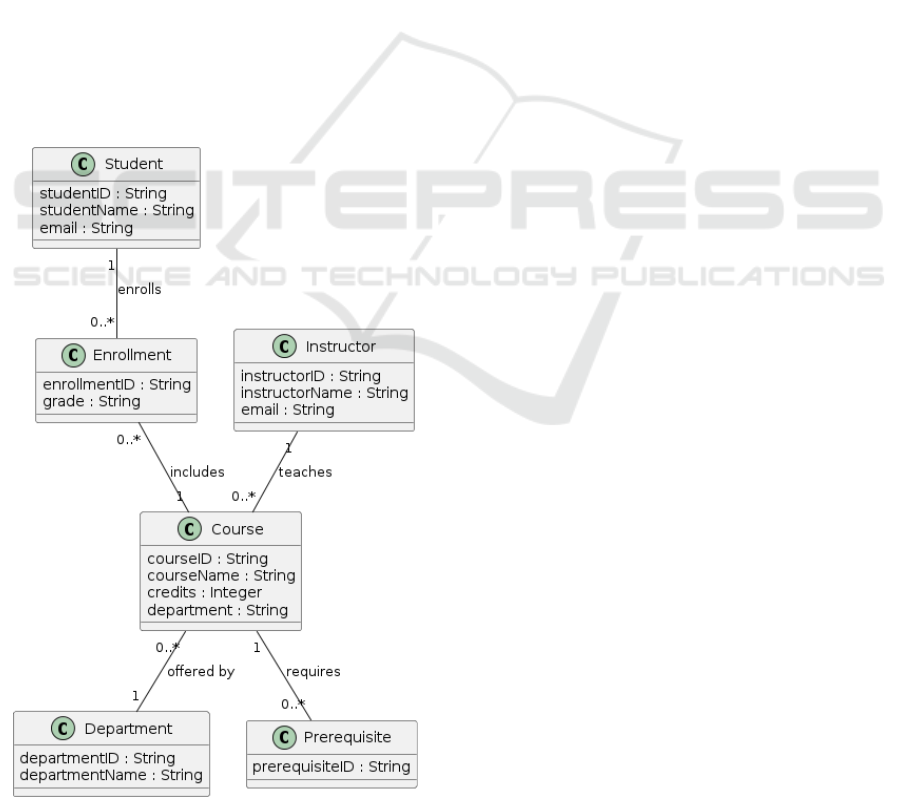

Figure 10: UML class diagram of the system.

• Course: Represents a course provided by

the university. Attributes include courseID,

courseName, credits, and department.

• Student: Represents a student enrolled at

the university. Attributes include studentID,

studentName, and email.

• Enrollment: Represents the enrollment of

a student in a course. Attributes include

enrollmentID and grade.

• Instructor: Represents an instructor

teaching a course. Attributes include

instructorID, instructorName, and email.

• Department: Represents a department

within the university. Attributes include

departmentID and departmentName.

• Prerequisite: Represents a prerequisite

relationship between courses. Attributes

include prerequisiteID.

5.2 Transformation to RDF-S

Using our approach, the UML class diagram is

transformed into an RDF-S model. The

transformation rules defined in XSLT stylesheet are

applied to the UML class diagram saved as an XMI

file. The tool EasyRdf (EasyRdf, 2012). is used to

validate the derived RDF-S file. The full resulting

RDF-S model (in RDF/XML format) is available at

the open repository DOI: 10.5281/zenodo.13850481.

1. Course Class Transformation:

o UML Class: Course

o RDF-S Class: <rdfs:Class rdf:ID="Course">

o Attributes: Transformed into RDF properties.

2. Student Class Transformation:

o UML Class: Student

o RDF-S Class: <rdfs:Class rdf:ID="Student">

o Attributes: Transformed into RDF properties.

3. Enrollment Class Transformation:

o UML Class: Enrollment

o RDF-S Class: <rdfs:Class rdf:ID="Enrollment">

o Attributes and relationships: Transformed into

RDF properties.

4. Instructor Class Transformation:

o UML Class: Instructor

o RDF-S Class: <rdfs:Class rdf:ID="Instructor">

o Attributes: Transformed into RDF properties.

5. Department Class Transformation:

o UML Class: Department

o RDF-S Class: <rdfs:Class rdf:ID="Department">

o Attributes: Transformed into RDF properties.

6. Prerequisite Class Transformation:

o UML Class: Prerequisite

o RDF-S Class: <rdfs:Class rdf:ID="Prerequisite">

An Approach for Automatic Bidirectional Mapping Between Data Models and RDF-S

263

o Attributes: Transformed into RDF properties.

Recently, the university has become a member of

a consortium of institutions that share course

information using Semantic Web technologies.

Consequently, the course management system needs

to maintain both UML class diagrams for internal

development and RDF-S models for interoperability

with external systems.

The head of the consortium curriculum committee

is responsible for updating the course information to

include the most recent curriculum changes. They

collaborate with the IT departments to guarantee

these updates are accurately represented in the

system.

They have the need to add a new attribute

semester to the "Course" class to indicate the

semester in which a course is delivered. This change

is essential for curriculum planning and student

scheduling. Thus, they update the RDF-S model with

the new semester attribute using a web-based

ontology editor, which the curriculum committee

utilizes to manage the shared course data.

Using our approach, the IT department can

guarantee that the UML class diagram, used for

internal development, received this new attribute

which preserve consistency between the RDF-S

model and the UML diagrams.

The new updated RDF-S is changed by adding the

property "semester" as follows:

1. Course Class Transformation:

o UML Class: Course

o RDF-S Class: <rdfs:Class rdf:ID="Course">

o Attributes: <rdf:Property rdf:ID="courseID">

<rdf:Property rdf:ID="courseName">

<rdf:Property rdf:ID="credits">

<rdf:Property rdf:ID="semester">

The updating RDF-S model (in RDF/XML

format) is available at the open repository

DOI: 10.5281/zenodo.13850481.

To reflect this change in the UML class diagram

using our approach, the RDF-S model is parsed and

the corresponding UML class diagram in XMI format

is updated to include the "semester" attribute. The

detailed of the XMI file is available at the open

repository DOI: 10.5281/zenodo.13850481.

This scenario illustrates the constant need for

bidirectional transformation between UML and RDF-

S. When domain experts like the head of consortium

curriculum committee make updates to the RDF-S

model, these changes must be reflected back in the

UML class diagrams to ensure consistency across the

system. This bidirectional capability guarantees that

both the internal design documents and the shared

semantic models remain aligned, facilitating accurate

system development, maintenance, and

interoperability.

6 CONCLUSION

We have presented in this paper an approach for the

automatic bidirectional mapping between UML Class

Diagrams and RDF-S models. The construction of

RDF-S documents is based on the annotation of

business models expressed in UML class diagrams,

and the inverse transformation is devoted to enable

updating existing RDF-S file to allow their evolution.

To do so, we have used a style sheet for transforming

UML models, expressed in XMI, to RDF-S

documents represented in RDF/XML and vice versa.

Eclipse's Papyrus UML editor is used to describe

UML class diagrams and generates their XMI files,

and the XSLT processor is used to process the written

style sheet in order to perform the transformation.

In future work, we plan to add other advanced

elements of UML Class diagrams to the framework.

This will provide rich models that meet the needs of

users. We intend also to add other diagrams that could

offer other information to the tool.

REFERENCES

Amato, F., Mazzeo, A., Penta, A., & Picariello, A. (2008).

Building RDF Ontologies from Semi-Structured Legal

Documents. In Proceedings of the International

Conference on Complex, Intelligent and Software

Intensive Systems (pp. 997-1002).

Baclawski, K., Kolar, M., Kogut, P., et al. (2001).

Extending UML to support ontology engineering for

the Semantic Web. In Proceedings of the Fourth

International Conference on UML (pp. 342-360).

Belghiat, A., & Bourahla, M. (2012, March). Transformation

of UML models towards OWL ontologies. In 2012 6th

International Conference on Sciences of Electronics,

Technologies of Information and Telecommunications

(SETIT) (pp. 840-846). IEEE.

Belghiat, A., & Bourahla, M. (2012). An approach based

AToM3 for the generation of OWL ontologies from

UML diagrams. International journal of computer

applications, 41(3).

Belghiat, A., & Bourahla, M. (2012). From UML Class

Diagrams to OWL Ontologies: A Graph Transformation

Based Approach. In ICWIT (pp. 330-335).

Chang, W. W. (1998). A Discussion of the Relationship

Between RDF-Schema and UML. Retrieved from

http://www.w3.org/TR/NOTE-rdf-uml/

Cranefield, S., Haustein, S., & Purvis, M. (2000). UML

Based Ontology Modeling for Software Agents. In

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

264

Proceedings of the Ontologies in Agent Systems

Workshop (pp. 21-28).

Cranefield, S. (2001). UML and the Semantic Web. In

Proceedings of the first Semantic Web Working

Symposium (pp. 113-130).

EasyRdf. (2012). http://www.easyrdf.org/

Eclipse Foundation. (2004). https://www.eclipse.org/

Guizzardi, G., Wagner, G., & Herre, H. (2004). On the

Foundations of UML as an Ontology Representation

Language. In Proceedings of the 14th International

Conference Engineering Knowledge in the Age of the

Semantic Web (pp. 47-62).

Han, L., Finin, T. W., Parr, C. S., Sachs, J., & Joshi, A.

(2008). RDF123: From spreadsheets to RDF. In

Proceedings of the 7th International Semantic Web

Conference (pp. 451-466).

Kim, J. S., Yoo, C. S., Lee, M. K., & Kim, Y. S. (2005).

Object Modeling of RDF Schema for Converting UML

Class Diagram. In Proceedings of the International

Conference on Computational Science and Its

Applications (pp. 31-41).

Klein, M. C. A. (2002). Interpreting XML Documents via

an RDF Schema Ontology. In Proceedings of the 13th

Database and Expert Systems Applications (pp. 889-

894).

Korotkiy, M., & Top, J. L. (2004). From Relational Data to

RDFS Models. In Proceedings of the 4th International

Conference on Web Engineering (pp. 430-434).

Krishna, M. (2006). Retaining Semantics in Relational

Databases by mapping them to RDF. In Proceedings of

the 2006 IEEE/WIC/ACM International Conference on

Web Intelligence and Intelligent Agent Technology

(pp. 303-306).

Kumar, B. H., & Babu, M. S. P. (2013). Study and

Constructing RDF model for a well formatted Valid

XML document. International Journal on Computer

Science and Engineering, 5(7), 648-652.

Lanusse, A., Tanguy, Y., Espinoza, H., Mraidha, C.,

Gerard, S., Tessier, P., ... & Terrier, F. (2009). Papyrus

UML: an open source toolset for MDA. In Proc. of the

Fifth European Conference on Model-Driven

Architecture Foundations and Applications (ECMDA-

FA 2009).

Lieber, S., De Meester, B., Heyvaert, P., Brückmann, F.,

Wambacq, R., Mannens, E., ... & Dimou, A. (2022).

Visual notations for viewing RDF constraints with

UnSHACLed. Semantic Web, 13(5), 757-792.

Mallede, W. Y., Marir, F., & Vassilev, V. T. (2013).

Algorithms for mapping RDB Schema to RDF for

Facilitating Access to Deep Web. In Proceedings of the

First International Conference on Building and

Exploring Web Based Environments (pp. 32-41).

Michel, F., Montagnat, J., & Faron Zucker, C. (2013). A

survey of RDB to RDF translation approaches and

tools. Report, 1-24.

OMG. (2014). Model Driven Architecture (MDA).

https://www.omg.org/mda/

OMG. (2015). XML Metadata Interchange (XMI).

https://www.omg.org/spec/XMI/About-XMI/

OMG. (2017). Unified Modeling Language (UML),

Superstructure,v2.5. https://www.omg.org/spec/UML/

About-UML/

Poveda-Villalón, M., Chávez-Feria, S., Carulli-Pérez, S., &

García-Castro, R. (2023). Towards a UML-based

notation for OWL ontologies. In VOILA@ ISWC (pp.

18-27).

Riaz, A., Bajwa, I. S., & Ali, M. (2020). Automatic RDF,

Metadata Generation from Legacy Software Models. In

Intelligent Technologies and Applications: Second

International Conference, INTAP 2019, Bahawalpur,

Pakistan, November 6–8, 2019, Revised Selected

Papers 2 (pp. 385-397). Springer Singapore.

Sequeda, J. F., Arenas, M., & Miranker, D. P. (2012). On

directly mapping relational databases to RDF and

OWL. In Proceedings of the 21st World Wide Web

Conference (pp. 649-658).

Shan, J., Lu, J., Chen, X., Yan, L., & Ma, Z. (2023). A

Semantics-preserving Approach for Extracting RDF

Knowledge from Object-oriented Databases. Journal of

Web Engineering, 22(2), 197-220.

Thuy, P. T. T., Lee, Y. K., Lee, S., & Jeong, B. S. (2007).

Transforming Valid XML Documents into RDF via

RDF Schema. In Proceedings of the International

Conference on Next Generation Web Services Practices

(pp. 35-40).

Tong, Q., Zhang, F., & Cheng, J. (2014). Construction of

RDF(S) from UML class diagrams. Journal of

Computing and Information Technology, 22(4), 237-

250.

Tong, Q. (2018). Mapping object-oriented database models

into RDF (S). IEEE Access, 6, 47125-47130.

World Wide Web Consortium.(2004) https://www.w3.org/

World Wide Web Consortium. (2013). SPARQL 1.1

Overview.https://www.w3.org/TR/sparql11-overview/

World Wide Web Consortium. (2014a). RDF 1.1 concepts

and abstract syntax. https://www.w3.org/TR/rdf/

World Wide Web Consortium. (2014b). RDF Schema 1.1.

https://www.w3.org/TR/rdf-schema/

World Wide Web Consortium. (2017a). XSL

Transformations (XSLT) Version 3.0.

https://www.w3.org/TR/2017/REC-xslt-30-20170608/

World Wide Web Consortium. (2017b). XQuery 3.1: An

XML Query Language. https://www.w3.org/TR/

2017/REC-xquery-31-20170321/.

An Approach for Automatic Bidirectional Mapping Between Data Models and RDF-S

265
