A Model Driven-based Approach for Converting Feature Models of

Software Product Lines to OWL Ontologies

Aissam Belghiat

, Mohamed Boubakir

, Ghada Chouikh and Djamila Kemmache

LaRIA Laboratory, University of Jijel, 18000, Jijel, Algeria

Keywords: Software Product Line, Feature Model, OWL, Ontology, Verification.

Abstract: Software product line engineering has gained recognition as a promising approach to developing families of

software systems. A Software Product Line (SPL) is a set of software products that share and support a set of

Features. The variabilities and commonalities of the features of a software product line are modeled by Feature

models (FM). The lack of formal semantics for these models has hindered their analysis and verification, and

consequently their correction and evolution. The use of Ontology Web Language (OWL) ontologies should

solve the problem. They accurately allow capturing the interrelationships between features in a FM, and to

proceed, thereafter, to the analysis and the verification of these models by using the formal semantics of the

OWL which is based on the description logic. In this paper, we propose to convert Feature Models into OWL

ontologies using Model Driven Engineering (MDE). We have firstly proposed numerous semantic rules to

enable the transformation. After that, meta-modeling and model transformation are used to implement and

automate the rules. Specialized MDE tools are used (e.g. Acceleo, Eclipse modeling framework). The

Protéger tool is used for reasoning on the generated OWL ontology. A case study is given to show the

effectiveness of our approach.

1 INTRODUCTION

Product Line Engineering (PLE) (Van der Linden,

2002) is an approach in software development that

aims to enhance efficiency by reusing and managing

both commonalities and variabilities across a line of

products. By using this method, companies can create

new products faster while keeping costs and time to

market as low as possible.

An SPL (Software Product Line) (Clements,

2002) is a set of software products that share and

support a set of Features. Feature models (FMs) are

widely used to represent the commonalities and

variabilities within a product line (She, 2011) (Rubin,

2012). Feature models offer a clear way to represent

features and their relationships, which facilitates the

configuration of various product variants (Acher,

2013). However, these diagrams, often used for

specifying these features, have some shortcomings

regarding their formal structure (Batory, 2005). In

fact, because they lack strict formal semantics,

conducting automated analysis and reasoning can be

https://orcid.org/0000-0002-5968-609X

https://orcid.org/0000-0003-3890-4913

difficult. This lack of formality may result in issues

related to ensuring the consistency, completeness,

and correctness of the feature model.

Several approaches have been proposed both by

researchers and practitioners to overcome this

limitation by formalizing Feature Models, such as

using formal languages (Batory, 2005). These efforts

are aimed to improve the reliability of Feature model

and enable better whole complex system analysis and

verification.

The formal language OWL (Ontology Web

Language) (W3C, 2012) is a central component in the

context of Semantic Web and ontologies. OWL

provides a powerful and rich framework for

representing and reasoning about knowledge, which

facilitates machine-understandable representations

and interoperability. Transforming Feature Models to

OWL Ontologies is a promising path to help the

practitioners of Software Product Lines creating

formal ontologies, which capture the semantics of

features, relationships, and variabilities within a

product line.

266

Belghiat, A., Boubakir, M., Chouikh, G. and Kemmache, D.

A Model Driven-Based Approach for Converting Feature Models of Software Product Lines to OWL Ontologies.

DOI: 10.5220/0012953000003825

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Conference on Web Information Systems and Technologies (WEBIST 2024), pages 266-273

ISBN: 978-989-758-718-4; ISSN: 2184-3252

By combining the intuitiveness of Feature

Modeling, and the expressiveness and formal power

of OWL ontologies, software engineers can achieve a

higher level of precision and accuracy in capturing

the variability and structure of software product lines.

This integration enables automatic analysis,

reasoning, and validation of product configurations,

leading to improved quality assurance and decision-

making processes within PLE projects.

In this study, we use the potential of Model

Driven Engineering (Schmidt, 2006) to develop an

approach for automatic converting of FMs to their

corresponding OWL ontologies. The approach firstly

proposes multiple transformation rules that

semantically relate FMs to OWL. These rules are then

implemented using a model-driven technique to

generate a tool that fully automates the transformation

process.

The Eclipse modeling project (Eclipse Modeling

Project, 2024) is adopted to realize this approach.

EMF (Budinsky, 2004) is used to meta-model FM

models. This enables generating editors for such

models. Afterwards, Acceleo (Acceleo, 2023) is used

to implement the proposed semantics rules to allow

the generation of OWL ontologies which are then

uploaded in special tools for analysis such as Protégé

(Protéger, 2023).

The rest of the paper is as follows. Section 2

presents the context of the work. Section 3 explains

the methodology adopted to develop the approach.

Section 4 applies the approach on a real example.

Section 5 presents related work. Section 6 concludes

the paper.

2 CONTEXT

2.1 FM

In PLE, Feature models are widely used to model

common and variable features of an SPL and

relationships between them. They are originally

proposed as part of FODA approach (Kang, 1990). A

FM is a set of features hierarchically structured into

multiple levels of detail (Batory, 2005). It represents

all possible products of a software product line in a

single model (Benavides, 2007). A FM is usually

represented by a feature diagram and a set of

constraints.

A feature diagram is a hierarchical tree diagram

that shows features and the relationships between

them. It has a root feature that describes the model

and all its characteristics (Ghabach, 2018). This

model is represented by tree structures where each

node is a Feature and each edge can have four

possible values known as parental relationships that

are (Benavides, 2007): Mandatory, Optional,

alternative, and Or. Constraints are defined in the

feature model to ensure that the products created are

valid and correct. Constraints that are defined in

FODA are (Kang, 1990): Requires and Excludes.

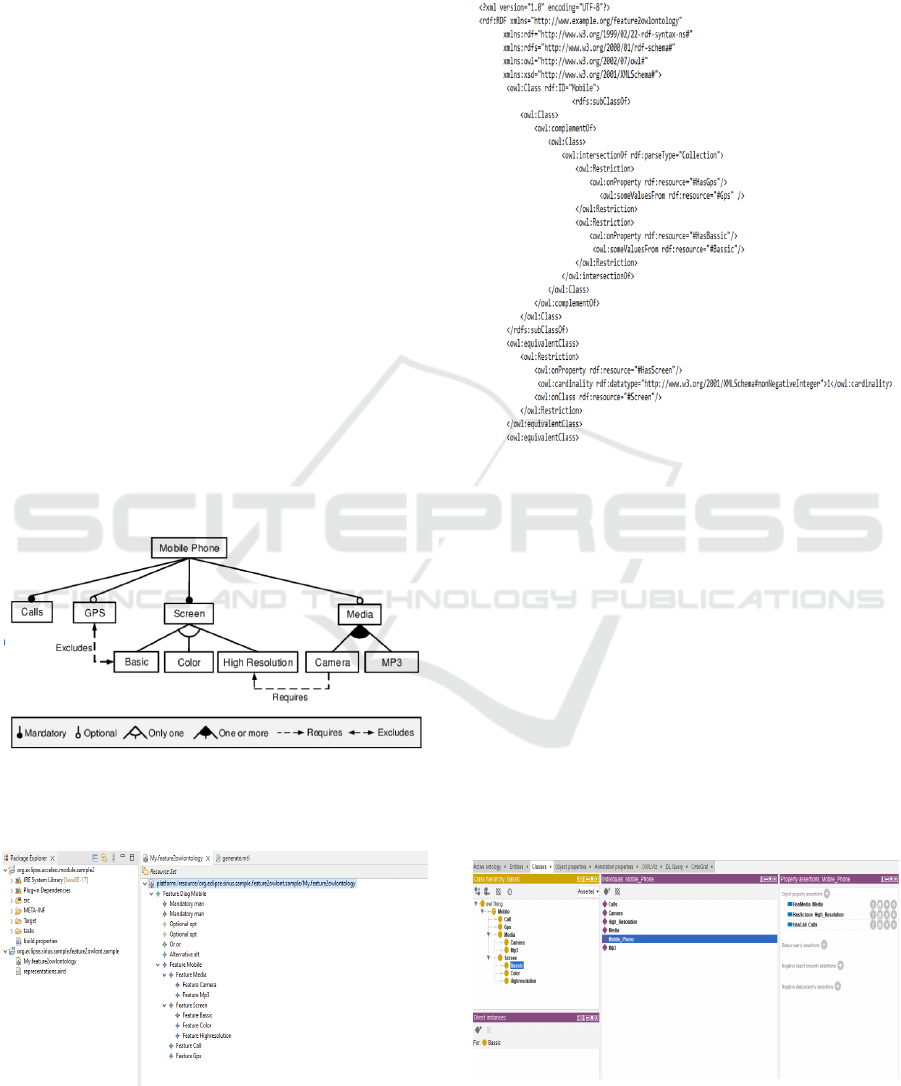

An example of a Feature Model is shown in

figure9.

2.2 OWL

The web ontology language (OWL) (W3C, 2012) is

precisely an ontology language that adds more

vocabulary to describe properties and classes unlike

RDF and RDF-S that just provides classes and

properties. OWL offers advanced semantic modeling

capabilities, for example relations between classes

(e.g. disjointness), cardinality (e.g. "exactly one"),

equality, richer typing of properties, characteristics of

properties (e.g. symmetry), and enumerated classes

(W3C, 2012). OWL provides three sub-languages

with increasing expressiveness respectively: OWL

Lite, OWL DL and OWL Full. We use OWL DL

(Description Logic) because it provides more

expressiveness while maintaining computational

completeness and decidability.

An example of an OWL ontology is given in

figure 11.

2.3 MDE

Model Driven Engineering (MDE) (Schmidt, 2006) is

an approach for software development that relies on

models. Models are expressed using modeling

languages and they are conform to meta-models. A

meta-model is itself a model that defines the structure

of modeling languages. A meta-model is composed

of an abstract syntax which describes the elements of

the models and their relationships, and a concrete

syntax that describes the representation of the

elements defined by the abstract syntax (it can be

graphic, textual or mixed). Meta-models themselves

must be conformed to a Meta-Meta-Model. It is a

model that describes a meta-modeling language, i.e.

the modeling elements required for modeling

language definition.

To realize a transformation between models using

MDE, we need to define meta-models for the source

and target models. Then a model transformation,

which consists on defining corresponding semantics

rules between those meta-models is developed to

enable automatic mapping of input models to output

models.

A Model Driven-Based Approach for Converting Feature Models of Software Product Lines to OWL Ontologies

267

a2 a3

3 METHODOLOGY

3.1 Converting Rules

Feature models and OWL ontologies have shown

several similarities. To enable the transformation of

Feature models into their corresponding OWL

ontologies, we have proposed multiple rules. Indeed,

we have studied the characteristics of both

formalisms and we have come up with multiple

semantics rules, which allow converting each Feature

model into its equivalent OWL ontology. Table 1

summarizes the transformation rules.

Table 1: The proposed transformation rules.

Feature

Diagram

OWL Ontology

Feature

Owl Class

< owl:Class rdf:about=”A ”>

</owl:Class>

A FD feature is transformed into an OWL class. The name of

the class will be the same as the name of the feature.

Mandatory

<owl:Class rdf:ID=”B”>

<owl:equivalentClass>

<owl:Restriction>

<owl:onProperty rdf:resource=”#Has[A/]”/>

<owl:cardinality

rdf:datatype=”http://www.w3.org/2001

/XMLSchema#nonNegativeInteger”>

</owl:cardinality>

<owl:onClass rdf:resource=”#[A/]”/>

</owl:Restriction>

</owl:equivalentClass>

<owl:FunctionalProperty rdf:about=”#HasB” />

A mandatory feature in a feature diagram defines a restriction

on the property ”Has[B/]” with a cardinality of 1. This indicates

that instances of this class must have exactly one value for the

property. We have specified ”hasB” to be a functional property,

which means that every ”A” can have at most one ”B”.

Optional

<owl:Class rdf:ID=”B”>

<rdfs:subClassOf rdf:resource=”B” />

<rdfs:subClassOf>

<owl:Restriction>

<owl:onProperty rdf:resource=”#HasB” />

<owl:maxCardinality

rdf:datatype=”http://www.w3.org/2001

/XMLSchema#nonNegativeInteger”>

</owl:maxCardinality>

</owl:Restriction>

</rdfs:subClassOf>

An Optional feature is represented as a max cardinality

restriction that specifies the maximum number of instances that

can be connected to a property in a given class.

Alternative

<rdfs:subClassOf>

<owl:Class>

<owl:complementOf

rdf:resource=”#[a1/]”/>

</owl:Class>

</rdfs:subClassOf>

<rdfs:subClassOf>

<owl:Class>

<owl:complementOf

rdf:resource=”#[a2/]”/>

</owl:Class>

</rdfs:subClassOf>

<rdfs:subClassOf>

<owl:Class>

<owl:complementOf

rdf:resource=”#[a3/]”/>

</owl:Class>

</rdfs:subClassOf>

An alternative feature is transformed to a complement of.

<owl:Class rdf:about=”A”>

<owl:unionOf

rdf:parseType=”Collection”>

<owl:Class rdf:about=”#a1” />

<owl:Class rdf:about=”#a2” />

<owl:Class rdf:about=”#a3” />

</owl:unionOf>

</owl:Class>

<owl:Class rdf:about=”a1”>

<owl:disjointWith

rdf:resource=”#[a2/]”/>

<owl:disjointWith

rdf:resource=”#[a3/]”/>

</owl:Class>

”unionOf” construct is utilized within the context of a parent

feature connected through an ”or” relation. For each individual

sub-feature of this parent, a specification is made to ensure its

disjointness from the other sub-features.

Requires

<owl:Class rdf:about=”A”>

<rdfs:subClassOf>

<owl:Restriction>

<owl:onProperty rdf:resource=”#HasB”/>

<owl:allValuesFrom rdf:resource=”#B” />

</owl:Restriction>

</rdfs:subClassOf>

Required feature is represented by AllValuesFrom restriction

over hasB.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

268

Table 1: The proposed transformation rules. (cont.)

Excludes

<rdfs:subClassOf>

<owl:Class>

<owl:complementOf>

<owl:Class>

<owl:intersectionOf

rdf:parseType=”Collection”>

<owl:Restriction>

<owl:onProperty rdf:resource=”#Has[A/]”/>

<owl:allValuesFrom rdf:resource=”#[A/]”/>

</owl:Restriction>

<owl:Restriction>

<owl:onProperty rdf:resource=”#Has[B/]”/>

<owl:allValuesFrom rdf:resource=”#[B/]”/>

</owl:Restriction>

</owl:intersectionOf>

</owl:Class>

</owl:complementOf>

</owl:Class>

</rdfs:subClassOf>

Exclude class relationship is transformed to a class that’s the

opposite of the combined intersection of two subclasses,

indicating exclusion based on certain feature connections.

3.2 Automating the Conversion of FM

into OWL

The approach proposed is to use the techniques of

MDE technology to build a tool that transforms

automatically Feature models into their

corresponding OWL ontologies. Figure 1 shows the

process of this mapping which consists on several

steps:

 Step 1: We initially proposed a meta-model for

the Feature models. We used Ecore as the meta-

modeling language, which is part of the Eclipse

Modeling Framework (EMF).

 Step 2: We utilize EMF to generate a

hierarchical editor for the proposed Feature

models. This editor enables us to describe our

Feature models easily.

 Step 3: This process is a Model2Text type

transformation. The objective here is to

generate an OWL ontology from the Feature

model established in the previous phase. For

this phase, we used Acceleo as the

transformation language.

 Step 4: this step consists of uploading the

generated OWL specification into the Protege

tool. Once the description is accepted, we can

use all the services offered by this tool,

especially simulation, verification, etc.

Figure 1: General framework of the proposed approach.

Step 1: Meta-Modeling

We have proposed a meta-model for Feature models.

This meta-model allows for the creation of valid

models conform to this type of diagram. Figure 2

illustrates the structure of this meta-model.

Figure 2: The meta-model of Feature diagram.

The proposed meta-model is composed of classes

and relations. We have proposed the following

classes for metamodeling Feature diagrams:

 FeatureDiag: This class represents a Feature

diagram. It has a key attribute named "name".

 Feature: This class represents the main element

of the diagram. It has a key attribute "name".

 Relation: This class represents the relations

between features. It has four types Mandatory,

Optional, Or and Alternative.

 The "Or" relationship between a group of

sub-features and the parent feature indicates

that one or more features from the group can

be selected in a product when the parent

feature is selected.

 The "Alternative" relationship between a

parent feature and a group of sub-features

indicates that only one sub-feature can be

selected in a product when the parent feature

is selected.

 The "Optional" relationship between a parent

feature and a sub-feature indicates that the

sub-feature can be selected in a product or not

when the parent feature is selected.

 The "Mandatory" relationship between a

parent feature and its sub-feature indicates

that the presence of the parent feature

necessitates the presence of the sub-feature in

the product.

A Model Driven-Based Approach for Converting Feature Models of Software Product Lines to OWL Ontologies

269

Step 2: Generation of the Modeling Environment

In this step, we generate a hierarchical editor for the

defined meta-model using EMF as indicated in Figure

3. This editor is used to describe different Feature

Models.

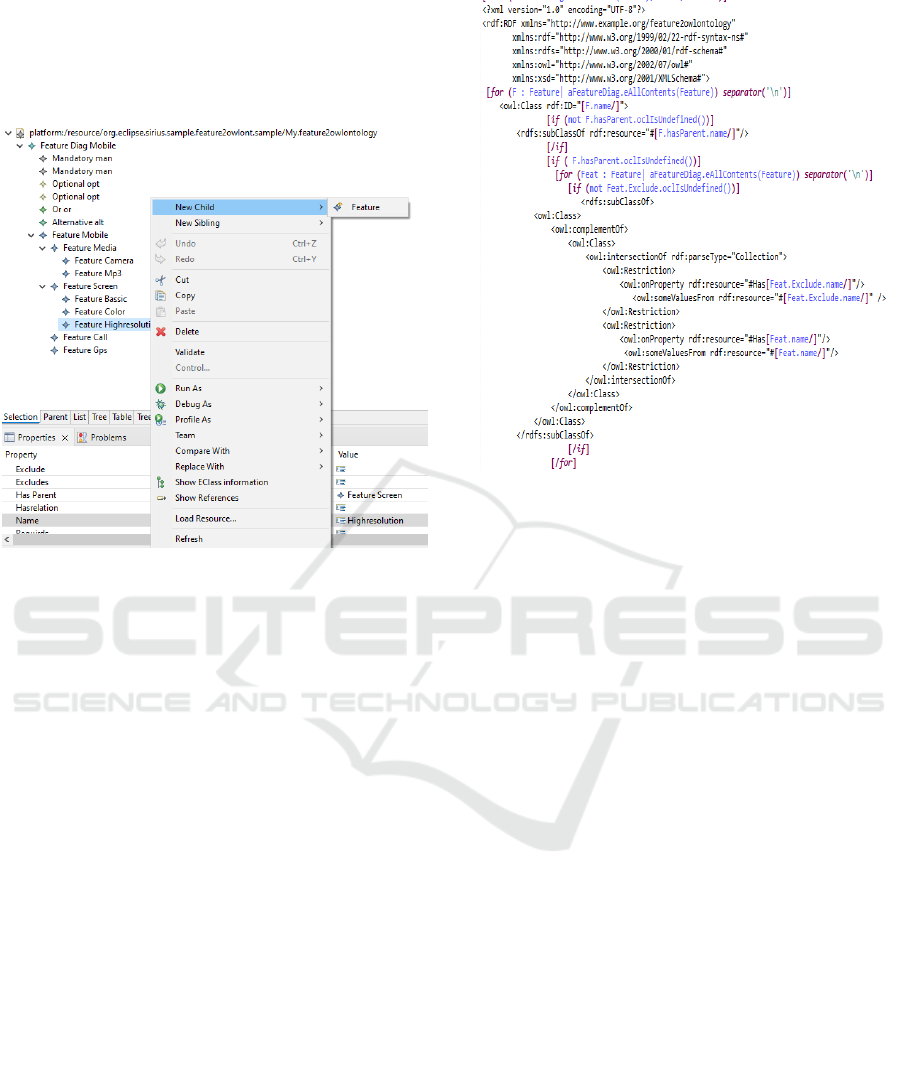

Figure 3: The generated editor for Feature models.

Step 3: Transformation

In this step, we implement the transformation rules

proposed above. The automated process generates the

"generatedFM.owl" file, including an OWL language

ontology represented in RDF/XML format. This file

is stored on hard drive, encapsulating structured

knowledge comprising concepts, entities, and

relationships from the OWL ontology. The Acceleo

code is used to realize the mapping according to the

rules in Table 1.

Due to space constraints, we only present a

screenshot that illustrates the transformation.

Figure 4 depicts the transformation process using

Acceleo of a feature of an FD into an OWL class, with

special attention to exclusion constraints. Each

feature is represented as an OWL class. In situations

where a feature is subject to an exclusion constraint,

it will be transformed into the negation intersection of

classes.

The other rules in Table 1 are implemented

similarly using templates in Acceleo. This latter has

really helped us in realizing the correspondences

between FMs meta-model and OWL ontology.

Figure 4: Extract of transformation code of a Feature model

into OWL part 1.

Step 4: The derived OWL specification is

automatically launched in Protégé to do analysis.

Section 4.2 explains more this step.

4 EXAMPLE

4.1 Mobile Phone System Description

The mobile phone system outlined here is a well-

known example frequently referenced in SPL

literature. It is a flexible system that enables users to

select various features according to their preferences.

This system comprises multiple features and sub-

features. The feature model for this mobile phone

system is organized as follows (see Figure 5):

1. Root Feature: Mobile Phone - This feature

represents the mobile phone itself, it is used as the

foundation for all other features.

2. Sub-Feature: Calls (mandatory) - This represents

essential functionalities related to calls like making

and receiving phone calls.

3. Sub-Feature: Screen (mandatory) - Related to the

display of the mobile phone, providing different

screen options.

 Sub-Feature: Basic - Represents a basic screen

option.

 Sub-Feature: Color - Represents a color screen

option.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

270

 Sub-Feature: High Resolution - Represents a

high-resolution screen option.

Note: Following the alternative type relationship,

only one screen option can be selected.

4. Sub-Feature: GPS (optional) - Represents the

functionality of the Global Positioning System of the

mobile phone.

5. Sub-Feature: Media (optional) - Represents

multimedia features of the mobile phone.

 Sub-Feature: Camera - Represents the

functionality of camera.

 Sub-Feature: MP3 Player - Represents the

functionality of MP3 music player.

Note: Following the or-type relationship, if the Media

sub-feature is selected, either one or both options

(Camera and/or MP3 Player) can be selected.

The feature model has also two constraints:

1. GPS excludes Basic - This means that a mobile

phone cannot have both GPS and a basic screen.

2. Camera requires High Resolution - This indicates

that a mobile phone with a camera must also have a

high-resolution screen.

To ensure a valid configuration, these constraints

must be respected when selecting specific features.

By adhering to the constraints and choosing the

appropriate features, various configurations of mobile

phones can be developed to meet the needs of users.

Figure 5: The Mobile Phone case study.

Using our approach, we specify this Feature

model in our tool as shown in Figure 6.

Figure 6: Feature model of the mobile phone system.

Afterwards, we use our Acceleo code

"My.feature2owlontology" to generate the

corresponding OWL ontology "owlontology" as

illustrated in Figure 7.

Figure 7: An extract of the generated OWL ontology.

4.2 Analysis of the Ontology

We consider here two illustrative configurations. The

first configuration adheres to all the constraints

outlined in the feature model showed in the previous

diagram. In contrast, the second configuration

disregards the alternative relationship, deviating from

the established constraints within the model.

C1 = {Mobile Phone, Calls, Screen, High

Resolution, Media, Camera, MP3}

C2 = {Mobile Phone, Calls, Screen, Basic, High

Resolution, Media, Camera}

For the first configuration, Figure 8 show the lack

of response of the reasoner due to the absence of

inconsistencies.

Figure 8: First configuration absence of inconsistences.

A Model Driven-Based Approach for Converting Feature Models of Software Product Lines to OWL Ontologies

271

In contrast, the second configuration, Figure 9

clearly illustrate how the responsiveness of reasoner

is affected by the presence of inconsistencies.

The inconsistency in the reasoning process is

attributed to the exclusion rule that was not respected.

Specifically, in this scenario, the "high-resolution"

class was intended to exclude the "basic" class,

indicating that a device cannot have both high-

resolution and basic classes simultaneously.

However, in practice, both classes were assigned to

the same device, leading to a violation of this

exclusion rule.

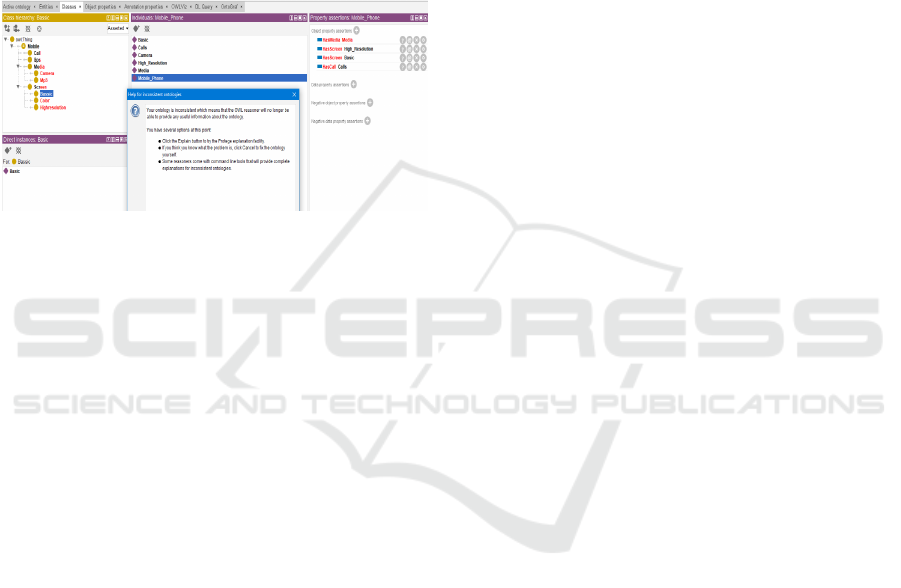

Figure 9: Second configuration inconsistences.

5 RELATED WORK

Several studies in the literature have focused on

modeling with FMs and formalizing them for

verification purpose. This section reviews essential

research contributions.

The authors in (Benavides, 2005a) have proposed

a theoretical framework for reasoning on Feature

Models. They extended FMs to capture some non-

functional properties and they use Constraint

Satisfaction Problems (CSP) to reason on them in

(Benavides, 2005b). In (Trinidad, 2023), the same

authors improve their work by proposing an

automation of the framework to analyzing stateful

feature models. The main idea behind the work is that

they viewed the issue as an automated reasoning

problem solvable through CSP. Using CSP is great,

but it needs to add more information to enable correct

analysis operations, which become computationally

expensive and even impossible for complex models.

In (Zhang, 2013), the authors proposed not to use CSP

because of exponential complexity and instead use

contradictory feature relationships behind the errors.

In (Karatas, 2013), the authors introduce a mapping

from extended feature models to constraint logic

programming over finite domains.

In (Santoro, 2012), an approach has been

proposed to construct and manage consistent feature

models, crucial for managing valid software product

lines using OWL. The approach is specific to

multimedia domain. The research in (Duran-Limon,

2015) introduces OntoAD, a new system for

automatically creating product architectures from a

base design. Unlike existing methods focused on

features, OntoAD tackles the challenge of automating

architecture customization. It uses clever reasoning to

generate transformation rules based on selected

features, in the purpose of simplifying the process and

reduce errors. The study in (Bhushan, 2018) proposes

a method to find and explain errors (inconsistencies)

in software product designs (feature models). While

other methods can detect these errors, they often don't

explain why they happen. The authors' approach

translates feature models into a FOL predicate-based

ontology and uses rules to pinpoint both the errors and

their causes in clear language. The authors in (Wang,

2007) present an approach to modeling and verifying

feature diagrams using OWL ontologies and the

FaCT++ reasoner, however they do not provide

automated support which hinders their real-word

utilization.

Other works can be cited since they tried to use

MDE to automatic generation of OWL ontologies

from conceptual models for the purpose of reasoning,

such as the work done in (Belghiat and Bourahla,

2012).

In contrast to these contributions, we have aimed

to develop a complete framework based on model

driven engineering to transform automatically FMs to

OWL ontologies and launching the verification

process immediately. The MDE allows advanced

complex semantics transformations based on meta-

models. In our work, we have focused on features and

their relationships, and we have used OWL DL to

allow automatic analysis while maintaining

decidability using the well-known Protégér tool.

6 CONCLUSION

In this paper, we have proposed a model-driven based

approach for transforming Feature Models into their

corresponding OWL ontologies. We have started by

proposing a meta-model for FMs to generate an

adequate environment for their modeling. Next, we

have formulated a set of transformation rules. These

rules are designed to bridge the gap between FMs

meta-model and OWL ontologies. Then, we have

implemented these transformation rules to enable

automatic generation of an output OWL ontology

from an input valid Feature model. To realize the

mapping, we have used a bench of tools. EMF and

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

272

Ecore have been used in meta-modeling FMs, and

Acceleo to generate the corresponding OWL code in

RDF/XML format.

To guarantee the quality and consistency of the

generated ontologies, we thoroughly checked them

using the Protégé tool. This step is very important to

ensure that these OWL ontologies are accurate and

coherent. Furthermore, Protégé is used for more

advanced reasoning on those ontologies.

In future work, we plan to expand our

transformation capabilities to cover more advanced

aspects of Feature models, for example to include

non-functional properties. This expansion will enable

us to tackle more complex challenges, enhancing the

utility of our approach.

REFERENCES

Acceleo. https://eclipse.dev/acceleo/. Visited 09-2023.

Acher, M., Baudry, B., Heymans, P., Cleve, A., Hainaut, J.

L. (2013). Support for reverse engineering and

maintaining feature models. In VaMoS’13 Proceedings

of the seventh international workshop on variability

modelling of software-intensive systems.

Batory, D. (2005). Feature models, grammars, and

propositional pormulas. In SPLC’05 Proceedings of the

9th international conference on software product lines,

Springer, pp.7–20.

Belghiat, A., & Bourahla, M. (2012, March).

Transformation of UML models towards OWL

ontologies. In 2012 6th International Conference on

Sciences of Electronics, Technologies of Information

and Telecommunications (SETIT) (pp. 840-846).

IEEE.

Belghiat, A., & Bourahla, M. (2012). An approach based

AToM3 for the generation of OWL ontologies from

UML diagrams. International journal of computer

applications, 41(3).

Belghiat, A., & Bourahla, M. (2012). From UML Class

Diagrams to OWL Ontologies: A Graph

Transformation Based Approach. In ICWIT (pp. 330-

335).

Benavides, D., Trinidad, P., Ruiz-Cortés, A. (2005).

Automated reasoning on feature models.

In International Conference on Advanced Information

Systems Engineering (pp. 491-503). Berlin,

Heidelberg: Springer Berlin Heidelberg.

Benavides, D., Trinidad, P., Ruiz-Cortés, A. (2005). Using

Constraint Programming to Reason on Feature Models.

In SEKE (Vol. 5, pp. 677-682).

Benavides, D. (2007). On the automated analysis of

software product lines using feature models: A

framework for developing automated tool support. PhD

thesis, Universidad de Sevilla.

Bhushan, M., Goel, S., Kaur, K. (2018). Analyzing

inconsistencies in software product lines using an

ontological rule-based approach. Journal of Systems

and Software, 137, 605-617.

Budinsky, F. (2004). Eclipse modeling framework: a

developer's guide, Addison-Wesley Professional.

Clements, P., Northrop, L. (2002). Software product lines.

Addison-Wesley. Boston.

Duran-Limon, H. A., Garcia-Rios, C. A., Castillo-Barrera,

F. E., Capilla, R. (2015). An ontology-based product

architecture derivation approach. IEEE Transactions

on Software Engineering, 41(12), 1153-1168.

Eclipse Modeling Project, https://eclipse.dev/modeling/.

Visited 04-2024.

Ghabach, E. (2018). Supporting Clone-and-Own in

software product line. PhD thesis, COMUE Université

Cote d'Azur.

Kang, C. K., Cohen, S., Hess, J. A., Novak, W. E., Peterson,

A. S. (1990). Feature Oriented Domain Analysis

(FODA) Feasibility Study, Software engineering

institute.CMU/SEI-90-TR-021.

Karatas, A. S., Oğuztüzün, H., Doğru, A. From extended

feature models to constraint logic programming.

Science of Computer Programming, vol. 78, no. 12, pp.

2295–2312.

Protéger. https://protege.stanford.edu/. Visited 09-2023.

Rubin, J., Chechik, M. (2012). Combining related products

into product lines. In FASE’12 Proceedings of the 15th

international conference on fundamental approaches to

software engineering, ACM, pp.285–300.

Santoro, G., Pino, C., Spampinato, C. (2012). A feature

model configuration for multimedia applications by an

OWL-based approach. In 2012 Federated Conference

on Computer Science and Information Systems

(FedCSIS) (pp. 263-268). IEEE.

Schmidt, D. C. (2006). Model-driven

engineering. Computer-IEEE Computer Society-

, 39(2), 25.

She, S., Lotufo, R., Berger, T., Wąsowski, A., Czarnecki,

K. (2011). Reverse engineering feature models. In

ICSE’11 Proceedings of the 33

international

conference on software engineering, ACM, pp.461–

470.

Trinidad, P., Ruiz-Cortés, A., Benavides, D. (2013).

Automated analysis of stateful feature models. Seminal

Contributions to Information Systems Engineering: 25

Years of CAiSE, 375-380.

Van der Linden, F. (2002). Software product families in

europe: the esaps & café projects. IEEE software, vol.

19, no. 4, pp. 41–49.

Wang, H. H., Li, Y. F., Sun, J., Zhang, H., Pan, J. (2007).

Verifying feature models using owl, Journal of web

semantics, vol. 5, no. 2, pp. 117–129.

W3C OWL Working Group. (2012). OWL 2 Web ontology

language document overview, W3C Recommendation

11 December, https://www.w3.org/TR/owl2-

overview/, 2

edition.

Zhang, G., Ye, H., Lin, Y. (2013). An approach for

validating feature models in software product

lines. Journal of Software Engineering, 7(1), 1-29.

A Model Driven-Based Approach for Converting Feature Models of Software Product Lines to OWL Ontologies

273
