Enhancing Facial Expression Recognition and Analysis with

EfficientNetB7

Chenxin Huang

School of Information Science and Engineering, Dalian Polytechnic University, Dalian, China

Keywords: Facial Expression Recognition, EfficientNetB7, Data Preprocessing, Capabilities.

Abstract: This paper introduces an advanced Facial Expression Recognition model utilizing EfficientNetB7 architecture.

Through meticulous stages of data preprocessing, model training, testing, and evaluation, significant strides

are made in accurately classifying various facial expressions. The model exhibits commendable performance,

particularly excelling in identifying positive expressions. However, challenges persist in effectively

distinguishing between neutral and sad expressions, warranting further investigation. Future enhancements

could involve refining data preprocessing techniques, such as adversarial training and data synthesis, to bolster

dataset diversity and robustness. Additionally, exploring more potent feature extraction methods, including

ensemble learning and transfer learning, holds promise for augmenting recognition capabilities. To address

nuances in neutral and sad expressions, integrating contextual cues or dynamic features into the model

architecture is proposed. Moreover, enriching the model's understanding by incorporating auxiliary

information like emotion dictionaries or sentiment labels offers a viable avenue for improvement. Overall,

this study contributes insights and pathways for advancing Facial Expression Recognition systems towards

greater accuracy and applicability in real-world scenarios.

1 INTRODUCTION

Facial emotions play a pivotal role in human

communication, enabling us to decipher the

intentions of others. Typically, individuals decipher

emotional states like happiness, frustration, and anger

by analyzing expressions on the face and vocal

inflections. Surveys indicate that verbal

communication accounts for only one-third of human

interactions, whereas nonverbal cues constitute the

remaining two-thirds (Ko, 2018). Among the various

nonverbal cues, facial expressions are a prime source

of information in interpersonal communication due to

their emotional significance (Jain, 2018).

Consequently, facial emotion research has garnered

significant attention in recent decades, finding

applications not just in the fields of perception and

cognition, but also in the realm of emotion-aware

computing and digitally animated sequences

(Kaulard, 2012).

While humans find that replicating this task with

a computer algorithm poses significant challenges

(Mehendale, 2020). The traditional Facial Expression

https://orcid.org/0009-0002-8510-1478

Recognition involves two crucial steps: extracting

features and recognizing emotions. Nowadays, Deep

Neural Networks, particularly Convolutional Neural

Networks, are extensively employed in Facial

Expression Recognition due to their inherent ability

to automatically extract features from images

(Akhand, 2021). Researchers have enhanced model

performance by increasing network depth

(Mollahosseini, 2016), introducing residual

connections (Bah, 2022), and adopting attention

mechanisms (Daihong, 2021).However, despite the

powerful abilities of Convolutional Neural Network

models in attribute extraction and grouping, the

accuracy of facial expression recognition is

constrained by multiple factors, including variations

in lighting, intensity of expressions, and occlusions

(Borgalli, 2022). Hence, optimizing the

Convolutional Neural Network model holds

paramount importance in enhancing the accuracy of

facial expression recognition.

This study assesses the effectiveness of the

EfficientNetB7 model in tasks related to facial

expression recognition. With a batch size of 20 and

490

Huang, C.

Enhancing Facial Expression Recognition and Analysis with EfﬁcientNetB7.

DOI: 10.5220/0012956900004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 490-495

ISBN: 978-989-758-713-9

just one epoch, the model's proficiency in extracting

pivotal features from facial images and effectively

categorizing diverse expressions is meticulously

analyzed. Notably, the model showcases a

remarkable stability in accuracy and training loss as

the training progresses, indicating its robustness in

handling the given configuration. Despite the

relatively limited number of training iterations, the

inherent superior performance of the EfficientNetB7

model shines through, enabling it to exhibit

commendable recognition capabilities. However,

amid these successes, certain areas for enhancement

emerge. Particularly, the model's accuracy in

discerning between neutral and sad expressions

requires refinement, as it tends to misclassify these

expressions. This underscores the necessity for

further optimization to unlock the full potential of the

model in accurately capturing subtle nuances in facial

expressions.

2 METHODOLOGIES

2.1 Dataset Description and

Preprocessing

The dataset was obtained from the Kaggle platform

(Kero, 2024). The given dataset comprises multiple

categories of facial expressions, each containing a

specific number of files. Among them, the "angry"

category holds 958 files, depicting the facial

expressions of characters when they are feeling

angry. The "disgusted" category contains 111 files,

showing the disgusted facial expressions of the

characters. The "fearful" category features 1024 files,

capturing the fearful expressions of characters. The

"happy" category boasts 1774 files, exhibiting the

happy facial expressions of people. Additionally, the

"neutral" category holds 1233 files, displaying

characters with neutral or non-expressive facial

expressions. The "sad" category contains 1247 files,

showing the sad facial expressions of people. Finally,

the "surprised" category has 831 files, depicting the

surprised facial expressions of characters. This

comprehensive dataset offers a diverse range of facial

expressions, allowing for detailed analysis and

understanding of human emotions through facial

cues.

The process involves systematically iterating

through each file and folder within the directory,

printing their paths as progress. Inside the dataset are

crucial features and target variables utilized for

machine learning task, along with facial images and

their corresponding expression labels. These images

and labels are pivotal for training the model to

recognize various facial expressions. Data

enhancement techniques are employed during

processing to expand the dataset and enhance model

generalization, focusing on extracting essential

information and constructing appropriate models for

training. Preparation of test data for facial expression

recognition begins by specifying the directory

housing the test dataset, organized into subfolders

dedicated to specific expression categories. Each

subfolder is systematically traversed, gathering the

list of files it contains. For each file, its complete path

is generated by combining the subfolder's path with

the filename, and these paths are collected in a list.

Concurrently, the name of each subfolder,

representing the associated expression label, is

captured and stored in a separate list to ensure proper

alignment. After iterating through all subfolders and

files, two lists are obtained: one containing paths to

all test files and the other containing corresponding

expression labels. These lists are structured to

facilitate their use in subsequent steps, allowing for

efficient loading of test data and evaluation of the

facial expression recognition model's performance on

unseen data. In terms of hyperparameter tuning,

adjustments are made according to project

requirements and data characteristics, carefully

selecting and tuning hyperparameters such as

learning rate and batch size to optimize the model for

higher recognition accuracy.

2.2 Proposed Approach

The expression recognition system based on

Convolutional Neural Networks aims to

automatically recognize facial expressions through

deep learning techniques. The research goal is to

construct an efficient and accurate model that can

process image data and classify different facial

expressions effectively. To achieve this goal, the

following research methodology process is used: first,

import key libraries to support data processing and

model construction; then, pre-process image data,

including normalization, scaling, and other steps, to

adapt to the input requirements of the model;

subsequently, divide the dataset into training,

validation, and test sets to evaluate the performance

of the model; and then, use an image data generator

to enhance the training data's diversity; display the

training data samples to verify the data quality;

construct the Convolutional Neural Network model

structure, including convolutional layers, pooling

layers, fully connected layers, etc.; fit the model and

optimize the parameters by iterating to minimize the

Enhancing Facial Expression Recognition and Analysis with EfﬁcientNetB7

491

loss function; evaluate the performance of the model

on the validation set, including the accuracy and the

loss values; perform prediction and classify the

expressions on the test set; and, finally, save the

trained model for future loading of the model for real-

time prediction. The whole process covers the

complete technical path from data preprocessing to

model application, which provides effective support

for the development of expression recognition

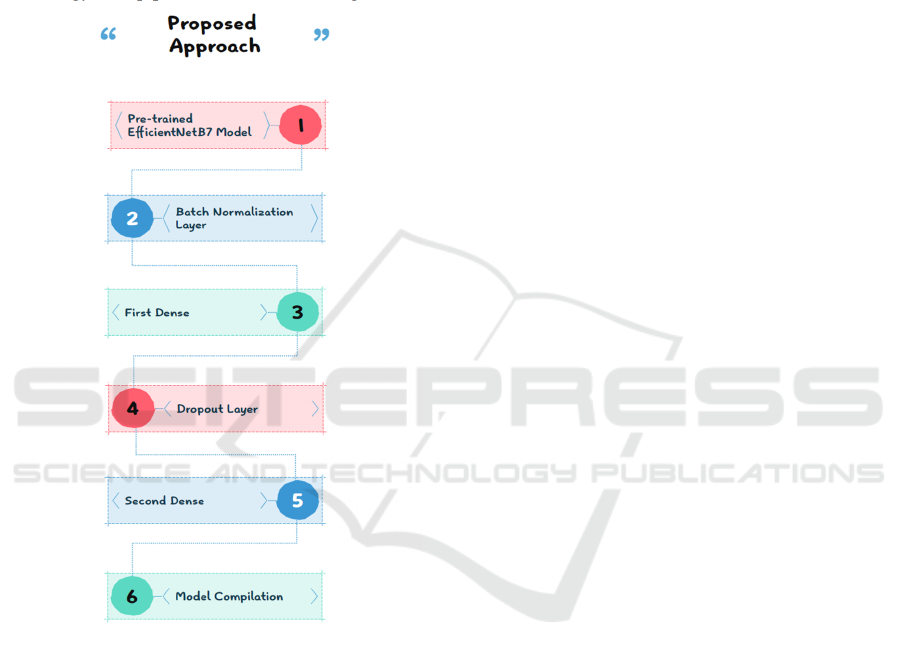

technology. The pipeline is shown in the Figure 1.

Figure 1: The pipeline of the study

(Photo/Picture credit:

Original).

2.2.1 EfficientNetB7

The version of the model loaded that does not include

the top fully-connected layer, as one typically wants

to define this part of the network structure according

to one's task. The weights of the model are pre-trained

from the ImageNet dataset, which helped the model

converge faster on the new task because the pre-

trained weights already contained some basic visual

feature information.

Additionally, the shape of the model's input

images are specified to ensure that the model would

receive image data of the correct size. Finally, before

the output layer of the model, a maximum pooling

operation is used, which transforms the feature map

into a compact vector representation, which is useful

for subsequently adding a classification layer and

performing facial expression recognition. In this way,

a custom model based on EfficientNetB7 is obtained,

which can be used as a starting point for the facial

expression recognition task and on which further

optimization and training can be performed.

EfficientNet-B7 was chosen because, firstly, it has 19

Mobile Inverted Bottleneck Convolution (MBConv)

blocks, a deeper network structure that captures more

detailed and complex features in facial expressions.

This depth not only improves the feature extraction

ability of the model, but also helps the model to better

understand and distinguish between different facial

expressions.

Second, EfficientNet-B7 uses 2400 channels in

each MBConv block, which means that the model is

able to process larger scale image data and extract

more feature information from it. In facial expression

recognition, this multi-channel design helps the

model capture subtle changes in facial expressions,

thus improving recognition accuracy. Furthermore,

EfficientNet-B7 supports higher resolution input

images, which enables the model to make full use of

the detailed information in the images. In facial

expression recognition, high-resolution images are

crucial for capturing subtle expression changes. With

high-resolution image input during training,

EfficientNet-B7 is able to better understand and

recognize various facial expressions.

Finally, due to EfficientNet-B7's strong

expressive capabilities, it achieves excellent

performance on visual tasks such as ImageNet. This

indicates that the model also has high accuracy and

reliability when dealing with complex and diverse

facial expression data.

2.2.2 Dense/Dropout

The Dense and Dropout layers play a crucial role in

deep learning, especially when building facial

expression recognition models based on

Convolutional Neural Networks. The Dense layer,

commonly referred to as the fully connected layer,

serves as a crucial element in neural networks. In

Convolutional Neural Networks, the Dense layer is

usually located after the convolutional and pooling

layers, and is used to integrate the features extracted

from the previous layers and map them to the final

output space. In the Dense layer, each neuron

establishes connections with all the neurons present

in the preceding layer, thus being able to capture the

global information of the input data. In the facial

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

492

expression recognition task, the Dense layer helps the

model to learn and integrate features related to

expressions, thus improving the accuracy of

recognition.

However, excessively deep neural networks often

tend to suffer from overfitting, a phenomenon where

the model exhibits excellent performance on training

data but performs poorly on unseen test data. To

alleviate this problem, a Dropout layer is introduced

into neural networks. The Dropout layer randomly

sets the output of a portion of neurons to zero during

training, thus preventing the model from relying too

heavily on particular neurons or combinations of

features. In this way, the Dropout layer helps to

enhance the generalization ability of the model so that

it can maintain good performance on unseen data.

In facial expression recognition models, the

Dropout layer is usually placed after the Dense layer

to reduce the complex co-adaptation between neurons

in the Dense layer. This helps the model to learn a

more robust and generalized feature representation,

which improves the accuracy of facial expression

recognition. Dense layer and a Dropout layer are

defined to be used in the neural network model. The

Dense layer has 256 neurons and reduces over-fitting

by using L2 and L1 regularization techniques, where

L2 applies regularization to the weights and L1

regularizes both the weights and the bias terms.

Rectified Linear Unit (ReLU) is used as the activation

function. Immediately after, the Dropout layer is used

to prevent the model from over-dependence on

specific neurons to improve generalization where the

dropout probability is 0.45 and a fixed random seed

123 is used to ensure reproducible results.

2.2.3 Loss Function

The loss function plays a critical role in quantifying

the disparity between the model's predictions and the

true labels, guiding the model optimization process.

It acts as a function that evaluates the discrepancy

between the predicted outputs and the actual labels,

yielding a numerical representation of this difference.

A lower value signifies a higher alignment between

the model's predictions and the true labels, indicating

superior model performance.

The choice of loss function is particularly

important in the task of facial expression recognition.

Different loss functions may have a significant impact

on the performance of the model. The Mean Square

Error (MSE) loss function, which concentrates on

calculating the average squared difference between

predicted and actual values, is well-suited for

addressing regression problems, while the cross-

entropy loss function is more suitable for

classification problems, which takes into account the

probability distribution of each category, so chose the

latter. Here is the function of The Mean Square Error

(MSE) loss, as:

()

SE y y

=−



(1)

2.3 Implementation Details

The project referenced the code on Kaggle (Kero,

2024) and took advantage of the functionality and

performance of Python version 3.6 to complete the

data processing and model construction for the facial

expression recognition task. Through careful design

and tuning, a data table containing test data paths and

labels was successfully generated.

3 RESULTS AND DISCUSSION

In the task of facial expression recognition, the

training parameters such as batch size and epochs

have a significant impact on the final recognition

performance of the EfficientNetB7 model. This study

employs this model and focuses on exploring the

specific effects of EfficientNetB7 on recognition

performance. Next, the results obtained with a batch

size of 20 and epochs count of 1 will be analyzed.

3.1 Training Loss and Validation Loss,

Training Accuracy and Validation

Accuracy

With the increase of epochs, the training loss becomes

smaller, and the validation loss curve tends to be

stable (see Figure 2). The optimal epoch is 6. As the

epochs increase, the training accuracy becomes

higher, and the validation accuracy also gradually

increases and tends to be stable. The optimal epoch is

9, indicating that the EfficientNetB7 model performs

well in facial expression recognition.

Enhancing Facial Expression Recognition and Analysis with EfﬁcientNetB7

493

Figure 2: Training and validation loss and accuracy

(Photo/Picture credit: Original).

3.2 The Accuracy of the Model Under

Different Categories

Table 1 is the accuracy of the model under different

categories. The model has the highest accuracy in

recognizing happy expressions, reaching up to 90%,

while the lowest accuracy is in recognizing sad

expressions, which is 53%. Generally, the accuracy is

higher when recognizing positive expressions and

lower when recognizing negative expressions.

Table 1: Comparison with Faster R-CNN on PASCAL

VOC 2017 dataset.

Precision

Angry 0.63

Disgusted 0.68

Fearful 0.54

Happy 0.90

Neutral 0.59

Sad 0.53

Surprised 0.81

3.3 Confusion Matrix

By observing the confusion matrix (see Figure 3),

some patterns of misclassification can be identified.

The neutral expression is often misclassified as sad,

and the sad expression is frequently misclassified as

neutral. These two expressions share similar features,

making it difficult for the EfficientNetB7 model to

distinguish between them.

Figure 3: The confusion matrix

(Photo/Picture credit:

Original).

4 CONCLUSIONS

This paper develops a Facial Expression Recognition

model using EfficientNetB7. Through data

processing, model training, testing, and evaluation

steps, this paper generates training loss and accuracy

graphs, along with accuracy rates for expression

recognition across different categories and their

corresponding confusion matrices. Analysis of the

results reveals EfficientNetB7's strong performance

in facial expression recognition, particularly in

identifying positive expressions. However,

challenges remain in distinguishing neutral and sad

expressions. To enhance the model's performance,

future work can focus on several key areas. Firstly,

further optimization of data preprocessing and

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

494

enhancement steps is warranted. Techniques like

adversarial training and data synthesis can increase

dataset diversity and robustness. Additionally, more

detailed annotation and normalization of face images

can mitigate the impact of individual differences and

poses on recognition results.

Secondly, exploring more effective feature

extraction and model training methods is essential.

Techniques such as ensemble learning and transfer

learning can bolster the model's recognition

capabilities. To address issues with recognizing

neutral and sad expressions, integrating more

contextual information or dynamic features may

capture subtle changes accurately. Additionally,

enhancing the model's understanding of these

expressions through auxiliary information like

emotion dictionaries or sentiment labels holds

promise.

REFERENCES

Akhand, M. A. H., Roy, S., Siddique, N., Kamal, M. A. S.,

& Shimamura, T. (2021). Facial emotion recognition

using transfer learning in the deep CNN. Electronics,

vol. 10(9), p: 1036.

Bah, I., & Xue, Y. (2022). Facial expression recognition

using adapted residual based deep neural network.

Intelligence & Robotics, vol. 2(1), pp: 78-88.

Borgalli, M. R. A., & Surve, S. (2022, March). Deep

learning for facial emotion recognition using custom

CNN architecture. In Journal of Physics: Conference

Series, vol. 2236(1), p: 012004).

Daihong, J., Lei, D., (2021). Facial expression recognition

based on attention mechanism. Scientific Programming,

pp: 1-10.

Jain, C., Sawant, K., Rehman, M., & Kumar, R. (2018,

November). Emotion detection and characterization

using facial features. In 2018 3rd International

Conference and Workshops on Recent Advances and

innovations in Engineering (ICRAIE) (pp. 1-6). IEEE.

Kaulard, K., Cunningham, D. W., Bülthoff, H. H., &

Wallraven, C. (2012). The MPI facial expression

database—a validated database of emotional and

conversational facial expressions. Vol. 7(3), p: e32321.

Kero, A., (2024). Kaggle dataset. https://www.kagg

le.com/code/kirollosashraf/emotion-detection-cnn/input

Ko, B. C. (2018). A brief review of facial emotion

recognition based on visual information. sensors, vol.

18(2), p: 401.

Mehendale, N. (2020). Facial emotion recognition using

convolutional neural networks (FERC). SN Applied

Sciences, vol. 2(3), p: 446.

Mollahosseini, A., Chan, D., & Mahoor, M. H. (2016,

March). Going deeper in facial expression recognition

using deep neural networks. In 2016 IEEE Winter conf.

on applications of computer vision, pp: 1-10).

Enhancing Facial Expression Recognition and Analysis with EfﬁcientNetB7

495
