Heart Disease Prediction Using Gradient Boosting Decision Trees

Yuzhe Wu

Munus International Engineering School, Fuzhou University, Fuzhou, 350000, China

Keywords: Prevention, Dataset, GBDT, Machine Learning Models, Heart Disease.

Abstract: Heart disease is one of the major health challenges globally, and its prevention and treatment are crucial for

ensuring people's health. This study is based on the 2020 stacked ensemble survey dataset for heart disease

classification. By analyzing the relationship between various factors and heart disease, we explore the

application of machine learning models in heart disease prediction. The study found that factors such as fasting

blood sugar, cholesterol, and exercise-induced angina are closely related to heart disease, while the influence

of resting electrocardiogram and resting blood pressure is relatively small. Among various machine learning

models compared, Gradient Boosting Decision Trees (GBDT) performed the best, with high prediction

accuracy and precision. However, the study also points out the limitations of the dataset and the issue of

models not fully unleashing their potential.It is worth noting that this study also explores the possibility of

using other machine learning models in heart disease prediction and conducts comparative analysis, providing

more references for heart disease prevention and treatment.

1 INTRODUCTION

Heart disease, as a sudden and severe ailment, has

always been a concern for society and humanity.

According to the "China Cardiovascular Health and

Disease Report 2020," there are approximately 330

million people with cardiovascular diseases,

including 13 million cases of stroke, 11.39 million

cases of coronary heart disease, 5 million cases of

cardiomyopathy, 45.3 million cases of peripheral

arterial disease, and 245 million cases of

hypertension, imposing an increasing economic

burden on society and becoming a significant public

health issue (Cheng, 2023). Research indicates that

due to its diverse and complex disease types and

extremely high mortality rates, heart disease has

become a formidable challenge in the field of

medicine (Lin, 2019 ). Not only does heart disease

severely impact individual health, but it also imposes

a substantial burden on the socio-economic

landscape. The expensive medical costs required for

treating heart disease, coupled with the need for long-

term medical care and rehabilitation, contribute to the

profound economic impact.

To address the challenge of achieving a

qualitative leap in the short term in the medical

https://orcid.org/0009-0007-5343-2359

treatment of heart disease, and considering the rapid

development of information technology and artificial

intelligence, people have begun to prioritize the

prevention and prediction of heart disease to control

the occurrence of the disease at its source. To achieve

this goal, various machine learning models (such as

logistic regression, decision trees, deep neural

networks, etc.) are widely used to analyze and predict

various factors related to heart disease. These models

are utilized to infer various indicators closely related

to heart disease and control these indicators to reach

the critical threshold for preventing heart disease

attacks.

This study is based on the "Stacked Ensemble for

Heart Disease Classification" dataset from 2020 and

aims to analyze the factors leading to heart disease.

Firstly, feature selection and visualization techniques

were applied to the dataset to better understand the

data. Subsequently, a series of conclusions were

drawn through the analysis of relevant factors.

Finally, this study compared the performance of

multiple machine learning models, demonstrating the

superiority of Gradient Boosting Decision Trees in

this task.

Wu, Y.

Heart Disease Prediction Using Gradient Boosting Decision Trees.

DOI: 10.5220/0012958300004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 527-535

ISBN: 978-989-758-713-9

527

2 RELATED RESEARCH

Traditional methods for predicting heart disease often

rely on the experience of doctors and manual analysis,

limited by human cognitive ability and information

processing speed, which can easily lead to subjective

biases and misjudgments. With the rapid

advancement of technology and the era, people are

increasingly realizing the advantages of integrating

artificial intelligence and machine learning models

into heart disease prediction. Weng et al. pointed out

in a prospective cohort study on predicting

cardiovascular disease that machine learning

algorithms significantly improved the prediction of

cardiovascular disease, confirming the effectiveness

and feasibility of machine learning techniques in

cardiovascular disease prediction (Weng , 2017).

For example, Li Linghai compared the

effectiveness of traditional feature extraction

algorithms and deep learning methods in the

classification of echocardiograms, finding that deep

learning significantly improved the classification

accuracy, especially in the classification of heart

disease (Li,2017 ) .Cheng Z. and other scholars

integrated Random Forest with SHAP for heart

disease prediction, and found that it can predict heart

disease more accurately (Cheng, 2023). Liu Yunlong

and other scholars conducted feature selection

research on heart disease prediction based on GBM,

and found that this method can effectively improve

the efficiency of medical diagnosis (Liu, 2023 ).

Shafiey M G and other scholars introduced an

efficient hybrid genetic algorithm and particle swarm

optimization method based on Random Forest to

optimize the feature extraction process, in order to

select key features that enhance the accuracy of heart

disease diagnosis (Shafiey, 2022 ).

Mohan et al. proposed a heart disease prediction

model called HRFLM, constructed using a linear

mixed RF algorithm. The model improved the level

of disease prediction performance, achieving an

accuracy of 88.7% (Mohan, 2019 ). Ali et al. in 2002

utilized an adapted form of the Health Belief Model,

selecting a dataset of 178 female patients with

coronary heart disease, and conducted an analysis of

coronary heart disease risk factors prediction

(Ali,2002). In 2009, Avci utilized genetic algorithms

to optimize parameters of the Support Vector

Machine model and experimentally validated it on

heart disease data. The research results indicated that

this method could achieve better predictive

performance (Avci, 2009). In 2013, Amin et al.

proposed a hybrid model combining artificial neural

networks with genetic algorithms, aimed at

optimizing the connection weights of neural networks

to improve the predictive performance of artificial

neural networks. The model utilized 50 identified

important risk factors to predict heart disease, and the

research results demonstrated an accuracy of 89% for

the predictive model (Amin , 2013).

Previous studies have utilized models such as

Logistic Regression, Decision Trees, and Deep

Neural Networks to analyze the related data, and

these models indeed exhibit a certain level of

accuracy and play an important role to some extent.

However, when faced with large and dense datasets,

these traditional models still have some limitations,

particularly in discovering higher-order relationships

and achieving further precision. However, GBDT,

which this experiment is based on, can effectively

address the shortcomings of previous models

3 METHOD

By comparing different machine learning models and

using performance comparison metrics, we determine

the optimal model. These models include, but are not

limited to, GBDT and LR. We compare their

performance in predicting heart disease and select the

best-performing model as the final conclusion (Fig. 1).

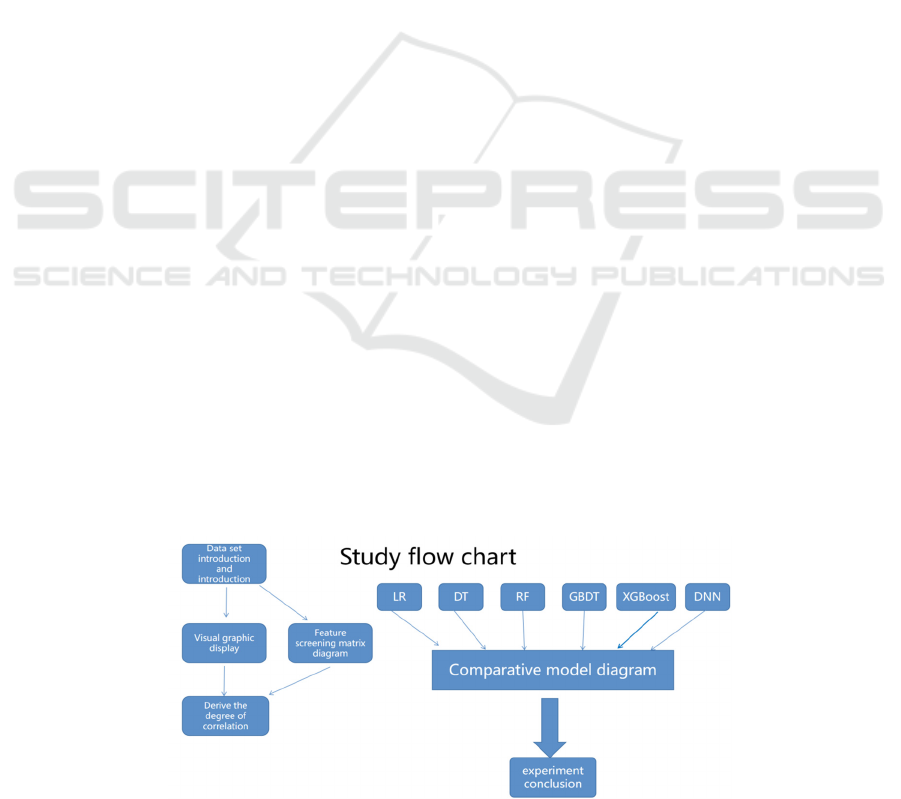

Figure 1: Research Workflow Diagram (Photo/Picture credit: Original).

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

528

3.1 GBDT

The predicted values (results of weak classifiers) are

cumulatively stacked to equal the original value. Each

time, the current prediction serves as the baseline, and

the next classifier fits the residual of the error function

on the predicted values (GBDT's weak classifiers use

tree models) (Figure 2).

In a given dataset D





：{x



} with a sample size

of n, GBDT is a commonly used training method. It

aims to improve predictive performance by iteratively

training a series of decision tree models. Each round

of training produces a weak learner that minimizes the

residual loss of the current model. As the iterations

progress, each new model is trained on the residuals

of the previous model, eventually forming a powerful

ensemble model. In the context of Federated GBDT,

the CART regression algorithm is typically used to

train each decision tree model.

L(𝑦



,f(𝑥



)) =





∑

𝑦′



𝑦











(1)

In the GBDT framework, y′



represents the predicted

value, y



represents the actual value, and y′



 y



denotes the difference between the predicted and

actual values, i.e., the gradient, also referred to as the

residual.

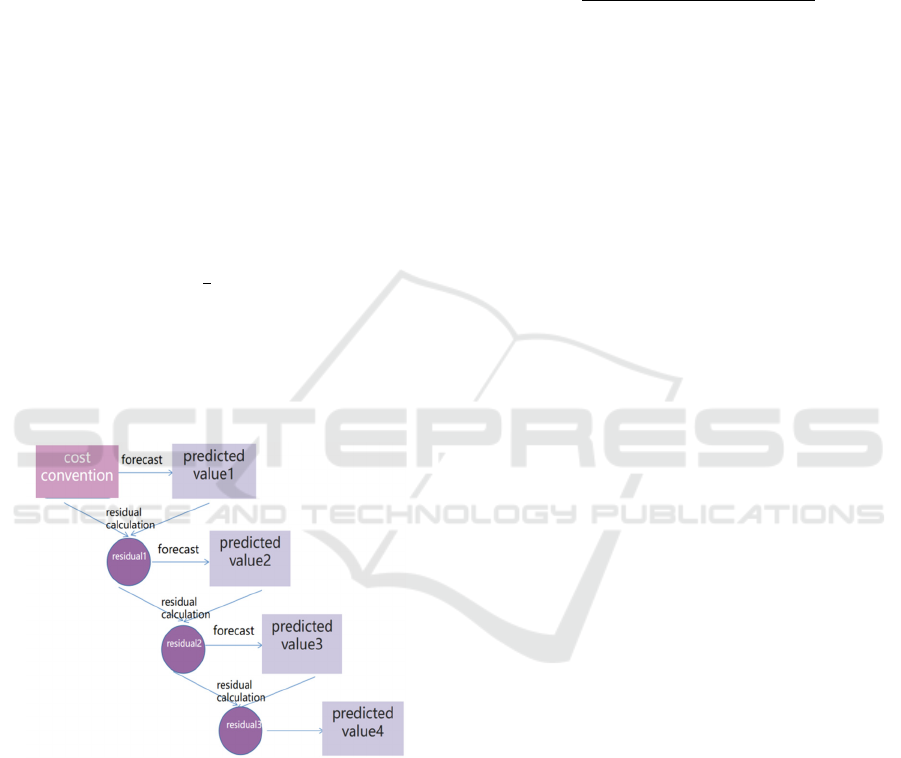

Figure 2: Flowchart of GBDT (Picture credit: Original).

3.2 LR

Learning from a set of samples' multiple feature

values to establish a model (abstracted as a formula

f(x)), using this model to predict the outcomes of

other samples, with logistic regression being the

classification of predicted results.

We have established a LR model with i

independent variables, denoted by x







……x



, to

study the presence of heart disease risk. The event of

absence or presence of heart disease risk is

represented by the dependent variable y∈{0,1}, where

y=0 indicates the absence of heart disease risk and

y=1 indicates the presence of heart disease risk. The

presence of heart disease risk is denoted by p.

Therefore, the LR model is defined as follows:

Z = 𝑤



𝑥



+𝑤



𝑥



+𝑤



𝑥



……

+𝑤



𝑥



(2)

P =

（



















⋯







）

（



















⋯







）

(3)

Normalize the values of x, then define the weight

function, activation function, and loss function for

gradient descent. Finally, make predictions using the

trained weight parameters w.

3.3 DT

DT is a graphical method used in decision analysis to

evaluate project risks and feasibility by calculating

the probability of net present value being greater than

or equal to zero based on known probabilities of

various scenarios. It intuitively applies probability

analysis to assess the feasibility of projects.

H(x) =

∑

𝑝







𝑙𝑜𝑔



𝑝



(4)

Here, H(x) represents entropy, and P(x) represents

the probability of event x occurring. Information

entropy is a critical factor in DT algorithms.

Borrowing the concept of entropy, information

entropy is introduced to describe the occurrence

probability of discrete random events in decision tree

algorithms. Typically, the more frequent an event

occurs, the higher the emphasis on information

entropy, indicating lower uncertainty. Conversely,

higher uncertainty is associated with less frequent

occurrences.

3.4 RF Model

RF is a classifier consisting of many decision trees,

which can be used for both classification and

regression problems, as well as for dimensionality

reduction. It also has good tolerance to outliers and

noise. As an ensemble learning method, the RF

model, within the framework of the Bagging

algorithm, utilizes decision trees as the base training

models to improve the generalization ability of the

model. We conducted a RF experiment, first using the

Bootstrap method to randomly extract n subsets from

the original sample set, and then selecting k features

from multiple features as the subset of features. This

process is repeated n times to obtain n subsets of

features. Next, we randomly match the subsets of

training sets and features to train n decision trees.

Heart Disease Prediction Using Gradient Boosting Decision Trees

529

Finally, we integrate the predictions of these n

decision trees using a voting method to obtain the

final prediction result.

3.5 Extreme Gradient Boosting

XGBoost is an optimized distributed gradient

boosting library designed to be efficient, flexible, and

portable. It features boosting ensemble algorithm

characteristics. The goal of boosting ensemble

algorithms is to improve the overall model

performance by building multiple weak classifiers

and aggregating their results. The XGBoost algorithm

achieves this goal by ensuring that each iteration

generates the optimal new tree. To ensure that the

results of multiple weak estimators are better than

those of a single estimator, XGBoost uses a method

of sampling with replacement.Simple description, the

final predicted value is the sum of the predicted values

for each tree.

3.6 DNN

DNN consists of input layers, hidden layers, and

output layers. When constructing a DNN, it is

necessary to choose an appropriate structure,

including the number of hidden layers and the number

of nodes in each hidden layer. The selection of these

parameters can evaluate the complexity of the model.

When the complexity of the model is insufficient to

learn all the features in the samples, the network will

exhibit underfitting, manifested by large errors in

both the training and test sets. Conversely, when the

complexity of the model is too high, the network will

exhibit overfitting, manifested by small errors in the

training set but large errors in the test set. The

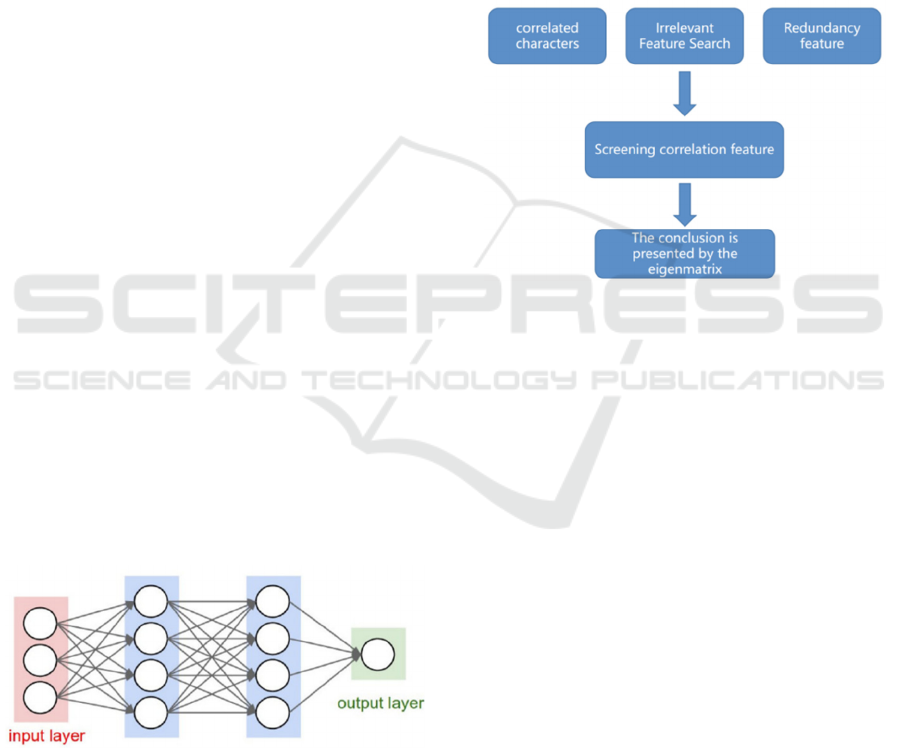

structural diagram of the DNN adopted in this

experiment is as follows (Figure 3).

Figure 3: The structural diagram of the DNN (Picture credit:

Original).

4 RESULT

4.1 Data Set

The dataset used in this experiment is sourced from

the "Stacked Ensemble for Heart Disease

Classification" dataset on Kaggle. This dataset

comprises 14,280 data points with 12 distinct

features, resulting in 1190 rows.The characteristic

quantities of this experiment will be shown in the

visualization section.

First, this paper perform feature selection on the

dataset. The workflow is illustrated in Figure 4.

Figure 4: Workflow of Feature Selection (Picture credit:

Original).

With the deepening of research, this work

summarize and present the feature matrix in Figure 5,

aiming to discover the relationship between each

feature and the target variable.

Through this paper’s analysis of the dataset, the

paper have identified some notable correlations

among the features (see Figure 5). Specifically, this

work observe that the ST slope exhibits the highest

positive correlation with the target variable, with a

value of 0.51. Additionally, exercise-induced angina

and chest pain type also show relatively high positive

correlations, at 0.48 and 0.46, respectively.

Furthermore, the maximum heart rate demonstrates

the highest negative correlation with the target

variable, with a value of -0.41.

4.2 Visualizations and Discussion

It is evident that the resting electrocardiogram (resting

ecg) and resting blood pressure (resting bp s) exhibit

relatively low correlations with the target variable, at

0.073 and 0.12, respectively. These values are close

to zero and can be considered negligible. This

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

530

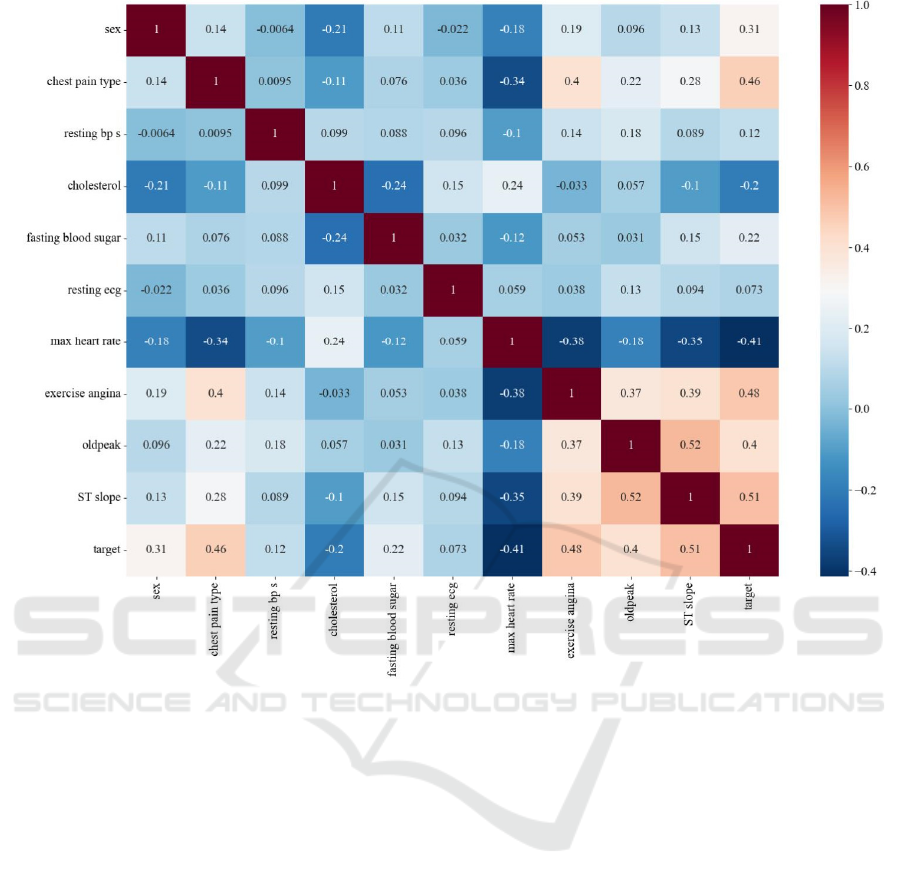

Figure 5: Feature Matrix Visualization (Photo/Picture credit: Original).

suggests that the linear relationships between these

two features and the target variable are weak,

potentially limiting their predictive capabilities. In the

process of model training and feature selection, this

paper may consider excluding these features to

enhance the efficiency and accuracy of the model.

Based on the visualization in Figure 6, this paper

draw the following conclusions: Firstly, the

probability of maintaining heart health is higher when

blood sugar levels are lower. Secondly, excessive

exercise may lead to abnormalities and consequently

cause heart problems. Regarding cholesterol levels,

there is a higher proportion of abnormalities in the

range of approximately 100 to 300, while there is also

a significant proportion of abnormalities in the range

of approximately -100 to 100. Additionally, males

have a higher probability of abnormalities.

Concerning chest pain type, asymptomatic

abnormalities constitute a significant proportion in

the graph. Lastly, in the relationship between

maximum heart rate and heart health, the interval for

normal individuals is generally farther back compared

to individuals with abnormalities.

Based on the visualization in Figure 7, the

distribution of the target variable in resting ecg and

resting bp s shows minimal differences overall. This

suggests that the correlation between these two

features and the target variable is relatively weak.

This conclusion aligns with the findings from the

subsequent feature matrix, which also indicated a

weak correlation between resting electrocardiogram

and resting blood pressure with the target variable,

thereby corroborating each other.

These findings further validate the limited

predictive power of resting electrocardiogram and

resting blood pressure in predicting the target

variable, emphasizing that they may not be the most

influential predictive factors.

Heart Disease Prediction Using Gradient Boosting Decision Trees

531

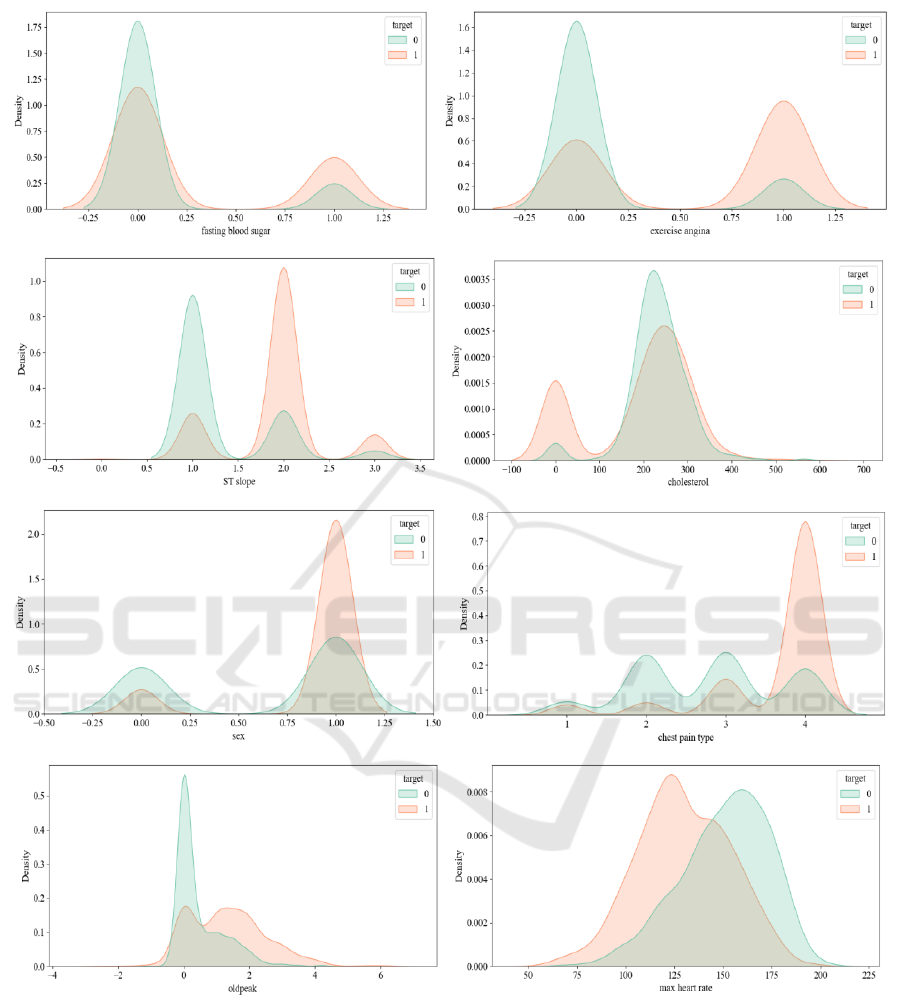

Figure 6: Visualization of Relationships between each Feature and the Target Variable 1 (Photo/Picture credit: Original).

To compare various models and select the most

suitable one for accurately predicting this type of

problem, we utilized multiple performance evaluation

metrics, including AUC (Area Under the Curve),

accuracy, precision, recall, and F1-score. By

evaluating these metrics comprehensively, this paper

were able to compare the performance of different

models and ultimately determine the optimal model.

By comprehensively considering the above

evaluation metrics, this paper can gain a more

comprehensive understanding of the performance

advantages and disadvantages of various models. This

enables us to select the model that performs best in

terms of accuracy, generalization capability, and

robustness, thereby providing the optimal choice for

predicting and studying the problem.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

532

Figure 7: Visualization of the Relationship between Various

Features and the Target Variable 2 (Photo/Picture credit :

Original).

Figure 8: Evaluation of AUC and accuracy for each model

(Photo/Picture credit: Original).

Table 1: Numerical Statistics 1 (Values rounded to 3

decimal places).

Methodolo

AUC accurac

LR 0.922 0.849

DT 0.898 0.843

RF 0.949 0.882

GBDT 0.959 0.910

XGBoos

0.957 0.892

DNN 0.945 0.862

Based on the results from Figure 8 and Table 1,

the differences among various models in terms of

AUC and accuracy are not significant, mostly ranging

from 80% to 90%. However, it is evident that GBDT

exhibits a prominent advantage compared to other

models. This indicates that in our study, the GBDT

model demonstrates superior performance in terms of

predictive accuracy and AUC values.

Based on the performance evaluation results from

Figure 9 and Table 2, it is evident that GBDT

consistently outperform other models, whether before

or after feature selection. This indicates that the

GBDT model exhibits outstanding performance

across different conditions in our study.

The superiority of GBDT can be attributed to its

faster prediction speed and higher accuracy. Its

parallel prediction capability enables excellent

performance on information-dense and large-scale

datasets. Moreover, GBDT demonstrates excellent

interpretability and robustness, automatically

discovering high-order relationships between data

without requiring additional preprocessing

operations. Additionally, the model exhibits stronger

adaptability to complex datasets, effectively handling

complex and high-order relationships between data.

Therefore, it is more suitable for datasets with diverse

influencing factors, dense information, and complex

relationships. Overall, despite the large scale and

diversity of influencing factors in the experimental

dataset, GBDT still holds significant advantages in

handling such data types.

In conclusion, based on the comparative research

results, we conclude that GBDT exhibit outstanding

advantages compared to other models. In this paper’s

experiments, both before and after feature selection,

the GBDT model demonstrates excellent performance

across various performance evaluation metrics,

including AUC, accuracy, precision, recall, and F1-

score. This indicates that GBDT provides higher

accuracy and reliability in predicting heart disease,

making it suitable for addressing such problems.

Heart Disease Prediction Using Gradient Boosting Decision Trees

533

Figure 9: Evaluation Metrics of Various Models Before and After Selection (Photo/Picture credit: Original).

Table 2: Numerical Statistics 2 (Values Rounded to Three Decimal Places).

Methodolo

Fl-score0 Precision0 Recall0 Precision1 Recall1

LR 0.841 0.831 0.851 0.865 0.843

DT 0.841 0.800 0.887 0.889 0.802

RF 0.872 0.882 0.862 0.881 0.900

GBDT 0.903 0.902 0.904 0.915 0.914

XGBoos

0.883 0.898 0.875 0.891 0.910

DNN 0.852 0.860 0.845 0.865 0.879

5 CONCLUSION

To address the increasing prevalence and

unpredictable nature of heart disease in recent years,

this study developed a GBDT model for predicting

heart disease, which demonstrated more precise

analysis and prediction capabilities. By using the

GBDT model, this work could accurately identify risk

factors for heart disease onset and provide more

reliable prediction results. This achievement provides

new pathways and methods for better and more

systematic discovery and prevention of heart disease.

According to the research findings, heart disease

onset correlates significantly with factors such as

fasting blood sugar, cholesterol, exercise-induced

angina, ST slope, gender, chest pain type, a certain

comparative parameter, and maximum heart rate;

whereas it correlates less with resting ecg and resting

bps.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

534

Through comparing the performance of various

machine learning models, GBDT outperforms others

in terms of AUC, accuracy, precision, recall, and F1

score. With an AUC close to 0.96 and an accuracy of

approximately 0.91, GBDT dominates over other

models.

Lastly, it is important to note that although the

paper used a comprehensive dataset in this study, data

collection may still not fully represent all scenarios,

leading to potentially inaccurate analyses and

inability to address specific outliers. To mitigate this

issue, efforts can be made to improve the coverage of

the dataset to better reflect real-world scenarios.

Additionally, while this paper have made some

progress in this study, I recognize that I have not fully

exploited all the potential of the GBDT model.

Therefore, one of the future research directions is to

further explore and enhance the model's capabilities

to improve its effectiveness and reliability in

predicting and preventing heart disease.

REFERENCES

Ali N S. 2002. Prediction of coronary heart disease

preventive behaviors in women: a test of the health

belief model. Women & health, 35(1): 83-96.

Amin S U, Agarwal K, Beg R. 2013. Genetic neural

network based data mining in prediction of heart disease

using risk factors, 2013 IEEE conference on

information & communication technologies. 1227-

1231.

Avci E. 2009. A new intelligent diagnosis system for the

heart valve diseases by using geneticSVM classifier.

Expert Systems with Applications, 36(7): 10618-10626.

Cheng Z., Zhang B., Cai Y., et al. 2023. Research on Heart

Disease Prediction and Feature Analysis Based on

Fusion of Random Forest and SHAP. Intelligent

Computer and Applications, 13(11): 172-179.

Li L..2017. Research on Heart Disease Detection Based on

Deep Learning. Modern Computer (Professional

Edition), (9): 91-93, 110.

Lin Z.. 2019. Research on Heart Disease Prediction Based

on Decision Tree Algorithm. Electronic

Manufacturing, 370(6): 25-27.

Liu Y., Zhou Y., Luo C..2023. Research on Feature

Selection in Heart Disease Prediction Based on GBM.

Modern Electronics Technology, 46(19): 101-106.

Mohan S. Thirumalai C, Sruvasta G. 2019. Effective heart

disease prediction using hybrid machine learning

techniques. IEEE Access,7：81542-81554.

Shafiey E. Hagag M G, et al. 2022. A hybrid GA and PSO

optimized approach for heart⁃disease prediction based

on random forest. Multimedia tools and applications,

81(13): 18155⁃18179.

Weng S, Reps J, Kai J, et al. 2017. Can Machine-Learning

Improve Cardiovascular Risk Prediction Using Routine

Clinical Data? PLoS ONE, 12(4): 1-14.

Heart Disease Prediction Using Gradient Boosting Decision Trees

535
