Performance Comparison and Analysis Between MOON
and FedProx in Image Classification
Xuanzhou Shi
a
Miami College of Henan University ， Henan University, Kaifeng, China
Keywords: Federated Learning, Data Heterogeneity, Image Classification.
Abstract: Traditional machine learning algorithms mostly follow a centralized training paradigm, which poses
challenges to data security and privacy, and restricts the in-depth application of artificial intelligence models
in many fields. As a great way to train models in siloed data, federated learning has emerged in recent years
and attracted much attention from the industry and academic community. Though much effort has been
devoted, challenges persist within federated learning frameworks when addressing data that is identically
distributed yet lacks independence. This paper focuses on introducing the latest research to solve this problem
and quantitively discusses their performance on various datasets, aiming to provide the decision-making basis
for algorithm selection. Specifically, three representative federated learning algorithms are first introduced,
including their design ideas and key steps. This paper further analyzes the advantages and disadvantages of
these methods by comparing the performance in accuracy, communication efficiency, different numbers of
local epochs, and different heterogeneous environments. Extensive results show that MOON is superior to
FedProx in all aspects of the experiment, showing the superiority of MOON in image classification.
1 INTRODUCTION
The huge success of AlphaGo has raised great
expectations for this kind of big data-driven AI to be
realized in various industries. However, the reality is
that in addition to a few industries, many industries
do not have sufficient data and good quality data to
support the implementation of artificial intelligence.
At the same time, due to the restrictions of laws and
regulations, data often appear in the form of islands,
and the data of all parties cannot be transferred to a
centralized server to train the model. In this context,
federated learning (Li et al., 2020) has been gaining
traction as a viable option for addressing privacy
concerns and ensuring data security, garnering
increasing interest in recent times.
Federated learning can keep the original data in
the local client. During every training cycling,
participants are required only to transmit their
updated models to a central server, which then
amalgamates these local models to formulate a
comprehensive global model. In this process, the
original data are not exchanged, which solves the
above problems well, which attracts the research
a
https://orcid.org/0009-0005-8574-7262
interest of many people and obtains a wide range of
research and applications (Zhang et al., 2022; Yang et
al., 2022), including medical image assessment,
processing of natural language, auto driving.
However, the heterogeneity of data distribution (Zhao
et al., 2018) is still an open issue that hinders the
further development of federated learning. Data
between participants may have different feature
distributions, data types, or data sizes. This
heterogeneity leads to potential inefficiencies in
federated learning, particularly during the model
training and amalgamation process, where significant
disparities can emerge between the average global
model as well as the global optimum, especially when
local models are updated and their specific objectives
diverge substantially from the overarching global
objective.
To solve the data heterogeneity problem, methods
such as feature alignment, data transformation, cross-
device transfer learning, and aggregation strategy
adjustment can be adopted. MOON (Li et al., 2021)
and FedProx (McMahan et al., 2017) are two
representative algorithms. Model-Contrastive
Federated Learning (MOON) introduces model
Shi, X.
Performance Comparison and Analysis Between MOON and FedProx in Image Classification.
DOI: 10.5220/0012961100004508
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 639-645
ISBN: 978-989-758-713-9
Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.
639

contrastive loss during local training to correct update
direction. The objective of comparing model losses is
to enhance the distinction between features generated
in the current model iteration and those from
preceding iterations, while simultaneously reducing
the discrepancies involving features produced via the
global and updated models. This is because on the
server side, the global model has a tendency to
produce better features in comparison to models that
are updated locally. FedProx allows local models
with inadequate training to handle system
heterogeneity issues. Regardless of whether a local
model has finished its training (fixed Epoch),
FedProx combines all participating local models,
meaning that it does not necessitate all local models
to be trained with precision. Concurrently, FedProx
addresses the issue of frequent local model updates
hindering the global model's convergence by
integrating a proximal term to the local model's loss
function. This addition acts as a deterrent against
excessive deviations of local models from the global
models.
Aiming to provide decision-making basis for
federated learning algorithms selection, this paper
compares the performance of MOON and FedProx on
image datasets of deep learning models, and finds the
superiority of MOON over FedProx in image
classification. Specifically, in Section 2, three
representative federated learning algorithms are first
introduced, including their design ideas and key steps.
Section 3 compares the performance of different
methods on three datasets. Section 4 concludes this
work and discusses the future development of
federated learning.
2 METHOD
This section first revisits the classic federated
learning algorithm FedAvg (Li et al., 2020) and gives
the problem definition of data heterogeneity. Then,
MOON and FedProx are detailed in the following
section.
2.1 Problem Definition
FedAvg (Li et al., 2020) is a strategy that utilizes
Stochastic gradient descent (SGD) for updates, which
performs effectively in real life, and the steps of every
round are shown in Figure 1. Initially, the server
selects clients for federated learning participation and
dispatches the model to them. Subsequently, clients
utilize Stochastic Gradient Descent (SGD) for model
refinement using their local datasets. Afterward,
clients transmit the refined model back to the central
server. In the final step, the central server
amalgamates and evaluates the models, with the
evaluation outcomes serving as a benchmark for
subsequent training rounds.
However, FedAvg is not suitable for
heterogeneous environments (Li et al., 2019), where
the data distribution on different devices may be quite
different. Some devices may have more or fewer
samples, or there may be differences in data quality.
This leads to some devices contributing
inconsistently to the federated learning process,
which affects global performance. To solve this
problem, the current studies can be primarily
categorized into two groups: improving the local
training phase and improving the aggregation phase
(corresponding to the first and fourth steps of Figure
1, respectively). The two models in this paper belong
to the first category.
Figure 1: The workflow of FedAvg algorithm.
2.2 MOON
Contrastive learning (Jaiswal et al., 2020) is a
machine learning method that aims to learn useful
feature representations by comparing the similarities
and differences between different samples, and has
made positive contributions to learning visual
representations. The main concept is that comparable
samples are assigned to a corresponding embedding
space, ensuring that similar samples are in closer
proximity within the embedding space while
dissimilar samples are more distant from every other.
Inspired by the concept of contrastive learning,
MOON was developed as an adaptation of FedAvg
with modifications to local training. MOON is
designed to narrow the divergence between
representations acquired by the local model and those
by the global model, enhancing the learning efficacy
of the global model (Li et al., 2021). Concurrently, it
amplifies the disparity involving the current local
model's representations and those from its preceding
iterations, mitigating the effects of drift during local
training in order to accommodate accuracy in diverse
environments.
EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence
640

The architecture of MOON's network comprises
three components: an output layer, a projection head,
and a foundational encoder, as depicted in Figure 2.
The foundational encoder extracts vectors from the
input. Through the projection head, inputs are
transformed into a fixed-dimensional space. The
output layer is responsible for generating the
predicted values for every class. At a weight of w, the
function F
w
(·) represents the entire network, while
G
w
(
·
)
represents the network excluding the output
layer.
Figure 2: The workflow of FedAvg algorithm.
The training procedure of MOON is shown in
Figure 3. The MOON has three representations
during the local training phase: (1) the output derived
from the most recent model trained locally and then
transmitted to the server (Z
prev
= R
w
i
t1
(x)), (2) the
global model sends the representation to the local at
the start of every round (Z
glob
= R
w
t
(x)), and (3) the
output derived from the current update of the local
model (Z = R
W
i
t
(x)). The training objective is to have
z close to Z
glob
and z far away from Z
prev
.
The local loss in training is divided into two parts:
the initial component is referred to as the cross-
entropy loss, labeled as ℓ
sup
，while the subsequent
component represents the characteristic ℓ
con
in
MOON. ℓ
con
is defined as follows:
ℓ

= −𝑙𝑜𝑔
a
ab
(1)
a = exp𝑠𝑖𝑚𝑧, 𝑧

/τ (2)
𝑏 = exp𝑠𝑖𝑚𝑧, 𝑧

/𝜏 (3)
Where, 𝑠𝑖𝑚(·) denotes the cosine similarity function,
and τ represents a temperature-related parameter.
The optimization objectives of MOON are expressed
as:
ℓ = ℓ
sup
w
i
t
;
(
x, y
)
 + μℓ
con
w
i
t
; w
i
t1
; w
t
; 𝑥 (4)
2.3 FedProx
2.3.1 Optimization Points for FedProx
Federated learning frameworks engage multiple
clients and a central server in collaboration, aiming to
minimize:
min
w
f
(
w
)
=
∑
p
k
F
k
(
w
)
N
k1
(5)
The objective function f(w) is used to describe
the objective or loss of the optimization problem. N is
the number of participating devices. p
k
is the weight
factor such that p
k
≥ 0 and the sum of all weight
factors is one. F
k
(w) symbolizes the local objective
function, which quantifies the local empirical risk for
different data distributions D
k
.
One common approach in federated optimization
to minimize communication is to employ a local
objective function derived from device data, as
opposed to utilizing a global objective function,
which is proxied on the client side. During every
outer iteration, a subset of devices is chosen to
optimize a local objective function using a local
solver. Subsequently, device-generated updates are
relayed to the central server, where they undergo
amalgamation to refine the global model. The crucial
factor for achieving flexible performance in this
situation is the ability to accurately solve every local
objective, allowing for the calibration of local
computation against communication, contingent on
the volume of local iterations completed. For this
reason, this definition is formally proposed below,
which will be used continuously in the following
papers.
Definition 1 (γ-inexact solution). For a function
h
(
w; w

)
=F
(
w
)
+


||w − w

||
2
, and γ∋

0,1

,
w
∗
represents a γ-inexact solution of min

h(w; w

) if
||∇h
(
w
∗
;w

)
|| ≤ γ||∇h
(
w

;w

)
|| , where
∇h(w; w

) = ∇F
(
w
)
+ μ(w − w

). Note that a
smaller γ corresponds to higher accuracy.
It is crucial to optimize the tuning of hyper-
parameters in FedAvg, especially the number of
epochs for local training plays an important role in
convergence, the details are in Algorithm 2 in Figure
4. Executing more local training times can reduce the
number of communications, but in a heterogeneous
environment, more local updates may affect the
convergence, even deviate from the global goal, and
may make the device fail to complete the number of
updates on time. With the change of local data and
available system resources, the number of local
updates will be different, so it is necessary to increase
the convergence robustness and increase the number
of local updates as much as possible. Obviously,
Performance Comparison and Analysis Between MOON and FedProx in Image Classification
641

FedAvg does not meet these conditions, so it is
proposed that FedProx can solve this problem.

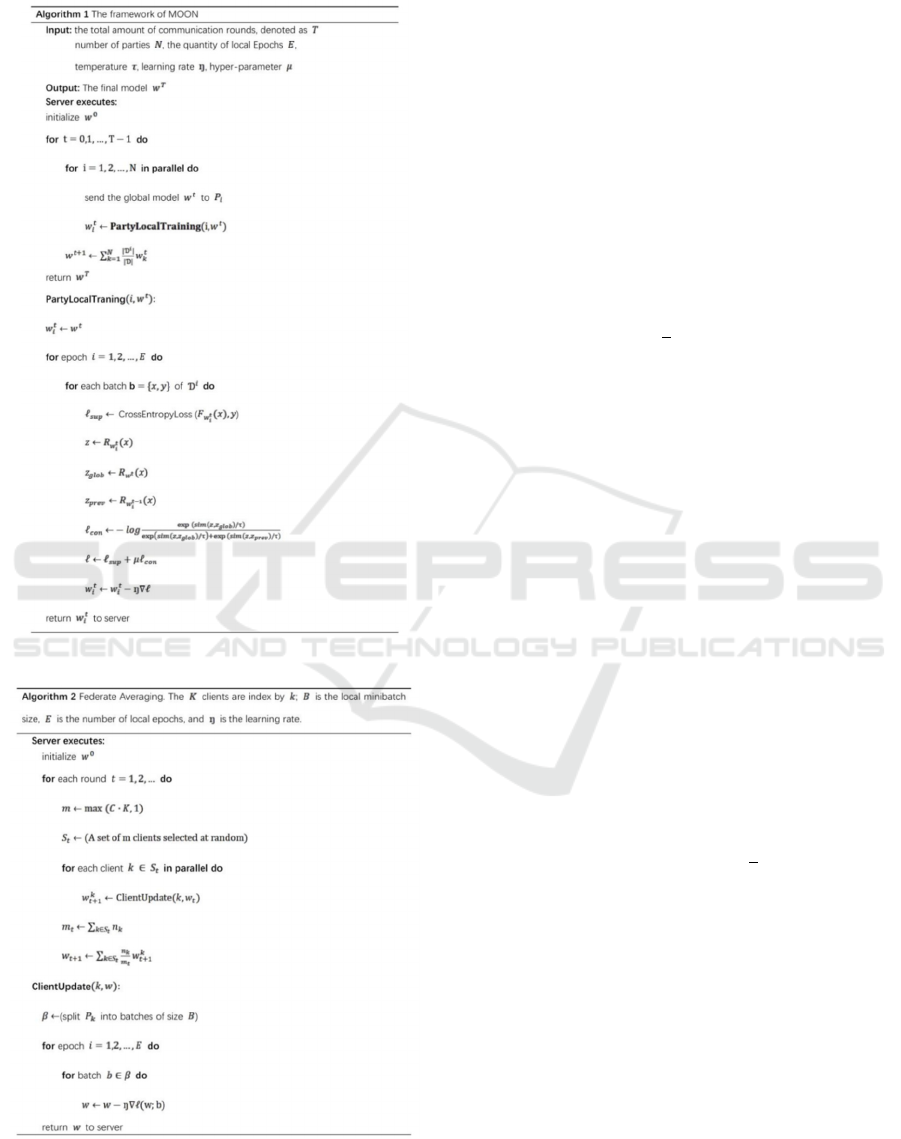

Figure 3: The training procedure of MOON algorithm.
Figure 4: The training procedure of federate averaging .
2.3.2 FedProx
The framework of FedProx is similar to that of
FedAvg in that, in every round, devices are selected,
global models are sent, local updates are performed,
and then these models are aggregated. The distinction
lies in the fact that FedProx enables the enhancement
of FedAvg by varying the workload carried out
locally on devices based on system resources, and
then combining incomplete solutions submitted by
slow performers. FedProx allows local devices to
perform a variable amount of work according to their
available system resources, instead of dropping
backward devices, that is, different devices can
perform different iterations, provide variable γ, and
extend from Definition 1 to Definition 2.
Definition 2 (γ


-inexact solution). For a function
h

(
w; w

)
= F

(
w
)
+


||w − w

||
2
, and γ∈

0, 1

,
w
∗
is a γ


-inexact solution of min

h

(w; w

) if
||∇h

(
w
∗
;w
)
|| ≤ γ


||∇h

(
w

;w

)
|| , where
∇h

(
w; w

)
= ∇F

(
w
)
+ μ(w − w

) . Note: a
smaller γ


corresponds to higher accuracy.
It can be seen that from Definition 1 to Definition
2, the objective function and gradient calculation
method are mainly changed to local functions on
every device to adapt to the heterogeneous
environment. The γ


approximate solution defined in
this paper can measure the precision of the solution
on every device, and evaluate the overall optimization
more comprehensively.
After adjusting to the diverse environment, it is
important to be aware that excessive local updates
may lead to divergence in the approach as a result of
the varying underlying data. To solve this problem,
the above effects can be effectively avoided by
adding the proximal term. Rather than directly
minimizing a local function F

(·) expressed below,
Device K employs its selected local solver to
approximate the minimization of the intended target.
min

h

(
w; w

)
=F

(
w
)
+


||w − w

||
2
(6)
The training procedure of FedProx is shown in
Algorithm 3 in Figure 5. In particular, the FedAvg
can be seen as a specific instance of FedProx, where
μ = 0, the specially chosen local solver is SGD, and
the constant γ between devices is fixed.
EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence
642

Figure 5: The training procedure of federate averaging .
3 EXPERIMENT
3.1 Original Datasets
This study undertakes a comparative analysis of
MOON, FedProx, and FedAvg across CIFAR-10,
CIFAR-100, and Tiny-Imagenet datasets (https://
www.kaggle.com/c/tiny-imagenet). Moreover, it
employs two distinct network architectures: ResNet-
50 (He et al., 2016) as the primary encoder for
CIFAR-100 and Tiny-Imagenet, and a convolutional
neural network (CNN) for CIFAR-10. The CNN
consists of 2 fully connected layers with ReLU
activation (the first layer having 120 units and the
second 84 units), along with five convolutional layers
and a pooling layer (the initial layer with 6 channels,
followed by one with 16 channels). A two-layer MLP
serves as the projection head for all datasets, with the
output dimension set to 256 by default.
3.2 Experimental Settings
PyTorch is used to implement MOON, FedProx and
FedAvg. SGD optimizer is adopted for all three
methods, where the learning rate is established at 0.01,
accompanied by a weight decay of 0.00001 and
momentum of 0.9. The batch size is determined as 64.
For the CIFAR-10, CIFAR-100, and Tiny-Imagenet
datasets, the amount of communication rounds is
designated as 100, 100, and 20, respectively. For
MOON, the default temperature parameter is 0.5. In
the article, Dirichlet distribution is utilized to
simulate non-IID data across participating entities,
with the Dirichlet distribution parameter 𝛽 is used in
this paper, where 𝛽 is a floating point number. The
Dirichlet distribution generates a vector of length N
representing the probability distribution over N
categories. This vector is denoted as 𝑝

, where 𝑝
,
denotes the probability that category k is in party j.
Based on this allocation strategy, it is possible that
every party may have a limited number (or none at
all) of data samples in certain categories.
3.3 Comparison of Precision
In the MOON model, the hyperparameter 𝜇, which
governs the model's contrast loss, is calibrated across
a range of {0.01, 0.1, 1, 5, 10}, with the ideal 𝜇 values
for CIFAR-10, CIFAR-100, and Tiny-Imagenet
determined to be 5, 1, and 1, respectively. In the case
of FedProx, 𝜇, which influences the proximal term, is
adjusted within {0.001, 0.01, 0.1, 1}, finding the most
effective 𝜇 values for CIFAR-10, CIFAR-100, and
Tiny-Imagenet to be 0.01, 0.001, and 0.001,
respectively. These configurations of 𝜇 are adopted
for the experiments detailed in this study.
After using the above parameter settings, this paper
has obtained the test results in Table 1, which prove
that for processing non-IID data, the improved
methods of MOON and FedProx are effective.
Among them, MOON has the highest accuracy, 2.2%
higher than FedAvg, and the best improvement.
Conversely, FedProx demonstrates only a slight
improvement in precision, the proximal term in
FedProx does not improve the training performance
much, because the value of 𝜇 is too small. However,
if the value of 𝜇 is increased, FedProx will converge
too slowly and will not have high accuracy.
Table 1: Average (%) and standard deviation of accuracy
for MOON, FedProx and FedAvg.
Metho
d
CIFAR-10 CIFAR-100 Tiny-Imagenet
MOON
67.80.3 65.90.3 24.50.1
FedAvg
65.60.4 63.90.4 22.30.1
FedProx
66.10.2 64.10.2 22.40.1
3.4 Communication Efficiency
Figure 6 shows that MOON, FedProx and FedAvg
have almost the same speed of accuracy improvement
at the beginning of training, and the model contrastive
loss term and proximal term have little impact. Later
MOON benefits from the model comparison loss term
ℓ

and achieves higher accuracy. At the same time,
FedProx does not benefit from the proximal term
obviously, because its optimal μ value is too small,
making the FedProx precision quite close to FedAvg.
However, when μ = 1, precision for FedProx
improves too slowly, and it is obvious that FedProx
has limited improvement compared with MOON.
Performance Comparison and Analysis Between MOON and FedProx in Image Classification
643

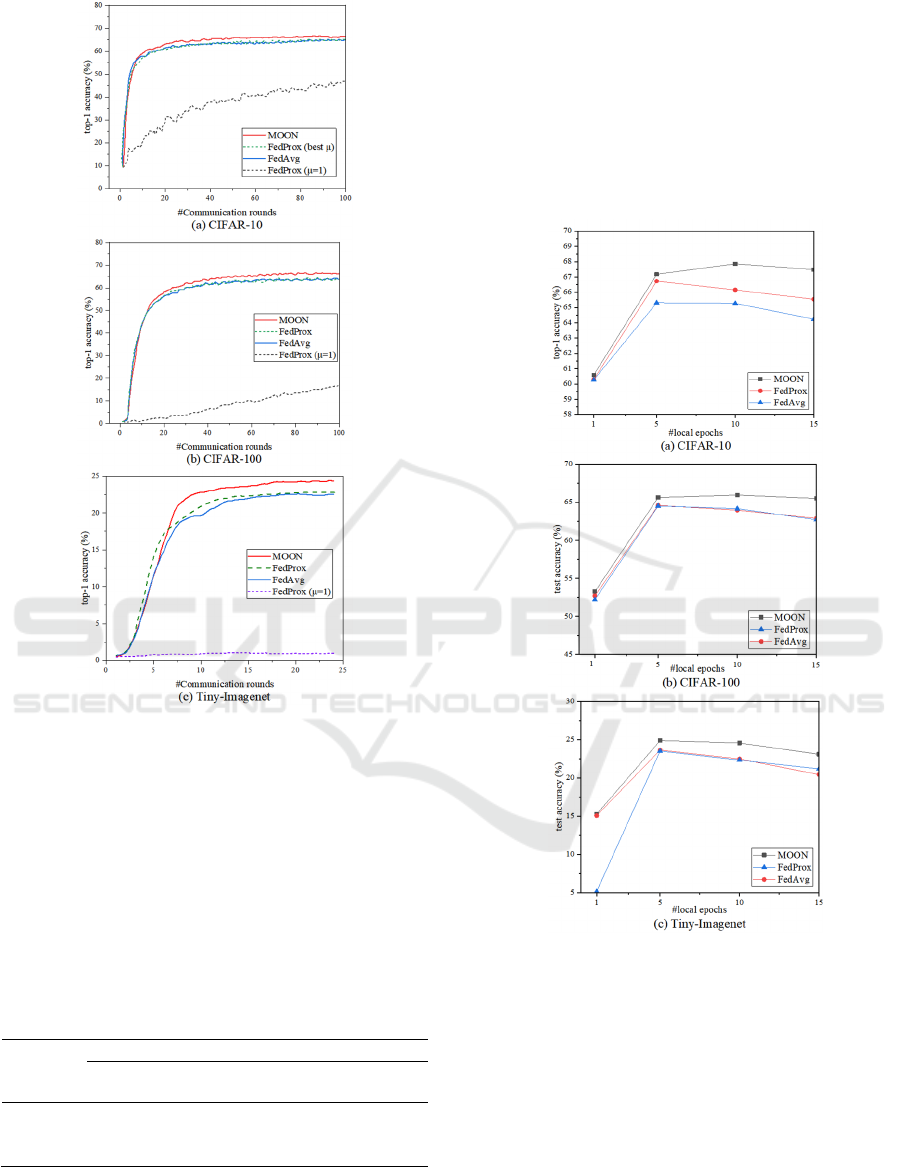

Figure 6: Communication efficiency of different methods.
Table 2 shows the number of rounds required for
MOON and FedProx to revery the same accuracy
after running FedAvg for 100 rounds on CIFAR-10,
CIFAR-100 and Tiny-Imagenet. It can be seen that
the communication efficiency of MOON can revery
more than twice that of FedAvg, while the
communication efficiency of FedProx only increases
slightly. MOON's way of communicating is more
efficient.
Table 2: Comparison of training rounds different methods
to achieve similar accuracy.
Method
CIFAR-10 CIFAR-100
Tiny-
Imagenet
rounds
speed
up
rounds
speed
up
rounds
Speed
up
FedAvg 100
1
100
1
20
1
FedProx 56
1.8
77
1.3
17
1.2
MOON 28
3.6
46
2.2
10
1.8
3.5 Number of Local Epochs
Figure 7 shows how local epochs’ quantity impacts
final model's accuracy across a range of datasets.
When there are insufficient local epochs, all methods'
local updates are insufficient, training proceeds too
slowly, and accuracy is comparatively low. when the
count of local epochs exceeds an optimal threshold,
local training will drift, that is, the local optimal point
and the global optimal point are inconsistent, which
makes the precision of all methods decrease. But
MOON outperforms the alternatives in all cases.
Figure 7: Impact of the amount of local epochs upon the
precision of the final model across various datasets.
3.6 Heterogeneity
This paper also investigates the effect of information
heterogeneity upon CIFAR-100 through adjustments
to the Dirichlet distribution's parameter. A smaller
value for leads to a more imbalanced partition. The
findings are presented in Table 3, indicating that
MOON consistently attains the highest level of
accuracy across various non-IID data distributions,
while FedProx occasionally performs less effectively
EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence
644

than FedAvg. Experiments show that MOON has
better robustness.
Table 3. Precision of MOON, FedProx as well as FedAvg
under different non-IID information distributions.
Method
β =0.1 β =0.5 β =5
MOON 62.8% 65.9% 66.3%
FedAvg 61.9% 63.9% 64.9%
FedProx 62.2% 64.1% 64.3%
4 CONCLUSION
Federated learning offers extensive applications and
substantial developmental potential, presenting a
solution to the issue of data silos originating from a
variety of factors. Among them, the processing of
non-IID is very important, which greatly affects the
final performance of the model. To solve this
problem, two methods, FedProx and MOON, have
been proposed from the direction of improving local
training. Therefore, this paper uses FedProx and
MOON to compare the accuracy, communication
efficiency, the number of different local epochs and
different heterogeneous environments, and shows the
superiority of MOON in image classification. It is
hoped that these works can help people choose a more
suitable model.
REFERENCES
He, K., Zhang, X., Ren, S., & Sun, J. (2016). Deep residual
learning for image recognition. In Proceedings of the
IEEE conference on computer vision and pattern
recognition (pp. 770-778).
https://www.kaggle.com/c/tiny-imagenet
Jaiswal, A., Babu, A. R., Zadeh, M. Z., Banerjee, D., &
Makedon, F. (2020). A survey on contrastive self-
supervised learning. Technologies, 9(1), 2.
Li, L., Fan, Y., Tse, M., & Lin, K. Y. (2020). A review of
applications in federated learning. Computers &
Industrial Engineering, 149, 106854.
Li, Q., He, B., & Song, D. (2021). Model-contrastive
federated learning. In Proceedings of the IEEE/CVF
conference on computer vision and pattern
recognition (pp. 10713-10722).
Li, T., Sahu, A. K., Zaheer, M., Sanjabi, M., Talwalkar, A.,
& Smith, V. (2020). Federated optimization in
heterogeneous networks. Proceedings of Machine
learning and systems, 2, 429-450.
Li, X., Huang, K., Yang, W., Wang, S., & Zhang, Z. (2019).
On the convergence of fedavg on non-iid data. arxiv
preprint arxiv:1907.02189.
McMahan, B., Moore, E., Ramage, D., Hampson, S., & y
Arcas, B. A. (2017, April). Communication-efficient
learning of deep networks from decentralized data.
In Artificial intelligence and statistics (pp. 1273-1282).
PMLR.
Yang, Z., Chen, M., Wong, K. K., Poor, H. V., & Cui, S.
(2022). Federated learning for 6G: Applications,
challenges, and opportunities. Engineering, 8, 33-41.
Zhang, T., Gao, L., He, C., Zhang, M., Krishnamachari, B.,
& Avestimehr, A. S. (2022). Federated learning for the
internet of things: Applications, challenges, and
opportunities. IEEE Internet of Things Magazine, 5(1),
24-29.
Zhao, Y., Li, M., Lai, L., Suda, N., Civin, D., & Chandra,
V. (2018). Federated learning with non-iid data. arxiv
preprint arxiv:1806.00582.
Performance Comparison and Analysis Between MOON and FedProx in Image Classification
645
