Image Classification Based on Federated Learning and PFLlib

Weiqing Fu

College of Computer Science and Technology, Jilin University, Jilin, China

Keywords: Image Classification, Federated Learning, Neural Network.

Abstract: Image classification has always been a research hotspot in the computer vision community, which is also the

foundation of many higher-order scene understanding tasks. Based on data-driven ideas, most existing image

classification models rely on massive data and centralized large-scale training. However, due to the security

and privacy issues of data, practical application scenarios often cannot fully utilize all training data, resulting

in significant room for improvement in the accuracy and robustness of the model. Inspired by the rapid

development of federated learning, this article introduces the idea of local training and global updates into

image classification tasks, exploring the performance boundaries of different representative federated learning

algorithms in classification tasks. Specifically, based on the PFLlib platform, this article designs a unified

Client and Server end that can integrate common federated learning algorithms. In addition, this article

quantitatively compares the impact of neural network structures on the classification performance of different

methods. Extensive experiment results have verified the significant improvement of federated learning in

classification performance.

1 INTRODUCTION

Image classification aims to predict the category of a

given image and has always been a hot research topic

in the computer vision community and the foundation

of numerous higher-order visual tasks (Xu, 2020;

Wang, 2023; Xu, 2021; Sun, 2023). In recent years,

with the rapid development of pattern recognition

technology, especially deep learning, image

classification technology is rapidly developing and

showing great application prospects in mobile

payments, autonomous driving, environmental

monitoring, and other fields. However, traditional

image classification models mostly follow a

centralized training paradigm, where all training data

needs to be centralized locally before model training.

This makes traditional image classification face

problems such as high privacy leakage risk, high

communication overhead, poor data personalization,

and high hardware requirements, which restrict the

further application of image recognition technology

in real life. In this context, exploring distributed

methods to achieve image recognition has attracted a

lot of research interest.

https://orcid.org/0009-0008-3422-3348

Due to constraints on data privacy and security

such as laws and regulations, policy supervision,

trade secrets, and personal privacy, multiple data

sources are unable to directly exchange data, resulting

in a phenomenon of “data silos” that restricts the

further improvement of artificial intelligence model

capabilities. Joint learning, as a distributed machine

learning method, provides feasible solutions to issues

such as privacy leakage and data communication

overhead. The technical theoretical foundation of

federated learning can be traced back to the

association rule mining technology of Distributed

Database. In 2006, Yu et al. proposed a distributed

support vector machine model with privacy

protection on horizontally and vertically segmented

data. Federated learning enables multiple clients to

train the same model together while protecting the

private data of each client.

Inspired by the demand for training data in large-

scale image recognition models and the ability of

federated learning to solve the problem of data silos,

this work constructs a federated learning simulation

framework based on federated learning algorithms

using various neural network models at the local

client, on which experiments were conducted. In the

646

Fu, W.

Image Classiﬁcation Based on Federated Learning and PFLlib.

DOI: 10.5220/0012961200004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 646-651

ISBN: 978-989-758-713-9

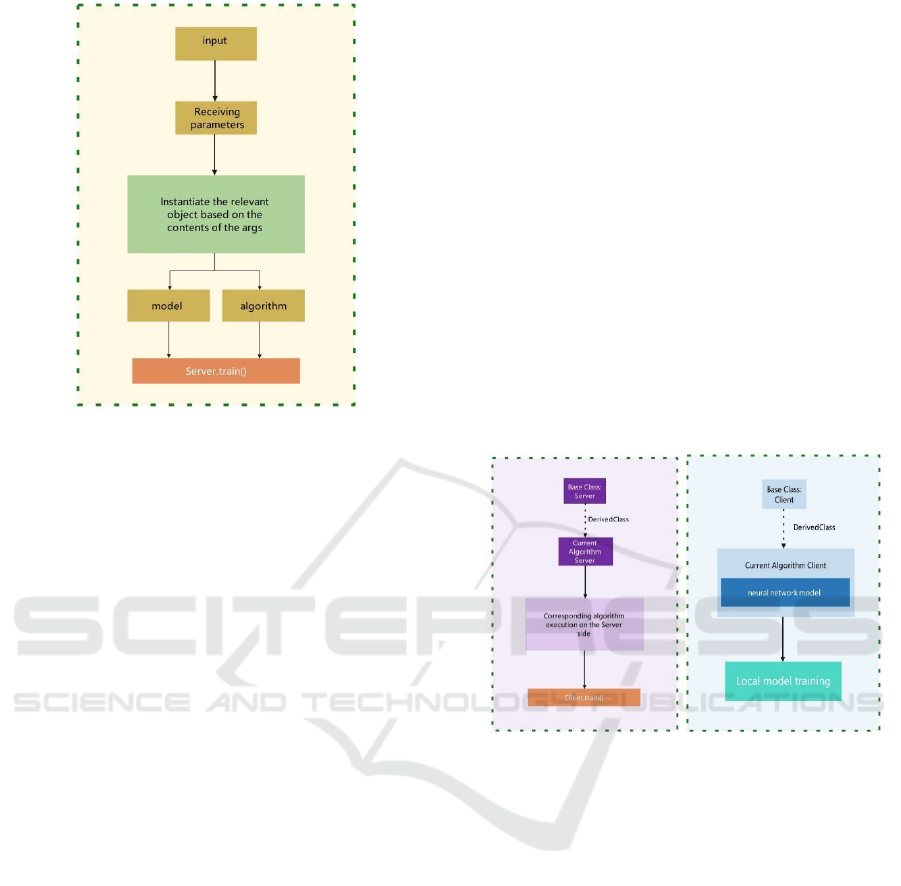

concrete implementation, the central server is

designed as a class, and the servers in various

federated learning algorithms jointly inherit a server

base class, which has methods such as sending and

receiving model parameters and selecting clients. The

clients in the various federated learning algorithms

jointly inherit a client base class, which has methods

for receiving model parameters, local model training,

and so on. The client is able to select the neural

network used for local model training, including

CNN (Convolutional Neural Network), DNN (Deep

Neural Network), and so on. This study carries out

tests based on the mentioned simulation platform to

determine the global average accuracy, training

duration per round, local training accuracy, and other

indicators to assess the capabilities of image

recognition applications under various settings.

Focusing on the above points, this paper is

organized as follows. In Section 2, the representative

federated learning algorithms are first introduced,

including their design ideals and basic steps. Then,

Section 3 shows the design of the distributed

framework and gives all the implementation details.

Section 4 verifies the effectiveness of the proposed

distributed framework and Section 5 concludes the

work and discusses future development.

2 RELATED WORK

2.1 Federated Learning

The three types of federated learning algorithms that

are now in use are federated transfer learning, vertical

federated learning, and horizontal federated learning.

The development of federated learning has drawn a

lot of attention (Durmus, 2021; Liu, 2020; Baldini,

2017). Sample-based federated learning, another

name for horizontal federated learning, is mostly used

in situations where the participant’s dataset has

separate sample spaces but the same feature space.

The common design ideas for horizontal federated

learning are gradient averaging and model averaging.

In the gradient averaging method, the participants

perform the computation of model gradients locally

and send gradient information to the server, which

aggregates the received gradient information, often

by computing a weighted average. After that, the

aggregated gradient information is distributed again

by the server to each participant. In addition to

sharing gradient information, participants in

federated learning can also share model parameters.

The model parameters are computed locally, after

which the server receives the model parameters from

each participant. The server usually aggregates the

model parameters using a weighted average, after

which the aggregated model parameters are

redistributed by the server to the participants. This

approach is called model averaging. Feature-based

federated learning (where features are changing) is

another name for vertical federated learning, which

means that data is divided vertically (by column) and

the ID space of the samples remains unchanged.

Specifically, for different business purposes, datasets

owned by different organizations often have different

feature spaces, while these organizations may share a

huge user group. Based on this heterogeneous data, a

vertical federated learning model has been built. The

common vertical federated learning algorithms

mainly include secure federated linear regression and

secure federated lifting tree SecureBoost (Cheng,

2021). Different from the first two types of methods,

federated transfer learning extends traditional transfer

learning to privacy-preserving distributed machine

learning paradigms, mainly targeting scenarios where

two or more datasets do not have similarities in

feature space and sample ID space.

2.2 Neural Network

Deep Neural Network (DNN) is a basic neural

network with the ability to model complex nonlinear

systems. There are three layers in a DNN: input,

hidden, and output. A DNN typically includes one or

more hidden layers and introduces nonlinear features

via an activation function, like a Sigmoid or ReLu

function. A DNN model is trained by calculating a

loss function, back-propagation, which typically uses

cross-entropy loss or mean error. Uses cross-entropy

loss or mean square error. A popular type of neural

network used for tasks like image classification,

target recognition, picture segmentation, etc. is the

convolutional neural network (CNN). CNN models

can extract features more efficiently and at the same

time reduce the number of parameters of the model.

Convolutional, pooling, activation functions, and

fully connected layers are the typical components of

CNNs. LeNet, AlexNet, and other conventional CNN

models are examples.

2.3 PFLlib

Personalized Federated Learning Algorithm Library

(PFLlib) is an experimental platform that supports

running federated learning simulation experiments on

a single machine, supports multiple federated

learning algorithms, multiple datasets, and multiple

neural network models, and provides several

Image Classiﬁcation Based on Federated Learning and PFLlib

647

federated learning simulation options, such as

differential privacy, client-side deceleration, etc.

PFLlib supports scaling federated learning

algorithms.

3 METHOD

3.1 Revisiting FedAvg and MOON

Federated averaging (FedAvg) (McMahan, 2017) is a

traditional federated learning algorithm that can train

models without the local data being shared, thus

ensuring data privacy. FedAvg requires each client to

perform gradient descent updating locally, and the

parameters of all clients are aggregated on the server

side, which aggregates the parameters by performing

a weighted average of the parameters of each client.

FedAvg requires each client to train the model locally

and upload the trained model parameters to the server.

The server computes the global model by applying a

weighted average to the parameters. FedAvg ensures

the privacy of each local private dataset by sharing

the model parameters among the clients.

A straightforward and efficient federated learning

framework with benefits for handling data

heterogeneity across several clients is Model-

Contrastive Federated Learning (MOON) (Li, 2021).

MOON optimizes the training results of local models

by taking the similarity of different models into

account, i.e., by comparing them at the model level.

The MOON algorithm takes advantage of the

similarity between model representations to rectify

each client’s local learning, and employs the

contrastive loss between the global and local model

representations as a regularization term to constrain

the update of the local model. Model comparison loss

aims to close the gap between the features produced

by the most recent updated model and the global

model, as well as widen the gap between the current

model and the features produced by the previous

iteration of models. This is because the server-side

generated global model can yield superior features

than the locally updated model.

3.2 Neural Network Structure

The particular neural network structure that is being

used will be introduced in this section. The input layer

of the DNN model, measuring 1×28×28, is in

charge of taking in input data and distributing the

picture data into a vector. Hidden layer fc1 is a fully

connected layer that receives data from the input layer

and maps it to a hidden layer with mid_dim neurons.

In this network, mid_dim is set to 100, which means

the hidden layer has 100 neurons. The activation

function for this layer is ReLU. Data from the hidden

layer is mapped to an output layer with num_classes

neurons by the output layer, another fully connected

layer. Here, num_classes is set to 10, since the usual

handwritten digit classification task has 10 classes (0

to 9). There is no activation function for this layer, as

the softmax function is used.

For the CNN model, the dimension of the input

features is determined by in_features. Since the

default input is a single-channel image, features are

set to 1. Conv1, the first convolutional layer, is made

up of a maximum pooling layer, a ReLU activation

function, and a convolution operation. 32 size 1

convolution kernels with a stride of 1 and no padding

are used in the convolution operation. The ReLU

activation function is used to introduce nonlinearities,

and the maximum pooling layer is used to reduce the

spatial dimensions of the feature map, thus reducing

the computational effort. Conv2, the second

convolutional layer, is made up of a maximum

pooling layer, a ReLU activation function, and a

convolution operation, just like the first one. Here the

input channel is 32 and the output channel is 64, and

the other parameters are set the same as the first

convolutional layer. Fully Connected Layer fc1 is a

fully connected layer used to flatten the output of

Conv2 into a vector and map it to a 512-dimensional

feature space. Nonlinearities are introduced using

ReLU. Output Layer is the final fully connected layer

that maps the output of fc1 to the final output space,

which has the dimension num_classes for the number

of categories corresponding to the tasks.

3.3 PFLlib Platform Design

The platform integrates the function of generating

datasets by executing the corresponding dataset and

generating a Python file through the command line to

generate the corresponding dataset. The main

framework of proposed framework mainly consists of

(1) the Command receiving and processing part; (2)

the Server emulation part; (3) the Client simulation

part and (4) the Model part.

As shown in Figure 1, the command receiving and

processing part receives command line commands,

generates corresponding model instances, Server

objects and Client objects, and sets related

parameters. The main logic is to receive the command

content through the variable “args”, and then

instantiate the corresponding model, the

corresponding Sever terminal and open the relevant

settings according to the command content.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

648

Figure 1: Command reception processing section (Photo/

Picture credit: Original).

The workflow of the Server and Client is shown

in Figure 2. The Server side of different algorithms

inherits from a base class called “Server”, which

provides functions such as sending parameters to the

client, receiving parameters from the client, selecting

the client, and so on. Because of the design

differences between the algorithms, the specifics of

what is performed on the Server side of each

algorithm are different. The purpose of this

architectural design is to provide standard interfaces

through a unified Server base class to ensure that the

Server side of different algorithms can be developed

under the same framework. In this way, the system

can be more easily adapted to the needs of different

algorithms while maintaining consistency and

maintainability. The clients of all algorithms inherit

from the Client base class, which provides a set of

functions required for model training. The main

responsibility of the client is to implement the

training process for all types of models, while

covering the core elements required for algorithm

execution. This design allows the system to handle

the training tasks of different algorithms in a

consistent manner, ensuring code consistency and

maintainability through the standard interfaces

provided by the base class.

The platform provides a variety of network

models such as CNN, DN, etc. Models are inherited

from the “nn.Module” class under pytorch

framework. Due to the clear architecture of the

platform, it has excellent scalability. To introduce

new algorithms into the platform, simply follow the

steps below:

(1) To achieve the simulation operation on the

Server side, write the simulation code on the Server

side under the current federal learning algorithm and

create the corresponding file.

(2) To achieve the simulation operation of the

Client side, write the simulation code of the Client

side under the current federated learning algorithm

and create the corresponding file.

(3) To ensure that the platform can correctly

identify and run the new algorithm, modify the logic

in the main file.

Through the above steps, the system can integrate

the new algorithm into the platform. This design idea

makes extending the platform very intuitive and easy,

while ensuring the clarity of the overall structure. The

introduction of new algorithms does not affect

existing algorithms, and can make use of existing

base classes and interfaces, which improves the

maintainability and expandability of the code.

Figure 2: Structure of Server (right) and Client (left)

(Photo/Picture credit: Original).

4 EXPERIMENT

4.1 Original Dataset

This experiment selected the Fashion MINIST dataset

as the raw training data for the model. Ten categories

of T-shirts, jeans, pullovers, dresses, coats, sandals,

shirts, sneakers, bags, and short boots are included in

the 60000 training set and 10,000 test set photos that

make up Fashion MINIST. Each image is a grayscale

image with a resolution of 28 × 28 . Although the

images are too small, the quantity is sufficient, and

the labels are evenly distributed.

4.2 Performance Analysis

First, tests are carried out to report the loss values of

Image Classiﬁcation Based on Federated Learning and PFLlib

649

several federated learning algorithms under various

network configurations in order to confirm the

convergence of the model. As shown in Table 1,

taking the MOON algorithm as an example, when

using a CNN network structure, the loss value

gradually decreases from 2.31 to 1.00 with increasing

training rounds. Similar model convergence trends

can be observed in the FedAvg algorithm and DNN

network structure. It should be noted that the model

can converge with only about 10 epochs, indicating

that the distributed model training concept of

federated learning can improve the learning

efficiency of the model.

Table 1: Comparison of training loss for various models.

Epoch

MOON

_cnn

FedAvg

_cnn

MOON

_dnn

FedAvg

_dnn

1 2.3128 2.3128 6.2129 6.2129

2 2.1526 2.1518 2.4193 2.4300

3 1.8138 1.8079 1.8428 1.8334

4 1.5184 1.5178 1.5930 1.5909

5 1.3397 1.3419 1.4467 1.4476

6 1.2336 1.2395 1.3318 1.3350

7 1.1611 1.1661 1.2595 1.2571

8 1.1114 1.1121 1.2034 1.2004

9 1.0700 1.0634 1.1543 1.1564

10 1.0402 1.0410 1.1211 1.1213

11 1.0053 1.0044 1.0954 1.0969

In addition, an additional set of experiments was

conducted to compare the recognition accuracy of

different algorithms, and Figure 3 shows the results.

As the training process increases, the average testing

accuracy of MOON_cnn on the Fashion MINIST

dataset can be improved from 0.21 to 0.63. In the

early stages of training (0-3 epochs), there are some

differences in the testing accuracy of different

network structures and algorithms, and MOON_cnn

shows the best results. As the model is further fully

trained, the FedAvg algorithm and MOON algorithm

will converge to approximately the same accuracy.

Figure 3: Average test accuracy of different models.

5 CONCLUSIONS

To explore the improvement effect of federated

learning on image recognition tasks, this paper

designs a unified client and server based on the

PFLlib platform, integrating representative federated

learning algorithms with different network structures.

Numerous trials have verified the effectiveness of the

work in this paper. The module partitioning and

overall structural design of the PFLlib platform

showed significant clarity in the experiment. By

storing the client and server implementations of

different algorithms in separate folders and adopting

the inheritance mechanism of base classes, the

platform maintains consistency and maintainability.

REFERENCES

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S., 2017.

Serverless computing: Current trends and open

problems. In Research advances in cloud computing, 1-

20.

Cheng, K., Fan, T., Jin, Y., Liu, Y., Chen, T., Papadopoulos,

D., Yang, Q., 2021. Secureboost: A lossless federated

learning framework. IEEE Intelligent Systems, 2021,

36(6):87-98.

Durmus, A., E., A., Zhao, Y., Ramon, M., N., Matthew, M.,

Paul, N., W., Venkatesh, S., 2021. Federated learning

based on dynamic regularization. In arxiv preprint

arXiv:2111.04263v2.

Li, Q., He, B., Dawn, S., 2021. Model-Contrastive

Federated Learning. In Proceeding of IEEE/CVF

Conference on Computer Vision and Pattern

Recognition (CVPR).

Liu, R., 2020. Fedsel: Federated sgd under local differential

privacy with top-k dimension selection. Database

Systems for Advanced Applications: 25th International

Conference, DASFAA 2020, Jeju, South Korea,

September 24-27, 2020, Proceedings, Part I 25.

Springer International Publishing, 2020.

McMahan, H., B., Eider, M., Daniel, R., Seth, H., Blaise,

A., y., A., 2017. Communication-Efficient Learning of

Deep Networks from Decentralized Data. In

Proceedings of the 20th International Conference on

Artificial Intelligence and Statistics 2017.

Sun, H., Lang, W., Xu, C., Liu, N., Zhou, H., 2023. Graph-

based discriminative features learning for fine-grained

image retrieval. Signal Processing: Image

Communication, 110:116885.

Wang, J., Wang, Y., Liu, L., Yin, H., Ye, N., Xu, C., 2023.

Weakly Supervised Forest Fire Segmentation in UAV

Imagery Based on Foreground-Aware Pooling and

Context-Aware Loss. Remote Sensing. 15, no.14: 3606.

Xu, C., Jiang, H., Peter, Y., Khan, Z., A., Chen, Y., 2020.

MHW-PD: A robust rice panicles counting algorithm

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

650

based on deep learning and multi-scale hybrid window.

Computers and Electronics in Agriculture, 173:105375.

Xu, C., Lang, W., Xin, R., Mao, K., Jiang, H., 2021.

Generative detect for occlusion object based on

occlusion generation and feature completing. Journal of

Visual Communication and Image Representation,

78:103189.

Image Classiﬁcation Based on Federated Learning and PFLlib

651
