AI-Based Methods of Cardiovascular Disease Prediction and Analysis

Yifei Wang

School of Physics and Astronomy, University of Edinburgh, Edinburgh, U.K.

Keywords: Cardiovascular Diseases, Machine Learning, Random Forest, Naïve Bayes, Learning Vector Quantization.

Abstract: Cardiovascular diseases (CVDs) remain a leading cause of global mortality, fuelling extensive medical

research databases. Various models have been developed to predict CVDs from existing data, with machine

learning (ML) emerging as a particularly effective method. This paper offers an overview of ML methods'

performance in CVD prediction, specifically focusing on Random Forest (RF), Learning Vector Quantization

(LVQ), and Naive Bayes (NB). Discrepancies among studies highlight the influence of factors such as data

preprocessing, database selection, and sample size on ML performance. Consequently, determining the

optimal ML method is challenging. This study lays the groundwork for future research, aiming to explore

how each factor affects ML performance and facilitate improvements in subsequent studies. Furthermore, it

encourages reproducibility through comprehensive literature review guidance. This paper lays foundation on

future research into detailed influence of each factor on the performance of ML, and helps potential

improvement for future studies. Reproductions are also hoped to be done with the guide of searched literatures.

1 INTRODUCTION

Cardiovascular diseases (CVDs) is a common term

used to describe problems in heart and blood vessels.

It is a leading reason of fatality across the world.

Approximately 17.9 million people succumbed to

CVDs in 2019, constituting 32% of the total global

mortality, among which 85% were attributed to heart

attacks and strokes (Gaziano, 2006). One challenging

but important aspect of CVDs is to predict them. In

fact, there is a huge amount of medical data

contributed by CVDs, but it is not well-utilized to

produce the desired result for patients (Gour, 2022).

Therefore, it is well-motivated to come up with

methods that predicts CVDs based on the pre-existing

data sets.

Traditionally, models are manually built to predict

the risk of having CVDs. Several well-known models

include Qrisk, Framingham risk score, and score.

Various complications and results of CVDs include

death, heart stroke, heart failure and others, are

together known as the major acute cerebrovascular

and cardiovascular events (MACCE). MACCE is

commonly used as the outcome of predictions

performed by these models. However, among all the

proposed models, considerable difference is observed

https://orcid.org/0009-0005-0600-3127

in the definitions of outcome. Most of the prediction

models focus on CVDs, but some focus on event such

as atrial fibrillation, stroke, e.t.c. The usage of

potential causing factors, or predictors, in CVDs

predictions also varies to a great extent among

different researches. Most of the existing models

includes age, smoking or not, blood cholesterol

measurements, blood pressure, e.t.c. as predictors.

Other prevalent predictors are diabetes and body mass

index (BMI). Besides this heterogeneity, the number

of models is already overwhelming, but most of them

are not externally validated (Damen, 2016).

Recently, artificial intelligence (AI) has emerged

as an effective tool for the prediction and diagnoses

of CVDs. AI is a group of computational approached

that mimic the way human learn, reason and solve

problem. They can learn from the environment

without being explicitly taught what to do, whereas

the environment typically relates to a system that

allows the interaction of the machine. In terms of

CVDs predictions, the environment can be the CVD

database. One branch of AI is machine learning (ML).

ML can be mainly divided into three types:

supervised, unsupervised and reinforcement learning.

Supervised learning learns from data that is manually

labelled and aims to gain the ability to make

724

Wang, Y.

AI-Based Methods of Cardiovascular Disease Prediction and Analysis.

DOI: 10.5220/0012969800004508

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Engineering Management, Information Technology and Intelligence (EMITI 2024), pages 724-729

ISBN: 978-989-758-713-9

predictions from the information given by the labels.

On the contrary, unsupervised learning learns from

fed information that is not labelled, trying to find the

pattern behind it. Reinforcement learning (RL)

machines interact and learn from the feedback,

typically rewards, from the environment. The goal is

to maximize the reward and therefore optimize the

behaviour of machine. ML has been proved to be

faster and more adaptive in handing meta-data

compared with the traditional models (Damen, 2016).

The primary aim of the paper is to offer an overview

of various AI-based methods for predicting CVDs.

Three algorithms are introduced and discussed: two

traditional ML models, namely Random Forest (RF)

and Naive Bayes (NB), along with Learning Vector

Quantization (LVQ). The performance of ML models

can be evaluated in numerous ways, with one

common metric being the statistical accuracy of the

model in predicting CVDs. Results from the

implementations of these models are then presented

for comparison.

2 METHODOLOGIES

2.1 Dataset Description

There are many datasets of CVDs, and the use of

different datasets can potentially influence the

outcome of training behaviour of a ML model. The

most relevant dataset of this paper is the UCI machine

learning repository (Anderies, 2022). There are four

databases of UCI repository: Hungary, Cleveland, the

VA Long Beach, and Switzerland. The database

contains 76 attributes. Among these attributes, only a

subset of 14 has been used in all the published

researches. The dataset includes attributes like age,

sex, chest pain type, resting blood pressure, e.t.c.

Some nominal attributes have several types of

classifications, such as the chest pain type. It includes

four types of chest pains. The classifications of each

attribute are represented by some numbers that can be

found on the UCI-Cleveland database website. The

other type of attributes is known as the numeric type,

like the age of patients. Particularly, the Cleveland

database is only one that has been used in purpose of

ML.

There are two other possible sources of data, the

Mendeley database and the Kaggle database. These

databases have overlaps. The UCI-Cleveland

database can also be found on Kaggle (Mendeley ,

2024)(CHERNGS, 2020).

2.2

Proposed Approach

The approaches may vary across different

implementations due to varying research designs or

objectives. However, in general, the dataset is

typically divided into two groups: the training dataset

and the testing dataset. The machine learning

algorithm is then applied to the training dataset to

initiate the training process. Subsequently, the

model's performance is evaluated using the testing

dataset, utilizing various statistical metrics, and

resulting in the final trained model. The overall

pipeline of the proposed approach is illustrated in

Figure 1. Commonly used statistical descriptions

include precision and accuracy, defined by (true or

false) positives and (true or false) negatives. Precision

represents the rate of true positives among all positive

results, while accuracy represents the overall rate of

correct predictions. This paper emphasizes

contribution to synthesizing and presenting a

comprehensive overview of the methodologies

employed in this domain, shedding light on the

intricacies and variations in their implementation.

Moreover, this paper highlights the significance of

proposed approach in providing a structured

framework for evaluating and comparing the

performance of machine learning algorithms in

predicting CVDs.

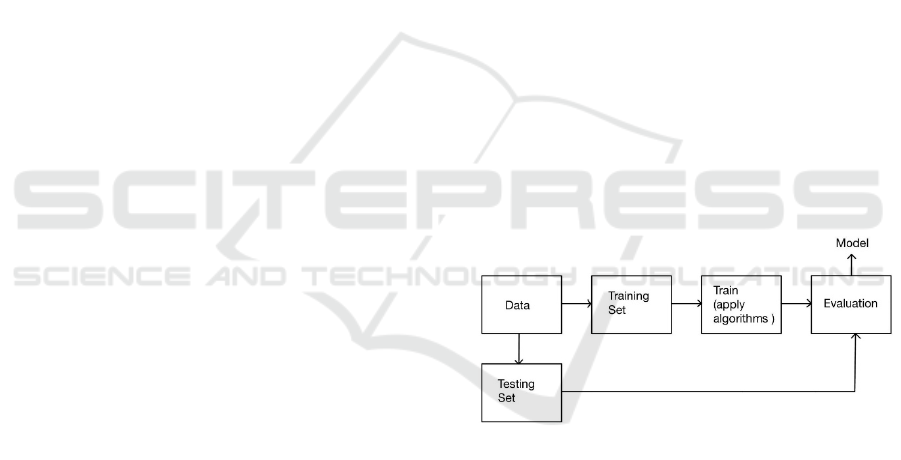

Figure 1: General pipeline of proposed models (Picture

credit: Original).

2.2.1 Random Forest (RF)

Random forest is a useful ML method for many tasks,

typically classification and regression. It is a

combination of many tree predictors. These trees are

random vectors from the same overall distribution,

forming a forest. The selection process of each tree is

independent of the others. As the number of trees in

the forest increases, the generalization error of the

forest converges almost surely to a limit. The

correlation between the tree classifiers, together with

the importance, or weight, of individual trees, decide

the generalization errors of them. The training

algorithm of RF applies a technique named bootstrap

AI-Based Methods of Cardiovascular Disease Prediction and Analysis

725

aggregating, or bagging. In general, bagging requires

repeatedly selects a sample randomly from the

training set and fits trees to these samples. Then, each

of the trees are trained on each bootstrapped subset of

data. Because the subsets could vary between one

another, each trained trees, or model, could also have

variations. Finally, all the trained trees are aggregated

together to reach an overall model. For regressions,

the aggregation process is averaging, whereas for

classifications, the overall model is combined through

majority voting.

2.2.2 Naïve Bayes (NB)

Bayes’ theorem is a fundamental theorem that

describes the probability of an event. Mathematically,

it is defined in the following way:

𝑃



𝐴



, 𝑔𝑖𝑣𝑒𝑛 𝐵









, 













(1)

where 𝑃



𝐵



is the probability of set B prior to

evaluation, and 𝑃𝐴 is the probability of set A prior

to evaluation. The ‘given’ condition constrains the

corresponding probability. 𝑃



𝐴



, 𝑔𝑖𝑣𝑒𝑛 𝐵 is the

posterior probability of A, and 𝑃



𝐵



, 𝑔𝑖𝑣𝑒𝑛 𝐴 is the

likelihood of B given that A happen.

NB is an algorithm suitable for classifications

based on probability and Bayes' theorem. It is a type

of supervised learning that assumes substantial

independence of predictors. In other words, the given

attributes should be independent of each other,

allowing a simplification in calculation of

probabilities given the Bayes’ theorem. It is

consequently naïve, because any dependency of the

predictors could arbitrarily improve the probability.

NB is widely used for text classification, spam

filtering, and other applications where the input data

consists of categorical or textual features.

2.2.3 Learning Vector Quantization (LVQ)

LVQ is a type of supervised learning algorithm based

on competitions using artificial neural networks. It is

suitable for classification tasks. LVQ is particularly

useful for pattern recognition and classification tasks,

especially when dealing with high-dimensional data.

LVQ basically organizes the underlying pattern of

descriptors into groups, and each of the groups

consists of a transfer function. A group of learning

patterns, together with recognized classifications a

preparatory assignment of the output variable, will be

passed to the system because LVQ uses a learning

algorithm. After training, prototypes are used to

measure the similarity between a given data point and

the different classes. The similarity is often computed

using a distance metric, such as Euclidean distance,

between the data point and each prototype vector

(PV). Based on the evaluated similarity, an input

vector is assigned to the class that is represented by

the nearest PV. This assignment is used for

classification purposes. The architecture of LVQ is

shown in Figure 2.

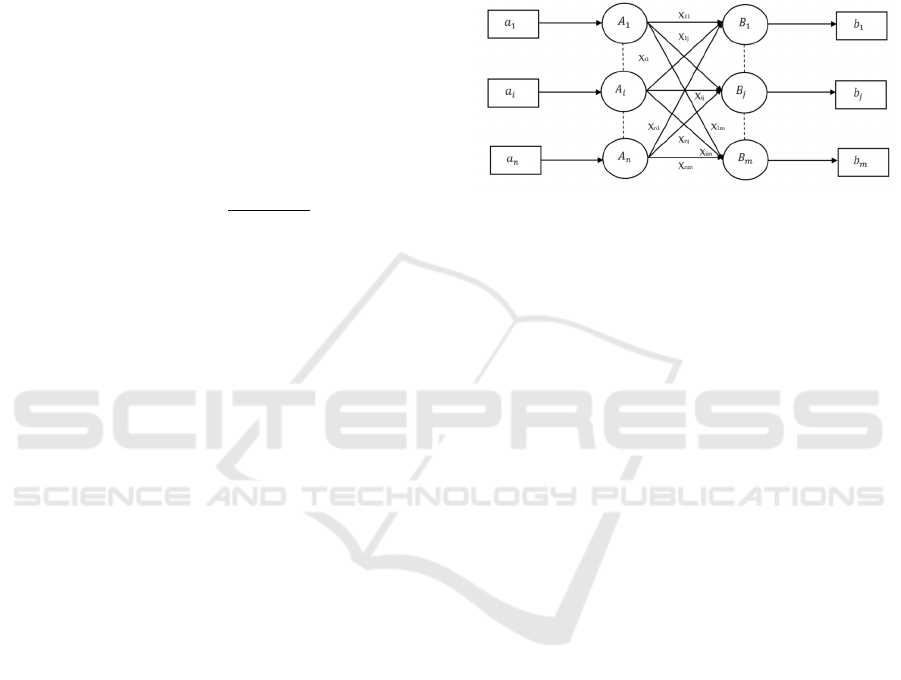

Figure 2: The architecture of LVQ algorithm is CVD-

classification (Srinivasan, 2023).

There are n inputs from 𝑎



to 𝑎



, and m outputs

from 𝑏



to 𝑏



. The neuron networks are fully

attached to one another, and there are individual

weights assigned to each of them.

2.3

Other Details

Most of the relevant researches perform multiple

applications of the ML methods using different

databases. It is possible that different database could

cause potential difference in the learning behavior of

ML methods. Therefore, only those using the UCI-

Cleveland database are considered together as a

comparison, and RF, NB and LVQ methods are

mainly considered among all the other ML methods.

Another important factor that causes potential

difference on the training behavior is the pre-

processing of data, such as the method of data-

sampling from the database.

3 RESULTS AND DISCUSSION

In the experiment conducted by Saravanan Srinivasan

et al., LVQ is proposed to be applicable in CVDs

prediction as a new method (Srinivasan, 2023). Many

ML methods are applied to the UCI Cleveland

database, and the performance of LVQ is compared

with various of different methods, including RF and

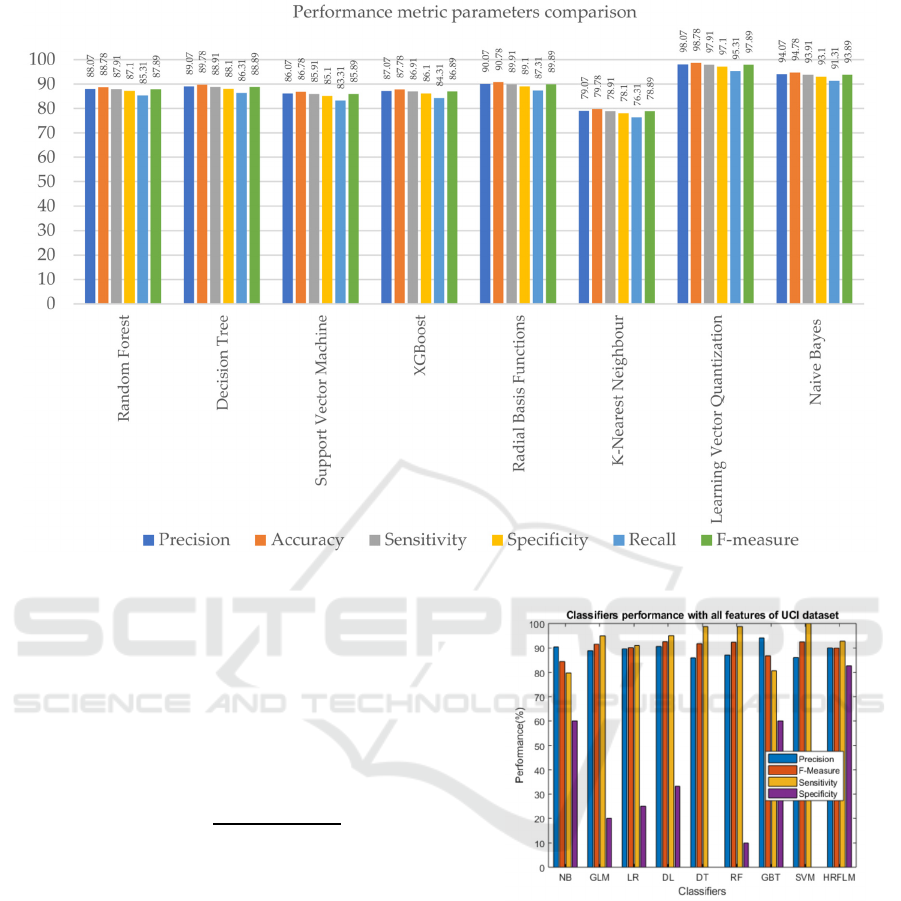

NB. The result is illustrated in Figure 3.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

726

Figure 3: Graphical illustration of performance of various ML methods by Saravanan Srinivasan et al. (Srinivasan, 2023).

There are four other performance descriptions:

sensitivity, specificity, recall and F-measure.

Sensitivity is the true-positive rate given that the

target is truly positive. On the other hand, specificity

is the true-negative rate, given that the target is truly

negative (Altman, 1994). Recall is also known as

sensitivity. F-measure is a statistical measure of

performance in prediction given by:

𝐹𝑚𝑒𝑎𝑠𝑢𝑟𝑒

∗∗



(2)

From the results, it is clear that the NB and LVQ

method have considerably higher performance

descriptions than the RF method. They also

outperform the other methods that are not discussed.

In addition, LVQ has the highest categorization

performance in forecasting CVDs with an accuracy of

98.07%, 4% higher than the NB method.

However, in the paper by Senthilkumar Mohan et

al., the result is largely different. They use the same

UCI-Cleveland database, and perform several ML for

CVDs predictions. From Figure 4, one significant

difference is that the performance parameter varies

largely for each of the ML method, especially for the

specificity that scores considerably smaller than the

other parameters.

Figure 4: Graphical illustration of performance of various

ML methods by Senthilkumar Mohan et al. (Kiran, 2022).

What’s more, the NB and RF method here has smaller

discrepancies in precision, but the F-measure and

sensitivity of RF is significantly larger that that of NB.

The RF method is therefore concluded to be of better

performance here. The HRFLM method (the

rightmost one is Figure 4) is a method proposed by

Mohan et al. based on RF. It combines RF with linear

model that assumes a linearly-separable property of

data and tries to learn the weight of separated data.

The achieved performance is the best among all the

other ML methods in their experiment, with an

accuracy level of 88.7% (Kiran, 2022).

AI-Based Methods of Cardiovascular Disease Prediction and Analysis

727

The experiment conducted by Adedayo Ogunpola et

al. can serve as a potential comparison of the effect of

difference in sample size and database (Ogunpola,

2024). They encompass a range of actions such as the

management of missing data, encoding of variables,

normalizing values of different features, and

separation of datasets into training and testing groups.

The sample size and database are different from the

previous two experiments, retrieved from Mendeley

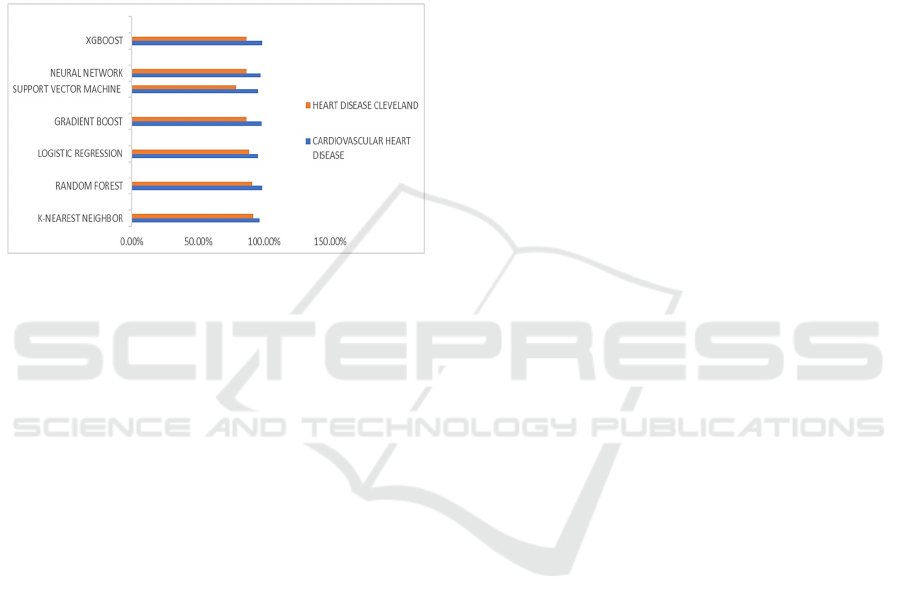

(blue) and Kaggle (orange). The result is shown in

Figure 5.

Figure 5: Graphical illustration of performance of various

ML methods by Adedayo Ogunpola et al (Ogunpola, 2024).

The RF method in this experiment is 98.63% and

94.44% in precision for the two datasets from

Mendeley and Cleveland respectively. This precision

is seemingly higher than that obtained from the two

previous experiments. What’s more, the results

obtained from the two databases are also different for

all of the ML methods used in this report. The

Mendeley database achieves a significantly higher

precision than that of the Kaggle database.

From the results above, it is safe to conclude that

there are already several ML methods that possess

satisfactory performance after a statistical view of the

outcome. However, it is also clear that the

performances are influenced largely by the choice of

database, attributes, sample sizes and other details on

implementations of ML method. There are also

several different statistical parameters describing the

performance of ML methods. This provides better

descriptions but also makes the comparison even

harder. What’s more, even the same ML method

performs differently in different researches discussed

above. Therefore, it is necessary to have systematic

researches into the influence of choices of different

attributes, sample sizes and other details.

4 CONCLUSIONS

This paper provides an extensive overview of various

AI-based methods employed for predicting CVDs,

particularly focusing on RF, NB, and LVQ. A notable

disparity is observed among the relevant literature,

highlighting the significant impact of data

preprocessing methods on ML outcomes, including

feature selection and handling of missing data.

Additionally, sample size and database selection also

play pivotal roles in influencing ML performance.

The HRFLM method presents a promising

advancement over RF, while LVQ has shown

superior outcomes compared to RF in one study by

Saravanan Srinivasan et al., although RF performed

better in other reports. Consequently, distinguishing

the performance differences between these ML

methods with high confidence remains challenging.

Nevertheless, collectively, these ML techniques

demonstrate effectiveness in facilitating CVD

predictions. Despite the abundance of literature

guiding the application of ML methods in CVD

predictions, substantial gaps persist in data

preprocessing, sample sizes, and database utilization.

Hence, future research endeavors should delve deeper

into exploring the impact of each factor. Additionally,

it is encouraged that researchers conduct

reproductions based on existing literature to further

enhance understanding in this domain.

REFERENCES

Altman, D. G., & Bland, J. M. (1994). Diagnostic tests. 1:

Sensitivity and specificity. BMJ: British Medical

Journal, 308(6943), 1552.

Anderies, A., Tchin, J. A. R. W., Putro, P. H., Darmawan,

Y. P., & Gunawan, A. A. S. (2022). Prediction of heart

disease UCI dataset using machine learning algorithms.

Engineering, MAthematics and Computer Science

Journal (EMACS), 4(3), 87-93.

CHERNGS. (2020). Heart Disease Cleveland UCI.

https://www.kaggle.com/datasets/cherngs/heart-

disease-cleveland-uci

Damen, J. A., Hooft, L., Schuit, E., Debray, T. P., Collins,

G. S., Tzoulaki, I., ... & Moons, K. G. (2016).

Prediction models for cardiovascular disease risk in the

general population: systematic review. bmj, 353.

Gaziano, T., Reddy, K. S., Paccaud, F., Horton, S., &

Chaturvedi, V. (2006). Cardiovascular disease. Disease

Control Priorities in Developing Countries. 2nd edition.

Gour, S., Panwar, P., Dwivedi, D., & Mali, C. (2022). A

machine learning approach for heart attack prediction.

In Intelligent Sustainable Systems: Selected Papers of

WorldS4 2021, Volume 1 (pp. 741-747). Springer

Singapore.

EMITI 2024 - International Conference on Engineering Management, Information Technology and Intelligence

728

Kiran, P., Swathi, A., Sindhu, M., & Manikanta, Y. (2022).

Effective heart disease prediction using hybrid machine

learning technique. South Asian Journal of Engineering

and Technology, 12(3), 123-130.

Mendeley Data. (2024). The Generalist Repository

Ecosystem Initiative. https://data.mendeley.com/

Ogunpola, A., Saeed, F., Basurra, S., Albarrak, A. M., &

Qasem, S. N. (2024). Machine Learning-Based

Predictive Models for Detection of Cardiovascular

Diseases. Diagnostics, 14(2), 144.

Srinivasan, S., Gunasekaran, S., Mathivanan, S. K., M. B,

B. A. M., Jayagopal, P., & Dalu, G. T. (2023). An active

learning machine technique based prediction of

cardiovascular heart disease from UCI-repository

database. Scientific Reports, 13(1), 13588.

AI-Based Methods of Cardiovascular Disease Prediction and Analysis

729
