The Performance of Frequency Fitness Assignment on JSSP

for Different Problem Instance Sizes

Iris Pijning

1 a

, Levi Koppenhol

2 b

, Danny Dijkzeul

4 c

Nielis Brouwer

5 d

, Sarah L. Thomson

3 e

and Daan van den Berg

2 f

Master Information Studies, UvA Amsterdam, The Netherlands

VU Amsterdam, The Netherlands

Edinburgh Napier University, U.K.

Cover Genius, The Netherlands

Rabobank, The Netherlands

Keywords:

Optimization, Frequency Fitness Assignment, Hillclimber, Job Shop Scheduling Problem, Neutrality.

Abstract:

The Frequency Fitness Assignment (FFA) method steers evolutionary algorithms by objective rareness instead

of objective goodness. Does this mean the size of the combinatorial search space inﬂuences its performance

when compared to more traditional evolutionary algorithms? Our results suggest it does. To address to which

extent the search space size matters for the effectiveness of the FFA-principle, we compare the algorithms on

420 Job Shop Scheduling Problem (JSSP) instances systematically generated in gridwise sizes. The compar-

ison of the FFA-hillclimber and the standard hillclimber is done in both EQ setting, accepting equally good

(or ﬁtness-frequent) solutions, and NOEQ setting, only accepting improvement. FFA-hillclimbers are more

successful than standard hillclimbers on smaller problem instances, but not on larger ones. It seems that the

ratio between jobs and machines, inﬂuences the success of the respective algorithms for ﬁxed computational

budgets.

1 THE JOB SHOP SCHEDULING

PROBLEM

The Job Shop Scheduling Problem (JSSP) is a con-

strained optimization problem which entails minimiz-

ing the length, or makespan of a schedule with j jobs

on m machines (Bła

zewicz et al., 1996; Weise et al.,

2021). In the JSSP, each job needs to be processed

once on each machine exactly once, but what makes

the problem hard is that a job’s m processes have

predetermined processing times and precedence con-

straints. This means, for example, that Job 1 must

ﬁrst be processed on Machine 0 for exactly 2 minutes,

then on Machine 1 for exactly 5 minutes, and ﬁnally

on Machine 2 for 9 minutes (see Fig.1). No longer, no

https://orcid.org/0000-0002-7551-1679

https://orcid.org/0000-0003-2356-184X

https://orcid.org/0000-0001-8185-1293

https://orcid.org/0000-0001-6269-1722

https://orcid.org/0000-0001-6971-7817

https://orcid.org/0000-0001-5060-3342

shorter, and in exactly that order. A process is com-

pleted in one continuum and cannot be divided in sep-

arate parts, but idle time on a machine between jobs

is possible. Furthermore, a machine can only process

one job at a time, and a job can only be processed by

one machine at a time (Weise et al., 2021; Jain and

Meeran, 1999; de Bruin, 2022).

Practical applications do not require much imagi-

nation, as efﬁcient scheduling of manufacturing pro-

cesses is a way for businesses to reduce costs (Jain

and Meeran, 1999). But also less intuitive and more

mission-critical applications such as surgery schedul-

ing in hospitals and clinics can be modeled as JSSP

(Pham and Klinkert, 2008). Not only do surgical pro-

cedures make up a signiﬁcant source of revenue (in

some countries

), but scheduling resources like per-

sonnel (surgeons, anaesthetists, nurses) and facilities

(operating rooms, intensive care beds) make up a sig-

niﬁcant chunk of its costs.

Academic interest in the objective of schedule

Obviously, the objective of ‘revenue’ depends on a

country’s health care system.

250

Pijning, I., Koppenhol, L., Dijkzeul, D., Brouwer, N., Thomson, S. and van den Berg, D.

The Performance of Frequency Fitness Assignment on JSSP for Different Problem Instance Sizes.

DOI: 10.5220/0012970500003837

In Proceedings of the 16th International Joint Conference on Computational Intelligence (IJCCI 2024), pages 250-260

ISBN: 978-989-758-721-4; ISSN: 2184-3236

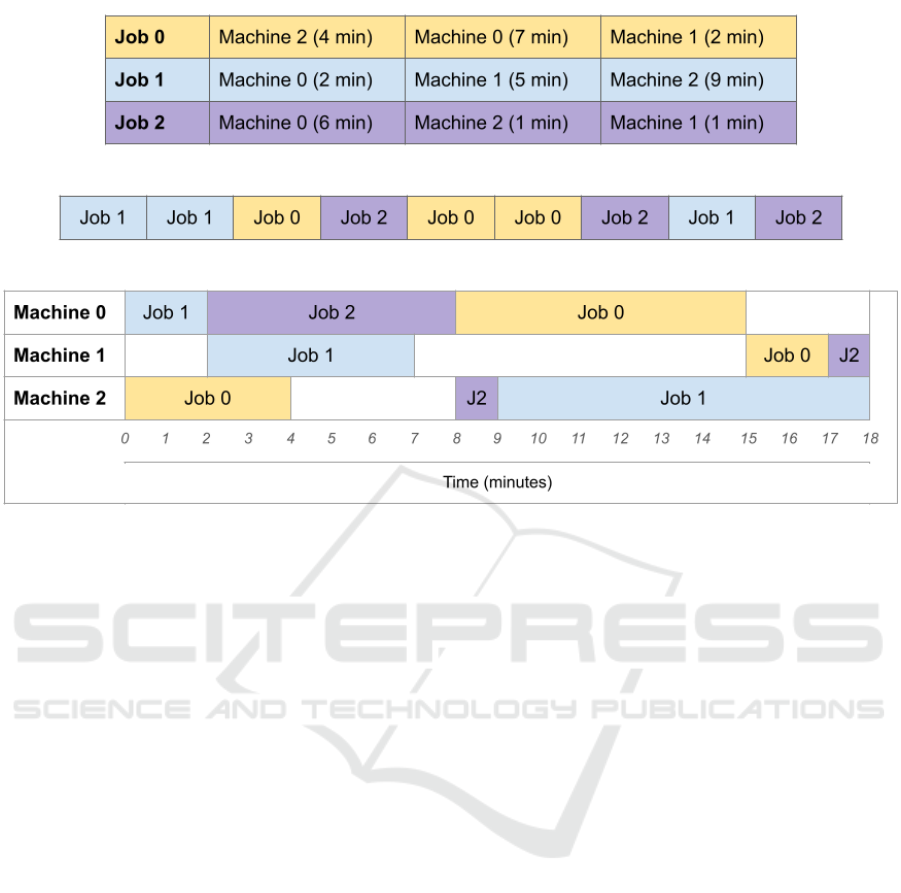

Figure 1: An example of a randomly generated problem instance (top), a random solution in permutation representation

(middle), and the corresponding schedule for that solution permutation, determining its makespan (bottom).

makespan minimization stems back to at least the

1950s, when it was – remarkably enough – consid-

ered an easy problem, even though its search space

increases factorially (See Eq. 1). A few decades

later though, the JSSP was proven to be NP-Hard

(Lawler et al., 1993; Lenstra and Kan, 1979). It

is true that a superpolynomial search space increase

in itself does not mean a problem is NP-hard, as

Leonard Euler demonstrated in 1736 when solving the

Bridges of K

oningsberg problem with a polynomial-

time method. For NP-hard problems however, such

an algorithm is not known, making these problems

not solvable (meaning: ﬁnding the optimal solution)

in any stretch of reasonable time for realistically sized

instances.

But even if a problem is NP-hard, it is not a ﬁ-

nal verdict on the hardness of an individual instance.

Many nuances exist, for example, the notion of a

phase transition in a problem, (partially) separating

the hardest instances from those that are trivially easy

to solve (Sleegers et al., 2022; Braam and van den

Berg, 2022). For the number partition problem, which

is classiﬁed as ‘weakly NP-hard’, the number of in-

formational bits per integer, and even the distribution

of informational bits over the integers exert inﬂuence

on the instances’ computational hardness (Sazhinov

et al., 2023).

For the JSSP, something similar is at play, as the

ratio between the number of jobs j and the number of

machines m in an instance also appear to play a part

in the difﬁculty of ﬁnding optimal or reasonable solu-

tions for particular instances. In the extremes, when

the ratio j/m is either really high or really low, “sim-

ple priority rules almost surely generate an optimal

schedule” (Streeter and Smith, 2006). Furthermore,

randomized initial solutions are already close to opti-

mal, making this a region of easy instances for a vari-

ety of algorithms. These results are very strong, and

possibly related to Ruben Horn’s work on the num-

ber partition problem (Horn et al., 2024b; Horn et al.,

2024a), but the converse is also true: when the ratio

j/m is close to 1, the problem is likely hard (Streeter

and Smith, 2006). Randomly generated schedules for

instances with the ratio j/m ≈ 1 are likely to be fur-

ther away from known optimal solutions than for in-

stances with smaller and larger j/m ratios. Local op-

tima in the solution landscape are also known to be

further away from global optima (Streeter and Smith,

2006).

However hard it may be to ﬁnd an optimal solu-

tion for a JSSP instance, it does allow for easy gener-

ation of random initial solutions from which to start a

heuristic optimization process. Although such a prop-

erty feels natural to have, this is not the case; prob-

lems like the traveling tournament problem (Verduin

et al., 2023b; Verduin et al., 2023a; Verduin et al.,

2024) and HP protein folding (Jansen et al., 2023;

Koutstaal et al., 2024; Kommandeur et al., 2024) lack

a quick procedure for generating a uniformally ran-

dom initial solution. For the JSSP, things are a lot eas-

The Performance of Frequency Fitness Assignment on JSSP for Different Problem Instance Sizes

251

ier, as an initial random valid solution (a JSSP sched-

ule) can be created in linear time. Furthermore, there

is also a deterministic constant time connective muta-

tion type available, which is also not trivially guar-

anteed (e.g. the traveling tournament problem and

HP protein folding don’t have one). Both the initial-

ization and mutation procedures will be further ex-

plained in Sections 4 and 5.

When it comes to the question of data sets, a col-

lected set of 242 benchmark instances is commonly

used in JSSP research literature, courtesy of Jelke J.

van Hoorn (Van Hoorn, 2018). In his set,the num-

ber of jobs range between 6 and 100, and the num-

ber of machines between 5 and 20, with the smallest

instance consisting of 6 jobs on 6 machines and the

largest consisting of 100 jobs on 20 machines (van

Hoorn, 2015). The distribution of j and m is some-

what haphazard over the set, but this is understand-

able as the set is comprised of 8 earlier JSSP bench-

mark sets. The advantage is of course the reach-

able generality of comparisons accross earlier stud-

ies. In another more recent study, custom problem in-

stances are generated drawing jobs’ processing times

from different probability distributions, to more fully

understand the landscape of possible JSSP instances

(Strassl and Musliu, 2022).

In this study however, we are less interested in

the absolute performance of the algorithms, but more

in how instance size (and thereby search space size)

inﬂuences the performance of frequency ﬁtness as-

signment (FFA). Is it really a “stochastic exhaustive

search” as so aptly formulated by Ege de Bruin?

(de Bruin et al., 2023a) We will ﬁnd out by answering

the main research question of this paper:

• How does instance size inﬂuence the perfor-

mance of the Frequency Fitness Assignment

(FFA) paradigm?

For our experiments, a set of JSSP problem instances

with gradually increasing job and machine numbers is

created for a more granular look into the effect of in-

stance size, but also the aforementioned job/machine

ratios, on hillclimber and FFA-hillclimber perfor-

mance. Using newly created JSSP instances rather

than a known benchmark set does mean that there are

no known optimal makespans for the generated in-

stances. For a performance comparison of the FFA-

hillclimber to the hillclimber however, we won’t be

needing those. The instances and algorithms’ source

code is publicly available (Pijning, 2024).

2 (FFA-)hillclimbers

Possibly the most elementary evolutionary algorithm

is the (1+1)EA, shorthand for “the new generation

is chosen as the best individual of one parent and

one child” (Droste et al., 2002), but colloquially

known as the ‘hillclimber’ algorithm. Hillclimbers

exist in many variants, with best-ﬁrst moves, propor-

tional probability moves, variable mutability, random

restarts and all sorts of other bells and whistles, but we

will restrict this study to the stochastic hillclimber. In

order to optimize a given problem, the stochastic hill-

climber starts off with an initial valid random solution

and tries to optimize the quality by making one mu-

tation in each generation and accepting the mutated

solution iff better. Moving through the solution space

like this is also called the “choose ﬁrst positive” (Mac-

Farlane et al., 2010) or “ﬁrst improvement” (Basseur

and Go

effon, 2013) strategy. These algorithms usu-

ally perform well, but have the risk of getting stuck in

a local optimum rather than moving towards a global

optimum in the solution space (Dijkzeul et al., 2022;

Russell and Norvig, 2010). One decision that needs to

be made when implementing a hillclimber algorithm

is whether to accept only better solutions, or equally

good solutions as well. In analogy for FFA, the de-

cision translates to whether the algorithm should ac-

cept only solutions with less encountered makespan

values, or with equally often encountered makespan

values as well.

The choice of a neutral moves policy should de-

pend on the extent of neutrality in the landscape. Ex-

isting literature indicates a non-trivial proportion of

neutrality in the landscapes of the JSSP (Weise et al.,

2021; Tsogbetse et al., 2022) and, indeed, in schedul-

ing problems more generally (Sutton, 2007). The

presence of neutrality in ﬁtness landscapes can be

helpful (Yu and Miller, 2002) or unhelpful (Collins,

2005) to search; it is likely that this depends on the

type of neutrality (Vanneschi et al., 2007) and design

of the algorithm.

Conceptually, also accepting solutions with equal

objective values might alleviate some of the risk of

the hillclimber getting stuck in a local optimum. In-

deed, this has been ratiﬁed in the literature: a study

which systematically compared hillclimbers with dif-

ferent pivot rules and neutral moves policies found ac-

cepting neutral moves to be advantageous to search

(Basseur and Go

effon, 2015).

As it relates to design of the FFA-hillclimber, both

choices for neutral moves policy seem to be appli-

cable on JSSP (Weise et al., 2021; de Bruin, 2022;

de Bruin et al., 2023b). Weise et al. state that ”A

plateau of the objective function is also a plateau un-

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

252

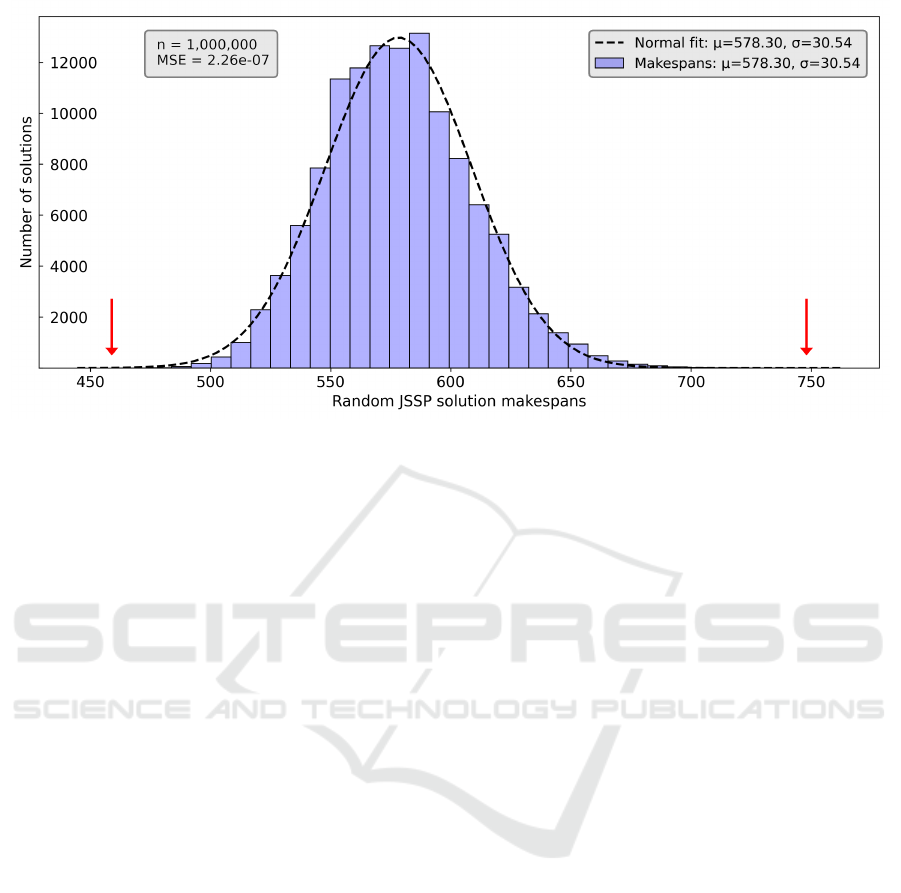

Figure 2: The distribution of makespans for 10

randomly generated unoptimized schedules for a JSSP instance with 50 jobs

and 16 machines.

der FFA” (Weise et al., 2022). Indeed, because all

members of a plateau will share the same frequency

ﬁtness value it seems that acceptance of solutions with

equally-rare ﬁtness may be necessary for escape from

neutral regions. Nevertheless, we would like to study

both neutral move policies in the interest of rigour.

Until now, these considerations have not been dis-

cussed in earlier studies of FFA for JSSP optimiza-

tion. In this study we will, and we will label the set-

tings as EQ for hillclimbers that DO accept equally

good solutions, and NOEQ for hillclimbers that DO

NOT accept equally good solutions. Turns out it

makes quite a difference.

3 FREQUENCY FITNESS

ASSIGNMENT

“Frequency Fitness Assignment” (FFA) is the brain-

child of Thomas Weise, really. A publication in 2013

from his lab in HeFei University, China, introduced

a new way to steer evolutionary algorithms through

the search space of combinatorial optimization prob-

lems (Weise et al., 2013). The new ‘plugin’, Fre-

quency Fitness Assignment, biases an evolutionary al-

gorithm towards rarer objective values, rather than to-

wards better objective values per se. The (a postiori?)

rationale behind this method is that “good solutions

are indeed rare and the better the solutions get, the

rarer they are” (Weise et al., 2021). How universally

applicable this rationale is remains open for debate,

but in the mean time, FFA in evolutionary algorithms

has already shown good results on several optimiza-

tion problems such as the traveling salesman problem

(Liang et al., 2022; Liang et al., 2024) and HP pro-

tein folding (Koutstaal et al., 2024). The results on

the job shop scheduling problem have been indepen-

dently replicated by Ege de Bruin from Amsterdam’s

VU university, and later published at EvoSTAR 2023

(de Bruin, 2022; de Bruin et al., 2023b). Recently,

more in-depth studies on the efﬁciency, algorithmic

invariance under objective function transformations

and explainability of its performance through entropy

and search space trajectories have appeared, show-

ing that the concept is slowly maturing from a wild

proposal to a well-understood principle (Weise et al.,

2020; Weise et al., 2022; Thomson et al., 2024).

When optimizing an instance of the JSSP with

a hillclimber algorithm (HC) and a hillclimber with

Frequency Fitness Assignment plugged into it (HC-

FFA), the latter shows good but not better results

on most problem instances studied in both (Weise

et al., 2021) and (de Bruin et al., 2023b). However,

the FFA-hillclimber does manage to outperform the

classic hillclimber on some instances in these stud-

ies. One possible reason for this is that the FFA-

hillclimber does not get stuck in local minima like the

hillclimber does (de Bruin et al., 2023b). De Bruin

et al.’s study does however point out that the FFA-

hillclimber seems more likely to outperform the hill-

climber for JSSP on smaller problem instances, and

less so on larger instance sizes. This observation, and

the validation or falsiﬁcation of it, are the core issues

of the paper you are currently reading. We aim to fol-

low up on this reasoning by speciﬁcally comparing

the performance of the hillclimber versus the FFA-

hillclimber on JSSP instances, both when accepting

The Performance of Frequency Fitness Assignment on JSSP for Different Problem Instance Sizes

253

equal solutions (EQ setting), or when only accepting

better solutions (NOEQ setting), on a set of systemati-

cally sized JSSP instances.

4 PROBLEM (INSTANCE)

REPRESENTATION

Following the method used in previous studies of FFA

on JSSP (Weise et al., 2021; de Bruin, 2022; de Bruin

et al., 2023b) to transform a problem instance into a

valid schedule, the following constraints must be met:

• In each instance there are j jobs that must be pro-

cessed on all m machines exactly once.

• Each job has to be processed on each machine in

the order speciﬁed in the problem instance.

• Each job has a processing time on each machine

speciﬁed in the problem instance.

• A job can be processed on only one machine at a

time.

• A machine can process only one job at a time.

A single problem instance consists of a table of m × j

entries holding two integers in each cell: the ma-

chineID and the processing time on that machine

(Figure 1, top table). A solution to the problem in-

stance can be given by a single permutation of m × j

integers, all corresponding to a jobID (Figure 1, cen-

tral array). Each jobID appears in the permutation m

times, as is done in several earlier papers (Weise et al.,

2021; de Bruin, 2022; de Bruin et al., 2023b).

Since the processing order on the machines is a

hard requirement for a job, the m entries in the permu-

tation are identical. Switching two identical jobIDs

from different indexes in the permutation therefore

does not lead to a new solution (e.g. in Figure 1: Job

2 in 4

position and Job 2 in the 9

position). This

reﬂects in the number of possible ‘reasonable’ sched-

ules (meaning: without trivially unnecessary machine

idle time), which is

( jm)!

j(m! )

(1)

The list of jobIDs, can give rise to a valid schedule in

all of its permutations without further amends. Fur-

thermore, all reasonable schedules can be represented

by such a permutation. Finally, and this is neither triv-

ial nor unimportant, a mutation exists that connects

all representations into one connected combinatorial

state space, making sure that at least principally, ev-

ery solution is reachable from every other solution.

That mutation is the swap mutation, which swaps two

elements in the permutational solution representation.

Other mutations, such as double swaps or triple shuf-

ﬂes, can also connect the entire combinatorial state

space and might function better or worse, depending

on the algorithmic deployment. Finally, we should

understand that having such an operation is a luxury;

many constraint optimization problems appear not to

have such a mutation, making them practically much

harder (Verduin et al., 2023a; Jansen et al., 2023).

Constructing the corresponding schedule from a

permutational solution is relatively straightforward

and can be done in O(n) time. Taking the example in

Figure 1, Job 1 is the ﬁrst job in the permutation and it

can start right away at time 0 on Machine 0, occupy-

ing it for 2 minutes. Next to be placed in the schedule

is again job 1, this time on Machine 1, and occupy-

ing it for 5 minutes. It can start at the ﬁrst available

minute on Machine 1 after both Job 1’s previous pro-

cess and Machine 1’s previous job are ﬁnished. The

latter of these is the strongest constraint in this case,

and Job 1 can start immediately on Machine1 after it

ﬁnishes its process on Machine 0. Note that if either

Job 0 or Job 2 would have been wedged in between,

we would have gotten the same ﬁnal schedule. In

other words: the permutation representation is some-

what redundant. This might cause some neutrality in

the search space, although the effect might depend on

the instance size.

After all jobs from the permutation are placed, the

time it takes for all jobs to complete all their processes

is called the makespan of the schedule. In the example

in Figure 1 the makespan is 18 minutes. Minimizing

the makespan is the objective of a JSSP instance, and

the makespan’s length is therefore its objective value.

5 EXPERIMENT

For our experiment, we generated JSSP instances

with j ∈ {5,10,15,...,90, 95,100} jobs and m ∈

{5,6, 7...,23, 24,25} machines in all combinations,

totalling 20 × 21 = 420 instances. These ranges of

j and m completely envelop Weise et al.’s original

study and De Bruin et al.’s replication, which both

use Van Hoorn’s benchmark set (Weise et al., 2021;

van Hoorn, 2015; Van Hoorn, 2018). For each job j,

a random permutation of the m machines is assigned,

after which each job process for every machine gets

assigned a random duration of 1 ≤ dur ≤ 10 minutes.

After creation, all 420 problem instances are at-

tacked with two algorithms, a standard hillclimber

and an FFA-hillclimber, both of which have two set-

tings, EQ and NOEQ. When switched to EQ, the algo-

rithm will accept equally good mutated solutions (or

equally ﬁtness-infrequent in case of FFA), but when

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

254

switched to NOEQ it will only accept better solutions

(or more ﬁtness-infrequent in case of FFA). Our ex-

perimental setup is thereby slightly wider than ear-

lier studies which only studied these algorithms in EQ

setting (Weise et al., 2021; de Bruin, 2022; de Bruin

et al., 2023b). Both the steering of an algorithm and

its EQ - NOEQ setting are ﬁxed aforehand, and do not

change during a run.

The standard hillclimber (“the simplest local

search possible” (Weise et al., 2021)) starts off with

a single random but valid solution, and in every gen-

eration performs one mutation, implemented as a ‘job

swap’. The job swap operation randomly selects two

different job indices in the permutational representa-

tion, and subsequently swaps these iff the jobIDs are

different – else a new random index is selected for

the second job. Iff the makespan of the newly mu-

tated schedule is shorter than the incumbent schedule,

the new schedule is accepted and replaces the incum-

bent schedule. If the hillclimber is in EQ setting for

this run, it will not only accept a better schedule (with

shorter makespans), but also an equally good sched-

ule.

The FFA-hillclimber also has an EQ - NOEQ set-

ting. Its FFA-plugin entails keeping a frequency log

with every encountered makespan value and how of-

ten it was encountered. It starts off with all log entries

set to zero, after which it initializes a random solu-

tion, calculates its makespan value, and increases that

value’s entry in the frequency log by 1. Each gen-

eration, it mutates the incumbent schedule identical

to the hillclimber, randomly selecting two different

job indices in the permutational representation, and

subsequently swapping these iff the jobIDs are dif-

ferent (else a new random index is selected for the

second job). It then calculates the makespan of the

new schedule, increases that makespans observed fre-

quency in the log, looks whether this value was less

encountered than the incumbent objective value and

if so, accepts the mutated schedule as the new in-

cumbent schedule. Different from the standard hill-

climber, the FFA-hillclimber also separately retains

the best-so-far solution, which often is different from

the incumbent solution. Finally, an FFA-hillclimber

run can also be set to EQ, thereby also accepting mu-

tated solutions with makespans that are equally fre-

quently encountered; this is contrary to the NOEQ set-

ting, which ensures accepting only less frequently en-

countered makespan values’ schedules.

In all four algorithmic settings, 3 runs of 10

func-

tion evaluations were completed for each of the 420

problem instances. The runtime of each algorithm on

all 420 problem instances is about 3.5 days on a stan-

dalone machine, meaning that the entire experiment

Table 1: Sums of the best makespans found for all 420

JSSP instances after one million evaluations for each of the

four algorithmic settings versions. The default hillClimber

showed both the worst and the best performance, and the EQ

setting outperformed the NOEQ setting on these instances.

NOEQ EQ

HC-FFA 161,028 158,420

HC 164,420 142,027

took approximately 6 weeks. This is much fewer

than previous studies, that usually deploy 10

func-

tion evaluations per problem instance (Weise et al.,

2021; de Bruin, 2022; de Bruin et al., 2023b). It

has been pointed out that this high number of evalua-

tions may turn the FFA-hillclimber algorithm into an

almost “stochastically exhaustive search” (de Bruin

et al., 2023b). However, even on the scale of 10

func-

tion evaluations we do get some very interesting

6 RESULTS

When comparing the absolute performance of all

four algorithmic settings, the standard hillclimber per-

forms both best and worst. Summing up

all 420 aver-

age makespans gives 164,420 for the hillclimber that

accepts only mutations that lead to better makespans

(the NOEQ setting), which is the worst performing al-

gorithmic setting. When the same hillclimber does

accept equal-makespan-mutations however (the EQ

setting), it becomes the best performing algorithmic

setting with a total makespan of 142,027. This rat-

iﬁes ﬁndings from the literature on other problems

where acceptance of neutral moves has been found

to be advantageous to search efﬁciency (Basseur and

effon, 2015).

When it comes to the FFA-hillclimber, it is

again the EQ setting that outperforms the NOEQ set-

ting, at 158,420 total makespan against 161,028 total

makespan. This ﬁnding matches with the axiom men-

tioned in Section 2 that a plateau in objective function

space is also a plateau with relation to FFA. It appears

that the freedom of movement afforded by allowing

moves to solutions with equally-rare ﬁtness may be

necessary to escape the plateaus.

On the larger scale of things, these differences

can be regarded as quite small. If we would rescale

the makespan of best algorithmic setting (hillclimber

with EQ) to 1, the setting FFA-hillclimber with EQ

We do not average these values; a makespan of 5 ma-

chines with 10 jobs is obviously lower than 5 machines

with 100 jobs. The summed end result if doing so how-

ever, would not differ. We do average results over runs with

the same parameters though.

The Performance of Frequency Fitness Assignment on JSSP for Different Problem Instance Sizes

255

Table 2: The percentage of wins (or tie) per algorithmic setting for increasing number of evaluations over all 420 JSSP

instances. In the NOEQ settings, the FFA-hilcClimber increasingly outperforms the hillclimber as the number of evaluations

increases. For the EQ settings, hillclimber wins recede over evaluations as the percentage of ties increases.

NOEQ EQ

Number of evaluations HC-FFA win Tie HC win HC-FFA win Tie HC win

10,000 6.905% 0.238% 92.857% 0.476% 2.857% 96.667%

100,000 23.571% 4.286% 72.143% 0% 8.81% 91.19%

250,000 44.286% 4.286% 51.429% 0.476% 13.095% 86.429%

500,000 61.667% 4.048% 34.286% 0.952% 16.905% 82.143%

750,000 71.19% 4.286% 24.524% 0.952% 17.857% 81.19%

1,000,000 81.19% 4.524% 14.286% 1.19% 20.476% 78.333%

would have 1.12, the setting FFA-hillclimber with

NOEQ would have 1.13 and the worst setting, hill-

climber with NOEQ, would have 1.16. These values

are small in the context of this study, where improve-

ment in a run can easily lead up to 50% better objec-

tive values (Figures 5 and 6). The objective of this

study however, was to gather insight on the domi-

nance of the FFA-hillclimber over the standard hill-

climber (and vice versa) relative to the computational

budget. In other words: these values could be strongly

related to the exact budget of 10

evaluations. For

, 10

or 10

evaluations, things could be quite

different.

The advantage of creating our own bench-

mark set of 420 instances with the regularity j ∈

{5,10, 15,...,90,95,100} jobs, and machines m ∈

{5,6, 7...,23, 24,25} is that it allows for a compari-

son of the algorithmic settings’ performance in a grid

view, with m on the horizontal axis, and j on the ver-

tical axis (Figures 3 and 4). Coloring cell (20,55)

red means that for the instance with 20 machines and

55 jobs, the FFA-hillclimber reached the best average

performance after 3 runs of 10

generations. Color-

ing it blue means the standard hillclimber delivered

the best average performance for the same instance.

Taking this idea one step further, we also froze

the runs after 10,000, 100,000, 250,000, 500,000 and

750,000 generations, creating an exact same grid view

for different points in the run. When these inter-

mediate grids are then placed in order from 10,000

generations to 1,000,000 generations, a clear picture

emerges (Figures 3 and 4).

When in EQ-mode, the standard hillclimber is the

dominant algorithm throughout the runs; just a few

red cells for very low numbers of jobs, mostly emerg-

ing later in the run (Fig. 3, percentages can be found

in Table 2). The number of ties though increases

slightly for lower numbers of machines – almost ir-

respective of the number of jobs. This might be taken

as a suggestion that in the very long run, the domi-

nance of the standard hillclimber recedes.

When in NOEQ-mode, the picture is quite differ-

ent. For low numbers of generations, the standard

hillclimber still dominates the grid, but throughout the

evolutionary process, the FFA-hillclimber wins more

and more terrain, starting with the lower numbers of

jobs and machines but eventually taking over almost

the entire grid at 1,000,000 evaluations (Fig. 3, per-

centages can be found in Table 2). It might there-

fore seem that the FFA-hillclimber is favourable in the

long run, but this is clearly not the case, because the

absolute results still favour the standard hillclimber,

in EQ mode, over any other algorithmic setting (see

Table 1 again). On the other hand again, it must be

noted that these results only pertain to our experiment,

and different numbers of generations might give dif-

ferent outcomes.

The convergence in Figures 5 and 6 illustrate

the relative differences between hillclimber and FFA-

hillclimber of either setting EQ or NOEQ. It becomes

apparent that when hillclimber outperforms FFA-

hillclimber, the instances are usually quite large.

When FFA-hillclimber outperforms the standard hill-

climber, the instances are usually on the smaller side.

7 CONCLUSION AND

DISCUSSION

For this benchmark set, using 1 million evaluations,

the performance ranking for the four algorithmic set-

tings is clear (makespan lengths are normalized to fa-

cilitate comparison):

1. (makespan = 1.00): hillclimber with EQ

2. (makespan = 1.12): FFA-hillclimber with EQ

3. (makespan = 1.13): FFA-hillclimber with NOEQ

4. (makespan = 1.16): hillclimber with NOEQ

The mandatory nuance though, is that this indeed per-

tains to 1 million evaluations. It is very likely that for

other numbers of evaluations, the ranking might look

quite different, possibly stronger in favour of FFA in

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

256

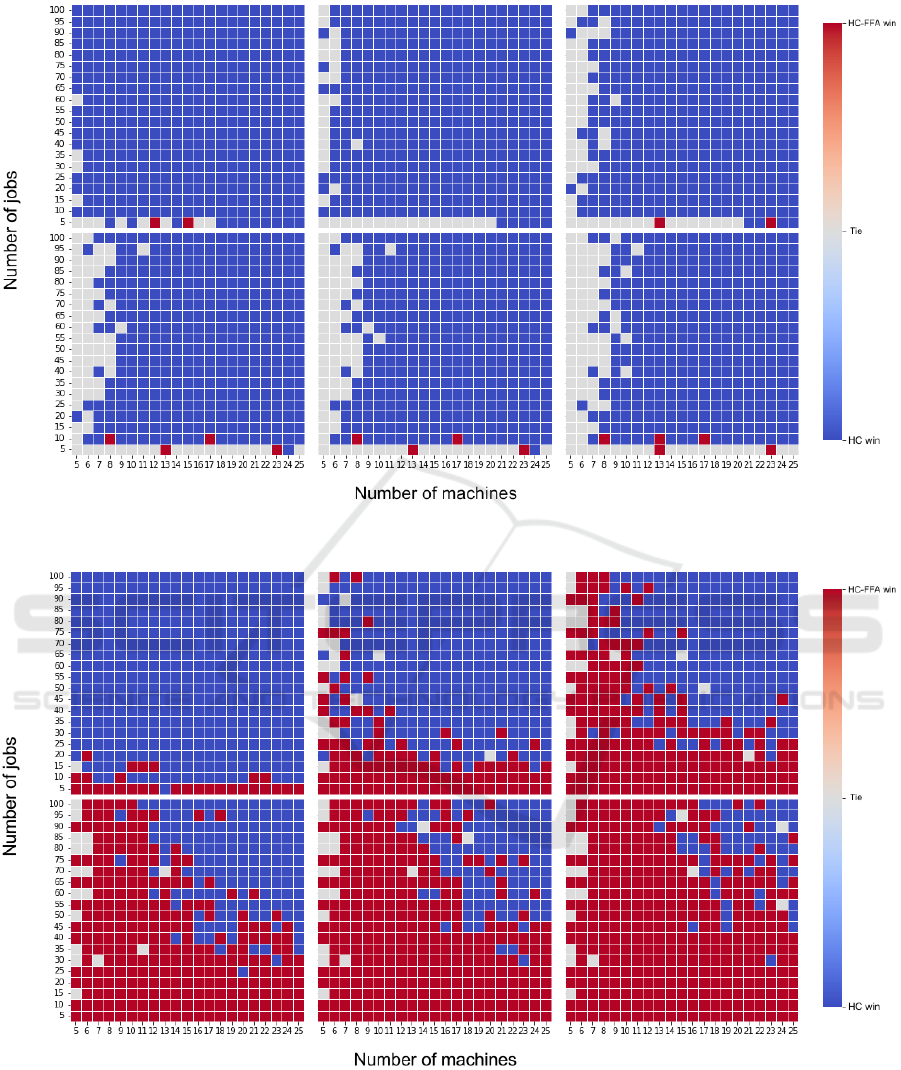

Figure 3: Best performance (or tie) per JSSP instance size for EQ settings. On the top row: the best found makespans at 10,000,

100,000, and 250,000 function evaluations. On the bottom row: those at 500,000, 750,000, and 1,000,000 evaluations.

Figure 4: Best performance (or tie) per JSSP instance size for NOEQ settings. On the top row: the best found makespans at

10,000, 100,000, and 250,000 function evaluations. On the bottom row: those at 500,000, 750,000, and 1,000,000 evaluations.

The Performance of Frequency Fitness Assignment on JSSP for Different Problem Instance Sizes

257

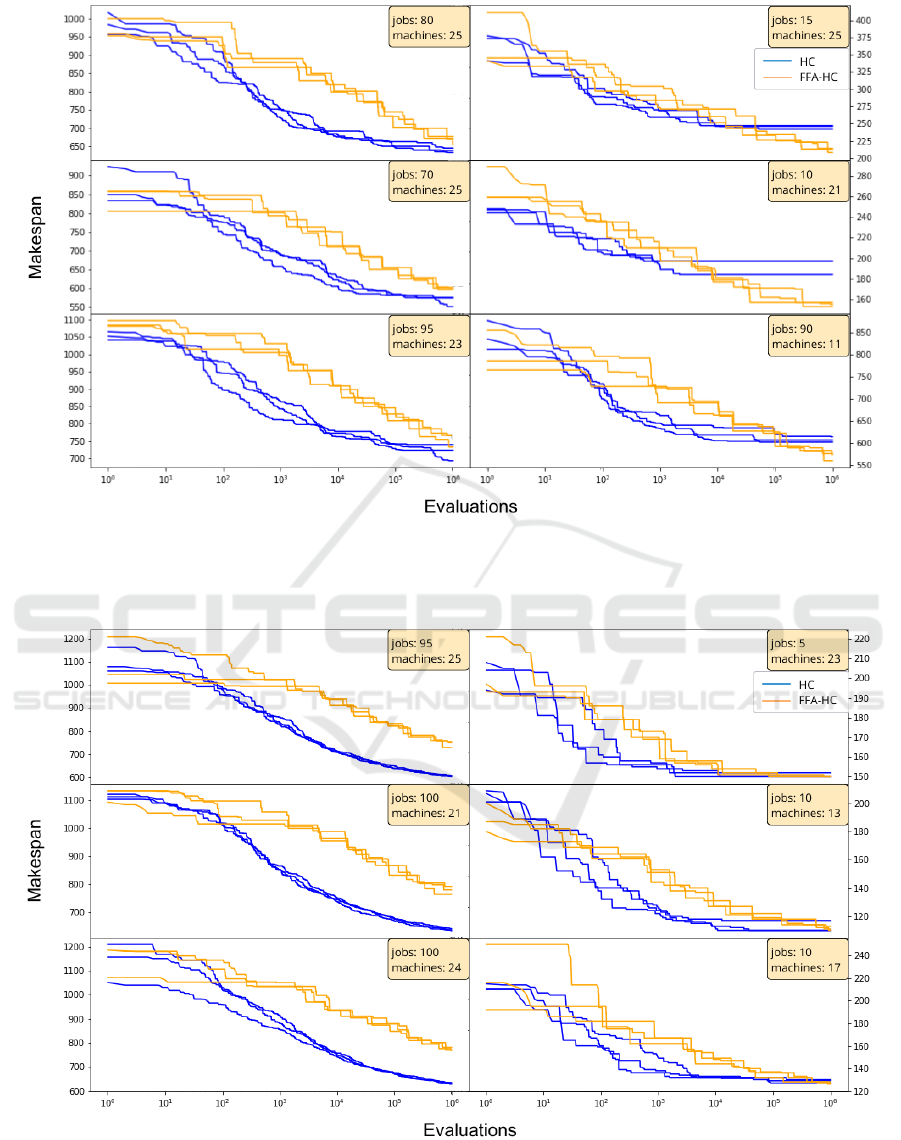

Figure 5: Some typical runs for the NOEQ setting, with on the left hand side the three instances where the standard hillclimber

outperformed the FFA-hillclimber with the biggest absolute difference. On the right hand side are the three instances where

the FFA-hillclimber found the biggest improvements in makespan over the standard hillclimber. The number of evaluations

are on a logarithmic scale.

Figure 6: Some typical runs for the EQ setting, with on the left hand side the three instances where the standard hillclimber

outperformed the FFA-hillclimber with the biggest absolute difference. On the right hand side are the three instances where

the FFA-hillclimber found the biggest improvements in makespan over the standard hillclimber. The number of evaluations

are on a logarithmic scale.

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

258

both settings. Generally speaking, the more function

evaluations, the better FFA performs.

These ﬁndings closely relate to De Bruin et al’s

earlier observation and hypothesis, that plugging the

FFA method into a hillclimber algorithm may result

in a “stochastically exhaustive algorithm” (de Bruin

et al., 2023b). If this qualiﬁcation is indeed truth-

ful, FFA is expected to perform better on smaller

JSSP instances, as these have smaller combinatorial

search spaces, requiring fewer evaluations to exhaus-

tively explore (either deterministically or stochasti-

cally). Our results appear to conﬁrm this; the results

in Figure 4 show that the FFA-hillclimber in NOEQ

mode indeed overtakes the hillclimber in NOEQ mode

for increasing numbers of evaluations, but more im-

portantly: this process starts at the smaller instances,

visualized by the red area progressively expanding

from the bottom left.

This is also true for both algorithms in EQ mode,

but the effect is much less pronounced, showing just a

slight expansion of the grey area, signifying more ties,

but no convincing dominance of FFA. We are unsure

why this happens in EQ mode, but it might have to do

with the smallness of the mutation, the neutrality of

the landscape, or the relatively small number of eval-

uations (carefully denoting that a budget of 10

eval-

uations is only small compared to the regular budgets

of FFA, which range to 10

). We think it is well pos-

sible that for these algorithmic settings, FFA will also

overtake at a budget of 10

evaluations for this setting.

The increase of ties might also signal a degree of

convexity. Considering that these too are found in the

smaller instances, it is possible that ties simply mean

that in both settings the global optimum was found.

Therefore, it is possible that we accidentally discov-

ered that the hillclimber in EQ mode actually reaches

a lot of global minima on these problem instances.

There is no way to structurally check this hypothesis

(as this problem is still NP-hard), but the relatively

low number of possible makespan values might jus-

tify an attempt with an exact algorithm to rigorously

evaluate these problem instances.

Taking this thought one step further, it is quite

possible, that for these low numbers of job duration

(1 to 10 minutes), many global minima exist, similar

to the number partition problem with many low in-

tegers (van den Berg and Adriaans, 2021; Sazhinov

et al., 2023). So even if the combinatorial state space

is sizeable, the number of global optima might be high

too. In fact, if the partition problem is any measure to

go by, it is possible that the number of global optima

increases for larger instances if the range of process-

ing times remains the same (Horn et al., 2024b; Horn

et al., 2024a). The increase might in fact be expo-

nential, but that might still not be enough given the

factorial nature of JSSP.

In future work, it would be nice do quantify the

patterns, mainly in Figure 4, possibly in a way akin to

(Koppenhol et al., 2022). It is well possible, that the

exact state space size for each grid makes a critical

difference, but also increasing the number of runs is

necessary. Also, the margin of a win could be calcu-

lated and, in an ideal case, even compared to a known

global optimum.

REFERENCES

Basseur, M. and Go

effon, A. (2013). Hill-climbing strate-

gies on various landscapes: an empirical comparison.

In Proceedings of the 15th annual conference on Ge-

netic and evolutionary computation, pages 479–486.

Basseur, M. and Go

effon, A. (2015). Climbing combi-

natorial ﬁtness landscapes. Applied Soft Computing,

30:688–704.

Bła

zewicz, J., Domschke, W., and Pesch, E. (1996). The

job shop scheduling problem: Conventional and new

solution techniques. European journal of operational

research, 93(1):1–33.

Braam, F. and van den Berg, D. (2022). Which rectangle

sets have perfect packings? Operations Research Per-

spectives, 9:100211.

Collins, M. (2005). Finding needles in haystacks is harder

with neutrality. In Proceedings of the 7th annual

conference on Genetic and evolutionary computation,

pages 1613–1618.

de Bruin, E. (2022). Escaping local optima by preferring

rarity with the frequency ﬁtness assignment. Master’s

thesis, Vrije Universiteit Amsterdam.

de Bruin, E., Thomson, S. L., and Berg, D. v. d. (2023a).

Frequency ﬁtness assignment on jssp: A critical re-

view. In International Conference on the Applications

of Evolutionary Computation (Part of EvoStar), pages

351–363. Springer.

de Bruin, E., Thomson, S. L., and Berg, D. v. d. (2023b).

Frequency ﬁtness assignment on jssp: A critical re-

view. In International Conference on the Applications

of Evolutionary Computation (Part of EvoStar), pages

351–363. Springer.

Dijkzeul, D., Brouwer, N., Pijning, I., Koppenhol, L., and

Van den Berg, D. (2022). Painting with evolutionary

algorithms. In International Conference on Compu-

tational Intelligence in Music, Sound, Art and Design

(Part of EvoStar), pages 52–67. Springer.

Droste, S., Jansen, T., and Wegener, I. (2002). On the anal-

ysis of the (1+ 1) evolutionary algorithm. Theoretical

Computer Science, 276(1-2):51–81.

Horn, R., Jansen, R., van Eck, O., and van den Berg, D.

(2024a). When being fair is hard: Predictability of

yes- or no-instance type for number partitioning prob-

lems. (submitted).

Horn, R., Thomson, S. L., van den Berg, D., and Adriaans,

P. (2024b). The easiest hard problem: Now even easier

The Performance of Frequency Fitness Assignment on JSSP for Different Problem Instance Sizes

259

the easiest hard problem, number partitioning prob-

lem, combi-natorial optimization.

Jain, A. S. and Meeran, S. (1999). Deterministic job-shop

scheduling: Past, present and future. European jour-

nal of operational research, 113(2):390–434.

Jansen, R., Horn, R., van Eck, O., Verduin, K., Thomson,

S. L., and van den Berg, D. (2023). Can hp-protein

folding be solved with genetic algorithms? maybe not.

Kommandeur, J., Koutstaal, J., Timmer, R., Jansen, R., and

Weise, T. (2024). Two fast but unsuccessful algo-

rithms for generating randomly folded proteins in hp.

Evostar LBAs.

Koppenhol, L., Brouwer, N., Dijkzeul, D., Pijning, I.,

Sleegers, J., and Van Den Berg, D. (2022). Exactly

characterizable parameter settings in a crossoverless

evolutionary algorithm. In Proceedings of the Genetic

and Evolutionary Computation Conference Compan-

ion, pages 1640–1649.

Koutstaal, J., Kommandeur, J., Timmer, R., Horn, R.,

Thomson, S. L., and van den Berg, D. (2024). Fre-

quency ﬁtness assignment for untangling proteins in

2d. Evostar LBAs.

Lawler, E. L., Lenstra, J. K., Kan, A. H. R., and Shmoys,

D. B. (1993). Sequencing and scheduling: Algorithms

and complexity. Handbooks in operations research

and management science, 4:445–522.

Lenstra, J. K. and Kan, A. R. (1979). Computational com-

plexity of discrete optimization problems. In Annals

of discrete mathematics, volume 4, pages 121–140.

Elsevier.

Liang, T., Wu, Z., L

assig, J., van den Berg, D., Thomson,

S. L., and Weise, T. (2024). Addressing the trav-

eling salesperson problem with frequency ﬁtness as-

signment and hybrid algorithms.

Liang, T., Wu, Z., L

assig, J., van den Berg, D., and Weise, T.

(2022). Solving the traveling salesperson problem us-

ing frequency ﬁtness assignment. In 2022 IEEE Sym-

posium Series on Computational Intelligence (SSCI),

pages 360–367. IEEE.

MacFarlane, A., Secker, A., May, P., and Timmis, J. (2010).

An experimental comparison of a genetic algorithm

and a hill-climber for term selection. Journal of doc-

umentation, 66(4):513–531.

Pham, D.-N. and Klinkert, A. (2008). Surgical case

scheduling as a generalized job shop scheduling prob-

lem. European Journal of Operational Research,

185(3):1011–1025.

Pijning, I. (2024). https://github.com/irispijning/jssp ffa.

Russell, S. J. and Norvig, P. (2010). Artiﬁcial intelligence a

modern approach. London.

Sazhinov, N., Horn, R., Adriaans, P., and van den Berg, D.

(2023). The partition problem, and how the distribu-

tion of input bits affects the solving process (submit-

ted).

Sleegers, J., Thomson, S. L., and van Den Berg, D. (2022).

Universally hard hamiltonian cycle problem instances.

Strassl, S. and Musliu, N. (2022). Instance space analy-

sis and algorithm selection for the job shop schedul-

ing problem. Computers & Operations Research,

141:105661.

Streeter, M. J. and Smith, S. F. (2006). How the landscape

of random job shop scheduling instances depends on

the ratio of jobs to machines. Journal of Artiﬁcial In-

telligence Research, 26:247–287.

Sutton, A. M. (2007). An analysis of search landscape neu-

trality in scheduling problems. In Proceedings of the

ICAPS, page 79.

Thomson, S. L., Ochoa, G., van den Berg, D., Liang, T.,

and Weise, T. (2024). Entropy, search trajectories, and

explainability for frequency ﬁtness assignment. to ap-

pear).

Tsogbetse, I., Bernard, J., Manier, H., and Manier, M.-

A. (2022). Impact of encoding and neighborhood on

landscape analysis for the job shop scheduling prob-

lem. IFAC-PapersOnLine, 55(10):1237–1242.

van den Berg, D. and Adriaans, P. (2021). Subset sum and

the distribution of information. In IJCCI, pages 134–

140.

van Hoorn, J. J. (2015). Jobshop instances and solutions.

Van Hoorn, J. J. (2018). The current state of bounds on

benchmark instances of the job-shop scheduling prob-

lem. Journal of Scheduling, 21(1):127–128.

Vanneschi, L., Tomassini, M., Collard, P., V

erel, S., Pirola,

Y., and Mauri, G. (2007). A comprehensive view of

ﬁtness landscapes with neutrality and ﬁtness clouds.

In Genetic Programming: 10th European Conference,

EuroGP 2007, Valencia, Spain, April 11-13, 2007.

Proceedings 10, pages 241–250. Springer.

Verduin, K., Horn, R., van Eck, O., Jansen, R., Weise, T.,

and van den Berg, D. (2024). The traveling tourna-

ment problem: Rows-ﬁrst versus columns-ﬁrst. ICEIS

2024, pages 447–455.

Verduin, K., Thomson, S. L., and van den Berg, D.

(2023a). Too constrained for genetic algorithms. too

hard for evolutionary computing. the traveling tourna-

ment problem.

Verduin, K., Weise, T., and van den Berg, D. (2023b). Why

is the traveling tournament problem not solved with

genetic algorithms?

Weise, T., Li, X., Chen, Y., and Wu, Z. (2021). Solving

job shop scheduling problems without using a bias

for good solutions. In Proceedings of the Genetic

and Evolutionary Computation Conference Compan-

ion, pages 1459–1466.

Weise, T., Wan, M., Wang, P., Tang, K., Devert, A., and

Yao, X. (2013). Frequency ﬁtness assignment. vol-

ume 18, pages 226–243. IEEE.

Weise, T., Wu, Z., Li, X., and Chen, Y. (2020). Frequency

ﬁtness assignment: Making optimization algorithms

invariant under bijective transformations of the objec-

tive function value. IEEE Transactions on Evolution-

ary Computation, 25(2):307–319.

Weise, T., Wu, Z., Li, X., Chen, Y., and L

assig, J. (2022).

Frequency ﬁtness assignment: optimization without

bias for good solutions can be efﬁcient. IEEE Trans-

actions on Evolutionary Computation.

Yu, T. and Miller, J. (2002). Finding needles in haystacks

is not hard with neutrality. In Genetic Programming:

5th European Conference, EuroGP 2002 Kinsale, Ire-

land, April 3–5, 2002 Proceedings 5, pages 13–25.

Springer.

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

260
