A Vision Based System for Assisting Blind People at Indoor and Outdoor

Exploration

Raluca Didona Brehar

and Sand Elena-Andreea

Computer Science Department, Technical University of Cluj-Napoca, Romania

Keywords:

Object Detection, Smart Navigation, Computer Vision, Embedded Systems.

Abstract:

An approach that combines hardware processing facilities with artiﬁcial intelligence and computer vision is

proposed in this paper resulting in a prototype for assisting blind people at indoor and outdoor exploration in

terms of object detection and recognition, color recognition, obstacle avoidance and smart navigation. Several

test scenarios have been experimented and prove the efﬁciency of the proposed approach. The targeted test

scenarios comprise shopping assistance, obstacle avoidance and directions for safe navigation.

1 INTRODUCTION

According to the most recent studies (Pesudovs, K.,

Lansingh, V.C., Kempen, J.H., 2024), visually im-

paired people represent a signiﬁcant portion of the

population, speciﬁcally, 295 million individuals are

affected by this condition, of which 17 million are

blind.

Among the problems faced by visually impaired

people, the most important are: ﬁnding an object, per-

ception of the surrounding environment, identifying a

color, using public transportation, navigation in the

external environment and avoiding obstacles. The ap-

proach proposed in this paper is engineered to help

blind people in various situations encountered in ev-

eryday life, giving them the opportunity to carry out

their activities without having to ask for the help of

other people. To help visually impaired individuals

achieve a higher degree of independence, a system

that perceives and processes the surrounding environ-

ment in real-time and has the capability to accurately

and precisely recognize and locate existing objects or

potential obstacles is needed. To ensure this, the pro-

posed solution combines embedded components with

state of the art computer vision models. The proposed

approach develops ﬁve main modes of operation all

having an interactive and friendly mode of use: (i)

smart navigation; (ii) object detection and recogni-

tion; (iii) color identiﬁcation to assist in outﬁt selec-

tion; (iv) groceries detection and recognition; (v) ob-

stacle avoidance. Through voice commands, the user

https://orcid.org/0000-0003-0978-7826

can specify their needs, and the necessary instructions

are provided via audio output.

The main contributions of the proposed solution

reside in:

• Development of an embedded hardware system

with strong processing capabilities for computer

vision assistance of blind people.

• Design and implementation of object detection,

recognition, smart navigation based on state of the

art deep learning models.

• Integration of hardware and software solutions for

typical test scenarios in blind people assistance.

• Real time processing.

2 RELATED WORK

This section provides an overview of existing research

and developments related to systems tailored for vi-

sually impaired users that focus on object detection,

groceries detection and obstacle avoidance.

In the work presented by (Kabir et al., 2023), the

authors compare the You Only Look Once (YOLO)

models (Redmon et al., 2016), versions 4 and 7, and

the SSD Mobilenet-V2 model (Sandler et al., 2019).

After the tests were conducted, they claim that YOLO

provides better accuracy, while SSD provides fast and

efﬁcient detection on embedded devices.

The approach proposed by (Kumar and Jain,

2021) describe a system that provides travel instruc-

tions for blind people using the YOLOv3 object de-

Brehar, R. and Elena-Andreea, S.

A Vision Based System for Assisting Blind People at Indoor and Outdoor Exploration.

DOI: 10.5220/0012973100003822

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Informatics in Control, Automation and Robotics (ICINCO 2024) - Volume 2, pages 54-65

ISBN: 978-989-758-717-7; ISSN: 2184-2809

tection model and ultrasonic sensors to signal obsta-

cles close to the user. The authors modiﬁed the model

YOLOv3 to be integrated into a portable system and

trained it using a dataset containing images classi-

ﬁed into about 25 different categories such as straight

roads, intersections, pedestrians or vehicles. The sys-

tem provides real-time audio feedback through head-

phones. The authors claim that the system offers

96.14% accuracy with the help of sensors ultrasonics,

while the modiﬁed YOLOv3 model provides 81% ac-

curacy.

In (Baskar et al., 2021) the implementation of a

system that helps blind people to avoid obstacles that

may appear in the indoor environment is described.

To develop the system, they use a Raspberry Pi 3 cam-

era, an infrared sensor and ultrasonic sensors to de-

tect and identify obstacles in real time. The authors

claim that the infrared sensor detects objects in move-

ment, the ultrasonic sensor detects static objects, and

the camera is used to detect predeﬁned objects.

The article (Rodr

ıguez et al., 2007) presents an

obstacle avoidance system for assisting the visually

impaired people, using a stereo camera that generates

a disparity map that allows obstacle detection in dif-

ferent scenarios. Once the depth map from the stereo

camera is obtained, the algorithm creates a grid us-

ing polar coordinates, the size of which covers a dis-

tance of four and a half meters. The grid is divided

into three zones to represent the distance to obstacles

(4.5m, 3m, and 1.5m), and each zone is divided into

◦

portions. Next, the algorithm determines the pix-

els that belong to the ground, using the RANSAC al-

gorithm, in order not to determine the area of interest

for the user. Once the pixels that belong to the ground

are determined, the rest are analyzed to ﬁnd if they

intersect the grid, that is, if they are part of a pos-

sible obstacle. Finally, the algorithm alerts the user

to the presence of an obstacle by sending a beeping

sound into the headphones, controlling the frequency

of the sound based on the distance to the obstacle.

The test results demonstrate the performance of the

system, both in the outdoor and indoor environments.

The paper (K et al., 2014), presents an application

that helps blind people to do their shopping in a super-

market. The system uses a camera to capture images

from the supermarket which are then processed to ex-

tract the text in order to identify the products. The

system also extracts the price of the products, and at

the user’s command, adds that price to the purchase

calculation. This bill amount is then sent as voice out-

put to the user.

A system to help visually impaired individuals

shop independently in supermarkets is described by

(Devipriya et al., 2018). The system addresses

three primary concerns: locating products, identi-

fying products, and automating the billing process.

Product identiﬁer helps locate the desired product us-

ing RFID technology. A buzzer rings when the prod-

uct is found. Smart glove assists in identifying the

product by providing audio details through a headset

when the product is scanned and smart trolley auto-

mates the billing process. When a product is placed

in the trolley, it is automatically scanned and added

to the bill. The total bill is displayed on an LCD

screen and can be updated in real-time. The system

was tested with three products: Masala, Milk, and

Apples. The Product Identiﬁer successfully detected

and matched products with voice inputs. The Smart

Glove provided audio feedback about the products,

and the Smart Trolley automated the billing process,

displaying and updating the total bill.

3 PROPOSED APPROACH

The original aspect of the proposed approach con-

sists in the development of an embedded system based

on state of the art computer vision perception mod-

els meant to help visually impaired individuals to im-

prove their every day life activities.

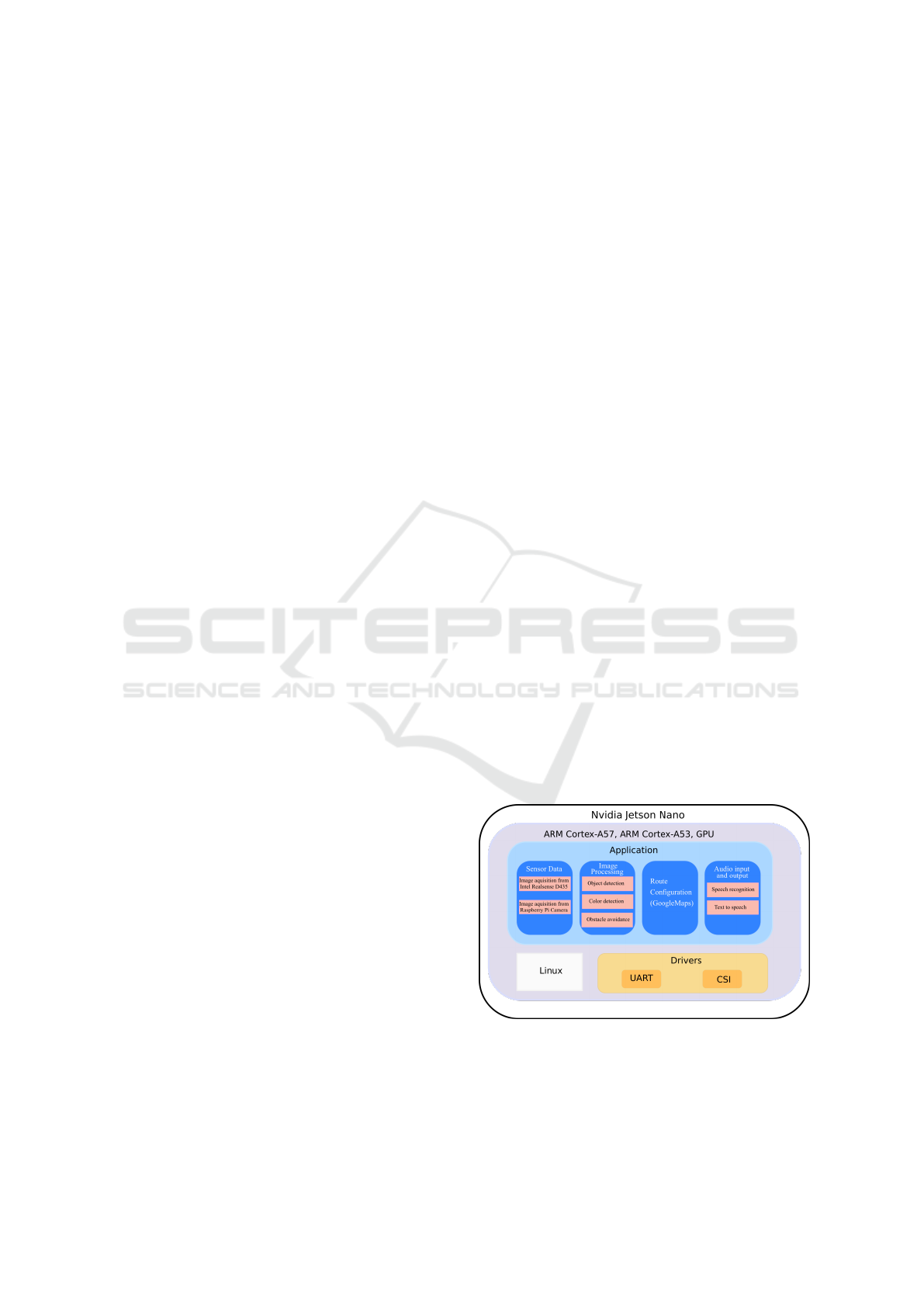

The software architecture of the system is de-

scribed in the ﬁgure 1. To ensure the performance

of the system, it was decided to implement it on

NVIDIA Jetson Nano, a mini-computer with a spe-

cialized hardware architecture for the development of

artiﬁcial intelligence and deep learning applications

in embedded devices. To analyze the environment,

two cameras were connected: Raspberry Pi Module 2

and Intel Realsense D435 that communicate with the

board through the UART and CSI interfaces. 1.

Figure 1: Software architecture.

The current solution consists of 5 main modes of

operation, which presents an interactive and friendly

mode of use. Using voice commands recognized with

the help of the Speech Recognition library, the user

A Vision Based System for Assisting Blind People at Indoor and Outdoor Exploration

can specify their needs, and the necessary instruc-

tions are provided via audio output using the Text-

To-Speech library.

The module for navigation with Google Maps

contains speciﬁc functions to provide the user with a

summary of the trip based on the directions received

from Google Maps. Depending on the distance to be

covered, the user can choose if they want directions

involving public transport, or if they want to walk the

route without them.

The object detection module is based on the SSD

MobileNet-v2 (Sandler et al., 2019) detection model

which is used by the component which identiﬁes a

speciﬁc object and the component that identiﬁes all

surrounding objects. An algorithm that controls the

frequency of audio transmission of information was

also implemented.

The color detection module contains the speciﬁc

functionality for identifying a speciﬁc color or recog-

nizing the predominant color in the frame. This func-

tionality can be used for clothes shopping or other

color identiﬁcation scenarios.

The store product detection module is based on

the SSD MobileNet-v2(Sandler et al., 2019) model,

retrained on a set of store product images. This mode

of operation notiﬁes the user upon the section of the

store in which they are located.

The outdoor navigation module contains the func-

tions for implementing the obstacle avoidance algo-

rithm and also a function that locates a person and

provides the user with information about that person’s

position.

3.1 Hardware System

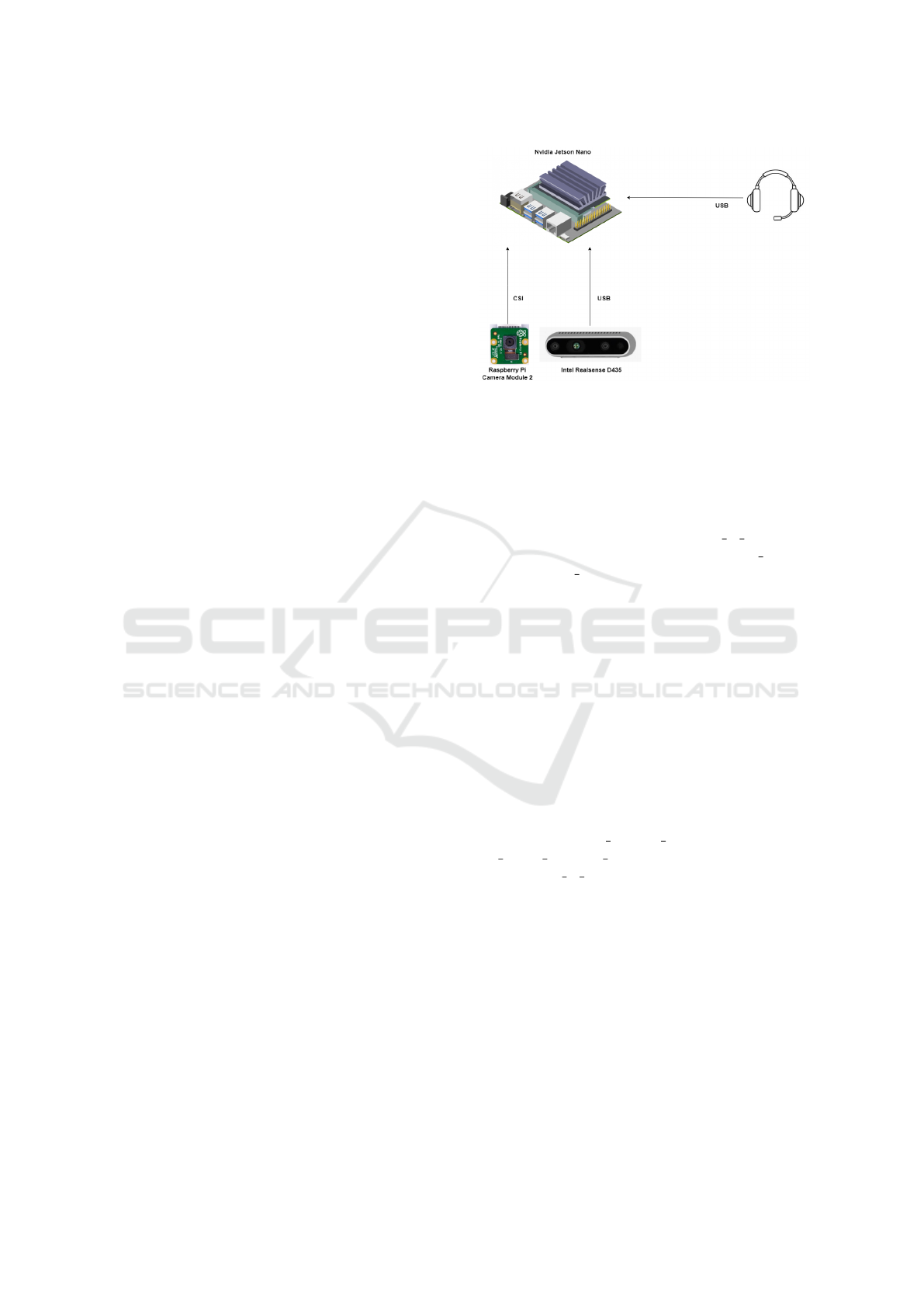

The hardware architecture of the system is described

in the Figure 2. To ensure a high system performance,

it was implemented on the NVIDIA Jetson Nano, a

mini-computer that supports high-resolution sensors

and allows multiple neural networks to run in parallel

for applications such as image classiﬁcation, object

detection, segmentation, and speech processing. To

analyze the environment, the following two cameras

were connected: Raspberry Pi Module 2 and Intel Re-

alsense D435. The Raspberry Pi Camera Module 2

is equipped with an 8-megapixel Sony IMX218 sen-

sor, allowing the capture of high-resolution images,

which is crucial for the functionality that provides in-

formation about the color of objects. The Intel Re-

alSense D435 stereo camera constructs a depth map,

from which information about the distances of obsta-

cles in the scene can be extracted. To receive voice

commands from the user and provide audio output, a

headset with a microphone were connected.

Figure 2: Hardware architecture.

3.2 Smart Navigation

The algorithm for smart navigation uses speciﬁc func-

tions from Google Maps that provide the summary of

a route. These functions need the start address and the

destination address. Thus, to obtain them, the user is

interrogated using the function speech to text(), and

his answers are stored in the variables origin address

and destination address. Because it is assumed that a

short walking route is desired, the directions() func-

tion from Google Maps is called with the ’walking’

parameter which returns the details of the route, and

then the total distance in kilometers is calculated. If

this distance is greater than 3 kilometers, the user is

asked if they want to use public transport. If the an-

swer is yes, the directions() function is called with

the ’transit’ parameter, thus obtaining the summary

of the route that contains public transportation for the

trip. After receiving the instructions from the Google

Maps API, the HTML elements are stripped to get

the instruction text in plain format. Depending on

how the user wants to travel the route, there are two

functions that generate the detailed descriptions of the

directions: generate walking directions() and gener-

ate public transport directions(). Finally, through the

function text to speech (), the corresponding route

summary is presented to the user.

3.3 Object Detection

The object detection module can identify an object

speciﬁed by the user or it can identify all surrounding

objects. For object detection, two models were com-

pared in order to choose the one that satisﬁes both the

accuracy and processing speed requirements. The two

models are YOLO v3 (Redmon et al., 2016) and SSD

Mobilenet-v2 (Sandler et al., 2019).

Because real-time detection is important for sys-

tem development, the speed of the two models was

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

Table 1: Processing time.

Model Frames processed per second

SSD MobileNet-v2 17.3

YOLOv3 0.2

compared and the results can be seen in the table 1.

Since model accuracy is also important for system

development, the detection conﬁdence levels of the

two models were also compared. The results can be

seen in the table 2.

Table 2: Comparison of Detection Accuracy for SSD

Mobilenet-v2 and YOLOv3.

Object SSD Mobilenet-v2 YOLOv3

Dinning table 0.94 0.99

Laptop 1.00 0.99

Chair 0.99 0.99

Potted plant 0.96 0.98

Bottle 0.97 0.99

Remote 0.90 0.84

Handbag 0.96 0.90

Backpack 0.94 -

Cup 0.90 0.97

Bowl 0.99 0.99

Book 0.93 0.98

Cell phone 0.89 0.99

Based on the results, since there is only a small

difference in the conﬁdence level of detections be-

tween the two models, the decision was made to

choose the SSD MobileNet-v2 model for the system’s

development, justiﬁed by its processing speed.

3.4 Color Recognition

This mode of operation provides two functionalities:

ﬁnding a color speciﬁed by users and identifying the

predominant color in front of the user. A list of

18 colors, considered to be more common, and their

RGB combination. Among these colors are red, blue,

green, pink, yellow and many others.

3.4.1 Find Speciﬁc Color

In order to ﬁnd a speciﬁc color a conversion from

RGB to HSV is made and the lower and upper limit is

HSV space are determined for each color. The range

of each color was calibrated and established by testing

on a set of images with different colors. A dictionary

containing speciﬁc Saturation and Value adjustments

based on the color name was also used. Colors such as

”white”, ”silver”, ”gray”, ”black” have special adjust-

ments due to their unique characteristics (for example,

white has very high saturation and brightness). Also,

the image on which color recognition is operated is

converted from the BGR color space, to HSV. Next, a

binary mask is created for all pixels which are in the

speciﬁc color range of HSV values speciﬁed by the

previously determined lower and upper bounds.

After obtaining this mask, to determine the posi-

tion where the color was in the image, the center of

mass of the region is calculated, determining its co-

ordinates (centroid x and centroid y). Next, the posi-

tion of the ”centroid x” coordinate is checked in rela-

tion to the width of the image, divided into three equal

sections, and based on this position, the function re-

turns one of the following values: ”center”, ”left” or

”right”.

3.4.2 Find Dominant Color

The speciﬁc function for identifying the predominant

color in the frame, iterates over all colors combina-

tions, and for each color determines the lower and up-

per limit in the HSV space and creates a color limits

dictionary. Then for each color we compute the area

covered by the color in the given image (which pixels

are in the upper and lower range of the color). The

color with the largest area is considered the predomi-

nant color.

3.5 Groceries Detection

To implement this functionality, the SSD Mobilenet-

v2 model was retrained for groceries detection on

an extension of the Freiburg Groceries Dataset (Jund

et al., 2016). The initial dataset contains a total of

4947 images for 25 common food product classes

found in supermarkets. Each class has at least 97

images, and many of these contain multiple ob-

ject instances. The dataset extension (Aleksandrov,

2020) that was used for retraining extends the original

dataset by adding labeled bounding boxes for each of

the available images. Annotations are in PascalVOC

format.

3.6 Exploration System

In order to implement the obstacle avoidance algo-

rithm three perception methods have been employed

and compared: (i) uses three HC-SR04 ultrasonic sen-

sors (ii) uses the monocular vision camera Raspberry

Pi v2 and (iii) uses the Intel

RealSense

™

D435

depth camera.

3.6.1 Using the HC-SR04 Ultrasonic Sensor

To implement the obstacle avoidance algorithm, we

used three ultrasonic sensors, designed to detect ob-

A Vision Based System for Assisting Blind People at Indoor and Outdoor Exploration

stacles around the user. The algorithm checks the data

from the middle sensor, which is responsible for de-

tecting obstacles in the user’s path, and if it detects an

object closer than 150 cm, it is considered an obsta-

cle. To avoid the obstacle, the data from the left and

right sensors is checked. If they detect objects further

than 150cm, it means that the obstacle in the user’s

path can be avoided by the left or right side. Thus, the

values from the two sensors are compared, and the

sensor that detects a more distant obstacle highlights

a clear path that can be used to avoid the obstacle.

After testing the algorithm, it was observed that a

disadvantage of this sensor is its difﬁculty in detecting

small objects that reﬂect an insufﬁcient ultrasonic sig-

nal for detection or objects that absorb acoustic sig-

nals, such as those made from soft materials. Con-

sequently, the farther an object is and the smaller it

appears in the sensor’s ﬁeld of view, the harder it is to

detect. Also, if an object’s position is oriented such

that the ultrasonic signal is deﬂected rather than re-

ﬂected back to the sensor, the calculated distance will

be incorrect. Another aspect to consider is that the po-

sitioning of this array of sensors on the user’s body is

very important because it is limited by the size of the

ﬁeld of view, which is about 30

◦

. If it is positioned

around the legs, it only detects objects on the ground,

if it is positioned around the abdomen, it only detects

large objects in the user’s path, and if it is positioned

around the head, it only detects obstacles from above.

3.6.2 Using Monocular Vision

A second approach employed the usage of a monoc-

ular vision Raspberry Pi v2 camera. To estimate the

distance to the objects in the scene, required for the

obstacle avoidance algorithm, four pre-trained mod-

els that generate the depth map of the captured frames

from monocular images were tested. In order to

choose a model to implement the algorithm for obsta-

cle avoidance, both the accuracy of the four models

and the processing speed were compared, evaluating

their results on the same set of images.

These four models are:

• Depth Net (CS Kumar et al., 2018)

• Fast Depth (Wofk, Diana and Ma, Fangchang and

Yang, Tien-Ju and Karaman, Sertac and Sze, Vivi-

enne, 2019)

• MiDaS (Ranftl et al., 2022), (Ranftl et al., 2021)

• Depth Anything (Yang et al., 2024)

Part of the results generated by the four models after

testing them on a set of images can be seen in the

Table 3 and Table 4. Map colors allow interpretation

of depth differences. Objects that are closer have a

lighter color and those that are further away have a

darker color.

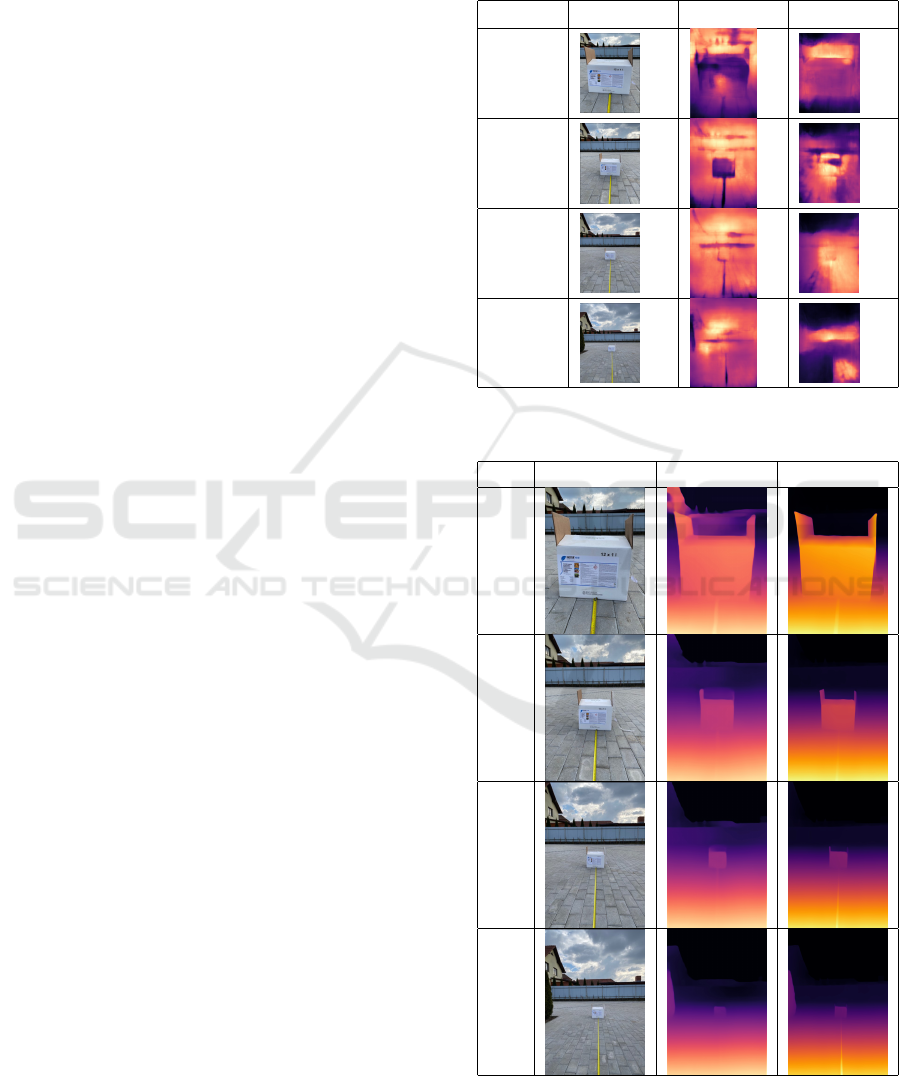

Table 3: Depth maps generated by Depth Net and Fast

Depth.

Distance Image DepthNet FastDepth

50 cm

110 cm

210 cm

310 cm

Table 4: Depth maps generated by MiDaS and Depth Any-

thing.

Dist. RGB Img. MiDaS Depth A.

110

210

310

As can be seen, the Depth Net and Fast Depth

models fail to generate a detailed depth map that dif-

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

ferentiates the objects in the scene. The depth of the

objects cannot be interpreted from the results of the

two models. In contrast, the MiDaS and Depth Any-

thing models achieve some promising results, gener-

ating dense and detailed maps that differentiate ob-

jects in the scene based on their depth.

However, to use one of these models in the devel-

opment of the obstacle avoidance algorithm for blind

people, it is necessary to obtain the real-time distance

estimation data. In this sense, we compared the pro-

cessing speed of these four models. We measured

the time required to process a single image for each

model and the reuslts can be seen in table 5. As

Table 5: Processing time per frame.

Model Time (min)

Depth Net 0.55

Fast Depth 1.6

MiDaS 3.33

Depth Anything 11

can be observed, the Depth Net model achieves the

best processing speed, but due to the unfavorable re-

sults obtained in generating depth maps, it cannot be

used within the algorithm. Although the MiDaS and

Depth Anything models produced promising results

for depth map generation, their processing speed is

too slow to provide real-time results necessary for al-

gorithm development.

Therefore, none of the four tested models succeed

in generating a detailed map that contains the neces-

sary information while simultaneously providing data

in real-time.

3.6.3 Using Stereo-Vision

In the article (Saputra et al., 2014), the authors de-

scribe an algorithm that uses a self-adaptive thresh-

old for the separation of objects in the scene, using

a depth camera. For the development of the obstacle

avoidance algorithm within this system, the algorithm

described by (Saputra et al., 2014) was implemented,

adapting it for the system components. The steps of

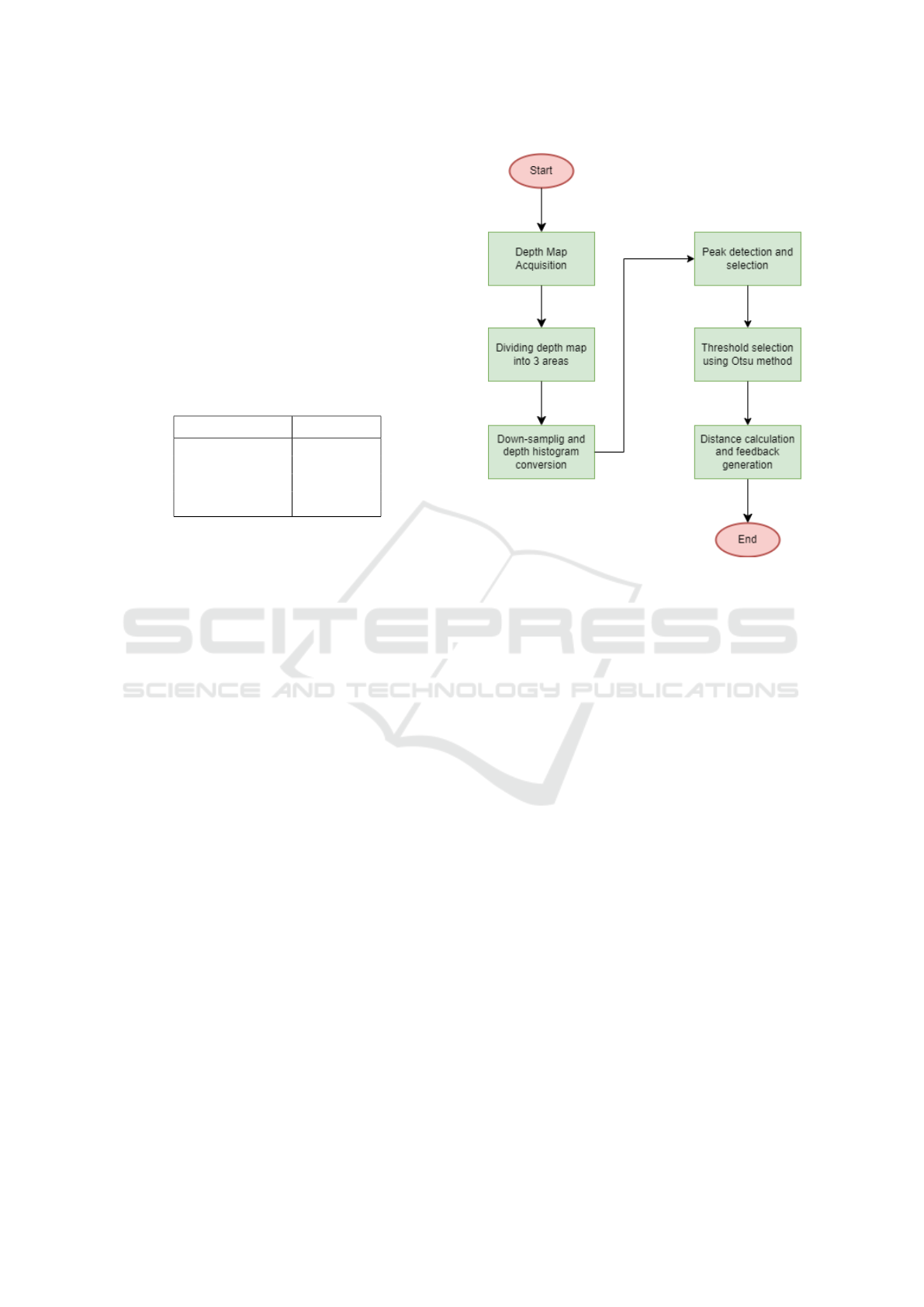

the algorithm are represented in Figure 3.

The ﬁrst processing step consists in acquiring the

depth map in grayscale format from the camera sen-

sor. This map, according to the camera speciﬁcations,

can contain values between 280mm and 10000mm,

but the relevant values for this algorithm can be re-

duced to the range [300,4000]. The image is divided

into 3 equal areas (left, center, right), these represent-

ing the possible directions of movement for the user

as shown in 4. The following steps will be carried

out for each area separately, analyzing and detecting

Figure 3: The obstacle avoidance algorithm.

obstacles that may appear in the user’s path.

To speed up the calculation and remove unneces-

sary information, down sampling is performed, which

reduces the size of the depth map. For each group of

4 pixels, only one is considered. Next, the depth his-

togram is created for each area of the image. Thus,

the values in the interval [0.4000] will be divided into

100 groups, the interval between each being 40 mm,

and for each group the number of belonging pixels is

calculated.

Peaks (local maxima) are identiﬁed using the con-

trast function. The contrast function compares the

value of each point in the histogram with the values

of neighboring points, a sudden change in depth be-

ing considered the edge of an object. The contrast of

a point i in the histogram is calculated by adding the

values around point i, in a range deﬁned by the pa-

rameter n, and subtracting the sum of the values from

a larger range as shown in equation 1.

contrast(i, n) =

i+n

∑

k=i−n

−

i−n−1

∑

k=i−2n

−

i+2n

∑

k=i+n+1

(1)

After calculating the contrast value around each

point in the histogram, local maxima are identiﬁed

based on the following criteria:

• The minimum contrast value should be 50, sug-

gesting that the point is signiﬁcantly distinguish-

able from its neighborhood

A Vision Based System for Assisting Blind People at Indoor and Outdoor Exploration

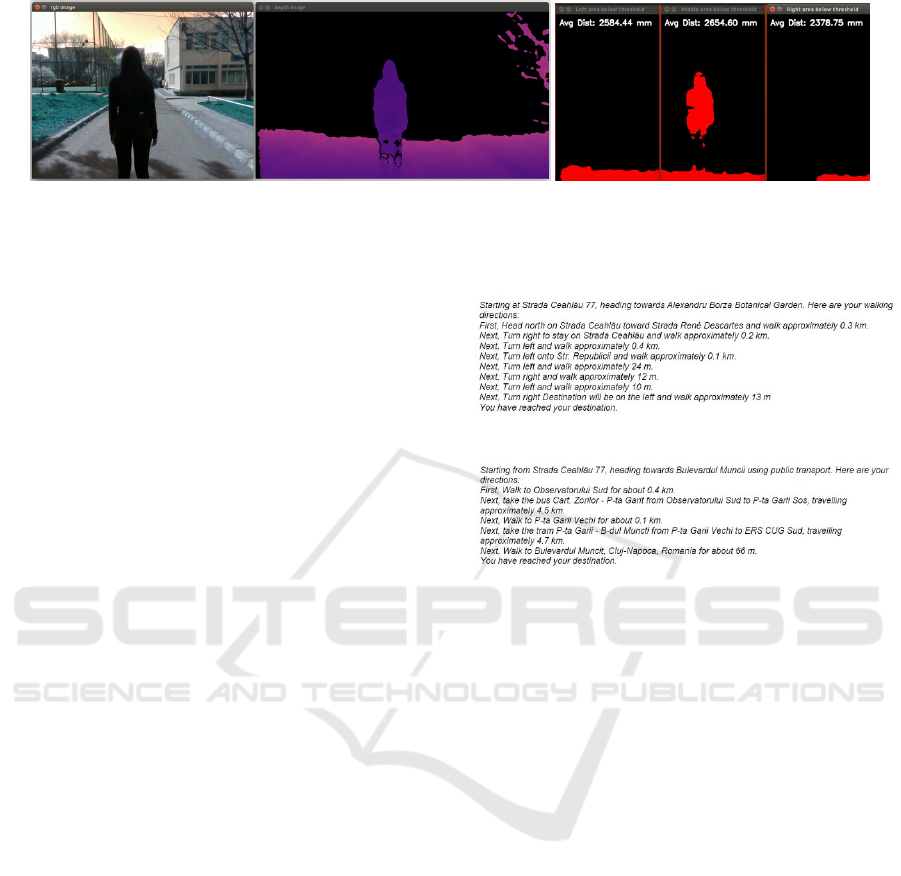

Figure 4: Input Image (left), Depth (middle) and Filtered depth and image division in three areas (left, center, right).

• The minimum distance between two successive

peaks must be at least 4 units in order to distin-

guish it from a neighboring obstacle.

After identifying all local maxima by applying the

above criteria, two maxima are selected that have the

closest values to the camera, being considered the

closest obstacles.

After identifying the two local maxima, the Otsu

method is used which generates a threshold to sepa-

rate the nearest obstacle from other obstacles or from

the image background. The Otsu method looks at all

possible threshold values and calculates the between-

class variance for each. The classes are deﬁned by

pixels that have values below the threshold, assumed

to be part of the obstacle, and those with values above

the threshold, considered to be part of the background

or other obstacle. The inter-class variance measures

how well a certain threshold separates the two groups

of pixels. The value that maximizes the variance be-

tween classes is chosen as the optimal threshold.

After determining the optimal threshold for each

area, the distance to the nearest obstacle is calculated

as the average of the pixels with values lower than the

determined threshold. After determining the distance

to the nearest obstacle for each area of the image, au-

dio feedback is provided to avoid it.

4 EVALUATION AND RESULTS

The modularity of the system facilitated its testing,

thus, each mode of operation was tested individually,

tracking the accuracy of results and processing speed.

4.1 Smart Navigation

This mode of operation was tested in the following

two cases:

1. the distance of the route is less than 3 km

2. the distance of the route is greater than 3 km

The result obtained in the case where the distance

is less than 3 km can be seen in the ﬁgure 5, and the

one in which the distance is greater than 3 km can be

seen in ﬁgure 6.

Figure 5: Summary of the route shorter than 3 km.

Figure 6: Summary of the route greater than 3 km.

4.2 Object Detection

A series of tests were conducted to assess the accu-

racy of results in detecting individual objects.

A set of images was prepared , where 10 ob-

jects were photographed from various angles and the

model was tested using this set. The results showed

that the SSD model’s outcomes are inﬂuenced by the

objects’ positions, with their shapes changing as the

photographing angle changes. The best and worst

results obtained in detecting objects using the SSD

model are highlighted in Table 6. These results are

inﬂuenced by the position and orientation of the ob-

jects in the image.

Since providing real-time results is one of the

goals of this system, multiple tests were performed

to verify this aspect. The Mobilenet-v2 SSD model

manages to process 17 frames per second, and in the

table 7, maximum time required to process a frame

and the minimum time can be observed. The varia-

tion in processing time is inﬂuenced by the number of

objects detected in a frame.

4.3 Color Detection

In order to determine the performance of the system in

color detection, several tests were carried out to high-

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

Table 6: Accuracy variation.

Object Highest Accuracy Lowest Accuracy

Dinning table 0.94 0.51

Laptop 1.00 0.55

Chair 0.99 0.50

Potted plant 0.96 0.59

Bottle 0.99 0.51

Remote 0.90 0.53

Handbag 0.96 0.59

Backpack 0.94 0.52

Cup 0.99 0.50

Bowl 0.99 0.50

Book 0.93 0.52

Cell phone 0.96 0.51

Table 7: Time variation for processing a frame.

Information Value (s)

Best time 0.083

Worst time 0.357

light the accuracy of the recognition, but also the time

required for the recognition.

Thus, a set of 50 images with clothing items

photographed using Raspberry Pi V2 camera was

prepared. The tests were conducted to determine

how much variations in light affect color recognition.

Thus, the image set contains colors photographed un-

der different lighting conditions. The results of this

test are presented in table 8. It can be seen how, the

color of the same article of clothing is recognized dif-

ferently when the brightness differs.

At the same time, the accuracy of the system to

determine the position of a certain color in the image

was also tested. Thus, a set of images was prepared

in which several clothing items of different colors are

present and the position of a speciﬁc color in each

image was determined. The results are presented in

table 9.

Also, because providing a real-time response is a

goal of this system, the time it takes the system to

identify the predominant color in a frame was ana-

lyzed. It was observed that the speed is inﬂuenced

by the color in the frame, as the algorithm scans the

entire color dictionary to check the extent to which

a color is present in the image. The best and worst

times obtained by the algorithm are shown in Table

10.

4.4 Groceries Detection

To analyze the results obtained by the retrained SSD

model to recognize groceries, numerous tests were

performed. The accuracy of the results and factors

inﬂuencing the results were analyzed.

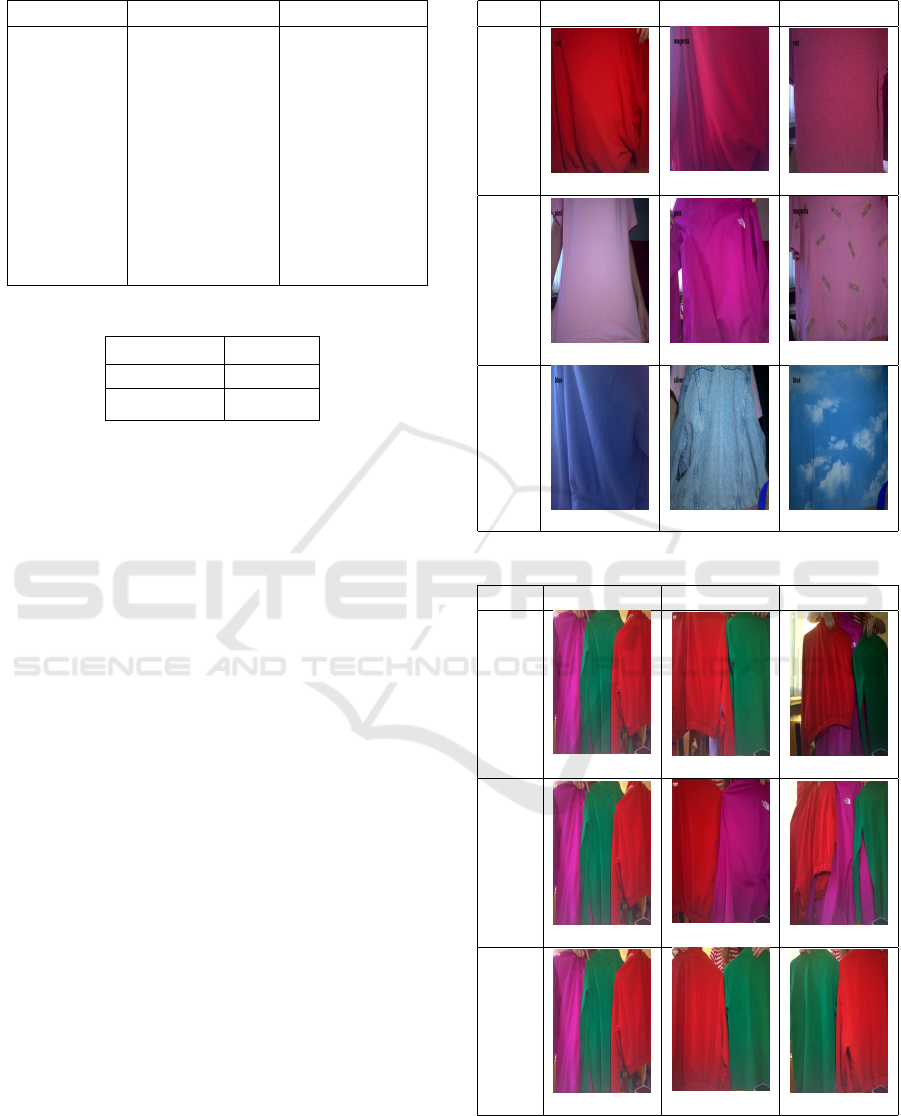

Table 8: Colors variation.

Color Result 1 Result 2 Result 3

Red

Magenta

Red

Pink

Pink Pink

Magneta

Blue

Silver

Blue

Table 9: Color localization.

Color Test 1 Test 2 Test 3

Red

Right

Left

Center

Pink

Left

Right

Center

Green

Center

Right

Left

Thus, a set of 50 images was used for testing

the model’s ability to correctly recognize the cate-

gories. The set depicts items from 20 categories pho-

tographed on store shelves. The image set contains

A Vision Based System for Assisting Blind People at Indoor and Outdoor Exploration

Table 10: Time variation for recognizing the dominant

color.

Information Value (s)

Best time 0.11

Worst time 0.28

products from the same category, which have differ-

ent packaging, photographed from various distances

to observe how product size and packaging inﬂuence

detection. Some of the obtained results are presented

in the table 11.

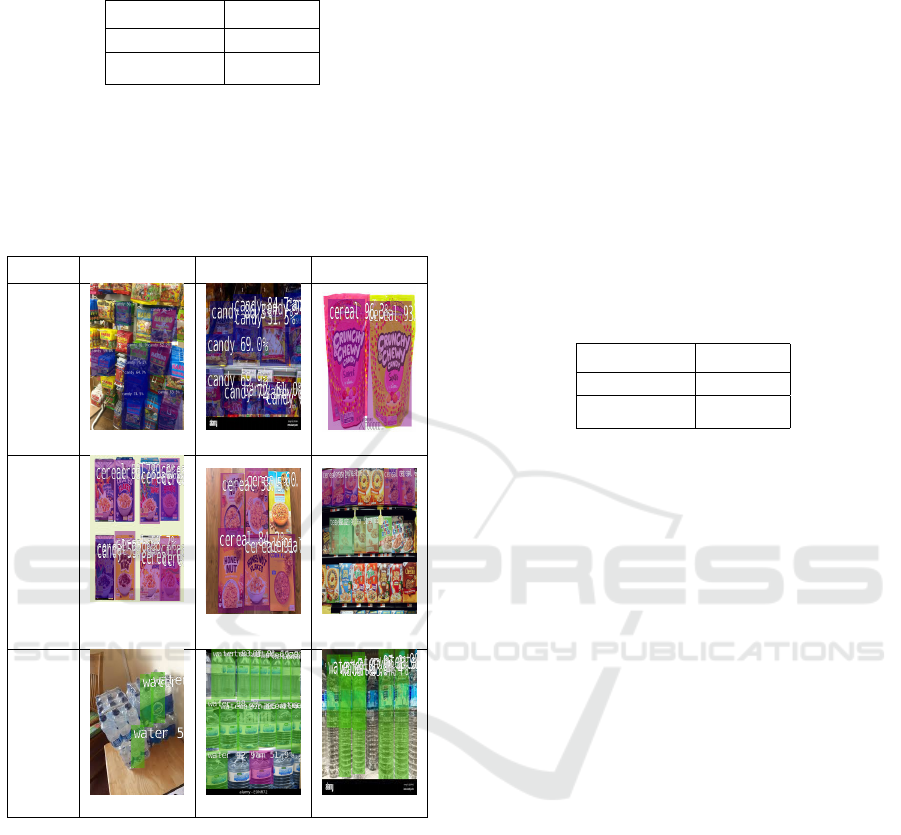

Table 11: Groceries detection.

Class Result 1 Result 2 Result 3

Candy

Cereal

Cereal /

Candy

Cereal

Cereal / Tea

Water

The model has trouble differentiating products

with similar packaging, such as water and juice, ce-

real and tea box, chocolate and spice packets, coffee

and chocolate, or tuna, corn or bean cans that are very

shaped similar. As a result of the test, out of 50 im-

ages, the model managed to correctly detect at least

one object in 20 images.

The model was also tested on a set of 5 videos to

analyze its behavior. In each video, the model man-

aged to correctly detect at least once the category cap-

tured in frames. The worst case was when, out of

20 frames processed per second, the model did not

detect the correct category at all, and the best case

was when, out of 20 frames processed per second, the

model correctly detected the category at least once in

15 frames. The model has problems distinguishing

categories with similar packaging or shapes, and also

encounters difﬁculties in detecting products in videos

where they are far away, because the products in the

training dataset contain relatively close images, so the

objects appear large in the image.

Detection speed is equally important to the per-

formance of this system, so the results obtained by the

retrained SSD model were analyzed. The model man-

ages to process 20 frames per second, maintaining its

performance. The best time, but also the worst time

that the model needs to process a frame can be seen

in the table 12. This is inﬂuenced by the number of

objects present in the frame. The results obtained are

good, meeting both the accuracy and speed require-

ments.

Table 12: Time variation for groceries detection.

Information Value (s)

Best time 0.04

Worst time 0.60

4.5 Exploration System

Because the results provided by the obstacle avoid-

ance algorithm are very important for user safety, sev-

eral tests were performed to analyze the accuracy of

the results.

The ﬁrst set of tests examines the variation in dis-

tance calculated by the algorithm, with the aim of de-

termining its average error to analyze whether it poses

a danger. Table 13 shows the variations in the results

provided by the algorithm compared to the actual dis-

tances.

As seen in the table, at distance less than 2600mm,

the average distance calculation error is less than 50

mm. However, since the algorithm does not differen-

tiate well between the object and the ﬂoor, at a dis-

tance greater than 2500 mm, both will be detected as

obstacles, and this will reduce the accuracy of the cal-

culation, the average error increasing up to 500 mm.

However, because the error only occurs for far dis-

tance, it does not affect the algorithm’s ability to pro-

vide avoidance guidance, effectively detecting obsta-

cles closer to the user.

The accuracy of the algorithm and its effectiveness

in guiding the user to avoid obstacles in time were

tested on a series of tests with real scenarios. One of

the more complicated routes in which the algorithm

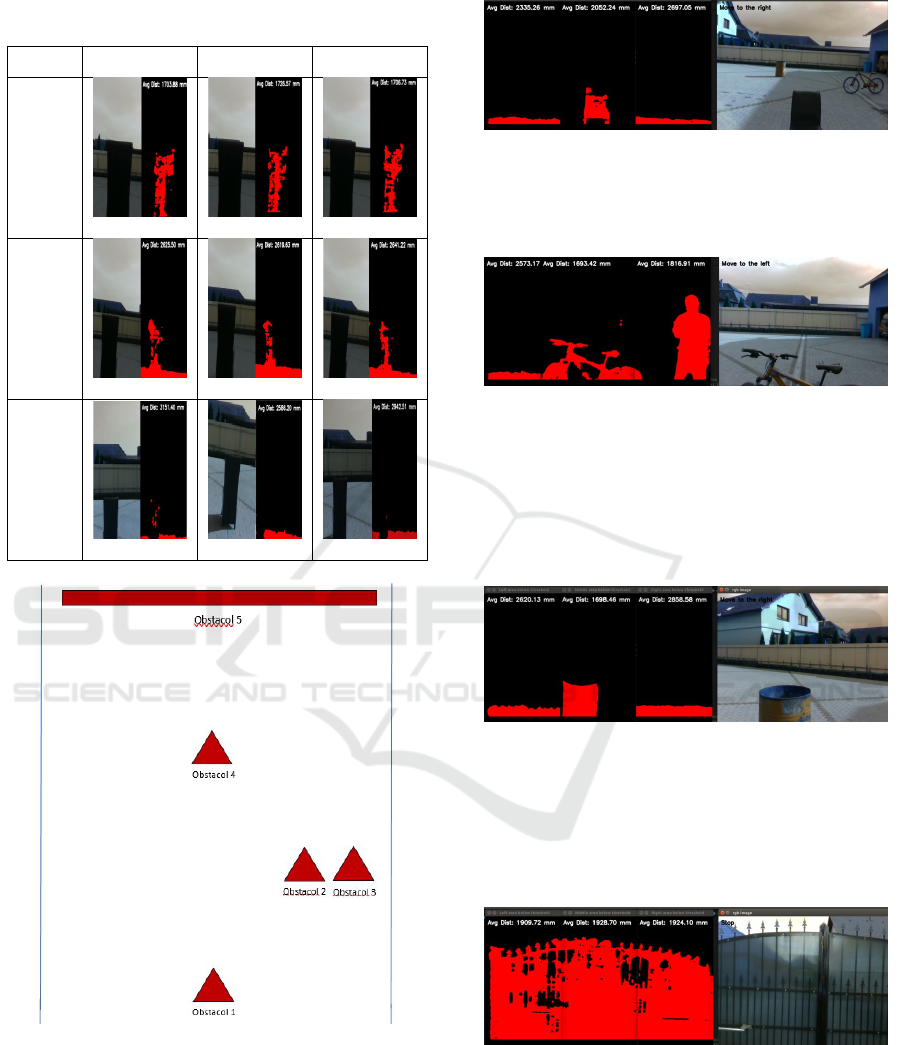

demonstrated its efﬁciency is illustrated in ﬁgure 7.

The results obtained when meeting each obstacle

will be shown next.

In the ﬁgure 8, the ﬁrst obstacle is represented.

There is a chair in the user’s path that the algorithm

detects in time when it is within 2 meters of the user

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

Table 13: The variation of the distance calculated by the

algorithm.

Real d. Result 1 Result 2 Result 3

1700

1703 mm 1726 mm 1706 mm

2600

2625 mm

2619 mm

2641 mm

3000

3151 mm

2586 mm

2942 mm

Figure 7: Representation of the obstacle route.

and tells the user that it can be avoided by walking to

the right.

In Figure 9, obstacles 2 and 3 can be seen. The

user encounters a bicycle and a person in his path,

and the only way he can avoid these obstacles is the

left side, and the algorithm manages to guide him cor-

rectly. It can also be seen in this ﬁgure that the view-

Figure 8: Obstacle 1: a chair is detected and the system

directs the user to avoid it by walking to the right.

ing angle of the depth camera is greater than that of

the RGB camera.

Figure 9: Obstacle 2 and obstacle 3: a bicycle and a person

are encountered in the path of the user. The system guides

the user to walk left in order to avoid the obstacles.

Obstacle 4, which the algorithm detects in time,

can be seen in the ﬁgure 10. Upon encountering this

obstacle in the user’s path, the algorithm tells the user

that it can be avoided by walking to the right.

Figure 10: Obstacle 4: the system detects an object that can

be avoided, and it alerts the user to walk right.

The last obstacle can be seen in the ﬁgure 11. This

is represented by a closed gate that the user cannot

avoid, and the algorithm correctly tells the user to

stop.

Figure 11: Obstacle 5: a closed gate, the system emits a

stop command.

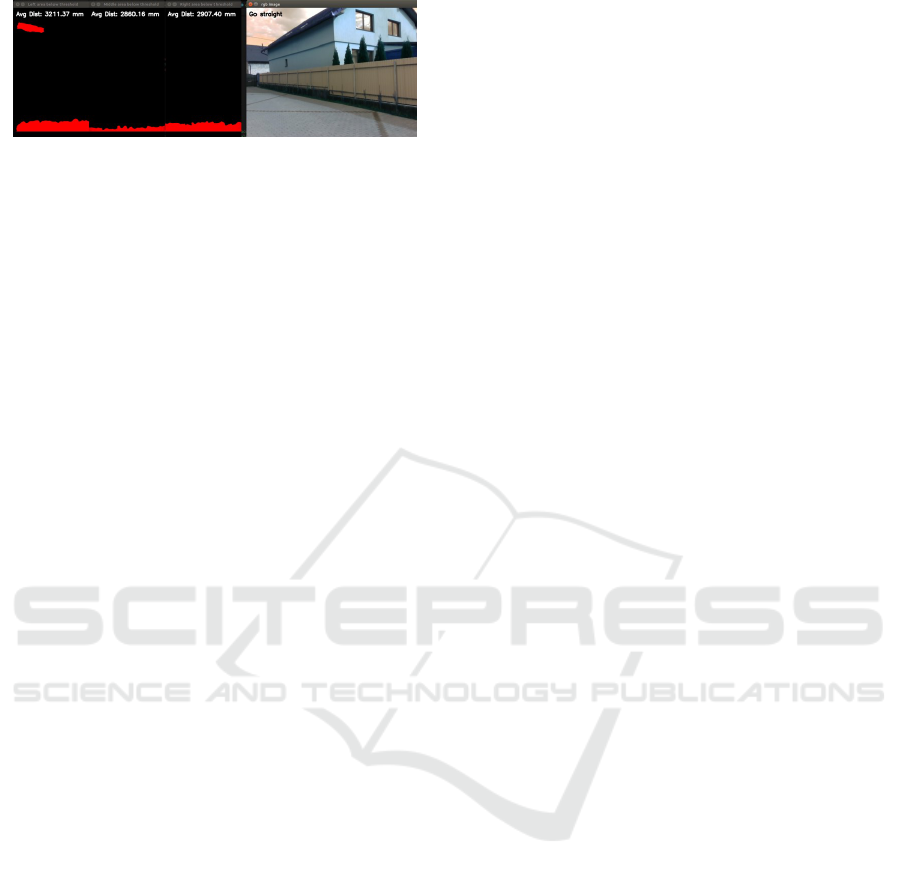

The last case, the one in which there is no obstacle

in the way of the user, is represented in ﬁgure 12. In

this case, the algorithm tells the user that they can go

straight.

A Vision Based System for Assisting Blind People at Indoor and Outdoor Exploration

Figure 12: No obstacles in the way of the user, the system

tels the user they can go straight.

5 CONCLUSIONS

The implemented system assists visually impaired in-

dividuals in perceiving their surroundings through the

following three modes of operation: object detection,

color detection, and product detection in stores. Thus,

the system can identify an object or a color speciﬁed

by the user or analyze the environment, providing the

user with information about the present objects or the

predominant color. When the user is in a store, the

system can detect the section of products located on

the shelves in front of them, helping them to navigate

more easily and ﬁnd the necessary products. Addi-

tionally, since navigating without assistance is a real

challenge for visually impaired individuals, the sys-

tem provides support for obstacle avoidance in both

outdoor and indoor environments and can also offer a

summary of the route the user wishes to take, includ-

ing information about streets and public transporta-

tion.

To test the system, real scenarios were used, which

simulated different situations in which visually im-

paired people might encounter problems, and all these

tests obtained encouraging results.

In the future, improvements may be made to the

presented system. The most important future develop-

ment involves making the system portable by power-

ing the Nvidia development board with a battery and

adding a Wi-Fi module to not depend on the Ethernet

cable for Internet connection. This connection is re-

quired for the Google Text To Speech Python library

to work.

Another further development involves the addition

of a GPS module to provide the route summary mode

with information about the user’s location in real time.

In this way, the system can guide the user in real time

to move to the desired destination.

Also, for better system accuracy, it is necessary to

retrain the SSD model for in-store product recognition

using a larger image set containing a larger variety of

product packaging.

Last but not least, in the future the algorithm that

calculates the distance to the nearest obstacle can be

improved to differentiate the ﬂoor from objects. This

would improve the accuracy of the calculation, pro-

viding more security to users.

We also envision testing the system as a whole

with volunteers in real usage conditions.

ACKNOWLEDGEMENTS

The research work related to training, ﬁne tuning and

testing some of the deep learning models involved

by this paper has been partially supported by the

CLOUDUT Project, cofunded by the European Fund

of Regional Development through the Competitive-

ness Operational Programme 2014-2020, contract no.

235/2020.

REFERENCES

Aleksandrov, A. (2020). Groceries object detection

dataset. https://github.com/aleksandar-aleksandrov/

groceries-object-detection-dataset.

Baskar, V. V., Ghosh, I., Karthikeyan, S., Hemalatha, R. J.,

and Thamizhvani, T. R. (2021). An indoor obsta-

cle detector to assist the visually impaired person on

real-time with a navigator. In 2021 International

Conference on Computational Performance Evalua-

tion (ComPE), pages 136–141.

CS Kumar, A., Bhandarkar, S. M., and Prasad, M. (2018).

Depthnet: A recurrent neural network architecture for

monocular depth prediction. In Proceedings of the

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR) Workshops.

Devipriya, D., Sri, V. S., and Mamatha, I. (2018). Smart

store assistor for visually impaired. In 2018 Interna-

tional Conference on Advances in Computing, Com-

munications and Informatics (ICACCI), pages 1038–

1045.

Jund, P., Abdo, N., Eitel, A., and Burgard, W. (2016). The

freiburg groceries dataset. abs/1611.05799.

K, A. F., R, A., S, H., A, S., and R, V. (2014). Develop-

ment of shopping assistant using extraction of text im-

ages for visually impaired. In 2014 Sixth International

Conference on Advanced Computing (ICoAC), pages

66–71.

Kabir, M. S., Karishma Naaz, S., Kabir, M. T., and Hus-

sain, M. S. (2023). Blind assistance: Object detec-

tion with voice feedback. In 2023 26th International

Conference on Computer and Information Technology

(ICCIT), pages 1–5.

Kumar, N. and Jain, A. (2021). Smart navigation detection

using deep-learning for visually impaired person. In

2021 IEEE 2nd International Conference On Electri-

cal Power and Energy Systems (ICEPES), pages 1–5.

Pesudovs, K., Lansingh, V.C., Kempen, J.H. (2024). Global

estimates on the number of people blind or visually

impaired by cataract: a meta-analysis from 2000 to

2020. 1. Accessed: 2024-06-12.

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

Ranftl, R., Bochkovskiy, A., and Koltun, V. (2021). Vision

transformers for dense prediction. ICCV.

Ranftl, R., Lasinger, K., Hafner, D., Schindler, K., and

Koltun, V. (2022). Towards robust monocular depth

estimation: Mixing datasets for zero-shot cross-

dataset transfer. IEEE Transactions on Pattern Analy-

sis and Machine Intelligence, 44(3).

Redmon, J., Divvala, S., Girshick, R., and Farhadi, A.

(2016). You only look once: Uniﬁed, real-time ob-

ject detection. In 2016 IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pages 779–

788.

Rodr

ıguez, A., Bergasa, L., Fern

andez Alcantarilla, P.,

Yebes, J., and Cela, A. (2007). Obstacle avoidance

system for assisting visually impaired people. 1.

Sandler, M., Howard, A., Zhu, M., Zhmoginov, A., and

Chen, L.-C. (2019). Mobilenetv2: Inverted residuals

and linear bottlenecks.

Saputra, M. R. U., Widyawan, and Santosa, P. I. (2014).

Obstacle avoidance for visually impaired using auto-

adaptive thresholding on kinect’s depth image. In

2014 IEEE 11th Intl Conf on Ubiquitous Intelligence

and Computing and 2014 IEEE 11th Intl Conf on Au-

tonomic and Trusted Computing and 2014 IEEE 14th

Intl Conf on Scalable Computing and Communica-

tions and Its Associated Workshops, pages 337–342.

Wofk, Diana and Ma, Fangchang and Yang, Tien-Ju and

Karaman, Sertac and Sze, Vivienne (2019). Fast-

Depth: Fast Monocular Depth Estimation on Embed-

ded Systems. In IEEE International Conference on

Robotics and Automation (ICRA).

Yang, L., Kang, B., Huang, Z., Xu, X., Feng, J., and Zhao,

H. (2024). Depth anything: Unleashing the power of

large-scale unlabeled data. In CVPR.

A Vision Based System for Assisting Blind People at Indoor and Outdoor Exploration
