Semantic-Aware Validation in Model-Driven Requirements Engineering

Using SHACL

Artan Markaj

1 a

, Felix Gehlhoff

1 b

and Alexander Fay

2 c

Institute of Automation Technology, Helmut-Schmidt-University Hamburg, Hamburg, Germany

Chair of Automation, Ruhr University Bochum, Bochum, Germany

Keywords:

Ontologies, Semantic Requirements Engineering, SHACL, Traceability, Validation.

Abstract:

The development and implementation of technical system concepts require validation to ensure that stake-

holder needs, goals, and requirements are fulﬁlled. Model-driven requirements engineering focuses on the

automatic transformation of requirements into concepts and can be supported by ontologies for semantically

unambiguous speciﬁcations. However, automated and systematic requirements validation using ontologies

remains a challenging process. In this contribution, we propose a concept consisting of a systematic work-

ﬂow, algorithm, and templates for semantic-aware validation in model-driven requirements engineering using

Shapes Constraint Language, a formal language for constraint-based ontology validation. The workﬂow be-

gins with the deﬁnition of validation use cases from a requirements model. These use cases are modeled as

ontologies using the same metamodel as the requirements. By using Shapes Constraint Language templates,

shapes can be generated and enriched with use case-speciﬁc information. Lastly, engineering concepts are

validated against the requirements by using the deﬁned shapes.

1 INTRODUCTION

Validation is one of the ﬁnal steps in systems engi-

neering (before operation), ensuring that developed

and veriﬁed systems meet stakeholder requirements,

goals and needs (ISO/IEC/IEEE, 2015). However,

this process step can be cumbersome without trace-

ability between the developed systems and their cor-

responding requirements. Traceability links between

requirements and developed concepts enable require-

ments validation (Cleland-Huang et al., 2012). With

model-driven requirements engineering, an automatic

model transformation and analysis of requirements

are supported by high-level abstractions (Moreira

et al., 2022). Ontologies can be employed to ensure

that the modeled and transformed requirements are

semantically unambiguous. An ontology consists of

a vocabulary of terms and an associated speciﬁcation

of their meaning (Uschold, 1998).

Ontologies serve as formalized and structured rep-

resentations of knowledge (Guarino et al., 2009).

This is particularly useful within a speciﬁc domain,

https://orcid.org/0000-0003-1589-9584

https://orcid.org/0000-0002-8383-5323

https://orcid.org/0000-0002-1922-654X

enabling clear communication among stakeholders

(e.g., in requirements engineering). A distinction can

be made between stakeholders’ implicit and explicit

knowledge. Implicit knowledge is tied to individuals

as knowledge carriers (i.e., experts), making commu-

nication and formalization more challenging. Explicit

knowledge, by contrast, can be formalized, communi-

cated, and stored (VDI-Kompetenzfeld Information-

stechnik, 2009). Furthermore, the knowledge repre-

sented in ontologies can be divided into a TBox and

an ABox. The former contains general knowledge

about a domain (modeled as classes), while the lat-

ter contains speciﬁc knowledge represented for a par-

ticular use case of the domain (modeled as instances)

(Baader et al., 2008).

Knowledge related to requirements, such as as-

sumptions, is often undocumented and therefore re-

mains implicit (Maalej and Thurimella, 2013). Ad-

ditionally, in requirements engineering, knowledge

from various stakeholders and sources is integrated,

making ontologies suitable for knowledge represen-

tation (Dobson and Sawyer, 2006). Ontologies in

requirements engineering have advantages in terms

of reducing ambiguities, inconsistencies, and incom-

pleteness in requirements (Dermeval et al., 2016).

Ontologies can be used to describe and organize re-

Markaj, A., Gehlhoff, F. and Fay, A.

Semantic-Aware Validation in Model-Driven Requirements Engineering Using SHACL.

DOI: 10.5220/0012985200003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 2: KEOD, pages 191-198

ISBN: 978-989-758-716-0; ISSN: 2184-3228

191

quirements (Dobson and Sawyer, 2006). This facil-

itates the creation of a common terminology across

different stakeholders (Riechert et al., 2007). They

are applicable at TBox level (e.g., a meta-model

describing requirements engineering concepts) and

ABox level (e.g., project-speciﬁc requirements speci-

ﬁcations) (Siegemund et al., 2011).

Various methods can be used to validate sys-

tems against requirements. Testing is a suitable val-

idation technique that can be applied at this stage

(ISO/IEC/IEEE, 2015). In model-driven require-

ments engineering, ontologies can assist in formal-

izing and analyzing requirements during the testing

stage. Semantic validation enables requirements to be

implemented correctly and to be interoperable (see,

for example, the semantic validation of the correct

use of speciﬁcations from industrial standards (Ba-

reedu et al., 2023)). However, a systematic and au-

tomated semantic validation requires the generation,

execution, and analysis of test cases. Despite recent

advancements, there remains a gap in generating, ex-

ecuting, and analyzing test cases in a manner that is

aligned with the formal semantics of ontologies. Ad-

dressing this issue would streamline the validation

process, reduce human error, and enhance the consis-

tency of requirement veriﬁcation in complex systems.

Thus, the primary research question addressed in this

paper is:

How can systematic and automated semantic

validation be achieved in the testing phase of

model-driven requirements engineering using

ontologies?

The paper is structured as follows: Section 2 intro-

duces the Shapes Constraint Language (SHACL) as

a possible solution for semantic-aware validation and

explains its limitations as well as the research goal

for this contribution. Section 3 provides an overview

of related approaches to semantic requirements engi-

neering and validation. In section 4 a workﬂow, an

algorithm, and exemplary templates are introduced.

Section 5 provides a prototypical implementation of

the algorithm. In Section 6 an exemplary application

for a robot concept is shown. Lastly, section 8 con-

cludes the paper with a summary and outlook.

2 SEMANTIC-AWARE

VALIDATION WITH SHACL

The Shapes Constraint Language (SHACL) (W3C,

2017) helps tackle several challenges in using on-

tologies for model-driven requirements validation. It

provides a formal language for deﬁning constraints,

thereby enabling the validation ontology instances.

This is achieved by deﬁning SHACL shapes that rep-

resent the expected structure of the ontology, which

is automatically validated. It is designed to be ex-

pressive while deﬁning complex constraints and con-

ditions (e.g., cardinality constraints). In contrast to

Object Constraint Language (OCL) (OMG, 2014),

which is designed for Uniﬁed Modeling Language

(UML) models, SHACL can be used for ontologies.

As a result, it integrates with semantic reasoning and

is speciﬁcally tailored for use in semantic web ap-

plications. SHACL is applicable in iterative devel-

opment stages, where requirements may change and

evolve, allowing for early detection of requirement vi-

olations by concepts.

Although SHACL provides a suitable language for

ontology validation, it lacks a systematic approach

for applying it to semantic requirements validation

in model-driven requirements engineering. Thus, the

objective of this contribution is to provide a concept,

consisting of a workﬂow, algorithm, and templates

for model-driven and semantic-aware requirements

validation by using automatically generated SHACL

shapes. Achieving systematic and automated valida-

tion would lead to greater consistency in engineer-

ing, saving time and reducing errors caused by iter-

ation loops in testing. This leads to higher quality

in the requirements models and better communication

among stakeholders due to a common understanding

of requirements. The templates can be used across

different projects thus promoting standardization and

reusability. Lastly, the concept enables traceability

from modeling to testing requirements.

3 RELATED WORK

Semantic web technologies such as OWL, SPARQL,

and SWRL for modeling, querying, and reasoning

have been applied in requirements engineering for

several years (see, for example, (Mayank et al., 2004;

Runde and Fay, 2011)). As emphasized in section

1, potential uses of ontologies include requirement

representation and structuring as well as the appli-

cation of domain knowledge (Dobson and Sawyer,

2006). Mappings between meta models play a cru-

cial role in avoiding semantically inconsistent models

(Saeki, 2010). Various ontologies have been created

for semantic requirements engineering, for example,

SWORE (Riechert et al., 2007), CORE (Jureta et al.,

2009) or GORO (Bernab

e et al., 2019). These mod-

els focus on the semantic representation of require-

ment concepts and represent a fundamental base for

semantic validation.

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

192

Several systematic methods for creating semantic

requirements models exist. In (Veleda and Cysneiros,

2019; Guizzardi et al., 2023), methods for ontology-

based requirements elicitation are presented. Boiler-

plates can be used to integrate natural language com-

ponents into ontology-based requirements engineer-

ing (as shown in (Antoniou and Bassiliades, 2024)).

Using semantic web technologies such as SWRL,

rules can be used to check completeness and con-

sistency in requirements models (Siegemund et al.,

2011). In (Banerjee and Sarkar, 2022) validation rules

for validating consistency, unambiguity, and trace-

ability in requirements speciﬁcations are proposed.

However, the approach has predeﬁned rules that can

be adapted to other requirement meta-models only

with considerable effort. Furthermore, the rules vali-

date requirements in requirements speciﬁcations and

not developed concepts against requirements.

In conclusion, the semantic validation of system

concepts against requirements has not yet been fully

addressed. While the analysis, speciﬁcation, and elic-

itation of requirements are supported by ontologies,

suitable methods for validation are lacking (Valaski

et al., 2016). First, semantic validation requires deﬁ-

nition and preferably automated generation of valida-

tion test cases. Furthermore, a common terminology

must be established to automatically validate system

concepts against requirements. Finally, a method for

semantic validation must be independent of any spe-

ciﬁc requirements meta-model to be applicable across

different domains.

4 CONCEPT

The concept presented in this contribution consists of

a workﬂow for the systematic generation and appli-

cation of test cases for validating requirements using

SHACL, an algorithm for automatically generating

SHACL shapes, and exemplary templates to support

the algorithm.

4.1 Workﬂow

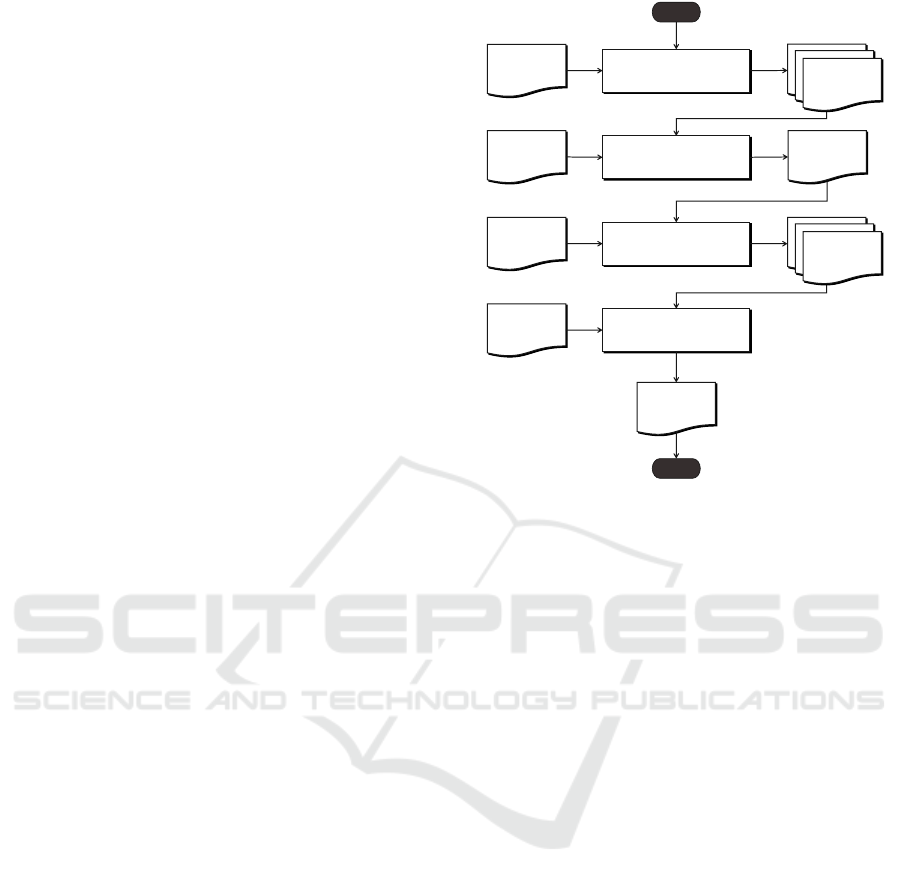

Figure 1 depicts the workﬂow for semantic-aware

validation in model-driven requirements engineering.

The steps have speciﬁc input artifacts (e.g., an on-

tology) and speciﬁc output artifacts (e.g., SHACL

shapes).

4.1.1 Deﬁnition of Validation Use Cases

The ﬁrst step of the workﬂow focuses on identifying

validation requirements by formulating validation use

Präsentationstitel | Datum | Name | Institut für Automatisierungstechnik | Helmut-Schmidt-Universität Hamburg

Definition of

Validation Use Cases

Modeling of

Validation Use Cases

Generation of

SHACL Shapes

Engineering

Concept

Situations

Start

End

Validated

Concept

Situations

Validation

Use Cases

Req.

Ontology

(ABox)

Validate Concept using

SHACL Shapes

Situations

SHACL

Shapes

Req.

Ontology

(TBox)

SHACL

Constraints

Templates

Validation

Ontology

(ABox)

Figure 1: Workﬂow for semantic-aware validation of engi-

neering concepts against requirements in model-driven re-

quirements engineering.

cases. The input for this step is a requirements ontol-

ogy, speciﬁcally the ABox part, which encapsulates

concrete instances and their relationships within the

domain. Exemplary instances could be Robot Arm

Length with a certain value, or Maximum Pressure

required for a speciﬁc process step. This requirements

ontology was created at the very beginning of an en-

gineering process.

Analyzing this ontology identiﬁes various repre-

sentative scenarios and conditions under which sys-

tem validation is necessary. These validation use

cases will guide the subsequent phases of the valida-

tion process. The result of this step is a comprehen-

sive set of validation use cases that capture the differ-

ent facets of the validation requirements.

For improved documentation, validation use cases

can be described using textual descriptions or semi-

formal means of description such as SysML use case

diagrams. In model-driven engineering, SysML fa-

cilitates consistent modeling of use cases down to

requirements. Extending this conventional model-

driven engineering with ontologies, as pursued in our

approach, allows for semantic validation of require-

ments.

4.1.2 Modeling of Validation Use Cases

After identifying and deﬁning validation use cases,

the focus shifts to their formal representation through

the creation of a validation ontology. This step uses

Semantic-Aware Validation in Model-Driven Requirements Engineering Using SHACL

193

the TBox part of the same requirement ontology as

input, which speciﬁes the terminology and concep-

tual framework. This ensures that requirements and

validation use cases are described using the same vo-

cabulary and semantics. Using the same TBox allows

for automated analyses without the need for mapping

between the two different TBoxes. Furthermore, this

allows people from the same domain to model the re-

quirements and subsequently test their fulﬁllment.

An exemplary validation use case could be a func-

tionality test, for example, validating if a robot can

reach objects within a certain range in a certain rotat-

ing angle. This is validated by checking the parame-

ters Robot Arm Length and Rotation Angle.

This validation ontology, which contains speciﬁc

instances of validation use cases, serves as a struc-

tured model that encapsulates relevant concepts, re-

lationships, and constraints necessary for automatic

validation.

4.1.3 Generation of SHACL Shapes

In the next step, the validation process continues with

the generation of SHACL shapes that encode valida-

tion constraints derived from the validation ontology.

The input for this step consists of pre-deﬁned SHACL

constraint templates that contain the constraints to

be applied during the validation process. Utiliz-

ing the information encoded in the validation ontol-

ogy, SHACL shapes are generated automatically. A

generic template with placeholders is used to gener-

ate the SHACL shapes. Speciﬁc information is then

retrieved from the validation ontology and inserted

into the placeholders of the shapes. These shapes for-

mally represent the validation criteria, facilitating an

automated validation process. The output of this step

consists of a comprehensive set of SHACL shapes.

4.1.4 Validate Concepts Using SHACL Shapes

In the ﬁnal step of the workﬂow, engineering concepts

are validated against the constraints encoded in the

SHACL shapes. The input for this step consists of the

engineering concept or artifact to be validated. Using

the generated SHACL shapes, the automated valida-

tion of the engineering concept to the speciﬁed vali-

dation criteria can be performed. The output of this

step is a validated concept that indicates the extent

to which it conforms to predeﬁned validation require-

ments. The output includes a validation report and

results indicating which constraints are not fulﬁlled.

Similar to test case validation in software engineer-

ing, the expected results can be checked. If the test

fails, the engineering concept does not meet the de-

sired criteria.

4.2 Algorithm

To generate SHACL shapes from a validation on-

tology, an algorithm is required to perform this

step automatically. Algorithm 1 illustrates possible

pseudocode for an automatic generation of SHACL

shapes.

Algorithm 1: Generation of SHACL Shapes from

Ontologies.

Input : Validation Use Cases in Validation

Ontology V ∈ V

SHACL Constraints Templates

T ∈ T

Output: SHACL Shapes S ∈ S

1 M – Create or Import Mapping between

OWL and SHACL concepts

2 foreach V ∈ V do

3 t

– Identify all Triples in V

4 foreach t

∈ V do

5 Select Template T for t

based on M

6 Insert T into S

7 Insert Triple-speciﬁc information

from t

into T

8 end

9 Append S to S

10 end

11 return S

As shown in Figure 1, the step Generation of

SHACL Shapes takes validation uses cases from the

validation ontology V ∈ V and SHACL constraints

templates T ∈ T as inputs, returning SHACL shapes

S ∈ S . First, mappings between OWL and SHACL

must be created (Line 1). These mappings can also

be predeﬁned and imported. The mappings spec-

ify which concepts from OWL (and RDFS) can be

mapped to SHACL concepts (e.g., owl:Class to

sh:targetClass). For each validation use case, all

triples (subject-predicate-object or subject-predicate-

literal) t

are identiﬁed by querying the ontology us-

ing SPARQL (Lines 2-3). The triples specify the

constraints that the engineering concept must satisfy

to pass the validation test. For each triple, suitable

templates are selected and inserted into the SHACL

shape. These templates are enriched with triple-

speciﬁc information (Lines 4-8). The selection of

a suitable template is based on the provided map-

pings. Assume there is a triple stating that a robot

arm should cover an angle of 270 degrees around its

axis. If the mapping includes relational operators with

SHACL property pair constraints (e.g., sh:equals),

suitable templates containing these constraints can be

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

194

searched for. The triple-speciﬁc information (subject

= RobotArmLengthAngle, predicate = hasValue, lit-

eral = 270°) is inserted intro the template. Exemplary

templates will be provided in the upcoming subsec-

tion. The shape is appended to the set of all SHACL

shapes, which are returned at the end (Line 9-11).

Various approaches for the transformation into

SHACL shapes exist, including (Pandit et al., 2018;

Cimmino et al., 2020; Delva et al., 2021). In this con-

tribution, we consider using the mapping from (Cim-

mino et al., 2020), because it automatically extracts

SHACL shapes from ontologies and provides a suit-

able open-source implementation. The mappings be-

tween OWL and SHACL are predeﬁned and embed-

ded into Algorithm 1.

4.3 Templates

To generate SHACL shapes from OWL ontologies,

templates for speciﬁc constraint types are used. These

templates deﬁne a structure in which the triples are

embedded and enhanced with additional restrictions.

An initial set of templates for SHACL constraints

is developed. One example of a constraint is the Car-

dinality Constraint, which enforces that a certain el-

ement (subject) may be connected to more, fewer, or

exactly a speciﬁed number of other elements or liter-

als (objects) via an ObjectProperty or DatatypeProp-

erty (predicate). The corresponding code is shown in

Listing 1. The ABox-speciﬁc content of the valida-

tion ontology is integrated into the placeholders (rep-

resented by the brackets < >).

e x : C a r d i n a l i t y C o n s t r a i n t S h a p e

a s h:No d e Shape ;

s h : t a r g e t C l a s s e x :<CLASS> ;

s h : p r o p e r t y [

s h : p a t h e x :<PROPERTY> ;

sh:m a xCou n t <INTEGER> ;

s h : minCount <INTEGER> ;

s h : s e v e r i t y s h : V i o l a t i o n ;

] .

Listing 1: Cardinality Constraint Template.

Another example is the Negation Constraint,

which speciﬁes conditions under which certain ele-

ments should not hold. Listing 2 provides the corre-

sponding code. It speciﬁes that a speciﬁc class should

not have one or more properties of a particular type.

If this occurs, the concept violates the requirement.

e x : N e g a t i o n C o n s t r a i n t S h a p e

a s h:No d e Shape ;

s h : t a r g e t C l a s s e x :<CLASS> ;

s h : p r o p e r t y [

s h : n o t [

s h : p r o p e r t y [

s h : p a t h e x :<PROPERTY> ;

s h : minCount 1 ;

] ;

s h : s e v e r i t y s h : V i o l a t i o n .

Listing 2: Negation Constraint Template.

These templates enable the automated creation of

SHACL shapes and allow them to be populated with

content from the ontology.

5 IMPLEMENTATION

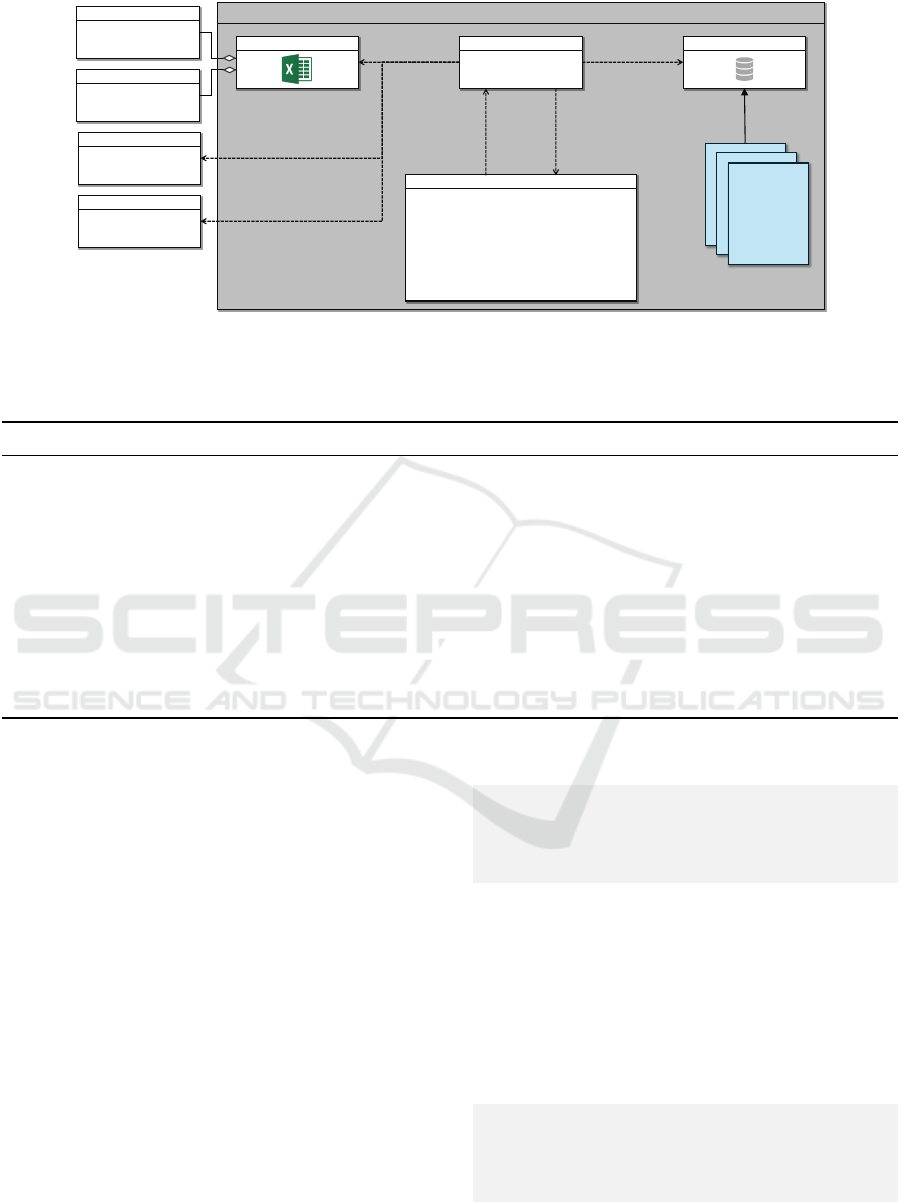

Figure 2 shows a simpliﬁed architecture of the pro-

totype implementation that supports the generation

of SHACL shapes and the execution of the al-

gorithm. The components of the SHACL Valida-

tor Tool are illustrated in the architecture. The

Methods component describes the methods that are

used to import, manipulate, and execute SHACL

shapes. A total of ﬁve methods are employed.

First, the importMappingTable() method imports

the Mapping table from an Excel ﬁle. The two on-

tologies, Requirements Ontology and Validation

Ontology, are also imported. The getAllTriples()

method is used to retrieve all relevant triples in the

validation ontology using SPARQL. The two methods

selectSHACLTemplate and fillSHACLTemplate

are executed to select SHACL templates and param-

eterize them using content from the triples. The re-

sult is a SHACL shape, which can be executed using

executeSHACLShape.

A mapping table is used to establish a relationship

between OWL concepts and SHACL concepts. Based

on this table, the triples can be examined to determine

which SHACL templates are relevant and how the

template parameterization is carried out. Currently,

the selection of a suitable SHACL shape is performed

manually, but it should be implemented automatically

in the future development of the prototypical imple-

mentation. For this selection, the mapping table from

(Cimmino et al., 2020) will be utilized. Table 1 shows

an excerpt of the mapping table.

The prototypical implementation is realized in

Python. In particular, the library owlready2

is used

to import, query, and manipulate ontologies. Fur-

thermore, re

is used to replace text snippets in the

SHACL templates with the contents of the triples us-

ing regular expressions. Finally, pyshacl

can be used

to execute the SHACL shapes directly in Python. This

is not yet available in the current prototypical imple-

mentation but will be included in future work.

https://pypi.org/project/owlready2/

https://docs.python.org/3/library/re.html

https://pypi.org/project/pyshacl/

Semantic-Aware Validation in Model-Driven Requirements Engineering Using SHACL

195

SHACL Validator

+ importMappingTable(filePath)

+ getAllTriples(valOntology)

+ selectSHACLTemplate(triples,

mappingTable)

+ fillSHACLTemplate(templatePath,

shapePath, template, triple)

+ executeSHACLShape(shape)

Methods

+ initiate()

Setup

call

SHACL Templates

import

return

result

ex:CardinalityConst

raintShape

a sh:NodeShape ;

sh:targetClass

ex:<CLASS> ;

sh:property [

…

] .

ex:CardinalityConst

raintShape

a sh:NodeShape ;

sh:targetClass

ex:<CLASS> ;

sh:property [

…

] .

ex:CardinalityConst

raintShape

a sh:NodeShape ;

sh:targetClass

ex:<CLASS> ;

sh:property [

…

] .

Mapping

import

Requirements Ontology

Validation Ontology

OWL Concepts

SHACL Concepts

Figure 2: Logical software architecture illustrating the components of the SHACL Validator Tool.

Table 1: Excerpt from mapping table showing exemplary mappings between OWL constructs and SHACL constructs (Cim-

mino et al., 2020).

OWL Construct Topic OWL Construct SHACL Construct SHACL Construct Topic

Class deﬁnition owl:Class sh:NodeShape,

sh:targetClass

Logical Constraint Con-

straints

Cardinality owl:Class,

rdfs:subClassOf,

owl:Restriction,

owl:cardinality,

owl:onProperty

sh:NodeShape,

sh:property,

sh:PropertyShape,

sh:maxCount,

sh:minCount

Cardinality Constraints

Object Property deﬁni-

tion

owl:ObjectProperty sh:PropertyShape,

sh:nodeKind,

sh:BlankNodeOrIRI

Value Type Constraints

... ... ... ...

6 EXEMPLARY APPLICATION

To illustrate the method presented in this article, we

use an exemplary application. A robotic arm is to

be conﬁgured and developed to fulﬁll certain require-

ments. These requirements are modeled in a require-

ments ontology.

Consider the requirement Req:Reaching-

Capability which deﬁnes the reaching capability

of a robot. It should have a value of at least 1 meter

(Req:hasValue ⩾ 1m). The validation use case

deﬁned for this could be ”Validate if arm length of

developed robot concept is at minimum 1 meter”.

The corresponding validation ontology instance

Val:Length has a value of at least 1 meter

(Req:hasValue ⩾ 1m). It uses the same ObjectProp-

erty from the requirements ontology.

The generated SHACL shape is shown in

Listing 3. Further details, such as the tar-

get class, can be added (e.g., sh:targetClass

ex:RobotArmLength) if known.

e x : L e n g t h S h a p e

a s h:No d e Shape ;

s h : p r o p e r t y [

s h : p a t h ex : h a s V a l u e ;

s h : d a t a t y p e x s d : d e c i m a l ;

s h : m i n I n c l u s i v e 1.0 ;

] .

Listing 3: Exemplary SHACL shape - Arm Length.

Another requirement Req:Mobility addresses

the mobility of a robot. A possible validation use case

could be ”Validate if the robot concept has six degrees

of freedom”. The corresponding validation ontology

instance Val:DegreesOfFreedom has a value of 6

(Req:hasValue = 6). The generated SHACL shape

is shown in Listing 4.

e x:Deg r e e s OfFree d o m S hape

a s h:No d e Shape ;

s h : p r o p e r t y [

s h : p a t h ex : h a s V a l u e ;

s h : d a t a t y p e x s d : i n t e g e r ;

s h : h a s V a l u e 8 ;

] .

Listing 4: Exemplary SHACL shape - Degrees of Freedom.

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

196

Furthermore, the robot should fulﬁll existing con-

nectivity requirements to be integrated into the com-

pany’s IT/OT system (Req:Connectivity). A possi-

ble validation use case could be ”Validate if the robot

is capable of connecting via OPC UA and MQTT”.

The generated SHACL shape is shown in Listing 5.

ex:OPCUAandMQTTShape

a s h:No d e Shape ;

s h : p r o p e r t y [

s h : p a t h ex : h a s V a l u e ;

s h : i n ( ”OPCUA” ”MQTT” ) ;

] .

Listing 5: Exemplary SHACL shape - Connectivity.

7 DISCUSSION

Using semantic web technologies such as SHACL for

semantic-aware validation has several implications

for model-driven requirements engineering. Formal

representations improve interoperability, traceability,

and consistency in model-driven requirements engi-

neering. However, the presented approach requires

an ontology-based modeling of requirements and en-

gineering concepts. This is still challenging, as on-

tologies are still not fully adopted in an industrial con-

text. This process can be supported by model-driven

approaches that transform ontologies into discipline-

speciﬁc data exchange formats like XML. As shown

in (K

ocher et al., 2022), a mapping language and

mapping algorithm called RDFex can achieve this

transformation. We will explore how RDFex can be

integrated into the current implementation and used to

generate and enrich SHACL shapes from ontologies.

In comparison to other approaches discussed in

Section 3, we present a systematic workﬂow for se-

mantic validation. While requirements engineering

ontologies such as SWORE (Riechert et al., 2007),

CORE (Jureta et al., 2009), and GORO (Bernab

et al., 2019) primarily focus on semantic representa-

tion, our approach integrates these ontologies into the

validation phase of engineering. Several approaches,

including (Veleda and Cysneiros, 2019) and (Guiz-

zardi et al., 2023), address requirements elicitation

but omit validation. In (Banerjee and Sarkar, 2022),

predeﬁned validation rules for consistency, clarity,

and traceability in requirements speciﬁcations are

proposed. However, these rules are difﬁcult to adapt

to other meta-models and do not validate developed

concepts against the requirements, that our approach

aims to achieve.

Two limitations of the current approach should be

addressed in future work. First, while the method

aims to support semantic validation of engineer-

ing concepts against requirements, several steps are

still performed manually, making the process time-

consuming. To fully realize the beneﬁts of semantic-

aware validation, greater automation is essential to

improve efﬁciency and increase the return on mod-

eling effort. Second, scalability remains a chal-

lenge for this approach. The method has so far only

been validated on a small example, and its perfor-

mance on larger, more complex use cases has not

yet been tested. Without sufﬁcient automation, scal-

ing to larger use cases may result in signiﬁcantly in-

creased validation time, undermining the economic

viability of the approach. To address these limita-

tions, the reuse of templates and the automation of

use case modeling will be necessary. These measures

can help minimize modeling efforts and duplication

across projects. While some steps of the method al-

ready incorporate templates and partial automation,

we plan to extend these features in future work.

8 CONCLUSION

In this contribution, we presented a concept that ad-

dresses the research question by offering a solution

for systematic and automated semantic validation dur-

ing the testing phase of model-driven requirements

engineering. The approach includes a structured

workﬂow, algorithm, and templates speciﬁcally de-

signed for semantic-aware validation using SHACL.

The workﬂow comprises four consecutive steps, be-

ginning with the deﬁnition of validation use cases,

followed by their modeling as an ontology, the gen-

eration of SHACL shapes using SHACL constraints

templates, and the validation of engineering concepts.

The presented approach is still a work in progress

and currently lacks suitable evaluation. In future con-

tributions, we intend to evaluate the concept using

speciﬁc industrial examples from the process indus-

try, such as oil, gas, and water separation, where se-

mantic validation is crucial for compliance and safety.

These industrial use cases can be used to test the

scalability of the approach. Additionally, the proto-

typical implementation will be improved to support

all automated steps, including the automatic gener-

ation of SHACL shapes from existing requirements

and the integration of a user-friendly interface for a

more streamlined validation workﬂow. This will al-

low users to effortlessly deﬁne validation use cases,

model them as ontologies, and execute the validation

process without manual intervention.

Semantic-Aware Validation in Model-Driven Requirements Engineering Using SHACL

197

ACKNOWLEDGEMENTS

This research is funded by dtec.bw – Digitalization

and Technology Research Center of the Bundeswehr.

dtec.bw is funded by the European Union – NextGen-

erationEU.

REFERENCES

Antoniou, C. and Bassiliades, N. (2024). A tool for require-

ments engineering using ontologies and boilerplates.

Automated Software Engineering, 31(5).

Baader, F., McGuinness, D. L., Nardi, D., and Patel-

Schneider, P. F., editors (2008). The Description Logic

Handbook. Cambridge Univ. Press.

Banerjee, S. and Sarkar, A. (2022). Domain-speciﬁc re-

quirements analysis framework: ontology-driven ap-

proach. International Journal of Computers and Ap-

plications, 44(1):23–47.

Bareedu, Y., Fr

uhwirth, T., Niedermeier, C., Sabou, M.,

Steindl, G., Thuluva, A., Tsaneva, S., and Ozkaya, N.

(2023). Deriving semantic validation rules from in-

dustrial standards: An opc ua study. Semantic Web,

15:1–38.

Bernab

e, C. H., Silva Souza, V. E., de Almeida Falbo,

R., Guizzardi, R. S. S., and Silva, C. (2019). Goro

2.0: Evolving an ontology for goal-oriented require-

ments engineering. In Guizzardi, G., Gailly, F., and

Suzana Pitangueira Maciel, R., editors, Advances in

Conceptual Modeling, volume 11787, pages 169–179.

Springer International Publishing.

Cimmino, A., Fern

andez-Izquierdo, A., and Garc

ıa-Castro,

R. (2020). Astrea: Automatic generation of shacl

shapes from ontologies. In Harth, A., Kirrane, S.,

Ngonga Ngomo, A.-C., Paulheim, H., Rula, A., Gen-

tile, A. L., Haase, P., and Cochez, M., editors, The

Semantic Web, pages 497–513. Springer International

Publishing.

Cleland-Huang, J., Zisman, A., and Gotel, O. (2012). Soft-

ware and Systems Traceability. Springer.

Delva, T., Smedt, B., Oo, S., Assche, D., Lieber, S., and

Dimou, A. (2021). Rml2shacl: Rdf generation taking

shape. Proceedings of the 11th Knowledge Capture

Conference, pages 153–160.

Dermeval, D., Vilela, J., Bittencourt, I. I., Castro, J., Isotani,

S., Brito, P., and Silva, A. (2016). Applications of

ontologies in requirements engineering: a systematic

review of the literature. Requirements Engineering,

21(4):405–437.

Dobson, G. and Sawyer, P. (2006). Revisiting ontology-

based requirements engineering in the age of the se-

mantic web. 2006.

Guarino, N., Oberle, D., and Staab, S. (2009). What is an

ontology? In Staab, S. and Studer, R., editors, Hand-

book on ontologies, International handbooks on infor-

mation systems, pages 1–17. Springer.

Guizzardi, R., Amaral, G., Guizzardi, G., and Mylopoulos,

J. (2023). An ontology-based approach to engineering

ethicality requirements. Software and Systems Model-

ing, 22.

ISO/IEC/IEEE (2015). ISO/IEC/IEEE 15288. Systems and

software engineering. System life cycle processes.

(15288).

Jureta, I. J., Mylopoulos, J., and Faulkner, S. (2009). A

core ontology for requirements. Applied Ontology,

4(3-4):169–244.

ocher, A., Markaj, A., and Fay, A. (2022). Toward

a generic mapping language for transformations be-

tween rdf and data interchange formats. In 2022 IEEE

27th International Conference on Emerging Tech-

nologies and Factory Automation (ETFA), pages 1–4.

IEEE.

Maalej, W. and Thurimella, A. K., editors (2013). Manag-

ing requirements knowledge. Springer.

Mayank, V., Kositsyna, N., and Austin, M. (2004). Re-

quirements engineering and the semantic web, part ii.

representaion, management, and validation of require-

ments and system-level architectures.

Moreira, A., Mussbacher, G., Ara

ujo, J., and S

anchez, P.

(2022). Theme section on model-driven requirements

engineering. Software and Systems Modeling, 21.

OMG (2014). Object constraint language (ocl).

https://www.omg.org/spec/ocl/2.4/pdf. accessed

2024-06-13.

Pandit, H. J., O’Sullivan, D., and Lewis, D. (2018). Using

ontology design patterns to deﬁne shacl shapes. In

WOP@ ISWC, pages 67–71.

Riechert, T., Lauenroth, K., Lehmann, J., and Auer, S.

(2007). Towards semantic based requirements engi-

neering. Proceedings of the 7th International Confer-

ence on Knowledge Management.

Runde, S. and Fay, A. (2011). Software support for building

automation requirements engineering—an application

of semantic web technologies in automation. IEEE

Transactions on Industrial Informatics, 7(4):723–730.

Saeki, M. (2010). Semantic requirements engineering. In

Nurcan, S., Salinesi, C., Souveyet, C., and Ralyt

e, J.,

editors, Intentional Perspectives on Information Sys-

tems Engineering. Springer Berlin Heidelberg.

Siegemund, K., Thomas, E. J., Zhao, Y., Pan, J., and Ass-

mann, U. (2011). Towards ontology-driven require-

ments engineering. The 10th International Semantic

Web Conference.

Uschold, M. (1998). Knowledge level modelling: concepts

and terminology. The Knowledge Engineering Re-

view, 13(1):5–29.

Valaski, J., Reinehr, S., and Malucelli, A. (2016). Which

roles ontologies play on software requirements engi-

neering? a systematic review.

VDI-Kompetenzfeld Informationstechnik (2009). VDI

5610-1. Knowledge management for engineering -

Fundamentals, concepts, approach.

Veleda, R. and Cysneiros, L. M. (2019). Towards an

ontology-based approach for eliciting possible solu-

tions to non-functional requirements. In Giorgini, P.

and Weber, B., editors, Advanced Information Sys-

tems Engineering, pages 145–161. Springer Interna-

tional Publishing.

W3C (2017). Shapes Constraint Language (SHACL).

https://www.w3.org/TR/2017/REC-shacl-20170720/.

Accessed 2024-03-19.

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

198
