Fractal Analysis of the Subset-Sum Problem

Ruben Horn

1 a

, Daan van den Berg

2,3 b

and Pieter Adriaans

4 c

Helmut-Schmidt-University, Hamburg, Germany, U.K.

Department of Computer Science, University of Amsterdam, Netherlands

Department of Computer Science, VU Amsterdam, Netherlands

Institute for Logic, Language, and Computation, University of Amsterdam, Netherlands

Keywords:

Subset-Sum Problem, Number Partitioning Problem, Fractal Analysis, Hilbert’s Hotel, NP-Hard.

Abstract:

It is known that the hardness of the (two-way) number partitioning problem (NPP) variant of the subset-sum

problem (SSP) depends on the number and distribution of bits in the set of numbers, but beyond this, it is

relatively unexplained for the SSP itself. Thus, we look at the solution space of various problem instances of the

SSP using fractal analysis. Two methods to determine the dimension are used. Plotting the fractal dimension

over the range and distributions of informational bits, we ﬁnd that it is correlated with this linear model and

also moderately correlated to the hardness of the NPP. This suggests that fractal analysis might be a useful tool

in understanding the complexity of combinatorial problems and, we believe, may help further understand the

hardness in NP. Finally, we introduce a thought experiment derived from the famous Hilbert’s hotel, which

we call Hilbert’s hotel with elevators, to intuitively illustrate how the complexity of the solutions space and the

computational hardness may relate across combinatorial problems.

1 INTRODUCTION

AND RELATED WORK

The subset-sum problem (SSP) is a particularly

interesting problem within the class of NP-complete

(Garey and Johnson, 1990) problems because it is

actually quite simple, both in terms of its deﬁnition

and in terms of the computational hardness of many

instances, which consist of a set of integers S ⊂ N

and a target value t ∈ N. A subset A ⊆ S is a solution

to this instance if

∑

A = t. If t =



∑



, this is known

as the (two-way) number partitioning problem (NPP),

which is also NP-complete (Karp, 1972).

Over the years, there have been several insights

into what makes instances of this problem easy or

hard. This is also of particular interest to the cryptog-

raphy community, where the SSP has been the basis

for an early asymmetric cryptosystem (Merkle and

Hellman, 1978; Sharma et al., 2011).

Lemma 1. Superincreasing SSP instances are trivial.

Proof. A set S is superincreasing if all the integers it

https://orcid.org/0000-0001-6643-5582

https://orcid.org/0000-0001-5060-3342

https://orcid.org/0000-0002-8473-7856

contains are larger than the sum of all smaller ones con-

tained in the set (∀s ∈ S : s >

∑

{n|n < s} ∩ S). Thus,

the best possible subset for any t is either min

s≥t

{s} or

min

s≥t

{n|n < s} ∩S, which are both trivial to ﬁnd.

Beyond superincreasing instances, the hardness of

the problem for a pseudo-polynomial time algorithm

depends on the magnitude of the integers in the in-

stance (Kleinberg and Tardos, 2005, chapter 8.8). Korf

(1998), Mertens (2003) and Hayes (2002) illustrated

that the hardness of the NPP speciﬁcally is inﬂuenced

by the ratio

/n of the average number of bits m

required to represent each integer over the cardinality

n of the set S. For the NPP, the relation of the number

of solutions (perfect partitions) depends on this ratio

/n. If n is sufﬁciently large, the SSP becomes easy

for at least some values of t by the sheer frequency of

solutions, since lim

n→∞

n × (2

− 1) − 2

< 0.

But

even for the same value of the ratio

/n, some instances

may differ in computational hardness, that is to say

will be solved after fewer or more computational steps

than others. This is not only attributable to the vari-

ation in the frequency of optimal partitions, but also

depends on the concrete integers that make up the set.

For very small

/n, multisets are unavoidable due to the

limited number of different integers with m bits.

Horn, R., van den Berg, D. and Adriaans, P.

Fractal Analysis of the Subset-Sum Problem.

DOI: 10.5220/0012990400003837

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Computational Intelligence (IJCCI 2024), pages 261-268

ISBN: 978-989-758-721-4; ISSN: 2184-3236

261

Van Den Berg and Adriaans (2021) found that the

distribution of informational bits over the integers in

such random instances of the NPP inﬂuences the ex-

perimental hardness, which is determined for each in-

stance by the number of recursions required to solve it

using a depth ﬁrst branch and bound (BB) algorithm.

This algorithm generates candidate subsets from the

list of integers sorted in decreasing order. Compared

to the complete greedy and complete Karmarkar-Karp

BB algorithms for the NPP by Korf (1998), which con-

struct candidate subsets (leaf nodes) according to the

respective heuristic from left to right, in the algorithm

by Van den Berg and Adriaans each node is a candidate

subset following a greedy heuristic and thus, the total

search tree is much smaller.

In order to generate instances with varying dis-

tributions of informational bits across the integers,

Van den Berg and Adriaans introduce the notion of

strict templates, which determine the exact number

of bits for every integer in the instance. They use

seven different templates with 78 bits each over 12

integers to generate instances of the NPP, which

consequently all have on average 6.5 bits per integer

and so

/n ≈ 0.54. Three templates are eccentric,

meaning that their derivative has values greater than

1. Instances generated from such templates contain

mostly small values and few relatively large ones. The

non-eccentric ones range from the linearly increasing

template {1,2,. ..,n} to the (almost) uniform or

ﬂat template. From each of these templates, ten

instances are randomly generated. For example,

given a template {3, 4,5,6,.. .}, the ﬁrst integer of a

corresponding instance with exactly m

= 3 bits may

have any value between 2

−1

= 4 and 2

− 1 = 7.

While instances derived from eccentric templates

always have the same hardness, those generated from

non-eccentric templates can be both easier or harder.

This experiment was replicated by Sazhinov et al.

(2023) using 105 bits over 14 integers. They further-

more ﬁnd that the different templates for generating

instances also affect the performance of heuristic

algorithms for the NPP.

Since both papers pertain to the NPP variant of the

SSP, the parameter t is not covered. For every set S,

there are a some obvious values for t, which will result

in trivial instances (S,t) that can be solved without

backtracking. Beyond this, however, the solution

landscape of the SSP is more opaque. If an instance is

very eccentric, the histogram of the solution frequency

for every value of t will have two large clusters on

either side of the spectrum because all possible subset

sum values are either very small or very large. For

(almost) ﬂat templates, the opposite is the case. Subset

sum values around



∑



are more frequent than

very small or very large ones. The picture is less clear

between these two extremes, yet some patterns can

be expected to emerge in the histogram of subset sum

frequencies: Given some subset A ⊂ S of relatively

small numbers, the histogram of all possible subsets

of A will occur multiple times in the histogram for S

{

∑

B|B ⊆ S \ A

}

. Examples for these three cases

are visualized in Figure 1. Our hypothesis is that the

SSP shows fractal properties, which may be correlated

to its hardness. Consequently, we will use the fractal

dimension to measure the statistical self-similarity in

these histograms to describe the unpredictability and

density of the solution space and thus its complexity

(cf. Falconer, 2013, chapter 3).

In the following Section 2, we outline the methods

for our two experiments, which includes generating

and analyzing a dataset for each and describe the

results in the subsequent Section 3. Beyond these

experiment, we make a case for the importance of

the complexity of the solution space for the compu-

tational hardness by illustrating it with a new thought

experiment inspired by Hilbert’s hotel (Ewald and

Sieg, 2013) in Section 4. We conclude our work with

a discussion of the implications and future work in

Section 5 and 6.

All experiments were implemented in Python

3.9 and run on a dual-CPU compute node (72 cores

at 2.4 GHz, 256 GB DDR4 memory) of the cluster

HSUper. A replication package including the dataset

is available in an online repository (Horn et al., 2024b).

2 METHODS

For our experiment, we leverage the template approach

by Van den Berg and Adriaans (2021) in order to gen-

erate random proto-instances (just the sets S without

t) of the SSP. The templates used for this result in

different distributions of the informational bits across

15 integers. For each proto-instance the information

distribution is characterized by the linear regression

slope β, which is the logarithm of the sorted integers:

log

≈ α + βi for s

∈ S (1)

The number of total bits

∑

, with m

the number of

bits for the i

integer, is

n(n + 1) where n = |S| as de-

termined by the number of bits in the linearly increas-

ing template (β = 1), in which the number of bits for

each integer corresponds to its index in the template.

For n = 15 the total number of bits is thus

∑

= 120.

Lemma 2. The linearly increasing template (β = 1)

and ﬂat template (β = 0) are only possible for the

same

∑

if n is odd.

Proof. Otherwise,

∑

n(n + 1) =

n+1

/∈ N.

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

262

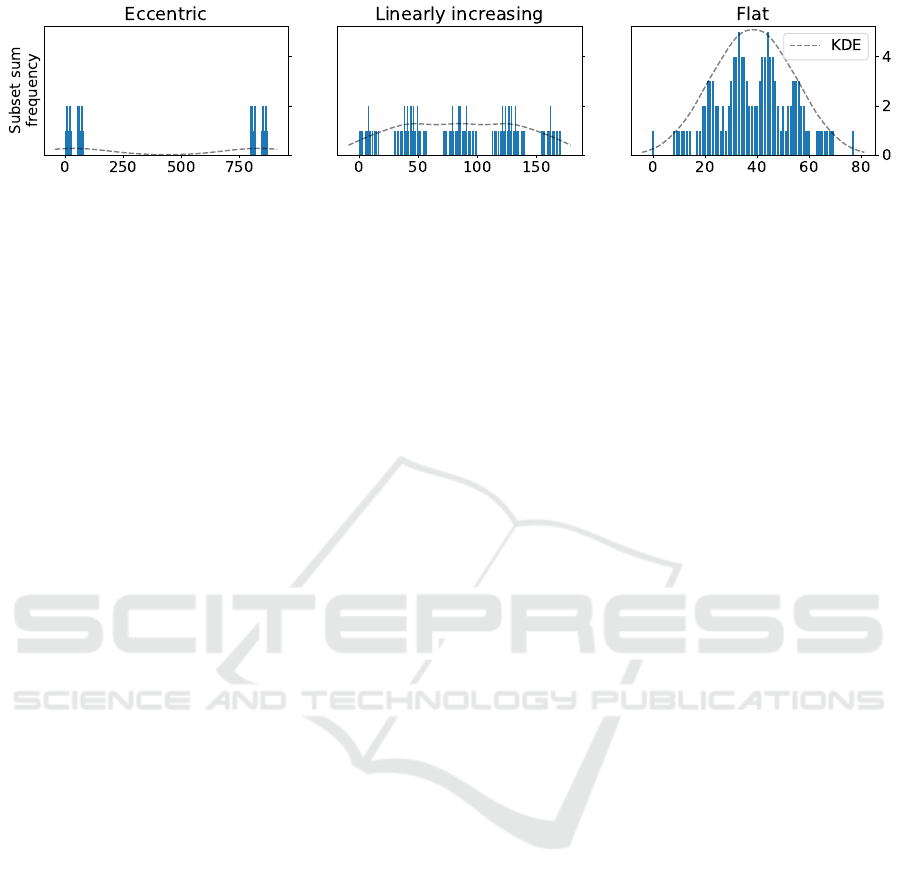

Figure 1: Histograms of the subset sum frequency and Gaussian kernel density estimation (KDE) for the eccentric set

{1,2,3,5, 14, 50,795}, the linearly increasing set {1,2, 5, 8,30,41,83} and the ﬂat set {8,9,10, 11, 12, 13,14}. All three

instances have 28 bits over 7 integers. The range of the horizontal axis is determined by the sum of each set.

To cover the spectrum of values for β as widely as

possible, including both non-eccentric and eccentric

templates with β ≤ 1 and β > 1 respectively, three

approaches are used to come up with templates from

which random instances are generated. For the non-

eccentric templates, the values for β should cover the

full range [0, 1]. For eccentric ones, we chose a ramp

function, as it is a simple method of realizing non-

linear distributions which can still be distinguished in

our dataset using β in Equation (1). The three methods

used for generating templates are described below:

• Non-eccentric templates are generated from

Equation (2) by distributing the number of bits

as linearly as possible following the desired

slope β ∈ (0;1] with uniform distribution of the

remaining bits (T

β=0

(

⌈

iβ

⌉

|i ∈ {1..n}) + T

β=0

(2)

This approach predominantly generates templates

with a low value for β closer to 0.

• More non-eccentric templates are generated by

integrating all possible binary sequences {0,1}

If the remaining bits cannot be evenly distributed

over the integers, the template is discarded.

Sampling with uniform spacing from all fea-

sible templates generated using this approach

predominantly yields templates with β closer to 1.

• Eccentric templates are generated from Equa-

tion (3) by concatenating a shorter ﬂat template

of 1s and a linearly increasing template (T

β≥1

) of

length i ∈ [2..n) using all remaining bits.



(1,)

n−i

β≥1

(i)



(3)

This inevitably results in proto-instances contain-

ing multisets. However, this is unavoidable if the

ratio

/n should be the same between all templates.

Admittedly, we still only cover some of the possible in-

formation distributions since, for example, those with

one or multiple plateaus are not represented. However,

as these templates can no longer be adequately char-

acterized by a scalar information slope β and these

distributions may only be possible for larger numbers

of informational bits, this is outside the scope of this

paper. Based on these templates, a proto-instance

is generated by randomly sampling each integer at

index i with the corresponding number of bits m

from



−1

..2



(cf. Van den Berg and Adriaans, 2021).

The fractal dimension of an SSP proto-instance is

then measured on the histogram of all corresponding

subset-sum frequencies, as shown in Figure 2. We use

standard box-counting, where the slope of multiple

box-counts in a log-log plot yields the Minkowski

dimension (Bishop and Peres, 2016). Others methods,

such as variational box-counting (Pilgrim and Taylor,

2018) or Haar wavelet approach (Zelinka et al.,

2014), may not be feasible or at least not as easy to

implement for large and sparse histograms resulting

from larger proto-instances. A box is placed for every

grid cell that the histogram covers, regardless by how

little. The box-sizes are limited by the histogram to

{

|n ∈ {0..⌈log

maxt⌉}

}

bins. Box-counts are only

performed for up to 10 different box-sizes to avoid

excessive runtimes.

By applying the box-counting method to a bi-

nary normalization of the histograms, we obtain a

dimension between 0 and 1 which is the Minkowski

dimension in one dimensional space. We call this the

line-counting dimension of a proto-instance, and it

indicates the distribution of solvable values of t for

a proto-instance. For a set of binary numbers or any

other superincreasing set, the value for the box- and

line-counting dimension are identical because each

bin in the histogram has a value of at most 1.

Figure 2 also shows that a linear ﬁt may not per-

fectly describe the scaling of the histogram. Thus, the

goodness of the ﬁt is computed using the coefﬁcient

of determination R

. In our experiments, the fractal

dimension is considered to be accurately characterized

if R

≥ 0.95.

In experiment #1, we measure the fractal dimen-

sion using these methods for random proto-instances

with different ratios of

/n, proportional to α in Equa-

tion (1), with n = 15 and uniform distribution of bits

Fractal Analysis of the Subset-Sum Problem

263

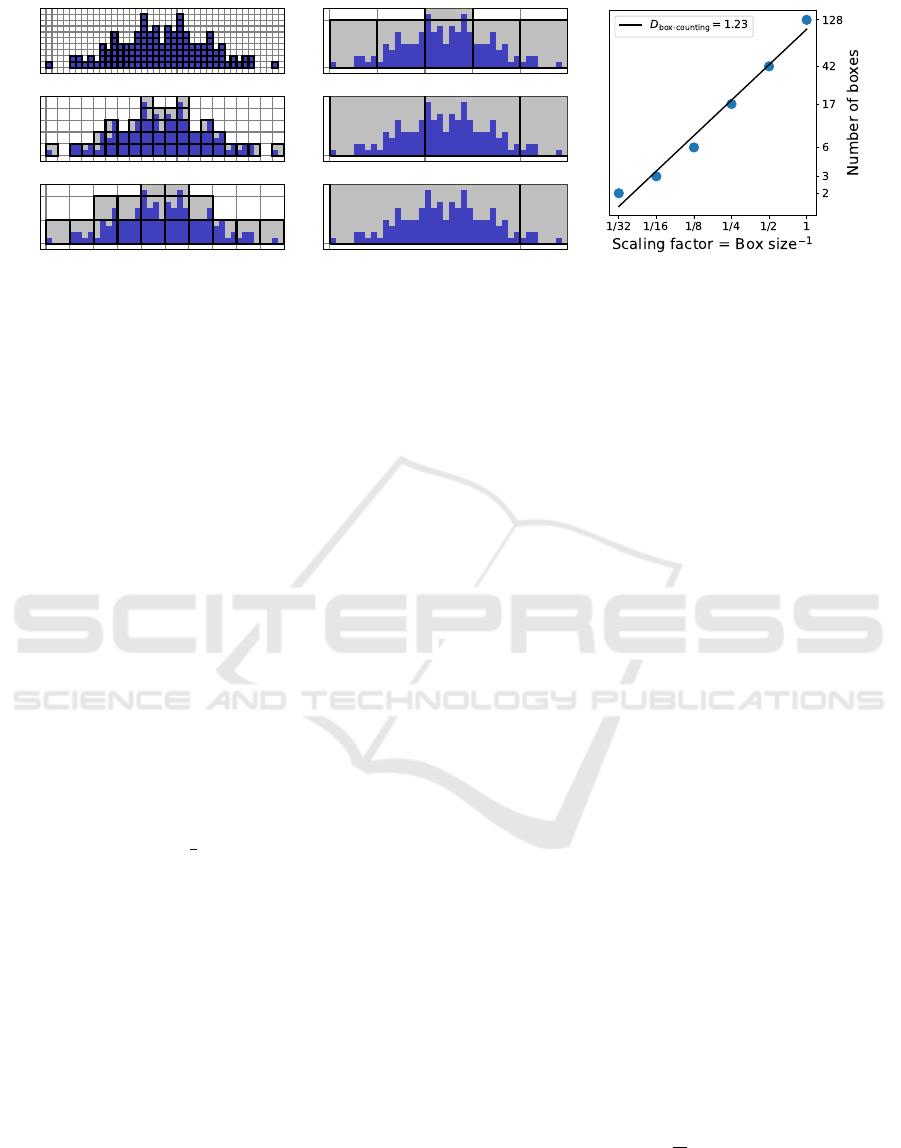

Figure 2: Box-counting method applied to the histogram of proto-instance of the SSP like those in Figure 1. This example

uses a multiset S = {4, 4,5,5,6, 7, 7} for better visualization. The right subﬁgure shows the log-log plot of the number of boxes

touching the histogram in the other subﬁgures at different sizes. The resulting slope gives the fractal dimension.

β≈0

), inspired by Korf (1998) and Hayes (2002). In

experiment #2, we measure the fractal dimension of

proto-instances with the same number of bits over n =

15 integers but with 39 different informational bit dis-

tribution slopes β, which were generated as described

earlier. For each of these experiments, ﬁve proto-

instances are created for every template, resulting in

a total of 500 and 195 proto-instances respectively.

In addition to the fractal dimension of proto-

instances, we also investigate their hardness by

counting the number of recursions required by the

depth-ﬁrst BB algorithm by Van den Berg and Adri-

aans (2021). While other exact algorithms for the

SSP might have a slightly better (yet still exponential)

time complexity (Howgrave-Graham and Joux, 2010),

this algorithm is exceptionally well suited for solving

many instances in parallel due to its minimal spacial

complexity. For any set S, there are obviously trivial

instances, for example t ∈ S, and both easy and hard

values of t are not the same between different sets of

integers. Thus, we resort to measuring the hardness

of the NPP where t =



∑



for all sets like Van den

Berg and Adriaans (2021) and consider

∑

A = t + 1

a perfect solution for all instances where

∑

S ≡ 1

mod 2, like Schreiber et al. (2018).

3 RESULTS

As expected, in both experiments, we obtain dimen-

sionalities in the range of [0,1] for the line-counting

and [0, 2] for the box-counting method. For experiment

#1 concerning different values for α in Equation (1),

almost exclusively those with α ≤ n (corresponding to

/n ≤ 1) have an R

score of at least 0.95, which is also

the range containing multiple solutions for instances

of the NPP (Hayes, 2002). In total, 266 of the 500 sets

have an R

score of at least 0.95 for both box- and line-

counting and are thus considered characterized by their

respective fractal dimension. The values for the line-

counting dimension are within the range (0.644,1],

with lower values of α seeming to coincide with a

higher maximum dimensionality. However, an incom-

plete arch with a peak at α ≈ 7 is visible in Figure 3a.

Similarly, the box-counting dimension peaks at

α = 3.985 with 1.706. Above and below this point,

the values seem to decrease linearly. Generally, the

fewer bits per integers, the less likely it is that there

are holes for any values of t and so the line-counting

dimension increases. At the same time, the box-

counting dimension also increases with the frequency

of subsets with the same sum. One could say that

the histograms start having a not insigniﬁcant height

across multiple values of t. Beyond a certain point, the

number of bits is low enough that all possible values

are likely represented. Say

/n ≈ 0.26, then there are

only 2

0.26n

≈ 2

= 16 possible integer values. This

may explain the lower box-counting dimension, since

the small size of the histogram is once again covered

by relatively few boxes of any size.

Figure 3b shows the box- and line-counting dimen-

sion of the generated SSP proto-instances over their

corresponding information distribution, and looks

somewhat similar to Figure 3a. Out of the 195 sets,

147 have an R

scores of at least 0.95 for both box- and

line-counting. The horizontal axis marks the slope of

the information distribution for each instance, from

ﬂat at 0 and non-eccentric over linearly increasing at

1 to increasingly eccentric. The box-counting dimen-

sion increases for values left of the linearly increasing

template with β = 1 while the line-counting dimension

decreases right of this value. We ﬁt a line with a slope

of −0.45 and offset 1.43 through those points with

≥ 0.98. Since

/n =

≈ 0.53, the line-counting

dimension of the non-eccentric instances is very high

and probably almost all values of t have a solution.

Proto-instances with β > 1 have some relatively

large values, so the histogram of subset sum values is

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

264

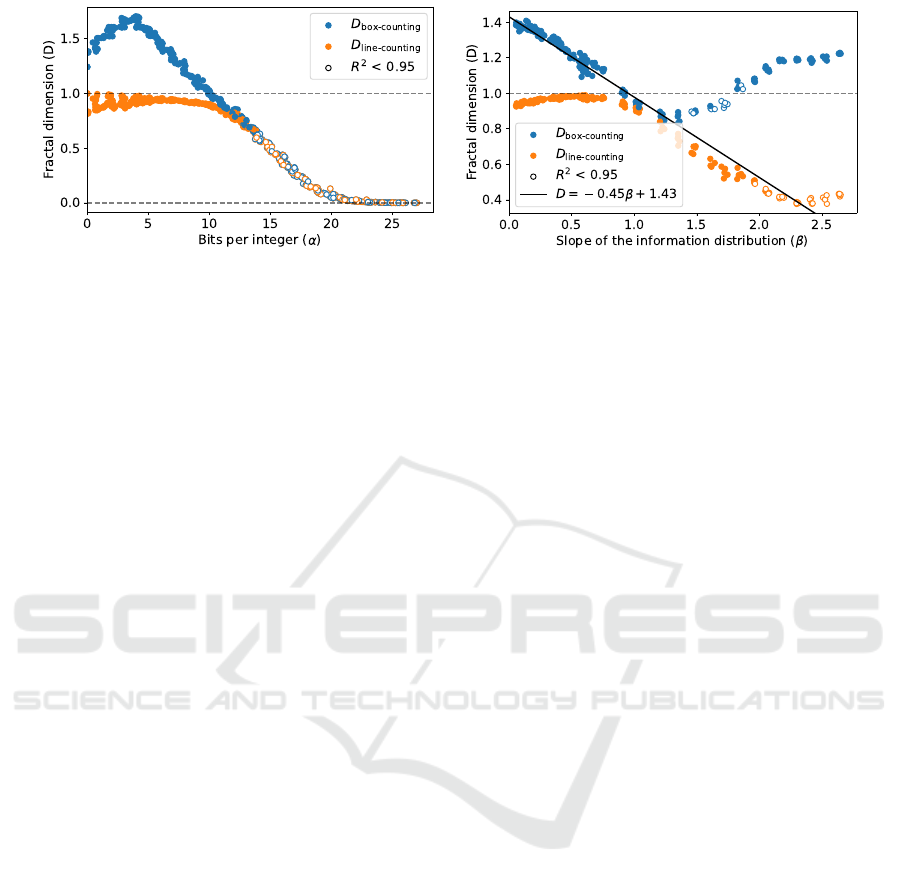

(a) Box- and line-counting dimension over different bits

per integer α. For values above 15 (

/n ≥ 1.0), the object

appears less fractal, as indicated by the R

score.

(b) Values over different information distributions β.

There are 120 bits over all integers.

Figure 3: Fractal dimension of the SSP proto-instances with n = 15 integers over the α in (a) and β in (b) of the information

model Equation (1).

rather sparse, since its range is large. As this value is

increased further, the clusters of possible subset-sum

values t are stretched further apart, since the range

increases. The box-counting method is not applicable

for such instances because, in the extreme, the clusters

of values look like two towers, two lines which stand

orthogonally on the horizontal axis and so any fractal

characteristic is not captured by a linear model over the

entire range of box-sizes. With decreasing values of β

the box-counting histogram becomes more and more

bell shaped and similar to an Irwin-Hall distribution

(Hall, 1927) at β = 0, because using a ﬂat template

with uniform distribution both very low and very high

sums are rare. Thus, the box-counting dimension

increases with the height of the histogram.

The change of the trend in the data for β ≥ 2 can

perhaps be attributed to the fact that very eccentric

proto-instances, due to the limitation on the number of

bits, are inevitably trivial multisets containing mostly

1s. This may not occur so pronounced when increas-

ing the number of bits representing the small numbers,

however, changing the number of bits in an instance

also affects the fractal dimension (cf. Figure 3a).

Figure 4 shows the hardness of the corresponding

NPP instances, the number of recursions for the BB

algorithm by Van den Berg and Adriaans (2021), for

both experiments on a logarithmic scale. For sets

from experiment #1 with a uniform distribution of

bits (β = 0) in the left subplot over α, the number

of recursions increases on average exponentially

until around 1, mirroring the visualization of the

number of optimal partitions (Hayes, 2002), recently

characterized by Horn et al. (2024a). For the sets from

experiment #2 with varying β, this is less clear-cut.

Non-eccentric instances (low value of β) are easier,

but also more varied than eccentric ones, in line with

previous ﬁndings by Van den Berg and Adriaans

(2021) and Sazhinov et al. (2023).

The Pearson correlation of the hardness of the

generated NPP instances over α with the box- and

line-counting dimension is −0.666 and −0.688

respectively, while over β it is −0.751 and −0.645.

Although the correlation between the hardness and

the box-counting dimension is higher over varying β

than over varying α, Figure 3a clearly shows that the

latter develops much more similarly to the hardness

for 0.351 ≤

/n ≤ 1 (3.785 ≤ α ≤ 13.810) with a

correlation coefﬁcient of −0.834 when using the

logarithm of the number of recursions.

4 THE BROKEN ELEVATOR

IN HILBERT’S HOTEL

Our investigations of the solution landscape concern

instances of ﬁnite size and therefore ﬁnite complexity.

Dilation theory (Adriaans, 2021) studies computable

mappings of inﬁnite sets onto higher dimensional

discrete spaces. For this purpose, we consider P(N)

the set of ﬁnite subsets of N. It is countable, in contrast

to the power set P (N), which is uncountable. Below,

we illustrate how the complex structures that we

observed before and the computational hardness of

combinatorial problems are intricately linked.

The famous thought experiment of Hilbert’s

hotel, named after the German mathematician who

introduced it in 1924 (Kragh, 2014), describes a

hotel with an inﬁnite number of rooms which is fully

booked for a conference of mathematicians and yet

can still accommodate other guests. We propose a

new thought experiment starting from a hotel having

inﬁnitely many elevators (columns) which each lead

Fractal Analysis of the Subset-Sum Problem

265

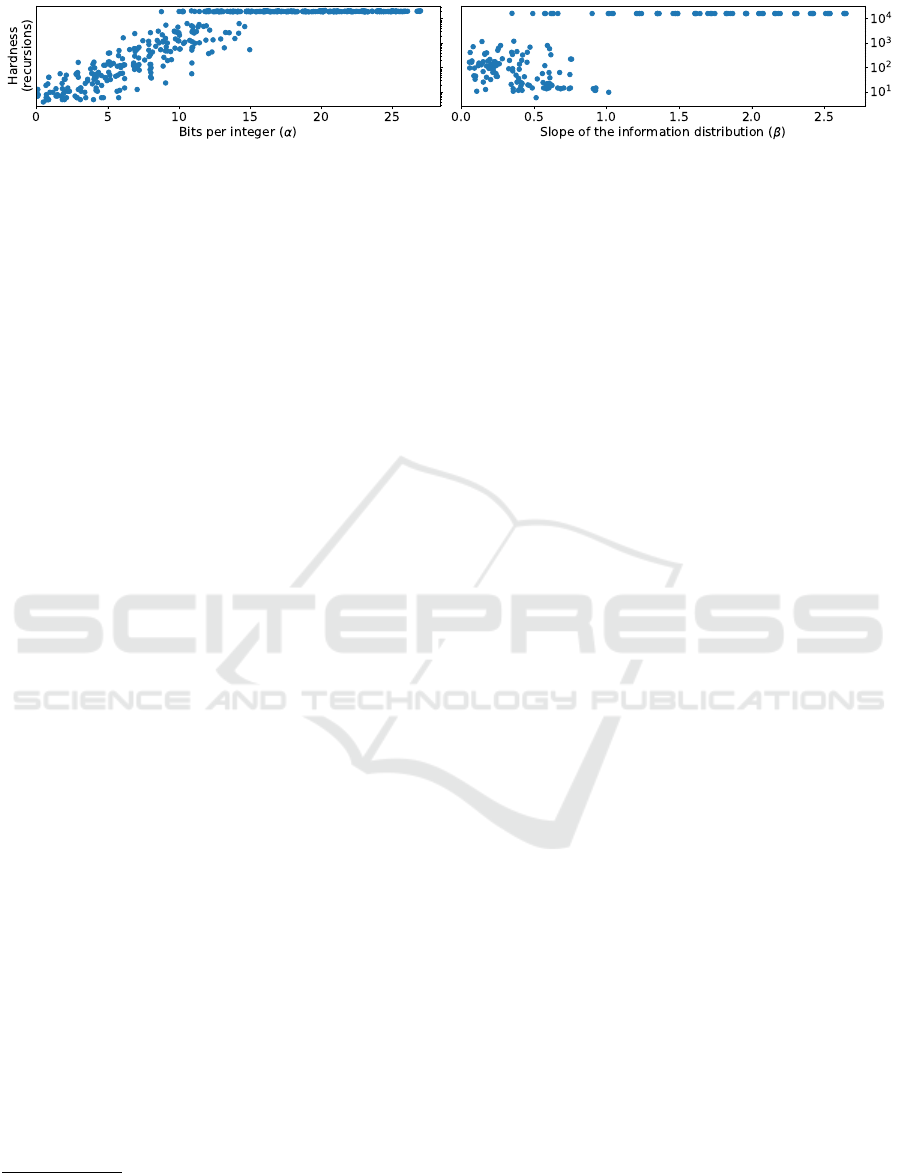

Figure 4: Hardness of the corresponding NPP instances for all generated sets over the number of bits per integer α of a ﬂat

template and different information distributions β from Equation (1). The hardness of an instance is measured in recursions

required by the BB algorithm by Van den Berg and Adriaans (2021).

to the i

room on all inﬁnite ﬂoors (rows), thus

transforming the problem from N into N

. Contrary

to the original idea of Hilbert, we are interested in the

variations of the occupancy rate of the hotel under

various mathematical functions used to allocate the

same countable number of guests. We imagine that

all mathematicians who stay at the hotel are identiﬁed

by a unique ﬁnite set of natural numbers such as

{1,2, 5,7}, {n|n < 10!} or

0, effectively deﬁning a

bijection between the inﬁnite set of mathematicians

and the countable inﬁnite set of ﬁnite subsets of

natural numbers. When asked to allocate rooms for

the participants of a conference, Hilbert decides to

give each guest two functions to compute their room

based on the set of numbers assigned to them:

• the elevator index function (column) and

• the ﬂoor index function (row).

Together these functions give the complete infor-

mation of the location of the room in the hotel: the

elevator index function gives a partial description of

the location, the ﬂoor index function gives the missing

information. Hilbert soon realizes there is a complex

interaction between the elevator- and the ﬂoor index

function. The occupancy rate of the hotel depends on

the functions the guests use in order to compute the

location of their rooms. When the guests use very little

information from their set of numbers (e.g., the cardi-

nality of the set) to select the elevator, the hotel is fully

booked (deﬁning a two-dimensional space). It is easy

to compute the corresponding ﬂoor index. When the

guests use all the information of the numbers in their

sets (i.e., interpret them as integer selection masks

for binary numbers) to select the elevator, the hotel is

almost empty: only the ﬁrst ﬂoor rooms are occupied

(deﬁning a one-dimensional space). For elevator index

functions in between these two extremes, like addition

and multiplication

, the behavior of the ﬂoor index

function is chaotic and leads to a fragmented occupa-

tion of the hotel (see Figure 5). These chaotic regions

Addition and multiplication are associated with the

partition function estimated by Hardy and Ramanujan

(1918) and integer factorization problem (Lenstra, 2011)

respectively.

are associated with fundamental issues in mathemat-

ics, such as factorization and the partition function.

Functions in this region do not allocate guests very

efﬁciently. At the conference, a young mathematician

discovered this the hard way when she decided

to organize a sub-conference and invite all 2

− 1

colleagues she knows, that is to say, those whose set

is a subset of hers. Since it is a small conference,

she uses addition for the elevator-function so that all

guests have rooms close to the lobby. She leaves the

choice of the ﬂoor to each participant, depending on

arrival. A day before the conference, she discovers

that the elevator with the number 141592653 is out of

order. She has to check if this elevator is used at all

during the conference, but she soon realizes she has no

efﬁcient algorithm to answer this question, because it

is an instance of the NP-complete SSP.

Likewise, with addition as the allocation function it

is not easy for attendees to know if they will have direct

neighbors on their ﬂoor to talk to, since knowing any

given subset sum does not necessarily say anything

about the frequency or existence of directly neighbor-

ing subset sum values. The take-away message of this

example is that not all efﬁciently computable elevator

index functions lead to efﬁciently computable ﬂoor

index functions, which is the deﬁning characteristic

of the class NP. Dilation theory predicts that there

is a correlation between the fractal dimension of the

occupancy rate of Hilbert’s Hotel associated with var-

ious elevator index functions and the hardness of the

corresponding problems in NP that use these elevator

index function as a checking function. The empirical

research described in Section 2 and 3 corroborates that

theory. The template approach presented in the ﬁrst

part of the paper was developed to study phase transi-

tions in these chaotic regions of the SSP (see Figure 5).

The previously measured fractal dimension can be

seen as a measure of how the conference occupies the

hotel. If the set is very eccentric, all subset sums do

not occur more than once. All attendees are staying on

the ﬁrst ﬂoor, rather far apart from each other.

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

266

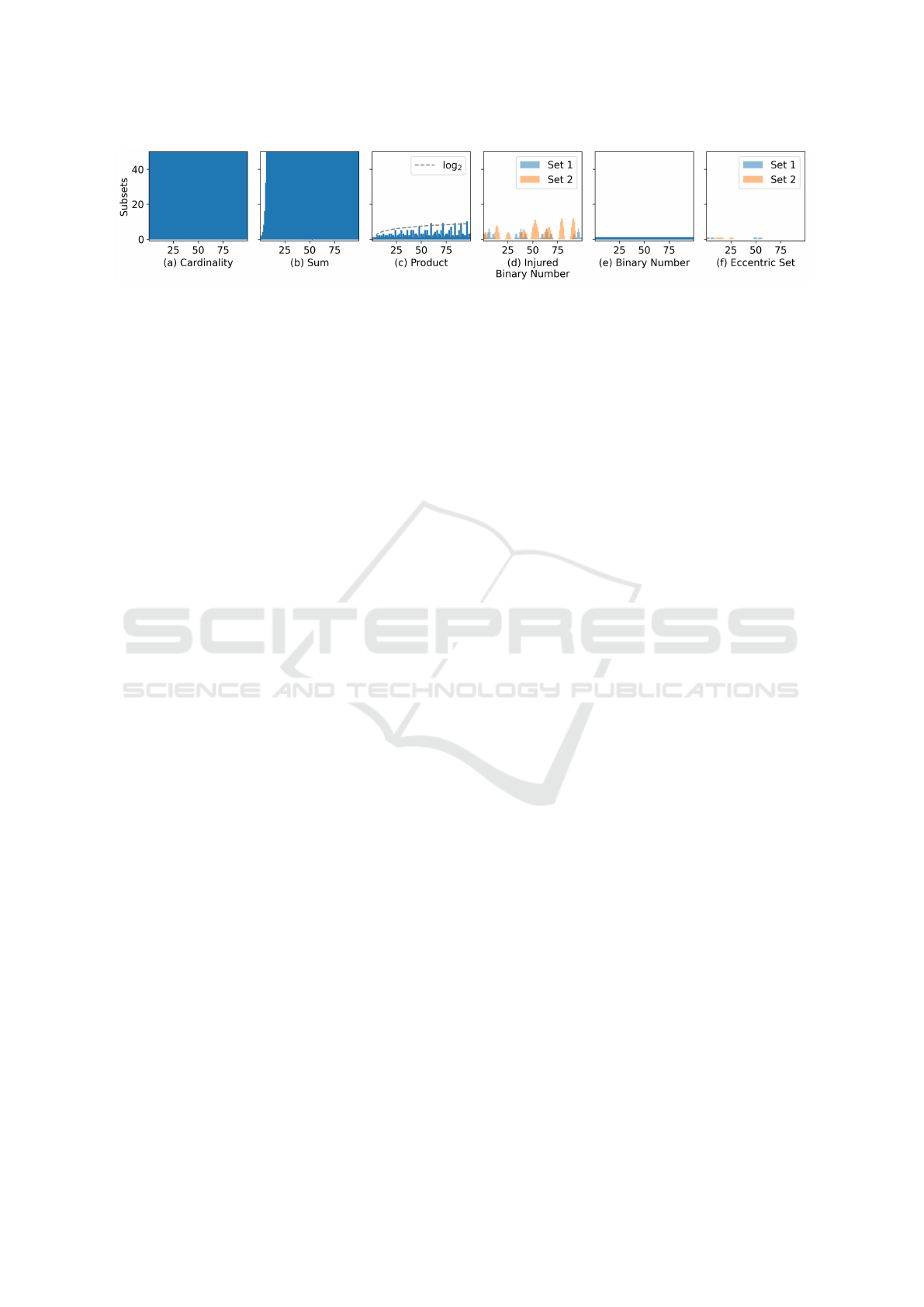

Figure 5: Different (truncated) histograms for functions deﬁned on P(N). The images (a), (b), (c) and (e) are associated with

standard mathematical functions. The image (d) is a so-called injured set, and (f) shows an eccentric set. These two are designed

to give insight in the behavior of sets in the neighborhood of the scale-free set deﬁned by powers of two. The possible solution

spaces of instances of the SSP are captured by (d)-(f).

5 DISCUSSION

Looking at Figure 5(b) and (d)-(f), we might relate

them to different templates from the previous experi-

ment. The set S = {a..a + n − 1} ⊂ N for a relatively

large number n = |S| is the ﬂattest SSP proto-instance

possible without including multisets, and there is

an exponential approximation function for a = 1

which describes the number of solutions for every

possible value of t (Hardy and Ramanujan, 1918).

As visualized in Figure 5 (b), its dimension is close

to 2. Increasing the range of the integers but keeping

the number of them constant results in a new instance

corresponding to Figure 5 (d), (e) or (f) depending on

the increase and distribution of the integers across the

range of possible values as described before. The same

number of possible subsets 2

|S|

is now stretched over

a greater width, not unlike the stretching of a rubber

band. As this rubber band ﬂattens and ﬁnally tears,

the fractal dimension decreases below 1 in Figure 5

(e), coming ever closer to 0.

The representation of a problem as counting the

elements in the set P(N) is not limited to the trivial

mathematical functions described here and visualized

in Figure 5 and may be applied to the traveling

salesman problem (TSP) (Hoffman and Padberg,

2001) with integer distances, the maximum satisﬁa-

bility problem (MAX-SAT) (Bacchus et al., 2021) or

instances of other discrete combinatorial optimization

problems. For the TSP with integer distances, such a

mapping would correspond to the set of selected num-

bered edges which make up the tour and the checking

function being the total (integer) distance of the tour

or zero, if the tour is invalid. For the MAX-SAT the

mapping would correspond to the numbered variables

assigned ⊤ with the number of satisﬁed clauses as

the checking function. In both cases, one can already

see that there might be alternative representations,

like expanding the satisﬁability problem such that

one integer represents multiple variables that are

assigned ⊤. This will undoubtably result in different

topological neighborhoods, like the diagonalization of

the binary numbers, which folds the representation of

P(N) in Figure 5 (e) to completely ﬁll N

The SSP belongs to the class of NP-complete

problems, because there is no known algorithm which

can solve the hardest instance in polynomial time. In

the worst case, we have to traverse most of the search

tree just to ﬁnd out that the subset with sum t does

not exist. Due to the fractal property of the solution

landscape, the concrete values t of the no instances

for a given proto-instance S seem unpredictable. (Or

at least the frequency of such subset sums seems

unpredictable.) The issue of separability of yes- and

no instances therefore seems like an important step

towards understanding the true hardness of the SSP.

6 CONCLUSION

In Section 1 we revisited the SSP. In previous work

(Van den Berg and Adriaans, 2021; Sazhinov et al.,

2023), the statistical properties of its NPP variant have

been investigated, but the solution landscape of the

SSP was not explored. Its fracticality may even have

practical implications, e.g. to assess the feasibility of

resource re-allocation (solution count for changed t).

The countability of the set P(N) of ﬁnite subsets

of N has been demonstrated through the mapping onto

different checking functions for basic mathematical

operations in N

and visualized in Figure 5. The

cardinality of the sets completely ﬁlls the plane,

while the binary numbers result in a continuous one

dimensional line. Between these two extremes we

ﬁnd operations with a non-integer dimension and

which thus have a fractal landscape. For the SSP

this is empirically investigated and supported by the

ﬁndings in Section 2 and 3. The topology itself may

not be the only source of complexity. The line of

binary numbers can be re-mapped to N

by diagonal-

ization, but the resulting topological neighborhoods

are vastly different from those resulting from the

Fractal Analysis of the Subset-Sum Problem

267

cardinality. If we have multiple equally valid options

of mapping P(N) onto N

, perhaps this set should

be called semi-countable. We have come up with a

thought experiment in Section 4 that is an extension of

Hilbert’s Hotel in which mathematicians (represented

by sets of numbers) need to be assigned to the rooms

using elevator and ﬂoor numbers. Applying it to the

addition operation of ﬁnite sets yields the subset sum

histograms we analyzed using the fractal dimension.

Since the instances used in our experiments are

quite small, it may be worth repeating them with larger

ones. To achieve the same bit distribution, however,

the total number of bits must increase accordingly,

requiring custom data representations exceeding basic

64-bit primitives. Future work should also investigate

more complex checking functions for the selection of

columns, such as those discussed in Section 5. Repre-

senting instances of these problems as sets of natural

numbers may not be a trivial task. We suspect that

there are an inﬁnite number of possible functions with

no shared intrinsic information in their (possibly also

fractal) structure. How does this reﬂect on the relation

between problems in P and NP? This task looks quite

challenging, yet simultaneously promising.

ACKNOWLEDGEMENTS

Computational resources (HPC-cluster HSUper) have

been provided by the project hpc.bw. hpc.bw is funded

by dtec.bw – Digitalization and Technology Research

Center of the Bundeswehr. dtec.bw is funded by the

European Union – NextGenerationEU.

REFERENCES

Adriaans, P. (2021). Differential information theory.

Bacchus, F., J

arvisalo, M., and Martins, R. (2021). Maximum

Satisﬁabiliy, chapter 24. IOS Press.

Bishop, C. J. and Peres, Y. (2016). Minkowski and Haus-

dorff dimensions, page 1–44. Cambridge Studies in

Advanced Mathematics. Cambridge University Press.

van den Berg, D. and Adriaans, P. (2021). Subset Sum and

the Distribution of Information. In Proceedings of the

13th International Joint Conference on Computational

Intelligence, pages 134–140.

Ewald, W. and Sieg, W. (2013). Lectures on the inﬁnite.

In David Hilbert's Lectures on the Foundations of

Arithmetic and Logic 1917-1933, pages 655–785.

Springer Berlin Heidelberg.

Falconer, K. (2013). Fractals: A Very Short Introduction.

Oxford University Press.

Garey, M. R. and Johnson, D. S. (1990). Computers

and Intractability; A Guide to the Theory of NP-

Completeness. W. H. Freeman & Co., USA.

Hall, P. (1927). The distribution of means for samples of

size N drawn from a population in which the variate

takes values between 0 and 1, all such values being

equally probable. Biometrika, 19(3-4):240–244.

Hardy, G. H. and Ramanujan, S. (1918). Asymptotic

formulaae in combinatory analysis. Proceedings of

the London Mathematical Society, s2-17(1):75–115.

Hayes, B. (2002). Computing Science: The Easiest Hard

Problem. American Scientist, 90(2):113–117.

Hoffman, K. L. and Padberg, M. (2001). Traveling salesman

problem, page 849–853. Springer US.

Horn, R., Thomson, S. L., van den Berg, D., and Adriaans,

P. (2024a). The easiest hard problem: Now even

easier. In Proceedings of the Genetic and Evolutionary

Computation Conference Companion, GECCO ’24

Companion, page 97–98, New York, NY, USA.

Association for Computing Machinery.

Horn, R., van den Berg, D., and Adriaans, P. (2024b).

Fractal analysis of the subset-sum problem.

https://anonymous.4open.science/r/fractal-ssp.

(Replication package).

Howgrave-Graham, N. and Joux, A. (2010). New Generic

Algorithms for Hard Knapsacks, page 235–256.

Springer Berlin Heidelberg.

Karp, R. M. (1972). Reducibility among Combinatorial

Problems, pages 85–103. Springer US, Boston, MA.

Kleinberg, J. and Tardos, E. (2005). Algorithm Design.

Pearson, Upper Saddle River, NJ.

Korf, R. (1998). A complete anytime algorithm for number

partitioning. Artiﬁcial Intelligence, 106(2):181–203.

Kragh, H. (2014). The True (?) Story of Hilbert’s Inﬁnite

Hotel.

Lenstra, A. K. (2011). Integer Factoring, page 611–618.

Springer US.

Merkle, R. and Hellman, M. (1978). Hiding information and

signatures in trapdoor knapsacks. IEEE Transactions

on Information Theory, 24(5):525–530.

Mertens, S. (2003). The easiest hard problem: Number

partitioning.

Pilgrim, I. and Taylor, R. P. (2018). Fractal Analysis of

Time-Series Data Sets: Methods and Challenges. In

Ouadfeul, S.-A., editor, Fractal Analysis, chapter 2.

IntechOpen, Rijeka.

Sazhinov, N., Horn, R., Adriaans, P., and van den Berg,

D. (2023). The partition problem, and how the

distribution of input bits affects the solving process. In

Proceedings of the 15th International Conference on

Evolutionary Computation Theory and Applications.

Schreiber, E. L., Korf, R. E., and Mofﬁtt, M. D. (2018). Op-

timal Multi-Way Number Partitioning. J. ACM, 65(4).

Sharma, S., Sharma, P., and Dhakar, R. S. (2011). RSA

algorithm using modiﬁed subset sum cryptosystem.

In 2011 2nd International Conference on Computer

and Communication Technology (ICCCT-2011), pages

457–461.

Zelinka, I., Zmeskal, O., and Saloun, P. (2014). Fractal

Analysis of Fitness Landscapes, pages 427–456.

Springer Berlin Heidelberg, Berlin, Heidelberg.

ECTA 2024 - 16th International Conference on Evolutionary Computation Theory and Applications

268
