Machine Learning Methods for Heart Disease Prediction

Hongyu Zhou

Department of Mathematics, Southern University of Science and Technology, Shenzhen, 518000, China

Keywords: Machine Learning, Heart Disease Prediction, Neural Network, Evaluation.

Abstract: Heart disease prediction and treatment play a crucial role in enhancing human health. Numerous studies have

highlighted the effectiveness of machine learning models in predicting heart diseases. However, there still

have problems with widely use and the accuracy of the prediction. This paper aims to apply different machine

learning models, including Naïve Bayes, Decision Tree, Random Forest, XGBoost, and Neural Network

System, to a specific dataset and provide a comprehensive evaluation. After thorough analysis using various

metrics, the Random Forest model demonstrated the highest recall and F1-score among all models.

Additionally, the shallow neural networks model outperformed traditional neural network structures with

fewer parameters in this task. In conclusion, this study emphasizes the significance of machine learning

models in improving heart disease prediction and treatment. Further research and development in this area are

essential to enhance healthcare outcomes and promote overall well-being.

1 INTRODUCTION

Ischemic heart disease is the world's largest cause of

death, responsible for 16% of all deaths, according to

the World Health Organization. Meanwhile, since

2000, the situation becomes more and more strictly

(Soni et al., 2011; Chitra et al., 2022 & Chen and

Guestrin, 2016). In 2019, approximately 8.9 million

people was killed by this disease.

Over the past decade, the understanding and the

treatment technique on the ischemic heart disease has

gained a significant improvenment (Kaggle Heart

disease dataset). Due to this progress, it is important

to receice a professional medical assistance before the

disease becomes aggravated. However, there has

another problem. As for the patients, some kind of

heart disease is difficult to discover without a

specialized hospital diagnostic examination. Then

machine learning technique are expected to predict

the diease with just some basic presonal information

(Tsao et al., 2022). Fortunately, several research has

listed some features, which are easy to be detected,

are related to the heart disease. Then people with no

significant cardiovascular disease symptoms can be

detected early and can receive early medical

treatment which may reduce their death rate

significantly (Chintan et al., 2023). Thus, it is

meaningful to apply certain machine learning

methods to predict whether a person will have heart

disease with some physical indicators.

With the development of the machine learning

techiniques, there are applications have approached

the success in this field. However, there still have

problems with widely use and the accuracy of the

prediction. This paper focus on analyze 5 different

methods for heart diease prediction in the field of

machine learning and heart disease prediction

technology. Aim to find the strengths and the

weakness of different methods.

2 METHOD

2.1 Data Preprocessing

Before establishing and training models, data

preprocessing and analysis are crucial. The project

uses a remarkable dataset from Kaggle tha dataset

which is neat and well-documented.

The dataset comprises 4238 records sourced from

the Centers for Disease Control and Prevention,

National Center for Health Statistics. For all

subsequent model training, this dataset was randomly

splited into two parts: one part for training and

another for testing (no validation set was used in this

experiment). The training part and test part each

represent 80% and 20% of the total dataset,

respectively. Within this dataset, there are a total of

15 features related to predicting heart disease,

Zhou, H.

Machine Learning Methods for Heart Disease Prediction.

DOI: 10.5220/0012990900004601

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Innovations in Applied Mathematics, Physics and Astronomy (IAMPA 2024), pages 46-52

ISBN: 978-989-758-722-1

including but not limited to physical examination data

and various personal demographics. These 15

features are categorized into two groups, starting with

a collection of information pertaining to individuals'

physical characteristics. Here are the specific

meanings of these numerical values:

These features offer crucial insights into

cardiovascular health, pivotal for predictive modeling

in assessing heart disease risk. Additionally, a set of

features encompassing Gender, age, education,

currentSmoker, and cigsPerDay reflect individuals'

fundamental information and lifestyle habits. Heart

disease etiology is shaped not only by congenital

factors but also by lifestyle choices and surroundings.

Consequently, incomplete data entries were excluded,

yielding a final dataset of 3656 entries for model

training and prediction.

Based on the figure 1, it can be observed that the

original dataset is some imbalanced, with some

feature generally not follows a normal distribution.

This lends the data is difficult to train and analysis.

To makes it suitable for training predictive models,

the overSampler method was used in our

experienment. Additionally, upon observing the 'age'

feature, we roughly categorize the dataset into four

major age groups simplify this complex dataset based

on age. The similar operations are also be done on

‘BMI’, ‘glucose’ and ‘sysBP’ features. To provide a

more intuitive representation of the relationship

between the heart disease and the features.

2.2 Data Visualization and Analysis

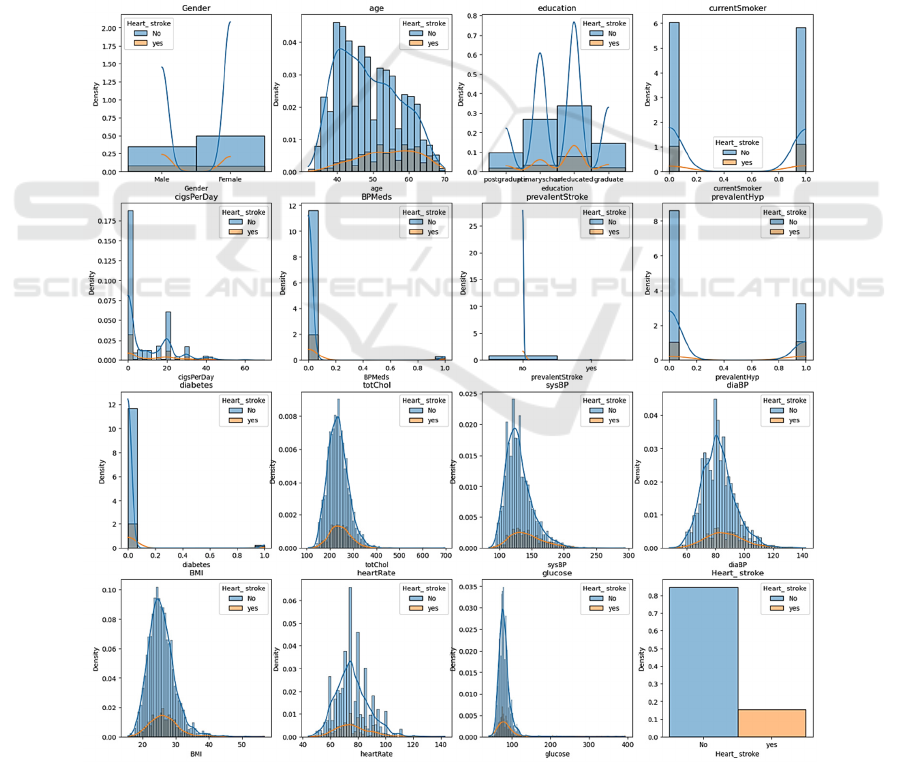

Figure 1: The Preview of the all features (Picture credit: Original).

Machine Learning Methods for Heart Disease Prediction

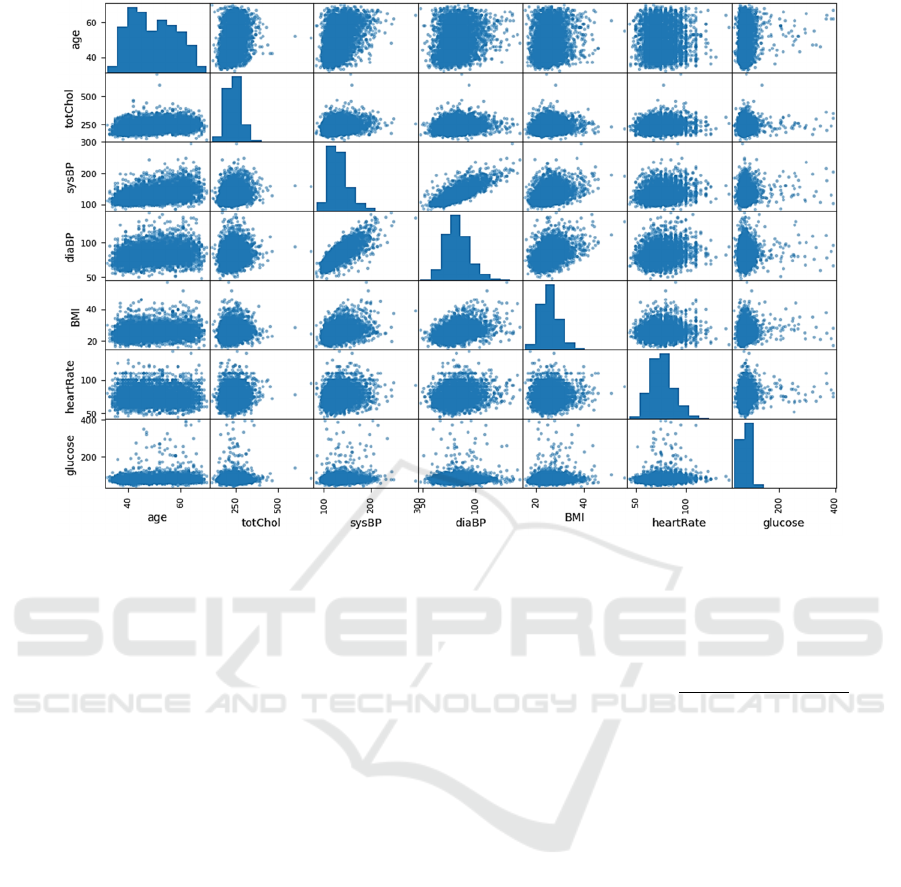

Figure 2: The correlation of features (Picture credit: Original).

The following correlation matrix images provide

valuable insights (Figure 2). A noteworthy

observation is the strong positive correlation between

systolic and diastolic blood pressure class.

Additionally, histograms for several features exhibit

a Gaussian distribution shaped curve, including

diaBP, BMI, heart rate (HR), total cholesterol

(totChol), and systolic blood pressure (sysBP).

2.3 Method Choose Comparison

In this study we choose to implement a couple of

popular supervised machine learning methods to

make predictions on the heart diease task. Accoding

to the previous research. Decision Tree and Decision

Tree like models, such as Random Forest and

XGBoost are widely applied in heart diease

prediction (Sonawane and Patil, 2014). Additionally,

Naïve Bayes as a classic probablity model, also be

implemented in our experiment. In this paper, we do

a comparision on neural network systems too.

After constructing the models, to get a proper and

better understanding of different methods, the

following gives a brief description and the properties

of them, especially on prediction tasks.

 Naive Bayes

Naïve Bayes method is a classic and also can be

perceived as a one of the most popular supervised

learning algorithm. The idea of this model is from the

Bayes’s theorem. In application, we can simplified

the realation to

𝑃(𝑦 ∣ 𝑥



,…,𝑥



𝑃(𝑦)

∏





𝑃(𝑥



∣𝑦)

𝑃(𝑥)

Bayes’s theorem is one of the most important

theorem in probability theory. Since the equation

reveals the relationship between prior probability and

posteriol probability. Whence the model has the

capability to predict the probability of the heart diease

when other features was detected.

The foundation of Naive Bayes analysis is the idea

that characteristics, given the class label, are

completely independent. When the assumption is

broken, less desirable results could result, especially

if the features are closely related in complex ways.

Therefore, choosing the right characteristics for the

Naïve Bayes model's training is important.

 Decision Trees and Random forest

Decision trees are a type of supervised learning

method that work well for problems involving

regression and classification (Chawla et al., 2002).

This model is tree-structured. The tree root and nodes

reprsent the selected features and tree branches

connect root and nodes or nodes and nodes. Each

branches will end by a leaves which means the

outcome (Figure 3).

IAMPA 2024 - International Conference on Innovations in Applied Mathematics, Physics and Astronomy

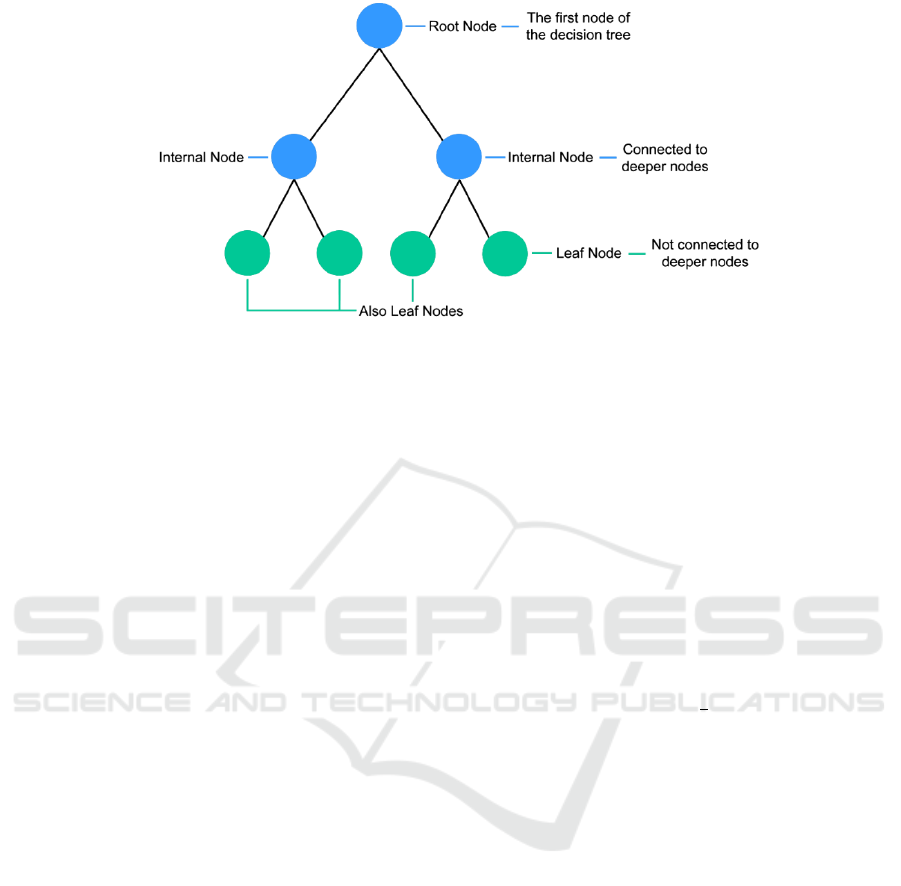

Figure 3: Decision Tree (Chawla et al., 2002).

For Decision Tree method applied on heart diease

prediction problem is how to select a proper attribute

for discrimination among all features in the dataset.

There are four popular methods for selecting attribute:

information gain, entropy, gain ratio and gini index.

Bagging and boosting is two of the most popular

method for ensemble model. After applying bagging

on the decision tree model can derive the random

forest model,

RF model can be abbreviated as the following

steps:

First Step: Select n random subset in the features

set.

Second Step: Independently train n decision trees

A single decision tree is trained on a single

random subset. Each decision tree's ideal splits are

determined by randomly selecting a subset of samples

or features.

Third Step: each tree makes the prediction.

Forth Step: Ensemble all the trees and caculate

predicted result of each class. Then decide which

class is the input belongs to.

In our experiment, the result depends on the

majority chosen class of independent trees and the

weight is the same for them.

 XGBoost(XGB)

XGBoost model is based on gradient tree boosting

algorithm. The objective function is the core problem

in this method which can be represented as

() ( , ) ( )

ii k

ly y f

=+Ω



(1)

The first term is called loss term. In XGB an

additive training idea was used.



()



()





)=y



()





)



()





)+f





)=y



()





)

⋯



()

∑









)=y



()





)

(2)

This idea enlighten the XGB algorithm to use the

gradient to optimize the trees for prediction. The

second term is a regularization term which aims to

decrease the complexity (eg. Parameters’ number,

norm of parameters) of this trees model. Specifically,

this term in XGB can be written as

Ω(𝑓) = 𝛾𝑇 +





𝜆

∑





𝜔





(3)

Where 𝑇 reprensents the number of the selected

features(also known as ‘leaves’), 𝑤 is the vectors

scores on leaves. XGBoost is always was used for

supervised learning problems. That means the dataset

includes not only the training data but also the correct

label (Bharath et al., 2023).

 Artifticial Neural Network

The primary motivation behind the creation of

artificial neural networks was to imitate biological

neural systems; but, throughout time, these networks

have evolved into specialized fields focused on

machine learning tasks and engineering. Multi-

layered artificial neural networks with fully

connected layers are the most common neural

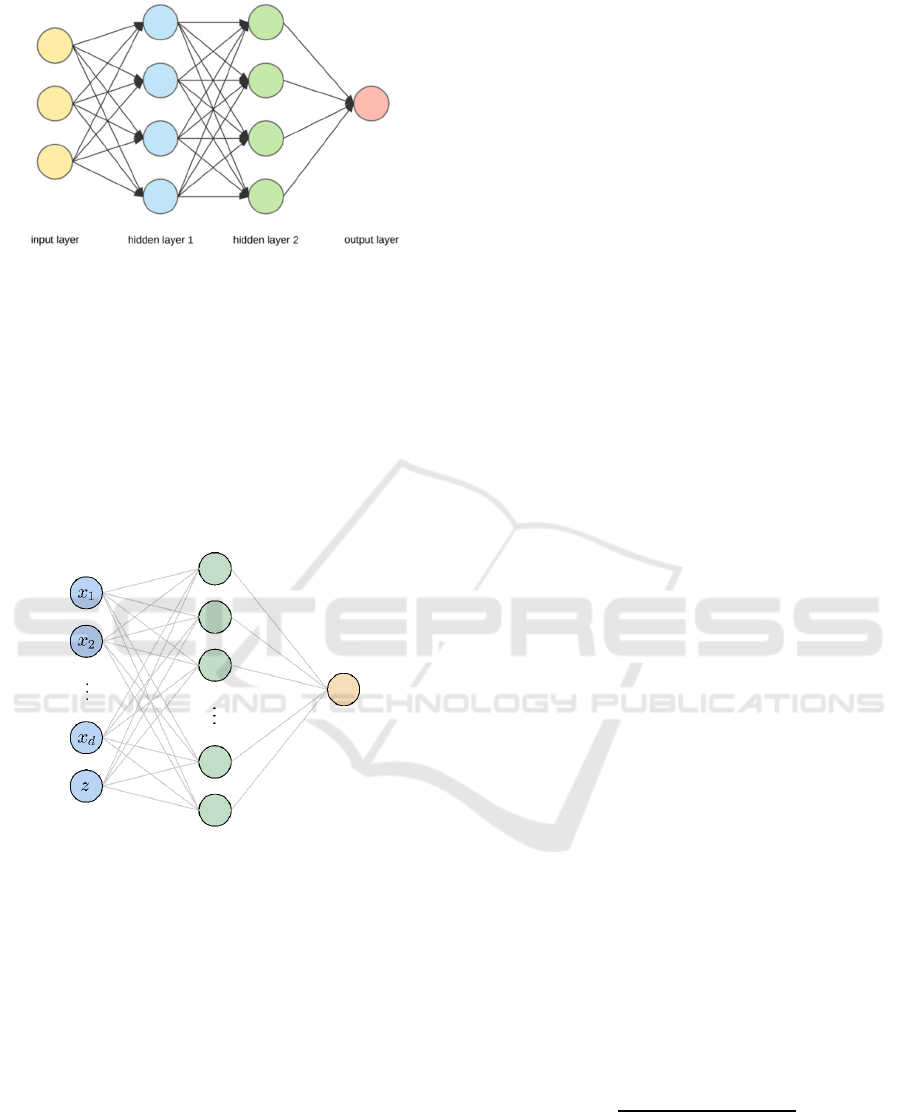

networkd in prediction task. A two-hidden-layer

neural network system's structure is shown in the

figure 4.

Machine Learning Methods for Heart Disease Prediction

Figure 4: A 2-hidden-layer neural network (Picture credit:

Original).

 Shallow Neural Networks

Shallow neural network is a particular kind of neural

network architectures specially consisting of one

hidden layer. The system with more hidden layers are

known as the deep neural network system. So

intuitively, shallow neural networks is more simple.

However, it is incredibly expressive and also be able

to handle the big data modeling and machine learning

task with less model compexity.

Figure 5: Shallow neural networks architecture (Picture

credit: Original).

The structure of shallow neural networks is

relatively simple, making them easier to understand

and implement (Figure 5). During training, the

backpropagation algorithm was used to tune the

weights and biases. The process is likely to enable the

modle learn patterns and features in the input data,

producing corresponding outputs. While they may not

capture complex data patterns, shallow neural

networks generally perform well on simple to

moderately complex problems and train relatively

quickly (Karthiga et., 2017).

How is the model work? Firstly, the model

receives the feature 𝑥



 , which are going to be

classified. Then they are passed to a layer of nodes

𝑊



each of which will be activated by some function

𝜎(∙) acting on the weighted sum of those values. The

result of each unit in the hidden layer is then passed

to a final, output layer 𝛼



(which may consist of a

single unit). At last, the sum of these results will be

passed to another activation function as the final

output (Fahd Saleh, 2019).

With expressive capabilities afforded by neural

networks, we hereby construct a basic feedforward,

fully-connected model, comprising a shallow

architecture (consisting of just one hidden layer), to

approximate the prediction.

𝑝=𝜎(

∑





𝛼



𝜎(𝑊





+𝑏



)) (4)

Here, 𝜎 is the sigmoid activation function, N is the

number of parameters in output layer. The weights

and are formed as learnable parameters. Notice that,

the output is after the sigmoid function. So the output

is in the interval [0,1], which can be perceived as the

possibility of each class.

As for the model, with a given training set , which

the input dimension is 32 (32 features), the neural net

parameters (weights 𝑊 130 *130 and with biases))

are learned via minimizing the cross entropy error.

Specifcly, the binary cross entropy error can be

represented as the form:

𝐻(y, 𝑦

)=−(𝑦log (𝑦

)+(1−𝑦)log (1−𝑦

)) (5)

Cross entropy is defined in information theory,

which is widely used to define the metric of the

difference between two probability distributions in

information theory.In machine learning and deep

learning, cross entropy is commonly used as the

model loss, especially in classification tasks. In this

experiment,

H(y

,𝑦

) close to 0 means the model is

perfect , otherwise

H(y

,𝑦

) 𝑐𝑙𝑜𝑠𝑒𝑠 𝑡𝑜 1 means model

is underfitting.

3 EXPERIMENT AND RESULT

3.1 Evaluation Metrics

 Accuracy

By calculating the proportion of each example's

sickness that was correctly detected

𝐴𝑐𝑐𝑢𝑟𝑎𝑐𝑦 =

  

   

× 100% (6)

 Precision

Out of all positively predicted instances, precision is

the ratio of positively occurrences that are correctly

predicted.

IAMPA 2024 - International Conference on Innovations in Applied Mathematics, Physics and Astronomy

𝑃𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛 =

   

     

100% (7)

 Recall

The ratio of properly predicted positive cases among

all actual positive cases.

𝑅𝑒𝑐𝑎𝑙𝑙 =

   

     

× 100%

(8)

 F1-score

The F1 score evaluates the balance of the

model. The

formulation is as follows:

𝐹1 − 𝑆𝑐𝑜𝑟𝑒 =

(

1+𝛽



)

 ×

(





×

)



(9)

 ROC Curves and AUC

The performance of a classifier across a variety of

discriminants is visually represented by the ROC

curve. For various threshold values, it plots the true

positive rate against the false positive rate. Then, the

classify effficency of the model is measured by the

proportion under the ROC curve; a greater proportion

value, closer to 1, denotes better classification

performance (Institute of Medicine Committee on

Social Security Cardiovascular Disability Criteria

2010 Cardiovascular Disability).

3.2 Experiment Settings

In this research, the experiment is all implemented by

python 3.11.5. Additionally, Some libraries such as

pandas, scikit-Learn, pytorch are used. The hardware

configuration comprise a 3.20GHzAMD Ryzen 7

5800H CPU, a RTX 3060 GPU and 16.0GB RAM.

 Naïve Bayes

Ordinary Naïve Bayes model is used with no special

setting.

 Decision Trees

Critirion was chosen as entropy in decision trees

model.

 Random Forest

The Random Forest model includes a total of 1000

trees, and the split criterion is entropy.

 XGB

The basic tree model is hist and a total of 8783

gradient boost trees are utilized.

 Artificial Neural Network

In this experiment, we use a deep NN model with 2

hidden layers, and each hidden layer had 40

dimensions. The input is 15 dimensions, which

includes all the features just with normalization steps.

And the output is 2 dimensions reprensents the

possibility of each class. the Adam optimizer was

used with default settings and the maximum number

of optimization iterations is 10000. Our loss function

was categorical cross-entropy.

 Shallow Neural Network

We adjusted parameters multiple times and settled on

setting the dimension of the hidden layer weights to

130. Other setting is as same as three layers neural

network.

3.3 Results and Evaluation

Because of the heart disease property, this task is

more likely to imporve the possibilities of discovering

the patients who already has the heart diease.

Therefore, recall is the most important metric in these

models evaluation. According to the result in the table

above, Decision Tree model and Random forest

provides the highest recall at the same time compared

to the other models. However, Random Forest model

get a higer accuracy and also has the highest F1-score.

So Random Forest models can be perceived as the

most balanced model among other algorithms (Table

1).

Table 1: Results from different methods.

Model accuracy recall precision F1 score AUC

Naïve Bayes 0.6203 0.3644 0.6944 0.4780 0.69

Decision Trees 0.9117 0.9970 0.8455 0.9150 0.92

Random Forest 0.9812 0.9970 0.9647 0.9806 1.00

XGB 0.9970 0.9635 0.8755

0.9174

0.98

Two layers NN 0.8407 0.8834 0.8026 0.8411 0.85

Shallow NN 0.9033 0.9869 0.8389 0.9069 0.85

Machine Learning Methods for Heart Disease Prediction

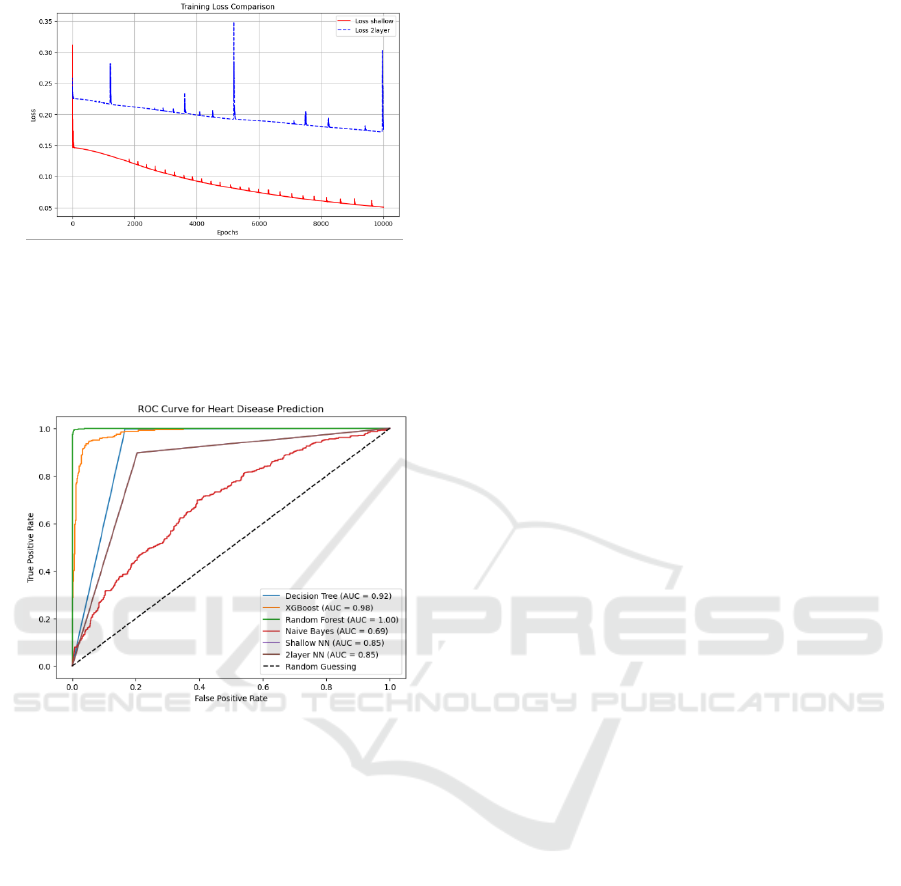

Figure 6: Loss of NN model (Picture credit: Original).

Figure 6 is the loss of two neural networks models.

Loss of shallow neural networks can be easier

optimized and also get a better results compared to

the two layer models.

Figure 7: ROC Curve (Picture credit: Original).

According to the experiment results (Figure 7),

Random Forest model is the most perfect model on

this task. As for the nerual network system, we can

conclude that shallow structure gets a higher accuracy

and recall scores comparing to a deeper system. At

the same, in this sturctures, there are less parameters

are used and is convenient to optimize.

4 CONDUCTION

The aim of this research was to evaluate several

machine learning prediction techniques and provide

an overview of their variations and effectiveness on

the heart disease system. These machine learning

methods are Naïve Bayes , Decision Tree, Random

Forests, XGBoost, Aritificial Neural Network and

Shallow Neural Network. During the experimental

comparisons, we aimed to evaluate the strengths of

each method by conducting specific data

preprocessing and analysis tailored to their

characteristics. This allowed for a comprehensive

comparison of algorithms, from model selection and

data analysis to model training and prediction.

In this study, we also proposed using a Shallow

Neural Network as an alternative to the traditional

ANN model. Through our comparisons, we found

that the Shallow Neural Network achieved

comparable or even better results while decreasing

the number of parameters required. This highlights

the effectiveness of the Shallow Neural Network in

achieving similar or improved performance with

fewer parameters compared to conventional ANN

models.

REFERENCES

J. Soni, U. Ansari, D. Sharma and S. Soni 2011 Inter.J.

Comput. Appli. 17 8

R. Chitra, K. A. Warsi, S. Muzamil, P. N. Shankar, D. Ghai

and B. C. Dharmani 2022 Performance Evaluation of

Machine Learning Algorithms in Design and

Development of Heart Disease Detection 2022 Inter.

Conf. Comput., Communic. Secur. Intelli. Sys. 1-8

Chen, Tianqi and Carlos Guestrin 2016 XGBoost: A

Scalable Tree Boosting System. 22nd Inter. Conf.

Knowl. Discov. Data Mini. 785–794

Kaggle Heart Disease Dataset. Available online:

https://www.kaggle.com/datasets/ mirzahasnine

/heart-disease-dataset/data

Tsao CW, Aday AW, Almarzooq ZI, et al. 2022 Heart

Disease and Stroke Statistics-2022 Update: A Report

From the American Heart Association. Circulation

145(8) e153e639

Chintan M. Bhatt and Parth Patel and Ta Ghetia and Pier

Luigi Mazzeo 2023 Algorithms 16 88.

Jayshri S. Sonawane and Dharmaraj R. Patil 2014

Inter.Conf. Inform. Communic. and Embed. Sys. 1-6

N. Chawla and K. Bowyer and Lawrence O. Hall and W.

Philip Kegelmeyer 2002 SMOTE: synthetic minority

over-sampling technique ArXiv abs/1106. 1813

Kakarla Sai Bharath and Anudeep Sanakkayala and

Abhishek Kadiyam and Gudapati Pradeep Chandra and

Iwin Thanakumar Joseph S and K. B. V. Brahma Rao

2023 2023 3rd Inter. Conf. Smart Data Intelli. 383-386.

Karthiga, A. and Mary, Safish and Yogasini, M. 2017 Early

Prediction of Heart Disease Using Decision Tree

Algorithm Inter. J. Adv. Res. Basic Engin. Sci. Technol.

Fahd Saleh S. Alotaibi 2019 Implementation of Machine

Learning Model to Predict Heart Failure Disease

Inter. J. Adv. Comput. Sci. Appl.

Institute of Medicine (US) Committee on Social Security

Cardiovascular Disability Criteria 2010

Cardiovascular Disability: Updating the Social Security

Listings Washington (DC): National Acad.

Press

IAMPA 2024 - International Conference on Innovations in Applied Mathematics, Physics and Astronomy
