Component Replacement Study of 3D Human Pose Estimation

Models in Real-World Complex Sports Scenarios: Focusing on

Head Impact Events

Yuchen Shi

, Nobutake Ozeki

, Ryu Yoshida

, Motoki Inaji

Kazuyoshi Yagishita

and Yusuke Miyazaki

Department of Systems and Control Engineering, School of Engineering, Tokyo Institute of Technology,

2-12-1 O-okayama, Meguro-ku, Tokyo 152-8552, Japan

Department of Orthopaedic Surgery, Tokyo Medical and Dental University,

1-5-45 Yushima, Bunkyo-ku, Tokyo 113-8510, Japan

Department of Functional Neurosurgery, Tokyo Medical and Dental University,

1-5-45 Yushima, Bunkyo-ku, Tokyo 113-8510, Japan

Clinical Center for Sports Medicine and Sports Dentistry, Tokyo Medical and Dental University,

1-5-45 Yushima, Bunkyo-ku, Tokyo 113-8510, Japan

Keywords: Human Pose Estimation, Head Impact Events, Complex Sports Scenarios, Concussion Biomechanics,

Monocular Camera, Deep Learning, Computer Vison.

Abstract: Human pose estimation in 3D is crucial in complex sports scenarios, particularly for athlete head impact

events. We investigated the effect of different 2D pose estimation methods on the performance of 3D pose

estimation models in complex sports environments. We used a transformer-based 3D human pose estimation

model as a base framework, creating multiple variants by replacing the 2D pose estimator. These variants

were evaluated using real sports game videos. Four 2D pose estimators were employed: Simple Baseline,

High-Resolution Network (HRNet), Multi-stage Pose Network (MSPN), and Residual Steps Network (RSN).

Performance was assessed using Mean per Joint Positional Error (MPJPE), Procrustes analysis MPJPE (P-

MPJPE), and Mean per Joint Velocity Error (MPJVE) metrics. The results showed that MSPN performed the

best in terms of position accuracy and motion velocity consistency (MPJPE, P-MPJPE and MPJVE). RSN

presented promising absolute position accuracy (MPJPE) but showed limitations in the overall pose

configuration (P-MPJPE). Simple Baseline and HRNet proved to be inadequate for complex sports scenarios.

These findings indicate that different model architectures have different advantages in 3D human pose

estimation in complex sports scenarios. This study provides insights for improving 3D pose estimation models

in challenging real-world sports applications, contributing to the better understanding and prevention of

sports-related head injuries.

1 INTRODUCTION

1.1 Background

Concussion in sport is a critical issue in modern sports

medicine due to its severe impact on athletes' health

https://orcid.org/0000-0001-8568-5229

https://orcid.org/0000-0002-2927-7930

https://orcid.org/0000-0002-6759-5729

https://orcid.org/0000-0001-7863-7704

and careers. Annually, an estimated 4 million sport-

induced concussions occur from rapid brain impacts

(Bryan et al., 2016). These injuries cause cognitive

impairment and, functional brain changes, and

increase the risk of further injury (Giza & Hovda,

2001; McKee et al., 2013; Courtney & Courtney,

Shi, Y., Ozeki, N., Yoshida, R., Inaji, M., Yagishita, K. and Miyazaki, Y.

Component Replacement Study of 3D Human Pose Estimation Models in Real-World Complex Sports Scenarios: Focusing on Head Impact Events.

DOI: 10.5220/0013005000003828

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Sport Sciences Research and Technology Support (icSPORTS 2024), pages 72-82

ISBN: 978-989-758-719-1; ISSN: 2184-3201

2015). However, the precise biomechanical

mechanisms of sports-related concussions remain

unclear, hindering the development of effective

prevention strategies (Ji et al., 2015).

To mitigate concussion risks in sports,

understanding head impact dynamics is essential

(Camarillo et al., 2013). Finite element (FE)

simulations have become crucial in biomechanical

analyses, elucidating the mechanical forces and brain

tissue deformation in concussive events (Madhukar &

Ostoja-Starzewski, 2019). Accurate kinematic inputs,

such as impact velocity and location, are critical for

realistic simulations and a better understanding of

concussion causes and effects. Consequently,

precisely capturing head motions during impacts for

FE simulations has become a key research focus.

Traditional head impact kinematics

measurements use optical markers or sensors attached

to athletes (Camarillo et al., 2013; Cortes et al., 2017).

However, these methods are invasive, interfere with

natural movements, and are impractical in real-world

sports settings (King et al., 2015; Wu et al., 2016). To

overcome these limitations, non-contact

measurement techniques using monocular 2D video

data are becoming necessary. Such methods would

enable practical and effective impact measurements

without burdening athletes or requiring extensive

camera equipment.

Quantifying head impact kinematics from 2D

monocular video involves two main phases: 1) either

a multi-stage process (video acquisition, 2D pose

estimation, and 2D-to-3D upgrade) or a single-stage

approach (direct 3D pose estimation from video); and

2) reconstructs of 3D human motion and

determination of head impact kinematics based on the

3D pose or shape predicted in the first phase.

We focused on the multi-stage process of

quantifying head impact kinematics, specifically

extracting 2D human poses and lifting them to 3D.

Most high-performing 3D human pose estimation

methods use this framework, relying heavily on 2D

pose estimation techniques (Moon et al., 2019; Rogez

et al., 2020; Liu et al., 2022). Different 2D pose

estimation methods significantly affect the overall 3D

pose estimation performance. By quantifying these

performance differences and analyzing their effects,

we aimed to provide an objective basis for method

selection and optimization in constructing 3D pose

estimation models.

Previous computer vision research has developed

advanced deep learning models for 2D and 3D pose

estimation (Newell et al., 2016; Cao et al., 2017;

Pavlakos et al., 2017; Xiao et al., 2018; Sun et al.,

2019; Li et al., 2022). These supervised learning

models are typically trained and tested on standard

dataset videos before their application in realistic

scenes. However, significant differences exist

between standard datasets and actual sports videos,

affecting model performance in real-world scenarios:

1. Video quality and consistency: Real games are

affected by weather, filming techniques, and lighting,

unlike controlled standard datasets.

2. Camera angles: Actual games are filmed from

multiple angles, while standard datasets use optimal

or fixed viewpoints.

3. Scene complexity: Real games involve

spectator interference and multiple simultaneous

plays, contrasting with the simpler, controllable

standard dataset videos.

4. Data diversity: Real game videos offer genuine

diversity but may suffer from insufficient data

collection, while standard datasets simulate diversity

but may have inherent selection biases.

These differences underscore the importance of

evaluating and refining computer vision models in

real-world applications. Assessing model

performance on real scene videos provides a

comprehensive understanding of real-world

applicability, forming a crucial basis for model

refinement and optimization.

1.2 Research Purpose

This study examined pose estimation in athlete head

impact events, focusing on how different 2D pose

estimation methods affect 3D pose estimation

performance in complex real-world sports scenarios.

We used a multi-stage 3D human pose estimation

model as a base framework, creating variants by

replacing the top-down 2D pose estimator. These

variants were evaluated on real sports scene videos.

By analyzing the effects of different 2D methods on

the overall 3D performance, we proposed strategies

to improve 3D pose estimation, addressing challenges

like fast movements, occlusions, and complex poses.

We aimed to contribute to the development of robust

and efficient 3D human pose estimation algorithms

for complex real-world sports scenarios.

2 RELATED WORK

2.1 Single-Person 2D Human Pose

Estimation

Single-person 2D pose estimation models typically

employ regression-based (Toshev & Szegedy, 2014;

Carreira et al., 2016) or detection-based approaches

Component Replacement Study of 3D Human Pose Estimation Models in Real-World Complex Sports Scenarios: Focusing on Head Impact

Events

(Newell et al., 2016; Wei et al., 2016). These

frameworks generally consist of a pose encoder,

which extracts high-level features from high to low

resolution, and a pose decoder, which estimates 2D

keypoints. Regression-based decoders directly output

keypoint coordinates but struggle with complex poses

due to non-linearity. Detection-based decoders

generate keypoint heatmaps and are more robust in

handling complex poses (Liu et al., 2022).

2.2 Multi-Person 2D Human Pose

Estimation

Multi-person 2D pose estimation methods use either

top-down (Xiao et al., 2018; Sun et al., 2019; Li et al.,

2019; Cai et al., 2020) or bottom-up approaches (Cao

et al., 2017; Cheng et al., 2020). Top-down methods

first localize individuals, then apply single-person

pose estimation to each person. Bottom-up methods

predict all keypoints simultaneously, then assign

them to individuals. In videos, top-down approaches

detect and predict keypoints frame-by-frame,

propagating them across frames. Bottom-up methods

predict all keypoints per frame, then assign them to

individuals using spatio-temporal patterns.

The top-down multi-person 2D pose estimation

approach has several advantages. It could utilize a

specialized single-person pose estimation technique

that focuses on only one person at a time within the

detected bounding box, thus achieving highly

accurate keypoint localization for a single person.

This method isolates each person and reduces

background interference and is therefore robust to

cluttered backgrounds. In addition, this approach

could be integrated with existing advanced object

detection frameworks (Faster R-CNN [Ren et al.,

2015] or YOLO [Redmon et al., 2016]) to take full

advantage of their benefits. The segmented

processing pipeline (detection followed by pose

estimation) also facilitates individual optimization of

each module, thus improving the overall performance

of the model.

3 METHOD

3.1 Multi-Stage Approach for 3D

Human Pose Estimation

We aimed to examine how different 2D pose

estimation methods affect 3D model performance in

complex real sports scenarios. We used a multi-stage

3D human pose estimation model as a base

framework, creating multiple variants by replacing

the 2D pose estimators within the model.

This multi-stage 3D human pose estimation

model consisted of two main stages, as illustrated in

Figure 1. In the first stage, a multi-person 2D human

pose extractor processed monocular video frames to

extract 2D pose sequences. The second stage then

took these 2D pose sequences as input and employed

a 3D human pose estimation model to reconstruct

corresponding 3D human poses.

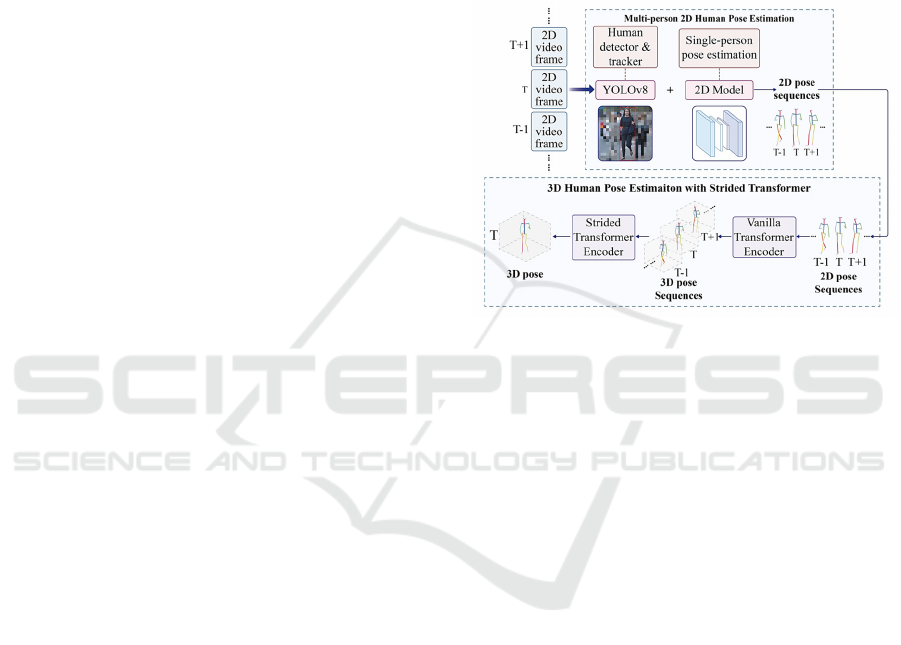

Figure 1: The proposed multi-person 3D human pose

estimation framework.

The multi-person 2D human pose detection stage

in our model employed a top-down approach

comprising two main tasks. First, for person detection

and tracking, we utilized YOLOv8 (Jocher et al.,

2023) to detect individuals in video frames, followed

by the BoT-SORT algorithm (Aharon et al., 2022) to

track each detected person frame-by-frame. Second,

for single-person pose estimation, we cropped the

area around each detected person based on their

bounding box. These cropped frames were then input

into a single-person 2D human pose estimation model,

which estimated the pose of each individual.

In the 3D human pose estimation stage, we

employed a transformer-based model (Li et al., 2022)

to lift 2D pose sequences to 3D. This process

involved two main components: the Vanilla

Transformer Encoder (VTE) and the Strided

Transformer Encoder (STE). The VTE processed the

input 2D pose sequence, predicting the 3D pose

sequence and capturing temporal information to

ensure motion consistency. The STE then received

the VTE output, utilizing strided convolutional layers

instead of fully-connected layers in its feed-forward

network. This architecture shortened the sequence

length and effectively combined global context from

self-attention with local context from strided

convolution. Ultimately, the STE predicted the 3D

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support

pose of the center frame and recovered the entire 3D

pose sequence from contextual information.

We evaluated four detection-based top-down 2D

pose estimation models as alternatives for the 3D

pose estimation component: Simple Baseline (Xiao et

al., 2018), High-Resolution Network (HRNet) (Sun et

al., 2019), Multi-Stage Pose Network (MSPN) (Cai et

al., 2020) and Residual Steps Network (RSN) (Li et

al., 2019). While these models perform well on

standard datasets, their effectiveness in complex

sports scenarios, particularly athlete head impacts,

remains unexplored. We focused on their

architectural features to assess their potential when

integrated into a 3D pose estimation model. The

models used weights pre-trained on the COCO

val2017 dataset. The transformer-based 2D-to-3D

lifting models were pre-trained on Human3.6M and

HumanEva-I datasets (Li et al., 2022).

3.2 Simple Baseline

Simple Baseline is a 2D human pose estimation

model based on convolutional neural networks

(Figure 2). The model first uses a ResNet as the

backbone network, and a complete pose encoding-

decoding network is constructed by adding a small

number of deconvolutional layers after the backbone

network. The encoding part learns a high-level

feature representation of the human body pose, and

the decoding part up-samples the feature maps

according to the input image size to generate a

heatmap of the keypoints of the human body.

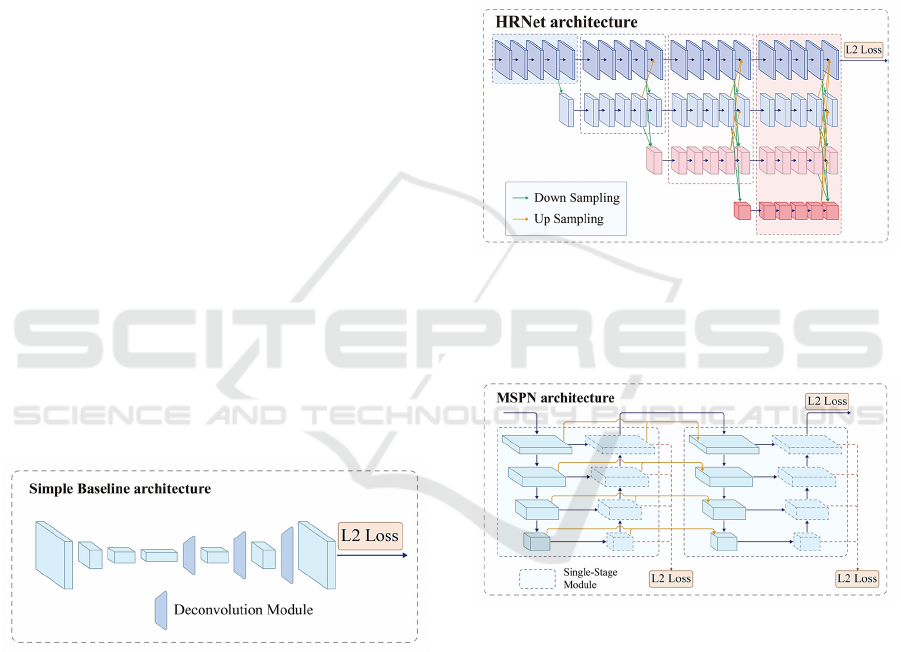

Figure 2: Simple Baseline architecture (Xiao et al., 2018).

3.3 HRNet

HRNet is a multi-stage, multi-branch fusion network

architecture for 2D human pose estimation (Figure 3).

Unlike traditional encoding-decoding architectures,

HRNet maintains high-resolution feature

representations throughout the network, avoiding the

loss of spatial information due to down sampling. The

network consists of multiple parallel sub-networks,

each processing feature information at different levels.

At each stage, multi-level features from different

branches are fused and interact with each other

through cross-connections. As the network

progresses, the high-resolution branch gradually

integrates contextual information from the low-

resolution branch while maintaining the high-

resolution details required for keypoint localization.

Through multi-level feature fusion and refinement,

HRNet realizes the effective combination of global

and local information. In the last stage of the network,

the feature maps of all branches are summarized and

up-sampled to the original resolution of the input

image to generate a heatmap of keypoints.

Figure 3: High-Resolution Network (HRNet) architecture

(Sun et al., 2019).

3.4 MSPN

Figure 4: Multi-Stage Pose Network (MSPN) architecture

(Cai et al., 2020).

MSPN is a multi-stage network structure for 2D

human pose estimation (Figure 4). The network

works by cascading multiple prediction stages, each

of which receives the fusion information of the

feature maps output from the previous stage and the

feature maps at each level of the previous stage.

Through this linking, each stage can optimize the

prediction results from the previous stage, combining

global and local information to refine keypoint

locations. Through iterative optimization over

multiple stages, the network can gradually improve

the accuracy of keypoint localization. To better

Component Replacement Study of 3D Human Pose Estimation Models in Real-World Complex Sports Scenarios: Focusing on Head Impact

Events

instruct the network learning, MSPN introduces

supervised signals at each intermediate stage,

allowing the network to learn the multi-level feature

representations required for the pose estimation task

at different stages. In the final stage, the network

generates a high-resolution heat map of the keypoints

as the final output.

3.5 RSN

RSN is a multi-stage network architecture for 2D

human pose estimation (Figure 5). The network

cascades multiple residual steps to progressively

refine and optimize the prediction of keypoints. Each

RSN module in a residual step shares similarities with

ResNet in its overall structure, but differs from

ResNet in the structure of its component units. The

RSN module consist of multiple Residual Steps

Blocks (RSBs), which divide the input features into

four branches, each with a different number of 3×3

convolutional layers (ranging from zero to three).

Through the dense connected structure of these

branches and 3×3 convolutional layers, the overall

network has access to a wide range of receptive fields,

making it well-qualified to learn delicate

representations of the features, as well as capturing

information about the features at a variety of different

scales. In addition, RSN introduces supervised

signals in the middle of each residual stage, allowing

the network to learn meaningful feature

representations at different stages.

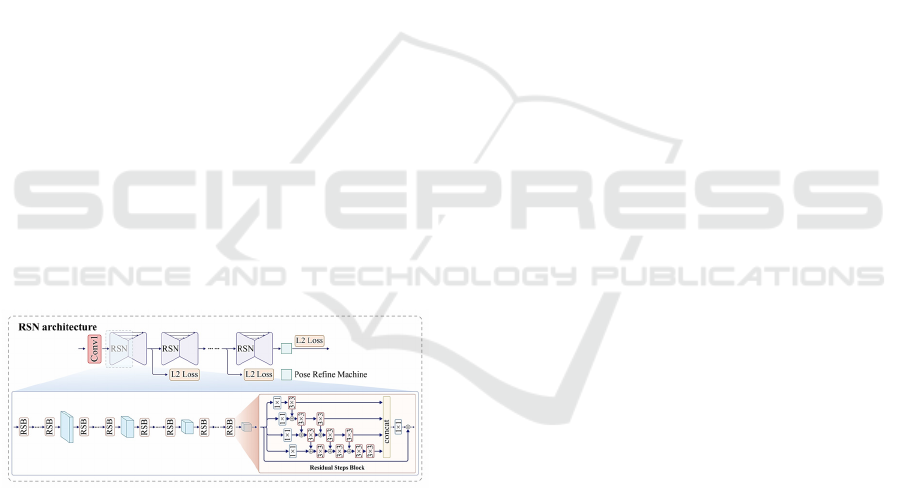

Figure 5: Residual Steps Network (RSN) architecture (Li et

al., 2019).

After RSN undergoes feature fusion within the

RSB and in each residual step, features at different

levels are fused together, which contain both low-

level precise local information and high-level global

information. These features contribute differently to

the final prediction results. To solve this problem,

RSN proposes an efficient attention mechanism, the

pose refine machine (PRM), to weight between the

local and global representations of the output features

to further refine the location of the keypoints, and

ultimately output the keypoint heatmap.

4 EXPERIMENTS

4.1 Test Dataset

To evaluate the proposed human pose estimation

variants in real sports scenarios, we used 15 rugby

game video clips, that were approved by the ethics

committees of Tokyo Medical and Dental University

and Tokyo Institute of Technology. From these clips,

we manually identified 16 significant impact events.

Each event included 21 consecutive frames: 10 pre-

impact, 1 impact, and 10 post-impact frames, totaling

336 impact-related frames, within which 218 target

persons were detected and tracked. After data

cleaning, our final multi-person pose dataset

comprised 3,521 frames.

To create a reference standard for our study, we

undertook a two-step process. First, we manually

labeled 17 keypoints for each athlete in every frame,

ensuring consistency with COCO dataset definitions.

Subsequently, we lifted these 2D keypoint

coordinates to 3D space using our transformer-based

model, creating a comprehensive 3D representation

of each pose. These manually labeled and 3D-lifted

coordinates serve as the ground truth for our analysis.

4.2 Evaluation Metrics

We evaluated each 3D human pose estimation variant

model using three key metrics: Mean per Joint

Positional Error (MPJPE), Procrustes analysis

MPJPE (P-MPJPE), and Mean per Joint Velocity

Error (MPJVE). MPJPE (Ionescu et al., 2013)

measures absolute positional accuracy by calculating

the average Euclidean distance between ground truth

and predicted joint positions. This metric can be used

to evaluate the keypoint localization performance of

models in the context of rapid movements by

assessing the resilience to motion instability, complex

postures, partial occlusions, and background

interference. P-MPJPE (Martinez et al., 2017)

provides a normalized accuracy assessment by

aligning the estimated 3D pose with the ground truth

before error calculation, allowing a fair comparison

of pose estimates at different scales and orientations.

This metric can be used to assess the proficiency of

the model in capturing the overall pose structure and

serves as a key indicator of its ability to interpret

complex postures and adapt to diverse camera

perspectives. MPJVE (Pavllo et al., 2019) employs

the first-order derivative of MPJPE to assess the

temporal smoothness of predicted results. This metric

is particularly crucial for video-based quantification

of head impact velocities, for which consistency in

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support

motion estimation is of paramount importance. These

metrics collectively provide a comprehensive

evaluation of both positional accuracy and temporal

consistency in real-world scenarios, especially for

head impact events in complex sports settings.

4.3 Statistical Analysis

We conducted statistical analyses on the MPJPE, P-

MPJPE, and MPJVE error samples for the four model

variants to identify pairwise significant differences in

performance. Our analysis process began with a

Shapiro-Wilk test to check for normal distribution in

all sample groups, followed by Levene's test to assess

variance consistency between comparison groups.

We then performed Kruskal-Wallis H-tests on the

MPJPE, P-MPJPE, and MPJVE results for all four

models. Statistical significance was set at p-value

<0.05. This comprehensive analysis was used to

thoroughly compare the performance of the four

model variants across all three metrics.

4.4 Implementation Details

In our experiments, the Simple Baseline used ResNet

as the backbone network with a depth of 152 layers.

The initial number of channels of the HRNet model

was set to 48. The MSPN model consisted of 4

cascaded single-stage modules; the overall network

depth was 50 layers. The RSN model consisted of 3

residual steps in cascade; the overall network depth

was 50 layers. Before using the 2D keypoints output

from the four models as input to the 3D model, we

converted the 2D keypoints from COCO format to

H36M format. For 3D pose estimation, the

transformer-based 3D human pose estimation model

used 3 VTE and 3 STE encoder modules with the

number of channels set to 256. The temporal motion

kernel size and stride factor of the STE modules were

set to 3. The receptive field of the model inputs was

27 frames, and the left and right padding operations

were performed on inputs with <27 frames to

compensate for the complete number of frames.

5 RESULTS

In this study, we constructed four 3D human pose

estimation models, each based on a different 2D pose

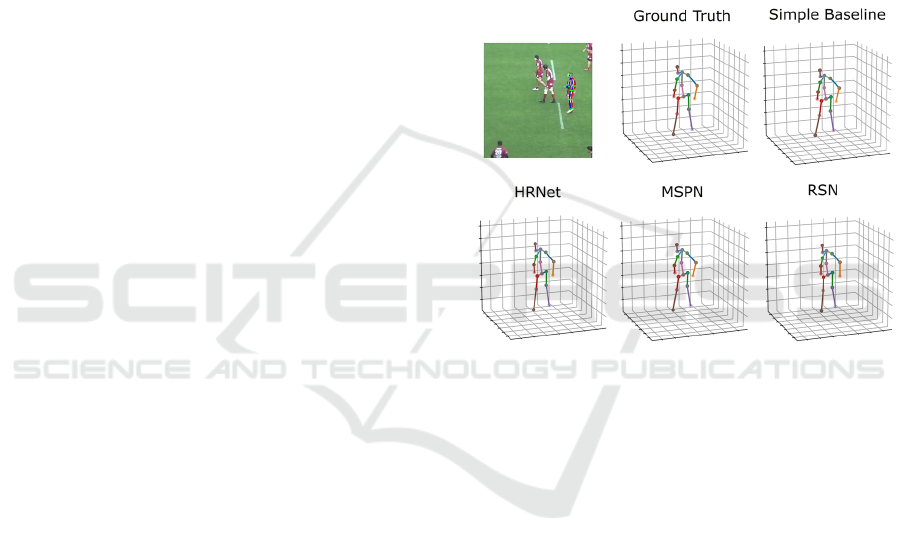

estimation method. An example of the visual results

of the four variant 3D human pose estimation models

on our real-world rugby video dataset are presented

in Figure 6. Table 1 summarizes the quantitative

results of the three metrics for all four models.

The performance of the four variant models varied

across the three metrics. For MPJPE, the MSPN-

based model showed the lowest error (86.12 mm),

closely followed by the RSN model (86.78 mm), with

HRNet and Simple Baseline models showing slightly

higher errors (87.62 mm and 87.55 mm, respectively).

In terms of P-MPJPE, the MSPN model again

outperformed the others with an error of 55.80 mm,

while the remaining models had errors between 56.72

and 57.48 mm. For MPJVE, the MSPN model

performed best (83.92 mm/frame), followed by RSN

(85.27 mm/frame), with Simple Baseline and HRNet

showing slightly higher velocity errors (85.68

mm/frame and 86.22 mm/frame, respectively).

Figure 6: Visual results of four variant 3D human pose

estimation models on real-world rugby video dataset.

To assess the statistical significance of the

observed differences in metrics, we conducted a

series of tests. The Shapiro-Wilk test revealed that

none of the sample groups followed a normal

distribution. Levene's test indicated inconsistent

sample variances for all three metrics across the four

groups. Consequently, we employed the Kruskal-

Wallis H test followed by pairwise comparisons. The

Kruskal-Wallis H test demonstrated significant

differences among the four models for all three

metrics (p<0.05 for MPJPE, P-MPJPE and MPJVE),

indicating that the performance variations between

the models were statistically meaningful.

Real-world sports scenatios are characterized by

dynamic variables such as fluctuating lighting

conditions, intermittent occlusions, and rapid

movement patterns. Such environmental diversity

introduces significant sample heterogeneity,

potentially yielding counterintuitive statistical results.

In these cases, the larger mean differences lack

significance whereas the smaller ones are significant.

Component Replacement Study of 3D Human Pose Estimation Models in Real-World Complex Sports Scenarios: Focusing on Head Impact

Events

To address this concern, our analysis integrated

statistical significance with actual sample values,

aiming for a balanced and accurate interpretation of

the observed data.

As shown in Figure 7, pairwise comparisons

resulted in the following conclusions:

Figure 7: Statistical results of the four models on MPJPE,

P-MPJPE and MPJVE. * p-value <0.05.

 HRNet-based model underperformed Simple

Baseline-based model in MPJPE, P-MPJPE

and MPJVE (all p<0.05).

 MSPN-based model outperformed Simple

Baseline-based model in MPJPE, P-MPJPE

and MPJVE (all p<0.05).

 RSN-based model outperformed Simple

Baseline-based model in MPJPE and MPJVE

but underperformed in P-MPJPE (all p<0.05).

 HRNet-based model underperformed MSPN-

based model in MPJPE, P-MPJPE (although

not statistically significant) and MPJVE

(p<0.05).

 HRNet-based model outperformed RSN-

based model in P-MPJPE (p<0.05) but

underperformed in MPJPE and MPJVE

(although not statistically significant).

 MSPN-based model outperformed RSN-based

model in P-MPJPE and MPJVE (p<0.05), but

showed no significant differences in MPJPE

(p=0.48).

Table 1: MPJPE (mm), P-MPJPE (mm) and MPJVE

(mm/frame) results for the four variant models.

MPJPE P-MPJPE MPJVE

Simple Baseline-

ase

87.55 56.72 85.68

HRNet-

ase

87.62 57.24 86.22

MSPN-

ase

86.12 55.80 83.92

RSN-

ase

86.78 57.48 85.27

6 DISCUSSION

In this study, we employed a multi-stage 3D human

pose estimation model as our base framework. We

created several variant models by systematically

replacing the top-down 2D pose estimator within this

framework and evaluated their performance using

real sports scenario videos. Our comparison focused

on four 3D human pose estimation models, each

utilizing a different 2D pose estimation methodology:

Simple Baseline, HRNet, MSPN and RSN. Through

this approach, we were able to assess the unique

capabilities and limitations of these 2D pose

estimation models when applied to the task of 3D

pose estimation from 2D inputs in complex, real-

world sports scenarios.

The MSPN-based and RSN-based variants

presented superior performance in MPJPE (86.12 mm

and 86.78 mm, respectively). The MSPN-based

variants also performed excellently in terms of the

MPJVE (83.92 mm) and P-MPJPE (55.80 mm)

metrics. The exceptional performance of the MSPN

and RSN models can be attributed to their multi-stage

cascade structure. This architecture enabled iterative

refinement of keypoint locations across multiple

stages, which progressively enhanced localization

accuracy. Moreover, a key feature of MSPN and RSN

is the introduction of supervised signals at each

intermediate stage, which compelled every level of

the network to generate robust and reliable feature

representations, rather than relying solely on the final

output layer. Furthermore, the MSPN and RSN

incorporate a sophisticated multi-level feature fusion

mechanism at each cascade stage, which effectively

integrated local and global features. Global features

provided information about the overall body

configuration to facilitate an understanding of the

relative positions of different body segments.

Concurrently, local features focused on specific

keypoints or joint regions to offer precise localization

details. In addition, the RSB in the RSN model

employs a densely connected structure of branches

and convolutional layers. This structure enabled the

network to obtain a wide receptive field and generate

fine feature representations, while simultaneously

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support

capturing feature information at various scales. These

structural characteristics significantly facilitated the

model's feature representation capabilities, thereby

enhancing both the accuracy and robustness of the

model and allowing the model to locate keypoint

positions more accurately when confronted with fast

movements, complex postures and occlusion

situations.

Despite the strong performance RSN in absolute

keypoint localization, its slightly higher P-MPJPE

(57.48 mm) suggested limitations in capturing the

overall pose configuration. This may stem from an

over-emphasis of local features, leading to an

inadequate understanding of global pose structure.

While the PRM module aimed to balance local and

global features, its placement at the final stage of the

network may limit its ability to compensate for the

local focus of the backbone. The challenge for RSN

lies in effectively utilizing enhanced global

information from deeper network layers while

maintaining sensitivity to local details. Unlike HRNet,

which achieves global-local information fusion

through parallel sub-networks with cross-connected

feature branches, the multi-stage cascade architecture

of RSN faces difficulties in effectively transmitting

and maintaining global information between stages.

Although RSN incorporates mechanisms for global

and local multi-level feature fusion within each

residual step, these connections may be insufficient

for effective inter-stage global information

transmission. The network struggles to fuse deep-

level global features with shallow-level local features

and propagate this fused information through

subsequent refinement stages. To address this, one

potential solution is to enhance global information

transmission across the stages, similar to the cross-

stage global information linking of MSPN. This

approach could ensure more effective transmission

and maintenance of global information throughout

the network, potentially improving the ability of RSN

to capture the overall pose configuration while

retaining its strength in local feature representation.

Simple Baseline performed competitively on P-

MPJPE (56.72 mm) metrics. Unlike the complex

architecture of RSN, which focus on accurate

localization of keypoints but may overlook the overall

pose configuration, simpler structure of Simple

Baseline potentially achieves a better balance

between local accuracy and global consistency in

pose estimation tasks. This balance likely contributes

to its advantages in P-MPJPE. However, the Simple

Baseline model exhibited higher MPJPE (87.55 mm)

and MPJVE (85.68 mm/s) compared to more intricate

architectures such as MSPN and RSN. Although the

simple architecture may offer an improved balance

between local and global features and has advantages

in computational efficiency (Xiao et al., 2018), it

struggled with the challenges prevalent in complex

sports scenarios. Addressing these challenges require

sophisticated model architectures capable of more

nuanced feature extraction and integration.

HRNet presented the highest MPJPE (87.62 mm)

and MPJVE (86.22 mm/frame). Despite its excellent

performance in various computer vision tasks (Liu et

al., 2022), this model encountered limitations in

complex sports scenarios. Its multi-parallel branch

structure, designed to maintain high-resolution

features and facilitate frequent cross-resolution

information exchange, proved crucial for precise

keypoint localization (Sun et al., 2019). However, in

fast movements, owing to image motion blur, the

parallel structure's independent processing of feature

information at each branch of the parallel structure

can lead to spatial inconsistencies in the features.

High-resolution branches may capture the blurred

local features, whereas low-resolution branches retain

more stable global features that are unaffected by

blurring. This disparity can result in spatial

misalignment during feature fusion, ultimately

reducing the localization accuracy. Conversely,

models with serial structures, such as MSPN and RSN,

employ progressive down sampling and up sampling

process This stepwise process maintained spatial

correspondence of features throughout the network,

avoiding the feature fusion misalignment problem in

the HRNet architecture. Moreover, utilizing feature

skip connections between the same level in down

sampling and up sampling can also improve the

sophistication of the feature alignment. Furthermore,

HRNet consistently maintains high-resolution

features throughout its architecture. These high-

resolution features were highly susceptible to

background interference and partial occlusions,

which may also lead to reduced accuracy in the

keypoints localization of HRNet, which is highly

dependent on these high-resolution features. In

addition, during rapid and continuous movements, the

high-resolution features can become unstable due to

motion blur. HRNet's reliance on these volatile

features may also lead to jittery localization results,

thus contributing to its poor performance on MPJVE.

Our results from complex sports scenarios,

particularly athlete head impacts, demonstrated that

the choice of 2D pose estimation method significantly

influenced the overall 3D pose estimation

performance. The MSPN-based model is suitable for

applications requiring high accuracy in keypoint

localization within complex sports scenarios

Component Replacement Study of 3D Human Pose Estimation Models in Real-World Complex Sports Scenarios: Focusing on Head Impact

Events

involving rapid movements, partial occlusions,

background interference and complex postures. RSN

has strength in absolute keypoint localization within

complex sports scenarios but has potential limitations

in capturing the overall pose configuration. The

Simple Baseline model is an efficient choice for

applications that focus on capturing the overall

structures of human poses. However, these models,

along with the HRNet models, exhibited suboptimal

performance in terms of absolute keypoint

localization accuracy and temporal consistency.

Consequently, their applicability to complex sports

scenarios remains limited.

In addressing the challenges of complex sports

scenarios, different model architectures offer distinct

advantages. MSPN and RSN, with their multi-stage

cascading and intermediate supervision strategies,

along with the effective fusion of local and global

features, demonstrated specialized capabilities in

handling the spatial and temporal complexity of

sports poses. RSN's densely connected structure of

RSBs, characterized by multiple branches and

convolutional layers, and MSPN's stage-by-stage

linking of high-level features from its deep layer

network, may contribute to enhanced performance in

complex sports scenarios.

Our study proposed improvement strategies for

3D pose estimation models integrating top-down 2D

models to address challenges in complex sports

scenarios. However, several limitations should be

acknowledged. Primarily, our performance

evaluation was conducted on a specific dataset, which

may limit the generalizability of our results to

different sports scenarios or types. Future research

should expand the scope to investigate model

performance across a wider range of sports activities

and examine the impact of diverse training datasets

on model performance. Furthermore, this study did

not delve into the computational efficiency of the

evaluated models. Given the real-time processing

requirements common in sports applications, future

work should analyse the trade-off between accuracy

and computational cost. This analysis could lead to

the development of strategies for model compression

or optimization techniques, aiming to enhance real-

time performance while maintaining model accuracy.

In addition, our study focused exclusively on 3D

pose estimation models integrating top-down 2D

approaches, which offer high accuracy through

specialized single-person pose estimation techniques

and robustness to noisy backgrounds by isolating

individuals. However, this approach has limitations,

particularly in handling occlusions within the

bounding box of a target person. In contrast, bottom-

up 2D models, which we did not investigate, offer

potential advantages in dealing with partial

occlusions. These models rely less on a complete

understanding of the entire scene, instead employing

a part-to-whole reasoning approach. This

methodology allows for gradual construction of the

overall pose understanding based on visible local

features, potentially yielding more complete

representations even when occlusions are present.

Thus, it may offer more flexibility in significant

occlusion situations due to their ability to piece

together available information from visible parts.

Finally, this study focused on a multi-stage

framework for 3D human pose estimation, which first

estimates 2D poses and then lifts them to 3D. This

approach leverages robust 2D pose estimation

techniques and performs well in human pose

estimations (Liu et al., 2022). However, it has a

critical limitation: its heavy reliance on the accuracy

of 2D pose estimation. Significant errors in the 2D

stage are difficult to correct in the subsequent 3D

lifting process, even with robust algorithms. As deep

learning and computer vision techniques advance,

single-stage methods that predict 3D human poses or

body shapes directly from monocular videos are

evolving (Mehta et al., 2018; Lin et al., 2023). These

methods show promise in overcoming current

limitations, potentially reducing model complexity

and improving generalization capabilities. Future

research directions should include evaluating the

integration of bottom-up 2D pose estimation models

in the multi-stage framework and comparative

analysis of multi-stage and single-stage approaches in

complex sports scenarios, especially in athlete head

impact events. These studies will provide deeper

insights into the strengths and limitations of various

model architectures, paving the way for

advancements in pose estimation techniques tailored

to complex real-world sports scenarios. By exploring

these diverse approaches, researchers will be able to

work towards more robust, efficient, and accurate

pose estimation methods capable of handling the

unique challenges presented in dynamic sports

environments.

7 CONCLUSION

We aimed to investigate the impact of different top-

down 2D pose estimation methods on the

performance of a multi-stage 3D pose estimation

model in complex sports scenarios, especially in

athlete head impact events.

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support

We found that different architectures used for 2D

human pose estimation models have different

advantages in the 3D human pose estimation task in

complex sports scenarios: multi-stage cascading and

intermediate supervision (MSPN and RSN), stage-

by-stage linking of high-level features in deep layer

network (MSPN), fusion of local and global features

(MSPN and RSN), and densely connected structure

with branches and diverse convolutional layers

(RSN). Based on these findings, we concluded that

the choice of 2D pose estimation method and their

network architectures have a significant effect on the

performance of 3D pose estimation in complex sports

scenarios, and that different models and architectures

are suitable for different application scenarios.

These findings provide strategies for improving

3D pose estimation models and insights and future

perspectives for the development of robust and

efficient 3D human pose estimation algorithms for

complex real-world sports scenarios.

ACKNOWLEDGEMENTS

This work was supported by JST SPRING, Japan

Grant Number JPMJSP2106.

REFERENCES

Liu, W., Bao, Q., Sun, Y., & Mei, T. (2022). Recent

advances of monocular 2d and 3d human pose

estimation: A deep learning perspective. ACM

Computing Surveys, 55(4), 1-41.

Xiao, B., Wu, H., & Wei, Y. (2018). Simple baselines for

human pose estimation and tracking. In Proceedings of

the European conference on computer vision (ECCV)

(pp. 466-481).

Ren, S., He, K., Girshick, R., & Sun, J. (2015). Faster r-cnn:

Towards real-time object detection with region

proposal networks. Advances in neural information

processing systems, 28.

Sun, K., Xiao, B., Liu, D., & Wang, J. (2019). Deep high-

resolution representation learning for human pose

estimation. In Proceedings of the IEEE/CVF

conference on computer vision and pattern recognition

(pp. 5693-5703).

Cai, Y., Wang, Z., Luo, Z., Yin, B., Du, A., Wang, H., ... &

Sun, J. (2020). Learning delicate local representations

for multi-person pose estimation. In Computer Vision–

ECCV 2020: 16th European Conference, Glasgow, UK,

August 23–28, 2020, Proceedings, Part III 16 (pp. 455-

472). Springer International Publishing.

Li, W., Wang, Z., Yin, B., Peng, Q., Du, Y., Xiao, T., ... &

Sun, J. (2019). Rethinking on multi-stage networks for

human pose estimation. arXiv preprint

arXiv:1901.00148.

Bryan, M. A., Rowhani-Rahbar, A., Comstock, R. D., &

Rivara, F. (2016). Sports-and recreation-related

concussions in US youth. Pediatrics, 138(1).

Giza, C. C., & Hovda, D. A. (2001). The neurometabolic

cascade of concussion. Journal of athletic training,

36(3), 228.

Courtney, A., & Courtney, M. (2015). The complexity of

biomechanics causing primary blast-induced traumatic

brain injury: a review of potential mechanisms.

Frontiers in neurology, 6, 221.

McKee, A. C., Stein, T. D., Nowinski, C. J., Stern, R. A.,

Daneshvar, D. H., Alvarez, V. E., ... & Cantu, R. C.

(2013). The spectrum of disease in chronic traumatic

encephalopathy. Brain, 136(1), 43-64.

Ji, S., Zhao, W., Ford, J. C., Beckwith, J. G., Bolander, R.

P., Greenwald, R. M., ... & McAllister, T. W. (2015).

Group-wise evaluation and comparison of white matter

fiber strain and maximum principal strain in sports-

related concussion. Journal of neurotrauma, 32(7),

441-454.

Camarillo, D. B., Shull, P. B., Mattson, J., Shultz, R., &

Garza, D. (2013). An instrumented mouthguard for

measuring linear and angular head impact kinematics in

American football. Annals of biomedical engineering,

41, 1939-1949.

Madhukar, A., & Ostoja-Starzewski, M. (2019). Finite

element methods in human head impact simulations: a

review.

Annals of biomedical engineering, 47(9), 1832-

1854.

Cortes, N., Lincoln, A. E., Myer, G. D., Hepburn, L.,

Higgins, M., Putukian, M., & Caswell, S. V. (2017).

Video analysis verification of head impact events

measured by wearable sensors. The American journal

of sports medicine, 45(10), 2379-2387.

Camarillo, D. B., Shull, P. B., Mattson, J., Shultz, R., &

Garza, D. (2013). An instrumented mouthguard for

measuring linear and angular head impact kinematics in

American football. Annals of biomedical engineering,

41, 1939-1949.

Wu, L. C., Nangia, V., Bui, K., Hammoor, B., Kurt, M.,

Hernandez, F., ... & Camarillo, D. B. (2016). In vivo

evaluation of wearable head impact sensors. Annals of

biomedical engineering, 44, 1234-1245.

King, D., Hume, P. A., Brughelli, M., & Gissane, C. (2015).

Instrumented mouthguard acceleration analyses for

head impacts in amateur rugby union players over a

season of matches. The American journal of sports

medicine, 43(3), 614-624.

Li, W., Liu, H., Ding, R., Liu, M., Wang, P., & Yang, W.

(2022). Exploiting temporal contexts with strided

transformer for 3d human pose estimation. IEEE

Transactions on Multimedia, 25, 1282-1293.

Redmon, J., Divvala, S., Girshick, R., & Farhadi, A. (2016).

You only look once: Unified, real-time object detection.

In Proceedings of the IEEE conference on computer

vision and pattern recognition (pp. 779-788).

Component Replacement Study of 3D Human Pose Estimation Models in Real-World Complex Sports Scenarios: Focusing on Head Impact

Events

Jocher, G., Chaurasia, A., & Qiu, J. (2023). Ultralytics

YOLO (Version 8.0.0) [Computer software].

https://github.com/ultralytics/ultralytics

Rogez, G., Weinzaepfel, P., & Schmid, C. (2019). Lcr-

net++: Multi-person 2d and 3d pose detection in natural

images. IEEE transactions on pattern analysis and

machine intelligence, 42(5), 1146-1161.

Moon, G., Chang, J. Y., & Lee, K. M. (2019). Camera

distance-aware top-down approach for 3d multi-person

pose estimation from a single rgb image. In

Proceedings of the IEEE/CVF international conference

on computer vision (pp. 10133-10142).

Cao, Z., Simon, T., Wei, S. E., & Sheikh, Y. (2017).

Realtime multi-person 2d pose estimation using part

affinity fields. In Proceedings of the IEEE conference

on computer vision and pattern recognition (pp. 7291-

7299).

Newell, A., Yang, K., & Deng, J. (2016). Stacked

Hourglass Networks for Human Pose Estimation.

European Conference on Computer Vision.

Aharon, N., Orfaig, R., & Bobrovsky, B. Z. (2022). BoT-

SORT: Robust associations multi-pedestrian tracking.

arXiv preprint arXiv:2206.14651.

Toshev, A., & Szegedy, C. (2014). Deeppose: Human pose

estimation via deep neural networks. In Proceedings of

the IEEE conference on computer vision and pattern

recognition (pp. 1653-1660).

Carreira, J., Agrawal, P., Fragkiadaki, K., & Malik, J.

(2016). Human pose estimation with iterative error

feedback. In Proceedings of the IEEE conference on

computer vision and pattern recognition (pp. 4733-

4742).

Wei, S. E., Ramakrishna, V., Kanade, T., & Sheikh, Y.

(2016). Convolutional pose machines. In Proceedings

of the IEEE conference on Computer Vision and

Pattern Recognition (pp. 4724-4732).

Cheng, B., Xiao, B., Wang, J., Shi, H., Huang, T. S., &

Zhang, L. (2020). Higherhrnet: Scale-aware

representation learning for bottom-up human pose

estimation. In Proceedings of the IEEE/CVF

conference on computer vision and pattern recognition

(pp. 5386-5395).

Pavllo, D., Feichtenhofer, C., Grangier, D., & Auli, M.

(2019). 3d human pose estimation in video with

temporal convolutions and semi-supervised training. In

Proceedings of the IEEE/CVF conference on computer

vision and pattern recognition (pp. 7753-7762).

Pavlakos, G., Zhou, X., Derpanis, K. G., & Daniilidis, K.

(2017). Coarse-to-fine volumetric prediction for single-

image 3D human pose. In Proceedings of the IEEE

conference on computer vision and pattern recognition

(pp. 7025-7034).

Ionescu, C., Papava, D., Olaru, V., & Sminchisescu, C.

(2013). Human3. 6m: Large scale datasets and

predictive methods for 3d human sensing in natural

environments. IEEE transactions on pattern analysis

and machine intelligence, 36(7), 1325-1339.

Martinez, J., Hossain, R., Romero, J., & Little, J. J. (2017).

A simple yet effective baseline for 3d human pose

estimation. In Proceedings of the IEEE international

conference on computer vision (pp. 2640-2649).

Mehta, D., Sotnychenko, O., Mueller, F., Xu, W., Sridhar,

S., Pons-Moll, G., & Theobalt, C. (2018, September).

Single-shot multi-person 3d pose estimation from

monocular rgb. In 2018 International Conference on

3D Vision (3DV)

(pp. 120-130). IEEE.

Lin, J., Zeng, A., Wang, H., Zhang, L., & Li, Y. (2023).

One-stage 3d whole-body mesh recovery with

component aware transformer. In Proceedings of the

IEEE/CVF Conference on Computer Vision and

Pattern Recognition (pp. 21159-21168).

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support
