Performing Entity Relationship Model Extraction from Data and

Schema Information as a Basis for Data Integration

Philipp Schmurr

, Andreas Schmidt

, Karl-Uwe Stucky

, Wolfgang Suess

and

Veit Hagenmeyer

Institute for Automation and Applied Informatics, Karlsruhe Institute of Technology, Kaiserstr. 12, Karlsruhe, Germany

{philipp.schmurr, andreas.schmidt, karl-uwe.stucky, wolfgang.suess, veit.hagenmeyer}@kit.edu

Keywords:

Entity Relationship Model, Model Extraction, Data Integration, Structural Metadata, FAIR Principles.

Abstract:

The goal of this work is to allow domain experts to properly perform data integration themselves and not to

rely on external resources. This way the long-term data integration quality is not endangered and therefore cost

for external resources can be saved. To achieve this, we propose a new approach that enables data integration

based on entity-relationship (ER) models derived from arbitrary data sources. ER models are abstract and

simply deﬁne all entities and relations needed for integration, which makes them easy to understand. Strategies

to extract ER models from various standard data sources - relational databases, XML ﬁles and OWL data -

are presented and a concept on how to extend it to arbitrary other data sources is introduced. Furthermore,

the extracted models are a foundation to perform graphical data integration into an ontology based model and,

thus, contribute to a harmonized knowledge management in heterogeneous data and information environments.

It can be summarized as a strategy to improve the interoperability of existing data according to the FAIR

principles.

1 INTRODUCTION

Whenever a new use case or project is started in in-

dustry, it usually requires gathering and integrating

data from various sources to be able to achieve the

intended goal. This can include internal or external

data that is probably stored in multiple different in-

formation systems, ﬁle formats, and locations.

Especially with limited budget and staff members,

data integration is performed manually to collect and

transform the data as needed for the new project. In

more advanced projects, data integration is done us-

ing available solutions that provide an automated and

repeatable way for data integration. Data integration

solutions often require internal data modeling experts

or an outsourcing to external contractors. For cost

reasons, the solutions are often simpliﬁed as much as

possible, so that they hardly comply to the state of the

art.

The energy domain is particularly affected by in-

https://orcid.org/0009-0004-2324-7839

https://orcid.org/0000-0002-9911-5881

https://orcid.org/0000-0002-0065-0762

https://orcid.org/0000-0003-2785-7736

https://orcid.org/0000-0002-3572-9083

sufﬁcient data integration. The energy transition re-

quires more and more data-driven solutions, but espe-

cially smaller power companies do not have the nec-

essary data experts yet. Moreover, software - similar

to hardware - is mainly delivered as turnkey solutions

with proprietary data models, formats and interfaces.

In this context, the vendor lock-in is a considerable

disadvantage, e.g. because the available interfaces to

communicate with other software are hard to under-

stand. Another challenge is that the energy system is a

critical infrastructure and therefore all kinds of cloud

solutions are not feasible. On the other hand, many

software systems in the energy domain have origi-

nally been designed by electrical engineers as tools

to support their daily work. Those tools have then

evolved into software products that still have many

legacy issues from a bygone era. As a result of the

above reasons, the energy domain has many custom

and legacy data sources and tools that are harder to

integrate compared to other domains. The statements

made above are based on our previous working expe-

rience in the energy industry.

Due to the mentioned conditions, we perceive it

is a key characteristic of a data integration solution

to be usable by energy domain experts without exter-

nal assistance. As a solution we introduce FAIRlead,

316

Schmurr, P., Schmidt, A., Stucky, K., Suess, W. and Hagenmeyer, V.

Performing Entity Relationship Model Extraction from Data and Schema Information as a Basis for Data Integration.

DOI: 10.5220/0013012600003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 3: KMIS, pages 316-322

ISBN: 978-989-758-716-0; ISSN: 2184-3228

a concept for a data integration and management sys-

tem for the energy domain. It will be open source and,

therefore, especially tailored for smaller budgets. The

relevant characteristics of FAIRlead are the following:

• Data integration is performed with a graphical

user interface that is based on conceptual entity-

relationship (ER) models (Chen, 1976) of the in-

put data sources.

• The user interface shall be easy to understand and

works the same for all kinds of data sources.

• The ER models are semi automatically extracted

from data sources and allow the user to improve

or correct the model if necessary.

• The integration target model is based on ontolo-

gies.

• We will employ code generation methods on the

created target ontology to simplify the access to

the mapped data.

So in this paper, we demonstrate the ﬁrst step nec-

essary for the approach depicted above: a strategy to

extract ER models from data directly, thereby using

structural metadata if available. It is important to state

that the user will have the ﬁnal control on improv-

ing or correcting the generated ER model. To demon-

strate our concept, we present the extraction process

for relational databases, XML ﬁles, OWL data sets

and a proprietary text-based ﬁle format from the en-

ergy domain. For the demonstration we are using

the Mondial database (May, 1999) which is available

in the mentioned formats, as well as a scenario ﬁle

(RAW) from the Siemens PSS®E power system sim-

ulator.

The present paper is organized as follows: in Sec-

tion 2 we present related work on extracting mod-

els from metadata and data. Then, in Section 3, we

present the data sources on which our experiments are

based. The basic concepts of extracting the compo-

nents of an ER model from different data sources are

explained in Section 4. In Section 5, we then present

initial results of the model extraction tools we have

developed so far. In Section 6 we summarize our re-

sults and formulate an outlook for future research.

2 RELATED WORK FOR MODEL

EXTRACTION

Extraction or reverse engineering of models has al-

ready been done on several types of data:

For spreadsheet data there exist several publi-

cations around the extraction of ClassSheet models

(Cunha et al., 2010). Those models can be integrated

into a spreadsheet ﬁle directly (Cunha et al., 2012)

and can also be compared against relational schemas

(Cunha et al., 2016).

The detection of what table headers are, as well

as the recognition of relations between the tables is a

key beneﬁt of the proposed ClassSheet implementa-

tions. We have attempted to integrate those features

from the available open source code, but struggled

with the more than a decade old code base. More-

over, the implementation only focuses on Open Ofﬁce

spreadsheets which is a harsh limitation.

Relational databases also have been target of

model extraction work before. Chiang et al. have pre-

sented an approach to extract an extended entity rela-

tionship (EER) model from a given database (Chiang

et al., 1994b) and later also investigated the perfor-

mance of their approach (Chiang et al., 1994a). Later

Alalﬁ et al. have published a solution to extract the

EER model and to export it to a UML diagram in the

XML meta interchange format (XMI) (Alalﬁ et al.,

2008).

The logic to extract the concepts of an ER model

(entities, attributes, relations, cardinalities) proposed

in those works, is reused in a similar form in our so-

lution.

However, we have focused on a more lightweight

semantic representation of the ER model compared to

those papers. So for us, the diagram can be generated

from our ER representation, but it is not the primary

representation.

The next big group of model extraction papers tar-

gets the extraction of data from XML ﬁles as well

as their existing schema representations (for example

Document Type Deﬁnition (DTD)). One approach to

extract a DTD from XML data is presented by Siau

et al. (Siau et al., 2011). This approach even creates

a new graph format they call Extended DTD Graph.

Moreover, the approach employs techniques to ﬁnd

out relations between elements that are based on

ID/IDREF(s) relationships and not just the hierarchi-

cal structure of the document. Kl

ımek et al. created

a survey of approaches to extract schema information

from XML data also including further schema formats

as XML schema (XSD), RelaxNG and schematron

(Kl

ımek and Ne

cask

y, 2010). Finally, the extraction

of ER models from DTDs is presented by both Yang

(Yang et al., 2004) and Mello (Mello and Heuser,

2001). The ﬁrst aims to improve existing DTDs since

they are hard to read and understand. The ER rep-

resentation is therefore used as a means to improve

understandability. This follows the same basic idea as

our approach to make data integration more approach-

able for domain experts. The approach from Mello

employs a rule set to extract a canonical conceptual

Performing Entity Relationship Model Extraction from Data and Schema Information as a Basis for Data Integration

317

model in an ontological representation and then also

utilizes it for a semantic integration solution that fo-

cuses on XML data. The basic idea of conceptual

model extraction for integration purposes is similar in

our approach and we consider the idea to represent the

conceptual model with an ontology for the future. We

apply the concepts presented in these papers to extract

the ER models from a DTD source. A newer approach

by Della Penna et al. was proposed to extract an ER

model also from XML schema (XSD) (Della Penna

et al., 2006). Our implementation does follow a sim-

ilar approach when working with a dataset that pro-

vides XSD information. In general, our solution can

utilize existing software for either DTD or XSD ex-

traction as a pre-processing step to utilize the beneﬁts

of an available DTD or XSD schema compared to di-

rectly extracting an ER model from XML data alone.

Lastly, the extraction of ER models from data

represented in the Resource Description Framework

(RDF) is an area of interest. However, RDF based

data usually has an ontology (mostly in Web Ontol-

ogy Language (OWL) format) as a model which is al-

ready an integration ready way of representing a data

structure. The terms conceptual model (ER models

are conceptual models) and ontology often appear to-

gether, both as a means to understand the domain be-

fore creating an ontology (Gomez-Perez et al., 2000)

and also to use ontologies (e.g. the Uniﬁed Founda-

tional Ontology (UFO)) to properly deﬁne the seman-

tics of a conceptual model that is built for a new infor-

mation system (Guizzardi, 2005). The latter approach

is called ontology-based conceptual modelling.

To actually extract conceptual models from on-

tologies El-Ghalayini et al. proposed a rule based

approach that was intended to later merge multiple

conceptual models into one overarching conceptual

model of a target domain (El-Ghalayini et al., 2005).

A similar rule based approach was presented by Han

et al. that directly focused on ER models (Han et al.,

2010) and also used OWL while El-Ghalayini did still

work with the OWL predecessors. Our presented so-

lution is similar to those two, but puts more detail into

also understanding the restrictions and cardinalities of

the input ontology.

Last but not least, there is the Conceptual Model

Ontology (CMO) (McCusker et al., 2011) that pro-

vides the possibility to annotate other ontologies with

conceptual model concepts. One of the goals of the

CMO is also to allow integration of different data

sources, but rather by allowing to use a common

natural language terminology to query different data

sources. This only works if the concepts have already

been annotated with the additional triples, while our

approach tries to aid the process of creating the inte-

gration mapping instead.

3 DEMONSTRATION DATA SETS

The Mondial database

is a collection of data about

the world - more precisely countries, cities and ge-

ographic features like mountains, lakes or rivers, as

well as some demographic features like economy, re-

ligions and ethnic groups.

We selected it as one of the data sets for this pub-

lication due to the availability in several data formats

and because it is more than just a trivial example, con-

taining more than 15 entities and more than 20 indi-

vidual relations. Also, it includes different concepts

that are relevant for ER models like the differentiation

between weak and strong entities, key attributes and

all sorts of different relation cardinalities. Moreover,

it provides a reference ER model that we can compare

our results against.

Since we focus our work on the energy domain

and also claim to support arbitrary data sources, we

also include the SAVNW example power grid model

from the Siemens PSS®E power system simulator in

RAW format. This model represents the topology and

component attributes of an electrical power grid. It

is serialized as a text ﬁle that can be interpreted as a

set of different tables, one for each power grid ele-

ment type like busbars, transformers and generators.

The serialization may contain comments for the col-

umn labels, but this is not mandatory. So without any

particular inputs about the structure of the ﬁle format

the ER model will not be able to extract anything else

than a set of enumerated tables and a set of enumer-

ated attributes. This scenario is a good example that

needs to leverage additional user inputs about the ER

model.

4 ER MODEL EXTRACTION

This Section will give a brief overview on the compo-

nents of an ER model and how they can be extracted

from various data source types. This is mostly limited

to the important keywords to look for with a certain

data type. The works referenced in the related work

section can give more detailed instructions on how to

perform the necessary extraction steps.

ER models are used to create an abstract repre-

sentation of the most important concepts and rela-

tionships while building a database model. It helps

https://www.dbis.informatik.uni-goettingen.de/Mondi

al/

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

318

to clarify the required capabilities of a model before

transforming it into a physical set of tables and con-

straints in a database system. ER models basically

consist of entity types, relation types, their cardinali-

ties and attribute types.

There are several common notations to visualize

ER models as diagrams. The notation used in the this

paper is the Chen notation (Chen, 1976). Example

diagrams can be seen in Figure 1 which will be ex-

plained in more detail in Section 5. In general, entity

types are depicted as rectangular boxes, while rela-

tion types use a diamond shape. Attribute types use

an oval shape and cardinalities are applied as labels to

the edges between entity types and relation types.

Double-lined rectangles or diamonds indicate ei-

ther so-called weak entity types or identifying rela-

tionship types respectively. This is a special way of

indicating that the weak entity can not exist without

the entity connected via the identifying relationship.

The usage of the term entity is sometimes not pre-

cisely clear. In order to be precise the following rules

apply: An entity is the instance of an entity type and

all entity instances form an entity set. An ER diagram

does only depict entity types, so in natural language it

can happen that the words ”type” and ”set” are omit-

ted when talking about ER models. This effectively

means that the word ”entity” is used synonymously

for all of them.

4.1 Entities

Entities are often the most simple component to ex-

tract from any data source. For any tabular data like

a set of CSV ﬁles or a relational database, the enti-

ties are usually reﬂected by the tables. However, ta-

bles can also represent n : m relations, which requires

some rules to check both the table’s foreign and pri-

mary keys (in a relational database). In CSV based

data there is not direct clue that can be used to deter-

mine if a table is a relation or not. For OWL data the

entity types are usually represented by the owl:Class

type, so the entities are the instances of that class re-

spectively. Depending on the used OWL model it is

important to use a reasoner that ﬁlls in missing class

deﬁnitions from rdfs:subClassOf predicates.

In XML an entity is represented by an element that

has attributes or does contain child elements (called

complexType in XSD). Lastly, in hierarchical object

notations like JSON all objects are considered an en-

tity. Therefore, the ER diagram does contain one rect-

angle per entity set respectively. The decision what

type an entity belongs to can be difﬁcult (e.g. if there

can be optional values that are not present in every

object). If there is schema information available, it

becomes much easier to assign objects to their respec-

tive entity type.

4.2 Relations

Whenever an entity refers to one or more other entities

this is usually done with a relation.

In object notations this can either be a property

that has another object as its value or its value is a

reference to some kind of ID attribute. In OWL we

have the dedicated owl:ObjectProperty concept that

speciﬁes a relation between entities. There it is nec-

essary to correctly track the domains and ranges of

the respective property to see what entities can actu-

ally be connected with this relation. For tabular data

and relational databases it is harder to recognize re-

lations. Generally a foreign key constraint in a re-

lational database represents a relation. However, it

was mentioned above that sometimes a table can also

represent a relation. So to make a decision it is re-

quired to examine the foreign and private key con-

straints. For bare table data (e.g. CSV) without any

modeled key constraints, a strategy to ﬁnd potential

relation types is to check for common naming patterns

that involve for example ID columns in each table and

a combination with the table name in others (e.g. En-

tityB has a column EntityA ID). However, in these

cases it is often better to just have the user correct the

extracted ER model to contain proper relations.

4.3 Cardinalities

In order to carry the intended meaning, relations re-

quire quantity constraints that apply between the con-

nected entities. For plain table data this is almost im-

possible to tell without any additional schema infor-

mation. So, again this is one of the points that re-

quire the user to be able to correct the model with

their knowledge.

Relational database schemas allow to infer car-

dinalities through their modeling patterns and con-

straints. In OWL there is the owl:Restriction concept

as well as the exact, max and min cardinality predi-

cates that can apply to an ObjectProperty and the do-

main (and sometimes even range) in question. How-

ever, if there is no inverse property deﬁned there is

no clear indication for the second half of the relation

cardinality, as one property only deﬁnes the cardinal-

ity on the domain side. For hierarchical object nota-

tions there is no precise solution to extract cardinali-

ties without an additional schema that speciﬁes them.

For XSD these are the minOccurs and maxOccurs at-

tributes on the element. In JSON schema, cardinali-

ties can be inferred from arrays if there are allowed

Performing Entity Relationship Model Extraction from Data and Schema Information as a Basis for Data Integration

319

element counts and for an object property it can be

speciﬁed if it is required or not.

4.4 Attributes

In relational databases, all attributes that are not used

in the deﬁnition of foreign key constraints can be con-

sidered as attributes in the context of an ER model.

In simple table based data, the attributes are all the

columns that do not qualify to be part of a relation.

In OWL there is the dedicated owl:DatatypeProperty

concept for the purpose of encoding attributes. For

object notations all primitive properties can be con-

sidered attributes, if they are not a reference to an-

other entity’s ID. In XML, elements without XML at-

tributes and only a primitive content as well as XML

attributes are typically regarded as attributes of the ER

model.

5 EXAMPLES FROM THE

FAIRlead ER MODEL

EXTRACTION

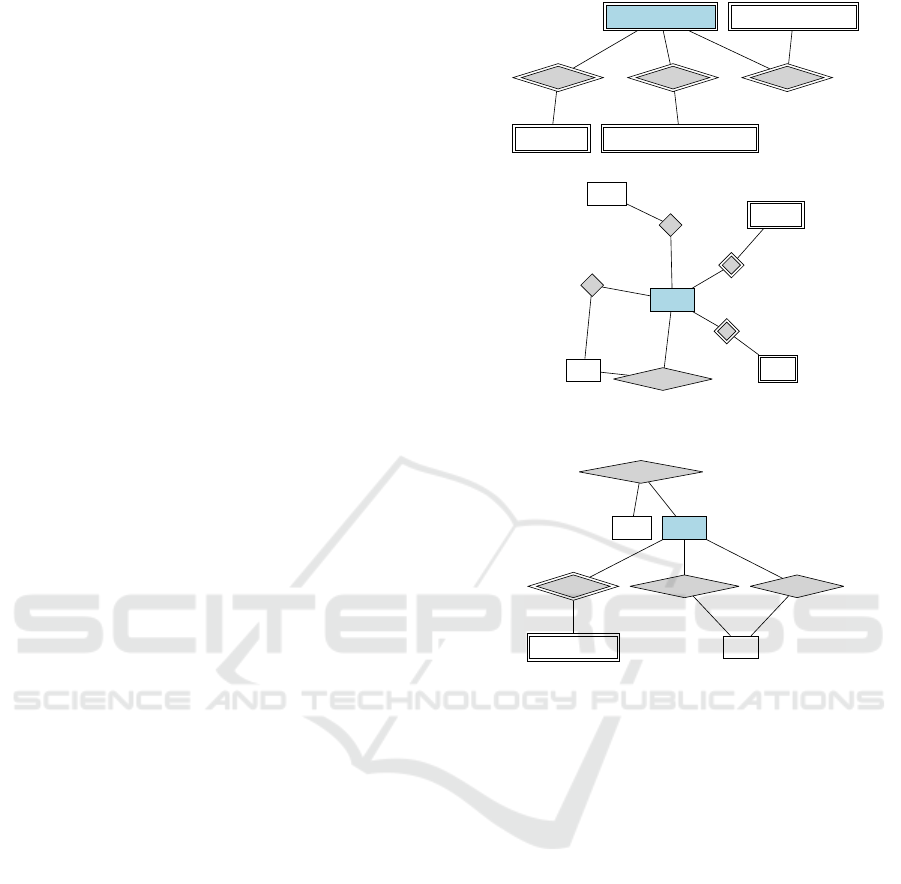

Figure 1 shows the ER diagram of the province entity

in three versions. It uses the mondial XML data set.

The upper version is extracted without including any

additional schema information. The second version

does then include information from the ofﬁcial mon-

dial DTD ﬁle. And the last version is generated using

the ofﬁcial XSD ﬁle.

Several differences can be observed between the

three strategies. First, the version without any

schema information does use the entity name mon-

dial/country/province which is our solution’s way of

compound naming the province entity type to indicate

the hierarchical position of the entity set within the

XML ﬁle. This is the case, because without schema

information it might be possible to encounter different

province instances at different positions in the XML

tree and could not guarantee that they are equal. The

mondial/country/province/city entity type is an exam-

ple of this - also occurring as mondial/country/city if

it does not belong to any province. This one or none

relation can even be seen in the third diagram at the

citytoprov relation that is derived from a xsd:keyref

between the two entities.

In the lower two diagrams we see province to be

an independent entity, which is guaranteed by either a

xsd:key in XSD or an ID type in DTD. Additionally,

the relations in the lower diagrams can have different

names, while without a schema the only relation is Is-

Child, which reﬂects the hierarchical structure of the

mondial/country/province

IsChild

mondial/country

mondial/country/province/city

mondial/country/province/population

city

capital

country

name

population

province

provtocountry

country

province

IsChild

capitaltocity

citytoprov

province/population

city

1 n

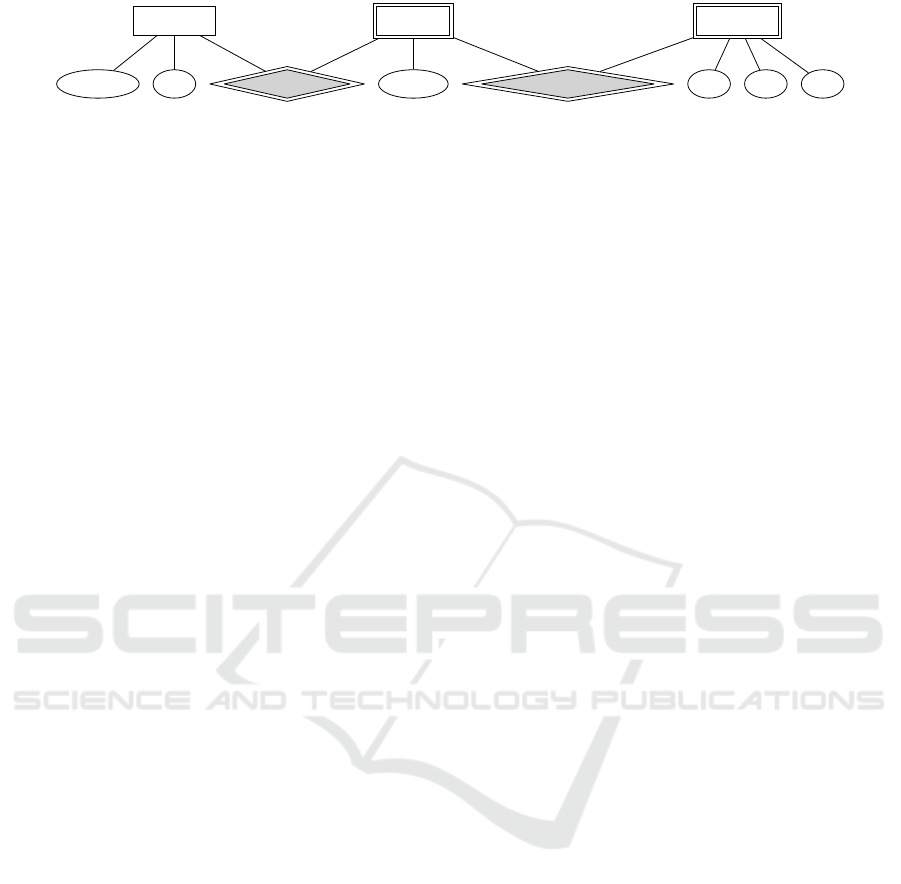

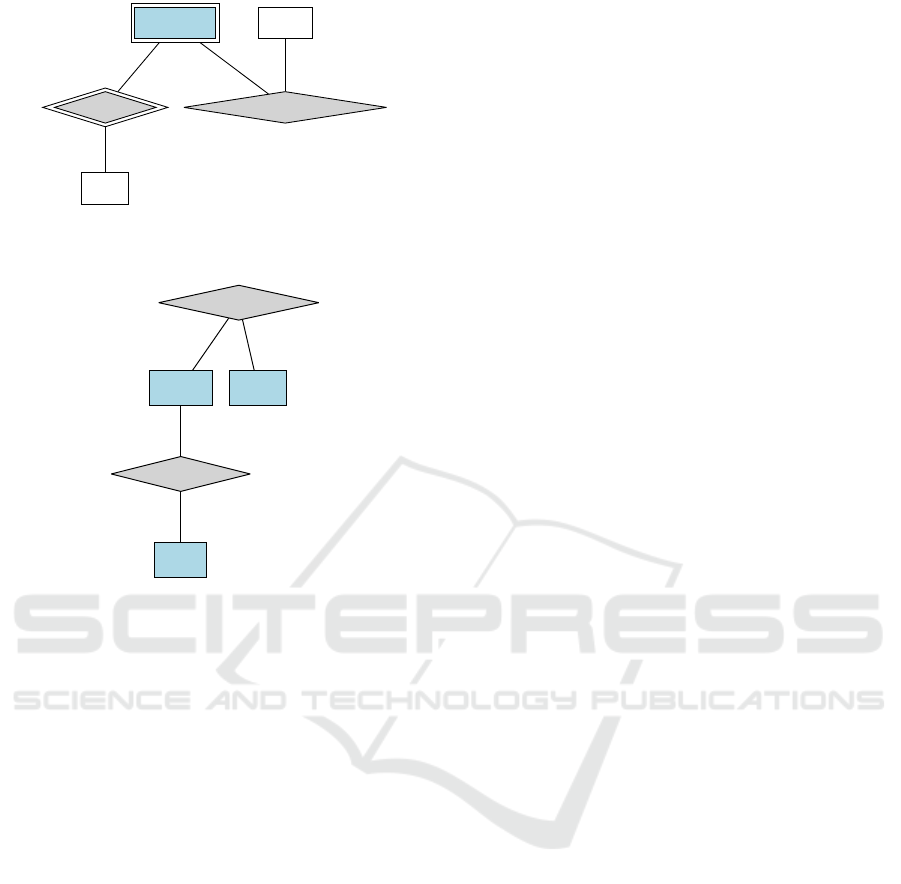

Figure 1: ER extraction of the province entity from Mondial

XML data in three processing types.

XML document. Overall, it seems the XSD version

is the most accurate one - but for many other enti-

ties the quality of the model lacks behind the schema

information available from a relational or ontological

model.

An example for the lacking quality that is based on

the modeling decisions in the XSD ﬁle can be seen in

Figure 2. It shows, a pattern that can often be seen in

the model extracted from the XSD. The highlighted

entity river/located can also be seen as a relation it-

self. For this kind of scenario it might be possible to

contract the resulting ER diagram and produce an n

to n relation located. This is something that we might

consider in the future to optimize certain patterns in

the resulting ER diagram independent of the original

data source.

Looking at Figure 3 is a nice example of how car-

dinalities can be extracted from OWL data. The is-

BorderOf relation is correctly reﬂected as a 2 to n re-

lationship. Moreover, the locatedIn relation has no

restrictions in OWL, so it correctly is depicted as a

many-to-many relationship.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

320

river/located

IsChild

locatedtocountry

river

country

Figure 2: Extracted ER model from the XSD schema that

could be contracted with a post-processing step.

isBorderOf

Country

Border

locatedIn

Sea

Figure 3: Extracted ER model of the OWL data set that

showcases the cardinality possibilities in an ontology.

Considering the PSS®E data set, the matter is

more complicated. The ﬁle theoretically can include

structural metadata in the form of comments, but that

is not mandatory to be a valid ﬁle. Depending on

the source the ﬁle was received from, these comments

might not be available. So in the worst case scenario,

an extracted ER model might contain no information

on table and column names. So after some quick pre-

processing to split the RAW ﬁle into a set of CSV

ﬁles, the only information for the ER model avail-

able is a set of entities named Table1 to TableN. Each

of those entities will have a set of attributes named

Column1 to ColumnN respectively. At that point it is

mandatory, to allow the user to edit this extracted ER

model. It might be enough to just correct the bits and

pieces that are later relevant for the data integration

step. An example of such a user corrected ER model

can be seen in Figure 4.

Finally, it must be noted that none of the extracted

models exactly matches the original ER diagram of

the mondial database. A reason for this are the spe-

ciﬁc modeling decisions that have been made to create

the respective physical models, that do not allow for

an exact reconstruction. In general, this is not a prob-

lem for the target purpose of performing data integra-

tion. In our approach the domain expert that knows

the data sources is the same person that shall perform

the visual data integration. This means as long as the

ER representation is reﬂecting the data source more

or less accurately the user will be able to make sense

of it.

However, there are extreme cases like the XML

ﬁle with no schema information or the PSS®E data

set as well as the cases where relations have been de-

tected as entities. In those examples, it may not be

possible to infer any useful ER model. In that regard

the presented approach is semi automatic and the user

needs to introduce corrections to the ER model. This

has been shown as an example with the PSS®E data

set and the ER model in Figure 4.

6 CONCLUSION AND FUTURE

WORK

With our data integration and management solution

FAIRlead, we want to enable domain experts to per-

form data integration in a way that improves the

FAIRness of their existing data. As a ﬁrst step of

this solution, we have presented an open-source tool

that allows the extraction of ER models from various

data sources that can be reused for future data inte-

gration efforts. Moreover, additional data sources can

be integrated in the model extraction either by imple-

menting a new converter or by converting the input

data to an already supported format. Many potential

data sources can likely be transformed into one of the

presented ER model extraction solutions with a small

pre-processing step. With the example of the PSS®E

RAW ﬁle, it has become clear that the user must be

able to improve the extracted ER model, because the

ﬁle can technically come without any structural meta-

data.

Finding an appropriate solution for the model cor-

rections and also to allow visual editing of the ex-

tracted schema is one of our future steps. Moreover,

we will continuously improve the current implemen-

tation, to produce accurate ER models according to

the given input data. This for example includes the

integration of existing schema generation tools into

the process (e.g. to generate a DTD out of XML data

before processing it).

Based upon the FAIRlead ER model extraction

strategies presented in this paper, we will create a GUI

that allows to perform data integration from multiple

heterogeneous data sources using conceptual models.

This user interface will use a ﬂow-based program-

ming approach to visually show the link between orig-

inal data source entities and the resulting ontological

concepts.

Performing Entity Relationship Model Extraction from Data and Schema Information as a Basis for Data Integration

321

AREA_DATA

ARNAME

BusInArea

BUS_DATA

BASKV LoadLocatedAt

LOAD_DATA

PL QL

Figure 4: User corrected ER model of the PSS®E data set.

ACKNOWLEDGEMENTS

The authors would like to thank the German Fed-

eral Government, the German State Governments,

and the Joint Science Conference (GWK) for their

funding and support as part of the NFDI4Energy

consortium. Funded by the Deutsche Forschungs-

gemeinschaft (DFG, German Research Foundation)

– 501865131 within the German National Research

Data Infrastructure (NFDI, https://www.nfdi.de/).

This publication was also supported by the

Helmholtz Metadata Collaboration (HMC, https://ww

w.helmholtz-metadata.de/), an incubator-platform of

the Helmholtz Association within the framework of

the Information and Data Science strategic initiative.

REFERENCES

Alalﬁ, M. H., Cordy, J. R., and Dean, T. R. (2008).

SQL2XMI: Reverse Engineering of UML-ER Dia-

grams from Relational Database Schemas. In 2008

15th Working Conference on Reverse Engineering,

pages 187–191.

Chen, P. P.-S. (1976). The entity-relationship model—

toward a uniﬁed view of data. ACM Transactions on

Database Systems, 1(1):9–36.

Chiang, R. H. L., Barron, T. M., and Storey, V. C. (1994a).

Performance evaluation of reverse engineering re-

lational databases into extended Entity-Relationship

models. In Elmasri, R. A., Kouramajian, V., and Thal-

heim, B., editors, Entity-Relationship Approach — ER

’93, pages 352–363, Berlin, Heidelberg. Springer.

Chiang, R. H. L., Barron, T. M., and Storey, V. C. (1994b).

Reverse engineering of relational databases: Extrac-

tion of an EER model from a relational database. Data

& Knowledge Engineering, 12(2):107–142.

Cunha, J., Erwig, M., Mendes, J., and Saraiva, J. (2016).

Model inference for spreadsheets. Automated Soft-

ware Engineering, 23(3):361–392.

Cunha, J., Erwig, M., and Saraiva, J. (2010). Automati-

cally Inferring ClassSheet Models from Spreadsheets.

In 2010 IEEE Symposium on Visual Languages and

Human-Centric Computing, pages 93–100.

Cunha, J., Fernandes, J. P., Mendes, J., and Saraiva, J.

(2012). Extension and implementation of ClassSheet

models. In 2012 IEEE Symposium on Visual Lan-

guages and Human-Centric Computing (VL/HCC),

pages 19–22.

Della Penna, G., Marco, A. D., Intrigila, B., Melatti, I., and

Pierantonio, A. (2006). Interoperability mapping from

XML schemas to ER diagrams. Data & Knowledge

Engineering, 59(1):166–188.

El-Ghalayini, H., Odeh, M., Mcclatchey, R., and

Solomonides, T. (2005). Reverse Engineering Ontol-

ogy to Conceptual Data Models.

Gomez-Perez, A., Fern

andez-L

opez, M., and Vicente, A.

(2000). Towards a Method to Conceptualize Domain

Ontologies.

Guizzardi, G. (2005). Ontological Foundations for Struc-

tural Conceptual Models. PhD thesis.

Han, L., Xu, J., and Yao, Q. (2010). Entity-Relationship

semantic meta-model based on ontology. In 2010 In-

ternational Conference on Computer Application and

System Modeling (ICCASM 2010), volume 11, pages

V11–219–V11–222.

ımek, J. and Ne

cask

y, M. (2010). Reverse-engineering

of XML Schemas: A Survey. In CEUR Workshop

Proceedings, volume 567, pages 96–107.

May, W. (1999). Information Extraction and Integration

with Florid: The Mondial Case Study. Technical Re-

port 131, Universit

at Freiburg, Institut f

ur Informatik.

McCusker, J., Luciano, J., and Mcguinness, D. (2011). To-

wards an Ontology for Conceptual Modeling. CEUR

Workshop Proceedings, 833.

Mello, R. d. S. and Heuser, C. A. (2001). A Rule-Based

Conversion of a DTD to a Conceptual Schema. In

S.Kunii, H., Jajodia, S., and Sølvberg, A., editors,

Conceptual Modeling — ER 2001, pages 133–148,

Berlin, Heidelberg. Springer.

Siau, K., Shiu, H., and Fong, J. (2011). Reverse Engineer-

ing from an XML Document into an Extended DTD

Graph. pages 101–119.

Yang, W., Zhan, M., Wang, Q., and Shi, B. (2004). A con-

version of a DTD to conceptual model by using UML.

In The Fourth International Conference onComputer

and Information Technology, 2004. CIT ’04., pages

303–308.

APPENDIX

The FAIRlead code used to perform the ER model

extraction can be found on github:

https://github.com/Cpprentice/FAIRlead-model-ext

raction

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

322
