Visual Servoing for Vine Pruning Based on Point Cloud Alignment
Fadi Gebrayel, Martin Mujica and Patrick Dan
`
es
LAAS-CNRS, Universit
´
e de Toulouse, CNRS, UPS, Toulouse, France
Keywords:
Visual Servoing, Computer Vision, ICP, Vine Pruning, Agriculture Robotics.
Abstract:
This paper addresses the challenge of vine pruning, a crucial and laborious task in agriculture, using robotic
technologies and vision based feedback control. The complex structure of vines makes visual servoing diffi-
cult due to challenges in 3D pose estimation and feature extraction. A novel approach to vision based vine
pruning is proposed, based on the combination of Iterative Closest Point (ICP) point-cloud alignment and
position-based visual servoing (PBVS). Four ICP variants are compared within PBVS in vine pruning sce-
narios: standard ICP, Levenberg–Marquardt ICP, Point-to-Plane ICP, and Symmetric ICP. The methodology
includes a dedicated ICP initial guess to improve alignment speed and accuracy, as well as a procedure for
generating reference point clouds at pruning locations. Live experiments were conducted on a Franka Emika
manipulator equipped with a stereo camera, involving three real vines under laboratory conditions.
1 INTRODUCTION
Pruning is a critical task in vineyard management,
which determines the quality and yield of the harvest.
Traditionally, this task is laborious, time-consuming,
and uncomfortable for workers, as it must be per-
formed in cold weather and requires awkward pos-
tures. While robotic solutions have been proposed
to pruning, fully autonomous systems have yet to re-
place manual pruning. Indeed, the complexity and
variability of the structure of a vine hinders its per-
ception as well as the planning and control of the mo-
tion of the cutting tool. To address this challenge,
robots must integrate control systems with feedback
from exteroceptive sensors, so as to adapt to environ-
mental changes such as unexpected relative motion of
the vine (due to vibrations, collisions, etc.).
The typical workflow of an autonomous vine
pruning robot consists of the following cycle: au-
tonomous movement to the next vine stock; percep-
tion of the plant, geometric and semantic modeling;
determination of pruning poses; collision-free plan-
ning and control of the cutting device(s) motion to-
wards these poses; cutting operation. However, in
real-life conditions, vibrations or collisions with un-
perceived vine elements are likely, requiring sensor-
based feedback (e.g., visual or force) to ensure suc-
cessful cutting.
In research laboratories, several initiatives have
emerged towards vine pruning robots. The proto-
type (Botterill et al., 2017) entails advanced computer
vision, machine learning and motion, but includes no
local vision-effort control of the end-effector cutting
tool. According to the authors, tests show that the
long chain of interdependent components limits fea-
sibility. The Bumblebee robot (Silwal et al., 2022)
also features such advanced techniques, together with
a robust mechanical design. A significant effort is put
on autonomous navigation, but no local exteroceptive
control of the pruning shears is envisaged. In (Yan-
dun et al., 2021), the robot’s reference movement is
generated by combining reinforcement learning and
inverse kinematics, yet the authors explicitly mention
that its execution is done in open-loop. Though target-
ing a less integrated solution, (Katyara et al., 2021)
presents perception, cutting points learning, motion
planning, but also addresses vine rods dynamics, ad-
mittance control and passivity maintenance.
As pruning is a complex task from a motion plan-
ning viewpoint, (You et al., 2020) analyzes ways
of reducing planning time and sequencing the cut-
ting points. Among the used common control laws,
vision-based or vision-force feedback control strate-
gies have very recently been considered in isola-
tion, for fruit pruning (Zahid et al., 2021) or harvest-
ing (You et al., 2022; Li et al., 2022). The harvesting
technique (Gursoy et al., 2023) uses dual robotic arms
guided by visual data to detect fruits and tree trunk.
Joint velocity control is implemented through hier-
archical quadratic programming, facilitating collision
416
Gebrayel, F., Mujica, M. and Danès, P.
Visual Servoing for Vine Pruning Based on Point Cloud Alignment.
DOI: 10.5220/0013015200003822
Paper published under CC license (CC BY-NC-ND 4.0)
In Proceedings of the 21st International Conference on Informatics in Control, Automation and Robotics (ICINCO 2024) - Volume 1, pages 416-423
ISBN: 978-989-758-717-7; ISSN: 2184-2809
Proceedings Copyright © 2024 by SCITEPRESS – Science and Technology Publications, Lda.

avoidance with previously identified trunks. How-
ever, no visual information is provided, which could
be used for feedback control. Besides, a visual servo-
ing approach is proposed in (Mehta et al., 2014) for
harvesting tasks, which features a nonlinear controller
with fruit motion compensation.
The recent work (Zhang et al., 2020) incorporates
iterative closest point (ICP) based point cloud reg-
istration into visual servoing. Though some robust-
ness to illumination changes is obtained, the consid-
ered environments are large and dense, in contrast to a
pruning scene. Therefore, the present work evaluates
ICP based visual servoing strategies for vine prun-
ing. The contributions are the following: endow ICP
and position based visual servoing (ICP-PBVS) with
an adaptive initial guess and real time capabilities to
overcome the challenges of 3D pose estimation in the
pruning context.; provide a thorough comparison of
the influence of some ICP techniques on servoing per-
formance (Besl and McKay, 1992; Fitzgibbon, 2003;
Chen and Medioni, 1992; Rusinkiewicz, 2019); pro-

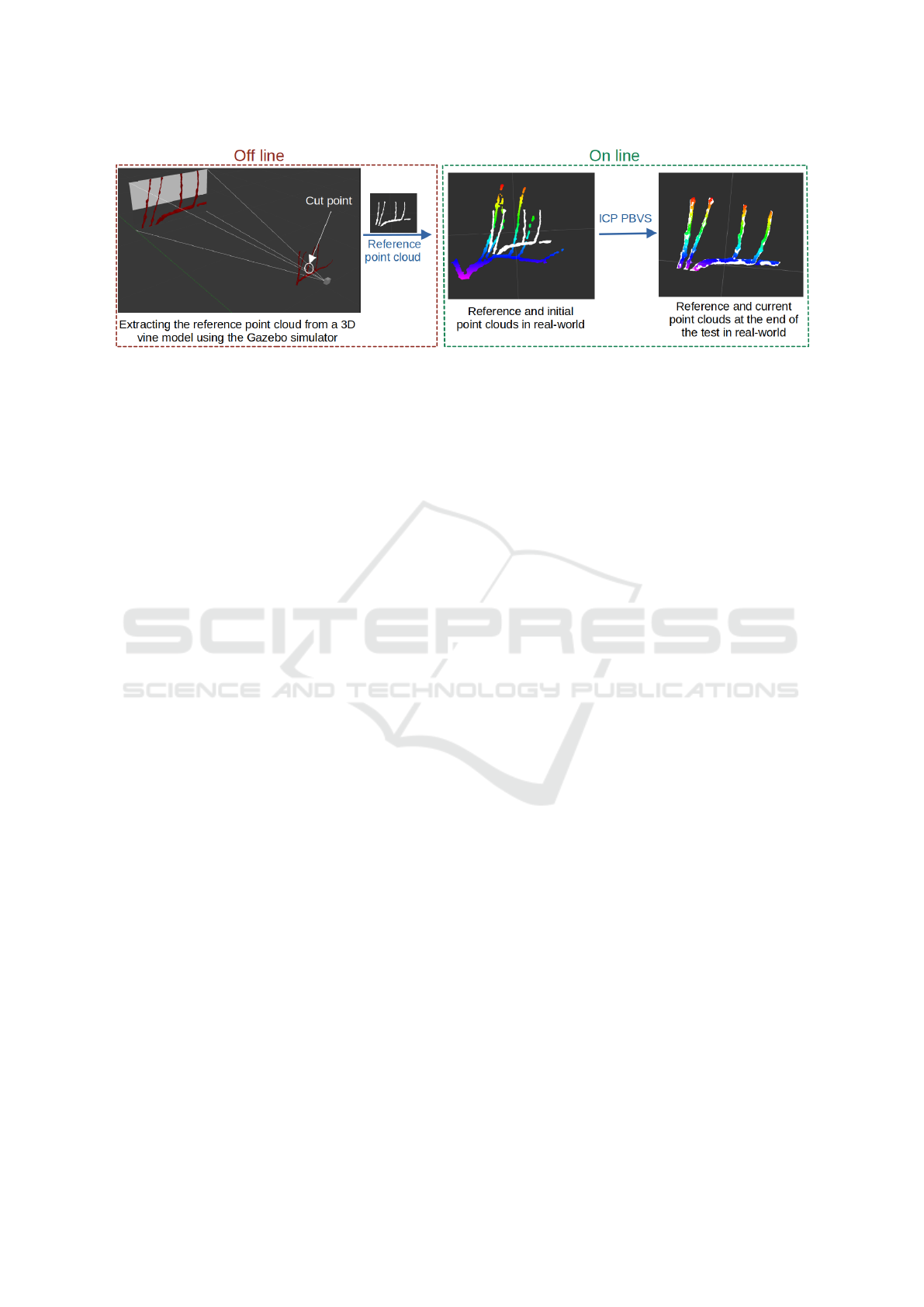

pose an approach to the generation of a synthetic ref-
erence point-cloud, as well as an experimental eval-
uation on complex vine pruning tasks. Importantly,
our approach is well suited to a broader class of agri-
cultural tasks, where mobile robotic manipulators (on
tractors, etc.) must accurately reach cutting/gripping
points.
In the sequel, an accurate 3D model of the vine
is available a priori (through point-cloud registration
(Choi et al., 2015) or along Section 4.4.3). It in-
cludes the reference (desired) pruning poses (e.g.,
through Simonit & Sirch vine pruning rules). The
aim is to successfully position the robot pruner end-
of-arm tooling (EOT) in spite of likely disturbances:
vine motion due to past small collisions, platform vi-
brations, among others. Nonrestrictively, local vine
rigidity around pruning poses is assumed.
Next Sections 2 and 3 provide theoretical back-
ground on ICP-PBVS and expand the algorithm. Sec-
tion 4 outlines and analyzes experimental results

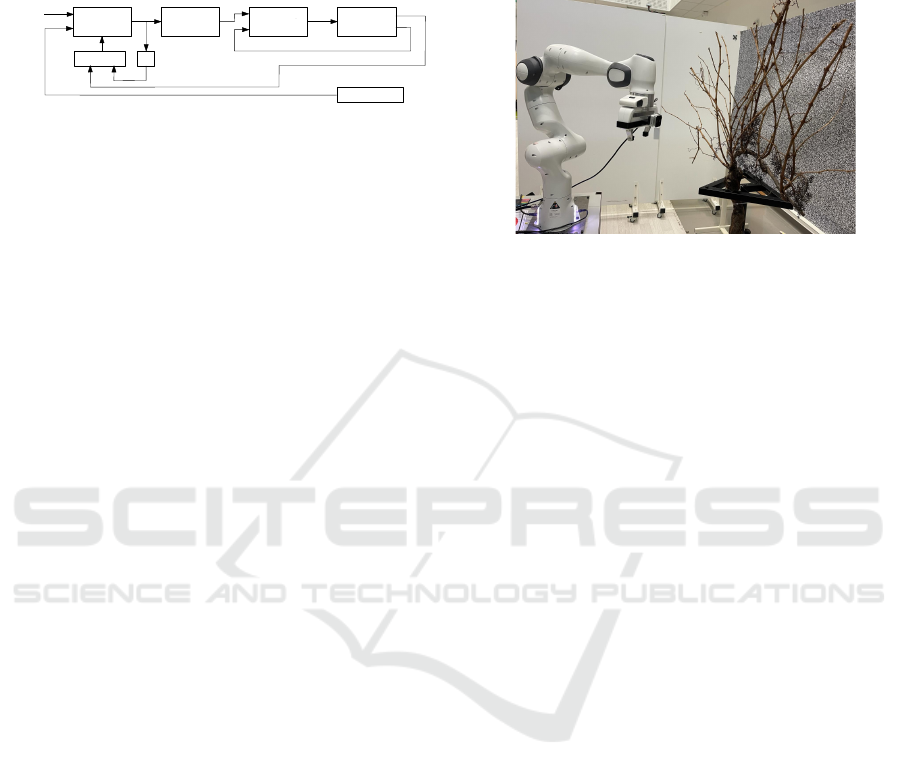

on a Franka Emika Panda 7DOF manipulator robot
equipped with a eye-in-hand stereo camera. Section 5
concludes the paper.
2 FUNDAMENTALS
2.1 Visual Servoing
Visual servoing can be stated as the regulation to zero
of the error (Chaumette and Hutchinson, 2006)
e(t) = s(m(t), a) − s
∗
, (1)
with: s the vector of features used for feedback; s
∗
its reference value; m(t) a vector of image measure-
ments (e.g., from a eye-in-hand camera); a a vector
of additional known parameters (camera, objects. . . ).
When s is the camera-to-target relative pose, the con-
trol strategy is termed “position based visual servo-
ing” (PBVS). It requires a pose estimation algorithm.
Conversely, visual servoing can be specified without
resorting to pose estimation, by building s and s
∗
with
the current and reference values of 2D features ex-
tracted from the image. The consequent “image based
visual servoing” (IBVS) is known to be computation-
ally cheaper and to offer higher robustness to calibra-
tion errors. Yet, its design may be difficult, e.g., when
feature extraction/matching is troublesome.
Consider the positioning of a robot pruner EOT
using visual feedback from a eye-in-hand camera.
Dynamics of the camera (or EOT) are often neglected,
so the control input is set to the camera velocity screw
v = [v
c
, ω
c
]
T
, (2)
i.e., its translation and rotation velocities (expressed
in its frame). The standard controller synthesis
method is as follows: (i) set the open-loop model
˙s = Lv, (3)
where the so-called interaction matrix L is gener-
ally parameterized by s and some 3D pose variables;
(ii) select the ideal closed-loop dynamics of e, e.g.,
the stable, first-order linear and decoupled equation
˙e = −λe, λ ∈ R
+
; (4)
(iii) deduce the feedback control law
v = −λ
ˆ
L
+
e, (5)
with
ˆ
L a matrix gain that approximates L, and
ˆ
L
+
its
pseudo-inverse. Potential pitfalls of such approaches
are well-known: for PBVS, the induced linear path
in the space of pose variables may make the targets
entailed in pose estimation leave the sensor field-of-
view; in IBVS, the exponential decoupled conver-
gence of 2D features to their reference values may
imply unacceptable 3D motion of the camera.
The reference camera frame F
c
∗
, the current cam-
era frame F
c
, and the object frame F
o
are central to
classical PBVS. In the sequel,
i
t
j
stands for the ex-
pression in F
i
of the translation vector from the origin
of F
i
to the origin of F
j
, with i, j ∈ {c
∗
, c, o}. Simi-
larly,
i
R
j
and
i
H
j
=

i
R
j
i
t
j
0 1

stand for the rotation and
homogeneous matrices associated to the rigid trans-
form that turns F
i
into F
j
. Defining (θ, u) as the (an-
gle,unit vector) pair equivalent to
c
∗
R
c
, one sets
s = (
c
∗
t
c
, θu), s
∗
= 0, e = s. (6)
Visual Servoing for Vine Pruning Based on Point Cloud Alignment
417

The poses depicted by
c
∗
H
o
and
c
H
o
must be com-
puted from visual data, in order to deduce
c
∗
H
c
. For
the above selection of s, the interaction matrix L
comes as (Chaumette and Hutchinson, 2006)
L =

c
∗
R
c
0
0 L
θu

; L
θu
= I
3
−
θ
2
[u]
×
+(1−
sincθ
sinc
2
θ
2
)[u]
2
×
, (7)
what leads to the conventional PBVS feedback
v
c
= −λ
c
∗
R
T
c
c
∗
t
c
, ω
c
= −λθu, (8)
with [u]
×
the cross-product tensor associated to
vector u.
2.2 3D Point Cloud Alignment
Getting the rigid transformation from the reference
camera frame F
c
∗
to the actual camera frame F
c
can
be viewed as finding the relative pose that aligns the
point cloud observed at F
c
∗
to that observed at the F
c
.
This relative pose can be obtained through iterative
point cloud alignment methods.
Iterative Closest Point (ICP). The ICP algorithm
iteratively selects corresponding points from two
point clouds and computes the relative homogeneous
transform which minimizes the sum of squared dis-
tances between pairs of matching points. A thresh-
old limits the maximum matching distance for points
with no correspondent. This process is detailed in Al-
gorithm 1.
Inputs: point cloud A = {a
j
}
point cloud B = {b
j
}
initial guess homogeneous matrix H
0
Output: homogeneous matrix H that aligns
point clouds A and B
Parameters: point cloud size N
threshold threshold
H ← H
0
while not converged do
for j ← 1 to N do
m
j
← FindClosestPointInA(Hb
j
)
if ∥m
j
− Hb
j
∥ ≤ threshold then
w
j
← 1
else w
j
← 0;
end
end
H ← argmin
˘
H
J(
˘
H) :=
∑
j
w
j
∥
˘
Hb
j
−m
j
∥
2
end
Algorithm 1: Standard ICP algorithm.
Levenberg–Marquardt ICP. The LM-
ICP (Fitzgibbon, 2003) employs a general-
purpose nonlinear optimization solver, the Lev-
enberg–Marquardt algorithm, to minimize the
registration error J(
˘
H) supporting Algorithm 1. This
improves the convergence speed of ICP without
increasing the computation time.
Point-to-Plane ICP. The PP-ICP (Chen and
Medioni, 1992) entails the distance from any point
to the plane tangent to the other point cloud at
its matching point. The registration error to be
minimized writes as
J
PP-ICP
(
˘
H) :=
∑
j
w
j

η
j
.(
˘
Hb
j
− m
j
)

2
(9)
where η
j
stands for the surface normal at m
j
. This
results in improved accuracy and faster convergence.
ICP with Symmetric Objective Function. The
SYMM-ICP (Rusinkiewicz, 2019) incorporates a
symmetrized version of the point-to-plane ICP reg-
istration error. In other words, each plane entailed
in the objective function is defined from the tangent
planes (or, equivalently, the surface normals) at both
points within a corresponding pair. The registration
error writes as
J
SYMM-ICP
(
˘
H):=
∑
j
w
j

(η
a, j
+η
b, j
).(
˘
Rb
j
−
˘
R
−1
a
j
+
˘
t)

2
(10)
where
˘
t,
˘
R term the translation vector and rotation ma-
trix of the homogeneous matrix decision variable
˘
H,
and η
a, j
, η
b, j
respectively stand for the surface normal
at points a
j
, b
j
.
3 ICP BASED PBVS
Accurately estimating vine shoot poses is undeniably
challenging. Irregular shoot shapes, potential occlu-
sions, and varying lighting conditions constitute sig-
nificant hurdles. Moreover, the lack of specialized
branch models and the critical real-time processing
requirement intensify the challenge.
In the vein of (Zhang et al., 2020), a point cloud
based PBVS is introduced, where the ICP algorithm
estimates the pose that aligns the current and refer-
ence point clouds. Its schematic diagram is shown
on Figure 1. The ICP block compares a predefined
reference point cloud with the current point cloud ob-
tained through the vision system. It outputs the re-
sulting homogeneous transformation between the ref-
erence and current camera frame, possibly using an
initial guess (detailed further) to launch the compu-
tation. The PBVS block takes this matrix and, fol-
lowing the developments in 2.1, computes the camera
ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics
418

velocity screw. Finally, this control signal delivered
by the outer visual servo loop is turned into the robot
end-effector velocity screw, which constitutes the set-
point of the inner robot controllers.
ICP
PBVS
Vel Control
Robot
Initial guess
Vision sensor
c
∗
H
c
k
B
H
c
k
ref. point cloud
current p oint cloud
v
ref
v
z
−1
τ
Figure 1: Schematic diagram of the proposed ICP based
PBVS.
As aforementioned, the ICP algorithm requires an
initial guess to initiate the point cloud alignment. The
default implementation sets it to the identity matrix,
which is clearly nonoptimal. An online initial guess
selection method is described below, based on an ap-
proximation of the camera pose and ICP output.
Let
c
∗
H
c
k−1
and
c
∗
H
c
k
stand for the homogeneous
matrices from F
c
∗
to the camera frames F
c
k−1
, F
c
k
at re-
spective visual servoing iterations k −1, k. Let
B
H
c
k−1
and
B
H
c
k
be the homogeneous matrices from the robot
base frame F
B
to F
c
k−1
, F
c
k
. At iteration k − 1, ICP
outputs an estimate of
c
∗
H
c
k−1
. Similarly, robot kine-
matics enables approximations to
B
H
c
k−1
and
B
H
c
k
at iterations k − 1 and k. Using the same notations
for approximations and genuine values of homoge-
neous transforms, an initial guess for ICP at iteration k
comes as
c
∗
H
c
k
=
c
∗
H
c
k−1
(
B
H
c
k−1
)
−1 B
H
c
k
. (11)
4 EXPERIMENTS ON REAL
VINES
4.1 Experimental Setup and Procedure
This section presents the experimental analysis of
point-cloud based PBVS techniques for vine prun-
ing. The setup is composed of a Franka Emika Panda
robot endowed with the ROS middleware and a eye-
in-hand Realsense D405 camera. This camera re-
lies on stereovision, and is supported by ROS. The
inner Franka controllers are implemented on a real-
time kernel at 1kHz. The outer visual feedback is
implemented in free-running mode, so its rate may
vary, e.g., depending on the ICP behavior. Real vine
stocks, with increasing complexity, are used for ex-
perimental tests. As the focus is to analyze and as-
sess the proposed visual servoing framework, the en-
vironment is controlled (stable light conditions and
incorporation of a textured background, to enhance
the point cloud quality). The system runs on an In-
tel i7 processor under Ubuntu 20.04 with ROS noetic,
PCL (Holz et al., 2015) and ViSP (Marchand et al.,
2005) libraries (Figure 2).
Figure 2: Experimental setup composed of the robot Franka
Emika, the Realsense camera D405 and one vine branch.
All point clouds are built from rectified RGB im-
ages. Their complexity is reduced by downsam-
pling. Points beyond a specified depth threshold are
removed. Irregular points are also removed by a sta-
tistical outlier filter.
In real-world scenarios, the reference (desired)
point cloud around each cutting pose would typically
be obtained as a fragment of the prior 3D model of the
vine. To simplify comparisons and focus on servoing,
it is hereafter obtained by first positioning the camera
at the desired position.
Figure 3 illustrates an overview of the process. In
particular, Figures 3a and 3b display the starting and
reference RGB images. Importantly, these are not
used for feedback, but just illustrate the experimen-
tal conditions. In Figure 3c, the reference (obtained
in the condition of Fig. 3b) and starting (obtained in
the condition of Fig.3a) point clouds are respectively
shown in white and in color. Finally, Figure 3d shows
how the reference and current point clouds overlap
each other after convergence.
The first experiments (Sections 4.2, 4.3) have been
run on non-dense branches (Figure 3). They share a
common point cloud and reference position. The aim
is to set a fair comparison of the ICP-PBVS meth-
ods for distinct starting camera poses. A second set
of experiments addresses denser, more complex, vine
structures (Section 4.4) as well as moving vines so as
to get closer to real-life scenarios subject to external
disturbances.
4.2 Influence of ICP Initial Guess
This section discusses the incorporation into ICP of
the initial guess suggested in Section 3. First, it has
been observed that this ICP initialization enables a
much faster outer visual based feedback loop: the re-
Visual Servoing for Vine Pruning Based on Point Cloud Alignment
419

(a) RGB Image at the initial
pose.
(b) RGB Image at the refer-
ence pose.
(c) Reference and initial
point clouds.
(d) Reference and current
point clouds at the end of the
test.

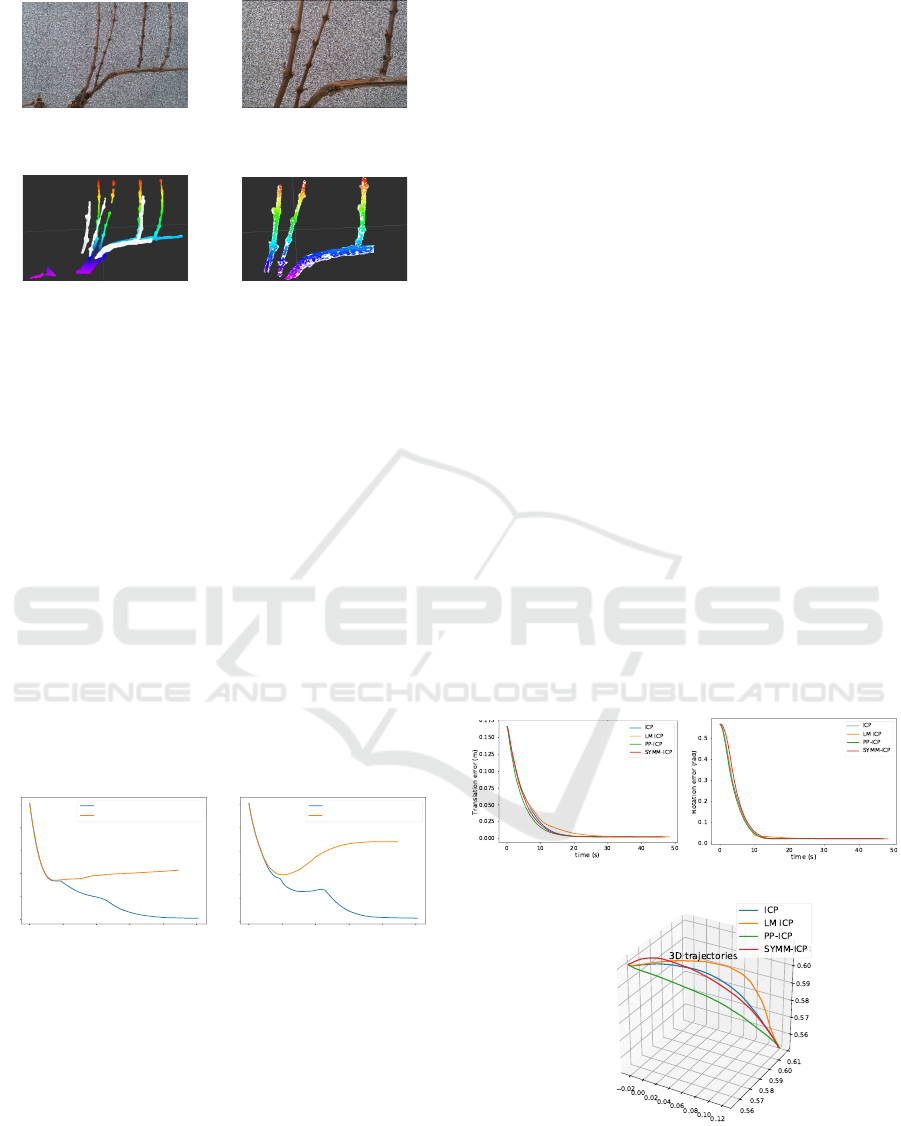

Figure 3: Overview the experimental conditions, with the
initial and reference images and their point clouds.
sulting increase, around 15 Hz for all proposed ICP
variations, is significant, especially considering that
the camera frequency (i.e., the maximum admissible
outer-loop frequency) is 60 Hz. Benefits include not
only real time performance, but also feedback system
accuracy or even stability. Indeed, lengthy ICP com-
putations may increase the visual servoing period,
potentially causing the robot to drift from the ideal
continuous-time closed-loop dynamics (4), especially
for dense vines. A limiting behavior may even be
reached, where the vine leaves the camera field of
view. A comparison of a servoing task in a simple
vine with and without our proposed initial guess is
shown in Figure 4, illustrating the mentioned behav-
ior. Consequently, this adaptive ICP initial guess is
henceforth incorporated in all ICP-PBVS.
0 20 40 60 80 100
time (s)
0.00
0.02
0.04
0.06
0.08
0.10
translation error vector norm (m)
translation error vector norm graph
err_translation_ICP
err_translation_no_initial_guess
(a) Linear error
0 20 40 60 80 100
time (s)
0.0
0.1
0.2
0.3
0.4
0.5
rotation error (rad)
rotation error graph
err_rotation_ICP
err_rotation_no_initial_guess
(b) Rotation Error
Figure 4: ICP-PBVS with and without initial guess.
4.3 Comparison of Different ICP
Methods
Table 1 summarizes the quantitative evaluation of a
four-test experiment on sparsely structured branches.
Each test includes significant translation and/or rota-
tion differences between starting and reference poses,
potentially making visual servoing fail due to differ-
ing viewpoints of the vine.
SYMM-ICP-PBVS outperforms other methods
regarding settling time in the first test. However,
PP-ICP-PBVS demonstrates faster convergence in the
second and fourth tests. So does LM-ICP-PBVS
in the third test. Convergence failures in the third
and fourth tests show that both PP-ICP-PBVS and
SYMM-ICP-PBVS encounter difficulties due to sig-
nificant initial rotation errors, while LM-ICP seems
sensitive to significant translation errors. Neverthe-
less, ICP-PBVS converges in all cases.
As for accuracy, concerning the translation and ro-
tation Final Static Error (FSE), no definitive conclu-
sion can be drawn globally, as no servoing method is
uniformly better. Translation and rotation errors dur-
ing servoing are depicted in Figure 5 for all the ICP
variants in the second test case, along with the 3D tra-
jectories. The smoothest errors are exhibited by PP-
ICP-PBVS.
The drift of the induced 3D trajectories (shown on
Figure 5c) w.r.t. the theoretical straight line can be at-
tributed to unexpected abrupt errors between the ho-
mogeneous transforms estimated by ICP (or its vari-
ants) and their genuine values, which in turn lead to
abrupt changes in the camera control input. It can also
stem from a change of rate of the outer visual feed-
back: the longer the computation of the homogeneous
matrix by the ICP, the longer the zero-order-hold of
the camera velocity screw produced by the outer con-
troller, and the less suited the resulting setpoint to the
inner robot controller. The proposed ICP initial guess
reduces this problem.
(a) Linear error
(b) Rotation Error
(c) Camera 3D trajectory for each ICP method
Figure 5: Second test, non-dense branche structure: com-
parison of different ICP-PBVS methods.
ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics
420

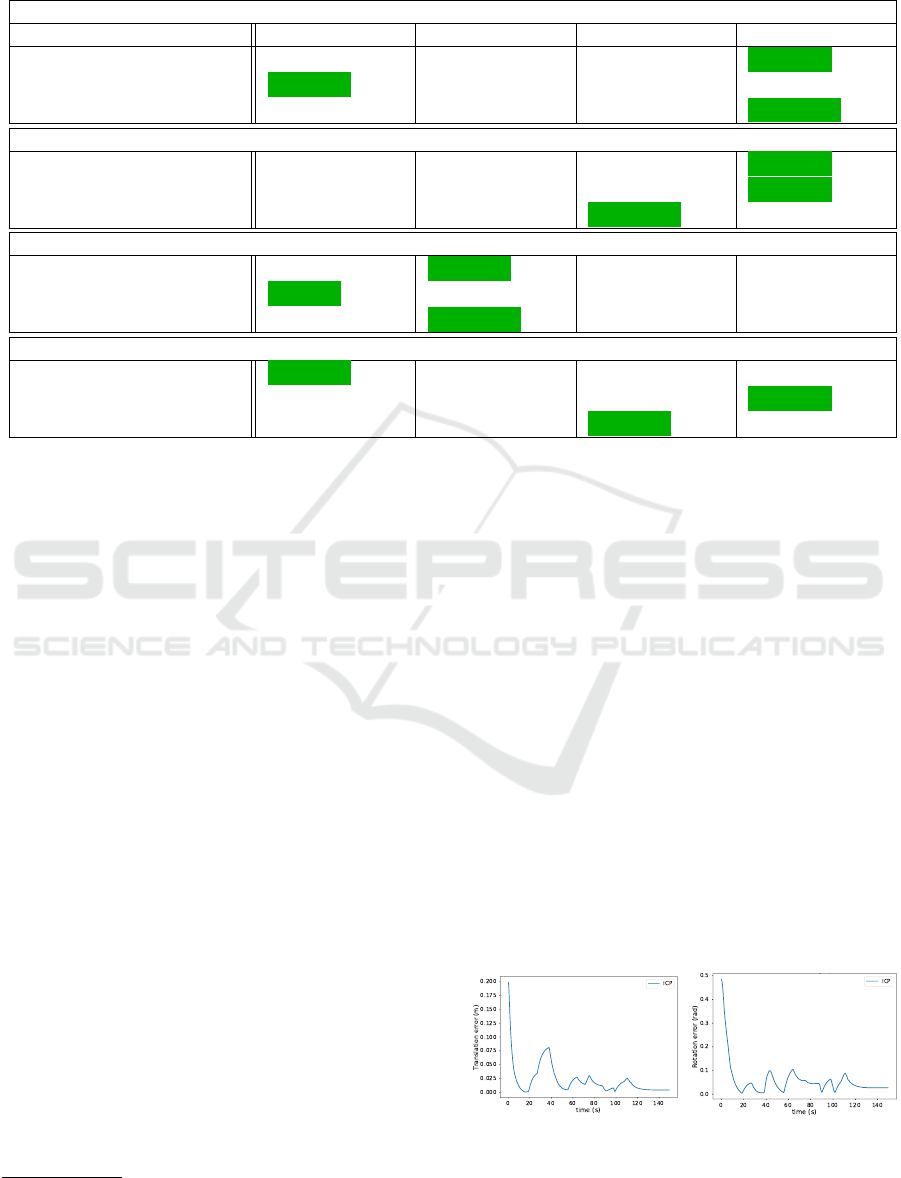

Table 1: Comparative experiment campaign, involving a non-dense branch structure. For each test, the best results for each
criterion are highlighted in green.
Test 1 - inial translation error: 0.184749 (m) initial rotation error: 0.351915 (rad)
ICP LM ICP PP-ICP SYMM-ICP
Translation FSE (m) 0.003072 0.003333 X 0.002912
Rotation FSE (rad) 0.002162 0.003612 X 0.004765
Convergence time (s) 24.894065 33.757214 X 14.266417
Test 2 - initial translation error: 0.166275 (m) initial rotation error: 0.567889 (rad)
Translation FSE (m) 0.002969 0.002691 0.002524 0.002115
Rotation FSE (rad) 0.022047 0.021488 0.022144 0.021275
Convergence time 18.307688 26.528462 17.730364 18.238572
Test 3 - initial translation error: 0.034708 (m) initial rotation error: 0.550662 (rad)
Translation FSE (m) 0.002027 0.001722 X X
Rotation FSE (rad) 0.02138 0.022581 X X
Convergence time 16.85218 16.624503 X X
Test 4 - initial translation error: 0.316327 (m) initial rotation error: 0.12695 (rad)
Translation FSE (m) 0.002007 X 0.003296 0.004129
Rotation FSE (rad) 0.019513 X 0.01839 0.016704
Convergence time 8.834689 X 6.744938 7.37105
While not being the fastest method, in view of its
consistent convergence performance the ICP-PBVS
strategy has been selected for all the next experimen-
tal evaluations.
4.4 Complex Cases
4.4.1 Moving Vine Branches
As aforementioned, the interest of the approach lies
in its ability to handle unexpected variations that pro-
duce a discrepancy w.r.t. prior knowledge. So, exper-
iments have been carried out to study how ICP-PBVS
can cope with vine vibrations and unexpected move-
ments (due for instance to unexpected collisions of the
robot and the vine). Therefore, after reaching conver-
gence, the vine is abruptly moved. Nevertheless, the
camera is successfully driven to the pose where the
current and reference point clouds are aligned. This
can be seen in the error curves shown in Figure 6: sud-
den error increases (induced by sudden vine move-
ments) are followed by an exponential convergence
decay to zero. A more detailed analysis of this ex-
perimental scenario can be found in the companion
video.
1
4.4.2 Dense Vine Branches
After initial tests on real vines, experiments were ex-
tended to a more intricate environment characterized
by densely packed branches, as illustrated in Figure 7.
1
Video link
Three tests were conducted with two setups, consid-
ering the same reference point cloud (i.e., the same
final pose), but with different initial conditions. Vine
in test 2 (Figure 7b, 7d), presents an increased com-
plexity due to the presence of numerous branches and
residual dried grapes, thereby intensifying perception
challenges. Table 2 displays the results, including
errors and convergence time, obtained from the con-
ducted tests. Moreover, Figure 8 presents the 3D tra-
jectories of the three tests in each campaign, high-
lighting the successful convergence of ICP-PBVS in
all tests from various starting positions towards the
reference point. The findings reveal acceptable errors,
notably in translation, albeit with slightly larger rota-
tion errors, particularly evident in the second dense
setup. Moreover, the observed prolonged conver-
gence time may be attributed to the fact that the con-
troller’s gain was reduced to handle the higher com-
putational demand arising from larger point clouds as-
sociated with densely branched vines. These findings
highlight the effectiveness of ICP-PBVS in challeng-
ing vine environments and its potential for pruning
(a) Linear error
(b) Rotation Error
Figure 6: Evolution of translation and rotation errors when
unexpected vine movement is introduced.
Visual Servoing for Vine Pruning Based on Point Cloud Alignment
421

tasks, while providing insight on possible improve-
ments for fast and real outdoors agricultural tasks.
(a) Test 1: RGB image at the
initial pose.
(b) Test 2: RGB image at the
initial pose.
(c) Test 1: Reference and ini-
tial point clouds.
(d) Test 2: Reference and
initial point clouds.

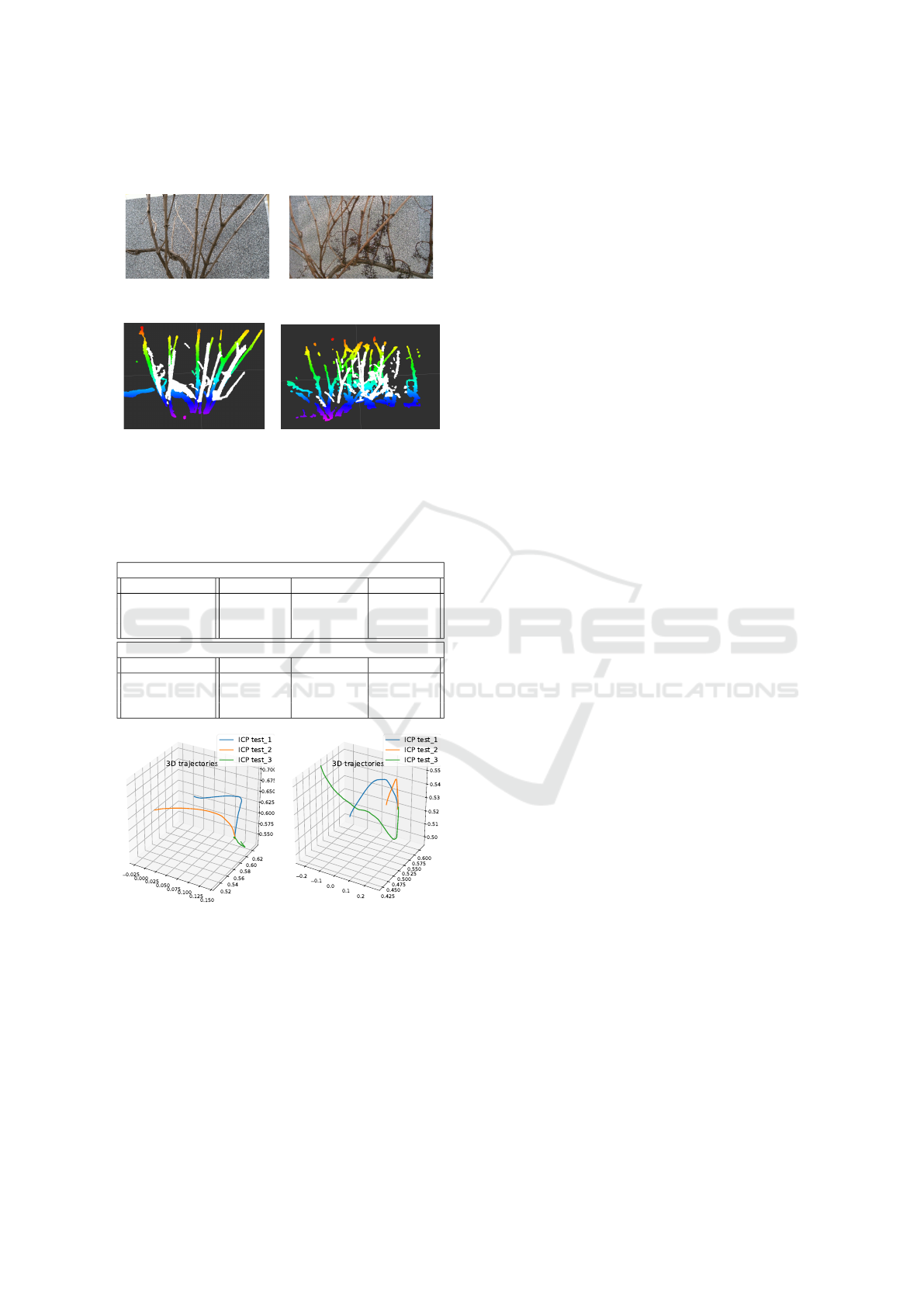

Figure 7: Overview of the case of dense branches tests, with
the initial and reference images and their point clouds.
Table 2: First and second experiment campaign results, in-
volving a dense branch structure.
Test with dense vine 1
Init. error (m, rad) (0.193, 0.35) (0.167, 0.566) (0.034, 0.55)
Trans. FSE (m) 0.002914 0.001775 0.003168
Rot. FSE (rad) 0.00734 0.00563 0.045401
Conv. time (s) 73.682 59.895 42.364
Test with dense vine 2
Init. error (m, rad) (0.185, 0.22) (0.20, 0.168) (0.037, 0.47)
Tran. FSE (m) 0.001577 0.001477 0.003454
Rot. FSE (rad) 0.011115 0.011791 0.015248
Conv. time (s) 99.234 89.485 125.401
(a) First test campaign (b) Second test campaign
Figure 8: 3D Trajectories with dense branches.
4.4.3 Sim-to-Real Reference Point Cloud
As previously stated, in real-world applications the
reference point cloud for each pruning pose must be
derived from a 3D model of the vine. Thus we built
a fine 3D model of the vine before the first pruning
process, using the same camera. Subsequently, this
3D model was included in a simulated environment
enabling the virtual selection of any pruning pose, so
that all the reference point clouds could be recover-
ered. These data were then transferred to the real-
world servoing process, to apply the same visual feed-
back control as above. Figure 9 delineates the com-
plete framework. The simulation was done in Gazebo.
The pre-built 3D vine model was integrated as a mesh.
The pruning pose was defined at a reference pose 15
cm from the cutting point, where the simulated Re-
alsense D405 camera was positioned. In Figure 9, it
can be seen how the synthetic reference point cloud
is given to the online controller, and how the robot
moves to align them using ICP-PBVS, resulting in the
convergence to the cutting pose, as in the previous ex-
periments.
5 CONCLUSIONS
This work presented a working real-time ICP based
PBVS (ICP-PBVS) for vine pruning, along with its
analysis for several ICP variants. Contrary to the pro-
prioception based execution of a planned trajectory,
visual servoing can adjust the cutting tool position-
ing in real time when facing unexpected environment
changes. As the 3D trajectory followed by the prun-
ing tool is of interest in the considered agriculture
context, PBVS is preferred over IBVS. The proposed
incorporation of a relevant initial guess reduces the
ICP computation time. A side effect is the increase
of the feedback control rate, which in turns posi-
tively impacts the closed-loop system stability thanks
to shorter zero-order-hold of the control signal.
Experiments were conducted, combining four ICP
variants with PBVS. Standard ICP showed the best
performance in tests on simple vines, with further suc-
cessful experiments on moving and complex vines.
On the whole, ICP-PBVS adapts well to disturbances,
making it suitable for pruning task and broader agri-
cultural applications. However, the processing of big
point clouds and the computational cost may remain
an issue. Finally, an approach to generate the ref-
erence point cloud through simulation at the desired
pose was presented and evaluated.
Future work will focus on alternative alignment
methods to reduce computing time, improved control
laws keeping the point cloud in the camera view, and
tests in real-world outdoor conditions with more com-
plex factors like lighting and wind.
ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics
422

Figure 9: Sim to real Reference point cloud extraction scheme.
ACKNOWLEDGEMENTS
This work was supported by the “D
´
efi Cl
´
e Robotique
centr
´
ee sur l’humain” funded by La R
´
egion Occitanie,
France.
REFERENCES
Besl, P. and McKay, N. (1992). Method for registration of
3-D shapes. In Sensor Fusion IV: Control Paradigms
and Data Structures, volume 1611. Spie.
Botterill, T., Paulin, S., Green, R., Williams, S., Lin, J.,
Saxton, V., Mills, S., Chen, X., and Corbett-Davies,
S. (2017). A robot system for pruning grape vines.
Journal of Field Robotics, 34(6).
Chaumette, F. and Hutchinson, S. (2006). Visual servo con-
trol. I. basic approaches. IEEE Robotics & Automation
Magazine, 13(4):82–90.
Chen, Y. and Medioni, G. (1992). Object modelling by reg-
istration of multiple range images. Image and Vision
Computing, 10(3).
Choi, S., Zhou, Q.-Y., and Koltun, V. (2015). Robust recon-
struction of indoor scenes. In Proceedings of the IEEE
conference on computer vision and pattern recogni-
tion, pages 5556–5565.
Fitzgibbon, A. (2003). Robust registration of 2D and 3D
point sets. Image and Vision Computing, 21(13-14).
Gursoy, E., Navarro, B., Cosgun, A., Kuli
´
c, D., and Cheru-
bini, A. (2023). Towards vision-based dual arm
robotic fruit harvesting. In 2023 IEEE 19th Interna-
tional Conference on Automation Science and Engi-
neering (CASE), pages 1–6.
Holz, D., Ichim, A., Tombari, F., Rusu, R., and Behnke,
S. (2015). Registration with the point cloud library:
A modular framework for aligning in 3-D. IEEE
Robotics & Automation Magazine, 22(4).
Katyara, S., Ficuciello, F., Caldwell, D., Chen, F., and Si-
ciliano, B. (2021). Reproducible pruning system on
dynamic natural plants for field agricultural robots.
In Saveriano, M., Renaudo, E., Rodr
´
ıguez-S
´
anchez,
A., and Piater, J., editors, Int. Workshop on Human-
Friendly Robotics 2020. Springer.
Li, T., Yu, J., Qiu, Q., and Zhao, C. (2022). Hybrid un-
calibrated visual servoing control of harvesting robots
with RGB-D cameras. IEEE Trans. on Industrial
Electronics.
Marchand, E., Spindler, F., and Chaumette, F. (2005). ViSP
for visual servoing: A generic software platform with
a wide class of robot control skills. IEEE Robotics &
Automation Magazine, 12(4).
Mehta, S., MacKunis, W., and Burks, T. (2014). Nonlinear
robust visual servo control for robotic citrus harvest-
ing. IFAC Proceedings Volumes, 47(3):8110–8115.
Rusinkiewicz, S. (2019). A symmetric objective function
for ICP. ACM Trans. on Graphics, 38(4).
Silwal, A., Yandun, F., Nellithimaru, A., Bates, T., and Kan-
tor, G. (2022). Bumblebee: A path towards fully au-
tonomous robotic vine pruning. Field Robotics, (2).
Yandun, F., Parhar, T., Silwal, A., Clifford, D., Yuan, Z.,
Levine, G., Yaroshenko, S., and Kantor, G. (2021).
Reaching pruning locations in a vine using a deep re-
inforcement learning policy. In IEEE Int. Conf. on
Robotics and Automation (ICRA’2021), Xi’an, China.
You, A., Kolano, H., Parayil, N., Grimm, C., and David-
son, J. (2022). Precision fruit tree pruning using a
learned hybrid vision/interaction controller. In IEEE
Int. Conf. on Robotics and Automation (ICRA’2022),
Philadelphia, PA.
You, A., Sukkar, F., Fitch, R., Karkee, M., and Davidson,
J. R. (2020). An efficient planning and control frame-
work for pruning fruit trees. In 2020 IEEE interna-
tional conference on robotics and automation (ICRA),
pages 3930–3936.
Zahid, A., Mahmud, M. S., He, L., Heinemann, P., Choi, D.,
and Schupp, J. (2021). Technological advancements
towards developing a robotic pruner for apple trees:
A review. Computers and Electronics in Agriculture,
189:106383.
Zhang, S., Gong, Z., Tao, B., and Ding, H. (2020). A
visual servoing method based on point cloud. In
IEEE Int. Conf. on Real-time Computing and Robotics
(RCAR’2020).
Visual Servoing for Vine Pruning Based on Point Cloud Alignment
423
