Safety Assessment of Human-Robot Collaborations Using Failure Mode

and Effects Analysis and Bow-Tie Analysis

Abdelrhman Haggy, Abel K. Philip, Sneha Rose Priya Jacob, Juliane Schneider,

Mohammed Marwan Anchukandan, Philipp Kranz

and Marian Daun

Center for Robotics, Technical University of Applied Sciences W

urzburg-Schweinfurt, Schweinfurt, Germany

Keywords:

Human Robot Collaboration, Safety Analysis, Risk Analysis, Bow-Tie, Hazard Analysis, Failure Modes and

Effects Analysis.

Abstract:

Human-Robot collaboration is seen as chance to ﬂexibilize modern production processes. The close interaction

of humans and robots allows for fast semi-automation of process steps that cannot be fully automated or only at

high cost. However, due to the close vicinity and complex interactions between human and robot establishing

safety is challenging. Robotic safety is largely centered on machine safety and does not consider effects

stemming from the runtime application. This paper investigates the use of failure mode and effects analysis

and Bow-Tie Analysis for assessing the safety of human-robot collaborations. We applied the combined safety

assessment approach to an industrial case example of a collaborative assembly process. Results show that

safety analyses are applicable and particularly, the combination of top-down bow-tie and bottom-up failure

mode and effects analysis is promising for the thorough assessment of dynamic human-robot collaboration

applications.

1 INTRODUCTION

Human-robot collaboration (HRC) systems differ

from conventional industrial robots in the type of in-

teraction between humans and robots. Collaborative

robots (i.e. cobots) can be designed to work in close

vicinity to humans and share a common workspace.

This involves a variety of potential hazards that need

to be identiﬁed, analyzed and mitigated in a struc-

tured approach. However, currently safety assessment

for robotic systems mostly relies on the assessment of

the machine, not considering the dynamic interaction

with the human (Berx et al., 2022).

In practice, safety and risk assessments for HRC

systems are primarily based on ISO 12100, ISO

10218 and ISO 31000, which provide comprehen-

sive guidelines for identifying, assessing and mitigat-

ing risks. In addition, safety standards of other do-

mains often demand thorough safety assessment al-

ready at the conceptual state of development, but are

not used in the robotics ﬁeld. Corresponding methods

such as Failure Mode and Effects Analysis (FMEA)

and Fault Tree Analysis (FTA) are widely used and

https://orcid.org/0000-0002-1057-4273

https://orcid.org/0000-0002-9156-9731

for safety and risk assessment (Cristea and Constan-

tinescu, 2017). Other safety analysis methods, such

as Hazard and Operability Analysis (HAZOP) and

Hazard and Risk Assessment (HARA), have already

been applied in the ﬁeld of HRC. Although HAZOP

may not fully address systemic ﬂaws or human errors,

while HARA evaluates risks but may not fully recog-

nize associated failures.

In this paper, we investigate whether a combina-

tion of Bow-Tie Analysis and FMEA is useful to as-

sess the safety of HRC systems, and can adequately

consider the human component, as well as the in-

teraction between human and robot. Thereby, Bow-

Tie Analysis shall provide a comprehensive visualiza-

tion of risk paths, while calculation of the RPN (risk

priority number) from the FMEA enables a detailed

bottom-up assessment of speciﬁc failure modes. The

combination is employed in the context of a collabo-

rative assembly application.

The paper is outlined as follows: Section 2 dis-

cusses the related work. Based on this, the approach

is introduced to integrate FMEA and Bow-Tie Analy-

sis for evaluating the safety of human-robot collabora-

tions in Section 3. The approach is evaluated through

its application to an industrial case study in Section 4.

To this end, Section 5 concludes the paper.

432

Haggy, A., Philip, A., Jacob, S., Schneider, J., Anchukandan, M., Kranz, P. and Daun, M.

Safety Assessment of Human-Robot Collaborations Using Failure Mode and Effects Analysis and Bow-Tie Analysis.

DOI: 10.5220/0013017500003822

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Informatics in Control, Automation and Robotics (ICINCO 2024) - Volume 1, pages 432-439

ISBN: 978-989-758-717-7; ISSN: 2184-2809

2 RELATED WORK

2.1 Safety and Risk Assessment

There are various standards that serve as guidelines

for safety assessment and risk reduction.

ISO 12100 contains comprehensive guidelines for

the risk assessment and risk reduction of machines

and industrial robots (iso, 2010). The standard fo-

cuses on the identiﬁcation of potential hazards, the

assessment and evaluation of risks and the implemen-

tation of suitable risk reduction measures.

Another relevant standard is ISO 10218, which

deals with the safety of industrial robots and robot

systems (iso, 2011). It deﬁnes speciﬁc requirements

for the design, integration and implementation of

robotic systems to ensure safe operations in industrial

environments. It also contains special guidelines for

risk assessment in human-robot interaction.

ISO 31000 describes principles and guidelines for

risk management in various industries (iso, 2018).

Although the standard does not refer speciﬁcally to

robotics, it provides guidance on identifying, assess-

ing and mitigating risks in complex industrial pro-

cesses. It also describes a comprehensive approach

to risk management that is applicable to different or-

ganizational contexts.

2.2 Safety and Risk Assessment

Methods

In industrial safety and risk assessment, various meth-

ods are used to ensure the safety and reliability of sys-

tems. These methods can be classiﬁed into two princi-

pal categories: bottom-up and top-down approaches.

In contrast to the bottom-up approach, which ini-

tially identiﬁes safety risks at the most granular level

and subsequently aggregates these risks, the top-down

method initiates the process at the system level and

progressively breaks down the risks into more speciﬁc

categories. The approaches can be used individually

or in combination to analyze potential risks.

Probably the most frequently used bottom-up

method is FMEA, which guarantees that potential

faults within a system are found and the impact of

those faults on the overall performance of the system

is analyzed. FMEA improves the robustness of the

system by highlighting important elements and pro-

cedures which need tighter control. (Liu et al., 2019).

Another well-known technique is Hazard and Op-

erability Analysis (HAZOP). The method deals sys-

tematically with process deviations and their possible

consequences for identifying and assessing potential

hazards that exist within the industrial process. HA-

ZOP makes sure all possible risks are accounted for

and managed accordingly. (Reddy, 2015)

Aside from the bottom-up methods, there are also

well-known methods such as Fault Tree Analysis

(FTA), which follows a top-down approach to esti-

mate the probability of certain failures in the system.

It makes logical interconnections between the possi-

ble causes that might lead to system-wide failure and

calculates their probability of occurrence, a structured

way of understanding and mitigating risks. (Ruijters

and Stoelinga, 2015).

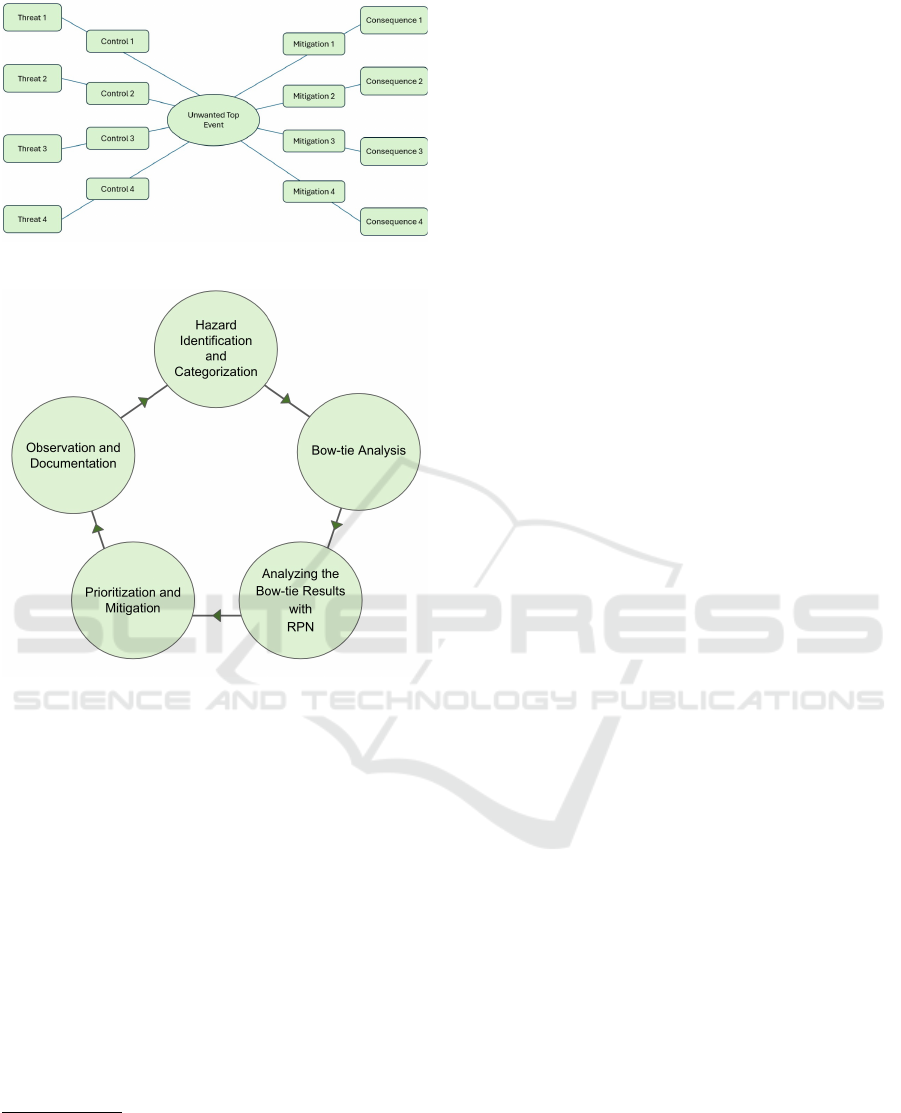

One method that uses both bottom-up and top-

down is the Bow-Tie Analysis, which brings together

FTA and Event Tree Analysis in a ﬂexible way. It

represents a multimedia approach, where the routes

from possible causes of a hazard to its potential con-

sequences are diagrammed out through preventive

and mitigative barriers. The technique identiﬁes the

cause-and-effect relationship, hence indicating the in-

tervention points on which effective prevention or

mitigation of risk can take place. (Tait and Edwards,

2021).

2.3 Safety and Risk Assessment in

Human-Robot Collaboration

In their study, Lee and Yamada focus on the integra-

tion of FTA and FMEA for the design of safety func-

tions in robots that collaborate with humans (Lee and

Yamada, 2012). With their method, they determine

the safety integrity level required for the system, per-

form risk assessments to identify potential failures,

and show the design of safety functions that comply

with the determined safety integrity level. This ap-

proach is illustrated by the case study of the skill as-

sist system, an assistive device used in manufactur-

ing and social settings. The proposed methodology is

limited to the design of the safety function for system

failures and cannot be directly applied to other safety

functions that can prevent dangerous events caused by

human factors.

Zacharaki et al. give an overview of safety bound-

aries in human-robot interaction. They focus on the

aspects related to safe interactions between humans

and robots (Zacharaki et al., 2020). The overview

highlights various safety techniques, such as safety

zones, real-time monitoring or dynamic safety bound-

aries. These methods help to prevent accidents in col-

laborative workspaces and strengthen trust between

humans and collaborative robots. In their work, ex-

isting safety analysis techniques were examined and

compared but not actively applied.

In their paper, Huck et al. mention that the risk

Safety Assessment of Human-Robot Collaborations Using Failure Mode and Effects Analysis and Bow-Tie Analysis

433

assessment of industrial robots in practice is often

based on experience, expert knowledge and check-

lists. However, with the growth of HRC, complexity

increases, making risk assessment more difﬁcult. Sci-

entiﬁc developments offer new tools and methods to

support these assessments, but these are rarely used in

industry. Their paper analyzes the literature on inno-

vative risk assessment approaches for HRC and eval-

uates interviews with experts to understand the needs

of the industry. They discuss the challenges that need

to be addressed to implement these new approaches

in practice. Many of the approaches proposed in the

literature are too complex and are difﬁcult or impossi-

ble to transfer to individual use cases and lack proper

validation (Huck et al., 2021).

A further ﬁeld towards safety assessment of

human-robot collaborations is the use of model-based

techniques. In previous work, it has been shown that

goal models adapted for the needs of collaborative

systems (Daun et al., 2021), can be a good means

to support safety assessment of human-robot collab-

orations (Daun et al., 2023). Particularly, a dedi-

cated goal modeling proﬁle (Manjunath et al., 2024)

allows documenting safety hazards, mitigation strate-

gies, and dependencies between these in early stages.

However, this does not replace a structured safety as-

sessment process.

3 APPROACH UNDER

INVESTIGATION

In this paper, we investigate the use of Bow-Tie Anal-

ysis in combination with FMEA to support safety as-

sessment of HRC. The goal behind this combination

is to achieve a thorough risk assessment framework

that encompasses both top-down, system-level hazard

identiﬁcation and bottom-up, component-level failure

analysis.

3.1 Rationale for Integrating Bow-Tie

Analysis and FMEA

Through the integration of Bow-Tie Analysis and

FMEA two complementary approaches are com-

bined. Bow-Tie Analysis is a top-down approach

which visualizes the potential hazards and their re-

spective consequences leading to a clear overview of

the risk landscape. Overall, Bow-Tie helps in under-

standing the broad context of risks and is used for

the identiﬁcation of critical control measures. On the

other hand, the FMEA with its RPN ranking provides

the possibility of clearly presenting the level of risks.

The integration of these two methods enables a com-

prehensive approach to safety analysis that incorpo-

rates the broad identiﬁcation and visualization of risks

through the Bow-Tie Analysis and the risk analysis

using the RPN score from the FMEA. This hybrid

method improves both the range and detail of risk as-

sessment, leading to better safety management.

In the aerospace industry, for example, Bow-Tie

Analysis ﬁrst identiﬁes a hazardous risk such as an in-

ﬂight engine failure. It examines possible causes such

as bird strikes and considers potential consequences

such as an emergency landing. FMEA is then utilized

to focus on speciﬁc components of the engine to iden-

tify failure modes and suggest mitigation strategies,

such as using more resilient materials. (Sharma and

Srivastava, 2018)

3.2 Methodology

For the combination of Bow-Tie Analysis and FMEA,

two artifacts are essential: The hazard evaluation tem-

plate and the bow-tie diagram.

The hazard evaluation template is a structured

template to address and evaluate each hazard. This

template includes an introduction that provides an

overview and context for the hazard within the sys-

tem.

Bow-tie diagrams visually map the hazard and

its associated risk factors. This involves identifying

threats, escalation factors that could worsen the sit-

uation, and possible consequences if the hazard oc-

curs. Additionally, preventive and mitigating con-

trols currently in place are documented. The bow-

tie diagram as can be seen in Figure 1 visually rep-

resents the relationships among the hazard, threats,

controls, and consequences, enhancing understand-

ing and communication of risk pathways and control

measures. Note, that various different graphical rep-

resentations of bow-tie diagrams have been proposed

(cf. (de Ruijter and Guldenmund, 2016)). In this pa-

per, we focus on the basic form of bow-tie diagrams

to avoid increasing complexity on the diagram-level

and to investigate the ﬁtting of Bow-Tie Analysis to

support safety assessment of HRC in general.

After completing the Bow-Tie Analysis, FMEA

is applied for a detailed risk assessment. The Risk

Priority Number (RPN) is obtained as combination

of Severity, Occurence, and Undetectability (Afefy,

2015):

• Severity (S): The potential impact or seriousness

of a failure on the system is evaluated. Higher

severity means more signiﬁcant consequences.

• Occurrence (O): This assesses how likely it is for a

particular failure to happen. A higher occurrence

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

434

Figure 1: Bow-tie diagram for hazard analysis.

Figure 2: Safety assessment process.

rate indicates that the failure is more frequent.

• Detectability (D): This measure the ability to

identify or detect a potential failure before it oc-

curs. Lower detectability rating signiﬁes a higher

difﬁculty of detecting the failure in advance.

3.3 Safety Assessment Process

The proposed safety assessment process consists of

ﬁve steps, which are depicted in Figure 2. The follow-

ing section provides a detailed explanation of each of

the aforementioned steps.

• Step 1: Hazard Identiﬁcation and Categorization

The process starts with a thorough review of

the operational workﬂow. To organize the

Note that for Severity and Occurrence, the higher the

probability, the higher the value; conversely, for Detectabil-

ity, the higher the probability, the lower the value. In this

work, therefore, the term Undetectability (the probability of

the failure being undetected before it causes harm) is used

instead of Detectability to avoid confusion and hence main-

tain a consistent order in the evaluation.

efforts, a framework is employed that cate-

gorizes hazards into three main categories -

Human-related, Cobot-related, and Collaborative

workspace-related. These categories are adapted

from (Berx et al., 2022), excluding the ’External’

and ’Enterprise’ categories as they are not the fo-

cus of this research. These chosen categories, in-

formed by on-site observations, allow to system-

atically collect and address potential hazards.

• Step 2: Bow-Tie Analysis

Once the hazards are identiﬁed, Bow-Tie Anal-

ysis is used to map the potential causes and their

respective consequences arising from a central un-

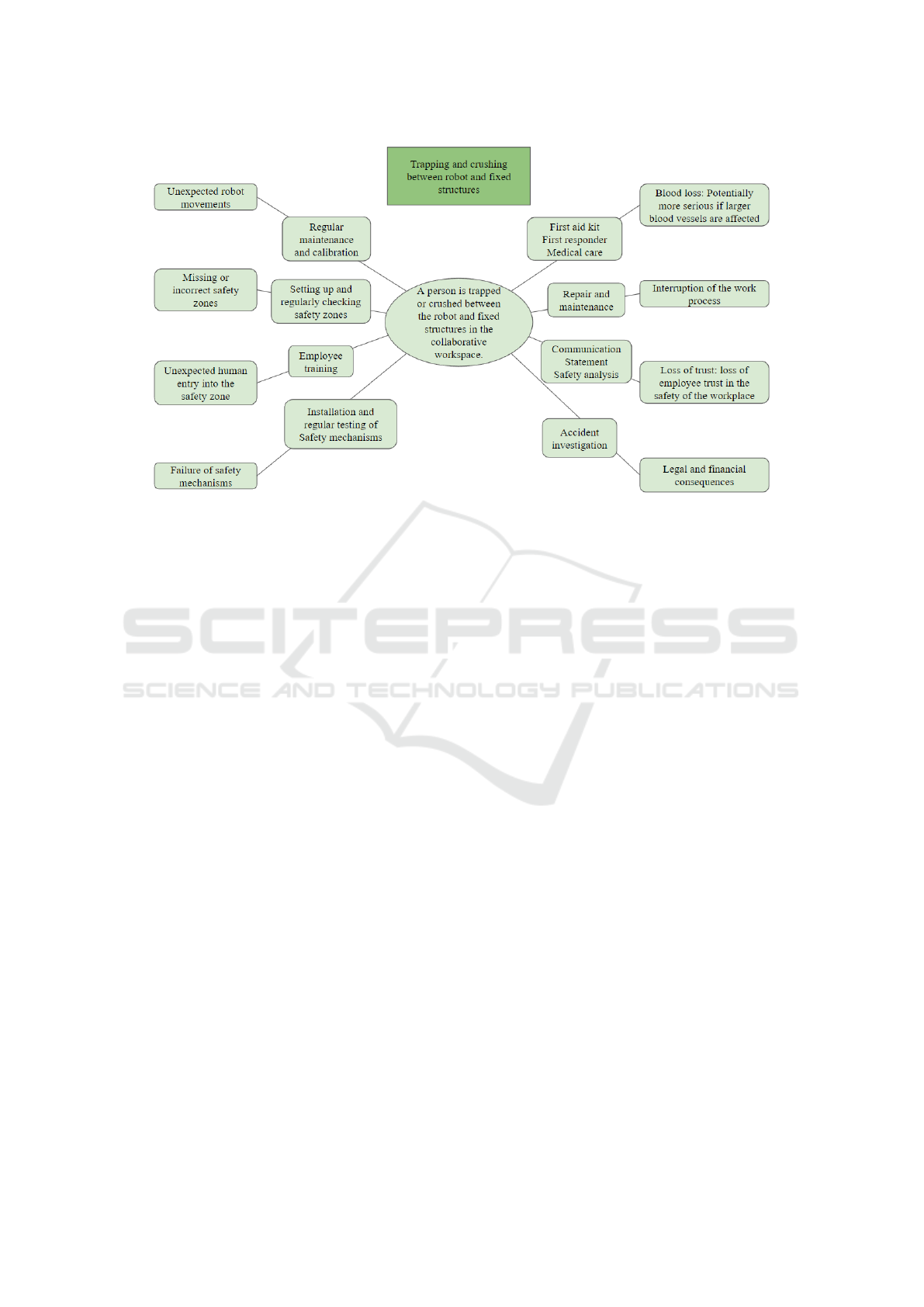

desired event. A common hazard in HRC that

could be identiﬁed as such an event is: ”Trapping

and Crushing between Robot and Fixed Struc-

tures.” The elements of the Bow-Tie Analysis

would then be the following:

– Top Event: ”Trapping and Crushing between

Robot and Fixed Structures” which could con-

siderably impact the safety of the workspace.

– Threats and Consequences: Map out the pri-

mary threats leading to the top event, such

as unexpected robot movements and failure of

safety mechanisms. The consequences in this

case are human injury and loss of trust in tech-

nology.

– Control Measures and Mitigation: Documented

existing preventive controls (measures to pre-

vent threats from causing the top event) and

mitigative controls (measures to reduce the im-

pact if the top event occurs). For example, in-

stalling safety sensors and emergency stop but-

tons, implementing safety zones and barriers,

and conducting regular safety audits and main-

tenance.

• Step 3: Analyzing the Bow-tie Results with RPN

This step involves quantifying the risks associ-

ated with each identiﬁed threat by evaluating their

Severity, Occurrence, and Undetectability. Using

these ratings, the RPN for each threat is calcu-

lated. The RPN helps prioritize the identiﬁed haz-

ards based on their potential impact on the assem-

bly process.

• Step 4: Prioritization and Mitigation

High-priority risks are addressed ﬁrst by imple-

menting additional control measures or improving

existing ones. For example, to address the threat

of ’Unexpected human entry into the robot’s path,’

more robust access control measures are imple-

mented, such as ‘Setting up safety zones using

physical barriers’ and ‘Installation and regular

testing of emergency stop switches’.

Safety Assessment of Human-Robot Collaborations Using Failure Mode and Effects Analysis and Bow-Tie Analysis

435

• Step 5: Observation and Documentation

All ﬁndings from Bow-Tie Analysis and FMEA

are documented in comprehensive templates, de-

tailing the threats, consequences, control mea-

sures, and RPN calculations.

4 EVALUATION

4.1 Case Study

As case study for evaluating the applicability of the

approach, a collaborative toy truck assembly was

chosen. The system has a virtual separation of

workspaces, dividing the area into distinct zones for

human operators, collaborative tasks, and robotic op-

erations. Step-by-step assembly instructions are pro-

jected onto the human workspace to provide real-time

guidance.

A control interface starts the assembly process,

tracks the completion of each step, and moves on to

the next. The system also ensures precise compo-

nent placement during each assembly step. Addition-

ally, quality control is maintained through an over-

head camera system that continuously monitors the

assembly process.

The assembly procedure begins with the human

operator initiating the process by pressing a start but-

ton. In the component placement phase (Coexis-

tence Mode), the robot places the truck parts load car-

rier, cabin, and chassis in an assembly bracket while

the human operator simultaneously prepares the axle

holders. During the collaborative assembly phase

(Collaboration Mode), the robot assists by position-

ing each axle on the base of the truck and holding it

in place. Finally, once the truck is fully assembled,

it is removed from the collaborative workspace and

placed in a designated area for completed assemblies.

4.2 Results

In this section, examples from the application results

are shown. This section is structured according to the

identiﬁed three main categories of safety hazards for

human robot collaboration: ’Human’, ’Robot’, and

’Collaborative Workspace’.

4.2.1 Human-Related Hazards

Examples of Identiﬁed Hazards:

• Hazard 1: Human Error - Human error can lead to

mistakes in decision-making and task execution.

• Hazard 2: Inadequate Communication - Inade-

quate communication can cause misunderstand-

ings and misinterpretations.

• Hazard 3: Non-Compliance with Safety Proce-

dures - Non-compliance with safety procedures

can increase the risk of accidents and injuries.

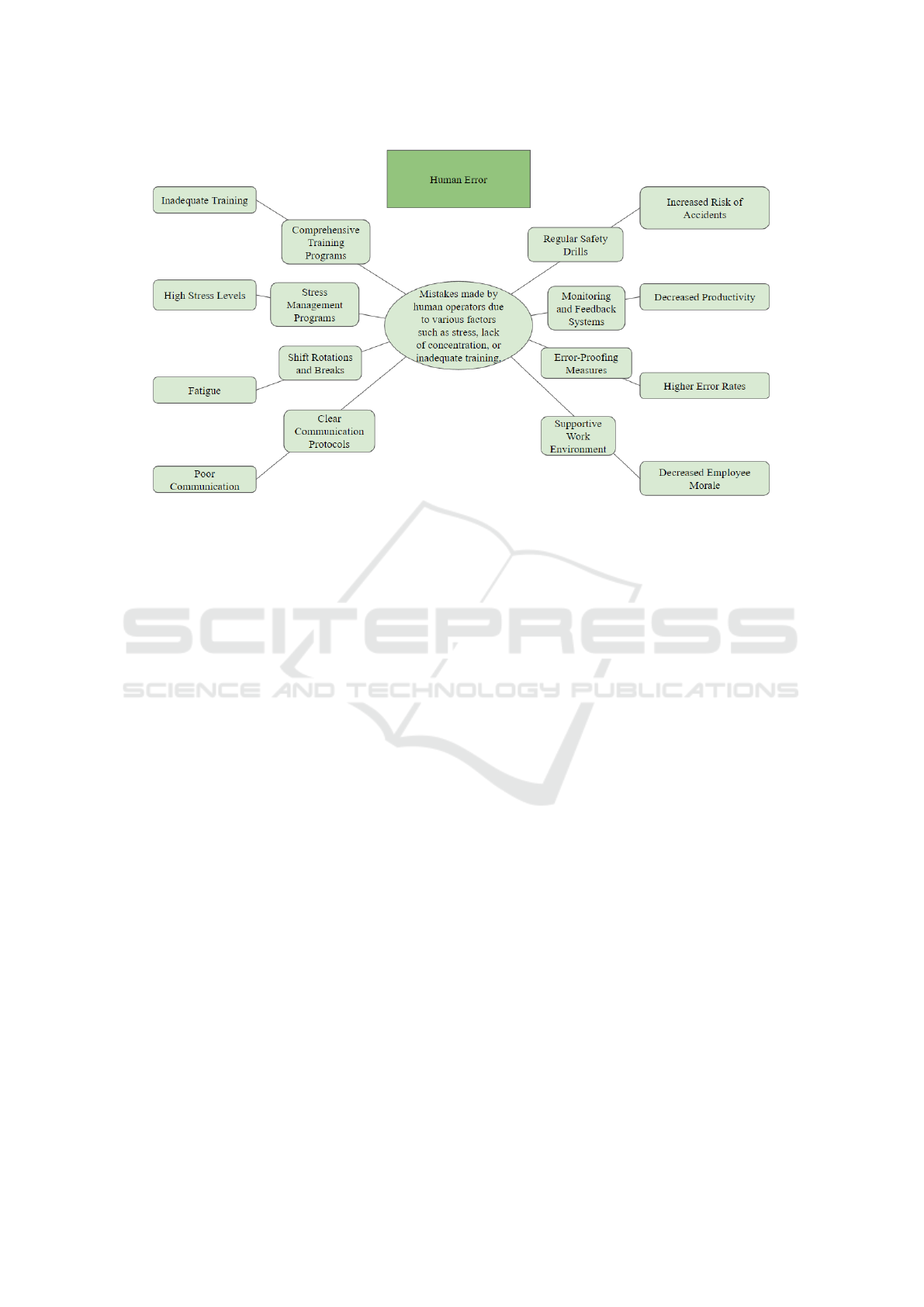

Bow-Tie Analysis for Human-Related Hazards: In

this example, the hazard of ’Human error’ is ana-

lyzed. The Bow-tie diagram in ﬁgure 3 shows the key

hazard and the main contributing factors and their re-

spective controls. On the left side of the diagram, var-

ious causes of human error are identiﬁed, each paired

with appropriate control measures to minimize their

occurrence. These include inadequate training, high

stress levels, fatigue, and poor communication, which

are controlled through comprehensive training pro-

grams, stress management initiatives, shift rotations

and breaks, and clear communication protocols, re-

spectively. On the right side of the diagram, the poten-

tial consequences of human error are detailed along

with their mitigations. These consequences, such as

increased risk of accidents, decreased productivity,

higher error rates, and decreased employee morale,

are addressed through regular safety drills, monitor-

ing and feedback systems, error-prooﬁng measures,

and a supportive work environment.

Identiﬁed causes and controls:

• Cause 1: Inadequate Training - controlled by

Comprehensive Training Programs

• Cause 2: High stress levels - controlled by Stress

Management Programs

• Cause 3: Fatigue - controlled by Shift Rotations

and Breaks

• Cause 4: Poor communication - controlled by

Clear Communication Protocols

Identiﬁed consequences and mitigations:

• Consequence 1: Increased Risk of Accidents -

mitigated by Regular Safety Drills

• Consequence 2: Decreased Productivity - miti-

gated by Monitoring and Feedback Systems

• Consequence 3: Higher Error Rates - mitigated by

Error-Prooﬁng Measures

• Consequence 4: Decreased Employee Morale -

mitigated by supportive Work Environment

4.2.2 Robot-Related Hazards

Examples of Identiﬁed Hazards:

• Hazard 1: Mechanical Failure - Breakdowns or

malfunctions of robotic components, such as mo-

tors or actuators, which can lead to unintended

movements or complete stoppages.

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

436

Figure 3: Bow-tie diagram for human-related hazard.

• Hazard 2: Software Bugs - Errors in the robot’s

software that could cause the robot to perform un-

intended actions, potentially leading to unsafe sit-

uations.

• Hazard 3: Inadequate Maintenance - Lack of reg-

ular maintenance and inspections, which can re-

sult in deteriorating performance and increased

likelihood of failures or malfunctions.

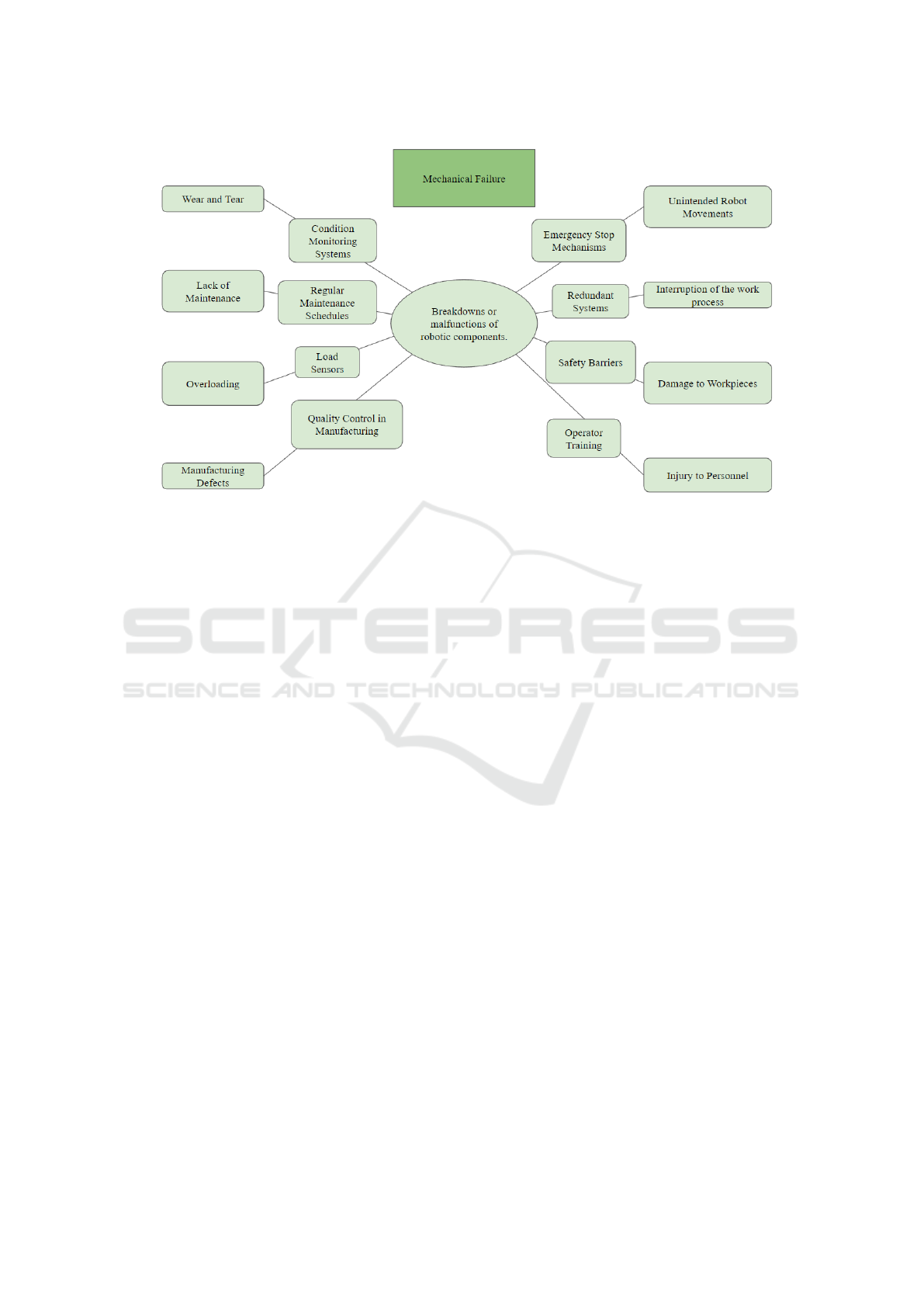

Bow-Tie Analysis for Robot-Related Hazards: In this

example, the focus is on mechanical failure. The dia-

gram in ﬁgure 4 highlights the various causes, such as

wear and tear, lack of maintenance, overloading, and

manufacturing defects, and the corresponding con-

trols like condition monitoring systems, regular main-

tenance schedules, load sensors, and quality control in

manufacturing. The consequences of mechanical fail-

ure include unintended robot movements, interruption

of the work process, damage to workpieces, and in-

jury to personnel. These are mitigated by emergency

stop mechanisms, redundant systems, safety barriers,

and operator training.

Identiﬁed causes and controls:

• Cause 1: Wear and Tear - controlled by Condition

Monitoring Systems

• Cause 2: Lack of Maintenance - controlled by

Regular Maintenance Schedules

• Cause 3: Overloading - controlled by Load Sen-

sors

• Cause 4: Manufacturing Defects - controlled by

Quality Control in Manufacturing

Identiﬁed consequences and mitigations:

• Consequence 1: Unintended Robot Movements -

mitigated by Emergency Stop Mechanisms

• Consequence 2: Interruption of the work process

- mitigated by Redundant Systems

• Consequence 3: Damage to Workpieces - miti-

gated by Safety Barriers

• Consequence 4: Injury to Personnel - mitigated

by Operator Training

4.2.3 Collaborative Workspace Hazards

Examples of Identiﬁed Hazards:

• Hazard 1: Sudden stops in movement - Unex-

pected halts in the robot’s motion can lead to col-

lisions or injuries.

• Hazard 2: Unpredictable movements - Robots

performing unplanned actions can create haz-

ardous situations for nearby workers.

• Hazard 3: Trapping and crushing between robot

and ﬁxed structures - Limited space can lead to

workers getting trapped or crushed between the

robot and ﬁxed structures, causing severe injuries.

To better understand and manage these hazards, a

Bow-Tie Analysis was conducted for each category.

This method provides a visual representation of the

pathways from causes to a central hazard and then

to consequences, along with associated controls and

mitigations.

Safety Assessment of Human-Robot Collaborations Using Failure Mode and Effects Analysis and Bow-Tie Analysis

437

Figure 4: Bow-tie diagram for robot-related hazard.

Bow-Tie Analysis for Collaborative Workspace

Hazards: In this example, the hazard of ’Trapping

and Crushing’ is examined. The Bow-tie in ﬁgure 5

shows the causes including unexpected robot move-

ments, missing or incorrect safety zones, unexpected

human entry into the safety zone, and failure of safety

mechanisms. Controls such as regular maintenance

and calibration, setting up and checking safety zones,

employee training, and installation and testing of

safety mechanisms are identiﬁed. Consequences of

trapping and crushing include blood loss, interruption

of the work process, loss of trust in workplace safety,

and legal and ﬁnancial consequences. These are

mitigated through ﬁrst aid and medical care, repair

and maintenance, communication and safety analysis,

and accident investigation.

Identiﬁed causes and controls:

• Cause 1: Unexpected robot movements - con-

trolled by Regular maintenance and calibration

• Cause 2: Missing or incorrect safety zones - con-

trolled by Setting up and regularly checking safety

zones

• Cause 3: Unexpected human entry into the safety

zone - controlled by Employee training

• Cause 4: Failure of safety mechanisms - con-

trolled by Installation and regular testing of Safety

mechanisms

Identiﬁed consequences and mitigations:

• Consequence 1: Blood loss: Potentially more se-

rious if larger blood vessels are affected - miti-

gated by First aid kit, First responder, Medical

care

• Consequence 2: Interruption of the work process

- mitigated by Repair and maintenance

• Consequence 3: Loss of trust: loss of employee

trust in the safety of the workplace - mitigated by

Communication, Statement, Safety analysis

• Consequence 4: Legal and ﬁnancial consequences

- mitigated by Accident investigation

5 CONCLUSION

For human-robot collaborations safety is a vital con-

cern. Due to the close proximity of operation and the

overlapping working spaces, multiple safety hazards

arise. Therefore, thorough safety assessment is in-

evitable. However, in literature only few approaches

for safety assessment of human-robot collaborations

do exist. In addition, reports of application of tradi-

tional safety analysis are also only published sparsely.

Therefore, in this paper, we report on the applica-

tion of a combination of FMEA and Bow-Tie anal-

ysis for early safety assessment of human-robot col-

laborations using an industrial case example from the

manufacturing domain.

Our study shows that the integration of the Bow-

Tie Analysis with the RPN calculation from FMEA

provides a detailed safety and risk assessment in HRC

environments. By combining the top-down visualiza-

tion and detail of the Bow-Tie Analysis with bottom-

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

438

Figure 5: Bow-tie diagram for collaborative workspace hazard.

up classiﬁcation of the risk level by the RPN calcula-

tion, it is possible to systematically identify, analyze

and address potential hazards in a collaborative as-

sembly process.

REFERENCES

(2010). ISO 12100: Safety of machinery — General princi-

ples for design — Risk assessment and risk reduction.

International Organization for Standardization.

(2011). ISO 10218-1: Robots and robotic devices — Safety

requirements for industrial robots — Part 1: Robots.

International Organization for Standardization.

(2018). ISO 31000: Risk management — Guidelines. Inter-

national Organization for Standardization.

Afefy, I. H. (2015). Hazard analysis and risk assess-

ments for industrial processes using fmea and bow-tie

methodologies. Industrial Engineering and Manage-

ment Systems, 14(4):379–391.

Berx, N., Decr

e, W., Morag, I., Chemweno, P., and Pin-

telon, L. (2022). Identiﬁcation and classiﬁcation

of risk factors for human-robot collaboration from a

system-wide perspective. Computers & Industrial En-

gineering, 163:107827.

Cristea, G. and Constantinescu, D. (2017). A comparative

critical study between fmea and fta risk analysis meth-

ods. IOP Conference Series: Materials Science and

Engineering, 252(1):012046.

Daun, M., Brings, J., Krajinski, L., Stenkova, V., and

Bandyszak, T. (2021). A grl-compliant istar exten-

sion for collaborative cyber-physical systems. Re-

quirements Engineering, 26(3):325–370.

Daun, M., Manjunath, M., and Jesus Raja, J. (2023). Safety

analysis of human robot collaborations with grl goal

models. In International Conference on Conceptual

Modeling, pages 317–333. Springer.

de Ruijter, A. and Guldenmund, F. (2016). The bowtie

method: A review. Safety science, 88:211–218.

Huck, T. P., M

unch, N., Hornung, L., Ledermann, C., and

Wurll, C. (2021). Risk assessment tools for indus-

trial human-robot collaboration: Novel approaches

and practical needs. Safety Science, 141:105288.

Lee, S. and Yamada, Y. (2012). Risk assessment and

functional safety analysis to design safety function

of a human-cooperative robot. In Human Machine

Interaction-Getting Closer. Citeseer.

Liu, P., Liu, S., and Xie, M. (2019). Failure mode and

effects analysis for proactive healthcare risk manage-

ment: A systematic literature review. Quality and Re-

liability Engineering International, 35(5):1279–1291.

Manjunath, M., Raja, J. J., and Daun, M. (2024). Early

model-based safety analysis for collaborative robotic

systems. IEEE Transactions on Automation Science

and Engineering.

Reddy, K. (2015). Hazard identiﬁcation and risk assess-

ment. CBS Publishers & Distributors Pvt Ltd.

Ruijters, E. and Stoelinga, M. (2015). Fault tree analysis:

A survey of the state-of-the-art in modeling, analysis

and tools. Computer Science Review, 15:29–62.

Sharma, K. D. and Srivastava, S. (2018). Failure mode and

effect analysis (fmea) implementation: a literature re-

view. J Adv Res Aeronaut Space Sci, 5(1-2):1–17.

Tait, R. and Edwards, D. (2021). Bow-tie analysis: A mod-

ern method for risk assessment. Journal of Safety Re-

search.

Zacharaki, A., Kostavelis, I., Gasteratos, A., and Dokas, I.

(2020). Safety bounds in human robot interaction: A

survey. Safety science, 127:104667.

Safety Assessment of Human-Robot Collaborations Using Failure Mode and Effects Analysis and Bow-Tie Analysis

439
