Punch Type Classification and Hit Judgement

Using Estimated Skeletal Model in Boxing Match Videos

Soma Watanabe

and Yoshinari Kameda

College of Engineering Systems, University of Tsukuba, Japan

Center for Computational Sciences, University of Tsukuba, Japan

Keywords: Skeletal Description, Action Classification, Action Recognition, Boxing, Sports Video.

Abstract: In boxing, the choice of punch types and how to hit the punch to the opponent player is an important issue.

So the support of computer vision on punch type classification and hit judgement on boxing match video is

demanded. There are currently two challenges to that purpose. The first is the preparation of appropriate video

dataset of boxing matches. The second is the discussion of the right method for punch type classification and

punch hit judgment. We propose to create a video dataset of boxing matches from a boxing 3DCG simulation.

The simulation can automatically annotate attributes to the dataset. This is useful for hit / no-hit judgement as

it is not easy to identify which punches are actually hit and which are not on real boxing match videos. Based

on the dataset we prepared, we propose a new method using time-series skeletal representation for classifying

the type of punches and judging the hits. The experimental results show that our proposed method is able to

classify the types of punches and judge the hits.

1 INTRODUCTION

Boxing is a combat sport in which victory or defeat is

determined by two fighters exchanging punches. In

boxing, the key to victory is to use different types of

punches to hit the opponent. Automation of the clas-

sification of the type of punches and the judging of

hits from boxing match videos would contribute to the

development of tactical analysis in boxing.

There are two challenges in analyzing punches us-

ing computer vision. The first is to prepare a video

data set of boxing matches with correct annotation.

Due to the nature of boxing, the number of fights per

fighter in boxing is not so large. In addition, in order

to use the match videos as training data, it is necessary

to assign not only the type of punch as a teacher signal

but also the attribute of whether the punch was a hit

or not. It is not easy to visually assign attributes to the

video. To the best of our knowledge, there are no good

boxing match video datasets that describe these attrib-

utes and are publicly available. Second, partly due to

the first reason, no method has been proposed to au-

tomatically classify the type of punch and judge the

hit based on boxing match video.

https://orcid.org/0000-0001-6776-1267

In this study, we propose a method to automati-

cally recognize punches based on a boxing match

video dataset created from a CG simulation of a box-

ing match. In automatic punch recognition, both type

classification and hit judgment are performed.

In the generation of punch images in a boxing CG

simulation, motion for each punch type is used. By

performing the punch hit judgment on the simulation,

the true value of the hit judgment attribute is automat-

ically assigned to the dataset for each punch.

We propose an automatic recognition method us-

ing time-series skeletal representation for classifying

the type of punch and judging the hit. The framework

is the same for both classification and judgement. A

learning model suitable for recognizing the time-se-

ries skeletal representation of multiple human bodies,

including occlusions, is used for both. We formulate

the punch type classification as a multi-class classifi-

cation problem and the hit judgment as a two-class

classification problem.

The contribution of this research is twofold. The

first is the creation of a boxing match video dataset

using CG simulation. We created a video dataset suit-

able for skeletal estimation by using 3DCG simula-

tion of a scene of a boxing match in which a boxer is

218

Watanabe, S. and Kameda, Y.

Punch Type Classiﬁcation and Hit Judgement Using Estimated Skeletal Model in Boxing Match Videos.

DOI: 10.5220/0013018400003828

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 12th International Conference on Sport Sciences Research and Technology Support (icSPORTS 2024), pages 218-224

ISBN: 978-989-758-719-1; ISSN: 2184-3201

punching. The created dataset is used for both training

and validation. Second, we show that the time-series

skeletal representation of two fighters can be used to

classify the type of punch and judge the hit.

The general flow of the proposed method is de-

scribed below. First, a 3DCG animation is created.

Next, punch motion is captured from various angles

to create punch videos. A punch type label and a hit

label are assigned to each punch video. In the training

phase, we first apply skeletal estimation to the punch

videos to obtain a skeletal time series representation

for each punch video. Then, using this set of skeletal

time-series representations, we train a model that

classifies the type of punch. Similarly, we train a

model that judges the punch hit. ST-GCN++(Duan et

al. 2022) is used for the machine learning model.

2 RELATED WORKS

Cizmic et al. proposed a punch classification method

using wearable sensors (Cizmic et al. 2023). In the

field of image recognition, punch classification meth-

ods for shadow boxing (Kasiri et al. 2017) (Kasiri et

al. 2015) have been proposed, while Broilvskiy et al.

proposed an action recognition method on a video da-

taset of a single fighter shadow boxing (Broilvskiy et

al. 2021). The above studies are aimed only at punch

type determination and do not discuss punch hit de-

termination.

So far, recognition methods using skeletal repre-

sentations have been presented for single-person ac-

tions in daily activities (Xu et al. 2023) (Lee et al.

2023). Similarly, action recognition methods have

been presented for the daily actions of multiple per-

sons (Li et al. 2020) (Tu et al. 2021) (Chen et al. 2023).

In these studies, the interaction between persons has

been cited as a problem in multi-person action classi-

fication tasks. In the same presentation, a method with

high robustness against interactions was also reported.

Action classification methods using skeletal esti-

mation have been reported for stand-alone sports such

as skating (Li et al. 2021), taekwondo (Luo et al.

2023), and karate (Guo et al. 2021). These studies

have shown that action classification methods using

skeletal representations can provide superior recogni-

tion performance.

CG has been used as a dataset for supervised

learning in the past, and Wood et al. have trained on

CG-generated face image data alone for tasks such as

identifying landmarks and analyzing regions of the

human face, showing that training on CG face image

data alone can record the same accuracy as training

on actual face image data (Wood et al. 2023 ). They

have shown that when training with only CG face im-

age data, the accuracy is comparable to that of training

with actual face image data.

3 BOXING MATCH VIDEOS

In this study, boxing match video refers to video foot-

age of two fighters punching each other with the goal

of hitting a punch. It is assumed that the video may be

shot from various positions around the ring. The cam-

era work is assumed to be stationary when filming

from each location, so as not to lose the generality of

the filming.

The punch type judgment task in this study fo-

cuses on four types of punches used in boxing: hooks,

jabs, straights, and uppercuts. In the punch hit judg-

ment task, two types of punches are considered: hit

and miss.

A single punch video is defined as a video of one

punch by one of the two players in the match video.

For each punch video, we judge whether it is one

of the four types of punches. For each punching video,

and whether it is a "hit" or a "miss". In this study, we

do not classify which player punched which.

A CG simulation is used to generate a number of

punching videos. In one punching video, one of the

two players performs the motion of punching and the

other performs the motion of receiving a punch. For

each punch video, two labels are assigned: punch type

and punch hit. The punch type label is determined

from the motion used. The label for the hit is automat-

ically set based on the contents of the CG simulation.

4 DETERMINATION OF PUNCH

TYPE AND HIT DETECTION

4.1 Video Processing

The punching video is acquired by CG simulation at

30 fps. For each frame in the punching video, we es-

timate the skeleton of two boxers using the 25 key-

point model of OpenPose (Cao et al. 2017). A time-

series skeletal representation is obtained for the 17

keypoints (Figure 1) necessary for boxing action

recognition. This time-series skeletal representation is

used as input to the learning network model for judg-

ing the type of punches and hits. Figure 2 shows the

processing steps. ST-GCN++(Duan et al. 2022) is

used for both learning network models.

Punch Type Classiﬁcation and Hit Judgement Using Estimated Skeletal Model in Boxing Match Videos

219

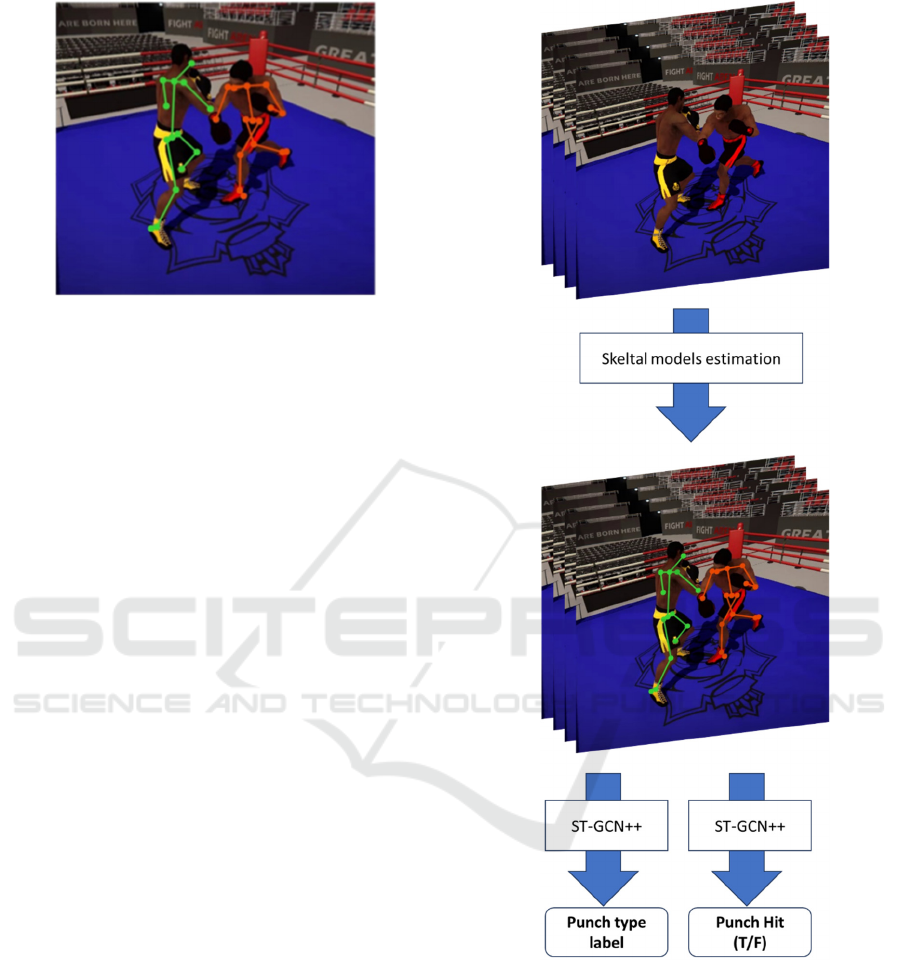

Figure 1: Estimated two skeleton models of two boxers.

One skeleton model is composed of 17 key points.

4.2 Model

The punch classification task and the punch hit deci-

sion task in this study use ST-GCN++(Duan et al.

2022) as the learning network model, which is an ef-

fective model for skeleton-based action recognition

tasks using graph convolution. ST-GCN++ is robust

to person-person interactions. ST-GCN++ is also ro-

bust to occlusion caused by hiding of person regions

by objects or persons. The model achieved an accu-

racy of 0.83 on the skeleton-based action recognition

task on the NTURGB+D 120 dataset (Liu et al. 2019),

which is a video dataset of basic everyday human ac-

tions.

We use a trained model with the NTURGB+D 120

skeletal time series information dataset (Liu et al.

2019) from ST-GCN++. Fine tuning of the trained

model is performed using the dataset created in this

study.

5 VIDEO DATASET

GENERATION

5.1 Camera Layout

Place the camera on one of the points on the sphere

which is aligned to the center of the ring. The camera

is positioned every 15 degrees horizontally and every

15 degrees vertically. The total number of shooting

points is 96. The camera is set so that it faces the cen-

ter of the ring at any point. Figure 3 shows a schematic

of the camera arrangement.

To obtain a single punch image, one of the 96 lo-

cations is selected at random. To ensure the reproduc-

ibility of the experiment, the random number se-

quence is fixed.

Figure 2: Process flow of proposed punch type classifica-

tion and hit judgement.

5.2 Punch Video Synthesis

Figure 4 shows the setup of the stadium model and

boxer model used in this study. Two players are as-

signed to an offensive motion and a defensive motion

for each. The offensive player randomly selects one of

nine different punching motions, and the defensive

player randomly selects one of 12 different defensive

motions. All the motions were obtained as a commerc-

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support

220

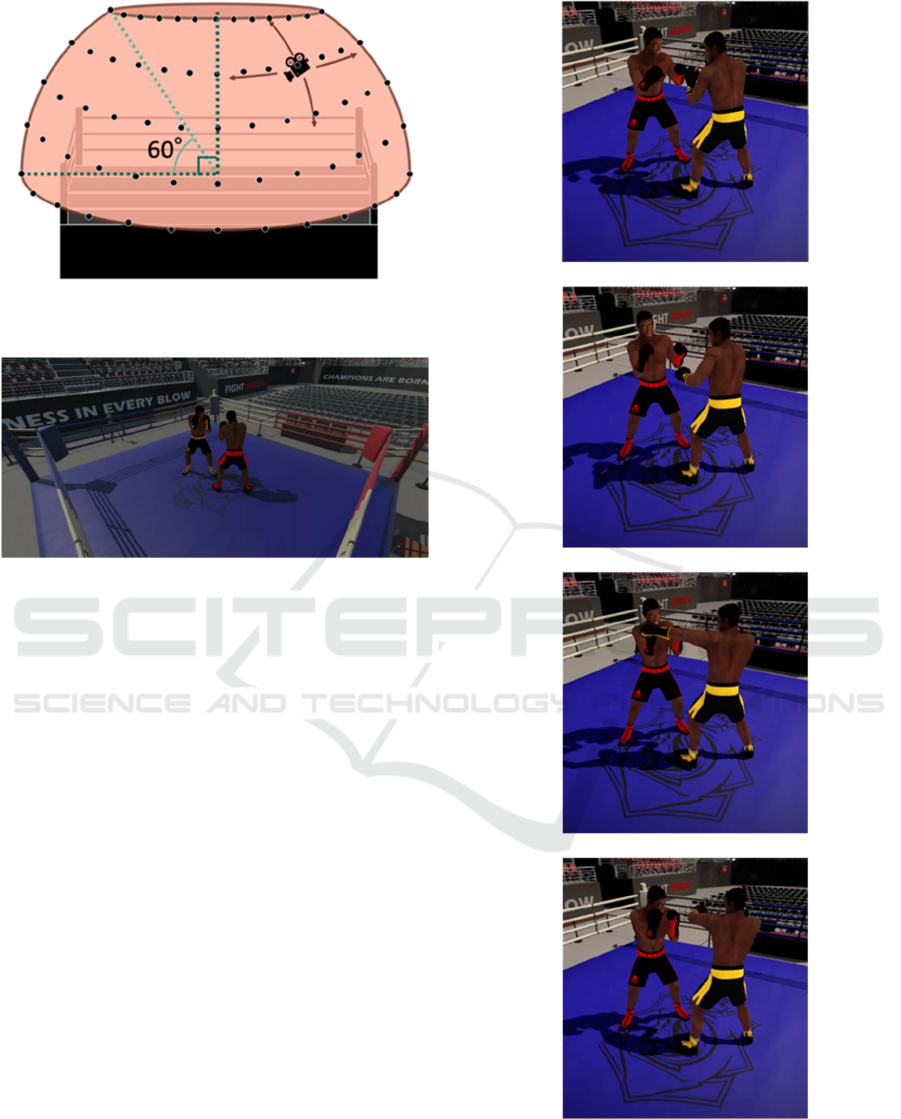

Figure 3: Layout of 96 Camera locations placed around the

boxing ring.

Figure 4: A view of one camera location, showing the boxer

CG models and the stadium model.

ial product of the motion dataset performed by expe-

rienced boxing athletes. The punch motions consist of

three jabs, two each of hooks, uppercuts, and straights.

Offensive and defensive selection, punch motion se-

lection, and defensive motion selection are conducted

randomly. During the experiment, the seed of the ran-

dom number generation is fixed.

Since there are 9 punching motions, 12 defensive

motions, and 96 camera positions, there are 10,368

punching videos. Using a random number sequence,

6,000 punch videos are used for training and 900 for

validation. Table 1 and Table 2 show the distribution

of punches of type classification and hit judgment in

the training dataset created in this study. The average

number of frames indicates the length of the motion

as the video is recorded at 30fps. Figure 5 shows a

part of the created punch videos. Figure 6 shows the

results of the skeletal representation.

5.3 Hit Label Annotation

Collider in our 3D simulation is used to add a label to

the punch hit decision. In this research, a sphere-

shaped Sphere Collider is used for the glove and a

capsule-shaped Capsule Collider is used for the play-

er's body. The installation is shown in Figure 7. When

the Sphere Collider on the hand of an offensive player

Figure 5: Four examples of generated punch motions.

Punch Type Classiﬁcation and Hit Judgement Using Estimated Skeletal Model in Boxing Match Videos

221

Figure 6: Skeletal model description of the punch motions

of Figure 5.

Figure 7: Layout of sphere collider at hands and capsule col-

lider at body. Punch hit is detected by the collision of these

colliders.

Table 1: Distribution of punch motions by types.

hook jab staight uppercut

#data 1376 2046 1273 1305

ratio 0.229 0.341 0.212 0.218

Average

# frame

40.91 44.34 41.18 49.34

Table 2: Distribution of punch motions by hit / no-hit.

hit No hit

#data 2389 3611

ratio 0.398 0.602

Average

# frame

43.61 44.41

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support

222

collides with the Capsule Collider on the body of a

defender, the label "hit" is added. When the hit does

not occur, the label "no hit" is assigned.

6 EXPERIMENTS

For the punch type determination, 1,200 randomly

generated punch videos were used for verification,

yielding an accuracy of 0.94. Figure 8 shows the con-

fusion matrix. The accuracy for each label exceeded

0.90, and a high accuracy of 0.98 was recorded for

straight punches.

For the punch hit evaluation, 1,200 randomly gen-

erated punch videos were also used for verification,

yielding an accuracy of 0.88. Figure 9 shows the con-

fusion matrix. The accuracy for each label was 0.87

or higher.

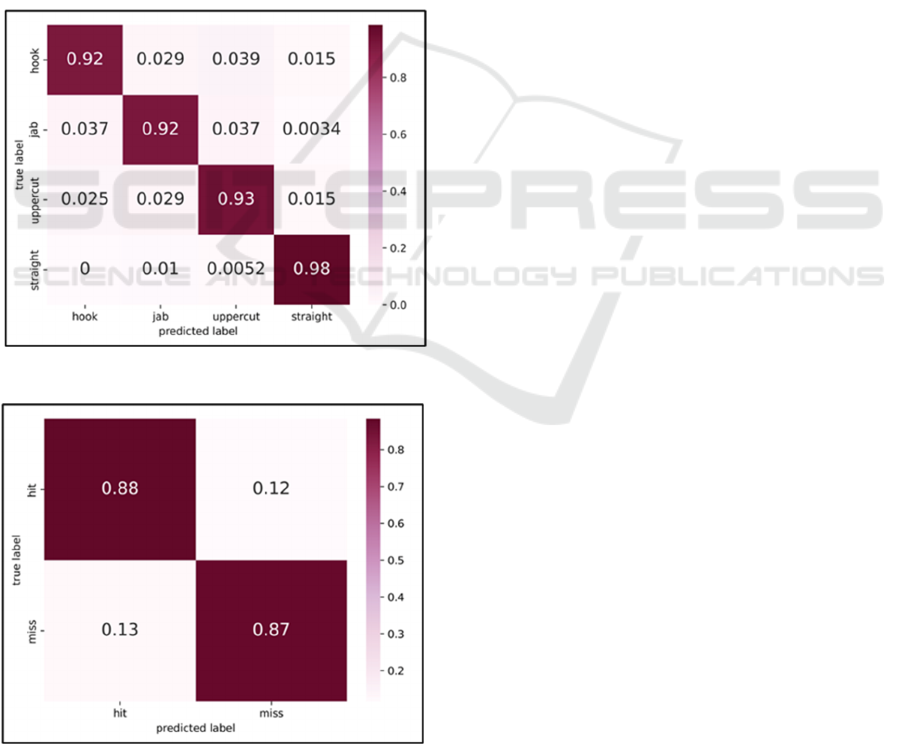

Figure 8: Confusion matrix of punch type classification.

Figure 9: Confusion matrix of punch hit judgement.

7 CONCLUSIONS

In this paper, a boxing match video dataset was cre-

ated from a boxing CG simulation, and an automatic

punch recognition method was proposed based on this

dataset. The automatic punch recognition is decom-

posed into two tasks: a task for classifying the type of

punch and a task for judging the hit. For each of these

tasks, we trained on ST-GCN++. Experimental results

showed that the recognition rate for the punch type

classification task was 0.94, and the recognition rate

for the punch hit judgment task was 0.88.

This work was partially supported by JSPS KA-

KENHI 22K19803 and it was originated by

(Watanabe, 2024).

REFERENCES

Duan, H., Wang, J., Chen, K., & Lin,D. (2022). Towards

good practices for skeleton action recognition”, Proc.

the 30th ACM International Conference on Multimedia,

7351-7354.

Cizmic, D., Hoelbling, D., Baranyi, R., Breiteneder, R., &

Grechenig, T. (2023). “Smart boxing glove “RD α”:

IMU combined with force sensor for highly accurate

technique and target recognition using machine learn-

ing,” J. Applied Sciences, 13(16), 9073-9088.

Kasiri, S., Fookes, C., Sridharan, S., & Morgan, S. (2017).

“Fine-grained action recognition of boxing punches

from depth imagery,” J. Computer Vision and Image

Understanding, 159, 143–153.

Kasiri, S., Fookes, C., Sridharan, S., Morgan, S., & Martin,

T. (2015). “Combat sports analytics: Boxing punch clas-

sification using overhead depth imagery,” Proc. IEEE

International Conference on Image Processing (ICIP),

4545-4549.

Broilvskiy, A., & Makarov, I. (2021). “Human action recog-

nition for boxing training simulator,” Proc. 9th Analysis

of Images, Social Networks and Texts (AIST), LNCS

12602, 331–343.

Xu, H., Gao, Y., Hui, Z., Li, J., & Gao, X. (2023). “Lan-

guage knowledge-assisted representation learning for

skeleton-based action recognition,” https://arxiv.org/

abs/2305.12398.

Lee, J., Lee, M., Lee, D., & Lee, S. (2023). “Hierarchically

decomposed graph convolutional networks for skele-

ton-based action recognition,” Proc. IEEE/CVF Inter-

national Conference on Computer Vision (ICCV),

10410-10419.

Li, T., Sun, Z., & Chen, X. (2020). “Group-skeleton-based

human action recognition in complex events,” Proc. the

28th ACM International Conference on Multimedia,

4703-4707.

Tu, H., Xu, R., Chi, R., & Peng, Y. (2021). “Multiperson

interactive activity recognition based on interaction re-

lation model,” Hindawi Journal of Mathematics, 1-12.

Punch Type Classiﬁcation and Hit Judgement Using Estimated Skeletal Model in Boxing Match Videos

223

Chen, Z., Wang, H., & Gui, J. (2023). “Occluded skeleton-

based human action recognition with dual inhibition

training,” Proc. the 31st ACM International Conference

on Multimedia, 2625–2634.

Li, H., Lei, Q., Zhang, H., Du, J., & Gao, S. (2021). “Skel-

eton-based deep pose feature learning for action quality

assessment on figure skating videos,” Proc. the 11th In-

ternational Conference on Information Technology in

Medicine and Education (ITME), 196-200.

Luo, C., Kim, S., Park, H., Lim, K., & Jung, H. (2023).

“Viewpoint-agnostic taekwondo action recognition us-

ing synthesized two-dimensional skeletal datasets,” J.

Sensors, 23(19), 8049-8063, 2023.

Guo, J., Liu, H., Li, X., Xu, D., & Zhang, Y. (2021). “An

attention enhanced spatial–temporal graph convolu-

tional LSTM network for action recognition in karate,”

J. Applied Sciences, 11(18), 8641-8653.

Wood, E., Baltrusaitis, T., Hewitt, C., Dziadzio, S., Cash-

man, T. J., & Shotton, J. (2023). “Fake it till you make

it: Face analysis in the wild using synthetic data alone,”

Proc. IEEE/CVF International Conference on Computer

Vision (ICCV), 3681-3691.

Cao, Z., Simon, T., Wei, E. S., Sheikh, Y. (2017). “Realtime

multi-person 2D pose estimation using part affinity

fields,” Proc. IEEE conference on Computer Vision and

Pattern Recognition (CVPR), 1302-1310.

Liu, J., Shahroudy, A., Perez, M., Wang, G., Duan, L., Kot,

A. (2019). “NTU RGB+D 120: A large-scale bench-

mark for 3D human activity understanding”, Trans.

IEEE Transactions on Pattern Analysis and Machine In-

telligence (T-PAMI), 42(10), 2684-2701.

Watanabe, S., Kameda, Y. (2024). “Automatic punch

classification using skeletal estimation in boxing match

videos,” IEICE Tech. Rep., vol. 123, no. 433,

MVE2023-83, pp. 224-228.

icSPORTS 2024 - 12th International Conference on Sport Sciences Research and Technology Support

224
