Multi-Modal Deep Learning Architecture Based on Edge-Featured

Graph Attention Network for Lane Change Prediction

Petrit Rama

and Naim Bajcinca

Department of Mechanical and Process Engineering, Rheinland-Pf

alzische Technische Universit

at Kaiserslautern-Landau,

Gottileb-Daimler-Straße 42, 67663 Kaiserslautern, Germany

{petrit.rama, naim.bajcinca}@rptu.de

Keywords:

Lane Change, Maneuver Prediction, Deep Learning, Graph Neural Network, Autonomous Driving.

Abstract:

Maneuver prediction, especially lane change maneuver, is of critical importance for the safe navigation of au-

tonomous vehicles. Although benchmark datasets exist for trajectory prediction, datasets speciﬁcally tailored

for maneuver prediction are rare. This is particularly true for lane change prediction. To address this gap, in

the present paper, an instrumented test vehicle is used to collect, process and label lane change maneuvers

across various trafﬁc scenes. The resulting dataset, referred to as WylonSet, consists of front-facing camera

images, area-view camera images, vehicle state data and lane information. Thereby, over 400 driving sessions

are collected and labeled, including approximately 500 lane change maneuvers, laying the foundation for our

study. The main motivation behind this work is to analyze and predict lane change maneuvers for the ego-

vehicle in urban trafﬁc scenarios using deep learning models. In this study, a novel multi-modal deep learning

architecture is proposed, comprising different modules to extract important features from the collected data.

The visual module is built using Convolutional Neural Networks (CNNs) to capture features from all camera

images, while the interaction module utilizes Graph Neural Networks (GNNs) to capture spatial features be-

tween detected entities in the trafﬁc scene. The state module utilizes vehicle state data, while the lane module

utilizes lane features. All these features are tracked in time using the temporal module of Recurrent Neural

Networks (RNNs). The proposed architecture is trained and validated on WylonSet. Finally, the proposed

learning architecture is implemented, and the resulting model for lane change prediction of the ego-vehicle is

evaluated in different driving scenes and trafﬁc densities.

1 INTRODUCTION

Human driving is inherently hierarchical, aligned

with discrete decision-making layers that correspond

to speciﬁc maneuvers such as lane changing, overtak-

ing and lane keeping. Incorporating this hierarchical

structure into machine driving allows more manage-

able solutions to the complex problem of autonomous

driving. Consequently, lane change prediction be-

comes more challenging due to the uncertainty in the

control policies of individual agents. Navigating traf-

ﬁc environments, is inherently feedback-structured,

enabling the ego-vehicle and other vehicles to reduce

the likelihood of collisions by adjusting their speed

and position accordingly. This demands modeling ap-

proaches that consider holistic understanding of envi-

ronments and the awareness of interactions among the

involved trafﬁc agents. Thus, anticipating and recom-

https://orcid.org/0000-0003-3925-7869

https://orcid.org/0000-0002-1660-4859

mending lane change maneuvers can improve trafﬁc

safety by allowing vehicles to proactively respond to

potentially dangerous situations.

Autonomous driving encompasses various tasks

including object detection, semantic segmentation,

scene understanding, maneuver planning, trajectory

prediction and vehicle control. While benchmark

datasets are available for many of these tasks (Geiger

et al., 2013; Cordts et al., 2016; Yu et al., 2018; Huang

et al., 2018), maneuver planning datasets are rare and

often not speciﬁcally tailored for high-level maneu-

ver prediction. This rarity extends to lane change ma-

neuvers too, where processing trajectories and other

motion cues is required to infer such driving maneu-

vers. Explicitly labeled maneuvers are provided for

intention prediction in the BLVD dataset (Xue et al.,

2019), and learn driver behaviors in the HDD dataset

(Ramanishka et al., 2018). However, lane change ma-

neuvers are limited in number in both datasets and not

sufﬁcient to comprehensively understand lane change

282

Rama, P. and Bajcinca, N.

Multi-Modal Deep Learning Architecture Based on Edge-Featured Graph Attention Network for Lane Change Prediction.

DOI: 10.5220/0013019200003822

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 21st International Conference on Informatics in Control, Automation and Robotics (ICINCO 2024) - Volume 2, pages 282-289

ISBN: 978-989-758-717-7; ISSN: 2184-2809

behaviors across different trafﬁc scenes. To address

this gap, in the present work, an instrumented test

vehicle is utilized to collect, process and label lane

change maneuvers in various trafﬁc scenarios. The in-

troduced dataset, named WylonSet, consists of high-

resolution front-facing camera and area-view camera

images, vehicle state data and lane information. It

serves as a foundation for our study, to analyze and

predict lane change behaviors using deep learning

models in different trafﬁc scenarios.

Generally, the research landscape of lane change

prediction is dominated by deep learning models,

mainly due to the availability of data and advance-

ments in hardware capabilities. Lee et al. (Lee et al.,

2017) proposes a novel framework that ﬁrst builds a

bird’s-eye view of the trafﬁc scene and utilizes Convo-

lutional Neural Networks (CNNs) to perceive it, en-

abling lane change prediction for surrounding vehi-

cles, including left cut-ins, right cut-ins or lane keep

maneuvers. Wei et al. (Wei et al., 2019) introduces an

end-to-end lane change behavior detection model us-

ing the front-facing camera images and Inertial Mea-

surement Unit (IMU) data, leveraging Deep Residual

Neural Network. The paper (Izquierdo et al., 2021)

proposes an architecture based on CNNs to detect and

predict lane change and lane keep maneuvers, based

on vehicle motion histories, the environment context

and the interaction between trafﬁc agents.

Another class of models that is relevant to the

present paper are Graph Neural Networks (GNN).

Graph models are used widely in maneuver predic-

tion, recently including lane change prediction. The

main reasons that graph structures gained attention

are because of their versatility to accommodate di-

verse sets of detected entities and their adaptable

structures within various deep learning architectures.

But, mainly, graphs inherently capture interactive fea-

tures, making them well-suited for interaction-aware

approaches. These approaches are crucial for motion

prediction systems, where the movement of each par-

ticipant signiﬁcantly impacts the movement of others.

GNNs have emerged as powerful models to capture

the spatial interaction within such graphs. Adopting

GNNs for modeling trafﬁc scenes as graphs has been

empirically proved to increase the accuracy of trajec-

tory prediction by Diehl et al. in (Diehl et al., 2019).

GRIP (Li et al., 2019) represents the interaction be-

tween trafﬁc agents in the form of a graph, using

GNNs to capture spatial features to predict trajecto-

ries for observed agents, not lane change maneuvers.

Similarly, Pan et al. (Pan et al., 2020) proposes an

architecture based on GNNs, Long Short-Term Mem-

ory networks and attention mechanism to model the

problem as a spatio-temporal graph and predict lane

change trajectories. Liang et al. (Liang et al., 2020)

encodes the map as a graph, and uses graph convolu-

tions to capture complex topological dependencies, to

predict multi-modal trajectories.

The present paper extends the research conducted

in (Rama and Bajc¸inca, 2022; Rama and Bajc¸inca,

2023) by introducing a dataset and a multi-modal

deep learning architecture designed for analyzing and

predicting lane changes of ego-vehicles. The archi-

tecture incorporates visual, interaction, state, lane

and temporal features. Visual features and detected

entities from the trafﬁc scene are extracted using

CNNs from camera images. Adopting an interaction-

aware approach, the architecture models spatial inter-

actions among these detected trafﬁc entities as scene

graphs, whereby nodes represent detected trafﬁc en-

tities, while edges represent the relative interaction

among them. Such graphs serve as inputs of GNNs

for learning spatial features. Finally, vehicles state

data and lane information, with features extracted

from the aforementioned modules, are tracked in time

using Recurrent Neural Networks (RNNs), enabling

the capture of temporal dynamics relevant to lane

change maneuver classiﬁcation. The main contribu-

tions of the paper include:

• Utilizing surround area-view cameras to extract

visual features and detect diverse trafﬁc entities,

modeling the surrounding view of the ego-vehicle

and the interaction as one large scene graph;

• Proposal of a novel multi-modal deep learning ar-

chitecture based on CNNs, GNNs and RNNs, and

conducting an ablation study to analyze the im-

pact of each module on lane change predictions;

• Optimizing the utilization of sparse visual fea-

tures of interaction graphs for scrutinizing and en-

hancing the accuracy of the lane change maneuver

prediction in different trafﬁc scenarios.

2 METHODOLOGY

The decision-making process in urban environments

is highly interactive, inﬂuenced by surrounding traf-

ﬁc agents, vehicle dynamics and lane information.

Given these complexities, the methodology proposed

in this work follows a multi-modal feature extraction

approach from various inputs. These modalities in-

clude the visual, interaction, state, lane and tempo-

ral modules. Assuming the goal maneuver from the

global path planning module is to drive straight, the

aim is to predict lane keep, left lane change or right

lane change maneuvers based on the aforementioned

input features and trafﬁc constraints.

Multi-Modal Deep Learning Architecture Based on Edge-Featured Graph Attention Network for Lane Change Prediction

283

The system detects visual information and fea-

tures of trafﬁc entities using a state-of-the-art com-

puter vision algorithm, deployed on the front-facing

camera and area-view cameras. The visual features

captured by all cameras provide a visual perspective

of the nearby detected entities. YOLOv7 (Wang et al.,

2022), pre-trained on the COCO (Lin et al., 2014) is

employed to detect entities and extract visual features.

This work adopts an interaction-aware motion

model by representing the problem as an interaction

scene graph. A graph is built for every image frame

captured by the cameras, whereby nodes represent

detected entities, while the edges represent the rela-

tive spatial distance in the image space between en-

tities. Separate graphs generated from each camera

are merged, with the ego-node serving as the common

node. Graph modeling offers the ﬂexibility to treat the

problem as a dynamic system by adding or removing

nodes, edges and features, to reﬂect the varying num-

bers of detected agents during driving.

The vehicle’s state data and lane information ob-

tained from the CAN bus are also used as input, pro-

viding the insights of the internal dynamics of the

ego-vehicle and the road structure. They include sig-

nal data for the steering, acceleration, braking, yaw, as

well as lane markings, their type and color, curvature,

offset, etc. These inputs, combined with visual and in-

teraction features, are tracked in time over a speciﬁc

time-window, providing the navigation module of the

ego-vehicle with comprehensive data to make the ﬁ-

nal decision, which includes Left Lane Change (LLC),

Lane Keep (LK) and Right Lane Change (RLC).

2.1 Problem Formulation

The model receives historical sequences from front-

facing and area-view cameras, interaction graphs, ve-

hicle state data and lane features as inputs. These se-

quences are observed for t = [−T

: 0], where T

the observation time. The objective is to predict the

output probability distribution y at t + T

for maneu-

vers {LLC, LK, RLC} of the ego-vehicle, where T

represents the prediction time step in the future.

The trafﬁc scene is modeled as an interaction

graph G

(t)

= (V

(t)

), for timestep t.

The node set V represents n detected trafﬁc entities,

with n + 1 total nodes in the trafﬁc graph, where the

additional node represents the ego-vehicle. The edge

set E encodes the inverse Euclidean distance between

centerpoints of detected entities in image space, so

that entities closer to the ego-vehicle have a stronger

inﬂuence on lane change prediction. The feature vec-

tor of the entire node set is denoted as X

, while the

feature vector of the entire edge set as X

2.2 Model Architecture

The proposed deep learning architecture is shown in

Fig. 1. The architecture is multi-modal and considers

current inputs of visual, spatial, vehicle state data and

lane information, together with past observations of

these inputs for predicting lane change maneuvers.

First, image frames I

(t)

of timestep t from all cam-

eras pass through multiple CNN layers for feature ex-

traction, providing the architecture with visual infor-

mation of the surrounding trafﬁc. Visual features are

tracked in time-window T

using the module RNN

(t)

= CNN



(t)



, H

(t)

= RNN



(t)

(t−1)



, (1)

where H

(t)

is the output of the RNN

at timestep t.

The same image frames I

(t)

are passed through

YOLOv7 (Wang et al., 2022) algorithm to detect traf-

ﬁc entities and extract sparse visual features from the

trafﬁc environment. Two different interaction graphs

are constructed, as shown in bottom-right part of Fig.

1. BBox graph G

(t)

is created using bounding box

information as node features, wherein each node i in

the graph G

(t)

corresponds to only one detected ob-

jects and it’s features f

, as described below:

= [x

], (2)

where x, y are the centerpoint coordinates, w,h are

width and height of the bounding box in pixels, a

is the detection conﬁdence and c is the class of the

detected entity. Contrarily, patch graph G

(t)

is built

with the same structure as the BBox graph, but it

uses the extracted visual features from the last layer

of YOLOv7 as node features. These graphs are then

passed through separate GNN modules to capture in-

teractive features from separate graphs:

(t)

= GNN



(t)



, g

(t)

= GNN



(t)



. (3)

The ego-vehicle is represented in the interaction

graphs as the ego-node, capturing the spatial interac-

tive features from all nodes in the graph at timestep

t. The output embedding of the ego-node g

(t)

is ex-

tracted from the transformed graph g

(t)

, while the em-

bedding of ego-node g

(t)

is extracted from the trans-

formed graph g

(t)

. These two vector embeddings and

observed over time-window T

using the interaction

module RNN

, similar to Eq. (1).

Vehicle state data s

(t)

and lane features l

(t)

timestep t are also tracked over observed time-

window T

, using the respective RNN modules:

(t)

= RNN



(t)

(t−1)



, (4)

(t)

= RNN



(t)

(t−1)



. (5)

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

284

CNN

Feature Extraction

CNN

Object Detection

Camera Images Visual Features

Object Detections

Patch Graph

BBox Graph

(1) (2)

(3)

(4)

(5)

Vehicle's State Data

Velocity

Long. Acceleration

Lat. Acceleration

Yaw Rate

Wheel Angle

Wheel Angle Sign

Wheel Speed Sign

Wheel Speed

Brake Pressure

Throttle Pedal Pos.

LDW Time Line

LDW Dist. Line

(6) Lane Information (7)

Yaw Angle

Offset Lat.

Curvature Rate

Curvature

Offset Long.

Max Dist. Long.

Type

Color

Number of Lanes

Lane

GNN

Detection Node Feature

GNN

Patch Node Feature

RNN

Visual Features

RNN

Interaction Features

RNN

Lane Features

RNN

State Features

Time [-T

:0] (8)

Classification Layer

Lane Change Prediction

(9)

RLC

Lane Change Maneuver

LLC

BBox Graph

Patch Graph

Figure 1: Network architecture of the proposed model for lane change prediction, (top-right) labeled lane change maneuver,

and (bottom-right) interaction graphs of the detected bounding boxes and extracted visual features.

The hidden latent representation from all afore-

mentioned modules, namely H

(t)

, H

(t)

, H

(t)

and

(t)

at timestep t are concatenated and passed

through a fully-connected classiﬁcation layers FC(·):

(t)

f c

= FC



(t)

∥H

(t)

∥H

(t)

∥H

(t)



. (6)

The output representation H

(t)

f c

of the network is

used to train the model in a supervised fashion to pre-

dict {LLC, LK, RLC} of the ego-vehicle at t + T

3 EXPERIMENTS

Experiments were conducted on a desktop: Ubuntu

18.04 with 2.2GHz Intel(R) Xeon(R) CPU E5-2698

v4, 256 GB RAM, Tesla V100-DGXS-32GB.

3.1 Dataset

For the present work, the in-house dataset WylonSet,

which is speciﬁcally tailored for lane change maneu-

vers, has been collected utilizing an instrumented test

vehicle. Drivers were instructed to drive normally,

while adhering to trafﬁc rules, signs, and speed limits.

They were primarily directed to drive straight in all

scenarios and avoid executing other turning maneu-

vers. Driving straight was also assumed as the goal to

train the proposed deep learning model.

The dataset has been collected in various parts

of the city of Kaiserslautern, in Germany, between

October 2023 and February 2024, featuring diverse

lane information, trafﬁc densities and weather con-

ditions. The dataset includes high-resolution front-

facing camera images (30Hz with a resolution of

2048×864 pixels), area-view camera images (15Hz,

1280×800), vehicle state data and lane information

obtained from the CAN bus. The motion of the ego-

vehicle is measured using the IMU, which records

brake pressure, velocity, acceleration, yaw rate and

steering wheel, among others. In addition, the CAN

provides information about the lane markings, includ-

ing yaw angle, latitudinal/longitudinal offset, curva-

ture, and the type and color of the markings.

WylonSet has initially been preprocessed to en-

sure proper structuring for lane change behavior anal-

ysis. Sessions that contained missing or corrupt infor-

mation were removed to ensure data integrity. Times-

tamps from front-facing camera images serve as the

master clock for synchronizing area-view cameras,

vehicle state data and lane features. Timestamping

is performed using the RTMaps

After processing and labeling, more than 400 driv-

ing sessions were obtained, with nearly 3 hours of

driving videos and around 250,000 front-facing image

frames. The dataset includes 315 right lane change

maneuvers and 175 left lane change maneuvers. The

density distribution and histogram of the main input

data are shown in Fig. 2. The velocity distribution

centers around 50 − 60km/h, reﬂecting typical driv-

ing speeds for urban and rural areas. This is also ev-

ident in Fig. 2b, showing a dominance of roads with

two lanes. The Fig. 2c shows the speciﬁc lane driven

by the ego-vehicle, with lane numbering from right

to left. Lastly, in Fig. 2d, the histogram of the left

lane marking type is shown, where: 0 is “no line”, 1

is “solid”, 2 is “dashed”, 3 is “sidewalk”, 4 is “grass”,

5 is “bot-dots”, 6 is “unknown” and 7 is “error”. The

histogram for the types of right lane markings are very

similar to those for the left lane markings.

Lane change maneuvers are labeled using turn in-

dicators that mark the start and end of the lane change.

As shown in the top-right part of Fig. 1, the turn indi-

https://intempora.com/products/rtmaps/

Multi-Modal Deep Learning Architecture Based on Edge-Featured Graph Attention Network for Lane Change Prediction

285

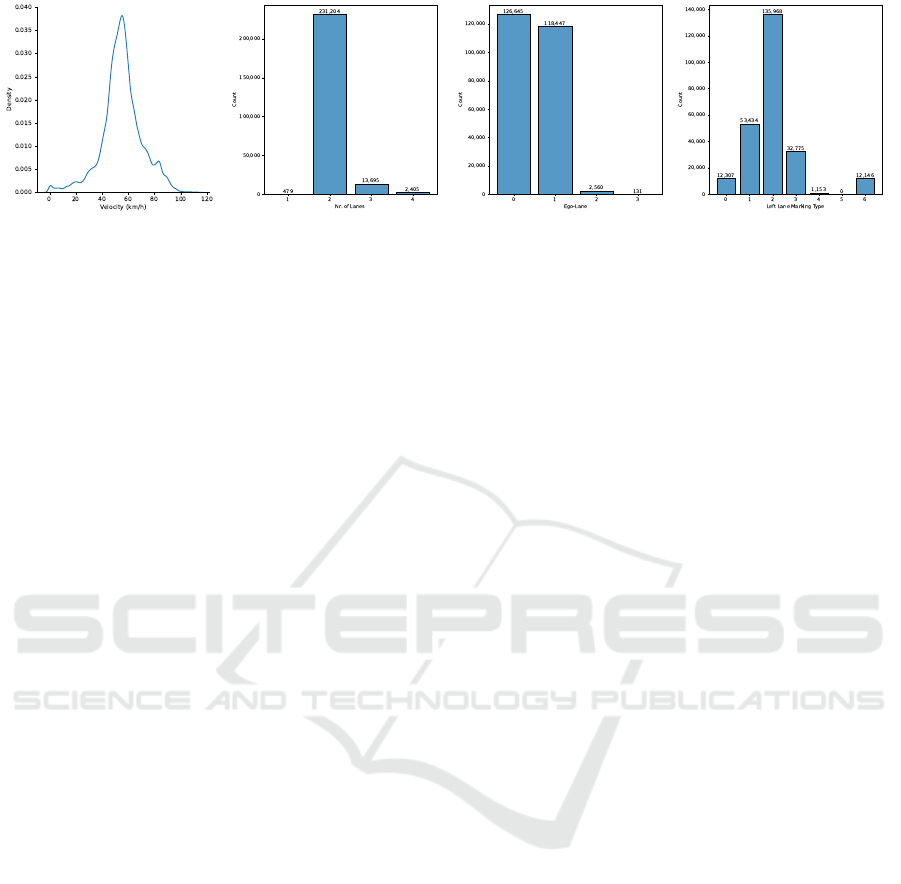

(a) (b) (c) (d)

Figure 2: Density distribution of ego-vehicle data from CAN bus for (a) velocity. Histogram of (b) number of lanes in driven

roads, (c) lane where ego-vehicle was driving (0 is the right-most lane), and (d) left lane marking type.

cator signal is initiated when the vehicle is in the lat-

eral middle of the ego-lane and starts the movement

towards the next lane, coinciding with the rotation of

the steering wheel. The turn indicator is stopped, once

the vehicle reaches the lateral middle of the next lane,

completing of the lane change.

3.2 Model Implementation

The image frames are processed by the visual mod-

ule V of the proposed architecture, implemented us-

ing CNNs. Frames from the front-facing camera and

area-view cameras are resized to 256 × 128 pixels be-

fore feeding them into a two-layer 2D convolution to

extract visual features from each frame of raw images.

Each convolution layer uses a kernel size of 5 and is

followed by a 2D max pooling layer with a kernel size

of 2 and a stride of 2. The network employs the ReLU

activation function, a 0.2 dropout value and 32 hid-

den units per layer. The hidden visual representation

is then ﬂattened and passed through a linear layer to

obtain the output visual representation for each frame.

The same image frames from all four cameras are

also utilized for sparse visual extraction. YOLOv7,

pre-trained on the COCO dataset (Lin et al., 2014), is

employed to detect entities in a trafﬁc scene. The de-

tected sparse features are employed to construct the

respective scene graphs. The BBox graph is con-

structed using the detected bounding box information

inferred from YOLOv7, illustrated as the ﬁrst graph

in the bottom-right part of Fig. 1. Such graphs are

enriched with node and edge features as described in

Sec. 2.2, and are processed by the ﬁrst interaction

module I

. Contrarily, the patch graph is constructed

using the last feature layer of YOLOv7, by extracting

the inner parts of detected entities based on the bound-

ing box coordinates, illustrated as the second graph in

the bottom-right part of Fig. 1. Patches of hidden

visual representation are ﬁrst resized to 16 × 16 pix-

els, passed through a CNN layer with a kernel size

of 4, followed by a max pooling layer with a kernel

size of 2 and stride 2. The hidden representations are

ﬂattened and passed through a linear layer to produce

node features. The edge features in this graph remain

the same as in the BBox graph, encoding the inverse

Euclidean distance. The patch graph is processed by

the second interaction module I

. Both graphs model

the spatial interaction among entities, but with differ-

ent visual features as node features. Each interaction

module is implemented as a two-layer Edge-Featured

Graph Attention Network (Wang et al., 2021).

The vehicle state values are processed by the state

module S, while lane features are processed by the

lane module L. Continuous values from vehicle state

data and lane features are scaled between 0 and 1.

Categorical values from vehicle state data and lane

features are one-hot vector encoded. This processing

step enables the integration of these features, feeding

them directly into the temporal module.

The temporal module T tracks the hidden rep-

resentations from each module, implemented using

Gated Recurrent Units (GRUs). Separate GRUs are

implemented for each module: GRU

for visual fea-

tures, GRU

for interaction graphs, GRU

for vehicle

state data and GRU

for lane features. Each GRU con-

sists of a single layer with 32 hidden units and no

dropout regularization. Such modules allow the archi-

tecture to capture temporal dependencies in the input.

All output features from the temporal modules are

concatenated. Subsequently, they are passed through

a classiﬁcation layer, which is implemented as a two-

layer Fully Connected (FC) network with 32 hidden

units per layer. The ﬁrst FC layer applies a ReLU

activation function, and the second FC layer produces

the ﬁnal classiﬁcation, generating predictions for lane

change maneuvers based on fused input features.

All input data are synchronized based on the front-

facing camera images, which are captured at a rate of

30 frames per second. A single frame was used as a

sampling step, resulting in a sampling rate of 1/30 of

a second. For the experiments, the input data are pre-

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

286

Table 1: Main results show the impact of number of ses-

sions in the performance of the trained model.

Sess. Seq. Acc F1-S ROC-S

75 ≈ 21.000 76.32% 76.30% 78.24%

120 ≈ 44.000 84.86% 84.88% 86.90%

175 ≈ 64.000 88.15% 88.13% 90.61%

240 ≈ 82.000 91.35% 91.37% 93.52%

pared as ordered sequences, with a sampling step of

4 and an observation time-window of T

= 15. This

means that every fourth front frame, along with syn-

chronized camera frames, state data and lane values,

are taken to build a 15-timestep sequence of input.

The dataset is randomly split in 70% for train-

ing and 30% for validation. The architecture is im-

plemented in Python, PyTorch (Paszke et al., 2019)

and Deep Graph Library (DGL) (Wang et al., 2019).

Adam optimizer is used with a learning rate of 0.001

and L2 regularization of 0.0001. The model is trained

as a supervised classiﬁcation task, minimizing the

cross-entropy loss between the predicted outputs and

labels. The model is evaluated using accuracy (Acc),

F1 score (F1-S), ROC score (ROC-S). Moreover, the

model is evaluated using per-class precision (P), re-

call (R), F1 score (F1-S), for three maneuver classes.

4 RESULTS

4.1 Main Results

The performance of the proposed model was evalu-

ated on the WylonSet dataset. To facilitate hyperpa-

rameter tuning and examine the impact of dataset size

on model performance, the dataset was incrementally

enlarged, and the model was retrained and validated

at each step. The results are summarized in Table 1,

showing that increasing the dataset size led to a steady

improvement in performance metrics. With 240 ses-

sions (approx. 82,000 sequences), the model achieved

an accuracy of 91.35%, an F1-score of 91.37% and a

ROC score of 93.52%. While increasing the dataset

size improved performance, the marginal gain dimin-

ished as the dataset grew, at the cost of longer pro-

cessing, training, and evaluation times.

4.2 Ablation Study

To better understand and interpret the contribution of

each module to the model’s performance and analyze

the problem of lane change maneuver prediction from

different modalities, an ablation study was conducted.

Modules are denoted as in the previous sections: V

is the visual module, I

the interaction module with

Table 2: Ablation results show the impact and contribution

of each module in the performance of the trained model.

Average

Acc F1-S ROC-S

V · I

· S · L · T 91.35% 91.37% 93.52%

· S · L · T 92.39% 92.40% 94.29%

V · I

· S · L · T 91.62% 91.63% 93.72%

V · I

· S · L · T 91.67% 91.67% 93.75%

V · S · L · T 89.63% 89.65% 92.22%

V · I

· L · T 87.00% 87.00% 90.25%

V · I

· S · T 85.13% 85.15% 88.85%

bounding boxes, I

the interaction module with de-

tection patches, S is the state module, L is the lane

module and T is the temporal module. The results of

this study, shown in Table 2, are based on experiments

carried out on more than 100.000 sequences (≈ 55%

for the LK, ≈ 25% for LLC, and ≈ 20% for RLC).

The architecture with all modules [V ·I

·S ·L ·T]

is used as a baseline model, which based on the val-

idation results of 91.35% accuracy (in italic), is sur-

prisingly not the best performing model. The visual

module is a crucial module for decision-making, yet

the model without the visual module outperformed

the baseline model, with an accuracy of 92.39% (in

bold). This improvement can be attributed to the fact

that enough visual features are effectively encapsu-

lated in the trafﬁc graphs, which also integrate spa-

tial interactions through their edges. Removing one of

the interaction graphs slightly improved the results to

91.62% and 91.67%, respectively. However, remov-

ing both interaction graphs led to a more signiﬁcant

drop in performance, reducing accuracy to 89.63%

(in underline). The largest decrease in performance

occurred when the state or lane modules were re-

moved, resulting in accuracy of 87.00% and 85.13%,

respectively, highlighting their crucial role in accurate

lane change prediction for the ego-vehicle.

To evaluate the model’s performance across differ-

ent lane change maneuvers, precision (P), recall (R)

and F1-score (F1 − S) were calculated for each class:

LLC, LK and RLC. The detailed results are provided

in Table 3. Generally, the LK maneuver achieves a

higher F1 score compared to RLC and LLC, with an

F1-score of 92.08%. The differences are not sub-

stantial, suggesting relatively balanced performance

across all maneuvers. For RLC and LLC, the model

achieved F1-scores of 90.93% and 90.19%, respec-

tively. Conversely, recall values generally tend to be

higher for RLC, and was particularly high (95.28%) in

the model without the visual module, showing that the

model is highly sensitive to RLC despite fewer data

points. Lastly, RLC precision varied signiﬁcantly de-

pending on the inclusion of interaction modules.

Multi-Modal Deep Learning Architecture Based on Edge-Featured Graph Attention Network for Lane Change Prediction

287

Table 3: Ablation results show the impact and contribution of each module in the per-class performance of the trained model.

Left Lane Change Lane Keep Right Lane Change

P R F1-S P R F1-S P R F1-S

V · I

· S · L · T 87.97% 92.51% 90.19% 93.22% 90.97% 92.08% 91.03% 90.82% 90.93%

· S · L · T 92.73% 90.22% 91.46% 93.38% 91.94% 92.66% 88.32% 95.28% 91.67%

V · I

· S · L · T 88.28% 92.43% 90.31% 92.12% 92.14% 92.13% 94.11% 87.91% 90.90%

V · I

· S · L · T 90.11% 91.18% 90.64% 93.30% 91.21% 92.24% 89.42% 93.66% 91.49%

V · S · L · T 87.31% 88.49% 87.89% 92.25% 88.86% 90.52% 85.79% 93.32% 89.40%

V · I

· L · T 85.50% 83.97% 84.73% 88.11% 87.70% 87.90% 86.04% 89.25% 87.61%

V · I

· S · T 87.61% 75.01% 80.82% 87.13% 89.09% 88.10% 75.32% 85.14% 79.93%

Date:

Time:

Fame:

Model:

Nr. Lanes:

Ego-lane:

20231031

145818

000364

EGAT



Velocity

Lat. Acceler.

Long. Acceler.

Yaw Rate

Wheel Angle

Wheel Speed

Brake Pressure

Throttle Pedal

LDW Time Line

LDW Dist. Line

Sensor

46.96

0.01

-0.3125

0.19

2.20

5.00

0.00

2.40

1.20

0.46

Value

Yaw Angle

Offset Lat.

Offset Long.

Curvature

Curvature Rate

Max. Dist. Long.

Lane

-0.027832

1.402344

0.0000

0.000153

0.001977

26.75

Left

Yaw Angle

Offset Lat.

Offset Long.

Curvature

Curvature Rate

Max. Dist. Long.

Lane

-0.039551

-2.050781

0.0000

0.000183

0.001981

27.25

Right

Detected Lane Markings Detected Lane Markings

Right

Right Right

Left Left Left

LLC LK RLC

Figure 3: Visualization of model inference for lane change prediction.

4.3 Scenario Visualization

A qualitative evaluation of the model’s predictions

was performed using visualizations from selected

trafﬁc scenarios, as shown in Fig. 3. The top-left

section provides information about the session, model

and lanes. The left-middle part and right-middle part

shows the type and color of the detected lane mark-

ings. The tables on the bottom-left and bottom-right

shows the CAN bus data for the lane marking. The

upper-right table shows the main state data for the

ego-vehicle. The middle part displays image frames

from the front-facing and area-view cameras. The top

part shows the prediction probability distribution for

LLC, LK, RLC maneuver classes in the form of bars,

which are color-coded based on their probability.

In the urban trafﬁc scene depicted in Fig. 3, the

model extracts visual features from the scene to detect

vehicles, the bus and trafﬁc signs, while also reading

the ego-vehicle‘s state values and lane features from

CAN. For the timestep t + T

, the model predicts an

LLC with a probability of nearly 90%.. This decision

can be interpreted considering that the ego-vehicle’s

goal is to continue straight, the ego-vehicle is moving

faster than the bus, and that the left lane is free.

5 CONCLUSION

This work introduces WylonSet, a lane change dataset

and proposes a novel multi-modal deep learning ar-

chitecture for analyzing and predicting lane change

maneuvers for the ego-vehicle. The dataset com-

prises front-facing camera and area-view cameras, ve-

hicle state data and lane information, with around

500 lane change maneuvers labeled across diverse ur-

ban scenes. The proposed architecture is based on

CNNs for extracting visual features, GNNs for captur-

ing spatial features from interaction graphs of trafﬁc

scenes, and RNNs for tracking over time these fea-

tures, along with vehicle state values and lane infor-

mation. The ablation study highlights the substantial

impact of the interaction module on the model’s per-

formance, demonstrating improved results even with-

out the visual module. The primary limitation is the

difﬁculty in directly comparing and assessing the pro-

posed architecture against existing approaches.

ICINCO 2024 - 21st International Conference on Informatics in Control, Automation and Robotics

288

ACKNOWLEDGEMENTS

This work is supported by the Federal Ministry for

Digital and Transport (BMDV) of Germany in the

scope of project AORTA (FKZ: 01MM20002).

REFERENCES

Cordts, M., Omran, M., Ramos, S., Rehfeld, T., Enzweiler,

M., Benenson, R., Franke, U., Roth, S., and Schiele,

B. (2016). The cityscapes dataset for semantic urban

scene understanding. In 2016 IEEE Conference on

Computer Vision and Pattern Recognition, CVPR, Las

Vegas, NV, USA, June 27-30, 2016, pages 3213–3223.

Diehl, F., Brunner, T., Truong-Le, M., and Knoll, A. C.

(2019). Graph neural networks for modelling trafﬁc

participant interaction. In 2019 IEEE Intelligent Ve-

hicles Symposium, IV 2019, Paris, France, June 9-12,

2019, pages 695–701. IEEE.

Geiger, A., Lenz, P., Stiller, C., and Urtasun, R. (2013). Vi-

sion meets robotics: The KITTI dataset. Intl. Journal

of Robotics Research (IJRR), 32(11):1231–1237.

Huang, X., Cheng, X., Geng, Q., Cao, B., Zhou, D., Wang,

P., Lin, Y., and Yang, R. (2018). The apolloscape

dataset for autonomous driving. In 2018 IEEE Con-

ference on Computer Vision and Pattern Recognition

Workshops, CVPR Workshops, Salt Lake City, USA,

June 18-22, 2018, pages 954–960. IEEE.

Izquierdo, R., Quintanar,

A., Lorenzo, J., Daza, I. G., Parra,

I., Llorca, D. F., and Sotelo, M.

A. (2021). Vehicle

lane change prediction on highways using efﬁcient en-

vironment representation and deep learning. IEEE Ac-

cess, 9:119454–119465.

Lee, D., Kwon, Y. P., McMains, S., and Hedrick, J. K.

(2017). Convolution neural network-based lane

change intention prediction of surrounding vehicles

for ACC. In 20th IEEE Intl. Conf. on Intelligent Trans-

portation Systems, ITSC 2017, pages 1–6. IEEE.

Li, X., Ying, X., and Chuah, M. C. (2019). GRIP: graph-

based interaction-aware trajectory prediction. In 2019

IEEE Intelligent Transportation Systems Conference,

ITSC 2019, Auckland, New Zealand, October 27-30,

2019, pages 3960–3966. IEEE.

Liang, M., Yang, B., Hu, R., Chen, Y., Liao, R., Feng, S.,

and Urtasun, R. (2020). Learning lane graph represen-

tations for motion forecasting. In ECCV 2020 - 16th

European Conference, Glasgow, UK, August 23-28,

2020, Proceedings, Part II, volume 12347 of Lecture

Notes in Computer Science, pages 541–556. Springer.

Lin, T., Maire, M., Belongie, S., Bourdev, L. D., Girshick,

R. B., Hays, J., Perona, P., Ramanan, D., Dollar, P.,

and Zitnick, C. L. (2014). Microsoft COCO: common

objects in context. CoRR, abs/1405.0312.

Pan, J., Sun, H., Xu, K., Jiang, Y., Xiao, X., Hu, J., and

Miao, J. (2020). Lane-attention: Predicting vehicles’

moving trajectories by learning their attention over

lanes. In IEEE/RSJ Intl. Conf. on Intelligent Robots

and Systems, IROS 2020, Las Vegas, NV, USA, Oct.

24, 2020 - Jan. 24, 2021, pages 7949–7956. IEEE.

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Killeen, T., Lin, Z., Gimelshein, N.,

Antiga, L., Desmaison, A., K

opf, A., Yang, E. Z.,

DeVito, Z., Raison, M., Tejani, A., Chilamkurthy, S.,

Steiner, B., Fang, L., Bai, J., and Chintala, S. (2019).

Pytorch: An imperative style, high-performance deep

learning library. In Advances in Neural Information

Processing Systems 32: Annual Conf. on Neural In-

formation Processing Systems 2019, NeurIPS 2019,

Vancouver, BC, Canada, pages 8024–8035.

Rama, P. and Bajc¸inca, N. (2022). NIAR: interaction-aware

maneuver prediction using graph neural networks and

recurrent neural networks for autonomous driving. In

Sixth IEEE Intl. Conf. on Robotic Computing, IRC

2022, Italy, Dec. 5-7, 2022, pages 368–375. IEEE.

Rama, P. and Bajc¸inca, N. (2023). MALE-A: stimuli and

cause prediction for maneuver planning via graph neu-

ral networks in autonomous driving. In 2023 IEEE

26th International Conference on Intelligent Trans-

portation Systems, ITSC 2023, Bilbao, Spain, Septem-

ber 24-28, 2023, pages 3545–3550. IEEE.

Ramanishka, V., Chen, Y., Misu, T., and Saenko, K. (2018).

Toward driving scene understanding: A dataset for

learning driver behavior and causal reasoning. In 2018

IEEE Conference on Computer Vision and Pattern

Recognition, CVPR, Salt Lake City, USA, June 18-22,

2018, pages 7699–7707. IEEE Computer Society.

Wang, C., Bochkovskiy, A., and Liao, H. M. (2022).

Yolov7: Trainable bag-of-freebies sets new state-of-

the-art for real-time object detectors. In IEEE/CVF

Conf. on Computer Vision and Pattern Recognition,

CVPR 2023, pages 7464–7475. IEEE.

Wang, M., Yu, L., Zheng, D., Gan, Q., Gai, Y., Ye, Z., Li,

M., Zhou, J., Huang, Q., Ma, C., Huang, Z., Guo, Q.,

Zhang, H., Lin, H., Zhao, J., Li, J., Smola, A. J., and

Zhang, Z. (2019). Deep graph library: Towards ef-

ﬁcient and scalable deep learning on graphs. CoRR,

abs/1909.01315.

Wang, Z., Chen, J., and Chen, H. (2021). EGAT: edge-

featured graph attention network. In Artiﬁcial Neu-

ral Networks and Machine Learning - ICANN 2021 -

30th Intl. Conf. on Artiﬁcial Neural Networks, 2021,

volume 12891, pages 253–264. Springer.

Wei, Z., Wang, C., Hao, P., and Barth, M. J. (2019).

Vision-based lane-changing behavior detection using

deep residual neural network. In 2019 IEEE Intelli-

gent Transportation Systems Conference, ITSC 2019,

pages 3108–3113. IEEE.

Xue, J., Fang, J., Li, T., Zhang, B., Zhang, P., Ye, Z., and

Dou, J. (2019). BLVD: building A large-scale 5d se-

mantics benchmark for autonomous driving. In Intl.

Conf. on Robotics and Automation, ICRA, Montreal,

QC, Canada, May 20-24, 2019, pages 6685–6691.

Yu, F., Xian, W., Chen, Y., Liu, F., Liao, M., Madhavan,

V., and Darrell, T. (2018). BDD100K: A diverse driv-

ing video database with scalable annotation tooling.

CoRR, abs/1805.04687.

Multi-Modal Deep Learning Architecture Based on Edge-Featured Graph Attention Network for Lane Change Prediction

289
