Using Deep RL to Improve the ACAS-Xu Policy: Concept Paper

Filipo Studzinski Perotto

ONERA, The French Aerospace Lab, Toulouse, France

Keywords:

Collision Avoidance, Unmanned Aerial Vehicles, Deep Reinforcement Learning, Aeronautics.

Abstract:

ACAS-Xu is the future collision avoidance system for UAVs, responsible for generating evasive maneuvers

in case of imminent risk of collision with another aircraft. In this concept paper, we summarize drawbacks

of its current speciﬁcation, particularly: (a) the fact that the resolution policy, calculated through dynamic

programming over a stochastic process, is stored as a huge Q-table; (b) the need of forcing a correspondence

between the continuous observations and the artiﬁcially discretized space of states; and (c) the consideration

of a single aircraft crossing the drone’s trajectory, whereas the anti-collision system must potentially deal with

multiple intruders. We suggest the use of recent deep reinforcement learning techniques to simultaneously

approximate a compact representation of the problem in their continuous dimensions, as well as a near-optimal

policy directly from simulation, in addition extending the set of observations and actions.

1 INTRODUCTION

ACAS-Xu is the new generation of Airborne Col-

lision Avoidance System for remotely piloted ﬁxed-

wing aerial vehicles (UAVs – Figure 1). It must

generate and execute evasive maneuvers in the case

of imminent risk of mid-air collision. The resolu-

tion policy is calculated beforehand through Dynamic

Programming over a stochastic Markovian Decision

Process (MDP) representing an artiﬁcially discretized

space of states and actions. The resulting policy is

stored into immense tables of expected state-action

long-term costs. Considering horizontal and verti-

cal resolution maneuvers (which are deﬁned sepa-

rately), these tables contain billions of parameters (q-

values). This high dimensionality constitutes an im-

portant practical issue for deploying the solution as

an industrial embedded system. In the literature, one

strategy to compress those tables is training a neural

network to approximate the Q-function.

In this concept paper, we suggest another ap-

proach: the use of recent Deep Reinforcement Learn-

ing (Deep RL) techniques, which can natively deal

with continuous dimensions and learn a policy of ac-

tions directly from simulation. Those techniques op-

timize the policy of actions at the same time than

This work is supported by a French government grant

managed by the National Research Agency under the

France 2030 program with the reference ANR-23-DEGR-

0001 – DeepGreen Project.

learning a compact and consistent representation of

the underlying process using Deep Neural Networks

(DNN).

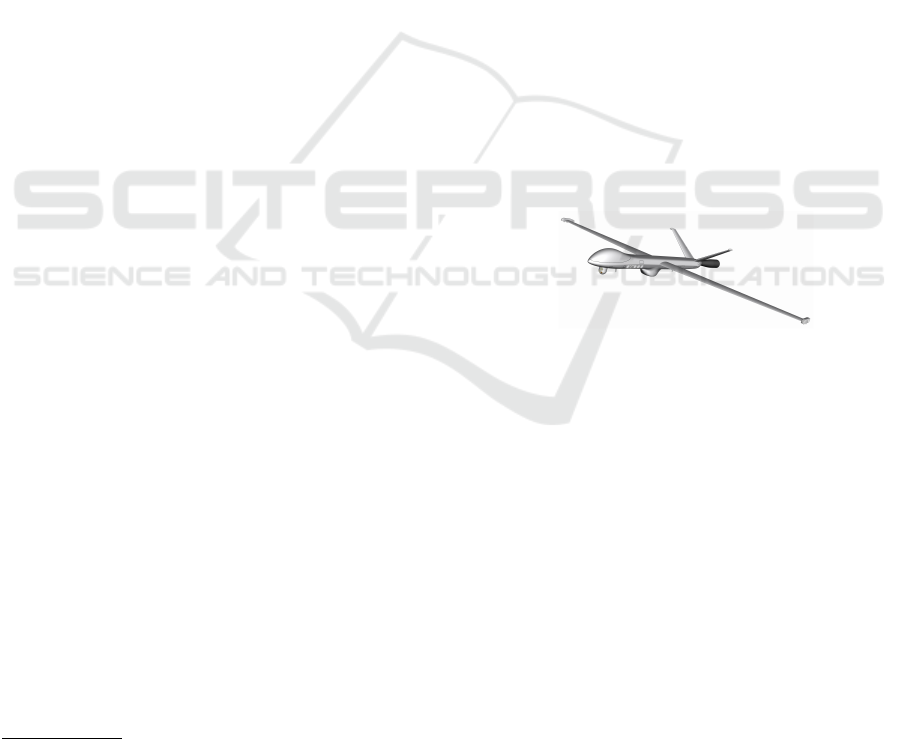

Figure 1: A ﬁxed-wing unmanned aerial vehicle (UAV) is a

large drone remotely operated.

Instead of trying to compress the standard table,

we would like to come back to the base problem

and learn an improved solution, both by considering

an extended set of observations and actions that can

be included in the system to enhance ﬂight security,

as well as by taking into account encounters involv-

ing multiple aircraft. The original ACAS-Xu policy

considers only a single intruder crossing the drone’s

trajectory, and multi-threats are solved using ad-hoc

strategies. Furthermore, vertical and horizontal reso-

lutions are modeled separately, than combined in op-

eration time. Using Deep RL techniques, both action

dimensions can be assessed together.

Following the paper, Section 2 overviews Rein-

forcement Learning and Deep RL concepts, Section

3 overviews Collision Avoidance Systems, Section

4 presents our proposition and some discussion, and

Section 5 concludes the paper.

110

Perotto, F.

Using Deep RL to Improve the ACAS-Xu Policy: Concept Paper.

DOI: 10.5220/0013023200004562

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 2nd International Conference on Cognitive Aircraft Systems (ICCAS 2024), pages 110-117

ISBN: 978-989-758-724-5

2 REINFORCEMENT LEARNING

RL agents must learn from observation, exploring the

environment and exploiting their knowledge to im-

prove their performance, eventually converging to a

policy of actions that maximizes the expected future

rewards, or that minimizes the expected future costs

(an optimal policy). Since what can be learned de-

pends on the agent’s behavior, a necessary trade-off

must be found between exploration (trying different

actions) and exploitation (choosing the actions with

best expected return, given the actual knowledge).

Classically, the RL loop is characterized by an in-

terleaved interaction between an agent that perceives

a state and executes an action, and an environment

that returns a new state and a reward (Sutton and

Barto, 2018). The environment can be described as a

stochastic Markovian Decision Process (MDP) which

evolves discretely over time (Bertsekas, 2019; Puter-

man and Patrick, 2010; Wiering and Otterlo, 2012).

2.1 Tabular RL Methods

When the “model” is known (i.e. when R and P are

given), an MDP can be exactly solved using linear

or dynamic programming (DP) techniques (Howard,

1960), which generalize over graph search strate-

gies and classical planning, allowing to ﬁnd optimal

sequential decisions for discrete rewarded stochas-

tic processes. This is the procedure used in the

ACAS-X deﬁnition, solved using the Value Itera-

tion method (Kochenderfer and Chryssanthacopou-

los, 2011; EUROCAE, 2020).

In contrast, model-free RL algorithms try to learn

a policy directly from the experience. Those meth-

ods rely on local approximations of the state-action

values (Q-values) after each observation based on the

Bellman’s equation (Bellman, 1952), which deﬁnes

the value for a policy π from state s:

(s) = R(s,π(s))+ γ

∑

′

P(s

′

|s,π(s))V

′

) (1)

The value of an optimal policy π

∗

is given by:

∗

(s) = max



R(s,a)+ γ

∑

′

P(s

′

|s,a)V

∗

′

)



(2)

A simple trade-off between exploration and ex-

ploitation can be done by introducing some random-

ness into the decision-making process (undirected ex-

ploration). In the ε-greedy strategy (Sutton and Barto,

2018), at each time step, the agent either executes a

random action with probability ε, or follows the cur-

rent estimated optimal policy, otherwise, with prob-

ability 1 − ε. To avoid a linear expected regret due

to a constant exploration, ε can be dynamically and

gradually decreased (Auer et al., 2002).

A smarter approach to solve the exploration-

exploitation dilemma is the optimism in the face of

uncertainty. The insight is to be curious about poten-

tially good but insufﬁciently frequented state-action

pairs (Meuleau and Bourgine, 1999).

In tabular methods, it can be done by simply ini-

tializing the Q-values optimistically, and then follow-

ing a completely greedy strategy. Actions that lead to

less-observed situations increase their chances of be-

ing chosen. The more a state-action pair is tried, the

closer its estimated utility approximates its true value.

More rigorous strategies lean on the upper-conﬁdence

bound principle to solve the exploration-exploitation

dilemma (Auer and Ortner, 2006; Poupart et al.,

2006).

Q-learning (Watkins and Dayan, 1992) is a tradi-

tional model-free algorithm that implements an off-

policy immediate temporal-difference (TD) strategy

for learning a policy on environments with delayed

rewards. The estimated Q function is stored in mem-

ory as a table in the form S × A → R , where the

entries represent the estimated utility of each state-

action pair {s,a}. The ε-greedy decision making tech-

nique is used to induce some random exploration. The

stored Q-table is updated after each transition through

a simple value-iteration step, based on the Bellman

equation, using, for ensuring learning stability, the α-

weighted average of the previous and the new values:

′

s,a

← Q

s,a

+ α



r + γ max

′

] − Q

s,a



(3)

Unfortunately, the need of storing a Q-table lim-

its the practical application of tabular RL methods to

complex real-world problems. The combinatorial na-

ture of an exhaustive enumeration of states can make

impossible to maintain a Q-table in memory, unless

of strongly limiting the number of observations and

imposing a rough discretization of continuous dimen-

sions. Furthermore, because no correlation exists be-

tween the state-action pairs, the learning experiences

cannot be generalized to similar states.

2.2 Deep Reinforcement Learning

Following remarkable results on learning to play

complex games (Mnih et al., 2013; Silver et al.,

2016), deep RL algorithms have been showing im-

pressive capabilities in learning robust solutions

for diverse applications, such as controlling au-

tonomous cars, drones, and airplanes (Liu et al., 2023;

Plasencia-Salgueiro, 2023; Razzaghi et al., 2022; Ki-

ran et al., 2022; Pankiewicz et al., 2021), robotics

Using Deep RL to Improve the ACAS-Xu Policy: Concept Paper

111

(Singh et al., 2022; Polydoros and Nalpantidis, 2017),

multi-robot coordination (Orr and Dutta, 2023), etc.

The rise of Deep Neural Networks (DNN) pro-

vided new possibilities for function approximation

and representation learning (LeCun et al., 2015).

Deep RL combines deep learning algorithms with

classic RL methods, allowing to solve scalability and

complexity issues faced by tabular methods, and en-

abling decision making in high-dimensional state and

action spaces (Franc¸ois-Lavet et al., 2018). Deep RL

relies on approximating the state-action values Q

∗

, or

even directly approximating the optimal policy π

∗

using deep neural networks. The advantage is that,

when available, gradients provide a strong learning

signal that can be estimated through sampling.

Deep Q-Networks (DQN) (Mnih et al., 2013;

Mnih et al., 2015) is the deep version of Q-Learning.

DQN uses two DNNs in the learning process: the pol-

icy neural network, represented by the weight vector

θ, models the Q-function for the current state s and

action a, and is updated frequently; the target neural

network, represented by θ

′

, models the Q-function for

the upcoming state s

′

and action a

′

. During a speciﬁc

number of iterations, the policy network is updated

while the target network remains frozen. Then, the

weights of the primary network are copied or merged

(using a soft update) into the target network, effec-

tively transferring the acquired knowledge. The use

of two networks helps to mitigate instability and di-

vergence issues by providing a stable target for the

Q-value updates. Training the policy and target net-

works corresponds to minimize the following loss

function:

L(θ) = E



(r + γ max

′

Q(s

′

;θ

′

) − Q(s, a; θ))



(4)

A set of observed transitions {s

, a

t+1

} is

stored in memory to create a replay buffer, used to

sample and train the neural network in an ofﬂine man-

ner. By breaking temporal correlations, this experi-

ence replay technique reduces the learning updates

variance, ensuring a better stability of the learned

policy and improving the overall performance of the

agent. An improvement over DQN is the Double

DQN algorithm, which addresses the issue of overes-

timation bias by using separated networks for action

selection and for action evaluation. DQN and DDQN

can handle continuous state spaces, but require dis-

crete actions.

In contrast, policy search methods can deal with

continuous action spaces, constituting a class of tech-

niques that directly optimize the policy parameters in-

stead of relying on a value function to derive it. Most

of policy search methods compute the gradient of the

expected reward with respect to the policy parameters

and use this gradient to update the policy. It is the

case of REINFORCE (Koutn

ık et al., 2013), which

relies on Monte Carlo estimation. Trust Region Pol-

icy Optimization (TRPO) focuses on optimizing poli-

cies with a trust region to ensure stable updates, con-

straining their step size, then ensuring that the new

policy does not deviate excessively from the current

one. Proximal Policy Optimization (PPO) (Schulman

et al., 2017) proposes a more efﬁcient stability method

by using a clipped objective function to maintain up-

dates within a trust region.

Actor-Critic methods mix policy search with value

function approximation. One of these methods is the

Deep Deterministic Policy Gradient (DDPG) (Silver

et al., 2014). Parallel computation techniques, includ-

ing asynchronous gradient updates, are employed to

enhancing learning efﬁciency. Building on DDPG,

the Twin Delayed Deep Deterministic Policy Gradi-

ent (TD3) algorithm further improves stability and

reduces overestimation bias by using two critics and

policy delay.

The use of an advantage function to update the

policy can reduce the variance of the gradient esti-

mates and provide a more reliable direction for pol-

icy improvement. The standard advantage function

is deﬁned as the difference between the action-value

function Q(s,a) and the value function V (s), using the

average action. Advantage Actor-Critic (A2C) com-

bines advantage updates with actor-critic formulation,

using multiple agents to update a shared model. Asyn-

chronous Advantage Actor-Critic (A3C) updates the

policy and value function networks in parallel, using

multiple agents to update the model independently,

which enhance exploration (Mnih et al., 2016). Soft

Actor-Critic (SAC) is an off-policy actor-critic al-

gorithm that encourages exploration through entropy

regularization.

3 COLLISION AVOIDANCE

SYSTEMS

After a series of catastrophic mid-air collisions oc-

curred in the 1950s and 1960s, the American Federal

Aviation Administration (FAA) decided to support the

development of collision avoidance systems aiming to

introduce an additional safety resource for the cases in

which the Air Trafﬁc Control (ATC) fails in ensuring

minimal aircraft separation during ﬂight.

Early solutions, available in the 1960s and 1970s

and relying on radar transponders, were able to iden-

tify the surrounding trafﬁc and alert the pilot to

their presence. However, the generation of exces-

sive unnecessary alarms compromised the usability

ICCAS 2024 - International Conference on Cognitive Aircraft Systems

112

of those systems. Furthermore, passive and indepen-

dent systems (without communication between air-

craft) proved to be impractical for resolution advi-

sory due to the need for coordinated avoidance ma-

neuvers (FAA, 2011).

3.1 ACAS

In the 1980s, FAA launched the research and develop-

ment of the current generation of onboard instruments

designed to prevent mid-air collisions, called TCAS

(Trafﬁc alert and Collision Avoidance System), later

included in the International Civil Aviation Organi-

zation (ICAO) recommendations as ACAS (Airborne

Collision Avoidance System). For this reason, the

term ACAS generally is used to refer to the standard

or concept, and TCAS to refer to the equipment actu-

ally implementing the corresponding standard (ICAO,

2014; EUROCONTROL, 2022).

ACAS operates autonomously and independently

of other aeronautical navigation equipment or ground

systems used in air trafﬁc coordination. It replaced

the previous BCAS (Beacon Collision Avoidance Sys-

tem). Using the antennas of the Secondary Surveil-

lance Radar (SSR), already deployed on the aircraft

skin, ACAS interrogates the transponders of other

nearby aerial vehicles using modes C and S to ob-

tain their altitude (normally sent in the answer) and

to estimate their slant range (distance) and relative

bearing based, respectively, on the delay and angle

of response reception. In mode S, the two aircraft can

exchange messages to coordinate non-conﬂicting ma-

neuvers (Sun, 2021).

Once an aircraft is detected in the surrounding

airspace, ACAS tracks its displacement and velocity.

For near threats, it interrogates the intruder transpon-

der every second. The ACAS alarm logic is based on

minimal vertical and horizontal separation, combined

with the time to reach the CPA (Closest Point of Ap-

proach), given by the slant range divided by the hori-

zontal closure rate, and the time to co-altitude, given

by the altitude separation divided by the vertical clo-

sure rate. Those boundaries create a protection enve-

lope around the airplane (Figure 2). ACAS is con-

ﬁgured with different sensitivity levels, depending on

the ownship altitude.

Three categories of ACAS have been deﬁned by

ICAO: ACAS I only gives Trafﬁc Advisories (TA),

ACAS II recommends, in addition, vertical Resolu-

tion Advisories (RA), and ACAS III should give res-

olution advisories in both horizontal and vertical di-

rections. In Europe, the TCAS II v7.1 implementa-

tion (FAA, 2011) is mandatory since 2015 for all civil

turbine-powered aircraft above 5700 kg or with ca-

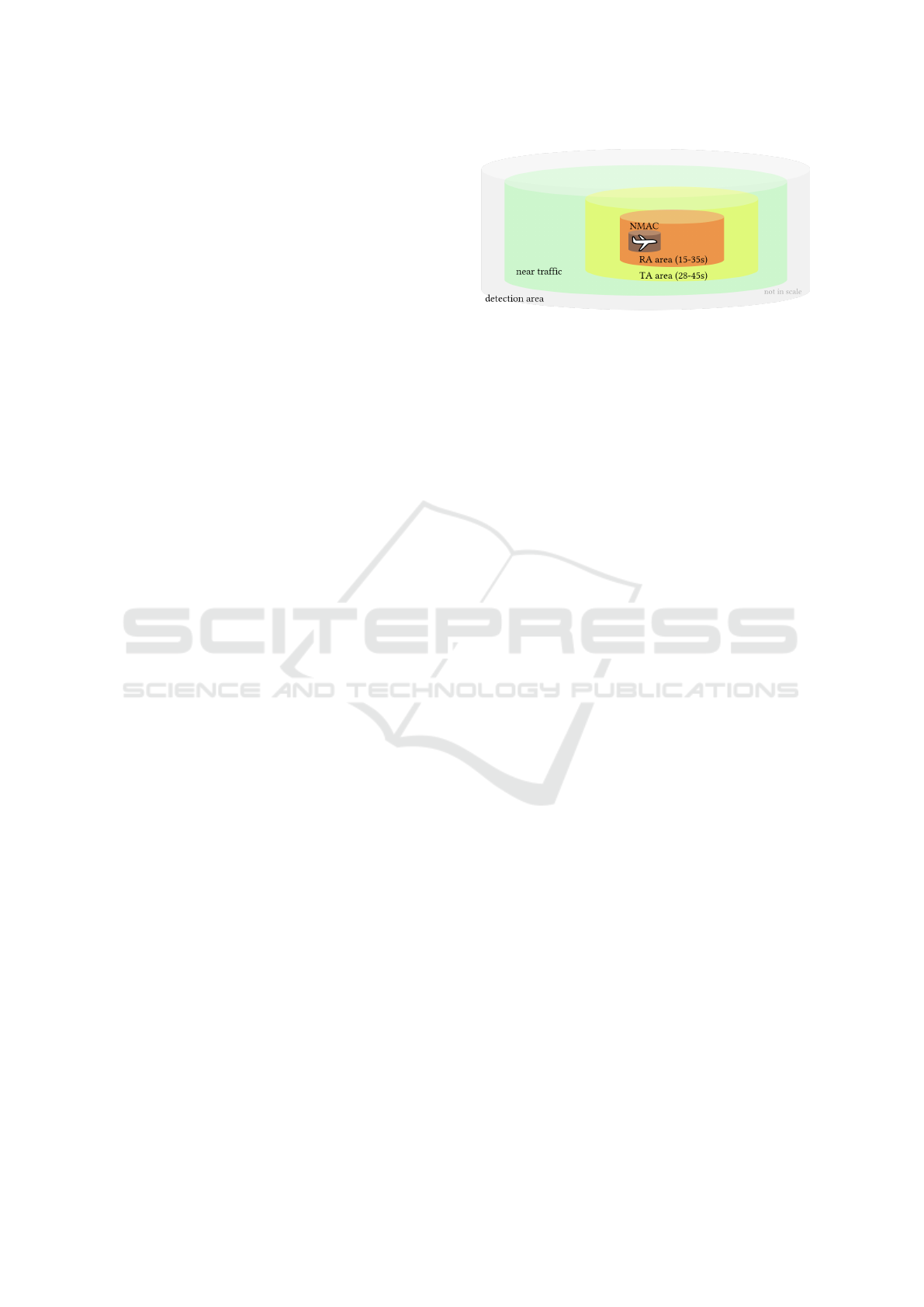

Figure 2: ACAS protected volume.

pacity for more than 19 passengers (EU, 2011). In

contrast, the study concerning ACAS III was sus-

pended, initially because estimating the horizontal

position of the intruder based on the directional radar

antenna was considered too inaccurate to deﬁne hor-

izontal resolutions without the risk of inducing new

conﬂicts, then deﬁnitively abandoned after the rising

of ACAS-X concept.

3.2 ACAS-X

ACAS-X (Kochenderfer et al., 2008; Kochenderfer

and Chryssanthacopoulos, 2011; Kochenderfer et al.,

2012; Holland et al., 2013; EUROCONTROL, 2022)

is the New Generation Airborne Collision Avoidance

System, still in development and not yet operational.

In this new approach, instead of using a set of scripted

rules, a table of expected long-term costs, called look-

up table (LUT), is calculated beforehand using Dy-

namic Programming over a Markovian Decision Pro-

cess (MDP), which is a discrete probabilistic dynamic

model that represents the near airspace and trafﬁc evo-

lution.

In the underlying ACAS-X model, immediate

costs are associated to speciﬁc events, implement-

ing the desired operational and safety considerations,

making it possible to adapt the obtained resolution

strategy to particular procedures or conﬁgurations of

the airspace. That optimization method is able to de-

termine the preferable sequences of actions for differ-

ent types of encounters. For each particular context,

the expected long-term costs of each possible evasive

action is calculated, following different possible sce-

narios and their probabilities. This method produces

a large LUT containing all state-action Q-values.

ACAS-X can access the information communi-

cated periodically by the surrounding trafﬁc through

Automatic Dependent Surveillance-Broadcast (ADS-

B), without the need for interrogation. Those mes-

sages typically include the aircraft position, de-

termined by Global Navigation Satellite Systems

(GNSS) and air data systems, the velocity, derived

from the GNSS and the inertial measurement system,

Using Deep RL to Improve the ACAS-Xu Policy: Concept Paper

113

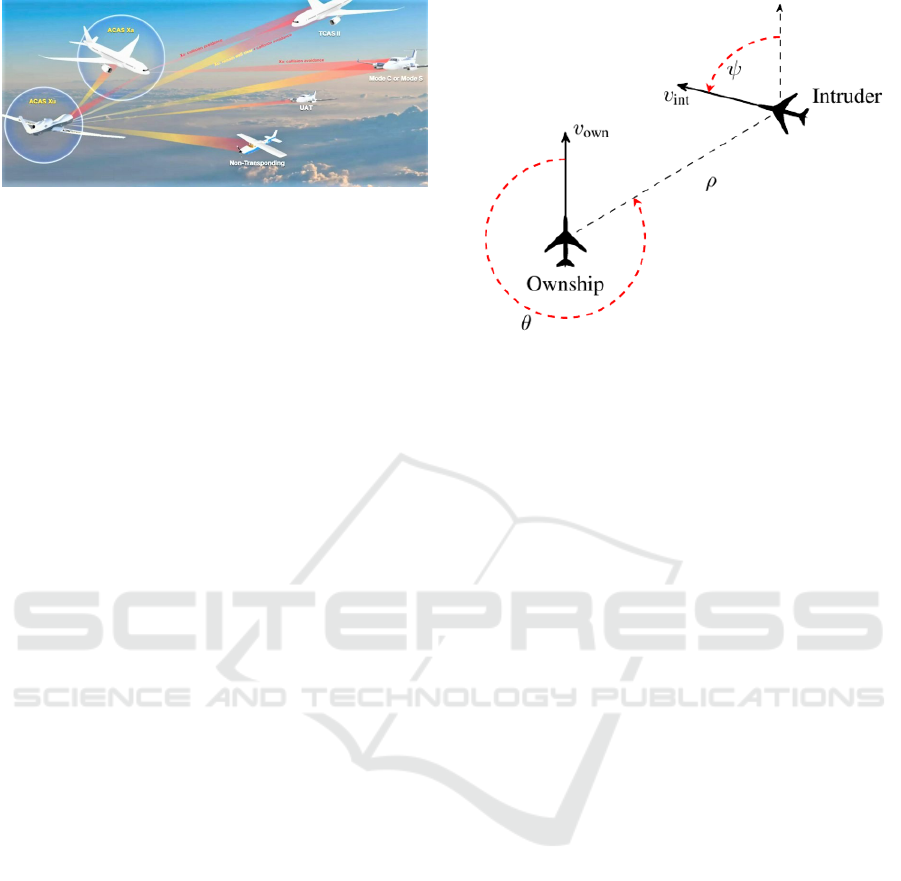

Figure 3: The ACAS-X family.

and the barometric altitude. ACAS-X constitutes a

family of speciﬁc collision avoidance systems, which

includes ACAS-Xa for civil aviation, ACAS-Xr for

helicopters and rotorcrafts, ACAS-Xu for ﬁxed-wing

remotely piloted UAVs, ACAS-sXu for small drones,

and others (Figure 3).

3.3 ACAS-Xu

The ACAS-Xu (Airborne Collision Avoidance Sys-

tem for Unmanned Aircraft) is the speciﬁc version

of the ACAS-X designed for ﬁxed-wing remotely pi-

loted drones (RPASs or UAVs) (Manfredi and Jestin,

2016; Holland and Kochenderfer, 2016; Owen et al.,

2019; Cleaveland et al., 2022; EUROCAE, 2020). It

can take into account non-cooperative sources, cus-

tomized logic for drone performance, horizontal and

vertical resolutions, coordination adapted to the in-

truder’s equipment, and the automation of resolution

advisory implementation.

The immediate conﬁguration of the airspace, rel-

ative to an encounter constitutes the state of the envi-

ronment (Figure 4). For the horizontal resolution, that

state is deﬁned by the combination of 7 observations:











ρ the horizontal distance to the intruder (ft),

own

the own horizontal speed (ft/s),

int

the horizontal speed of the intruder (ft/s),

θ the angle at which the intruder is seen,

ψ the heading angle difference,

τ the time before vertical intrusion (s),

the previous resolution advisory.

In the standard implementation, that input space

was discretized as follows: 39 values for horizontal

distance (ρ), arranged non-linearly between 499 and

185,318 ft; 12 values for speeds (v

own

and v

int

) ar-

ranged non-linearly, between 0 and 1200 ft/s; 41 val-

ues for angles (θ and ψ), arranged linearly between

−π rad and +π rad; 10 values for altitude separation

time, arranged non-linearly between 0 and 101 s. It

makes 5×12×12×41×41×39×10 = 472,024, 800

states to represent the horizontal problem.

Figure 4: ACAS-Xu is a collision avoidance system for re-

motely piloted aircraft, developed using an MDP.

The kernel of the ACAS-Xu strategy is presented

in the form of a large tables (LUTs - look-up tables)

containing the q-costs Q(s,a) associated with each

possible resolution advice a for each discrete state s of

the system. Those tables have been calculated ofﬂine

through optimization of the corresponding MDP, and

are used online for the selection of the optimal reso-

lution advice by choosing the action which minimizes

the q-cost given the probabilities associated with the

different possible discrete states of the system at the

current time.

In fact, ACAS-Xu must ﬁnd a correspondence be-

tween the current state, given in continuous dimen-

sions for the seven observation variables, and the dis-

crete states represented into the LUT, in order to get

the relevant q-costs. For the vertical resolution, those

values are estimated using multilinear interpolation

over the surrounding table points. For the horizontal

resolution, it is done by getting the values associated

to the nearest neighbor (EUROCAE, 2020).

In the horizontal plan, for each state, ﬁve possible

actions (evasive maneuvers) can be executed by the

drone:

- SL: strong left turn (−3

◦

/s),

- WL: weak left turn (−1.5

◦

/s),

- COC (Clear of Conﬂict): no action (0

◦

/s) ,

- WR: weak right turn (+1.5

◦

/s),

- SR: strong right turn (+3

◦

/s).

In the vertical plan, the observations are not the

same, and correspond to the vertical separation, the

rate of loss of vertical separation, and the time to loss

of horizontal separation. Other actions are consid-

ered, representing different options for climbing or

descending. Horizontal and vertical resolutions are

chosen separately, then combined afterwards.

ICCAS 2024 - International Conference on Cognitive Aircraft Systems

114

Since the generated Q-table (LUT) is signiﬁcantly

large, there is an issue concerning their practical, in-

dustrial, deployment into a drone. Several works in

the literature use machine learning to compress those

tables using neural networks, reducing the mem-

ory footprint of the embedded code and even poten-

tially improving the anti-collision behavior through

smoothing, typically (in the horizontal case) using a

fully connected neural network with 7 inputs corre-

sponding to the state observations and 5 outputs cor-

responding to the Q-values for the 5 possible actions,

with a compression in an order of 1/1000 (Damour

et al., 2021; Julian et al., 2016; Katz et al., 2017).

4 DISCUSSION

Creating a robust collision avoidance system is difﬁ-

cult: the sensors available to the system are imperfect

and noisy, resulting in uncertainty in the current posi-

tions and velocities of the aircraft involved, variabil-

ity in pilot behavior and aircraft dynamics makes it

difﬁcult to predict the evolution of surrounding trafﬁc

trajectories, and the system must balance multiple ob-

jectives (Kochenderfer et al., 2012), avoiding to pass

dangerously near to other aircraft, but not deviating

unnecessarily, always considering a possible impreci-

sion in the positioning data, and an uncertainty in the

intruder’s behavior. The increase of air trafﬁc density,

the inclusion of unmanned aerial vehicles, and the in-

tention of making ﬂight routes less constrained for fu-

ture airspace operations requires trustful and perform-

ing collision avoidance methods. There is also a need

to enhance safety but considering the economical ac-

ceptability of the proposed solutions by the industry.

The contribution of this paper, beyond the

overview concerning reinforcement learning methods

(Section 2) and onboard collision avoidance systems

(Section 3), is to propose the idea of using Deep RL

techniques on the ACAS-Xu problem. To do so, a

simulator must be used as the training environment

for learning robust policies. At least one implemen-

tation of the ACAS-Xu simulator is publicly avail-

able

and was used for realizing the experiments in

(Bak and Tran, 2022). That simulator can be modi-

ﬁed to comply with the standard Gymnasium

envi-

ronments (Brockman et al., 2016), widely used to im-

plement RL problems, and compatible with several

RL libraries such as SB3

(Rafﬁn et al., 2021).

Technically, a Near Mid-Air Collision (NMAC)

incident occurs when two aircraft ﬂy closer than 100

https://github.com/stanleybak/acasxu closed loop sim

https://gymnasium.farama.org/

https://github.com/DLR-RM/stable-baselines3

feet vertically and 500 feet horizontally. In the stan-

dard implementation of the ACAS-Xu problem, the

immediate reward function corresponds to:

• Clear of Conﬂict: +0.0001,

• Strengthen: −0.009,

• Reversal: −0.01,

• NMAC: −1.0.

However, a modiﬁed reward function could be imag-

ined, considering, for example, the distance to the in-

truders, the smoothness of the maneuvers, and the de-

viation of the original trajectory, i.e. positive rewards

for maintaining the aircraft in its original trajectory,

reducing deviations, and negative rewards that grows

up when the drone approximates to a conﬂict (inter-

ception zone with the intruder).

Furthermore, we could consider an integrated ac-

tion space, where horizontal resolutions (turning left

or right) and vertical resolutions (climbing or de-

scending) are taken together, and in their native con-

tinuous dimensions. An extended set of actions can

also be imagined, including the possibility of chang-

ing the ownship velocity (accelerating or decelerat-

ing). The set of observations can also be extended

to provide more detailed information about other air-

craft current actions and intentions, for example, the

next scheduled waypoint or maneuver.

Finally, the use of RL techniques to solve the

ACAS-Xu problem can allow to handle its complex-

ity, taking into account the drone performance, facing

episodes with multiple aircraft, in different conﬁgura-

tions, and where the avoidance of a ﬁrst intruder can

occasionally create a new conﬂict with another one,

and including the need to avoid terrain obstacles.

5 CONCLUSION

The idea of using of Deep RL to build a policy for

the ACAS-Xu problem is technically sound. The next

steps of this research include developing a modiﬁed

ACAS-Xu simulator implementing the rewards, ac-

tions and observations imagined in this paper, us-

ing the Gym architecture. Then, using this simula-

tor as environment, experiment training the modiﬁed

problem with different state-of-the-art Deep RL algo-

rithms, and verify their effective capability to improve

ﬂight safety and collision avoidance efﬁciency com-

pared to TCAS II and to the standard ACAS-Xu im-

plementation.

Using Deep RL to Improve the ACAS-Xu Policy: Concept Paper

115

REFERENCES

Auer, P., Cesa-Bianchi, N., and Fischer, P. (2002). Finite-

time analysis of the multiarmed bandit problem.

Mach. Learn., 47(2-3):235–256.

Auer, P. and Ortner, R. (2006). Logarithmic online regret

bounds for undiscounted reinforcement learning. In

Sch

olkopf, B., Platt, J. C., and Hoffman, T., editors,

Advances in Neural Information Processing Systems

19, Proceedings of the Twentieth Annual Conference

on Neural Information Processing Systems, Vancou-

ver, British Columbia, Canada, December 4-7, 2006,

pages 49–56. MIT Press.

Bak, S. and Tran, H.-D. (2022). Neural Network Com-

pression of ACAS Xu Early Prototype Is Unsafe:

Closed-Loop Veriﬁcation Through Quantized State

Backreachability, page 280–298. Springer Interna-

tional Publishing.

Bellman, R. (1952). On the theory of dynamic program-

ming. Proc Natl Acad Sci USA, 38(8):716–719.

Bertsekas, D. (2019). Reinforcement Learning and Optimal

Control. Athena Scientiﬁc.

Brockman, G., Cheung, V., Pettersson, L., Schneider, J.,

Schulman, J., Tang, J., and Zaremba, W. (2016). Ope-

nai gym. arXiv preprint arXiv:1606.01540.

Cleaveland, R., Mitsch, S., and Platzer, A. (2022). Formally

Veriﬁed Next-Generation Airborne Collision Avoid-

ance Games in ACAS X. ACM Trans. Embed. Com-

put. Syst., 22(1).

Damour, M., De Grancey, F., Gabreau, C., Gauffriau, A.,

Ginestet, J.-B., Hervieu, A., Huraux, T., Pagetti, C.,

Ponsolle, L., and Clavi

ere, A. (2021). Towards Certi-

ﬁcation of a Reduced Footprint ACAS-Xu System: a

Hybrid ML-based Solution. In Computer Safety, Re-

liability, and Security (40th SAFECOMP), pages 34–

48. Springer.

EU (2011). Commission regulation (eu) no 1332/2011 of 16

december 2011 laying down common airspace usage

requirements and operating procedures for airborne

collision avoidance. Ofﬁcial Journal of the European

Union, pages L336/20–22.

EUROCAE (2020). Ed-275: Minimal operational per-

formance for airborne collision avoidance system xu

(acas-xu) – volume i. Technical report, EUROCAE.

EUROCONTROL (2022). Airborne Collision Avoidance

System (ACAS) guide. EUROCONTROL.

FAA (2011). Introduction to TCAS II version 7.1 (February

2011) – booklet. Technical report, FAA.

Franc¸ois-Lavet, V., Henderson, P., Islam, R., Bellemare,

M. G., and Pineau, J. (2018). An introduction to deep

reinforcement learning. Foundations and Trends® in

Machine Learning, 11(3-4):219–354.

Holland and Kochenderfer, M. (2016). Dynamic logic se-

lection for unmanned aircraft separation. In 35th

IEEE/AIAA Digital Avionics Systems Conference,

DASC.

Holland, Kochenderfer, M., and Olson (2013). Optimiz-

ing the next generation collision avoidance system

for safe, suitable, and acceptable operational perfor-

mance. Air Trafﬁc Control Quarterly, 21(3).

Howard, R. (1960). Dynamic Programming and Markov

Processes. MIT Press, Cambridge, MA.

ICAO (2014). Annex 10 to the convention on international

civil aviation – volume iv: Surveillance and collision

avoidance systems. Technical report, International

Civil Aviation Organization (ICAO).

Julian, K. D., Lopez, J., Brush, J. S., Owen, M. P.,

and Kochenderfer, M. J. (2016). Policy compres-

sion for aircraft collision avoidance systems. In

35th IEEE/AIAA Digital Avionics Systems Confer-

ence, DASC, pages 1–10. IEEE.

Katz, G., Barrett, C. W., Dill, D. L., Julian, K., and Kochen-

derfer, M. J. (2017). Reluplex: An efﬁcient smt

solver for verifying deep neural networks. CoRR,

abs/1702.01135.

Kiran, B. R., Sobh, I., Talpaert, V., Mannion, P., Sallab, A.

A. A., Yogamani, S., and P

erez, P. (2022). Deep rein-

forcement learning for autonomous driving: A survey.

IEEE Transactions on Intelligent Transportation Sys-

tems, 23(6):4909–4926.

Kochenderfer, M. and Chryssanthacopoulos, J. (2011). Ro-

bust airborne collision avoidance through dynamic

programming. project report atc-371. Technical re-

port, MIT, Lincoln Lab.

Kochenderfer, M., Espindle, L., Kuchar, J., and Grifﬁth, J.

(2008). Correlated encounter model for cooperative

aircraft in the national airspace system. project report

atc-344. Technical report, MIT, Lincoln Lab.

Kochenderfer, M., Holland, J., and Chryssanthacopoulos, J.

(2012). Next-generation airborne collision avoidance

system. Lincoln Lab Journal, 19(1):17–33.

Koutn

ık, J., Cuccu, G., Schmidhuber, J., and Gomez, F.

(2013). Evolving large-scale neural networks for

vision-based reinforcement learning. In Proceedings

of the 15th Annual Conference on Genetic and Evolu-

tionary Computation, GECCO ’13, page 1061–1068,

New York, NY, USA. ACM.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learn-

ing. Nature, 521:436–444.

Liu, H., Kiumarsi, B., Kartal, Y., Koru, A. T., Modares,

H., and Lewis, F. L. (2023). Reinforcement learning

applications in unmanned vehicle control: A compre-

hensive overview. Unmanned Syst., 11(1):17–26.

Manfredi and Jestin (2016). An introduction to ACAS-Xu

and the challenges ahead. In 35th IEEE/AIAA Digital

Avionics Systems Conference, DASC.

Meuleau, N. and Bourgine, P. (1999). Exploration of

multi-state environments: Local measures and back-

propagation of uncertainty. Mach. Learn., 35(2):117–

154.

Mnih, V., Badia, A. P., Mirza, M., Graves, A., Lillicrap,

T. P., Harley, T., Silver, D., and Kavukcuoglu, K.

(2016). Asynchronous methods for deep reinforce-

ment learning. In Balcan, M. and Weinberger, K. Q.,

editors, Proceedings of the 33nd International Con-

ference on Machine Learning, ICML 2016, New York

City, NY, USA, June 19-24, 2016, volume 48, pages

1928–1937. ICLR.

Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A.,

Antonoglou, I., Wierstra, D., and Riedmiller, M.

ICCAS 2024 - International Conference on Cognitive Aircraft Systems

116

(2013). Playing atari with deep reinforcement learn-

ing. CoRR, abs/1312.5602.

Mnih, V., Kavukcuoglu, K., Silver, D., Graves, A.,

Antonoglou, I., Wierstra, D., and Riedmiller, M.

(2015). Human-level control through deep reinforce-

ment learning. Nature, 518:529–533.

Orr, J. and Dutta, A. (2023). Multi-agent deep reinforce-

ment learning for multi-robot applications: A survey.

Sensors, 23(7):3625.

Owen, M., Panken, A., Moss, R., Alvarez, L., and Leeper,

C. (2019). ACAS Xu: Integrated Collision Avoid-

ance and Detect and Avoid Capability for UAS. In

38th IEEE/AIAA Digital Avionics Systems Confer-

ence, DASC.

Pankiewicz, N., Wrona, T., Turlej, W., and Orlowski, M.

(2021). Promises and challenges of reinforcement

learning applications in motion planning of automated

vehicles. In Rutkowski, L., Scherer, R., Korytkowski,

M., Pedrycz, W., Tadeusiewicz, R., and Zurada, J. M.,

editors, Artiﬁcial Intelligence and Soft Computing -

20th International Conference, ICAISC 2021, Virtual

Event, June 21-23, 2021, Proceedings, Part II, volume

12855 of Lecture Notes in Computer Science, pages

318–329. Springer.

Plasencia-Salgueiro, A. (2023). Deep reinforcement learn-

ing for autonomous mobile robot navigation. In

Azar, A. T. and Koubaa, A., editors, Artiﬁcial Intel-

ligence for Robotics and Autonomous Systems Appli-

cations, volume 1093 of Studies in Computational In-

telligence, pages 195–237. Springer.

Polydoros, A. S. and Nalpantidis, L. (2017). Survey of

model-based reinforcement learning: Applications on

robotics. J. Intell. Robotic Syst., 86(2):153–173.

Poupart, P., Vlassis, N., Hoey, J., and Regan, K. (2006). An

analytic solution to discrete bayesian reinforcement

learning. In Proc. of the 23rd ICML, pages 697–704.

ACM.

Puterman, M. and Patrick, J. (2010). Dynamic program-

ming. In Encyclopedia of Machine Learning, pages

298–308. Springer.

Rafﬁn, A., Hill, A., Gleave, A., Kanervisto, A., Ernestus,

M., and Dormann, N. (2021). Stable-baselines3: Reli-

able reinforcement learning implementations. Journal

of Machine Learning Research, 22(268):1–8.

Razzaghi, P., Tabrizian, A., Guo, W., Chen, S., Taye, A.,

Thompson, E., Bregeon, A., Baheri, A., and Wei, P.

(2022). A survey on reinforcement learning in avia-

tion applications. CoRR, abs/2211.02147.

Schulman, J., Wolski, F., Dhariwal, P., Radford, A., and

Klimov, O. (2017). Proximal policy optimization al-

gorithms.

Silver, D., Huang, A., Maddison, C., and et al. (2016). Mas-

tering the game of go with deep neural networks and

tree search. Nature, 529:484–489.

Silver, D., Lever, G., Heess, N., Degris, T., Wierstra, D.,

and Riedmiller, M. (2014). Deterministic policy gra-

dient algorithms. In Proceedings of the 31th Interna-

tional Conference on Machine Learning, ICML 2014,

Beijing, China, 21-26 June 2014, volume 32 of JMLR

Workshop and Conference Proceedings, pages 387–

395. JMLR.

Singh, B., Kumar, R., and Singh, V. P. (2022). Reinforce-

ment learning in robotic applications: a comprehen-

sive survey. Artif. Intell. Rev., 55(2):945–990.

Sun, J. (2021). The 1090 Megahertz Riddle – A Guide to

Decoding Mode S and ADSB Signals. TU Delft OPEN

Publishing, 2

edition.

Sutton, R. S. and Barto, A. G. (2018). Reinforcement Learn-

ing: An Introduction. MIT Press, 2 edition.

Watkins, C. J. C. H. and Dayan, P. (1992). Q-learning. Ma-

chine Learning, 8(3):279–292.

Wiering, M. and Otterlo, M. (2012). Reinforcement learn-

ing and markov decision processes. In Reinforcement

Learning: State-of-the-Art, pages 3–42. Springer.

Using Deep RL to Improve the ACAS-Xu Policy: Concept Paper

117
