Multidimensional Knowledge Graph Embeddings for International

Trade Flow Analysis

Durgesh Nandini

∗ a

, Simon Blöthner

∗ b

, Mirco Schoenfeld

∗ c

and Mario Larch

∗ d

University of Bayreuth, Bayreuth, Germany

Keywords:

Knowledge Graph Embedding, Translational Embedding, KonecoTradeFlow Ontology, Multidimensional

Data, International Economic Bilateral Trade Flow Data.

Abstract:

Understanding the complex dynamics of high-dimensional, contingent, and strongly nonlinear economic data,

often shaped by multiplicative processes, poses signiﬁcant challenges for traditional regression methods as

such methods offer limited capacity to capture the structural changes they feature. To address this, we propose

leveraging the potential of knowledge graph embeddings for economic trade data, in particular, to predict

international trade relationships. We implement KonecoKG, a knowledge graph representation of economic

trade data with multidimensional relationships using SDM-RDFizer and transform the relationships into a

knowledge graph embedding using AmpliGraph.

1 INTRODUCTION

Knowledge graphs (KG) are repositories for factual

information in triple form and have been increas-

ingly prevalent across various domains. Exploring

knowledge graph embedding models has emerged as

a novel approach for exploiting knowledge graphs.

These graphs have been useful, promoting numer-

ous downstream tasks (Kun et al., 2023; Abu-Salih,

2021). These embeddings represent nodes and, in

some cases, edges as continuous vectors, providing

several advantages over traditional graph structures

(Cai et al., 2018; Goyal and Ferrara, 2018; Wang

et al., 2017). Beyond this, graph-based method-

ologies offer a promising avenue for capturing and

quantifying narratives, particularly through knowl-

edge graphs (KGs) which map interactions between

concepts or events relevant to the research subjects

(Wang et al., 2017; Chen et al., 2020b). Numerous

applications of these methods have demonstrated the

efﬁcacy of graph modelling and quantitative graph

analysis in capturing complex economic relationships

(Xia et al., 2021; Chen et al., 2020a).

Therefore, this study applies KG translational em-

https://orcid.org/0000-0002-9416-8554

https://orcid.org/0009-0006-3462-4809

https://orcid.org/0000-0002-2843-3137

https://orcid.org/0000-0001-9355-2004

∗

All authors contributed equally.

bedding techniques (Bordes et al., 2013) to solve

inherent problems in empirical economic research.

Economic research typically transforms the network

of economic interactions into a format usable for (of-

ten even linear) inferential statistics or theoretical al-

gebraic reasoning. However, this transformation can

cause strong information and complexity compres-

sion, limiting the representativeness since the interac-

tion and the underlying network structure have been

almost completely ignored (Wolfram, 2002). Addi-

tionally, economic data has suffered from the prob-

lems of high-dimensionality, contingency and strong

non-linearity, which originate from multiplicative dy-

namics (Donoho et al., 2000; Bolón-Canedo et al.,

2016; Raudenbush and Bryk, 2002). This paper dis-

cusses these issues when further analysing economic

data in Section 2.

To address these problems, we propose that every

economic interaction can be represented within a net-

work structure. In the latter, we establish the concept

of an economic trade network as a system of intercon-

necting countries based on their trade relations. Our

primary aim is to explore the predictive capabilities

inherent within such a network, speciﬁcally focus-

ing on forecasting ﬂows between country pairs. To

do this, we introduce KonecoKG, a downstream KG

embedding model featuring multidimensional trans-

lational relationships for the international economic

bilateral data. A multidimensional relationship in the

context of KGs is one between entities encompass-

Nandini, D., Blöthner, S., Schoenfeld, M. and Larch, M.

Multidimensional Knowledge Graph Embeddings for International Trade Flow Analysis.

DOI: 10.5220/0013028500003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 2: KEOD, pages 63-73

ISBN: 978-989-758-716-0; ISSN: 2184-3228

ing multiple attributes or interactions simultaneously.

Such a relationship offers various advantages because

it facilitates capturing the combined effect of multiple

attributes rather than one single entity-attribute rela-

tion. For example, a simple binary relationship might

indicate only a single type of link, e.g., “country A

trades with country B”, On the other hand, a multidi-

mensional relationship captures a richer set of associ-

ations, such as ﬁxed effects, and contextual informa-

tion like trade volumes, geographical proximity and

economic indicators. The latter include gross domes-

tic product (GDP) and population size. By incorporat-

ing these diverse dimensions into the relationships, a

KG can provide a more nuanced, comprehensive rep-

resentation of the data, enabling more accurate and

insightful analysis using the embedding model. By

leveraging a trade network dataset, we anticipate fu-

ture trade opportunities by integrating historical trade

patterns with insights into the trading behaviours of

neighbouring countries within the network. Addition-

ally, multi-attributes such as trade agreements, ge-

ographic proximity and economic similarities act as

network features to reﬁne the accuracy of our predic-

tions. The main contributions of this work are as fol-

lows:

• Establish a trade network as a graph represen-

tation of countries with relationships indicating

trade ﬂows, eliminating the problems of non-

linearity and non-hierarchical representations in

international economic bilateral trade data.

• Introduce the KonecoTradeFlow ontology, which

represents the concepts of the international eco-

nomic bilateral trade data.

• Introduce KonecoKG, a downstream graph em-

bedding model that applies translational tech-

niques to forecast trade ﬂows.

To the best of our knowledge, our study is one of

the few pioneering efforts in utilising a large-scale

economic trade network to predict trade ﬂows be-

tween countries. The implications of accurately fore-

casting trade dynamics are signiﬁcant, offering valu-

able insights for policymakers, businesses and in-

vestors to optimise international trade strategies. Ad-

ditionally, the study identiﬁes emerging market trends

and encourages economic growth (Anand et al.,

2021).

The rest of the paper is organised as follows:

First, Section 2 gives an overview of the literature

on conventional econometric approaches and graph-

based methods and underlines the key challenges in

economic research, establishing the signiﬁcance of

the current study’s contribution. Having outlined the

challenges, Section 3 focuses on the approach we

are using and describes our process to construct the

TradeFlow ontology, the embedding methods used,

and the learning strategy. Section 4 focuses on the

experimental setup and the evaluation metrics used.

Section 5 provides insights into the results obtained

and discusses their implications. Lastly, we highlight

the ﬁndings of the research and conclude in Section

6, whereby we also layout ideas for future research in

this ﬁeld.

2 STATE OF THE ART

In this section, we discuss the challenges associated

with the economic data comprising the foundation of

this research. Additionally, this section reviews cur-

rent methods used to address these challenges and

identiﬁes gaps in these methods, including those in-

volving KGs, to underscore the necessity of the pro-

posed approach.

Challenges of Economic Data. Many formal,

data-driven efforts do not adequately address the

unique characteristics of economic data (Schumpeter,

1933). Economic exchanges are shaped by subjec-

tivity (Menger, 1871), creating context dependence

and contingency, sometimes called localised knowl-

edge (Hayek, 1945). Together, these characteris-

tics hinder people from gathering reliable insights

from economic data. Multi- or high-dimensionality

requires incorporating many variables into models,

which must be capable of untangling all the non-

linear interactions between these variables. Beyond

this, many economic variables of interest exhibit

strong power law behaviour, also called heavy- or fat-

tailed behaviour (Gabaix, 2009; Di Giovanni et al.,

2011; Axtell, 2001; Hinloopen and van Marrewijk,

2006). This process produces a slow convergence

speed, leaving one in a world of pre-asymptotics with

estimates which have not yet reached stable, reliable

values. Even if such a value is reached, it is often

unrepresentative of individual observations due to the

large difference in magnitude (Taleb, 2020).

Figure 1 exempliﬁes this characteristic. Looking

at all the bilateral trade ﬂows grouped by year shows

that the data has much heavier tails than a Gaussian

distribution, also called the normal distribution. This

can be seen by the mass of probability in the tails, as

opposed to that in the body of the distribution. No-

tably, the distributions in Figure 1 are on a logarith-

mic scale, making the problem exponentially more

pronounced. The distribution has a tail index α ≈ 1,

leading to slow convergence and imprecise estimates.

All these phenomena are expressed to the highest

degree when dealing with international trade ﬂows, as

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

they necessarily aggregate all the individual choices

to the highest possible level (Blöthner and Larch,

2022).

0.00

0.02

0.04

0.06

-9.0

-2.8

3.5

9.7

log of bilateral trade

density

Year

1990

2000

2010

Figure 1: Log density of bilateral trade ﬂows across time.

Methods for Economic Data Analysis. The standard

empirical approach in economic data analysis, a ﬁeld

referred to as econometrics, is a regression model.

To explain variations in bilateral international trade

ﬂows, the workhorse model is to estimate the theory-

founded gravity equation using the Poisson pseudo-

maximum likelihood (PPML) estimator (Santos Silva

and Tenreyro, 2006; Head and Mayer, 2014; Yotov

et al., 2016). Generally, these approaches rely on a

large set of ﬁxed effects to control for unobservable

effects in various dimensions. This process includes

dummy variables for every country, and sometimes

for every country pair, as well as exporter-year and

importer-year observations (Fally, 2015; Egger and

Staub, 2016). We will also rely on this speciﬁca-

tion when comparing it to our KG model in section

5. Another approach is the descriptive analysis of

networks such as in (De Benedictis and Tajoli, 2011;

Basile et al., 2018). However, such work does not fa-

cilitate inference or the understanding of factors that

drive certain characteristics within the network. Re-

cent advances in informatics, especially the combi-

nation of machine learning models with graph struc-

tures, can provide new insights into the ﬁeld of eco-

nomics. However, due to their focus on causal expla-

nation, traditional economic analysis methods have

predominantly relied on linear models and supervised

learning techniques.

Knowledge Graph for Economic Trade Flow Data.

Relevant recent advances have been made in the ﬁeld

of neural networks and KG networks. (Sellami et al.,

2024) used a Graph Convolution Network for predict-

ing the trade relation between countries. Elsewhere,

(Rincon-Yanez et al., 2023a) used a synthetic triple-

generation algorithm for enhancing downstream tasks

in KG embeddings based on the graph complement.

(Rincon-Yanez et al., 2023b) leveraged KG embed-

dings for modelling international trade, focusing on

link prediction using embeddings, and explored the

integration of traditional machine learning methods

with KG embeddings. (Meng, 2022) used an en-

terprise KG to predict China’s Free Trade Zone.

(Gastinger et al., 2023) used a KG to explain trade

patterns among various countries. Other approaches

to this process have been in the economic trade

ﬂow data analysis including economic planning (Shao

et al., 2017), and industrial economic status (Quan,

2022).

3 METHODOLOGY

This section explains the creation of KonecoKG, ap-

plying embedding techniques, and predicting trade

values. KonecoKG takes triples in the form of Subject

(s), Predicate (p) and Object (o) as inputs for mul-

tiple relationships, and then forms embedding vec-

tors for each relation. Next, the embedding vectors

are combined as an average embedding vector to pre-

dict trade ﬂows between countries as the ﬁnal output.

Figure 2 shows a diagrammatic representation of the

methodology. The subsections here provide an exten-

sive overview of the methodology followed.

Figure 2: Trade ﬂow prediction and analysis pipeline.

3.1 International Economic Trade Flow

Data

The initial step entails identifying relevant aspects of

the dataset. Using trade data from (Borchert et al.,

2021), spanning 1986 to 2016, and encompassing

170 countries, we tackle the questions of economic

drivers of trade ﬂows. To determine this, we added

explanatory data from (Gurevich and Herman, 2018)

for GDP and population data, and (Mayer and Zig-

nago, 2011) for information on geographic distances

between countries. Lastly, we employed data about

trade agreements from (Egger and Larch, 2008), a

strong predictor of international trade ﬂows. We ag-

gregated this data into a tabular format, leaving us

with over 2.5 million observations over the whole

time frame.

Multidimensional Knowledge Graph Embeddings for International Trade Flow Analysis

3.2 Data Processing and Feature

Selection

A detailed explanation of selected features is given

in Table 1, comprising the key determinants of inter-

national trade. Economic theory predicts that larger

countries, measured using population or economic

size (GDP), are more able than smaller countries

to trade with each other. Speciﬁcally, country size

affects a country’s division of labour and thus the

‘roundaboutness’ of production or how many inter-

mediary capital goods for production are employed.

As this number grows, countries develop greater po-

tential to trade. In contrast, countries facing high trade

costs will trade less. In contrast, countries facing high

trade costs trade less. These costs can be either direct

because they are far apart (distance, geographic posi-

tion) or indirect due to other trade barriers which in-

crease the transaction cost (triangulation, trust, trans-

fer).

3.3 Data Modelling as

KonecoTradeFlow Ontology

The subsequent step in the construction of the model

involved creating a formal semantic representation of

the dataset to serve as a structured framework for or-

ganising and categorising concepts, entities and re-

lationships. The advantage to this method is that it

captures the hierarchical structure and dependencies

among these features, allowing for a nuanced under-

standing of their interplay in shaping trade dynam-

ics (Chandrasekaran et al., 1999; Fensel and Fensel,

2001; Uschold and Gruninger, 1996). Figure 3 repre-

sents the hierarchical structure of our data as a class

diagram. From the ﬁgure, we identify ‘trade relation’

as our main class. A complete list of data properties

(Uschold and Gruninger, 1996; Chandrasekaran et al.,

1999) and object properties (Uschold and Gruninger,

1996; Chandrasekaran et al., 1999) is provided in Ta-

ble 1.

3.4 Knowledge Graph Construction

In the next step, we use the KonecoTradeFlow ontol-

ogy formulated in the above step to a structured rep-

resentation in a KG, producing a set of triples.

To this end, we converted our dataset into

KonecoKG using

SDM-RDFizer, an open-source tool and in-

terpreter of the W3C Recommendations Standard

Country

trade relation

distancetrade

trade agreement

GDP (WDI)

GDP (PWT)

population

latitude

longitude

has GDP (WDI)

has GDP (PWT)

has population

has latitude

has longitude

Figure 3: KonecoKG data model diagram.

R2RML

and its RDF Mapping Language (RML)

extension used for the semantiﬁcation process and

used in KG creation in prior research (Shahi, 2023).

The RDF is a standardised data model used to de-

scribe resources on the web using subject-predicate-

object statements, known as triples. Each triple com-

prises three components: subject, predicate, and ob-

ject. The following are the detailed steps used to con-

vert data into KonecoKG:

• Entity Identiﬁcation: we identiﬁed the entities or

resources that we wanted to represent in RDF. For

our use case, the entities were countries, specif-

ically the exporters and the importers, their as-

sociated data properties, and their relationships

among them.

• Ontology: We used the KonecoTradeFlow ontol-

ogy as vocabulary to model trade data. For in-

stance, the data property trade represents trade (in

millions of US Dollars).

• Mapping Rule: Following the steps of SDM-

RDFizer, mapping rules were created using

R2RML. We assigned the base URL as

www.koneco.de, and mapping rules assigned

the data values to the corresponding subjects,

predicates, and objects in the RDF triples and as-

sign the appropriate Uniform Resource Identiﬁer

(URI) for the entities and properties and linked

them to represent the relationships. For instance,

the trade column of the dataset is mapped as

tradeValue. A snapshot of the data properties

from the KonecoTradeFlow ontology is given

below.

rr:predicateObjectMap [

https://www.w3.org/TR/r2rml/

https://rml.io/specs/rml/

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

Table 1: Data & object properties and their description.

Data Property Description

trade volume of bilateral trade

distance geodesic distance between the exporter and importer

trade agreement whether a trade agreement exists between two countries

GDP (WDI) GDP of a country as measured by the World Development Indicators

GDP (PWT) GDP of a country as measured by the Penn World Tables

population population of a country

latitude geographical latitude of a country

longitude geographical longitude of a country

Object Property Description

tradesWith indicates whether a trade relation exists between two countries

rr:predicate kg:tradeValue;

rr:objectMap [

rml:reference "trade"

]

• Serialising as RDF: We serialised the RDF

triples into a speciﬁc RDF serialisation format.

We used the Turtle format to store and exchange

RDF data while preserving the structure and se-

mantics of the triples.

We represented Facts in a KG as relationships be-

tween entities — for instance, <ARB_NZL hasTrade-

Value n>, means Aruba exports, goods and services

of value n to New Zealand. We build a series of

such statements derived from the raw data collection

to represent them as a graph.

3.5 Knowledge Graph Embeddings

After KonecoKG is created, we employed KG embed-

dings, generating embedding scores for each triple,

thus encoding entities and relationships into numer-

ical vectors. In this way, the model processes in-

tricate patterns and semantic information as a con-

tinuous vector space, facilitating enhanced effective

analysis and inference. Next, we trained the triples,

derived from the KG, using three embedding mod-

els. Speciﬁcally, we employed TransE (Bordes et al.,

2013), ComplEx (Trouillon et al., 2016), and Dist-

Mult (Dettmers et al., 2018).

The TransE is a deterministic approach which re-

gards the relation as a translation operation from the

head entity to the tail entity and utilises a distance-

based scoring function to measure the plausibility of

triples. Each of the latter offers unique advantages

and facilitates different perspectives on capturing the

semantics of the underlying data. On the other hand,

the ComplEx and DistMult utilise tensor factorisation

and model the interaction of entities and relations by

vector-matrix product to obtain the expressive power

of the data.

3.6 Prediction Model

This section explains this study’s approach to ﬁnding

trade relations using link prediction in KonecoKG.

Link prediction is the process of exploiting the ex-

isting facts in a KG to infer missing ones. For triples

<s,p,o> in KonecoKG, where <s> refers to a country

pair, <p> represents countries’ trade relation, and <o>

represents the monetary value of the trade occurring

between two countries. Then we used tail prediction

to predict the values of o.

Subsequently, we adopted a corruption-based

learning strategy (Bordes et al., 2013) to make pre-

dictions. This strategy entailed intentionally introduc-

ing corruptions or perturbations to the input data dur-

ing the training process to enhance the model’s abil-

ity to generalise and make accurate predictions. The

rationale behind this approach is its ability to encour-

age the model to learn robust representations of the

data resilient to noise and variations. Exposing the

model to a diverse range of corrupted inputs during

training caused it to become more adept at discerning

meaningful patterns and relationships from the data,

thus improving its predictive performance on unseen

or noisy data.

Practically, the corruption strategy can be imple-

mented by augmenting the training dataset with arti-

ﬁcially corrupted samples or by introducing random

perturbations to the input data during each training it-

eration. The degree and type of corruption introduced

can be tailored based on the speciﬁc characteristics of

the dataset and the desired robustness of the model.

We have expanded on the use of the corruption model,

adopted by us, in Section 4.

Multidimensional Knowledge Graph Embeddings for International Trade Flow Analysis

3.7 Evaluation

We evaluated the quality of the embedding model by

measuring how well the model could complete facts.

The prediction model predicted the tail of all the pos-

sible facts of KonecoKG.

We evaluated the embedding model using the

Mean Reciprocal Rank (MRR) and Hits@N. Once the

best embedding model was determined, we applied

the Mean Squared Error (MSE) metric to calculate the

error in the predicted values.

• MRR measures how well the model ranks the cor-

rect entity or relation among the candidates in the

predicted list by measuring the average of the re-

ciprocal ranks of the correct tail entities across all

test triples. If the correct tail entity is ranked ﬁrst,

the reciprocal rank is 1; if it is ranked second, the

reciprocal rank is 1/2, and so on. MRR is deﬁned

as:

MRR =

|Test Triples|

∑

i=1

Rank

• Hits@N measures the proportion of test triples

where the correct answer appears within the top

N predictions. Similar to MRR, we have a set of

test triples and a ranked list of candidate tail en-

tities for each test triple. This metric calculates

the percentage of test triples for which the correct

tail entity appears within the top N ranks in the

predicted list. Hits@N is deﬁned as follows:

HITS@N =

Number of Hits at Rank ≤ N

|Test Triples|

• MSE is used to measure the error in the prediction

model by computing the average squared differ-

ence between estimated trade values (ˆy

) and ac-

tual trade values (y

). MSE is deﬁned as follows:

MSE =

∑

i=1

− ˆy

)

4 EXPERIMENTAL SETUP

To begin with, we utilised Protégé

, a widely used on-

tology editor and followed ontology design approach

(Dutta et al., 2015b; Dutta et al., 2015a), to build and

visualise the KonecoTradeFlow ontology. The im-

portance of this initial step before any other experi-

mental setup was to provide insights into formalising

https://protege.stanford.edu/

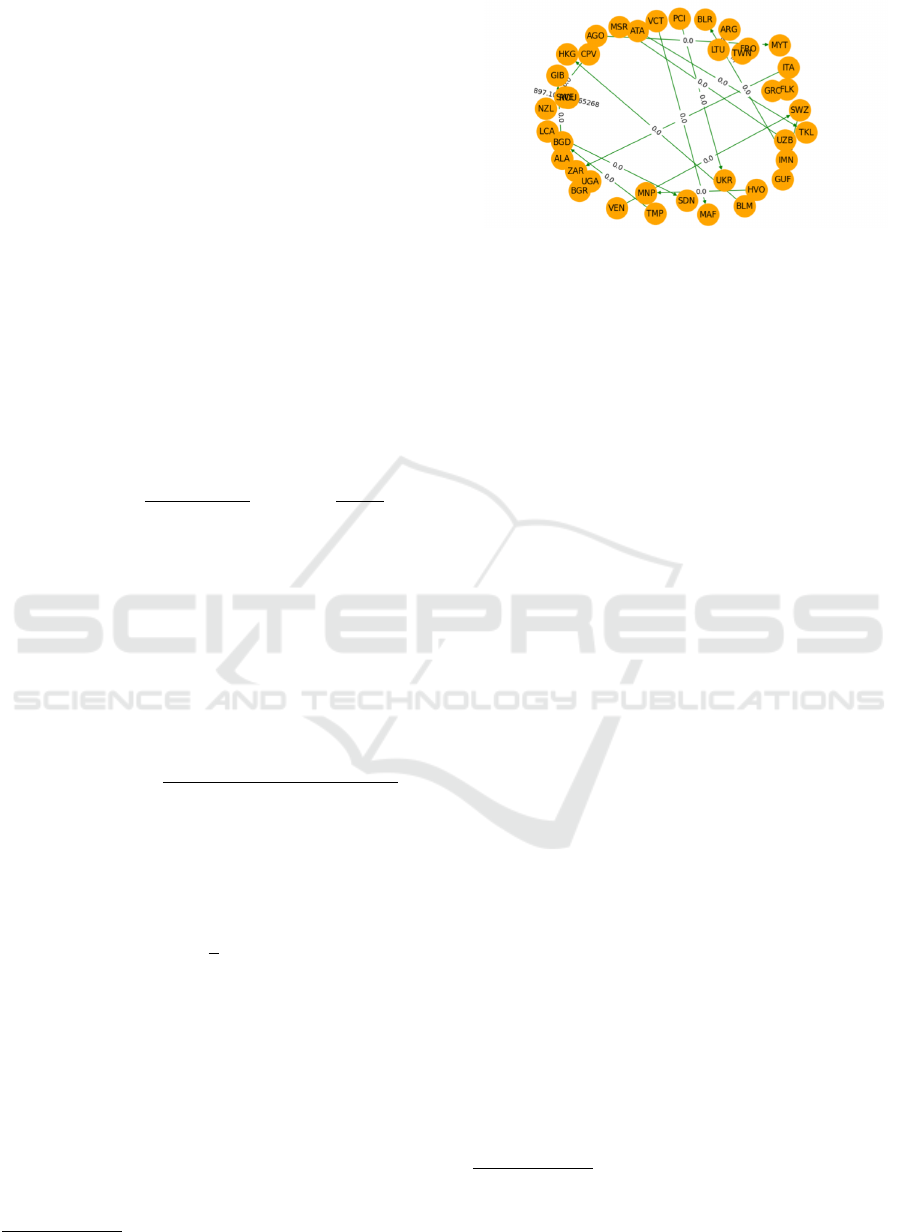

Figure 4: Sample trade network in KonecoKG.

the concept for mapping the trade ﬂow data to create

KonecoKG. This initial step was crucial to provide a

visual representation of the relationships between dif-

ferent entities, helping to clarify how various types

are connected and ensuring consistent data structure.

They also served to deﬁne the formal relationships be-

tween concepts and offered a shared understanding of

the domain enabling reasoning over the data.

In the second step, to simplify the start of the ex-

perimental process, we ﬁrst ﬁltered out data for each

year from the entire dataset collection since the data

comprises of trade information over a span of time.

We did not deal with the temporal aspect of the data,

rather we created a separate Kg for each year.

The third step was the conversion of trade ﬂow

data into a format suitable for KG embedding. To

perform this, we employed the SDM-RDFizer. We

started by formulating the required R2RML mapping

rules in Turtle

. In the rules, we speciﬁed the classes,

properties, and relationships we aim to necessitate in

the graph. We used the mapping rules to generate

<s,p,o> triples, also in the Turtle format. The result of

all the triples (subdivisions of Classes, and Relation-

ships) is the KonecoKG, which is also in the Turtle

format.

In the fourth step, we used the generated Turtle

output to parse the graph using the RDFLib

graph

package in our model. Figure 4 shows a simpliﬁed

glimpse of the trade network. In the ﬁgure, the nodes

represent the countries and the edges represent a bi-

lateral trade relationship between two countries. The

labels of the edges represent the value of the monetary

trade exchange in millions of US Dollar. A value of

0.0 indicates that there is no trade relation at all. The

origin of the edge represents the export country, and

the direction represents the import country.

In the ﬁfth step, we employed the AmpliGraph

(Costabello et al., 2019) Python library

to process

https://www.w3.org/TR/turtle/

https://rdﬂib.readthedocs.io/en/stable/apidocs/rdﬂib.

html

https://github.com/Accenture/AmpliGraph

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

the graph and to transform it into a vectorised mul-

tidimensional representation of the statements it con-

tained. Several potential embedding model architec-

tures were available through the AmpliGraph pack-

age with a variety of parameters. As mentioned in

Section 3, to evaluate the performance of KG em-

bedding models, we experimented with three algo-

rithms: TransE, CompleX, and DistMult. To optimise

the model parameters, we employed a grid search

methodology, systematically exploring various com-

binations to identify the most effective settings. Table

4 presents the metric performance scores of the mod-

els obtained rounded off to the third decimal place.

Notably, our experiments revealed that the TransE

model consistently outperformed the alternatives by

10%, for our data. Although ComplEx outperformed

the other models for Hits@1 and Hits@10, however,

upon further experiments, we found that when the N

in Hits@N increased, the model’s performance con-

sistently decreased. On the other hand, with an in-

crease in N, the Hits@N score for TransE consistently

increased. Therefore, we decided to go ahead with the

TransE model for further experimentation. We used

the TransE to predict the trade values and evaluate the

performance metrics.

In general, the model trains by comparing state-

ments (s,p,o) known to be true against statements

likely to be false based on local closed-world assump-

tions. This strategy measured the distances between

different statements and aimed to minimise the said

distance. An essential component of this experimen-

tal strategy is the corruption algorithm. The corrup-

tion algorithm creates negative triples by corrupting a

true triple either by replacing the head or the tail entity

with a random incorrect entity. This forces the model

to distinguish between true and false facts, thereby en-

hancing model robustness.

Initially, we utilised the default corruption method

provided by TransE. However, recognising the poten-

tial beneﬁts of introducing controlled noise into the

training process, we subsequently modiﬁed this strat-

egy by corrupting trade values by a relative value of

20% of their true values. Through experimentation

(20%, 50%, 70%, 100%, 120%), we determined that

a corruption level of about 20% optimally enhanced

the results. This adjustment appeared to simulate real-

world variations and uncertainties in trade dynamics,

thereby improving the model’s ability to generalise to

unseen data.

Subsequently, we trained our model for 1000

epochs, with an embedding size of 150 dimensions.

These settings were chosen based on preliminary ex-

periments and empirical observations to strike a bal-

ance between model performance and computational

efﬁciency, ensuring timely convergence and effective

learning. Tables 2 and 3 provides a full overview of

the parameter values.

However, in our analysis, we noticed that we had

to change the hyperparameters for a comparable pre-

diction for the in-sample and out-of-sample methods,

most notably in the epoch and batch size. The in-

sample method required fewer epochs and lower neg-

ative sampling for predicting trade ﬂows. Table 3 pro-

vides a full overview of the parameter values for in-

sampling.

The trained model works by generalising relation-

ships not yet seen by the neural network to predict the

likelihood of a relationship being true with a given

conﬁdence.

Table 2: Out-of-sample embedding parameters

Parameter Value

Epochs 1500

Embedding size 150

Corruptions 30

Batch size 30

Loss function Pairwise

Initialiser Xavier

Regulariser LP, ’lambda’: 0.01, ’p’: 2

Optimiser Adam

Learning rate 0.001

Table 3: In-sample embedding parameters.

Parameter Value

Epochs 1000

Embedding size 150

Corruptions 10

Batch size 50

Loss function Pairwise

Initialiser Xavier

Regulariser LP, ’lambda’: 0.01,’p’: 2

Optimiser Adam

Learning rate 0.001

5 RESULTS AND DISCUSSION

To evaluate the effectiveness of our model on unseen

data, we applied the leave-one-out cross-validation.

We iterated over each country relation as the test set

and used the rest of the chunk as the training set.

Thus, we reported the average scores of the runs, each

consisting of 1000 epochs. Then, we used the per-

formance metrics MRR (Costabello et al., 2019), and

Hits@N (Costabello et al., 2019) to evaluate the pre-

dictions generated by the model. As described in Sec-

tion 3 we experimented with hyperparameters of three

KG embedding models, namely, ComplEx, TransE

Multidimensional Knowledge Graph Embeddings for International Trade Flow Analysis

Table 4: Results of trade ﬂow prediction.

(a) ComplEx

Metric Score

MRR 0.483

Hits@1 0.428

Hits@10 0.513

Hits@100 0.512

Hits@1000 0.592

(b) TransE

Metric Score

MRR 0.587

Hits@1 0.298

Hits@10 0.459

Hits@100 0.576

Hits@1000 0.719

Metric Score

MRR 0.376

Hits@1 0.311

Hits@10 0.404

Hits@100 0.491

Hits@1000 0.504

and DistMult.

Furthermore, we also compared our results with

a baseline regression model using the Mean Squared

Error(MSE) metrics. We enlist the Mean Squared Er-

ror (MSE) (in millions) comparison in Table 5.

Table 5: Mean Squared Error by model.

Model Mean Squared Error (in million)

PPML 2256.65

ComplEx 256.65

DistMult 196.26

TransE 14.493564

Lastly, we applied the traditional approach, for

instance, PPML for predicting the trade value along

with the proposed approach. This model vastly out-

performed the conventional models in out-of-sample

prediction tasks. Relying on the MSE, it is up to 155

times better than a comparable estimate using PPML

with ﬁxed effects, as seen from Table 5. In this vein,

Figure 5a shows that the machine learning approach

predicts values at every scale quite accurately. No-

tably the 45

◦

line represents a perfect ﬁt. Even in the

in-sample case, KonecoKG outperforms PPML by a

factor of 50. PPML is biased towards large values,

which is a commonly observed result. Furthermore,

our model predicts all the 0 trade ﬂows correctly, a

feature which is impossible for PPML.

Generally, conventional regression-based ap-

proaches aim to ascertain the average response of a

variable of interest to a change, usually in policy. In

our case, this process could involve signing a trade

agreement between one or multiple countries. As mo-

tivated in Section 2 and reinforced by our results, the

inﬂuence of certain factors is mediated by a plethora

of contingent factors. Even if such an average re-

sponse could be achieved, a complex interplay of de-

pendencies could make the individual experience of

an economic agent, such as a country, to differ wildly

from the estimated average. This phenomenon has

recently been addressed in economics (Peters, 2019).

For this reason, we see great potential for graph-based

learning algorithms to untangle the complexities at

the heart of economic processes and to deepen our

understanding of economic relationships.

-11.1

-4.2

2.8

9.7

-8.3

-2.1

4.2

10.4

Trade

Prediction

Model

KonecoKG

PPML

(a) Out-of-sample

-13.2

-4.2

4.9

13.9

-8.3

-0.7

6.9

14.6

Trade

Prediction

Model

KonecoKG

PPML

(b) In-sample

Figure 5: Comparison of predictions (on log-log scale).

6 CONCLUSION AND FUTURE

WORK

In this work, we applied KG embedding techniques

to predict trade ﬂows in the international bilateral

trade ﬂow data by formulating KonecoKG, a down-

stream model. A signiﬁcant advantage of introduc-

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

ing graph structure is that it alleviates the problems of

non-linearity and hierarchical high-dimensional data.

The proposed approach outperforms the state-of-the-

art model in predicting trade values from 50, for in-

sample tasks, to 155 times, for out-of-sample tasks.

Currently, this approach has been applied for a lim-

ited number of properties.

Additionally, this approach can be extended by

combining KGs built from other data sources which

are nearly impossible to include in standard ap-

proaches, due to their unstructured nature. These

sources could include text-based agreements, news,

exchange and auction-based data, and market phe-

nomena such as decentralised ﬁnance.

An alternate and immediate subsequent extension

of the work would be explaining the embedding and

the prediction model to identify the key determinants

of the model. Additionally, post-hoc explainability

models could be used to explore the results obtained.

Another possible step could be the use of the time

dimension. As time is the medium through which any

economic process is realised, this would offer a much

more realistic picture. That is, much of recent econo-

metric research has used this feature, facilitating the

path dependence of multiplicative processes.

SUPPLEMENTAL MATERIAL

The raw data can be viewed and downloaded

from Mario Larch’s Regional Trade Agreements

Database

, Dynamic Gravity Dataset

, International

Trade and Production Database for Estimation (ITPD-

. In particular, we will release the ontology model,

mapping rules for creating the KonecoTradeFlow on-

tology, code to tune hyperparameters for the Com-

plEx, TransE, and DistMult, code to train, and predict

model using TransE.

The project, data, and the Python Code can also be

found at the link Multidimensional Knowledge Graph

Embeddings for International Trade Flow Analysis.

ACKNOWLEDGEMENT

The work has been done as the part of KONECO

project, and it has received funding from the Bun-

desministerium für Bildung und Forschung (BMBF)

under grant No 16DKWN095.

https://www.ewf.uni-bayreuth.de/en/research/RTA-

data/index.html

https://www.usitc.gov/data/gravity/dgd.htm

https://www.usitc.gov/data/gravity/itpde.htm

We also thank Rebekka Koch, our student assis-

tant, for her valuable efforts in collecting related lit-

erature, and for efforts during various crucial parts of

the paper development.

REFERENCES

Abu-Salih, B. (2021). Domain-speciﬁc knowledge graphs:

A survey. Journal of Network and Computer Applica-

tions, 185:103076.

Anand, J., McDermott, G., Mudambi, R., and Narula, R.

(2021). Innovation in and from emerging economies:

New insights and lessons for international business re-

search.

Axtell, R. L. (2001). Zipf distribution of US ﬁrm sizes.

Science, 293(5536):1818–1820.

Basile, R., Commendatore, P., De Benedictis, L., and Ku-

bin, I. (2018). The impact of trade costs on the Eu-

ropean regional trade network: An empirical and the-

oretical analysis. Review of International Economics,

26(3):578–609.

Blöthner, S. and Larch, M. (2022). Economic determinants

of regional trade agreements revisited using machine

learning. Empirical Economics, 63(4):1771–1807.

Bolón-Canedo, V., Sánchez-Maroño, N., and Alonso-

Betanzos, A. (2016). Feature selection for high-

dimensional data. Progress in Artiﬁcial Intelligence,

5:65–75.

Borchert, I., Larch, M., Shikher, S., and Yotov, Y. V.

(2021). The international trade and production

database for estimation (ITPD-E). International Eco-

nomics, 166:140–166.

Bordes, A., Usunier, N., Garcia-Duran, A., Weston, J., and

Yakhnenko, O. (2013). Translating embeddings for

modeling multi-relational data. Advances in Neural

Information Processing Systems, 26.

Cai, H., Zheng, V. W., and Chang, K. C.-C. (2018). A com-

prehensive survey of graph embedding: Problems,

techniques, and applications. IEEE Transactions on

Knowledge and Data Engineering, 30(9):1616–1637.

Chandrasekaran, B., Josephson, J. R., and Benjamins, V. R.

(1999). What are ontologies, and why do we need

them? IEEE Intelligent Systems and Their Applica-

tions, 14(1):20–26.

Chen, X., Jia, S., and Xiang, Y. (2020a). A review: Knowl-

edge reasoning over knowledge graph. Expert Systems

With Applications, 141:112948.

Chen, Z., Wang, Y., Zhao, B., Cheng, J., Zhao, X., and

Duan, Z. (2020b). Knowledge graph completion: A

review. IEEE Access, 8:192435–192456.

Costabello, L., Pai, S., Le Van, C., McGrath, R., McCarthy,

N., and Tabacof, P. (2019). Ampligraph: A library

for representation learning on knowledge graphs. Re-

trieved Oct, 10:2019.

De Benedictis, L. and Tajoli, L. (2011). The world trade

network. The World Economy, 34(8):1417–1454.

Multidimensional Knowledge Graph Embeddings for International Trade Flow Analysis

Dettmers, T., Minervini, P., Stenetorp, P., and Riedel, S.

(2018). Convolutional 2d knowledge graph embed-

dings. In Proceedings of the AAAI Conference on Ar-

tiﬁcial Intelligence, volume 32.

Di Giovanni, J., Levchenko, A. A., and Ranciere, R. (2011).

Power laws in ﬁrm size and openness to trade: Mea-

surement and implications. Journal of International

Economics, 85(1):42–52.

Donoho, D. L. et al. (2000). High-dimensional data analy-

sis: The curses and blessings of dimensionality. AMS

Math Challenges Lecture, 1(2000):32.

Dutta, B., Chatterjee, U., and Madalli, D. P. (2015a). Yamo:

yet another methodology for large-scale faceted ontol-

ogy construction. Journal of Knowledge Management,

19(1):6–24.

Dutta, B., Nandini, D., and Shahi, G. K. (2015b). Mod:

metadata for ontology description and publication.

In Proceedings of the International Conference on

Dublin Core and Metadata Applications. Dublin Core

Metadata Initiative.

Egger, P. H. and Larch, M. (2008). Interdependent preferen-

tial trade agreement memberships: An empirical anal-

ysis. Journal of International Economics, 76(2):384–

399.

Egger, P. H. and Staub, K. E. (2016). Glm estimation of

trade gravity models with ﬁxed effects. Empirical

Economics, 50:137–175.

Fally, T. (2015). Structural gravity and ﬁxed effects. Journal

of International Economics, 97(1):76–85.

Fensel, D. and Fensel, D. (2001). Ontologies. Springer.

Gabaix, X. (2009). Power laws in economics and ﬁnance.

Annual Review of Economics, 1(1):255–294.

Gastinger, J., Steinert, N., Gründer-Fahrer, S., and Martin,

M. (2023). Dynamic representations of global crises:

Creation and analysis of a temporal knowledge graph

for conﬂicts, trade and value networks. In D2R2.

Goyal, P. and Ferrara, E. (2018). Graph embedding tech-

niques, applications, and performance: A survey.

Knowledge-Based Systems, 151:78–94.

Gurevich, T. and Herman, P. (2018). The dynamic gravity

dataset: 1948-2016. US International Trade Commis-

sion, Ofﬁce of Economics Working Paper.

Hayek, F. (1945). The use of knowledge in society. Ameri-

can Economic Review, 35(4).

Head, K. and Mayer, T. (2014). Gravity equations:

Workhorse, toolkit, and cookbook. In Handbook of

International Economics, volume 4, pages 131–195.

Elsevier.

Hinloopen, J. and van Marrewijk, C. (2006). Comparative

advantage, the rank-size rule, and Zipf’s law. .

Kun, K. W., Liu, X., Racharak, T., Sun, G., Chen, J., Ma, Q.,

and Nguyen, L.-M. (2023). Weext: A framework of

extending deterministic knowledge graph embedding

models for embedding weighted knowledge graphs.

IEEE Access.

Mayer, T. and Zignago, S. (2011). Notes on CEPII’s dis-

tances measures: The geodist database. .

Meng, L. (2022). [retracted] information extraction

and knowledge graph construction for enterprises in

china’s free trade zone. Security and Communication

Networks, 2022(1):2962545.

Menger, C. (1871). Grundsätze der Volkswirtschaftslehre.

Braumüller.

Peters, O. (2019). The ergodicity problem in economics.

Nature Physics, 15(12):1216–1221.

Quan, J. (2022). Visualization and analysis model

of industrial economy status and development

based on knowledge graph and deep neural net-

work. Computational Intelligence and Neuroscience,

2022(1):7008093.

Raudenbush, S. W. and Bryk, A. S. (2002). Hierarchical

linear models: Applications and data analysis meth-

ods, volume 1. Sage.

Rincon-Yanez, D., Mouakher, A., and Senatore, S. (2023a).

Enhancing downstream tasks in knowledge graphs

embeddings: A complement graph-based approach

applied to bilateral trade. Procedia Computer Science,

225:3692–3700.

Rincon-Yanez, D., Ounoughi, C., Sellami, B., Kalvet, T.,

Tiits, M., Senatore, S., and Yahia, S. B. (2023b). Ac-

curate prediction of international trade ﬂows: Lever-

aging knowledge graphs and their embeddings. Jour-

nal of King Saud University-Computer and Informa-

tion Sciences, 35(10):101789.

Santos Silva, J. and Tenreyro, S. (2006). The log of gravity.

The Review of Economics and Statistics, 88(4):641–

658.

Schumpeter, J. (1933). The common sense of econometrics.

Econometrica, pages 5–12.

Sellami, B., Ounoughi, C., Kalvet, T., Tiits, M., and

Rincon-Yanez, D. (2024). Harnessing graph neural

networks to predict international trade ﬂows. Big Data

and Cognitive Computing, 8(6):65.

Shahi, G. K. (2023). Fakekg: a knowledge graph of fake

claims for improving automated fact-checking (stu-

dent abstract). In Proceedings of the AAAI Conference

on Artiﬁcial Intelligence, volume 37, pages 16320–

16321.

Shao, L., Duan, Y., Sun, X., Zou, Q., Jing, R., and Lin,

J. (2017). Bidirectional value driven design between

economical planning and technical implementation

based on data graph, information graph and knowl-

edge graph. In 2017 IEEE 15th International Confer-

ence on Software Engineering Research, Management

and Applications (SERA), pages 339–344. IEEE.

Taleb, N. N. (2020). Statistical consequences of fat tails:

Real world preasymptotics, epistemology, and appli-

cations. arXiv preprint arXiv:2001.10488.

Trouillon, T., Welbl, J., Riedel, S., Gaussier, É., and

Bouchard, G. (2016). Complex embeddings for sim-

ple link prediction. In International Conference on

Machine Learning, pages 2071–2080. PMLR.

Uschold, M. and Gruninger, M. (1996). Ontologies: Princi-

ples, methods and applications. The Knowledge Engi-

neering Review, 11(2):93–136.

Wang, Q., Mao, Z., Wang, B., and Guo, L. (2017). Knowl-

edge graph embedding: A survey of approaches and

applications. IEEE Transactions on Knowledge and

Data Engineering, 29(12):2724–2743.

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

Wolfram, S. (2002). A new kind of science, volume 5. Wol-

fram media Champaign, IL.

Xia, F., Sun, K., Yu, S., Aziz, A., Wan, L., Pan, S., and Liu,

H. (2021). Graph learning: A survey. IEEE Transac-

tions on Artiﬁcial Intelligence, 2(2):109–127.

Yotov, Y. V., Piermartini, R., Monteiro, J., and Larch,

M. (2016). An advanced guide to trade policy

analysis: The structural gravity model. available for

download athttps://unctad.org/publication/advanced-

guide-trade-policy-analysis-structural-gravity-model-

volume-2.

Multidimensional Knowledge Graph Embeddings for International Trade Flow Analysis
