Optimizing Federated Learning for Intrusion Detection in IoT

Networks

Abderahmane Hamdouchi

and Ali Idri

Mohammed VI Polytechnic University, Benguerir, Morocco

Keywords: Intrusion Detection System, Federated Learning, Deep Learning, Netflow, IoT, Cybersecurity.

Abstract: The Internet of Things (IoT) involves billions of interconnected devices, making IoT networks vulnerable to

cyber threats. To enhance security, deep learning (DL) techniques are increasingly used in intrusion detection

systems (IDS). However, centralized DL-based IDSs raise privacy concerns, prompting interest in Federated

Learning (FL). This research evaluates FL configurations using dense neural networks (DNN) and

convolutional neural networks (CNN) with two optimizers, stochastic gradient descent (SGD) and Adam,

across 20% and 60% feature thresholds. Two cost-sensitive learning techniques were applied: undersampling

with binary cross-entropy and weighted classes using weighted binary cross-entropy. Using the NF-ToN-IoT-

v2 dataset, 16 FL configurations were analyzed. Results indicate that SGD, combined with CNN and the

Undersampling technique applied to the top 7 features, outperformed other configurations.

1 INTRODUCTION

In the current digital landscape, the volume of data

generated and stored has surged dramatically, driven

by the decreasing cost of storage and increasing

tendency to record every digital interaction. This data

proliferation is further exacerbated by the growing

adoption of Internet of Things (IoT) devices,

including smart home technologies, the expansion of

smart cities, and advancements associated with

Industry 4.0. For big data companies, insights derived

from IoT devices are invaluable, rendering data a

critical asset that requires robust protection (Atharvan

et al., 2022).

Intrusion detection systems (IDS) are essential in

securing IoT environments. The integration of

machine learning (ML) into an IDS enhances threat

detection capabilities, but ML models often encounter

challenges when dealing with imbalanced data,

leading to complications in model design and an

increased risk of overfitting (de Zarzà et al., 2023;

Thakkar & Lohiya, 2023). Several strategies have

been investigated to address these challenges: (1)

cost-sensitive learning, which includes techniques

such as cost-sensitive resampling (oversampling and

undersampling (Luengo et al., 2011)) to adjust data

https://orcid.org/0009-0002-6623-8276

https://orcid.org/0000-0002-4586-4158

distribution; (2) cost-sensitive algorithms, where ML

algorithms are modified to incorporate a cost matrix,

although this approach is time-consuming (Lomax &

Vadera, 2013); (3) cost-sensitive ensembles, which

combine predictions from traditional ML models

while accounting for misclassification costs

(Krawczyk et al., 2014; Tao et al., 2019); and (4) cost-

sensitive learning in deep learning (DL), where model

training involves adjusting weights using standard

loss functions such as weighted binary cross entropy

(WBCE) (Ho & Wookey, 2020), specifically

developed to address the challenges posed by

imbalanced data (Dina et al., 2023; Kerkhof et al.,

2022).

However, early IDS systems were hindered by

their lack of adaptability and slow response times to

emerging threats, leaving them exposed for prolonged

periods (Murphy, 2018). To address these limitations,

more advanced IDS systems have begun to employ

basic ML models to autonomously learn and identify

new threats. Although the incorporation of ML has

improved the accuracy of attack detection, most ML-

based IDS systems remain centralized. This

centralization involves a single organization

collecting and processing data from multiple devices

to train its ML models, raising significant privacy

448

Hamdouchi, A. and Idri, A.

Optimizing Federated Learning for Intrusion Detection in IoT Networks.

DOI: 10.5220/0013040000003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 1: KDIR, pages 448-456

ISBN: 978-989-758-716-0; ISSN: 2184-3228

concerns. This is particularly relevant in IoT

environments such as smart wearables and healthcare

devices, where sensitive and large volumes of data are

at stake. Consequently, there is a growing demand for

decentralized approaches to data management

(McMahan et al., 2017).

To address the privacy concerns inherent in

centralized ML approaches, federated learning (FL)

(McMahan et al., 2017) was introduced in 2016. FL

allows multiple devices, often referred to as clients or

parties, to collaboratively train a model without

sharing their data directly. Instead, these devices send

model updates to a central entity known as an

aggregator or coordinator, where the updates are

combined to refine a global model. This approach is

designed to enhance privacy by ensuring that the data

remains local to the devices, thereby reducing the risk

of exposure. FL achieves this by transmitting only the

gradients instead of the raw data itself. The local

training occurs on each device using its own dataset,

and only the computed model parameters are sent to

the central server. As a result, sensitive information

never leaves the device, significantly reducing the

risk of interception or unauthorized access during

transmission.

Recent efforts have focused on developing FL-

based IDS for IoT environments (Hei et al., 2020;

Nguyen et al., 2019; Thu Huong et al., 2020). Despite

this progress, many proposed approaches do not

adequately address the challenges of imbalanced data,

leading to models that are prone to overfitting.

Additionally, these methods often fail to evaluate the

effectiveness of different FL optimizers and DL base

learners, or consider the impact of varying feature

sets. Furthermore, the review (Agrawal et al., 2021)

highlighted the challenges of implementing FL in IoT

settings, but failed to provide concrete

recommendations for enhancing IDS with FL or

critically assessing the proposed solutions. This gap

in detailed analysis poses challenges for

cybersecurity experts in identifying the key issues

associated with integrating FL into an IDS for IoT.

To address the existing research gap, this study

investigates 16 FL configurations for IDS in IoT

contexts, specifically employing deep learning (DL)

through dense neural networks (DNN) and

convolutional neural networks (CNN). These

configurations (16 = 2 optimizers for the FL server ×

2 DL architectures × 2 cost-sensitive configurations ×

2 feature thresholds) explore the impact of different

cost-sensitive learning approaches (resampling based

on undersampling and weighted classes based on

WBCE) along with the selection of FL optimizers and

the number of features. The study utilized the NF-

ToN-IoT-v2 dataset to evaluate the effectiveness of

FL with various cost-sensitive setups, feature

numbers, and FL optimizers. We conduct 16

experiments: eight with the dataset's original

distribution using WBCE, and eight with

undersampled data to balance attack and non-attack

instances among participants using binary cross

entropy (BCE). The study assesses the results using

two FL optimizers: stochastic gradient descent (SGD)

(Amari, 1993) and Adam (Zhang, 2019), with two

feature thresholds (20% and 60%). The performance

of the FL models was evaluated in binary

classification tasks over 100 optimization rounds

using four performance criteria: accuracy, AUC,

precision, and recall. The Scott–Knott (SK) statistical

test (Scott & Knott, 1974) and the Borda count (BC)

voting system (Saari, 2001) were employed to

compare and rank the models.

This study addresses the following research

questions (RQs):

▪ (RQ1). What is the optimal choice between

SGD and Adam optimizers in the context of FL

for attack detection?

▪ (RQ2). What is the best FL configuration for

detecting attacks across various settings?

The key contributions of this study are as follows:

1. Determining the best optimizer for FL in the

context of intrusion detection using the NF-

ToN-IoT-v2 dataset.

2. Identifying optimal FL setup for different

configurations.

3. Developing a generalized FL model for IDS

applicable to various IoT datasets.

The remainder of this paper is organized as

follows. Section 2 provides a review of related

literature. Section 3 presents the data used in this

study. Section 4 outlines the research methodology.

Section 5 presents the results and discussion of the

experiments. Finally, Section 6 presents the

conclusions and suggests directions for future

research.

2 RELATED WORK

Several significant studies have explored anomaly

detection across various domains, with a particular

emphasis on IoT, utilizing different FL

methodologies. This section provides an overview of

key research efforts that have employed FL for

intrusion detection within IoT environments.

Friha et al. (Friha et al., 2022) proposed an FL-

based IDS (FELIDS) aimed at securing agricultural

IoT infrastructure by ensuring data privacy through

Optimizing Federated Learning for Intrusion Detection in IoT Networks

449

localized learning. To defend against attacks on

Agricultural IoT systems, FELIDS leverages three

DL classifiers: DNN, CNN, and recurrent neural

networks (RNN). The effectiveness of the system was

evaluated using three datasets: CSE-CIC-IDS2018,

MQTTset, and InSDN. The findings indicate that

FELIDS outperforms traditional centralized machine

learning (non-FL) methods by offering enhanced data

privacy for IoT devices and achieving an accuracy of

99.71% with the CNN classifier on the InSDN

dataset, 89.56% with the RNN classifier on the

MQTTset dataset, and 94.15% with the RNN

classifier on the CSE-CIC-IDS2018 dataset.

Mothukuri et al. (Mothukuri et al., 2022) proposed a

novel approach that leverages FL to train gated

recurrent units (GRUs) models while ensuring that

data remains on local IoT devices. Only the learned

weights of the model are shared with the central

server of the FL. In addition, the method incorporates

an ensemble technique to aggregate updates from

multiple sources, thereby improving the accuracy of

the global ML model. The results demonstrated that

this approach not only outperforms traditional

centralized ML methods in safeguarding data privacy

but also achieves an overall average accuracy of

90.255% in attack detection. Idrissi et al. (Idrissi et

al., 2023) introduced Fed-ANIDS, a Network IDS

that combines ML-based anomaly detection (AD)

with FL to address privacy concerns inherent in

centralized models. The system detects intrusions by

calculating an intrusion score based on the

reconstruction error of normal traffic using various

AD models, including simple autoencoders,

variational autoencoders, and adversarial

autoencoders. The method was evaluated using three

datasets: USTC-TFC2016, CIC-IDS2017, and CSE-

CIC-IDS2018. The results indicated that

autoencoder-based models outperformed other

generative adversarial network-based models, and

that the FedProx aggregation framework was more

effective than FedAVG. The proposed method

achieved peak accuracies of 99.95%, 93.54%, and

94.48% for the USTC-TFC2016, CIC-IDS2017, and

CSE-CIC-IDS2018 datasets, respectively.

3 EXPERIMENTAL DESIGN

This section describes the datasets, performance

metrics, and methodology employed in the empirical

evaluations conducted in this study.

3.1 Dataset Description

In this study, 43 NetFlow features conforming to

version 9 standard were extracted and labeled from

the ToN-IoT (Alsaedi et al., 2020) dataset using the

nProbe tool by Ntop. The resulting dataset,

designated as NF-ToN-IoT-V2 (Sarhan et al., 2021),

comprises 16,940,469 instances labeled as either

attack or no-attack, reflecting a significant class

imbalance, with 36% labeled as no-attack and 64% as

attack. This data was chosen because it consists of

real IoT traffic with simulated attacks. Furthermore,

the “Pcap” files are labeled and available as open

source, providing a foundation for developing a

generalized model applicable to all NetFlow V9 data

types.

3.2 Performance Measures

To evaluate the effectiveness of the proposed binary

classification models, we employed accuracy, recall,

precision, and area under the receiver operating

characteristic curve (AUC) as evaluation metrics

(Naidu et al., 2023). These metrics were selected

owing to their widespread use and acceptance in the

field.

3.3 Statistical Test and Borda Count

▪ Scott Knott (SK) is a clustering algorithm

commonly used to compare multiple groups in

analysis of variance studies. It addresses the

issue of overlapping groups by starting with all

observed mean effects grouped together and

iteratively dividing these groups into smaller

subgroups, ensuring that no two subgroups

share any common members (Scott & Knott,

1974).

▪ Borda Count (BC) is a voting method in

which voters rank candidates according to their

preferences. Each candidate receives points

based on their rank, with the lower ranks

earning fewer points. The points are then

aggregated, and the candidate with the highest

total is declared as the winner. In this study, the

Borda count method was used to identify the

top-performing model, treating all performance

measures equally (Saari, 2001).

3.4 Methodology

Figure 1 illustrates the methodology employed to

assess and compare the effects of different FL

optimizers, DL architectures, cost-sensitive learning

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

450

setups, and feature thresholds on the detection

capabilities of FL-based IDS. We evaluated the

performance of two FL optimizers, SGD and Adam,

with two different feature thresholds (20% and 60%)

and two cost-sensitive learning setups

(undersampling and WBCE) over 100 rounds using

SK and BC voting systems. The experimental

procedure included the following steps:

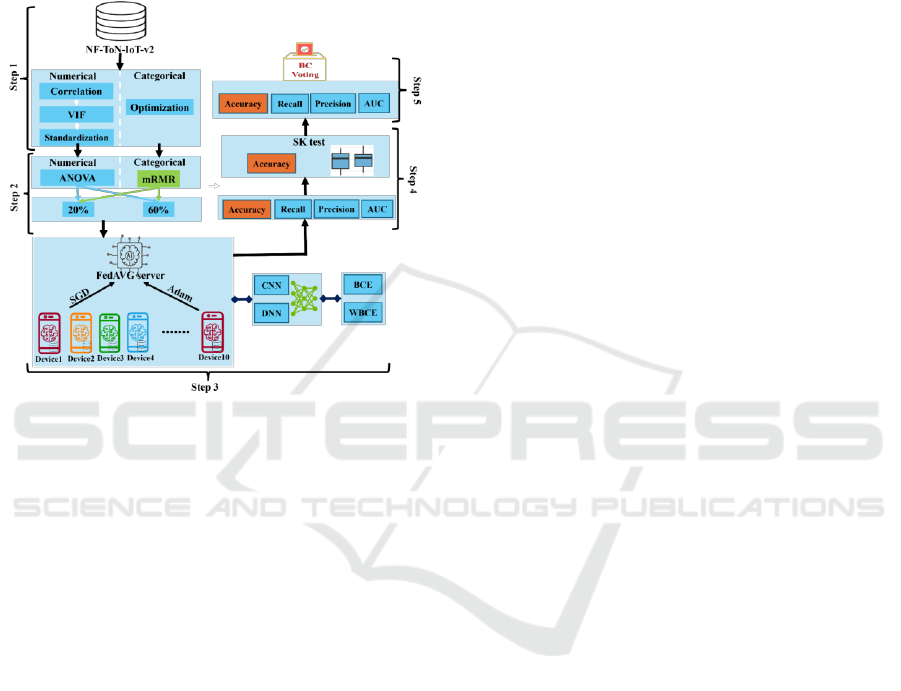

Figure 1: Experimental process.

▪ Step 1. Prepare the raw data by removing

missing values, duplicate rows, and

unnecessary attributes. This process includes

reclassifying categorical features and

standardizing numerical features.

▪ Step 2. involves the application of two FS

techniques: mRMR for categorical features and

ANOVA for numerical features. These

methods were selected based on a comparative

analysis of FS and ML techniques on IDS

datasets (Amiri et al., 2011; Shakeela et al.,

2021; Tao et al., 2019; Zouhri et al., 2023).

Additionally, two feature thresholds (20% and

100%) were implemented, as recommended in

previous studies (Dhaliwal et al., 2018;

Kurniabudi et al., 2020; Nakashima et al.,

2018). This process resulted in the creation of

two dataset variations.

▪ Step 3. Set up a simulated IoT network by

creating virtual instances using TFF based on

the DNN and CNN architectures. We utilized

10 devices, each referred to as Device

, and

configured two optimizers for the central

FedAVG server instance. This instance

facilitates the exchange of DL model

parameters between the mobile IoT devices and

the central FL server. Cost-sensitive learning

was implemented using two approaches: one

using raw data with WBCE, respecting the

original dataset distribution, and the other

using undersampling to balance the dataset

with equal numbers of attacks and BCE. Each

local dataset i was assigned to the

corresponding virtual Device

▪ Step 4. Construct and evaluate the performance

of the 16 FL configurations (16 = 2 optimizers

for the FL server × 2 DL architectures × 2 cost-

sensitive configurations × 2 feature thresholds)

in terms of accuracy, recall, precision, and

AUC over 100 rounds. Additionally, the SK

test and BC system were used to rank the FL

configurations for each cost-sensitive learning

setup, feature threshold, and FL optimizer.

▪ Step 5. Compare the performances of Adam

and SGD optimizers for each cost-sensitive

learning setup and feature threshold using the

NF-ToN-IoT-v2 dataset. Ultimately, identify

the optimal FL configuration for cyber-

detection within the NetFlow IoT dataset

framework.

3.5 Abbreviation

To enhance readability and simplify model names,

this study adopts the following specific naming

conventions:

DLArchitecture_Optimizer_CostSensitiveSetup_Feat

ureThreshold

The abbreviations for DL architectures are DN for

DNN and CN for CNN. The FL optimizers are

abbreviated as S for SGD and A for Adam. The cost-

sensitive setups are abbreviated as U for

undersampling and W for weighted classes. For

instance, DNSW20 represents a configuration

utilizing the DNN architecture with the SGD

optimizer, WBCE with weighted classes, and 20% of

the features.

4 RESULTS AND DISCUSSION

This section analyzes the outcomes of using the FL

technique with the DNN and CNN architectures. The

evaluation includes two optimizers (Adam and SGD),

two feature thresholds (20% and 60%), and two cost-

sensitive setups (undersampling and WBCE) over

100 rounds on the NF-ToN-IoT-v2 dataset for binary

classification. The results of the empirical study are

discussed in relation to the RQs introduced in section

Optimizing Federated Learning for Intrusion Detection in IoT Networks

451

4.1 Optimal Choice Between SGD and

Adam Optimizers in FL for Attack

Detection (RQ1)

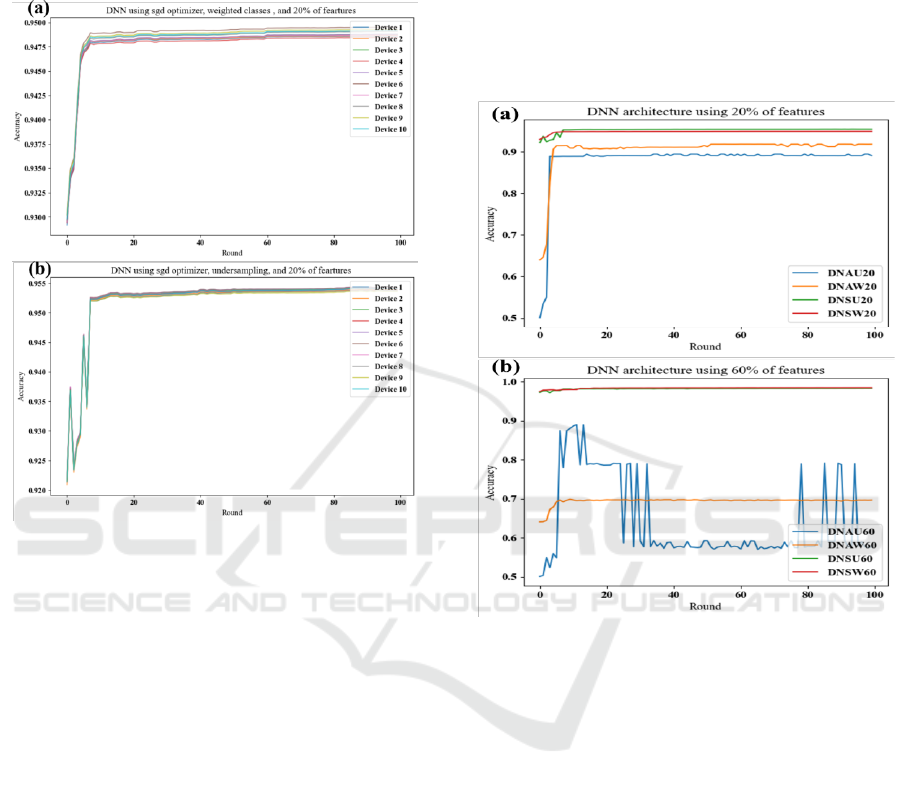

Figure 2: Accuracy progression across rounds for 10

devices using SGD with 20% of features: (a) DNN with

weighted classes and (b) DNN with undersampling.

This subsection investigates the impact of SGD and

Adam optimizers on the performance of FL

configurations, with an emphasis on identifying the

optimizer that enhances the accuracy of an FL-based

IDS in IoT contexts. We analyze the average model

accuracy across different feature thresholds for each

cost-sensitive learning setup using DNN and CNN

architectures, utilizing the SGD and Adam optimizers

over 100 rounds to determine the optimal FL

optimizer. For instance, when evaluating the accuracy

of cost-sensitive setups (undersampling and weighted

classes) with SGD and Adam using DNN and 20% of

features across 10 devices: (1) Figures 2.a and 2.b

display the accuracy values of DNN using the SGD

optimizer with weighted classes and undersampling,

respectively, allowing us to assess the models'

accuracy for each device over 100 rounds; and (2) we

calculate the average accuracy values for the 10

devices for different FL configurations in each round,

as illustrated in Figure 3. For example, as shown in

Figure 3. a, the average accuracy of the FL

architecture across 10 devices, deploying a DNN with

weighted classes and utilizing 20% of features with

SGD as the FL optimizer, is referred to as DNSW20,

whereas the average accuracy of the FL architecture

across 10 devices, deploying a DNN with

undersampling and using 20% of features with SGD

as the FL optimizer, is indicated as DNSU20.

Figure 3.a shows the average accuracy values

obtained using the DNN with 20% of the features. We

observe the following:

Figure 3: Average accuracy of FL based on DNN

architecture using: (a) 20% of features and (b) 60% of

features.

▪ For DNSU20, variability is present in the first

5 rounds, followed by stabilization, achieving a

high accuracy of approximately 95%.

▪ For DNSW20, variability is present in the first

3 rounds, followed by stabilization, resulting in

a high accuracy of approximately 94%.

▪ For DNAW20, an increase is observed in the

first 3 rounds, followed by stabilization with

very slight variations, leading to a consistent

accuracy of approximately 91%.

▪ For DNAU20, an increase is observed in the

first 5 rounds, followed by stabilization with

very slight variations, resulting in a consistent

accuracy of approximately 89%.

Figure 3.b shows the average accuracy values

obtained using the DNN with 60% of the features. We

observe the following:

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

452

▪ For DNSW60, stability is maintained

throughout all rounds, achieving a high

accuracy of approximately 98%.

▪ For DNSU60, stability is maintained in all

rounds except for a slight variation in the

second round, leading to a high accuracy of

approximately 98%.

▪ For DNAW60, an increase is observed in the

first 6 rounds, followed by stabilization,

resulting in a consistent accuracy of

approximately 91%.

▪ For DNAU60, the highest variation is observed

across all rounds, with an initial increase in the

first 5 rounds, some stability between rounds 5

and 15, followed by a decrease at round 36, and

high variation at round 80, resulting in a

maximum accuracy of 87%.

When using DNN as the base learner, the SGD

optimizer proved to be the most effective FL

optimizer, securing the top two positions for both the

20% and 60% feature thresholds. Specifically,

DNSU20 for 20% of features and DNSW60 for 60%

of features achieved the highest accuracies of 95%

and 98%, respectively. In contrast, the Adam

optimizer ranked lowest, with DNAU20 for 20% of

features and DNAU60 for 60% of features, recording

the lowest accuracies of 89% and 87%, respectively.

Figure 4.a illustrates the average accuracy values

obtained using CNN with 20% of features. We

observe the following:

▪ For CNSU20, a slight increase is observed

during the first 5 rounds, followed by

stabilization over the next 10 rounds.

Variability occurs in the subsequent 3 rounds,

after which stabilization occurs in the

remaining rounds, achieving a high accuracy of

approximately 95%.

▪ For CNSW20, a slight increase is observed

during the first 5 rounds, followed by

stabilization, ultimately leading to a high

accuracy of approximately 94%.

▪ For CNAW20, a significant increase is

observed during the first 3 rounds, followed by

stabilization, resulting in a high accuracy of

approximately 91%.

▪ For CNAU20, stabilization is observed

throughout all rounds, resulting in a consistent

accuracy of approximately 50%.

Figure 4.b shows the average accuracy values

obtained using the CNN with 60% of the features. We

observe the following:

▪ For CNSW60, a slight increase is observed

during the first 5 rounds, followed by

stabilization, ultimately achieving a high

accuracy of approximately 98%.

▪ For CNSU60, a significant increase is observed

during the first 5 rounds, followed by

stabilization, ultimately resulting in a high

accuracy of approximately 98%.

▪ For CNAW60, a significant increase is

observed during the first 10 rounds, followed

by stabilization over the next 10 rounds.

Significant variability is present in the

remaining rounds, with accuracies ranging

between 70% and 92%.

▪ For CNAU60, stabilization is observed

throughout all rounds, resulting in a consistent

accuracy of approximately 50%.

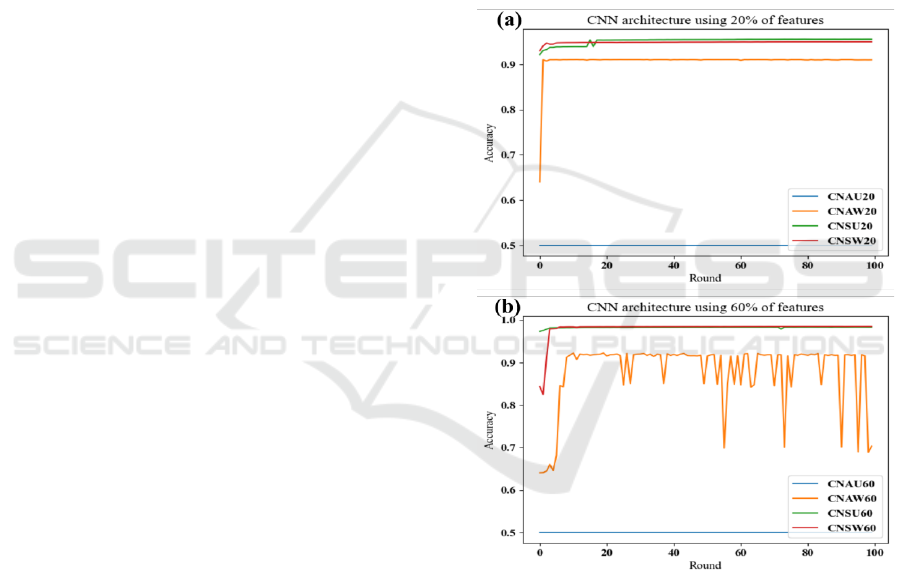

Figure 4: Average accuracy of FL based on CNN

architecture using: (a) 20% of features and (b) 60% of

features.

When using the CNN as the base learner, the SGD

optimizer proved to be the most effective FL

optimizer, securing the top two positions for both the

20% and 60% feature thresholds. Specifically,

CNSU20 for 20% of features and CNSW60 for 60%

of features achieved the highest accuracies of 95%

and 98%, respectively. Conversely, the Adam

optimizer ranked lowest, with CNAU20 stabilizing at

an accuracy of 50% for 20% of the features and

Optimizing Federated Learning for Intrusion Detection in IoT Networks

453

CNAU60 showing variability with accuracy ranging

between 70% and 92% for 60% of the features.

In summary, SGD outperformed Adam as an FL

optimizer across DL architectures used as the base

learners. Additionally, when utilizing SGD,

employing weighted classes, particularly WBCE, as a

cost-sensitive learning method yielded better

performance with 60% of the features, while

undersampling performed more effectively with 20%

of the features across different DL architectures. On

the other hand, when using Adam, the weighted

classes (WBCE) consistently achieved better

performance than the undersampling technique.

4.2 Optimal FL Configuration for

Attack Detection Across Varied

Settings (RQ2)

Figure 5: SK test results of FL configurations using (a) 20%

of features and (b) 60% of features.

In this section, we compare various FL

configurations, including FL optimizers, DL base

learners, and cost-sensitive setups, for each feature

threshold. The SK test was employed to focus on

accuracy, grouping models, and identifying the most

effective SK clusters, as illustrated in Figure 5.

Additionally, the BC method was used to prioritize

the models within the top SK clusters based on

metrics such as accuracy, AUC, recall, and precision,

as shown in Table 2. The SK test results are displayed

in a graph, where the x-axis categorizes the FL

classifier variants by cluster, arranging the best

clusters from left to right, and the y-axis shows the

accuracy scores. The central dots on each vertical line

represent the mean accuracy, with the lines

illustrating the outcomes of 100 rounds for each FL

classifier. This analysis involved calculating the

average accuracy for each round  across the 10

devices, denoted as 



, using Equation (1).

For example, DNSW20 represents the average

accuracy of the DNN architecture with the SGD

optimizer, WBCE with weighted classes, and 20% of

the features across 10 over 100 rounds









.



















(1)

From Figure 5.a, we observe the following:

▪ For the 20% feature threshold, the SK

distribution results in four distinct clusters. The

first cluster comprises all models utilizing the

SGD optimizer, including CNSU20, DNSU20,

CNSW20, and DNSW20. The second cluster

consists of CNAW20 and DNAW20. The third

cluster includes only DNAU20, while the

fourth cluster contains only CNAU20.

▪ For the 60% feature threshold, the SK

distribution forms five distinct clusters. The

first cluster includes all models using the SGD

optimizer, specifically DNSW60, CNSU60,

DNSU60, and CNSW60. The second, third,

fourth, and fifth clusters contain CNAW60,

DNAW60, DNAU60, and CNAU60,

respectively.

Table 1: BC ranking of the FL variants belong to the best

SK cluster.

Model

Accuracy

AUC

Recall

Precision

20%

CNSU20

95.19%

0.9874

92.41%

97.85%

CNSW20

94.89%

0.9872

97.33%

94.81%

DNSU20

95.18%

0.9859

92.61%

97.62%

DNSW20

94.78%

0.9859

97.26%

94.73%

60%

DNSW60

98.34%

0.9984

99.03%

98.38%

DNSU60

98.17%

0.9984

98.52%

97.84%

CNSU60

98.31%

0.9987

98.23%

98.39%

CNSW60

98.07%

0.9943

98.48%

98.49%

TS: Feature threshold #F: Number of features

The findings indicate that the optimal FL

configuration is achieved using the SGD optimizer

and varies based on the feature threshold.

Specifically, (1) with 20% of the features, the CNN

base learner combined with the SGD optimizer

outperforms the DNN, securing the top two positions

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

454

according to the BC voting system. Conversely, (2)

with 60% of the features, the DNN occupies the top

two positions. Specifically, the best model for the

20% feature threshold is CNSU20, which achieved

the highest BC score of 9 with an accuracy of 95.19%,

an AUC of 0.9874, a recall of 92.41%, and a precision

of 97.85% using 7 features. For the 60% feature

threshold, DNSW60 achieved the best BC score of 11

with an accuracy of 98.34%, an AUC of 0.9984, a

recall of 99.03%, and a precision of 98.38% using 20

features. Although CNSU20 and DNSW60

demonstrated comparable performance across

various metrics, CNSU20 was selected as the

preferred model due to its effectiveness with a

minimal number of features (7 features).

5 CONCLUSION AND FURTHER

WORKS

The research evaluated and compared 16 FL

configurations for the binary classification of network

intrusions, employing DNN and CNN as base

learning models. The study explored the performance

of two FL optimizers, SGD and Adam, in

combination with two feature thresholds (20% and

60%) and two cost-sensitive learning approaches

(Undersampling with BCE and weighted classes with

WBCE) using the NF-ToN-IoT-v2 dataset.

Evaluation metrics included accuracy, AUC, recall,

and precision, further supported by the SK statistical

test and the BC ranking system. The results

demonstrated that SGD is a more reliable optimizer

for attack detection in FL frameworks. The most

effective model configuration was achieved using

SGD as the FL optimizer, combined with CNN as the

base learner and the Undersampling technique over

the top 7 features.

The findings underscore the significance of

employing FL in the development of decentralized

IDSs specifically tailored for IoT networks to

enhance attack detection. Future research should

extend empirical evaluations to further validate or

refine these results, potentially by utilizing a variety

of datasets to assess the robustness and adaptability

of FL-based IDS across diverse IoT environments.

Additionally, investigating alternative models within

FL frameworks could offer valuable insights into

optimizing both performance and efficiency.

Furthermore, deploying these models on embedded

devices using TinyML and FL methodologies

represents a promising direction for continued

exploration.

REFERENCES

Agrawal, S., Sarkar, S., Aouedi, O., Yenduri, G., Piamrat, K.,

Alazab, M., Bhattacharya, S., Maddikunta, P. K. R. &

Gadekallu, T. R. (2021). Federated Learning for

Intrusion Detection System: Concepts, Challenges and

Future Directions. Computer Communications, 195,

346–361. https://doi.org/10.1016/j.comcom.2022.09.012

Alsaedi, A., Moustafa, N., Tari, Z., Mahmood, A. & Adna N

Anwar. (2020). TON-IoT telemetry dataset: A new

generation dataset of IoT and IIoT for data-driven

intrusion detection systems. IEEE Access, 8, 165130–

165150. https://doi.org/10.1109/ACCESS.2020.

3022862

Amari, S. ichi. (1993). Backpropagation and stochastic

gradient descent method. Neurocomputing, 5(4–5), 185–

196. https://doi.org/10.1016/0925-2312(93)90006-O

Amiri, F., Rezaei Yousefi, M., Lucas, C., Shakery, A. &

Yazdani, N. (2011). Mutual information-based feature

selection for intrusion detection systems. Journal of

Network and Computer Applications, 34(4), 1184–

1199. https://doi.org/10.1016/J.JNCA.2011.01.002

Atharvan, G., Koolikkara Madom Krishnamoorthy, S.,

Dua, A. & Gupta, S. (2022). A way forward towards a

technology-driven development of industry 4.0 using

big data analytics in 5G-enabled IIoT. International

Journal of Communication Systems, 35(1), e5014.

https://doi.org/10.1002/DAC.5014

de Zarzà, I., de Curtò, J. & Calafate, C. T. (2023).

Optimizing Neural Networks for Imbalanced Data.

Electronics 2023, Vol. 12, Page 2674, 12(12), 2674.

https://doi.org/10.3390/ELECTRONICS12122674

Dhaliwal, S. S., Nahid, A. Al & Abbas, R. (2018). Effective

Intrusion Detection System Using XGBoost.

Information 2018, Vol. 9, Page 149, 9(7), 149.

https://doi.org/10.3390/INFO9070149

Dina, A. S., Siddique, A. B. & Manivannan, D. (2023). A

deep learning approach for intrusion detection in Internet

of Things using focal loss function. Internet of Things,

22, 100699. https://doi.org/10.1016/J.IOT.2023.100699

Friha, O., Ferrag, M. A., Shu, L., Maglaras, L., Choo, K. K.

R. & Nafaa, M. (2022). FELIDS: Federated learning-

based intrusion detection system for agricultural Internet

of Things. Journal of Parallel and Distributed

Computing, 165, 17–31. https://doi.org/10.1016/J.JPDC.

2022.03.003

Hei, X., Yin, X., Wang, Y., Ren, J. & Zhu, L. (2020). A

trusted feature aggregator federated learning for

distributed malicious attack detection. Computers &

Security, 99, 102033. https://doi.org/10.1016/J.COSE.

2020.102033

Ho, Y. & Wookey, S. (2020). The Real-World-Weight

Cross-Entropy Loss Function: Modeling the Costs of

Mislabeling. IEEE Access, 8, 4806–4813.

https://doi.org/10.1109/ACCESS.2019.2962617

Idrissi, M. J., Alami, H., El Mahdaouy, A., El Mekki, A.,

Oualil, S., Yartaoui, Z. & Berrada, I. (2023). Fed-

ANIDS: Federated learning for anomaly-based network

intrusion detection systems. Expert Systems with

Optimizing Federated Learning for Intrusion Detection in IoT Networks

455

Applications, 234, 121000. https://doi.org/10.1016/J.

ESWA.2023.121000

Kerkhof, M., Wu, L., Perin, G. & Picek, S. (2022). Focus is

Key to Success: A Focal Loss Function for Deep

Learning-Based Side-Channel Analysis. Lecture Notes

in Computer Science (Including Subseries Lecture

Notes in Artificial Intelligence and Lecture Notes in

Bioinformatics), 13211 LNCS, 29–48.

https://doi.org/10.1007/978-3-030-99766-3_2/COVER

Krawczyk, B., Woźniak, M. & Schaefer, G. (2014). Cost-

sensitive decision tree ensembles for effective

imbalanced classification. Applied Soft Computing,

14(PART C), 554–562. https://doi.org/10.1016/J.ASOC.

2013.08.014

Kurniabudi, Stiawan, D., Darmawijoyo, Bin Idris, M. Y. Bin,

Bamhdi, A. M. & Budiarto, R. (2020). CICIDS-2017

Dataset Feature Analysis with Information Gain for

Anomaly Detection. IEEE Access, 8, 132911–132921.

https://doi.org/10.1109/ACCESS.2020.3009843

Lomax, S. & Vadera, S. (2013). A survey of cost-sensitive

decision tree induction algorithms. ACM Computing

Surveys (CSUR), 45(2). https://doi.org/10.1145/

2431211.2431215

Luengo, J., Fernández, A., García, S. & Herrera, F. (2011).

Addressing data complexity for imbalanced data sets:

Analysis of SMOTE-based oversampling and

evolutionary undersampling. Soft Computing, 15(10),

1909–1936. https://doi.org/10.1007/S00500-010-0625-

8/TABLES/16

McMahan, B., Moore, E., Ramage, D., Hampson, S. &

Arcas, B. A. y. (2017). Communication-Efficient

Learning of Deep Networks from Decentralized Data

(pp. 1273–1282). PMLR. https://proceedings.mlr.press/

v54/mcmahan17a.html

Mothukuri, V., Khare, P., Parizi, R. M., Pouriyeh, S.,

Dehghantanha, A. & Srivastava, G. (2022). Federated-

Learning-Based Anomaly Detection for IoT Security

Attacks. IEEE Internet of Things Journal, 9(4), 2545–

2554. https://doi.org/10.1109/JIOT.2021.3077803

Murphy, J. F. A. (2018). The General Data Protection

Regulation (GDPR). Irish Medical Journal, 111(5),

747. https://doi.org/10.1007/978-3-319-57959-7

Naidu, G., Zuva, T. & Sibanda, E. M. (2023). A Review of

Evaluation Metrics in Machine Learning Algorithms.

Lecture Notes in Networks and Systems, 724 LNNS,

15–25. https://doi.org/10.1007/978-3-031-35314-7_2/

FIGURES/3

Nakashima, M., Kim, Y., Kim, J., Kim, J. & Sim, A. (2018).

Automated Feature Selection for Anomaly Detection

in. Network Traffic Data, 1(1), 27.

https://doi.org/10.1145/1122445.1122456

Nguyen, T. D., Marchal, S., Miettinen, M., Fereidooni, H.,

Asokan, N. & Sadeghi, A. R. (2019). DÏoT: A federated

self-learning anomaly detection system for IoT.

Proceedings - International Conference on Distributed

Computing Systems, 2019-July, 756–767.

https://doi.org/10.1109/ICDCS.2019.00080

Saari, D. G. (2001). Decisions and Elections. Decisions and

Elections. https://doi.org/10.1017/CBO9780511606076

Sarhan, M., Layeghy, S., Moustafa, N. & Portmann, M.

(2021). NetFlow Datasets for Machine Learning-Based

Network Intrusion Detection Systems. Lecture Notes of

the Institute for Computer Sciences, Social-Informatics

and Telecommunications Engineering, LNICST, 371

LNICST, 117–135. https://doi.org/10.1007/978-3-030-

72802-1_9/COVER

Scott, A. J. & Knott, M. (1974). A Cluster Analysis Method

for Grouping Means in the Analysis of Variance.

Biometrics, 30(3), 507. https://doi.org/10.2307/2529204

Shakeela, S., Sai Shankar, N., Mohan Reddy, P., Kavya

Tulasi, T. & Mahesh Koneru, M. (2021). Optimal

Ensemble Learning Based on Distinctive Feature

Selection by Univariate ANOVA-F Statistics for IDS.

https://doi.org/10.24425/ijet.2021.135975

Tao, X., Li, Q., Guo, W., Ren, C., Li, C., Liu, R. & Zou, J.

(2019). Self-adaptive cost weights-based support vector

machine cost-sensitive ensemble for imbalanced data

classification. Information Sciences, 487, 31–56.

https://doi.org/10.1016/J.INS.2019.02.062

Thakkar, A. & Lohiya, R. (2023). Attack Classification of

Imbalanced Intrusion Data for IoT Network Using

Ensemble-Learning-Based Deep Neural Network.

IEEE Internet of Things Journal, 10(13), 11888–11895.

https://doi.org/10.1109/JIOT.2023.3244810

Thu Huong, T., Phuong Bac, T., Minh Long, D., Doan

Thang, B., Duc Luong, T., Thanh Binh, N. & Kim Phuc,

T. (2020). LocKedge: Low-Complexity Cyberattack

Detection in IoT Edge Computing.

https://arxiv.org/abs/2011.14194v1

Zhang, Z. (2019). Improved Adam Optimizer for Deep

Neural Networks. 2018 IEEE/ACM 26th International

Symposium on Quality of Service, IWQoS 2018.

https://doi.org/10.1109/IWQOS.2018.8624183

Zouhri, H., Idri, A. & Ratnani, A. (2023). Evaluating the

impact of filter-based feature selection in intrusion

detection systems. International Journal of Information

Security, 1–27. https://doi.org/10.1007/S10207-023-

00767-Y/TABLES/17

KDIR 2024 - 16th International Conference on Knowledge Discovery and Information Retrieval

456
