Automated Hybrid Ransomware Family Classiﬁcation

George Raul Michael Dunca

and Ioan B

ınz

Department of Computer Science, Babes-Bolyai University, Str. M. Kogalniceanu, Cluj-Napoca, Romania

Keywords:

Ransomware, Windows Portable Executables, Random Forest, Hybrid Analysis, Features.

Abstract:

Ransomware is one of the most destructive forms of malware that exists today, posing a continuous and evolv-

ing threat to everyone from a regular user to a large corporation. Mainly ransomware can be analyzed in three

ways: statically which involves extracting information without execution, dynamically which implies running

the program in a controlled environment and observing its behavior, and hybrid which addresses the limitation

of the previously speciﬁed two approaches by combining them. The aim of this study is to maximize the num-

ber of features extracted from Windows portable executables (PE) utilizing a hybrid approach and ﬁnd what

are the most useful attributes for differentiating between various ransomware families. A total of 707 samples

across 99 families were successfully examined, from which 783 features were identiﬁed as the most informa-

tive. This data was then used to train a Random Forest model, which conducts the classiﬁcation. RansoGuard

was also developed. This is a graphical user interface Windows application that extracts hybrid attributes from

a speciﬁed portable executable ﬁle. Then it uses the Random Forest model to output a prediction about the

ransomware family to which the ﬁle belongs and ﬁnally generates a detailed report. The results obtained are

promising, with the model achieving an accuracy of 71.83%, along with a precision of 0.79 and recall of 0.72.

1 INTRODUCTION

The number of devices has increased in recent years,

making the Internet an essential part of daily life for

almost every member of society (Aslan and Samet,

2020). This broad connectivity, while offering conve-

nience and accessibility, has also led to a growth in cy-

berattacks and raised various security concerns. One

of the most popular threats in this context is malware,

or malicious software, which can compromise per-

sonal information or cause damage to services. Mal-

ware can be categorized into multiple classes, with

the most dangerous being ransomware. This type is

installed on the victim’s system without their knowl-

edge, and then encrypts valuable information and

ﬁles, making them inaccessible. The attacker then re-

quests a ransom payment in return for the decryption

key. This ”business model” is favored by cybercrimi-

nals, as evidenced by the fact that last year 72.7% of

all organizations fell prey to a ransomware attack (sta,

2024b).

This expansion of ransomware incidents makes

malware analysts perform some repetitive tasks when

attempting to identify patterns or characteristics of a

https://orcid.org/0009-0005-3236-5666

https://orcid.org/0000-0001-8233-8264

sample. In case of an incident response, these tasks

need to be performed quickly as time is of the essence.

Additionally, anti-malware solutions generally rely

on signature-based detection as their initial layer of

defense, which can be easily bypassed. For instance,

malware authors can insert random prints or assign-

ments that will change the sample’s signature. Fur-

thermore, many antivirus scanners concentrate more

on distinguishing malicious ﬁles from benign ones,

or on classifying general malware types, rather than

focusing speciﬁcally on ransomware families.

This study aims to automate the process of iden-

tifying the ransomware family of a malicious ﬁle. To

do so, we ﬁrst need to extract as much information

as possible from various instances. Out of this in-

formation, only the most useful attributes will be re-

tained to form the training data for a Random Forest

model, which will be used for labeling. To the best

of our knowledge, no prior research on ransomware

family classiﬁcation has considered the combination

of these multiple features: Strings, Metadata, PE sec-

tions, PE headers, MITRE ATT&CK techniques, be-

havioral signatures, and network activity.

The problems discussed have led to the explo-

ration of the following research questions:

i. What tool combination is the most effective for

Dunca, G. and B

arînz

a, I.

Automated Hybrid Ransomware Family Classiﬁcation.

DOI: 10.5220/0013065400003825

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Conference on Web Information Systems and Technologies (WEBIST 2024), pages 409-416

ISBN: 978-989-758-718-4; ISSN: 2184-3252

409

extracting the maximum amount of information from

portable executables?

ii. Which static and dynamic features are essential for

accurate ransomware classiﬁcation?

This paper will speciﬁcally focus on Windows

portable executable ﬁles since it is the most used oper-

ating system (sta, 2024a) and as a result, the primary

target for malware authors and cybercriminals.

2 RELATED WORK

Different approaches have been proposed to detect

and classify ransomware or malware. The authors of

(Rizvi et al., 2022) presented PROUD-MAL, a novel

static analysis-based approach for malware detection

in portable executables. The dataset used in the study

is collected from real-time sources by deploying low

and high-interaction honeypots on an organization

network, gathering over 15,000 portable executable

samples of both malicious and benign samples. Be-

cause most of the data was unlabeled, this framework

utilizes cascading blocks of unsupervised clustering

to create pseudo labels, which are later fed to the Fea-

ture Attention-based Neural Network (FANN). This

method prioritizes the signiﬁcant features and ﬁnds

patterns within a dataset. The framework was com-

pared with some supervised machine learning algo-

rithms and the results show that PROUD-MAL out-

performs these algorithms, having an accuracy over

98%.

The study from (Abbasi, 2023) concentrated on

automating the process of detecting and classifying

ransomware into families, using a dynamic approach.

Initially, it suggested a way to choose the appropriate

features without the need for expert input, by utilizing

Particle Swarm Optimization (PSO). This approach

consists of two phases: Stage 1, which employs the

Mutual Information Criterion to pick an equal number

of top-ranked features, and Stage 2, where addition-

ally an optimal number of features is selected from

each family. The procedure was evaluated by using

ﬁve machine learning algorithms, demonstrating re-

sults comparable with other state-of-the-art methods

that do not require human intervention and showing

the lowest number of features. Furthermore, the study

introduced both a Genetic Programming Malice Scor-

ing Method and a Genetic Programming Multi-Model

Malice Scorer. Although interesting, it’s important to

note that these techniques lie outside the scope of this

study. Finally, an early detection approach that uses

API call sequences is presented. This novelty com-

bines call names with speciﬁc call arguments, particu-

larly from system-type API calls, leading to a notable

improvement in early ransomware detection perfor-

mance.

In (Aurangzeb, 2018) the authors focused on the

binary classiﬁcation of ransomware while introduc-

ing two hybrid methodologies. The novelty lies in

using hardware performance counters for the fea-

ture vector. The initial approach, called Hybrid

Hierarchy-based Ransomware Classiﬁcation (HHRC)

begins with signature-based analysis and if a match

is not found it continues with static evaluation. Fur-

thermore, if the sample is not classiﬁed as ran-

somware, it proceeds to dynamic examination. To

address the high dimensionality problem of feature

vectors, the authors employed the Information Gain

method. The second approach, Hybrid-Combined

Ransomware Classiﬁcation (HCRC), merges static

and dynamic attributes into a single feature vector for

training a machine-learning model. Testing reveals

that HCRC outperforms HHRC by approximately 3%

regarding Area Under the ROC Curve (AUC). How-

ever, overall performance shows a negligible differ-

ence, only 0.01%, but HHRC demonstrates lower

computing costs.

3 METHODOLOGY

3.1 Lab Analysis Setup

Before starting the ransomware analysis using a hy-

brid approach, a safe and controlled environment was

needed to proceed. A self-hosted laboratory was fa-

vored, choosing an Ubuntu machine for the setup,

with Oracle VM VirtualBox installed. As for the vir-

tual machine, Windows 10 Enterprise was used, de-

spite it only offering a 90-day free trial. This conﬁgu-

ration was preferred because utilizing different oper-

ating systems for the host and guest can enhance se-

curity. On the host machine Flare VM was installed,

which is a popular collection of software deployment

scrips designed for malware analysis. As part of the

setup process, it is necessary to disable Windows De-

fender and Windows Firewall to prevent interference

when detonating common malware samples within

the environment. Detailed installation steps and ad-

ditional information about Flare VM are described at

(ﬂa, 2024b). To make sure that the host can’t commu-

nicate with the internet or other devices a Host-only

Adapter was employed, which restricts the commu-

nication solely between the VM and the computer it

runs on. Additionally, a Bridged Adapter was utilized

when internet access was required for tasks such as in-

stalling dependencies, and packages, or making API

calls.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

410

3.2 Dataset Selection

For this study, the samples were obtained from

VirusShare (vir, 2024a), a repository containing mal-

ware instances from various families. It was created

to offer security researchers and forensic analysts ac-

cess to samples of active malicious code. Speciﬁ-

cally, the study utilized the ”Special Request” section

within the Torrents tab, which includes a Crypto Ran-

somware entry. There, a zip ﬁle was available con-

taining approximately 8GB of ransomware samples,

totaling around 38,000 instances. The signatures of

these entities were checked to determine if the dataset

contained any duplicates, and the result was nega-

tive. Some important notes here are the fact that not

all the samples were necessarily portable executable

ﬁles, and they were not labeled with the correspond-

ing family.

3.3 Labeling

Before starting the analysis process, the samples were

classiﬁed by a script that created a dictionary, with

each sample’s name as a key and its corresponding

family name as the value. The goal was to achieve

an evenly distributed dataset, allowing a maximum of

120 entries per label. However, only an upper limit

was imposed, resulting in a database with many fam-

ilies, some containing just a few instances. AVClass

(avc, 2024), an open-source command line tool, was

utilized to classify the data. It processes a VirusTotal

(vir, 2024b) JSON report and outputs the most likely

family name for the sample. With a free VirusTo-

tal account, only 500 API requests per day are al-

lowed and since submitting a ﬁle and retrieving the

JSON report requires two calls, 250 entries can be

classiﬁed daily. During the labeling process, a prob-

lem was identiﬁed: some samples were not catego-

rized as ransomware families but as various Trojan

or Spyware types. Initially, AVCLass was suspected

to be the source of the problem, especially because

some instances were incorrectly categorized as be-

nign, thus showing false positive results. However,

after manually investigating and relabeling some ran-

dom samples, it was observed that the issue was the

VirusShare dataset, which although claiming to con-

tain only crypto-ransomware, does not. Despite these

challenges, the decision was to proceed with all the

analyzed samples. The ﬁnal dataset consists of 707

entries, distributed across 99 labels, and the top 5

most populated ones are shown in Figure 1, with a

short description below:

The most common family in the dataset is zbot,

also known as Zeus Trojan. Despite its name, it ac-

tually combines multiple malware behaviors. Firstly,

it makes the infected local machine part of a botnet,

while also granting attackers access to the machine’s

data. Additionally, it installs a keylogger on the in-

fected system. Some variants include a ”web inject”

component that adds malicious JavaScript code to a

bank page, tricking users into leaking sensitive in-

formation (pro, 2024). There is also a variant called

Game Over Zeus which in addition to the bank ac-

count stealing component it installs ransomware, and

it is very possible that the zbot label returned by AV-

Class refers to this speciﬁc family.

Xorist is a ransomware family created using En-

coder Builder. This tool allows cybercriminals to cus-

tomize the ransomware by choosing the ﬁle encryp-

tion algorithm (XOR or Tiny Encryption Algorithm),

the ransom-demand message, or the ﬁle types to be

encrypted and can be considered one of the ﬁrst steps

of ransomware as a service (RaaS).

Reveton is a form of ransomware that differs from

Xorist in the sense that it uses intimidation tactics to

pressure the victims to pay the ransom (Kara and Ay-

dos, 2022). It usually displays a notice that claims

that the user has committed a crime, and can also hi-

jack their webcams, making the victim believe they

are being recorded by the police.

Onlinegames is a Trojan variant designed to steal

conﬁdential information from players of popular on-

line games. It achieves this by reading the process

memory of certain game executables or by access-

ing variables from the game’s conﬁguration ﬁles (fse,

2024).

Wapomi is commonly detected as a Worm or Tro-

jan and infects machines by exploiting a Windows

feature called ”autorun”, in which a program is au-

tomatically executed when a USB stick or removable

driver is plugged to a machine (bad, 2024).

zbot

xorist

reveton

onlinegames

wapomi

100

120

118

Labels

Number of samples

Figure 1: Database family distribution.

3.4 Static Extraction

The objective of the study at this stage was to extract

as much information as possible from a given ﬁle.

To achieve this, multiple tools that could cover fea-

Automated Hybrid Ransomware Family Classiﬁcation

411

tures from different areas of a ﬁle were needed. After

thorough research, a ﬁnal selection of four tools was

made:

1. Peﬁle (pef, 2024) is a Python library used for pars-

ing and analyzing portable executable ﬁles. This tool

can extract information like PE headers, PE sections,

and imported and exported symbols and can be con-

sidered the base of the four.

2. Flare-Floss (ﬂa, 2024a) is designed to automat-

ically extract and deobfuscate strings from malware

binaries utilizing advanced static analysis techniques.

It is similar to the traditional Linux ”strings” com-

mand but additionally can handle obfuscation, an ap-

proach commonly used by ransomware authors to

hide the true intentions and functionality of their pro-

gram.

3. Exiftool (exi, 2024) is a command-line utility used

to get meta information about a ﬁle. Unlike the other

three tools, which specialize in portable executables,

this one accepts ﬁles of any type. This command was

used together with ”-n” option to output numeric val-

ues without formatting, facilitating smoother parsing.

4. Dependencies (dep, 2024) is a modern and faster

rewrite of Dependency Walker, available as open-

source software. This tool focuses on the extraction

of all Dynamic Link Libraries (DLLs) that a program

depends on.

To optimize the static analysis process, a script was

developed to concurrently execute four threads. For

every ﬁle in a dictionary, each thread executes one of

the tools speciﬁed, parses its output and saves the in-

formation to a global dictionary. Depending on the

tool, the value can indicate various aspects such as

the number of times the key appears in the program,

as in the case of ﬂoss output, the presence, with a

value of 1 or an actual integer or ﬂoat value. Fur-

thermore, the script generates a single CSV ﬁle with

exactly one row for each sample, writing the keys of

the dictionary as columns and the values are placed

in the corresponding ﬁrst row. This approach ensures

that no information is lost for already analyzed sam-

ples in case of an error. Given that Floss and Depen-

dencies tools may require longer computational time

to correctly analyze a ﬁle, a timeout mechanism was

implemented. The script will wait a maximum of four

minutes for the Floss process to complete and eight

minutes for Dependencies, meaning that samples that

take longer will be dropped.

3.5 Dynamic Extraction

An approach that is straightforward, always available,

and easy for users to install was desired for the dy-

namic analysis. For these reasons, Cuckoo Sandbox,

a popular open-source automated malware analysis

system that executes samples in a controlled environ-

ment, was excluded. Moreover, Cuckoo can be con-

sidered outdated nowadays, as it only supports Python

2 and Ubuntu 18.04. Subsequently, API approaches

were researched because such a solution would meet

the proposed requirements. Among the limited op-

tions, the two best candidates were selected: VirusTo-

tal and Hybrid-Analysis, from which only one should

be chosen. Both alternatives have similar functional-

ities, providing endpoints to submit a ﬁle and get its

behavioral report. The API calls can be utilized in a

script to extract the dynamic features of a sample.

VirusTotal is primarily known for aggregating

multiple antivirus engines to scan a given ﬁle con-

currently, with each engine determining whether it

is malicious or safe. The documentation states that

the submitted samples are automatically executed in a

sandboxed environment with their behavior recorded.

However, the dynamic report is available instantly af-

ter submitting a sample, which raises suspicions that

the sample may not actually be run in a controller

environment. Additionally, the reports show incon-

sistency in the information provided, with some sam-

ples executing in multiple sandboxes and thus offer-

ing more details while others executing in only one.

No documentation was found regarding how Virus-

Total decides which sandboxes to run the sample in,

or how the dynamic report is available instantly. For

these reasons, Hybrid-Analysis was chosen.

Hybrid-Analysis (hyb, 2024) offers a Falcon

Sandbox public API with various endpoints, though

a free account has restricted access to them. Per-

missions are granted for the essential ones, allowing

the upload of ﬁles for analysis and fetching the re-

port summary of a sample. Other endpoints, such as

those retrieving the extracted binaries ﬁles or memory

dumps, which would’ve provided additional informa-

tion, could not be used. Another notable limitation is

that the API only permits 100 daily ﬁle submissions,

thus slowing down the analysis process.

Instead of submitting one sample at a time and

waiting for the behavior analysis to be completed, a

script was employed to submit 100 samples simulta-

neously, taking advantage of Hybrid-Analysis’s abil-

ity to process submissions in parallel. The scrip

makes API calls to the ’/submit/ﬁle’ endpoint with

the following supplementary input parameters: en-

vironment id was set to 160, specifying the operat-

ing system of the sandbox, in this case meaning Win-

dows 10 64 bit; experimental anti evasion was set

to true, this applies experimental techniques to pre-

vent malware evasion tactics that detect sandbox en-

vironment and avoid execution; script logging was

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

412

enabled to capture more details regarding any scripts

run by the sample; network settings was set to ’sim-

ulated’ to simulate network trafﬁc during the analy-

sis; input sample tampering was set to true to al-

low manipulation of samples in a way that disrupts

or reveals evasion attempts. After waiting about an

hour for all the samples to complete successfully, an-

other script was run to retrieve the summary reports,

parse the JSON response, and store the output in a

dictionary, similar to the approach used in static anal-

ysis. The JSON response does not provide popular

dynamic analysis information such as API calls or

registry activities. Instead, it offers details about net-

work activity, ﬁle operations conducted by the sam-

ple, MITRE ATT&CK techniques present in the pro-

gram’s behavior, and signatures, which provide more

speciﬁc behavioral features observed during analysis.

Finally, a single CSV ﬁle per sample is generated,

which only contains the extracted dynamic features.

At this point, all the necessary information about

a sample was available: the malware family it belongs

to, stored in a dictionary and two CSV ﬁles, one con-

taining the static features and the other containing dy-

namic features. To generate the ﬁnal database, a script

that combines two CSV ﬁles into a single one was

employed, basically merging the static and dynamic

features for each sample. Then the add label program

was used to write a label column in all of the previ-

ously generated ﬁles, utilizing the information from

the dictionary. Finally, a script to merge all the CSVs

into one database was needed. It works by creating a

set of all the unique column names from the ﬁles and

then writing this set to the ﬁnal database. For each

sample, a row is created in the table and because it

is possible for a column from the set to not appear in

a ﬁle, a value of 0 is assigned to that column in the

corresponding sample row.

3.6 Feature Selection

The ﬁnal database consists of approximately 1.3

million static features and around 6,000 dynamic

features. This discrepancy comes from the num-

ber of tools used and their methodology. For in-

stance, Hybrid-Analysis follows a consistent algo-

rithm, while tools like Floss extract all the strings

from a sample and as a result, even if only one en-

try has a unique string, it will be counted as a new

static feature. The aim of this step was to reduce

computational cost while also maintaining the accu-

racy of the classiﬁcation model. Given the large num-

ber of attributes in the dataset, WEKA (wek, 2024)

was used to identify the most valuable features and

drop the redundant ones. WEKA is a collection of

machine learning and data mining algorithms that

can be used through a graphical user interface. As

seen in (Aurangzeb, 2018) the InfoGainAttributeEval

method from WEKA was used for the attribute selec-

tion. This function evaluates the worth of an attribute

by measuring the information gained with respect to

the class. The information gain of an attribute A with

respect to a class C is calculated as:

InfoGain(C, A) = H(C) − H(C|A) (1)

where H is the entropy function. In this case, the class

is the label column from the database.

An issue encountered when using WEKA was the

fact that special characters were not supported in the

column name of the database. To address this prob-

lem, a program was developed that deletes all the re-

stricted characters from these names. Additionally, if

duplicate column names are generated as a result, the

program keeps only the ﬁrst occurrence of each col-

umn in the database. Unfortunately, after this process,

only around 800,000 total features remained. Another

obstacle faced was not having enough heap memory

when loading the dataset in WEKA. After adjusting

some settings and using nearly all of the system’s

RAM, the database eventually loaded successfully.

However, the same error occurred when attempting

to perform InfoGainAttributeEval, and since no more

system resources were available, the decision to split

the database in two batches was made. The optimal

approach would have involved applying the informa-

tion gain method on the entire dataset. This would

have led to a more accurate identiﬁcation of the most

informative features, ensuring maximum discrimina-

tory power.

For splitting the data in the two batches the ﬁ-

nal CSV ﬁles used to create the initial database were

utilized. Each ransomware family’s samples were

evenly split between the batches, except for the ones

having just one sample, where the assignment was

randomly determined. Then the merge csv script

was used to create the two databases on which the

WEKA’s InfoGainAttributeEval method was applied.

The algorithm yielded 523 features with a score above

zero from the ﬁrst batch and 632 from the second

batch. Only these features were considered because

having a score greater than zero means they provide

useful information to some degree. Before combin-

ing the features, both groups of scores were normal-

ized to ﬁt within the [0,1] range, ensuring easier com-

parability. The two dictionaries containing top fea-

tures and score pairs can have common keys, so when

combining them into the ﬁnal output, the higher score

for each common feature was considered. The ﬁ-

nal dictionary contains 783 features and the best 20

Automated Hybrid Ransomware Family Classiﬁcation

413

ranked ones are shown in Figure 2. In total 233 fea-

tures were produced by dynamic analysis, while static

analysis yielded 550 features. An interesting observa-

tion is that none of the 783 selected features originate

from the Dependencies tool, being the only compo-

nent used that did not contribute with any useful in-

formation.

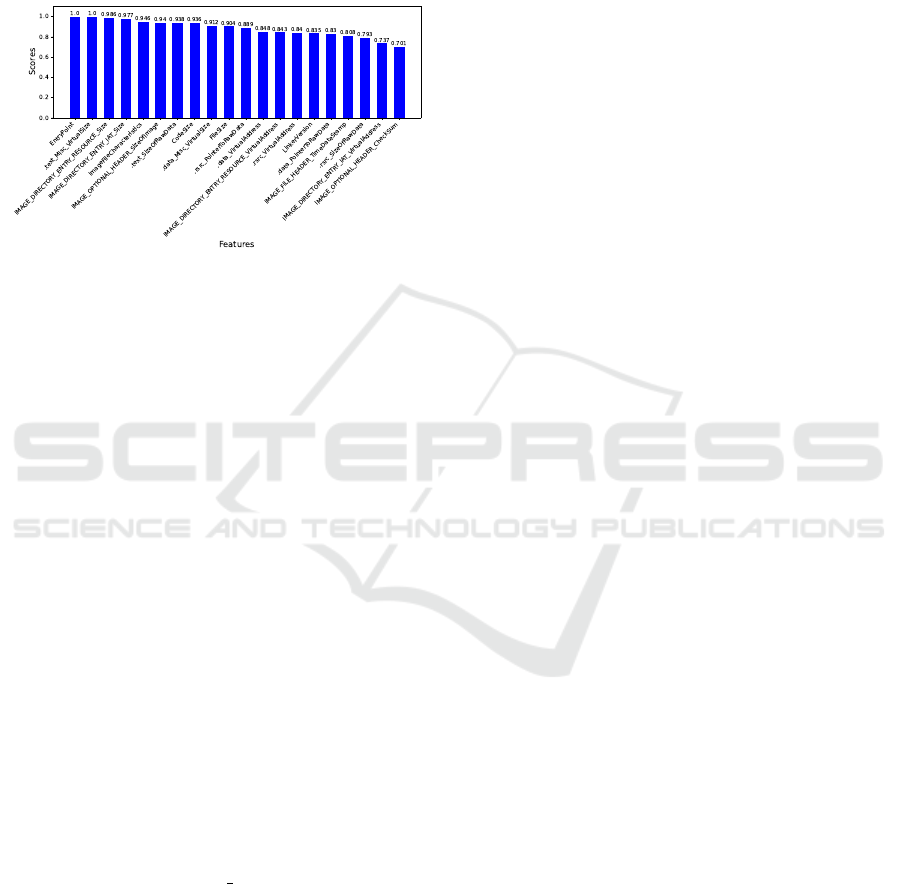

Figure 2: Best ranked features by information gain method.

3.7 AI Model

The ﬁnal dataset used to train the model contains only

the best features found in the previous step. By select-

ing only the most useful attributes, the database was

reduced from 1 GB to 1 MB, thus decreasing the com-

putational cost while at the same time improving the

accuracy of the classiﬁcation model. The scope of this

paper was not to ﬁnd the best-supervised learning al-

gorithm for classifying ransomware/malware because

several studies cover this aspect (Aurangzeb, 2018)

(Yoo et al., 2021) (Poudyal et al., 2018) (Singh and

Singh, 2022). These papers also show that the best

overall performing algorithm in this context is Ran-

dom Forest, so this was the selected choice. Ran-

dom Forest is a classiﬁer that uses multiple decision

trees, each one having a random subset of data and

features. This randomness brings variability to the in-

dividual trees, reducing the risk of overﬁtting and im-

proving overall prediction performance. In the ﬁnal

prediction, the algorithm uses a voting mechanism to

aggregate the results of all the trees. The Random-

ForestClassiﬁer from the ’sklearn.ensemble’ python

library was used to create the model. Default parame-

ters were utilized, besides n estimators, which repre-

sents the number of decision trees in the forest. After

conducting manual testing, it was observed that the

best accuracy was returned when setting the number

of decision trees to 86. Finally, 80% of the data was

allocated for training the model and the rest for test-

ing.

3.8 RansoGuard

Following the work described so far, RansoGuard,

a Windows desktop application, was created. The

app implementation and the scripts discussed can be

found at (ran, 2024). For an easy integration of the

Random Forest model in the application, PyQt5 was

used for its development. While other frameworks

can integrate Python machine learning models, doing

so typically involves more complexity and might re-

quire additional wrappers. The software offers a user-

friendly graphical user interface (GUI) through which

users can upload one ﬁle at a time. The ﬁle must be a

portable executable since the tools used to extract its

features have this requirement. Following the upload,

three static tools and one dynamic tool ran in parallel

and extracted the 783 selected features identiﬁed as

the most valuable. If one fails to execute successfully

on the uploaded ﬁle, any already running processes

are allowed to ﬁnish operating. However, the applica-

tion will not proceed to the next step and instead will

notify the user of the error and its originating source.

Initially, static analysis employed four tools, but

”Dependencies” was excluded since it doesn’t con-

tribute with any useful information. The static tools

used are: Floss for extracting the strings from a

ﬁle, Exiftool for obtaining metadata, and the pe-

ﬁle Python library for retrieving PE-speciﬁc infor-

mation. Dynamic analysis is performed using the

Hybrid-Analysis API. The application initiates a re-

quest to submit the ﬁle for examination in a sand-

box environment and then waits for completion be-

fore making a ﬁnal API call to retrieve a summary re-

port. From this report details about network activity,

MITRE ATT&CK techniques present in the program,

and signatures that indicate speciﬁc behavioral char-

acteristics are extracted. With a Hybrid-Analysis free

account, users are limited to a maximum of 100 sand-

box submissions per day, meaning they can utilize the

application for up to 100 ﬁles daily. Once both the

static and dynamic analysis are completed, the Ran-

dom Forest machine learning model predicts in what

ransomware family the ﬁle belongs to based on the

extracted features.

Finally, a report window appears on the user’s

screen, allowing them to upload a ﬁle again, while

at the same time having the option to review a gener-

ated report containing the model’s prediction and the

783 features with the extracted values. The applica-

tion offers a history tab, where users can see a list of

their previously analyzed ﬁle names and the family

prediction. Clicking on an item in the list opens the

report window for that ﬁle, allowing users to revise

the information. Additionally, they can visit the help

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

414

tab for an explanation of the application’s functional-

ity.

4 RESULTS

The aim of this chapter is to evaluate the Random

Forest model. The dataset used for both testing and

training contains 707 samples from 99 different mal-

ware families and for each instance, 783 features were

extracted signifying the most useful attributes as ex-

plained in 3. The goal was to achieve an evenly dis-

tributed dataset with a maximum of 120 entries per

family. However, only an upper limit was imposed,

resulting in a database with many families relative to

the number of samples, some containing just a few

instances. This will potentially affect the model by

lowering its accuracy, especially for underpopulated

families, and by making it prone to bias towards the

majority classes.

To evaluate the performance of the Random Forest

model on the obtained database, the following metrics

were used:

Accuracy =

Correct predictions

All predictions

(2)

Precision =

TP + FP

(3)

Recall =

TP + FN

(4)

F1 score =

2 ∗ Precision ∗ Recall

Precision + Recall

(5)

The model accuracy is 71.83% and the other met-

rics presented were calculated using a weighted ap-

proach. In this way, each class’ contribution to the

overall metric is proportional to the number of true

instances of that label in the dataset. This was pre-

ferred over a normal average because the database is

imbalanced. The model demonstrates an overall pre-

cision of 0.79, recall of 0.72, and f1 score of 0.66.

Table 1 shows the metrics for the ﬁve most popu-

lated families in the database. In this context, sup-

port represents the number of instances of each class

present in the testing data. It can be observed that

for these ﬁve families, recall is higher than precision,

whereas overall the opposite is true. This is proba-

bly due to the high difference between the samples in

certain classes. The reduced precision says that the al-

gorithm often predicts these ﬁve families for instance

belongings to something else, showing that the model

is biased towards the majority classes.

Additionally, the data presented in Table 2 illus-

trates the metrics for ﬁve randomly selected classes,

Table 1: Metrics for top 5 most populated malware families.

Class Precision Recall F1-Score Support

zbot 0.69 0.83 0.75 29

xorist 0.84 0.94 0.89 17

reveton 0.64 0.93 0.76 15

onlinegames 0.57 0.80 0.67 5

wapomi 0.50 1.00 0.67 2

since the database contains 99 families it is not fea-

sible to include all of them. It was noticed that the

same trend persists, classes having recall higher than

precision. Furthermore, it was observed that multiple

minority labels like msil have a maximum precision

and minimal recall. This indicates that these classes

were never predicted by the model and would explain

the trend present in the more populated families.

Table 2: Metrics for 5 randomly selected ransomware fam-

ilies.

Class Precision Recall F1-Score Support

dalexis 0.80 1.00 0.89 4

poison 0.57 0.67 0.62 6

urausy 0.80 1.00 0.89 4

winwebsec 0.50 0.33 0.40 3

msil 1.00 0.00 0.00 2

The confusion matrix is presented as the ﬁnal eval-

uation method for the model. This matrix was cre-

ated including only the ten families for which the met-

rics were provided earlier. This evaluation technique

shows how many instances were correctly classiﬁed

and, for those that were misclassiﬁed, reveals the fam-

ily they were predicted as. For example, in Figure 3

it can be seen that four zbot instances were wrongly

identiﬁed as xorist and that the two msil samples were

incorrectly predicted as poison. The main diagonal

of the confusion matrix represents the number of cor-

rectly classiﬁed instanced for that family.

Figure 3: Database family distribution.

Automated Hybrid Ransomware Family Classiﬁcation

415

5 CONCLUSION & FUTURE

WORK

This article focuses on analyzing Windows portable

executable ﬁles to identify key features that help clas-

sify samples into ransomware families. We have ex-

tracted extensive data using four static analysis tools

and the Hybrid-Analysis API for behavioral analysis

in a sandbox environment. We have examined 707

samples with a hybrid approach and used Weka to

manage the high-dimensionality of the feature vector,

and selecting 783 useful attributes to train a Random

Forest classiﬁcation model. The resulting application,

RansoGuard, extracts these features from ﬁles and

predicts ransomware families, generating a report on

the predictions and feature values. The model demon-

strated promising results, achieving an accuracy of

71.83%, precision of 0.79, and recall of 0.72.

The research faced several limitations. It was hard

to ﬁnd a good database of ransomware samples due

to a lack of options, and the chosen dataset, initially

claimed to contain only crypto-ransomware, turned

out to be mislabeled. Although AVClass was used for

labeling, its accuracy was questionable. Additionally,

the APIs (VirusTotal and Hybrid-Analysis) imposed

submission rate limits that slowed down the analysis.

Besides these, we also had to split the data into two

batches because Weka required substantial RAM due

to the large number of attributes.

For future work, we plan to include benign pro-

grams in the dataset, thus making the model able

to distinguish between malicious and non-malicious

software. There is also the intention to validate

the framework on a larger, more evenly distributed

database. In addition, we can also use ransomware

samples from different operating systems such as

Linux, macOS, and Android.

REFERENCES

(2024). AVClass. https://github.com/malicialab/avclass.

[Online; accessed 05-April-2024].

(2024). Dependencies. https://github.com/lucasg/

Dependencies. [Online; accessed 05-April-2024].

(2024). ExifTool. https://exiftool.org/. [Online; accessed

05-April-2024].

(2024a). Flare-Floss. https://github.com/mandiant/ﬂare-

ﬂoss. [Online; accessed 05-April-2024].

(2024b). Flare VM. https://github.com/mandiant/ﬂare-vm.

[Online; accessed 03-April-2024].

(2024). Hybrid-Analysis. https://hybrid-analysis.com/docs/

api/v2. [Online; accessed 24-April-2024].

(2024a). Market share held by the leading computer op-

erating systems. https://www.statista.com/statistics/

268237/global-market-share-held-by-operating-

systems-since-2009/. [Online; accessed 05-April-

2024].

(2024). Peﬁle. https://github.com/erocarrera/peﬁle. [On-

line; accessed 05-April-2024].

(2024). RansoGuard. https://github.com/raul-dunca/

ransoguard. [Online; accessed 05-April-2024].

(2024b). Total annual amount of money received

by ransomware actors worldwide from 2017 to

2022. https://www.statista.com/statistics/1410498/

ransomware-revenue-annual/. [Online; accessed 02-

April-2024].

(2024). Trojan-PSW:W32/OnlineGames. https:

//www.f-secure.com/v-descs/trojan-psw-w32-

onlinegames.shtml. [Online; accessed 04-June-2024].

(2024a). VirusShare. https://virusshare.com/. [Online; ac-

cessed 29-March-2024].

(2024b). VirusTotal. https://www.virustotal.com/. [Online;

accessed 05-April-2024].

(2024). Wapomi. https://docs.badrap.io/types/malware-

wapomi.html#malware-wapomi. [Online; accessed

04-June-2024].

(2024). Weka. https://waikato.github.io/weka-site/index.

html. [Online; accessed 15-April-2024].

(2024). What Is Zeus Trojan (Zbot)? https://www.

proofpoint.com/us/threat-reference/zeus-trojan-zbot.

[Online; accessed 03-June-2024].

Abbasi, M. S. (2023). Automating Behavior-based Ran-

somware Analysis, Detection, and Classiﬁcation Us-

ing Machine Learning.

Aslan,

O. A. and Samet, R. (2020). A comprehensive re-

view on malware detection approaches. IEEE access,

8:6249–6271.

Aurangzeb, S. (2018). A machine learning based hybrid

approach to classify and detect windows ransomware.

MS (CS) dissertation, Capital Univ. Sci. Technol., Is-

lamabad, Pakistan.

Kara, I. and Aydos, M. (2022). The rise of ransomware:

Forensic analysis for windows based ransomware at-

tacks. Expert Systems with Applications, 190:116198.

Poudyal, S., Subedi, K. P., and Dasgupta, D. (2018). A

framework for analyzing ransomware using machine

learning. In 2018 IEEE Symposium Series on Compu-

tational Intelligence (SSCI), pages 1692–1699.

Rizvi, S. K. J., Aslam, W., Shahzad, M., Saleem, S., and

Fraz, M. M. (2022). Proud-mal: static analysis-based

progressive framework for deep unsupervised mal-

ware classiﬁcation of windows portable executable.

Complex & Intelligent Systems, pages 1–13.

Singh, J. and Singh, J. (2022). Assessment of supervised

machine learning algorithms using dynamic api calls

for malware detection. International Journal of Com-

puters and Applications, 44(3):270–277.

Yoo, S., Kim, S., Kim, S., and Kang, B. B. (2021). Ai-

hydra: Advanced hybrid approach using random for-

est and deep learning for malware classiﬁcation. In-

formation Sciences, 546:420–435.

WEBIST 2024 - 20th International Conference on Web Information Systems and Technologies

416
