Benchmarking of Retrieval Augmented Generation: A

Comprehensive Systematic Literature Review on Evaluation

Dimensions, Evaluation Metrics and Datasets

Simon Knollmeyer

1,* a

, Oğuz Caymazer

2,* b

, Leonid Koval

, Muhammad Uzair Akmal

Saara Asif

, Selvine G. Mathias

and Daniel Großmann

Technische Hochschule Ingolstadt, AImotion Bavaria, Esplanade 10, Ingolstadt, Germany

University of Münster, Department of Information Systems, Münster, Germany

{Simon.Knollmeyer, Leonid.Koval, MuhammadUzair.Akmal, Saara.Asif, SelvineGeorge.Mathias,

Keywords: Large Language Model, Retrieval Augmented Generation, Evaluation Dimensions, Evaluation Metrics,

Datasets, Systematic Literature Review.

Abstract: Despite the rapid advancements in the field of Large Language Models (LLM), traditional benchmarks have

proven to be inadequate for assessing the performance of Retrieval Augmented Generation (RAG) systems.

Therefore, this paper presents a comprehensive systematic literature review of evaluation dimensions, metrics,

and datasets for RAG systems. This review identifies key evaluation dimensions such as context relevance,

faithfulness, answer relevance, correctness, and citation quality. For each evaluation dimension, several

metrics and evaluators are proposed on how to assess them. This paper synthesizes the findings from 12

relevant papers and presents a concept matrix that categorizes each evaluation approach. The results provide

a foundation for the development of robust evaluation frameworks and suitable datasets that are essential for

the effective implementation and deployment of RAG systems in real-world applications.

1 INTRODUCTION

The rapid evolution of Artificial Intelligence (AI)

especially in the field of Large Language Models

(LLMs) attracts widespread attention due to their

groundbreaking achievements in solving complex

problems even surpassing the performance of humans

in certain fields (Benbya et al., 2024; Bubeck et al.,

2023; OpenAI et al., 2023). The speed of AI

development in the area of LLMs outpaced methods

to assess their performance and accuracy, leading to

major flaws in existing traditional benchmarks to

evaluate LLMs output through reliable metrics

impeding their adoption (Hammond, 2024).

https://orcid.org/0009-0002-1429-6992

https://orcid.org/0009-0003-4096-3784

https://orcid.org/0000-0003-4845-6579

https://orcid.org/0009-0007-3961-1174

https://orcid.org/0009-0006-1284-5635

https://orcid.org/0000-0002-6549-0763

https://orcid.org/0000-0002-7388-5757

* co-authors of the paper, contributed equally

Despite their potential, LLMs face substantial

challenges, particularly in fully grasping contextual

factors such as unique technical requirements within

a specific industries, yet understanding these factors

is essential for effective decision-making (Benbya et

al., 2024). Even the most powerful models such as

GPT-4 struggle with hallucinations, lack of the ability

to update itself, and limited context (Bubeck et al.,

2023; OpenAI et al., 2023). Several researchers point

out that these LLMs seem to rather memorize

frequently occurring information encountered during

their pre-training and struggle with infrequent

information, i.e., which would typically occur in a

specific industry (Kandpal et al., 2022; Mallen et al.,

2022).

Knollmeyer, S., Caymazer, O., Koval, L., Akmal, M., Asif, S., Mathias, S. and Großmann, D.

Benchmarking of Retrieval Augmented Generation: A Comprehensive Systematic Literature Review on Evaluation Dimensions, Evaluation Metrics and Datasets.

DOI: 10.5220/0013065700003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 3: KMIS, pages 137-148

ISBN: 978-989-758-716-0; ISSN: 2184-3228

137

Most promising and common to solve this

problem is to augment LLM with non-parametric less

common knowledge by providing them retrieved text

chunks from an external database (Asai et al., 2024;

Y. Gao et al., 2023; Mallen et al., 2022; Wang et al.,

2023; Zhang et al., 2023). This approach is known as

Retrieval Augmented Generation (RAG), and there

are several different RAG paradigms, ranging from

so-called naïve RAG to more advanced ones (Asai et

al., 2023; Y. Gao et al., 2023; Ma et al., 2023).

Research results suggest that LLM RAGs outperform

LLMs, particularly in long-tail knowledge questions

(Asai et al., 2023; Izacard et al., 2022; Ma et al., 2023;

Mallen et al., 2022; Wang et al., 2023).

However, there is still uncertainty about the

accuracy of such approaches due to the lack of

comprehensive evaluation frameworks to provide

evaluation dimensions and metrics to assess RAG

LLMs (Y. Gao et al., 2023; Wang et al., 2023). Thus,

we address the following research questions (RQ):

• RQ1: How to evaluate a RAG-enhanced

LLM comprehensively across different

dimensions and metrics?

• RQ2: What type of datasets are available for

applying the dimensions and metrics?

Therefore, the research contribution of this paper

lies in addressing the current research gap by

providing a systematic overview of how to evaluate

RAG pipelines comprehensively, offering insights

into the development of robust evaluation

dimensions, metrics and possible datasets (Y. Gao et

al., 2023; Hammond, 2024; Wang et al., 2023).

The paper is structured as follows: The next

section introduces RAG. Section three explains the

chosen research method. Section four presents the

evaluation framework. Finally, the last section

provides the conclusions.

2 RETRIEVAL AUGMENTED

GENERATION

Traditional pre-trained LLMs such as GPT and BERT

encode knowledge within their parameters, but

struggle with tasks requiring specific factual

knowledge which is not present in their parameters

(Y. Gao et al., 2023; Lewis et al., 2020). This problem

is evident in the fact that even the most powerful

models such as GPT-4 struggle with made-up facts

known as hallucinations, a lack of ability to self-

update and limited context (Bubeck et al., 2023;

OpenAI et al., 2023). Even further increasing the size

of their parameters, i.e., the training dataset, in which

the knowledge appears to be stored to include more

information will be likely insufficient to address the

issue of long-tail knowledge (Kandpal et al., 2022;

Mallen et al., 2022).

Therefore, Lewis et al. (2020) proposed RAG by

combining non-parametric memory with parametric

memory that uses a dense vector index of external

documents such as Wikipedia articles that can be

dynamically accessed using a retriever. Research

results comparing the performance of RAG LLM

with standalone LLM, suggest for the former superior

performance (Asai et al., 2023; Izacard et al., 2022;

Lewis et al., 2020; Ma et al., 2023; Mallen et al.,

2022; Wang et al., 2023).

A naïve RAG pipeline involves three main steps.

Firstly, the documents containing specific

information are indexed (Lewis et al., 2020). The

most common method is to split the documents into

smaller sections so-called chunks and store their

embedding in a vector database (Y. Gao et al., 2023).

In the second step, a given input query is likewise

embedded and then compared with the passages in the

vector database by calculating the similarity,

returning a set of top-ranked chunks that are most

relevant for the query (Y. Gao et al., 2023; Karpukhin

et al., 2020). In the final step, the retrieved content

and the query are combined and prompted into an

LLM so that it can provide a coherent answer (Y. Gao

et al., 2023; Lewis et al., 2020).

This naïve setup can be modified by applying

different advanced methods relating to pre- or post-

retrieval (Asai et al., 2023; Y. Gao et al., 2023; Ma et

al., 2023). For instance, Ma et al. (2023) propose

query rewriting as an advanced pre-retrieval method

and report performance improvements.

Despite the use of advanced methods, the RAG

approach can still be divided into the outlined steps of

a naïve RAG for evaluation. However, there is a lack

of evaluation dimensions and metrics on how to

analyse and assess such systems, e.g., which evaluation

dimensions to consider and what kind of metrics to

calculate for which step (Y. Gao et al., 2023).

3 RESEARCH METHOD

The Systematic Literature Review (SLR) is a well-

known and established research method within

Information Systems (IS) research for reviewing

scientific articles based on a search process (Bell et

al., 2019; Paré et al., 2016). The term "systematic"

means that the research steps should be

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

138

understandable, reproducible, and grounded in a

structured process that minimizes potential researcher

bias by providing a clear audit trail for decisions and

conclusions (Bell et al., 2019). SLR is especially

valuable when summarizing and comparing

fragmented knowledge on a certain topic (Bell et al.,

2019). Existing literature reveals a significant gap in

comprehensive evaluation frameworks for assessing

RAG systems (Y. Gao et al., 2023; Wang et al., 2023).

Therefore, given the emerging and unexplored

research on evaluation dimensions for RAG, the SLR

is particularly appropriate.

This paper ensures rigorous documentation by

using the literature search process proposed by

Brocke et al. (2009), extended with the

recommendations of Paré et al. (2016). It also follows

the recommendation of Webster and Watson (2002)

to use a concept matrix for structuring and comparing

the results. The complete adopted literature search

process is illustrated in Figure 1.

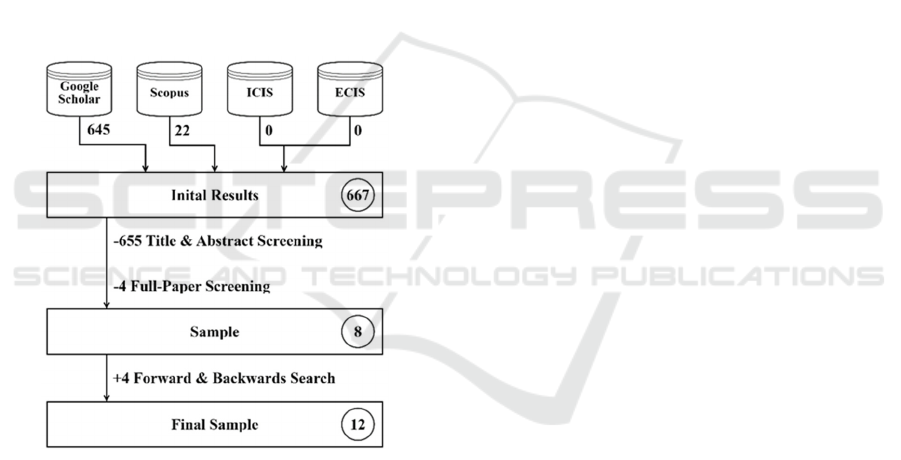

Figure 1: Systematic Literature Review process.

The search process included conducting a pre-

study on Google Scholar by a detailed screening of

titles, abstracts and full texts to identify papers

specifically addressing evaluation metrics for RAG

systems (Y. Gao et al., 2023; Wang et al., 2023).

These insights resulted in the following search string:

• TITLE-ABS-KEY (“Retrieval Augmented

Generation” AND “Evaluation Metric”)

The following inclusion and exclusion criteria

were applied to filter relevant papers from the search

results in Google Scholar, Scopus and the IS

conferences ICIS and ECIS:

Inclusion Criteria:

• Papers from academic journals, conferences,

or gray literature.

• Published in English.

Exclusion Criteria:

• Duplicates across databases.

• Minimal relevance to evaluation metrics, or

lack of focus on RAG systems.

• No guidelines on metric implementation or

application at the different RAG steps.

The search process commenced with an abstract

screening of the initial results, followed by a full-text

review of the selected papers. Forward and backward

citation searches were subsequently performed on

relevant studies to identify additional literature. This

comprehensive approach yielded a final sample of 12

papers, as illustrated in Figure 1.

In the final step, overarching categories from the

final sample were synthesized into a concept matrix

(Webster & Watson, 2002). Relevant concepts on

evaluation dimensions were identified and mapped to

the RAG steps (cf. Section 2) to provide an accurate

overview on how to evaluate each RAG phase.

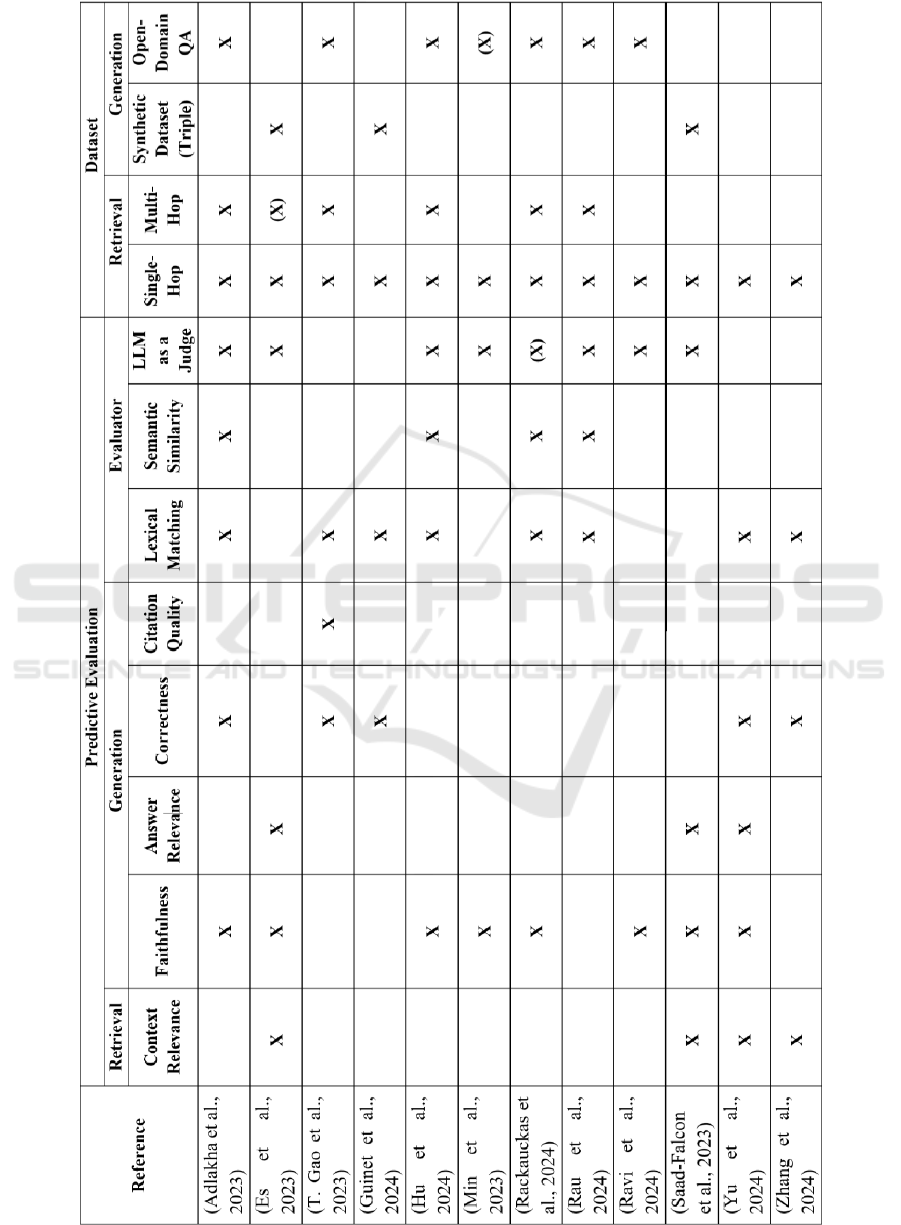

The concept matrix is shown in Table 1. It

categorizes the sampled papers based on predictive

evaluation criteria and dataset characteristics. The

former includes the columns "Retrieval" and

"Generation" relating to the RAG steps. The

"Evaluator" column indicates whether lexical

matching, semantic similarity or LLM as a judge is

used for evaluation. The dataset characteristics

include single-hop and multi-hop reasoning tasks,

synthetic datasets (triples), and open-domain question

answering (QA). Each paper is marked ("X") to show

the criteria it addresses, providing a comprehensive

overview of their focus areas. In addition, the

frequency of occurrence in the literature can be used

to determine how widespread or accepted a metric is.

Each proposed metric for the evaluation dimensions

depending on the evaluator and the requirements for

the data to calculate it are summarized in Table 2.

4 RESULTS

This section starts with examining the first column of

the concept matrix: predictive evaluation, which

involves assessing the performance of the RAG

system in retrieving accurate context and effectively

utilizing it to generate responses (Guinet et al., 2024).

Benchmarking of Retrieval Augmented Generation: A Comprehensive Systematic Literature Review on Evaluation Dimensions, Evaluation

Metrics and Datasets

139

Table 1: Concept Matrix with Evaluation Dimensions and Datasets.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

140

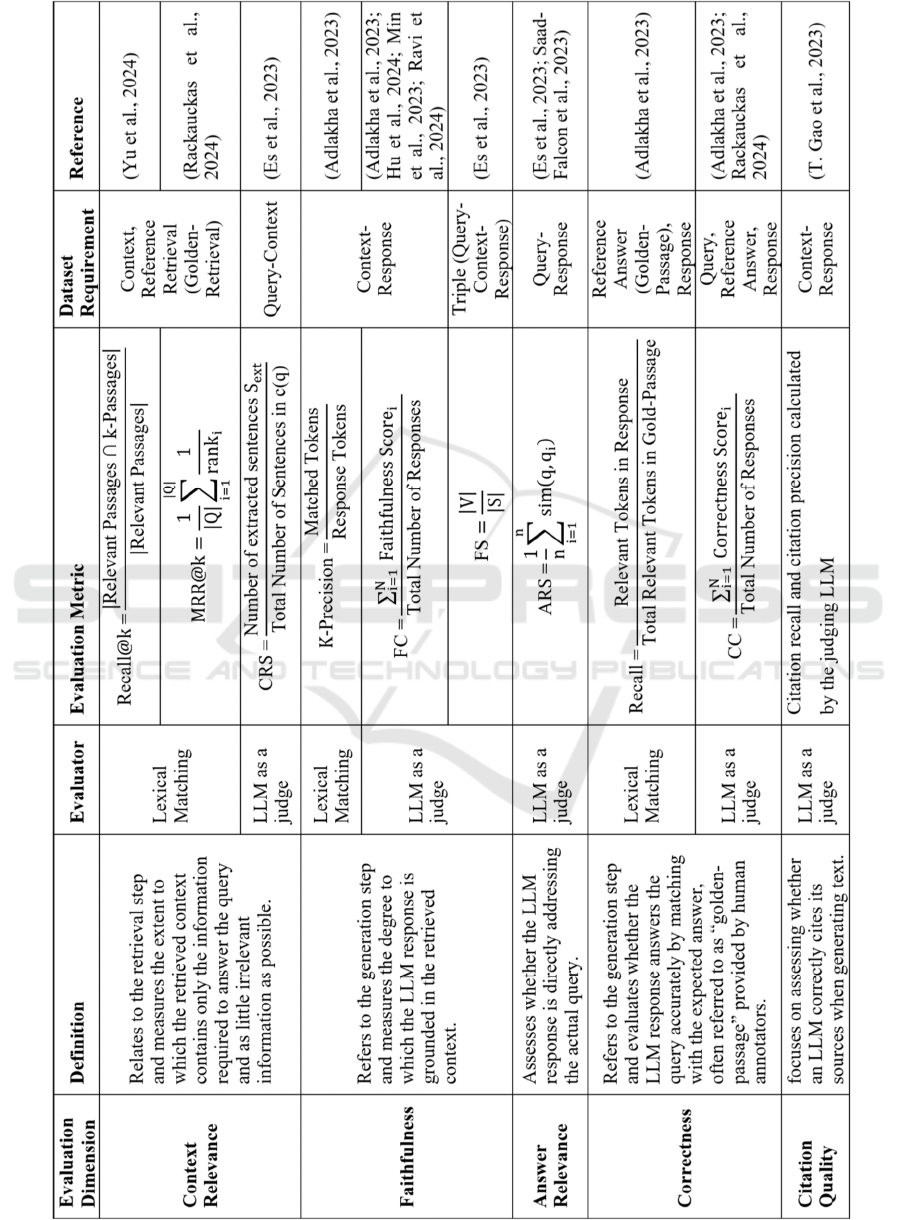

Table 2: Summary of proposed Evaluation Dimensions, the corresponding Metrics and Dataset Requirements.

Benchmarking of Retrieval Augmented Generation: A Comprehensive Systematic Literature Review on Evaluation Dimensions, Evaluation

Metrics and Datasets

141

The proposed evaluation pipeline outlines (cf.

Figure 2) the process of assessing the RAG approach

across various evaluation dimensions and focuses on

the retrieval and generation stages of a typical RAG

system. The evaluation process starts with the

retrieval step, emphasizing context relevance as a

critical dimension to assess how effectively relevant

information is retrieved.

Subsequently, the focus then shifts to the

generation step, examining the evaluation

dimensions of answer relevance, correctness,

faithfulness, and citation quality to determine the

accuracy and reliability of the generated responses.

Each evaluation dimension is carefully defined, and

quantifying metrics are proposed according to the

sampled papers.

How and what type of metric is ultimately used to

calculate the respective evaluation dimension

depends on the chosen evaluator. Lexical matching

metrics focus on exact word matching and simple

statistical calculations, such as keyword frequency or

position-based measures like Mean Reciprocal Rank

(MRR), i.e., these metrics assess how closely the

words in the documents match the query without

considering deeper meanings.

Semantic similarity metrics, on the other hand,

go beyond surface-level text comparison to

understand the underlying meanings and concepts by

comparing their semantical similarity based on

context and conceptual relationships between words

and sentences. This approach captures the intent of

the query and the documents, evaluating relevance

through semantic similarity rather than just keyword

occurrence.

Finally, LLM as a judge uses a LLM to evaluate

content by making it context-aware, prompting the

model to consider the coherence, factuality, and

relevance of the information based on its

comprehensive understanding of language and

knowledge. Therefore, the choice of the evaluator

determines the type of metric applied to assess each

evaluation dimension, depending on whether the

focus is on exact word matching, conceptual

similarity, or a nuanced, context-aware judgment by

an advanced LLM.

The upcoming sub-sections follows the rationale

of first explaining the evaluation dimension and then

the respective evaluator by detailing how to calculate

the metric proposed in the sampled papers.

4.1 Context Relevance

The evaluation dimension of context relevance

pertains to the retrieval step and assesses the degree

to which the retrieved context contains only the

necessary information to answer the query, reducing

computational costs and improving efficiency by

minimizing irrelevant content (Es et al., 2023; Saad-

Falcon et al., 2023; Yu et al., 2024). Additionally,

when retrieved passages are too LLMs often

struggle to effectively utilize the information,

particularly if the relevant details are embedded in the

middle of the passage (Es et al., 2023). Hence,

concise query-relevant passages significantly

improve the LLM generation quality (Es et al., 2023;

Yu et al., 2024).

Recall@k and MRR@k are key lexical metrics

for evaluating the retrieval performance in RAG

systems (Rackauckas et al., 2024; Yu et al., 2024).

Each metric provides a different perspective on the

effectiveness

of the retrieval process. Recall@k

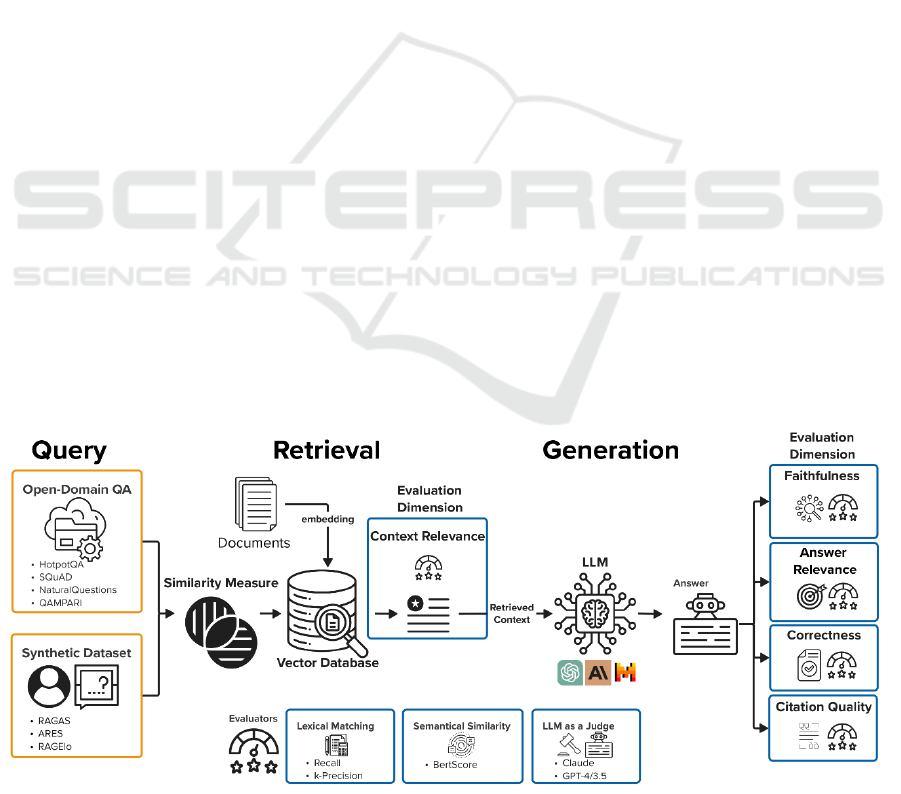

Figure 2: Evaluation Pipeline with Evaluation Dimensions in a naïve RAG setup.

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

142

measures how many relevant passages are captured

within the top k retrieved chunks, even if some

irrelevant ones are included. The formula is as follows:

Recall@k =

|Relevant Passages ∩

-Passages|

|Relevant Passages|

(1)

MRR@k calculates context relevance by

emphasizing the rank of the first relevant passage

across multiple queries (Rackauckas et al., 2024). If a

relevant passage appears in the top k results, its

contribution to the MRR@k score is the inverse of its

rank, e.g., a passage ranked two contributes as ½ with

MRR@5 (Rackauckas et al., 2024). If no relevant

passage is found in the top k the contribution is zero.

The formula for MRR@k is:

MRR@k =

|Q|



rank



||



(2)

By using the LLM as a judge, it is possible to

calculate an estimated context relevance score. Given

a query q and its retrieved context c(q), the LLM is

prompted to extract a subset of sentences (𝑆



) from

c(q) that are relevant to answering q by using the

following prompt:

"Please extract relevant sentences from the

provided context that can potentially help answer the

following question. If no relevant sentences are

found, or if you believe the question cannot be

answered from the given context, return the phrase

'Insufficient Information'. While extracting candidate

sentences, you're not allowed to make any changes to

sentences from the given context." (Es et al., 2023)

The prompt instructs the LLM to select only the

sentences that it considers relevant to q without

changing the content. The Context Relevance Score

(CRS) is calculated by dividing the relevant

sentences extracted (𝑆



) from the context c(q) by the

total number of sentences. This can be expressed with

the following formula (Es et al., 2023):

CRS =

Number of extracted sentences S





Total number of sentences in c

(q)

(3)

The CRS indicates the proportion of the context

that is relevant. A higher score indicates that a greater

proportion of the retrieved context is focused and

relevant for answering the query, while a lower score

indicates that much of the retrieved context contains

irrelevant information (Es et al., 2023; Saad-Falcon et

al., 2023; Yu et al., 2024).

4.2 Faithfulness

The evaluation dimensions faithfulness refers to the

generation step and evaluates how well an LLM's

response is grounded in the retrieved context, i.e., all

information in the response can be directly inferred

from it (Adlakha et al., 2023; Es et al., 2023; Hu et

al., 2024). This evaluation dimension is crucial to

identify possible hallucinations in the answer of

LLMs ensuring factual correctness (Adlakha et al.,

2023; Es et al., 2023; Ravi et al., 2024). For instance,

Adlakha et al. (2023) found that GPT-4 had the

highest agreement with human annotations, followed

by GPT-3.5 and k-precision.

As the primary lexical metric Adlakha et al.

(2023) propose k-precision to evaluate the degree of

faithfulness since it has the highest agreement with

human judgements. It can be calculated as the

proportion of tokens in the LLMs response that are

present in the retrieved context, i.e., it is the overlap of

matching tokens with the retrieved context divided by

the total number of tokens in the response (Adlakha et

al., 2023). Hence, the formula is as follows:

-Precision =

Matched Tokens

Response Tokens

(4)

Another way of calculating the faithfulness is by

using LLMs such as GPT-4/3.5 as evaluators. The

LLMs are prompted to judge whether the response

and the retrieved context match from an ordinal scale

of “fully”, “partially”, or “not at all” (Adlakha et al.,

2023). In the same way, Ravi et al. (2024) propose to

assess the responses through an evaluator LLM

whether the responses are supported, contradicted or

not supported by the retrieved context. In order to

quantify this ordinal scale, we can assign numerical

scores depending on the degree of support and take

the average of all individual response scores, i.e.,

assign 1 for “fully”, 0.5 for “partially”, and 0 for “not

at all”. The formula for calculating the Faithfulness

Coefficient (FC) is as follows:

FC =

∑

Faithfulness Score







Total number of res

onses

(5)

A similar method is used by Hu et al. (2024), who

propose a framework that extracts “claim triplets”

(subject, predicate, object) to represent fine-grained

knowledge assertions within the LLM response. The

purpose of this extraction is to break down the answer

into specific atomic claims that can be checked

individually (Hu et al., 2024; Min et al., 2023). A

judging LLM evaluates each triplet as “entailment”

Benchmarking of Retrieval Augmented Generation: A Comprehensive Systematic Literature Review on Evaluation Dimensions, Evaluation

Metrics and Datasets

143

(supported), “contradiction” (contradicted), or

“neutral” (unsupported) (Hu et al., 2024). Other

authors also follow this approach of breaking down

the statements from the LLM response into atomic

facts to obtain a fine-grained measure of the

faithfulness degree (Min et al., 2023).

Es et al. (2023) propose a process in which the

answer 𝑎



(𝑞) is considered faithful to the context

𝑐

(

𝑞

)

if the statements in the LLM response can be

directly inferred from the retrieved context. The

process begins by using a LLM as a judge to

decompose the LLM response into a set of statements,

𝑆(𝑎



(

𝑞

)

) , which involves breaking down longer

sentences into shorter ones (Es et al., 2023). For each

statement 𝑠



in 𝑆, the judging LLM verifies if it can

be inferred from the given context 𝑐

(

𝑞

)

using a

verification function 𝑣(𝑠



,𝑐

(

𝑞

)

) (Es et al., 2023). The

judging LLM assesses whether each statement is

supported by the information in the retrieved context

and provides a “yes” or “no” verdict for each

statement (Es et al., 2023). The Faithfulness Score

(𝐅𝐒) is then calculated as the ratio of the number of

supported statements 𝑉 to the total number of

statements S, which can be expressed as follows:

FS =

|S|

(6)

4.3 Answer Relevance

The evaluation dimensions answer relevance refers

to the generation step and assesses whether the LLM

response is directly addressing the query (Es et al.,

2023; Rackauckas et al., 2024; Saad-Falcon et al.,

2023; Yu et al., 2024). This evaluation dimension

penalizes incomplete or redundant answers,

regardless of factuality (Es et al., 2023; Rackauckas

et al., 2024).

By using LLM as a judge it is possible to

calculate an estimation of the answer relevance (Es et

al., 2023; Rackauckas et al., 2024; Saad-Falcon et al.,

2023). Given a generated answer 𝑎



(𝑞), the judging

LLM is prompted to generate 𝑛 potential questions 𝑞



that could be answered by using 𝑎



(𝑞) (Es et al.,

2023). This is done using the following prompt:

Generate a question for the given answer:

answer:[answer] (Es et al., 2023)

Subsequently, text embeddings for all generated

questions 𝑞



and the original query 𝑞 are created to

calculate in the next step the cosine similarity

between their embeddings (Es et al., 2023). The

Answer Relevance Score (ARS) is obtained by

averaging the similarity between the generated

questions 𝑞



and the original query 𝑞 using the

following formula:

ARS =

sim

(

q,q



)





(7)

where 𝑠𝑖𝑚

(

𝑞,𝑞



)

represents the cosine similarity

between the embeddings of the generated questions



and the original query q (Es et al., 2023). This

metric effectively measures how well the generated

answer matches the intent and content of the original

question (Es et al., 2023).

4.4 Correctness

The evaluation dimension correctness refers to the

generation step and evaluates whether the LLM’s

response accurately matches the “golden passage”

provided by human annotators (Adlakha et al., 2023;

T. Gao et al., 2023). This metric focuses on the

factual accuracy of the information by comparing

the LLM response with a reference answer (Adlakha

et al., 2023; T. Gao et al., 2023; Guinet et al., 2024;

Rackauckas et al., 2024).

As a primary lexical metric Adlakha et al.

(2023) propose using recall as it correlates well with

human annotations. Traditional metrics like Exact

Match (EM), F1, and ROUGE are often too strict due

to their focus on exact word matching (Adlakha et al.,

2023). Recall measures how much of the reference

answer's essential content is captured in the model's

response without penalizing additional information

(Adlakha et al., 2023).

Some authors find that semantic similarity

metrics like BERTScore is less effective than recall

for correctness due to lower alignment with human

annotations (Adlakha et al., 2023; T. Gao et al.,

2023). These metrics do not account for factual

accuracy or logical consistency, as responses can be

textually similar but factually incorrect (Adlakha et

al., 2023; T. Gao et al., 2023).

By using LLMs such as GPT-3.5 and GPT-4 as

evaluators to judge the correctness of responses by

prompting them with the question, the reference

answer, and the LLMs response to determine whether

the model response is correct, partially correct, or

incorrect (Adlakha et al., 2023; Rackauckas et al.,

2024). This approach seems to yield the highest

agreement with human annotations (Adlakha et al.,

2023; Rackauckas et al., 2024). Correctness can be

quantified by assigning scores: 1 for “fully correct”,

0.5 for “partially”, and 0 for “incorrect”. The

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

144

Correctness Coefficient (CC) is the average of all

response scores. Therefore, the formula is as follows:

CC =

∑

Correctness Score







Total number of res

onses

(8)

4.5 Citation Quality

The evaluation dimension citation quality focuses on

assessing whether an LLM correctly cites its sources

when generating text (T. Gao et al., 2023). Citation

quality is calculated using two metrics: citation

recall and citation precision. Citation recall ensures

that every piece of information in the generated

response is fully supported by the cited passages,

while citation precision checks whether all cited

passages are relevant and necessary for the statements

made (T. Gao et al., 2023).

To perform this evaluation automatically, the

LLM acts as a judge, which is prompted with a chain-

of-thought method instead of simple lexical matching

(T. Gao et al., 2023). The LLM checks if the

concatenated text from the cited passages semantically

supports the generated statements (T. Gao et al., 2023).

For citation recall, it evaluates whether all generated

statements are substantiated by the citations. A

statement receives a recall score of 1 if it is fully

supported by at least one citation, otherwise, it receives

a score of 0 (T. Gao et al., 2023). For citation precision,

the LLM identifies any "irrelevant" citations, i.e., those

that do not independently support a statement or are not

necessary when other citations already provide full

support (T. Gao et al., 2023). A citation receives a

precision score of 1 if it is relevant and contributes to

the statement's support and 0 if it is irrelevant (T. Gao

et al., 2023).

The robustness of these metrics is validated by

their strong correlation with human judgements

(T. Gao et al., 2023). By averaging the citation recall

and precision scores across all statements and

citations in the generated response, an overall citation

quality score can be calculated, providing a

comprehensive measure of how accurately and

appropriately an LLM uses citations in its output.

5 DATASETS & APPLICATION

Building on the concept matrix's evaluation

dimensions presented above, it's essential to consider

how different datasets relate to the evaluators of these

dimensions and its corresponding evaluation metrics.

The choice between open-domain QA datasets and

synthetic datasets like RAGAS or ARES, along with

the type of reasoning required (single-hop vs. multi-

hop), plays a crucial role in ensuring the robustness

and reliability of these evaluations.

Open-domain QA datasets such as SQuAD2.0,

HotpotQA, and Natural Questions are based on

Wikipedia articles. These are mainly suitable for

lexical matching enable comparisons across RAG

systems (Kwiatkowski et al., 2019; Rajpurkar et al.,

2018; Yang et al., 2018). These datasets often include

“golden passages” which make them ideal for

evaluating correctness and faithfulness by providing

a factual reference (Kwiatkowski et al., 2019;

Rajpurkar et al., 2018; Yang et al., 2018). For

instance, SQuAD2.0 includes unanswerable queries

requiring RAG systems to recognize when there is

insufficient information to provide a valid answer

(Rajpurkar et al., 2018; Rau et al., 2024). Also

calculating context relevance is straightforward

because the datasets provide clear ground truth in

terms of which passages are relevant, making them

ideal for recall-oriented metrics like Recall@k or

MRR@k (Adlakha et al., 2023; Hu et al., 2024).

However, evaluating answer relevance and citation

quality is more challenging with open-domain QA

datasets since these typically focus on finding a single

correct answer rather than assessing nuanced citation

practices or multi-source relevance (Kwiatkowski et

al., 2019; Rajpurkar et al., 2018; Yang et al., 2018).

Synthetic datasets such as RAGAS and ARES

are specifically designed to evaluate the effectiveness

of RAG systems by minimizing reliance on human

annotations (Es et al., 2023; Saad-Falcon et al., 2023).

These frameworks often use synthetic datasets that

only require query-context-response triples, making

them suitable to evaluate every evaluation dimension

(Es et al., 2023; Hu et al., 2024; Min et al., 2023;

Saad-Falcon et al., 2023). Synthetic datasets

combined with LLM judges align well with human

annotations, outperforming lexical and semantic

similarity metrics (Adlakha et al., 2023; Saad-Falcon

et al., 2023). Additionally, this approach is model-

agnostic, allowing flexible use across different LLMs

and setups (Es et al., 2023; Saad-Falcon et al., 2023).

This adaptability ensures that RAG systems can

be effectively assessed and fine-tuned for diverse and

complex queries, enhancing their performance in

practical, real-world setting. Table 3 summarizes the

key differences between the datasets by comparing

them.

In terms of reasoning, single-hop and multi-hop

queries require different approaches and datasets

Single-hop reasoning involves deriving an answer

from

a single piece of evidence, i.e., one retrieved

Benchmarking of Retrieval Augmented Generation: A Comprehensive Systematic Literature Review on Evaluation Dimensions, Evaluation

Metrics and Datasets

145

Table 3: Comparing Open Domain QA Datasets with Synthetic Datasets for evaluating RAG.

ect O

en Domain QA Dataset S

nthetic Dataset

Examples

SQuAD2.0, HotpotQA, Natural Questions,

QAMPARI

RAGAS, ARES

Reasoning Type

Single-hop (e.g., SQuAD2.0, Natural

Questions)

Multi-hop (e.g., HotpotQA, QAMPARI)

Single-hop and adaptable to Multi-hop

Evaluation

Dimensions

Correctness, Faithfulness, Context Relevance

(basic)

Correctness, Faithfulness, Context Relevance (multi-

retrieval), Answer Relevance, Citation Qualit

Evaluators Lexical Matching Semantic Similarity, LLM as a Judge

Strengths

High reliability for correctness and

faithfulness due to golden-passages

Model and vendor agnostic, adaptable for various

queries and rapid evaluation of RAG without the need

for human annotations or

assa

Limitations

Less effective in evaluating multi-source

citations, complex context relevance, and

answer relevance in multi-ho

Associated costs related to token usage and potential

latency due to LLM judging, different performances

endin

on the em

ed LLM model

passage, and is well-suited for the evaluation

dimensions correctness, faithfulness, and basic

context relevance. Popular single-hop datasets are

Natural Questions (Kwiatkowski et al., 2019) and

SQuAD2.0 (Rajpurkar et al., 2018), where the

relevant information is contained within a single

passage, allowing the calculation of metrics

predominantly with lexical matching or simple

semantic similarity, e.g., focusing on metrics such as

precision and recall (Adlakha et al., 2023; Ravi et al.,

2024). In contrast, multi-hop reasoning requires to

connect multiple pieces of retrieval, usually from

different documents or distant parts of the same

document, to be combined in order to obtain a correct

answer. This approach is better suited for evaluating

context relevance for multiple retrieval, answer

relevance, i.e., how the combined context informs the

answer, and citation quality that correctly attributes

information to multiple sources (Adlakha et al., 2023;

Es et al., 2023; T. Gao et al., 2023; Hu et al., 2024).

Open-domain QA datasets like HotpotQA (Yang et

al., 2018) or QAMPARI (Amouyal et al., 2022) are

specifically designed for multi-hop reasoning. These

require synthesizing information from multiple

retrieved contexts, which involves understanding

complex connections and contextual relevance that

go beyond surface-level comparisons. Employing

LLMs as a judge for this evaluation is the most

suitable option since LLMs can comprehend the

combination of multiple contexts better by making

more nuanced judgement than simple lexical

matching or semantical similarity of concepts (Es et

al., 2023; T. Gao et al., 2023; Min et al., 2023; Saad-

Falcon et al., 2023).

6 PRACTICAL APPLICATION

In order to apply evaluation dimensions and select the

appropriate datasets, it is necessary to understand

dataset requirements. For instance, the evaluation

dimension faithfulness requires data regarding the

retrieved passages of the RAG to be tested and a

reference retrieval (golden retrieval), but these are

often not available in real-world operations.

Therefore, synthetic datasets that are applicable

reference-free would be more suitable for practical

operation, and they also have a high alignment with

human annotations (Es et al., 2023; Saad-Falcon et

al., 2023).

It is also necessary to select suitable metrics

according to the objective of optimizing the RAG

system. For this purpose, a distinction should first be

made as to whether the performance of the retrieval

or generation step should be considered. A suitable

metric is then selected according to a specific

problem. For example, if the factuality of the answer

is to be increased, correctness is a more suitable

metric than faithfulness.

Finally, it is important to build an automated,

robust and reliable evaluation pipeline that can be

used to evaluate the RAG system (Es et al., 2023).

7 CONCLUSION

This paper proposes a comprehensive evaluation

framework specifically for RAG by conducting an

SLR and providing an extensive overview of

currently existing evaluation approaches. Since the

introduction of RAG in 2020 (Lewis et al., 2020), it

has taken considerable time for methods to be

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

146

developed and established in the literature for

evaluating these approaches. Despite the rigorous

methodology, it remains possible that some papers

were overlooked due to the rapid pace of

developments in the field.

With reference to RQ1, our evaluation framework

introduces robust evaluation dimensions and metrics

to assess the different steps within RAG. Moreover,

this paper advances the understanding of RAG

evaluation by providing reliable dimensions and

metrics (Y. Gao et al., 2023; Wang et al., 2023).

Furthermore, Section 5 gives a comprehensive

summary about RQ2 by providing an overview of the

available datasets to apply the proposed evaluation

dimensions and metrics and what kind of

requirements to consider.

As a future avenue of research, a practical

application of these metrics should be conducted to

validate their use and alignment with human

preferences. In addition, the provision of all the

metrics presented could be examined within a

framework to simplify practical application.

ACKNOWLEDGEMENTS

The presented paper was produced as part of the

research project MoFaPro. This project is funded by

the AUDI AG. The present approach was developed

within the institute "AImotion Bavaria" at the

Technische Hochschule Ingolstadt. This work is part

of Oğuz Caymazer's master's thesis and was

conducted during his internship at the AUDI AG.

REFERENCES

Adlakha, V., Behnamghader, P., Lu, x. H., Meade, n., &

Reddy, S. (2023). Evaluating correctness and

faithfulness of instruction-following models for

question answering. Https://doi.org/10.48550/arxiv.2

307.16877

Amouyal, S. J., Wolfson, T., Rubin, O., Yoran, O.,

Herzig, J., & Berant, J. (2022). QAMPARI: An Open-

domain Question Answering Benchmark for Questions

with Many Answers from Multiple Paragraphs.

https://doi.org/10.48550/arXiv.2205.12665

Asai, A., Wu, Z., Wang, Y [Yizhong], Sil, A., &

Hajishirzi, H. (2023). Self-RAG: Learning to Retrieve,

Generate, and Critique through Self-Reflection.

https://doi.org/10.48550/arXiv.2310.11511

Asai, A., Zhong, Z., Chen, D [Danqi], Koh, P. W.,

Zettlemoyer, L., Hajishirzi, H., & Yih, W. (2024).

Reliable, Adaptable, and Attributable Language

Models with Retrieval. https://doi.org/10.48

550/arXiv.2403.03187

Bell, E., Bryman, A., & Harley, B. (2019). Business

research methods (Fifth edition). Oxford University

Press.

Benbya, H., Strich, F., & Tamm, T. (2024). Navigating

Generative Artificial Intelligence Promises and Perils

for Knowledge and Creative Work. Journal of the

Association for Information Systems, 25(1), 23–36.

https://doi.org/10.17705/1jais.00861

Brocke, J., Simons, A., Niehaves, B., Riemer, K.,

Plattfaut, R., & Cleven, A. (2009). Reconstructing the

Giant: On the Importance of Rigour in Documenting

the Literature Search Process. In European Conference

on Information Systems (Chair), 17th European Conf.

on Information Systems. https://www.wi.uni-

muenster.de/research/publications/3069

Bubeck, S., Chandrasekaran, V., Eldan, R., Gehrke, J.,

Horvitz, E., Kamar, E., Lee, P., Lee, Y. T., Li, Y.,

Lundberg, S., Nori, H., Palangi, H., Ribeiro, M. T., &

Zhang, Y [Yi]. (2023). Sparks of Artificial General

Intelligence: Early experiments with GPT-4.

https://doi.org/10.48550/arXiv.2303.12712

Es, S., James, J., Espinosa-Anke, L., & Schockaert, S.

(2023). RAGAS: Automated Evaluation of Retrieval

Augmented Generation. https://doi.org/10.48550/a

rXiv.2309.15217

Gao, T., Yen, H., Yu, J., & Chen, D [Danqi]. (2023).

Enabling Large Language Models to Generate Text

with Citations. https://doi.org/10.48550/arXiv.2305.

14627

Gao, Y., Xiong, Y., Gao, X., Jia, K., Pan, J., Bi, Y., Dai, Y

[Yi], Sun, J., Wang, M., & Wang, H. (2023). Retrieval-

Augmented Generation for Large Language Models: A

Survey. https://doi.org/10.48550/arXiv.2312.10997

Guinet, G., Omidvar-Tehrani, B., Deoras, A., & Callot, L.

(2024). Automated Evaluation of Retrieval-Augmented

Language Models with Task-Specific Exam

Generation. https://github.com/amazon-science/auto-

rag-eval https://doi.org/10.48550/arXiv.2405.13622

Hammond, G. (2024, April 10). Speed of AI development

stretches risk assessments to breaking point. Financial

Times. https://www.ft.com/content/499c8935-f46e-

4ec8-a8e2-19e07e3b0438

Hu, X [Xiangkun], Ru, D., Qiu, L., Guo, Q., Zhang, T.,

Xu, Y., Luo, Y., Liu, P., Zhang, Y [Yue], & Zhang, Z

[Zheng]. (2024). RefChecker: Reference-based Fine-

grained Hallucination Checker and Benchmark for

Large Language Models. https://doi.org/10.48550/a

rXiv.2405.14486

Izacard, G., Lewis, P., Lomeli, M., Hosseini, L.,

Petroni, F., Schick, T., Dwivedi-Yu, J., Joulin, A.,

Riedel, S., & Grave, E. (2022). Atlas: Few-shot

Learning with Retrieval Augmented Language Models.

https://doi.org/10.48550/arXiv.2208.03299

Kandpal, N., Deng, H., Roberts, A., Wallace, E., &

Raffel, C. (2022). Large Language Models Struggle to

Learn Long-Tail Knowledge. https://doi.org/10.48

550/arXiv.2211.08411

Benchmarking of Retrieval Augmented Generation: A Comprehensive Systematic Literature Review on Evaluation Dimensions, Evaluation

Metrics and Datasets

147

Karpukhin, V., Oğuz, B., Min, S., Lewis, P., Wu, L.,

Edunov, S., Chen, D [Danqi], & Yih, W. (2020). Dense

Passage Retrieval for Open-Domain Question

Answering. https://doi.org/10.48550/arXiv.2004.04906

Kwiatkowski, T., Palomaki, J., Redfield, O., Collins, M.,

Parikh, A., Alberti, C., Epstein, D., Polosukhin, I.,

Devlin, J., Lee, K., Toutanova, K., Jones, L.,

Kelcey, M., Chang, M.‑W., Dai, A. M., Uszkoreit, J.,

Le, Q., & Petrov, S. (2019). Natural Questions: A

Benchmark for Question Answering Research.

Transactions of the Association for Computational

Linguistics, 7, 453–466. https://doi.org/10.116

2/tacl_a_00276

Lewis, P., Perez, E., Piktus, A., Petroni, F., Karpukhin, V.,

Goyal, N., Küttler, H., Lewis, M., Yih, W.,

Rocktäschel, T., Riedel, S., & Kiela, D. (2020).

Retrieval-Augmented Generation for Knowledge-

Intensive NLP Tasks. https://doi.org/10.4

8550/arXiv.2005.11401

Ma, X., Gong, Y., He, P., Zhao, H., & Duan, N. (2023).

Query Rewriting for Retrieval-Augmented Large

Language Models. https://doi.org/10.48550/arXiv.

2305.14283

Mallen, A., Asai, A., Zhong, V., Das, R., Khashabi, D., &

Hajishirzi, H. (2022). When Not to Trust Language

Models: Investigating Effectiveness of Parametric and

Non-Parametric Memories. https://doi.org/10.48550/

arXiv.2212.10511

Min, S., Krishna, K., Lyu, X., Lewis, M., Yih, W., Koh, P.,

Iyyer, M., Zettlemoyer, L., & Hajishirzi, H. (2023).

FActScore: Fine-grained Atomic Evaluation of Factual

Precision in Long Form Text Generation. In H.

Bouamor, J. Pino, & K. Bali (Eds.), Proceedings of the

2023 Conference on Empirical Methods in Natural

Language Processing (pp. 12076–12100). Association

for Computational Linguistics.

https://doi.org/10.18653/v1/2023.emnlp-main.741

OpenAI, Achiam, J., Adler, S., Agarwal, S., Ahmad, L.,

Akkaya, I., Aleman, F. L., Almeida, D.,

Altenschmidt, J., Altman, S., Anadkat, S., Avila, R.,

Babuschkin, I., Balaji, S., Balcom, V., Baltescu, P.,

Bao, H., Bavarian, M., Belgum, J., . . . Zoph, B.

(2023). GPT-4 Technical Report.

https://doi.org/10.48550/arXiv.2303.08774

Paré, G., Tate, M., Johnstone, D., & Kitsiou, S. (2016).

Contextualizing the twin concepts of systematicity and

transparency in information systems literature reviews.

European Journal of Information Systems, 25(6), 493–

508. https://doi.org/10.1057/s41303-016-0020-3

Rackauckas, Z., Câmara, A., & Zavrel, J. (2024).

Evaluating RAG-Fusion with RAGElo: an Automated

Elo-based Framework. https://doi.org/10.48550/

arXiv.2406.14783

Rajpurkar, P., Jia, R., & Liang, P. (2018). Know What You

Don't Know: Unanswerable Questions for SQuAD.

https://doi.org/10.48550/arXiv.1806.03822

Rau, D., Déjean, H., Chirkova, N., Formal, T., Wang, S.,

Nikoulina, V., & Clinchant, S. (2024). BERGEN: A

Benchmarking Library for Retrieval-Augmented

Generation. https://doi.org/10.48550/arXiv.2407.

01102

Ravi, S. S., Mielczarek, B., Kannappan, A., Kiela, D., &

Qian, R. (2024). Lynx: An Open Source Hallucination

Evaluation Model. https://arxiv.org/abs/2407.08488

Saad-Falcon, J., Khattab, O., Potts, C., & Zaharia, M.

(2023). ARES: An Automated Evaluation Framework

for Retrieval-Augmented Generation Systems.

https://doi.org/10.48550/arXiv.2311.09476

Wang, C., Liu, X., Yue, Y., Tang, X., Zhang, T.,

Jiayang, C., Yao, Y., Gao, W., Hu, X [Xuming], Qi, Z.,

Wang, Y [Yidong], Yang, L., Wang, J [Jindong],

Xie, X., Zhang, Z [Zheng], & Zhang, Y [Yue]. (2023).

Survey on Factuality in Large Language Models:

Knowledge, Retrieval and Domain-Specificity.

https://doi.org/10.48550/arXiv.2310.07521

Webster, J., & Watson, R. T. (2002). Analyzing the Past to

Prepare for the Future: Writing a Literature Review.

MIS Quarterly, 26(2), xiii–xxiii. https://www.jstor.org/

stable/4132319?seq=1#metadata_info_tab_contents

Yang, Z., Qi, P., Zhang, S., Bengio, Y., Cohen, W. W.,

Salakhutdinov, R., & Manning, C. D. (2018).

HotpotQA: A Dataset for Diverse, Explainable Multi-

hop Question Answering. https://doi.org/10.48550/

arXiv.1809.09600

Yu, H., Gan, A., Zhang, K., Tong, S., Liu, Q., & Liu, Z.

(2024). Evaluation of Retrieval-Augmented

Generation: A Survey. https://doi.org/10.48550/

arXiv.2405.07437

Zhang, Z [Zihan], Fang, M., & Chen, L. (2024).

RetrievalQA: Assessing Adaptive Retrieval-Augmented

Generation for Short-form Open-Domain Question

Answering. https://doi.org/10.48550/arXiv.2402.16457

Zhang, Z [Zihan], Fang, M., Chen, L., Namazi-Rad, M.‑R.,

& Wang, J [Jun]. (2023). How Do Large Language

Models Capture the Ever-changing World Knowledge?

A Review of Recent Advances. https://doi.org/10.

48550/arXiv.2310.07343

KMIS 2024 - 16th International Conference on Knowledge Management and Information Systems

148
