Extending DEMO Action Rule Speciﬁcations’ Syntax in a Low Code

Platform Based Municipality Hearing System Implementation

David Aveiro

1,2,3 a

, V

ıtor Freitas

1,3 b

, Duarte Pinto

1,2 c

, Valentim Caires

1,2 d

and

Dulce Pacheco

1,2 e

ARDITI - Regional Agency for the Development of Research, Technology and Innovation, 9020-105 Funchal, Portugal

NOVA-LINCS, Universidade NOVA de Lisboa, Campus da Caparica, 2829-516 Caparica, Portugal

Faculty of Exact Sciences and Engineering, University of Madeira, Caminho da Penteada 9020-105 Funchal, Portugal

Keywords:

DEMO, Action Rules, Business Rules, Low-Code Platform.

Abstract:

The current ofﬁcial Design and Engineering Methodology for Organizations (DEMO) Action Rules Speciﬁ-

cation are unnecessarily complex and ambiguous. These speciﬁcations are also incomplete, lacking sufﬁcient

ontological details required to derive a fully functional implementation; and complex by containing mostly

unneeded speciﬁcations. Additionally, this paper details our progress in developing a metamodel for DEMO’s

Action Model, using an Extended Backus-Naur Form (EBNF) syntax. These advancements were driven by

our experience in implementing a system for the case study on a no-code/low-code platform to support a local

Municipality Hearings Process. This implementation was done on a Low-Code platform supporting the direct

execution of DEMO Models that is being developed by our team. Among our contributions are the models and

patterns generated from this implementation, which provide reusable solutions that can be adopted by other

low-code platforms using a similar approach.

1 INTRODUCTION

A clear speciﬁcation and implementation of business

rules is essential for effective processes within en-

terprises. The Design and Engineering Methodology

for Organizations (DEMO) claims to have a thorough

and structured approach to modeling organizations,

capturing their essence (Dietz, 2022). However, The

ofﬁcial DEMO Action Rules Syntax has been criti-

cized for its complexity and unclear syntax, which

complicate understanding and hinder smooth imple-

mentation (Aveiro and Freitas, 2023b). In response

to these issues, this paper introduces enhancements

to DEMO’s Action Meta-Model, aiming to provide a

more robust framework for representing action rules

and supporting their implementation in large-scale

systems in a concrete low-code platform being devel-

oped by our team. We iteratively tested and validated

our proposal within a real case of a Hearings Pro-

https://orcid.org/0000-0001-6453-3648

https://orcid.org/0009-0002-0667-5749

https://orcid.org/0000-0002-8451-5727

https://orcid.org/0000-0002-0871-7212

https://orcid.org/0000-0002-3983-434X

cess of a local municipality. The proposed improve-

ments to the DEMO Action Rules syntax are articu-

lated using Extended Backus-Naur Form (EBNF) no-

tation (ISO/IEC 14977:1996, 1996) and were guided

by practical requirements encountered during the de-

velopment of a low-code platform based on DEMO.

Through iterative design, implementation, and rigor-

ous testing, we reﬁned the syntax in an attempt to im-

prove the ontological accuracy and implementation

comprehensiveness of the DEMO Action Rules. In

Section 2 we outline the Research Context of the pa-

per focused on relevant theories, tools, related work

and research methodology. In Section 3 we explain

the real use case of the Municipality Hearing Sys-

tem and present the relevant process and fact models.

Section 4 details our proposal for extending DEMO’s

Action Rule Speciﬁcation Syntax, illustrating it with

concrete cases. Finally, in Section 5 we discuss our

conclusions and future work.

Aveiro, D., Freitas, V., Pinto, D., Caires, V. and Pacheco, D.

Extending DEMO Action Rule Speciﬁcations’ Syntax in a Low Code Platform Based Municipality Hearing System Implementation.

DOI: 10.5220/0013068800003838

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 16th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2024) - Volume 2: KEOD, pages 243-251

ISBN: 978-989-758-716-0; ISSN: 2184-3228

243

2 RESEARCH CONTEXT

In this section we ﬁrst present the DEMO Theories

and the DEMO Models, followed by a more detailed

focus on the Action Model, which is the focus of this

paper. We then proceed to the DEMO based Low-

Code Platform being developed, from which the im-

provements proposed to the Action Rules derive. Fi-

nally, we present some relevant Related Work fol-

lowed by the Research Method used.

2.1 DEMO Theories and Models

According to Jan Dietz in his Enterprise Ontology

work, organizations can be seen as a network of ac-

tors (people or roles) who engage in commitments

and follow a structured series of actions known as the

Complete Transaction Pattern (CTP). This pattern in-

cludes a collection of actions like requesting, promis-

ing, executing, declaring, and accepting and also han-

dles the exceptions to the general ﬂow as in rejec-

tions or declines or steps for cancelling commitments

if needed. Actors keep track of their responsibili-

ties through an “actor cycle”, where they constantly

check their ”agenda” or list of tasks (Dietz and Mul-

der, 2020). With Design and Engineering Methodol-

ogy for Organizations (DEMO), Dietz frames organi-

zations in four key perspectives in the so-called as-

pect models and proceeds to detail how each can be

represented. The Cooperation Model (CM) illustrates

the coordination within the organization, detailing the

roles involved in transactions and the actions they ini-

tiate or perform, the facts they handle, and how differ-

ent roles wait or depend on each other. The Process

Model (PM) describes the workﬂows and interactions

that are triggered by the various actions, showing how

different actors or roles coordinate. The Fact Model

(FM) serves as the semantic model where the types of

facts are deﬁned, such as different types of products,

properties, and attributes, along with the rules to gov-

erning their existence. Lastly, the Action Model (AM)

provides operational guidance by outlining the rules

for task execution, including triggers, conditions, and

how to respond in each step (Dietz and Mulder, 2020).

2.2 Action Model

Since the focus of this paper is on DEMO’s Action

Model, we now present its fundamentals in more de-

tail. DEMO Action Rules Speciﬁcation (ARS) are

the representation of the Action Model, and sets the

guidelines for managing events to which actors must

react, or business rules as well as work instructions

regarding the execution of production acts (Dietz,

2022). The standard syntax of ARS has evolved over

time, originally starting with a pseudo-algorithmic

language and currently formalized in EBNF. The

representation of an action rule follows the format

<event part> <assess part> <response part>. The

event part (event or collection of concurrent events)

is what triggers the rule. The assess part deﬁnes the

validity claims that are being ascertained, and can be

divided into three kinds: the claims to rightness, sin-

cerity, and truth. The response part deﬁnes how to

react or comply to the event if the conditions (deﬁned

in the ”assess” part) are met or not. Actors can stray

from the rule if they believe it is acceptable, but they

are also held accountable for it (Dietz, 2022).

These ARS speciﬁcations have been argued to be

somewhat ambiguous in (Aveiro and Freitas, 2023b)

because, despite using a structured English syntax, it

does so in a way that lacks some of the necessary on-

tological details needed as the basis for the implemen-

tation of an information system, e.g., the lack of a

method to deal with sets of actions or operators. In

(Aveiro and Freitas, 2023b) it is also argued that the

ARS bring about an unneeded complexity in the as-

sess part of the rule by including many extraneous

details about three different forms of evaluation: fair-

ness, sincerity, and truth. It is mentioned in (Perin-

forma, 2015), on one hand, that action rules written

with the grammar of ”structured English” are incredi-

bly simple, but, on the other hand, it is also stated that

some board members appeared perplexed when an ac-

tion rule with this grammar was presented to them.

This was our situation too in real-life projects we have

been conducting, thus the new alternative of ARS syn-

tax we have been building up. In (Aveiro and Freitas,

2023b), many more detailed arguments can be found

that reinforce our stance.

2.3 DISME Low-Code Platform

The Dynamic Information Systems Modeller and

Executer (DISME) is an open-source no-code/low-

code platform, speciﬁcally designed using the DEMO

methodology (Freitas et al., 2022). A distinct advan-

tage of the DISME, besides being based on DEMO, is

its adherence to the principles of the Adaptive Object

Model (AOM) and the Type Square pattern (Yoder

et al., 2001) (Yoder and Johnson, 2002) (Aveiro and

Pinto, 2015). This design allows DISME to immedi-

ately implement changes in real-time in the produc-

tion environment, reﬂecting them in the operational

system without the typical need for generating static

code, compiling, or deployment, which many con-

ventional low-code platforms require (Freitas et al.,

2022).

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

244

The DISME platform is composed of two main

functional interfaces, 1) the system modeler, where

users can deﬁne and parameterize the system using

diagrams, models forms and tables and 2) the system

executor that processes the speciﬁcations created by

the users at the modeller and runs it (Freitas et al.,

2022).

The system modeller features several key com-

ponents: 1) diagram editor that allows the diagram-

matic speciﬁcation of DEMO’s PM and FM; 2) the

system parametrization that enables the deﬁnition of

users, roles, and other related elements alongside the

PM and FM; 3) the action rules manager where users

can specify, in a graphical way, using an interface

based in Blockly

, all details of our variant of ARS

of DEMO’s AM 4) the form manager to design lay-

out and other details needed for all user input actions;

and 5) the dynamic query manager which supports the

creation of queries using ﬁlters and operators to meet

data processing needs (Freitas et al., 2022).

The system executor has two main functions: a

dashboard that allows users to interact with the sys-

tem and execute processes according to their roles and

permissions, and the execution engine which controls

the ﬂow of the processes according to the current state

of the system’s world, user interactions and runtime

interpretation of the ARS (Freitas et al., 2022).

2.4 Related Work

As far as we know, besides our approach, there’s only

another research line ((Krouwel et al., 2024)) explor-

ing the bridge between thorough enterprise models

and implementation of low-code platform-based sys-

tems, where multiple enterprise modeling languages

are referenced as possible source such as: 4EM

(Lantow et al., 2022), ArchiMate

, BPMN

, MEMO

(Frank, 1999), SBVR

, UML

, among others. But

all these alternatives either only describe a part of the

enterprise or they lack formal semantics (Krouwel,

2023). Furthermore, in (Krouwel et al., 2024), it is

claimed that, in order to be able to transform a model

to an application, the input model must 1) be com-

prehensive, 2) describe all business requirements, 3)

be consistent, and 4) have its semantics fully speci-

ﬁed. For this to be achieved (Krouwel et al., 2024)

states that the source model must include actor roles,

products, processes, information items, and business

rules effectively, and that DEMO ontological models

https://github.com/google/blockly

https://www.archimatetool.com/

https://www.omg.org/spec/BPMN/

https://www.omg.org/spec/SBVR/

http://www.uml.org/

are particularly effective for this purpose as they pro-

vide coherent, comprehensive, consistent, and con-

cise models of the organizational essence (Dietz and

Mulder, 2020). (Krouwel et al., 2024) also claims that

because DEMO models are both semantically rich

and well-deﬁned, that makes them a good ﬁt for the

needed transformation.

Regarding source models, we agree and follow the

same principles as (Krouwel et al., 2024) and, thus,

also adopt DEMO as the base language for our bridge

with low-code systems. However, we differ strongly

in the low-code implementation part. (Krouwel et al.,

2024) chose Mendix

as their best option and present

a proposal of a mapping from DEMO models to

Mendix elements, for the (automated) creation of a

low-code application that also intrinsically accom-

modates run-time implementation design decisions.

While in (Krouwel et al., 2024) a mapping approach

to the Mendix metamodel is followed, we opt to use

the direct execution of DEMO models, including run-

time interpretation of enriched action rule speciﬁca-

tion by the execution engine of our platform.

Furthermore, some limitations recognized by our

fellow authors in their work and of the current of-

ﬁcial DEMO ARS are quite alarming. Namely, re-

searchers in (Krouwel et al., 2024), while developing

their mapping, identiﬁed some signiﬁcant limitations

with the DEMO metamodel as it is deﬁned in DEMO-

SL (Dietz, 2022). As it is designed from a mod-

eling perspective rather than with an operational or

software development focus, while doing their man-

ual conversion from the models to JSON code needed

for Mendix, some elements that only served visualiza-

tion purposes were omitted, and it became necessary

to include other crucial aspects for software genera-

tion such as application names, mappings and soft-

ware primitives. Those elements along with the Op-

erational Independent Variables (OIVs) were placed

separate from the DEMO conversion in a speciﬁc de-

scriptor ﬁle. The mapping process also did not in-

clude rules for generalization and specialization of en-

tity types from the DEMO FM. While the conversion

referred to in (Krouwel et al., 2024) was taking place,

researchers also found that the mapping of Derived

Fact Speciﬁcations and ARS into Mendix was rather

complex and that the implementation of OIVs within

Medix or even software in general would translate

into a challenging labor-intensive detailing task that

had to be done, not only for each OIV independently,

but also in combinations and that, when combining

several OIVs, the problem increases in its complexity

because it was not clear whether all OIV’s could be

implemented completely independent of others.

https://www.mendix.com/

Extending DEMO Action Rule Speciﬁcations’ Syntax in a Low Code Platform Based Municipality Hearing System Implementation

245

Summarizing, many complexities and manual

steps arise that seem to make the proposed approach

in (Krouwel et al., 2024) unfeasible for large-scale

systems. One of the problems we identify is that, al-

though our colleagues argue that developers should

not be taking implementation decisions, this ends up

happening in their proposed approach, in the many

manual steps that still need to be taken and code in-

volved in the Mendix side, and also many combina-

tions of possible OIVs that need to be conﬁgured in

runtime, occurring, partly, due to the unneeded com-

plexities we pointed out that exist in the current ofﬁ-

cial DEMO ARS. The approach we follow, which is

presented next, overcomes these limitations.

2.5 Research Method

In (Hevner et al., 2004; Hevner, 2007) A. R. Hevner

presents the Design Science Research. This Informa-

tion Systems Research paradigm is composed by a

collection of three closely related cycles of activities

and regards how a study should be viewed.

Figure 1, illustrates these three cycles. Hevner ar-

gues that these activities should always be used to-

gether in order to provide a solid design of science

research with a reliable result. In regard to the Rele-

vance Cycle in Figure 1, our research has revealed a

lack of conciseness and crucial information in the cur-

rent ofﬁcial syntax of Action Rules in DEMO, as well

as some degree of ambiguity (Andrade et al., 2020)

(Aveiro and Freitas, 2023b).

As a result, in the Design Cycle, in the efforts re-

ported in this paper, we continued to design and build

upon previous work of what we consider to be a more

comprehensive and complete syntax for the DEMO

action rules (Andrade et al., 2020) (Aveiro and Fre-

itas, 2023b). New improvements in the grammar took

place during the last couple of years after multiple it-

erations and thorough design, testing, and validation

of the use and comprehensiveness of the new lan-

guage elements while applying them in the DISME’s

execution engine, with the EU-Rent case, as well as

another more recent case of a neurorehabilitation in-

formation system (Aveiro et al., 2023) and the case

now presented in this paper, from a local municipal-

ity. Thus, the latest version of the ARS hereby pre-

sented, allows for an increased coverage of DEMO’s

AM in specifying thoroughly low-code based systems

for large scale and complex cases. Finally, in regard

to the Rigor Cycle, the DEMO theoretical grounding,

in itself, provides the needed support for the designed

artifact that is our latest grammar proposal.

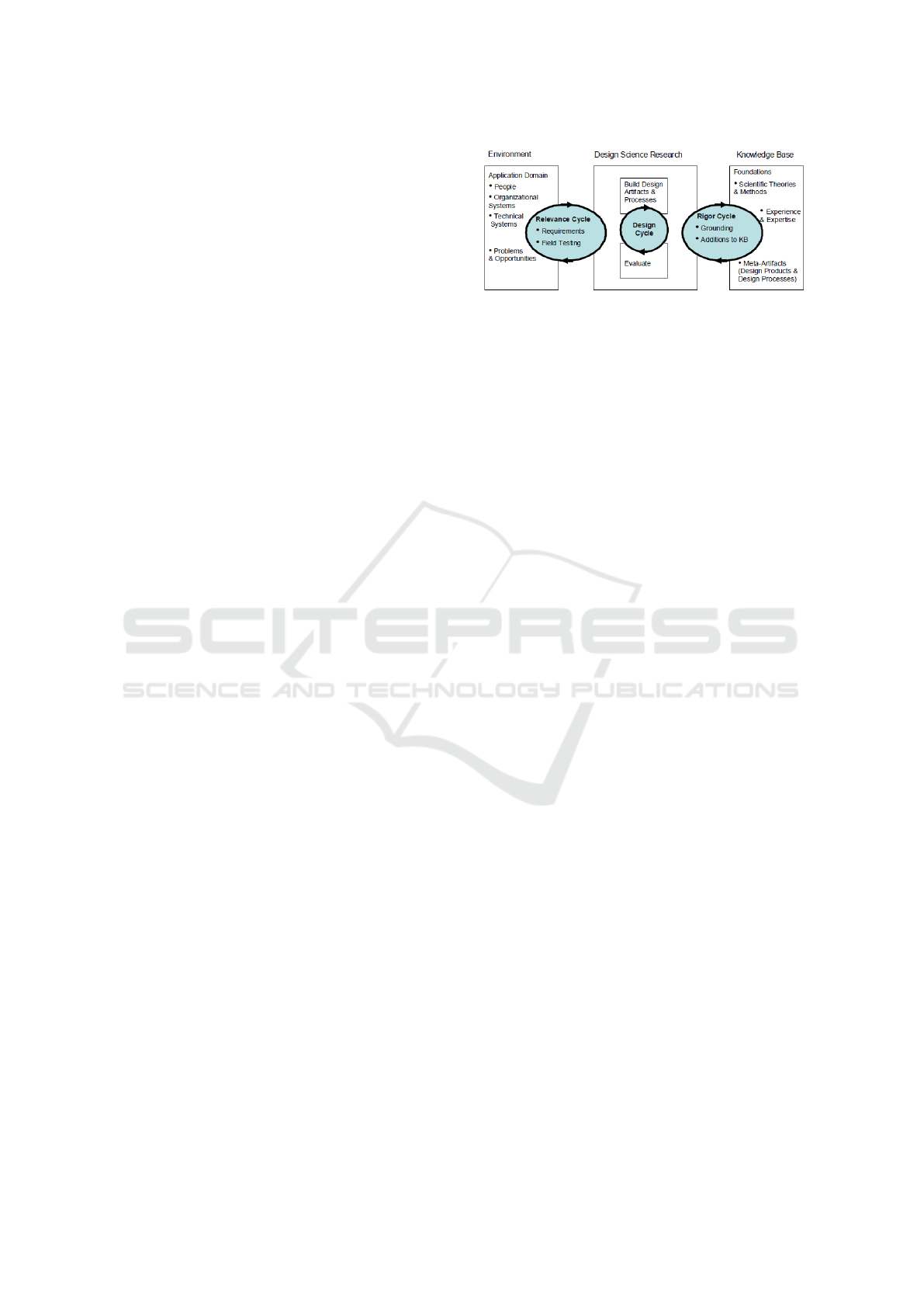

Figure 1: Design science research cycles (Hevner, 2007).

3 THE MUNICIPALITY

HEARINGS PROCESS

The Municipality Hearing Process (MHP) involves

several steps to ensure efﬁcient citizen engagement.

Before a hearing takes place, each Hearing Ofﬁcer (an

individual or group of individuals with a position of

responsibility in speciﬁc domains inside the munic-

ipality, for example, construction licensing or water

distribution) needs to have their schedule deﬁned.

Traditionally, each Hearing Ofﬁcer has a speciﬁc

day in the week when they provide a certain num-

ber of hearings to the Citizen for them to expose their

claims. Once the scheduling is settled, the Hearing

Ofﬁcer can be subject to a Hearing Request by the

Citizens.

The traditional way for this to happen is for the

Citizen to go to the municipality’s service desk and

request a hearing. The clerk will then ascertain the

need for said hearing and collect all the relevant in-

formation such as citizen identiﬁcation, the process,

the subject or relevant observations. These clerks are

trained and follow a set of guidelines allowing them

to determine if a hearing should take place, or not, at a

given time for multiple reasons. For example, if a pre-

vious hearing with the same citizen/theme took place

a short time before, or that the process it pertains to is

too recent.

If a hearing request reason is deemed justiﬁable to

happen, the clerk ﬁlls the request form and then pro-

ceeds to print a PDF ﬁle of the accepted request to

give as proof to the citizen. The next step is to deﬁne

who (Hearing Ofﬁcer) is the most relevant to attend

the citizen’s claim in a hearing. In some cases, the

claim may involve multiple departments of the mu-

nicipality and the clerk may not be able to ascertain

the correct individual on the spot, so they can ask the

Hearing Ofﬁcers themselves or their assistants if they

are indeed the most qualiﬁed for that hearing before

proceeding to its scheduling.

Once the correct Hearing Ofﬁcer has been identi-

ﬁed and selected, a hearing can be scheduled, tradi-

tionally by the clerks, that will then proceed to print

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

246

another PDF ﬁle with the Hearing details and send it

to the Citizen by email or postal mail.

Between this time and the time of the hearing both

the Citizen and the Hearing Ofﬁcers can request the

cancellation or rescheduling of the hearing for multi-

ple reasons, like that their schedule has changed, and

they cannot be present at the deﬁned time slot or sim-

ply that the reason for the hearing itself is no longer

valid. Because the Hearings might take some time to

happen, it is often the case that the claim from the

citizen has already been resolved and as such, it is

normal for the Hearing Ofﬁcers to check their future

scheduled hearings and identify those that no longer

are needed. If that is not the case, the hearing meeting

eventually takes place on the deﬁned or rescheduled

date. After the meeting, the conclusions and observa-

tions are added to the process, and it’s concluded by

the Hearing Ofﬁcial. Besides the main process, there

are additional tasks that need to be performed, like be-

ing able to print the Hearing Ofﬁcials schedule each

day as well as access the history of all hearings from

a speciﬁc citizen.

We will now present the models of the MHP us-

ing an evolved notation of DEMO’s representations

proposed in (Pinto et al., 2021) and (Gouveia et al.,

2021). An explanation of the notation follows suit.

These proposals are being used in DISME, and will

also be used in this paper due to the beneﬁts men-

tioned hereafter. Due to space limitations, a more

detailed version of the New Process Model Repre-

sentation and New Fact Model Representation can

be accessed as an online annex (Aveiro et al., 2024),

alongside some illustrative ﬁgures from the MHP case

study.

3.1 New Process Model Representation

In (Pinto et al., 2021) an alternative Process Struc-

ture Diagram (PSD) representation for DEMO’s PM

is proposed which integrates some contents of the

CM, in order to improve the clarity, reduce the redun-

dancies and complexity and increase the transparency

in the representations allowing for a more comprehen-

sive representation of the operational ﬂow of the orga-

nizational processes. These goals are achieved by: 1)

simplifying the nomenclature, 2) enhancing the pro-

cess model diagram and 3) moving the ﬁne details

of the process model to a transaction description ta-

ble but allowing it all to still be easily accessible and

manageable, using the process model diagram as ref-

erence (Pinto et al., 2021). These improvements were

positively validated in (Pacheco et al., 2022b). In the

online annex (Aveiro et al., 2024), there is an exam-

ple of the Process Model Diagram, as well as a more

detailed of explanation of the goals achieved with it.

3.2 New Fact Model Representation

In (Gouveia et al., 2021), the authors address what

they consider to be a set of issues in the current ofﬁcial

DEMO’s FM, namely the complexity and poor us-

ability caused by the over-cluttering of shapes that are

hard to understand by those not specialized in DEMO,

the lack of ﬂexibility to accommodate changes and

updates, and the inadequate visual representations

with multiple symbols that are not intuitive and can

lead to misinterpretation and errors. To address these

problems, in (Gouveia et al., 2021) an alternative no-

tation is proposed, with what are considered simpler

and more intuitive diagrams and tables, readable by

any stakeholders that have no knowledge of DEMO,

just business know-how. These improvements were

validated in (Pacheco et al., 2022a).

The main artifact of this new Fact Model is

the Concepts and Relationships Diagram (CRD), a

generic, global, and synthetic view of an entire

domain’s concepts while abstracting from their at-

tributes (Pacheco et al., 2022b). In the online annex

(Aveiro et al., 2024), there is an example of the CRD,

including a detailed explanation of each concept.

4 EXTENDING ACTION RULE

SPECIFICATIONS SYNTAX

Here, we introduce the key advancements in our al-

ternative DEMO ARS, as originally outlined in (An-

drade et al., 2020) and (Aveiro and Freitas, 2023b).

Because of space limitations, a complete version

of the EBNF grammar that formalizes our reﬁned

DEMO ARS syntax can also be accessed in the online

annex mentioned in the previous section, alongside

four intricate action rules from the MHP case study,

showcasing the recent enhancements. It is impor-

tant to note that, for historical reasons, the DISME’s

database (DB) tables and concepts employ slightly

different terminology in the grammar. Speciﬁcally,

concepts and attributes from the FM are saved as en-

tity types and properties, respectively, while trans-

actions and tasks are recorded under the transac-

tion type table. This section summarizes the key in-

novations along with selected entries from the gram-

mar where necessary. Figure 3 of the annex (Aveiro

et al., 2024) presents the ﬁrst example of a complex

action rule derived from the MHP case.

These innovations were introduced to address the

complexities encountered in the MHP, which our pre-

vious version of the ARS grammar could not fully

Extending DEMO Action Rule Speciﬁcations’ Syntax in a Low Code Platform Based Municipality Hearing System Implementation

247

handle. While earlier iterations were enough for

simpler applications like the neurorehabilitation case

managed within DISME. This case was presented in

(Aveiro et al., 2023) where the development efforts

of developing the needed system in a low-code and

traditional way were compared. The formal evalua-

tion of the usability of both systems was published in

(Aveiro and Freitas, 2023a) which was quite similar

for both systems, proving the capability of our ARS

syntax and of DISME in this already complex sce-

nario. However, in response to the unique challenges

presented by the MHP, we introduced innovative lan-

guage elements designed to address speciﬁc gaps in

the ARS syntax, allowing for more seamless handling

of complex scenarios.

The Figure 3 of the annex (Aveiro et al., 2024)

demonstrates the action rule associated with the exe-

cution phase of the ’Placing Hearing Request’ trans-

action. In this scenario, a municipality employee is

tasked with selecting a citizen from the database, re-

viewing prior hearing records, and completing a re-

quest form based on relevant details such as the asso-

ciated process or subject. Once the form is properly

ﬁlled out, the municipality clerk will then generate a

PDF with the request information, print it and deliver

it to the citizen. After that, a Hearing Ofﬁcer must be

assigned to the request, although the assigning might

be either immediately done by the clerk or delayed

to a posterior moment and decided by someone else,

when the best option of hearing ofﬁcer is decided for

that particular hearing. This last step is achieved in

the action rule using the user evaluated expression el-

ement, where the clerk can decide if he wants to as-

sign the hearing ofﬁcer right away, or wants to request

a transaction for this purpose to be handled later.

One of the most relevant changes in the new ver-

sion of the grammar was renaming/adapting the ele-

ment previously known as user input to the new cre-

ate instance. This happened because a created in-

stance of a certain entity type might obtain their fact

values from things other than inputs from a form

(the only possibility in the previous version). Now,

in this action, the system will prompt the user for

input through a form, that is, for the user to input

some data, if there are speciﬁed form facts (previously

known as properties) for this action. The new concept

of derived facts introduced in this work allows for

automatic value assignments, effectively incorporat-

ing DEMO’s framework of derived fact speciﬁcations

(Dietz, 2022), which had not been included in earlier

versions of DISME and something our colleagues in

(Krouwel et al., 2024) were struggling with, as previ-

ously mentioned. In Figure 4 of the annex we can ﬁnd

a more complex derived fact including a compute ex-

pression. If there are no form facts speciﬁed, but there

are derived facts, the action will run automatically by

the system’s engine without user intervention.

Other very relevant additions to the grammar,

which can be seen right at the beginning of Figure 3 of

the annex (Aveiro et al., 2024), are the elements: con-

text variable, which serves a similar function as local

variables in a function in a programming language;

and the possibility of specifying that the selectable

options to be made available in a certain form fact

input must come from a query executed at runtime

(which might accept parameters or not, e.g., a con-

text variable). In the particular case of this example,

the citizen is set as a context variable at the start, and

can then be used, not only to query previous hearing

requests that he has made in the past, but also to auto-

matically derive its value into the respective form fact

needed in the Placing Hearing Request transaction.

In some situations one will want to save in a cer-

tain generated instance, a reference to the person who

executed a certain action/created a certain instance,

e.g., the concrete admin staff processing the hearing

request. This is the reason for the new element exe-

cuting

user, which can also be seen in Figure 3 of the

annex (Aveiro et al., 2024).

The term element was also the target of a rele-

vant change: term = constant — value — property

— query — compute expression — context variable

— executing role — executing user. Namely, the

last three elements are new. This allows even greater

reusability and componentization of the different ele-

ments of the syntax especially thanks to the introduc-

tion of the element context variable. In fact, this is the

key new element in our grammar that, together with

the use of dynamic queries with parameters, allows

solving, at design time, many types of complexities

our colleagues faced in (Krouwel et al., 2024). This

is a quite traditional and important construct needed

in specifying business logic, most of the time buried

in the code of some common programming language.

As presented in (Aveiro and Freitas, 2023b) the term

element is one of the key elements in our grammar

that allow modularization of and integration of differ-

ent system elements and logic. We bring to attention

the fact that following the AOM principle (Yoder and

Johnson, 2002) all elements of our ”programs” speci-

ﬁed in DEMO ARS are objects stored in the DISME’s

DB. This allows a huge capacity of reuse and also de-

pendency detection and dynamic impact analysis of

potential changes in process logic or data structure or

value types. The introduction of the context variable

element brings a positive increase in these capacities.

In conclusion, we developed a new set of ele-

ments to address a common requirement in many en-

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

248

terprises - the ability to create and manage service

slots, whether scheduled by clients or internal collab-

orators.

Figure 2: Action Rule - Create Hearing Slots.

This new set of elements composes a new ac-

tion type: create schedule slots = scheduling record

slot records, that will serve to automatically create

time slots based on a scheduling record entity type, as

can be seen in the new element scheduling record =

entity type responsible user start date start time

end date end time weekday duration slot count.

This entity type must be speciﬁed in the system and

will be used here to set which of its properties holds

the information about speciﬁc scheduling properties

that are needed to create time slots. The slot records

entity type must also be speciﬁed in the system and

will be used to set in which properties the informa-

tion about the speciﬁc time slots created should be

stored, as can be seen in the new element slot records

= entity type schedule reference slot number day

start time end time {additional fact}. In case we

have other properties belonging to the speciﬁed slot

records entity type that aren’t speciﬁc to the slot

records fundamental elements, that we want to spec-

ify a value for, we also have a new element addi-

tional fact = property “=” term — property value.

As scheduling functionalities are crucial in many

business types, this kind of action and the elements

following below were devised to facilitate the spec-

iﬁcation of scheduling properties and execution of

scheduling mechanisms. Several of these properties

were inspired by the proﬁcient online scheduling ser-

vice Appointlet

In Figure 2 we can see the usage of this new action

type in the context of the MHP. Here we can see the

matching of the scheduling properties in full effect.

In the scheduling record input of the action block, af-

https://www.appointlet.com

ter selecting the Schedule Block internal entity type

that contains the information about the scheduling

that needs to be made, previously inserted by the user

in a create instance action, the matching is made in-

dividually for each scheduling property. This way, we

now know in which entity type and in which proper-

ties we can get the information needed for generating

the scheduling’s slots, that is, the start date, end date,

duration and so on. Next, in order to generate the

schedule slot instances, one needs to know the type of

these entities. That, alongside other important infor-

mation, is speciﬁed in the schedule slot input of the

action block, as can be seen in Figure 2. After select-

ing the Hearing Slot entity type of which instances

will be created to store the generated scheduling slots,

matching is made again for the fundamental proper-

ties of a schedule slot, which include, for example,

the day, start time and end time. By matching these

fundamental properties with the chosen entity type’s

properties, the system is able to automatically gen-

erate the schedule slots and store each of these fun-

damental properties on the system’s entity instances.

Furthermore, as the Hearing Slot entity type contains

more properties that need their value set other than the

fundamental properties of a scheduling slot, we deﬁne

how those additional facts should have their value de-

ﬁned in the last input of this schedule slot block.

5 CONCLUSIONS AND FUTURE

WORK

This paper presents key ﬁndings from our collabora-

tion with a local municipality, where we developed

a system to streamline the Hearings Process using

DISME. This applied research project led to the re-

alization that we needed to improve and extend our

already evolved grammar of DEMO’s Action Model,

one of the main contributions of the reported work.

Our implementation of DEMO’s Action Model for

the Hearings Process brought new elements that di-

rectly addressed the complexities unique to managing

citizen requests and ofﬁcer availability. This speciﬁc

approach allowed us to translate intricate workﬂows

into a richer Action Rule Syntax (ARS), which could

be validated and adjusted by municipal staff without

the need for deep technical knowledge. The project’s

success highlights the potential for DEMO’s frame-

work to signiﬁcantly improve productivity and usabil-

ity in local government systems. In response to the

unique needs of the municipal Hearings Process, we

incorporated advanced programming constructs such

as conditional logic (if-then-else), complex arithmetic

operations, and dynamic queries with parameters.

Extending DEMO Action Rule Speciﬁcations’ Syntax in a Low Code Platform Based Municipality Hearing System Implementation

249

These additions enabled the system to handle ﬂexible

scheduling requests and context-sensitive data man-

agement, making it adaptable to the varying demands

of the local administration. One could argue that what

we are doing with DEMO’s ARS is complex and al-

most amounts to programming at a similar level as

other languages. However, what we are aiming to

offer is different and at a much higher level: a way

to visually specify complex processes and ﬂow logic

in the most technologically neutral and user-friendly

way possible. In fact, if one looks at life before com-

puters, human and paper based information systems

were already performing all these complex process

logic and ﬂow operations, albeit in a very slow way,

and the ”programming logic” was imbued in the pro-

cesses. With our approach, by using a visual and

block-based interface that eliminates the risk of syn-

tactic errors and allows dynamic semantic, and even

pragmatic validations with runtime and production

data, thanks to the ﬂexibility provided by Blockly, we

expect that we will be able to bring a lot of power back

to the business users, as citizen developers, if not for

all kinds of software systems (not reasonable or feasi-

ble), at least for a good amount of typical information

systems.

The other contribution is the conceptual models of

the Process and Facts of the MHP process, which con-

stitutes a generic pattern that might be used for other

similar ends in other public institutions, with a sim-

ilar process and information to manage. Some rele-

vant aspects of this model are the nuances of: splitting

the request for the hearing from the scheduling of the

hearing itself, while taking into account the historical

record of hearings of requesting citizens; and ﬂexible

functionalities for rescheduling hearings and manag-

ing ofﬁcers’ hearing slots. The municipality currently

uses a Commercial-Off-The-Shelf software solution

for managing scheduling, which is expensive and not

ﬂexible to accommodate this and other nuances of the

process that need to be supported in order to achieve

higher operational efﬁciency in the use of the ofﬁcer’s

time. When they saw the potentialities of DISME in a

public presentation, they immediately approached us

to test our platform to implement a better system for

their purposes. This implementation of the low-code

based system to support the MHP is not yet ﬁnished,

as some use cases are still missing to be speciﬁed.

Completing this speciﬁcation and making it available

to the academic, industrial and scientiﬁc communi-

ties is one of the other lines of future work. Looking

ahead, we plan to reﬁne the DEMO Action Model fur-

ther by collaborating with municipal staff and public

administration experts. Our focus will be on enhanc-

ing the usability of our Blockly-based interface, mak-

ing it more intuitive for non-technical users in gov-

ernment settings. Usability studies within this pub-

lic administration context will guide the future itera-

tions of the platform, ensuring it meets the operational

needs of diverse public institutions. So, detailed us-

ability studies on these more recent implementations

will also be done and reported in the near term.

REFERENCES

Andrade, M., Aveiro, D., and Pinto, D. (2020). Bridging

Ontology and Implementation with a New DEMO Ac-

tion Meta-model and Engine. In Aveiro, D., Guiz-

zardi, G., and Borbinha, J., editors, Advances in En-

terprise Engineering XIII, Lecture Notes in Business

Information Processing, pages 66–82, Cham. Springer

International Publishing.

Aveiro, D. and Freitas, V. (2023a). Evaluating the usability

of a system implemented on a DEMO based low-code

platform. In Sales, T. P., Aveiro, D., Proper, H. A., As-

prion, P. M., Marcelletti, A., Morichetta, A., Schnei-

der, B., Zech, P., Kulkarni, V., Breu, R., Barat, S.,

Poels, G., Riel, J. V., Calhau, R. F., Bork, D., Mul-

der, M., de Kinderen, S., Guerreiro, S., and Griffo, C.,

editors, Companion Proceedings of the 16th IFIP WG

8.1 Working Conference on the Practice of Enterprise

Modeling and the 13th Enterprise Design and Engi-

neering Working Conference: BES, DTE, FACETE,

Tools & Demos, Forum, EDEN Doctoral Consortium

co-located with PoEM 2023, Vienna, Austria, Novem-

ber 28 - December 01, 2023, volume 3645 of CEUR

Workshop Proceedings. CEUR-WS.org.

Aveiro, D. and Freitas, V. (2023b). A new action meta-

model and grammar for a demo based low-code plat-

form rules processing engine. In Advances in Enter-

prise Engineering XVI, pages 33–52, Cham. Springer

Nature Switzerland.

Aveiro, D., Freitas, V., Cunha, E., Quintal, F., and Almeida,

Y. (2023). Traditional vs. low-code development:

comparing needed effort and system complexity in the

nexusbrant experiment. In 2023 IEEE 25th Confer-

ence on Business Informatics (CBI), pages 1–10, Los

Alamitos, CA, USA. IEEE Computer Society.

Aveiro, D., Freitas, V., Pinto, D., Caires, V., and Pacheco,

D. (2024). EBNF Grammar of DEMO Action

Rules Speciﬁcation and Process and Fact Models

Representations for a Municipal Hearings Process.

https://github.com/EnterpriseEngineeringLab/KEOD-

2024-annex/blob/main/KEOD-2024-annex.pdf

Aveiro, D. and Pinto, D. (2015). Universal Enter-

prise Adaptive Object Model: A Semantic Web-

Based Implementation of Organizational Self-

Awareness. Intelligent Systems in Accounting,

Finance and Management, 22(1):3–28. eprint:

https://onlinelibrary.wiley.com/doi/pdf/10.1002/isaf.

1363.

Dietz, J. L. G. (2022). DEMO Speciﬁcation Language 4.7.2

– Enterprise Engineering Institute.

KEOD 2024 - 16th International Conference on Knowledge Engineering and Ontology Development

250

Dietz, J. L. G. and Mulder, H. B. F. (2020). Enterprise On-

tology: A Human-Centric Approach to Understanding

the Essence of Organisation. The Enterprise Engi-

neering Series. Springer International Publishing.

Frank, U. (1999). The MEMO META-METAMODEL.

Freitas, V., Pinto, D., Caires, V., Tadeu, L., and Aveiro, D.

(2022). The DISME low-code platform - from sim-

ple diagram creation to system execution. In Guer-

reiro, S., Griffo, C., and Jacob, M., editors, Pro-

ceedings of the 22nd CIAO! Doctoral Consortium,

and Enterprise Engineering Working Conference Fo-

rum 2022 co-located with 12th Enterprise Engineer-

ing Working Conference (EEWC 2022), November 2-

3, 2022, Leusden, the Netherlands, volume 3388 of

CEUR Workshop Proceedings. CEUR-WS.org.

Gouveia, B., Aveiro, D., Pacheco, D., Pinto, D., and Gou-

veia, D. (2021). Fact model in demo - urban law

case and proposal of representation improvements.

In Aveiro, D., Guizzardi, G., Pergl, R., and Proper,

H. A., editors, Advances in Enterprise Engineering

XIV, pages 173–190, Cham. Springer International

Publishing.

Hevner, A. (2007). A three cycle view of design science re-

search. Scandinavian Journal of Information Systems,

19.

Hevner, A., R, A., March, S., T, S., Park, Park, J., Ram, and

Sudha (2004). Design science in information systems

research. Management Information Systems Quar-

terly, 28:75–.

ISO/IEC 14977:1996 (1996). ISO/IEC 14977 - Information

technology — Syntactic metalanguage — Extended

BNF. Standard, International Organization for Stan-

dardization, Geneva, CH.

Krouwel, M., Op ’t Land, M., and Proper, H. (2024). From

enterprise models to low-code applications: mapping

demo to mendix; illustrated in the social housing do-

main. Software and Systems Modeling, pages 1–28.

Krouwel, M. R. (2023). On the design of enterprise

ontology-driven software development. Maastricht

University, Maastricht.

Lantow, B., Sandkuhl, K., and Stirna, J. (2022). Enterprise

Modeling with 4EM: Perspectives and Method. In

Karagiannis, D., Lee, M., Hinkelmann, K., and Utz,

W., editors, Domain-Speciﬁc Conceptual Modeling:

Concepts, Methods and ADOxx Tools, pages 95–120.

Springer International Publishing, Cham.

Pacheco, D., Aveiro, D., Gouveia, B., and Pinto, D. (2022a).

Evaluation of the perceived quality and functional-

ity of fact model diagrams in demo. In Advances in

Enterprise Engineering XV, pages 114–128, Cham.

Springer International Publishing.

Pacheco, D., Aveiro, D., Pinto, D., and Gouveia, B.

(2022b). Towards the x-theory: An evaluation of the

perceived quality and functionality of demo’s process

model. In Aveiro, D., Proper, H. A., Guerreiro, S.,

and de Vries, M., editors, Advances in Enterprise En-

gineering XV, pages 129–148, Cham. Springer Inter-

national Publishing.

Perinforma, A. (2015). The Essence of Organisation: An

Introduction to Enterprise Engineering. Sapio Enter-

prise Engineering.

Pinto, D., Aveiro, D., Pacheco, D., Gouveia, B., and Gou-

veia, D. (2021). Validation of DEMO’s Conciseness

Quality and Proposal of Improvements to the Process

Model, pages 133–152.

Yoder, J. W., Balaguer, F., and Johnson, R. (2001). Archi-

tecture and design of adaptive object-models. SIG-

PLAN Not., 36(12):50–60.

Yoder, J. W. and Johnson, R. (2002). The Adaptive Object-

Model Architectural Style. In Bosch, J., Gentleman,

M., Hofmeister, C., and Kuusela, J., editors, Soft-

ware Architecture: System Design, Development and

Maintenance, IFIP — The International Federation

for Information Processing, pages 3–27. Springer US,

Boston, MA.

Extending DEMO Action Rule Speciﬁcations’ Syntax in a Low Code Platform Based Municipality Hearing System Implementation

251
