A UWB-Specific Metasurface-Inspired MIMO Antenna with

Enhanced Isolation and Gain

Tejaswita Kumari

, Anupama Senapati

and Abu Nasar Ghazali

School of Electronics Engineering, Kalinga Institute of Industrial Technology, Patia, Bhubaneswar, 751024, Odisha, India

Keywords: DGS, High Isolation, Metasurface, UWB MIMO.

Abstract: This study presents a lightweight, compact Metasurface-inspired UWB-optimized MIMO antenna featuring

high isolation and substantial gain. The MIMO antenna design incorporates two identical patches arranged in

parallel to boost overall performance. To enhance impedance matching, a trapezoidal defected ground with

stepped features is employed. The antenna's feed, designed in a tapered shape, contributes to enhanced

impedance matching. A metasurface isolation system is implemented, utilizing a hexagonal-shaped unit cell

absorber, which is subsequently integrated into the middle of the defected ground. Metasurface achieves

significant isolation, up to 25 dB. The antenna abilities to provide a wide operating bandwidth of 1.96 GHz

to 13 GHz, suitable for UWB utilization, with a peak gain of 7.9 dBi at 7 GHz. A comparison with prior

literature demonstrates size optimization and enhanced isolation through the novel metasurface absorber. The

efficiency of the proposed antenna stands at 95.5%. Resonating at triple frequencies 5.2 GHz, 7.5 GHz, and

12.37 GHz, this MIMO metasurface antenna is well-suited for applications such as WPAN and WBAN.

1 INTRODUCTION

In the modern-day, ultrawideband antennas face

numerous difficulties including miniaturization, cost-

effectiveness, compactness, mechanical durability,

and the attainment of high-performance metrics such

as substantial gain, wider bandwidth to support

wireless security. Overcoming these hurdles to

develop a UWB antenna within a functional

bandwidth of 3.1 to 10.6 GHz {(FCC.,2002,

Balanis.,2016)} as specified by the FCC is a complex

endeavour. The constraints mentioned above

regarding UWB antennas can be addressed through

the application of fractal geometry. Fractal

geometry's characteristics like self-similarity with

space-filling render it a suitable choice for UWB

antenna (Bhatt et al.,2017, Tejaswita et al.,2024) For

UWB applications, incorporating a Koch fractal

structure around the outer edge of the octagonal patch

in a MIMO antenna improves its efficiency and

compactness in multiple important aspects. Since the

antenna's fractal structure extends its electrical length

without materially increasing its physical size, it can

https://orcid.org/0000-0002-5841-3284

https://orcid.org/0000-0002-6935-5710

https://orcid.org/0000-0001-9689-8545

operate well at lower frequencies and still have a

small form factor. For UWB applications that need

wide frequency coverage, this functionality is

essential. Furthermore, many resonant frequencies

are supported by the self-similar patterns of fractal

structures, which improves bandwidth and makes it

possible for the antenna to effectively handle multiple

signals in various frequency bands. Additionally, the

Koch fractal's complex structure helps to realize

enhanced impedance matching throughout the UWB

band, which lowers return loss and increases

efficiency. as it contributes to improved antenna

performance. This assertion is supported by previous

studies conducted by numerous researchers (Werner

et al.,1999, J. Anguera et al.,2005, C. Borja et

al.,2003). To enhance reliability and address the

susceptibility to multipath fading inherent in

communication systems, the MIMO antenna system

has been integrated. This technology reduces

transmission errors and improves communication

range with data transfer rates. Ensuring ample

isolation among MIMO antenna elements presents a

notable obstacle when crafting compact antennas.

Kumari, T., Senapati, A. and Ghazali, A. N.

A UWB-Speciﬁc Metasurface-Inspired MIMO Antenna with Enhanced Isolation and Gain.

DOI: 10.5220/0013266200004646

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Cognitive & Cloud Computing (IC3Com 2024), pages 30-36

ISBN: 978-989-758-739-9

Nonetheless, various approaches are being pursued in

this direction, and implementations of MIMO

antennas are being explored in the existing literature,

as discussed below.

The antenna isolation is only 12.5 dB. A compact

antenna featuring two elements was introduced in

(Zhao et al.,2017). In (Hussain et al.,2019), A 4-

elementMIMO antenna utilizing annular rings was

devised for cognitive radio applications. (Chandel et

al.,18) introduces a two-port antenna with tapered

feeding and dual stop-band attributes, engineered to

operate across the extensive frequency range of 2.9-

20 GHz. Isolation methods employing standard

ground stubs were applied, achieving isolation levels

below -22dB. In (Hussain et al.,19), a four-port

MIMO antenna with a pentagon shape was

developed, catering to various wireless applications

with reconfigurability as a key feature. Notably, no

specific isolation mechanism was reported, with

isolation primarily reliant on significant spacing

between the radiators, resulting in a large antenna

size. (Li, Zhenya et al.,2019) described a compact

Vivaldi-shaped antenna, employing stub techniques.

This work employed a novel design approach to

reduce mutual coupling. In (Iqbal et al.,2017), a two-

port antenna featuring F-shaped stubs was designed,

achieving isolation of only -20 dB However, due to

the large size of the patch, the overall dimensions of

the antenna were considerable. (Zhao et al.,2019)

presented a large-scale MIMO antenna measuring

120 x 60 mm, tailored for UWB applications. It is

clear from the literature analysis that achieving the

isolation in MIMO is very crucial, with the help of

metasurface we can overcome this drawback.

The paper's newness lies in its inventive

utilization of Koch fractal octagonal geometry and

Metasurface in the ground plane to devise an

ultrawideband MIMO antenna, which achieves

notable characteristics such as high isolation, gain,

miniaturization, compactness, wideband operation,

high efficiency, and three resonant frequencies. The

provided article encompasses an introduction in

Section 1, detailing the stepwise and optimized

outcomes, as well as the results and analysis depicted

in Section 2. The research conclusions are drawn in

sections 3, 4, and 5. With the aid of the ANSYS HFSS

v21.0 R1 software environment, the entire structural

design is completed (ANSYS., 2021).

ANTENNA

DESIGN APPROACH

& ANALYSIS

The suggested UWB antenna has been created by

cutting an octagonal shape's edge using a Koch

fractal. This suggested antenna combines antenna

technology with fractal geometries. Fractal geometry,

in general, is made up of repeated segments in

varying scales. In terms of length and size (D. Li et

al.,2012) derived by applying the following formula:

d ൌ

log ሺnሻ

log ሺRሻ

ሺ1ሻ

L ൌ H

ቀ

ቁ

୬

ሺ

ሻ

In the equation, where 'n' represents the number of

geometry segments, 'h' denotes the curve length, 'i'

stands for the iteration number, and 'r' signifies the

number of segments divided by each iteration.

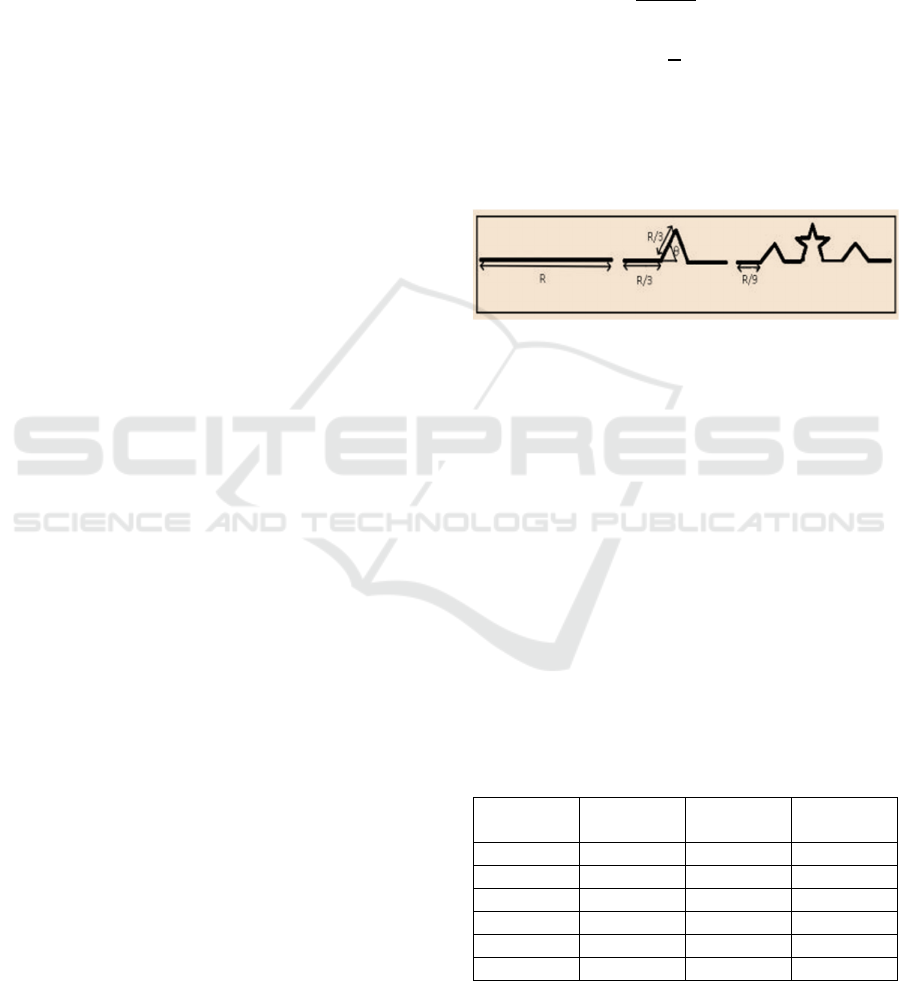

Figure 1: Koch fractal Generation in the patch.

Figure 1. shows the design of the iteration in the

octagonal, the starting structure's length R is

represented by θ, which provides the fractal

geometry's convergence. When θ equals 45 degrees

and R equals 1.6 mm, these values define the edge

dimensions for the octagonal iterative subtraction

process in antenna.

The two-element antenna design undergoes

optimization and feature analysis using HFSS

software v.21. FR4 substrate, is selected for its

favorable attributes in providing wide bandwidth

followed by radiation characteristics for fundamental

design (Tasouji, N et al.,2013, Liu YY et al., 2016, Li

et al.,2018, Hussain et al.,2017, Ibrahim et al.,20 17).

Table 1 lists all of the optimized metasurface MIMO

antenna's variables.

Table 1: Optimized metasurface MIMO antenna's variables.

Design

Parameters

Value

(mm)

Design

Parameters

Value

(mm)

Ls 35 d 10

Ws 35 e 7.6

a 5 f 5

b 13.7 g1 35

g3 3.06 g5 23

g4 9.4 c 27.5

A UWB-Speciﬁc Metasurface-Inspired MIMO Antenna with Enhanced Isolation and Gain

Figure 2: MIMO antenna with dimension (a) Patch with

dimension (b) Ground with dimension metasurface

Figure 2. shows the (a) Patch with dimension and (b)

Ground with dimension metasurface. There are many

antennas reported which show the metasurface helps

to improve the characteristics of the antenna (Li et

al.,2023, Kumar et al.,2022, Pandey et al.,2024,

Wang et al.,2023, Saxena et al.,2023). Using a

metasurface in the ground plane coupled with a two-

element Koch fractal antenna MIMO configuration

greatly improves isolation and gain for the UWB

spectrum via several methods. By forming bandgaps

that stop surface currents from propagating, the

metasurface improves isolation and minimizes

interference by suppressing surface waves also

reducing mutual coupling. Furthermore, by reflecting

electromagnetic waves with an in-phase reflection

coefficient, metasurfaces function as artificial

magnetic conductors. This optimizes the radiation

pattern and total gain by concentrating more power in

the desired direction. Over the UWB spectrum, the

metasurface ensures clean operation by suppressing

unsuitable modes and harmonics. By lowering ohmic

losses and back radiation, it also increases radiation

efficiency by turning a larger percentage of input

power into usable radiated power Optimizing

performance over the UWB range is possible because

of the metasurface's precise control over

electromagnetic wave propagation, which enables

customized radiation patterns. Because of this

integration, the design is efficient and compact, which

is crucial for current UWB applications that have

limited space. Moreover, metasurfaces' frequency-

selective qualities optimize antenna efficiency in

particular UWB bands, improving isolation and gain

where it's most needed. All these elements work

together to create a small, high-performance, and

efficient UWB MIMO antenna system. The entire

design process is described in the initial phase, with

the following unit cell of the metasurface that will be

designed and examined in the following section.

2.1 Unit Cell Development

On a FR-4 substrate, a hexagonal unit cell is

fabricated with the required dimensions as shown in

Figure 3, with a total size of 2 mm × 2 mm.

Figure 3: metasurface unit cell (a) hexagonal unit cell with

dimension (b) unit cell under boundary condition (c)

deployed metasurface unit cell S parameter.

In Figure 3 (a) a unit cell is shown with dimensions

here a =, b =2 mm, c = 2 mm, and (b) a unit cell under

the boundary condition. here a Floquet port is used

to examine the unit cell and master-slave is used in

the unit cell boundary. hexagonal unit cell's S-

parameter analysis is in Figure 3 (c). As can be seen

from the graph, S11 is continuously below -10 dB,

and the unit cell shows effective absorption within the

target range of 3.88-12.37 GHz. Additionally, the

proposed antenna's ground plane has this unit cell

arrayed repetitively across it. An analysis of the

recommended antenna is shown on Figure 4. Figure 4

(a) depicts an individual antenna with a Koch fractal

at the lower half of it. The antenna with a Koch fractal

in its upper half is seen in Figure 4 (b). The two-

element MIMO antenna is displayed in Figure 4 (c);

the MIMO antenna combined with a metasurface is

displayed in Figure 4 (d).

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

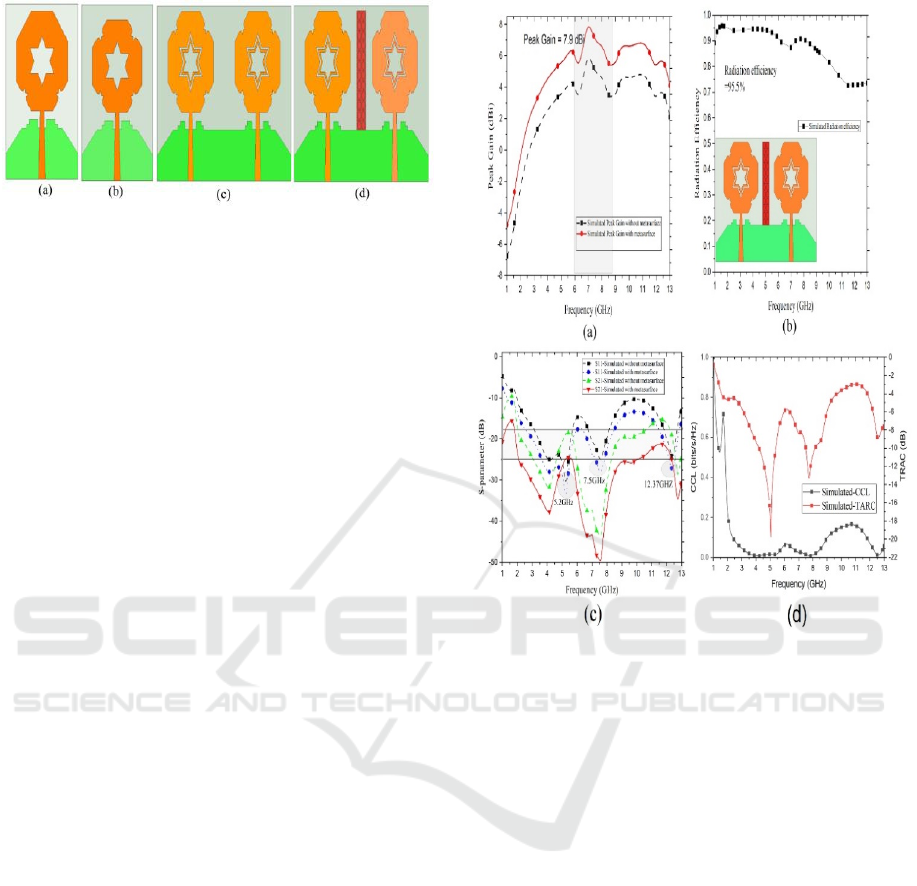

Figure 4: Step-wise evaluation of the MIMO antenna.

3 RESULTS

3.1 Gain and Efficiency

The peak gain Two-element meta surface UWB

MIMO antenna of 7.9 dBi at 7 GHz is in Figure 5 (a).

and followed by Figure 5 (b) is the overall efficiency

of the 2-element MIMO antenna 95.5%.

3.2 S-Parameter

Figure 5 (c) shows a Simulated S11-parameter of

novel UWB two-element MIMO Koch fractal

antenna with a metasurface. suggested antenna

achieves three resonant frequencies 5.2 GHz, 7.5

GHz, 12.37 GHz, and a wide bandwidth of 1.96 GHz

to 13 GHz. The isolation between the two antenna is

also very good below 25 dB for the entire bandwidth.

3.3 CCL / TARC

Figure 5 (d). shows Channel capacity loss (CCL) and

the TRAC of the MIMO antenna. Ideally, the CCL

value is 0 and the practical value is between 0 to 0.4.

The proposed antenna CCL value is up to the mark.

Figure 5: (a) Simulated Peak Gain with and without

metasurface and (b) Efficiency of Two-element meta

surface UWB MIMO antenna. (c) S parameter of the

MIMO antenna with and without meta surface and S21

graph for isolation. (d) Simulated CCL and TARC of Two-

element meta surface UWB MIMO antenna.

3.4 Radiation Pattern

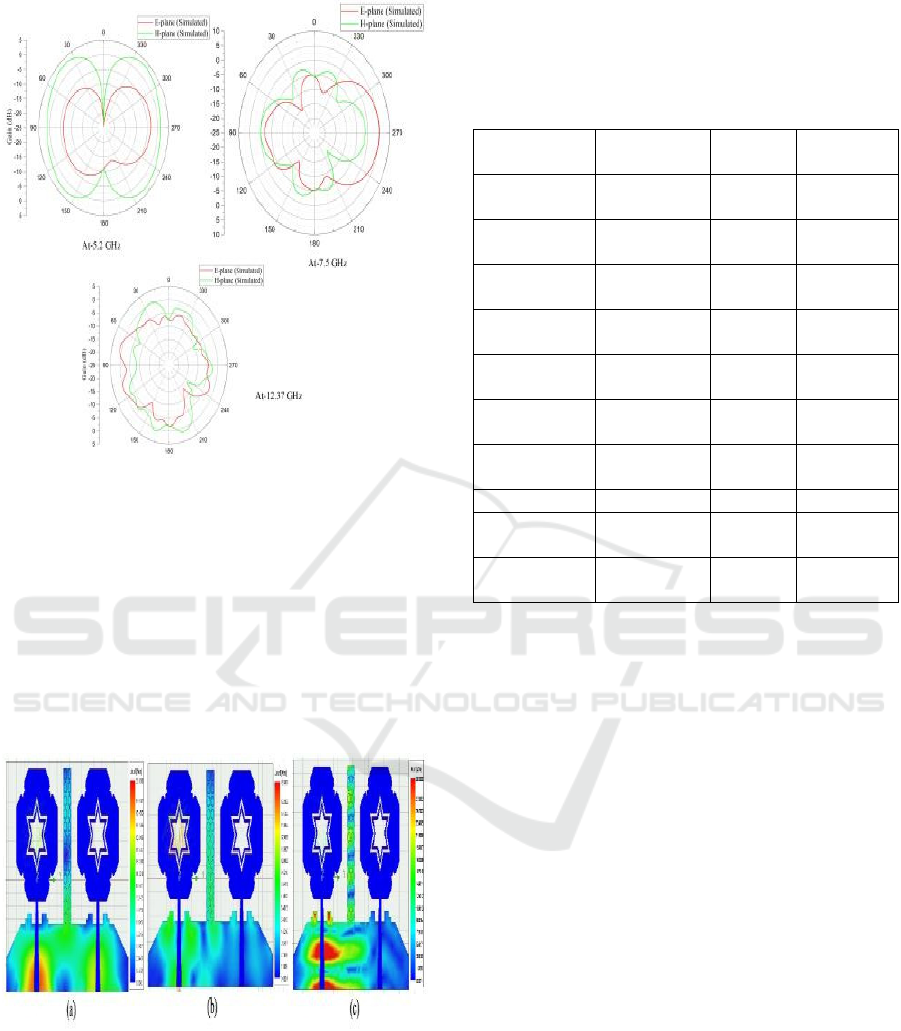

Figure 6 shows the generated radiation patterns for

metasurface MIMO antenna. The E-plane followed

by H-plane patterns are shown for resonant

frequencies of 5.2 GHz, 7.5 GHz, and 12.37 GHz.

A UWB-Speciﬁc Metasurface-Inspired MIMO Antenna with Enhanced Isolation and Gain

Figure 6: S parameter Simulated Radiation Pattern at the

resonant frequency 5.2 GHz, 7.5GHz, and 12.37 GHz of

metasurface MIMO antenna.

3.5 Surface Current Distribution

Figure 7. depicts the two-element meta surface

antenna’s current distribution at resonance

frequencies (a) 5.2 GHz, (b) 7.5 GHz, and (c) 12.37

GHz. From the Figure, it is evident that the Meta

surface unicell absorbed the radiation very well.

Figure 7: Current Distribution of Two-element meta surface

UWB MIMO antenna at (a) 5.2 GHz, (b) 7.5 GHz, and (c)

12.37 GHz.

4 ANALYSIS IN RELATION

Table 2: shows the analysis relation with another MIMO

antenna and the suggested antenna.

Ref.

No.

Dimension

(mm)

Isolation

(dB)

Bandwidth

Liu

YY,2016

44×44

less than

15.5

2.95-10.8

GHz

Li, 2018

30×30

less than

2.8-19.2

GHz

Hussain,

2017

60×120

less than

1.77- 2.51

GHz

Ibrahi

2017

6cm

×5cm

10-18

3-10.6

GHz

Li, 2023

60×60 30

3.66-16.61

GHz

Kuma

2022

45×45 20

4.5-16.4

GHz

Pandey,

2024

32×48 27

1.87-13.82

GHz

Wan

, 2023 68×68 20 2.14-14.95

Saxena,

2023

29×23 20

6.75-14.6

GHz

35×35 25

1.96 - 13

GHz.

[SW= suggested Work]

5 CONCLUSION

In light of Metasurface inspiration, a Koch fractal

octagonal MIMO antenna is presented in this research

for Ultrawideband (UWB) frequency range

applications. The suggested antenna can be made

smaller and more compact for UWB operations by

utilizing a Koch fractal structure around the octagonal

patch's edges. Additionally, a two-element Koch

fractal antenna MIMO configuration is coupled with

a Metasurface in ground plane to expand antenna

properties like isolation and gain. With this setup, the

1.96 - 13 GHz UWB spectrum is achieved. This

antenna is a viable choice for UWB applications

because of its very low ECC (Envelope Correlation

Coefficient) of 0.3, peak gain of 8 dBi, isolation

below 25 dB, and adequate transmission coefficients.

Due to its affordable substrate and advantageous

antenna properties, in terms of important performance

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

metrics, the UWB-specific Metasurface-inspired

MIMO antenna performs significantly better than

current alternatives for WPAN and WBAN

applications. Due to mutual coupling and surface

wave suppression by the metasurface, it obtains a

reduced Envelope Correlation Coefficient (ECC).

Better signal diversity and reliability are the outcome

of this. In addition, the antenna has a larger peak gain,

which concentrates more energy in the desired

direction and improves signal coverage and intensity.

Maintaining high data speeds is dependent on its

remarkable isolation, which guarantees little

interference and crosstalk between antenna elements.

The metasurface also shows minimum signal leakage

by reducing transmission coefficients. These

advantages make it ideal for high-performance,

reliable communication in WPAN and WBAN

environments.

REFERENCES

Federal Communications Commission, 2002. Revision of

P. 15 of C. rule regarding ultra-wideband transmission

system: First report and order. In FCC 02-48.

Washington, Apr. 2002.

Balanis, C. A. (2016). Antenna theory: analysis and design.

John wiley & sons.

Bhatt, S., Mankodi, P., Desai, A., & Patel, R. (2017,

January). Analysis of ultra wideband fractal antenna

designs and their applications for wireless

communication: A survey. In 2017 International

Conference on Inventive Systems and Control

(ICISC) (pp. 1-6). IEEE.

Kumari, T., Ghazali, A. N., & Senapati, A. (2024). KOCH

FRACTAL OCTAGONAL ANTENNA WITH A

COMPACT DESIGN AND DEFECTED GROUND

STRUCTURE (DGS) FOR ULTRA-WIDEBAND

(UWB) WIRELESS USAGE. Jordanian Journal of

Computers & Information Technology, 10(1).

Werner, D. H., Haupt, R. L., & Werner, P. L. (1999). Fractal

antenna engineering: The theory and design of fractal

antenna arrays. IEEE Antennas and propagation

Magazine, 41(5), 37-58.

Anguera, J., Puente, C., Borja, C., & Soler, J. (2005).

Fractal shaped antennas: A review. Encyclopedia of RF

and microwave engineering.

Borja, C., & Romeu, J. (2003). On the behavior of Koch

island fractal boundary microstrip patch antenna. IEEE

transactions on Antennas and propagation, 51(6),

1281-1291.

Zhao, X., Yeo, S. P., & Ong, L. C. (2017). Planar UWB

MIMO antenna with pattern diversity and isolation

improvement for mobile platform based on the theory

of characteristic modes. IEEE Transactions on

Antennas and Propagation, 66(1), 420-425.

Hussain, R., & Sharawi, M. S. (2019). An integrated slot-

based frequency-agile and UWB multifunction MIMO

antenna system. IEEE Antennas and Wireless

Propagation Letters, 18(10), 2150-2154.

Chandel, R., Gautam, A. K., & Rambabu, K. (2018).

Tapered fed compact UWB MIMO-diversity antenna

with dual band-notched characteristics. IEEE

Transactions on Antennas and Propagation, 66(4),

1677-1684.

Hussain, R., Raza, A., Khan, M. U., Shammim, A., &

Sharawi, M. S. (2019). Miniaturized frequency

reconfigurable pentagonal MIMO slot antenna for

interweave CR applications. International Journal of

RF and Microwave Computer‐Aided

Engineering, 29(9), e21811.

Li, Z., Yin, C., & Zhu, X. (2019). Compact UWB MIMO

Vivaldi antenna with dual band-notched

characteristics. IEEE Access, 7, 38696-38701.

Iqbal, A., Saraereh, O. A., Ahmad, A. W., & Bashir, S.

(2017). Mutual coupling reduction using F-shaped

stubs in UWB-MIMO antenna. IEEE access, 6, 2755-

2759.

Zhao, X., Riaz, S., & Geng, S. (2019). A reconfigurable

MIMO/UWB MIMO antenna for cognitive radio

applications. IEEE access, 7, 46739-46747.

ANSYS, 2021. High Frequency Structure Simulator (HFSS

2021) software. In ANSYS Electronics Solutions.

ANSYS.

Li, D., & Mao, J. F. (2012). A Koch-like sided fractal bow-

tie dipole antenna. IEEE Transactions on antennas and

propagation, 60(5), 2242-2251.

Tasouji, N., Nourinia, J., Ghobadi, C., & Tofigh, F. (2013).

A novel printed UWB slot antenna with reconfigurable

band-notch characteristics. IEEE Antennas and

wireless propagation letters, 12, 922-925.

Liu, Y. Y., & Tu, Z. H. (2016). Compact differential band-

notched stepped-slot UWB-MIMO antenna with

common-mode suppression. IEEE Antennas and

Wireless Propagation Letters, 16, 593-596.

Li, Z., Zhu, X., & Zhang, J. (2018, June). Compact dual

polarized MIMO antenna for UWB communication

applications. In 2018 8th International Conference on

Electronics Information and Emergency

Communication (ICEIEC) (pp. 44-46). IEEE.

Hussain, R., & Sharawi, M. S. (2017, July). Frequency

reconfigurable MIMO slot and UWB sensing antennas

for CR applications. In 2017 IEEE International

Symposium on Antennas and Propagation &

USNC/URSI National Radio Science Meeting (pp.

1693-1694). IEEE.

Ibrahim, A. A., Abdalla, M. A., & Volakis, J. L. (2017,

July). 4 elements UWB MIMO antenna for wireless

applications. In 2017 IEEE International Symposium

on Antennas and Propagation & USNC/URSI National

Radio Science Meeting (pp. 1651-1652). IEEE

Li, Y., Yang, H., Cheng, H., Wu, J., Yang, Y., Li, S., ... &

Zhang, A. (2023). Design and analysis of metasurface-

based CPW-Fed UWB MIMO antenna for wireless

communication systems. Physica Scripta, 98(9),

095510.

Kumar, P., Pathan, S., Vincent, S., Kumar, O. P.,

Yashwanth, N., Kumar, P., ... & Ali, T. (2022). A

A UWB-Speciﬁc Metasurface-Inspired MIMO Antenna with Enhanced Isolation and Gain

compact quad-port UWB MIMO antenna with

improved isolation using a novel mesh-like decoupling

structure and unique DGS. IEEE transactions on

circuits and systems II: Express briefs, 70(3), 949-953.

Pandey, R., Biswas, A. K., & Chakraborty, U. (2024).

Compact body‐worn MIMO antenna with high port

isolation for UWB applications. International Journal

of Communication Systems, 37(9), e5764.

Wang, L., Li, Z., & Zheng, H. (2023). Investigation of

Parallel and Orthogonal MIMO Antennas with Two-

Notched Structures for Ultra-Wideband

Application. Micromachines, 14(7), 1406.

Saxena, G., Kumar, S., Chintakindi, S., Al-Tamim, A.,

Abidi, M. H., Saif, W. A. M., ... & Awasthi, Y. K.

(2023). Metasurface instrumented high gain and low

RCS X-band circularly polarized MIMO antenna for

IoT over satellite application. IEEE Transactions on

Instrumentation and Measurement, 72, 1-10.

IC3Com 2024 - International Conference on Cognitive & Cloud Computing
