Side-Channel Analysis for Malicious Activity Detection Using Deep

Learning Techniques

Devajit Das

, Manash Pratim Lahkar

, Abhijit Gogor

and Debojit Boro

Department of Computer Science and Engineering, Tezpur University, Tezpur, Assam, India

Department of Computer Science and Engineering, Dibrugarh University, Assam, India

Keywords: Malware Detection, Side-Channel Analysis, Machine Learning, Deep Learning.

Abstract: The continued existence of malicious software constitutes a significant threat to network systems. This

necessitates the urgent need for the development of robust detection mechanisms. The rapid development of

malware variants frequently makes it challenging for traditional signature-based detection techniques. It has

been found that side-channel analysis of physical systems can disclose sensitive data, including the secret key

used for encryption, software activities, cryptographic operations, time-based features of the system, and data

processing patterns. The side-channel analysis involves obtaining data via unintentional leakage channels from

the physical system. The leakage channel may contain electromagnetic radiation, power consumption, timing

information, acoustic emissions, cache access patterns, and other side-channel leakage from hardware. In this

work, we employ deep-learning techniques with side-channel leakage from the hardware for identifying

malicious activities within a system. We demonstrate the effectiveness of our technique by deploying deep

neural networks for feature extraction and to recognize complicated correlations within data, specifically using

Bidirectional Long Short-Term Memory (BiLSTM) networks. The findings of our experiments demonstrate

the accuracy with which recurrent neural networks classify malware instances. We achieved 95.97%, 95.08%,

and 92.46% accuracy, recall, and precision, respectively. Furthermore, we carried out real-time malware de-

tection experiments to test our strategy for protecting systems from cyber threats.

INTRODUCTION

The widespread existence of malicious software cre-

ates a serious risk to network security and integrity in

today’s digital world. Attackers can employ mal-

ware to gain unauthorized access, steal sensitive

information, disrupt operations, extort money, and

achieve various malicious goals (Tsalis et al., 2019;

Dutta et al., 2022; Alsmadi and Alqudah, 2021). A

key aspect of cybersecurity involves the detection

malware, as cyberattacks are becoming more fre-

quent and advanced. Due to the limitations of tradi-

tional signature-based methods in identifying evolv-

ing threats, new and promising solutions for detect-

ing malware have emerged (Islam and Shin, 2023;

Abusitta et al., 2021). Advanced deep learning tech-

niques combined with side-channel analysis could be

a viable solution for improving security in a physical

https://orcid.org/0000-0002-4051-6410

https://orcid.org/0009-0008-7244-1653

https://orcid.org/0009-0000-4849-8264

https://orcid.org/0000-0001-5512-0913

system (Yuan and Wu, 2021). Side-channel analy- sis

is extracting sensitive information, such as secret

keys utilized in the encryption process, passwords,

and software activities, from unintended channels of

physical systems (Hospodar et al., 2011; Xiao et al.,

2019). These unintentional channels can comprise the

power consumption of the physical system, electro-

magnetic radiation released by the device itself, and

side-channel leakage from the hardware that occurs

while the system is in use. Exploiting side channel

leakage from the hardware might be a good way to

sniff out malware. It allows harmful activities to be

identified without needing access to the actual code

(Maxwell et al., 2021). It is an unintentional means of

leaking information from hardware peripherals such

as fan speeds, core temperatures and memory usage.

The processing and analyzing of large volumes of

complex data has become more and deep learning is

Das, D., Lahkar, M. P., Gogor, A. and Boro, D.

Side-Channel Analysis for Malicious Activity Detection Using Deep Learning Techniques.

DOI: 10.5220/0013345500004646

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Cognitive & Cloud Computing (IC3Com 2024), pages 123-129

ISBN: 978-989-758-739-9

123

increasingly employed in artificial intelligence. Cer-

tain neurons in deep neural networks are good fea-

ture extractors and capable of grasping the relation-

ships between complex variables. As a result, they

might be applied to identify tiny, non-linear patterns

in side-channel data that indicate malicious behavior

(Perin et al., 2022). It could be possible to more accu-

rately identify and stop harmful behaviour by leverag-

ing deep learning techniques for side-channel analy-

sis (Jin et al., 2020; Song et al., 2019). Consequently,

deep learning algorithms with side-channel analysis

can discern patterns and irregularities in the physical

system which might suggest malware or other perni-

cious activities are present (Song et al., 2019). Deep

learning in combination with feature selection tech-

niques can differentiate malware from normal benign

activity accurately (Alomari et al., 2023). The most

popular features to consider when analyzing such data

seems naturally fit for deep learning as it is able do

feature extraction and complex pattern detection

automatically.

Our primary goal in this research is to provide the

detection of malicious activities on computer systems

that are based on side-channel analysis and using ad-

vanced deep learning algorithms. In a brief, this work

makes the following contributions:

•

Preprocessing and training on public dataset with

various side-channel data from the hardware to

learn model weights for smooth learning.

•

Integrating the learned model seamlessly into ex-

isting malware detection systems while ensuring

compatibility and optimizing resource usage.

•

Carried out extensive testing to evaluate the in-

tegrated model in the malware detection system,

gaining valuable insights into its effectiveness.

The paper is arranged as follows: Section II pro- vides

an overview of relevant work in side-channel analysis

and malware detection. Section III presents our

dataset and methodology detailing the integra- tion of

side-channel analysis with deep learning tech- niques.

We state the experimental setup in Section IV. In

Section V, we describe the techniques and tests we

conducted to evaluate our approach’s effectiveness in

identifying malicious activities. Section VI con-

cludes by outlining possible fields of investigation,

discussing future work, and offering conclusions.

This abbreviations in Table 1 provides a quick ref-

erence for understanding the symbols used through-

out the paper.

RELATED WORK

The related work focuses on integrating deep learning

techniques with side-channel analysis to infer differ-

ent software activities and malicious behaviour from

Table 1: Abbreviations and their Meanings.

Abbreviation Description

RNN Recurrent Neural Network

CAN Controller Area Network

CNN Convolutional Neural Network

MLP Multi-Layer Perceptron

IDS Intrusion Detection System

CART Classification and Regression Trees

F1 Score Harmonic mean of precision and recall

HWiNFO64 System information capture tool

ED BiLSTM Encoder Decoder Bidirectional LSTM

HFSS High-Frequency Structure Simulator

EMSCA Electromagnetic Side-channel Attack

D Dataset

Preprocess(D) Preprocessing of dataset

train

Training dataset

test

Testing dataset

Model with different parameters

L Loss function

Metrics(M

, D

test

) Performance metrics

best

Best performing model

S System

Inject(S, Malware) Injection of malware into system

HWiNFO64 Application for information capture

Detect(M

best

, HWiNFO64) Detection of malware using best model

Time

detection

Time from malware injection to

detection

physical systems. The literature has a significant

number of publications on side-channel analysis for

inferring sensitive information that detects malware

and other harmful activities utilizing deep learning al-

gorithms.

Rastogi et al. (Rastogi and Kavun, 2021) explored

deep learning methods for side-channel analysis on

AES datasets from both hardware and software plat-

forms, including MLP, CNN, and RNN. Their study

focused on evaluating the performance of these mod-

els for secret key recovery and optimizing attack per-

formance when it comes to computation time and

SCA efficiency. They found CNNs to be more ef-

fective for analyzing software implementations, while

MLPs were better suited for hardware implementa-

tions of cryptographic algorithms. Haider et al. (Khan

et al., 2019) proposed distinct electromagnetic side-

channel signals monitoring solutions for crucial elec-

tronic and cyber-physical systems. They trained a

neural network model using electromagnetic emis-

sions from an uninfected device to produced normal

activity patterns. They monitored the target device’s

electromagnetic emanations remotely to detect devi-

ations indicating anomalous behavior. The system

successfully detected DDoS, and ransomware attacks

with high precision in practical evaluations on differ-

ent devices, showcasing the adaptability of the frame-

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

124

work. Xun et al. (Xun et al., 2023) created an IDS

utilizing vehicle voltage signals to protect the secu-

rity of the CAN bus in intelligent connected vehi-

cles. They utilized a hybrid FeatureBagging-CNN

model to detect malicious intrusion without developer

documentation. Gao et al. (Gao et al., 2024) de-

signed a novel hardware trojan detection model con-

verting one-dimensional signals into two-dimensional

data to utilize frequency information in time-series

signals. They enhanced hardware trojan detection

using an improved ConvNeXt network, effectively

distinguishing and classifying different types of tro-

jan while improving accuracy, recall, F1-score, and

precision values. Maxwell et al. (Maxwell et al.,

2021) demonstrated the effectiveness of side-channel

information in detecting malware presence on com-

puting platforms. They achieved malware detection

accuracy exceeding 91% with a basic MLP model,

95.83% with a CNN model, and 90.91% with an RNN

model. Stergiopoulos et al. (Stergiopoulos et al.,

2018) introduced a machine learning-based network

traffic monitoring system that analyses TCP/IP packet

side-channel characteristics. Their solution achieves

a true positive detection rate of about 94% for differ-

entiating between harmful and regular traffic across a

wide spectrum of threats, successfully separating le-

gitimate traffic from various forms of malicious ac-

tivities. It is noticeable that on full-scale mixed forms

of harmful data, machine learning methods such as

CART and KNN obtained detection rates of 94.2%

and 93.4%, respectively. Sayakkara et al. (Sayakkara

et al., 2020) presented a system for activity identifica-

tion in forensic investigations that uses several filter-

ing techniques and machine learning algorithms to lo-

cate leaky frequency channels from high-dimensional

electromagnetic data. The method narrows 20,000

channels to 81 for real-time analysis. The accuracy

of activity prediction ranged from 0.9047 to 0.9395.

Ghosh et al. (Ghosh et al., 2022) proposed an An- sys

HFSS-based simulation framework for EM anal- ysis

of an integrated on-chip sensor to identify EM- SCA

and FIA (fault injection attacks). A simple ap- proach

for detecting incoming H-probes is also de- scribed,

which involves taking the absolute average of the

induced voltage for each encryption. Sayakkara et al.

(Sayakkara et al., 2019) used deep neural network-

based classifiers to classify cryptographic encryptions

on a Raspberry Pi 4 with above 95% accuracy, utiliz-

ing electromagnetic side-channel analysis.

This related work demonstrates a clear emphasis

on integrating side-channel analysis combined with

https://ieee-dataport.org/documents/side-channel-data-

malware-intrusion-detection

deep learning techniques to identify various soft-

ware activities and detect malicious activity, includ-

ing malware. Several studies explore electromag-

netic side-channel analysis, deep neural networks,

corporating deep learning for side-channel analysis

has several challenges, including data diversity, sys-

tem integration, and adversarial robustness. In this

work, we use multiple side-channel hardware sources

to detect malware.

DATASET & METHODOLOGY

3.1

Dataset

The dataset utilized in this study was obtained from

IEEEDataPort (Maxwell et al., 2020), comprising

data collected by the HWiNFO real-time monitoring

tool (hwi, ). HWiNFO offers detailed hardware per-

formance metrics, such as memory load, core fre-

quencies, and usage percentages. Two samples were

taken every second during the data recording and

then saved in CSV format. This dataset includes 57

samples: 29 malware and 28 benign. Each sample

consists of an eight-minute time-series output gen-

erated from HWiNFO captures. Samples were col-

lected from six distinct hardware PCs running the

Windows operating system on VMWare/VirtualBox

virtual machines. To ensure diversity in the dataset,

malware samples were collected randomly at inter-

vals of 90, 120, or 150 seconds. The benign soft-

ware operations simulated regular system behavior

before executing the malware. Samples were la-

beled to denote machine status and indicate benign

or malicious activity. Each file follows a naming

convention facilitating future research such as inves-

tigating model transferability. Malware categories

include ransomware, worms, trojan backdoors, spy-

ware, viruses, and rootkits. Benign samples mimic

routine software activities like web browsing, docu-

ment editing, gaming, and system maintenance. The

dataset comprises two folders: ”data raw” containing

original captures and ”data blend” with standardized

features derived from an inner join across all samples.

The latter ensures uniform feature representation fa-

cilitating classification tasks with 122 common fea-

tures and six label-type features.

3.2

Methodology

We initially obtained a dataset

called side-channel

Side-Channel Analysis for Malicious Activity Detection Using Deep Learning Techniques

125

data for malware detection from IEEEDataPort. Let

this dataset be D and it is subjected to preprocess-

ing techniques including data cleaning and column

and other machine-learning algorithms to classify

cryptographic encryptions, recover secret keys, and

identify anomalies in system behavior. However, in-

removal denoted as Preprocess(D). Two sets of pre-

processed data were created: training D

train

and test-

ing D

test

sets. Various models M

were trained using

train

, where i represents different architectures and

parameters such as BiLSTM and CNN. Model pa-

rameters are optimized during training to minimize a

loss function L, defined as L(M

, D

train

). After train-

ing, the models were tested on D

test

to see how ef-

fectively they performed in terms of accuracy, pre-

cision, recall, and F1-score, which are expressed as

Metrics(M

, D

test

). A comparative analysis was car-

ried out to determine the model M

best

with the highest

performance metrics. Subsequently, a system S was

developed based on the specifications consistent with

the dataset creation. The system was then subjected

to malware injection. We acquired the malware code

from “theZoo repository” on GitHub

(Nativ, ). This

is denoted as Inject(S, Malware), and dynamic infor-

mation from the HWiNFO64 application was fed into

the trained model M

best

in real-time, represented as

Detect(M

best

, HWiNFO64), to detect malware pres-

ence. The time elapsed from malware injection to de-

tection by the model M

best

was recorded for further

analysis. It is denoted as Time

detection

. This method-

ology is depicted in Figure 1 and Algorithm 1.

Training Module

Testing Module

Figure 1: Methodology.

EXPERIMENTAL SETUP

The experimental setup consists of various hardware

and software components to assess the efficacy of our

suggested technique for identifying malicious activity

in computer systems. Below are the details of the

https://github.com/ytisf/theZoo

system that was employed in the experiments:

•

Operating System: Windows

Algorithm 1 Malware Detection Methodology

Step 1: Obtain dataset D from IEEEDataPort

Step 2: Preprocess dataset: D

clean

←

Preprocess(D)

Step 3: Divide the dataset into sets for testing

and training:

train

, D

test

← Split(D

clean

)

Step 4: For each model M

Train model: M

← Train(M

train

)

Evaluate model:

Metrics(M

, D

test

)

Step 5: Select best

model:

best

← SelectBestModel(M

, M

, ..., M

)

Step 6: Develop system: S ← DevelopSystem()

Step 7: Inject malware into system:

Inject(S, Malware)

10:

Step 8: Monitor system using HWiNFO64:

Monitor(S, HWiNFO64)

11:

Step 9: Detect malware using best model:

Detect(M

best

, HWiNFO64)

12:

Step 10: Record time to detection:

Time

detection

•

Processor: Intel Core i7-9700 @ 3.00GHz

•

Storage: 512GB SSD

•

Memory: 32GB DDR4 RAM

•

Graphics Processing Unit (GPU):

NVIDIA GeForce GTX 1080

Table 2: Specifications of the Virtual Machine Setup

Component Specifications

Virtualization Software Oracle VM VirtualBox

VM Operating System Ubuntu 20.04 LTS

VM Resources Processor: 4 virtual CPUs

Memory: 16GB

Storage: 100GB virtual disk

GPU: Integrated with host GPU for

accelerated performance

We used a virtual machine (VM) configuration

with specifications listed in Table 2 to ensure iso-

lated experiments and realistic environment simula-

tion. The development, training, and assessment of

our deep learning models were facilitated by the fol-

lowing software tools and libraries, as indicated in Ta-

ble 3:

Training set

Model 1

Model 2

Model 3

Test set

Model n

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

126

EXPERIMENTS AND RESULTS

This section outlines the experimental procedures

used to assess the effectiveness of our proposed

method for detecting malicious activity on computer

systems. We present an extensive description of the

model architecture and parameter setup that we em-

ployed in this research. The dataset utilized in our

research was sourced from the IEEEDataPort reposi-

tory ensuring accessibility and transparency. To pre-

pare for testing and training, we divided the dataset

into different subgroups. We used a stratified split-

ting strategy to maintain a balanced distribution of

normal and anomalous instances. We conducted ex-

periments using multiple models, such as BiLSTM,

CNNs, and RNNs, to determine how effectively dif-

ferent deep learning algorithms performed in identi-

fying malicious activities. Our main goal was to de-

termine the model architecture that could best capture

complex patterns indicative of malicious behavior.

Table 3: Software Tools and Libraries

Software Tools Description

Python 3.8 Primary programming language used for model

implementation. It is widely used in machine

learning, data science, and general-purpose pro-

gramming.

TensorFlow 2.4 Deep learning framework employed for con-

structing and training BiLSTM, CNN, and RNN

models. It supports GPU acceleration for faster

computation.

Keras High-level neural network API running on Ten-

sorFlow, utilized for defining and training model

architectures.

It simplifies the model-building

process.

NVIDIA CUDA 11.1 Parallel computing platform and programming

model that leverages GPU capabilities for model

training. It helps in utilizing hardware accelera-

tion for deep learning models.

cuDNN 8.0 GPU-accelerated library for deep neural net-

works, integrated with TensorFlow to enhance

performance. It accelerates deep learning oper-

ations.

HWiNFO Real-time monitoring tool used to capture de-

tailed system information during experiments. It

provides insights into hardware performance and

usage.

Among the architectures evaluated the BiLSTM

model emerged as the most promising choice because

of its inherent ability to capture temporal dependen-

cies and bidirectional context information. This archi-

tecture proved particularly adept at discerning subtle

anomalies within sequential data that make it appro-

priate for our detection task. The BiLSTM model was

configured with 256 LSTM units to ensure sufficient

representational capacity for capturing the intricacy of

the input data. To improve generalised performance

and reduce overfitting, 0.2 dropout layers were added.

A total of 200 epochs and a batch size of 128 samples

per iteration were used to train the BiLSTM model.

This training regimen facilitated gradual learning and

convergence toward an optimal solution.

Table 4: Comparison of Model Results with baseline

Model Accuracy Recall

Precision F1 Scor

BiLSTM 95.97% 95.08% 92.46% 93.75%

93.49% 93% 94% 93%

MLP 50.9% 51.2% 49.45% 50.17%

ED BiLSTM 93.78% 96.32% 91.47% 93.83%

Maxwell 95.83% 93.9% 91.84% 92.68%

Table 4 depicts the comparison of model results with

different models, and it indicates that the BiL- STM

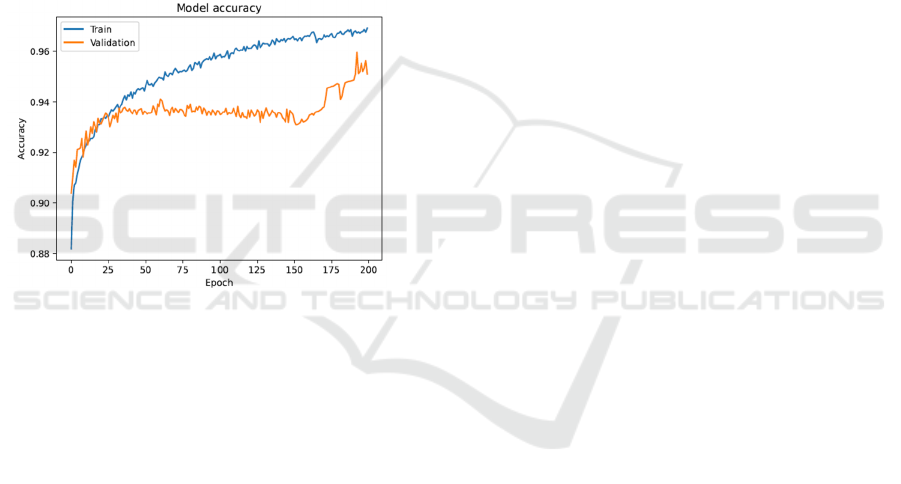

model achieved the highest accuracy of 95.97%. The

training and testing accuracy of the model is de-

picted in Figure 2. Having a recall rate of 95.08%,

the model confirmed its ability to classify the posi-

tive cases properly. It means that among all real posi-

tive instances, the model was able to identify 95.08%.

Moreover, the model had a precision of 92.46% and

was able to identify 92.46% of all predicted positive

instances. The F1 score of 93.75% shows a harmonic

mean between precision and recall which gives rea-

sonable performance for both of the indexes. In com-

parison, the RNN model had an accuracy value of

93.49% along with a recall rate 93% and precision of

94%.Even though this one is lower accurate that the

BiLSTM model, the RNN model displayed more

balanced performance in recall and precision and had

an F1 score of 93%. However, the MLP shows much

lower results compared to the recurrent models by all

measures. As most of the instances were inaccurately

classified, the accuracy percentage was 50.9%, and

both recall and precision were compromised at 51.2%

and 49.45%, respectively. This resulted in a low F1

score of 50.19%. Finally, the ED BiLSTM model per-

formed at 93.78% accuracy, with an impressive recall

of 96.32% and precision of 91.47%. The results more

effectively represent the ability of the model to locate

positive instances in the data set rather than minimize

false positives. As a result, it obtained an F1 score of

93.83% maintaining a balanced performance between

recall and precision. Overall, the evaluation results in-

dicate the superiority of recurrent models particularly

BiLSTM and ED BiLSTM in accurately classifying

instances compared to the MLP model. These find-

ings emphasize the potential benefits of RNNs.

Once our models were trained, and we identified the

best performing model, BiLSTM, we proceeded to

test its capabilities of real-time malware detec- tion.

We wanted to do it under realistic conditions, so we

Side-Channel Analysis for Malicious Activity Detection Using Deep Learning Techniques

127

created a system exactly identical to the sys- tems

which were used to create the dataset, including the

non-malware system and running services. After that

we mimicked the infection by running the mal- ware

on the system and using the model towards it. We also

obtained detailed information about the sys- tem, i.g.

hardware and software components used, via

HWiNFO64 and also fed this into our trained system

to provide it with context. The model detected that a

malware was run on the system in only 56 seconds.

As a result, we would like to note that our trained

model has practical use in protecting systems from

malicious software threats. In addition, our model

outperformed Maxwell’s work (Maxwell et al., 2021),

which stated an accuracy of 95.83%. In contrast, our

model performed slightly better at identifying mali-

cious activity, with an accuracy of 95.97%.

Figure 2: Training and testing accuracy.

CONCLUSIONS AND FUTURE

WORK

In conclusion, our experimental methodology in-

volved evaluating various deep learning architectures

for the detection of malicious activity within

computer systems. Through rigorous experimentation

and model evaluation, we identified the BiLSTM

model as the most effective in accurately classifying

instances of malware with a high accuracy of 95.97%,

recall rate of 95.08%, precision of 92.46%, and F1

score of 93.75%. The results obtained underscore the

significance of utilizing recurrent neural networks

particularly BiLSTM in handling sequential data and

capturing complex patterns indicative of malicious

behavior. Moreover, our real-time malware detection

experiment further validates the practical utility of the

BiLSTM model in safeguarding systems against

cyber threats.

In the future, our goal is to investigate more

characteristics and data sources to enhance the

function- ality and resilience of our detection system.

This in- cludes incorporating dynamic behavioral

analysis and network traffic data to improve

detection accuracy and resilience against evolving

malware variants. Ad- ditionally, we plan to

investigate techniques for enhancing the real-time

detection speed and scalability of our model ensuring

its effectiveness in large-scale deployment scenarios.

ACKNOWLEDGMENT

The authors are so grateful to the Department of Com-

puter Science and Engineering at Tezpur University

for providing us with the laboratory resources re-

quired to carry out our study.

REFERENCES

HWiNFO - free system information, monitoring and diag-

nostics. HWiNFO. April, 2020.

Abusitta, A., Li, M. Q., and Fung, B. C. (2021). Malware

classification and composition analysis: A survey of

recent developments. Journal of Information Security

and Applications, 59:102828.

Alomari, E. S., Nuiaa, R. R., Alyasseri, Z. A. A.,

Mohammed, H. J., Sani, N. S., Esa, M. I., and Musawi,

B. A. (2023). Malware detection using deep learn- ing

and correlation-based feature selection. Symmetry,

15(1):123.

Alsmadi, T. and Alqudah, N. (2021). A survey on mal-

ware detection techniques. In 2021 international con-

ference on information technology (ICIT), pages 371–

376. IEEE.

Dutta, N., Jadav, N., Tanwar, S., Sarma, H. K. D., Pricop,

E., Dutta, N., Jadav, N., Tanwar, S., Sarma, H. K. D.,

and Pricop, E. (2022). Introduction to malware analy-

sis. Cyber Security: Issues and Current Trends, pages

129–141.

Gao, Y., Su, J., Li, J., Wang, S., and Li, C. (2024).

neural network framework based on convnext for side-

channel hardware trojan detection. ETRI Journal.

Ghosh, A., Nath, M., Das, D., Ghosh, S., and Sen, S. (2022).

Electromagnetic analysis of integrated on- chip sensing

loop for side-channel and fault-injection attack

detection. IEEE Microwave and Wireless Com- ponents

Letters, 32(6):784–787.

Hospodar, G., Gierlichs, B., De Mulder, E., Verbauwhede,

I., and Vandewalle, J. (2011). Machine learning in side-

channel analysis: a first study. Journal of Cryp-

tographic Engineering, 1(4):293–302.

Islam, N. and Shin, S. (2023). Review of deep learning-

based malware detection for android and windows

system. arXiv preprint arXiv:2307.01494.

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

128

Jin, S., Kim, S., Kim, H., and Hong, S. (2020). Recent ad-

vances in deep learning-based side-channel analysis.

Etri Journal, 42(2):292–304.

Khan, H. A., Sehatbakhsh, N., Nguyen, L. N., Prvulovic,

M., and Zajic´, A. (2019). Malware detection in em-

bedded systems using neural network model for

electromagnetic side-channel signals. Journal of Hard-

ware and Systems Security, 3:305–318.

Maxwell, P., Niblick, D., and Ruiz, D. (2020). Side channel

data for malware intrusion detection. IEEE DataPort.

Nov. 25, 2020.

Maxwell, P., Niblick, D., and Ruiz, D. C. (2021). Using

side channel information and artificial intelligence for

malware detection. In 2021 IEEE International Con-

ference on Artificial Intelligence and Computer Appli-

cations (ICAICA), pages 408–413. IEEE.

Nativ, Y. T. Thezoo. April 2024. Perin, G., Wu, L., and

Picek, S. (2022). Explor- ing feature selection

scenarios for deep learning- based side-channel

analysis.

IACR Transactions on Cryptographic

Hardware and Embedded Systems, 2022(4):828–861.

Rastogi, T. S. and Kavun, E. B. (2021). Deep learning tech-

niques for side-channel analysis on aes datasets col-

lected from hardware and software platforms. In

International Conference on Embedded Computer Sys-

tems, pages 300–316. Springer.

Sayakkara, A., Le-Khac, N.-A., and Scanlon, M. (2019).

Leveraging electromagnetic side-channel analysis for

the investigation of IoT devices. Digital Investigation,

29:S94–S103.

Sayakkara, A., Miralles-Pechua´n, L., Le-Khac, N.-A., and

Scanlon, M. (2020). Cutting through the emissions:

feature selection from electromagnetic side-channel

data for activity detection. Forensic Science Interna-

tional: Digital Investigation, 32:300927.

Song, S., Chen, K., and Zhang, Y. (2019). Overview of side

channel cipher analysis based on deep learning. In

Journal of Physics: Conference Series, volume 1213,

page 022013. IOP Publishing.

Stergiopoulos, G., Talavari, A., Bitsikas, E., and Gritza- lis,

D. (2018). Automatic detection of various mali- cious

traffic using side channel features on tcp pack- ets. In

Computer Security: 23rd European Symposium on

Research in Computer Security, ESORICS 2018,

Barcelona, Spain, September 3-7, 2018, Proceedings,

Part I 23, pages 346–362. Springer.

Tsalis, N., Vasilellis, E., Mentzelioti, D., and Apostolopou-

los, T. (2019). A taxonomy of side channel attacks on

critical infrastructures and relevant systems. Critical

Infrastructure Security and Resilience: Theories,

Methods, Tools and Technologies, pages 283–313.

Xiao, Y., Jia, Y., Liu, C., Cheng, X., Yu, J., and Lv, W.

(2019). Edge computing security: State of the art and

challenges. Proceedings of the IEEE, 107(8):1608–

1631.

Xun, Y., Deng, Z., Liu, J., and Zhao, Y. (2023). Side chan-

nel analysis: A novel intrusion detection system based

on vehicle voltage signals. IEEE Transactions on Ve-

hicular Technology, 72(6):7240–7250.

Yuan, S. and Wu, X. (2021). Deep learning for insider

threat detection: Review, challenges and opportunities.

Computers & Security, 104:102221.

Side-Channel Analysis for Malicious Activity Detection Using Deep Learning Techniques

129
