Optimizing Storage Efficiency in Hadoop Distribution File System

Through Data Deduplication

Amrita Raj

and Dr. G. Uma Devi

University of Engineering and Management, Jaipur, India

Keywords: Data Deduplication, Hadoop Cluster, Hadoop Ecosystem.

Abstract: The exponential growth of data in modern computing environments poses significant challenges in managing

storage resources efficiently. This study addresses the optimization of storage efficiency in the HDFS through

strategic utilization of data deduplication process. The primary objective is to improve the overall

performance and cost- effectiveness of Hadoop clusters by minimizing storage requirements and maximizing

data accessibility. The proposed approach involves the implementation of data deduplication strategies to

eliminate redundant copies of information, thereby reducing the overall storage footprint. This research

addresses the challenges of managing large datasets in distributed environments, aiming to streamline data

storage, minimize redundancy, and mitigate network traffic. Through data deduplication the study seeks to

provide a comprehensive approach to optimizing storage resources within the Hadoop ecosystem.

1 INTRODUCTION

The era of big data, where large volumes of data are

flooded into organizations from various sources,

efficient storage management is paramount. The

Hadoop Distribution File System has emerged as a

cornerstone for storing and processing massive

datasets across distributed clusters of commodity

hardware. However, as data volumes continue to

escalate, optimizing storage efficiency becomes

imperative to mitigate costs and enhance

performance. One promising approach to address the

challenge of storage optimization within Through

data deduplication, HDFS operates. The goal of data

deduplication is to remove unnecessary duplicates of

data, thereby reducing storage requirements, and

improving overall efficiency. Eighty percent of

respondents to a recent IDC study predicted that the

amount of data that must be evaluated will

significantly expand over the next 24 months in the

form of GIFs, films, sensors, and more media. In fact,

by 2025, IDC projects that global data volumes would

have increased by 175 zeta bytes. Since this space is

quite expensive for both home users and software

companies, it presents a significant challenge for

efficiently storing such massive volumes of data.

https://orcid.org/0009-0007-1584-6999

https://orcid.org/0000-0001-8297-8392

Additionally, deduplication tests carried out by

Google, IBM, Microsoft, and other corporations

revealed that nearly 75% of digital data is redundant.

Since all users maintain several replications of their

data at different locations because they wish to keep

their data safe and secure. Since the data must be

extremely secure and consistent, incremental backups

of the data may also be the cause of data redundancy.

Consequently, to overcome the problem of replication

which means duplicate data, a very efficient and

successful technique for addressing the difficulties of

freeing up storage space is data deduplication. In

many of area, techniques of data deduplication play a

crucial role. In latest times, these techniques have

been working on the storage. Niteesha Sharma, A. V.

Krishna Prasad, V. Kakulapati [2] have highlighted

the challenges posed by the exponential expansion of

unstructured electronic data, emphasizing the impact

on data analysis and storage systems. It underscores

the financial importance of deduplication as a

capacity optimization technique, addressing

redundancy in backup systems. The review covers

types and techniques of data deduplication, with a

focus on approaches proposed by researchers in the

context of Big Data storage. The study concludes by

highlighting the ongoing challenges and outlining

Raj, A. and Devi, G. U.

Optimizing Storage Efﬁciency in Hadoop Distribution File System Through Data Deduplication.

DOI: 10.5220/0013398600004646

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 1st International Conference on Cognitive & Cloud Computing (IC3Com 2024), pages 13-19

ISBN: 978-989-758-739-9

future, including the application of k-means

clustering and nature-inspired algorithms for more

efficient deduplication in HDFS.[2]

Naresh Kumar, Preeti Malik, Sonam Bhardwaj,

S.C. Jain [3] have proposed a novel data

deduplication approach integrating HDFS with MD5

hash value generation. The technique identifies

identical data chunks, eliminating redundancy by

generating 128-bit hash codes stored in buckets for

rapid retrieval. Mapper and Reducer elements in the

Hadoop framework enable parallel data processing.

Traditional deduplication methods struggle with

extensive data, affecting storage efficiency and time

management. The proposed MD5-based approach

demonstrates reduced time consumption, increased

storage space savings, higher deduplication ratios,

and efficient detection of duplicate files in real

datasets within the Hadoop framework. The method

enhances storage efficiency by eliminating redundant

files and utilizing a bucket approach for indexing

unique hash values.

Boafft is a distributed deduplication cloud storage

technology that solves issues with data center data

transportation and storage capacity. By using

numerous data servers for parallel deduplication with

little loss of deduplication ratio, Boafft reaches the

capacity and scalable throughput. Using a hot

fingerprint cache based on the frequency, inside the

memory similar indexing in each data server , and

data routing algorithm based on same data,

performance is optimized. In a prototype

implementation of HDFS, a comparative examination

against EMC's state the algorithm of routing which

discloses the Boafft's greater deduplication ratio,

lower network bandwidth overhead, increased

storage space use, and better load balance.[10] the

challenges of storing small files in HDFS, which

leads to excessive metadata and name node memory

bottlenecks. The proposed MBDC algorithm

optimizes HDFS storage efficiency for small files by

considering file distribution and correlation. MBDC

reduces the number of HDFS blocks, making related

files closer.[14] The challenges of handling small

files in HDFS within cloud storage, where the

performance degrades due to many small files. It

introduces optimized strategies, including replication

algorithms (HAR and sequence File), merging

algorithms, replica placement algorithms, and SSF

techniques such as FMP and SSF-FMP with three-

level prefetching-catching technology. These

strategies effectively increase access and storage

efficiency for small files, reducing the time spent on

reading and writing when requested by clients in

HDFS.[15]

2 PROPOSED METHODOLOGY

Our proposed methods aim to enhance storage

efficiency by implementing a robust data

deduplication mechanism within the HDFS

2.1 Data Deduplication Process

By storing a single instance of the data, this strategy

eliminates duplicate data. The findings and removing

duplicate data from cloud storage is the primary goal

of deduplication.

Some advantages of data deduplication are:

 The space of the storage is reduced

 The network traffic is prevented

The following techniques are covered here, which

are necessary for the data deduplication process:

 Data Chunking: It is a technique often used in

data deduplication pro- cesses to enhance

efficiency and reduce storage requirements. It

involves breaking up large amounts of data into

smaller, more digestible pieces, or chunks. This

is an explanation of data chunking's function in

data deduplication.

 MD5 Algorithm: The MD5 is a algorithm of

message-digest that was created by R. Rivest in

1991 the MD5 algorithm creates a unique 32-

character hexadecimal hash for a 512-bit input

block, making it a reliable method for

identifying duplicates. This architecture finds

and eliminates duplicate data blocks across a

distributed file system, saving storage space

and enhancing system performance MD5

hashing.

MD5 algorithm is a 5 steps process:[3]

Step 1 Appending Padding Bits: The initial message

is padded or stretched so the length which is in bits

equals 448, modulo 512. As per the requirements for

padding, document margins must be the following:

 One bit ("1") is always used for the initial

original message.

 After that, the message is padded with zeros or

extra "0" bits to make it 64 bits long but not

longer than a several of 512.

Step 2 Appending Length: The padded message has

64 bits tacked till the end to show the initial message

length in bytes. The following are the appended

length rules: document margins must be the

following:

 Converting the message's original length

(measured in bytes) into its 64-bit binary

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

representation. If an overflow occurs, only the

last or- der of 64 bits is utilized.

 Dividing the length of 64-bit into two words,

each comprising 32 bits.

 Last order words are appended first, followed

by first order words.

Step 3 Initializing MD Buffer: The technique

requires a 128-bit buffer with a predefined beginning

value. The initializing buffer rules are made up of the

four words A, B, C, and D in the buffer, each of which

has 32 bits.

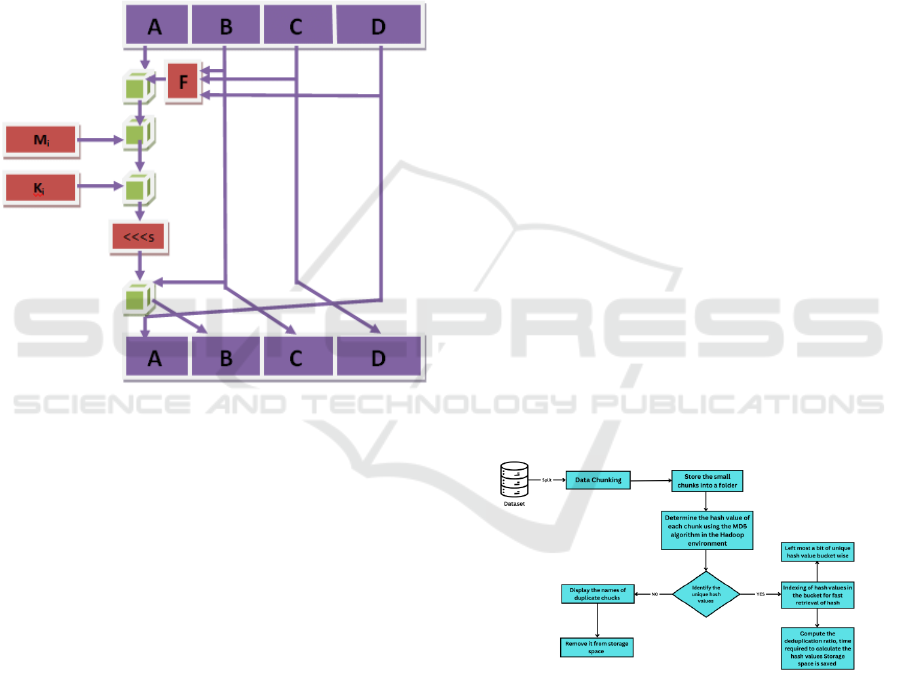

Figure 1: Single Step of MD5.

Step 4 Processing Message in 512-bit Blocks: The

primary and most crucial step of the MD5 algorithm.

The appended and padded message is cycled through

in units of 512 bits apiece. There are four rounds of

operations for every input, incorporating every

sixteen operations.

Step 5 Output: The materials of buffer words A, B,

C, and D are back, with their last order byte coming

first in the sequence.

2.2 Proposed Algorithm

Data Processing and Storage in HDFS

Input: A file provided by the user.

Output: No output or data saved in HDFS.

While data is being accepted

Retrieve the data (any format)

If the data size exceeds

available storage space

Notify the user that

the request to save the

data is denied

Else

Divide the data into

multiple blocks.

Optimize the data to

save space.

Calculate the message

digest using MD5 in a

distributed MapReduce

framework.

If any collisions

occur in the digests

Print the name of

the file.

Else

Save the file to

HDFS.

Measure and record the

time taken, storage space saved,

deduplication ratio, and store the

generated hash values in their

respective buckets.

End

2.3 Work Flow

Hadoop platform is used to offer the distributed

environment needed for the suggested technique.

Figure 2: Flow Diagram of Data Deduplication Process.

Fig. 2 demonstrate the flow diagram of data

deduplication process where the data is taken from

the dataset then data chunking is the initial step in the

dataset is the first step in the proposed system's

architectural design. The dataset is divided into more

manageable, smaller pieces throughout this

procedure. After that, these tiny pieces are kept in a

specific folder. The system then determines which of

these pieces have unique hash values. The following

Optimizing Storage Efﬁciency in Hadoop Distribution File System Through Data Deduplication

stage involves determining each chunk's hash value

using the MD5 technique in a Hadoop environment,

if a chunk's hash value is discovered to be unique or

if it did not find the hash values to be unique then the

that data is marked as a duplicate data and then it will

show the list of duplicate chunks then after it will be

removed from the storage. This Hadoop connection

makes data reduction and processing more efficient.

After the MD5 procedure, the resultant 128-bit

hexadecimal hash codes are indexed for quicker

retrieval. In particular, the leftmost bit of the hash

code is used to determine which unique hash values

are kept in which bucket. When needed, hash values

may be retrieved quickly and effectively. The system

makes sure that duplicate chunks are recognized and

handled efficiently by adhering to this organized

flow, which uses hash-based indexing to optimize

storage and retrieval operations.

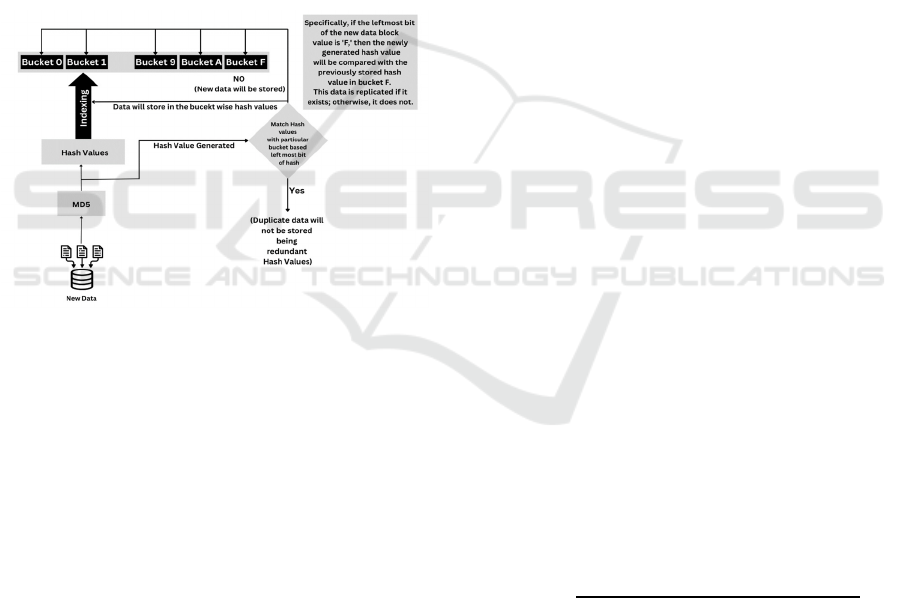

Figure 3: Bucket Approach's Work Flow from Bottom to

Top.

Fig. 3 demonstrates according to the above-described

the work flow of the bucket approach. By generating

the unique hash values, the newly received input data

stream is first sent via the MD5 algorithm technique.

Whether any redundant hash values occur, the

produced hash values match. The process of indexing

distinct hash values involves grouping them into

appropriate buckets according to the leftmost hash

code bit. When necessary, this bucket technique

facilitates a quicker hash code retrieval. When

indexing hash values, the leftmost hash code bit is

used as the bucket number i.e.

Bucket 0 stores this hash value if the leftmost bit is 0.

Bucket 1 stores this hash value if the leftmost bit is 1.

Bucket F stores this hash value if is the leftmost bit F.

Bucket A stores this hash value if is the leftmost bit

3 EXPERIMENTAL RESULT

AND ANALYSIS

The rate at which unstructured data is growing has

increased, posing several data storage issues. One of

the newer technologies that saves storage space and

lessens the quantity of redundant data preserved is

data deduplication. It consists of various result that

we have achieved in the implementation. The results

of various datasets are tested. The Hadoop 3.3.6

version is employed in this study. The explanation of

several parameters that are utilized in the

experimental analysis and aid in decision making.

Here, Data deduplication has two techniques

which is used in this paper:

Backup Storage Deduplication: It refers to the

traditional method of deduplication employed in

backup systems or primary storage systems. Usually

with a centralized design, these systems remove

redundant data at the primary storage level by using

deduplication techniques. The re- search may assess

the effective of current techniques regarding dedupli-

cation ratio, time efficiency, and space consumption

by utilizing backup storage deduplication as a

benchmark.

Distributed Storage Deduplication: This study

presents a new method of data deduplication using the

Hadoop platform and distributed storage. By

leveraging distributed computing, efficient storage

management, and parallel processing, the method

gets around the limitations of traditional

deduplication methods. It tries to demonstrate

potential improvements in processing speed, storage

capacity, and deduplication efficiency.

Here, come the various parameters which are used in

this experimental analysis and assisted in making

decision are elaborated below:

 Deduplication Ratio (DR): It is the proportion

of data that would be delivered or stored with

deduplication as opposed to data that would be

stored without it. It is expressed as follows:

𝐷𝑅 

     

     

(1)

 Hash Time: The whole time is required to

extract the hash code from an input string is its

definition. for a particular set of data, it is said

that computing the hash values takes a specific

amount of time.

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

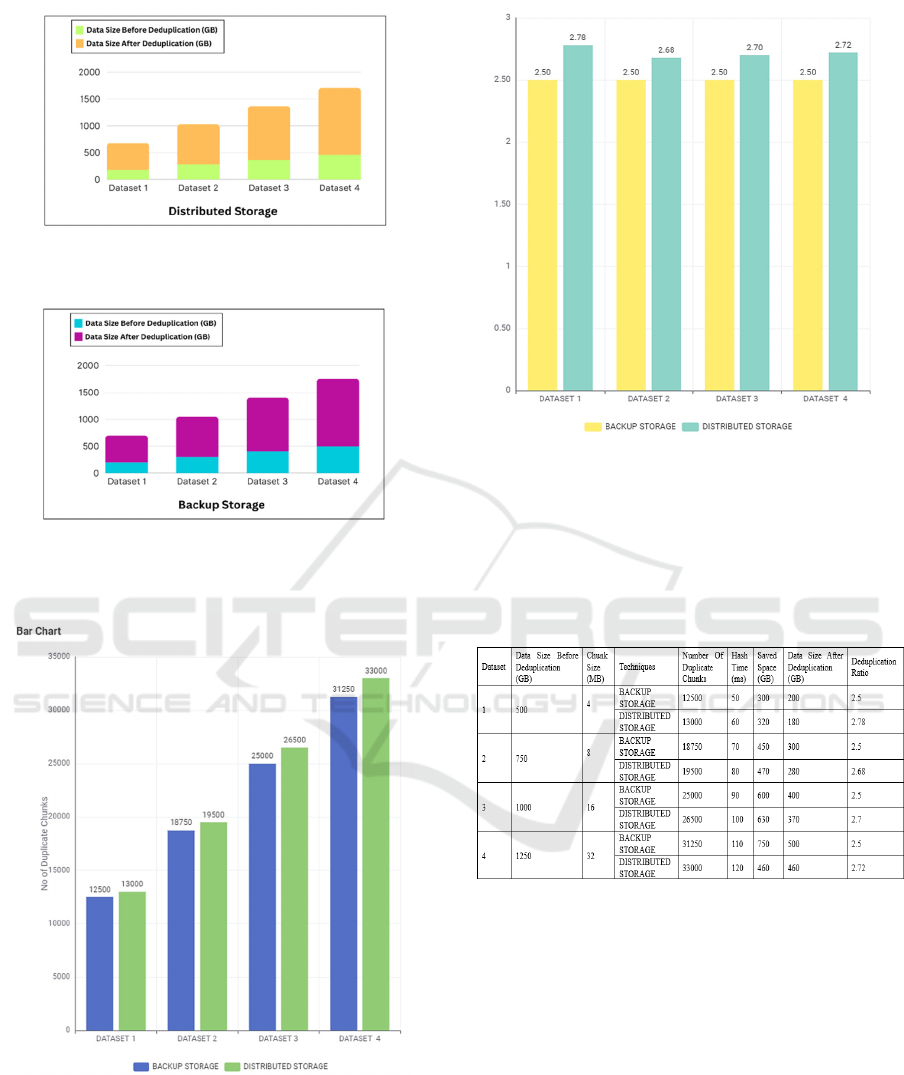

Figure 4: Graph shows the before and after data size of

distributed storage deduplication.

Figure 5: Graph shows before and after data size of backup

storage deduplication

Figure 6: Graph shows the number of duplicate chunks.

Figure 7: Graph shows the Deduplication Ratio.

Data deduplication approach was applied some

techniques for the removing the duplicate data from

the dataset which we have used in this project.

Table 1: Experimental Results on Various Datasets with

Some Deduplication Techniques.

The result of the deduplication is presented in the

figures Fig. 4, Fig. 5, Fig. 6, and Fig. 7 which

illustrates the performances of completion times were

improved due to the decreased amount of data that

needed to be processed. This led to increased

throughput, allowing more data processing to be

completed in the same amount of time contrasted to

the pre-deduplication state. The ratio of deduplication

which compares the volume of data before and after

deduplication, highlighted the effectiveness of the

process in identifying and removing redundant data.

Overall, the implementation of data deduplication in

the Hadoop environment enhanced storage utilization

and system performance, demonstrating its value in

managing large-scale data efficiently. Table 1

Optimizing Storage Efﬁciency in Hadoop Distribution File System Through Data Deduplication

presents the results of an investigation comparing the

proposed distributed storage deduplication with

traditional backup storage deduplication on a range of

datasets. Figures from Fig. 4, to Fig. 7 shows the

tested results. The results of data deduplication in a

Hadoop environment demonstrated above significant

improvements in storage efficiency and overall

system performance. By utilizing MD5 hashing to

identify and eliminate redundant data chunks, the

total storage space required for the dataset was

markedly reduced. The storage decreases the

expenses and made room for more data by reducing

the need for additional storage infrastructure.

4 CONCLUSIONS

The utilization of data deduplication methods in

HDFS has heavily relied on data deduplication

techniques to optimize storage efficiency. The

method such as MD5 hashing can be effectively

employed to identify and eliminate redundant data,

hence decreasing storage expenses and enhancing

processing effectiveness. This paper provides a hash-

based method for data deduplicate using MD5. It is

utilized in a distributed setting made possible by the

Hadoop architecture. By making use of the mapper

and reducer functions, this method maximizes storage

space by ensuring that only unique files are kept and

redundant ones are destroyed. Each file is uniquely

hashed by MD5, acting as a fingerprint that enables

bucket-based indexing of those files. By accelerating

hash value computation, this all- encompassing

method not only improves storage efficiency but also

dramatically increases computational performance.

Additionally, by greatly raising the deduplication

ratio, this method reduces the overall storage

footprint. The method's re- markable ability to

recognize and handle unnecessary components is

among the factors that make it so successful for data

management jobs. With Hadoop's dis- tributed

processing capability and the benefits of MD5

hashing, this endeavour can provide a dependable

solution for data redundancy issues in large-scale

storage systems.

ACKNOWLEDGEMENTS

The endless thanks go to Lord Almighty for all the

blessings he has showered onto me, which has

enabled me to write this last note in my research

work. During the period of my research, as in the rest

of my life, I have been blessed by Almighty with

some extraordinary people who have spun a web of

support around me. Words can never be enough in

expressing how grateful I am to those incredible

people in my life who made this thesis possible. I

would like an attempt to thank them for making my

time during my research in the Institute a period I will

treasure. I am deeply indebted to my research

supervisor, Professor Dr G UMA DEVI such an

interesting thesis topic. Each meeting with her added

in valuable aspects to the implementation and

broadened my perspective. She has guided me with

her invaluable suggestions, lightened up the way in

my darkest times and encouraged me a lot in the

academic life.

REFERENCES

Sais, N., Mahdaoui, J., 2023 Distributed storage

optimization using multi-agent systems in Hadoop, E3S

Web of Conferences 412, 01091 ICIES’11

Sharma, A., Kakulapati., 2019 Data Deduplication

Techniques for Big Data Storage Systems, International

Journal of Innovative Technology and Exploring

Engineering (IJITEE) ISSN: 2278-3075 (Online), vol.-

8 Issue-10

Kumar, S., Bhardwaj, P., 2017 Enhancing Storage

Efficiency Using Distributed Deduplication On Big

Data Storage System. vol. 9, pp, Number-1

Balamurugan, K., 2021 A Survey On Deduplication

Techniques Handling Bigdata In HDFS. vol 4- Issue 1,

Paper 14

Phyu, T., 2001 Capacity Optimized Deduplication for Big

Unstructured Data in Scale-out Distributed Storage

System. Banff, Canada, pp. 174-187

R., S., 2017 Image Storage Optimization using

Deduplication, International Journal of Scientific

Engineering and Research (IJSER) vol 5 Issue 5

Fu, N., Jiang, F, Hu, W., 2017 Application-Aware Big Data

Deduplication in Cloud Environment, IEEE

Kumar, S., 2017 Secure Data Deduplication in Hadoop

Distributed File Storage System, Journal of Network

Communications and Emerging Technologies (JNCET)

vol 7, Issue 9, ISSN: 2395-5317

Powar, B., 2018 Massive Volume of Unstructured Data and

Storage Space Optimization, International Journal of

Engineering & Technology, 252-257

Luo, G., Li, S., Wu., 2015 Boafft: Distributed

Deduplication for Big Data Storage in the Cloud, IEEE

Transactions On Cloud Computing, vol. 61, No

Alange, A., 2022 Optimization of Small Sized File Access

Efficiency in HDFS by Integrating Virtual File System

Layer, International Journal of Advance Computer

Science and Applications (IJACSA), Vol. 13, No. 6

M.S.Ali, B., 2020 Big Data Optimization Techniques: An

Empirical Study, International Journal Of Scientific &

IC3Com 2024 - International Conference on Cognitive & Cloud Computing

Technology Research, Volume 9, Issue 03, Issn 2277-

8616

Chakravarthy, N.S., Reddy., 2023 An Intelligent Storage

Optimization Technique for Heterogeneous Hadoop

Clusters, IEEE, pp.195-199

Cail, C., Liang, 2018 An optimization strategy of massive

small files storage based on HDFS, Joint International

Advanced Engineering and Technology Research

Conference (JIAET)

Deepika., 2015 An Optimized Approach for Processing

Small Files in HDFS, International Journal of Science

and Research (IJSR) ISSN (Online): 2319-7064 Index

Copernicus Value :78.96

Jiang, W., Xia, H., Tian, L., Feng, D., 2012 Accelerating

Data Deduplication by Exploiting Pipelining and

Parallelism with Multicore or Manycore Processors. In

Proceedings of the 10th USENIX Conference on File

and Storage Technologies

Jiang, H., Xia, W., Tian, L., Feng, D., F U, M., and Wang,

Z., 2012 P-Dedupe: Exploiting Parallelism in Data

Deduplication System, IEEE

Sengupta, S., Debnath, B., L.I., J., 2010 Chunk Stash:

speeding up inline storage deduplication using flash

memory, In Proceedings of the USENIX Conference on

USENIX Annual Technical Conference

Xia, M., Zhou , Y., Jiang, H., Tian , D., Feng, L., F U , W.,.:

D-delta, 2014 A Deduplication- Inspired Fast Delta

Compression Approach., Performance Evaluation 79,

pp. 258–272.

Eshghi, K., Lillibridge, M., Bhagwat, D, 2013 Improving

Restore Speed for Backup Systems That Use Inline

Chunk-Based Deduplication, In Proceedings of the 11th

USENIX Conference on File and Storage

Technologies, pp. 183–197.

Bhagwat, D., Long, K., Pollack , J.-F, Schwarz , T., Pâris,

E. L., Miller, 2006 Providing High Reliability in a

Minimum Redundancy Archival Storage System, IEEE,

pp. 413–421.

F Eng, D., Zhou, Y., Xia, F., F U, M., Huang, W., Z Hang,

Y, L I, C., 2015 SecDep A User- Aware Efficient Fine

Grained Secure Deduplication Scheme with Multi-

Level Key Management, IEEE

https://www.apache.org/dyn/closer.cgi/hadoop/common/h

adoop-3.3.6/hadoop-3.3.6.tar.gz

https://hadoop.apache.org/docs/stable/hadoop-project-

dist/hadoop-common/SingleCluster.html

https://www.kaggle.com/code/rtatman/data-cleaning-

challenge-deduplication

http://www.freedb.org/en/download da tabase.10.html

Optimizing Storage Efﬁciency in Hadoop Distribution File System Through Data Deduplication
