Enhancing Appearance-Based Gaze Estimation Through

Attention-Based Convolutional Neural Networks

Rawdha Karmi

1,3,∗

, Ines Rahmany

2,3

and Nawres Khlifa

National School of Electronics and Telecoms of Sfax, University of Sfax, Tunisia

Faculty of Sciences and Techniques of Sidi Bouzid, University of Kairouan, Tunisia

Research Laboratory of Biophysics and Medical Technologies, Higher Institute of Medical Technologies of Tunis,

University of Tunis El Manar, 1006 Tunis, Tunisia

Keywords:

Appearance-Based, Gaze Estimation, Convolutional Neural Network, Attention Mechanism.

Abstract:

Appearance-based gaze estimation is crucial for applications like assistive technology and human-computer

interaction, but high accuracy is challenging due to complex gaze patterns and individual appearance varia-

tions. This paper proposes an Attention-Enhanced Convolutional Neural Network (AE-CNN) to address these

challenges. By integrating attention submodules, AE-CNN improves feature extraction by focusing on the

most relevant regions of input data. We evaluate AE-CNN using the ColumbiaGaze dataset and show that it

surpasses previous methods, achieving a remarkable accuracy of 99.98%. This work advances gaze estimation

by leveraging attention mechanisms to improve performance.

1 INTRODUCTION

One of the most effective ways to read someone’s at-

tention, interest, and even emotions is through their

stare. By enabling robots to dynamically adjust their

behavior in response to user requirements and reac-

tions, the ability to capture and analyze these visual

signals might greatly improve how machines and peo-

ple interact. However, there are several technical is-

sues involved in effectively predicting gaze from still

images or video streams, especially given the variety

of facial looks, different lighting situations, and small

eye movements.

Within this framework, new avenues for the study

of gaze estimation are made possible by developments

in artiﬁcial intelligence, particularly the introduction

of convolutional neural networks (CNN) and attention

mechanisms. These advanced models are especially

well-suited to the challenging task of interpreting vi-

sual cues from human gaze because they can learn ex-

tremely abstract representations from raw visual data.

Deep learning (DL) models’ attention mecha-

nisms are modeled after how the human brain han-

dles information, especially regarding gaze estima-

tion. For example, when we look at an image, our

brain automatically focuses on the most crucial as-

∗

Corresponding author

pects and ﬁlters out irrelevant information, facilitat-

ing our ability to comprehend and analyze the image

more quickly. Along the same lines, the attention pro-

cesses of DL models facilitate the automatic identiﬁ-

cation of the most crucial elements in an input, this

can enhance the model’s functionality for a variety of

applications. By adding gaze estimation into this pro-

cess, models can also be trained to identify important

facial and ocular regions for accurate gaze direction

estimation.

Depending on the kind of model and the particu-

lar objective, different attention strategies are imple-

mented in different deep learning models. Typically,

this method is implemented in attention-based CNNs

by adding a layer that sets the weights for each input

feature. These weights improve the model’s perfor-

mance on the given task by enabling the CNN to con-

centrate on the most pertinent elements in the input.

Attention-based CNNs have demonstrated strong

performance on a range of tasks, such as as image

classiﬁcation (Wang et al., 2018), natural language

processing (Vaswani, 2017) and object recognition

(Hu et al., 2018). These networks are very skilled at

teaching themselves to concentrate on particular ele-

ments or objects within the provided photos, hence

increasing the classiﬁcation accuracy of the model.

When applied for gaze estimation tasks, attention-

based CNNs can learn to prioritize signiﬁcant facial

Karmi, R., Rahmany, I. and Khlifa, N.

Enhancing Appearance-Based Gaze Estimation Through Attention-Based Convolutional Neural Networks.

DOI: 10.5220/0013055500003890

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2025) - Volume 2, pages 15-23

ISBN: 978-989-758-737-5; ISSN: 2184-433X

characteristics and eye regions linked to head attitude

and gaze direction, hence improving the gaze estima-

tion models’ accuracy.

In particular, our research examines the use of

these novel technologies in an appearance-based gaze

estimate method. We use facial feature analysis to

determine the subject’s gaze direction instead of only

identifying eye positions in an image. A CNN, a spe-

ciﬁc kind of neural network intended for pattern iden-

tiﬁcation in complicated input, like photographs, is

used to make this feasible. Our method improves gaze

estimation accuracy by permitting the model to con-

centrate on the facial regions that are most pertinent

through the integration of attention mechanisms.

Our study’s main goal is to determine whether

adding attention mechanisms to convolutional neu-

ral networks may improve appearance-based gaze es-

timation’s accuracy over alternative techniques. We

take on a number of challenges to address this ques-

tion: managing the wide range of facial features.

The structure of this paper is as follows: Section

2 presents the literature review. Section 3 outlines the

proposed methodology. Section 4 reports the exper-

imental results and their analysis. Finally, Section 5

concludes the paper and offers suggestions for future

research.

2 LITERATURE REVIEW

In recent years, the literature has reported numerous

remote gaze estimation algorithms, which fall into

two categories: appearance-based and model-based

techniques. Appearance-based methods focus on ana-

lyzing the visual appearance of the eyes and surround-

ing regions to infer gaze direction, often leveraging

machine learning algorithms like convolutional neu-

ral networks (CNNs). Conversely, model-based ap-

proaches rely on geometric models of the eye, head,

and scene geometry to estimate gaze direction, re-

quiring precise calibration and modeling of eye and

head movements. This classiﬁcation framework is

commonly used to categorize gaze estimation tech-

niques. Each category offers unique strengths and

limitations, with appearance-based methods proving

robust to variations in lighting and head movements,

while model-based techniques can provide more ac-

curate estimates under controlled conditions. By un-

derstanding and exploring both categories, we aim to

contribute to the advancement of remote gaze track-

ing technology.

2.1 Appearance-Based Techniques for

Gaze Estimation

CNNs, or convolutional neural networks, were em-

ployed by (Choi et al., 2016) in order to estimate head

posture with driver gaze area categorization (the left

window, the center rearview mirror, and the right and

left sections of the windshield). Their system attains

a 95% accuracy rate, and They’ve created a unique

dataset comprising both male and female drivers, even

in scenarios where they are donning spectacles.

The gaze tracking study by (Konrad et al., 2016)

was conducted in a highly restricted setting, with the

camera positioned 51 cm away from the subject’s

face. They created a data set consisting of ﬁve sub-

jects’ images and used it to devolop their CNN neu-

ral networks. Although the results show promise, to

properly train the CNN, a substantial amount of data

is needed.

An altered form of the Viola-Jones formula is

used by George and Routray’s algorithm (George and

Routray, 2016) to identify faces in an image. Fa-

cial landmarks and geometric relations are used to

identify the rough eye region. Next, the classiﬁca-

tion of gaze direction is performed using a convolu-

tional neural network. This algorithm performs well

in terms of computational complexity when tested on

the Eye Chimera data set, making it a viable option

for smart devices.

To enhance appearance-based gaze esti-

mate,(Chen and Shi, 2018) suggested using dilated

convolutions. When compared to traditional net-

works, the results demonstrate notable improvements

in accuracy. On the MPIIGaze and Columbia Gaze

datasets, the study uses Dilated-Nets to attain cutting-

edge performance. This development could enhance

human-machine interaction by using eye tracking to

identify user intentions.

A method for detecting eye contact was proposed

by (Omori and Shima, 2020) in 2020. It involved us-

ing both an SVM and a CNN that had been trained

beforehand for both eye area images. Furthermore,

instead of creating eye images, tests revealed that a

CNN pre-trained on object photo datasets could be

utilized as an extractor of features for both eye re-

gions. Utilized was the Cave dataset, which includes

5880 images of 56 individuals. According to exper-

iments, picture augmentation can enhance the preci-

sion of the two-class eye contact classiﬁcation. Ad-

ditionally, the statistics show that the peak 86% accu-

racy rate with glasses was 5% lower than the detection

accuracy of 91.04 percent without spectacles.

(Ewaisha et al., 2020) proposed a multitasking

convolutional neural network to enhance gaze region

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

accuracy. Realizing the value of recording the un-

derlying distance between gaze regions, they intro-

duced regression-based forecasting of gaze yaw and

pitch angles. Furthermore, their model used multi-

task learning to predict head posture angles and gaze

simultaneously. An evaluation using the database

Columbia Gaze, which has 5880 high-resolution im-

ages of 56 participants, showed remarkable accuracy

of 78.2% in between-subjects tests and 95.8% on the

test set, proving that the model is generally applicable

and robustness over head attitude variations.

In 2024, (Karmi et al., 2024) developed a new neu-

ral network architecture named ”CoGaze-Net”, which

exploits the concepts of cascade and bilinearity to im-

prove both the originality and efﬁciency of the re-

sults. Their innovative architecture is composed of

multiple cascading processing layers, each dedicated

to performing a speciﬁc transformation on the input

data. By integrating cascading, bilinearity and their

lightweight and efﬁcient architecture, they achieved

exceptional results, reaching 96% accuracy, which

capture complex information in the input data. The

scientists used the Columbia Gaze database, compris-

ing 5,880 photos.

Critical Analysis of Existing Methods and Gaps.

Existing appearance-based gaze estimation methods,

while robust to variations in lighting and head poses,

often struggle with accurately capturing subtle eye

movements. Furthermore, these methods face chal-

lenges in generalizing across diverse facial appear-

ances and environmental conditions, due to limited

exposure to varied training scenarios. Model-based

techniques, on the other hand, demand precise cal-

ibration and are highly sensitive to imaging condi-

tions, limiting their practical applicability. An often-

overlooked aspect in prior works is the strategic use of

data augmentation, which can signiﬁcantly enhance

model robustness without introducing distortions that

compromise gaze estimation accuracy.

Our proposed AE-CNN addresses these critical is-

sues by combining appearance-based learning with

tailored data augmentation techniques. Unlike prior

methods, our approach emphasizes the following:

• Targeted Data Augmentation. By simulat-

ing realistic variations in zoom, cropping, and

brightness, our method exposes the model to a

broader range of conditions, enhancing general-

ization while avoiding artiﬁcial distortions such as

rotations that can misrepresent natural gaze orien-

tations.

• Incorporation of Attention Mechanisms. At-

tention modules within the CNN architecture fo-

cus on the most relevant eye and facial features,

ensuring precise capture of gaze cues even under

challenging conditions.

• Improved Robustness and Generalization. By

addressing the diversity of facial appearances and

environmental conditions, our method overcomes

the limitations of previous approaches, providing

superior performance for practical applications.

Through this combination of innovations, our method

effectively bridges the gap between the robustness of

appearance-based techniques and the need for ﬁne-

grained gaze estimation, setting a new benchmark in

gaze estimation research.

2.2 Model-Based Techniques for Gaze

Estimation

Model-based approaches to gaze estimation require

accurate detection of facial features like eye centers

or corners,Poulopoulos and Psarakis presented Deep-

Pupil Net, a fully convolutional neural network (FCN)

designed to accurately localize eye centers. Using

an encoder-decoder architecture, the model performs

image-to-heatmap regression to map eye regions onto

heat maps corresponding to eye center positions. A

novel loss function is introduced to penalize inaccu-

rate localizations and improve accuracy. The model

achieves real-time performance and outperforms ex-

isting techniques in eye center localization accuracy.

Evaluations on three public databases show signiﬁ-

cant improvements, making it a promising solution

for low-cost eye tracking devices (Poulopoulos and

Psarakis, 2022), and they rely on ﬁtting a geomet-

ric model of the eye to the image of the eye; Park

et al (Park et al., 2018) presented a novel gaze esti-

mation method suitable for real-world, unconstrained

environments. Their approach relies on a machine

learning model that accurately localizes landmarks in

the eye region using synthetic data for training. This

model outperforms existing methods in terms of iris

localization and eye shape registration on real im-

ages. The detected landmarks are then used as the

basis for lightweight, iterative model-based gaze esti-

mation methods. This method outperforms traditional

and appearance-based methods, even in the presence

of variations in postures, facial expressions, and light-

ing. (Wang and Ji, 2018) presented a novel model-

based 3D gaze estimation method that overcomes the

limitations of personal calibration techniques. Their

approach uses four natural constraints for implicit cal-

ibration, without requiring intrusive calibration. The

constraints are: (1) consistency between two differ-

ent gaze estimation methods, (2) the principle of the

center of the screen where the majority of ﬁxations

are concentrated, (3) the concentration of gaze in the

Enhancing Appearance-Based Gaze Estimation Through Attention-Based Convolutional Neural Networks

screen region for console-based interactions, and (4)

the anatomical limits of eye parameters. These con-

straints are embedded in an unsupervised regression

problem solved by an iterative hard-EM algorithm.

Experiments conducted on everyday interactions such

as web browsing and video watching demonstrate

the effectiveness of this implicit calibration method.

However, image resolution and lighting play a ma-

jor role in their accuracy, which can lead to subpar

performance in practical scenarios. Numerous geo-

metric techniques involved either directly ﬁtting a 3D

face-eye deformable model (Chen and Ji, 2008), in

2015, Sun et al.(Sun et al., 2015) presented a novel,

low-cost, non-intrusive, and easy-to-implement eye

tracking system using a consumer-grade depth cam-

era (Kinect) instead of infrared lights and high-quality

cameras. Using a 3D eye model and a parametric iris

model, this system can estimate gaze direction with

an accuracy of 1.4 to 2.7 degrees, even in the pres-

ence of natural head movements. Two real-time ap-

plications, a chess game and text input, demonstrate

the robustness and feasibility of the system. In the

future, the goal is to develop a version using a sim-

ple webcam and explore new applications, (Rahmany

et al., 2018),or anchoring the result to a stationary

point on the face, Wang and Ji (Wang and Ji, 2017)

proposed a novel 3D model-based gaze direction es-

timation method, enabling accurate and real-time eye

tracking using a single webcam. Using a deformable

3D model of the eye and face, the system can efﬁ-

ciently estimate gaze direction from 2D facial land-

marks. The model is pre-trained ofﬂine using data

from multiple subjects, facilitating fast and efﬁcient

calibration for each user without requiring additional

hardware. Experimental results show that this method

outperforms existing approaches in terms of accuracy,

while providing simpliﬁed setup and the ability to

achieve natural head movements. Some techniques

((Venkateswarlu et al., 2003), (Wood and Bulling,

2014), (Aboudi et al., 2023)), ﬁt an ellipse to the

observed iris and compute the position to obtain the

gaze. We have showcased the most advanced meth-

ods currently available for estimating gaze. Most gaze

estimate techniques rely on one of two approaches:

appearance-based techniques or model-based tech-

niques. Table 1 shows the prior research done on es-

timating glance direction.

3 APPROACH

Using labeled data, our approach seeks to precisely

identify and categorize an individual’s gaze direction.

Fig. 1 illustrates how the model incorporates an at-

tention submodule along with basic CNN pipelines.

Targeting areas of high human activity enhances their

inﬂuence while removing irrelevant and potentially

disruptive information from other portions of the sen-

sor data. This is an advantage of the integrated at-

tention mechanisms. When fully labeled data is used

for supervised learning, this method works especially

well. Our approach is speciﬁcally tailored to reli-

ably identify gaze direction from labeled data, which

is frequently encountered in practical applications.

It is able to reduce classiﬁcation errors and effec-

tively ﬁlter out background noise signals by concen-

trating attention on pertinent components of the sen-

sor data sequence. Additionally, we present a novel

method for converting compatibility densities from

compatibility scores. This approach is customized

to the unique properties of sensor data, which are

structurally and characteristically different from im-

age data. Our approach enables precise gaze direction

localization by converting compatibility scores into

compatibility densities, which enhances the model’s

overall performance in practical circumstances.

Figure 1: Our AE-CNN architecture.

Our approach aims to accurately estimate an indi-

vidual’s gaze direction using labeled data. To provide

a clear overview of our methodology, Figure 2 illus-

trates the research framework, detailing all the steps

involved from input data to model evaluation.

The key steps in our methodology are as follows:

1. Input Data. We utilize labeled images from

the publicly available Columbia Gaze dataset, which

provides detailed annotations speciﬁcally designed

for gaze estimation tasks.

2. Data Preprocessing.

• Normalization. The images are resized and stan-

dardized to ensure uniform and consistent input

for the model.

• Data Augmentation. To enhance the robustness

of our model, we applied data augmentation tech-

niques such as zooming, cropping, and brightness

adjustment, which simulate realistic variations in

shooting conditions. However, we avoided trans-

formations like rotation, as they can distort the

natural alignment of the eyes and face, potentially

introducing errors, especially in models that rely

on facial geometry and gaze direction.

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

Table 1: Review of the literature on gaze estimation methods.

Authors Year Method Database Result

Choi et al.

(Choi et al., 2016)

2016 CNNs

Own dataset created

95%

Konrad et al.

(Konrad et al., 2016)

2016

fundamental CNN model (based on the

LeNet design)

Tablet Gaze Calibration

Eye Dataset

6.7°

George and Routray

(George and Routray, 2016)

2016

Viola-Jones modiﬁcation for fast face

detection, facial cues to localize

eye region, and CNN to classify gaze

direction.

Eye Chimera

Dataset

—

Chen and Shi

(Chen and Shi, 2018)

2018 Dilated-CNN Columbia Gaze 62%

Omori and Shima

(Omori and Shima, 2020)

2020 SVM, CNN Columbia Gaze 91.04%

Ewaisha et al.

(Ewaisha et al., 2020)

2020

Multitask Learning

Columbia Gaze 95.8%

Karmi et al.

(Karmi et al., 2024)

2024 CoGaze-Net Columbia Gaze 96.88%

Poulopoulos and Psarakis

(Poulopoulos and Psarakis, 2022)

2022

DeepPupil Net

MUCT,

(Milborrow et al., 2010)

BioID

(Jesorsky et al., 2001)

and Gi4E

(Villanueva et al., 2013)

8.5°

Wang and Ji

(Wang and Ji, 2018)

2018

hard-Expectation

Maximization (hard-EM)

Real data and

synthetic data

1.3°

Park et al.

(Park et al., 2018)

2018

CNN and Support Vector Regression

(SVR) based on landmarks

Columbia and

EYEDIAP

7.1°

3. Attention-Enhanced Convolutional Neural Net-

work (AE-CNN). Our primary model, AE-CNN,

leverages attention mechanisms to enhance the net-

work’s ability to focus on critical regions of interest

for gaze estimation.

4. Attention Mechanisms. Attention mechanisms

allow the model to automatically identify relevant re-

gions within the images, such as the eyes and other

key facial features, thereby improving prediction ac-

curacy.

5. Feature Extraction. The AE-CNN extracts hier-

archical representations of facial and ocular regions.

These features are used to model the relationship be-

tween the input data and the gaze angles.

6. Gaze Estimation. Using the extracted features,

the model predicts both gaze angles and head orienta-

tion. These predictions are made within a supervised

learning framework using labeled data.

7. Model Evaluation.

• The model’s performance is assessed using stan-

dard metrics such as the mean angular error.

• We compare the performance of the AE-CNN

with other state-of-the-art methods to demonstrate

its superiority.

This research framework provides a comprehen-

sive and structured overview of our methodology.

It highlights the innovative integration of attention

mechanisms into the AE-CNN, which signiﬁcantly

enhances the accuracy of gaze estimation.

Figure 2: Flow Diagram of the AE-CNN Gaze Estimation

Method.

Enhancing Appearance-Based Gaze Estimation Through Attention-Based Convolutional Neural Networks

3.1 Attention Submodule

Our attention method, which is shown in Fig. 1, pri-

marily emphasizes carrying out a compatibility cal-

culation connecting the locally generated feature vec-

tors at intermediate CNN pipeline layers to the vec-

tor of global features that was previously sent into the

pipeline’s ﬁnal levels of linear classiﬁcation (Jetley

et al., 2018). The collection of extracted feature vec-

tors at a speciﬁc convolutional layer t ∈ {1, 2, . . . , T }

is denoted by L

= {l

, l

, . . . }, where in the re-

gion’s feature vector L

, l

represents the j-th feature

array of m total spatial places.

Previously supplied into the last set of fully linked

layers to obtain classiﬁcation results, a compatibility

function C now combines local characteristic vectors

with the general feature vectors H produced by data

input that navigates whole CNN streams. There are

several methods to deﬁne the compatibility function

C as stated in (Bahdanau, 2014), (Xu et al., 2015),

we can apply a measure of the weight vector’s point-

product across U and l

+ H to concatenate the H and

= ⟨U, l

⟩ + H, j ∈ {1, . . . , m} (1)

where c

is the compatibility score and U repre-

sents the weight vector. In this case, U can help learn

the universal collection of characteristics that are per-

tinent to the several categories of activity within the

sensor’s data. Furthermore, we may evaluate the com-

patibility of H and l

using the dot product:

= ⟨l

, H⟩, j ∈ {1, . . . , m} (2)

Following the computational process, we ob-

tain a collection of compatibility scores C(L

, H) =

, c

, . . . , c

}, which are subsequently standardized

into which are subsequently standardized into A

, a

} by a softmax function.

exp(c

)

∑

i=1

exp(c

)

(3)

Or the tanh function :

exp(c

) − exp(−c

)

exp(c

) + exp(−c

)

(4)

The A

standardized compatibility scores are uti-

lized in order to generate a unique vector h

through

element-wise weighted averaging for every layers.

∑

j=1

· l

(5)

Most importantly, globally descriptive feature of

the input data H of the incoming information can

now be substituted with the h

. The newly created

global vectors, are provided as input to the classiﬁ-

cation phase after being connected to form a single

vector h = [h

, h

, . . . , h

3.2 Basic CNN

Our core CNN, which is the foundation upon

which the attention submodules are built, consists

of fully connected, pooling, and convolutional lay-

ers. The summary is as follows, as shown in Fig.1

: Conv(32); Conv(64); Conv(128); Pol ; Conv(128);

Pol; Conv(128); Pol; FC(128) ; softmax, in which

Conv(L

) stands for a L

feature map-equipped con-

volutional layer s, Maximum Pooling Layer Pol, A

layer of m units that is fully connected is denoted by

FC(m) and a softmax classiﬁer by softmax. In addi-

tion, a ReLU activation function is used to alter each

layer’s output.

In order to guarantee an improved resolution for

the local feature maps extracted from the three con-

volutional layers Conv(128) that are used to estimate

attention, After the initial two convolutional layers,

there is neither pooling layer. In order to prevent map-

ping distinct feature vector dimensionalities to the

same one, which could result in additional processing

costs, we purposefully designed the global features H

and the local features L

(both of which are 128) to

have the identical dimensions.

Finally, we employed the Location Function. In

a basic CNN design, the class prediction probabili-

ties are typically generated by a fully connected layer

after a global characteristic description H has been

calculated from the input dataset. For the classes

to be able to be divided from one another linearly,

the information needs to be translated into a high-

dimensional space in order to clarify H with discrete

dimensions that reﬂect signiﬁcant higher-order data

concepts. The attentional method adds ﬁlters early

in the CNN pipeline so that it can discover mappings

that are comparable and work with the original de-

sign to produce H. The compatibility rating Conv(L

H) ought to only be elevated when the fraction of the

dominant data category is present in the related patch,

as a result of our model’s attention mechanism.

4 EXPERIMENT AND RESULTS

The experiments conducted in this study aim to evalu-

ate the effectiveness of the proposed AE-CNN model

for appearance-based gaze estimation. By leverag-

ing the Columbia Gaze dataset, we assess the perfor-

mance of our approach in comparison to prior state-

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

of-the-art methods. The evaluation process is struc-

tured into three key components: the dataset charac-

teristics and preprocessing steps, the architecture and

experimental setup of the proposed model, and the

analysis of the obtained results. This section presents

a detailed breakdown of these elements to demon-

strate the robustness and accuracy of the proposed ap-

proach.

4.1 Data SET for Gaze Estimation

The Columbia Gaze dataset (Smith et al., 2013) is one

of the most varied datasets that was collected in a con-

trolled setting and uses degrees to describe pitch and

yaw. A comprehensive set of eye gaze data with vary-

ing gaze directions and head positions is provided by

the 5,880 photographs of 56 individuals. This dataset

outperforms other eye gazing datasets that were avail-

able to the public at the time of release in terms of the

quantity of individuals. Almost half of the sample’s

participants wear glasses, which is an essential char-

acteristic given their diverse ethnic backgrounds.

This dataset’s high-quality images all have a res-

olution of 5184 x 3456 pixels, which is excellent for

forecasting the dataset itself but not indicative of the

typical camera used for these kinds of images, thus

it doesn’t enable the training model to predict data

more accurately under different situations. An addi-

tional limitation of this dataset is that the lighting is

nearly constant across the images, which reduces the

robustness of the trained models in varying lighting

conditions. Fig. 3 shows a sample of the dataset with

varying head positions.

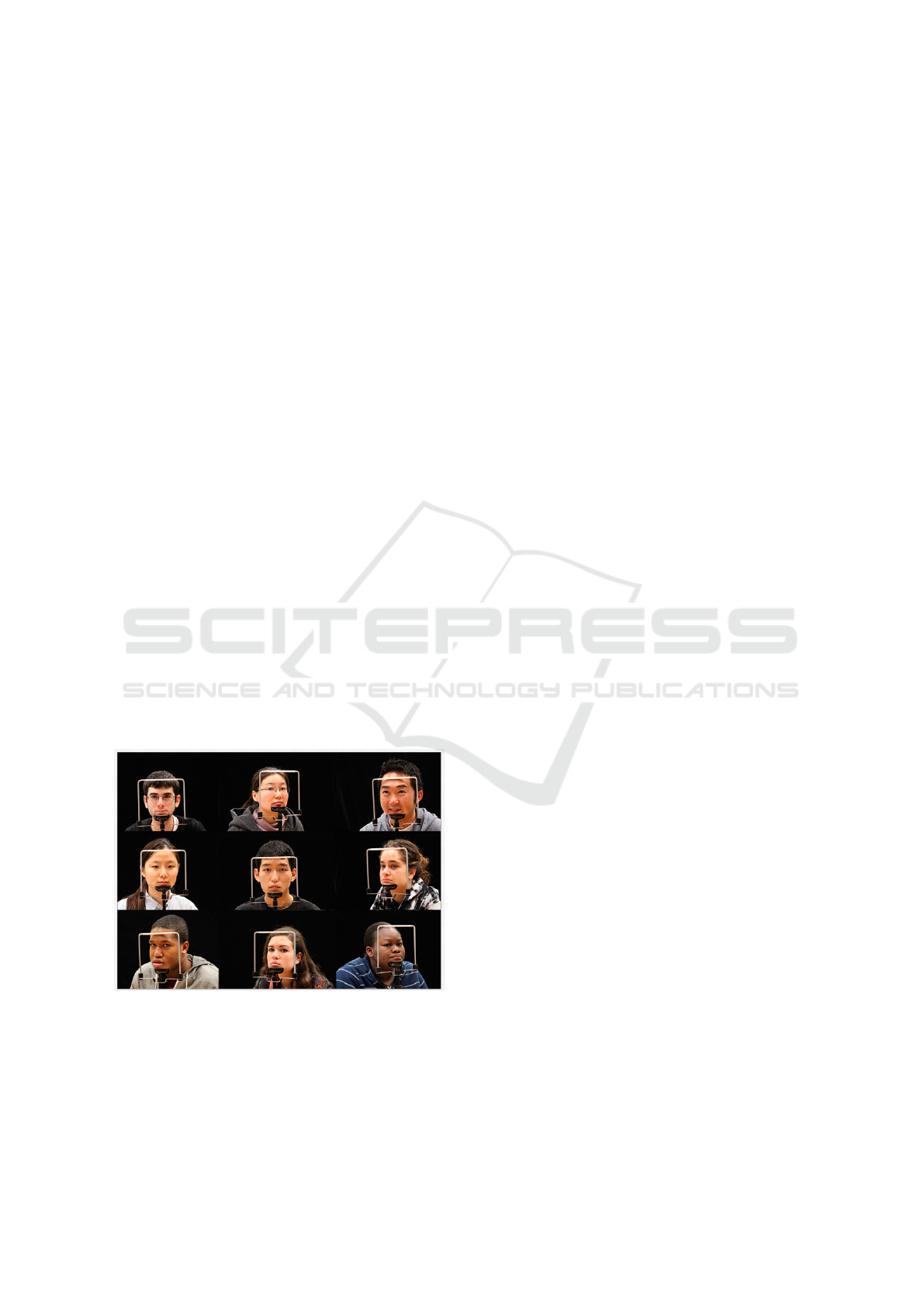

Figure 3: An excerpt from the Columbia Gaze dataset

(Smith et al., 2013).

We selected the Columbia Gaze dataset as our pri-

mary dataset due to its diversity in individual partici-

pants and head positions, which makes it well-suited

for testing appearance-based gaze estimation models.

4.2 Model and Experimental Setup

In our study on gaze tracking, we adopted an empir-

ical method to explore the effectiveness of convolu-

tional neural networks (CNNs), by integrating an at-

tention mechanism. The inclusion of attention mech-

anisms aims to improve the model’s ability to focus

on relevant features during gaze estimation.

Python is used to implement our model, and the

Tensor Flow machine learning technology is used.

We used the ”ﬁt()” function from the Keras library to

train our models, setting hyperparameters such as the

”adam” optimizer the categorical-crossentropy Loss

function. The rate of learning was set to 0.001 and

the input batch size was 128, the number of epochs

was set to 10. To evaluate our approch, we split our

data into validation and training sets, with 20% being

used for validation and 80% being used for training.

4.3 Performance Comparison

Our appearance-based gaze estimation method per-

forms better than previous methods, as Table 2 il-

lustrates. To assess the effectiveness of the AE-

CNN model, we conducted a one-tailed z-test on the

Columbia Gaze dataset. This statistical test was cho-

sen as it is well-suited for evaluating performance im-

provements over established benchmarks.

When we compare the outcomes, we see that

performance has signiﬁcantly improved over time.

Although the Dilated-CNN method used by Chen

and Shi (Chen and Shi, 2018) demonstrated a very

modest accuracy of 62%, signiﬁcant increases were

noted with subsequent methods. While Omori and

Shima (Omori and Shima, 2020) used SVM and

CNN to reach an accuracy of 91.04%, Ewaisha et

al. (Ewaisha et al., 2020) included multi-task learn-

ing and achieved an amazing accuracy of 95.8%.

With the introduction of the CoGaze-Net by Karmi

et al. (Karmi et al., 2024), the accuracy was raised

to 96.88%. However, our suggested method,a CNN

based on attention for gaze estimation, surpassed all

prior methods with an exceptional 99.98% accuracy.

In terms of relative improvement, the AE-CNN

model outperformed the Dilated-CNN by 37.98%,

Multitask Learning by 4.18%, SVM-CNN by 8.94%,

and CoGaze-Net by 3.1%. These improvements are

statistically signiﬁcant, with p-values of < 0.01 and

< 0.05 for the comparisons with the previous meth-

ods. This demonstrates that the observed performance

gains are not due to random chance but result from the

superior feature extraction capability of the attention-

based CNN architecture.

This development suggests that adding attention

Enhancing Appearance-Based Gaze Estimation Through Attention-Based Convolutional Neural Networks

Table 2: Evaluation of the suggested method’s outcomes in relation to earlier approaches using the ”columbia Gaze” data set.

Author Method

Batch

size

Epochs

Opti

mizer

Classif

icateur

Accuracy

Chen and

Shi (2018)

Dilated

-CNN

64 8000 Adam Softmax 62%

Ewaisha et

al. (2020)

Multitask

Learning

- - - - 95.8%

Omori and

Shima, (2020)

SVM,

CNN

- - SGD - 91.04%

Karmi et

al. 2024

CoGaze

-Net

128 50 Adam Softmax 96.88%

Proposed

method

-CNN

128 10 Adam Softmax 99.98%

mechanisms to CNNs has a signiﬁcant potential to

enhance appearance-based gaze estimating systems’

functionality, marking a signiﬁcant advancement in

the ﬁeld. As shown in Fig.4, the outcomes are also

evaluated by comparing the loss functions from the

validation and learning phases, as well as by track-

ing the evolution of the validation precision values in

relation to the training values.

Figure 4: The two example graphs showing the accuracy

and loss function evolution for the suggested technique.

5 CONCLUSION

Our exploration of an attention-based CNN for gaze

direction estimation image classiﬁcation was fruitful.

The experimental result we obtained clearly demon-

strates that our proposed attention model results in

a clear improvement in accuracy compared to previ-

ous approaches, as we observed on the ColumbiaGaze

dataset. This ﬁnding highlights the effectiveness

of our attention mechanisms regarding appearance-

based gaze estimate. In conclusion, this study re-

inforces the credibility of our attention-based con-

volutional neural networks as powerful tools to in-

crease precision and reliability of estimation of gaze

systems, thus paving the way for further advances

in ﬁelds like human-computer interaction and visual

recognition.

For future work, several promising avenues are

open to improve appearance-based gaze direction es-

timation. A ﬁrst approach would be to reﬁne our

model by integrating more advanced learning tech-

niques, such as more complex attention mechanisms

or hybrid neural network architectures, which could

more accurately capture subtle variations in eye and

facial appearance under various lighting conditions

and angles.

Furthermore, it would be interesting to extend our

research to other datasets, particularly those contain-

ing a wider variety of subjects, facial expressions, and

environmental contexts, to assess the robustness and

generalization ability of our approach. This could in-

clude using data from real-world scenarios, such as

videos captured in dynamic environments or mobile

applications, to test and improve the model’s perfor-

mance in real-world situations.

Furthermore, we envision generating novel meth-

ods by combining appearance-based gaze direction

estimation with transfer learning or meta-learning

techniques, which would reduce the need for anno-

tated data and improve the model’s effectiveness on

new domains. Creating models that can quickly adapt

to new users or changing conditions, without requir-

ing manual recalibration, would represent a signiﬁ-

cant advance in the ﬁeld.

Finally, exploring new data sources, such as those

synthesized by generative neural networks, could

also provide opportunities to increase the diversity of

training data and improve model performance in chal-

lenging scenarios where real-world data are limited.

REFERENCES

Aboudi, N., Khachnaoui, H., Moussa, O., and Khlifa, N.

(2023). Bilinear pooling for thyroid nodule classiﬁca-

tion in ultrasound imaging. Arabian Journal for Sci-

ence and Engineering, 48(8):10563–10573.

Bahdanau, D. (2014). Neural machine translation by

jointly learning to align and translate. arXiv preprint

arXiv:1409.0473.

Chen, J. and Ji, Q. (2008). 3d gaze estimation with a single

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

camera without ir illumination. In 2008 19th Interna-

tional Conference on Pattern Recognition, pages 1–4.

IEEE.

Chen, Z. and Shi, B. E. (2018). Appearance-based gaze es-

timation using dilated-convolutions. In Asian Confer-

ence on Computer Vision, pages 309–324. Springer.

Choi, I.-H., Tran, T. B. H., and Kim, Y.-G. (2016). Real-

time categorization of driver’s gaze zone and head

pose using the convolutional neural network. In Pro-

ceedings of HCI Korea, pages 417–422.

Ewaisha, M., El Shawarby, M., Abbas, H., and Sobh, I.

(2020). End-to-end multitask learning for driver gaze

and head pose estimation. Electronic Imaging, 32:1–

George, A. and Routray, A. (2016). Real-time eye gaze di-

rection classiﬁcation using convolutional neural net-

work. In 2016 International Conference on Signal

Processing and Communications (SPCOM), pages 1–

5. IEEE.

Hu, J., Shen, L., and Sun, G. (2018). Squeeze-and-

excitation networks. In Proceedings of the IEEE con-

ference on computer vision and pattern recognition,

pages 7132–7141.

Jesorsky, O., Kirchberg, K. J., and Frischholz, R. W. (2001).

Robust face detection using the hausdorff distance. In

Audio-and Video-Based Biometric Person Authentica-

tion: Third International Conference, AVBPA 2001

Halmstad, Sweden, June 6–8, 2001 Proceedings 3,

pages 90–95. Springer.

Jetley, S., Lord, N. A., Lee, N., and Torr, P. H. (2018). Learn

to pay attention. arXiv preprint arXiv:1804.02391.

Karmi, R., Rahmany, I., and Khlifa, N. (2024). Gaze esti-

mation using convolutional neural networks. Signal,

Image and Video Processing, 18(1):389–398.

Konrad, R., Shrestha, S., and Varma, P. (2016). Near-Eye

Display Gaze Tracking Via Convolutional Neural Net-

works. Standford University: Standford, CA. Techni-

cal report, USA, Tech. Rep.

Milborrow, S., Morkel, J., and Nicolls, F. (2010). The muct

landmarked face database. Pattern recognition asso-

ciation of South Africa, 201(0):535.

Omori, Y. and Shima, Y. (2020). Image augmentation for

eye contact detection based on combination of pre-

trained alex-net cnn and svm. J. Comput., 15(3):85–

97.

Park, S., Zhang, X., Bulling, A., and Hilliges, O. (2018).

Learning to ﬁnd eye region landmarks for remote gaze

estimation in unconstrained settings. In Proceedings

of the 2018 ACM symposium on eye tracking research

& applications, pages 1–10.

Poulopoulos, N. and Psarakis, E. Z. (2022). Deeppupil net:

Deep residual network for precise pupil center local-

ization. In VISIGRAPP (5: VISAPP), pages 297–304.

Rahmany, I., Guetari, R., and Khlifa, N. (2018). A fully

automatic based deep learning approach for aneurysm

detection in dsa images. In 2018 IEEE international

conference on image processing, applications and sys-

tems (IPAS), pages 303–307. IEEE.

Smith, B. A., Yin, Q., Feiner, S. K., and Nayar, S. K.

(2013). Gaze locking: passive eye contact detection

for human-object interaction. In Proceedings of the

26th annual ACM symposium on User interface soft-

ware and technology, pages 271–280.

Sun, L., Liu, Z., and Sun, M.-T. (2015). Real time gaze es-

timation with a consumer depth camera. Information

Sciences, 320:346–360.

Vaswani, A. (2017). Attention is all you need. arXiv

preprint arXiv:1706.03762.

Venkateswarlu, R. et al. (2003). Eye gaze estimation from

a single image of one eye. In Proceedings Ninth IEEE

International Conference on Computer Vision, pages

136–143. IEEE.

Villanueva, A., Ponz, V., Sesma-Sanchez, L., Ariz, M.,

Porta, S., and Cabeza, R. (2013). Hybrid method

based on topography for robust detection of iris cen-

ter and eye corners. ACM Transactions on Multime-

dia Computing, Communications, and Applications

(TOMM), 9(4):1–20.

Wang, K. and Ji, Q. (2017). Real time eye gaze tracking

with 3d deformable eye-face model. In Proceedings

of the IEEE International Conference on Computer

Vision, pages 1003–1011.

Wang, K. and Ji, Q. (2018). 3d gaze estimation with-

out explicit personal calibration. Pattern Recognition,

79:216–227.

Wang, X., Girshick, R., Gupta, A., and He, K. (2018). Non-

local neural networks. In Proceedings of the IEEE

conference on computer vision and pattern recogni-

tion, pages 7794–7803.

Wood, E. and Bulling, A. (2014). Eyetab: Model-based

gaze estimation on unmodiﬁed tablet computers. In

Proceedings of the symposium on eye tracking re-

search and applications, pages 207–210.

Xu, K., Ba, J., Kiros, R., Cho, K., Courville, A., Salakhudi-

nov, R., Zemel, R., and Bengio, Y. (2015). Show, at-

tend and tell: Neural image caption generation with

visual attention. In International conference on ma-

chine learning, pages 2048–2057. PMLR.

Enhancing Appearance-Based Gaze Estimation Through Attention-Based Convolutional Neural Networks
