Evaluating LLMs for Visualization Tasks

Saadiq Rauf Khan, Vinit Chandak and Sougata Mukherjea

Indian Institute of Technology, Delhi, India

Keywords:

Large Language Models, Visualization Generation, Visualization Understanding.

Abstract:

Information Visualization has been utilized to gain insights from complex data. In recent times, Large Lan-

guage Models (LLMs) have performed very well in many tasks. In this paper, we showcase the capabilities

of different popular LLMs to generate code for visualization based on simple prompts. We also analyze the

power of LLMs to understand some common visualizations by answering simple questions. Our study shows

that LLMs could generate code for some visualizations as well as answer questions about them. However,

LLMs also have several limitations. We believe that our insights can be used to improve both LLMs and

Information Visualization systems.

1 INTRODUCTION

With the amount and complexity of information in-

creasing at staggering rates, Information Visualiza-

tion is being utilized to enable people understand and

analyze information. Over the years many techniques

have been developed for creating information visual-

izations of different types of data. Information visu-

alization can be created using various tools

, libraries

in many programming languages

as well as scripts

However, the complexity of these tools, libraries and

scripts can pose a barrier, especially for individuals

without a strong background in data science or pro-

gramming. To address this, automation of visualiza-

tion creation using artiﬁcial intelligence techniques

has also been explored (Wu et al., 2022).

Natural language interfaces allow users to gen-

erate visualizations using simple and intuitive com-

mands. The integration of natural language process-

ing in data visualization tools enhances the efﬁciency

of data analysis. Analysts can now focus more on in-

terpreting the data rather than the technicalities of cre-

ating visualizations. This advancement democratizes

data analysis, making it more accessible to a broader

audience.

Large Language Models (LLMs) like GPT-3

(Brown et al., 2020) are capable of completing text

inputs to produce human-like results. They have rev-

for example, Tableau: https://www.tableau.com

for example, matplotlib: https://matplotlib.org/

for example, VegaLite: https://vega.github.io/vega-

lite/

olutionized Natural Language Processing by achiev-

ing state-of-the-art results on various tasks. Simi-

larly, deep learning models that are trained on a large

amount of existing code and can generate new code

given some forms of speciﬁcations such as natural

language descriptions or incomplete code (Chen et al.,

2021).

Another important task is the machine understand-

ing of the visualizations. It accelerates data analysis

by allowing machines to process and interpret large

volumes of visual data quickly, reducing the time

needed for manual interpretation. Moreover, it im-

proves accuracy by providing consistent extraction of

information from visualizations.

In this paper, we explore whether visualizations

can be created or understood by prompting Large

Language Models in natural language. Given the

enormous potential of LLMs our aim was to ex-

plore whether LLMs are ready for Visualization

tasks. Firstly, we evaluated whether popular LLMs

like OpenAI’s GPT-4

, Google’s Gemini

and An-

thropic’s Claude

could generate code for visualiza-

tions based on some simple prompts. Secondly, we

investigated whether the LLMs could understand sim-

ple visualizations and answer questions about them.

Our analysis shows that for some tasks LLMs per-

formed very well; for example, most LLMs could

produce code to generate simple visualizations. How-

ever, our study has also exposed several limitations of

gpt4: https://https://openai.com/index/gpt-4

Gemini: https://gemini.google.com

Claude: https://www.anthropic.com/claude

Khan, S. R., Chandak, V. and Mukherjea, S.

Evaluating LLMs for Visualization Tasks.

DOI: 10.5220/0013079600003912

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2025) - Volume 1: GRAPP, HUCAPP

and IVAPP, pages 791-798

ISBN: 978-989-758-728-3; ISSN: 2184-4321

791

the LLMs - they were incorrect in several tasks - both

in generation and understanding.

The two main contributions of the paper are as fol-

lows:

1. We have done an analysis of the capabilities of

some of the popular LLMs to generate Python

code and Vega-lite scripts for visualizations based

on prompts.

2. We explored the power of LLMs to understand

simple visualizations and answer questions about

them.

The remainder of the paper is organized as fol-

lows. Section 2 cites related work. Section 3 analyzes

the LLMs for visualization generation, while Section

4 analyzes the LLMs for Visualization Understand-

ing. Finally, Section 5 concludes the paper.

2 RELATED WORK

2.1 Large Language Models

Large Language Models like GPT-3 (Brown et al.,

2020) have shown impressive results in various natu-

ral language understanding tasks. Given a suite of ap-

propriate prompts

a single LLM can be used to solve

a great number of tasks. Various prompt engineering

techniques have been developed to ﬁnd the most ap-

propriate prompts to allow a LLM to solve the task

at hand (Liu et al., 2023). On the other hand, Codex

which is trained on 54 million software repositories

on GitHub, has demonstrated stunning code genera-

tion capability — solving over 70% of 164 Python

programming tasks with 100 samples (Chen et al.,

2021).

2.2 Visualization Generation

With the popularity of information visualization,

many techniques have been developed to create vi-

sualizations for different types of data. Information

visualization can be created using various tools, li-

braries in many languages, as well as scripts based

on Visualization Grammars.

AI techniques have also been explored to auto-

mate the creation of visualizations, for example, using

decision trees (Wang et al., 2020) and sequence-to-

sequence recurrent neural networks (Dibia and Demi-

ralp, 2019). ChartSpark (Xiao et al., 2024) is a picto-

rial visualization authoring tool conditioned on both

A system prompt is a set of ﬁxed instructions created

by the developers to constrain the LLM’s response

semantic contexts conveyed in textual inputs and data

information embedded in plain charts.

One signiﬁcant direction of research is automat-

ing the creation of data visualizations based on users’

natural language queries. Many systems for using

natural language to generate visualizations (NL2VIS)

are based on libraries of natural language process-

ing. For example, NL4DV (Narechania et al., 2021)

uses CoreNLP (Manning et al., 2014). These sys-

tems either have constraints on user input or cannot

understand complex natural language queries (Shen

et al., 2023). Researchers have also trained neural

networks using deep learning-based approaches (Luo

et al., 2022) to process complex natural languages.

However, a single approach based on deep learning

cannot perform well on various tasks.

With the popularity of LLMs, there is signiﬁ-

cant interest in their application across various ﬁelds,

including data visualization. (V

azquez, 2024) in-

vestigates the capabilities of ChatGPT in generating

visualizations. This study systematically evaluates

whether LLMs can correctly generate a wide vari-

ety of charts, effectively use different visualization li-

braries, and conﬁgure individual charts to speciﬁc re-

quirements. The study concludes that while ChatGPT

show promising capabilities in generating visualiza-

tions, there are still areas needing improvement.

Similarly, (Li et al., 2024) explores the capabil-

ities of GPT-3.5, to generate visualizations in Vega-

Lite from natural language descriptions using vari-

ous prompting strategies. The key ﬁndings reveal that

GPT-3.5 signiﬁcantly outperforms previous state-of-

the-art methods in the NL2VIS task. It demonstrates

high accuracy in generating correct visualizations for

simpler and more common chart types. However,

the model struggles with more complex visualizations

and tasks that require a deeper understanding of the

data structures.

LLMs have been integrated into NL2VIS systems,

such as Chat2Vis (Maddigan and Susnjak, 2023) and

LIDA (Dibia, 2023), which generate Python code

to construct data visualizations. However, there re-

mains a need for a systematic evaluation of how well

these LLMs can generate visualizations using differ-

ent prompt strategies.

2.3 Visualization Understanding

In recent times various Multi-modal Large Language

models (MMLLMs) have been proposed for under-

standing of charts. Examples include ChartAssistant

(Meng et al., 2024) and UReader (Ye et al., 2023).

Many datasets and benchmarks have also been intro-

duced to test the capabilities of LLMs and MMM-

IVAPP 2025 - 16th International Conference on Information Visualization Theory and Applications

792

LLMs for chart understanding. Examples include

ChartQA (Masry et al., 2022) and HallusionBench

(Guan et al., 2024). Research has also been done

to evaluate the Large Language models in different

aspects of visualization understanding. For exam-

ple, (Bendeck and Stasko, 2025) evaluates GPT-4

for various visualization literacy tasks, including an-

swering questions and identifying deceptive visual-

izations. The assessment ﬁnds that GPT-4 can per-

form some tasks very efﬁciently, but struggles with

some other tasks.

3 ANALYZING LLMs FOR

VISUALIZATION

GENERATION

3.1 Process

To evaluate the capabilities of LLMs in generating in-

formation visualizations, we followed a similar pro-

cess as (V

azquez, 2024). We prompt the LLM to cre-

ate a visualization based on a given speciﬁcation and

examine the code generated by the LLM. We chose

Python for generating the visualization code due to its

wide array of visualization libraries like matplotlib.

We also examine the ability of the LLMs to generate

Vega-lite scripts.

The methodology for the analysis involved several

key steps:

1. Selection of Visualization Techniques: We se-

lected 24 visualization techniques for tabular data.

These include common charts like bar graphs and

pie charts as well as charts that may not be that

popular like Violin Plots and Locator Maps. We

exclude visualization techniques for hierarchical

and network representations.

2. Creation or Acquisition of Suitable Datasets: We

created or sourced data sets that were appropri-

ate for the chosen visualization techniques, ensur-

ing that they provided a robust basis for testing.

These data sets cover a wide range of data types,

including categorical, quantitative, temporal, and

geographical data. This enables a comprehensive

evaluation of the LLMs’ ability to generate accu-

rate and varied visualizations.

3. Selection of LLMs to Analyze: We utilized 4

LLMs - OpenAI’s GPT-3.5 and GPT-4o as well as

Google’s Gemini-1.5-pro and Anthropic’s Claude

3 Opus for our analysis to provide a broad per-

spective on the capabilities of current popular

models generalizable across different LLM de-

signs.

4. Design and Fine-tuning of Prompts: We used

zero-shot prompting

for this task. We carefully

designed and reﬁned the prompts to maximize the

effectiveness and accuracy of the LLMs in gen-

erating the desired visualizations. An example

prompt is: Can you write a Python script that gen-

erates a Bubble chart using columns mpg (quan-

titative), disp (quantitative), and hp (quantitative)

from the CSV ﬁle cars.csv?

5. Testing: We conducted a thorough test to evaluate

the performance of LLMs, examining the variety

of charts they could generate.

3.1.1 Experimental Procedure

The assessment of the LLMs focused on the accuracy,

efﬁciency, and versatility of the models in producing

effective visual representations of data. For each ex-

periment, we followed the following process to ensure

consistency and accuracy:

1. Initialize a New Session: Begin each experiment

by creating a fresh session. Given that LLM chat

sessions utilize previous prompts as context, it

was crucial to start with a new session for each

experiment. This approach ensured that each

test was conducted independently, preventing any

carry-over effects from previous prompts. For

example, if multiple prompts requested charts in

Vega-lite, subsequent prompts without a speciﬁed

library or language might default to Vega-lite.

2. Consistent Prompt Input: Enter all prompts within

the same session and on the same day to maintain

uniform conditions.

3. Execute and Analyze: Utilize the LLM output (ei-

ther Python code or Vega-lite scripts) to create a

visualization and analyze it.

3.2 Chart Generation Using Python

In the ﬁrst analysis, each of the 4 LLMs was prompted

to generate Python code for all the 24 distinct chart

types. The performance of the LLMs are shown in Ta-

ble 1. Each tick mark (✓) represents a correct gener-

ation and each cross mark (✗) represents an incorrect

generation. GPT-4o came out to be the best performer

with the ability to produce around 95% of the charts

followed by GPT-3.5 being able to produce 79% of

the charts. The performance of Gemini and Claude

was similar to that of GPT 3.5.

Zero-shot prompting is a machine learning technique

that involves giving an AI model a task or question with-

out providing any speciﬁc training or examples (Liu et al.,

2023)

Evaluating LLMs for Visualization Tasks

793

Table 1: Performance Comparison of LLMs in Chart Generation using Python.

Chart Type GPT-3.5 GPT-4o Gemini Claude

Area Chart ✓ ✓ ✓ ✓

Bar Chart ✓ ✓ ✓ ✓

Box Plot ✓ ✓ ✓ ✓

Bubble Chart ✓ ✓ ✓ ✓

Bullet Chart ✗ ✓ ✗ ✗

Choropleth ✓ ✓ ✓ ✗

Column Chart ✓ ✓ ✓ ✓

Donut Chart ✓ ✓ ✓ ✓

Dot Plot ✗ ✓ ✓ ✓

Graduated Symbol Map ✗ ✓ ✗ ✗

Grouped Bar Chart ✓ ✓ ✓ ✓

Grouped Column Chart ✓ ✓ ✓ ✓

Line Chart ✓ ✓ ✓ ✓

Locator Map ✓ ✓ ✓ ✓

Pictogram Chart ✗ ✗ ✗ ✗

Pie Chart ✓ ✓ ✓ ✓

Pyramid Chart ✗ ✓ ✗ ✗

Radar Chart ✓ ✓ ✗ ✗

Range Plot ✓ ✓ ✗ ✗

Scatter Plot ✓ ✓ ✓ ✓

Stacked Bar Chart ✓ ✓ ✓ ✓

Stacked Column Chart ✓ ✓ ✓ ✓

Violin Plot ✓ ✓ ✓ ✓

XY Heatmap Chart ✓ ✓ ✓ ✓

Total 19(79%) 23(95%) 18(75%) 17(70%)

Note that correct generation means that the LLM

could produce correct code for the visualization based

on the requirement speciﬁed by the prompt. Since

LLMs are known to produce inconsistent results, we

tuned the LLM parameters so that randomness in the

output is minimized. During the experiments each

prompt is repeated three times and we accept the out-

puts only if they remain the same.

Most of the errors were due to the lack of knowl-

edge of some LLMs on certain types of visualization,

especially uncommon ones. For example, only GPT-

4o was able to produce the correct bullet charts. GPT

3.5 produced a Pyramid chart instead, whereas Gem-

ini’s and Claude’s outputs were erroneous. The com-

parison is shown in Figure 1.

3.3 Chart Generation via Vega-Lite

Scripts

We also wanted to test and compare the performance

of the aforementioned LLMs to generate Vega-lite

scripts. Here we prompted the LLMs to generate

Vega-lite scripts for all the 24 selected charts. For

this evaluation, we used GPT-4o and Gemini for ex-

perimentation.

For the Vega-lite scripts, the results are shown in

Table 2. Vega-Lite proved to be difﬁcult for LLMs.

Gemini was only able to create roughly 40% of the

total charts. The performance of GPT-4o also reduced

signiﬁcantly when switching from Python to Vega-

lite. For example, both GPT-4o and Gemini could not

produce Violin charts as shown in Figure 2.

4 ANALYZING LLMs FOR

VISUALIZATION

UNDERSTANDING

4.1 Data Set

For analyzing the capabilities of LLMs for under-

standing visualizations, we have used the FigureQA

dataset (Kahou et al., 2018). FigureQA consists of

common charts accompanied by questions and an-

swers concerning them. The corpus is synthetically

generated on a large scale: its training set contains

100, 000 images with 1.3 million questions. The cor-

pus has ﬁve common visualizations for tabular data,

namely, horizontal and vertical bar graphs, continu-

IVAPP 2025 - 16th International Conference on Information Visualization Theory and Applications

794

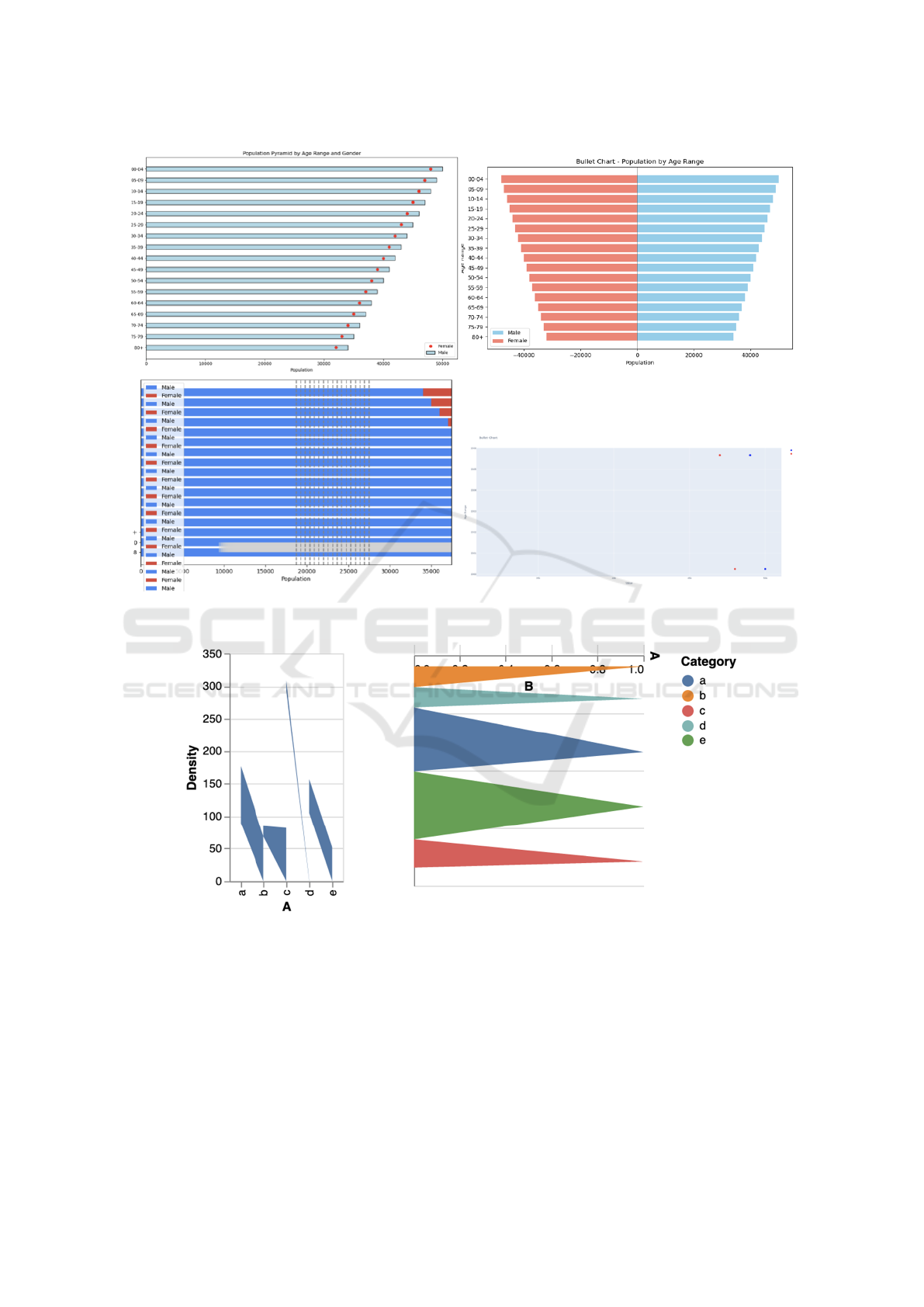

Figure 1: Comparison of Bullet charts. Only GPT-4o (top left) was able to produce the correct chart. GPT 3.5 produced a

pyramid chart instead (top right). Gemini’s and Claude’s outputs were erroneous (bottom).

Figure 2: Both GPT-4o and Gemini could not produce Violin charts via Vega-lite scripts.

ous and discontinuous line charts, and pie charts.

There are 15 types of questions that compare the

quantitative attributes of two plot elements or one plot

element with all the others. In particular, the ques-

tions examine properties such as the maximum, min-

imum, median, roughness, and greater than/less than

relationships. All are posed as a binary choice be-

tween yes and no.

4.2 Automated Analysis on FigureQA

To evaluate the ability of LLMs to understand and an-

swer questions of information visualization we ran-

domly chose 100 images from the data set and the

corresponding 1, 342 questions. Our random choice

of the images will lead to variations in the chart types.

We evaluated 3 LLMs - Google’s Gemini-1.5-pro,

OpenAI’s GPT-4o and Anthropic’s Claude 3 Opus.

Evaluating LLMs for Visualization Tasks

795

Table 2: Performance Comparison of LLMs in Chart Gen-

eration using Vega-lite scripts.

Chart Type GPT-4o Gemini

Area Chart ✓ ✓

Bar Chart ✓ ✓

Box Plot ✓ ✓

Bubble Chart ✓ ✗

Bullet Chart ✗ ✗

Choropleth ✓ ✗

Column Chart ✓ ✓

Donut Chart ✓ ✓

Dot Plot ✓ ✗

Graduated Symbol Map ✓ ✗

Grouped Bar Chart ✗ ✗

Grouped Column Chart ✗ ✗

Line Chart ✓ ✗

Locator Map ✓ ✗

Pictogram Chart ✗ ✗

Pie Chart ✓ ✓

Pyramid Chart ✓ ✗

Radar Chart ✗ ✗

Range Plot ✗ ✗

Scatter Plot ✓ ✓

Stacked Bar Chart ✓ ✓

Stacked Column Chart ✓ ✓

Violin Plot ✗ ✗

XY Heatmap Chart ✓ ✓

Total 17(70%) 10(41%)

The results of the evaluation are shown in Table 3. As

we can see, GPT-4o is the best performer, followed

by Gemini-1.5-pro which is slightly behind and then

Claude 3 Opus, which is much worse when compared

to the other two models.

4.3 Need for Manual Analysis

While this initial automated test with the FigureQA

dataset provided quantitative metrics for evaluating

the performance of the selected LLMs, we know

that relying solely on binary questions does not of-

fer a comprehensive assessment of the model’s true

comprehension abilities. The binary nature of the

FigureQA questions introduces a signiﬁcant limita-

tion: the susceptibility to random guessing. Models

can achieve approximately 50% accuracy by making

random choices without genuinely understanding the

content of the ﬁgure/chart.

4.4 Data for Manual Analysis

To address this limitation, we moved beyond au-

tomated binary questioning and incorporated man-

ual analysis as a crucial step in our methodology.

This involved developing custom, non-binary ques-

tions aimed at probing deeper into the visual reason-

ing abilities of the models. For the manual analysis,

we have selected 20 random charts for each of chart

type in the FigureQA dataset. We have introduced

new non-binary questions for each chart type that are

useful to evaluate the level of understanding a model

has of a chart. Examples of these questions are:

• Vertical/Horizontal Bar Chart: How many bars

are there?

• Line Chart: How many dotted/non-dotted lines

are there?

• Pie Chart: Which color pie has the largest area?

Figure 3: All three models could not determine the color of

the longest bar since all of the models struggle in determin-

ing the larger/smaller bars.

4.5 Manual Analysis Results

For each LLM, for each of the chart, we uploaded

the image and then asked it all the questions. All

the answers were checked against the correct answers

for the same questions. This, along with the inter-

LLM comparison, will inherently compare the LLMs

performance with a human baseline. We have also

compared the models performance with and with-

out a simple system prompt: Analyze the following

chart carefully and answer the following questions

correctly.

Table 4 shows the results. GPT-4o and Gemini

performance were almost identical and better than

Claude’s performance. From the analysis we gained

several key insights as follows:

• Performance Across Different Chart Types

– The performance of LLMs varied signiﬁcantly

among different types of charts. For example,

GPT-4o had 85% accuracy on pie charts and a

mere 20% accuracy on line charts. This sug-

gests that certain visualization formats may be

easier for machines to interpret than others.

IVAPP 2025 - 16th International Conference on Information Visualization Theory and Applications

796

Table 3: Comparison of Performance Metrics between LLMs to answer Yes-No (binary) questions.

Metric Gemini-1.5-pro GPT-4o Claude 3 Opus

Total Questions 1,342 1,342 1,342

Total Correct Answers 863 886 733

Total Wrong Answers 479 456 609

Accuracy (%) 64.31% 66.02% 54.61%

Table 4: Comparison of Performance Metrics between LLMs to answer non Yes-No (non-binary) questions.

Gemini 1.5 Pro GPT-4o Claude 3 Opus

Images for which all qs answered

correctly without prompt.

53.8% 51.3% 33.8%

Images for which all qs answered

correctly with prompt.

63.8% 57.5% 38.8%

Qs answered without prompt.

84.8% 87%.8 70.5%

Qs answered correctly with prompt.

89.2% 89.4% 73.4%

– Most of the models performed much better on

pie charts as compared to other chart types.

– All of the models performed very poorly on the

line charts. This might be because of the pres-

ence of dotted lines, which might be treated as

some kind of noise by the models. Sometimes

Gemini-1.5-Pro did not recognize the dotted

lines at all - especially when there is a mixture

of dotted and non-dotted lines,

– All the models struggled with identifying rela-

tionships between close boundaries and lengths

of shapes. When the bar lengths are close on a

bar graph, all of the models struggled in com-

paring them; An example is shown in Figure 3).

• Impact of System Prompts

– In all the cases, the use of system prompts im-

proved the performance of models. The im-

provement varied with the models and the chart

types. Gemini-1.5-Pro improved signiﬁcantly

with the use of system prompts.

– This shows the importance of context and guid-

ance in improving the performance of LLMs.

5 CONCLUSION

In this paper, we explore the capabilities of LLMs in

generating visualizations from natural language com-

mands. We evaluated the performance of various

prominent LLMs in creating different types of chart

using Python and Vega-Lite scripts. In addition, we

analyze the abilities of LLMs in understanding and

answering questions about some charts. The paper ex-

tends the prior art to explore the capabilities of LLMs

for visualization generation and understanding. The

ﬁndings of our research provide valuable insight into

the current state of LLMs in the ﬁeld of data visual-

ization. Our study shows that LLMs are very efﬁcient

in some tasks, but fail in some more complex tasks.

The results of this paper can be used to address the

limitations of LLMs and improve them in the future.

Some areas of future work include the following.

• We want to explore whether more advanced

prompting techniques like Chain-of-Thought

(Wei et al., 2022) can improve the results.

• We need to expand the analysis to other types

of information visualization such as graphs and

trees.

• Combining the capabilities of LLMs and visual-

ization tools to generate interactive visualizations

is another promising research direction.

REFERENCES

Bendeck, A. and Stasko, J. (2025). An Empirical Evaluation

of the GPT-4 Multimodal Language Model on Visual-

ization Literacy Tasks. IEEE Transactions on Visual-

ization and Computer Graphics, 31(1):1105–1115.

Brown, T., Mann, B., Ryder, N., Subbiah, M., Kaplan,

J. D., et al. (2020). Language Models are Few-shot

Learners. In Proceedings of the 34th International

Conference on Neural Information Processing Sys-

tems (NIPS ’20), pages 1877–1901.

Chen, M., Tworek, J., Jun, H., Yuan, Q., Ponde, H., et al.

Evaluating LLMs for Visualization Tasks

797

(2021). Evaluating Large Language Models Trained

on Code. ArXiv.

Dibia, V. (2023). LIDA: A Tool for Automatic Generation

of Grammar agnostic Visualizations and Infographics

using Large Language Models. In Proceedings of the

61st Annual Meeting of the Association for Compu-

tational Linguistics (Volume 3: System Demonstra-

tions), 2023, pages 113 – 126.

Dibia, V. and Demiralp, C. (2019). Data2Vis: Automatic

Generation of Data Visualizations Using Sequence-

to-Sequence Recurrent Neural Networks. IEEE Com-

puter Graphics and Applications, 39(5):33–46.

Guan, T., Liu, F., Wu, X., Xian, R., Li, Z., et al. (2024). Hal-

lusionBench: An Advanced Diagnostic Suite for En-

tangled Language Hallucination and Visual Illusion in

Large Vision-Language Models. In Computer Vision

and Pattern Recognition (CVPR 2024).

Kahou, S. E., Michalski, V., Atkinson, A., Kadar, A.,

Trischler, A., and Bengio, Y. (2018). FigureQA:

An Annotated Figure Dataset for Visual Reasoning.

ArXiv.

Li, G., Wang, X., Aodeng, G., Zheng, S., Zhang, Y., Ou, C.,

Wang, S., and Liu, C. H. (2024). Visualization Gen-

eration with Large Language Models: An Evaluation.

ArXiv.

Liu, P., Yuan, W., Fu, J., Jiang, Z., Hayashi, H., and Neu-

big, G. (2023). Pre-train, Prompt, and Predict: A Sys-

tematic Survey of Prompting Methods in Natural Lan-

guage Processing. ACM Computing Surveys, 55(9):1–

35.

Luo, Y., Tang, N., Li, G., Tang, J., Chai, C., and Qin, X.

(2022). Natural Language to Visualization by Neural

Machine Translation. IEEE Transactions on Visual-

ization and Computer Graphics, 28(1):217–226.

Maddigan, P. and Susnjak, T. (2023). Chat2Vis: Generating

Data visualizations via Natural Language using Chat-

gpt, Codex and GPT-3 Large Language Models. IEEE

Access, 11.

Manning, C. D., Surdeanu, M., Bauer, J., Finkel, J. R.,

Bethard, S., and McClosky, D. (2014). The Stanford

CoreNLP Natural Language Processing Toolkit. In

Proceedings of 52nd Annual Meeting of the Associ-

ation for Computational Linguistics (2014): System

Demonstrations, pages 55–60.

Masry, A., Do, X. L., Tan, J. Q., Joty, S., and Hoque, E.

(2022). ChartQA: A Benchmark for Question An-

swering about Charts with Visual and Logical Reason-

ing. In Findings of the Association for Computational

Linguistics: ACL 2022, Dublin, Ireland.

Meng, F., Shao, W., Lu, Q., Gao, P., Zhang, K., Qiao,

Y., and Luo, P. (2024). ChartAssisstant: A Univer-

sal Chart Multimodal Language Model via Chart-to-

Table Pre-training and Multitask Instruction Tuning.

In Findings of the Association for Computational Lin-

guistics: ACL 2024.

Narechania, A., Srinivasan, A., and Stasko, J. T. (2021).

NL4DV: A Toolkit for Generating Analytic Speciﬁca-

tions for Data Visualization from Natural Language

Queries. IEEE Transactions on Visualization and

Computer Graphics, 27(2).

Shen, L., Shen, E., Luo, Y., Yang, X., Hu, X., Zhang,

X., Tai, Z., and Wang, J. (2023). Towards Natural

Language Interfaces for Data Visualization: A Sur-

vey. IEEE Transactions on Visualization and Com-

puter Graphics, 29(6):3121–3144.

azquez, P.-P. (2024). Are LLMs ready for Visualization?

In IEEE PaciﬁcVis 2024 Workshop - Vis Meets AI,

pages 343–352.

Wang, Y., Sun, Z., Zhang, H., Cui, W., Xu, K., Ma, X., and

Zhang, D. (2020). DataShot: Automatic Generation of

Fact Sheets from Tabular Data. IEEE Transactions on

Visualization & Computer Graphics, 26(1):895–905.

Wei, J., Wang, X., Schuurmans, D., Bosma, M., hsin Chi,

E. H., Xia, F., Le, Q., and Zhou, D. (2022). Chain of

Thought Prompting Elicits Reasoning in Large Lan-

guage Models. Neural Information Processing Sys-

tems.

Wu, A., Wang, Y., Shu, X., Moritz, D., Cui, W., Zhang, H.,

Zhang, D., and Qu, H. (2022). AI4VIS: Survey on

Artiﬁcial Intelligence Approaches for Data Visualiza-

tion. IEEE Transactions on Visualization and Com-

puter Graphics, 28(12):5049–5070.

Xiao, S., Huang, S., Lin, Y., Ye, Y., and Zeng, W.

(2024). Let the Chart Spark: Embedding Seman-

tic Context into Chart with Text-to-Image Generative

Model. IEEE Transactions on Visualization & Com-

puter Graphics, 30(1):284–294.

Ye, J., Hu, A., Xu, H., Ye, Q., Yan, M., et al. (2023).

UReader: Universal OCR-free Visually-situated Lan-

guage Understanding with Multimodal Large Lan-

guage Model. In Findings of the Association for Com-

putational Linguistics: EMNLP 2023.

IVAPP 2025 - 16th International Conference on Information Visualization Theory and Applications

798
