A Customizable Security Risk Assessment Framework Using

Multi-Attribute Decision Making for IoT Systems

Mofareh Waqdan

1 a

, Habib Louaﬁ

2 b

and Malek Mouhoub

1 c

Department of Computer Science, University of Regina, Regina, SK, Canada

Department of Science and Technology, TELUQ University, Montreal, Canada

ﬁ

Keywords:

Internet of Things (IoT), Risk Assessment, Risk Parameters, Multi-Attribute Decision Making (MADM),

Simple Additive Weighting (SAW), Weighting Product (WP).

Abstract:

The advent of the Internet of Things (IoT) has transformed how we conduct our daily lives and engage with

technology. The seamless integration of connected devices, from household to industrial equipment, has

ushered in a new era of interconnectivity. Nevertheless, this swift expansion of the IoT also presents novel

security concerns that must be addressed. We present a customizable framework for assessing the risk of

deploying and utilizing IoT devices in various environments. We dynamically calculate risk scores for different

devices, considering their importance to the system and their vulnerabilities, among other parameters. The

framework we propose improves on existing research by considering the important parameters of the devices,

their vulnerabilities and how they impact the overall risk assessment. The importance of these devices and

the severity of vulnerabilities are incorporated in the framework using well-known Multi-Attribute Decision

Making (MADM) methods, namely, Simple Additive Weighting (SAW) and Weighting Product (WP). The

risk is assessed on a setup comprised of a set of IoT devices widely deployed in healthcare systems, such as

emergency rooms.

1 INTRODUCTION

The “Internet of Things” is a concept that refers to the

connection of daily physical objects or devices to the

Internet or each other. This allows them to share in-

formation and perform speciﬁc functions through the

network (Kumar et al., 2019). IoT enables sophisti-

cated services to be offered by connecting all objects

so that the Internet is used to mediate seamless con-

nectivity and data transfer between them (Ray, 2018).

The IoT ecosystem contains various smart ob-

jects located in different constrained environments

that communicate with each other or with the Internet

and share data using different methods and protocols.

In other words, the IoT device can be deﬁned as any

device (cyber or physical) having an IP address and

connected to a network (Radanliev et al., 2018).

The availability, integrity, and conﬁdentiality of

data are signiﬁcant concerns for manufacturers and

consumers of IoT systems. There are four layers in

https://orcid.org/0000-0003-4916-3911

https://orcid.org/0000-0002-3247-3115

https://orcid.org/0000-0001-7381-1064

any IoT architecture: Sensor, network, middleware,

and application (Shameli-Sendi et al., 2016a). In the

Sensor layer, the sensed information, stored in local

or cloud storage, is not encrypted, making it vulnera-

ble to security attacks. In the network layer, the com-

munication between IoT devices is known to be vul-

nerable to attacks (Opoku et al., 2024; Falola et al.,

2023). In the middleware layer, attackers can degrade

the ﬁrmware version of IoT devices using malicious

applications. Then, an attack could be carried out on

the degraded and outdated ﬁrmware version. In the

Application layer, operating systems could have back-

doors that lead to security issues.

Cyber risk refers to the probability that an unde-

sirable event occurs and the level of impact it would

have. According to the National Institute of Stan-

dards and Technology (NIST), we need to consider

the probability that a possible threat exploits a vul-

nerability to assess the risk and the resulting impact

of this event on the system or organization. The

International Organization for Standardization (ISO)

and the International Electrotechnical Commission

(ISO/IEC) have deﬁned IT risk as the possibility of

a threat exploiting an organization’s asset vulnerabil-

Waqdan, M., Louaﬁ, H. and Mouhoub, M.

A Customizable Security Risk Assessment Framework Using Multi-Attribute Decision Making for IoT Systems.

DOI: 10.5220/0013081700003899

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 11th International Conference on Information Systems Security and Privacy (ICISSP 2025) - Volume 1, pages 121-132

ISBN: 978-989-758-735-1; ISSN: 2184-4356

121

ities and causing damage. Risk assessment considers

the likelihood of an event and its impact on the orga-

nization.

Cybersecurity risk is the likelihood of compro-

mised sensitive information, critical assets, or repu-

tation due to a cyber attack or breach within an or-

ganization’s network. Asset, threat, and vulnerabil-

ity are critical components of information security

risk. The Open Web Application Security Project

(OWASP) test guide deﬁnes risk as a product of like-

lihood and impact, where likelihood and impact are

assigned speciﬁc values. Various deﬁnitions of risk

exist, taking into account threats and vulnerabilities.

Contemporary approaches focus on IoT risk as-

sessment using only Risk and Likelihood impacts.

They do not consider the critical parameters of vul-

nerabilities of IoT devices.

In this paper, we propose a customizable security

risk assessment framework, which considers differ-

ent and diverse risk assessment parameters, provid-

ing more insightful risk scoring. Different parameters

are involved in the risk assessment, which normally

contribute differently to the ﬁnal score of the assess-

ment. Therefore, different weights must be assigned

to these parameters to provide a more precise and per-

sonalized risk assessment framework that can applied

in different environments. Our proposed risk assess-

ment framework for IoT environments is developed

based on these key factors, which is not only innova-

tive, but also highly practical. Furthermore, our pro-

posed framework can be applied in various IoT sce-

narios in different sectors, ensuring its wide applica-

bility.

The paper is structured as follows. In section 2,

we review the most important security risk assessment

solutions and frameworks proposed in the literature.

Section 3 presents our customizable security risk as-

sessment framework, the parameters used, and the ap-

plication of the MADM methods. Section 4 presents

the simulation setup and results. Lastly, section 5 con-

cludes the paper.

2 RELATED WORK

Kandasamy et al. (Kandasamy et al., 2020) pro-

posed a risk prioritization approach, dividing risks

into four distinct categories: Ethical, Privacy, Secu-

rity, and Technical risks. They also classify Risk

Assessment theories into several categories, includ-

ing, Dempster-Shafer theory, Game-Theoretic com-

puting, Failure Mode Effects Analysis, and Cyberse-

curity Game (CSG), which study how attackers, de-

fenders, and users make decisions about cybersecu-

rity. Their analysis provides a thorough examination

of the various risks associated with IoT across diverse

domains, such as ﬁnance, healthcare, and others.

Radanliev et al. (Radanliev et al., 2020) discussed

a self-adapting and dynamic supply chain system.

This system utilizes real-time intelligence, AI, and

ML to detect cyber-risks. The authors also conducted

a literature review to examine the impact of state-of-

the-art supply chain technologies and their connected

cyber risks. Additionally, they developed a method

to reduce cyber risks in assessing Industrial IoT and

Industry 4.0 supply chain integration.

Kumar et al. (Kumar et al., 2020) introduced

a model incorporating regression analysis, utiliz-

ing predeﬁned and authorized speciﬁcation limits to

maintain cyber risks associated with critical informa-

tion infrastructure within the organization’s predeter-

mined boundaries. Additionally, their algorithm fore-

casted the capability of the risk assessment process,

enabling utilities to proactively implement security

measures.

Malik and Tosh (Malik and Tosh, 2022) presented

a model for quantitatively assessing an organization’s

security posture, evaluating security controls, and un-

derstanding associated risks. They further provided

a detailed explanation of the formulations and eval-

uated the proposed model in an industrial scenario.

Their risk evaluation approach implicates determin-

ing risks related to all assets belonging to a system,

estimating the risks, and prioritizing them.

In Jasour et al. (Jasour et al., 2022), challenges

related to cyber threats and risk assessment for con-

nected and autonomous vehicles (CAV) were high-

lighted. A dynamic risk management framework has

been proposed to address highly dynamic operational

environments and associated dynamic threats and vul-

nerabilities. The framework functions through four

sequential steps: validation of the risk proﬁle, selec-

tion and training of the risk assessment model, per-

formance of adaptive and real-time security monitor-

ing, and evaluation, validation, and updating of the

model. In contrast to existing rigid risk assessment

approaches, this framework promotes an exploration

of risks across various risk proﬁles. However, their

work was only validated on a network of vehicles.

In Chen et al. (Chen et al., 2020), a model was

proposed to study the behavior of cyber attacks on

power grids. This model takes into account the at-

tackers’ subjective attitudes towards their targets and

the characteristics of potential targets. In addition, the

authors have incorporated two supplementary models

based on historical events data analysis: the proba-

bility response model, which is used to describe the

selection of attack targets, and the utility attenuation

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

122

model, which is used to describe the allocation of at-

tack resources.

Matsuda et al. (Matsuda et al., 2021) Proved the

presence of cyber risks in their research and intro-

duced a secure implementation for Industry 4.0 el-

ements like AI, IoT, and the Object Linking and

Embedding for Process Control Uniﬁed Architecture

(OPC UA). Their proposed method has beneﬁts for

clarifying the impact of cyber attacks on real-world

industrial control systems. This is achieved through

penetration tests on an actual machine-based testbed.

Matheu et al. (Matheu et al., 2020) analyzed cur-

rent cybersecurity certiﬁcation schemes and the po-

tential challenges to making them applicable to the

IoT ecosystem. They examined current efforts related

to risk assessment and testing processes, which are

widely recognized as the processes to build a cyberse-

curity certiﬁcation framework. They presented a cy-

bersecurity certiﬁcation framework for IoT that inte-

grates research and technical tools and processes with

policies and governance structures, and analyzed it

against identiﬁed challenges from a multidisciplinary

perspective.

Radanliev et al. (Radanliev et al., 2019) presented

a transformation roadmap for the standardization of

IoT risk impact assessment and transformation de-

sign imperatives. They described how IoT compa-

nies can achieve their target state based on their cur-

rent state with a Goal-Oriented approach. The new

method they presented for applying the roadmap in-

clude IoT Risk Analysis through Functional Depen-

dency, Network-based Linear Dependency Modeling,

IoT risk impact assessment with a Goal-Oriented Ap-

proach, and a correlation between the Goal-Oriented

Approach and the IoT maturity model (IoTMM).

Bahizad (Bahizad, 2020) highlighted the impor-

tance of security in IoT systems, where there are many

IoT devices connected to each other using different

communication methods. The paper investigates the

increasing concerns related to the growing number of

IoT devices and proposes recommendations for the

development of these devices to minimize potential

risks.

Wangyal et al. (Wangyal et al., 2020) extracted

28 risk factors using the risk breakdown structure

method and expanded this traditional view to include

others (physical, psychological) critical to business

operations. They also proposed and quantitatively

evaluated countermeasures for all the risks extracted.

Their ﬁndings help clarify IoT security and its rela-

tion to non-cyber risks for properly implementing IoT

systems.

Lee (Lee, 2020) reviewed IoT cybersecurity tech-

nologies and cyber risk management frameworks.

Moreover, it presents a four-layer IoT cyber risk man-

agement framework. He also applied a linear pro-

gramming method to allocate ﬁnancial resources to

multiple IoT cybersecurity projects.

Afﬁa et al. (Afﬁa et al., 2023) proposed a secu-

rity risk management framework for IoT architecture

and a hackathon learning model to teach participants

how to apply it in real-world scenarios. They con-

ducted an action research study by integrating the

hackathon model into a cybersecurity course for stu-

dents to learn how to apply the framework effectively.

The IoT Assurance-Security Reference Model (IoTA-

SRM) and hackathon model interventions helped stu-

dents learn IoT security risk management and apply

the framework to real-world situations.

Tariq et al. (Tariq et al., 2023) reviewed security

issues related to IoT architecture, including connec-

tivity, communication, and management protocols.

They examined current attacks, threats, and cutting-

edge solutions and set security objectives as bench-

marks for evaluating IoT solutions.

To summarize, most of the different approaches

reviewed in this section can be used in speciﬁc in-

dustries, technological contexts, or IoT environments.

However, it is important to note that the effectiveness

of these methods may change depending on factors

such as organizational structure and operational pro-

cesses. It is also worth mentioning that these methods

do not take into account the situations in which at-

tackers can exploit vulnerabilities present in IoT de-

vices. Hence, there is a need for a customizable so-

lution that allows organizations to tailor the risk as-

sessment process to their speciﬁc IoT environment,

considering their infrastructure’s unique device char-

acteristics, requirements, and vulnerabilities.

3 PROPOSED RISK

ASSESSMENT FRAMEWORK

The customizable risk assessment framework we pro-

pose for IoT systems is based on three parameters,

namely “Risk Likelihood”, “Impact Likelihood”, and

“Device Vulnerability Score”. This framework, in-

cluding these parameters and their relationships, is

presented in Figure 1.

3.1 Risk Evaluation

Every resource within the organization, whether it is

physical equipment, digital tools, services, or per-

sonnel, is susceptible to risks that can jeopardize its

conﬁdentiality, integrity, and accessibility. Risk in-

volves the potential danger posed to these resources,

A Customizable Security Risk Assessment Framework Using Multi-Attribute Decision Making for IoT Systems

123

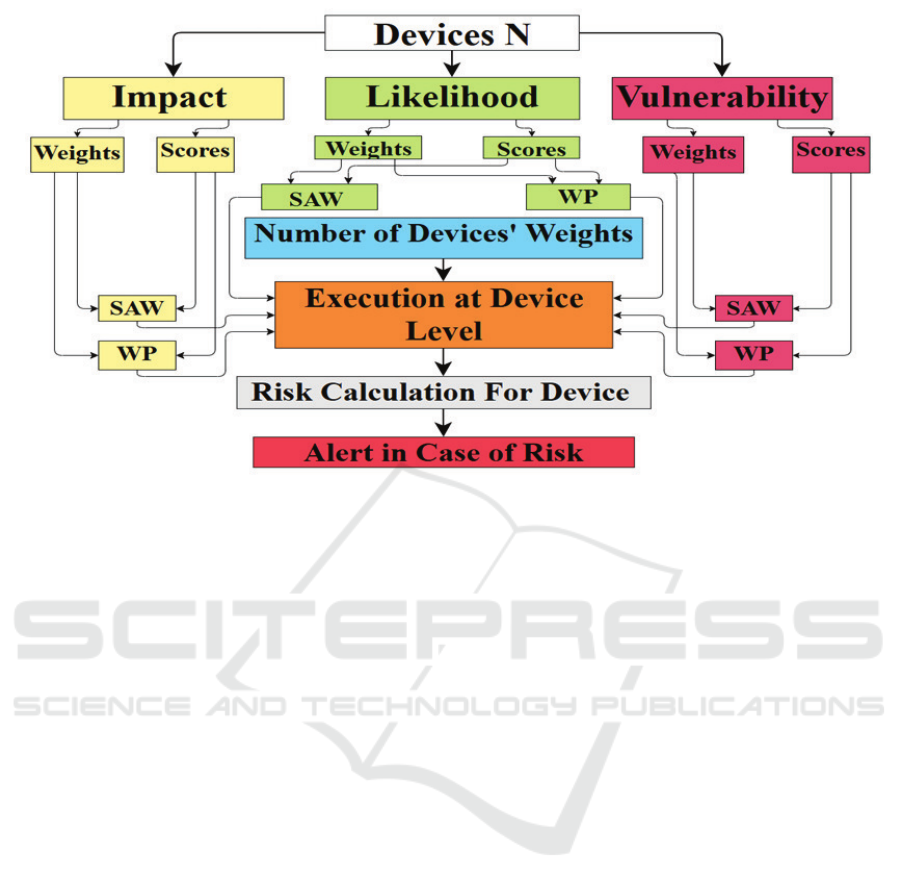

Figure 1: Proposed Framework.

the probability that such dangers occur and the result-

ing impact on the business. In our context, under-

standing both the impact and the likelihood of threats

is crucial due to their direct implications on business

operations. The formula for conducting a comprehen-

sive risk evaluation is given by Equation 1.

R(a) = I(a) × P(a) × V(a) (1)

where a represents any asset (e.g., “Remote heart

monitor”), I represents the risk impact due to vulner-

abilities and cybersecurity issues, and P is the proba-

bility (likelihood) of that risk taking place. The vari-

able V represents the attack surface coverage, which

is affected by the number of vulnerabilities present in

the device and their severity levels.

To evaluate risk, impact (I) and likelihood (P)

will be represented separately through different sets

of parameters. However, since each parameter in

these sets affects the system differently, and with

the complexity of IoT systems and multiple crite-

ria and objectives, it is often necessary to use a

structured approach. This is where Multi-Attribute

Decision Making (MADM) methods can be help-

ful (Yoon and Hwang, 1995; Hwang and Yoon, 2012).

There are many MADM methods, ranging from sim-

ple weighted scoring methods, such as the “Simple

Additive Weighting (SAW)” and “Weighting Product

(WP)”, to more advanced approaches, such as the An-

alytic Hierarchy Process (AHP) and the Technique for

Order of Preference by Similarity to Ideal Solution

(TOPSIS).

For simplicity reasons, in this paper, we use the

SAW and WP methods and their impact on the risk

impact evaluation. Moreover, these two methods

are context-dependent and suitable for our decision

problem (Shameli-Sendi et al., 2016b) (Louaﬁ et al.,

2018). By utilizing these models, we aim to make in-

formed and effective decisions through a comprehen-

sive and rigorous evaluation of the relevant factors.

3.2 Risk Impact Evaluation (I)

Since the risk impact category I greatly inﬂuences

the assessment of risk and its consequences for the

organization and assets, it is crucial to examine its un-

derlying causes in depth. The suggested framework

for risk assessment considers several essential factors

that contribute to the impact of the risk, including

the network factor (N), the protocol factor (P), the

network design (D) and the attack attributes (A).

These factors are detailed in the following, as well as

their assigned weights:

Network Attacks/Issues (N): IoT networks are po-

tentially connected to the Internet and are part of a

more extensive network that provides fast and reli-

able services. However, being part of a network also

makes them vulnerable to various issues that can di-

rectly impact the device’s functionality and indirectly

affect the entire IoT network. Many network-related

problems and attacks can increase the risk impact,

such as denial-of-service (DoS), distributed denial-of-

service (DDoS), man-in-the-middle (MITM), packet

snifﬁng, and trafﬁc analysis.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

124

We assign a weight of 0.30 to this parameter as

it directly targets the infrastructure, which can cause

disruptions, data breaches, or unauthorized access.

Mitigating these risks is crucial to maintain opera-

tional integrity and protect sensitive information.

Protocol Issues (P): Another factor that directly im-

pacts the likelihood of risk is the choice of protocol

utilized by IoT devices. IoT devices employ numer-

ous protocols for communication and network func-

tions. Examples include MQTT, ZigBee, Bluetooth,

and RFID, all commonly used but susceptible to cer-

tain vulnerabilities and attacks of the protocols.

Since protocols serve as the backbone of IoT

network communication, and attackers can exploit

their vulnerabilities to compromise security of the

entire system, we assign a weight of 0.25 to this

parameter.

Network Design Issues (D): The network’s arrange-

ment and conﬁguration also have a direct impact on

determining overall security. For example, a network

with more intermediate systems provides more op-

portunities for attackers, thus substantially increasing

the risk. In such scenarios, the potential for compro-

mised devices increases and the exposure factor of the

IoT network also increases. Hence, this factor is fun-

damentally crucial in assessing the overall impact of

risk. Furthermore, the design of the network infras-

tructure inﬂuences its resilience against attacks and

ability to facilitate secure communication.

Since poor network design can introduce vul-

nerabilities, create single point of failure, or hinder

effective security controls, we assign 0.30 to this

parameter. Emphasizing network design issues helps

to build a robust and secure architecture.

Attack Attribute (A): The importance of security at-

tributes varies signiﬁcantly under different circum-

stances. For example, DoS and DDoS attacks im-

pact availability, while Replay attacks impact conﬁ-

dentiality or integrity. Understanding the attributes

of potential attacks provides valuable information for

risk impact assessment. This includes knowledge of

attack vectors, techniques, motivations, and potential

impact.

Although important for informed security deci-

sion making, attack attributes are relatively more re-

active compared to other parameters, and thus receive

a slightly lower weight of 0.15.

The different weights assigned to the risk impact

parameters (e.g., N, P, D, and A) are summarized

in Table 1. Note that different weights can be assigned

to these parameters to reﬂect the importance and con-

tribution of each one to overall risk evaluation. The

weights used in our case were determined based on

the characteristics of IoT and the associated security

challenges. Also, each parameter is provided with a

justiﬁcation for its weight. It is also important to high-

light that security experts can adjust these parameters

to ﬁt the system, industry, or environment’s needs.

Table 1: The Risk Impact Parameters and their Assigned

Weights.

Risk Impact Parameter Assigned Weight

Network Attacks/Issues (N) 0.30

Protocol Issues (P) 0.25

Network Design Issues (D) 0.30

Attack Attribute (A) 0.15

Given all the aforelisted factors, we propose to

evaluate the risk impact for a given asset a using the

SAW and WP methods, as shown in the following

equations:

SAW

(a) =

∑

i=1

(a) I

(a) =

∏

i=1



(a)



where, I

(a) and w

represent risk impact of the pa-

rameter i of the asset a, such as the “Protocol Issues

(P)”, and its assigned weight, respectively. n is the

number of the parameters involved in the evaluation

of I, which is equal to 4 (e.g., N, P, D, and A). Note

that, this number can be increased if other parameters

are considered, which makes our framework scalable.

3.3 Risk Likelihood Evaluation (P)

In addition to the immediate danger posed to assets

by cybersecurity issues, the probability of a vul-

nerability being exploited and the threat becoming

real is crucial. Thus, in assessing the likelihood of

a security risk occurring, we consider four factors:

device attack history (H), device layer security (L),

device criticality (C), and device application of use

(M). These parameters are further elaborated, and

different weights are assigned and justiﬁed in the

following sections.

Device Attack History (H): This parameter reﬂects

the number of times a device has been targeted and

attacked in the past, making it an essential metric

for predicting the device’s future vulnerability. For

instance, if we consider an IoT device located in a

highly secured facility, it might have been targeted

multiple times in the past, given the sensitive nature of

the data it holds. The parameter helps us identify such

devices with a history of frequent attacks, making

them more prone to security breaches in the future.

A Customizable Security Risk Assessment Framework Using Multi-Attribute Decision Making for IoT Systems

125

While understanding a device’s historical vulnerabil-

ities can offer insights into potential weaknesses, it

may not always accurately predict current security

risks.

Therefore, this parameter is assigned a relatively

lower weight of 0.20, reﬂecting its importance in con-

text but acknowledging that other factors may carry

more weight in determining overall security priorities.

Device Layer (L): IoT is a system that operates

within multiple layers of architecture. Each layer con-

sists of different devices with varying levels of func-

tionality. Due to this diversity, the vulnerability of

IoT to cyberattacks varies signiﬁcantly across these

layers. For instance, assets at the sensor layer are con-

siderably less exposed to attacks and associated risks

compared to those at the network or application lay-

ers. Likewise, the business layer presents a lower risk

proﬁle than the network layer.

Therefore, it is essential to consider the likeli-

hood of an attack and the resulting risks in relation

to the speciﬁc deployment layer. Thus, we as-

sign a weight of 0.30 to acknowledge the need

to establish a connection between the probability

of an attack and the resulting risk within the IoT layer.

Device Criticality (C): As we increasingly rely on

the Internet of Things to manage various aspects of

our lives, it is essential to recognize that some devices

of the Internet of Things are more critical than others.

These devices play a vital role in ensuring our safety

and security, and as a result, they are likely to be tar-

geted by cybercriminals. When a critical IoT device is

compromised, the consequences can be catastrophic

and even life-threatening.

This particular parameter holds signiﬁcant impor-

tance in likelihood evaluation as it provides insight

into the device’s purpose. Hence, a weight of 0.35 is

assigned to this parameter.

Device Application/Environment of Use (M): IoT

applications can vary depending on individual needs,

preferences and perspectives. They can have critical

uses, such as in a healthcare environment where IoT

devices are used for remote patient monitoring, med-

ication adherence tracking, facility security cameras,

and improving healthcare delivery, where they have

a direct impact on human life. However, they can be

used in less important applications, such as connected

toothbrushes or smart umbrellas, where the impact of

cyberattacks is generally less immediate and direct

than in healthcare.

Therefore, it is crucial to assess the likelihood of

an attack and eventual risk with the IoT application of

use. While important, the weight we assign for this

parameter is 0.15, as it may not always be as critical

as the device’s inherent security features or its overall

criticality.

The different weights assigned to the risk likeli-

hood parameters (e.g., H, L, C, and M) are summa-

rized in Table 2. Similarly, different weights can be

assigned to these parameters to reﬂect the importance

and contribution of each one to overall risk evaluation.

Table 2: The Risk Likelihood Parameters and their As-

signed Weights.

Risk Likelihood Parameters Assigned Weight

Device Attack History (H) 0.20

Device Layer (L) 0.30

Device Criticality (C) 0.35

Device Application of Use (M) 0.15

After considering the given likelihood parameters

and their weights, we propose to assess the risk like-

lihood of an asset a using the SAW and WP method,

as shown in the following equations:

SAW

(a) =

∑

i=1

(a) P

(a) =

∏

i=1



(a)



where, P

(a) and w

represent probability of risk tak-

ing place for the parameter i of the asset a, such as the

“Device Attack History (A)”, and its assigned weight,

respectively. n is the number of the parameters in-

volved in the evaluation of P, which is equal to 4

(e.g., H, L, C, and M). Similarly, this number can be

increased if other parameters are considered, which

makes our framework scalable.

3.4 Attack Surface Coverage (V)

In many real-world scenarios, assessing the overall

risk to an asset and an organization based solely on

risk impact and likelihood may be insufﬁcient. This

becomes particularly evident when considering sys-

tems facing numerous security challenges, such as

IoT systems. IoT devices introduce a range of vul-

nerabilities that can compromise the security of the

systems they are integrated into. Due to their unique

characteristics, IoT devices lack many security mech-

anisms, such as encryption, authentication protocols,

and access controls, leading to various security at-

tacks, such as unauthorized access or data breaches.

Security at the device level is essential, as different

devices have different security issues.

A vulnerable device is more exposed to attacks

when compared to a device with no or low vulnerabil-

ity. The National Vulnerability Database (NVD) (Na-

tional Institute of Standards and Technology (NIST),

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

126

2024b), which is managed and maintained by the Na-

tional Institute of Standards and Technology (NIST),

is an extensive collection of security vulnerabilities. It

offers information on vulnerabilities found in various

systems, such as software, hardware, and ﬁrmware.

In our framework, we utilize the NVD database

to obtain vulnerability scores for different IoT de-

vices and evaluate the attack surface coverage asso-

ciated with each device. The NVD ranks vulnera-

bilities using a Common Vulnerability Scoring Sys-

tem (CVSS) (Mell et al., 2006), which assigns numer-

ical scores to vulnerabilities based on their severity

and potential impact. The CVSS scores range from

0.0 to 10.0, with higher scores indicating more se-

vere vulnerabilities. These scores and their normal-

ized versions and severity levels are presented in Ta-

ble 3.

Table 3: CVSS Scores and their Normalized Versions and

Severity Levels, Based on CVSS v3.x Ratings (National In-

stitute of Standards and Technology (NIST), 2024a).

CVSS

Score

Normalized

Score

Severity Level

0.0 0 No Vulnerability

0.1 to 3.9 0.1 to 0.39 Low severity

4.0 to 6.9 0.4 to 0.69 Medium severity

7.0 to 8.9 0.7 to 0.89 High severity

9.0 to 10.0 0.9 to 1 Critical severity

As each IoT device may have 0 or more discov-

ered vulnerabilities, each of which has a certain sever-

ity level (CVSS score), we propose to evaluate the

attack surface coverage (V) using the SAW and WP

methods, as shown in the following equations:

SAW

(a) =

∑

i=1

C(a) V

(a) =

∏

i=1



C(a)



where, C(a) is the cruciality of the asset a to the en-

tire system and w

the weight associated with it, which

is evaluated as the normalized CVSS score. m repre-

sents the number of vulnerabilities present in the asset

The cruciality of an asset a to the entire system

represents how that asset is important and critical to

the system it is connected to. Hence, we propose to

evaluate the cruciality with values ranging from 0 to

1, with higher values indicating higher cruciality.

3.5 Number of Devices

In a practical context, we may have several devices

of the same type, meaning that they share the same

characteristics that are involved in the evaluation of

the risk. Therefore, we need a mechanism to incorpo-

rate such information in the evaluation of I, P, and V.

As proposed in (Waqdan et al., 2023; Waqdan. et al.,

2023), we propose to multiply the ratio of each de-

vice type with each of the three functions I, P, and V.

Table 4 shows the device type ratios and their corre-

sponding weights. For instance, if for a given device

type a, we have 8 devices and the total of devices is

10, the weight that needs to be used is 1, as the ratio

of the device type a is greater than 60%.

Table 4: Device Type Weight Allocation through Their Ra-

tios.

Device Type Ratio Ratio Weight

Over 60% 1

40% to 60% 0.7

20% to 39% 0.5

Below 20% 0.2

3.6 Overall Risk Evaluation (R)

After evaluating the three functions I, P, and V, the

overall risk R, which is stated in Equation 1, becomes

as shown in Equation 2 and Equation 3, using the

SAW and WP methods respectively.

SAW

(a) =

∑

i=1

(a)×

∑

i=1

(a)×

∑

i=1

(a) (2)

(a) =

∏

i=1



(a)



∏

i=1



(a)



∏

i=1



(a)



(3)

After calculating the overall risk R, which returns

a score between 0 and 1, we provide the end-user with

a guide that helps him/her interpreting the returned

score, as shown in Table 5.

Table 5: Risk Ranges and Criticality.

Risk Score (R) Risk Level

0.0 to 0.2 Very low

0.2 to 0.3 Low

0.3 to 0.6 Medium

0.6 to 0.8 High

0.8 to 1.0 Very high

4 SIMULATION AND

VALIDATION

As our framework was designed with application-

speciﬁc parameters, we tested and validated it in

the healthcare industry. This validation was car-

ried out through a practical simulation of a hospi-

tal emergency room involving twenty interconnected

IoT devices. Table 6 shows the list of IoT devices,

A Customizable Security Risk Assessment Framework Using Multi-Attribute Decision Making for IoT Systems

127

their numbers, along with their vulnerabilities and the

CVSS of each one. In this setup, we selected 10

Smart sensors (Shekar Endoscope), 6 insulin pumps

(Insulet Omnipod 19191), and 4 Remote heart moni-

tors (BIOTRONIK CardioMessenger II).

To demonstrate the real-world applicability of our

framework, we evaluated it through two use cases

of MADM methods with different parameter weights

and device properties.

The assigned scores for the three types of IoT de-

vices are extracted from our work (Waqdan et al.,

2023), (Waqdan. et al., 2023) , to further emphasize

the practicality of our approach.

In the following, we illustrate the risk evaluation

using the two MADM methods considered in this pa-

per, i.e., SAW and WP.

Table 6: The List of IoT Devices Used in the Simulation

Setup.

IoT Device Qty. Vulnerability Vulnerability

No.

CVSS

Shekar En-

doscope

10 Exploit

memory

corruption

CVE-2017-

10724

8.8

Insulet

Omnipod

19191

6 Weak Au-

thentication

CVE-2020-

10627

8.1

BIOTRONIK

Car-

dioMessen-

ger II

4 Sensitive

Info. Not

Encrypted

CVE-2019-

18254

4.6

4.1 Risk Evaluation

In this section, we will assess the risk using the SAW

and WP methods. Hence, all devices are evaluated in

SAW and WP with their parameter weights.

Among all the devices used in a hospital’s emer-

gency room, three devices are highly important: i)

Insulin Pumps, ii) Medical Sensors, and iii) Remote

Heart Monitors. For instance, Medical sensors like

Endoscopes and Borescopes are essential, as real-time

health monitors use them to present patient statistics

to doctors. Doctors then use this data to make in-

formed decisions. Therefore, we need to calculate the

risk associated with Medical Sensors, along with the

other types of devices.

These three devices and their scores (extracted

from (Waqdan et al., 2023)), and assigned weights

(which are presented in Table 1 and Table 2), are sum-

marized in Table 8 and Table 9. The Latter show also

the evaluated risk impact (I) and likelihood (P) for

the three devices considered using the SAW and WP

methods.

Regarding the evaluation of the attack surface cov-

erage (V), we use normalized CVSS and the crucial-

ity of the devices. The normalized CVSS are com-

puted from the CVSS values listed in Table 6 and are

reported in Table 7. The latter shows also the cru-

ciality scores we propose. These cruciality scores are

assigned to the three types of devices, as follows:

• Medical Sensors (Shekar Endoscope): They are

very important and numerous medical and clini-

cal decisions rely on the outcomes they provide.

However, they do not represent an immediate life

threat to the patient’s life. Additionally, they

mostly hold or transmit video feeds and pictures.

Hence, we assign a cruciality score of 0.20 to this

device.

• Insulin Pumps (Insulet Omnipod Insulin Manage-

ment System insulin pump product ID 19191):

They are implanted in the patient’s body, prevent-

ing insulin delivery or adjusting pump settings.

Thus, they could seriously threaten the patient’s

life. Therefore, we assign a cruciality score of

0.35 to emphasize its importance.

• Remote Heart Monitors (BIOTRONIK Car-

dioMessenger II): They are vital to a patient’s

medical care despite not being implanted in their

body. They serve as crucial links between the

patient and their healthcare provider, transmitting

essential data about their heart health. The de-

vice’s importance cannot be overstated, as any

malfunction or failure could result in severe harm

or even death for the patient. Due to this signiﬁ-

cant danger, the device has been assigned a higher

cruciality score of 0.45.

Similarly, Table 10 shows the evaluated attack sur-

face coverage (R) for the three devices, using SAW

and WP methods.

Table 7: IoT Devices, Their Normalized CVSS and Their

Cruciality Values.

IoT Device CVSS Normalized

CVSS

Cruciality

Shekar Endo-

scope

8.8 0.88 0.20

Insulet Omni-

pod 19191

8.1 0.81 0.45

BIOTRONIK

CardioMessen-

ger II

4.6 0.46 0.35

4.1.1 Risk Evaluation for “Medical Sensor”

Evaluation of I: We evaluate the risk impact of

the Medical Sensor using the SAW and WP meth-

ods. Then, it is multiplied by the device ratio weight,

which is equal to 1 for this device (see Table 4). As

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

128

Table 8: Risk Impact Evaluation Using SAW and WP.

Impact Medical Sensors Insulin Pumps Heart Monitors

Criteria Score Weight Score Weight Score Weight

N 1 0.3 1 0.3 1 0.3

P 0.5 0.25 0.75 0.25 0.5 0.25

D 1 0.3 1 0.3 0.3 0.3

A 0.5 0.15 1 0.15 0.3 0.15

Ratio W. 0.7 0.5 0.5

SAW

0.56 0.468 0.28

0.530 0.465 0.244

Table 9: Risk Likelihood Evaluation Using SAW and WP.

Prob. Medical Sensors Insulin Pumps Heart Monitors

Criteria Score Weight Score Weight Score Weight

H 0.5 0.2 1 0.2 1 0.2

L 1 0.3 0.75 0.3 0.3 0.3

C 1 0.35 1 0.35 1 0.35

M 1 0.15 1 0.15 1 0.15

Ratio W. 0.7 0.5 0.5

SAW

0.63 0.462 0.395

0.609 0.458 0.348

Table 10: Attack Surface Coverage Evaluation Using SAW

and WP.

Vuln. Medical Sensors Insulin Pumps Heart Monitors

Criteria Score Weight Score Weight Score Weight

V 0.20 0.88 0.35 0.81 0.45 0.46

Ratio W. 0.7 0.5 0.5

SAW

0.123 0.141 0.103

0.169 0.213 0.346

shown in Table 8, the risk impact for the Medical Sen-

sor is calculated as follows:

SAW

(Medical Sensor) = 0.56

(4)

(Medical Sensor) =0.530

(5)

Evaluation of P : Similarly, we evaluate the likeli-

hood risk of the Medical Sensor, using the SAW and

WP methods. Then, it is multiplied by the device ra-

tio weight, which is equal to 1 for this device (see Ta-

ble 4). As shown in Table 9, the risk likelihood for the

Medical Sensor is calculated as follows:

SAW

(Medical Sensor) =0.63

(6)

(Medical Sensor) =0.609

(7)

Evaluation of V: Similarly, we evaluate the attack

surface coverage of the Medical Sensor, using the

SAW and WP methods. Then, it is multiplied by the

device ratio weight, which is equal to 1 for this device

(see Table 4). As shown in Table 10, the attack sur-

face coverage for the Medical Sensor is calculated as

follows:

SAW

(Medical Sensor) = 0.7 × 0.20 × 0.88 = 0.123 (8)

(Medical Sensor) = 0.7 × (0.20

0.88

) = 0.169 (9)

Evaluation of R: The overall security risk is calcu-

lated using the results obtained from the risk impact

( Equation 4 and Equation 5), the likelihood impact

( Equation 6) and Equation 7), and the attack surface

coverage ( Equation 8 and Equation 9). Thus, the

overall risk is evaluated as follows:

SAW

(Medical Sensor) =I

SAW

(Medical Sensor)×

SAW

(Medical Sensor)×

SAW

(Medical Sensor)

=0.04346

(10)

(Medical Sensor) =I

(Medical Sensor)×

(Medical Sensor)

=0.0549

(11)

4.1.2 Risk Evaluation for “Insulin Pumps”

Evaluation of I: Similar to the Medical Sensor, the

risk impact of the Insulin Pump is evaluated using the

SAW and WP methods. Then, it is multiplied by the

device ratio weight, which is equal to 0.7 for this de-

vice (see Table 4). As shown in Table 8, the risk im-

pact for the Insulin Pump is calculated as follows:

SAW

(Insulin Pump) =0.468

(12)

(Insulin Pump) =0.465

(13)

Evaluation of P: Similarly, the risk likelihood of the

Insulin Pump is evaluated using the SAW and WP

methods. Then, it is multiplied by the device ratio

weight, which is equal to 0.7 for this device (see Ta-

ble 4). As shown in Table 9, the risk impact for the

Insulin Pump is calculated as follows:

SAW

(Insulin Pump) =0.462

(14)

(Insulin Pump) =0.458

(15)

Evaluation of V: Similarly, we evaluate the attack

surface coverage of the Insulin Pump, using the SAW

and WP methods. Then, it is multiplied by the de-

vice ratio weight, which is equal to 0.7 for this device

(see Table 4). As shown in Table 10, the attack sur-

face coverage for the Insulin Pump is calculated as

follows:

SAW

(Insulin Pump) = 0.5 × 0.35 × 0.81 = 0.141 (16)

(Insulin Pump) = 0.5 × (0.35

0.81

) = 0.213 (17)

A Customizable Security Risk Assessment Framework Using Multi-Attribute Decision Making for IoT Systems

129

Evaluation of R: The overall security risk is calcu-

lated using the results obtained from the risk impact

( Equation 12 and Equation 13), the likelihood impact

( Equation 14) and Equation 15), and the attack sur-

face coverage ( Equation 16 and Equation 17). Thus,

the overall risk is evaluated as follows:

SAW

(Insulin Pump) =I

SAW

(Insulin Pump)×

SAW

(Insulin Pump)×

SAW

(Insulin Pump)

=0.0307

(18)

(Insulin Pump) =I

(Insulin Pump)×

(Insulin Pump)

=0.0455

(19)

4.1.3 Risk Evaluation for “Remote Heart

Monitor”

Evaluation of I: Similarly, the risk impact of the Re-

mote Heart Monitor is evaluated using the SAW and

WP methods. Then, it is multiplied by the device ratio

weight, which is equal to 0.7 for this device (see Ta-

ble 4). As shown in Table 8, the risk impact for the

Remote Heart Monitor is calculated as follows:

SAW

(Remote Heart Monitor) = 0.28

(20)

(Remote Heart Monitor) = 0.244

(21)

Evaluation of P: Similarly, the risk likelihood of the

Remote Heart Monitor is evaluated using the SAW

and WP methods. Then, it is multiplied by the de-

vice ratio weight, which is equal to 0.7 for this device

(see Table 4). As shown in Table 9, the risk impact for

the Remote Heart Monitor is calculated as follows:

SAW

(Remote Heart Monitor) = 0.395

(22)

(Remote Heart Monitor) = 0.348

(23)

Evaluation of V: Similarly, we evaluate the attack

surface coverage of the Remote Heart Monitor, using

the SAW and WP methods. Then, it is multiplied by

the device ratio weight, which is equal to 0.7 for this

device (see Table 4). As shown in Table 10, the at-

tack surface coverage for the Remote Heart Monitor

is calculated as follows:

SAW

(Remote Heart Monitor) =

0.5 × 0.45 × 0.46 = 0.103

(24)

(Remote Heart Monitor) =

0.5 × (0.45

0.46

) = 0.346

(25)

Evaluation of R: Similarly, the overall security risk

is calculated using the results obtained from the risk

impact ( Equation 20 and Equation 21), the likelihood

impact ( Equation 22) and Equation 23), and the at-

tack surface coverage ( Equation 24 and Equation 25).

Thus, the overall risk for the Remote Heart Monitor is

evaluated as follows:

SAW

(Remote Heart Monitor) =

SAW

(Remote Heart Monitor)×

SAW

(Remote Heart Monitor)×

SAW

(Remote Heart Monitor)

=0.0114

(26)

(Remote Heart Monitor) =

(Remote Heart Monitor)×

(Remote Heart Monitor)

=0.0295

(27)

4.2 Discussion and Analysis

The obtained results of the three risk functions, I, P,

and V, as well as the overall risk R are presented

in Figure 2, Figure 3, Figure 4, and Figure 5, respec-

tively. Besides, the overall security risk scores are

summarized in Table 11. Using the SAW method, the

overall security risk for the Medical Sensors is evalu-

ated using the Impact set of parameters with their as-

signed weights, the Likelihood parameters with their

assigned weights, the Curuciality of IoT devices with

their CVSS scores. Then, we used the number of de-

vices, expressed with the device ratio’s weights.

For the Medical Sensors, the overall security risk

score obtained using SAW is 0.0434, while the score

escalated to 0.0549 when WP is used with the same

device parameters. On the other hand, for the Insulin

Pumps, the overall security risk score evaluated using

SAW is 0.03073. On the contrary, for the same de-

vice, using WP, the overall security risk is 0.04559.

This risk is also affected by the number of devices

(devices ratio) since the setup has fewer Insulin Pump

devices than the Medical Sensors. Furthermore, for

our last set of devices, the Remote Heart Monitors, us-

ing SAW, the overall risk is 0.01145, while the overall

score using WP is 0.0295. Besides, adding weights to

the parameters used gives more insight and objectiv-

ity to the results obtained. Moreover, these weight-

ing system brings more ﬂexibility and adaptability to

business owners, stakeholders, or even security ex-

perts, who can tune these parameters in a way suitable

for the system industry or environment. Additionally,

the customizability of our framework makes it usable

in various IoT applications.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

130

Table 11: Overall Security Risk, as Evaluated Using the

SAW and WP Methods.

IoT Devices

Method

Medical

Sensors

Insulin

Pumps

Heart

Monitors

SAW 0.0434 0.0307 0.01145

WP 0.0549 0.04559 0.02951

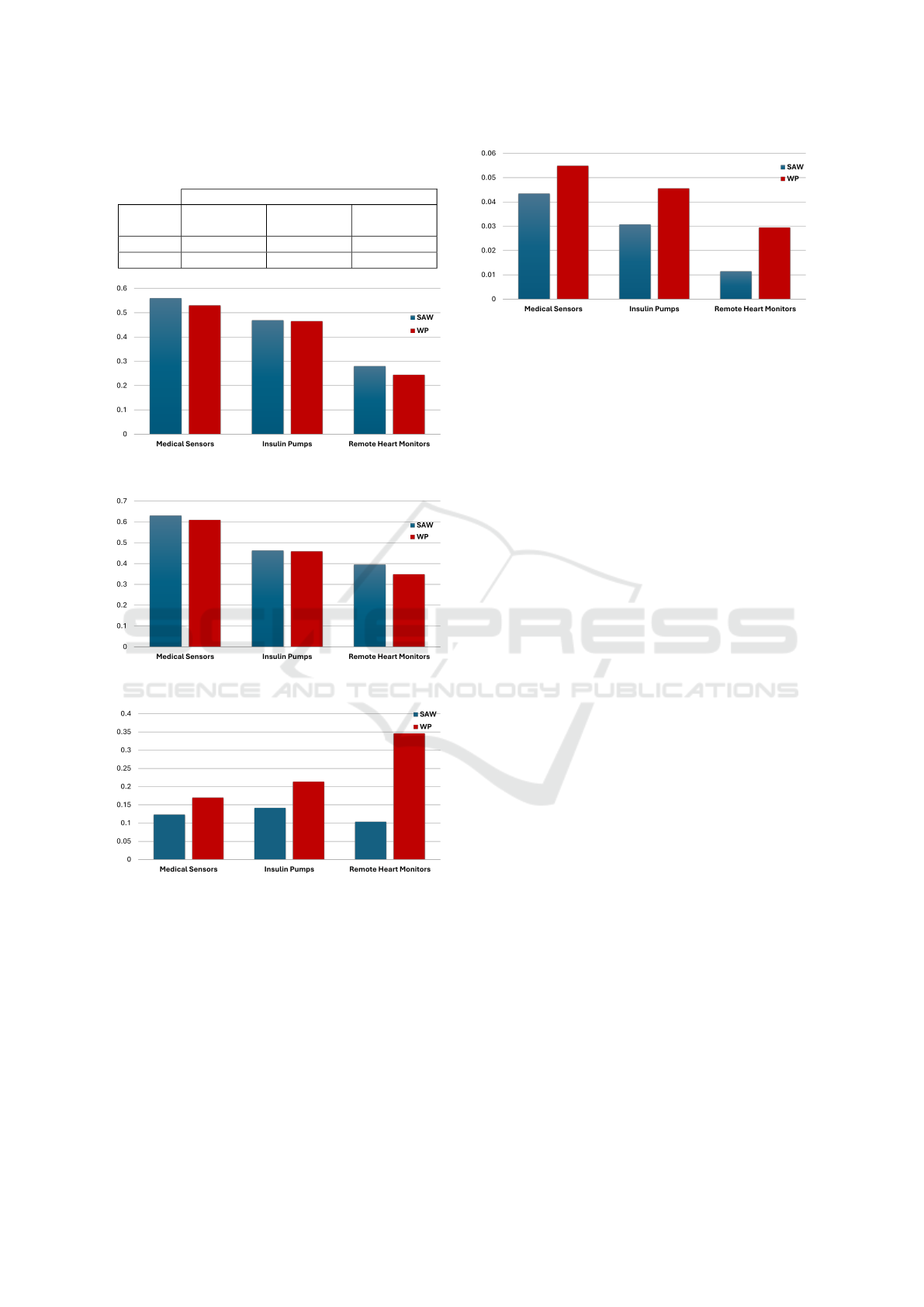

Figure 2: Impact Evaluation Using SAW and WP.

Figure 3: Likelihood Evaluation Using SAW and WP.

Figure 4: Attack Surface Coverage Evaluation Using SAW

and WP.

5 CONCLUSION

IoT technology creates new security risks for organi-

zations. To evaluate these risks, organizations need

to develop a comprehensive Risk Assessment Frame-

work for IoT. The framework should identify, assess,

and respond to potential risks.

In this paper, we proposed a customizable secu-

rity risk assessment framework that takes into account

Figure 5: Overall Security Risk Evaluation Using SAW and

WP.

critical factors such as risk impact, likelihood impact,

and device vulnerability. Since the IoT devices in-

volved in the risk do not affect the entire system, they

are connected to, equally, their risk should be calcu-

lated differently. Therefore, in our framework, we

evaluated the importance of each IoT device using a

weighting system, which reﬂects how the device is

important and critical to the entire system. We also

considered the vulnerabilities that may be present in

the IoT devices, which represent a risk to the entire

system if they are not patched. Then, to take into ac-

count the assigned weights in the calculation of the

overall risk, we used two widely used MADM meth-

ods, namely SAW and WP. These two methods are

tested together to understand the impact of the ap-

proach utilized. Then, the security experts can ana-

lyze the results and decide which method is the most

appropriate to his context and environment.

REFERENCES

Afﬁa, A.-a. O., Nolte, A., and Matulevi

cius, R. (2023). IoT

Security Risk Management: A Framework and Teach-

ing Approach. Informatics in Education.

Bahizad, S. (2020). Risks of increase in the IoT devices. In

2020 7th IEEE international conference on cyber se-

curity and cloud computing (CSCloud)/2020 6th IEEE

international conference on edge computing and scal-

able cloud (EdgeCom), pages 178–181. IEEE.

Chen, B., Yang, Z., Zhang, Y., Chen, Y., and Zhao, J.

(2020). Risk assessment of cyber attacks on power

grids considering the characteristics of attack behav-

iors. IEEE Access, 8:148331–148344.

Falola, O., Louaﬁ, H., and Mouhoub, M. (2023). Optimiz-

ing iot device ﬁngerprinting using machine learning.

In Innovations in Digital Forensics, pages 293–317.

World Scientiﬁc.

Hwang, C.-L. and Yoon, K. (2012). Multiple attribute deci-

sion making: methods and applications a state-of-the-

art survey, volume 186. Springer Science & Business

Media.

Jasour, A., Huang, X., Wang, A., and Williams, B. C.

(2022). Fast nonlinear risk assessment for au-

A Customizable Security Risk Assessment Framework Using Multi-Attribute Decision Making for IoT Systems

131

tonomous vehicles using learned conditional proba-

bilistic models of agent futures. Autonomous Robots,

46(1):269–282.

Kandasamy, K., Srinivas, S., Achuthan, K., and Rangan,

V. P. (2020). IoT cyber risk: A holistic analysis of cy-

ber risk assessment frameworks, risk vectors, and risk

ranking process. EURASIP Journal on Information

Security, 2020(1):1–18.

Kumar, D., Khan, A. H., Nayyar, H., and Gupta, V. (2020).

Cyber Risk Assessment Model for Critical Informa-

tion Infrastructure. In 2020 International Conference

on Power Electronics & IoT Applications in Renew-

able Energy and its Control (PARC), pages 292–297.

IEEE.

Kumar, S., Tiwari, P., and Zymbler, M. (2019). Internet

of Things is a revolutionary approach for future tech-

nology enhancement: a review. Journal of Big data,

6(1):1–21.

Lee, I. (2020). Internet of Things (IoT) cybersecurity: Liter-

ature review and IoT cyber risk management. Future

internet, 12(9):157.

Louaﬁ, H., Coulombe, S., and Cheriet, M. (2018). A

TOPSIS-based QoE model for adapted content selec-

tion of slide documents. Multimedia Tools and Appli-

cations, 77(20):26741–26768.

Malik, A. A. and Tosh, D. K. (2022). Dynamic risk assess-

ment and analysis framework for large-scale cyber-

physical systems. EAI Endorsed Transactions on Se-

curity and Safety, 8(30).

Matheu, S. N., Hernandez-Ramos, J. L., Skarmeta, A. F.,

and Baldini, G. (2020). A survey of cybersecurity cer-

tiﬁcation for the internet of things. ACM Computing

Surveys (CSUR), 53(6):1–36.

Matsuda, W., Fujimoto, M., Hashimoto, Y., and Mitsunaga,

T. (2021). Cyber Security Risks of Technical Com-

ponents in Industry 4.0. In 2021 IEEE Interna-

tional Conference on Omni-Layer Intelligent Systems

(COINS), pages 1–7. IEEE.

Mell, P., Scarfone, K., and Romanosky, S. (2006). Com-

mon vulnerability scoring system. IEEE Security &

Privacy, 4(6):85–89.

National Institute of Standards and Technology (NIST)

(2024a). Common Vulnerability Scoring System

(CVSS).

National Institute of Standards and Technology (NIST)

(2024b). National Vulnerability Database (NVD).

Opoku, S. M., Louaﬁ, H., and Mouhoub, M. (2024). Iot

device identiﬁcation based on network trafﬁc analysis

and machine learning. In 2024 International Sympo-

sium on Networks, Computers and Communications

(ISNCC), pages 1–8.

Radanliev, P., De Roure, D., Cannady, S., Montalvo, R. M.,

Nicolescu, R., and Huth, M. (2018). Economic impact

of IoT cyber risk-analysing past and present to predict

the future developments in IoT risk analysis and IoT

cyber insurance.

Radanliev, P., De Roure, D., Page, K., Nurse, J. R., Man-

tilla Montalvo, R., Santos, O., Maddox, L., and Bur-

nap, P. (2020). Cyber risk at the edge: current and fu-

ture trends on cyber risk analytics and artiﬁcial intelli-

gence in the industrial internet of things and industry

4.0 supply chains. Cybersecurity, 3(1):1–21.

Radanliev, P., De Roure, D. C., Maple, C., Nurse, J. R.,

Nicolescu, R., and Ani, U. (2019). Cyber Risk in IoT

Systems.

Ray, P. P. (2018). A survey on Internet of Things architec-

tures. Journal of King Saud University-Computer and

Information Sciences, 30(3):291–319.

Shameli-Sendi, A., Aghababaei-Barzegar, R., and Cheriet,

M. (2016a). Taxonomy of information security risk

assessment (ISRA). Computers & security, 57:14–30.

Shameli-Sendi, A., Louaﬁ, H., He, W., and Cheriet, M.

(2016b). Dynamic optimal countermeasure selection

for intrusion response system. IEEE Transactions on

Dependable and Secure Computing, 15(5):755–770.

Tariq, U., Ahmed, I., Bashir, A. K., and Shaukat, K.

(2023). A Critical Cybersecurity Analysis and Fu-

ture Research Directions for the Internet of Things:

A Comprehensive Review. Sensors, 23(8):4117.

Wangyal, S., Dechen, T., Tanimoto, S., Sato, H., and Kanai,

A. (2020). A Study of Multi-viewpoint Risk Assess-

ment of Internet of Things (IoT). In 2020 9th Inter-

national Congress on Advanced Applied Informatics

(IIAI-AAI), pages 639–644. IEEE.

Waqdan., M., Louaﬁ., H., and Mouhoub., M. (2023). A

Comprehensive Risk Assessment Framework for IoT-

Enabled Healthcare Environment. In Proceedings of

the 20th International Conference on Security and

Cryptography, pages 667–672. SciTePress.

Waqdan, M., Louaﬁ, H., and Mouhoub, M. (2023). An IoT

Security Risk Assessment Framework for Healthcare

Environment. In 2023 International Symposium on

Networks, Computers and Communications (ISNCC),

pages 01–08. IEEE.

Yoon, K. P. and Hwang, C.-L. (1995). Multiple attribute

decision making: an introduction. Sage publications.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

132
