Safe Behavior Model Synthesis:

From STPA to LTL to SCCharts

Jette Petzold

and Reinhard von Hanxleden

Department of Computer Science, Kiel University, Kiel, Germany

Keywords:

STPA, LTL, Behavior Model, Model Synthesis.

Abstract:

In Model-Driven Engineering developers create a model of the system. Typically, such a model is veriﬁed to be

safe by using model checking. For this, the developers need to create Linear Temporal Logic (LTL) formulas.

Determining these formulas and modeling the system in the ﬁrst place is time consuming and error-prone. We

propose to automatically create the LTL formulas based on a risk analysis that has to be done anyway. This

reduces errors and the time needed to create the formulas. Furthermore, we use these formulas to automatically

synthesize a behavior model of the analyzed system that is safe by construction. The presented approach is

implemented in the open-source tool PASTA. A case study with a simpliﬁed Adaptive Cruise Control system

shows the applicability of the Safe Behavior Model synthesis.

1 INTRODUCTION

Model-Driven Engineering (MDE) is widely used in

system development. The developer creates a behav-

ior model of the system, which is used as a basis for

implementing the system. The safety of the result-

ing system must be veriﬁed e. g. with model check-

ing (Clarke, 1997). When using model checking, the

system speciﬁcations are translated into formulas us-

ing e. g. Linear Temporal Logic (LTL) or Signal Tem-

poral Logic (STL) and a model checker determines

whether the model fulﬁlls them. We focus on LTL.

Creating LTL formulas and modeling a system in

the ﬁrst place are non-trivial. System modeling is

very time-consuming, which is why techniques exist

to generate them automatically (Uchitel et al., 2001).

However, with this approach the necessity of creat-

ing LTL formulas and verifying the model, still ex-

ists. Generating the LTL formulas automatically can

reduce the time effort and the risk of mistakes.

To generate the LTL formulas automatically, the

safety properties of a system must be determined.

This can be done by performing a risk analysis, which

is mandatory for safety-critical systems. System-

Theoretic Process Analysis (STPA) is a risk analysis

technique that identiﬁes more risks than traditional

hazard analysis techniques (Leveson, 2016).

https://orcid.org/0000-0002-5559-7073

https://orcid.org/0000-0001-5691-1215

LTL formulas can be used to verify a model for

the system. However, such a veriﬁcation is time-

consuming. Using the formulas to create a safe by

construction model, reduces this time-effort.

This is the reason, we want to use STPA to au-

tomatically create LTL formulas and these formulas

to automatically synthesize a behavior model that is

safe by construction. For that, we propose rules to

automatically translate the resulting safety properties

of STPA to LTL formulas ensuring that no property

is forgotten and reducing the time effort for creat-

ing the formulas. Based on these formulas, we pro-

pose a synthesis of a Safe Behavior Model (SBM)

core as a statechart. This way, the resulting model is

safe by construction in respect to the safety properties

identiﬁed. The presented approach is implemented

in the open-source Pragmatic Automated System-

Theoretic Process Analysis (PASTA) tool

(Petzold

et al., 2023) using Sequentially Constructive State-

charts (SCCharts) (von Hanxleden et al., 2014).

Contributions & Outline. section 2 reviews STPA,

Statecharts, and LTL formulas. We introduce a run-

ning example in section 3. Our main contributions

are as follows:

• We propose a translation of the STPA results to

LTL formulas (section 4).

https://github.com/kieler/stpa

Petzold, J. and von Hanxleden, R.

Safe Behavior Model Synthesis: From STPA to LTL to SCCharts.

DOI: 10.5220/0013091600003896

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 13th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2025), pages 133-140

ISBN: 978-989-758-729-0; ISSN: 2184-4348

133

• We present an approach to create an SBM core

based on these formulas (section 5).

• We extend STPA with Desired Control Actions

(DCAs) to cover system goals (section 6).

We present the results of the application of our ap-

proach to the running example in section 7 and sec-

tion 8 discusses the approach. section 9 reviews re-

lated work and section 10 concludes the paper.

2 BACKGROUND

We give a short introduction of STPA, followed by the

used statechart deﬁnition and LTL operators.

System-Theoretic Process Analysis. STPA is

a hazard analysis technique consisting of four

steps (Leveson and Thomas, 2018).

The control structure modeled in Step 2 consists

of controllers and controlled processes. A controller

sends control actions and consists of a process model

that consists of process model variables containing in-

formation about the system.

In Step 3, the analyst deﬁnes Unsafe Control Ac-

tions (UCAs) by determining in which contexts a con-

trol action is hazardous. The context can be stated

formally by using context tables (Thomas, 2013). The

context is deﬁned by assigning values to the process

model variables. For each context the analyst deter-

mines whether a control action is hazardous for any

UCA type. A UCA can have one of six types. The ba-

sic ones are PROVIDED and NOT-PROVIDED. They

state that (not) providing the control action is haz-

ardous. Further types are: TOO-LATE, TOO-EARLY,

APPLIED-TOO-LONG, and STOPPED-TOO-SOON.

Statecharts. Statecharts are Extended FSMs

(EFSMs) that are extended with hierarchy and

concurrency (Harel, 1987).

An execution trace is a sequence of states, and in-

and outputs: ((x

, s

, y

), (x

, s

, y

), . . . ) with s

state,

input, and y

output in reaction i.

Linear Temporal Logic. We use LTL formulas for

EFSM traces as deﬁned by Lee and Seshia (Lee and

Seshia, 2017), especially the following operators: G,

F , X, U, and R .

3 ADAPTIVE CRUISE CONTROL

EXAMPLE

To demonstrate our approach, we use a simpliﬁed

Adaptive Cruise Control (ACC) (Venhovens et al.,

2000). The vehicle with the ACC follows another

one and should accelerate when the distance is above

some safe distance, should decelerate when the dis-

tance is below the safe distance, and should fully stop

when it is below a minimal distance.

We performed STPA on this system. The control

structure consists of a software controller with accel-

erate, decelerate, and stop as control actions. In the

process model of the controller, the variable dist is de-

ﬁned with the values it can take: stopDist, brakeDist,

safeDist, and accDist.

We will use the following selected UCAs of the

ACC to explain our approach.

UCA1. Accelerate is provided when the distance is

the breaking distance.

UCA2. Accelerate is applied too long when the dis-

tance is above the safe distance.

UCA3. Decelerate is not provided when the distance

is the breaking distance.

UCA4. Decelerate is stopped too soon when the dis-

tance is the breaking distance.

UCA5 Decelerate is provided too late when the dis-

tance is the breaking distance.

The context for UCA2 is dist=accDist and for the

other UCAs it is dist=brakeDist

4 FROM STPA TO LTL

To create a model that is safe by construction, ﬁrst

the safety properties must be determined. We use

the result of the risk analysis that is done beforehand

to automatically generate LTL formulas representing

the safety properties. This reduces the time to create

such formulas. In STPA the safety properties are the

negation of the UCAs. Hence, we use the UCAs for

the generation of the LTL formulas. To automatically

translate the UCAs, they have to be deﬁned with con-

text tables. Otherwise, the context is stated too infor-

mal to automate the process. Furthermore, we need to

formalize the meaning of the UCA types. No ofﬁcial

interpretation of these types exist. Hence, in this pa-

per we use our interpretations to create corresponding

LTL formulas. Abdulkhaleq et al. (Abdulkhaleq and

Wagner, 2016) also propose LTL formulas for UCAs,

however we disagree with most of their formulas. We

discuss this further in section 9.

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

134

In the following we use an arbitrary UCA with

control action A and context C. We deﬁne subfor-

mulas for the context variables v, representing that C

is present, and control action a, meaning A is sent.

Hence, for UCA1, we set a := accelerate is sent and

v := dist = brakeDist. We will use a short form of the

trace deﬁnition: We use (v, a) or (¬v, ¬a), meaning

the input and internal variables are set according to v

or ¬v, respectively. The variables that do not occur

in v can have any value, the state s can be any state,

and the output must (not) contain A. Figure 1 gives an

overview of the traces we reject as unsafe.

Provided Formula. For PROVIDED UCAs we use

the formula proposed by Abdulkhaleq et al.:

G(v → ¬a) (1)

It states that every time the context holds, the con-

trol action is not sent. For UCA1 this ensures that

accelerate is not sent when the distance is the break-

ing distance. Traces leading to the UCA as seen in

Figure 1a violate the formula.

Not-Provided Formula. UCAs of type NOT-

PROVIDED can be interpreted in two ways. Either in

every reaction where the context holds the control

action must be sent or during the timespan where the

context holds continuously, the control action must

be sent at least once. Since the ﬁrst interpretation

also covers the types TOO-LATE and STOPPED-

TOO-SOON, we propose a formula for the second

interpretation.

For UCA3 the formula must ensure that decelerate

is sent at least once when the distance is the breaking

distance. A trace as shown in Figure 1b where the

context changes to false although the control action

was not yet sent should evaluate to false. Let

ψ := v → (aR v ∧ F a),

χ := G((¬v ∧ X v) → X(aR v ∧ F a))

then we translate a UCA of type NOT-PROVIDED to

the following formula:

ψ ∧ χ (2)

In χ the implicant ¬v ∧ X v holds in the reactions

directly before v changes from false to true. This

means the next reaction is the ﬁrst time where the con-

text holds, and in this reaction ((aR v) ∧ F a) should

hold. (aR v) ensures that when v changes to false, the

control action has to have been sent before.

Since (aR v) evaluates also to true when the con-

trol action is not sent as long as the context holds in-

deﬁnitely, we ensure with F a that eventually the con-

trol action will be sent. ψ ensures that the UCA does

not occur in the ﬁrst reaction.

Too-Late Formula. For TOO-LATE UCAs we only

have to consider the ﬁrst moment in which the con-

trol action should be provided. For UCA5 we want

to provide decelerate immediately when the distance

changes to the break distance. This leads to the fol-

lowing formula:

(v → a) ∧ G(¬v → X(v → a)) (3)

The second conjunct ensures that traces such as

shown in Figure 1c do not occur. The moment the

control action should be applied is when the context

currently holds and did not hold in the previous reac-

tion. In the formula we capture this in the following

way: The control action should be applied in the next

reaction if the context currently does not hold and in

the next reaction does hold. The ﬁrst conjunct of (3),

namely v → a, ensures that the UCA does not occur in

the ﬁrst reaction.

Too-Early Formula. We use the following formula

for TOO-EARLY UCAs:

G((¬v ∧ X v) → ¬a) (4)

The reaction where the context holds but did not

hold in the previous reaction is the ﬁrst one where

the control action is allowed to be sent. Hence, we

must ensure that before this reaction the control action

is not sent (see Figure 1d). The implicant, namely

¬v ∧ X v, is true if the current reaction is the last one

in which v is false before it switches to true. In such

a reaction the control action is not allowed to be sent,

which is guaranteed by the implication.

Applied-Too-Long Formula. For UCAs of type

APPLIED-TOO-LONG we use the following formula:

G((v ∧ a) → X(¬v → ¬a)) (5)

To ensure an action is not applied too long, we

have to inspect the reactions where the control action

is already applied while the context holds (v ∧ a). In

these reactions, we must ensure that the control action

is not sent anymore when the context does not hold

any longer. Hence, we must check whether the con-

text still holds in the next reaction (X(. . .)). If it does

not, the control action must not be sent. Hence, traces

such as shown in Figure 1e violate the formula. For

UCA2 this ensures that we immediately stop sending

accelerate when the distance value is no longer equal

to the accelerate distance.

Stopped-Too-Soon Formula. To guarantee that a

control action is not stopped too soon, we must ensure

that after it is sent the ﬁrst time it is continuously sent

Safe Behavior Model Synthesis: From STPA to LTL to SCCharts

135

··· , (v, a), ···

v ✓

¬a 

(a) PROVIDED

G(v → ¬a)

··· , (¬v, ¬a), (v, ¬a), (¬v, ¬a), ···

¬v ∧ Xv ✓

aR v 

(b) NOT-PROVIDED

G((¬v ∧ Xv) → X(aR v ∧ F a))

··· , (¬v, ¬a), (v, ¬a), (v, a), ···

¬v✓

v → a

G(¬v → X(v → a))

··· , (¬v, a), (v, a), ·· ·

¬v ∧ Xv ✓

¬a

(d) TOO-EARLY

G((¬v ∧ Xv) → ¬a)

··· , (v, a), (¬v, a), ···

v ∧ a✓

¬v → ¬a

(e) APPLIED-TOO-LONG

G((v ∧ a) → X(¬v → ¬a))

··· , (v, a), (v, ¬a), ···

v ∧ a✓

¬a → ¬v

(f) STOPPED-TOO-SOON

G((v ∧ a) → X(¬a → ¬v))

Figure 1: Traces for the different UCA types that are prevented by the presented formulas. Here, we do not consider the ﬁrst

reaction of a trace.

until the context does not longer hold. This means for

UCA4 that when we sent decelerate in the given con-

text, we must do this until the context changes. We

propose a similar formula as for the type APPLIED-

TOO-LONG:

G((v ∧ a) → X(¬a → ¬v)) (6)

Again, we are interested in the reactions where the

context already holds and the control action is applied

(v ∧ a). In such reactions, the formula ensures that

if the control action is not sent in the next reaction,

then the context does not hold either. This prevents

traces as shown in Figure 1f where the control action

is stopped too soon.

5 FROM STPA TO SBM

The generated LTL formulas can be used to perform

model checking on the behavior model of the system.

These behavior models are usually created manually

with the help of supporting tools. However, creating

a model tends to be time-consuming and error-prone.

When performing STPA before modeling the system,

we can use the generated LTL formulas to create the

core for a Safe Behavior Models (SBMs) that respects

the safety requirements by construction. It is not pos-

sible to generate a complete SBM since STPA does not

contain all relevant information. Business logic not

speciﬁed in STPA needs to be added manually, which

is further discussed in section 8.

We propose an approach for the automatic gener-

ation of deterministic SBM cores based on the gener-

ated LTL formulas. We assume that no contradicting

UCAs exist, which would lead to contradictory LTL

formulas. STPA tools such as PASTA help to identify

and resolve contradicting UCAs. Additionally, we as-

sume for simplicity that only one control action is sent

at a time and that we have a boot-up step to set up the

system.

In the following we present a translation for each

UCA type. For each translation we use the model re-

sulting from the previous translations as starting point

to produce a more compact SBM.

Basic Structure. We start with states that represent

a control action each and an initial state representing

that no control action is sent. For our ACC example

this results in four states: s

acc

, s

dec

, s

stop

, and s

The input variables consists of the process model

variables and the actual variables used for their val-

ues. In our example we only have the process

model variable dist with values minDist and safeDist.

Hence, our input variables are dist, minDist, and

safeDist. We track the control action that is sent in an

output variable named controlAction. Each state de-

ﬁnes an entry action setting controlAction to the rep-

resented value.

Not-Provided Transitions. The translation of LTL

formulas for NOT-PROVIDED UCAs can be seen in

Figure 2. We cannot automatically determine at

which moment the control action should be sent.

Thus, we set this moment to the ﬁrst reaction where v

holds, which also covers the TOO-LATE type. Hence,

we must ensure that if the context holds, we go to the

state representing the control action. For each formula

we add transitions from the states not representing a

to the one representing it with trigger v. Thus, for

UCA3 we add transitions from every state to s

dec

Too-Late Transitions. Since we have a boot-up

step, we only consider the second conjunct of the

TOO-LATE formula (see (3)). We must ensure that

we are in s

when v is true. Thus, we add transitions

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

136

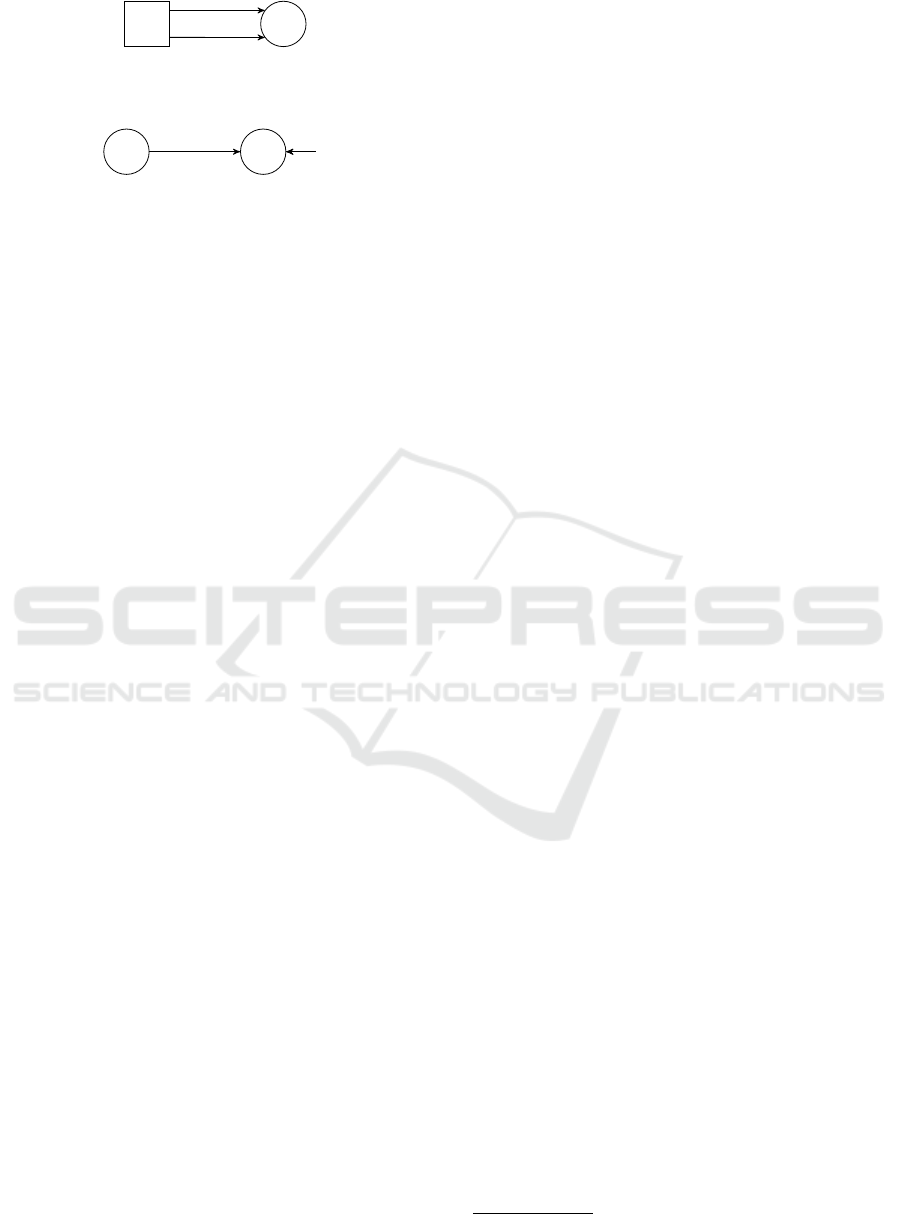

Figure 2: Translation of UCA type NOT-PROVIDED. A rep-

resents the set of states without the state s

Figure 3: Translation of UCA type PROVIDED.

from states not representing a to s

with trigger v as

done for NOT-PROVIDED UCAs.

Provided Transitions. The translation of PRO-

VIDED UCAs is depicted in Figure 3. We must en-

sure that if the context holds, the control action is not

sent. Hence, we add a transition from s

to s

with

the context as trigger. For UCA1 we add a transition

from s

acc

to s

with trigger dist > minDist ∧ dist <

sa f eDist. For the same context or a context contain-

ing v a UCA of type NOT-PROVIDED or TOO-LATE

may have been deﬁned. In the ﬁrst case, we already

have a transition that leaves s

when v holds. In the

second case, we have to ensure that the trigger does

not evaluate to true if another transition is true.

Too-Early Transitions. TOO-EARLY LTL formulas

(see (4)) cannot be translated. We cannot create a

transition that triggers depending on values in the next

reaction. However, this is not problematic. The pre-

sented translation rules ensure that control actions are

not sent too-early.

Applied-Too-Long Transitions. If an outgoing

transition of s

is triggered for every context c ̸= v,

the APPLIED-TOO-LONG formula (see (5)) is already

fulﬁlled. Otherwise, we need to split s

into two

states by adding s

a_v

. For UCA2 we add the state

acc_dist>sa f eDist

The result of the translation can be seen in Fig-

ure 4. The triggers of the original transitions to s

are

updated to only trigger when v does not hold. Ad-

ditionally, we copy all outgoing transitions of s

a_v

except the ones going to other duplicate states

and add a transition between the two states with trig-

ger v. Now, s

a_v

represents that v holds and the control

action a is sent.

To ensure that the control action is not sent any-

more when the context changes, we add another tran-

sition from s

a_v

to s

with trigger !v. To avoid non-

determinism the trigger may have to be adjusted such

that it only evaluates to true when the other transition

triggers are false.

Stopped-Too-Soon Transitions. LTL formulas for

UCAs of type STOPPED-TOO-SOON (see (6)) are

translated in a similar way (Figure 5). If in s

transition is triggered for v, the formula is already ful-

ﬁlled. Otherwise, we need to split s

the same way as

done for APPLIED-TOO-LONG.

We modify the outgoing transitions of s

a_v

such

that they trigger when v does not hold. This way, the

control action is not stopped too soon. Here, we are

interested in the transitions from s

to duplicates of

this state. After all necessary duplicate states are cre-

ated, these transitions are also copied and modiﬁed

for the states created during the STOPPED-TOO-SOON

translation.

6 DESIRED BEHAVIOR

The generated behavior model fulﬁlls the LTL for-

mulas and hence is safe. However, a system should

also fulﬁll its system goals, which is typically not im-

plied by the safety properties and thus not part of the

presented model generation. However, we can use

the machinery presented so far to achieve that aim as

well.

We extend STPA with Desired Control Actions

(DCAs). A DCA determines in which context a con-

trol action should (not) be sent to fulﬁll the system

goal. DCAs have two types: PROVIDED and NOT-

PROVIDED. During that identiﬁcation of UCAs, the

analysts can declare DCAs as well.

These DCAs can be automatically translated to

LTL formulas as done for the UCAs, resulting in a safe

model that also fulﬁlls the system goals.

7 COMPLETE ACC

We implemented the SBM core generation in the open

source tool PASTA. PASTA provides an STPA DSL and

allows the user to select a controller for which the

SBM should be generated. The SBM core is gener-

ated as an SCChart and contains states and variables as

presented in section 5. The UCAs and DCAs are trans-

lated to LTL formulas as described in section 5 and

are added as LTL Annotations to the SCChart, which

enables model checking. In each state an entry action

is deﬁned to set controlAction to the correct value.

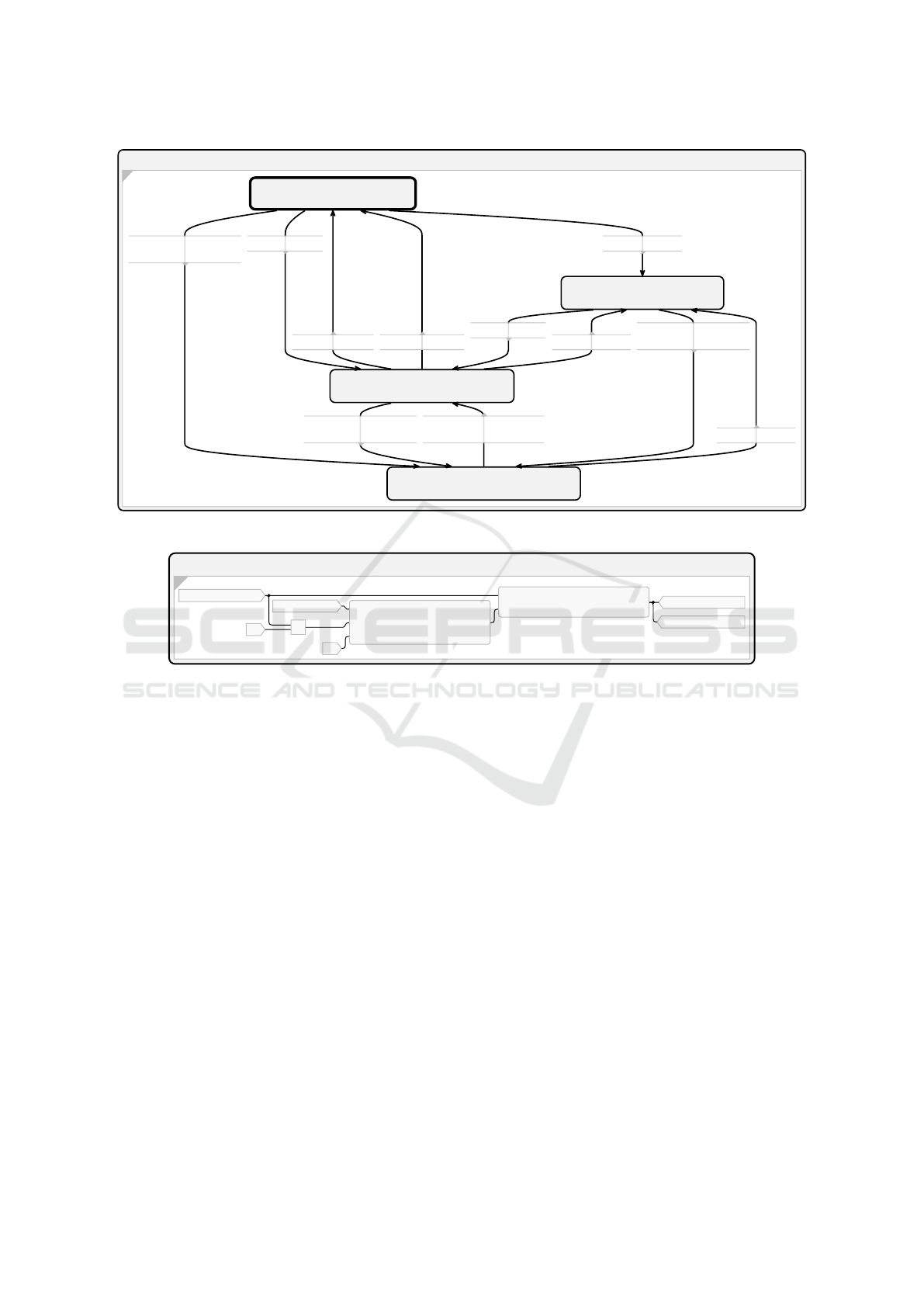

For the ACC example the resulting SBM is shown

in Figure 6. It contains four states: one for each con-

trol action and an initial state.

We used LEGO

Mindstorm

®2

robots to test the

https://lego.com

Safe Behavior Model Synthesis: From STPA to LTL to SCCharts

137

·· ·

a_v

∧ ¬v j

∧ ¬v

·· ·

∧ v

·· ·

v ¬v

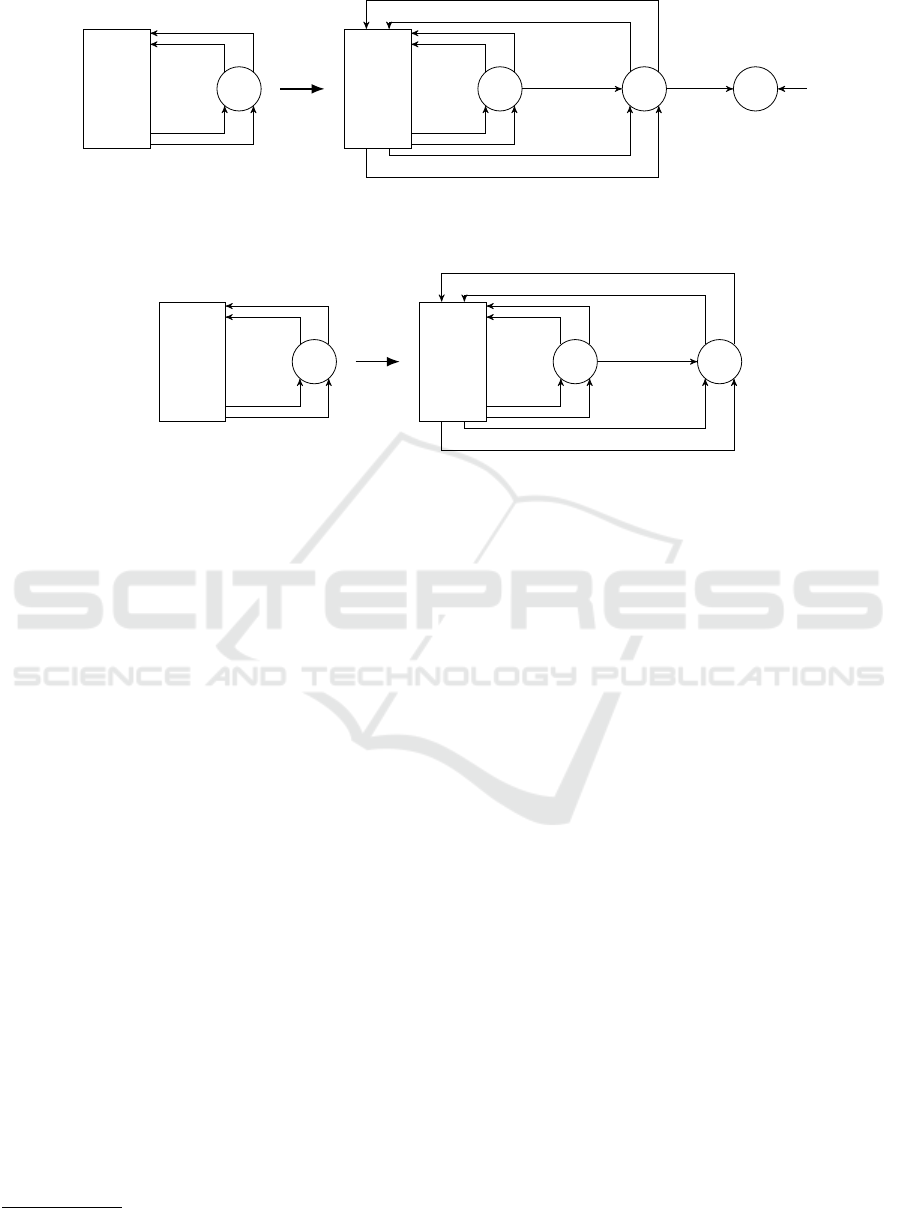

Figure 4: Translation of UCA type APPLIED-TOO-LONG. A represents the set of states without the state s

·· ·

a_v

∧ ¬v j

∧ ¬v

·· ·

∧ v

·· ·

∧ ¬v

Figure 5: Translation of UCA type STOPPED-TOO-SOON. A represents the set of states without the state s

generated controller

. For that, we constructed two

robots with wheels and a ultrasonic sensor to resem-

ble two cars. One of them was programmed to drive

ahead and change its speed several times. For the

other one we performed STPA and used the SBM re-

sulting from our approach as presented before. We

added the business logic unspeciﬁed in STPA result-

ing in the SCChart shown in Figure 7. First the values

of the sensors are read and safeDist is calculated.

The controller state is the one generated automati-

cally based on the safety analysis. After the controller

determines the control action, the new speed is calcu-

lated in newSpeed and ﬁnally the speed is set to the

motor. Deploying the software on the Mindstorm

has shown that the controller works as intended.

8 DISCUSSION

We formalized the UCA types since no ofﬁcial inter-

pretation exists. This enables us to automate the gen-

eration of the LTL formulas and SBM core. However,

other interpretations of the types are possible as well.

Whether our interpretation is accepted by the STPA

community has to be evaluated in the future.

The resulting SBM core for the ACC example ful-

ﬁlls all generated LTL formulas. Hence, safety proper-

ties as well as the system goals are fulﬁlled. However,

the presented synthesis only generates the core of the

https://doi.org/10.6084/m9.ﬁgshare.27095914.v1

SBM. Reading sensor values and determining values

such as safeDist cannot be automatically inferred.

The user has to specify this missing information, but

the generated SCChart can directly be used for the be-

havior of the system. When the missing business logic

is added, the model depicts the desired and safe be-

havior since the determination of the control action is

not changed by the added information.

We evaluated the approach with further use cases

using the LEGO

Mindstorms

. One use case is an

ACC that respects a speciﬁed desired speed. Another

stems from research in the railway domain, where two

trains meet on a single track line. They drive towards

each other, dock on each other such that passengers

can switch the trains, and undock and drive into the

opposite direction than before. We performed STPA

for these cases and used our approach to generate the

SBM. In the second case the SBM consists of eleven

states. We added necessary hardware interaction and

used the generated SBM for the behavior logic as is.

We simulated several scenarios with the Mindstorms

revealing safe behavior.

In conclusion, the generated SCChart core fulﬁlls

the LTL formulas used for the generation. The core is

a solid foundation for an SBM to which hardware in-

teraction can be added directly, and since risk analysis

has to be done either way, the synthesis saves time.

Generating the safety properties directly based on a

safety analysis can also reduce incorrect or missing

formulas.

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

138

SBM_Controller

NoAction

entry

/ controlAction = Controller.NULL

stop

entry

/ controlAction = Controller.stop

accelerate (dist>safeDist)

entry

/ controlAction = Controller.accelerate

decelerate (dist>minDist && dist<safeDist)

entry

/ controlAction = Controller.decelerate

1: dist > minDist && dist <

safeDist

2: dist > safeDist

3: dist <= minDist

1: dist > minDist && dist <

safeDist

2: dist > safeDist

1: dist > minDist && dist <

safeDist

2: dist <= minDist

3: dist == safeDist

4: !(dist > safeDist)

1: dist > safeDist && !(dist >

minDist && dist < safeDist)

2: dist <= minDist

Figure 6: Automatically generated SCChart for the ACC example.

Adaptive_Cruise_Control

readDistance()

motorL.getSpeed()

minDist

safeDist

dist

controlAction

controller

controlAction

currentSpeed

newSpeed

motorL.setSpeed()

motorR.setSpeed()

Figure 7: Completed SCChart for the ACC example.

9 RELATED WORK

Abdulkhaleq et al. proposed an approach for creat-

ing LTL formulas based on the UCAs of STPA (Ab-

dulkhaleq and Wagner, 2016). We use the same for-

mula they stated for the UCA type PROVIDED. For the

NOT-PROVIDED type Abdulkhaleq et al. proposed a

formula stating that in every reaction where the con-

text holds the control action must be sent. This in-

terpretation already covers other UCA types, which is

why we used our interpretation.

Their formula for type TOO-LATE evaluates to

false for some traces in which the control action is not

provided too late. Their formula for TOO-EARLY has

the same problem. For some traces, where the control

action is not sent too early, the formula evaluates to

false. The types APPLIED-TOO-LONG and STOPPED-

TOO-SOON were not considered in their solution.

Synthesis of behavior models are for example

based on Fluent LTL (FLTL) (Giannakopoulou and

Magee, 2003) or scenario speciﬁcations. Scenar-

ios can be speciﬁed with Message Sequence Charts

(MSCs), which can be used to synthesize Labelled

Transitions Systems (LTS) (Uchitel et al., 2001). We

use STPA instead of MSCs. This has the advantage

that the results of a risk analysis that must be done

anyway can be used. Additionally, this eliminates the

problem of combining scenarios in unexpected ways

resulting in unexpected system behavior.

When verifying a model according to an LTL for-

mula, the negated formula is translated to a Büchi au-

tomaton, the product automaton of the Büchi automa-

ton and the behavior model is built, and the result-

ing automaton is checked for emptiness (Gerth et al.,

1995). In contrast to this procedure, we do not ver-

ify or construct a model that fulﬁlls one formula. In-

stead, we synthesize the behavior model that fulﬁlls

all given formulas and can further be used to synthe-

size the code for software controllers.

Safe Behavior Model Synthesis: From STPA to LTL to SCCharts

139

10 CONCLUSION

We presented a synthesis of an SBM core from STPA.

First we translate the UCAs from STPA to LTL for-

mulas. Then an SBM core is generated by translating

each control action to a state and the LTL formulas to

transitions. We extended STPA by DCAs to model the

desired behavior as well. They can be translated in

the same way as UCAs.

The synthesis is implemented in PASTA and cre-

ates an SCChart as the SBM. As an example, we

performed a safety analysis of a simpliﬁed ACC sys-

tem and deployed the resulting SCChart on LEGO

Mindstorms

showing the intended behavior. Mini-

mal effort is required to specify the interaction with

the hardware.

In the future we want to evaluate our approach

with complex use cases and whether the DCAs ﬁt

within the scope of a safety analyst’s work.

ACKNOWLEDGEMENTS

This research has been partly funded by the Federal

Ministry for Digital and Transport (BMDV) within the

project “CAPTN Förde 5G”.

REFERENCES

Abdulkhaleq, A. and Wagner, S. (2016). A Systematic and

Semi-Automatic Safety-Based Test Case Generation

Approach Based on Systems-Theoretic Process Anal-

ysis. arXiv preprint arXiv:1612.03103.

Clarke, E. M. (1997). Model checking. In Foundations of

Software Technology and Theoretical Computer Sci-

ence: 17th Conference Kharagpur, India, December

18–20, 1997 Proceedings 17, pages 54–56. Springer.

Gerth, R., Peled, D., Vardi, M. Y., and Wolper, P. (1995).

Simple On-the-ﬂy Automatic Veriﬁcation of Linear

Temporal Logic. In International Conference on Pro-

tocol Speciﬁcation, Testing and Veriﬁcation, pages 3–

18. Springer.

Giannakopoulou, D. and Magee, J. (2003). Fluent Model

Checking for Event-based Systems. In Proceedings

of the 9th European software engineering conference

held jointly with 11th ACM SIGSOFT international

symposium on Foundations of software engineering,

pages 257–266.

Harel, D. (1987). Statecharts: A visual formalism for com-

plex systems. Science of Computer Programming,

8(3):231–274.

Lee, E. A. and Seshia, S. A. (2017). Introduction to Em-

bedded Systems, A Cyber-Physical Systems Approach,

Second Edition. MIT Press.

Leveson, N. and Thomas, J. P. (2018). STPA Handbook.

MIT Partnership for Systems Approaches to Safety

and Security (PSASS).

Leveson, N. G. (2016). Engineering a Safer World: Systems

Thinking Applied to Safety. MIT Press.

Petzold, J., Kreiß, J., and von Hanxleden, R. (2023).

PASTA: Pragmatic Automated System-Theoretic Pro-

cess Analysis. In 53rd Annual IEEE/IFIP Interna-

tional Conference on Dependable Systems and Net-

work, DSN 2023, Porto, Portugal, June 27-30, 2023,

pages 559–567. IEEE.

Thomas, J. P. (2013). Extending and Automating a Systems-

Theoretic Hazard Analysis for Requirements Genera-

tion and Analysis. PhD thesis, MIT.

Uchitel, S., Kramer, J., and Magee, J. (2001). Detecting Im-

plied Scenarios in Message Sequence Chart Speciﬁ-

cations. ACM SIGSOFT Software Engineering Notes,

26(5):74–82.

Venhovens, P., Naab, K., and Adiprasito, B. (2000). Stop

and Go Cruise Control. Technical report, SAE.

von Hanxleden, R., Duderstadt, B., Motika, C., Smyth, S.,

Mendler, M., Aguado, J., Mercer, S., and O’Brien,

O. (2014). SCCharts: Sequentially Constructive

Statecharts for safety-critical applications. In Proc.

ACM SIGPLAN Conference on Programming Lan-

guage Design and Implementation (PLDI ’14), pages

372–383, Edinburgh, UK. ACM.

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

140
