Exploring Attack Paths Using Graph Theory:

Case - Microsoft Entra ID Pass-Through Authentication

Nestori Syynimaa

Principal Identity Researcher, Microsoft, Threat Intelligence Center,

Faculty of Information Technology, University of Jyväskylä, Jyväskylä, Finland

Keywords: Graph Theory, Entra ID, Attack Paths, Authentication.

Abstract: Graphs have been used to describe attack paths since the 1990s. They are powerful ways to present complex

problems in a relatively simple way. Microsoft Entra ID is an identity and access management (IAM) solution

most private and public sector organisations use. As an IAM, it supports multiple authentication methods.

One little-researched authentication method is pass-through authentication (PTA). This paper presents the

findings of a study researching PTA for novel vulnerabilities. The findings reveal vulnerabilities that enable

novel PTA-related attacks, allowing threat actors to gain remote, persistent, and undetectable access to the

target organisation’s Entra ID. Threat actors could exploit these vulnerabilities to create backdoors, harvest

credentials, and perform DoS attacks. The found attack paths were depicted in the PTA Attack Graph, which

is the main contribution of this paper.

1 INTRODUCTION

Graphs are discrete structures consisting of nodes and

edges connecting them. They can be used to solve

problems of virtually any discipline, including cyber

security (Dawood, 2014). Graphs have been used to

describe attack paths since the 1990s (see Amoroso,

1994; Schneier, 1999; Weiss, 1991). In this paper, we

will use graphs to describe different paths attackers

can have from the start of the attack to the end of the

attack. For this purpose, we adopted BPMN notation

(OMG, 2011) to describe the actions threat actors

need to take to perform the attack.

Entra ID is Microsoft's Identity and Access

Management (IAM) service (Microsoft, 2024), used

by most public and private sector organisations. Entra

ID supports multiple authentication methods. One of

the methods is pass-through authentication (PTA),

which allows the same password to be used in on-

premises Active Directory (AD) and Entra ID

(Microsoft, 2023e).

In this paper, we seek an answer to the following

research question: "What vulnerabilities exist in pass-

through authentication?"

https://orcid.org/0000-0002-6848-094X

2 PREVIOUS RESEARCH

2.1 Pass-Through Authentication

The PTA functionality is illustrated in Figure 1. From

the user's perspective, the process is as follows:

1. The user signs in on Entra ID

2. The user's credentials are sent to the PTA

agent

3. The PTA agent attempts to sign in to Active

Directory using the user's credentials

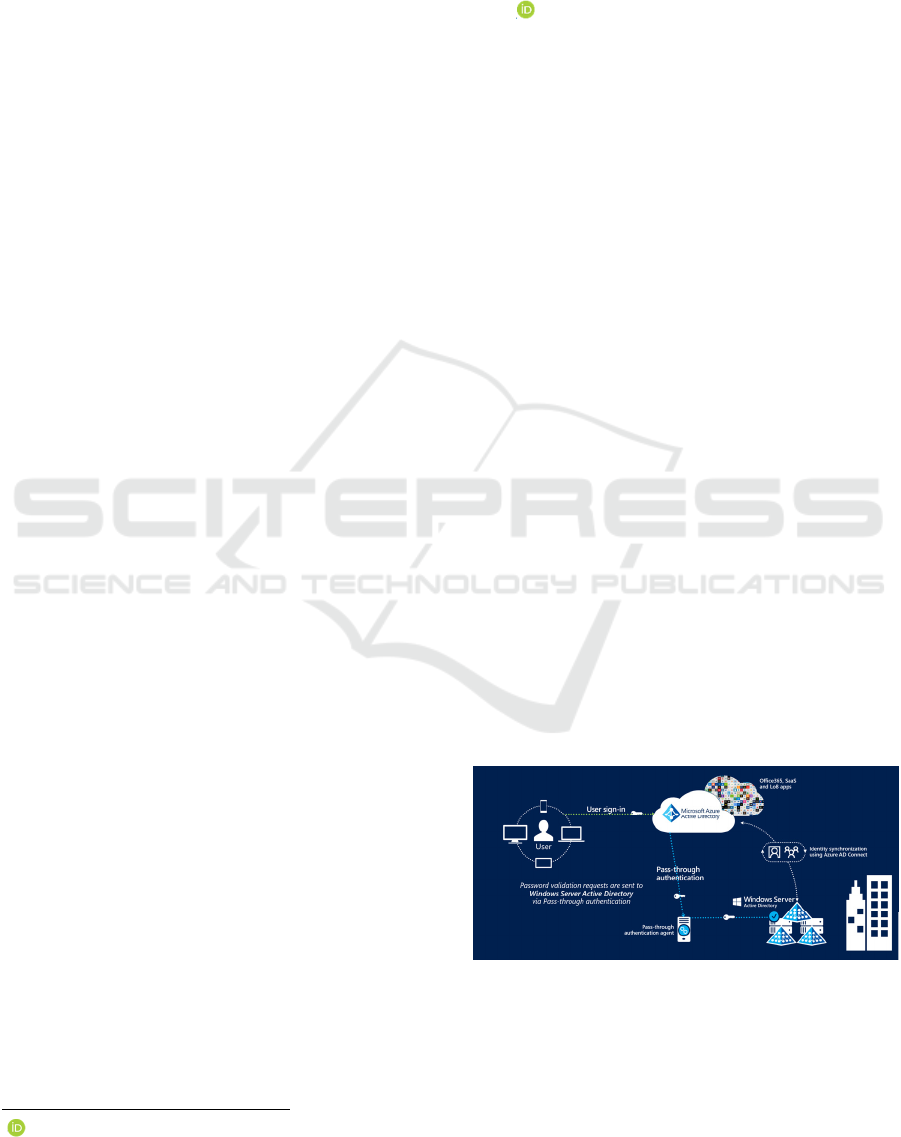

Figure 1: Pass-Through Authentication (Microsoft, 2023e).

Microsoft has not published the technical details on

how PTA works. However, many researchers have

486

Syynimaa, N.

Exploring Attack Paths Using Graph Theory: Case - Microsoft Entra ID Pass-Through Authentication.

DOI: 10.5220/0013119100003899

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 11th International Conference on Information Systems Security and Privacy (ICISSP 2025) - Volume 2, pages 486-492

ISBN: 978-989-758-735-1; ISSN: 2184-4356

published their findings regarding PTA (see Chester,

2019; Felton, 2017; Syynimaa, 2022).

PTA agents use a certificate (stored in

LocalMachine personal store) for decrypting

authentication requests and certificate-based

authentication (Felton, 2017). During its start-up

process, the PTA agent retrieves a configuration file

called bootstrap from Entra ID, which contains URLs

for Azure Service Bus endpoints (Felton, 2017). Entra

ID uses Azure Service Bus to send encrypted

authentication requests to PTA agents. After

receiving the authentication request, the PTA agent

decrypts the requests, passes the included credentials

to the LogonUserW function, and returns the result to

Entra ID (Felton, 2017). The protocol details used by

the PTA agent to communicate with Entra ID were

published in 2020 (Syynimaa, 2020b).

2.2 Logging and Monitoring PTA

Agents

When a PTA agent is registered to Entra ID during

the installation, it appears in the Azure Portal.

Administrators can see the IP address, the computer's

name running the agent, and the agent status

(active/inactive) (Figure 2).

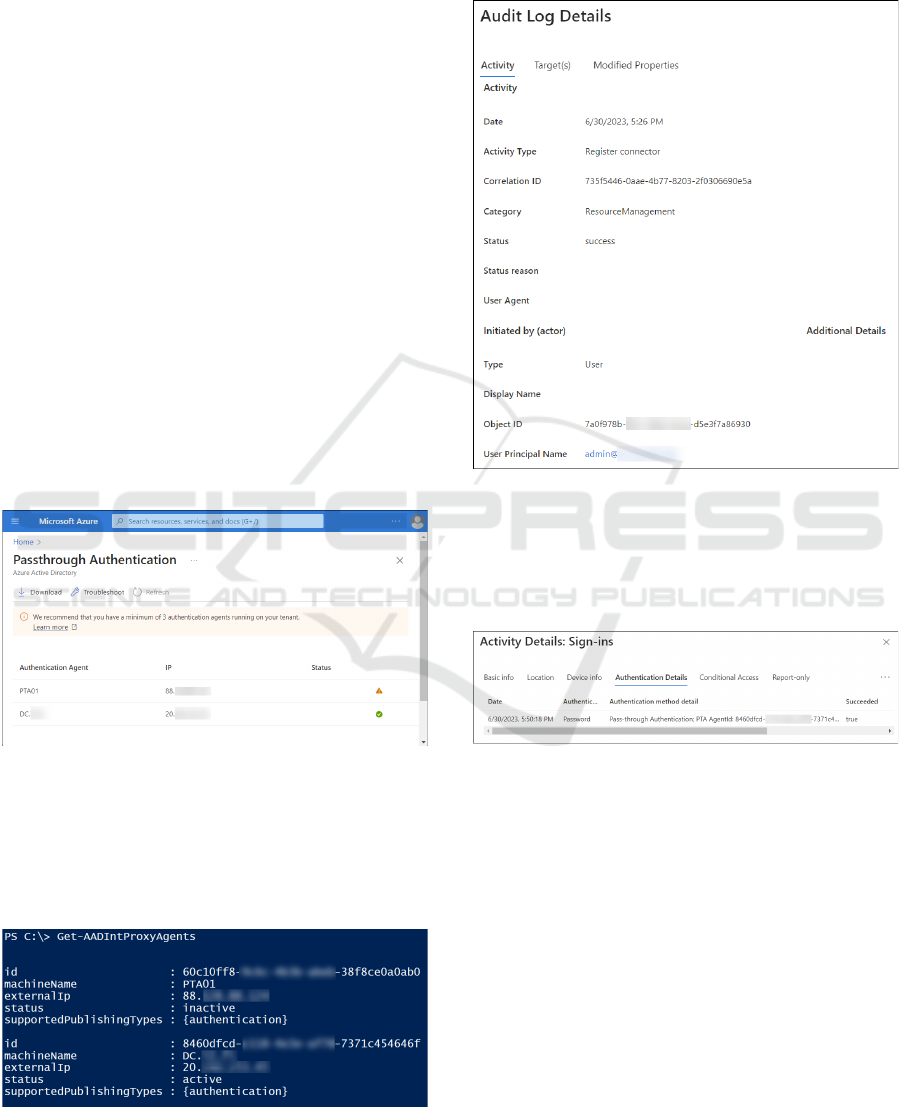

Figure 2: List of PTA agents in Azure Portal.

The PTA agent information can also be accessed

programmatically, for instance, using the

AADInternals toolkit (Figure 3). This also allows the

viewing of the PTA Agent IDs that were not shown

in the Azure Portal.

Figure 3: List of PTA agents in AADInternals.

A Register connector event is added to the Entra

ID Audit log during the registration. The event shows

who registered the agent and when, but the agent ID

is not shown (Figure 4).

Figure 4: "Register connector" event in Entra ID Audit log.

Each time a user is authenticated using PTA, a

corresponding event is added to the Entra ID Sign-ins

log. On the Authentication Details tab, the PTA agent

ID is shown (Figure 5).

Figure 5: Authentication Details in Entra ID Sign-ins log.

2.3 Attacking Pass-Through

Authentication

Chester (2019) introduced a novel PTA-related attack

vector. After compromising a computer running a

PTA agent, threat actors could replace the

LogonUserW function by injecting a Dynamic

Linking Library (DLL) into the PTA agent process.

This allowed threat actors to (i) harvest credentials

and (ii) allow or deny login requests. This technique

required persistent access to the PTA agent, as

restarting the agent would remove the injected DLL.

Syynimaa (2021) published a PTASpy (Figure 6)

leveraging the DLL injection attack introduced by

Chester. PTASpy was included in the AADInternals

Exploring Attack Paths Using Graph Theory: Case - Microsoft Entra ID Pass-Through Authentication

487

toolkit in 2020. Kalendarov and Beber (2024) used

the same technique in their recent report. As this

attack takes place on a server running the PTA agent,

it can be detected by monitoring the server.

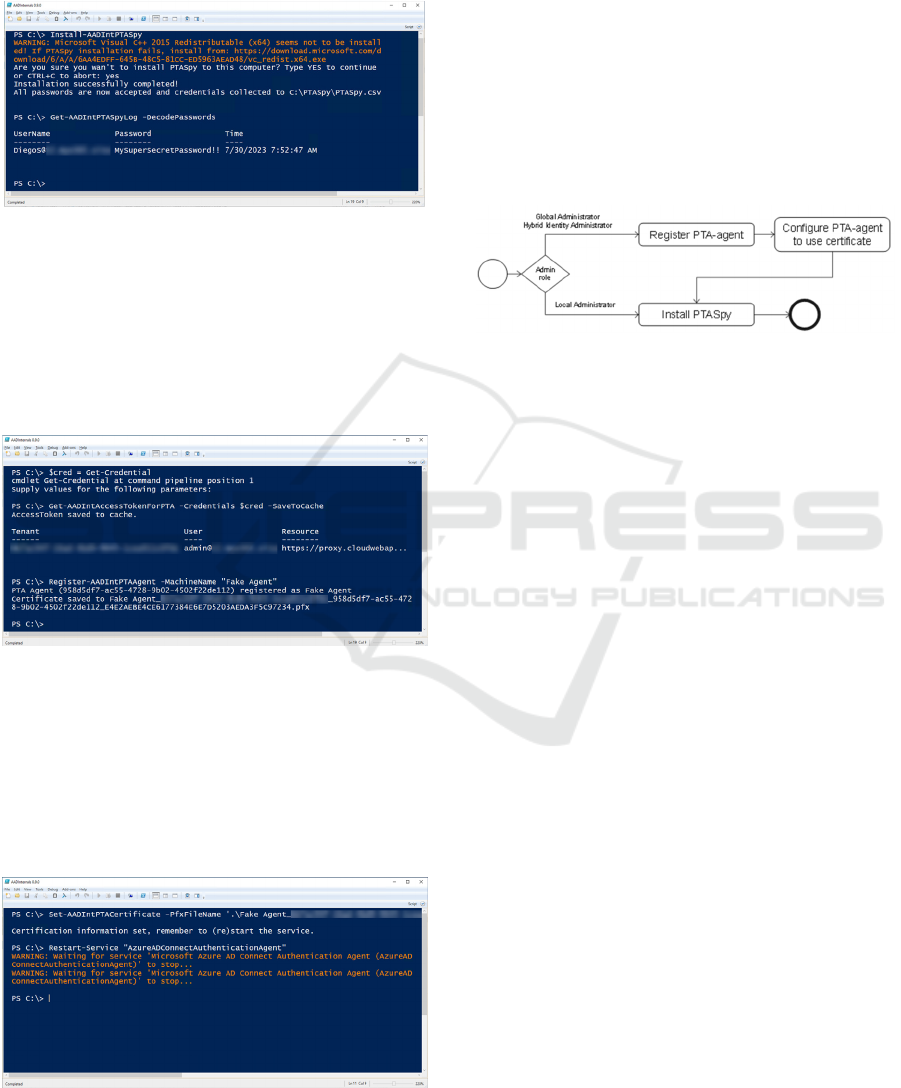

Figure 6: Installing PTASpy with AADInternals.

AADInternals allows registering "fake" PTA

agents (Figure 7), which creates certificates that PTA

agents can use. This requires that the threat actor has

either Global Administrator or Hybrid Identity

Administrator role in Entra ID. This attack can be

detected as the new agent appears in the Azure Portal

and registration is logged in the audit log.

Figure 7: Registering fake PTA agents.

Existing PTA agents can configured to use the

newly created certificate (Figure 8). The PTA agent

can be installed on a computer under control of threat

actor. This means that configuration can not be

detected by the target organisation. However, the

usage of the PTA agent can be detected from the sign-

ins log.

Figure 8: Configuring the PTA agent to use the provided

certificate.

The PTA Attack Graph in Figure 10 depicts the

known PTA-related attacks. The lower path requires

local admin privileges to the computer running an

PTA agent. If the computer is compromised, a threat

actor can install PTASpy (or other similar tools). The

upper path requires one of the mentioned roles for to

target organisation’s Entra ID. If the threat actor has

either of the roles, a fake PTA agent can be registered.

After that, an existing threat actor controlled PTA

agent can be configured to use the resulting

certificate. As the computer is under control of threat

actor, PTASpy can be installed to start gathering

credentials and accept all passwords.

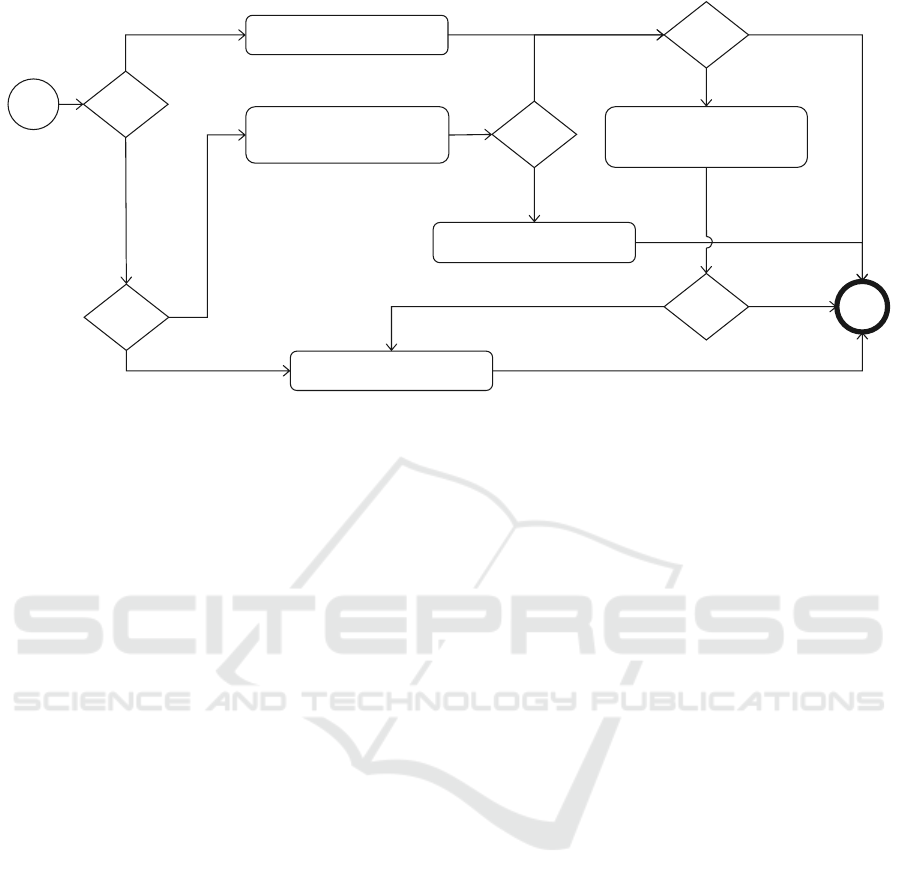

Figure 9: PTA Attack Graph v1.

3 RESEARCH METHODOLOGY

The research approach should be selected according

to the aim of the research (Järvinen, 2018). In this

research, the research aim is two-folded. First, we are

studying the reality, i.e., what vulnerabilities exist in

PTA. Second, we produce a graph to describe attack

paths enabled by the vulnerabilities found. Following

the research approach taxonomy by Järvinen (2018),

we will use theory-creating approaches for the former

research aim and innovation-building approaches for

the latter.

Theory-creating research aims to increase

understanding of the research subject. In this

research, we will first study how PTA behaves in

normal operation to identify possible vulnerabilities.

This can be categorised as descriptive observational

research (Edgar & Manz, 2017). To study the PTA

behaviour, we adopted the reverse-engineering

method, commonly used to study existing systems

(Eilam, 2005). We used two tools for this purpose.

First, we used Fiddler (Telerik, 2023) to monitor the

traffic between the PTA agent and Entra ID. Second,

we used Process Monitor (Microsoft, 2023d),

ProcMon for short, to monitor real-time filesystem

and registry activity. The research setup is illustrated

in Figure 10.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

488

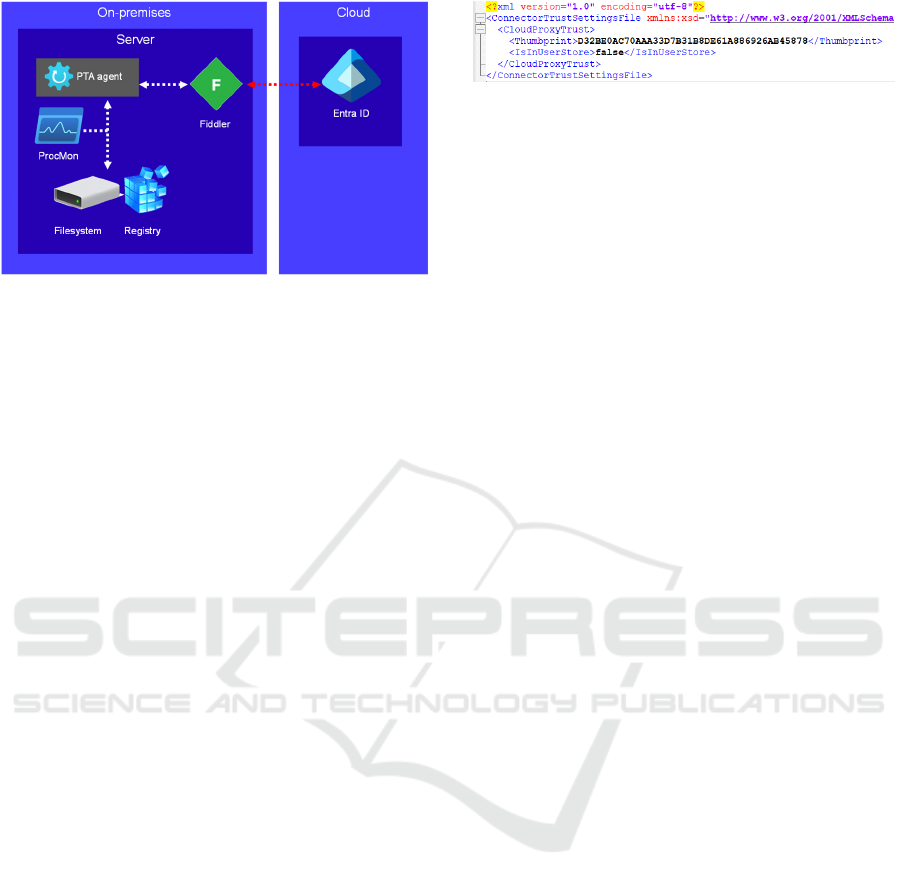

Figure 10: Research setup.

The innovation-building research aims to create

an artefact to answer the research question. In this

research, we produce a graph that depicts the

vulnerabilities found during the theory-creating

research. As such, this is a Design Science Research

(DSR) and thus follows the Design Science Research

Methodology (DSRM) by Peffers et al. (2007).

4 RESULTS

4.1 Exporting PTA Agent Certificate

On Windows computers, the certificates can be

exported from the certificate store with Certificate

Manager. Private keys can only be exported for

certificates that were marked exportable at the time

of importing the certificate. A technique to export the

private key regardless of the exportability status was

introduced in early 2022 (Syynimaa, 2022).

The thumbprint of the certificate used by the PTA

agent is stored in a configuration file (see Figure 11).

The certificate with the public key is stored in the

Local Computer Personal store when IsInUserStore

setting is false. This is the case after installing the

PTA agent. When true, the certificate is stored in

Personal store of Network Service. This is because

PTA agent renews the certificate every 30 days and

Network Service doesn't have access to the Local

Machine store (Microsoft, 2023a). The certificate

includes the name of the private key file, which is

stored on disk and encrypted with the Data Protection

Application Protection Interface (DPAPI). DPAPI is

an encryption and decryption API inclued in the .NET

framework (Microsoft, 2023c).

Figure 11: PTA Agent configuration file.

Although the file name of the private key was

known, the location on disk for Network Service was

not. The location was revealed using ProcMon to see

what files the PTA agent service was accessing. That

allowed exporting the certificate and private key

regardless of where they were stored.

4.2 Exploiting Certificate Using

Microsoft PTA Agent

Using an exported certificate in a threat actor-

controlled PTA agent differs from registering a fake

agent. Exporting the certificate takes place on the

computer running the PTA agent, so there won't be

any log entries in Entra ID.

For high availability, at least three PTA agents

should be installed on servers joined to the same

Active Directory (AD) (Microsoft, 2023b). However,

threat actor-controlled servers are not members of the

victim's AD. If a threat actor-controlled PTA agent is

configured to use the exported certificate and

PTASpy is installed, any username and password

combination is accepted and stored in a file. If

PTASpy is not installed, all authentication requests

will fail as victims' credentials are not present in

threat actor-controlled servers. This allows threat

actors to use PTA agents for Denial-of-Service (DoS)

attacks.

When using an exported certificate on a threat

actor-controlled server, the PTA agent name was

changed on Azure Portal to match the threat actor-

controlled server. Exploitation could be detected by

monitoring PTA agent name changes unless the name

of the threat actor-controlled server was changed to

match the victim's server.

The challenge with exploiting exported

certificates is the lack of persistence, as the certificate

needs to be renewed every 30 days. However, it

turned out that both the original and exported

certificate could be used to acquire new valid

certificate. Both certificates had the same agent

identity information but different thumbprints. As

such, there can be multiple certificates per PTA agent

at any given time. Moreover, the certificate renewal

is not logged in Entra ID Audit log.

Exploring Attack Paths Using Graph Theory: Case - Microsoft Entra ID Pass-Through Authentication

489

4.3 Exploiting Certificate Using a

Custom PTA Agent

The initial Proof-of-Concept (PoC) of a custom PTA

agent was published on March 2020 (Syynimaa,

2020a). The PoC was further developed into a full-

blown offensive tool during the research. The details

of the PoC are out of this paper's scope, but the key

findings are as follows.

The first observation was that the PTA agent's IP

address (and name) changed on Azure Portal only

when the bootstrap was fetched. That happens during

the agent start-up and then once every five minutes.

Configuring the custom agent to use existing

bootstrap allows threat actors to exploit exported

certificates silently. The bootstrap could be exported

at the same time as exporting the PTA agent

certificate.

The second observation was that the

authentication request contains the credentials of the

user trying to log in to Entra ID. The credentials are

encrypted, so they can only be decrypted by a

corresponding certificate. As PTA supports multiple

agents, the authentication requests contain user's

credentials encrypted with the public keys of all

agents. As we noticed earlier, one agent can have

multiple certificates. It turns out that the

authentication request contains encrypted entries for

all certificates. The format of the key identifiers seen

in Figure 12 is

"<AgentId>_<CertificateThumbprint>". As we can

see, the agent with ID starting "672843e0" has two

entries with different thumbprints.

Figure 12: Content of PTA authentication request (adapted

from Secureworks, 2022).

The third observation was that the maximum

number of PTA agents is 40 (Microsoft, 2023b), but

there is no public information about the maximum

number of certificates per agent. After experimenting

with renewing certificates multiple times, the limit

appears to be ten certificates per agent. Further,

certificates seemed to work with the FIFO principle,

meaning that the entries for the older certificates were

dropped from the authentication requests when

certificates were renewed. This allows attackers to

perform a new kind of DoS attack, as they could

renew certificates until the original PTA agent

certificate is dropped from the authentication

requests. This would effectively prevent the original

PTA agent from decrypting and handling

authentication requests.

The custom PTA agent can also be configured to

return arbitrary Windows error messages to Entra ID,

enabling DoS attacks.

4.4 Summary

4.4.1 Findings

Vulnerabilities enabling novel PTA-related attacks

were found during the research. These vulnerabilities

allow threat actors to gain remote, persistent, and

undetectable access to the target organisation Entra

ID.

First, after successfully compromising the victim

PTA agent server, a threat actor can export the PTA

agent certificate and bootstrap. These can then be

used on threat actor-controlled PTA agent servers.

This, in turn, allows threat actors to harvest

credentials, create a backdoor, or perform DoS

attacks.

Second, threat actors can renew the certificate

indefinitely, enabling permanent access to the

victim's Entra ID.

Third, only the registration of PTA agents are

logged in the Entra ID Audit log. In the Sign-ins log,

the agent ID performing the authentication is shown,

but not the used certificate. Thus, exploitation of

exported PTA agent certificates can not be detected.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

490

Figure 13: PTA Attack Graph v2.

4.4.2 PTA Attack Graph

The final PTA attack graph is depicted in Figure 13.

There is a new port for attack type if the threat actor

has local administrator permissions to the server

running PTA agent. The local attack involves

installing a PTASpy on the victim's PTA agent. The

remote attack starts by exporting the PTA agent

certificate and bootstrap. After exporting, if the threat

actor desires to use the certificate for DoS attacks, it

can be renewed ten times. If not, the threat actor can

use the certificate with a custom agent or configure

Microsoft PTA agent to use it. If latter, it can be used

for a DoS attack or as a backdoor and credential

harvester by installing PTASpy.

5 DISCUSSION

5.1 Research Question and Aims

The research question of this paper was "What

vulnerabilities exist in pass-through authentication?".

Two aims were set to answer the research question.

The first one was to research PTA to find

vulnerabilities. The second one was to depict the

findings in an easy-to-understand attack graph. Both

aims were achieved, and thus, an answer to the

research question was provided.

5.2 Implications

The research has both scientific and practical

implications.

This research introduced a PTA Attack Graph

depicting current knowledge of PTA-related attacks.

As such, it expands the scientific understanding of

PTA-related cybersecurity research area.

The PTA Attack Graph increases the general

public's knowledge of PTA security issues. This also

helps defend against PTA-related attacks.

5.3 Future Work

Future work should focus on studying how the

exploitation of exported PTA agent certificates could

be detected besides Entra ID Sign-ins and Audit logs.

5.4 Research Rigour

The resulting artefact of DSR should be evaluated to

demonstrate its utility and quality (Baskerville, Kaul,

& Storey, 2017). The PTA Attack Graph can be

categorised as a model. The model's validity is

revealed when it confronts empirical facts (Barlas,

1996). The attacks depicted in the graph emerged

during the empirical research and were confirmed by

Microsoft. As such, it can be stated that the PTA

Attack Graph is valid, i.e., it models the current

knowledge of PTA-related attacks.

5.5 Acknowledgement

The research findings were reported to Microsoft, but

the vulnerabilities found were not seen as posing

additional risks as the new attacks would require local

administrator permissions.

Admin

role

Attack

type

Agent

type

Remote

Local

Administrator

Configure PTA-agent

to use certificate

Export PTA-agent

certificate & bootstrap

Install PTASpy

Local

Custom

Microsoft

Global Administrato

Hybrid Identity Administrator

DoS

attack?

Yes

DoS

attack?

Renew certificate x10

Yes

Exploring Attack Paths Using Graph Theory: Case - Microsoft Entra ID Pass-Through Authentication

491

REFERENCES

Amoroso, E. G. (1994). Fundamentals of Computer

Security Technology. USA: Prentice-Hall.

Barlas, Yaman. (1996). Formal aspects of model validity

and validation in system dynamics. System Dynamics

Review, 12(3), 183-210.

Baskerville, Richard, Kaul, Mala, & Storey, Veda. (2017).

Establishing Reliability in Design Science Research.

Chester, Adam. (2019). Azure AD Connect for Red

Teamers. Retrieved from https://blog.xpnsec.

com/azuread-connect-for-redteam/

Dawood, Harith A. (2014, 29-30 Dec. 2014). Graph Theory

and Cyber Security. Paper presented at the 2014 3rd

International Conference on Advanced Computer

Science Applications and Technologies.

Edgar, Thomas W., & Manz, David O. (2017). Research

Methods for Cyber Security. Cambridge, MA, United

States: Syngress.

Eilam, Eldad. (2005). Reversing: secrets of reverse

engineering: John Wiley & Sons.

Felton, Matt. (2017). Azure AD Pass-through

Authentication – How does it work? Part 2. Retrieved

from https://journeyofthegeek.com/tag/azure-pass-

through-authentication/

Järvinen, Pertti. (2018). On Research Methods. Retrieved

from https://learning2.uta.fi/pluginfile.php/712390/

mod_resource/content/4/On%20research%20methods.

pdf

Kalendarov, Ilan, & Beber, Elad. (2024). Double Agent:

Exploiting Pass-through Authentication Credential

Validation in Azure AD Retrieved from

https://cymulate.com/blog/exploiting-pta-credential-

validation-in-azure-ad/

Microsoft. (2023a). Azure Active Directory pass-through

authentication security deep dive. Retrieved from

https://learn.microsoft.com/en-us/azure/active-

directory/hybrid/connect/how-to-connect-pta-security-

deep-dive

Microsoft. (2023b). Azure Active Directory Pass-through

Authentication: Quickstart. Retrieved from

https://learn.microsoft.com/en-us/azure/active-

directory/hybrid/connect/how-to-connect-pta-quick-

start

Microsoft. (2023c). How to: Use Data Protection. Retrieved

from https://learn.microsoft.com/en-us/dotnet/

standard/security/how-to-use-data-protection

Microsoft. (2023d). Process Monitor. Retrieved from

https://learn.microsoft.com/en-

us/sysinternals/downloads/procmon

Microsoft. (2023e). User sign-in with Microsoft Entra pass-

through authentication. Retrieved from https://learn.

microsoft.com/en-us/entra/fundamentals/whatis

Microsoft. (2024). What is Microsoft Entra ID? Retrieved

from https://learn.microsoft.com/en-us/entra/

fundamentals/whatis

OMG. (2011). Documents Associated with Business

Process Model and Notation (BPMN) Version 2.0.

Retrieved from http://www.omg.org/spec/BPMN/2.0/

Peffers, Ken, Tuunanen, Tuure, Rothenberger, Marcus A,

& Chatterjee, Samir. (2007). A Design Science

Research Methodology for Information Systems

Research. Journal of management information systems,

45-77.

Schneier, Bruce. (1999). Attack trees: modeling security

threats. Dr. Dobb's Journal, 24(12), 21,29. Retrieved

from https://www.drdobbs.com/attack-trees/

184411129

Secureworks. (2022). Azure Active Directory Pass-

Through Authentication Flaws. Retrieved from

https://www.secureworks.com/research/azure-active-

directory-pass-through-authentication-flaws

Syynimaa, Nestori. (2020a). AADInternals. PTAAgent.cs

sourcecode. Retrieved from https://github.com/

Gerenios/AADInternals/blob/073c9511b5d8d42795e2

6ccbab1d07e9c5cf95a6/PTAAgent.cs

Syynimaa, Nestori. (2020b). Deep-dive to Azure AD Pass-

Through Authentication. Retrieved from

https://aadinternals.com/post/pta-deepdive

Syynimaa, Nestori. (2021). PTASpy sourcecode. Retrieved

from https://github.com/Gerenios/public/blob/master/

PTASpy.cpp

Syynimaa, Nestori. (2022). Stealing and faking Azure AD

device identities. Retrieved from

https://aadinternals.com/post/deviceidentity/

Telerik. (2023). Fiddler Overview. Retrieved from

https://www.telerik.com/fiddler

Weiss, Jonathan D. (1991). A System Security Engineering

Process. Paper presented at the 14th National Computer

Security Conference (NIST/NCSC), Washington.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

492
