Towards a Domain-Speciﬁc Modelling Environment for Reinforcement

Learning

Natalie Sinani, Sahil Salma, Paul Boutot and Sadaf Mustaﬁz

Department of Computer Science, Toronto Metropolitan University, Toronto, ON, Canada

{natalie.sinani, ssalma, pboutot, sadaf.mustaﬁz}@torontomu.ca

Keywords:

Reinforcement Learning, Machine Learning, Domain-Speciﬁc Modelling Environments, Modelling

Languages, Low-Code Environment.

Abstract:

In recent years, machine learning technologies have gained immense popularity and are being used in a wide

range of domains. However, due to the complexity associated with machine learning algorithms, it is a chal-

lenge to make it user-friendly, easy to understand and apply. In particular, reinforcement learning (RL) ap-

plications are especially challenging for users who do not have proﬁciency in this area. In this paper, we use

model-driven engineering (MDE) methods and tools for developing a framework for abstracting RL technolo-

gies to improve the learning curve for RL users. Our domain-speciﬁc modelling environment for reinforcement

learning supports syntax-directed editing, constraint checking, code synthesis, and enables comparative anal-

ysis of results generated with multiple RL algorithms. We demonstrate our framework with the use of several

reinforcement learning applications.

1 INTRODUCTION

The advent of artiﬁcial intelligence and machine

learning technologies marks a signiﬁcant transforma-

tion in the software and systems landscape, leading to

groundbreaking developments across various ﬁelds.

Among these, reinforcement learning (RL) (Sutton

and Barto, 2018) (Ding et al., 2020), a fundamental

paradigm of machine learning, is gaining consider-

able attention. Initially recognized for its success in

gaming, where machines were able to outperform ex-

pert human players, RL is now increasingly relevant

in dynamic and adaptive environments, with appli-

cations spanning from healthcare and ﬁnance to au-

tonomous vehicles. However, the complexity of RL

algorithms presents a signiﬁcant barrier, often requir-

ing domain expertise and technical skills for effective

implementation and utilization. Despite the growing

demand for RL solutions, current professional pro-

ﬁles lack the comprehensive skills sets necessary to

fully leverage its potential, posing a challenge for

widespread adoption across industries (Bucchiarone

et al., 2020).

Just as the need for intelligence in various ap-

plication areas has led to the integration of machine

learning algorithms with more user-friendly inter-

faces, there is a similar demand for RL (Naveed et al.,

2024). Data scientists typically rely on speciﬁc li-

braries such as OpenAI Gym, TensorFlow Agents

(TF-Agents), and Stable Baselines to implement RL

algorithms. These require a deep understanding of

the intricate interfaces. However, majority of the re-

search work in the RL domain focuses on enhancing

algorithms and approaches to achieve better accuracy

and results in prediction and learning. There is very

limited work on simplifying RL concepts and tools

to enable non-technical users, such as business ana-

lysts, project managers, domain experts, and students

to engage with RL technologies. A user-friendly RL

framework reduces the technical barriers to entry, al-

lowing individuals without extensive programming or

data science backgrounds to experiment with RL and

incorporate it into their work. Such a framework can

also lead to enhanced collaboration between technical

teams and domain experts, since non-technical users

often have valuable domain expertise that can consid-

erably enhance RL projects, ultimately ensuring that

solutions align more closely with real-world needs.

Model-driven engineering (MDE) can contribute

to this challenge by providing enablers to directly ex-

press and manipulate domain-speciﬁc problems (Buc-

chiarone et al., 2020). Domain-speciﬁc languages

(DSL) in MDE aim to reduce complexity with the use

of abstraction. We propose a DSL tailored for RL, Re-

inforcement Learning Modelling Language (RLML),

that serves as an intuitive and accessible front-end for

Sinani, N., Salma, S., Boutot, P. and Mustaﬁz, S.

Towards a Domain-Speciﬁc Modelling Environment for Reinforcement Learning.

DOI: 10.5220/0013123800003896

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 13th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2025), pages 40-51

ISBN: 978-989-758-729-0; ISSN: 2184-4348

RL users. RLML focuses on model-free algorithms,

which are more widely used and extensively tested,

to ensure broad applicability. The RLML framework,

built on top of the JetBrains MPS

platform (Voelter

et al., 2013), provides an integrated textual modelling

environment that streamlines the creation, execution,

and analysis of RL models. The RLML concrete syn-

tax makes it easier for users to run RL algorithms with

limited RL knowledge. Depending on the level of

technical expertise, the users can choose to change the

algorithm parameters or use the default values. Fur-

thermore, to bridge the gap between Python, the pre-

dominant language in ML, and Java, we have imple-

mented model-to-code transformations for both lan-

guages, enhancing the accessibility of RL algorithms.

This paper is organized as follows: Section 2 pro-

vides a brief background on reinforcement learning

and discusses related work. Section 3 presents our

domain-speciﬁc modelling language, RLML. Sec-

tion 4 covers the RLML environment built using

the language workbench, JetBrains MPS. Section 5

demonstrates the use of our framework with several

reinforcement learning applications. Section 6 con-

cludes the paper.

2 BACKGROUND AND RELATED

WORK

This section provides some necessary background on

reinforcement learning and discusses related work.

2.1 Reinforcement Learning

Reinforcement learning (RL) is an area of machine

learning concerned with how intelligent agents ought

to take actions in an environment in order to maxi-

mize the notion of rewards. It is a self-teaching sys-

tem trying to ﬁnd an appropriate action model that

would maximize an agent’s total cumulative reward,

by following the trial and error method. In general,

the RL algorithms reward the agent for taking desired

actions in the environment, and punishes i.e., grants

negative or zero rewards, for the undesired ones (Sut-

ton and Barto, 2018). The following are the key com-

ponents that describe RL problems.

• Environment: The RL environment (Graesser and

Keng, 2019) represents all the existing states that

the agent can enter. It produces information that

describe the states of the system. The agent inter-

acts with the environment by observing the state

https://www.jetbrains.com/mps/

space and taking an action based on the observa-

tion. Each action receives a positive or negative

reward, which informs the agent on selecting the

next state.

• Agent: This is represented by an intelligent RL

algorithm that learns and makes decisions to max-

imize the future rewards while moving within the

environment.

• State: The state represents the current situation of

the agent.

• Action: The mechanism by which the agent tran-

sitions between states of the environment.

• Reward: The environment feeds the agent with re-

wards, which are numerical values that the agent

tries to maximize over time. They are received on

each action and may be positive or negative.

Reinforcement learning algorithms estimate how

good it is for the agent to be in a certain state. This es-

timation is the calculation of what is known as a value

function. The value function gets measured based on

the expected future rewards that the agent will receive

starting from a given state s, and according to the ac-

tions that the agent will make, and this is referred

to as the expected return. The goal of an RL algo-

rithm is to ﬁnd the optimal policy for an agent to fol-

low that maximizes the expected return. An optimal

policy will have the highest possible value in every

state. The optimal policy is implicit and can be de-

rived directly from the optimal value function. There

are many different approaches to ﬁnd the optimal pol-

icy. They are mainly categorized as model-based or

model-free learning algorithms, in addition to deep

reinforcement learning. It is worth mentioning that

this categorization is not comprehensive and it is of-

ten blurry (Brunton and Kutz, 2019).

When the model of the environment is available,

which is the case with model-based algorithms, the

RL problem is simpler and we can utilize policy iter-

ation or value iteration algorithms. To learn the op-

timal policy or value function we either need access

to the model (environment) and its probability distri-

bution over states, or we try to build a model. When

the agent knows this information, it can use it to plan

its next moves. However, it is more challenging when

we are dealing with model-free algorithms, and it is

often the case in real life scenarios, where the agent

does not know the environment and needs to discover

it. As stated by Sutton and Barto (Sutton and Barto,

2018): model-based methods rely on planning as their

primary component, while model-free methods pri-

marily rely on learning. Finally, deep reinforcement

learning incorporates deep learning techniques and al-

gorithms in order to learn the model (Franc¸ois-Lavet

Towards a Domain-Speciﬁc Modelling Environment for Reinforcement Learning

et al., 2018).

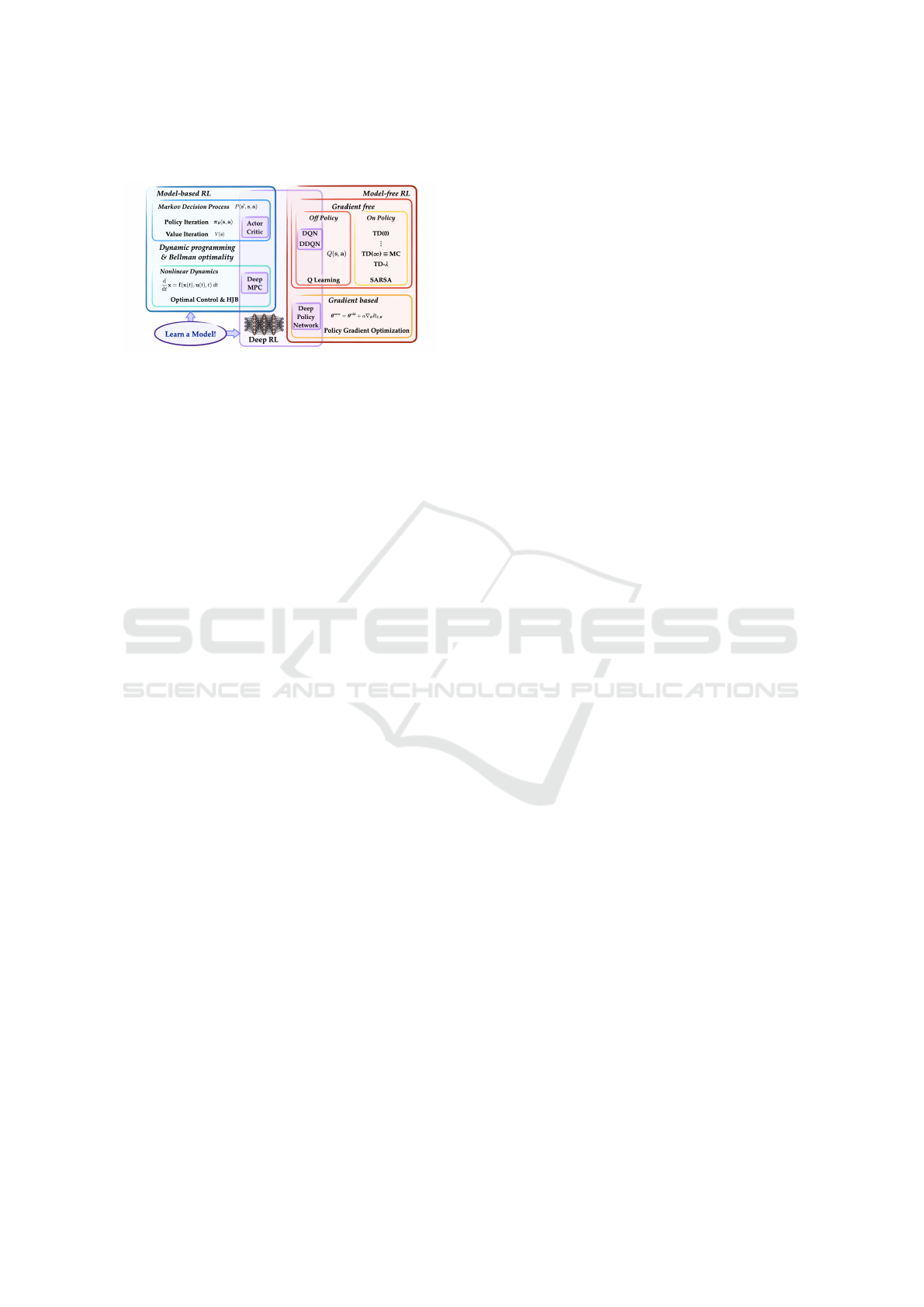

Figure 1: Reinforcement Learning (RL) Classiﬁcation

(Adapted from (Brunton and Kutz, 2019)).

In model-free approaches, the agent learns and

evaluates how good actions are by trial and error

method. The agent relies on the past experiences to

derive the optimal policy (described earlier). Various

available algorithms in this approach include (see Fig.

1), Monte Carlo learning, Model-Free Actor Critic,

SARSA: State–action–reward–state–action learning,

DQN and Q-Learning.

In this work, we have focused on model-free

gradient-free algorithms. The objective of such al-

gorithms is to maximize an arbitrary score, which is

the value function, hence also referred to as value-

based algorithms. In value-based methods, the algo-

rithm does not store any explicit policy, only a value

function. Some algorithms, such as actor critic, are

both value and policy-based. Q-Learning, perhaps, is

one of the most dominant model-free algorithm which

learns the Q-function directly from experience, with-

out requiring access to a model.

Since we are using both model-driven engineering

and machine learning technologies in our research,

we would like to clarify that the term models have dif-

ferent meaning in these two ﬁelds. Models in MDE

refer to software models and are an abstract repre-

sentation of the elements that deﬁne the software and

system domain (Schmidt, 2006). On the other hand,

models in machine learning are algorithms that con-

tain deﬁned instruction and mathematical formula-

tions (Jiang, 2021). Models in ML can be trained to

recognize certain patterns in provided data.

2.2 Related Work

While machine learning is widely applied in the MDE

area, there is limited work available on the appli-

cation of MDE in the ML area (Bucchiarone et al.,

2020). Moreover, as stated in (Naveed et al., 2024),

only four studies have proposed MDE solutions for

RL. Domain-speciﬁc languages for the artiﬁcial in-

telligence domain and more speciﬁcally, the machine

learning domain, are recent contributions, driven by

the need to make ML algorithms more accessible and

to reduce the learning curve. To the best of our knowl-

edge, this is the ﬁrst work on developing an MDE-

based framework for reinforcement learning.

In this section, we discuss some relevant ML/RL

work that use some form of MDE. We also present an

overview of relevant existing RL libraries and toolk-

its.

2.2.1 Application of MDE in ML

Our work takes inspiration from the Classiﬁcation Al-

gorithm Framework (CAF) (Meacham et al., 2020).

While CAF was developed for machine learning clas-

siﬁcation algorithms, RLML is developed for rein-

forcement learning algorithms. They have similar

conﬁguration-like interface for non-technical users.

CAF supports code generation in the Java language,

while RLML supports both Java and Python. Unlike

CAF, RLML offers a comparator feature.

Liaskos et al. (Liaskos et al., 2022) present a mod-

elling and design process for generating simulation

environments for RL based on goal models deﬁned

using iStar. This allows model-based reasoning to be

carried out, and for agents to be trained prior to de-

ployment in the target environment. High-level RL

models can be automatically mapped to these simu-

lation components. While the scope of our work is

different, this tool can be integrated into our frame-

work to allow RLML models (i.e. alogrithms used) to

be mapped to high-level RL models.

DeepDSL (Zhao et al., 2017) is a DSL embed-

ded in Scala, for developing deep learning applica-

tions. It provides compiler-based optimizations for

deep learning models to run with less memory usage

and/or in shorter time. DeepDSL allows users to de-

ﬁne deep learning networks as tensor functions and

has its own compiler that produces DeepDSL Java

program. Just as DeepDSL aims to bridge the gap

for non-technical uses in deep learning, we developed

RLML to ﬁll a similar gap in reinforcement learning.

Our proposed approach is unique and different

than the rest of the reviewed work, because we use

model-driven engineering to create abstractions in the

RL domain. This not only provides simpliﬁcation for

RL but also provides other beneﬁts of model-driven

engineering, such as improved maintainability, visu-

alization and scalability.

2.2.2 RL Libraries and Toolkits

As the ﬁeld of reinforcement learning evolves, various

platforms and libraries have been established to facil-

itate the development of RL applications, each with

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

its distinct features and focus areas. For instance, the

Reinforcement Learning Toolkit developed with Un-

real Engine (Sapio and Ratini, 2022) provides immer-

sive simulation environments. Python libraries such

as RL-coach

, Tensorforce

,TRFL

, and TF Agents

offer robust support for RL algorithms but require de-

velopers to engage deeply with algorithmic details

and understand the intricate concepts of RL. These

existing tools, written in Python, demand substantial

technical understanding of RL processes, from algo-

rithm implementation to the handling of complex cal-

culations. This requirement can be a barrier for those

who are not specialists in RL.

Another recent addition to these set of tools is

Scikit-decide

, an AI framework for RL, which sup-

ports automated planning and scheduling. It offers an

intuitive interface, but, similar to other tools under-

standing of RL fundamentals is still essential.

The development of RLML represents a novel ap-

proach within the RL landscape. By focusing on a

higher level of abstraction, RLML seeks to simplify

the use of RL with a user-friendly modelling environ-

ment. This contribution could be particularly valu-

able in making advanced RL technologies more ap-

proachable for everyone including non-data scientists

or for users without extensive background in the ﬁeld,

thereby expanding the reach and application of RL in

various domains.

3 MODELLING LANGUAGE

DESIGN

In this section, we describe the proposed DSL for re-

inforcement learning, RLML. The core language con-

cepts were designed based on the main elements rep-

resenting the RL problem and solution algorithms.

3.1 RLML Abstract Syntax

Reﬂecting the RL domain concepts, RLML mainly

consists of an environment element, an agent element,

and the result element. Successively these elements

contain all the other details involved in solving an RL

problem. Similarly, the RLMLComparator consists of

the same elements as RLML, except it can have mul-

tiple agent elements as well as corresponding number

https://intellabs.github.io/coach/

https://tensorforce.readthedocs.io/

https://www.deepmind.com/open-source/trﬂ

https://www.tensorﬂow.org/agents

https://airbus.github.io/scikit-decide/guide/introducti

of result elements. Figure 2 presents the metamodel

for RLML.

• RLML: The RLML element is the root element of

all the other elements in the language, and con-

tains the environment element, RL agent and the

result. It includes properties that lets the user de-

cide an input method and a run language method.

• RLML Comparator: This is another root element

which is almost a replica of RLML and con-

tains all the other elements in the language except

RLML. It contains the environment element, mul-

tiple RL agent elements, and multiple result ele-

ments.

• Environment: This represents the RL problem en-

vironment for describing the RL problem and the

goal that the agent needs to reach. It is broken

down into states, actions, terminal states (also re-

ferred to as Done states) and rewards elements.

Each one of these elements contains a value prop-

erty, which expects a string value and have asso-

ciated constraints.

• Reinforcement Learning Agent: The RL agent in

the domain is represented by the RL algorithm,

which will be used to to solve the RL problem,

given by the RL environment.

• Reinforcement Learning Algorithm: It is special-

ized into the many different RL algorithms which

can be chosen and implemented to solve the RL

problem. It holds the settings property with ref-

erence to the required settings and parameters to

tune an RL algorithm. All the child RL algorithms

will inherit the settings property. The settings el-

ement carries the common RL algorithm parame-

ters. A speciﬁc type of RL algorithm can have its

own speciﬁc properties.

The algorithms currently covered in the language

include Q-Learning, SARSA, Monte Carlo, Ac-

tor Critic and DQN all of which fall under model-

free RL. The metamodel is easily extensible and

can support addition of more RL algorithms as the

language matures, to cover more tests cases and

broader RL problems.

• Settings and Hyperparameters: The settings ele-

ment contains hyperparameters, which include all

the common properties for the selected RL algo-

rithms. The hyperparameters element contains al-

pha (the learning rate), gamma (the discount fac-

tor), epsilon (speciﬁes the exploration rate), and

total episodes (total number of episodes to train

the agent). More parameters can be added for spe-

ciﬁc algorithms in their individual concepts.

Towards a Domain-Speciﬁc Modelling Environment for Reinforcement Learning

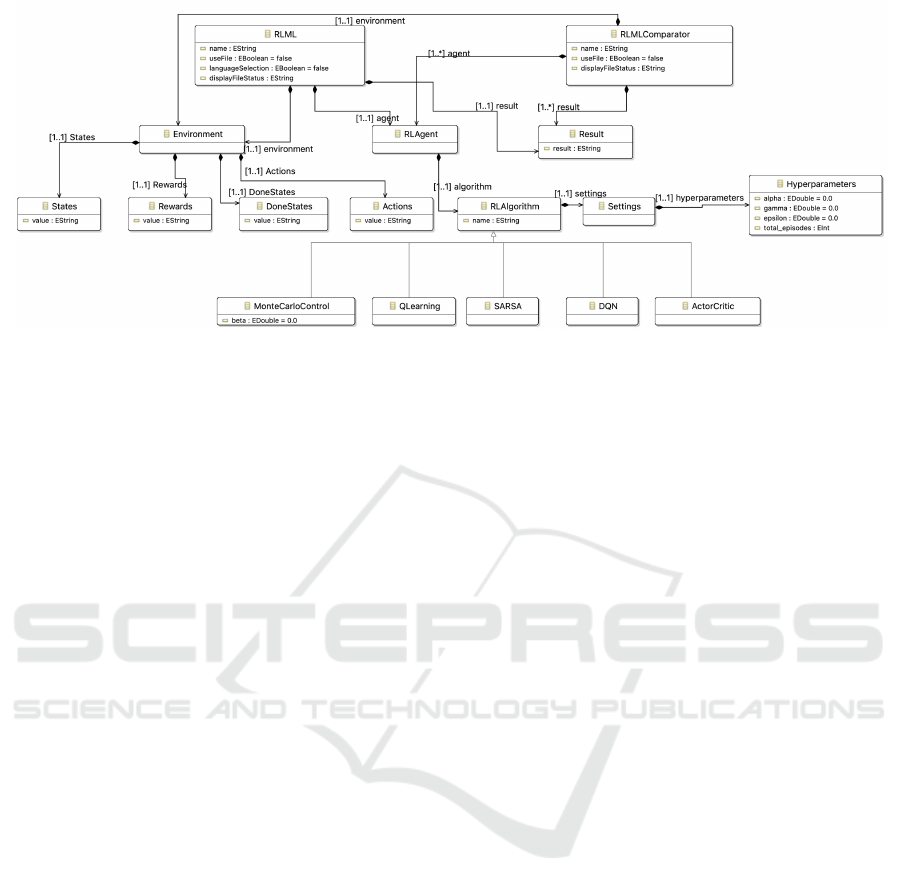

Figure 2: RLML Metamodel.

• Result: The result element contains a result string

property, and is used to display the results of run-

ning the chosen algorithm.

3.2 RLML Concrete Syntax

One of the goals of RLML is to reduce the complex-

ity involved in implementing RL applications. RLML

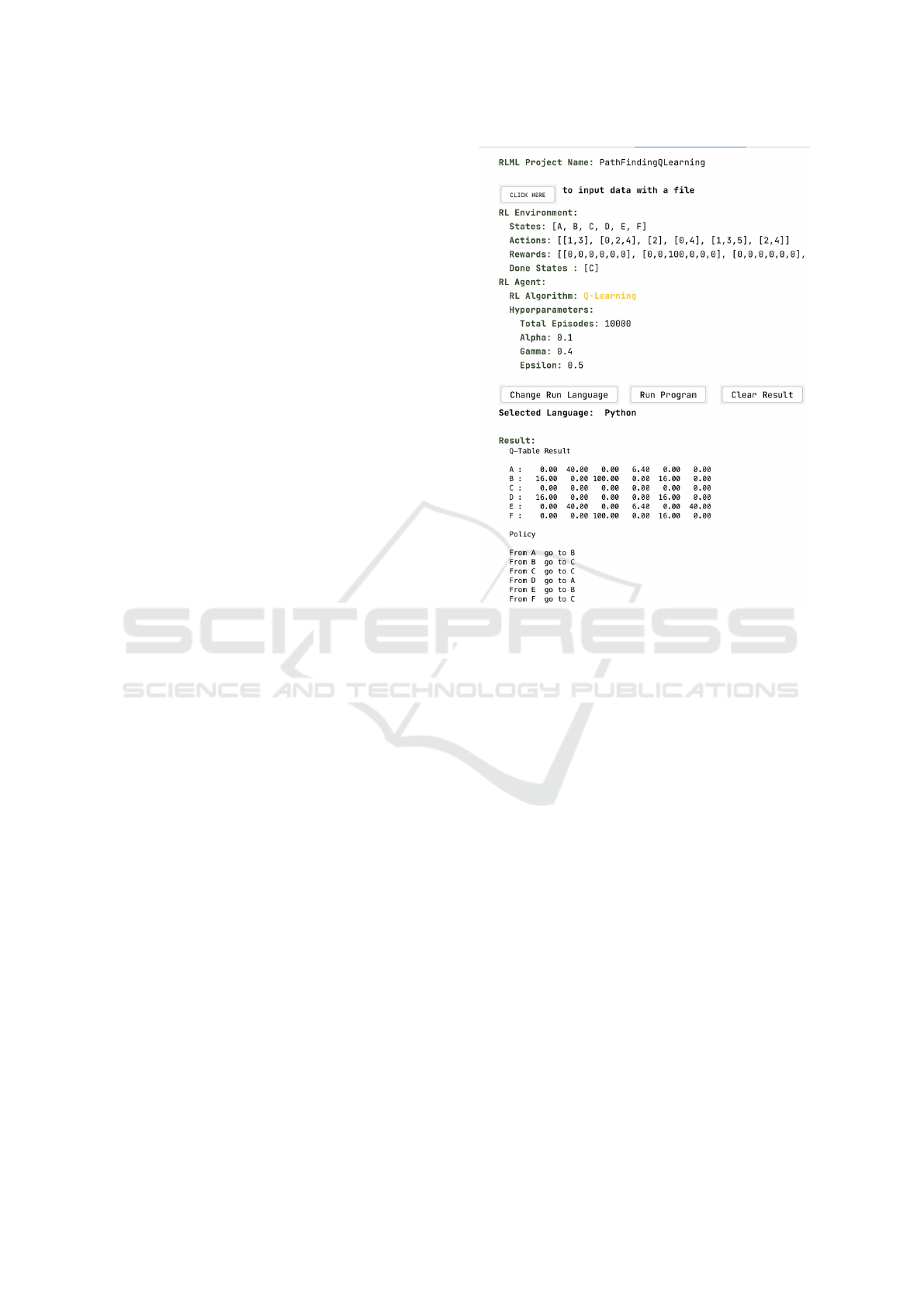

uses textual concrete syntax and can be modelled as a

simple conﬁguration-like properties ﬁle, as shown in

the sample model in Fig. 4.

The inspiration of the RLML concrete syntax

comes from YAML representation, which is a human-

readable data format used for data serialization. It

is used for reading and writing data independent of

a speciﬁc programming language. Another signiﬁ-

cant aspect for this concrete syntax is its relevance

in model-free algorithms, where a dynamic state-

action space is required for the agent’s actions. This

interaction-focused approach is key in model-free re-

inforcement learning, allowing the agent to effec-

tively learn and reﬁne its strategy through direct ex-

perience, even in complex and variable scenarios. As

per the abstract syntax, the model needs to specify

the project’s name, the environment element proper-

ties (the states, actions, rewards and terminal states),

the agent’s RL algorithm type and the settings for that

algorithm.

3.3 RLML Constraints

The property values are considered valid when they

are in a format that RLML can use to implement the

chosen RL algorithm. To ensure that the user is en-

tering valid properties, we deﬁned the following DSL

validation constraints.

• States Constraint: States property value is expect-

ing a string representation of all the possible states

an agent can move within the current world or the

environment of the current task. The value of the

states property must be a comma-separated list of

state strings, within square brackets. The individ-

ual state names cannot have comma or spaces.

Valid example: [A, B, C, D, E, F]

• Actions Constraint: The possible actions that the

agent can take for each state of the states array.

This value is also in string format and expects

a two-dimensional array of indexes. The array

of indexes contain the index values of the states

that the agent can go to, starting from the given

state. Each array is a comma-separated list within

square brackets. The constraint validates the for-

mat of the provided string value and checks that

the length of actions array element is equivalent

to the length of the states array. In the valid exam-

ple below, we can see that there are six arrays of

indexes to match the length of the example array

for states.

States example: [A, B, C, D, E, F]

Valid Example: [[1,3], [0,2,4], [2], [0,4], [1,3,5],

[2,4]]

• Rewards Constraint: The rewards property value

is similar to the actions property value. In

this case, the two-dimensional array contains

an array of rewards that the agent will receive

when moving from the given state to other states

in the environment. The RL algorithm will

eventually learn to move towards the states that

give maximum future rewards and ignore the

ones that do not give rewards. Each array is a

comma-separated list within square brackets.

Similar to actions value validation, the rewards

constraint validates the format of the string and

checks that the length of the rewards array is

equal to the length of states array and the length

of individual rewards elements, is equivalent to

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

the length of the states array. In the valid example

below, there are also six arrays of six reward

values to match the length of states example

array.

States example: [A, B, C, D, E, F]

Valid Example: [[0,0,0,0,0,0], [0,0,100,0,0,0],

[0,0,0,0,0,0], [0,0,0,0,0,0], [0,0,0,0,0,0],

[0,0,100,0,0,0]]

• Terminal States Constraint: In the RL domain, the

terminal states is a subgroup of all the states that

can end a training episode, either because it is

the goal state or because it is a terminating state.

Therefore, the terminal states array should pro-

vide a smaller string array than the states array.

The terminal states constraint ensures the format

of the string value provided is a comma-separated

list within square brackets and checks that this ar-

ray is a sub-array of the states example array.

States example: [A, B, C, D, E, F]

Valid Example: [C]

4 DOMAIN-SPECIFIC

MODELLING ENVIRONMENT

This section describes the proposed RL framework.

4.1 RLML Features

A modelling environment has been designed and de-

veloped to create RLML models. Translational se-

mantics have been implemented to support execution

of the models through the environment. The mod-

elling environment supports use of different agents as

well as displays the output of the RL training.

Our framework provides support for the same

algorithms in both Java and Python programming

languages, thus maintaining algorithmic uniformity.

Concurrently, efforts were made to enhance Java’s

RL capabilities, ensuring it remains a viable option

for those preferring or requiring it. Our balanced ap-

proach enhances the project’s overall utility, catering

to the diverse needs of the RL community and main-

taining inclusivity across programming preferences.

Our environment provides support for saving

trained RL models, thus facilitating the retention and

subsequent utilization of these models and offering

researchers a valuable resource. Additionally, we de-

veloped support for running multiple algorithms si-

multaneously, presenting data for each distinct varia-

tion. This functionality not only allows users to com-

pare and analyze different algorithmic approaches

side by side but also facilitates a deeper understand-

ing of how variations in parameters affect outcomes

(see Fig. 5). It provides a robust platform for exper-

imentation, enabling users to efﬁciently identify the

most effective algorithms and parameter settings for

their speciﬁc use cases. This multi-algorithm capabil-

ity greatly enhances the tool’s utility in complex sce-

narios, making it an invaluable asset for both research

and practical applications in diverse ﬁelds where nu-

anced algorithmic comparisons are essential.

Recognizing the complexity of RL inputs and the

impracticality of manual entry in some cases, we have

enhanced RLML with the capability to import values

through a text ﬁle. This feature allows users to se-

lect a ﬁle (see Fig. 6), which is then processed to en-

sure it contains valid data. Upon conﬁrmation of valid

input, the system automatically populates the States,

Actions, Rewards, and Done States. This addition sig-

niﬁcantly enhances the versatility of the tool, making

it suitable for use cases that involve large input sizes.

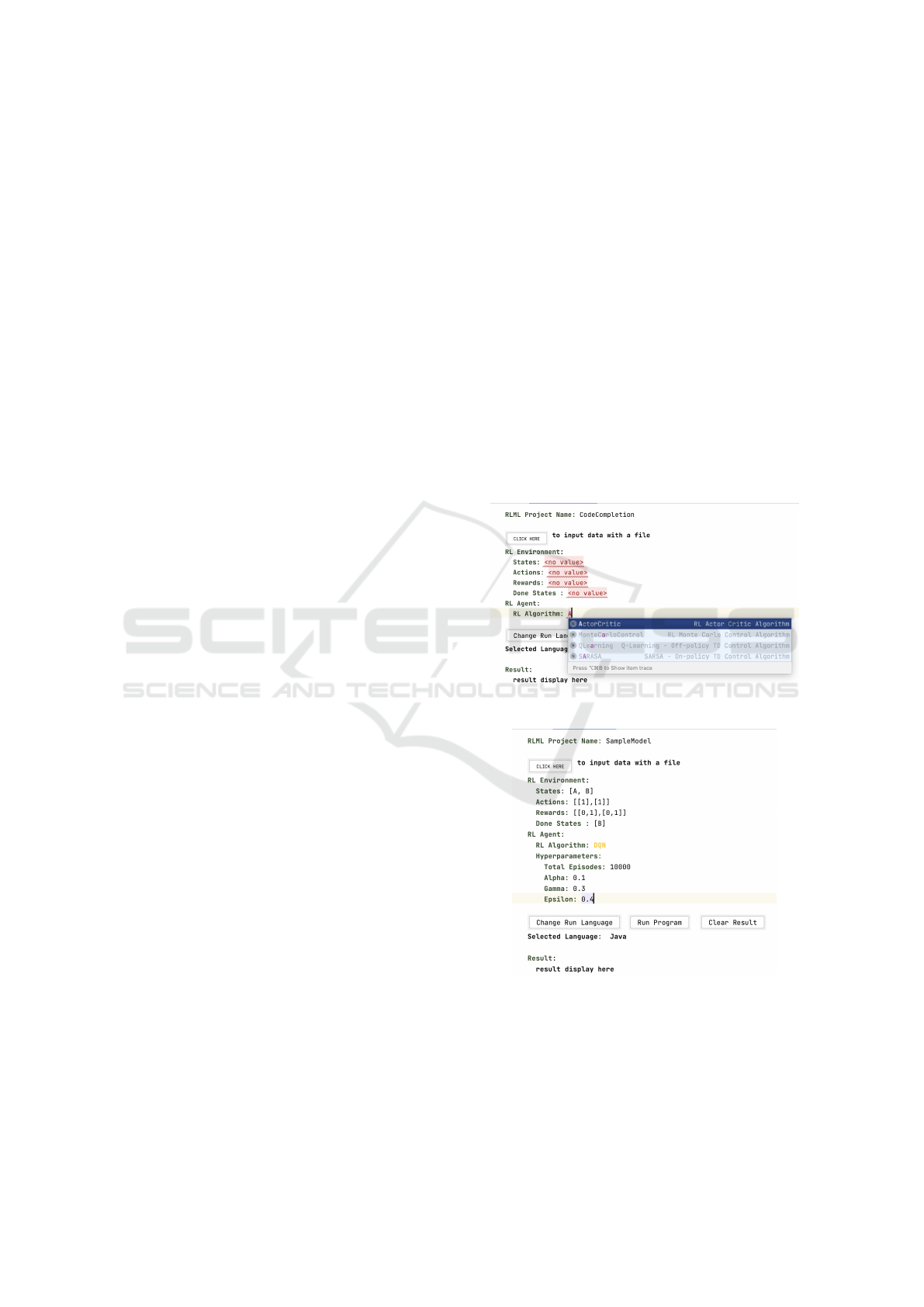

Figure 3: RLML Environment: Code Completion.

Figure 4: Sample RLML Model.

4.2 RLML Editor

MPS is a language workbench which provides a tool

or set of tools to support language deﬁnition, and it

implements language-oriented programming. MPS

Towards a Domain-Speciﬁc Modelling Environment for Reinforcement Learning

is an integrated development environment (IDE) for

DSL development, which promotes re-usability and

extensibility. The language deﬁnition in MPS con-

sists of several aspects: structure, editor, actions, con-

straints, behaviour, type system, intentions, plugin

and data ﬂow. Only the structure aspect is essential

for language deﬁnition and the rest are for additional

features. These aspects describe the different facets

of a language.

We have employed the structure, editor, con-

straints, and behaviour aspects in the RLML deﬁni-

tion. The structure aspect deﬁnes the nodes of the

Abstract Syntax Tree (AST), known as concepts in

MPS. The editor aspect describes how a language is

presented and edited in the editor. It enables the lan-

guage designer to create a user interface for editing

their concepts. Constraints describes the restrictions

on the AST. Finally, the behaviour aspect enables cre-

ation of constructors for the node.

• RLML Structure: The structure aspect contains

the concepts that represent the RLML metamodel.

Each concept consist of properties and children,

reﬂecting the properties and the relationships in

the RLML metamodel, shown in Fig. 2.

• RLML Editor: The RLML editor aspect is con-

ﬁgured to deﬁne RLML’s concrete syntax, as de-

scribed and illustrated earlier in Fig. 4. The con-

cept editor for the RLML root element contains

the “Click Here”, “Browse File”, “Change Run

Language”, “Run Program” and “Clear Result”

buttons (see Fig. 4). The ”Click Here” button tog-

gles the visibility of “Browse File” option which

opens the ﬁle selection dialog. The “Change Run

Language” option allows users to switch between

Python and Java code. The “Run Program” exe-

cutes the generated code in MPS. When the code

is run in MPS, the results are displayed in the ed-

itor. Finally, the “Clear Result” button resets the

displayed output to blank. The setup provides a

user-friendly environment and enables code exe-

cution and results display right in MPS.

With the support for automatic code completion in

MPS, the environment shows suggestions as the

user creates the RLML model. The code comple-

tion feature helps the RLML user to see the list

of available RL algorithms (refer to Fig. 3) and

choose the one which can solve the targeted RL

problem.

• RLML Constraints: The validation constraints are

implemented using MPS’s concept constraints.

For each deﬁned structure concept, we can de-

velop a concept constraint to validate it. RLML

constraints aspect reﬂect RLML’s constraints (ex-

plained in Sec. 3.3), which are the actions, re-

wards, states and terminal states constraints.

• RLML Behaviour: The behaviour aspect lets us

set the default values for each algorithm concept,

as well as the default run language (currently

Java).

The sandbox solution in MPS facilitates imple-

menting the developed language and holds the

end user code. Figure 4 shows an example of an

RLML model in MPS.

4.3 RLML Code Generation

This work aims to provide abstractions to reduce the

complexity associated with RL problems and algo-

rithms by generating runnable code from the RLML

models. Generators deﬁne possible transformations

between a source modelling language and a target lan-

guage, typically a general purpose language, like Java

or Python.

For our proposed language, we implemented the

model to code transformation to generate code from

RLML models. We have used a root mapping rule and

reduction rules for our code generation. While Java is

directly supported by MPS, it is limited in generating

code for Python. Since support for the generation of

Python code is highly desirable in the RL domain, we

utilize an open-source MPS module

for this purpose.

This module allows us to extend MPS’s capabilities

to generate Python code, applying similar model-to-

text transformations as with Java. This integration en-

hances the versatility of our tool, supporting a wider

range of programming languages and accommodating

a broader user base.

• Root Mapping Rule: RLML’s generator mod-

ule contains two root mapping rules, one for the

RLML element and other for RLMLComparator

element, which are the root elements of RLML.

The rule speciﬁes the template to transform the

RLML element or RLML concept in MPS, into

a valid general purpose language class with ﬁelds

and methods corresponding to those in RLML el-

ement’s properties and children.

• Reduction Rule: The generator module con-

tains reduction rules for all supported algo-

rithms. Supporting more RL algorithms sim-

ply means extending the language with addi-

tional RL algorithm concepts and their reduction

rules/transformation rules. However, it is im-

portant to note that since Python does not have

native support in MPS, the reduction rules can-

not be used. To extend an algorithm in Python,

https://github.com/juliuscanute/python-mps

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

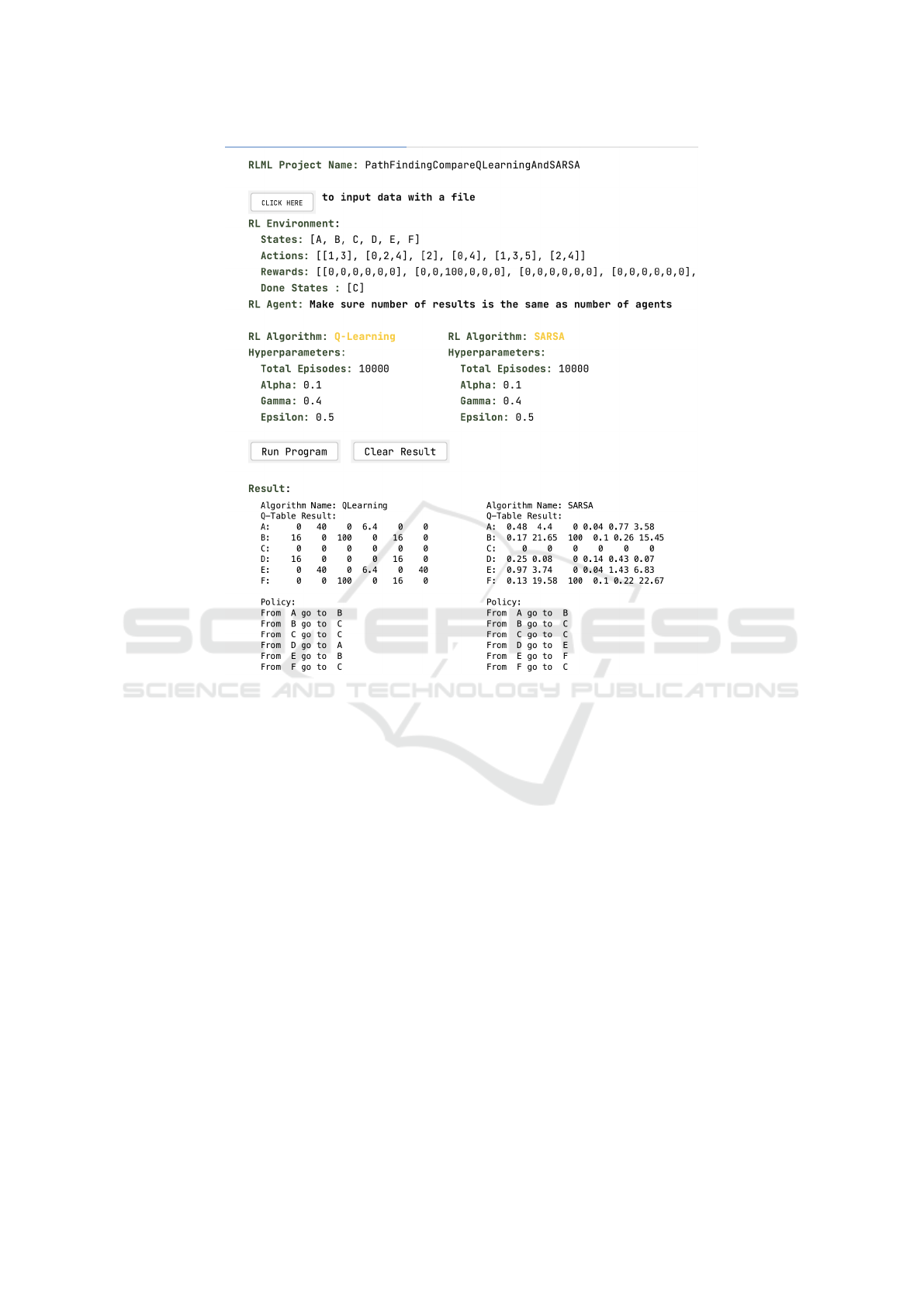

Figure 5: RLML Environment: Comparator.

we need to add a new function deﬁnition to the

mapRLMLmain.py ﬁle. As part of our contribu-

tions, we are building a Java library of RL algo-

rithms, to be used with MPS. While Python im-

plementations are typical for RL, developers and

students with Java expertise will ﬁnd such a li-

brary quite beneﬁcial.

Using these transformation rules, MPS can transform

an RLML model to runnable code. The generated ﬁle

contains more than 1500 lines of code for Java and

about 300 lines for Python. This emphasizes the sim-

plicity offered by RLML. The name of the ﬁle will

be mapped to RLML element’s project name prop-

erty, and it contains a method called run which im-

plements the RL algorithm calculations based on the

reduction rules for Java or the function deﬁnition for

Python deﬁned earlier.

With regards to the user experience, we have in-

tegrated UI elements like buttons in the RLML ed-

itor and enabled ﬁle importation with data valida-

tion. Addressing MPS’s inability to support Python,

we devised innovative solutions for Python code gen-

eration and execution within MPS by running the

python code as Java process. These enhancements

not only streamline the RLML user experience but

also broadly beneﬁt MPS’s community, particularly

in modelling language engineering.

A video demonstrating the RLML modelling en-

vironment is available at https://cs.torontomu.ca/

∼

ml/demos/rlml.html.

4.4 Discussion

Most machine learning libraries are widely available

as Python libraries and not as Java libraries, hence it

was challenging to ﬁnd Java libraries to support RL

algorithms. For the few available libraries, they were

not fully supported by MPS. We were able to over-

come this challenge by implementing algorithms in

Java ourselves and using an open source MPS mod-

ule to support Python code generation. Apart from

these algorithms, we did not implement any RL al-

gorithms, but instead relied of tried and tested imple-

mentations of RL algorithms and focused on enabling

non-technical users to leverage existing implementa-

Towards a Domain-Speciﬁc Modelling Environment for Reinforcement Learning

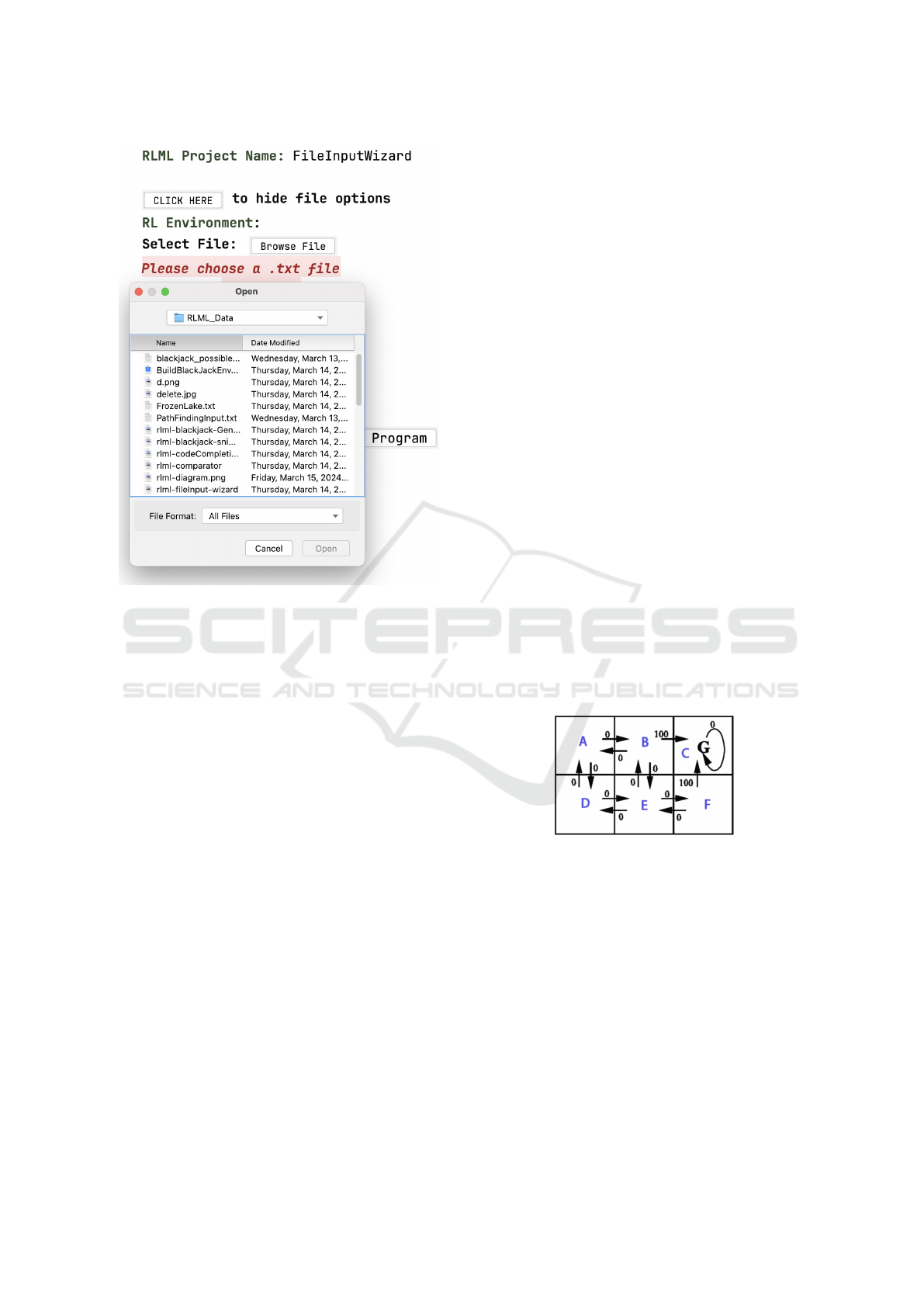

Figure 6: RLML Environment: Text File Input Wizard.

tions of RL algorithms easily through our framework.

Another issue was, RL problems do not have ﬁxed

input format from the perspective of actions, rewards

and states. Therefore, it was not straightforward to

come up with a format for those inputs. More valida-

tion and mapping is needed for broader problem cov-

erage. This could be ﬁxed by using more model-based

algorithms where the agent is given an environment it

can interact with to solve the problem.

Addressing the challenge of handling large data

set inputs, our tool offers a feature for data input

through a ﬁle. This method is particularly useful for

adding large inputs efﬁciently. However, it is impor-

tant to note that this feature requires the text ﬁles to

adhere to a speciﬁc format (as deﬁned in the concrete

syntax of the language). Consequently, users need

to either manually create these ﬁles or generate them

speciﬁcally for use with this tool, considering the for-

mat requirements. In our tests, we were able to use

a large language model (LLM) (Radford et al., 2019)

along with precise prompts to generate these ﬁles.

We added support to save the RL model which can

be useful for researchers to reuse the trained model.

However, the limitation of the save feature is that it

cannot be reused if the original parameters (States,

Actions, Rewards, or Done States) are changed. Ef-

fectively, reusing the saved model would be the same

as increasing the number of episodes to train.

In practical RL applications, selecting appropriate

states and actions can be quite complex, especially in

real-world scenarios. Future extensions will focus on

enhancing the language syntax to allow users more

ﬂexibility. This includes the ability to deﬁne custom

actions that better reﬂect the complexities encoun-

tered in real-world situations. We also plan to incor-

porate features that let users specify probability distri-

butions for state transitions based on different actions.

By allowing for more detailed and realistic modelling

of state transitions and actions, our framework will be

better suited to tackle the nuanced and often unpre-

dictable nature of practical RL applications.

5 RL APPLICATIONS

We validated our framework with four well-known

applications from the RL domain: path ﬁnding, black-

jack, simple game, and frozen lake(Ravichandiran,

2018). Due to space constraints, we only present two

of the applications here. For details on the use of

RLML on the simple game and frozen lake applica-

tions, please refer to (Sinani, 2022). The artifacts are

available at https://github.com/mde- tmu/RLML.

Implementation of the Monte Carlo and DQN algo-

rithms is currently work in progress, hence the vali-

dation does not cover these algorithms.

5.1 Path Finding Application

Figure 7: Path Finding Environment.

The path ﬁnding problem (Verma et al., 2020) is a

common application in the machine learning domain

that can be solved with different algorithms, including

RL. In the path ﬁnding environment, the agent’s goal

is to learn the path to a target state, starting from a ran-

domly selected state (see Fig. 7). There are in total six

states in this application, represented by the alphabeti-

cal letters A to F. On each episode, the agent starts in a

random state and takes actions to reach the goal state,

C. Once the agent reaches the goal state, the episode

will be considered complete. The agent will repeat

the training episodes spciﬁc number of times, as con-

ﬁgured in the RL algorithm. In an RLML model, this

is set as the total episodes in the RL algorithm entity.

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

At the end of the training, the agent will learn the best

path to the goal state C, starting from the random ini-

tial state. The agent learns the path to the goal state

by updating what is referred to as Q-Table and aims

to calculate the optimal action value function that can

be used to derive the optimal policy.

The RL environment needs to be modelled in a

format that conforms to the RLML abstract and con-

crete syntax (see Sec. 3). We model the path ﬁnding

environment as states, actions, rewards and terminal

states arrays, as shown in Fig. 5. Next, the path ﬁnd-

ing application environment variables and RL algo-

rithm option needs to be selected in the RLML model.

Sample RLML model instances for the path ﬁnding

algorithm are shown in Fig. 4.

The source code is automatically generated from

the RLML model for each selected algorithm. At

a high level, it is a Java/Python ﬁle named ac-

cording to the RLML root element name, e.g.,

PathFindingQLearning (similar to the code in

Fig. 10). It contains a methods to implement, run and

print the results of the chosen algorithm.

The RLML environment contains the Run

Program button (see Sec. 4.2). Once we click on the

Run Program button, the environment is dynamically

updated with the calculated results and we can see the

result of running the program within the environment.

The Q-Table and policy are dynamically calculated

and displayed. This can be viewed in the modelling

environment in the Results section (see Fig. 8). The

policy, derived from Q-Table values, shows the pre-

ferred action the agent will make at each state. As

seen in the results, the agent learned to go to state B

from state A, to state C from state B, and so on. Over-

all, the agent learned the shortest path to go to the

target state, which is C.

So far the application was implementing the Q-

Learning algorithm, however we can easily substi-

tute the algorithm with another algorithm, such as,

SARSA or Actor Critic algorithm. The difference be-

tween Q-Learning, SARSA and Actor Critic imple-

mentations is minor at the RLML level. RLML only

shows the algorithm type and hyperparameters neces-

sary for each algorithm to run. However, it will handle

the details of the algorithm calculations during code

generation and based on that, it will produce the valid

results. As can be seen in Fig. 9, in all cases, the agent

successfully learns the path to the goal state.

5.2 Blackjack Game

The Blackjack game is a prominent application in

the machine learning domain, solvable through var-

ious algorithms, including those from reinforcement

Figure 8: Path Finding Results in RLML with Q-Learning.

learning. In the Blackjack environment, the objec-

tive of the agent is to master decision-making strate-

gies to maximize winnings, beginning from an ini-

tial hand. This involves understanding when to hit or

stand, based on the current hand and the dealer’s vis-

ible card, aiming to attain a hand value as close to 21

as possible without exceeding it. Given the concrete

syntax of the language, going to any state but the cur-

rent state counts as a Hit action, whereas staying at

current state counts as a Stand.

Since, the game represents a real world applica-

tion the state space is quite complex consisting of

around 460 states. In each episode, the agent starts

with an initial hand in Blackjack, taking actions based

on the hand’s value and the dealer’s visible card, with

the aim of optimizing its strategy for winning. The

goal in this context is to make decisions that maxi-

mize the agent’s chances of beating the dealer with-

out exceeding a hand value of 21. Each completed

hand is an episode, and the agent undergoes numer-

ous episodes as deﬁned in the RL algorithm’s set-

tings. Through training, the agent learns the best

decision-making strategy for Blackjack, starting from

any given hand. It achieves this by updating the Q-

Table, with the ultimate aim of determining the opti-

mal action-value function to derive the optimal pol-

icy. Similar to the pathﬁnding application, the RL

Towards a Domain-Speciﬁc Modelling Environment for Reinforcement Learning

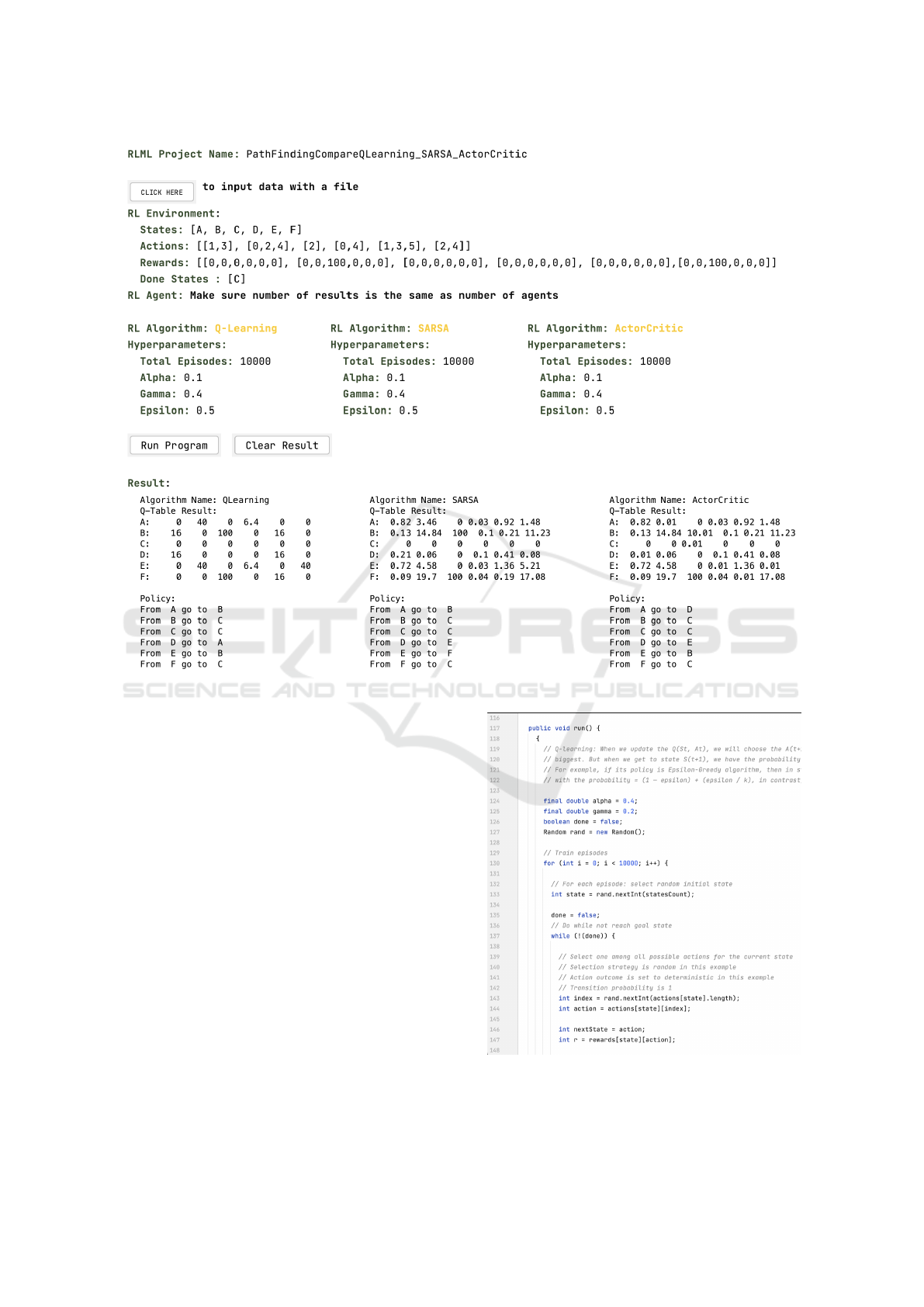

Figure 9: Path Finding Results in RLML: Q-Learning VS SARSA VS ActorCritic.

environment needs to be modelled in a format that

conforms to the RLML abstract and concrete syntax.

In line with that, we can generate and run code for

a Blackjack game (e.g., named BlackjackQLearning)

using the RLML editor’s “Run Program” button. Ex-

amining the calculated Q-Table and derived policy re-

veals how the player has learned optimal decision-

making strategies in the Blackjack environment. In

the Q-Table, speciﬁc actions in certain states may

have negative values, reﬂecting decisions that typi-

cally lead to losing hands.

The algorithm learns to avoid actions that histori-

cally result in losses, even if they seem initially ap-

pealing. The player, or agent, has been trained to

prioritize decisions that maximize overall gains over

time, rather than immediate, riskier gains, as indicated

by the positive and negative rewards in the Q-Table.

6 CONCLUSION

In our work, we applied MDE in the machine learning

area to develop an RL environment for non-technical

Figure 10: Blackjack with Q-Learning: Generated Code

with RLML.

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

users, making it easier for a wider audience to lever-

age RL’s potential. Our no-code solution allows users

to quickly build and test RL models without extensive

programming skills, hence enabling faster prototyp-

ing and experimentation. RLML is developed to be

easily extensible to support a wide range of RL algo-

rithms. To the best of our knowledge, this work is a

ﬁrst step in this direction for reinforcement learning.

With the use of the language workbench MPS, we

built a domain-speciﬁc modelling environment sup-

porting model editing, syntax checking, constraints

checking and validation, as well as code generation.

RLML achieves the abstraction needed in RL applica-

tions, by providing a conﬁguration-like model to pro-

vide input values of the RL problem environment and

a choice of the RL algorithm. From that point, our

framework can generate executable code, run it and

display the results. The environment also provides a

comparator to compare results obtained with differ-

ent RL algorithms. It supports both Java and Python

implementations.

We demonstrated the use of our proposed frame-

work with the path ﬁnding and blackjack RL applica-

tions. It can also be used for business applications as

well as to get feedback from RL users at different lev-

els of expertise. Moreover, RLML can be helpful in

academia for making reinforcement learning accessi-

ble for non-technical students.

This work is a starting point towards developing

a framework for supporting various types of RL tech-

nologies, both model-free and model-based, with the

ultimate goal of democratizing access to advanced AI

capabilities. We are currently working on incorporat-

ing probability distributions and custom actions into

RLML, which will allow it to model real world use

cases more effectively.

ACKNOWLEDGEMENTS

This work has been partially supported by Natu-

ral Sciences and Engineering Research Council of

Canada (NSERC) and Toronto Metropolitan Univer-

sity. The authors would like to extend their thanks to

Prof. Nariman Farsad for his feedback on this work.

REFERENCES

Brunton, S. and Kutz, J. (2019). Data-Driven Science and

Engineering. Cambridge University Press.

Bucchiarone, A., Cabot, J., Paige, R., and Pierantonio, A.

(2020). Grand challenges in model-driven engineer-

ing: an analysis of the state of the research. Software

and Systems Modeling, 19:1–9.

Ding, Z., Huang, Y., Yuan, H., and Dong, H. (2020). Intro-

duction to reinforcement learning. In Deep Reinforce-

ment Learning, pages 47–123. Springer Singapore.

Franc¸ois-Lavet, V., Henderson, P., Islam, R., Bellemare,

M. G., Pineau, J., et al. (2018). An introduction

to deep reinforcement learning. Foundations and

Trends® in Machine Learning, 11(3-4):219–354.

Graesser, L. and Keng, W. L. (2019). Foundations of

Deep Reinforcement Learning: Theory and Practice

in Python. Addison-Wesley Professional, Boston.

Jiang, H. (2021). Machine learning fundamentals: a con-

cise introduction. Cambridge University Press.

Liaskos, S., Khan, S. M., Golipour, R., and Mylopoulos, J.

(2022). Towards goal-based generation of reinforce-

ment learning domain simulations. In iStar, pages 22–

28.

Meacham, S., Pech, V., and Nauck, D. (2020). Classiﬁca-

tion algorithms framework (CAF) to enable intelligent

systems using jetbrains MPS domain-speciﬁc lan-

guages environment. IEEE access, 8:14832–14840.

Naveed, H., Arora, C., Khalajzadeh, H., Grundy, J., and

Haggag, O. (2024). Model driven engineering for

machine learning components: A systematic litera-

ture review. Information and Software Technology,

169:107423.

Radford, A., Wu, J., Amodei, D., Amodei, D., Clark, J.,

Brundage, M., and Sutskever, I. (2019). Better lan-

guage models and their implications. OpenAI blog,

1(2).

Ravichandiran, S. (2018). Hands-On Reinforcement Learn-

ing with Python: Master Reinforcement and Deep Re-

inforcement Learning Using OpenAI Gym and Tensor-

Flow. Packt Publishing, Limited, Birmingham.

Sapio, F. and Ratini, R. (2022). Developing and testing

a new reinforcement learning toolkit with unreal en-

gine. In Artiﬁcial Intelligence in HCI, pages 317–334,

Cham. Springer.

Schmidt, D. C. (2006). Model-driven engineering.

Computer-IEEE Computer Society, 39(2):25.

Sinani, N. (2022). RLML: A domain-speciﬁc modelling

language for reinforcement learning. MRP Report.

Sutton, R. S. and Barto, A. (2018). Reinforcement learning:

An introduction. A Bradford Book.

Verma, P., Dhanre, U., Khekare, S., Sheikh, S., and

Khekare, G. (2020). The optimal path ﬁnding algo-

rithm based on reinforcement learning. International

Journal of Software Science and Computational Intel-

ligence, 12:1–18.

Voelter, M., Benz, S., Dietrich, C., Engelmann, B., He-

lander, M., Kats, L. C. L., Visser, E., and Wachsmuth,

G. (2013). DSL Engineering - Designing, Implement-

ing and Using Domain-Speciﬁc Languages. CreateS-

pace Independent Publishing Platform, US.

Zhao, T., Huang, X., and Cao, Y. (2017). DeepDSL: A

compilation-based domain-speciﬁc language for deep

learning. In Proceedings of the 5th International Con-

ference on Learning Representations,.

Towards a Domain-Speciﬁc Modelling Environment for Reinforcement Learning
