Towards Efﬁcient Cloud Data Processing: A Comprehensive Guide to

CKKS Parameter Selection

Modjtaba Gharibyar

1,∗ a

, Clemens Kr

uger

2,∗ b

and Dominik Schoop

2 c

Research Group for Cryptography and Security, KASTEL Security Research Labs, Germany

Department of Computer Science, Esslingen University of Applied Sciences, Germany

Keywords:

Cloud Computing, Security and Privacy, Homomorphic Encryption, CKKS, Parameter Optimization.

Abstract:

Cloud computing offers scalability, cost efﬁciency, and the ability to process large data volumes. However,

security and privacy concerns deter many organizations from migrating sensitive data to the cloud. Traditional

encryption protects data at rest and in transit but requires decryption for processing, exposing plaintext to

cloud providers or attackers. Fully homomorphic encryption (FHE) addresses this issue by enabling compu-

tations directly on encrypted data. Among available FHE schemes, CKKS stands out for its relatively good

performance but requires careful parameter tuning to balance security, precision, memory use, and runtime ef-

ﬁciency. This paper explores CKKS’s practical application by analyzing the impact of parameter conﬁgurations

on these aspects, demonstrated through prototypical statistical computations. It also provides key criteria for

selecting and optimizing parameters to meet desired security and performance levels. The ﬁndings simplify

CKKS parameter management for non-experts, offering practical guidance for user-friendly implementation.

1 INTRODUCTION

Cloud-based Software as a Service (SaaS) is a corner-

stone of modern technology, valued for its scalability,

cost efﬁciency, and ability to process large data vol-

umes. SaaS allows Data Owners to outsource compu-

tations to cloud providers, leveraging their substantial

processing power.

Despite these advantages, SaaS raises signiﬁcant

privacy concerns. Although secure transmission pro-

tocols like TLS protect data in transit, plaintext pro-

cessing at the cloud backend leaves sensitive infor-

mation vulnerable to attackers.

Fully homomorphic encryption (FHE) offers a so-

lution by enabling computations directly on encrypted

data, maintaining conﬁdentiality throughout the pro-

cess. Among FHE schemes, CKKS (Cheon et al.,

2017) is particularly suited for approximate compu-

tations, balancing performance with a degree of in-

accuracy. We chose CKKS for this paper, because it

is among the most promising schemes for privacy-

preserving data analysis and machine learning, due

to its comparatively high performance and ability to

https://orcid.org/0009-0006-8340-6031

https://orcid.org/0009-0006-2588-0069

https://orcid.org/0009-0006-9971-3677

∗

The authors Gharibyar and Kr

uger contributed

equally to this paper.

work on ﬁxed-point numbers. However, its practi-

cal use demands careful parametrization to manage

trade-offs between security, precision, memory use,

and runtime, which can be hard to do properly, espe-

cially for beginners.

This study evaluates the critical parameters of

CKKS using the OpenFHE library (Badawi et al.,

2022). Exemplary statistical calculations, i. e. stan-

dard deviation and multi-stage multiplications, were

performed to demonstrate the impact of parameter

choices on performance and precision.

By addressing these complexities, we aim to pro-

vide user-friendly guidelines to simplify CKKS pa-

rameter conﬁguration, making FHE accessible to non-

experts while ensuring optimal performance and se-

curity.

It should be noted that there has been some ef-

fort in creating compilers which abstract the FHE and

automatically selects parameters (Chowdhary et al.,

2021). Nevertheless, we believe it is important for

FHE developers to have an understanding of how the

parameters interact with each other.

The paper is organized as follows. In Section 2.1,

we provide some brief mathematical foundations un-

derlying the CKKS scheme. Section 2.2 details the

parameters available in the library OpenFHE. Sec-

tion 3 outlines the experimental setup and quantita-

tively deﬁnes the objectives. In Section 4, we interpret

the results regarding runtime, memory usage, preci-

502

Gharibyar, M., Krüger, C. and Schoop, D.

Towards Efﬁcient Cloud Data Processing: A Comprehensive Guide to CKKS Parameter Selection.

DOI: 10.5220/0013144800003899

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 11th International Conference on Information Systems Security and Privacy (ICISSP 2025) - Volume 2, pages 502-509

ISBN: 978-989-758-735-1; ISSN: 2184-4356

sion, and security level, and recommend the optimal

parametrization for our functions. Finally, Section 5

summarizes our research results.

2 PRELIMINARIES

In this section, we introduce the fundamental con-

cepts and structures essential for understanding the

subsequent analysis and implementation of CKKS.

We provide an overview of the polynomial ring struc-

tures, key generation processes, and homomorphic

operations that form the core of the CKKS scheme.

2.1 CKKS

Let N be a power of two. The ring R := Z[X]/(X

1) consists of polynomials with integer coefﬁcients

and represents the ring of integers of the 2N-th cy-

clotomic ﬁeld. N is referred to as the ring dimension.

The ring R

:= R /QR has coefﬁcients reduced mod-

ulo Q.

We use a modulus that supports the number the-

oretic transform (NTT), where R

:= R /Q

R rep-

resents the ring with coefﬁcients reduced modulo

= q

···q

, with i ∈ N

. The largest modulus,

= q

···q

, corresponds to L multiplicative lev-

els (the number of consecutive multiplications that

can be performed; see Section 2.2.3 for more details).

Secret keys s are elements of R with balanced,

ternary coefﬁcients, where s ∈ {0,±1}

⊂ R . The

uniform distribution over ternary polynomials is de-

noted by χ

. Further, χ

denotes the discrete Gaus-

sian distribution over R , with coefﬁcients sampled in-

dependently with a standard deviation of 3.19, which

is the standard choice according to the FHE security

standards (Halevi and Shoup, 2020; Albrecht et al.,

2019). The CKKS scheme encodes messages using

a scaling factor and a packing method over the real

numbers: m’ = Encode(m), where Encode ﬁrst scales

up the message m by a scaling factor ∆, computes the

inverse discrete Fourier transform, and then rounds

to integers modulo Q

. This packing method al-

lows homomorphic SIMD (Single Instruction Multi-

ple Data) operations, including addition, multiplica-

tion with rescaling (similar to ﬂoating-point multipli-

cation), and rotation of the vector of scalars packed in

the plaintexts/ciphertexts.

The OpenFHE library implements an optimized

variant of the Residue Number System (RNS), also

known as the double Chinese Remainder Theorem

(CRT). Additionally, the authors slightly changed

their implementation compared to the original CKKS,

to mitigate key recovery attacks (OpenFHE, 2024).

The key operations that can be performed on cipher-

texts in the CKKS scheme include:

• Ciphertext-constant operations (CAdd, CSub,

CMult): Perform addition, subtraction, and mul-

tiplication with constants.

• Ciphertext-ciphertext operations (Add

evk

(ct

, ct

Sub

evk

(ct

, ct

), Mult

evk

(ct

, ct

): Perform ad-

dition, subtraction and multiplication with relin-

earization using the evaluation key evk.

• Sum

(ct): Sum all slots in ct iteratively via rota-

tions using the rotating key rk

(σ)

• Rotate

rk(σ)

: Rotate ct by σ, incorporating relin-

earization.

2.2 Cryptographic Parameters

In Section 1, we highlighted the inherent trade-off in

CKKS between security level, precision, memory use,

and runtime. Speciﬁcally, the choice of security and

precision parameters directly inﬂuences runtime and

memory use because these parameters determine the

dimension R , which reﬂects the number of polyno-

mial coefﬁcients that must be processed and stored,

thereby affecting runtime, ciphertext size, and key

size.

In this section, we identify the speciﬁc param-

eters offered by the library OpenFHE that are rele-

vant to CKKS. We categorize these parameters based

on the previously discussed factors—security, preci-

sion, memory use, and runtime—that contribute to the

trade-off in the CKKS scheme.

2.2.1 Cryptographic Parameters for Security

Security Level. In OpenFHE, the security level is

determined by the parameter SecurityLevel, with

options for 128, 192, and 256 bits, applicable to both

Quantum (resistant to quantum attacks) and Classic

(resistant to classical attacks) scenarios. These values

correspond to the computational resources required

to solve the LWE problem at the level of a block ci-

pher. To ensure these security levels, OpenFHE ad-

heres to the ”Security Guidelines for Implementing

Homomorphic Encryption” (Bossuat et al., 2024).

The guidelines specify explicit values for log

(q),

where q = PQ represents the LWE modulus in the

CKKS scheme. This value deﬁnes the maximum bit

length required to achieve a speciﬁc ring dimension

N at a given security level.

It should be noted that the log

(q) values are esti-

mates based on the Lattice Estimator (Albrecht et al.,

2015), which estimates the costs of various attack

methods for a given parameter set.

Towards Efﬁcient Cloud Data Processing: A Comprehensive Guide to CKKS Parameter Selection

503

2.2.2 Cryptographic Parameters for Precision

The ScalingTechnique parameter is crucial for pre-

cision in the CKKS scheme. In OpenFHE, this param-

eter is implemented in two RNS variants: static and

dynamic. These variants control the rescaling process

and directly affect the precision of computations.

Scaling Method. There are static and dynamic scal-

ing methods. The static RNS variant uses the prime

power 2

as the scaling factor across all levels L,

where each RNS modulus q

≈ 2

is associated with a

speciﬁc multiplicative level (Ahmad Al Badawi et al.,

2022; Blatt et al., 2020; Cheon et al., 2019). In

OpenFHE, the static method is selected using the

FIXEDAUTO scaling technique, where rescaling is per-

formed automatically before each homomorphic mul-

tiplication, except for the ﬁrst one. Alternatively,

rescaling can be performed manually by the user with

FIXEDMANUAL (Ahmad Al Badawi et al., 2022). The

dynamic method uses an adaptive scaling factor ∆

for each level, which varies per level (Kim et al.,

2022). In OpenFHE, this method is implemented us-

ing the FLEXIBLEAUTO and FLEXIBLEAUTOEXT tech-

niques. FLEXIBLEAUTOEXT provides higher preci-

sion than FLEXIBLEAUTO, but it is slower (Ahmad Al

Badawi et al., 2022).

FirstModSize and ScaleModSize. In the cryp-

tographic context of CKKS, the parameters

FirstModSize and ScaleModSize are crucial

for precision and must be conﬁgured accordingly.

FirstModSize deﬁnes the bit length of the initial

modulus q

, while ScaleModSize determines the

bit length of the scaling factor ∆. These parameters

are always conﬁgured in pairs, with FirstModSize

always being larger than ScaleModSize.

To understand the relationship between

FirstModSize and the resulting precision, let

us consider the ciphertext modulus chain as described

in Section 2:

= q

· q

· ... · q

The initial modulus q

is the largest element in this

chain and deﬁnes the numerical range in which en-

crypted data is represented and processed. Therefore,

the larger the bit length of q

, the larger the num-

bers that can be accurately represented, which implies

higher precision.

The scaling factor ∆ is used to convert real num-

bers into an integer form. The scaling factor ∆ is de-

ﬁned as ∆ = 2

ScaleModSize

2.2.3 Cryptographic Parameters for Runtime

and Memory Use

Ring Dimension. The RingDimension is crucial

for both runtime and memory use. It is typically ex-

pressed as 2

with n ∈ N and 10 ≤ n ≤ 17. The choice

of ring dimension is primarily determined by the mul-

tiplicative depth and ScaleModSize, along with the

desired SecurityLevel.

Batch Size. The batch size refers to the number

of data values that can be processed simultaneously

within a single ciphertext. Batching leverages the

property that polynomials in the ring R can be di-

vided into multiple slots, with each slot being manip-

ulated independently.

MultiplicativeDepth. The parameter

MultiplicativeDepth determines the maximal

number of sequential multiplications that can be

carried out before decryption will fail due to the ac-

cumulated error. The user can structure the necessary

computation in a binary tree of minimal height to

optimize this.

3 EXPERIMENTAL SETUP

We carry out an empirical study of the inﬂuence of

the previously mentioned parameters of the library

OpenFHE on run-time, precision and memory use.

Therefore, prototype implementations of a number of

formulas are executed on a system with 2 Intel Xeon

Gold 5315Y (3.2GHz) and 512GB RAM running

Ubuntu 22.04.4. We did not utilize any multi thread-

ing other than what the OpenFHE library performs

out of the box. A synthetically generated dataset,

comprising three sets of 65536 (2

) encrypted en-

tries was generated randomly. Each value is within

the range [0, 1] with a precision of 12 decimal places.

All calculations were performed 10 times, and the av-

erages were taken.

Multiplicative Function. The function calculates

the product of the slots of the vectors x, y, and z, and

sums them over all n elements:

f (x, y,z) =

∑

i=1

· y

· z

(1)

We utilize a multiplicative depth of 4 for this function.

Note that we require one level to accommodate for

the FLEXIBLEAUTOEXT scaling technique. We chose

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

504

this function as a baseline with a relatively low mul-

tiplicative depth, which utilizes only multiplications

and summation.

Standard Deviation. The standard deviation σ

a vector x measures how much the values of x deviate

from their mean ¯x:

−1

∑

i=1

− ¯x)

(2)

We therefore need to use an approximation func-

tion. The OpenFHE library supports the homomor-

phic evaluation of Chebyshev polynomials for this

purpose, which approximates a function to a certain

polynomial degree within the given bounds. To ac-

commodate for the approximation, we utilize a mul-

tiplicative depth of 12. This formula was chosen in

contrast to the previously introduced Multiplicative

Function, due to its much higher complexity. Firstly,

it utilizes a wider range of operations, including mul-

tiplication, summation, subtraction, squaring and the

square root. Secondly, the square root speciﬁcally in-

troduces the commonly used approximation, which

drastically increases the depth as well as the complex-

ity of the formula.

3.1 Evaluation Framework for the

Calculations

In this section, we aim to deﬁne and quantify the goals

for these parameters before moving on to the spe-

ciﬁc choices made for our implementation. We will

let the OpenFHE library automatically determine the

RingDimension based on the conﬁgured parameters.

Security. For our performance experiment, we vary

the SecurityLevel parameter by choosing κ = 128,

κ = 192 and κ = 256 within the Classic setting.

Precision. For our study, we are measuring not only

the runtime of different parameter sets, but also the

precision of the results. Precision should be assessed

by comparing the decrypted result of a ciphertext with

the result of an unencrypted reference calculation.

We ﬁrst calculate the relative error between the un-

encrypted (m) and the homomorphically calculated

′

) results for each slot i using RE = abs(m

(i)

−

m’

(i)

)/abs(m

(i)

). We then convert this error into bits

by calculating − log

(RE). We then take the average

of these results.

Runtime. We will measure relative runtime by

recording the total execution time in seconds for

each computation run. This will encompass the time

required for encryption, homomorphic computation,

and decryption. We do not measure the time for key

generation and setting the crypto context.

Memory Use. Memory use is evaluated by analyz-

ing the size of both the ciphertext and the crypto-

graphic keys, measured in kilobytes. This assessment

will consider the storage requirements for encrypted

data and the associated evaluation keys.

Parameterization. We test all ScaleModSizes be-

tween 20 and 59 (greatest possible value for

OpenFHE in 64-bit mode). Within this range, ad-

ditional parameters were selectively adjusted to as-

sess the corresponding RingDimension chosen for

the given Security Level, as well as the respec-

tive measurement results. Our measurements con-

sist of several dimensions of parameters, which are

used for all tested algorithms. First of all, we test

the three Classic Security Levels 128 bits, 192 bits

and 256 bits (represented as 1-3). Secondly, we

test three ScalingTechniques, namely FIXEDAUTO,

FLEXIBLEAUTO, and FLEXIBLEAUTOEXT (represented

as 1-3). For the scaling parameters, we systemati-

cally test all values for ScaleModSize in the range

[20,...,59], while leaving the FirstModSize as the

maximum value of 60. Finally, to determine how the

chosen BatchSize inﬂuences the runtime of the cal-

culation, we perform each measurement in two vari-

ants: First, we test full packing by setting the maxi-

mum possible BatchSize, i. e. half the ring dimen-

sion. Secondly, we perform the same measurements

with a BatchSize of 32, representing sparse packing.

3.2 Polynomial Degrees for Chebyshev

Approximation

As previously discussed, the standard deviation re-

quires a square root operation which needs to be ap-

proximated. The degree of the chosen Chebyshev

polynomials massively inﬂuences the results. The

higher the chosen degree, the more accurate the re-

sults will be, however the number of consumed mul-

tiplicative levels as well as the runtime will also in-

crease.

We therefore conducted measurements with sev-

eral degrees to determine the best trade-off for this

study. We tested every polynomial degree in the range

[10, 20, 30, ..., 2020]. Each parameter set was tested

5 times and the average computation time and preci-

sion was taken. We set the SecurityLevel to 1, the

ScalingTechnique to 2, the FirstModSize to 40,

the ScaleModSize to 39 and the BatchSize to 32.

Towards Efﬁcient Cloud Data Processing: A Comprehensive Guide to CKKS Parameter Selection

505

Figure 1: Chebyshev approximation results.

Ring dimension: 2

FIXEDAUTO

FLEXIBLEAUTO

FLEXIBLEAUTOEXT

Figure 2: Legend of result graphs.

We performed several measurements for the ap-

proximation of the square root across one ciphertext

with varying polynomial degrees and then calculated

the average of each of the results. This average can

now be compared to the average result of the plaintext

reference implementation to get an understanding of

the precision of the approximation.

Figure 1 shows the results of these measurements.

On the left, the graph plots the precision of the results

in bits. On the right, the computation time is shown.

It is clearly visible that the precision increases loga-

rithmically until it reaches its limit of about 28 bits

at a polynomial degree of around 750. The computa-

tion time appears to grow logarithmically as well, al-

though there is no clear limit in the tested range. For

our measurements, we chose the polynomial degree

of 247 for all further approximations, as it provides

a decent level of precision at around 25 bits, which

is only about 3 bits below the upper limit, while still

having comparatively low computation time.

4 RESULTS

After evaluating the calculations as described in Sec-

tion 3, we present the results, including the average

computation times, the precision of the results, as well

as the sizes of the keys and ciphertexts. In the follow-

ing sections, we will show and discuss the results for

the two exemplary functions in detail. .

Unless otherwise speciﬁed, the following graphs

adhere to the legend shown in Figure 2. The color of

each point deﬁnes the ring dimension of the measure-

ment, and the marker style deﬁnes the utilized scaling

technique.

4.1 Multiplicative Function

We discuss the computation time, precision and mem-

ory usage of each parameter set for the Multiplicative

Figure 3: Computation time for the Multiplicative Function.

Function (Equation 1).

Computation Time. Figure 3 shows the compu-

tation time for each value of ScaleModSize. The

graph shows the measurements with full packing

only. The differences between full and sparse pack-

ing will be discussed later. For a security level of

128 bits, every measurement results in a ring di-

mension of 2

. For 192 bits, all measurements

with ScaleModSizes higher than 31 using the scaling

techniques FIXEDAUTO and FLEXIBLEAUTO lead to a

higher ring dimension of 2

. Incidentally, these mea-

surements also roughly double the computation time

compared to the rest of the results. The scaling tech-

nique FLEXIBLEAUTOEXT already results in a higher

ring dimension starting with ScaleModSize 27, due

to the fact that it consumes an additional level. For

256 bits, all measurements result in a ring dimension

of 2

The graph shows that the computation time mainly

scales with the chosen ring dimension, whereas the

ScaleModSize has no noticeable direct inﬂuence.

However, as a higher ScaleModSize eventually in-

creases the ring dimension, there is of course a transi-

tive inﬂuence. With a ring dimension of 2

the com-

putation time is roughly double compared to ring di-

mension 2

Comparing the three security levels one can see

that 128 bits can be achieved with a ring dimension

of 2

throughout all ScaleModSizes. With 192 bits,

after a certain ScaleModSize the ring dimension in-

creases to 2

. At 256 bits all measurements resulted

in the ring dimension 2

. Therefore, the security

level of 192 bits shares its results with parts of the

other security levels. This indicates that the chosen

parameters for 128 bits for the measurements until

ScaleModSize 31 happen to be high enough for both

128 bits as well as 192 bits. The same goes for the

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

506

Figure 4: Full vs. sparse packing for the Multiplicative

Function.

Full packing

BatchSize 32

Figure 5: Legend of packing graphs.

higher ScaleModSizes which result in parameters

high enough for both 192 bits and 256 bits. Due to

the much higher computation times in the respective

higher ring dimensions, it is recommended to choose

a ScaleModSize within the tight range where the pre-

cision is optimal but ring dimension stays low.

Figure 4 shows the amortized computation time

per slot in the ciphertexts across all measurements

for the Multiplicative Function. The different

RingDimensions are color-coded the same as the

previous graphs, whereas the marker style shows the

packing type as described in Figure 5.

The ﬁrst graph shows both packing types in one,

whereas the second graph zooms into the results of the

full packing only. It is clearly visible that the batch

size massively inﬂuences the computation time. Gen-

erally speaking, higher BatchSizes result in higher

computation times. However, since the throughput is

also increased due to the fact that more numbers are

calculated per batch, the amortized computation time

is much lower with full packing. Additionally, the

RingDimension plays a noticeable role here as well,

however it is much smaller compared to the pack-

ing type. These observations make it clear that if

the implemented application is able to utilize higher

BatchSizes, full packing should always be used.

If the application does not get any advantages from

high BatchSizes, then a more appropriate smaller

BatchSizes should be chosen to minimize the over-

all computation time.

Precision. Figure 6 shows the precision in bits (as

deﬁned in Section 3) of each computation result

across all tested ScaleModSizes, speciﬁcally those

Figure 6: Precision for Multiplicative Function.

with full packing. It is evident that the ScaleModSize

has a big impact on the precision of the end re-

sult. The same goes for the Scaling Technique, where

FLEXIBLEAUTOEXT leads to the highest precision and

FIXEDAUTO to the lowest. Neither the security level

nor the chosen ring dimension have a noticeable ef-

fect on the precision. It can also be seen that there

is a clear upper limit to the precision of this func-

tion, which is at around 30 bits. This upper limit

is reached with a ScaleModSize of about 50 in the

worst case, for some Scaling Techniques even ear-

lier. Therefore there is no reason to choose higher

values. For the security level of 192 bits, the ring di-

mension increases with ScaleModSizes larger than

41 for the ﬁrst two scaling techniques. To get a good

trade-off between runtime and precision, it would be

best to choose 41, as the precision is already rela-

tively high, whereas the runtime is comparably low

due to the lower ring dimension. Since the ring di-

mension stays the same within the measurements for

both 128 and 256 bits and the previous section showed

that ScaleModSize does not inﬂuence performance

meaningfully, there is no such trade-off to be made

here. For these security levels, the precision can be

freely chosen according to the application require-

ments.

Table 1: Average memory usage for different ring dimen-

sions of Multiplicative Function.

Ring Dimensions

Parameter 2

CiphertextSize [MB] 1.002 2.002

PublicKeySize [MB] 1.830 3.676

EvalMultKeySize [MB] 5.490 11.038

SecretKeySize [MB] 0.666 1.338

Memory Usage. Table 1 shows the detailed mem-

ory usage for the ciphertext, public key, multiplication

key and private key across all measurements for this

Towards Efﬁcient Cloud Data Processing: A Comprehensive Guide to CKKS Parameter Selection

507

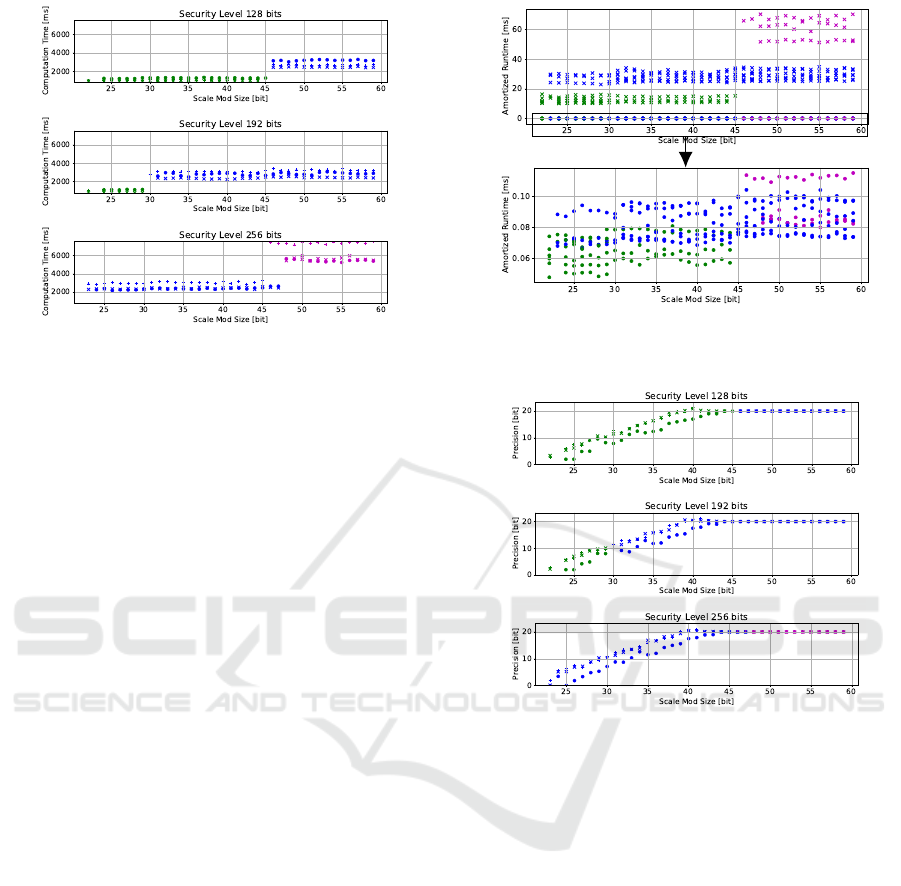

Figure 7: Computation time for the Standard Deviation.

function, separated by ring dimension. The ring di-

mension is the main contributor to memory size. As

can be seen in the table, the memory usage roughly

doubles from the lower to the higher ring dimension.

4.2 Standard Deviation

In this section we present the measurement results for

the Standard Deviation. We will discuss the compu-

tation time, precision and memory usage of each pa-

rameter set.

Computation Time. Here we can see considerable

differences compared to the previous function. Figure

7 shows the computation times of the Standard Devi-

ation, where the effects of the square root approxi-

mation are apparent, as the computation takes much

longer. There are two factors here which drive this

increase in runtime. First of all, the approximation

function itself takes a noticeable amount of time. Sec-

ondly, the approximation requires a much higher mul-

tiplicative depth for the calculation, which increases

the overall runtime of all calculations. To get a high

ScaleModSize above 47 bits combined with 256 bits

of security, the ring dimension jumps to 2

. In gen-

eral, the computation times are about 10 times higher

than those of the Multiplicative Function with compa-

rable ring dimensions. With the highest ring dimen-

sion, the computation time goes up to about 7 sec-

onds, compared to a maximum of about 0.5 seconds

for the other functions.

Figure 8 shows the relationship between full and

sparse packing for the Standard Deviation. Again, the

difference between the packing strategies is apparent.

However, in this graph the change in runtime for the

different RingDimensions is a lot more noticeable.

Here, in contrast to the two functions previously dis-

cussed, the difference between RingDimensions is

Figure 8: Full vs. sparse packing for the Standard Devia-

tion.

Figure 9: Precision for the Standard Deviation.

even discernible for the full packing. This is due to the

fact that the overall runtimes are much higher for the

Standard Deviation, which makes these effects stand

out more against small measurement noise.

Precision. While the precision curve of the Stan-

dard Deviation (Figure 9) follows the same pattern as

the previous function, there is a clear difference. In

this case, the limit of the precision is at 20 bits, as

compared to 30 bits before. This can be attributed

to the inclusion of the approximated square root,

which reduces the maximum possible precision for

this function. This maximum precision is reached at a

ScaleModSize of 44 throughout all security levels. It

can be seen that the highest possible precision can be

reached at a security level of 256 bits without having

to accept a ring dimension of 2

. The same goes for

128 bits of security, where ring dimension 2

is not

needed for optimal results.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

508

Table 2: Average memory usage for different ring dimen-

sions of the Standard Deviation.

Ring Dimensions

Parameter [KB] 2

CiphertextSize 5.519 12.663 26.740

PublicKeySize 8.224 17.512 36.740

EvalMultKeySize 24.980 52.683 110.217

SecretKeySize 3.269 6.622 13.371

Memory Usage. The higher multiplicative depth of

the Standard Deviation leads to a drastically increased

memory usage (Table 2). This can be attributed to the

fact that the higher depth also increases the modulus,

which in turn affects the memory usage. This shows

that while the ring dimension is a major factor when

it comes to memory usage, other factors such as the

multiplicative depth also inﬂuence it.

In the highest ring dimension, which is needed to

reach the highest ScaleModSizes in the 256 bits se-

curity level, the memory usage is more than 10 times

higher than the highest ring dimension for the previ-

ous function. However, as described above, this ring

dimension can be avoided without loss of precision or

security.

5 CONCLUSION

In this paper we evaluated the main parameters for

conﬁguring the CKKS encryption scheme within the

library OpenFHE. The results indicate that both run-

time and precision are strongly affected by the com-

putational complexity of the functions being exe-

cuted.

Our observations provide some guidance on

which parameters affect which aspects of the results.

In general, the computation time and memory usage

are mainly inﬂuenced by the ring dimension as well

as the multiplicative depth. The precision on the other

hand is inﬂuenced mostly by the ScaleModSize.

The main goal when designing an application us-

ing the CKKS scheme is to optimize the parameters.

It is crucial to choose parameters which have accept-

able precision, but at the same time achieve the low-

est possible ring dimension for the chosen Security

Level. Especially the measurement results for 192

bits of security across all three functions showed that

it is possible to stay in a lower ring dimension while

still retaining close to the maximum precision.

REFERENCES

Ahmad Al Badawi, Jack Bates, Flavio Bergamaschi, David

Bruce Cousins, Saroja Erabelli, Nicholas Genise,

Shai Halevi, Hamish Hunt, Andrey Kim, Yongwoo

Lee, Zeyu Liu, Daniele Micciancio, Ian Quah, Yuriy

Polyakov, Saraswathy R.V., Kurt Rohloff, Jonathan

Saylor, Dmitriy Suponitsky, Matthew Triplett, Vinod

Vaikuntanathan, and Vincent Zucca (2022). Openfhe:

Open-source fully homomorphic encryption library.

Albrecht, M., Chase, M., Chen, H., Ding, J., Goldwasser,

S., Gorbunov, S., Halevi, S., Hoffstein, J., Laine,

K., Lauter, K., Lokam, S., Micciancio, D., Moody,

D., Morrison, T., Sahai, A., and Vaikuntanathan, V.

(2019). Homomorphic encryption standard. Cryptol-

ogy ePrint Archive, Paper 2019/939.

Albrecht, M. R., Player, R., and Scott, S. (2015). On the

concrete hardness of learning with errors. Journal of

Mathematical Cryptology, 9(3):169–203.

Badawi, A. A., Alexandru, A., Bates, J., Bergamaschi, F.,

Cousins, D. B., Erabelli, S., Genise, N., Halevi, S.,

Hunt, H., Kim, A., Lee, Y., Liu, Z., Micciancio, D.,

Pascoe, C., Polyakov, Y., Quah, I., R.V., S., Rohloff,

K., Saylor, J., Suponitsky, D., Triplett, M., Vaikun-

tanathan, V., and Zucca, V. (2022). OpenFHE: Open-

source fully homomorphic encryption library. Cryp-

tology ePrint Archive, Paper 2022/915.

Blatt, M., Gusev, A., Polyakov, Y., Rohloff, K., and Vaikun-

tanathan, V. (2020). Optimized homomorphic en-

cryption solution for secure genome-wide association

studies. BMC Medical Genomics, 13:1–13.

Bossuat, J.-P., Cammarota, R., Cheon, J. H., Chillotti, I.,

Curtis, B. R., Dai, W., Gong, H., Hales, E., Kim, D.,

Kumara, B., Lee, C., Lu, X., Maple, C., Pedrouzo-

Ulloa, A., Player, R., Lopez, L. A. R., Song, Y., Yhee,

D., and Yildiz, B. (2024). Security guidelines for

implementing homomorphic encryption. Cryptology

ePrint Archive, Paper 2024/463.

Cheon, J. H., Han, K., Kim, A., Kim, M., and Song, Y.

(2019). A full RNS variant of approximate homomor-

phic encryption. In Selected Areas in Cryptography–

SAC 2018: 25th International Conference, Calgary,

AB, Canada, pages 347–368. Springer.

Cheon, J. H., Kim, A., Kim, M., and Song, Y. (2017). Ho-

momorphic encryption for arithmetic of approximate

numbers. In Advances in Cryptology–ASIACRYPT

2017: 23rd International Conference on the Theory

and Applications of Cryptology and Information Se-

curity, Hong Kong, China, pages 409–437. Springer.

Chowdhary, S., Dai, W., Laine, K., and Saarikivi, O. (2021).

Eva improved: Compiler and extension library for

ckks. In Proceedings of the 9th on Workshop on En-

crypted Computing & Applied Homomorphic Cryp-

tography, pages 43–55.

Halevi, S. and Shoup, V. (2020). Design and implemen-

tation of HElib: a homomorphic encryption library.

Cryptology ePrint Archive, Paper 2020/1481.

Kim, A., Papadimitriou, A., and Polyakov, Y. (2022). Ap-

proximate homomorphic encryption with reduced ap-

proximation error. In Galbraith, S. D., editor, Topics in

Cryptology – CT-RSA 2022, Security and Cryptology,

pages 120–144.

OpenFHE (2024). Security notes for homomorphic encryp-

tion. https://openfhe-development.readthedocs.io/en/

latest/sphinx rsts/intro/security.html.

Towards Efﬁcient Cloud Data Processing: A Comprehensive Guide to CKKS Parameter Selection

509
