New Paths in Document Data Augmentation

Using Templates and Language Models

Lucas Wojcik

1 a

, Luiz Coelho

2 b

, Roger Granada

2 c

and David Menotti

1 d

Departament of Informatics, Federal University of Paran

a, Curitiba, Brazil

unico idTech, Brazil

{lmlwojcik, menotti}@inf.ufpr.br, {luiz.coelho, roger.granada}@unico.io

Keywords:

Document Recognition, Data Augmentation, Natural Language Processing.

Abstract:

Document Recognition has been tackled with a state of the art (SOTA) mostly composed of multi-modal trans-

formers. Usually, these are trained in an unsupervised pre-training phase followed by a supervised ﬁne-tuning

phase where real-world tasks are solved, meaning both model and training procedures are borrowed from NLP

research. However, there is a lack of available data with rich annotations for some of these downstream tasks,

balanced by the copious amounts of pre-training data available. We can also solve this problem through data

augmentation. We present two novel data augmentation methods for documents, each one used in different

scopes. The ﬁrst is based on simple structured graph objects that encode a document’s layout, called tem-

plates, used to augment the EPHOIE and NBID datasets. The other one uses a Large Language Model (LLM)

to provide alternative versions of the document’s texts, used to augment the FUNSD dataset. These methods

create instances by augmenting layout and text together (imageless), and so we use LiLT, a model that deals

only with text and layout for validation. We show that our augmentation procedure signiﬁcantly improves the

model’s baseline, opening up many possibilities for future research.

1 INTRODUCTION

Document recognition has come a long way since

LayoutLM (Xu et al., 2019), which cemented a tra-

dition of using multi-modal transformers in this ﬁeld

ever since its release. Since innovations in trans-

former pre-training recipes and attention modeling

have shown to have the biggest impact in pushing the

state of the art (SOTA) forward, most of the recent

research focuses on these things to tackle new chal-

lenges. As a result, research in document-based data

augmentation has become scarce over the last few

years.

However, there is a lot to be gained from data

augmentation, as many domains, including ones of

commercial interest such as ofﬁcial document pars-

ing, suffer from a lack of high-quality data and an-

notations. The pre-training phase with vast amounts

of data that are a staple in document recognition to-

day yields models with powerful few-shot capabili-

https://orcid.org/0009-0006-3825-5959

https://orcid.org/0009-0004-8330-5199

https://orcid.org/0000-0001-5908-9247

https://orcid.org/0000-0003-2430-2030

ties, which enhances performance in scenarios with

low data availability. But it is also possible to further

boost performance by expanding the datasets with

data augmentation.

For instance, we tackle EPHOIE (Wang et al.,

2021), a dataset composed of scanned examination

paper headers from various Chinese schools. This

document domain is particularly tricky to deal with,

since these documents may contain sensitive informa-

tion from real people (the authors of EPHOIE had to

erase and re-synthesize some ﬁelds such as names and

schools to make the dataset public). This makes it

hard and, at times, impossible to gather and annotate

more document instances, making data augmentation

an even more relevant tool to use. This is also an issue

with NBID (Wojcik et al., 2023), a synthetic ID card

dataset.

We also tackle FUNSD (Guillaume Jaume, 2019),

a subset of IIT-CDIP (Soboroff, 2022). IIT-CDIP is a

dataset composed of noisy scanned documents from

lawsuits against the tobacco industry in the nineties.

These documents were made public as a result of the

lawsuit’s settlement, but still represent another sen-

sitive document domain, namely the legal document

one. These are also documents that contain conﬁden-

356

Wojcik, L., Coelho, L., Granada, R. and Menotti, D.

New Paths in Document Data Augmentation Using Templates and Language Models.

DOI: 10.5220/0013145900003912

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2025) - Volume 2: VISAPP, pages

356-366

ISBN: 978-989-758-728-3; ISSN: 2184-4321

tial information, and so are difﬁcult to acquire and

annotate.

With these issues in mind, the present work pi-

oneers two novel data augmentation methods aimed

at real-world problems (ﬁne-tuning stages), where the

annotations are usually more scarce. Our approach in-

cludes layout and text augmentation, borrowing tech-

niques from pure NLP research, and experimenting

with the latent knowledge from the documents them-

selves.

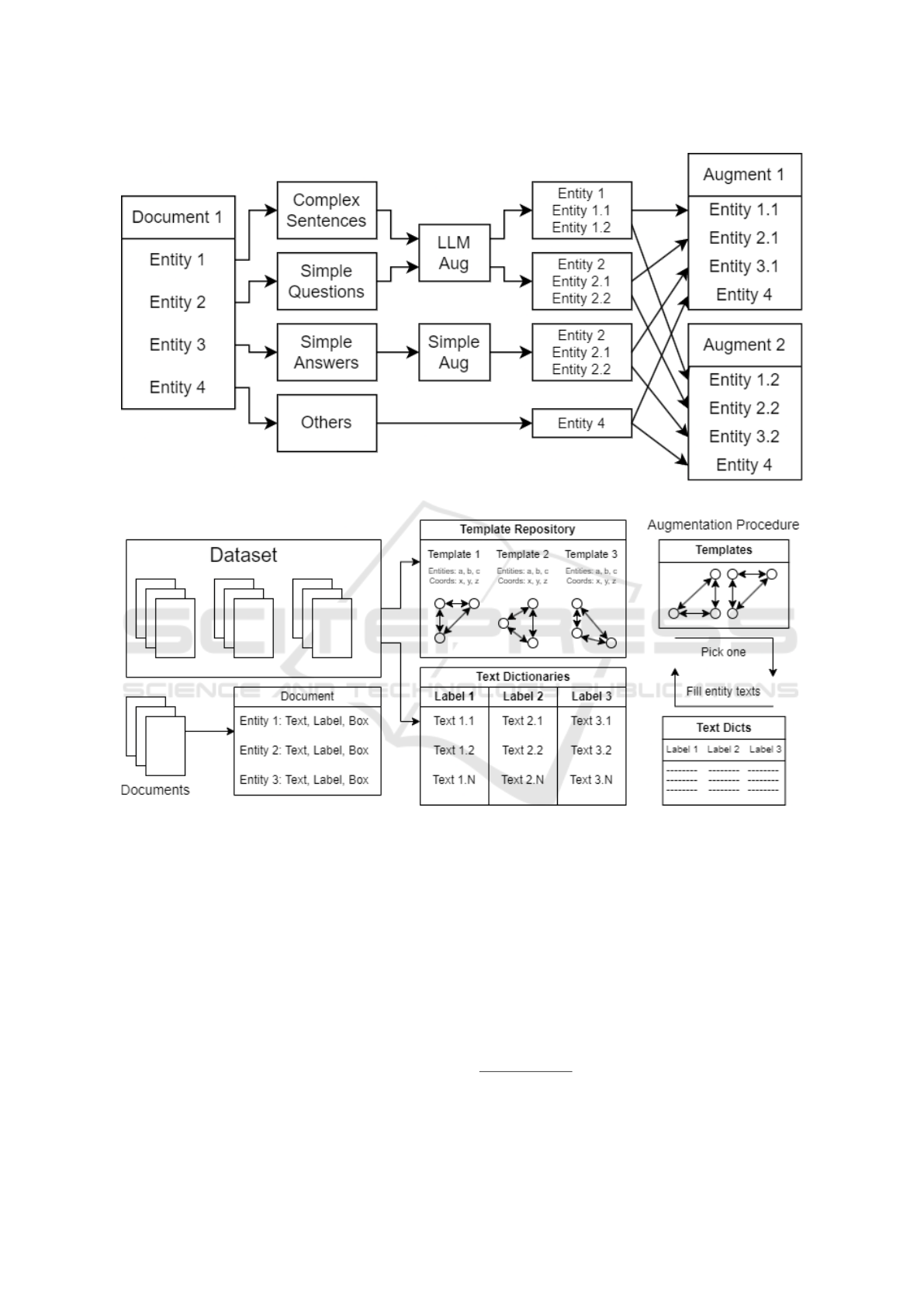

The ﬁrst method is called the LLM method, where

we use an LLM to produce new instances of the same

document by rewriting the texts of every entity. This

is in line with recent advancements from NLP (Guo

et al., 2023; Ye et al., 2024) where this idea was

shown to improve performance in downstream tasks

consistently.

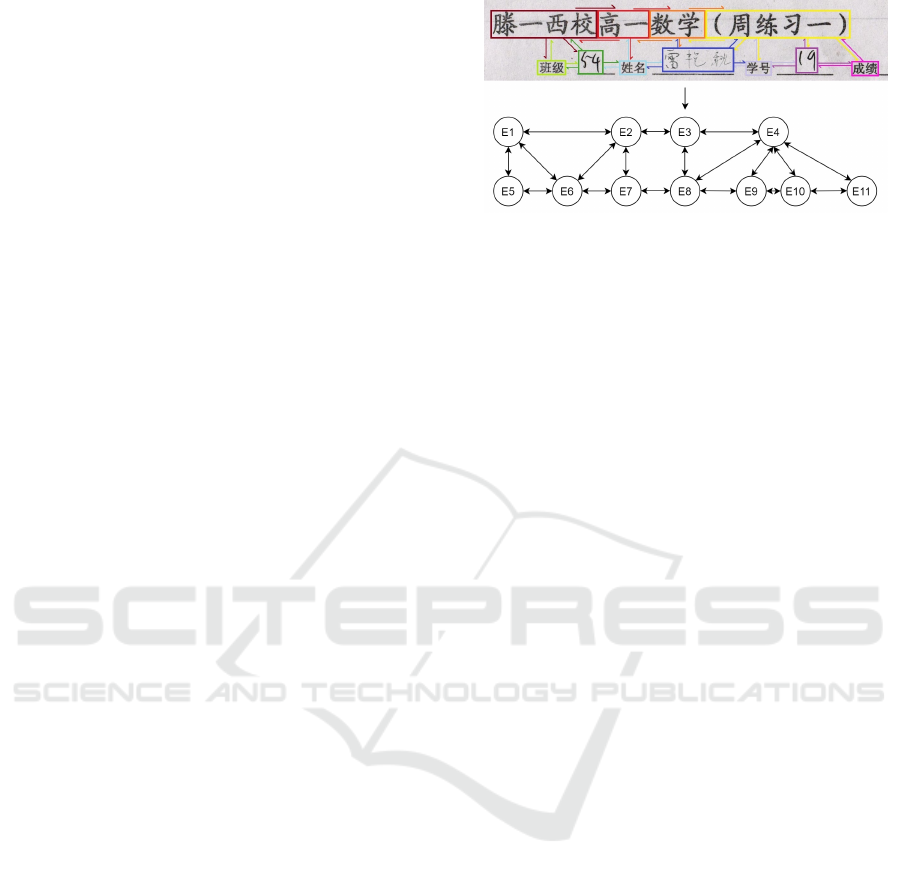

The second method is called the template method,

where we reduce each document to a fully connected

digraph where each vertex corresponds to an entity

and the edges represent directions between entities.

Augmentation is performed by producing a template

repository from the available documents and then cre-

ating new documents by sampling one template at a

time and ﬁlling the vertices with new text.

Our methods are crafted for complex (LLM)

and simple (template) document domains. We use

FUNSD, EPHOIE and NBID for validation of these

methods, as these datasets serve as examples for the

domains tackled by them. FUNSD is augmented with

the LLM approach and the other two are augmented

with the template approach. Both methods are crafted

for imageless learning. The reason for this is to de-

velop faster and more versatile augmentation meth-

ods, as well as being easier to implement.

We use LiLT (Wang et al., 2022), ﬁne-tuning

it in downstream tasks from the FUNSD (Guil-

laume Jaume, 2019) and EPHOIE (Wang et al., 2021)

datasets, augmented using the LLM and template

strategies respectively. We show that our methods

improve the model’s performance signiﬁcantly across

every training scenario. Furthermore, our augmented

datasets will be made publicly available.

The remainder of this work is structured as fol-

lows. Section 2 presents an overview of the docu-

ment recognition SOTA and some document augmen-

tation techniques, as well as situating our contribu-

tions to them. Section 3 presents our two augmen-

tation methods, based on templates and LLMs. We

also detail the datasets used and produced by and with

each method. Section 4 details our experiments and

results, as well as a discussion of the results. Finally,

Section 5 presents our conclusions and discusses the

directions for future research.

2 RELATED WORK

Recent advances in document recognition are often

an incorporation of NLP techniques, to the point

that this ﬁeld can be conceptualized as a subﬁeld

of NLP. This is seen in the way that the current

SOTA for documents is a generalized, multi-modal

version of the NLP SOTA. The ﬁrst instance of this

is LayoutLM (Xu et al., 2019), a model that uses a

BERT (Devlin et al., 2019) backbone as a baseline

and is trained with a very similar recipe of unsuper-

vised pre-training followed by supervised ﬁne-tuning.

The translation of the vanilla NLP modeling into a

document modeling is by building a multi-modal em-

bedding that encodes layout and vision features (apart

from the text) and adapting the pre-training tasks ac-

cordingly. In this way, document recognition be-

comes a simple NLP task with extra dimensions.

This modeling is omnipresent in the current doc-

ument SOTA, shown in recent models such as Lay-

outLMv3 (Huang et al., 2022), GraphDoc (Zhang

et al., 2022) and ERNIE-Layout (Pend et al., 2022).

GraphDoc also incorporates the graph-like attention

modeling from StarTransformer (Guo et al., 2019),

another NLP approach, while ERNIE-Layout bor-

rows the ERNIE architecture and attention modeling

from the corresponding vanilla NLP model (Zhang

et al., 2019).

Although most of this SOTA uses a multi-modal

learning comprised of vision, text, and layout, re-

cent research has also produced competitive bi-modal

models that exclude the requirement for images to

be used, even in visual document recognition sce-

narios such as the ones tackled here. LiLT (Wang

et al., 2022) is composed of two independent trans-

former architectures that connect through the atten-

tion mechanism, one for text and one for layout. Lay-

outMask (Tu et al., 2023) proposes novel pre-training

tasks for better cross-modal learning.

There is further inﬂuence from NLP in docu-

ment augmentation. (M

ark and Orosz, 2021) presents

an extensive survey of augmentation methods for

text augmentation. The paper discusses techniques

such as synonym replacement, random deletions, and

round-trip translations and their applicability in the

legal document scenario. It also discusses LLMs

(GPT and GPT-2 (Radford et al., 2018; Radford et al.,

2019)), to the conclusion that these methods cannot

be used as they can’t protect some keywords from the

original texts. Finally, the authors do not perform any

experiment, limiting the scope of the paper to a dis-

cussion.

Practical augmentation methods for documents

can be largely summed up in two categories: intrinsic

New Paths in Document Data Augmentation Using Templates and Language Models

357

and extrinsic methods. Intrinsic methods work by cre-

ating a model that learns the semantics of a document

instance in order to create new instances. Extrinsic

methods work by using sets of data (which may be

sets of images, document textures, text samples, etc.)

to incrementally build documents in a more hand-

crafted way. Some works, such as DocBank (Li et al.,

2020), present strategies for constructing datasets via

new annotation methods. We do not consider these as

data augmentation methods, as the datasets are being

created and not expanded.

The most prominent example of intrinsic meth-

ods is with GANs. Examples of this include Doc-

Synth (Biswas et al., 2021), a GAN trained in the

large PubLayNet (Zhong et al., 2019) dataset, com-

prised of over three hundred thousand pages from sci-

entiﬁc papers. The model is trained to recognize the

possible layouts and then used to create new ones.

Another example is in (Pondenkandath et al., 2019),

where the CycleGAN (Zhu et al., 2017) and VGG-

19 (Simonyan and Zisserman, 2014) models are used

to create aged versions of historical documents.

Another example of an intrinsic method is in (Ra-

man et al., 2021), an annotation-free approach for lay-

out recognition based in a Bayesian network. Docu-

ments are deﬁned as a set of primitive elements (para-

graphs, lists, titles) and construct documents accord-

ing to a set of rules through this network. The result

is fed into an image manipulation routine to create an

augmented document image.

An example of an extrinsic method is SynthDoG

(Kim et al., 2022). In the same paper, the authors pro-

pose Donut, a Transformer that doesn’t use the docu-

ment’s texts as part of the input. SynthDoG works by

sampling images from ImageNet (Krizhevsky et al.,

2012) to serve as backgrounds, onto which document

textures are projected, the text being pasted on top of

them. The texts are from many languages and taken

from Wikipedia. Such a dataset allows for Donut to

be generalized without the need for multilingual text

understanding.

NBID (Wojcik et al., 2023) is a synthetic dataset

of Brazilian ID cards created from a simple process of

inpainting the sensitive information in real document

images with a GAN and pasting synthetic text on the

anonymized image. It is an example of a simple do-

main of documents that is hard to deal with due to the

sensitive nature of the data. It is further detailed in

Section 3.3

An advantage of the implicit methods is the possi-

bility of creating vast amounts of data with very var-

ied layouts, as seen with DocSynth. A drawback is

the necessity of lots of annotated data for training the

model, meaning they are not well suited for domains

with a general lack of data and/or annotations, as usu-

ally is the case with ﬁne-tuning tasks. Implicit meth-

ods have the inverse pros and cons: larger amounts of

data can be created from smaller datasets (combining

ﬁve background images, document textures, and text

samples, a total of 5

instances can be created), but

these instances may be very similar to each other.

Both of our proposed methods are categorized as

extrinsic. The template approach works with basic

building blocks in the form of templates and text dic-

tionaries. For the LLM approach, the building blocks

correspond to the available documents themselves, as

well as their texts. Although we use an off-the-shelf

pre-trained model, it is not ﬁne-tuned to learn the doc-

ument structure, hence why it cannot be categorized

as intrinsic.

As discussed, extrinsic methods suffer from a lack

of variability. The LLM approach attempts to over-

come this limitation by leveraging the knowledge

contained in LLMs. Rewriting the text from a doc-

ument gives the dataset a larger variance in terms of

vocabulary, syntax and intonation. Since LLMs can

understand a wide variety of scenarios, and rewriting

is an easy problem of them, this allows us to augment

very complex documents, such at the ones contained

in FUNSD (Guillaume Jaume, 2019), which contain

highly specialized text samples.

The template approach is destined for domains

of simpler documents and layouts, and as such the

datasets themselves usually lack in variety. As such,

this method aims to reduce the amount of data needed

to create a fully representative dataset. For instance,

for a given set of ofﬁcial documents such as passports

and ID cards, the possible layouts are strictly deﬁned

by law, and these can be used to build the template

repository for augmentation. A single template can be

used to create dozens of different documents through

the creation of synthetic data to ﬁll said template, in a

process similar to the one presented in NBID (Wojcik

et al., 2023).

Therefore, our contributions include the introduc-

tion of these two novel augmentation techniques that

manage to overcome some of the challenges faced by

the literature in data augmentation. These techniques

are versatile and can be used for many different sce-

narios. This is the main advantage of our proposed

methods, since those found in the literature are ei-

ther unﬁt for our small ﬁne-tuning scenario (intrinsic

methods) or handcrafted for different document do-

mains and hardly transferable for the datasets used.

For instance, SynthDoG relies on gathering texts from

wikis and pasting them onto textures that are pro-

jected onto background images. Both the technique of

using texts from random domains and the projection

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

358

of the document don’t make sense for EPHOIE and

FUNSD, that have ﬁxed domains and are correctly

scanned. This makes it hard to apply these techniques

for a direct comparison. Lastly, we will make our aug-

mented datasets publicly available.

3 METHODOLOGY

This section presents and details our novel augmen-

tation techniques. These are the LLM and template

methods, described in Section 3.1 and 3.2 respec-

tively. Each approach is tailored for a speciﬁc sce-

nario: the ﬁrst for documents with complex texts and

layouts, the second for simple texts and layouts. As

such, we choose FUNSD (Guillaume Jaume, 2019)

and EPHOIE (Wang et al., 2021) for augmentation re-

spectively for each technique, as these datasets follow

their domains of applicability. The LLM approach

works by using LLMs to rewrite the texts of a given

document, while the template approach uses the graph

structure of a document to create a template that can

be used for augmentation.

While both of our methods work by using the

same document structure to paste new text instances,

the template method stands out by being more general

in its text substitution approach. In the LLM case, we

simply rewrite the text of the same document a few

times, always using the original text as a guide in or-

der to maintain the overall semantics of the document.

This is required by the domain this approach is tai-

lored for, where the documents feature complex inter-

entity relationships that could be broken if the substi-

tution approach is careless. This is not the case for the

domain tackled by the template approach, where the

entities are far simpler, being composed of names of

people, schools, grades and subjects (for the EPHOIE

dataset), and as such a dictionary swap can be used

with no problems for the document’s coherency.

Both of our approaches follow a line of producing

imageless augmentations. The reason for this is to

develop faster and more versatile augmentation meth-

ods, as well as being easier to implement. Augment-

ing images, for the document scenario, poses itself

as a rather difﬁcult problem, requiring methods such

as GANs or other inpainting methods, or gathering

more image instances to expand the dataset. In the

ﬁrst case, there is often a semantic gap between the

real and synthetic images that may produce unwanted

bias for the model, while in the second case gath-

ering more instances might not be possible, for in-

stance when dealing with sensitive document domains

such as ID cards or lawsuits (the case for FUNSD

and EPHOIE, where the documents were only pub-

licized at the end of the processes and where some

information had to be erased and re-synthesized, re-

spectively). Also, although most of the recent Doc-

ument Recognition models use image features for

learning, imageless models such as LayoutMask (Tu

et al., 2023), which only uses text and layout cues, re-

mains competitive with the current SOTA at the time

of writing, being ranked #1 at the entity labeling task

in FUNSD.

As such, our work deﬁnes the document augmen-

tation process as being a task relating primarily to tex-

tual augmentation. This aligns with the established

SOTA for document recognition, which is closely re-

lated to NLP methods, as previously discussed. For

this work, we deﬁne a document as a list of enti-

ties, where an entity corresponds to a semantic ob-

ject within the document. Every entity contains a

set of attributes, with required info being the en-

tity’s text, its coordinates in the document image, and

its class. Some datasets may deﬁne other attributes.

For instance, FUNSD includes the “linking” attribute,

which is the key-value relationship between differ-

ent entities inside the same document. These rela-

tionships may exist between entities belonging to the

class of header (key) and question (value), and ques-

tion (key) and answer (value).

3.1 LLM Augmentation

For FUNSD (Guillaume Jaume, 2019), which fea-

tures complex templates and texts (the reason why

our template augmentation cannot be used for this

dataset), we experiment with a technique inspired by

recent advances in NLP research dealing with data

augmentation (Ye et al., 2024; Guo et al., 2023). The

mentioned papers have found that textual augmenta-

tion through rewriting, that is, using a model to pro-

duce alternative versions of the same text, improved

the end result for the Text Recognition model consis-

tently for all models and tasks explored in both pa-

pers. Hence, we bring this idea to Document Recog-

nition by using an LLM to provide alternative ver-

sions for the text of every entity in a given document.

Our approach for FUNSD is illustrated in Figure 1.

Since FUNSD has a wide variety of text types,

we found no one-size-ﬁts-all augmentation technique

that can be used. We separated each entity into four

classes according to the text type. These classes cor-

respond to complex sentences, simple questions (en-

tities with texts such as ”name:”, ”R&D” and such),

simple answers (names, dates, measures, and such),

and none (such as empty strings and one or two char-

acter strings). For each one of these classes, a dif-

ferent augmentation process was used. We highlight

New Paths in Document Data Augmentation Using Templates and Language Models

359

Figure 1: Diagram representing the LLM augmentation process.

Figure 2: Diagram representing the template augmentation process.

that the labels deﬁned here do not correspond to the

classes deﬁned by the dataset itself.

When considering the complex sentences, we ask

a pre-trained LLM to rewrite the text up to ﬁve times

through prompt engineering. The model is encour-

aged to modify the vocabulary and syntax used in the

original texts. This method provides the dataset with

a more signiﬁcant textual variety according to these

two areas. When considering the simple questions,

the LLM is asked to provide a list of synonyms. The

amount of synonyms varies according to each entity,

due to both vocabulary and context limitations.

For both cases, we use an off-the-shelf LLM

model with no ﬁne-tuning, with the augmentations

being done only through prompt engineering. We cu-

rate the output of the LLM manually in order to both

remove the extra text padding that the model adds to

each generation

and to ensure that the generations

make sense within the context of the original text.

Simple answers are augmented through a few sim-

ple techniques. Names are replaced using a dictio-

nary. Names with initials are expanded using ran-

dom names from the dictionary with the same initial,

while full names are retracted into the initials. The

names also change format: from ”Surname, Name”

to ”Name Surname”, etc. New dates are generated

by changing the date format. For example: MM-DD-

Some examples are: “Certainly! Here’s a list of syn-

onyms:” and “Thank you for asking! Here are some syn-

onyms:”.

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

360

YY can be changed to ”Month DD, YYYY” and vice

versa. Measures and numbers are augmented by gen-

erating OCR noise on a few digits: a small amount of

digits is randomly selected and replaced by other ran-

dom digits. The rest of the entities, belonging to the

label of none, are left untouched.

Since we vary the number of augmentations per

entity according to both the LLM output and the type

of the text in the simple answer scenario, it becomes

necessary to choose how we create the new docu-

ments, given the new texts available. To solve this

problem, we order the new text variants for every en-

tity and choose the next unused text variant when cre-

ating the next augmented document, as seen in Fig-

ure 3.1: the ﬁrst augmented document uses the ﬁrst

augment of each entity, the second augmented doc-

ument uses the second augment of each entity, etc.

Once all entity augments are used up, the next aug-

mented document chooses one text from the entire

list (included the original one) at random, uniformly.

Also, since the text may vary in length, we paste each

entity’s augmented text into the document (sampling

the font size and line limit from the original entity’s

bounding box) to generate a new, more precise bound-

ing box.

The text rewrite technique, as we call it, is the ﬁrst

attempt in the literature to use the few-shot power of

LLMs for data augmentation in tasks involving the

FUNSD dataset (to the best of our knowledge). Apart

from aiding our model in reaching higher levels of

accuracy, it also opens up new paths for future re-

search. With recent developments in image genera-

tion (Dhariwal and Nichol, 2021), this technique can

be used to recreate document images as well. As

such, it could be used for improving the performance

of tri-modal (text, layout, and image) document mod-

els (Huang et al., 2022) as well.

This technique stands apart from the template ap-

proach the text substitution method here is focused on

maintaining the scope of the document itself. Rather

than using the entity structure to ﬁll in random texts,

we keep the same syntax and semantics, only rewrit-

ing the existing texts. Values, grammatical structures

and names are changed, but the root document stays

the same. This technique is also set apart from other

techniques in the literature by the fact that it deals

with visual documents directly.

3.2 Template Augmentation

Some types of documents are predeﬁned by a reduced

set of templates, such that each document corresponds

to a speciﬁc arrangement of entities within the im-

age. For instance, a given region may have a set

Figure 3: Template example from an EPHOIE instance.

of accepted identity card formats that are predeﬁned

by law. In this case, the templates correspond to the

document backgrounds where the information of the

holder will be displayed.

For our purposes, we use a simpler deﬁnition of

template that does not use the image. We deﬁne a

template as a fully connected directed graph where

each entity is a vertex, having the entity type and the

x and y coordinates as attributes of the correspond-

ing vertex. Each edge connecting two vertices has

an attribute corresponding to one of eight possible di-

rections (vertical, horizontal, and diagonal), indicat-

ing the relative position between the two entities con-

nected by the edge.

The presented deﬁnition will be used for our aug-

mentation approach, and is enough to deﬁne the ID

card domain presented previously. Figure 3 illustrates

our deﬁnition. We highlight that the graph is com-

plete, but we suppress most of the edges in the illus-

trated document for the sake of readability.

Given all of the possible templates at hand, it is

possible to generate an arbitrary number of new doc-

ument instances by picking a template at random, ﬁll-

ing the entity vertices with appropriate texts and gen-

erating new bounding boxes by writing into a blank

image. However, we need a way to generate new texts

for the entities in each template. There are many ways

to approach this: we could use a ﬁne-tuned LLM

to generate new texts given the entity’s class name

(which should be semantically meaningful for its type

of texts - an entity of the class ’name’ should have

proper names as its transcripts) or create a dictionary

of possible texts for each entity class.

For the latter, there is still the question of how to

build such dictionaries. We can use the document do-

main in question to narrow our scope, for example in

identity cards of a given country we can ﬁnd all of

the authorities that can issue them to build the “issu-

ing organization” dictionary, and we can search for

lists of common names in that country for the “name”

dictionary, and so on. For NBID, this is the method

used in its original paper, and also the one we use for

our augmentations, since it is publicly available on the

New Paths in Document Data Augmentation Using Templates and Language Models

361

dataset’s ofﬁcial github. A simpler approach, and the

one we use for EPHOIE, is to gather all of the texts

that appear in the available dataset samples.

In this way, Figure 2 presents our approach for

the proposed augmentation pipeline. It can also be

summed up in the following steps:

1. Sample the dataset in order to create a repository

of texts. For each entity class, create a list of all

the texts of every entity corresponding to the same

label across every document present in the dataset.

2. Extract a repository of templates. Extract the

template of every document in the dataset from

their annotations and, if there are any, identical

templates (same vertices and directions on every

edge) are merged together.

3. Randomly pick a template and ﬁll in the entity

texts by randomly sampling from the entity text

dictionaries.

Apart from improving the model performance (see

Section 4), this strategy is also interesting because it

makes it possible to generate a great variety of in-

stances from very few examples, given many tem-

plates are contemplated. This applies to other do-

mains such as the aforementioned ID cards. Also,

we can further relax our assumption that the dataset

has a reduced number of templates overall, so long

as we have enough instances to accurately represent

the diversity in the given document domain. For

EPHOIE, from 1183 training documents we have ex-

tracted 1046 unique templates, and our results show

that these were well enough to construct meaningful

augmented partitions.

3.3 Dataset Description

Table 1 presents the number of documents and enti-

ties for FUNSD and EPHOIE. The real partition (and

what we will subsequently call real documents) is the

training set deﬁned by the dataset itself. For EPHOIE,

we extracted 1046 unique templates from the set of

1183 real training documents. We incrementally build

three sets of synthetic documents using this reposi-

tory of 1046 templates, adding 1200 new instances

each time. We removed 12 synthetic instances be-

cause they ended up malformed at the end of the gen-

eration process. These failures were due to a few in-

stances that had texts way too long for the templates,

which ended up overﬂowing out of the page.

In the original NBID dataset, the 1000 training

documents were generated from 200 root documents,

where each real document had its sensitive informa-

tion erased, and new data was synthesized and pasted

on the empty documents. Each real document was

used to generate ﬁve instances, totaling the 1000 doc-

uments present in the dataset. For NBID, there were

54 unique templates from the 1000 real training im-

ages, a much smaller ratio of documents per tem-

plates. Considering each ﬁve clones of the same root

dataset are bound to share the same template, this

means 54 unique templates from 200 documents, ap-

proximately 3.7 documents per template. This means

NBID has far less varied templates than EPHOIE,

where this ratio is approximately 1.15.

For FUNSD, we generate up to ﬁve augmented

versions of every document from the 149 instance

training partition, for a total of 745 synthetic gener-

ations. Each synthetic partition contains N augments

of every real document, where N is the order of the

partition. This means the 1 augment partition is com-

prised of one generation of each of the 149 real docu-

ments, the 2 augments of two generations, and so on.

Table 2 presents the number of entities in the real

training set of EPHOIE, and Table 3 presents the en-

tities in the real training set of FUNSD. As we can

see, both datasets contain a very unbalanced number

of entities between one class and the other. In Ta-

ble 3 (FUNSD), we also present the number of enti-

ties we manually classiﬁed according to the type of

text they contain, according to our deﬁnitions in Sec-

tion 3.1. Furthermore, we also present how many new

texts were generated for each entity, that is, for how

many entities we generated one, two, three, or four

more new text variations.

The number of augments per entity varies because

a few entities don’t have enough meaningful text vari-

ations. Some texts consisting only of simple nouns,

for example, can be replaced by synonyms, but the

list of synonyms is limited by the dictionary and by

the context. FUNSD consists of ofﬁcial forms and

the style of language must adhere to this context,

limiting the acceptable vocabulary. Furthermore, the

text types, as we classiﬁed them, are also unbalanced

among each other, most of them belonging to the type

of simple question for which the synonym augmenta-

tion procedure was used.

For FUNSD, we use the pre-trained Llama-2-7b-

hf (Touvron et al., 2023) for the text augmentation.

The main reason for choosing Llama2 is the fact that

it is freely available to use, also being faster and more

efﬁcient than other models such as GPT-3 (Brown

et al., 2020).

The entities for which we could not produce

meaningful augments correspond to simple entities of

three characters or less (such as tickboxes) as well

as entities with no text (where we assume that the

OCR mechanism used for the semi-manual annota-

tion procedure described in the FUNSD paper failed)

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

362

Table 1: Number of instances in FUNSD, EPHOIE and NBID partitions.

FUNSD EPHOIE NBID

Partition Documents Entities Documents Entities Documents Entities

Real Train 149 7411 1183 12411 1000 7515

Testing 50 2332 311 3343 110 785

1 Augment 149 7411 1200 12921 10000 103513

2 Augments 298 14822 2400 25850 - -

3 Augments 447 22233 3588 38656 - -

4 Augments 696 29644 - - - -

5 Augments 745 37055 - - - -

Table 2: Number of entities in EPHOIE by class.

Entity type Amount

Other 5679

Exam Number 128

Score 377

Name 2365

Student Number 422

School 1358

Grade 441

Seat Number 184

Class 1625

Subject 376

Candidate Number 467

Test Time 79

or entities to which the LLM failed to produce satis-

fying augmentations. Examples of the latter include

some entities from the “other” label consisting of long

codes of letters and numbers, acronyms the model did

not recognize, and chemical compounds.

4 EXPERIMENTS

In this section, we present the model we use to vali-

date our approach and its training scenarios, as well as

the results for each one, both the baseline and our aug-

mented results. We use the publicly available imple-

mentation of the model for our ﬁne-tuning, and com-

pare the results to the ones reported by the paper of

the baseline model.

4.1 Model and Protocols

To validate our approach, we use LiLT (Wang et al.,

2022), a bi-modal, dual transformer (Vaswani et al.,

2017) model. It features two different transformers

with independent weights, each one corresponding to

one embedding: text or layout. The models com-

municate through a specially designed “bi-directional

attention complementation mechanism” that replaces

the vanilla attention of the original transformer. This

is better detailed in the original LiLT paper.

This design allows LiLT to be coupled with dif-

ferent transformer models. This is an important ad-

vantage when dealing with multilingual scenarios,

allowing a base layout-only pre-trained transformer

(LiLT base) to be coupled with different models from

the literature (even trained in different languages).

LiLT is ﬁne-tuned on both FUNSD and XFUND (Xu

et al., 2022), which contains seven different lan-

guages. The base LiLT model is coupled with an En-

glish RoBERTa (Liu et al., 2019) for FUNSD and In-

foXLM (Chi et al., 2021) for XFUND. The authors

of LiLT also evaluate EPHOIE using both InfoXLM

and a Chinese RoBERTa model (Cui et al., 2020). No

experiments are performed with NBID, which was re-

leased more recently. We ﬁne-tune the pre-trained

LiLT on the base NBID for a baseline.

We opted not to train LiLT on XFUND because

the authors can’t validate the output of the LLM in

some of the languages of this dataset, such as Chinese

and Japanese. We focus on FUNSD and EPHOIE,

using LiLT-RoBERTa-EN and LiLT-InfoXLM, which

were made publicly available by the authors. These

were previously pre-trained on large datasets of doc-

uments, following the common practice in the liter-

ature. Our experiments with FUNSD use both the

public LiLT-RoBERTa-EN and a new model with

a Portuguese RoBERTa model (LiLT-RoBERTa-PT)

we created by coupling the RoBERTa-PT model with

the base LiLT (layout only) from the ofﬁcial LiLT

repository.

4.2 Results

We ﬁne-tune the pre-trained LiLT models using our

augmented datasets, detailed in Section 3.3. In our

experiments, we combine the real partition with our

augmented partitions in joint training. These results

are compared to the ones reported by LiLT in the cor-

responding monolingual dataset plus task scenario,

which we use as a baseline.

For both all datasets, we ﬁne-tune in the Semantic

Entity Recognition (SER) task, the problem of assign-

ing the correct class to every entity inside the docu-

New Paths in Document Data Augmentation Using Templates and Language Models

363

Table 3: Number of entities on FUNSD, by classes and augments.

Entities by Class Number of Augmentations per Entity Augmentations by Type

Header 411 1 978 Complex 647

Question 3266 2 1580 Synonym 4106

Answer 2802 3 1560 Simple 375

Other 902 4 or More 1010 None 2283

Total 7411 Augments 14611 Augmented 5128

Table 4: Results for the SER (RoBERTa-EN) and RE (In-

foXLM) tasks on FUNSD.

Train Partition SER RE

Real only (Reported) 88.41 62.76

Real + 1 Augment 88.82 64.4

Real + 2 Augments 89.76 68.44

Real + 3 Augments 89.04 70.52

Real + 4 Augments 89.72 70.35

Real + 5 Augments 89.02 69.55

ment. For FUNSD, we also ﬁne-tune in the Relation

Extraction (RE) task, the problem of extracting the re-

lationships between headers and questions, and ques-

tions and answers. For each task, adapting layers are

added to the output of the classiﬁcation model. A full

explanation of the network adaptations for each task

can be found in LiLT. The implementation of these

extra layers is found in the ofﬁcial LiLT GitHub, and

we use it in our experiments.

Our results for FUNSD are presented in Table 4.

We report the micro-averaged F1-score. We high-

light that LiLT presents a better result for the mono-

lingual SER task with RoBERTa-EN (the InfoXLM

result is 85.86), but this model is not used in the

RE task. For the consistency of our comparisons,

we train SER with LiLT-RoBERTa-EN and RE with

LiLT-InfoXLM. Both tasks are in the monolingual

scenario, with only the vanilla FUNSD training set

plus our augmentations.

These results show that our augmentation does im-

prove the training set, as the baseline is improved in

every case. For SER, we improve the error margin by

1.35 in the best case, and by 7.76 in RE. This better

improvement for the RE task might be explained by

the fact that we expand InfoXLM’s knowledge of the

English language with our augmentations. InfoXLM

is multilingual, and our ﬁne-tuning with more exam-

ples of English texts seems to aid the model in this

scenario. Finally, our results show that the augmenta-

tions have consistently improved the baseline in every

training scenario.

Our results for EPHOIE are shown in Table 5.

Again, we report the micro-averaged F1-score, us-

ing the results reported by LiLT as a baseline. Here,

we use LiLT-InfoXLM for ﬁne-tuning. We don’t use

LiLT-RoBERTa-ZH because this model was not made

Table 5: Results for the SER task on EPHOIE.

Train Partition Test F1-score

Reported - RoBERTa-ZH 97.97

Reported - InfoXLM 97.59

Real + 1 Augment 99.2

Real + 2 Augments 99.19

Real + 3 Augments 99.13

Table 6: Results for the SER task on NBID.

Train Partition LiLT-EN LiLT-PT

Real only 99.54 99.54

Augmented only 98.74 1

Real + Augment 99.4 99.4

available by the authors, but even with InfoXLM we

can beat the baseline with a comfortable margin. The

best result reported by LiLT is the LiLT-RoBERTa-

ZH 97.97 score, which we beat with a best score of

99.2, an improvement of 1.23 out of a possible 2.03

margin.

Lastly, we present our results for NBID in Table 6.

While the joint training does not beneﬁt the model’s

performance, unlike the previous results, in this case

the augmented partition shows to be fully representa-

tive of the dataset’s domain. In a simple setting such

as the NBID dataset (which features a very reduced

set of templates), our template augmentation manages

to create a representative clone of the original dataset.

4.3 Discussion

The results shown in the previous section show that

our augmentation methods manage to improve the

baseline model’s performance. We tailor each method

for each dataset respectively, and as such some ex-

tra ﬁne-tuning would be needed if the domains are to

change. This is the main drawback of our LLM tech-

nique, apart from also requiring extra annotation in

the way of a new label for each entity. Improvements

on this can be found by also leveraging the LLM abil-

ity of understanding instructions, and so these limita-

tions can be overcome by ﬁne-tuning the model via

prompt engineering.

The template approach ﬁnds in its need for a text

generator its main limitation. The proposed approach

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

364

of building dictionaries from the dataset itself has the

drawback of limiting variability in the augmented in-

stances. As previously discussed, some LLMs may

lack specialized domain knowledge for some docu-

ments and as such may not be a reliable way of gen-

erating text. These generators can be built from text

dictionaries found online and other methods of ran-

dom generation (such as generating random numbers

to compose dates), and so may need to be deﬁned on

a case by case basis, which was the case for NBID.

Finally, as presented, both methods have limited

scalability. There are only so many ways to rewrite a

sentence and add meaningful variations to the dataset,

and the template generations are tied to the number of

templates and the available texts for ﬁlling these. As

described in Section 3.2, the template method works

well for domains with simple templates, especially

when these templates are fully known. This was the

case for NBID, where most of the templates in the

training section also appeared in testing. However,

these techniques are not suit for endless augmenta-

tion, and can only take the model performance so far

in domains that are more complex, such as EPHOIE.

Nonetheless, there is still room for improvement, as

shown by our results.

5 CONCLUSIONS

In this work, we presented two new data augmenta-

tion strategies for documents, aiming at both com-

plex and simple domains. We have discussed their

strengths and weaknesses in relation to other meth-

ods. Finally, we show that these methods manage

to improve the baseline model’s performance. In fu-

ture work, we aim to use these same methods in other

datasets, showing their applicability in other domains.

ACKNOWLEDGEMENTS

The authors would like to thank UNICO for all the

support in the making of this research project and also

NVIDIA Corporation for the generous donation of the

Quadro RTX 8000 GPU that made our experiments

possible. The authors also thank PROEX CAPES

for the ﬁnancing, and David Menotti thanks CNPq (#

315409/2023-1).

REFERENCES

Biswas, S., Riba, P., Llad

os, J., and Pal, U. (2021). Doc-

synth: A layout guided approach for controllable doc-

ument image synthesis. In Int. Conf. on Document

Analysis and Recognition (ICDAR).

Brown, T., Mann, B., Ryder, N., Subbiah, M., Kaplan, J. D.,

Dhariwal, P., Neelakantan, A., Shyam, P., Sastry, G.,

Askell, A., Agarwal, S., Herbert-Voss, A., Krueger,

G., Henighan, T., Child, R., Ramesh, A., Ziegler, D.,

Wu, J., Winter, C., Hesse, C., Chen, M., Sigler, E.,

Litwin, M., Gray, S., Chess, B., Clark, J., Berner,

C., McCandlish, S., Radford, A., Sutskever, I., and

Amodei, D. (2020). Language models are few-shot

learners. In Larochelle, H., Ranzato, M., Hadsell, R.,

Balcan, M., and Lin, H., editors, Advances in Neu-

ral Information Processing Systems, volume 33, pages

1877–1901. Curran Associates, Inc.

Chi, Z., Dong, L., Wei, F., Yang, N., Singhal, S., Wang,

W., Song, X., Mao, X.-L., Huang, H., and Zhou, M.

(2021). InfoXLM: An information-theoretic frame-

work for cross-lingual language model pre-training.

In Human Language Technologies, pages 3576–3588.

Association for Computational Linguistics.

Cui, Y., Che, W., Liu, T., Qin, B., Wang, S., and Hu, G.

(2020). Revisiting pre-trained models for Chinese nat-

ural language processing. In Cohn, T., He, Y., and

Liu, Y., editors, Findings of the Association for Com-

putational Linguistics: EMNLP 2020, pages 657–668,

Online. Association for Computational Linguistics.

Devlin, J., Chang, M.-W., Lee, K., and Toutanova, K.

(2019). BERT: Pre-training of deep bidirectional

transformers for language understanding. In Conf. of

the North American Chapter of the Association for

Computational Linguistics, pages 4171–4186.

Dhariwal, P. and Nichol, A. (2021). Diffusion models beat

gans on image synthesis. In Ranzato, M., Beygelz-

imer, A., Dauphin, Y., Liang, P., and Vaughan, J. W.,

editors, Advances in Neural Information Processing

Systems, volume 34, pages 8780–8794. Curran Asso-

ciates, Inc.

Guillaume Jaume, Hazim Kemal Ekenel, J.-P. T. (2019).

Funsd: A dataset for form understanding in noisy

scanned documents. In Accepted to ICDAR-OST.

Guo, Q., Qiu, X., Liu, P., Shao, Y., Xue, X., and Zhang,

Z. (2019). Star-transformer. In Conf. of the North

American Chapter of the Association for Computa-

tional Linguistics.

Guo, Z., Wang, P., Wang, Y., and Yu, S. (2023). Improving

small language models on pubmedqa via generative

data augmentation.

Huang, Y., Lv, T., Cui, L., Lu, Y., and Wei, F.

(2022). Layoutlmv3: Pre-training for document ai

with uniﬁed text and image masking. CoRR/arXiv,

abs/2204.08387.

Kim, G., Hong, T., Yim, M., Nam, J., Park, J., Yim, J.,

Hwang, W., Yun, S., Han, D., and Park, S. (2022).

Ocr-free document understanding transformer. In Eu-

ropean Conf. on Computer Vision (ECCV).

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012). Im-

ageNet classiﬁcation with deep convolutional neural

networks. In Int. Conf. on Neural Information Pro-

cessing Systems (NeurIPS), pages 1097–1105.

Li, M., Xu, Y., Cui, L., Huang, S., Wei, F., Li, Z., and Zhou,

New Paths in Document Data Augmentation Using Templates and Language Models

365

M. (2020). Docbank: A benchmark dataset for docu-

ment layout analysis.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen, D.,

Levy, O., Lewis, M., Zettlemoyer, L., and Stoyanov,

V. (2019). Roberta: A robustly optimized bert pre-

training approach. cite arxiv:1907.11692.

ark, C. and Orosz, T. (2021). Comparison of data aug-

mentation methods for legal document classiﬁcation.

Acta Technica Jaurinensis, 15.

Pend, Q. et al. (2022). ERNIE-layout: Layout knowl-

edge enhanced pre-training for visually-rich docu-

ment understanding. In Goldberg, Y., Kozareva, Z.,

and Zhang, Y., editors, Findings of the Association

for Computational Linguistics: EMNLP 2022, pages

3744–3756, Abu Dhabi, United Arab Emirates. Asso-

ciation for Computational Linguistics.

Pondenkandath, V., Alberti, M., Diatta, M., Ingold, R., and

Liwicki, M. (2019). Historical document synthesis

with generative adversarial networks. In 2019 Interna-

tional Conference on Document Analysis and Recog-

nition Workshops (ICDARW), volume 5, pages 146–

151.

Radford, A., Narasimhan, K., Salimans, T., and Sutskever,

I. (2018). Improving language understanding by gen-

erative pre-training.

Radford, A., Wu, J., Child, R., Luan, D., Amodei, D., and

Sutskever, I. (2019). Language models are unsuper-

vised multitask learners.

Raman, N., Shah, S., and Veloso, M. (2021). Synthetic

document generator for annotation-free layout recog-

nition. CoRR, abs/2111.06016.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

arXiv preprint arXiv:1409.1556.

Soboroff, I. (2022). Complex document information pro-

cessing (CDIP) dataset.

Touvron, H. et al. (2023). Llama 2: Open foundation and

ﬁne-tuned chat models. ArXiv, abs/2307.09288.

Tu, Y., Guo, Y., Chen, H., and Tang, J. (2023). Layout-

mask: Enhance text-layout interaction in multi-modal

pre-training for document understanding.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L., and Polosukhin, I.

(2017). Attention is all you need. In Proceedings of

the 31st International Conference on Neural Informa-

tion Processing Systems, NIPS’17, page 6000–6010,

Red Hook, NY, USA. Curran Associates Inc.

Wang, J., Jin, L., and Ding, K. (2022). LiLT: A simple

yet effective language-independent layout transformer

for structured document understanding. In Proceed-

ings of the 60th Annual Meeting of the Association

for Computational Linguistics (Volume 1: Long Pa-

pers), pages 7747–7757. Association for Computa-

tional Linguistics.

Wang, J., Liu, C., Jin, L., Tang, G., Zhang, J., Zhang, S.,

Wang, Q., Wu, Y., and Cai, M. (2021). Towards ro-

bust visual information extraction in real world: New

dataset and novel solution. In Proceedings of the AAAI

Conf. on Artiﬁcial Intelligence.

Wojcik, L., Coelho, L., Granada, R., F

uhr, G., and Menotti,

D. (2023). Nbid dataset: Towards robust information

extraction in ofﬁcial documents. In Anais da XXXVI

Conference on Graphics, Patterns and Images, pages

145–150, Porto Alegre, RS, Brasil. SBC.

Xu, Y., Li, M., Cui, L., Huang, S., Wei, F., and Zhou,

M. (2019). Layoutlm: Pre-training of text and lay-

out for document image understanding. CoRR/arXiv,

abs/1912.13318.

Xu, Y., Lv, T., Cui, L., Wang, G., Lu, Y., Florencio, D.,

Zhang, C., and Wei, F. (2022). XFUND: A bench-

mark dataset for multilingual visually rich form un-

derstanding. In Findings of the Association for Com-

putational Linguistics: ACL 2022, pages 3214–3224,

Dublin, Ireland. Association for Computational Lin-

guistics.

Ye, J., Xu, N., Wang, Y., Zhou, J., Zhang, Q., Gui, T.,

and Huang, X. (2024). Llm-da: Data augmentation

via large language models for few-shot named entity

recognition.

Zhang, Z., Han, X., Liu, Z., Jiang, X., Sun, M., and Liu,

Q. (2019). ERNIE: Enhanced language representa-

tion with informative entities. In Proceedings of the

57th Annual Meeting of the Association for Computa-

tional Linguistics, pages 1441–1451, Florence, Italy.

Association for Computational Linguistics.

Zhang, Z., Ma, J., Du, J., Wang, L., and Zhang, J. (2022).

Multimodal pre-training based on graph attention

network for document understanding. CoRR/arXiv,

abs/2203.13530.

Zhong, X., Tang, J., and Yepes, A. J. (2019). Publaynet:

largest dataset ever for document layout analysis. In

2019 Int. Conf. on Document Analysis and Recogni-

tion (ICDAR), pages 1015–1022. IEEE.

Zhu, J.-Y., Park, T., Isola, P., and Efros, A. A. (2017).

Unpaired image-to-image translation using cycle-

consistent adversarial networks. In Computer Vision

(ICCV), 2017 IEEE International Conference on.

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

366
