Patch-Based Deep Unsupervised Image Segmentation Using Graph Cuts

Isaac Wasserman

and Jeov

a Farias Sales Rocha Neto

2 a

University of Pennsylvania, Philadelphia PA 19104, U.S.A.

Bowdoin College, Brunswick ME 04011, U.S.A.

Keywords:

Image Segmentation, Unsupervised Learning, Graph Cuts.

Abstract:

Unsupervised image segmentation seeks to group semantic patterns in an image without the use of human

annotation. Similarly, image clustering searches for groupings of images based on their semantic content.

Traditionally, both problems have drawn from sound mathematical concepts to produce concrete applications.

With the emergence of deep learning, the scientiﬁc community turned its attention to complex neural network-

based solvers that achieved impressive results in those domains but rarely leveraged the advances made by

classical methods. In this work, we propose a patch-based unsupervised image segmentation strategy that

uses the algorithmic strength of classical graph-based methods to enhance unsupervised feature extraction

from deep clustering. We show that a simple convolutional neural network, trained to classify image patches

and iteratively regularized using graph cuts, can be transformed into a state-of-the-art, fully-convolutional,

unsupervised, pixel-level segmenter. Furthermore, we demonstrate that this is the ideal setting for leveraging

the patch-level pairwise features generated by vision transformer models. Our results on real image data

demonstrate the effectiveness of our proposed methodology.

1 INTRODUCTION

Image segmentation has long been one of the main

tasks in computer vision, and it has been widely ap-

plied in general image understanding or as a prepro-

cessing step for other tasks such as object detection. It

aims to correspond each pixel in an image to a class,

in such a way that semantically similar pixels are as-

signed to the same class. This problem ﬁnds various

industrial applications such as autonomous driving,

medical image analysis, video surveillance, and vir-

tual reality to name a few (Minaee et al., 2021).

On the supervised front, deep learning approaches

using convolutional (CNN) and fully convolutional

neural networks (FCN) have achieved unprecedented

results in image segmentation, as illustrated by the

UNet (Ronneberger et al., 2015) and DeepLab (Chen

et al., 2017a) models. Recently, however, methods

using transformer-based models, such as Segformer

(Xie et al., 2021), DETR (Carion et al., 2020) and

DINO (Caron et al., 2021), are slowly outperforming

established CNN solutions. This shift prompted a re-

cent interest in deep models that utilize image patches

rather than individual pixels (Tolstikhin et al., 2021;

Han et al., 2022), leading some to believe that patch

https://orcid.org/0000-0001-8103-7937

representations are the main source of vision trans-

formers’ success (Trockman and Kolter, 2022).

These accomplishments come, however, at the

cost of long training schemes and the need for vast

amounts of annotated data, which hinder their appli-

cation in many domains where data can be expen-

sive or scarce, such as in biology, or astrophysics (Yu

et al., 2018). Such issues are resolved via the applica-

tion of unsupervised techniques. In this setting, one

aims to create a model that automatically discovers

semantically important visual features that character-

ize the various objects in a scene. Classically, we

approach this problem using variational, statistical,

and graphical methods, exempliﬁed in active contours

(Chan and Vese, 2001), conditional random ﬁelds

(Kr

ahenb

uhl and Koltun, 2011), and graph cuts (Shi

and Malik, 2000; Boykov and Jolly, 2001). Within the

deep learning literature, prominent advances in un-

supervised deep image clustering (Ren et al., 2022)

eventually led to developments in deep image seg-

mentation (Kim et al., 2020; Hamilton et al., 2021;

Lin et al., 2021; Hamilton et al., 2022; Wang et al.,

2022).

In this work, we introduce GraPL, an unsuper-

vised image segmentation technique that draws inspi-

ration from the success of CNNs for imaging tasks,

102

Wasserman, I. and Neto, J. F. S. R.

Patch-Based Deep Unsupervised Image Segmentation Using Graph Cuts.

DOI: 10.5220/0013151300003912

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 20th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2025) - Volume 3: VISAPP, pages

102-112

ISBN: 978-989-758-728-3; ISSN: 2184-4321

the learning strategies of deep clustering methods,

and the regularization power of graph cut algorithms.

Here, we alternate the training of a CNN classiﬁer

on image patches and the minimization of clustering

energy via graph cuts. To the best of our knowl-

edge, this is the ﬁrst attempt in the deep cluster-

ing and image segmentation literature to make use

of graph cuts to solve a deep learning-based unsu-

pervised task. We show that our zero-shot approach

detects visual segments in an image without onerous

unsupervised training on an entire image dataset, au-

tomatically ﬁnds a satisfactory number of image seg-

ments, and easily translates patch-level training to ef-

ﬁcient pixel-level inference. Furthermore, because of

its patch-level structure, it’s able to naturally incorpo-

rate pretrained patch embeddings (Caron et al., 2021;

Oquab et al., 2023), without relying on them for in-

ference. Finally, we show that this simple approach

achieves state-of-the-art results in deep unsupervised

image segmentation, demonstrating the potential of

graph cuts to improve other patch-based deep seg-

mentation algorithms. Speciﬁcally, we make the fol-

lowing contributions with our work:

• We introduce GraPL, an unsupervised segmenta-

tion method that learns a fully convolutional seg-

menter directly from the image’s patches, using

an iterative algorithm regularized by graph cuts.

• We show that this framework naturally employs

patch embeddings for pixel-level segmentation

without the need for postprocessing schemes,

such as CRF reﬁning.

• We demonstrate that GraPL can compete with the

state-of-the-art in deep unsupervised segmenta-

tion, despite having just 23k parameters and op-

erating in a zero-shot paradigm.

2 RELATED WORK

2.1 Deep Clustering

With the advancements in deep supervised image

classiﬁcation techniques, interest in deep architec-

tures to solve unsupervised problems followed natu-

rally.

This pursuit led to the task of partitioning im-

age datasets into clusters using deep representations,

without human supervision, inaugurating the body

of work which is now referred to as “deep cluster-

ing.” The interested reader is referred to (Ren et al.,

2022) for a comprehensive review of the available ap-

proaches to deep clustering.

In GraPL, we treat image patches as individual

images to be clustered as a pretext task to train our

segmenter and efﬁciently use graph cuts to impose

constraints on the patch clusters. To the best of our

knowledge, our method is the ﬁrst to use MRF-based

algorithms for clustering CNN-generated visual fea-

tures.

2.2 Deep Unsupervised Image

Segmentation

As deep clustering aims to learn visual features and

groupings without human annotation via deep neu-

ral models, deep unsupervised image segmentation

hopes to use the same models to learn coherent and

meaningful image regions without the use of ground-

truth labels. To do so, many methods explore strate-

gies that resemble those from deep clustering. Cho et

al. (Cho et al., 2021) iteratively employ k-means to

cluster pixel-level features extracted from a network

trained on photometrically and geometrically vary-

ing image views. The work in (Ji et al., 2019) efﬁ-

ciently extends a mutual information-based deep clus-

tering algorithm to the pixel-level by recognizing that

such a process can be achieved via convolution oper-

ations. (Hwang et al., 2019) computes pixel embed-

dings from a metric learning network and segments

each image using a spherical k-means clustering al-

gorithm.

In (Kim et al., 2020), the authors train an FCN

with pseudo-labels generated by the same network in

a prior step. They attain reliable segmentations by

proposing a complex loss function that ensures the

similarity among pixels in shared segments while en-

couraging their spatial continuity and limiting their

total count. Our method, while similarly training an

FCN, works on patches and reinforces spatial conti-

nuity and low segment count via our graph cut ap-

proach. Furthermore, GraPL’s use of graph cuts al-

lows it to incorporate pairwise patch relationships. Fi-

nally, while other patch-based unsupervised solutions

require a segmentation reﬁnement stage after a patch

feature clustering step (Hamilton et al., 2022; Wang

et al., 2022; Wang et al., 2023), we both discover and

instill patch knowledge interactively, without the need

for postprocessing our result.

2.3 Graph Cuts for Image Segmentation

Modeling image generation as a Markov random ﬁeld

(MRF) has a long history in computer vision, dating

its initial theoretical and algorithmic achievements to

the works of Abel et al (Abend et al., 1965) and Be-

sag (Besag, 1986). Soon enough, MRFs found ap-

Patch-Based Deep Unsupervised Image Segmentation Using Graph Cuts

103

plications in various image processing tasks, such as

edge detection, image denoising, segmentation, and

stereo (Li, 2009). In particular, the works conducted

by Boykov and Jolly (Boykov and Jolly, 2001) and

Boykov et al. (Boykov et al., 2001) demonstrated

that one can apply efﬁcient min st-cut-based algo-

rithms to solve image segmentation by modeling it as

a Maximum a Posteriori (MAP) estimator of an MRF.

Their groundbreaking results made possible the emer-

gence of classical graph-based segmentation method-

ologies such as GrabCut (Rother et al., 2004) and

were, more recently, used to improve the training of

CNN-based segmenters (Marin et al., 2019). CRF

modeling, closely related to MRF, has also played an

important role in reﬁning coarse network predictions

in recent segmentation methods (Zheng et al., 2015;

Chen et al., 2017a; Chen et al., 2017b).

In some ways, our proposed method draws inspi-

ration from the methodologies proposed by Rother et

al. (Rother et al., 2004), and Marin et al. (Marin

et al., 2019). In (Rother et al., 2004), the authors

propose GrabCut, an algorithm that iteratively bound-

optimizes a segmentation energy, requiring the solu-

tion of a min st-cut problem at each iteration to per-

form unsupervised regularized ﬁtting of the image’s

appearance, which is modeled as a Gaussian mixture

model. Our algorithm also uses min st-cut solvers

iteratively, but here we (1) work on patch data, in-

stead of individual pixels, and (2) ﬁt the image ap-

pearance using a CNN classiﬁer. Due to the na-

ture of CNNs, our network can seamlessly translate

the patch-level classiﬁer into a pixel-level image seg-

menter. In (Marin et al., 2019), the authors show how

to perform weakly-supervised CNN segmentation via

an optimizer that alternates between solving an MAP-

MRF problem and gradient computation. In contrast,

our method solves a fully unsupervised segmentation

problem and does not use our MAP solution to adjust

gradient directions.

3 METHODOLOGY

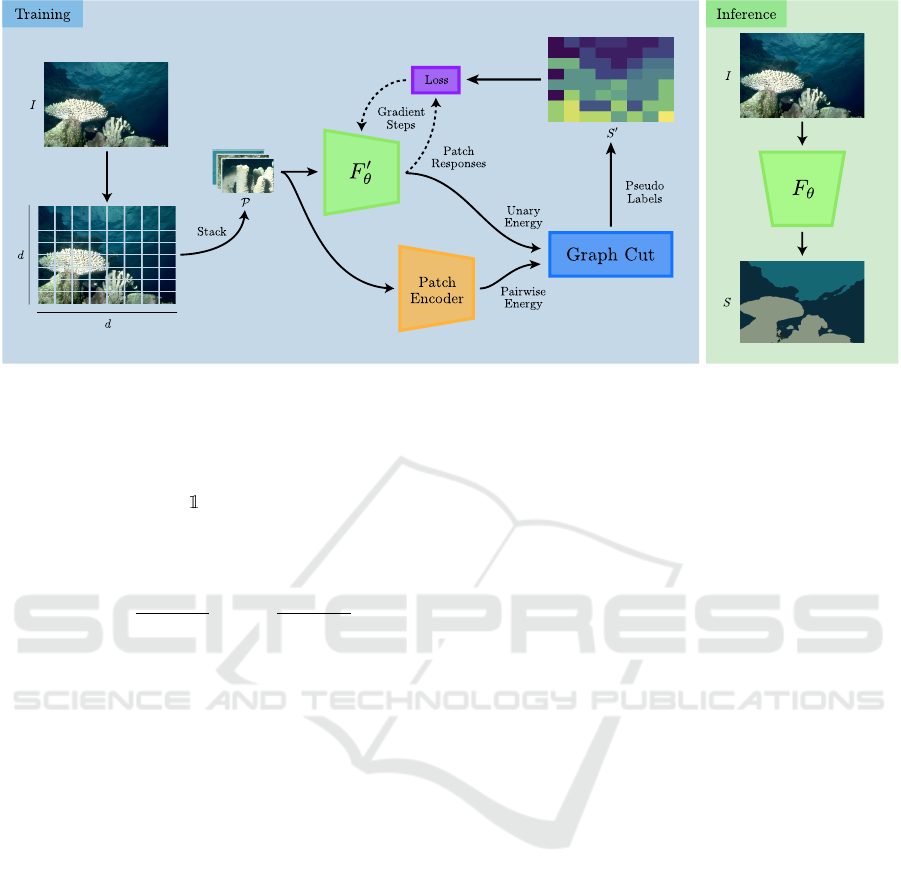

GraPL (Graph Cuts at the Patch Level) is a fully un-

supervised segmentation method that operates in a

single-image paradigm. Using patch clustering as a

pretext task for segmentation, during training it learns

distinctive segment features that enable it to effec-

tively segment the image at the pixel level. Although

other techniques have previously shown patch clus-

tering to be an effective surrogate task (Ji et al., 2019;

Ouali et al., 2020; Wang et al., 2022; Wang et al.,

2023), our method demonstrates that clustering the

patches of a single image provides sufﬁcient feature

learning to accurately segment it. GraPL’s training

is guided by patch-level graph cuts; this intervention

imposes spatial coherence priors, which help learn

clusters that are conducive to segmentation. At infer-

ence, the complexities of the pipeline disappear, leav-

ing only the network. Leveraging a generalization of

CNNs, the trained model is “convolved” over the en-

tire image to produce a pixel-level segmentation.

3.1 Algorithm

Let I : Ω 7→ R

be an image of c channels with

pixel set Ω = {1, ...,n}× {1, ...,m}, and S : Ω 7→

{1,... ,K} be a segmentation map of I in K regions.

Let P be a set of patches from I, such that all patches

are of the same size, i.e., for each p in P , p : Ω

7→

,Ω

⊂ Ω,|Ω

| = const. In practice, we populate

P by selecting all patches on a non-overlapping d ×d

grid of I, resulting in patches of shape (w/d,h/d). We

make this choice of P based on two factors: (1) efﬁ-

ciency, as this operation can be efﬁciently performed

by most deep learning libraries via their unfolding

methods, and (2) simplicity, as it’s one of the simplest

ways to generate equal sized patches that span Ω.

Let F

: Ω 7→[0, 1]

K×|Ω|

be an FCN, and F

′

: Ω

7→

[0,1]

be a CNN patch classiﬁer. In GraPL, both

networks are parametrized by the same parameters θ.

′

is used in our training stage and is applied to the

patches in P , while F

is employed in our inference

phase and is our ﬁnal segmenter. The full algorithm

is shown in Figure 1.

Training Stage. Our goal is to learn θ exclusively

from the data in P and transfer it to F

. To do so,

our method trains F

′

by minimizing an energy formu-

lated at the patch level of I. Let S

′

: P 7→ {1,. ..,K}

be a labeling for the patches in P . Following the lit-

erature on MRF modeling (Boykov and Jolly, 2001),

we deﬁne the energy of S

′

for an unknown θ as:

E(S

′

,θ|P ) = U(S

′

,θ|P ) + λV (S

′

|P ), (1)

with λ ≥ 0. The unary term U(·) is traditionally de-

ﬁned as:

U(S

′

,θ|X) = −

∑

p∈P

∑

k=1

′

(p) = k)[ln F

′

(p)]

, (2)

where (·) is the indicator function and [·]

is the k-th

position of a vector. Let α and β be probability distri-

butions in R

, and let H(α, β) = −

∑

k=1

[α]

ln[β]

their cross entropy. This means that Eq. 2 can be seen

as the sum of cross entropies H(S

′

(p),F

′

(p)) between

′

(p), taken as a one-hot probability distribution, and

′

(p) over all p ∈ P . The pairwise energy term V (·)

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

104

1 4 2 3 3 2 2 4

1 1 4 2 2 2 4 4

11 11 4 4 2 4 7 7

1 9 9 4 4 7 8 8

9 9 9 9 11 8 8 12

1 13 9 11 10 8 8 12

13 15 5 5 13 5 12 12

13 15 14 14 10 13 10 4

Figure 1: The proposed algorithm. GraPL trains a convolutional neural network to cluster patches of a single image without

supervision under the guidance of graph cuts, spatial continuity loss, and a patch afﬁnity encoder. At inference, this patch

clustering knowledge is applied to pixel-level segmentation of the image. F

′

and F

share the same parameters.

is given by:

V (S

′

|P ) =

∑

(p,q)∈P×P

′

(p) ̸= S

′

(q))φ(p,q), (3)

with the patch similarity function φ(·) deﬁned as:

φ(p,q) =

dist(p,q)

exp



−

aff(p, q)

2σ



, (4)

where the data afﬁnity function aff(p,q) evaluates the

data similarity between p and q, and dist(p, q) con-

siders the Euclidean distance between the centers of

p and q. We select σ as the standard deviation of

afﬁnities for all p,q ∈ P . To compute patch afﬁni-

ties we make use of a patch encoder, which extracts

an embedding from each patch in P .

Inspired by GrabCut (Rother et al., 2004), GraPL

minimizes E using a block-coordinate descent itera-

tive strategy, where we alternate between optimizing

for θ and S

′

, keeping the other constant. The current

labeling S

′

is updated using the current network pa-

rameters θ

t−1

, now taken as ﬁxed in Eq. 1:

′

= argmin

′

E(S

′

|θ

t−1

,P ). (5)

The above problem can be approximately solved by a

series of minimum st-cut in the form of α-expansion

or αβ-swap moves (Boykov et al., 2001). This step

is can be quickly accomplished due to the efﬁciency

of such graph cut algorithms and the comparatively

small size of P , which presents a further advantage

to our patch-based framework. We then compute the

updated parameters θ

via:

= argmin

L(F

′

(P ),S

′

), (6)

where F

′

(P ) = {F

′

(p)}

p∈P

. We employ traditional

gradient descent-based backpropagation to solve the

above problem. The loss L(·), is designed to predict

the outputs of F

′

on each patch using the labels from

′

. Keeping S

′

ﬁxed, Eq. 2 conveniently formulates

that process as a sum of cross entropy losses, just as

one would naturally devise in a supervised segmenta-

tion learning scheme. We then follow Kim et al. (Kim

et al., 2020) and include a patch-level continuity loss

C(θ):

C(θ) =

∑

p∈P

∑

q∈N

′

(p) −F

′

(q)|, (7)

where |·| is the L1 norm and N

is the set of patches

immediately neighboring p in Ω space. In the general

case, one can employ a k-nearest neighbors graph of

the elements in P , considering the Euclidean distance

between patch centers. For the d ×d grid from Eq.

1, we choose N

to be given by the patches immedi-

ately above and to the left of p, resembling what is

done in (Kim et al., 2020). This continuity loss brings

spatial coherence outside the graph step and encour-

ages smooth boundaries on the network outputs. In

practice, we found it to be beneﬁcial to have both the

graph step and C(θ) in our method. Our ﬁnal loss is

then deﬁned as:

L(F

′

(P ),S

′

t−1

∑

p∈P

H(S

′

t−1

(p),F

′

(p)) +µC(θ), (8)

where µ ≥ 0. As a consequence of the use of both

graph cuts and the continuity loss described above,

GraPL naturally suppresses extraneous labels aris-

ing from irrelevant patterns or textures, automatically

promoting model selection. As the alternation con-

tinues, F

′

improves to the point where it no longer

Patch-Based Deep Unsupervised Image Segmentation Using Graph Cuts

105

requires the guidance of the graph cuts to produce

spatially and semantically coherent patch clusters. At

that point, we end our training phase.

Inference Stage. Once F

′

is trained, our next goal

is to classify all possible patches in I of shape equal to

the patches in P . To that end, we ﬁrst assume that, as

a CNN, F

′

is composed of an initial series of convo-

lutional layers and a ﬁnal stage of say Q dense layers,

along with a softmax function at the end. Assume that

the inputs of all layers are unpadded, and that each

dense layer has s

units leading to a ﬁnal output of

size K. Now, one can replace each dense layer in F

′

with a convolutional one of kernel size

√

and retain

its exact functionality. Our resulting FCN, F

, is now

capable of efﬁciently being applied to I, by effectively

“convolving” it with patch classiﬁer F

′

3.2 Advantages of Using Graph Cut

In the absence of labels, GraPL learns to cluster

patches via an iterative procedure. This general for-

mulation allows us to inject knowledge about the

domain by designing an apt method for selecting

pseudo-labels. While similar methods use k-means

(Caron et al., 2018), mixture models (Hwang et al.,

2019), or simply argmax (Kim et al., 2020) to trans-

form network outputs into new pseudo-labels, GraPL

uses these response vectors to deﬁne the unary energy

of a patch-level MRF graph of the image.

This approach for patch clustering introduces

some advantages to our method. First, while the MRF

modeling step is done primarily to impose a spatial

coherence prior, due to the known shrinking bias of

graph cuts (Kolmogorov and Boykov, 2005), the re-

sultant partition also smooths segment boundaries and

reduces the number of distinct segments, leading to

natural model selection. The spatial regularization in-

troduced by the proposed graph can also be general-

ized to accommodate other classical graph formula-

tions that consider segmentation seeds (Boykov et al.,

2001), appearance disparity (Tang et al., 2013), cur-

vature (El-Zehiry and Grady, 2010), or target distri-

butions (Ayed et al., 2010). Finally, in contrast to

methods that discover objects by clustering patch em-

beddings arising from pretrained transformers and ap-

plying a segmentation head (Hamilton et al., 2022)

or CRF reﬁnement (Wang et al., 2022; Wang et al.,

2023), GraPL considers patch embeddings only as

way to guide its training stage, yielding a ﬁnal pixel-

level segmentation map without postprocessing. We

consider our graph cut-based approach to handle rich

patch features beneﬁcial, as we do not overly depend

on their clustering power, and simply reference them

as guidance when regularizing our training.

4 EXPERIMENTS

4.1 Experimental Setup

Segmentation Task. To evaluate the behaviors of

GraPL (Section 4.2), the algorithm was tasked with

segmenting the 200-image test set of BSDS500 (Ar-

belaez et al., 2011) using a variety of hyperparame-

ters. Segmentation performance is measured in terms

of weighted mean intersection over union (mIoU)

(Garcia-Garcia et al., 2017), with predicted segments

matched one-to-one with target segments using a ver-

sion of the Hungarian algorithm modiﬁed to accom-

modate

K ̸= K

∗

, where

K is the number of dis-

tinct segments in the ﬁnal segmentation, and K

∗

the number of segments in the ground truth. Re-

sults are averaged across 10 different random seeds

for initialization. In addition to BSDS500, we com-

pare GraPL to competing methods using COCO-stuff

(Caesar et al., 2018), as conﬁgured in (Ji et al., 2019),

presenting the standard macro averaged mIoU of each

model.

Hyperparameters. Unless otherwise speciﬁed, the

following conﬁguration was used during testing.

Pseudo-labels were initialized according to the SLIC-

based (Achanta et al., 2012) algorithm described in

Paragraph 4.2. GraPL was run for four training iter-

ations, and the number of gradient steps in the loss

minimization at each iteration was 40, 32, 22, and

12 respectively. K

, the number of initial segments

was set at 14, and d was set to 32. Graph cuts were

implemented using pyGCO (Li and Borovec, 2023),

and the pairwise energy coefﬁcient, λ, was set to 64.

The continuity loss was assigned a weight of µ = 3.

The L2 norm between DINOv2 (Oquab et al., 2023)

(ViT-L/14 distilled) patch embeddings was used as an

afﬁnity metric to determine pairwise weights.

Network Architecture. An intentionally minimal

CNN architecture was used, consisting of 2 3 ×3 un-

padded convolutional layers with 32 and 8 ﬁlters, re-

spectively. In F

′

, this is followed by a dense classi-

ﬁcation head with K

units, and in F

it is followed

by a (

−4) ×(

−4) convolutional segmentation

head with K

ﬁlters. The network layers are each

separated by batch normalization, tanh activations,

and dropout with a rate of 0.2. Without padding,

our network is subject to certain regularization im-

plications. In CNNs, the use of zero padding has

the effect of dropping out some of the weights of the

subsequent convolutional layer. As our method re-

quires the training phase to be executed on unpadded

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

106

images, it is effectively deprived of this regulariza-

tion feature. We found that applying dropout be-

fore the ﬁrst convolutional layer all but resolved is-

sues arising from the network’s lack of padding. De-

spite its simplicity, this network is complex enough

to achieve reliable segmentations, and more complex

networks did not lead to better performance. In our

work, we also abstain from using padding on our in-

ference phase, which results in

S = F

(I) being of a

size smaller than Ω, due to the convolution operations

in F

. GraPL handles this discrepancy by interpolat-

ing

S to the original dimensions via nearest neighbor

interpolation. Networks were implemented using Py-

Torch 2.0.1 (Paszke et al., 2019) and ran on a Nvidia

A100 GPU.

Early Stopping. If a cross-entropy loss of less than

1.0 was reached during the ﬁrst iteration, it was

stopped early, and new pseudo-labels were assigned.

During the ﬁrst iteration, we are ﬁtting the initial

pseudo-labels, which are either arbitrary or assigned

by SLIC. By imposing this early stopping condition,

we are avoiding the local minima where GraPL may

be overﬁtting to a less performant (or worse, arbi-

trary) segmentation.

4.2 Ablation Studies

Initialization. As an iterative algorithm, proper ini-

tialization is an important factor in training GraPL.

Although similar deep clustering algorithms have

used randomly initialized pseudo-labels (Caron et al.,

2018; Kim et al., 2020), we were unsure whether ig-

noring more principled approaches was leaving per-

formance on the table. To answer this question,

we compared four initialization strategies: “patch-

wise random,” “seedwise random,” “spatial cluster-

ing,” and an approach based on SLIC (Achanta et al.,

2012). The “patchwise random” approach individu-

ally assigns each patch p in P a random label. In

the “seedwise random” strategy, we select K

random

patches and assign them each one of the K

labels; the

remaining patches are assigned the label of the patch

closest to them. For “spatial clustering,” patches are

clustered using k-means according to their (x, y) spa-

tial coordinates to form K

clusters of roughly equal

size. In the SLIC-based approach, we unfold a K

cluster SLIC segmentation with low compactness into

the same patches as the input image. The onehot la-

bels of these patches are averaged and normalized to

produce soft labels. These soft initializations are an

attempt to regularize and retain all salient features of

the patch during training.

Tests demonstrated that patchwise random initial-

ization is not an ideal choice for GraPL (Table 1).

This is likely because it encourages a disregard for

spatial coherence during the ﬁrst and most important

iteration. While SLIC was shown to be the best choice

out of the methods tested, seedwise random and spa-

tial clustering initialization performed only 1.0% and

0.6% worse, respectively, and the algorithm could

likely be tuned such that they meet or exceed the per-

formance of SLIC. However, in the current conﬁgura-

tion, we notice a tendency for both of these methods

to result in undersegmentation, in which ∆K = K

−

is considerably higher than the SLIC version (Figure

2).

Pairwise Edge Weights. The pairwise energy func-

tion (Eq. 4) used by GraPL includes an afﬁnity func-

tion aff(p,q). Designed with vision transformers in

mind, this function is deﬁned by the Euclidean dis-

tance between some patch metric or embedding m(p)

for p ∈P .

Though DINOv2 (Oquab et al., 2023) has been

shown to produce excellent, fully unsupervised fea-

tures on the patch level, requiring minimal super-

vised ﬁne-tuning to produce an effective segmenta-

tion model (Oquab et al., 2023). However, it’s un-

clear whether the features are easily separable using

unsupervised methods.

We examined the applicability of three deﬁnitions

for m(p): DINOv2 embedding, mean RGB color, and

patch position. To produce the ﬁnal DINO embed-

dings, images were resized to 14d ×14d, such that

each GraPL patch corresponds to a 14 × 14 DINO

patch. These embeddings were reduced to K

dimen-

sions using 2nd-degree polynomial PCA. As a base-

line, we also tested a version where the fully con-

nected graph was replaced with a 4-neighborhood lat-

tice of uniformly weighted edges.

In our tests, DINOv2 embeddings were a signif-

icantly better metric than distance alone (Table 2).

However, they were outperformed by simple RGB

color vectors. Acknowledging DINOv2’s ability to

act as a feature extractor for supervised segmentation,

further research is needed to determine what types of

transformations are necessary for converting the em-

(a) (b) (c) (d) (e)

Figure 2: Example of undersegmentation from non-SLIC

initialization. (a) Input image. (b) Patchwise Random (

K =

2). (c) Seedwise Random (

K = 4). (d) Spatial Clustering

(

K = 4). (e) SLIC (

K = 6).

Patch-Based Deep Unsupervised Image Segmentation Using Graph Cuts

107

Table 1: Comparison of pseudo-label initialization meth-

ods.

Initializer mIoU

Patchwise Rand. 0.496

Seedwise Rand. 0.507

Spatial 0.509

SLIC 0.512

Table 2: Comparison of pairwise weighting metrics.

Metric mIoU

Uniform 0.459

Position 0.476

Color 0.527

DINOv2 0.512

beddings into a better afﬁnity metric.

Warm Start. GraPL is designed to train the same

network continuously throughout all iterations. This

is in contrast to similar iterative methods which pre-

fer a “cold start,” re-initializing the parameters of the

surrogate function before subsequent iterations. Pre-

liminary tests showed that in our case, a “warm start”

approach is preferred to re-initializing the network

each time. These two approaches produce very differ-

ent loss curves (Figure 3). Cold starts produce large

spikes in loss at the beginning of each training itera-

tion, whereas warm starts require only minor adjust-

ments at these points. We expect that the ﬁrst iter-

ations of training provide important feature learning

to the ﬁrst layers of the network. By starting cold

at each iteration, subsequent iterations are unable to

beneﬁt from the learned low-level feature detectors

and therefore present a more unstable training phase.

Pairwise Energy Coefﬁcient (λ). GraPL uses

graph cuts to generate each new set of pseudo-labels,

working on the theory that this graphical representa-

tion of the image provides an important spatial co-

0 40 72 94

Gradient Step

Cross Entopy

Warm

Cold

Figure 3: Comparison of loss curves using warm and cold

starting methods, averaged over all test images in BSDS500

(Arbelaez et al., 2011). Here we consider the loss value at

the end of each gradient step. On the x-axis, we depict the

instants where a new training iteration starts.

(a)

0 2 8 32 128

0.46

0.48

0.5

0.52

mIoU

(b)

0 2 8 32 128

11.4

11.6

11.8

12.2

∆K

Figure 4: Effects of pairwise energy coefﬁcient. (a) Effect

of λ on mIoU. (b) Effect of λ on ∆K.

herence prior, which is perhaps missing from similar

unsupervised methods and accounts for its success.

Furthermore, GraPL relies on pairwise costs as well

as the continuity loss to gradually decrease

K. To

test these ideas, we evaluated the segmentation per-

formance of the algorithm as well as ∆K across dif-

ferent values of λ, the hyperparameter that deﬁnes the

scale of the pairwise energy as deﬁned in Eq. 4.

When λ = 0, cutting any non-terminal edge incurs

no cost. In this case, the function of the cut is effec-

tively the same as the argmax clustering step found in

(Kim et al., 2020), as pseudo-labels are entirely de-

pendent on the current network response vectors. As

λ increases, network response vectors are made less

inﬂuential in the pseudo-label assignment process, as

expected.

The results in Figure 4 demonstrate a logarithmic

increase in segmentation performance as λ is raised

from 0 through 64. However, increasing λ to values

higher than 64 tends to result in comparatively poor

performance. Because increasing λ strengthens pair-

wise connections, we would expect it to be closely

correlated with ∆K. When λ ≤ 64, we observe this

behavior; however, higher values result in a plateau

or slight decrease in ∆K.

In a conﬁguration where the pairwise edges were

uniformly weighted (or weighted according to spatial

distance), we would expect higher than optimal values

of λ to push ∆K too high and produce oversimpliﬁed

segmentations, where multiple target segments are

collapsed into a single predicted segment. However,

when pairwise edges are weighted by patch encoder

embedding afﬁnity, pushing λ too high can instead re-

sult in an overly detailed segmentation, in which the

graph cut considers the pairwise energy (dictated by

the patch embeddings) more than the unary weights

learned by GraPL.

Continuity Loss. Spatial continuity loss, ﬁrst intro-

duced in (Kim et al., 2020), provides GraPL a spatial

coherence prior which penalizes the network directly

at each gradient step, rather than through the graph

cut produced pseudo-labels at the end of each itera-

tion. Though shown effective in (Kim et al., 2020),

we instinctively believed that it would be redundant

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

108

0 0.5 1 2 4 8

0.35

0.4

0.45

0.5

0.55

mIoU

Figure 5: Effect of spatial continuity loss weight on mIoU.

in a graphically guided pipeline like GraPL. However,

we observed that the combination of the two different

spatial coherence priors produced more accurate seg-

mentations than either one alone (Figure 5).

In practice, we noted that this loss has a differ-

ent mechanism of action than the graphical coherence

prior. In the absence of this spatial loss, GraPL em-

ploys a level of trust in the patch encoder that may be

unfounded, as the pairwise energy only penalizes the

separation of patches with a great afﬁnity; but when

using a patch encoder like DINO, which is deﬁned

by a large neural network, the edge weights may be

high variance. In this case, increasing λ only serves to

emphasize the patch encoder’s bias for certain edges.

However, increasing the weight of the spatial conti-

nuity loss applies a higher penalty for all edges. In

effect, it could be compared to an additive bias term

in the pairwise energy function that raises the cost, no

matter the patch afﬁnity.

Patch Size. Patch-based approaches are faced with

a choice between granularity (with smaller patches)

and the information richness of input (with larger

patches). In GraPL’s case, smaller patches also en-

tail more complex graphs that take longer to solve,

and larger patches entail higher memory usage. We

found that setting d equal to 32 offered both optimal

performance and near-optimal efﬁciency (Table 3).

4.3 Comparison to Other Methods

We compare the segmentation performance of GraPL

on BSDS500 to four other unsupervised deep-

learning methods: Differentiable Feature Clustering

(DFC) (Kim et al., 2020), DoubleDIP (Gandelsman

Table 3: mIoU and segmentation time as a function of patch

size. Time measurements are based on segmentation of

BSDS500 test set.

d mIoU Seconds per Image

8 0.248 3.49

16 0.372 1.72

32 0.512 1.75

64 0.496 6.98

Table 4: Quantitative comparisons to other unsupervised

deep-learning methods and baselines. † denotes the use of

pretrained DINO ViT.

(a) Performance on BSDS500

Method mIoU pAcc

SLIC (RGB features) 0.137 0.416

SLIC (DINOv2 features) 0.258 0.280

W-Net (Xia and Kulis, 2017) 0.428 0.531

DoubleDIP (Gandelsman et al.,

2019)

0.356 0.423

IIC (Ji et al., 2019) 0.172 -

DFC (Kim et al., 2020) 0.398 0.505

GraPL (proposed) 0.527 0.569

(b) Performance on COCO-stuff.

Method mIoU pAcc

IIC (Ji et al., 2019) 0.067 0.218

PiCIE (Cho et al., 2021) 0.144 0.500

TransFGU†(Zhaoyun et al., 2022) 0.175 0.527

SegDiscover (Huang et al., 2022) 0.143 0.401

STEGO†(Hamilton et al., 2022) 0.282 0.569

ACSeg†(Li et al., 2023) 0.164 -

GraPL (proposed) 0.179 0.613

et al., 2019), Invariant Information Clustering (IIC)

(Ji et al., 2019), and W-Net (Xia and Kulis, 2017).

We also tested two baselines that use SLIC to seg-

ment images based on RGB and DINOv2 (Oquab

et al., 2023) patch embeddings (interpolated to the

pixel level). These baselines were selected to demon-

strate that the success of our method does not sim-

ply originate from its initialization or its pretrained

guidance. We also compare GraPL to ﬁve popular

methods on COCO-stuff (Caesar et al., 2018): IIC,

PiCIE (Cho et al., 2021), TransFGU (Zhaoyun et al.,

2022), SegDiscover (Huang et al., 2022), and ACSeg

(Li et al., 2023).

Table 4 summarizes the quantitative comparative

results of the above methods, where segmentation

performance was measured in terms of both mIoU and

pixel accuracy (pAcc) (Garcia-Garcia et al., 2017).

As with mIoU, pixel accuracy was computed using a

one-to-one label matching strategy. Figure 6 displays

some segmentation results from the above methods

for qualitative comparison.

Compared to the other unsupervised methods

tested on BSDS500, GraPL decomposes complex

foregrounds into detailed yet semantically salient

components. Notice how GraPL can pick up on small

details like sunglasses in the distance while ignoring

less relevant features of the image, such as creases

in clothing. In many cases, it can handle color gra-

Patch-Based Deep Unsupervised Image Segmentation Using Graph Cuts

109

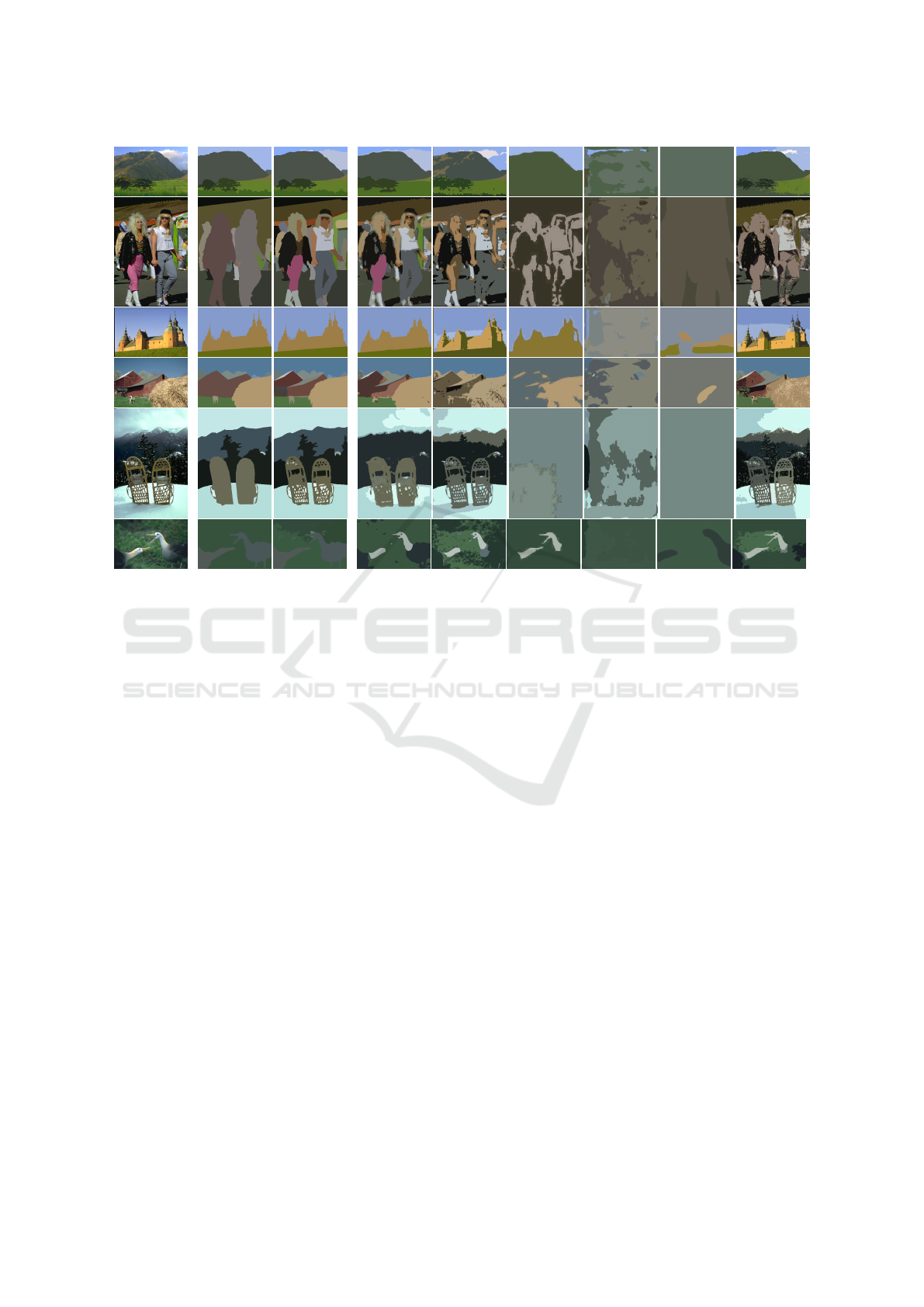

Input GT1 GT2 GraPL DFC Double DIP PiCIE SegSort W-Net

Figure 6: Qualitative comparison of GraPL to other deep learning-based unsupervised segmentation methods. We selected

two of the available ground truth segmentations (GT1 and GT2) for comparison, one more detailed and one less detailed.

dient variation, usually present in sky backgrounds

or shadow regions. On occasion, GraPL detects seg-

ments that are not present in the ground truth, such as

the bird heads on the last qualitative example, which,

despite being reasonable, decreases its quantitative

performance. Finally, it also struggles to detect ﬁne

structures, such as castle tops, small holes, and bird

beaks. Despite that, our proposed method outper-

forms all of the compared methods by at least 7.2% in

accuracy and 23.1% mIoU on BSDS500 (Table 4a). It

is also worth noting the low performance of our base-

lines when compared to GraPL. This demonstrates

that our method does not merely rest on the success

of our initializer, SLIC. Instead, GraPL’s success is a

product of its training and inference methodology.

While GraPL falls short of ﬁrst place mIoU on

COCO-stuff (Table 4b), it bears repeating that: (1) its

default conﬁguration has just 23k parameters, making

it 200 times smaller than the next smallest competi-

tor (IIC); (2) it does not require any pretraining, while

STEGO, ACSeg, and TransFGU use DINO initializa-

tion; and (3) it operates in a zero-shot paradigm, while

all competing methods require a full training dataset.

In spite of its remarkably low complexity, it scores

second in mIoU (or ﬁrst excluding DINO-based mod-

els) and is 7.7% more accurate than its closest com-

petitor. On the other hand, GraPL leads the pixel ac-

curacy (pAcc) performance on both datasets.

5 CONCLUSION

In this paper, we introduce GraPL, a deep learning-

based unsupervised segmentation framework that

learns a pixel-level classiﬁer by solving a patch clus-

tering surrogate task. GraPL is the ﬁrst deep learning

method to employ a graph cut regularizer during train-

ing, encouraging spatial coherence and leveraging the

discriminative power of patch embeddings. Further-

more, it seamlessly translates patch-level learning to

the pixel-level without the need for postprocessing.

Our experiments reveal the promising capabilities of

our algorithm, as it can outperform many state-of-the-

art unsupervised segmentation methods, despite oper-

ating in a zero-shot paradigm and being several orders

of magnitude less complex than its closest competitor.

As such, GraPL constitutes a remarkably strong base-

line for unsupervised segmentation. Our work can be

seen as further evidence of the beneﬁt of using graph

cuts in deep learning, especially in the context of un-

supervised segmentation.

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

110

REFERENCES

Abend, K., Harley, T., and Kanal, L. (1965). Classiﬁca-

tion of binary random patterns. IEEE Transactions on

Information Theory, 11(4):538–544.

Achanta, R., Shaji, A., Smith, K., Lucchi, A., Fua, P., and

usstrunk, S. (2012). Slic superpixels compared to

state-of-the-art superpixel methods. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

34(11):2274–2282.

Arbelaez, P., Maire, M., Fowlkes, C., and Malik, J. (2011).

Contour detection and hierarchical image segmen-

tation. IEEE Trans. Pattern Anal. Mach. Intell.,

33(5):898–916.

Ayed, I. B., Chen, H.-m., Punithakumar, K., Ross, I., and Li,

S. (2010). Graph cut segmentation with a global con-

straint: Recovering region distribution via a bound of

the bhattacharyya measure. In 2010 IEEE Computer

Society Conference on Computer Vision and Pattern

Recognition, pages 3288–3295. IEEE.

Besag, J. (1986). On the statistical analysis of dirty pic-

tures. Journal of the Royal Statistical Society Series

B: Statistical Methodology, 48(3):259–279.

Boykov, Y., Veksler, O., and Zabih, R. (2001). Fast ap-

proximate energy minimization via graph cuts. IEEE

Transactions on pattern analysis and machine intelli-

gence, 23(11):1222–1239.

Boykov, Y. Y. and Jolly, M.-P. (2001). Interactive graph cuts

for optimal boundary & region segmentation of ob-

jects in nd images. In Proceedings eighth IEEE inter-

national conference on computer vision. ICCV 2001,

volume 1, pages 105–112. IEEE.

Caesar, H., Uijlings, J., and Ferrari, V. (2018). Coco-stuff:

Thing and stuff classes in context. In Computer vision

and pattern recognition (CVPR), 2018 IEEE confer-

ence on. IEEE.

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., and Zagoruyko, S. (2020). End-to-end object de-

tection with transformers. In European conference on

computer vision, pages 213–229. Springer.

Caron, M., Bojanowski, P., Joulin, A., and Douze, M.

(2018). Deep clustering for unsupervised learning of

visual features. In Proceedings of the European con-

ference on computer vision (ECCV), pages 132–149.

Caron, M., Touvron, H., Misra, I., J

egou, H., Mairal, J., Bo-

janowski, P., and Joulin, A. (2021). Emerging prop-

erties in self-supervised vision transformers. In Pro-

ceedings of the IEEE/CVF international conference

on computer vision, pages 9650–9660.

Chan, T. F. and Vese, L. A. (2001). Active contours with-

out edges. IEEE Transactions on image processing,

10(2):266–277.

Chen, L.-C., Papandreou, G., Kokkinos, I., Murphy, K., and

Yuille, A. L. (2017a). Deeplab: Semantic image seg-

mentation with deep convolutional nets, atrous convo-

lution, and fully connected crfs. IEEE transactions on

pattern analysis and machine intelligence, 40(4):834–

848.

Chen, L.-C., Papandreou, G., Schroff, F., and Adam,

H. (2017b). Rethinking atrous convolution for

semantic image segmentation. arXiv preprint

arXiv:1706.05587.

Cho, J. H., Mall, U., Bala, K., and Hariharan, B. (2021).

Picie: Unsupervised semantic segmentation using in-

variance and equivariance in clustering. In Proceed-

ings of the IEEE/CVF Conference on Computer Vision

and Pattern Recognition, pages 16794–16804.

El-Zehiry, N. Y. and Grady, L. (2010). Fast global optimiza-

tion of curvature. In 2010 IEEE Computer Society

Conference on Computer Vision and Pattern Recogni-

tion, pages 3257–3264. IEEE.

Gandelsman, Y., Shocher, A., and Irani, M. (2019). ”

double-dip”: unsupervised image decomposition via

coupled deep-image-priors. In Proceedings of the

IEEE/CVF Conference on Computer Vision and Pat-

tern Recognition, pages 11026–11035.

Garcia-Garcia, A., Orts-Escolano, S., Oprea, S., Villena-

Martinez, V., and Garcia-Rodriguez, J. (2017). A re-

view on deep learning techniques applied to semantic

segmentation.

Hamilton, M., Zhang, Z., Hariharan, B., Snavely, N., and

Freeman, W. T. (2021). Unsupervised semantic seg-

mentation by distilling feature correspondences. In In-

ternational Conference on Learning Representations.

Hamilton, M., Zhang, Z., Hariharan, B., Snavely, N., and

Freeman, W. T. (2022). Unsupervised semantic seg-

mentation by distilling feature correspondences. arXiv

preprint arXiv:2203.08414.

Han, K., Wang, Y., Guo, J., Tang, Y., and Wu, E. (2022). Vi-

sion gnn: An image is worth graph of nodes. Advances

in Neural Information Processing Systems, 35:8291–

8303.

Huang, H., Chen, Z., and Rudin, C. (2022). Segdiscover:

Visual concept discovery via unsupervised semantic

segmentation.

Hwang, J.-J., Yu, S. X., Shi, J., Collins, M. D., Yang, T.-J.,

Zhang, X., and Chen, L.-C. (2019). Segsort: Segmen-

tation by discriminative sorting of segments. In Pro-

ceedings of the IEEE/CVF International Conference

on Computer Vision, pages 7334–7344.

Ji, X., Henriques, J. F., and Vedaldi, A. (2019). Invariant

information clustering for unsupervised image clas-

siﬁcation and segmentation. In Proceedings of the

IEEE/CVF international conference on computer vi-

sion, pages 9865–9874.

Kim, W., Kanezaki, A., and Tanaka, M. (2020). Unsuper-

vised learning of image segmentation based on dif-

ferentiable feature clustering. IEEE Transactions on

Image Processing, 29:8055–8068.

Kolmogorov, V. and Boykov, Y. (2005). What metrics can

be approximated by geo-cuts, or global optimization

of length/area and ﬂux. In Tenth IEEE International

Conference on Computer Vision (ICCV’05) Volume 1,

volume 1, pages 564–571. IEEE.

ahenb

uhl, P. and Koltun, V. (2011). Efﬁcient inference

in fully connected crfs with gaussian edge potentials.

Advances in neural information processing systems,

24.

Li, K., Wang, Z., Cheng, Z., Yu, R., Zhao, Y., Song, G., Liu,

C., Yuan, L., and Chen, J. (2023). Acseg: Adaptive

Patch-Based Deep Unsupervised Image Segmentation Using Graph Cuts

111

conceptualization for unsupervised semantic segmen-

tation.

Li, S. Z. (2009). Markov random ﬁeld modeling in image

analysis. Springer Science & Business Media.

Li, Y. and Borovec, J. (2023). pygco. https://github.

com/Borda/pyGCO.

Lin, Q., Zhong, W., and Lu, J. (2021). Deep superpixel

cut for unsupervised image segmentation. In 2020

25th International Conference on Pattern Recognition

(ICPR), pages 8870–8876. IEEE.

Marin, D., Tang, M., Ayed, I. B., and Boykov, Y. (2019).

Beyond gradient descent for regularized segmentation

losses. In Proceedings of the IEEE/CVF Conference

on Computer Vision and Pattern Recognition, pages

10187–10196.

Minaee, S., Boykov, Y., Porikli, F., Plaza, A., Kehtarnavaz,

N., and Terzopoulos, D. (2021). Image segmenta-

tion using deep learning: A survey. IEEE transac-

tions on pattern analysis and machine intelligence,

44(7):3523–3542.

Oquab, M., Darcet, T., Moutakanni, T., Vo, H., Szafraniec,

M., Khalidov, V., Fernandez, P., Haziza, D., Massa, F.,

El-Nouby, A., et al. (2023). Dinov2: Learning robust

visual features without supervision. arXiv preprint

arXiv:2304.07193.

Ouali, Y., Hudelot, C., and Tami, M. (2020). Autore-

gressive unsupervised image segmentation. In Com-

puter Vision–ECCV 2020: 16th European Confer-

ence, Glasgow, UK, August 23–28, 2020, Proceed-

ings, Part VII 16, pages 142–158. Springer.

Paszke, A., Gross, S., Massa, F., Lerer, A., Bradbury, J.,

Chanan, G., Killeen, T., Lin, Z., Gimelshein, N.,

Antiga, L., Desmaison, A., Kopf, A., Yang, E., De-

Vito, Z., Raison, M., Tejani, A., Chilamkurthy, S.,

Steiner, B., Fang, L., Bai, J., and Chintala, S. (2019).

PyTorch: An Imperative Style, High-Performance

Deep Learning Library. In Wallach, H., Larochelle,

H., Beygelzimer, A., d’Alch

e Buc, F., Fox, E., and

Garnett, R., editors, Advances in Neural Information

Processing Systems 32, pages 8024–8035. Curran As-

sociates, Inc.

Ren, Y., Pu, J., Yang, Z., Xu, J., Li, G., Pu, X., Yu, P. S.,

and He, L. (2022). Deep clustering: A comprehensive

survey. arXiv preprint arXiv:2210.04142.

Ronneberger, O., Fischer, P., and Brox, T. (2015). U-

net: Convolutional networks for biomedical image

segmentation. In Medical Image Computing and

Computer-Assisted Intervention–MICCAI 2015: 18th

International Conference, Munich, Germany, October

5-9, 2015, Proceedings, Part III 18, pages 234–241.

Springer.

Rother, C., Kolmogorov, V., and Blake, A. (2004). ” grab-

cut” interactive foreground extraction using iterated

graph cuts. ACM transactions on graphics (TOG),

23(3):309–314.

Shi, J. and Malik, J. (2000). Normalized cuts and image

segmentation. IEEE Transactions on pattern analysis

and machine intelligence, 22(8):888–905.

Tang, M., Gorelick, L., Veksler, O., and Boykov, Y. (2013).

Grabcut in one cut. In Proceedings of the IEEE inter-

national conference on computer vision, pages 1769–

1776.

Tolstikhin, I. O., Houlsby, N., Kolesnikov, A., Beyer, L.,

Zhai, X., Unterthiner, T., Yung, J., Steiner, A., Key-

sers, D., Uszkoreit, J., et al. (2021). Mlp-mixer: An

all-mlp architecture for vision. Advances in neural in-

formation processing systems, 34:24261–24272.

Trockman, A. and Kolter, J. Z. (2022). Patches are all you

need? arXiv preprint arXiv:2201.09792.

Wang, X., Girdhar, R., Yu, S. X., and Misra, I. (2023). Cut

and learn for unsupervised object detection and in-

stance segmentation. In Proceedings of the IEEE/CVF

Conference on Computer Vision and Pattern Recogni-

tion, pages 3124–3134.

Wang, Y., Shen, X., Yuan, Y., Du, Y., Li, M., Hu, S. X.,

Crowley, J. L., and Vaufreydaz, D. (2022). Token-

cut: Segmenting objects in images and videos with

self-supervised transformer and normalized cut. arXiv

preprint arXiv:2209.00383.

Xia, X. and Kulis, B. (2017). W-net: A deep model for fully

unsupervised image segmentation. arXiv preprint

arXiv:1711.08506.

Xie, E., Wang, W., Yu, Z., Anandkumar, A., Alvarez, J. M.,

and Luo, P. (2021). Segformer: Simple and efﬁcient

design for semantic segmentation with transformers.

Advances in Neural Information Processing Systems,

34:12077–12090.

Yu, H., Yang, Z., Tan, L., Wang, Y., Sun, W., Sun, M., and

Tang, Y. (2018). Methods and datasets on semantic

segmentation: A review. Neurocomputing, 304:82–

103.

Zhaoyun, Y., Pichao, W., Fan, W., Xianzhe, X., Hanling,

Z., Hao, L., and Rong, J. (2022). Transfgu: A top-

down approach to ﬁne-grained unsupervised semantic

segmentation. In European Conference on Computer

Vision, pages 73–89. Springer.

Zheng, S., Jayasumana, S., Romera-Paredes, B., Vineet, V.,

Su, Z., Du, D., Huang, C., and Torr, P. H. (2015). Con-

ditional random ﬁelds as recurrent neural networks. In

Proceedings of the IEEE international conference on

computer vision, pages 1529–1537.

VISAPP 2025 - 20th International Conference on Computer Vision Theory and Applications

112
