Scaling Multi-Frame Transformers for End-to-End Driving

Vasileios Kochliaridis

, Filippos Moumtzidellis

and Ioannis Vlahavas

School of Informatics, Aristotle University of Thessaloniki, Thessaloniki, Greece

Keywords:

Autonomous Vehicles, Computer Vision, Deep Learning, Imitation Learning, Transformers.

Abstract:

Vision-based end-to-end controllers hold the potential to revolutionize the production of Autonomous Vehicles

by simplifying the implementation of navigation systems and reducing their development costs. However, the

large-scale implementation of such controllers faces challenges, such as accurately estimating object trajecto-

ries and making robust real-time decisions. Advanced Deep Learning architectures combined with Imitation

Learning provide a promising solution, allowing these controllers to learn from expert demonstrations to map

observations directly to vehicle controls. Despite the progress, existing controllers still struggle with general-

ization and are difﬁcult to train efﬁciently. In this paper, we introduce CILv3D, a novel video-based end-to-end

controller that processes multi-view video frames and learns complex spatial-temporal features using attention

mechanisms and 3D convolutions. We evaluate our approach by comparing its performance to the previous

state-of-the-art and demonstrate signiﬁcant improvements in the vehicle control accuracy. Our ﬁndings sug-

gest that our approach could enhance the scalability and robustness of autonomous driving systems.

1 INTRODUCTION

Inspired by the success of Transformer-based archi-

tectures in Natural Language Processing (NLP) tasks

(Vaswani et al., 2017), several works in the Com-

puter Vision domain have also integrated them, along

with Convolutional Neural Networks (CNNs) (Carion

et al., 2020). Transformers have shown an improved

ability to process complex visual information, leading

to more efﬁcient Vision-Based End-To-End (VBETE)

navigation controllers.

VBETE navigation controllers directly compute

vehicle controls, including throttle, steering, and

braking (Tampuu et al., 2020), using camera input.

These systems have gained popularity due to their

simpler implementation and reduced development

costs, compared to traditional multi-layer decision-

making modules, which fuse inputs from several sen-

sors.

One notable VBETE controller that has demon-

strated impressive performance in navigation tasks is

CIL++ (Xiao et al., 2023), which combines cutting-

edge Deep Learning methods, such as residual blocks

and Transformer Encoders, with Imitation Learning

(IL), in order to perform a wide range of driving tasks.

https://orcid.org/0000-0001-9431-6679

https://orcid.org/0009-0000-4753-290X

https://orcid.org/0000-0003-3477-8825

Although very promising, it lacks generalization abil-

ity in complex and densely populated environments,

which include many vehicles and pedestrians. Fur-

thermore, it presents instability in steering, making

the vehicle to oscillate around the center of its lane.

CILRL++ (V. Kochliaridis, 2024) was proposed to

address its weaknesses by employing the pretrained

CIL++ model as the initial policy for a Deep Re-

inforcement Learning (DRL) agent, which is then

ﬁne-tuned through interaction with simulated envi-

ronments. Although it is a more robust approach,

it requires signiﬁcant computational resources and

training time to reach optimal results. Our investi-

gation revealed that this stems from the sub-optimal

conditions under which CIL++ was developed. First,

excessive noise during data collection lead to steering

control instabilities. Second, the lack of effective data

augmentation techniques reduced the model’s gener-

alization ability. Third, it lacks motion awareness, as

it employs only observations from the present, com-

pletely disregarding past information, and thus mak-

ing it difﬁcult to drive properly. Finally, it utilizes a

fast but outdated feature extractor for image process-

ing.

In this paper, we present CILv3D, an improved

version of the CIL++ that addresses its weaknesses

and improves its driving performance, without in-

creasing its training time. To achieve this, we ﬁrst

496

Kochliaridis, V., Moumtzidellis, F. and Vlahavas, I.

Scaling Multi-Frame Transformers for End-to-End Driving.

DOI: 10.5220/0013156700003890

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 17th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2025) - Volume 3, pages 496-503

ISBN: 978-989-758-737-5; ISSN: 2184-433X

rectify the dataset collection process by constructing a

training dataset using the autopilot from the CARLA

0.9.15 simulator (Dosovitskiy et al., 2017). Moreover,

we utilize sequential inputs, including consecutive ve-

hicle controls and a video sequence for each view,

which are further processed by the backbone model

and 3D convolutions. Furthermore, we replaced its

backbone model with UniFormer (Li et al., 2023),

an also lightweight but more advanced Transformer-

based model that extracts features from images more

effectively. Finally, we investigate the use of several

data augmentation techniques during training to ad-

dress the generalization issues.

The remainder of this paper is organized as fol-

lows. Sections 2 and 3 present all the important lit-

erature relevant to this work. Section 4 provides a

detailed explanation of our methodology, while Sec-

tion 5 presents the simulation environment, the exper-

imental setup, the metrics, and discusses the experi-

mental results. Finally, Section 6 concludes this work

and outlines the direction for future research.

2 RELATED WORK

In 2017, the CARLA team (Dosovitskiy et al., 2017)

released the CARLA simulator, a realistic driving

simulator that enables the development and test-

ing of navigation algorithms. Moreover, they con-

ducted a comparison of various methods for devel-

oping VBETE controllers, including end-to-end ap-

proaches, such as IL and DRL, with IL demonstrating

superior performance in most of driving scenarios.

In a recent study by (Song et al., 2023), the authors

introduced an improved version of initial CARLA

team’s DRL approach. More speciﬁcally, the authors

combined DRL with several feature extraction meth-

ods, such as the bird’s-eye-view technique and Con-

volutional layers, which effectively extracted compre-

hensive set of features from the RGB images. Despite

the improved performance, their controller was only

reliable in simple scenarios with low trafﬁc density

and without the presence of pedestrians.

CIRLS (Codevilla et al., 2019) was the ﬁrst no-

table work in VBETE controllers, which employed

an RGB camera and a Deep Neural Network to es-

timate the vehicle controls. It was trained on a limited

dataset consisting of pairs of RGB images and ex-

pert vehicle control demonstrations, collected by an

older version of CARLA’s autopilot module. Its ar-

chitecture consists of a frozen ResNet-34 (He et al.,

2016), which is used to extract feature maps from the

input frames, and a Fully-Connected (FC) network,

which processes these features and predicts the de-

sired vehicle controls, including steering, throttle, and

braking. While this approach presented better driving

skills than the DRL-based approaches, it suffers from

overﬁtting, dataset biases due to several autopilot mis-

takes, and lack of generalization.

A more recent version of the CIRLS architecture,

named CIL++ (Xiao et al., 2023), addressed sev-

eral key limitations of its predecessor and improved

the overall driving performance, without complicat-

ing the input space. First, the authors utilized a differ-

ent autopilot system to construct the training dataset,

named Roach (Zhang et al., 2021), which proved to be

more smooth and accurate than the original CARLA’s

autopilot. During dataset collection, the authors in-

jected artiﬁcial noise into the vehicle’s control inputs

to enhance generalization and reduce overﬁtting. Sec-

ond, they employed three RGB cameras (left, front,

and right) to capture a wider Horizontal Field Of

View (HFOV) around the vehicle. Lastly, they in-

tegrated a Transformer Encoder, which enhances the

important features from each frame, resulting in im-

proved vehicle control predictions. Although their ap-

proach achieved state-of-the-art performance, it still

faces generalization challenges and instabilities due

to sub-optimal training conditions.

The CILRL++ approach (V. Kochliaridis, 2024)

was proposed to address the instabilities of CIL++ by

integrating IL with DRL. In this approach, the pre-

trained model is further ﬁne-tuned using a DRL al-

gorithm called Phasic Policy Gradient (PPG) (Baker

et al., 2022), along with a custom reward function

designed to focus the DRL agent on rectifying the

weaknesses of the initial model. To enable efﬁ-

cient ﬁne-tuning with DRL, the authors employed a

Kullback–Leibler Divergence loss, which address the

Catastrophic Forgetting problem, where a DRL policy

model forgets previously learned skills when under-

going new training. Although highly promising, this

approach requires extensive training time and compu-

tational resources.

To conclude our literature review, various attempts

have been made to develop end-to-end driving sys-

tems, including both IL and DRL, with most of

them facing generalization issues in complex environ-

ments, as well as training difﬁculties. In our work, we

aim to address these challenges by a) improving the

data collection and training pipeline and b) introduc-

ing an improved network architecture.

3 BACKGROUND

This section provides a detailed description of two

key architectures: the CIL++ architecture, previously

Scaling Multi-Frame Transformers for End-to-End Driving

497

recognized as the state-of-the-art in VBETE driving

controllers, and the UniFormer architecture.

3.1 CIL++ Architecture

CIL++ is a VBETE controller architecture that uti-

lizes three RGB cameras (left, front, right). Each

RGB image passes through a frozen ResNet-34 net-

work, which extracts useful feature maps, each one

represented by a 5x5x512 tensor. Then, each feature

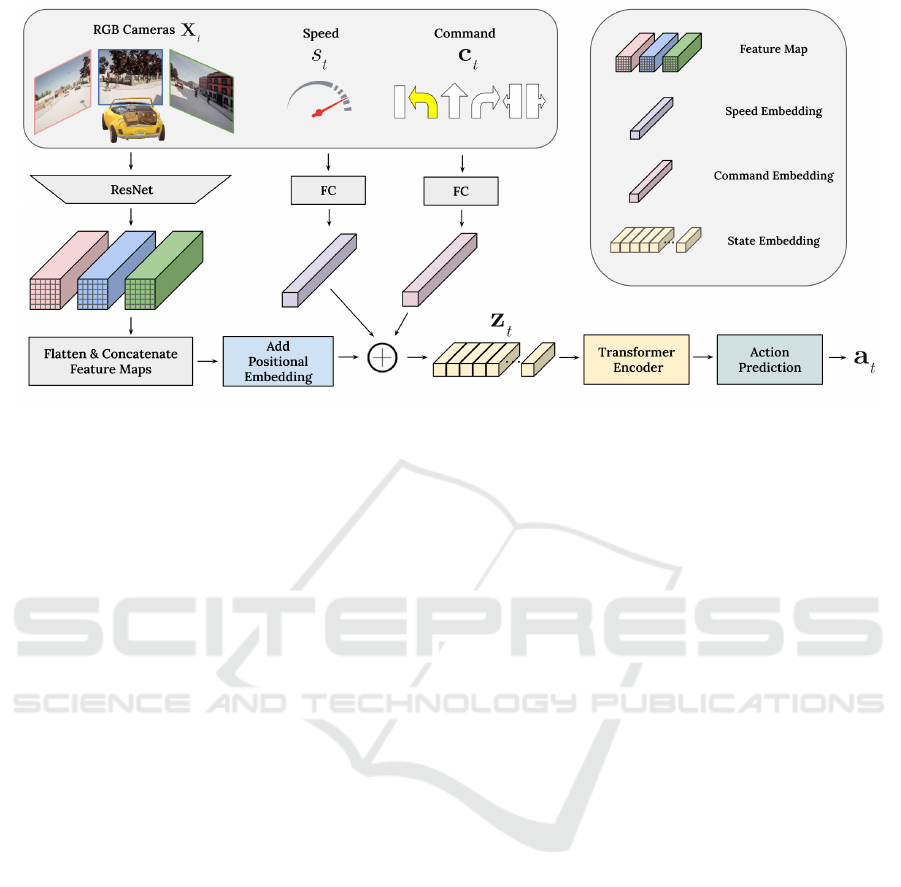

map is ﬂattened and combined with positional embed-

dings and control embeddings, which are projected

through a linear layer with 12,800 units, matching

the size of the ﬂattened feature maps, as illustrated in

Figure 1. The combined features are then processed

by Self-Attention blocks through a Transformer En-

coder, which reﬁnes enhances the important features

before passing tbem into the ﬁnal FC network. Final,

the FC network predicts the target steering and accel-

eration of the vehicle.

3.2 UniFormer

Designed for efﬁcient image classiﬁcation, Uni-

Former architecture combines CNNs with Self-

Attention mechanisms by unifying them into a trans-

former architecture. In comparison to ResNet, which

utilizes Convolutions and Residual Blocks only, it in-

tegrates local Multi-Head Self-Attention (MHSA) in

the shallow layers and global MHRA in the deeper

layers, enabling it to capture global token relations ef-

fectively, while reducing computational burden. Uni-

Former achieves fewer parameters and FLOPs com-

pared to other large transformer models and heav-

ier convolution-based architectures. For instance,

ResNet-34 contains 21.89 million parameters and re-

quires 3.68(G) FLOPs, while UniFormer has a com-

parable 22 million parameters but only 3.6(G) FLOPs.

Despite the similar complexity, it signiﬁcantly outper-

forms ResNet in the ImageNet classiﬁcation task.

4 METHODOLOGY

Our methodology improves upon CIL++, by incorpo-

rating a Video-Based End-To-End approach, which

can be structured into three core modules. The ﬁrst

module improves the dataset collection process. The

second module designs a video-based neural network

architecture, which is used to estimate the target ve-

hicle controls. The third module involves the training

of the neural network, which includes the preprocess-

ing of the collected data and the data augmentation

techniques.

4.1 Dataset Collection

Although the authors of CIL++ provide the datasets

which they used to train their model, we identiﬁed

two main issues during their collection methodology.

4.1.1 Autopilot Expert

CIL++ authors used Roach autopilot as the expert

driver, which relies solely on top-view cameras to ob-

serve the environment around the vehicle and gener-

ate controls. While the original CARLA autopilot had

several limitations, it has been signiﬁcantly improved,

reducing its perception and decision-making errors.

The updated CARLA autopilot now also utilizes in-

ternal simulator data, such as the precise location and

direction of every vehicle and pedestrian within the

simulation, which allows it to make more reliable and

accurate decisions. Additionally, CARLA’s autopilot

is more user-friendly and does not require ﬁne-tuning.

4.1.2 Vehicle Control Noise

Another issue of the dataset collection process was the

injection of artiﬁcial noise into the vehicle’s control,

during Roach’s operation. Although adding noise

is a well-known regularization technique to help re-

duce overﬁtting, in this case, it had a negative effect

on the CIL++ system. More speciﬁcally, the con-

troller exhibited a tendency to cause the vehicle to

oscillate around the center of the lane, struggling to

maintain steady steering. This occurred because it

learned these small deviations during Roach’s navi-

gation, leading to an inability to consistently stay cen-

tered in the lane. To avoid this issue, we apply both

noise and data augmentation only during the training

process, as described later in this Section.

4.1.3 Dataset

We collected a diverse dataset of approximately

80,000 expert demonstrations of driving data using

CARLA 0.9.15. The dataset captures a wide range of

driving scenarios across all available CARLA maps,

including varying weather conditions, trafﬁc densi-

ties, and urban layouts. Each demonstration includes:

• Three synchronized camera views (left, center,

right), denoted as L

, F

, R

respectively.

• Vehicle state information, which is a vector (v

)

that includes the acceleration, steering, speed and

command of the vehicle, denoted as a

, s

, u

, c

re-

spectively.

The cameras are strategically positioned to cover

the left, center, and right views, collectively provid-

ing 180-degree HFOV. This setup mimics the visual

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

498

Figure 1: Overview of the original multi-view CIL++ architecture. It utilizes 3 RGB frames, along with speed and command

embeddings, which are combined and pass through a Transformer Encoder.

range of human drivers and ensures comprehensive

environmental perception (Xiao et al., 2023). The

center camera is responsible for the front view while

the other two are responsible for covering the periph-

eral view. This camera layout is crucial for the con-

troller, in order to be able to perform tasks such as

lane changing, avoiding obstacles or stopping at traf-

ﬁc lights and crossing pedestrians.

To ensure diversity in our dataset, we developed

a randomization script that dynamically adjusts envi-

ronmental conditions such as weather patterns, pedes-

trian presence and their behavior. Additionally, for

each scenario, we varied the number and types of

vehicles on the road, assigning each one random at-

tributes like color, size, and destination. This ap-

proach is designed to create a robust dataset that cap-

tures a wide range of driving conditions, enhancing

the model’s ability to generalize across diverse envi-

ronments.

4.2 Network Architecture

Our network architecture is composed of four parts:

Spatio-Temporal encoding, State Embedding, Trans-

former Encoder, and Action Prediction Network (Fig-

ure 2). At time t, the current input of the neural net-

work consists of a set of video sequences SEQ

, F

, R

of size N + 1, with each video sequence in-

cluding the current and past N captured frames from

each camera, as well as the vehicle control sequences,

denoted as V

. More speciﬁcally, L

, F

and R

are the

video sequences from left, front and right view re-

spectively, while V

is a matrix which includes the cur-

rent and the past N vehicle state information vectors

4.2.1 Vehicle State Representation

To extract temporal dependencies from the vehicle

state V

, we apply 1D convolutions with kernel size of

N − 1. These convolutions are computationally efﬁ-

cient and can be executed without adding further com-

putational burden. Then, we use a linear layer with

12,800 units to generate the ﬁnal state embeddings.

Similar to CIL++, these state embeddings are then

added to the spatio-temporal embeddings extracted

from each video sequence, creating a uniﬁed repre-

sentation of the controller’s state.

4.2.2 Spatio-Temporal Encoding

Each frame is a 224 ×224 RGB image containing raw

pixel values in range [0, 255]. Acceleration is repre-

sented as a normalized value a

∈ [−1.0, 1.0], where

negative values indicate braking, while positive val-

ues indicate acceleration. Similarily, Steering is also

a normalized value s

∈ [−1.0, 1.0], with negative val-

ues and positive values indicating left and right steer-

ing respectively, while zero indicate that the vehicle is

driving in a straight line. Finally, speed is real value

u ∈ [0, 100], while the navigation command c is a cat-

egorical variable with 6 distinct values: Lane Follow,

Turn Left, Move Forward, Turn Right, Change Lane

Left, Change Lane Right.

To extract spatial information from each frame,

we replace the frozen ResNet-34 architecture with

a frozen UniFormer model, which produces feature

maps of size B × 7 × 7 × 512, where B denotes the

batch size of the input. To capture the temporal de-

pendencies within the video sequence, we apply a

3D convolution layer with 512 ﬁlters and kernel size

Scaling Multi-Frame Transformers for End-to-End Driving

499

of (N + 1, N + 1, N + 1). This generates the Spatio-

Temporal Embeddings of the model, resulting in out-

put of size B×5×5×512, which is then ﬂattened into

a vector of 12,800 features for further processing. For

each ﬂattened embedding vector corresponding to the

left, front and right camera sequences, we add their

respective positional Embeddings along with the ve-

hicle State Embeddings. Finally, these Embeddings

are, we concatenated vertically, resulting in a tensor

of B ×3 ×12800, the same as in CIL++, which is then

passed into a Transformer Encoder.

4.2.3 Transformer Encoder

The Transformer Encoder consists of K connected

Transformer Blocks, with each block producing M

head units, where K and M are user-deﬁned settings.

The ﬁnal Transformer Block outputs a ﬂattened vec-

tor of size M, which is passed into the Action Pre-

diction Network (APN), which is a Fully-Connected

network. The ﬁnal layer of the APN is a linear layer

with 2 units, corresponding to the desired outputs: the

next step acceleration and steering, denoted as a

t+1

and s

t+1

respectively.

4.2.4 UniFormer Performance

In our study, we utilized Grad-CAM (Gradient-

weighted Class Activation Mapping) (Selvaraju et al.,

2020) to analyze and compare the key image regions

prioritized by UniFormer and ResNet-34 during their

classiﬁcation tasks in the CARLA simulator. Grad-

CAM generates heatmaps that highlight the pixels

that are cosnidered signiﬁcant by a model for making

predictions, providing insights into the quality of its

feature maps. The visualizations in Figure 3 demon-

strate that UniFormer focuses more on critical fea-

tures, such as trafﬁc lights, vehicles, and their sur-

rounding areas, resulting in more precise feature rep-

resentations and enabling the navigation controller to

produce more accurate vehicle controls.

4.3 Training

For our preprocessing and training setup, we apply

several transformations to the three video sequences

and the vehicle state. Since the UniFormer model is

pretrained on ImageNet, we apply the ImageNet nor-

malization, using a mean of [0.485, 0.456, 0.406] and

a standard deviation of [0.229, 0.224, 0.225] to stan-

dardize the input pixels. The acceleration and steering

inputs are already normalized within a range of -1 to

1, but speed, which ranges from 0 to 100, is normal-

ized using Min-Max formula (Equation 1). Finally,

the control commands, are one-hot encoded.

′

u − u

min

max

− u

min

(1)

To reduce overﬁtting and improve the model’s

generalization, we introduced Gaussian noise to the

timeframe data and applied various data augmenta-

tion techniques to each frame. After experimenting

with several methods, we selected the augmentations

that worked best for our model. These include rescal-

ing the images to 224x224 (which is the input size for

UniFormer), adjusting brightness and contrast, apply-

ing Gaussian noise, and using blurring. Certain aug-

mentations were discarded as they negatively affected

the model’s performance and slowed-down the train-

ing. For instance, center cropping removed important

visual information from images, so it was replaced

with rescaling. Rotation was irrelevant because the

vehicle’s cameras have a ﬁxed position, color jittering

caused confusion by changing the colors of critical

elements like trafﬁc lights and lane markings and hor-

izontal ﬂipping was impractical as the steering wheel

is always on the left side.

5 EXPERIMENTS & DISCUSSION

The objective of our experimental is (a) to assess the

beneﬁt of each architectural enhancement, (b) to com-

pare our approach with the previous state-of-the-art

methods, including CIL++, CILRL and CILRL++.

Before training CILv3D, we randomly split the

training dataset into 80% (64000) of sequences for the

training set and 20% (16000) for the test set. Addi-

tionally, we conduct hyperparameter tuning to further

optimize its performance.

Once the model is trained, we evaluate it on mul-

tiple tasks speciﬁed by the CARLA leaderboard sim-

ulator under diverse weather conditions. These tasks

include:

• Lane-merging

• Negotiations at junctions

• Managing trafﬁc lights and signs

• Yielding to emergency vehicles

• Handling pedestrians, cyclists, and other dynamic

elements

Moreover, we construct a random scenario in

Town10 of the CARLA simulator to assess the perfor-

mance of the developed controller on general-purpose

navigation tasks. In this scenario, we spawn 100 ve-

hicles and 40 pedestrians in random locations and is-

sue random commands and navigation waypoints to

CILv3D, which navigates a vehicle. We record its

navigation route in the CARLA simulator and have

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

500

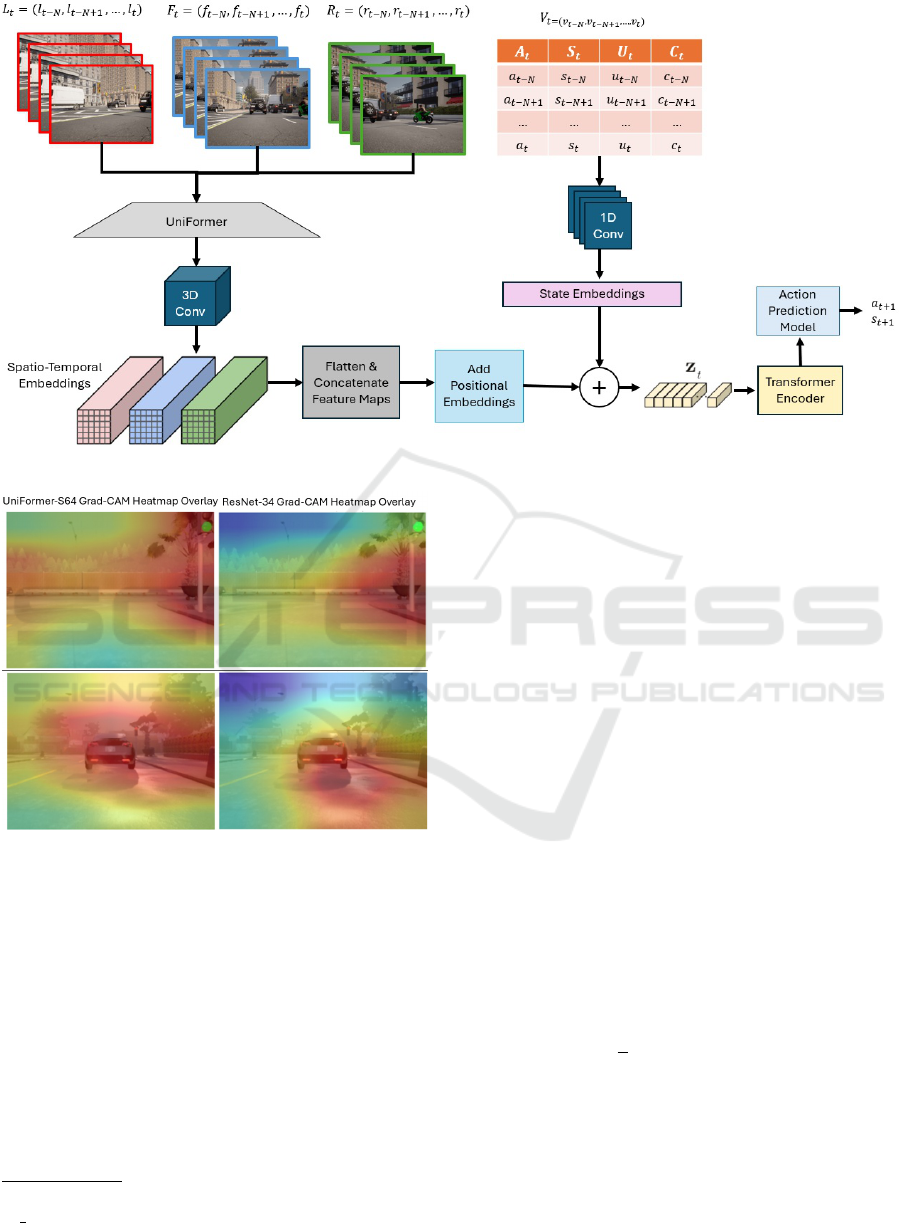

Figure 2: Overview of the multi-frame CILv3D architecture.

Figure 3: Grad-CAM visualizations of UniFormer and

ResNet-34. Red and orange areas indicate regions of high

importance, while green and blue areas reﬂect less signiﬁ-

cance. UniFormer can even identify small details inside an

image, such as the vehicle in the left edge of the top image.

made a video available on the YouTube platform

We also provide the implementation code in Github

platform

5.1 Hyperparameter Tuning

Due to the time-consuming nature of Hyperparameter

tuning, we manually conducted a limited search only

on the most critical hyperparameters. These include

https://www.youtube.com/watch?v=65k9P3mIkcY&

ab channel=CiLv3D

https://github.com/kochlisGit/CILv3D

the sequence size N, the number of transformer blocks

(K) and the transformer head units (M), as well as the

1D convolution ﬁlters used during the vehicle State

Representation construction stage.

During this process, we trained the neural network

for 50 epochs with each conﬁguration and selected

the parameters that yielded the lowest Mean Abso-

lute Error (MAE). The sequence size N was set to

4 after experimenting with values ranging from 2 to

8, as this provided a good balance between accuracy,

model complexity, and performance. The parameters

K and M were set to 4 and 2048, respectively, follow-

ing experimentation with K values from 1 to 6 and M

values from {256, 512, 1024, 2048}. Finally, the best

number of 1D convolution ﬁlters was found to be 512.

The rest of the training conﬁguration is the same

as CIL++. More speciﬁcally, we train the model for

1000 epochs using the Adam optimizer with an initial

learning rate of 0.001 and weight decay of 0.99. The

goal of Adam is to minimize the MAE of both the

acceleration (a

t+1

and the steering s

t+1

, as described

by equation 2.

MAE

total

∑

i=1



MAE

(i)

t+1

+ MAE

(i)

t+1



(2)

where S is the dataset size. The selected hyperpa-

rameters can be summarized by Table 1.

5.2 Metrics

Similar to the CIL++ approach, we use the MAE as a

metric to assess how effectively the constructed neu-

Scaling Multi-Frame Transformers for End-to-End Driving

501

Table 1: CILRL++ Conﬁguration.

Parameter Value

Sequence Size (N) 4

Transformer Blocks (K) 4

Discount factor (M) 2048

1D Conv Filters 512

3D Conv Filters 512

Loss MAE

Optimizer Adam

Learning Rate (lr) 0.001

Weight Decay 0.99

Epochs (e) 1000

ral network learns from expert demonstrations during

training. Low MAE in both the training and test set

provides an initial indication of how well the model

might perform in navigation tasks.

To further evaluate its driving performance, we

utilize the suggested metrics by the leaderboard mod-

ule, which are outlined below.

1. Avg. Driving Score: the most important metric of

the Leaderboard, which is deﬁned as R

·P

, where

and P

express the route completion percentage

and the infraction penalty respectively.

2. Avg Route Completion (%): the completed

route distance.

3. Avg Infraction Penalty: the maximum value of

this score is 1.0 and is reduced each time the driv-

ing controller commits an infraction.

4. Collisions with Vehicles: the collision count with

other vehicles.

5. Collisions with Pedestrians: the collision count

with walking pedestrians.

6. Collisions with Layout: the collision count with

objects (e.g. buildings, pavement, etc.).

7. Red Light Infractions: the number of red lights

ignored by the vehicle.

8. Stop Sign Infractions: the number of stop signs

ignored by the vehicle.

9. Off-Road Infractions: the number of times

where the vehicle deviated from its target lane.

10. Route Deviations: the number of times where the

vehicle deviated from the desired route.

11. Route Timeouts: the number of times where the

vehicle failed to complete its route within a spec-

iﬁed amount of time.

12. Agent Blocked: the total time during which the

vehicle was inoperative.

Figure 4: Training loss (MAE) per training epoch.

5.3 Results & Discussion

The performance of each architectural enhancement

is presented in Figure 4 for the training set and in

Table 2 for the test dataset. It can be observed that

starting from around epoch 200, CILv3D shows no-

tably more stable training behavior with fewer ﬂuc-

tuations compared to other models. The CIL++ ap-

proach exhibits oscillating loss throughout the train-

ing period, while struggling to generalize effectively

on the test set. When ResNet-34 is replaced by

UniFormer (CIL++ - UNI), the model requires more

epochs to converge, but the overall performance is im-

proved. A signiﬁcant improvement in convergence

speed is also observed when sequential inputs are in-

troduced (CIL++ - 3D). The best overall performance

is achieved by CILv3D, which combines all architec-

tural enhancements described in Section 4.

Table 2: The Train-Eval Loss (MAE) of each architecture

for the Imitation Learning process.

Architecture Training Loss Validation Loss

CIL++ 0.0107 0.01387

CIL++ - Uni 0.0101 0.01180

CIL++ - 3D 0.0097 0.01184

CILv3D 0.0092 0.01059

The results of the evaluation experiments in the

CARLA simulator are shown in Table 3. CILv3D

slightly outperforms CILRL++ in several Leader-

board challenges, without requiring additional ﬁne-

tuning using DRL. On the other hand, CILRL++

achieved the best performance in a few speciﬁc tasks,

such as reducing collisions with pedestrians and the

environment, as well as receiving fewer infraction

penalties. This is due to the extensive ﬁne-tuning

applied to CIL++ for these particular scenarios, with

prolonged scaling. Despite this, CILv3D remains the

best-performing approach overall, achieving the high-

ICAART 2025 - 17th International Conference on Agents and Artiﬁcial Intelligence

502

Table 3: Evaluation Table of a) CIL++, b) CILRL, c)

CILRL++ and d) CILv3D using CARLA Leaderboard.

Score CIL++ CILRL CILRL++ CILv3D

Avg. Driving Score (%) 2.59 0.09 10.01 11.73

Avg. Route Completition (%) 10.93 0.29 14.44 15.12

Avg. Infraction Penalty 0.44 0.47 0.64 0.59

Collisions with Vehicles 0.0 0.0 0.0 0.0

Collisions with Pedestrians 256.21 2759.67 52.82 128.43

Collisions with Layout 411.01 14496.83 255.22 285.66

Red Light Infractions 9.34 0.0 7.98 8.83

Stop Sign Infractions 5.77 846.62 0.0 2.25

Off-Road Infractions 253.67 1457.57 186.47 177.53

Route Deviations 0.0 144.4 76.74 55.81

Route Timeouts 0.0 330.96 0.0 0.0

Agent Blocked 399 10985.68 222.65 198.69

est average driving score and route completion with

less amount of training time.

6 CONCLUSION & FUTURE

WORK

In this paper, we present CILv3D, which addresses

several key limitations of CIL++ by reﬁning the

dataset collection process, incorporating multi-frame

and sequential inputs and utilizing a more advanced

backbone model. Furthermore, we address the gener-

alization issues by exploring effective data augmenta-

tion techniques and injecting noise during the training

process.

Our experimental results in several scenarios in-

cluded in the CARLA Leaderboard indicate that that

CILv3D achieves higher driving score than CIL++

and CILRL++, in terms of overall driving score and

route completion. Notably, CILv3D achieves these

improvements without the need for extensive ﬁne-

tuning techniques, such as utilizing DRL methods, re-

sulting in reduced training time and computational re-

quirements. Although CILv3D demonstrates promis-

ing results, several directions for future research could

further enhance its navigation performance, such as

a 360

◦

view of the environment, which could po-

tentially improve the controller’s decisions at lane

change tasks.

REFERENCES

Baker, B., Akkaya, I., Zhokov, P., Huizinga, J., Tang, J.,

Ecoffet, A., Houghton, B., Sampedro, R., and Clune,

J. (2022). Video pretraining (vpt): Learning to act by

watching unlabeled online videos. Advances in Neural

Information Processing Systems, 35:24639–24654.

Carion, N., Massa, F., Synnaeve, G., Usunier, N., Kirillov,

A., and Zagoruyko, S. (2020). End-to-end object de-

tection with transformers. In European conference on

computer vision, pages 213–229. Springer.

Codevilla, F., Santana, E., L

opez, A. M., and Gaidon,

A. (2019). Exploring the limitations of behavior

cloning for autonomous driving. In Proceedings of

the IEEE/CVF international conference on computer

vision, pages 9329–9338.

Dosovitskiy, A., Ros, G., Codevilla, F., Lopez, A., and

Koltun, V. (2017). Carla: An open urban driving sim-

ulator. In Conference on robot learning, pages 1–16.

PMLR.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Li, K., Wang, Y., Zhang, J., Gao, P., Song, G., Liu, Y., Li,

H., and Qiao, Y. (2023). Uniformer: Unifying convo-

lution and self-attention for visual recognition. IEEE

Transactions on Pattern Analysis and Machine Intel-

ligence, 45(10):12581–12600.

Selvaraju, R. R., Cogswell, M., Das, A., Vedantam, R.,

Parikh, D., and Batra, D. (2020). Grad-cam: visual

explanations from deep networks via gradient-based

localization. International journal of computer vision,

128:336–359.

Song, Q., Liu, Y., Lu, M., Zhang, J., Qi, H., Wang, Z., and

Liu, Z. (2023). Autonomous driving decision control

based on improved proximal policy optimization al-

gorithm. Applied Sciences, 13(11):6400.

Tampuu, A., Matiisen, T., Semikin, M., Fishman, D., and

Muhammad, N. (2020). A survey of end-to-end driv-

ing: Architectures and training methods. IEEE Trans-

actions on Neural Networks and Learning Systems,

33(4):1364–1384.

V. Kochliaridis, E. Kostinoudis, I. V. (2024). Optimiz-

ing pretrained transformers for autonomous driving.

In 13th EETN Conference on Artiﬁcial Intelligence

(SETN). ACM.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, Ł., and Polosukhin, I.

(2017). Attention is all you need. Advances in neural

information processing systems, 30.

Xiao, Y., Codevilla, F., Porres, D., and L

opez, A. M. (2023).

Scaling vision-based end-to-end autonomous driving

with multi-view attention learning. In 2023 IEEE/RSJ

International Conference on Intelligent Robots and

Systems (IROS), pages 1586–1593. IEEE.

Zhang, Z., Liniger, A., Dai, D., Yu, F., and Van Gool, L.

(2021). End-to-end urban driving by imitating a re-

inforcement learning coach. In Proceedings of the

IEEE/CVF international conference on computer vi-

sion, pages 15222–15232.

Scaling Multi-Frame Transformers for End-to-End Driving

503
