HyperGraphOS: A Meta Operating System for Science and Engineering

Antonello Ceravola

1 a

, Frank Joublin

1 b

, Ahmed R. Sadik

1 c

, Bram Bolder

1 d

and Juha-Pekka Tolvanen

2 e

Honda Research Institute Europe, Offenbach, Germany

MetaCase, Jyv

askyl

a, Finland

{antonello.ceravola, frank.joublin, ahmed.sadik, bram.bolder}@honda-ri.de, jpt@metacase.com

Keywords:

Operating Systems, Agile Model-Based System Engineering, Graph-Based Modelling, Domain Speciﬁc

Languages, Artiﬁcial Intelligence.

Abstract:

This paper presents HyperGraphOS, an innovative Operating System (OS) designed for the scientiﬁc and

engineering domains. It combines model-based engineering, graph modeling, data containers, and computa-

tional tools, offering users a dynamic workspace for creating and managing complex models represented as

customizable graphs. Using a web-based architecture, HyperGraphOS requires only a modern browser to or-

ganize knowledge, documents, and content into interconnected models. Domain-Speciﬁc Languages (DSLs)

drive workspace navigation, code generation, AI integration, and process organization. The platform’s models

function as both visual drawings and data structures, enabling dynamic modiﬁcations and inspection, both

interactively and programmatically. HyperGraphOS was evaluated across various domains, including virtual

avatars, robotic task planning using Large Language Models (LLMs), and meta-modeling for feature-based

code development. Results show signiﬁcant improvements in ﬂexibility, data management, computation, and

document handling. By bridging traditional OS functionality with innovative UX design to fulﬁll the needs

of modern applications, HyperGraphOS delivers enhanced productivity and efﬁciency. Its graph-based model

representation and integration with DSLs create a highly ﬂexible, user-friendly environment, making it ideal

for a wide range of scientiﬁc and engineering contexts.

1 INTRODUCTION

Operating Systems (OSs) have evolved signiﬁcantly

since the 1950s, when they were ﬁrst developed for

general-purpose computers such as IBM’s 701 and

709, as illustrated in Figure 1. Initially, these systems

required manual intervention for executing programs

and lacked automation. The introduction of batch

processing in the 1950s, exempliﬁed by IBM systems,

allowed sequences of jobs to be processed without hu-

man input. Time-sharing systems soon followed, en-

abling multiple users to interact with the same com-

puter simultaneously, as seen in MIT’s CTSS and

IBM’s System/360. At this same time, Teletypewrit-

ers (TTY) and the concept of ﬁle were introduced, fol-

lowed a few years later by the concept of hierarchical

folders in Multics. At the end of the 1960s, UNIX, de-

https://orcid.org/0000-0002-1075-459X

https://orcid.org/0000-0002-4421-1737

https://orcid.org/0000-0001-8291-2211

https://orcid.org/0009-0002-5595-2466

https://orcid.org/0000-0002-6409-5972

veloped at Bell Labs, popularized these abstractions

and the concept of console which since then form the

foundation of modern OSs.

The rise of personal computers in the 1980s, along

with OSs like MS-DOS and Windows, brought com-

puting to individual users, and popularized the WIMP

(Windows, Icons, Menus, Pointer) paradigm devel-

oped and experimented in the 1970s. Graphical User

Interfaces (GUIs) further simpliﬁed interactions by

introducing these visual elements. In the 2000s, OSs

expanded to support mobile devices and cloud-based

platforms like iOS, Android, and Chrome OS, while

still relying on core UNIX-based abstractions. De-

spite advances in security, processing power, and in-

terface design, general-purpose OSs remain limited in

addressing the speciﬁc needs of speciﬁc users, which

demand more advanced data manipulation and model

integration tools.

This research introduces HyperGraphOS, a web-

based OS designed speciﬁcally for scientiﬁc and en-

gineering contexts. The OS is publicly available

on GitHub (HRI-EU, 2024a), enabling researchers

Ceravola, A., Joublin, F., Sadik, A. R., Bolder, B. and Tolvanen, J.-P.

HyperGraphOS: A Meta Operating System for Science and Engineering.

DOI: 10.5220/0013164900003896

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 13th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2025), pages 64-74

ISBN: 978-989-758-729-0; ISSN: 2184-4348

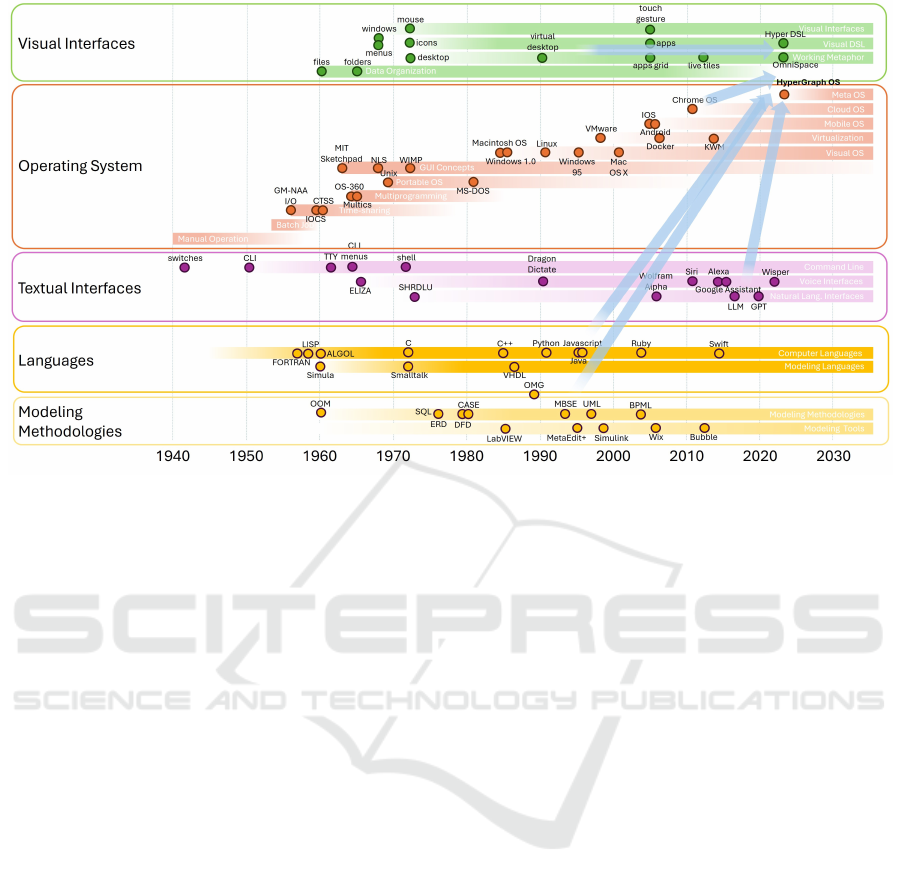

Figure 1: Historical Inﬂuences leading to the development of HypergraphOS.

and developers to contribute and extend its capabil-

ities. HyperGraphOS leverages DSLs and graph-

based models to provide a ﬂexible and efﬁcient en-

vironment for managing complex data and models,

addressing the limitations of current general-purpose

OSs. Integrating advanced technologies such as Ar-

tiﬁcial Intelligence (AI) and Large Language Mod-

els (LLMs), HyperGraphOS allows dynamic interac-

tion with data, both interactively and programmati-

cally. The system’s unique design offers inﬁnitely

connected WorkSpaces (i.e., workspace)(HRI-EU,

2024b), customizeable semantics, and visual data rep-

resentations, addressing the limitations of traditional

OSs in specialized domains. HyperGraphOS is built

on a minimal kernel with fractal design principles

(Lorenz, 2002)(Blair et al., 2009)(Ediz, 2009), ensur-

ing extensibility and adaptability.

This paper is not intended to cover all the char-

acteristics of HyperGraphOS but rather aims to give

a ﬁrst impression of it. For a more extensive and

comprehensive analysis, several other articles are in

preparation, each focusing on a different perspective.

The rest of this paper is organized as follows: Sec-

tion 2 outlines the evolution of OSs, Section 3 details

the main concept behind HyperGraphOS, and Section

4 explores its architecture and core features. Sec-

tion 5 presents case studies demonstrating its practi-

cal application, and the paper concludes by compar-

ing HyperGraphOS to existing systems, highlighting

its unique contributions and potential future develop-

ments.

2 BACKGROUND

OSs can be deﬁned from several perspectives. How-

ever, their primary function is to manage and allocate

hardware resources such as memory, processors, and

input/output devices, to ensure efﬁcient interactions

between users and applications (Tanenbaum, 2009;

Silberschatz et al., 2013). An OS abstracts the un-

derlying hardware and resources, providing a user-

friendly interface and offering basic services that fa-

cilitate interactions for both users and programs.

OSs are generally divided into two categories:

general-purpose and special-purpose OSs (Bullynck,

2018). This paper focuses on general-purpose OSs

like Windows, Linux, and macOS, designed for

broad use and enabling users to organize documents

and applications without requiring speciﬁc techni-

cal expertise. These systems are widely employed

in various environments, from households to pro-

fessional and technical settings, where they support

tasks such as document management, billing, and

software development. However, general-purpose

OSs often fall short when addressing speciﬁc do-

main needs. General-purpose OSs rely exclusively

on applications to solve the domain-speciﬁc needs of

users. For example, household users may ﬁnd the ﬁle

and folder structure cumbersome, while profession-

als may struggle to relate documents like bills and or-

ders without relying on billing applications. Techni-

cal users may face challenges in organizing their work

environments due to limited project-speciﬁc support

HyperGraphOS: A Meta Operating System for Science and Engineering

in traditional OSs unless they turn to project manage-

ment applications. The challenge here is that these

applications are vendor-dependent and create a zoo of

problems (e.g., ﬁle formats, compatibility, interoper-

ability) when integration of multiple tools is needed.

These problems can all be solved through the use of

”glue” applications (e.g., converters) that increase us-

age complexity in unnecessary ways (accidental com-

plexity (Brooks, 1987)).

From Model-Based System Engineering (MBSE)

perspective (David et al., 2023)(Tolvanen and Kelly,

2016), OSs can be seen as applications that provide

speciﬁc DSLs for users to model their tasks and in-

teractions. MBSE focuses in the creation of abstract

models that represent system architecture, behavior,

and interactions leaving aside implementation details

(Tolvanen and Kelly, 2016). OSs can be analyzed

through their DSLs, which facilitate user interaction,

program execution, and hardware management. We

decompose OS-DSLs in three level of abstractions:

Low-level OS-DSL such as peripheral APIs, allow

OEMs to create new devices for computers. Mid-level

OS DSLs, such as programming APIs, enable devel-

opers to build applications without directly manag-

ing hardware. High-level DSLs deﬁne elements like

ﬁles, folders, and windows, enabling visual organiza-

tion and interaction with the system. In this paper,

High-level OS-DSL are our primary focus.

Files and folders are represented visually on the

desktop, a limited space deﬁned by the screen area

and have attributes like names, sizes, and creation

dates, while windows display application content and

include attributes such as size, position, and title.

This abstraction simpliﬁes user interaction by hiding

the underlying complexity. However, traditional OS-

DSLs come with several limitations. Desktops intro-

duced in the 1970s followed a working environment

metaphor and were extended in the 1990s by the con-

cept of virtual desktops. Although they provide space

for organizing ﬁles, they are restricted by the phys-

ical screen size, and the icons often lack sufﬁcient

visual clarity for smooth navigation. Furthermore,

the desktop layout does not persist after a system re-

boot, requiring users to manually restore their appli-

cation layouts—a problem recently mitigated in Win-

dows through tools like PowerToy App Layout (Mi-

crosoft, 2024). While ﬁles and folders are effective

for document organization, they often create incon-

sistencies due to limited modeling degrees (e.g user-

deﬁned naming con- ventions and lack of ﬂexibil-

ity in organizing dependencies between ﬁles). Con-

sequently, handling large volumes of ﬁles becomes

challenging without advanced organizational tools.

The application-centric nature of traditional OSs

presents several challenges. Data re-usability across

different applications often requires tedious or com-

plex conversions, and frequent context switching be-

tween applications. Resource management is also

handled independently by applications, often result-

ing in redundant or inefﬁcient use of data storage. The

heavy reliance on GUIs further limits automation and

seamless integration with advanced systems, as many

embedded high-level OS-DSLs are not designed for

easy programmability (MacOS is an exception here

(Inc., 2024) as well as Atlassian Workﬂow Automa-

tion (Atlassian, 2024)). This limits the ability to auto-

mate tasks or integrate with external systems.

In MBSE terms, interacting with an OS through its

graphical interface is analogous to modeling. Users

create ”models” of their desired content and actions

through the UI, which the OS interprets and executes,

updating the system state accordingly. OS-DSLs ab-

stract underlying complexity, enabling users to focus

on tasks without having to deal with low-level system

management.

3 HyperGraphOS CONCEPT

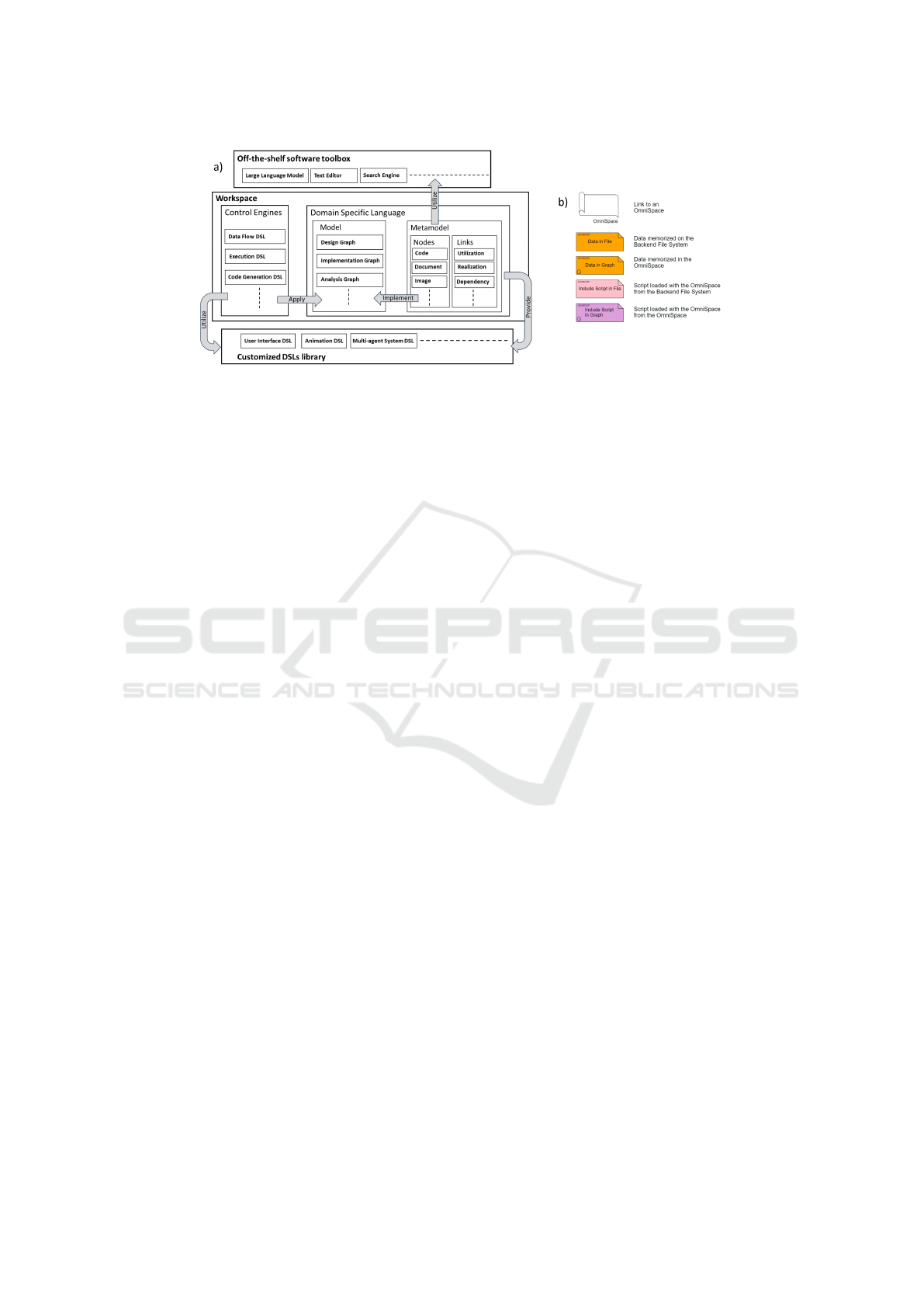

HyperGraphOS (HRI-EU, 2024b), as shown in Fig. 2

is designed to redeﬁne how users interact with com-

puters and digital information systems. By leverag-

ing DSLs, HyperGraphOS transforms traditional ﬁle

management into an interconnected web of informa-

tion. The basic graphical elements used to create vi-

sual DSL are nodes and links. Nodes within the sys-

tem represent ﬁles, documents, and data, which are

customizable, annotatable, and maintainable. These

nodes visually represent data while encapsulating

both content and visual aspects, in a concept similar

to Unix symbolic links. Nodes can represent various

semantics such as programs, numbers, images, and

text, while links deﬁne relationships like dependen-

cies, causal connections, and interactions.

The Meta-model allows for the creation of nodes

(such as code, documents, and images) and links

(such as utilization, realization, and dependency) for

users to organize and visualize their data in ﬂexible

and dynamic ways. This architecture promotes seam-

less interaction with various data formats, which are

handled by corresponding editors and viewers.

At the heart of HyperGraphOS is the concept of

OmniSpace, an inﬁnite network of workspaces, which

can be conﬁgured with different DSLs, for instance,

with DataFlow DSL, Execution DSL, or Code Gener-

ation DSL. These DSLs can be used by a developer to

model an application which can be executed in-place,

on a batch or deployed to a target computer. Exe-

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

Figure 2: a) HyperGraphOS operation concept. b) Basic DSL for navigation and ﬁle manipulation.

cution DSL utilizes the Customized DSLs Library,

which includes specialized DSLs such as the Basic

DSL (Fig. 2b) for navigation and ﬁle manipulation,

User Interface DSL, Animation DSL, or AI DSL, pro-

viding a rich set of meta-models to developers for

their modeling processes.

The Meta-DSL (a specialized DSL to create new

DSL) components within HyperGraphOS provides

a framework for the development of meta-models,

which can be used in different forms, like De-

sign Graphs, Implementation Graphs, and Analysis

Graphs. These models use the nodes and links pro-

vided by the meta-model, allowing the system to tai-

lor the representation of information to the speciﬁc

needs of the users. HyperGraphOS offers the capa-

bility to deﬁne DSLs using Meta-DSLs (notice the

recursion here), which are implemented within a set

of workspaces for creating and deploying domain-

speciﬁc languages (a meta-meta model for the cre-

ation of DSL is also available to users).

HyperGraphOS operates as distributed

workspaces, where users can group documents

visually using container nodes, links, and workspace

hyperlinks. Workspaces serve as virtual environ-

ments for organizing data and applications. They

are inﬁnite, ﬂexible, and capable of preserving

the state (both model and applications/windows)

and navigation history of tasks. Workspaces can

also span across multiple storage solutions such as

local storage, cloud services, and remote devices.

Off-the-shelf Software Toolbox, which includes tools

such as LLMs, Text Editors, and Search Engines,

are seamlessly integrated into HyperGraphOS. These

tools are utilized by the workspace’s Control Engines

and Meta-model to provide advanced capabilities,

such as content creation, search functionalities, and

programmatic manipulation.

HyperGraphOS incorporates cutting-edge tech-

nologies like an integrated JavaScript-based shell for

testing and manipulating nodes and links program-

matically. Additionally, a robust search engine and

AI integration provide on-demand assistance within

documents. Despite its rich set of capabilities, Hyper-

GraphOS maintains a minimalistic design and system

footprint, ensuring intuitive interaction and ease of

use. The concept of applications, in HyperGraphOS,

is re-imagined as modular constructs, moving away

from the monolithic executable model of traditional

OSs. The set of Featured-Based Code Generation

Systems allows for automatic code generation based

on models, templates (HRI-EU, 2024b), annotations,

... something that further streamlines software devel-

opment processes.

Although this is still in development, we strive

to implement collaborative features, enabling multi-

disciplinary teams to work together using integrated

tools for real-time editing, version control, and inter-

active annotations.

4 SYSTEM ARCHITECTURE

HyperGraphOS is built on a modular architecture as

shown in Fig. 3. The architecture is composed of

ﬁve main modules: a Kernel Interface, a Back-end,

Front-ends, External Cloud Services, and Data man-

agement. These modules work together to provide

a ﬂexible, distributed, and scalable system that rede-

ﬁnes traditional ﬁle management and work organiza-

tion. At the core of HyperGraphOS is the Kernel In-

terface, which manages the hardware abstraction and

rendering of the user interface. The Rendering En-

gine within this module ensures seamless graphical

interaction, while the OS Kernel interfaces with es-

sential hardware resources like CPU, memory, and

input/output devices. Additionally, the File System

plays a crucial role in managing data storage and re-

trieval, interfacing with the back-end for efﬁcient data

processing and handling of user workspaces.

The Back-end acts as an intermediary between the

HyperGraphOS: A Meta Operating System for Science and Engineering

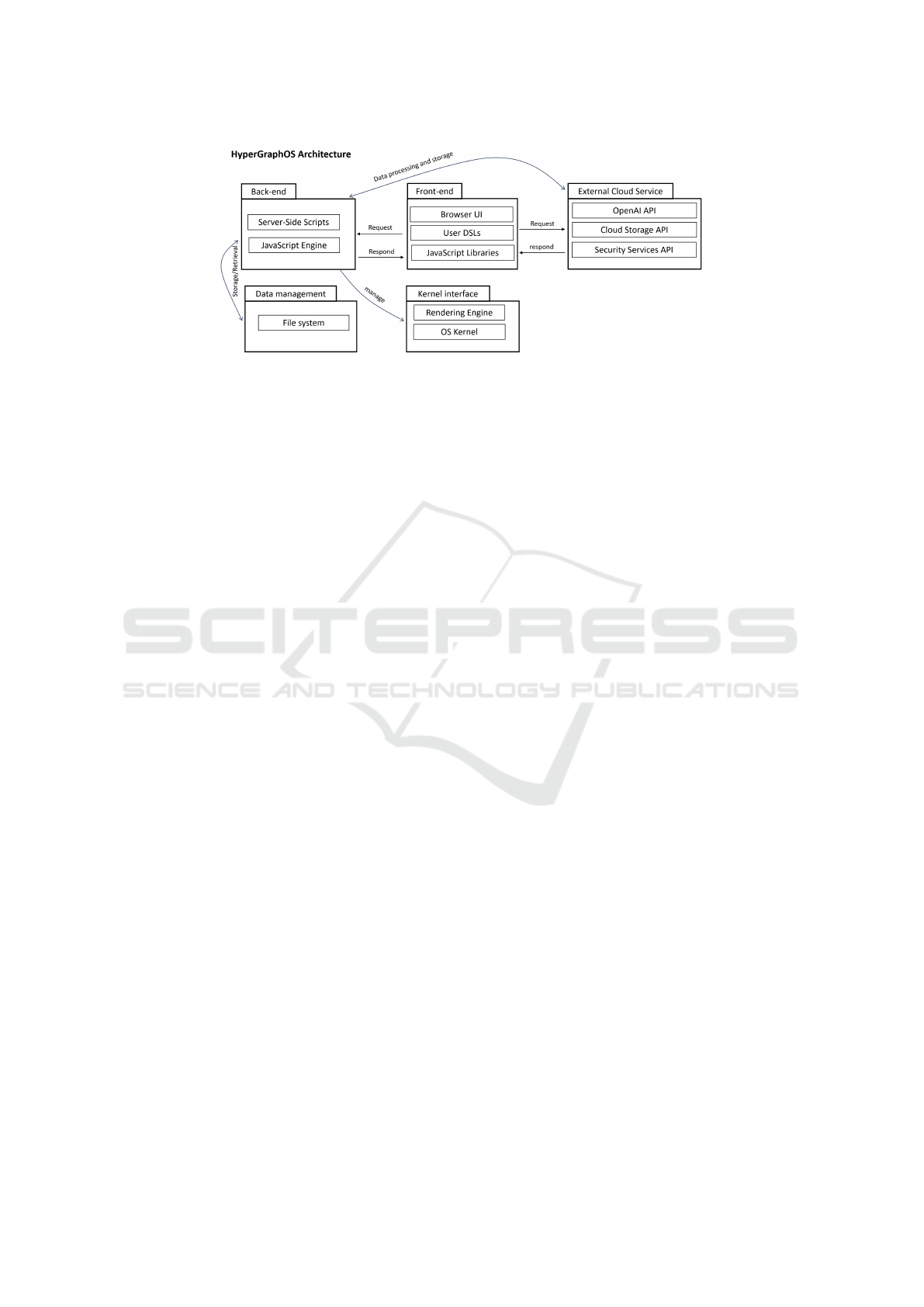

Figure 3: HyperGraphOS software architecture.

front-end and the kernel, built on JavaScript Engine

components and Server-Side Scripts that handle data

requests, workspace management, and batch execu-

tion. This module processes user requests, manages

workspace ﬁles as JSON objects, and ensures that

data is stored or retrieved from the ﬁle system. More-

over, the back-end is responsible for interacting with

External Cloud Services, enabling integration with lo-

cal or cloud-based APIs like OpenAI for AI tasks (Ca-

mara et al., 2023), Cloud Storage for scalable data

handling, and Security Services for managing data

protection and privacy.

The Front-end of HyperGraphOS operates

through a browser interface, where users interact

with workspace via a graphical canvas powered by

user DSLs, JavaScript Libraries and GoJS (one of

the most complete graphical libraries available in the

web domain (Northwoods, 2022)). This dynamic

interface allows users to manipulate visually the

content of workspaces, using graphs to represent

nodes, and links. Each workspace is stored as a JSON

object, allowing light and ﬂexible storage (Nurseitov

et al., 2009)(Zunke and D’Souza, 2014) and intuitive

management of ﬁles and documents. Easy access

of its content is possible through a visual inspector

or in a programmatic way. The front-end ensures

that users have a streamlined, ”zero-setup” usability,

and interactive experience, directly connected to the

back-end for data requests and processing.

The External Cloud Services module integrates

key functionalities that extend the capabilities of Hy-

perGraphOS. Through cloud-based APIs, the system

interacts with external tools for data processing, se-

curity management, and AI-driven features. Services

like OpenAI API provide powerful machine learning

and natural language processing capabilities used for

code generation (Sadik et al., 2023) or dataﬂow ap-

plications, while Cloud Storage offers scalable and

distributed storage solutions, ensuring the system can

handle an increasing number of workspaces as user

needs grow. The Security Services API guaran-

tees user data protection, ensuring privacy and com-

pliance with security standards while maintaining a

lightweight system architecture.

Data management in HyperGraphOS is stream-

lined through a custom organization of ﬁles and di-

rectories on the server side, bypassing for now the

need for traditional databases. This approach sim-

pliﬁes data architecture while ensuring ﬂexibility in

managing workspaces. However, as HyperGraphOS

evolves, further enhancements may be required to ac-

commodate more complex data management needs.

Scalability is inherently managed through the

distributed handling of JSON ﬁles that represent

workspaces. This ensures that the system can efﬁ-

ciently manage multiple nodes or workspaces without

the need for extensive infrastructure, enabling Hyper-

GraphOS to scale seamlessly as users create and man-

age more complex environments. Security and pri-

vacy are handled through external services, allowing

HyperGraphOS to maintain a lightweight architecture

without sacriﬁcing user data protection. By outsourc-

ing security management to specialized services, the

system remains streamlined, ensuring robust data pro-

tection without adding unnecessary complexity to the

core architecture.

HyperGraphOS also provides robust integration

capabilities through its own APIs, allowing program-

matic navigation and modiﬁcation of workspace mod-

els, with models represented in a dual way as a vi-

sual drawing and as a JSON object. JSON format

has been chosen for its native integration in Javascript

and its relative lightweight encoding (Nurseitov et al.,

2009)(Zunke and D’Souza, 2014). Besides JSON,

some dedicated user interface and DSLs make use

of the YAML format (Eriksson and Hallberg, 2011)

for its compactness, readability and user friendliness.

Both the front-end and back-end offer libraries that

support users in deﬁning code generators for their ap-

plications, making integration with external tools and

systems straightforward and seamless.

This modular and distributed architecture, com-

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

bined with the ﬂexibility offered by JSON-based

workspace management, allows HyperGraphOS to

deliver a scalable solution for modern computing

needs. It offers a new approach to manage digital in-

formation by extending high-level OS-DSLs, blend-

ing the simplicity of user-friendly design with the

power of advanced, customizable back-end services.

5 CASE STUDIES

In this section, three case studies are presented to

demonstrate the practical application of various sys-

tem modeling and artiﬁcial intelligence methodolo-

gies using HyperGraphOS. Each case study highlights

the signiﬁcant contribution that HyperGraphOS pro-

vides in the creation of a multi-agent robotic task exe-

cution system, a meta-model for system architectures

in research applications, and a dialog management

system. The ﬁrst two will be brieﬂy presented, and

the last one will be explored in greater detail.

Case Study 1: Multi-Agent Robotic Task Planning

and Execution.

In this case study, HyperGraphOS is used to de-

velop a robotic control system based on multi-agent

task planning and execution (Joublin et al., 2024b).

The system integrates natural language processing

with task and motion planning using a hierarchical

architecture built with OpenAI’s LLMs. The Co-

PAL (Cognitive Planning and Learning) system al-

lows the robot to perform complex tasks in the real

world, such as preparing pizza and stacking cubes.

This is achieved by incorporating replanning feed-

back loops. The model, deﬁned using the dataﬂow

DSL, integrates components allowing ROS (Quigley

et al., 2009) communication with the robotic system.

The research and development of CoPAL with Hy-

perGraphOS demonstrates the ﬂexibility of modeling,

executing, debugging, and testing complex data ﬂow

models that generate tasks for a humanoid robot in the

real world. The core development of the multi-agent

system, including the DSL, took only a single week,

allowing most of the time to be spent on evaluation

and experiments with the model.

In continuation of this work, HypergraphOS is

now used for creating LLM-based multiagent system

(MAS) architectures. A DSL for agents, multi-agent

dialogue arbitration, working rooms and LLM acces-

sible tools are currently the subject of implementa-

tion and research. This has been successfully demon-

strated by ﬂexible multi-party dialog generation and

their analysis using a method also implemented on

HypergraphOS (Ebubechukwu et al., 2025).

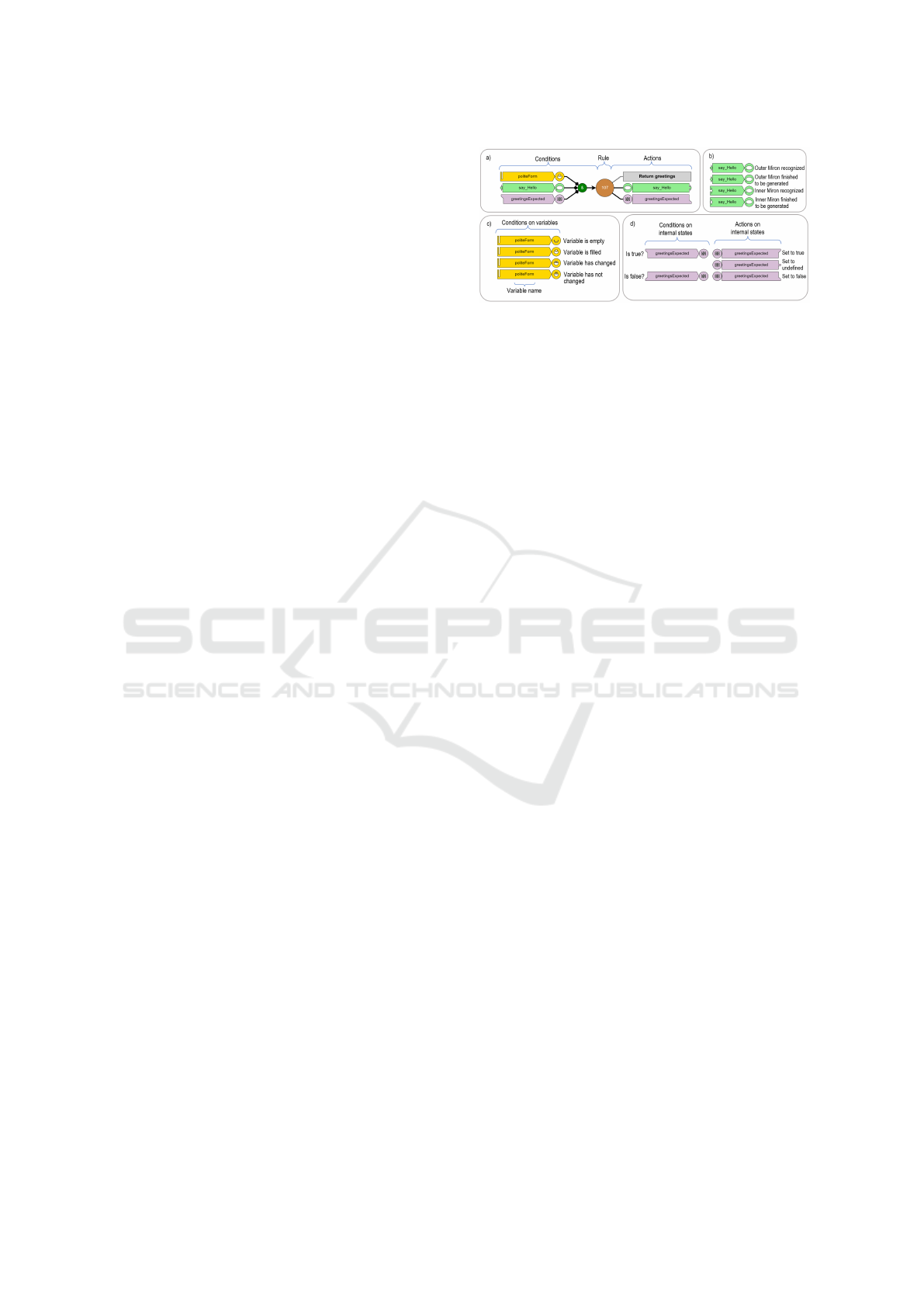

Figure 4: Rule DSL Elements : A) Graphical representation

of a rule deﬁned by its auto-generated ID (107), its condi-

tions and its actions. The gray box is just a comment used

to explain the rule. B) Possible state of a Miron (an abstrac-

tion used to equally recognize and generate sentences) that

can be used as part of a condition. C) Possible state of a

variable that can be used as part of a condition. D) Possible

conditions and actions on internal states. Link visual aspect

is automatically determined by the connected nodes.

Case Study 2: Modeling Research Projects with

Thebes DSL.

This case study addresses the challenge of man-

aging dynamic research projects using Thebes, a

lightweight DSL tailored for modeling research

projects within HyperGraphOS. Thebes facilitates

rapid prototyping and incremental design, enabling

seamless integration with existing tools via code gen-

eration. Applied to projects like the tabletop robot

Haru (Gomez et al., 2018) and the CoPAL system

(Joublin et al., 2024b), Thebes signiﬁcantly improved

collaboration and adaptability. HyperGraphOS pro-

vided support for creating the metamodel in about 30

minutes and implementing the model integrity check-

ers and code generation in JavaScript in about three

days.

Case Study 3: Virtual Receptionist for Visitor Reg-

istration.

This case study focuses on the development of a

virtual receptionist system used for visitor registration

at a research institute (Joublin et al., 2024a). The sys-

tem, initially developed before the widespread adop-

tion of LLMs, utilized a recursive neural network to

deﬁne a behavior engine for the AI-driven reception-

ist. This research explored the challenges of creat-

ing dialogue systems capable of interacting with users

through natural language or speech. Traditional di-

alogue systems often face several issues, including

the need for extensive training data and difﬁculties in

deﬁning reward functions. They also struggle with

limited control and explainability.

To address these challenges, the team designed

a neural behavior engine inspired by neurobiology

and neuropsychology, which incorporated concepts

such as mirror neurons and multi-modal embodiment.

This engine facilitated mixed-initiative dialog and ac-

tion generation. The system was successfully im-

HyperGraphOS: A Meta Operating System for Science and Engineering

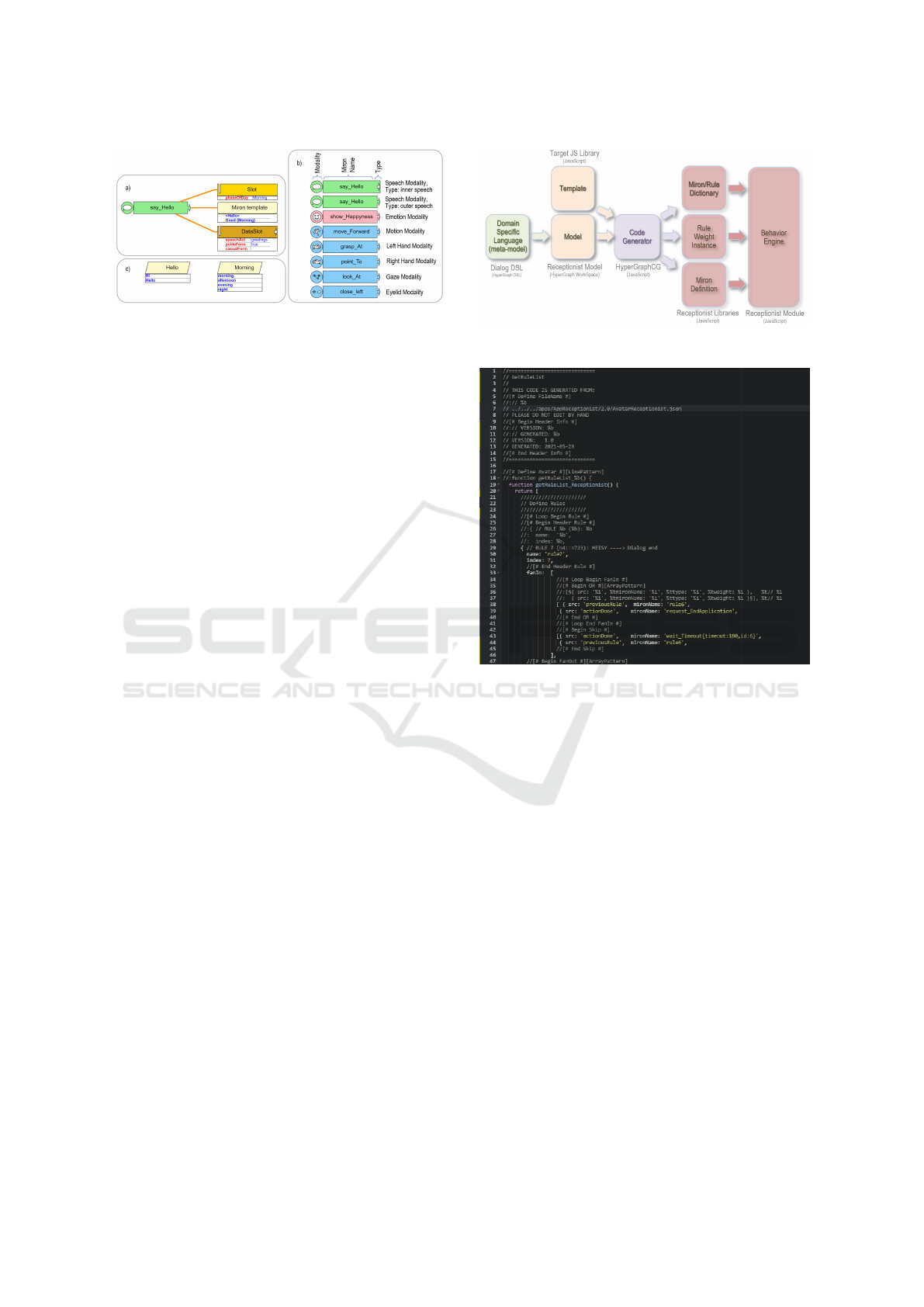

Figure 5: Miron DSL elements: A) Graphical representa-

tion of a Miron deﬁned by a modality, a name, a type (inner

or outer), templates, named entities (slots) and associated

data (data slots). B) Example of different Miron modalities.

Modalities were used to control speech output and motion

and expression of a virtual avatar. C) Grammar ﬁelds deﬁn-

ing alternative verbal expressions.

plemented as a virtual receptionist in a semi-public

space, demonstrating its capability to manage real-

world interactions with users.

HyperGraphOS played a pivotal role in two key

aspects of the system’s development:

• HyperGraphOS was used to deﬁne a DSL for the

behavior engine together with a code generator.

The DSL was created in 3 days and the code gen-

erator in one week. The DSL is based on a clock-

based architecture model created in a dedicated

workspace, and the generated code integrated into

a target JavaScript module for the avatar recep-

tionist system.

• HyperGraphOS was also employed to design a

Dialog DSL (Fig. 4 and 5) based on parallel state

ﬂow. The DSL and the code generation (Fig. 6)

has been created in about two weeks. The model,

implemented in a workspace, consisted of 4246

nodes and 3890 links, which generate JavaScript

ﬁles such as dictionaries (4033 generated lines),

weights for the recurrent network (4659 generated

lines), and NLP intents (2410 generated lines).

Average code generation time (from reading the

model to generating all ﬁles) was less than 3 sec-

onds on a 12th Gen Intel Core i7-12700H laptop.

To illustrate the development of a DSL and the pro-

cess of code generation in HyperGraphOS, this case

study focuses on the creation of the Dialog DSL

(Fig. 9). This case study followed the complete DSL

creation process in HyperGraphOS to deﬁne a speciﬁc

DSL. The ﬁrst step involved deﬁning a meta-meta-

model to determine the visual representation of each

DSL element. HyperGraphOS supports this phase

with JavaScript functions leveraging the GoJS model

concept. Once the meta-meta-model was established,

the meta-model for the Dialog DSL was deﬁned,

which can be visually designed within a workspace

Figure 6: Avatar Receptionist Network Modeling Process.

Figure 7: Example of Avatar Dialog Network source tem-

plate. Comments like ’//[# command #] represent code gen-

eration commands, while comments like ’//: ...’ represent

command parameters.

using HyperGraphOS’s dedicated DSL for building

DSLs. During this stage, the elements of the Dialog

DSL were speciﬁed along with their attributes and se-

mantics (see Fig. 4 and 5). HyperGraphOS automat-

ically adds the user-deﬁned DSL to a system palette

for easy access.

Currently, HyperGraphOS offers two primary ap-

proaches for deﬁning DSLs: 1) a full process that

involves creating both the meta-meta-model (using

JavaScript and GoJS) and the meta-model (drawn in

workspace), and 2) a light process, where users deﬁne

a meta-model by parameterizing a DSL creation tool

within workspaces. Additional methods for deﬁning

DSLs are under exploration and will be addressed in

future publications.

For code generation in the Dialog Model created

for this application, one of HyperGraphOS’s template

engines was used. HyperGraphOS provides several

template generators, which can be extended by users.

The process involves the following steps: ﬁrst, a tar-

get example ﬁle is required, serving as a running ex-

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

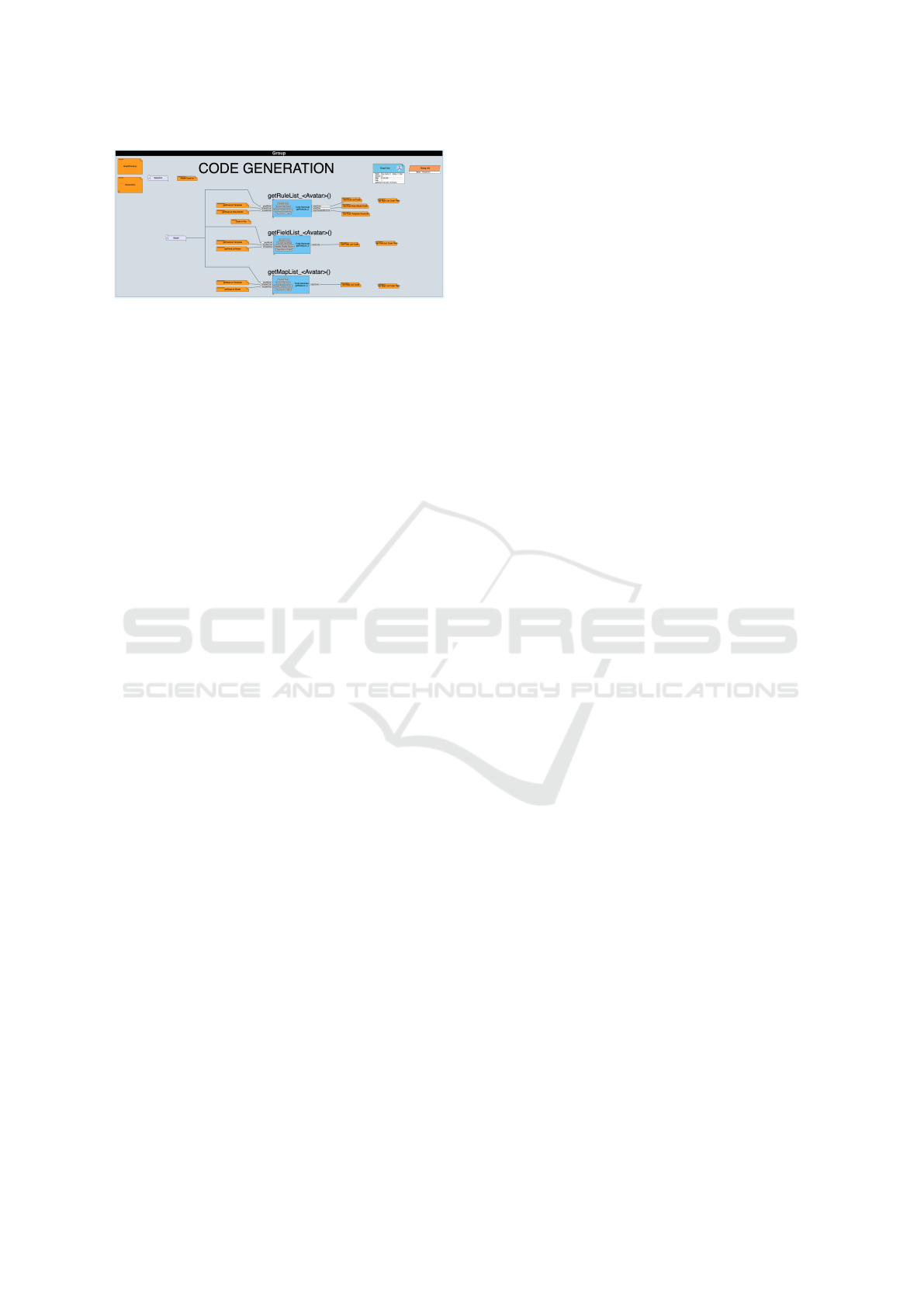

Figure 8: Code generation model for the Dialog Model.

ample of the code to be generated. The example ﬁle

is then transformed into a template by adding annota-

tions as comments (see Fig.7). Next, the code gener-

ation logic is deﬁned in a model (see Fig.8), where it

is implemented.

The system demonstrated robustness in real-time

scenarios, effectively managing dialog states and

context, and seamlessly switching between different

modalities (e.g., speech or text interaction, or a com-

bination of both, including telephony) while grace-

fully handling errors. The use of DSLs for behavior

and engine modeling facilitated scalability and main-

tainability, ensuring ease of maintenance throughout

the development and testing process. In particular,

the code generation of rules produced ﬁles describ-

ing neural network weights, which drastically stream-

lined the creation process that would have been too

complex and error prone manually.

6 DISCUSSION, CONCLUSION,

AND FUTURE WORK

6.1 Discussion

HyperGraphOS marks a major advancement in OSs,

tailored for complex applications. Leveraging a web-

based architecture and DSLs, HyperGraphOS offers

an adaptive and robust platform for managing com-

plex models and data. This section compares Hyper-

GraphOS to other state-of-the-art systems and high-

lights its unique contributions.

In comparison to systems like PlantUML (Correia

et al., 2024) and Graphviz (Gansner, 2009), which are

widely used for static diagram creation and visualiza-

tion, HyperGraphOS distinguishes itself by enabling

dynamic interactions with graph models. The ability

to manipulate nodes and links programmatically us-

ing JavaScript and navigate virtually OmniSpaces sets

HyperGraphOS apart from traditional graph modeling

tools.

When compared to DSL-centric systems like

MetaEdit+ (Tolvanen and Kelly, 2016), JetBrains

MPS (Pech et al., 2013), and Eclipse Xtext (Herrera,

2014), HyperGraphOS provides a more intuitive and

accessible interface due to its web-based architecture

and extensive use of the visual workspace. Its sim-

plicity in creating and adapting DSLs enables rapid

prototyping and incremental development, which is

especially beneﬁcial for dynamic research projects.

HyperGraphOS and WebGME (Mar

oti et al.,

2014) represent two distinct approaches to graph-

based and meta-modeling environments. WebGME

excels in its collaborative, web-based infrastruc-

ture designed to create and manage Domain-Speciﬁc

Modeling Languages (DSMLs), featuring scalable

version control and prototypical inheritance to unify

metamodeling and modeling. HyperGraphOS, in con-

trast, operates as a meta-operating system that inte-

grates graph-based structures with Domain-Speciﬁc

Languages (DSLs) and advanced AI capabilities. Its

workspace design allows for inﬁnite, interconnected

workspaces, enabling design-time execution. While

WebGME focuses on multi-paradigm modeling with

rigorous collaboration mechanisms, HyperGraphOS

stands out with its dynamic execution environment

and adaptability for rapidly evolving interdisciplinary

applications.

HyperGraphOS and jjodel (Di Rocco et al., 2023)

both aim to enhance model-driven engineering by

simplifying complexity and providing advanced mod-

eling capabilities, yet their approaches differ signif-

icantly. Jjodel is a cloud-based reﬂective model-

ing framework designed for simplicity and real-time

collaboration. It emphasizes accessibility with intu-

itive syntax customization and geometry-based nota-

tion, particularly beneﬁcial in technical domains like

railways. HyperGraphOS, on the other hand, intro-

duces a unique meta-operating system architecture,

supporting complex workﬂows through a network

of workspaces and seamless integration of AI-driven

modeling and execution tools. While jjodel focuses

on educational and lightweight collaborative mod-

eling, HyperGraphOS targets interdisciplinary and

computationally intensive scenarios.

Sirius Web (Giraudet et al., 2024) is a web-based

language workbench tailored for developing graphi-

cal Domain-Speciﬁc Modeling Languages (DSMLs)

and their environments. Built on the lessons from Sir-

ius Desktop, Sirius Web supports collaborative mod-

eling, offers predeﬁned representation types such as

diagrams and Gantt charts, and provides both low-

code and API-driven interfaces for studio creation.

While HyperGraphOS excels in versatility and in-

tegration for complex, adaptive systems through its

graph-based and AI-augmented architecture, Sirius

Web specializes in facilitating the development and

HyperGraphOS: A Meta Operating System for Science and Engineering

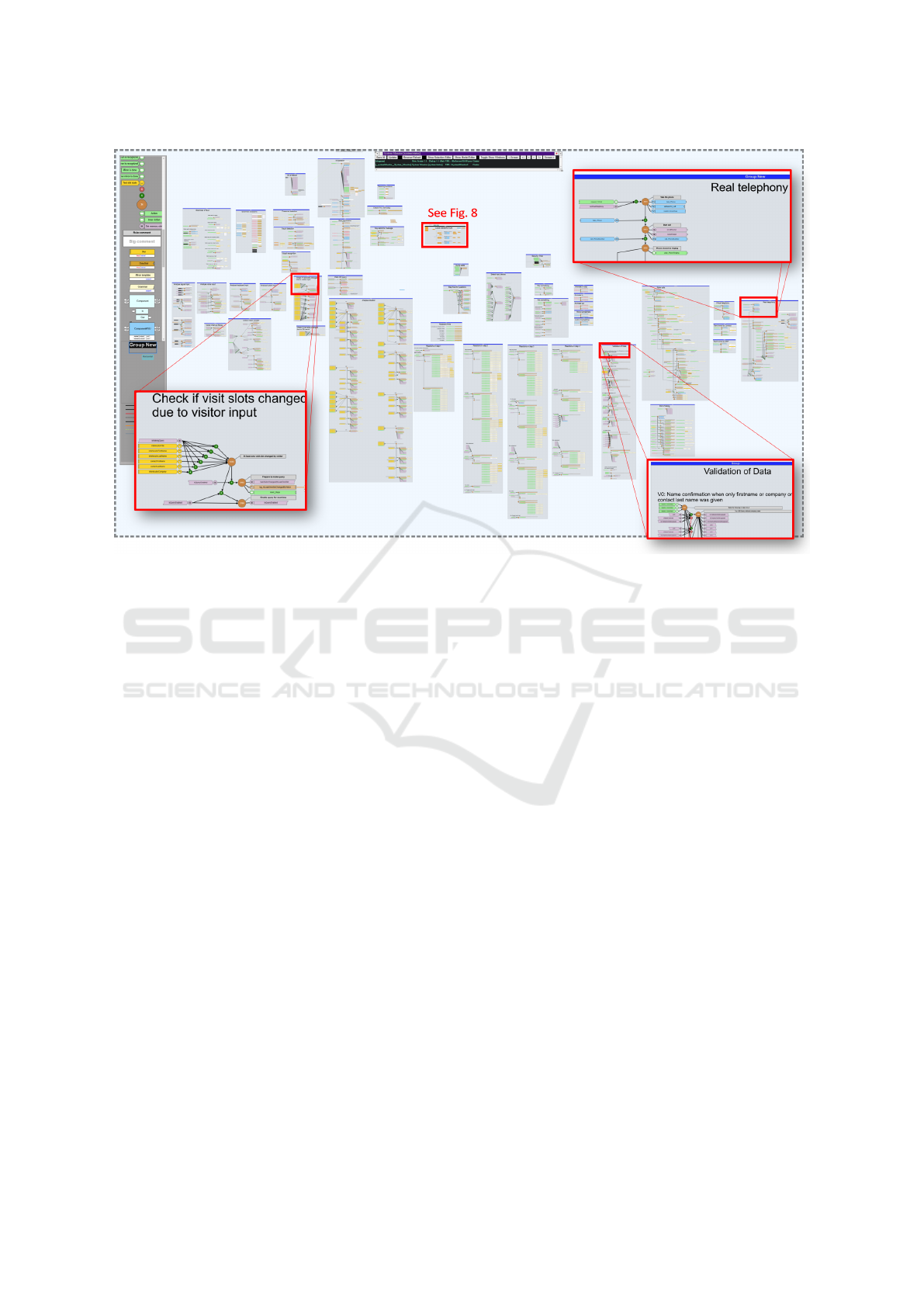

Figure 9: View of the full Dialog Model for the Avatar Receptionist. The code generation model shown in ﬁgure 8 is in the

center top of this model.

deployment of graphical DSMLs with a strong em-

phasis on user experience and streamlined workﬂows.

6.2 Conclusion

In this paper, we presented HyperGraphOS, a modern

DSL-based OS designed speciﬁcally for scientiﬁc and

engineering applications. Through the use of meta-

meta modelling, DSLs and graph-based model rep-

resentations, HyperGraphOS provides users with an

intuitive and ﬂexible platform for creating, manipu-

lating, and visualizing complex models and data. Hy-

perGraphOS’s open-source nature invites further ex-

ploration and contributions from the community. The

tool is available as open-source software and can be

accessed at (HRI-EU, 2024a), where additional doc-

umentation and videos (HRI-EU, 2024b) and future

updates are posted.

The case studies in robotic task planning, dynamic

research projects, and virtual receptionist systems

demonstrate HyperGraphOS’s versatility and practi-

cal beneﬁts. In comparing HyperGraphOS to other

state-of-the-art systems, its important contributions

were outlined, such as dynamic graph model inter-

action, openness in creating new DSLs, and inte-

gration with AI components. While HyperGraphOS

presents numerous advantages, it also opens up op-

portunities for further enhancements, particularly in

data handling, scalability, and facilitating collabora-

tion. Expanding these capabilities will be essential

as the system evolves to handle increasingly complex

and larger applications.

6.3 Future Work

Moving forward, there are several areas for improve-

ment in HyperGraphOS. While relying on external

services for security and privacy management of-

fers ﬂexibility, future iterations could include robust,

built-in security measures to strengthen data protec-

tion. As the system scales to support larger and

more complex projects, enhancing performance while

maintaining a user experience quality will be essen-

tial.

HyperGraphOS has the potential to supports

AMDD by introducing AI-powered modeling that en-

hances productivity (Sadik et al., 2024). Users bene-

ﬁt from AI-generated suggestions and improvements

during the code generation phase. Collaboration is

still under-developed, and functionalities to enable

multi-disciplinary teams to work together using in-

tegrated tools for real-time editing, version control,

and interactive annotations have been started. These

functions would help fostering synergy among team

members from various domains.

There is also signiﬁcant potential in further ex-

ploring low-code development platforms and innova-

tion. For instance, a start-up like Thunkable (Thunk-

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

able, 2024) provides a no-code platform for design-

ing and creating mobile applications. Its drag-and-

drop interface and pre-built components allow users,

even without a development background, to create

fully functional iOS and Android. Another innovative

example is the Rabbit R1 (Technology, 2024), which

introduces an AI-driven OS designed to simplify in-

teractions with apps and services through voice com-

mands and AI-powered tools, positioning it as a

next-generation alternative to smartphones and smart

speakers. A drawback of workspace is its reliance

on large screens for comfortable use. One potential

mitigation could involve enabling the use of Hyper-

GraphOS in Virtual Reality settings. HyperGraphOS

shows great potential but requires further develop-

ment in several areas.

REFERENCES

Atlassian (2024). Workﬂow automation in agile

project management. https://www.atlassian.com/

agile/project-management/workﬂow-automation. Ac-

cessed: 22-Sep-2024.

Blair, G., Coupaye, T., and Stefani, J.-B. (2009).

Component-based architecture: the fractal initiative.

annals of telecommunications-annales des telecom-

munications, 64:1–4.

Brooks, F. P. (1987). No silver bullet: Essence and accident

of software engineering. Computer, 20(4):10–19.

Bullynck, M. (2018). What is an operating system? a his-

torical investigation (1954–1964). Reﬂections on pro-

gramming systems: Historical and philosophical as-

pects, pages 49–79.

Camara, J., Troya, J., Burgueno, L., and Vallecillo, A.

(2023). On the assessment of generative ai in model-

ing tasks: An experience report with chatgpt and uml.

Software and Systems Modeling, 22(3):781–793.

Correia, F. F., Ferreira, R., Queiroz, P. G., Nunes, H.,

Barra, M., and Figueiredo, D. (2024). Towards liv-

ing software architecture diagrams. arXiv preprint

arXiv:2407.17990.

David, I., Latifaj, M., Pietron, J., Zhang, W., Ciccozzi, F.,

Malavolta, I., Raschke, A., Steghofer, J., and Hebig,

R. (2023). Blended modeling in commercial and

open-source model-driven software engineering tools:

A systematic study. Software and Systems Modeling,

22(1):415–447.

Di Rocco, J., Di Ruscio, D., Di Salle, A., Di Vincenzo,

D., Pierantonio, A., and Tinella, G. (2023). Jjodel–

a reﬂective cloud-based modeling framework. In

2023 ACM/IEEE International Conference on Model

Driven Engineering Languages and Systems Compan-

ion (MODELS-C), pages 55–59. IEEE.

Ebubechukwu, I., Ceravola, A., Joublin, F., and Tanti, M.

(2025). Automating dialogue evaluation: Llms vs

human judgment. In Proceedings of the 27th In-

ternational Conference on Human-Computer Interac-

tion (HCI International 2025), Gothenburg, Sweden.

Human-Computer Interaction International, Springer.

Accepted on December 9, 2024.

Ediz,

O. (2009). “improvising” architecture: A fractal based

approach. In Computation: the new realm of architec-

tural design: 27th eCAADe Conference proceedings,

pages 593–598.

Eriksson, M. and Hallberg, V. (2011). Comparison between

json and yaml for data serialization. The School of

Computer Science and Engineering Royal Institute of

Technology, pages 1–25.

Gansner, E. R. (2009). Drawing graphs with graphviz. Tech-

nical report, AT&T Bell Laboratories, Murray, Tech.

Rep, Tech. Rep.

Giraudet, T., Bats, M., Blouin, A., Combemale, B., and

David, P.-C. (2024). Sirius web: Insights in language

workbenches-an experience report. The Journal of

Object Technology.

Gomez, R., Szapiro, D., Galindo, K., and Nakamura, K.

(2018). Haru: Hardware design of an experimental

tabletop robot assistant. In Proceedings of the 2018

ACM/IEEE international conference on human-robot

interaction, pages 233–240.

Herrera, A. S.-B. (2014). Enhancing xtext for general pur-

pose languages. In MoDELS (Doctoral Symposium).

HRI-EU (2024a). Hypergraphos. https://github.com/

HRI-EU/hypergraphos. Accessed: 21-Oct-2024.

HRI-EU (2024b). Hypergraphos-documentation.

https://github.com/HRI-EU/hypergraphos/tree/main/

Documentation/Videos. Accessed: 22-Oct-2024.

Inc., A. (2024). Automator user guide for macos. https:

//support.apple.com/guide/automator/welcome/mac.

Accessed: 22-Sep-2024.

Joublin, F., Ceravola, A., and Sandu, C. (2024a). In-

troducing brain-like concepts to embodied hand-

crafted dialog management system. arXiv preprint

arXiv:2406.08996.

Joublin, F., Ceravola, A., Smirnov, P., Ocker, F.,

Deigmoeller, J., Belardinelli, A., Wang, C., Hasler, S.,

Tanneberg, D., and Gienger, M. (2024b). Copal: cor-

rective planning of robot actions with large language

models. In 2024 IEEE International Conference on

Robotics and Automation (ICRA), pages 8664–8670.

IEEE.

Lorenz, W. E. (2002). Fractals and fractal architecture. na.

Mar

oti, M., Kecsk

es, T., Keresk

enyi, R., Broll, B.,

olgyesi, P., Jur

acz, L., Levendovszky, T., and

edeczi,

A. (2014). Next generation (meta) modeling:

web-and cloud-based collaborative tool infrastructure.

MPM@ MoDELS, 1237:41–60.

Microsoft (2024). Powertoys for windows. https://learn.

microsoft.com/en-us/windows/powertoys/. Accessed:

22-Sep-2024.

Northwoods (2022). Gojs: Powerful diagrams for every

industry. https://gojs.net/latest/index.html. Accessed:

September 2024.

Nurseitov, N., Paulson, M., Reynolds, R., and Izurieta, C.

(2009). Comparison of json and xml data interchange

formats: a case study. Caine, 9:157–162.

HyperGraphOS: A Meta Operating System for Science and Engineering

Pech, V., Shatalin, A., and Voelter, M. (2013). Jetbrains

mps as a tool for extending java. In Proceedings of

the 2013 International Conference on Principles and

Practices of Programming on the Java Platform: Vir-

tual Machines, Languages, and Tools, pages 165–168.

Quigley, M., Conley, K., Gerkey, B., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., Ng, A. Y., et al. (2009). Ros: an

open-source robot operating system. In ICRA work-

shop on open source software, volume 3, page 5.

Kobe, Japan.

Sadik, A. R., Brulin, S., and Olhofer, M. (2024). Coding

by design: Gpt-4 empowers agile model driven devel-

opment. In The International Conference on Model-

Based Software and Systems Engineering - MODEL-

SWARD 2024, pages 149–156.

Sadik, A. R., Ceravola, A., Joublin, F., and Patra, J. (2023).

Analysis of chatgpt on source code. arXiv preprint

arXiv:2306.00597.

Silberschatz, A., Galvin, P. B., and Gagne, G. (2013). Op-

erating system concepts essentials. Wiley Publishing.

Tanenbaum, A. (2009). Modern operating systems. Pearson

Education, Inc.,.

Technology, R. (2024). Rabbit r1 - ai-powered personal as-

sistant. https://www.rabbit.tech/rabbit-r1. Accessed:

22-Sep-2024.

Thunkable, I. (2024). Thunkable - no code app builder.

https://thunkable.com/. Accessed: 22-Sep-2024.

Tolvanen, J.-P. and Kelly, S. (2016). Model-driven devel-

opment challenges and solutions: Experiences with

domain-speciﬁc modelling in industry. In 2016 4th In-

ternational Conference on Model-Driven Engineering

and Software Development (MODELSWARD), pages

711–719. IEEE.

Zunke, S. and D’Souza, V. (2014). Json vs xml: A compar-

ative performance analysis of data exchange formats.

IJCSN International Journal of Computer Science and

Network, 3(4):257–261.

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering
