Knowledge Modelling for Automated Risk Assessment of

Cybersecurity and Indirect Patient Harms in Medical Contexts

Samuel M. Senior

, Laura Carmichael

, Steve Taylor

, Mike Surridge

and Xavier Vilalta

IT Innovation Centre, University of Southampton, Southampton, U.K.

Debiotech SA, Lausanne, Switzerland

Keywords: Automated Risk Assessment, Connected Medical Devices and In Vitro Diagnostic Devices, Cybersecurity,

Indirect Patient Harms, Knowledge Modelling.

Abstract: The use of connected medical and in vitro diagnostic devices (CMD&IVD) as part of individual care and self-

care practices is growing. Significant attention is needed to ensure that CMD&IVD remain safe and secure

throughout their lifecycles — as if a cybersecurity incident were to occur involving these devices, it is possible

that in some cases harm may be brought to the person using them. For the effective safety management of

these devices, risk assessment is needed that covers both the cybersecurity and patient safety domains. To this

end, we present knowledge modelling of indirect patient harms (e.g., misdiagnosis, delayed treatment etc.)

resulting from cybersecurity compromises, along with a methodology for encoding these into a previously

developed automated cybersecurity risk assessment tool, to begin to bridge the gap between automated risk

assessment related to cybersecurity and patient safety.

1 INTRODUCTION

It is increasingly common for connected medical

devices and in vitro diagnostic devices (CMD&IVD)

to be used as part of individual care and self-care

practices — e.g., for remote monitoring by clinicians,

for individuals to manage their conditions through

health apps (e.g., National Health Service [NHS]

England, 2023). Special attention is needed to ensure

that CMD&IVD remain safe and secure throughout

their lifecycles — especially given that CMD&IVD

cyberattacks “may put at severe risk the health and

safety of patients” (Biasin & Kamenjasevic, 2022).

To understand potential harms to patients from

such devices, risk management is necessitated,

particularly at patient safety, cybersecurity, and

privacy and data protection levels, so that the risks of

cybersecurity incidents can be understood in terms of

the potential patient harms that may result. In other

words, there is a need for cybersecurity risk

assessment for CMD&IVD to “explicitly consider the

health care outcomes, systems and processes for

https://orcid.org/0000-0002-3428-9215

https://orcid.org/0000-0001-9391-1310

https://orcid.org/0000-0002-9937-1762

https://orcid.org/0000-0003-1485-7024

which that information is used” (Piggin, 2017).

Additionally, risk-benefit analysis is also of

importance as tensions between the level of

cybersecurity controls on a device and its treatment

or diagnostic effectiveness may need to be

considered. As highlighted in the Medical Device Co-

ordination Group (MDCG, 2019) guidance on

cybersecurity where issues may be caused by “weak

security” — referring to security measures that are

inadequate in the given circumstances — and

“restrictive security” — relating to those security

measures that offer “a high level of protection may

have a safety impact”.

This paper describes knowledge extensions to an

existing knowledge-based expert system and

automated risk simulator of cyber-physical systems

called Spyderisk (Phillips et al., 2024) that follows

ISO/IEC 27005: 2022 “Information security,

cybersecurity and privacy — Guidance on manging

information security risks” (ISO, 2022) and ISO/IEC

27000: 2018 “Information technology — Security

Senior, S. M., Carmichael, L., Taylor, S., Surridge, M. and Vilalta, X.

Knowledge Modelling for Automated Risk Assessment of Cybersecurity and Indirect Patient Harms in Medical Contexts.

DOI: 10.5220/0013166900003899

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 11th International Conference on Information Systems Security and Privacy (ICISSP 2025) - Volume 1, pages 263-274

ISBN: 978-989-758-735-1; ISSN: 2184-4356

263

techniques — Information security management

systems — Overview and vocabulary” (ISO, 2018).

The Knowledge Base of this expert system

contains pre-existing information about threats and

risks related to cyber-physical systems. As part of our

recent work for the Horizon Europe NEMECYS

project, we have begun to explore how this

Knowledge Base can be extended for use in the

specific domain of cybersecurity for CMD&IVD

systems so that automated risk assessment can be

performed for it. For example, ISO/TR 24971: 2020

(ISO, 2020) provides guidance on risk assessment for

medical devices and so starts to bridge this gap

between the relationship between domain-specific

risk management for medical devices with risk

management for cybersecurity.

The core extension to Spyderisk described in this

paper is domain model extensions corresponding to

indirect patient harms resulting from

cybersecurity compromises. For the purposes of this

paper, indirect patient harms are described as harms

that arise “as a consequence of the medical decision

or action taken/not taken on the basis of information

or result(s) provided by a device” (MDCG, 2023).

Indirect patient harms resulting from cybersecurity

compromises are translated into the terminology and

structure of this Knowledge Base, and mapped to

cybersecurity risks and threats already present within

it. Then, this new information and mapping is

encoded into the Knowledge Base, thus starting to

bridge and link between the domains of cybersecurity

and indirect patient harms for the automated risk

assessment and management of CMD&IVD. An

illustrative workflow guiding the extensions to our

tool for treatment-based indirect patient harms is

given. An equivalent workflow for diagnosis-based

indirect patient harms can also be formed through

following the same methodology, and both have been

successfully implemented in our tool (Spyderisk,

2024). Our work is driven by four use cases, focusing

on different types of connected medical and IVD

devices (NEMECYS, 2023).

2 BACKGROUND AND RISK

MANAGEMENT CONTEXT

ISO 27000 (ISO, 2022) and ISO 27005 (ISO, 2018)

have guided the development of the Spyderisk risk

modelling approach and continue to do so for the

extensions outlined here. In this section, we provide

an overview of how cybersecurity risk concepts from

these two standards have been interpreted for the

Spyderisk. We then outline our approach to extending

its Knowledge Base with domain-specific

information for the cybersecurity of CMD&IVD.

2.1 Risk Assessment Schema

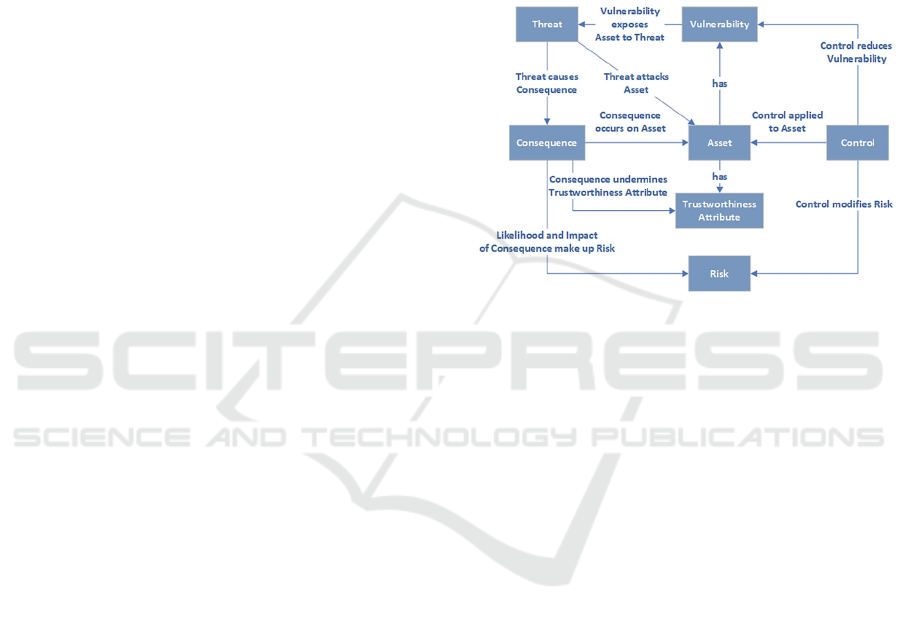

Figure 1 shows a risk assessment schema derived

from ISO 27000 (IS0, 2018) and adapted for the

trustworthiness-based approach of Spyderisk. It

shows relationships between the different elements

involved in ISO 27000-based risk assessment.

Figure 1: Risk assessment schema. Adapted from (Taylor,

2024).

Here, assets are entities of value within the modelled

system and can have vulnerabilities, which enable

threats. A successful threat acts on an asset to cause

a consequence, which is typically adverse. Risk is

the impact of a consequence combined with the

likelihood of the causing threat. Controls modify risk

by modifying the likelihood of the threat through

mitigative or preventative means. Trustworthiness

Attributes (TWAs) “model the expected behaviour

of an Asset, are (generally) desirable properties and

are closely related to the Consequences: each

Trustworthiness Attribute is undermined by a

Consequence.” (Phillips et al., 2024).

Spyderisk contains a Knowledge Base of Assets,

Consequences, TWAs, Controls and Threats for

cybersecurity and cyber-physical systems. The Asset

types include data, IT hosts, software processes,

networks, stakeholders, and physical spaces, amongst

others. TWAs include cybersecurity concepts like

confidentiality, integrity, and availability for data

assets, reliability for software processes and privacy

for humans. Consequences include (typically)

adverse behaviours affecting assets and also the

undermining of TWAs at assets, such as “loss of

confidentiality” on a data asset. Consequences in turn

can cause other threats.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

264

The operator of the Spyderisk creates a “System

Model” containing a configuration of assets and

relationships describing the system to evaluate, and

the Knowledge Base automatically determines the

threats and risks present, along with their likelihood.

2.2 Domain Modelling

The knowledge extensions to Spyderisk follow a

process known as domain modelling, which involves

the capture and encoding of knowledge relevant to

risk assessment for a given domain to integrate it with

the existing knowledge and thus to extend it. Here, an

essential part of domain modelling is to acquire

knowledge relevant to the cybersecurity of

CMD&IVD — such as, by working together with

cross-domain experts as part of project use cases and

examining existing requirements and best practice

related to risk assessment for CMD&IVD with

principal focus on the EU regulatory framework. For

instance, Annexes 1 of the Medical Device

Regulation (MDR) (Regulation 2017/745) and the In

Vitro Diagnostic Devices Regulation (IVDR)

(Regulation 2017/746) contain cybersecurity

requirements for CMD&IVD, and the MDCG

provides guidance on the cybersecurity for medical

devices (2019). Further, international standards on

risk management for medical devices are also used to

guide the developments — i.e., ISO 14971:2019

“Medical devices — Application of risk management

to medical devices” (ISO, 2019) “specifies

terminology, principles and a process for risk

management of medical devices, including software

as a medical device and in vitro diagnostic medical

devices” (ISO, 2019); and ISO 24971 (ISO, 2020) as

previously mentioned. A brief overview of the

domain modelling process is now described.

In the Knowledge Base, threats are modelled

using: (i) Matching Patterns and (ii) Threat

Patterns. “Broadly, a Matching Pattern describes a

set of connected Assets to be looked for in the System

Model: particular Asset types connected by specific

Relation types” (Phillips et al., 2024). “Threat

Patterns are matching parts of the System Model

where there could be an unwanted incident (of any

kind) […] [and] describes how the Nodes in the

pattern relate to its causes” (Phillips et al., 2024).

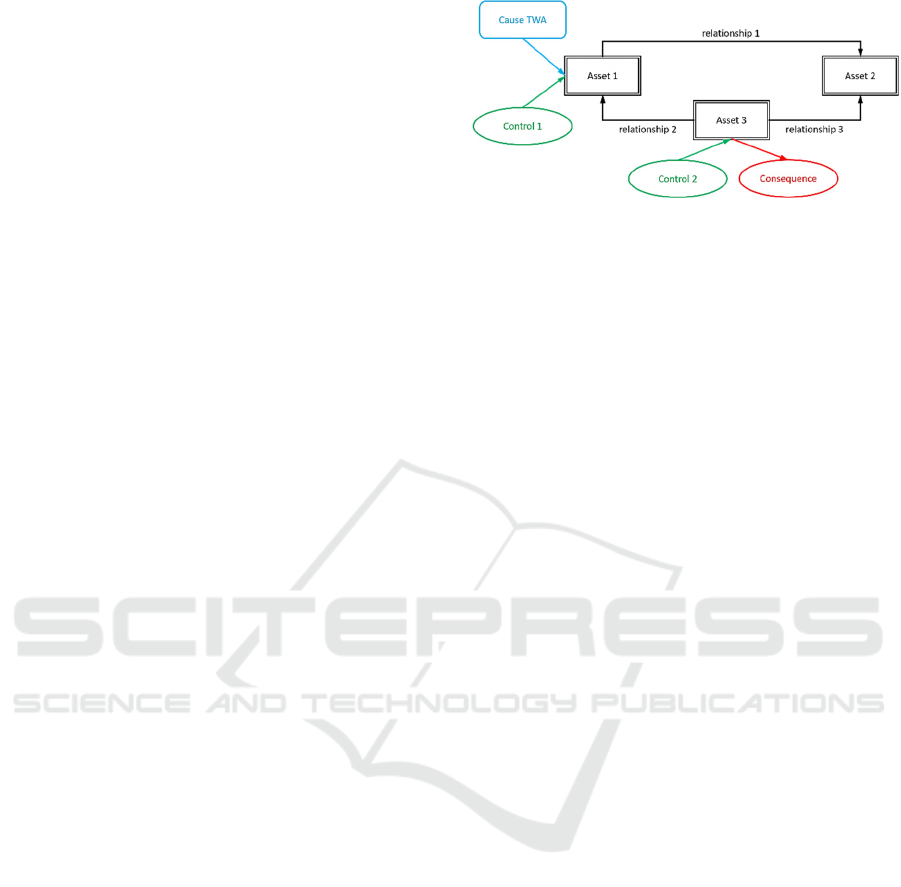

An example threat pattern is given in Figure 2. It

is based on a matching pattern with an additional

cause TWA that enables the threat (blue rounded

rectangle), two controls that block the threat (green

ovals), and a consequence that results from the threat

being successful (red oval).

Figure 2: Example threat pattern.

3 MODELLING INDIRECT

PATIENT HARMS AS RISKS

Indirect patient harms resulting from cybersecurity

compromises of CMD&IVD can occur due to one or

more cybersecurity-related incidents causing errors in

diagnosis and / or treatment. This work utilises types

of indirect harm determined by the MDCG, namely

“absence of diagnosis”, “delayed diagnosis”,

“misdiagnosis”, “absence of treatment”, “delayed

treatment”, and “inappropriate treatment” (MDCG,

2023). These are modelled as Consequences of

Threats that are adverse behaviours affecting

patients (considered as “Assets” in ISO 27000

nomenclature).

Typical treatment and diagnosis processes

utilising CMD&IVD have been used to derive patient

harm-related Consequences and how different

cybersecurity incidents lead to them. For this, four

key types of purpose for CMD&IVD devices are

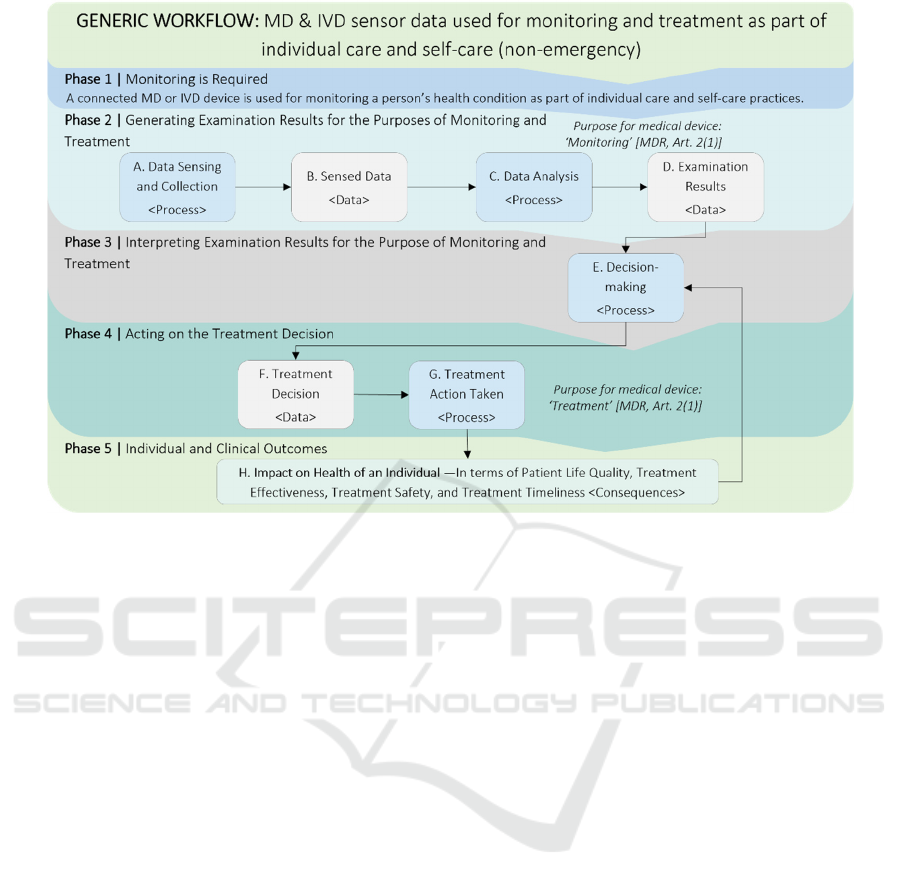

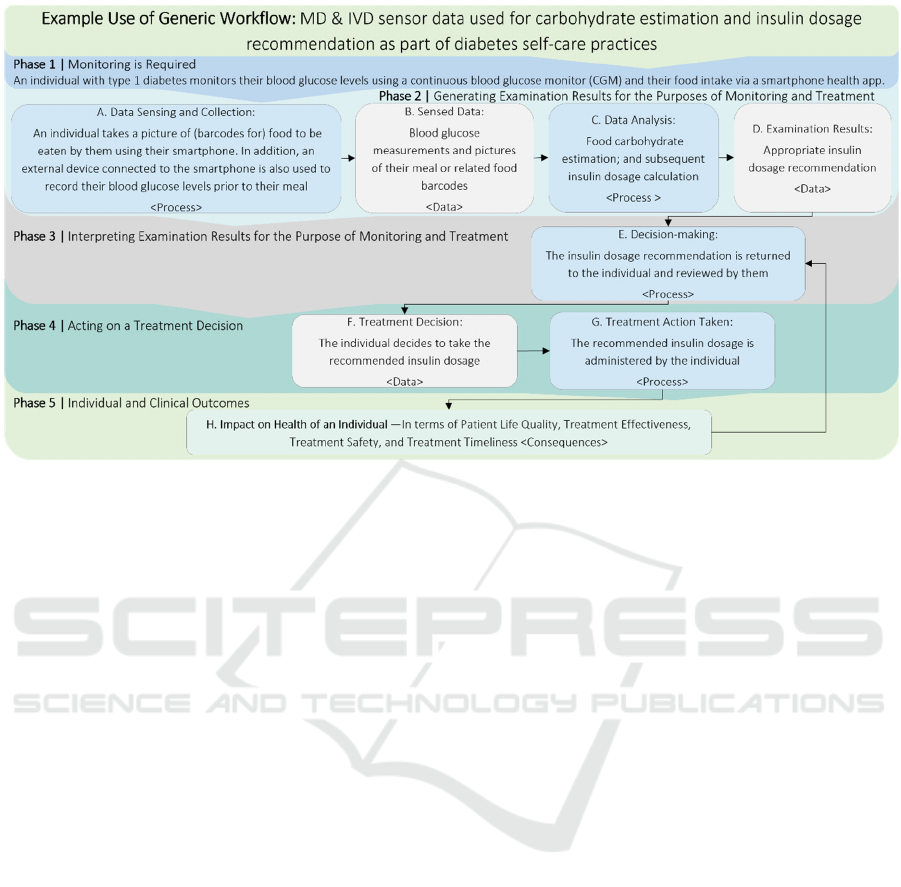

outlined and explored. Additionally, a generic

workflow based on these is presented, which provides

a high-level illustrative view of how sensor data

generated via these devices, and the resulting

examination results they provide, are used to inform

treatment decisions actions taken / not taken. This is

then used to map elements of the workflow phases to

elements of the Knowledge Base so that cybersecurity

threats at the different stages can be considered in

how they result in indirect patient harms.

The domain modelling activities here have been

driven by the discussed standards as well as use cases

involving consultation with domain experts and

practitioners, with one such use case used as an

illustrative example in Section 6.

3.1 Purpose of Use of Medical Devices

A wide variety of decisions are made by individuals,

patients, and clinicians (decision-makers) as part of

individual care and self-care — some of which may

Knowledge Modelling for Automated Risk Assessment of Cybersecurity and Indirect Patient Harms in Medical Contexts

265

be informed by data generated and collected via

assorted types of CMD&IVD. A CMD or IVD device

will have an “intended purpose” — i.e., “the use for

which a device is intended according to the data

supplied by the manufacturer on the label, in the

instructions for use or in promotional or sales

materials or statements and as specified by the

manufacturer in the clinical evaluation”, as defined

in Article 2(12) of the MDR (Regulation 2017/745).

Types of “specific medical purposes” for medical

devices are outlined by Article 2(1) of the MDR as

follows:

• “[…] diagnosis, prevention, monitoring,

prediction, prognosis, treatment or

alleviation of disease,

• diagnosis, monitoring, treatment,

alleviation of, or compensation for, an

injury or disability,

• investigation, replacement or modification

of the anatomy or of a physiological or

pathological process or state,

• providing information by means of in vitro

examination of specimens derived from the

human body, including organ, blood and

tissue donations […]”

In this work, the focus is on the specific purposes

for medical devices that align with the key types of

intended purposes for CMD&IVD as identified

through the use cases. In particular, how medical

devices may be used for the following purposes:

• Diagnosis — some MDCG-based indirect

harms (MDCG, 2023) explicitly concern

diagnosis (e.g., ‘delayed diagnosis’,

‘misdiagnosis’).

• Treatment — some MDCG-based indirect

harms (MDCG, 2023) regard treatment (e.g.,

‘absence of treatment’, ‘delayed treatment’,

‘inappropriate treatment’).

• Monitoring — CMD&IVD can be used for

the purpose of monitoring.

• Providing information by means of in vitro

examination of specimens derived from the

human body — as there are instances of

CMD&IVD being used for the purpose of

providing such information.

How these four key types of purpose are modelled

is given in Section 4.

3.2 Generic Workflow: Monitoring and

Treatment for non-Emergency

Individual Care and Self-Care

Diagnosis, monitoring, treatment and providing IVD

information are complex activities. For instance,

diagnosis has been described as “a complex, patient-

centered, collaborative activity that involves

information gathering and clinical reasoning with the

goal of determining a patient's health problem. This

process occurs over time, within the context of a

larger health care work system that influences the

diagnostic process” (Balogh et. al., 2015). The aim

here is to identify key aspects and abstractions that

are required for understanding the risks in these

processes to enable their risk modelling and

simulation. This is important as medical devices may

be used as part of distinct clinical workflows and at

different stages of a care pathway. For instance, what

data is being collected, gathered or generated by the

CMD&IVD, and for what use, needs to be

considered. Each stage of the workflow represents

data, a process, or a consequence — concepts used

within our Knowledge Base.

The generic workflow is presented in Figure 3 and

focuses on CMD&IVD used for the purpose of

monitoring and treatment as part of individual care

(e.g., “intended for use by clinicians at point-of-

care” (ISO, 2020) or self-care (e.g., intended to be

used by individuals). It should be noted the IVDR

makes a distinction between IVD medical devices

used for “self-testing”, “near-patient testing”, and

testing inside a “laboratory environment”, see

Article 2(5) and (6) of the IVDR (Regulation

2017/746).

The workflow is organised into phases containing

processes, which are operations performing an

activity; data, which are generated by the processes

and link one process with another; and consequences,

which result from incidents occurring at the data and

processes. It illustrates how different types of sensor

data are generated, interpreted, and acted on for the

monitoring and treatment as part of non-emergency

individual care and self-care practices when those

decision-making processes rely on high quality

examination results derived from data generated and

collected via CMD&IVD.

This workflow is based on the specific medical

purposes for medical devices as well as our

interpretation of the informative guidance for in vitro

diagnostic medical devices given by Annex H of

ISO/TR 24971 (ISO, 2020) and the diagnostic

process outlined by the Committee on Diagnostic

Error in Health Care (Balogh, 2015).

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

266

Figure 3: Generic workflow: MD & IVD used for monitoring and treatment in non-emergency individual care and self-care.

The different workflow phases are discussed below.

As assumption-making is a key aspect of threat

modelling since such underlying assumptions are

used to “postulate system properties of relevance, the

implications of which are relied upon during threat

documentation, prioritization and mitigation” (Van

Landuyt and Joosen, 2022), key domain modelling

assumptions are also described below.

3.3.1 Phase 1: Monitoring Is Required

This phase establishes an individual is undergoing

care or self-care where CMD&IVD are used to

monitor their condition. The workflow is initiated

where a CMD&IVD is used for monitoring a person’s

health condition, that requires ongoing treatment, as

part of individual care and/or self-care practices.

It is assumed this workflow concerns situations

where an individual has already received a diagnosis.

Further, to consider the indirect patient harms rather

than direct patient harms, non-emergency situations

are specifically concentrated on, where on-going

monitoring and treatment of a health condition may

be happening e.g., remotely, within a clinical context.

3.3.2 Phase 2: Generating Examination

Results

This phase of the workflow uses the sensors of the

CMD&IVD to generate the monitoring data that are

then processed to generate the Examination Results

Data. This follows three of the key purposes for

medical devices given in Article 2(1) of the MDR

(Regulation 2017 745), which are for “monitoring”

and “treatment” of “disease”, “an injury or

disability” as well as “providing information by

means of in vitro examination”.

It is assumed Examination Results Data are

derived from Sensed Data and used for monitoring

and treatment by clinicians and patients, and is crucial

to monitoring a health condition and making

necessary treatment decisions. The processes and data

for this phase of the workflow are:

• A. Data Sensing and Collection

<Process>. Data is sensed by an MD or IVD

medical device. (Other metadata may also be

collected here, such as time-stamp data.)

• B. Sensed Data <Data>. The sensed raw

data are an input to the data analysis process.

• C. Data Analysis <Process>. Raw data is

transformed into “meaningful, actionable

knowledge” (ISO, n.d.) data (i.e.,

Examination Results).

• D. Examination Results <Data>. Output

Examination Results provide meaningful,

actionable knowledge, interpreted and used

as an input to the decision-making process.

Knowledge Modelling for Automated Risk Assessment of Cybersecurity and Indirect Patient Harms in Medical Contexts

267

Cybersecurity incidents arising in any of the data or

processes at this phase impact the decision-making

process of the next phase, by either causing incorrect

input into it or causing a lack of input to it.

3.3.3 Phase 3: Interpreting Examination

Results

In the third phase, Examination Results are processed

and interpreted so appropriate treatment decisions can

be made by the individual or clinician.

It is assumed Examination Results are not

communicated to another medical device that

immediately administer treatment (ISO, 2020) and

instead, in Phase 4, one or more persons review the

Examination Results data before deciding whether to

act on it. Additionally, the Examination Results data

is viewed as a critical input to the decision-making

process. The process for this phase is:

• E. Decision-Making <Process>. Examina-

tion Results are processed and interpreted to

inform patient / clinician treatment decisions.

Cybersecurity incidents arising at this decision-

making process cause the output of it to either be

incorrect or absent. Additionally, incidents in the

prior phase can also result in this.

3.3.4 Phase 4: Acting on Treatment Decision

In Phase 4, treatment decisions are made and actions

taken. Treatment actions are taken as part of wider

individual care and / or self-care practices and will

contribute to realising “the best possible outcomes for

the individual” (Mukoro, 2011). The process and data

for this are:

• F. Treatment Decision <Data>. As an

output of the decision-making process, a

treatment decision is made.

• G. Treatment Action Taken <Process>.

Treatment decision is acted on by the patient

and/or clinician(s) responsible for their care.

For both the data and process of this phase, if

there are cybersecurity incidents then the actions

taken will either be incorrect or absent, impacting the

final phase by causing indirect patient harms.

3.3.5 Phase 5: Individual and Clinical

Outcomes

In this final phase, the effectiveness of the treatment

actions is evaluated in terms of the impact on the

health of the individual. This phase of the workflow

impacts patient harm consequences relating to the

outcomes of their treatment actions, described by:

• H. Impact on the Health of an Individual

<Consequences>. Patient harm consequen-

ces related to a lack treatment or lack of

necessary treatment. These result from

cybersecurity-related incidents in the prior

phases.

In summary, patient harm consequences that have

been identified. The next section describes how these

are caused by cybersecurity threats.

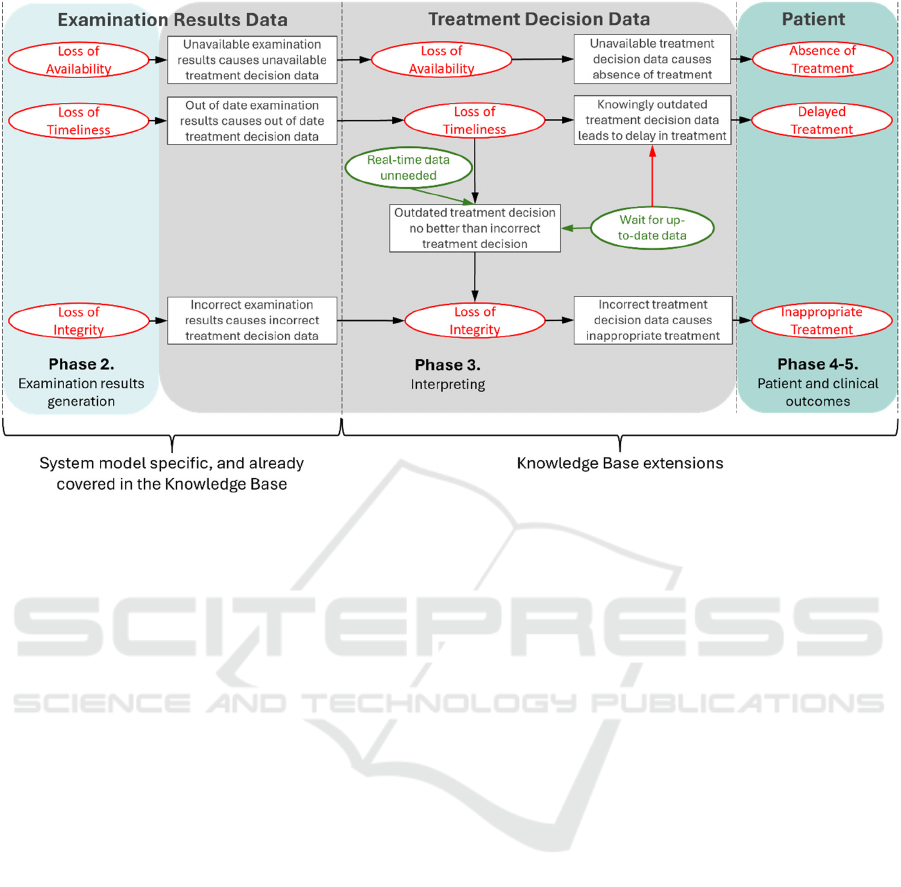

4 MAPPING CYBERSECURITY

CAUSES TO INDIRECT

PATIENT HARMS

To link cybersecurity threats to the non-emergency

indirect patient harms, the workflow is used to make

connections with pre-existing information about

threats and risks related to cyber-physical systems in

the Knowledge Base. The focus is about how the

security risk factors related to the generic workflow

can be mapped to indirect patient harms. The

workflow is concerned with processes, data, and

consequences that are indirect patient harms resulting

from threats. This process-data-consequence

approach can be represented as a threat-consequence

state mapping diagram, shown and described below.

4.1 Threat-Consequence State

Mapping Diagram

Threat-consequence state mapping diagrams are

concerned with the consequences of prior threats

leading to further threats and further consequences.

One such diagram is given in Figure 3. They contain

controls and threats that are connected together to

show how chains of these form, leading from one to

the next. A Black Box is a type of Threat, a Red

Oval a type of Consequence, a Green Oval a type of

Control, a Red Arrow indicates a type of Threat

enabled by a Control, and a Green Arrow indicates

a type of Threat blocked by a Control. For the

threat-consequence diagram here, the Consequences,

Controls and Threats are grouped together between

black dashed lines. These groups are based on the

Assets at which the Consequences, Controls and

Threats occur.

Figure 4 maps security risk factors (including pre-

existing cybersecurity knowledge in the Knowledge

Base) associated with the generic workflow.

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

268

Figure 4: Threat-consequence mapping – Sensor data leading to undermined treatment.

The phases of the workflow are highlighted in the

diagram to show which phases of the workflow the

different consequences and threats occur in. The

processes of the workflow diagram are not explicitly

shown, but their actions are implicitly contained

within the threats. This then covers the indirect

patient harms that occur due to harmful medical

decisions for ongoing treatment.

4.2 Risk Modelling for Generic

Workflow

In Figure 4, the consequences in Phase 2 act on the

Examination Results Data, as an undermining of its

TWAs due to prior threats leading into the workflow.

The threats in Phase 3 represent flaws occurring in the

treatment decision-making process, resulting from

cybersecurity-related consequences and lead to

patient harm consequences in Phases 4-5 that affect

the patient. A key assumption is that the worst-case

scenarios are considered (Piggin, 2017).

Following through the diagram (Figure 4):

• If the Examination Results Data becomes

corrupted (loss of integrity) then through

the treatment decision-making processes

using this corrupted data the treatment

decision data will be corrupted and the

patient will receive an inappropriate

treatment.

• If the Examination Results Data becomes

unavailable (loss of availability) then there

is no input to the treatment decision-making

process so treatment cannot occur and

Treatment Decision Data will be

unavailable, leading to an absence of

treatment.

• If the Treatment Decision Data is out of

date and near real-time treatment

decision data is needed then the outdated

data is no better than being incorrect, leading

to a loss of integrity of the Treatment

Decision Data. If the Treatment Decision

Data does not need to be near real-time then

this threat path can be blocked with a control

specifying that. Additionally, if the data

does need to be up to date then it can be

blocked with a control specifying the

decision-making process will wait for up to

date data. Waiting for the data to be up-to-

data again, however, enables a threat

resulting in delayed treatment.

With the state mapping diagram defined, the

Threats, Controls, Consequences, and paths between

them can be encoded into the Knowledge Base. This

is discussed in the next section.

Knowledge Modelling for Automated Risk Assessment of Cybersecurity and Indirect Patient Harms in Medical Contexts

269

5 ENCODING DOMAIN

MODELLING EXTENSIONS

Three key types of domain modelling extensions have

been undertaken: (i) a review of existing Asset types

to determine what already exists in the domain model

that can be used towards modelling indirect patient

harms; (ii) new relationships between Assets have

been encoded; as have (iii) new matching patterns.

5.1 Use of Existing Asset Types

Some of the key assets identified for socio-technical

CMD&IVD sensor-based systems already exist in the

Knowledge Base and so can be modelled using these

existing Asset types. These are the Clinician being

modelled as the Adult asset type, the Individual /

Patient as a Human, Adult or Child, the CMD&IVD

Sensor as an IoT Sensor, the Data Sensing and

Collection process, Data Testing process as a Process

or Interactive Process, the Decision-making process

as an Interactive Process, and the Diagnostic

Decision, Examination Results, Treatment Decision

and Sensed Data as Health Data asset type.

5.2 New Relationships

To model the identified four key purposes of

CMD&IVD, new Relationship types between Assets

in the Knowledge Base are encoded for diagnosis and

treatment. Indicating a type of action from one asset

type to another, the new relationship types identified

and encoded are:

• administersTreatment: Relation between a

Human and Data indicating the Human is

administering treatment specified by Data.

• diagnoses: Relation between two Humans to

indicate one Human is a Clinician

diagnosing the other, who must be a Patient.

• diagnosisFor: Relation to indicate that

Health Data relating to a Patient is the

diagnosis, as determined by the Clinician.

• senses: Relation between a data asset and a

sensor, indicating the data is sensed output

of the sensor. This was pre-existing but not

user-assertable, and this has been changed.

• treats: Relation between two Humans

indicating one is a Clinician treating the

other, who must be a Patient.

• definesTreatmentFor: Relation to indicate

Health Data relating to a Patient is the

treatment instructions for them, which can

be carried out by the Clinician or Patient.

Monitoring is already covered in the Knowledge

Base so no new relationship need to be encoded for it.

5.3 New Matching and Threat Patterns

New types of Matching Pattern were encoded so that

the following sets of connected Assets and

Relationships can be found in modelled systems:

1. A clinician diagnosing a patient, as determined

through a Clinician-diagnoses-Patient

relationship in a wider matching pattern to

indicate the clinician creates and interacts with

the diagnosis data that is the patient diagnosis.

2. A clinician treating a patient, as determined

through a Clinician-treats-Patient relationship in

a wider matching pattern to indicate the clinician

creates and uses the treatment instructions data,

which forms the patient treatment actions.

3. A patient treating themselves via self-care

practices, as determined through a Data-

definesTreatmentFor-Patient relationship in a

wider matching pattern to indicate the patient is

interacting with an interactive application to

view and act on the treatment instructions data.

4. A sensor sensing user-asserted data, determined

through a Sensor-senses-Data relationship.

New Threat Patterns have been specified, which

are based on the first three Matching Patterns. These

encode the threats and their consequences identified

in the threat-consequence state mapping diagram.

One such threat pattern is given in Figure 5, where

timeliness of data being undermined results in a “loss

of integrity”, unless one of the two controls is active.

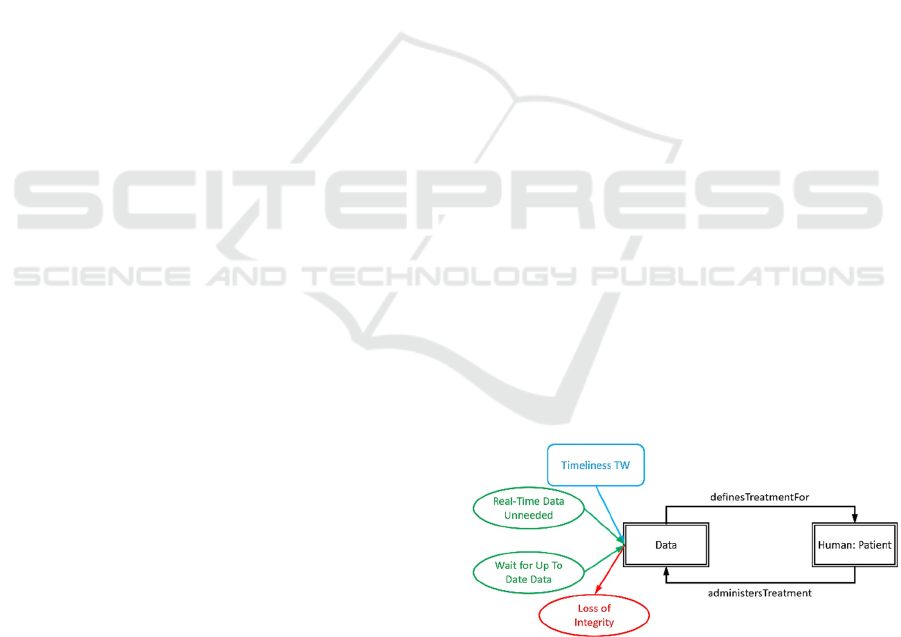

Figure 5: Threat pattern linking loss of timeliness to loss of

integrity.

Here the Data (treatment decision data) becomes

out of date (timeliness trustworthiness), causing a loss

of integrity of the Data, due to the starting assumption

that near real-time data is needed for the individual to

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

270

Figure 6: Use of Workflow: Use case example — IVD sensor data used for food calorie estimation and insulin dosage

recommendation in diabetes self-care practices.

correctly treat themselves. There are two controls that

block this threat from occurring. Firstly, it can be

asserted that near real-time data is not needed, and

secondly, the patient can wait for up-to-date data

before taking the treatment actions defined by it.

With the patient harms encoded, an illustrative

example is given next.

6 ILLUSTRATIVE EXAMPLE

Worked use cases with clinical and industrial

partners, as part of the NEMECYS project, have

guided the development of the indirect patient harms-

related extensions. Here one such use case is used as

an illustrative example for our approach. This

scenario was chosen as it builds on the examples in

Annex H of ISO/TR 24971 (pp. 62-85) (ISO 2020).

For this, the generic workflow of Figure 3 has

been specialised to illustrate the workflow and patient

harm domain modelling applied to the sensor data

being used in the self-care management of diabetes.

This specialised workflow is shown in Figure 6 and

describes a scenario where an individual with type 1

diabetes regularly monitors their blood glucose levels

and food intake to help manage their condition. The

individual monitors both their blood glucose levels

prior to a meal through using a continuous blood

glucose monitor (CGM) and their food intake by

taking pictures of their meal or the barcodes of the

food, that are then analysed in the cloud. This data is

collected via a “Software as a Medical Device”

(SaMD) app and uploaded to the cloud where food

carbohydrate levels are estimated and, with this and

the initial blood glucose levels, an appropriate insulin

dosage is calculated for the individual and their given

meal. This is communicated back to the individual so

they can administer the recommended insulin dosage.

The system model shown in Figure 7 models this

use case and focuses on the cybersecurity threats

involved in the data sensing, collection, processing

and communication, which then link to the newly

included indirect patient harms. There are two types

of sensed data within this use case: the pictures taken

by the individual of their food / barcodes; and their

initial blood glucose measurements. Within the

system model, these two data elements are given as a

single Data asset that achieves the same results.

The use case workflow above has steps identified

by letters A-H. Steps A-F (up to the treatment

decision) are covered within the system model:

• Health Sensor (A) senses User Phone Data

(B), which encapsulates both the blood

glucose data and food images / barcodes.

• User Phone Data (B) is stored locally on the

individual’s smartphone and also uploaded

to the cloud (C)

• In the cloud, User Phone Data is used to

update User Cloud Data (D).

Knowledge Modelling for Automated Risk Assessment of Cybersecurity and Indirect Patient Harms in Medical Contexts

271

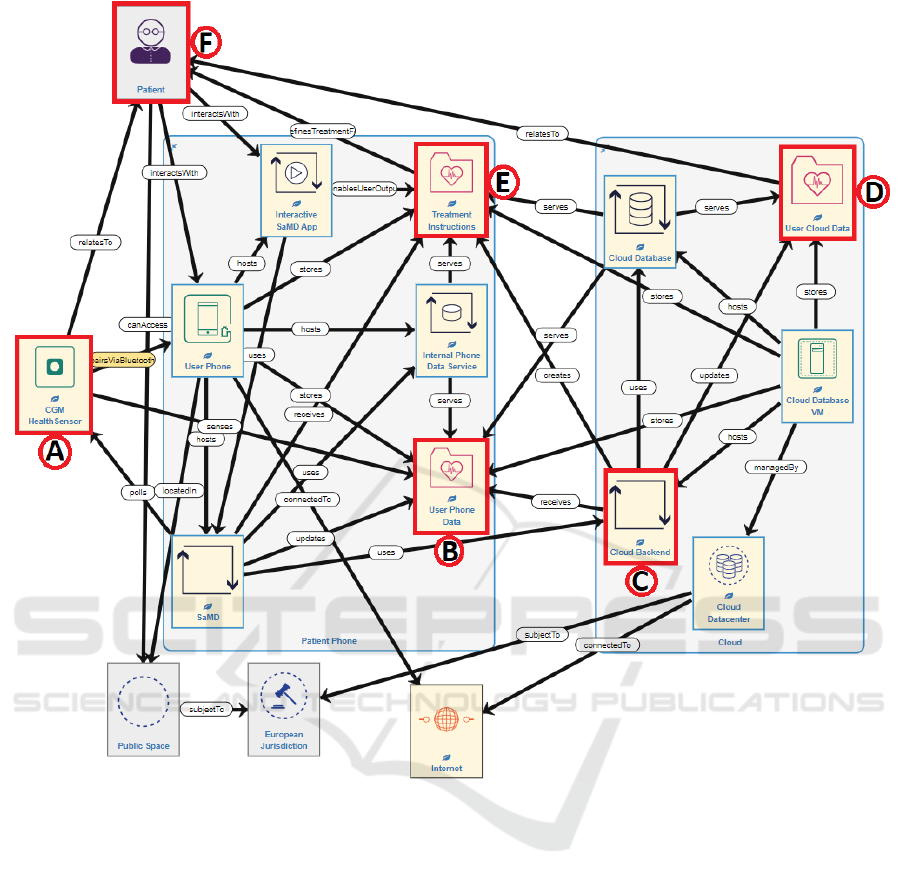

Figure 7: System model for self-managed type 1 diabetes use case.

• These are used to calculate the Treatment

Instructions Data (E), which is transmitted

back to the individual’s smartphone.

• The individual views Treatment Instructions

via the smartphone Interactive SaMD App

and actions the Treatment Instructions (F).

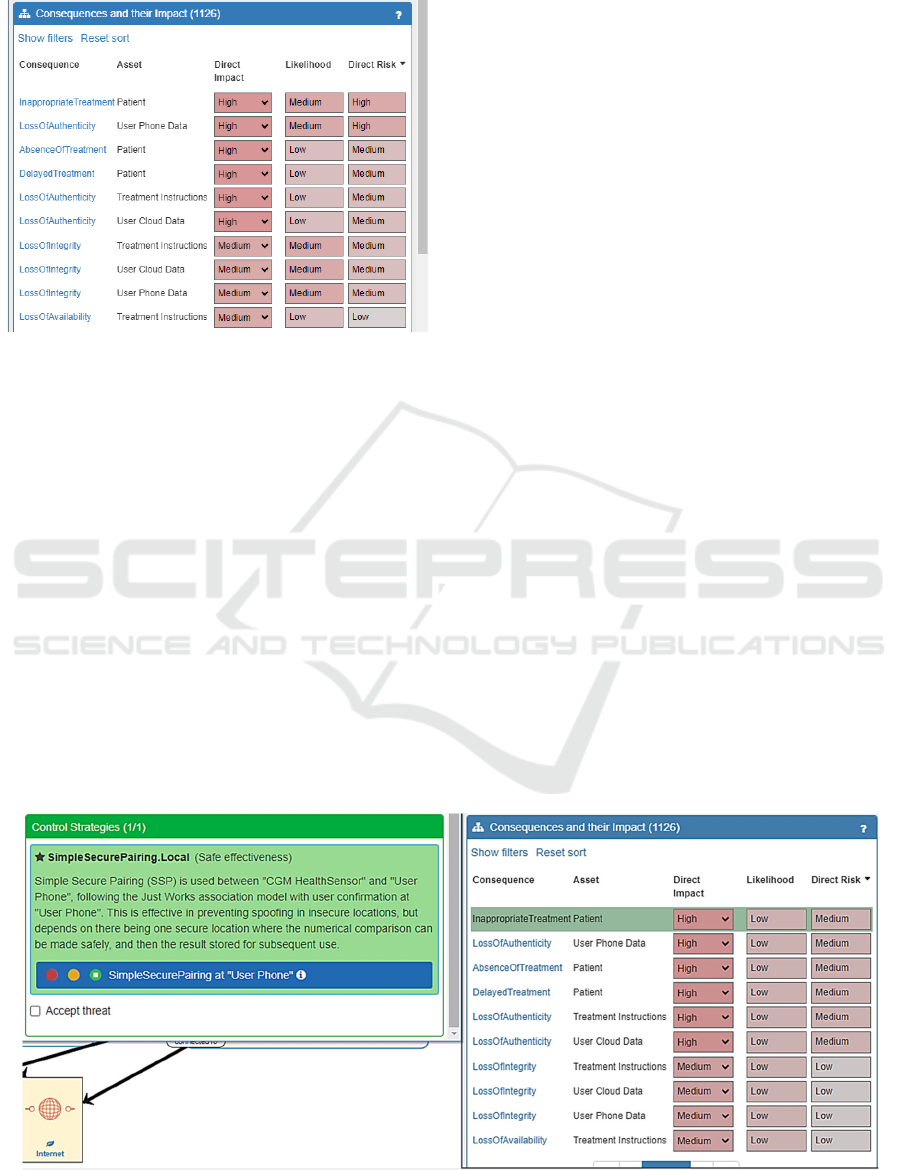

Figure 8 shows the risks present. Each row

corresponds to a risk, which is a Consequence

occurring at an Asset, with associated Impact and

Likelihood. To manage typical cybersecurity risks

like Loss of Confidentiality of the health data assets,

typical cybersecurity controls have been applied, like

the different health data assets being encrypted and

transmitted securely between the smartphone and

cloud. This reduces most risks to a medium risk level

or lower. However, Inappropriate Treatment of the

Patient and Loss of Authenticity of the User Phone

Data are still High risks.

Spyderisk is then used to trace between

Consequences and Threats to work backwards to the

Root Cause Threat. A Root Cause Threat is the very

first threat in a Threat Path, enabling the path to occur.

The root cause to Inappropriate Treatment of the

Patient and Loss of Authenticity of the User Phone

Data is that if the Health Sensor is spoofed when

paired with the patient smartphone, particularly if

pairing occurs in the Public Space, then the

“imposter” Health Sensor will have a Loss of

Authenticity and report incorrect blood glucose

levels to the SaMD. This leads to a Loss of

Reliability in that process, propagating to a Loss of

Reliability in the Cloud Backend, a Loss of

Authenticity in the User Cloud Data, and a Loss of

Authenticity and Integrity in the Treatment

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

272

Instructions, finally resulting in Inappropriate

Treatment of the individual.

Figure 8: Initial system risks.

A Simple Secure Pairing control on the

smartphone so the correct Health Sensor pairs with it

blocks this threat path, and applied it reduces the

Inappropriate Treatment risk to Medium, shown in

Figure 9. The Medium risk level remains due to the

consequence impact being high as it involves correct

treatment of a patient, whereas the likelihood of it

occurring becomes Low, reduced from Medium.

The control to wait for up-to-date data on the

Treatment Instructions has been applied, indicating

the patient will wait for up-to-date treatment

instructions before following them and taking their

insulin dosage. This blocks the threat paths for Loss

of Timeliness in the Treatment Instructions and

Inappropriate Treatment of the individual as they will

now not be following treatment instructions that are

based on outdated information. However, it enables a

threat path leading to Delayed Treatment, which

could affect the individual as they may require taking

the correct insulin dosage soon after having their

meal. This illustrates that there are different potential

control strategies and trade-offs that may need to be

considered. Spyderisk does not make the trade-off

decision, though it does provide decision support

information in terms of the possible consequences of

an intervention, which can be taken into consideration

when determining an appropriate course of action.

This demonstrates that non-emergency, indirect

patient harm risks related to cybersecurity incidents

are modelled in Spyderisk automated risk assessment

approach, and initial risk-benefit analyses can be

conducted to consider how some patient harm-related

controls can block certain threats and risks, but enable

others, and so need to be considered carefully.

7 CONCLUSIONS

Knowledge of non-emergency indirect patient harms

has been collected and translated into the terminology

of the Knowledge Base that is part of an existing

cybersecurity risk simulator called Spyderisk. This

knowledge has then been used to determine threat

paths linking cybersecurity incidents to indirect

patient harms and this has been encoded inside that

Knowledge Base. An illustrative example following

a guiding use case has also been presented.

We envision this work will continue by increasing

the link and modelling between these two domains,

and see this work as important since understanding,

preventing and mitigating cybersecurity risks that

result in patient harms is important as they can have

profound effects on the health and wellbeing of

individuals using CMD&IVD.

Figure 9: Effect of secure pairing controls on treatment.

Knowledge Modelling for Automated Risk Assessment of Cybersecurity and Indirect Patient Harms in Medical Contexts

273

ACKNOWLEDGEMENTS

Project Report. This conference paper has been

adapted from part of a NEMECYS project deliverable

report: D2.1 Risk Benefit Schemes (initial) (found at:

https://ec.europa.eu/research/participants/documents

/downloadPublic?documentIds=080166e50edeaf43

&appId=PPGMS).

Funding Statement. This work has been conducted

as part of the NEMECYS project, which is co-funded

by the European Union (101094323), by UK

Research and Innovation (10065802, 10050933 and

10061304), and by the Swiss State Secretariat for

Education, Research and Innovation.

We would like to give thanks to our project partners

for their involvement in risk modelling related use

case discussions. Please note that all views expressed

in this paper are those of the authors, and do not

necessarily represent those above.

REFERENCES

Balogh, E. P., Miller, B. T., Ball, J. R., Committee on

Diagnostic Error in Health Care, Board on Health Care

Services, Institute of Medicine, & The National

Academies of Sciences, Engineering, and Medicine

(Eds.). (2015). Improving Diagnosis in Health Care.

National Academies Press (US).

Biasin E, Kamenjasevic E. Cybersecurity of Medical

Devices: Regulatory Challenges in the European

Union. In: Cohen IG, Minssen T, Price II WN,

Robertson C, Shachar C, eds. The Future of Medical

Device Regulation: Innovation and Protection.

Cambridge University Press; 2022:51-62.

https://doi.org/10.1017/9781108975452.005.

International Organisation for Standardization (ISO). (n.d.).

An easy guide to understanding healthcare data analytics.

https://www.iso.org/healthcare/data-analytics

International Organisation for Standardization (ISO).

(2018). Information technology – Security techniques –

Information security risk management systems –

Overview and vocabulary (ISO Standard No.

27000:2018).

International Organisation for Standardization (ISO).

(2019). Medical devices — Application of risk

management to medical devices (ISO Standard No.

14971:2019).

International Organisation for Standardization (ISO).

(2020). Medical devices — Guidance on the application

of ISO 14971 (ISO Standard No. TR 24971:2020).

International Organisation for Standardization (ISO).

(2022). Information security, cybersecurity and privacy

protection – Guidance on managing information

security risks (ISO Standard No. 27005:2022).

Medical Device Coordination Group (MDCG) (2019).

MDCG 2019-16 Guidance on Cybersecurity for

medical devices. https://ec.europa.eu/docsroom/docu

ments/41863

Medical Device Coordination Group (MDCG) (2023).

MDCG 2023-3. Questions and Answers on vigilance

terms and concepts as outlined in the Regulation (EU)

2017/745 on medical devices. https://health.ec.euro

pa.eu/system/files/2023-02/mdcg_2023-3_en_0.pdf

Mukoro, F. (2011). Care Planning — Mini Topic Review.

NHS Kidney Care. https://www.england.nhs.uk/impro

vement-hub/wp-content/uploads/sites/44/2017/11/Car

e-Planning-Mini-Topic-Review.pdf

NEMECYS. (2023). NEMECYS Use Cases.

https://nemecys.eu/about-us/use-cases

Phillips, S. C., Taylor, S., Boniface, M., Modafferi, S.,

Surridge, M. (2024). Automated Knowledge-Based

Cybersecurity Risk Assessment of Cyber-Physical

Systems. IEEE Access, 12, 82482-82505. doi:

10.1109/ACCESS.2024.3404264

National Health Service [NHS] England. (2023). Medical

devices and digital tools. Version 1.2, 25 May 2023.

https://www.england.nhs.uk/long-read/medical-

devices-and-digital-tools/.

Piggin, R. (2017). Cybersecurity of connected medical

devices. BSI White Paper. Available at: https://www.

bsigroup.com/meddev/LocalFiles/en-US/Whitepapers/

bsi-md-whitepaper-cybersecurity.pdf (Accessed 18

October 2024).

Regulation 2017/745. Regulation (EU) 2017/745 of the

European Parliament and of the Council of 5 April

2017 on medical devices, amending Directive

2001/83/EC, Regulation (EC) No 178/2002 and

Regulation (EC) No 1223/2009 and repealing Council

Directives 90/385/EEC and 93/42/EEC (Text with EEA

relevance.). http://data.europa.eu/eli/reg/2017/745/oj

Regulation 2017/746. Regulation (EU) 2017/746 of the

European Parliament and of the Council of 5 April

2017 on in vitro diagnostic medical devices and

repealing Directive 98/79/EC and Commission

Decision 2010/227/EU (Text with EEA relevance.).

http://data.europa.eu/eli/reg/2017/746/oj

Spyderisk. (2024). Spyderisk Open Project.

https://github.com/Spyderisk

Taylor, S.; Jaatun, M.; Mc Gibney, A.; Seidl, R.;

Hrynchenko, P.; Prosvirin, D. and Mancilla, R. (2024).

A Framework Addressing Challenges in Cybersecurity

Testing of IoT Ecosystems and Components. In

Proceedings of the 9th International Conference on

Internet of Things, Big Data and Security, ISBN 978-

989-758-699-6, ISSN 2184-4976, pages 226-234.

Van Landuyt, D., Joosen, W. (2022). A descriptive study of

assumptions in STRIDE security threat modeling.

Softw Syst Model 21, 2311–2328

ICISSP 2025 - 11th International Conference on Information Systems Security and Privacy

274
