ReMoDeL: A Pure Functional Object-Oriented Concept Language

for Models, Metamodels and Model Transformation

Anthony J. H. Simons

School of Computer Science, University of Sheffield, Regent Court, 211 Portobello, Sheffield S1 4DP, U.K.

Keywords: Model-Driven Engineering, Models, Metamodels, Model Transformation, Pure Functional, Object-Oriented,

Concepts, Relationships, ReMoDeL.

Abstract: Model-Driven Engineering (MDE) is a broad discipline concerned with curating all aspects of system design

using models. Model-Driven Architecture (MDA) is a highly publicised approach focusing on the generation

of software systems from models. However, MDA consists of a large collection of complex, interlocking

standards, which together are difficult to master and have only partial implementations. This motivated us to

devise a much simpler language and toolset for MDE. The result is ReMoDeL (Reusable Model Design

Language), a pure functional object-oriented language for describing concepts and relationships. ReMoDeL

supports the creation of metamodels, models and model transformations. It leverages skills already known to

programmers, such as inheritance and pure functional mapping. It integrates with any standard Java IDE and

cross-compiles to Java, although ReMoDeL is more succinct (by 4x). ReMoDeL’s pure functional

transformations are in principle amenable to formal proof by induction. Practically, it offers a convenient and

fast way to prototype different metamodels and transformations. We are using ReMoDeL to develop

alternatives to UML and MDA (with different models and abstraction levels), with promising results.

1 INTRODUCTION

Model Driven Engineering (MDE) has been an active

field in Software Engineering since the early 2000s

(Whittle, et al., 2014). The goal is to enable the

management of all aspects of systems design using

models, abstractions of different views of the system,

with the aim of increasing clarity and productivity.

MDE encompasses many kinds of model translation,

correction, refactoring and improvement, and reverse

engineering of models from systems, whereas the

subfield of Model-Driven Development (MDD)

focuses more narrowly on the generation of systems

from models (Mens & van Gorp, 2006, Biehl, 2010).

1.1 Languages for MDE

The best known proposal for MDD is the Object

Management Group’s Model-Driven Architecture

(OMG, 2014b), built on a large collection of

standards, including the Unified Modeling Language

(OMG, 2017), the Meta Object Facility (OMG,

2016a), Query-View Transformation (OMG, 2016b),

https://orcid.org/0000-0002-5925-7148

the Object Constraint Language (OMG, 2014a),

XML Metadata Interchange (OMG, 2015) and the

Common Warehouse Metamodel (OMG, 2003).

Whereas companies report using some of the OMG’s

standards, such as UML and bespoke code translators

to speed up development (Whittle, et al., 2017), there

have been few complete implementations of the QVT

model transformation standard. SmartQVT (Alizon,

et al., 2008) was a Java implementation of the QVT-

Operational language, not maintained since 2013.

ModelMorf (TCS, 2007) implemented bidirectional

transformations in the QVT-Relational language,

with pattern matching, but has not survived. Lano

attributes this lack of traction to the complexity of the

whole MDA project:

“The problem with QVT-R is that large QVT-R

specifications are difficult to write, understand or

debug, and tend to have poor quality/high technical

debt (including the Rel2Core transformation that

appears in the standard itself)” (Lano, 2022).

Other influential model transformation languages

originally developed outside the OMG remit include:

the ATLAS Transformation Language (ATL) from

242

Simons, A. J. H.

ReMoDeL: A Pure Functional Object-Oriented Concept Language for Models, Metamodels and Model Transformation.

DOI: 10.5220/0013184700003896

Paper published under CC license (CC BY-NC-ND 4.0)

In Proceedings of the 13th International Conference on Model-Based Software and Systems Engineering (MODELSWARD 2025), pages 242-249

ISBN: 978-989-758-729-0; ISSN: 2184-4348

INRIA, Nantes (Jouault, et al., 2008), a hybrid

language with declarative and imperative aspects,

Kermeta from IRISA, Rennes (Drey, et al., 2010), an

object-oriented programming language with support

for imperative model transformations, the Epsilon

Transformation Language (ETL) from the University

of York (Kolovos, et al., 2008), a hybrid model-to-

model transformation language with lazy, guarded

and greedy rule scheduling. Languages worthy of

merit include UML-RSDS (Reactive Systems Design

Support) from Kings College, London (Lano, 2016;

2018), and Aocl (Batory & Altoyan, 2020), which

support a declarative style of specification in OCL.

Whereas Aocl extends OCL with mapping functions,

UML-RSDS uses pure OCL, cleverly converted by a

compiler into executable mapping transformations,

and can generate code in Java, C, C++ and C#.

Many of these languages have since migrated onto

the Eclipse platform, to benefit from the graphical

drawing tools and the Eclipse Modeling Framework

(EMF) (Eclipse, 2008; 2021). ATL, Kermeta, ETL

and UML-RSDS (as AgileUML) have followed this

route to seek wider adoption. However, even one of

the most complete Meta-CASE tools ever produced,

XMF-Mosaic by the UK startup Xactium (Clark, et

al., 2008) failed to capture the lasting interest of

industry. In hindsight, this was seen as due to

language and tool designers “developing elegant tools

for researchers, not pragmatic tools for engineers”

(Clark and Muller, 2012; Whittle, et al, 2017).

1.2 Simple Language for MDE

Our own development of ReMoDeL sought to avoid

creating similar barriers to adoption. We have created

a simple, declarative language in which designers can

rapidly express sets of related concepts in a

metamodel. Metamodels are cross-compiled to Java

packages, containing one class per concept,

automating all the usual Java bookkeeping. A model

is an in-memory graph of instances of these classes,

which can be read from, and serialised as text, in a

format reminiscent of JSON (but not identical).

A model transformation is expressed as a set of

pure functional mapping rules from source to target.

Each rule is idempotent (when applied multiple times

to the same source element, it always maps to the

same target element). This promotes a desirable

divide-and-conquer strategy of expressing rules in

terms of simpler rules, without concerns for rule

ordering or multiple firings. A model transformation

compiles to a Java class, which may either run as a

main program, or may be chained together in a series

of model transformations.

A project in ReMoDeL consists of a new Java

project in Eclipse (or other IDE), which has the

ReMoDeL library on its build-path. The project only

needs a home package with a shell program to run the

compiler, and thereafter all ReMoDeL files are placed

in subfolders {meta, model, rule} of the main project

folder. This is all that is needed to get started.

2 REMODEL SYNTAX

The best way to present ReMoDeL is by example, and

for this we use a popular “Hello World” introductory

example found in the model transformation literature,

the mapping between alternative tree- and graph-like

representations of the same tree structure.

2.1 InTree Metamodel

Figure 1 illustrates an in-tree, a kind of tree in which

every node refers to its parent node directly. Such a

structure may be represented as the following

serialised model text.

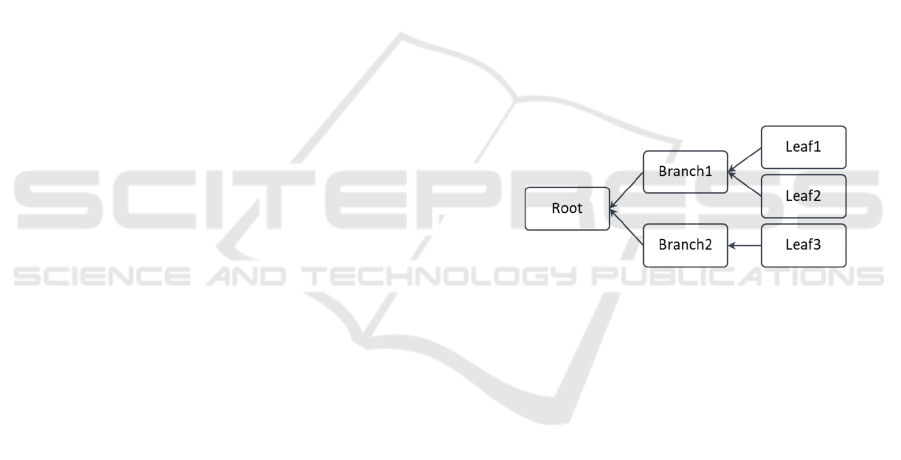

Figure 1: Model of an in-tree.

model tree1 : InTree {

t1 : Tree(nodes = Node[

n1 : Node(label = "Root"),

n2 : Node(label = "Branch1",

parent = n1),

n3 : Node(label = "Branch2",

parent = n1),

n4 : Node(label = "Leaf1",

parent = n2),

n5 : Node(label = "Leaf2",

parent = n2),

n6 : Node(label = "Leaf3",

parent = n3)

])

}

From this it should be clear that the Tree t1

consists of a list of Nodes n1-n6, where most of these,

apart from the root node, refer to their parent node.

Every element of the model has a unique ID, such that

they may refer to each other as desired. The type-

declaration in the header tree1:InTree, states that the

model tree1 is an instance of the metamodel InTree.

ReMoDeL: A Pure Functional Object-Oriented Concept Language for Models, Metamodels and Model Transformation

243

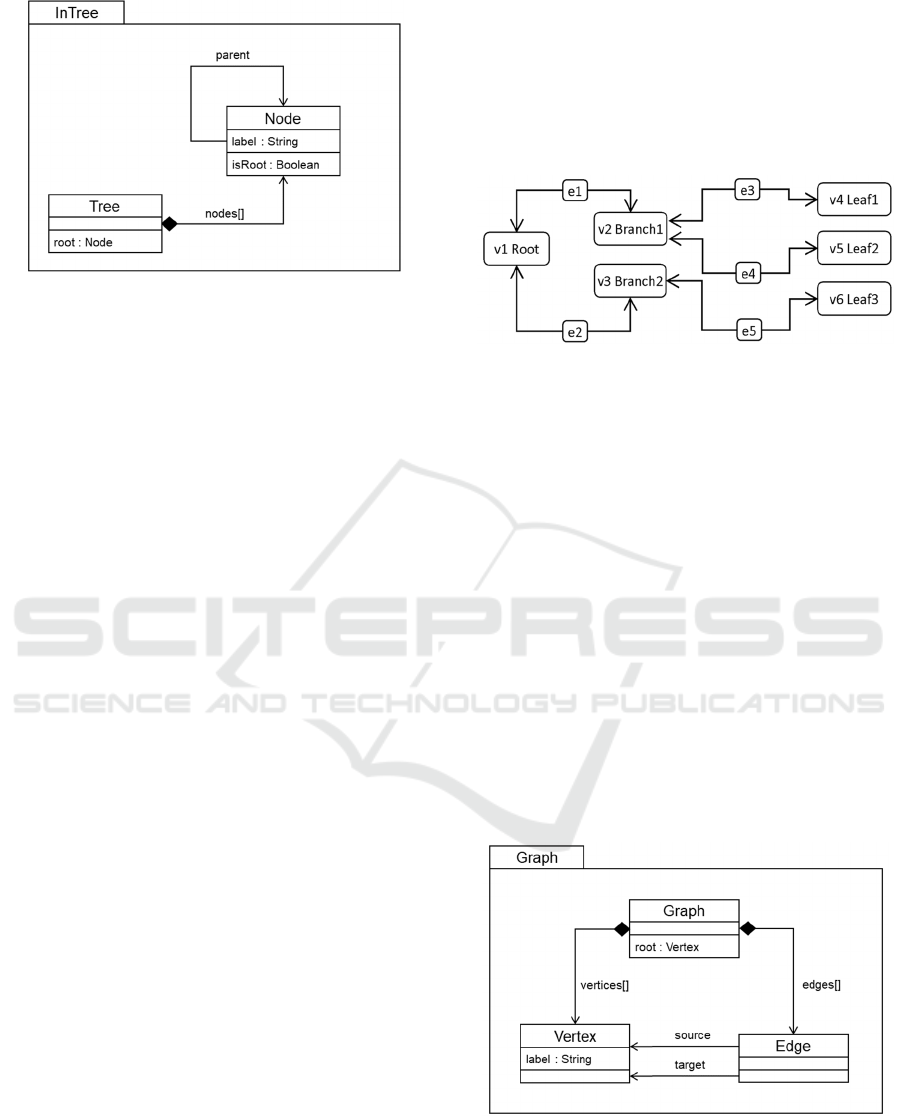

Figure 2: Metamodel for an InTree.

Figure 2 illustrates the metamodel for an InTree

using the graphical syntax adopted for ReMoDeL.

This repurposes some UML notation (for the sake of

familiarity), in which a metamodel is contained in a

region reminiscent of a UML package, and concepts

are drawn in a style reminiscent of a UML class. The

same metamodel may also be expressed in the

following textual format:

metamodel InTree {

concept Node {

attribute label : String

reference parent : Node

operation isRoot : Boolean {

parent = null

}

concept Tree {

component nodes : Node[]

operation root : Node {

nodes.detect(node |

node.isRoot)

}

From this it should be clear that the InTree

metamodel consists of two concepts, Node and Tree.

Node has an attribute label with a simple String type,

and a weak reference to a parent Node. Tree owns a

component list of Nodes; the list type is indicated by

the square brackets following the Node type name.

Concepts may also have pure functional

operations (parameters are optional), which return the

value of their body expression. So, Node is able to

determine if it is the root node, and Tree is able to

filter its nodes to find the root node using detect, a

higher-order filtering operation, whose lambda-

expression tests each owned node in turn and returns

the first found root node.

2.2 Graph Metamodel

Figure 3 illustrates an alternative graph representation

for a tree-like structure, in which the vertices and

edges are modelled explicitly as separate concepts.

Such a structure may be represented in the following

serialised model text.

Figure 3: Model of a graph.

model graph1 : Graph {

g1 : Graph(vertices = Vertex[

v1 : Vertex(label = "Root"),

v2 : Vertex(label = "Branch1"),

v3 : Vertex(label = "Branch2"),

v4 : Vertex(label = "Leaf1"),

v5 : Vertex(label = "Leaf2"),

v6 : Vertex(label = "Leaf3")

], edges = Edge[

e1 : Edge(source = v2, target = v1),

e2 : Edge(source = v3, target = v1),

e3 : Edge(source = v4, target = v2),

e4 : Edge(source = v5, target = v2),

e5 : Edge(source = v6, target = v3),

])

}

From this, it should be clear that the Graph g1

consists of a list of Vertices v1-v6 and a list of Edges

e1-e5. Each Vertex is labelled, and each Edge

connects a given source and target Vertex.

Figure 4: Metamodel for a Graph.

Figure 4 illustrates the metamodel for a Graph

using the ReMoDeL graphical notation. This defines

the structure expressed above, which is obeyed by the

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

244

model instance graph1:Graph. The same metamodel

may also be expressed in textual format (Graph

unambiguously names the metamodel and a concept):

metamodel Graph {

concept Graph {

component vertices : Vertex[]

component edges : Edge[]

operation root : Vertex {

vertices.detect(vertex |

not edges.exists(edge |

edge.source = vertex))

}

concept Vertex {

attribute label : String

}

concept Edge {

reference source : Vertex

reference target : Vertex

}

There are three concepts: Graph, which consists

of lists of Vertices and Edges, Vertex, which has a

simply-typed label attribute, and Edge, which has two

references to its source and target Vertex.

The Graph operation to find the root vertex looks

a little more involved than for the InTree case, but

should be well understood by anyone familiar with

pure functional programming: the root operation

filters the vertices to detect a unique Vertex satisfying

a given property, which is that there should not exist

any Edge, whose source is that Vertex. Such a Vertex

must be a root.

2.3 Model Transformation

Model transformations in ReMoDeL are provided as

text files in the following format:

transform InTreeToGraph : Trees {

metamodel source : InTree

metamodel target : Graph

mapping inTreeToGraph (inTree :

InTree_Tree) : Graph_Graph {

create Graph_Graph(

vertices :=

inTree.nodes.collect(node |

inNodeToVertex(node)),

edges :=

inTree.nodes

.without(inTree.root)

.collect(node |

inNodeToEdge(node))

}

mapping inNodeToVertex(inNode :

InTree_Node) : Graph_Vertex {

create Graph_Vertex(

label := inNode.label

)

}

mapping inNodeToEdge (inNode :

InTree_Node) : Graph_Edge {

create Graph_Edge(

source := inNodeToVertex(inNode),

target := inNodeToVertex(

inNode.parent)

)

}

The transformation is named InTreeToGraph and

belongs to the transformation group Trees. The next

lines introduce the source and target metamodels,

saying that the transformation maps a source:InTree

to a target:Graph. The transformation consists of

three mapping rules: inTreeToGraph is the top-level

rule (ordered first), which invokes subsidiary rules

inNodeToVertex and inNodeToEdge.

The simplest rule inNodeToVertex takes an

argument of the kind: InTree_Node and gives a result

of the kind: Graph_Vertex. The concept-names are

prefixed by their owning metamodel, since the source

and target metamodels may sometimes contain

concepts having the same name. The body of the rule

creates a Graph_Vertex, whose label is initialised to

the same value as that of the supplied inNode.

Similarly, the rule inNodeToEdge takes an

argument of the kind InTree_Node and creates a

result of the kind Graph_Edge. This rule invokes the

previous rule to map the supplied inNode to its

source, and the parent of this node to its target.

Finally, inTreeToGraph creates a Graph, whose

vertices are obtained by mapping inNodeToVertex

over the inTree.nodes, and whose edges are obtained

by mapping inNodeToEdge over all but one of the

inTree.nodes, the root node, which is excluded from

the list by without, a pure functional list removal

operation that returns a copy of the list without the

specified element.

The higher-order mapping operation collect

accepts a lambda-expression as its argument. This

consists of a lambda-variable (here, node) separated

by a vertical stroke from the lambda-body, which can

be any expression including the lambda-variable.

The effect of invoking collect on a list is to apply the

lambda-expression to every node in the list, and

collect a new list of the mapped results.

ReMoDeL: A Pure Functional Object-Oriented Concept Language for Models, Metamodels and Model Transformation

245

3 REMODEL SEMANTICS

ReMoDeL was designed to have a semantics based

on pure functional programming semantics, for the

sake of formal clarity. No operation, nor any rule,

actually modifies any data structure destructively.

3.1 Properties of Transformations

A model transformation is a pure functional mapping

from a source to a target model. The whole target is

always created afresh by the transformation. Rules

are completely declarative, stating exactly how to

build the target in a compositional way using simpler

rules. This brings certain desirable properties.

Firstly, no other part of the source or target model

is modified by any mapping rule. This avoids hard

problems found in languages with imperative updates

to models, such as the hybrid languages ATL

(Jouault, et al., 2008) and ETL (Kolovos, et al., 2008),

in which it becomes important to control the order of

rule-firing, so that target models are modified in some

appropriate sequential order.

Secondly, rules are idempotent, mapping every

element exactly once. Consider the number of times

the rule inNodeToVertex is called on any given node.

It is called once on every node by inTreeToGraph

when creating the list of Vertices. It is called again

by inNodeToEdge on all paired nodes connected by

edges. During the whole model transformation, the

InNode n2 is given as an argument to inNodeToVertex

on four separate occasions: once when being mapped

to the Vertex v2, once when creating the Edge e1, and

twice more when creating the Edges e3 and e4. The

idempotent property ensures that exactly one copy of

the target Vertex v2 is created, returning the same

instance for all invocations.

Thirdly, models are constrained to be directed

acyclic graphs (DAGs), to ensure that transformations

always terminate. If a model were to contain cycles,

then rules would call each other in infinite regress.

But since it is sometimes profoundly useful to have

back-references, especially to avoid passing the

whole model as an extra argument to a rule,

ReMoDeL allows any component to have a hidden

back-reference called owner, which is set implicitly

when the component is added to its master. Back-

references are not mapped by transformations, and

they are not serialised when a model is saved.

Fourthly, each transformation is unidirectional,

describing a mapping in one direction only. This does

not preclude defining an inverse transformation, to

map the target back to the source. It is possible to

write an inverse transformation GraphToInTree,

which maps a graph-representation of a tree back to

the original in-tree representation. However, the

astute reader will have realised that a graph is a

strictly more general kind of representation, since it

may have more than one root node at the head of the

DAG. Such a graph cannot be mapped (without loss)

back to a tree. It is possible to define partial

transformations in ReMoDeL.

While we have only shown an example of a

mapping transformation, it is also possible to create

merging transformations. These have more than one

source metamodel and construct a target that blends

information from both of the sources. An updating

transformation is merely a mapping transformation

that constructs a new instance of the target model.

Both mapping and merging rules are idempotent, but

for a merging rule, this is judged on the basis of a

tuple of inputs from the source metamodels.

Occasionally, it is desired to have a kind of rule that

always constructs a new instance of the result. For

this, ReMoDeL provides function

rules, which map

without idempotence.

Finally, for the more mathematically-inclined,

ReMoDeL transformations have an interpretation

within Category Theory as homomorphisms between

general abstract datatype algebras. The individual

mapping rules are morphisms, mappings between

source and target elements of the algebras. This

property is entailed by the fact that any kind of source

or target metamodel, expressed in the concept-

language, may ultimately be generalised as the “same

kind” of abstract datatype algebra.

3.2 Properties of Metamodels

ReMoDeL was designed to be a conceptual modelling

language, rather than a full programming language.

A concept in ReMoDeL denotes any kind of modelled

structural or behavioural entity that possesses a

number of properties. The properties can only be

drawn from the following kinds:

• An attribute – with a simply-typed value;

• A reference – referring to another concept

(or list, or set) in the same metamodel;

• A component – a strong reference implying

ownership of the related concept;

• An operation – a pure functional operation,

to filter or access part of a concept.

Attributes have simple types taken from the set:

{Boolean, Character, Integer, Decimal, String}. All

references are directed, to preserve the DAG quality

of models (see above). A component is a stronger

kind of reference, meaning that the source concept

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

246

owns the target concept. It also supports the implicit

owner back-reference (see above). The intended

difference in the semantics is that if an instance of a

concept is deleted, it may simply forget its references,

whereas its components should be deleted recursively

in a cascading fashion. (This would support a future

implementation of ReMoDeL in C++, which must

manage the allocation of components explicitly).

ReMoDeL operations are without side-effects.

They typically either query their owning concept to

filter its stored properties for a subset of these, or they

compute some kind of derived result. The modeller

adds such query operations to a concept as needed,

usually to make the process of writing a model

transformation simpler.

ReMoDeL allows inheritance between concepts.

A derived concept may inherit a base concept in its

opening declaration (before the set of properties).

The derived concept obtains all the properties of the

base concept, but may override some by redefining

them. A redefined reference or component may

restrict the type of concept to which it refers. An

operation may restrict its result type and may also

replace its function body. This supports dynamic

binding. ReMoDeL also allows inheritance between

metamodels. A derived metamodel may inherit a

base metamodel in its opening declaration (before the

set of concepts). The semantics is similar to

importing from a remote package, except that it is

possible to override an inherited concept with a

redefinition of that concept. Together, these features

justify the acronym ReMoDeL (Reusable Model

Design Language).

3.3 Properties of Expressions

ReMoDeL has an extensive expression language. It

supports the Boolean constants: false, true and the

operations and, or and not. It supports the empty

reference null. It supports the six inequalities and a

full range of arithmetic operators, including divide,

modulo and exponent. It offers a ternary conditional

if – then – else – which returns the value of one or

other branch. It offers a range of standard String

operations, which support searching, substring

extraction, concatenation and case conversion, which

is useful in rules that relate names and types of things.

As well as the basic types and concept types,

ReMoDeL has pure functional list and set types.

These are defined by appending [] or {} onto any type

identifier, to denote respectively a list, or a set of that

type. Any concept may use asList or asSet to convert

it into a singleton of that type (when applied to

collections, these may convert the collection-type).

Lists and sets offer the common operations: isEmpty,

size, has, count, with and without. Sets offer union,

intersection, difference with the usual semantics and

a pick operation for the axiom of choice, to select an

arbitrary set element. Lists are ordered and offer first,

rest and append with the usual semantics.

One of the most important and useful features of

lists and sets is that they offer the following higher-

order operations, which perform quantification,

filtering, mapping and reduction on collections. Each

of these has a lambda-expression as its argument:

• Exists(x | predicate(x)) – returns true if any

element satisfies the predicate;

• Forall(x | predicate(x)) – returns true if all the

elements satisfy the predicate;

• Detect(x | predicate(x)) – returns the first

element satisfying the predicate;

• Select(x | predicate(x)) – returns those

elements that satisfy the predicate

• Reject(x | predicate(x)) – returns those

elements that fail to satisfy the predicate

• Collect(x | function(x)) – constructs a list (or

set) of the result of applying the function to

every element of the list (or set).

• Collate(x | function(x)) – appends a list (or

unions a set) of the list- (or set-) results of

applying the function to every element of the

list (or set).

• Reduce(x, y | reduction(x, y)) – constructs a

single value by combining all elements.

These operations are sensitive to the kind of

collection on which they are invoked, and may return

a collection of the same kind (whether a list, or a set).

Filtering a heterogeneously typed collection may

specify a more homogeneously typed result, which is

useful, since the result’s elements are automatically

down-cast to the specific type, which may offer

access to more specific operations.

The difference between the collect and collate

operations is that collect expects the mapped function

to return a single object, whereas collate expects the

mapped function to return a list (or set), which must

then be flattened. The reduce operation is a limited

kind of left-fold reduction: if the collection is empty,

it returns null; if the collection is a singleton, it returns

that element; otherwise, it applies the binary

reduction to combine multiple elements of the

collection. This can be used to find the sum of a list,

or the greatest element of a set, for example.

For further information about the expression

language, the reader is invited to consult the report

ReMoDeL Explained (Simons, 2023a). For further

information about the cross-compilation model and

how this preserves the semantics of the language, the

ReMoDeL: A Pure Functional Object-Oriented Concept Language for Models, Metamodels and Model Transformation

247

reader is invited to consult the report ReMoDeL

Compiled (Simons, 2023b).

4 REMODEL IN PRACTICE

ReMoDeL has been trialled in a number of student

projects at the University of Sheffield. The learners

are students on Computer Science undergraduate or

postgraduate master’s programmes. They undertake

different kinds of model transformation problems in

different conceptual domains.

4.1 Learning ReMoDeL

Undergraduates typically have a strong background in

Java programming and one semester’s exposure to

functional programming in Haskell. Master’s students

may not have had functional programming experience.

We find that the undergraduates adapt quickly to the

pure functional style of transformation rules, although

master’s students also acquire this skill eventually.

Once the idempotent property of mapping rules is

understood, students soon adapt to the declarative

divide-and-conquer style of mapping transformations.

A second acquired skill is in learning how to

construct a suitable metamodel for the conceptual

domain in question, especially how to factor out

common features of different concepts in a concept

hierarchy. This usually comes more easily to those

with longer object-oriented programming experience,

especially if they are familiar with refactoring classes

in a class hierarchy.

Using ReMoDeL within a standard Java IDE (we

have used Eclipse, IntelliJ IDEA and NetBeans) can

present challenges for some who have never managed

a Java project with an external library. Students learn

about configuring the build-path of their project.

Another skill is to keep the state of the IDE consistent.

For example, Eclipse monitors the state of a Java

project using metadata on its files and dependencies,

which are updated only by the IDE’s tools. Since

ReMoDeL may independently create files and whole

Java packages in a separate thread, it is possible for

the metadata to become stale. In this case, the user

must remember to refresh the project frequently.

4.2 Problem Domains

Another test of ReMoDeL is in seeing what kinds of

problem domains it can be applied to with success.

One of the first full-strength problems on which we

tested its power to conceptualise domain models and

capture complex chains of transformations was the

UML to SQL transformation problem. This involved

creating separate metamodels for the UML Class

Diagram, the traditional Entity-Relationship Model, a

normalised Object Dependency Graph, and an SQL

Database Model capturing data definitions.

We developed a chain of transformations that

could start either with UML, or a traditional ERM.

UMLtoERM converted a class diagram into an ERM,

in which UML’s special semantic relationships

generalisation, aggregation and composition, were

mapped with associations to general relationships.

ERMtoNorm normalised the ERM to 3NF, merging

all entities connected one-to-one, splitting many-to-

many relationships by introducing linker entities, and

redirecting any affected relationships. NormToEDG

converted all edges into directed, named references

from the dependent to the master type. EDGtoSQL

mapped all object types to tables, all attributes to

columns, and all references to additional renamed

columns, constructing primary and foreign keys that

grouped these appropriately. For a complete account

of this project, the reader is invited to refer to the

technical reports (Simons, 2022a; 2022b).

4.3 Code Generation

To finish off the transformation chain, we wrote a

simple code generator, to output SQL Data Definition

Language from the final SQL Database model. This

was achieved using a hand-written Java code

generator class that followed the Visitor Design

Pattern (Gamma, et al., 1995). An abstract Visitor

was defined in the SQL Database metamodel, which

compiled to a Java class. The hand-written code

generator was a subclass of this Visitor, overriding the

trivial method signatures. In this way, the metamodel

could be recompiled without overwriting the hand-

written generator methods.

5 CONCLUSIONS

We have succeeded in designing a fresh model

transformation language, with a succinct syntax and

clean semantics, and with a small runtime library that

integrates easily with existing Java IDEs. Our initial

experiments have shown that new users adapt rapidly

to the language and compiler tools.

What is pleasing is that their focus of attention

shifts to solving the real conceptual modelling and

model transformation problems, rather than having to

spend all their time understanding and fixing issues

with the transformation architecture (Lano, 2022) or

tools (Whittle, et al., 2017). A similar goal motivates

MODELSWARD 2025 - 13th International Conference on Model-Based Software and Systems Engineering

248

the designers of DSL tools, such as MPS (JetBrains,

2024). But ReMoDeL is a general-purpose, rather

than a domain-specific, modelling language.

Our future work arises out of different student

projects, in which we have been able to explore new

alternatives to UML, including a Task Model of

clustered tasks and actors which are transformed into

the State Model of the target system’s GUI with

authorisation (a transformation of system behaviour),

or a simple Impact Model showing the CRUD effects

of Tasks upon Objects, offering completeness checks

on object lifecycles. These serve a good basis for

cross-checking and refinement; we will extend and

develop this family of models, which we tentatively

name μML (the micro-Modelling Language).

REFERENCES

Alizon, F., Belaunde, M., DuPré, G., Nicolas, B., Poivre, S.

and Simonin, J. (2008). Les modèles dans l'action à

France Télécom avec SmartQVT. Ingénierie Dirigée

par les Modèles, Congrès Journées Neptune 5, Paris.

Génie Logiciel 85, 35-42.

Batory, D. and Altoyan, N. (2020). Aocl : A pure-Java

constraint and transformation language for MDE. Proc.

Int. Conf. MODELSWARD, 319-327.

Biehl, M. (2010). Literature study on model

transformations, Technical Report, Embedded Control

Systems, Royal Institute of Technology, Stockholm

(Stockholm: KTH).

Clark, A., Sammut, P. and Willans, J. (2008). Applied

Metamodelling – a Foundation for Language-Driven

Development, 2nd ed., (Sheffield: Ceteva). Available:

https://repository.mdx.ac.uk/item/82x67.

Clark, T., Muller, P.A. (2012). Exploiting model driven

technology: a tale of two startups. Software Systems

Modeling 11(4), 481–493.

Drey, Z., Faucher, C., Fleurey, F., Mahé V. and Vojtisek,

D. (2010). KerMeta Language Reference Manual,

November (Rennes: IRISA).

Eclipse Foundation (2008). EMF: Eclipse Modelling

Framework, (Boston: Addison-Wesley). Available

online: https://eclipse.dev/modeling/emf/

Eclipse Foundation (2021). org.eclipse.emf.ecore Java

package documentation. https://download.eclipse.org/

modeling/emf/emf/javadoc/2.9.0/org/eclipse/emf/ecore

/package-summary.html

Gamma, E., Helm, R., Johnson, R. and Vlissides, J. (1995).

Design Patterns: Elements of Reusable Object-

Oriented Software (Boston: Addison-Wesley).

Jouault, F., Allilaire, F., Bézivin, J. and Kurtev, I. (2008).

ATL: a model transformation tool, Science of Computer

Programming, 72, 31–39.

JetBrains (2024). Meta Programming System. Available

online: https://www.jetbrains.com/mps/

Kolovos, D., Paige, R. and Polack, F. (2008), The epsilon

transformation language, Theory and Practice of Model

Transformations, Lecture Notes in Computer Science,

5063, 46–60.

Lano, K. (2016), Agile Model-Based Development using

UML-RSDS (Boca Raton: CRC Press).

Lano, K. (2018). The UML-RSDS Manual, Technical

Report, Kings College, London. https://nms.kcl.ac.uk/

kevin.lano/uml2web/umlrsds.pdf

Lano, K. (2022). Comment on Laurie Tratt’s blog post:

UML: my part in its downfall. Posted 10 March 2022.

https://tratt.net/laurie/blog/2022/uml_my_part_in_its_

downfall.html#comment-MSgn5NTaN8yM.

Mens, T. and van Gorp, P. (2006). A taxonomy of model

transformations. Electronic Notes in Theoretical

Computer Science, 152 (Amsterdam: Elsevier), 125-142.

OMG (2003). CWM – Common Warehouse Metamodel,

March. https://www.omg.org/spec/CWM/.

OMG (2014). OCL – Object Constraint Language,

February. https://www.omg.org/spec/OCL/.

OMG (2014). MDA – The Architecture of Choice for a

Changing World, June. https://www.omg.org/mda/.

OMG (2015). XMI – XML Metadata Interchange, June.

https://www.omg.org/spec/XMI/.

OMG (2016). MOF – Meta Object Facility, October

https://www.omg.org/spec/MOF/.

OMG (2016). QVT – MOF Query/View/Transformation,

June. https://www.omg.org/spec/QVT/.

OMG (2017). The Unified Modeling Language, December.

https://www.omg.org/spec/UML/.

Simons, A.J.H. (2022). ReMoDeL Data Refinement: data

transformations in ReMoDeL, Part 1. Technical

Report, 25 July, University of Sheffield.

https://staffwww.dcs.shef.ac.uk/people/A.Simons/rem

odel/current/ReMoDeL_Data_Refinement_Part1.pdf

Simons, A.J.H. (2022). ReMoDeL Data Refinement: data

transformations in ReMoDeL, Part 2. Technical

Report, 25 July, University of Sheffield.

https://staffwww.dcs.shef.ac.uk/people/A.Simons/rem

odel/current/ReMoDeL_Data_Refinement_Part2.pdf

Simons, A.J.H. (2023). ReMoDeL explained: an

introduction to ReMoDeL by example. Technical

Report, 25 January, University of Sheffield.

https://staffwww.dcs.shef.ac.uk/people/A.Simons/

remodel/current/ReMoDeL_Explained_25Jan23.pdf

Simons, A.J.H. (2023). ReMoDeL compiled: the cross-

compilation of ReMoDeL to Java by example.

Technical Report, 25 January, University of Sheffield.

https://staffwww.dcs.shef.ac.uk/people/A.Simons/

remodel/current/ReMoDeL_Compiled_25Jan23.pdf

TCS: Tata Consultancy Services (2007). ModelMorf, a

model transformer. Now-defunct product website, no

longer available.

Whittle, J., Hutchinson, J. and Rouncefield, M. (2014). The

state of practice in Model-Driven Engineering. IEEE

Software, May-June (Washington: IEEE Computer

Society), 79-85.

Whittle, J., Hutchinson, J., Rouncefield, M., Burden, H. and

Heldal, R. (2017). A taxonomy of tool-related issues

affecting the adoption of model-driven engineering,

Software Systems Modeling, 16 (2), 313-331.

ReMoDeL: A Pure Functional Object-Oriented Concept Language for Models, Metamodels and Model Transformation

249
